Garnett Forsyth 3 TABLE OF CONTENT GARNETT PIAZZA Garent Station i Atlanta i Georgia Big tiny house 1143 terrell mill rd i marietta i Georgia 4 14
Garent Piazza
Garent Station i Atlanta i Georgia
5
The Garnet Piazza is a project based on the premise of affordability and community living. The building is centered around the piazza that was designed to create three phases throughout the day. In the morning, the piazza will act as a farmers market. In the afternoon, the piazza will act as a dinning center/food court. Finally in the evening, the piazza will act as theater. From this, the dwelling units will surround the the piazza to enhance the theater like center. From this, amenities are placed around the building to replace what the limited size unit are missing.

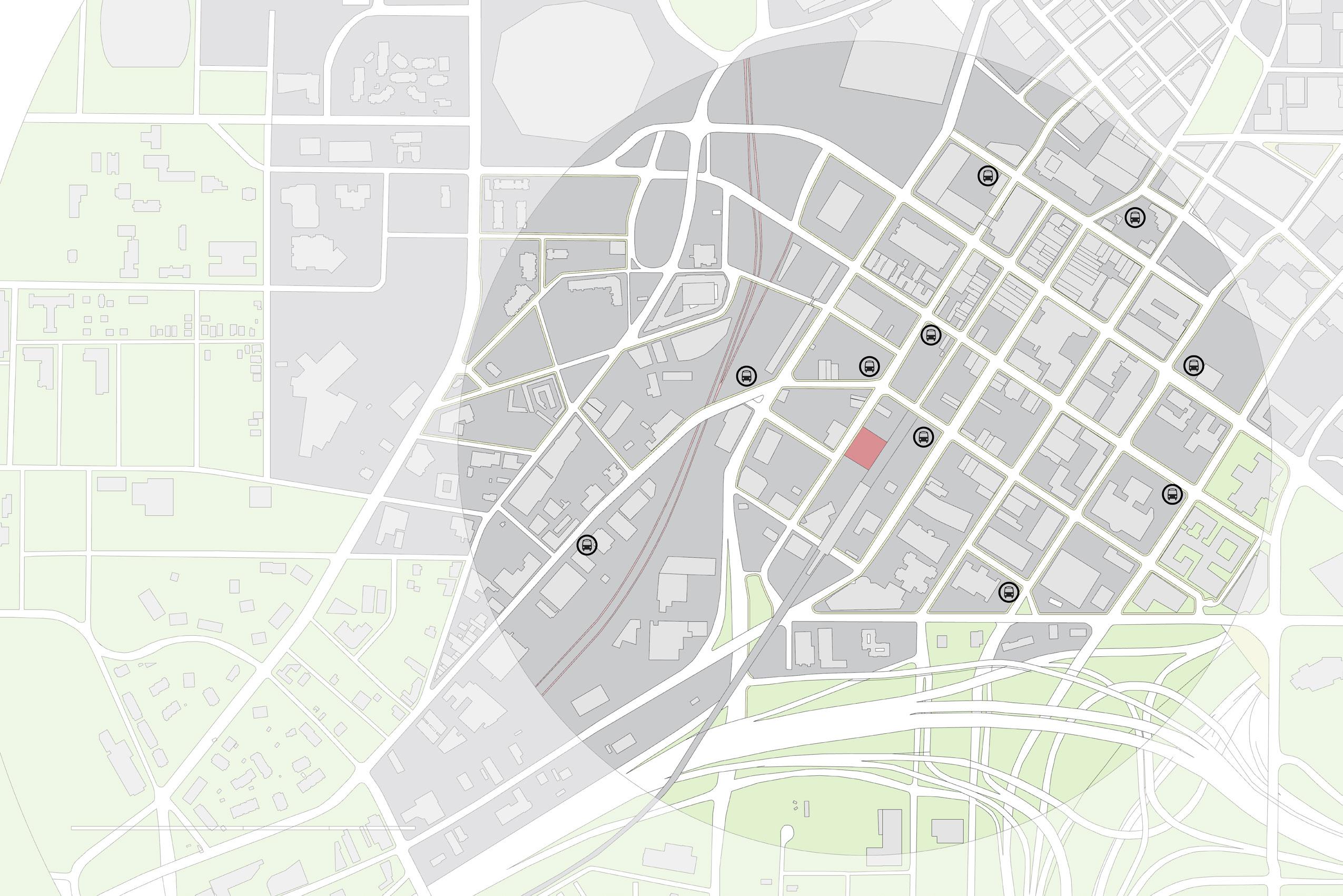

FORSYTHSTSW TED TURNER DR SW COOPER ST SW PEACHTREESTSW PARKPL SOUTHSE EDGEWOOD AVE SE LARKIN PL SW TRENHOLMSTSW HILLSAVESW GREENSFERRY AVE SW ROACH ST SW LAWSHE ST SW SPELMANST SW BROADSTSW ELLIOTT ST SW MANGUM ST SW PRYORSTSW CENTRALAVESW MEMORIAL DR SW RAWSON ST SW EUGENIA ST SW FORMWALT ST SW I-20 I-85 LARKIN ST SW WASHINGTONSTSW PULLIAM ST SW CAPITOLPLSW GARNETTSTSW BROTHERTONSTSW GARNETTSTSW HAYNESSTSW FAIRSTSW CASTLEBERRY ST TRINITY AVE SW 10 MIN WALK TRINITYAVESW NELSONSTSW STONEWALL ST NW NORTHSIDE DR NW BECKWITH ST NW WALNUT ST NW VINE ST NW ELM ST NW JOHN HOPE DR SW MITCHELLSTSW WALLSTSW DECATURSTSE WALTONSTNW POPLARSTNW AUBURENAVENE NELSONSTSW CAPITOLSQUARESW MARTINLUTHERKINGJRDRSW CHAPEL ST SW MARKHIAM ST SW SAMUEL W WILLIAMS S PARSONS ST SW UNIVERSITY PL NW CARTER ST MAPLE ST NW VINE ST NW SUNSET AVE NW UPPERALABAMASTSW FAIRLIEST OFFICE SPACE RESIDENTAL HIGHWAYS Concept
7 exploded axon
Level /roof top Walk
Top
Level
Louver Facade Residental
Amenities Level
Restaurant Level Store Front/
Level 1
The level 1 floor plan is a heavily program based to hide the utility and BOH. Retail stores are placed in the front of the building which gives a strong presence to the Forsyth Street. The Site contains a 12 FT slope wich requires one of the lobbies to offset. The residental gym and loker rooms takes most of the square footage, with residental storage units placed along the east side of the building. Finally the Building has a garage for loading that are availabe to the restuarant, retail stores. and farmers Market.
LEVEL 1 NTS Garnett Forsyth n 1 8 8 12 8 11 11 5 6 6 6 6 7 8 4 9 10 10 3 2 2
residental gym
SIMPLE MASS LAYERS ESTABLISHED PIAZZA/ COURTYARD ESTABLISHED
Garnett Forsyth Garnett Forsyth Garnett Forsyth Garnett Forsyth Garnett Forsyth Garnett Forsyth
OPENS
RESTURANT LEVEL SETS BACK RESIDENTAL LEVEL ENCLOSES 9 1 - MECHANICAL ROOM 2 - GYM LOCKER ROOM 3 - RESIDENTAL GYM 4 - HALLWAY 5 - LOBBY 6 - STORE FRONT RETAIL 7 - OFFSET LOBBY 8 - LOADING TRANSITIONS/ ELEVATOR 9 - RESIDENTAL STORAGE 10 - BOH/STORAGE 11 - MAIL ROOM 12 - ADA RAMP PROGRAMS
BUILDING
TOWARDS INTERSECTION
The dwelling units were designed for a typical fresh college graduate or a small family resident. The units were designed around the premisee of affordability with construction cost being taken into consideration. There are three types of units, Studio Unit, Single Room Unit, and Double Room Unit and were designed in a way that allowed for stacking, so that the building unit pattern changed throughout the building.
Unit Section

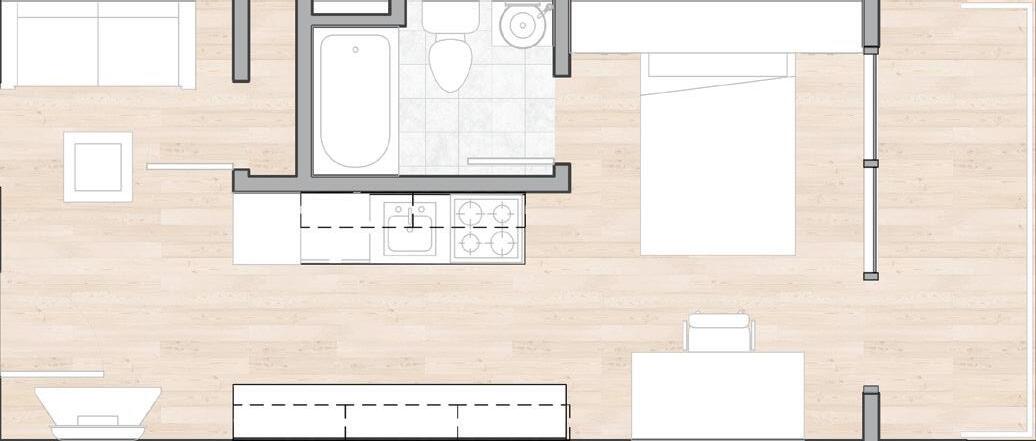

Double RM Single RM Studio RM 770 ft sq 507 ft sq 375 ft sq SINGLE ROOM UNIT Studio Unit DOUBLE ROOM UNIT Section
a b a b
a-a Section b-b
Units
units stacked
11
Balcony
plans & elevations
PROMINADE
piazza entrance
level 2
typical level 3-5

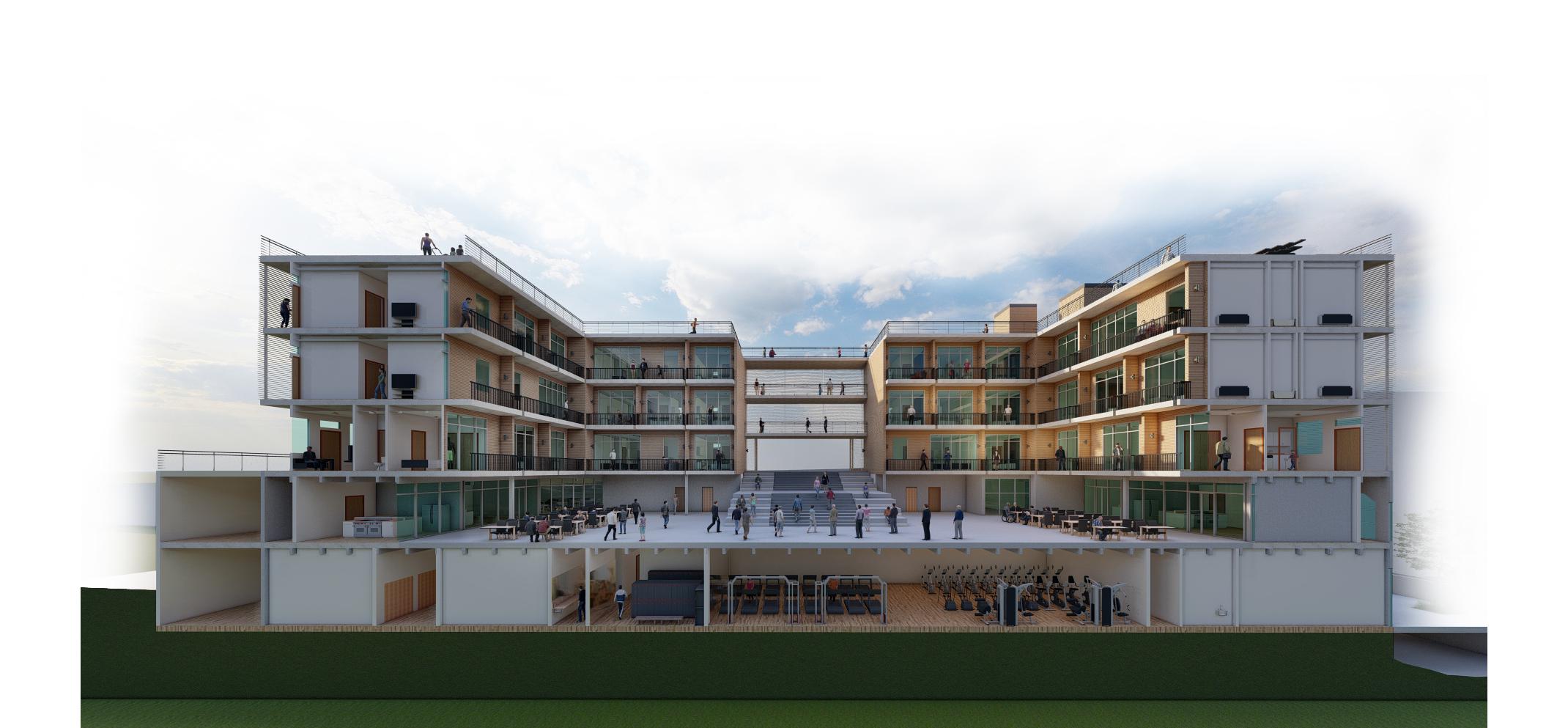

Section and details Callouts
1 2 Section a-a a a 13 Callout 1 Callout 2
PLYWOOD SHEATING FLASHING GUARDRAIL DRAINAGE OPENING 10" WOOD STUD 4" WOOD STUD INSULAT ON WOOD FLOOR FINISH WOOD FLOOR FINISH PLYWOOD SHEATING WOOD I-JOIST GYP BOARD Z NC COPING W OOD F N SH 1/4" SLOPE DRAIN SYSTEM R G D INSULATION PLYW OOD SUBFLOOR STUD
Big tiny house 1143 terrell mill rd i marietta i Georgia
15
The Big Tiny House is a design looking towards the future of short term rental in the mix of basic functionality. The house was made for a 5 person family house with the pontinal growth for more. The building allows for the use of an open plan in the first floor while with the butterfly roofs being used to allow more entrence of daylight.
plans & elevations
PANTRY OFFICE TOOL ROOM OUTSIDE BALCONY LAUNDRY PORCH N
Concept
kitchen & living room level 1
design process
slanted roof system added
Courtyard Established
17
Tiny House Established
Simple Mass
Tiny bedroom closet multipurpose room room room room closet master bedroom master bathroom
studio level 2
tiny house

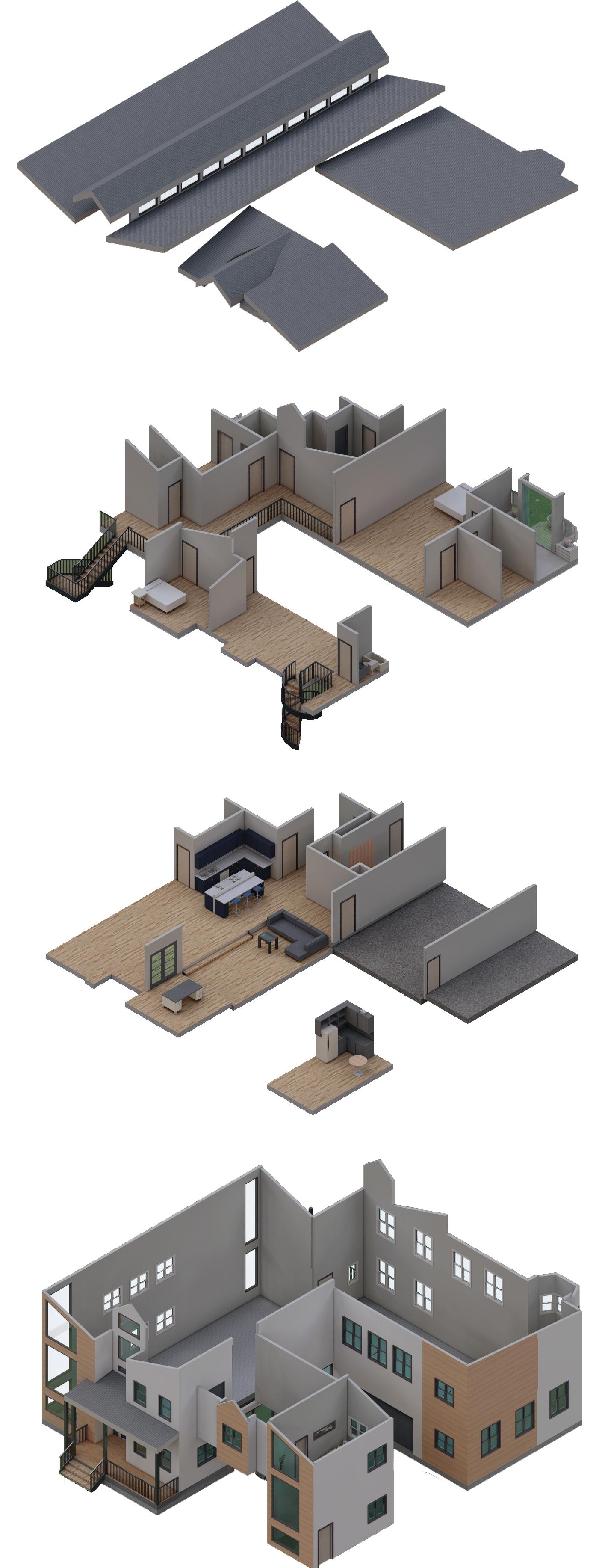

Exploded axon
Slanted
19
Roof : Butterfly Roof System
Level 1 : Public Space/ Living Room
Level 2: Private Function/ Bedrooms
Exterior Walls
