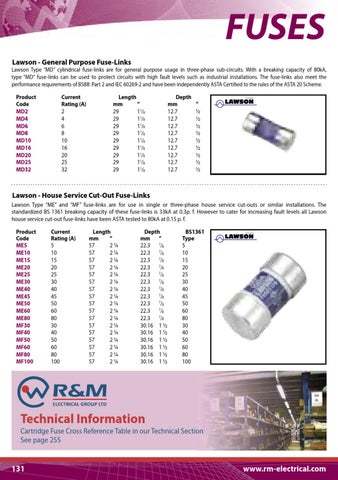

FUSES Lawson - General Purpose Fuse-Links
Lawson Type “MD” cylindrical fuse-links are for general purpose usage in three-phase sub-circuits. With a breaking capacity of 80kA, type “MD” fuse-links can be used to protect circuits with high fault levels such as industrial installations. The fuse-links also meet the performance requirements of BS88: Part 2 and IEC 60269-2 and have been independently ASTA Certified to the rules of the ASTA 20 Scheme. Product Code MD2 MD4 MD6 MD8 MD10 MD16 MD20 MD25 MD32
Current Rating (A) 2 4 6 8 10 16 20 25 32
Length mm “ 29 11/8 29 11/8 29 11/8 29 11/8 29 11/8 29 11/8 29 11/8 29 11/8 29 11/8
Depth mm 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
FUSES
” ½ ½ ½ ½ ½ ½ ½ ½ ½
Lawson - House Service Cut-Out Fuse-Links Lawson Type “ME” and “MF” fuse-links are for use in single or three-phase house service cut-outs or similar installations. The standardized BS 1361 breaking capacity of these fuse-links is 33kA at 0.3p. f. However to cater for increasing fault levels all Lawson house service cut-out fuse-links have been ASTA tested to 80kA at 0.15 p. f. Product Code ME5 ME10 ME15 ME20 ME25 ME30 ME40 ME45 ME50 ME60 ME80 MF30 MF40 MF50 MF60 MF80 MF100
Current Rating (A) 5 10 15 20 25 30 40 45 50 60 80 30 40 50 60 80 100
Length mm “ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼ 57 2 ¼
Depth BS1361 mm ” Type 5 22.3 7/8 10 22.3 7/8 15 22.3 7/8 7 /8 20 22.3 25 22.3 7/8 30 22.3 7/8 40 22.3 7/8 7 /8 45 22.3 50 22.3 7/8 60 22.3 7/8 80 22.3 7/8 30.16 1 ½ 30 30.16 1 ½ 40 30.16 1 ½ 50 30.16 1 ½ 60 30.16 1 ½ 80 30.16 1 ½ 100
FUSES
Technical Information Cartridge Fuse Cross Reference Table in our Technical Section See page 255
