TKF Marine Cables at R&M R&M Electrical Group are pleased to be appointed as the UK’s sole stockist of the TKF Marine Cables. TKF has a heritage of being a key European manufacturer with an 80 year history of cable production. From their site in Haaksbergen, Holland it is the largest European production facility with multi-discipline cable production. The ranges of MarineLine, MarineLine+, MarineFlex, MarinePower, MarineCom and MarineSignal represent highly engineered designs in full compliance with International Standards, but with the essence on ‘design’ offering reduced dimensions and weight, for tray loading optimisation and weight savings! One significant key feature of all braided cables is that they have Tinned Copper braid to enhance the corrosion resistance in such harsh environments, unlike many other manufacturers. For ease of installation, we have the MarineFlex range which has Class 5 (multi-stranded conductors) allowing for such tighter radii and thus reducing space.

The Fire resistant types are designed and manufactured to the latest revisions of IEC 60331 standard(s) now includingFire and Mechanical shock at the highest test temperature of 830°C (-0/+40) with the cable tested in a ‘stressed’ position. Many other manufacturers adopting the earlier standard (IEC 60331-21) tested in an ‘un-stressed’ formation only at 750°C and without mechanical shocks during the tests.

As you would expect, TKF hold all major type approvals and certificates (copies available on request) by Det Norsk Veritas (DNV), Lloyds Register of Shipping (LRS), American Bureau of Shipping (ABS) and Bureau Veritas (BV) & RMRS.

Key attributes of our cables • Full Marine Approvals. • Cables designed for ease of installation, thus reducing costs. • Reduced weight and dimension by design. • Flexible range without reduction to current carrying capacities. • Superior corrosion resistance braided range. • 100% European manufactured. • Unrivalled stock range and quantities held.

www.rm-electrical.com


TKF Marine Cables - Cutting & Labeling The Cable market is a fast moving market where pressure on efficiency and cost reduction is high. Planning times are tight and delays are costly. The amount of cables needed for a project can reach hundreds of kilometers. The need for efficiency, ease of installation and cost reduction emphasises the importance of service concepts that allow customers to focus on project delivery. R&M utilises a logistic service concept which supports our clients during cable installation.

R&M’s cutting & labeling service has more than 400 reel positions making it possible to cut & label cables on a large scale. This means that cables are delivered at the exact lengths needed and labeled with detailed information about the installation location. Main advantages of this concept are cost reduction due to purchase efficiency, no stock, no storage, no waste and faster installation. Early involvement in the design process allows R&M to plan ahead stock availability. Detailed information from engineers about cable lengths, types and diameters is gathered to compile a standardized list which is used for the final label. The customer decides what information will be added for the installer to ease the installation. In our specially equipped cutting & labeling hall, the cables are cut, labeled and packaged. Packaging plays an important role in this concept, cables are sorted by route and labeled with the necessary details for the installer about the cable and the location. This results in 25% faster installation and less errors. Combined with planning, the cables are delivered just in – time. No stock is needed on location, resulting in lower costs and reduced risk.

www.rm-electrical.com

SERVICE ADVANTAGES • No stock, no waste, no site storage • Just-in-time delivery • Reduction cost of failures • 25% faster installation • Efficiency • Industrialized – traceability of cables • Flexibility


4

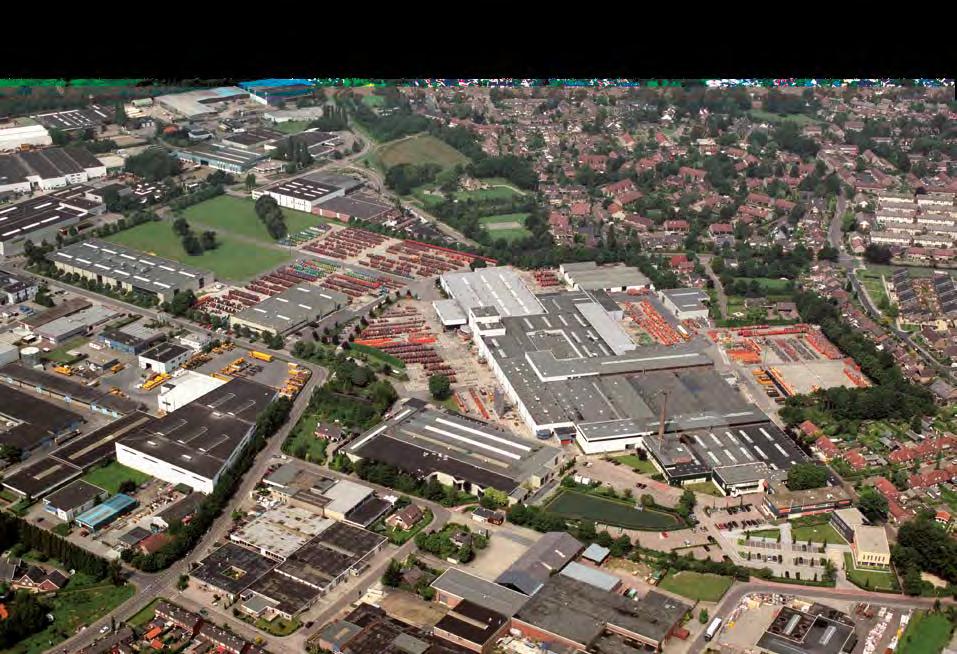

TKF TECHNOLOGICAL LEADERSHIP IN CONNECTIVITY SOLUTIONS Since its establishment in 1930 TKF developed from a cable producer to a leading supplier of connectivity solutions located in the Netherlands. A broad range of cables, systems and services enables us to provide our customers worldwide with safe and reliable power and data connections. Due to a focused commitment, TKF is distinguished by specialized application knowledge and solutions with a high degree of reliability, quality and service. Specialized technical know-how and flexibility lead to a high return on investment for our customers. TKF is characterized by continuous investment in customer relations, quality and supplementary services, resulting in sustainable cable solutions and long-term and successful relationships. It goes without saying that we offer our customized solutions with respect for people and environment. Being part of the technology company TKH Group NV, TKF has access to breakthrough solutions, concepts and technologies.

More than 85 years of experience

Our market segmentation Building Solutions »» Building »» Energy »» Infrastructure »» Renewable »» Rail infra

Industrial Solutions »» Industry »» Marine & offshore »» Oil, gas & petrochemical

Our core values Telecom Solutions »» Telecom

»» Innovativeness »» Maximum reliability »» Outstanding quality »» High service degree »» Corporate Social Responsibility
