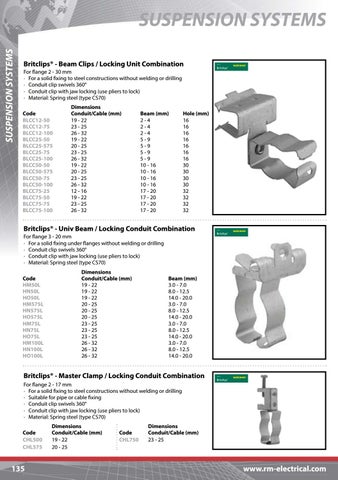

SUSPENSION SYSTEMS
SUSPENSION SYSTEMS Britclips® - Beam Clips / Locking Unit Combination For flange 2 - 30 mm • For a solid fixing to steel constructions without welding or drilling • Conduit clip swivels 360° • Conduit clip with jaw locking (use pliers to lock) • Material: Spring steel (type CS70) Code BLCC12-50 BLCC12-75 BLCC12-100 BLCC25-50 BLCC25-575 BLCC25-75 BLCC25-100 BLCC50-50 BLCC50-575 BLCC50-75 BLCC50-100 BLCC75-25 BLCC75-50 BLCC75-75 BLCC75-100
Dimensions Conduit/Cable (mm) Beam (mm) 19 - 22 2 - 4 23 - 25 2 - 4 26 - 32 2 - 4 19 - 22 5 - 9 20 - 25 5 - 9 23 - 25 5 - 9 26 - 32 5 - 9 19 - 22 10 - 16 20 - 25 10 - 16 23 - 25 10 - 16 26 - 32 10 - 16 12 - 16 17 - 20 19 - 22 17 - 20 23 - 25 17 - 20 26 - 32 17 - 20
Hole (mm) 16 16 16 16 16 16 16 30 30 30 30 32 32 32 32
Britclips® - Univ Beam / Locking Conduit Combination For flange 3 - 20 mm • For a solid fixing under flanges without welding or drilling • Conduit clip swivels 360° • Conduit clip with jaw locking (use pliers to lock) • Material: Spring steel (type CS70) Code HM50L HN50L HO50L HM575L HN575L HO575L HM75L HN75L HO75L HM100L HN100L HO100L
Dimensions Conduit/Cable (mm) Beam (mm) 19 - 22 3.0 - 7.0 19 - 22 8.0 - 12.5 19 - 22 14.0 - 20.0 20 - 25 3.0 - 7.0 20 - 25 8.0 - 12.5 20 - 25 14.0 - 20.0 23 - 25 3.0 - 7.0 23 - 25 8.0 - 12.5 23 - 25 14.0 - 20.0 26 - 32 3.0 - 7.0 26 - 32 8.0 - 12.5 26 - 32 14.0 - 20.0
Britclips® - Master Clamp / Locking Conduit Combination For flange 2 - 17 mm • For a solid fixing to steel constructions without welding or drilling • Suitable for pipe or cable fixing • Conduit clip swivels 360° • Conduit clip with jaw locking (use pliers to lock) • Material: Spring steel (type CS70) Code CHL500 CHL575
135
Dimensions Conduit/Cable (mm) 19 - 22 20 - 25
Code CHL750
Dimensions Conduit/Cable (mm) 23 - 25
