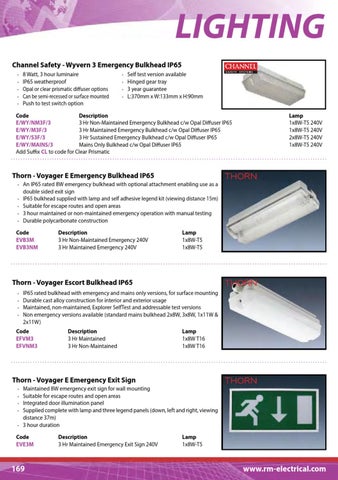

LIGHTING Channel Safety - Wyvern 3 Emergency Bulkhead IP65
• • • • •
8 Watt, 3 hour luminaire IP65 weatherproof Opal or clear prismatic diffuser options Can be semi-recessed or surface mounted Push to test switch option
• • • •
Self test version available Hinged gear tray 3 year guarantee L:370mm x W:133mm x H:90mm
Code Description E/WY/NM3F/3 3 Hr Non-Maintained Emergency Bulkhead c/w Opal Diffuser IP65 E/WY/M3F/3 3 Hr Maintained Emergency Bulkhead c/w Opal Diffuser IP65 E/WY/S3F/3 3 Hr Sustained Emergency Bulkhead c/w Opal Diffuser IP65 E/WY/MAINS/3 Mains Only Bulkhead c/w Opal Diffuser IP65 Add Suffix CL to code for Clear Prismatic
Lamp 1x8W-T5 240V 1x8W-T5 240V 2x8W-T5 240V 1x8W-T5 240V
Thorn - Voyager E Emergency Bulkhead IP65 • • • • •
An IP65 rated 8W emergency bulkhead with optional attachment enabling use as a double sided exit sign IP65 bulkhead supplied with lamp and self adhesive legend kit (viewing distance 15m) Suitable for escape routes and open areas 3 hour maintained or non-maintained emergency operation with manual testing Durable polycarbonate construction
Code EVB3M EVB3NM
Description 3 Hr Non-Maintained Emergency 240V 3 Hr Maintained Emergency 240V
Lamp 1x8W-T5 1x8W-T5
Thorn - Voyager Escort Bulkhead IP65 • • • •
IP65 rated bulkhead with emergency and mains only versions, for surface mounting Durable cast alloy construction for interior and exterior usage Maintained, non-maintained, Explorer SelfTest and addressable test versions Non emergency versions available (standard mains bulkhead 2x8W, 3x8W, 1x11W & 2x11W)
Code EFVM3 EFVNM3
Description 3 Hr Maintained 3 Hr Non-Maintained
Lamp 1x8W T16 1x8W T16
Thorn - Voyager E Emergency Exit Sign • • • • •
Maintained 8W emergency exit sign for wall mounting Suitable for escape routes and open areas Integrated door illumination panel Supplied complete with lamp and three legend panels (down, left and right, viewing distance 37m) 3 hour duration
Code EVE3M
169
Description 3 Hr Maintained Emergency Exit Sign 240V
Lamp 1x8W-T5
