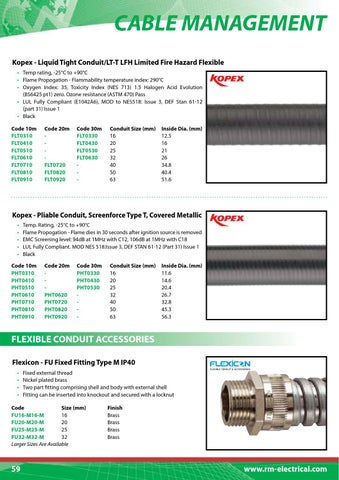

CABLE MANAGEMENT Kopex - Liquid Tight Conduit/LT-T LFH Limited Fire Hazard Flexible • • • • •
Temp rating, -25°C to +90°C Flame Propogation - Flammability temperature index: 290°C Oxygen Index: 35, Toxicity Index (NES 713) 1.5 Halogen Acid Evolution (BS6425 pt1) zero. Ozone resistance (ASTM 470) Pass LUL Fully Compliant (E1042A6), MOD to NES518: Issue 3, DEF Stan 61-12 (part 31) Issue 1 Black
Code 10m FLT0310 FLT0410 FLT0510 FLT0610 FLT0710 FLT0810 FLT0910
Code 20m - - - - FLT0720 FLT0820 FLT0920
Code 30m FLT0330 FLT0430 FLT0530 FLT0630 - - -
Conduit Size (mm) 16 20 25 32 40 50 63
Inside Dia. (mm) 12.5 16 21 26 34.8 40.4 51.6
Kopex - Pliable Conduit, Screenforce Type T, Covered Metallic
• • • • •
Temp. Rating, -25°C to +90°C Flame Propogation - Flame dies in 30 seconds after ignition source is removed EMC Screening level: 94dB at 1MHz with C12, 106dB at 1MHz with C18 LUL Fully Compliant. MOD NES 518:Issue 3, DEF STAN 61-12 (Part 31) Issue 1 Black
Code 10m PHT0310 PHT0410 PHT0510 PHT0610 PHT0710 PHT0810 PHT0910
Code 20m - - - PHT0620 PHT0720 PHT0820 PHT0920
Code 30m PHT0330 PHT0430 PHT0530 - - - -
Conduit Size (mm) 16 20 25 32 40 50 63
Inside Dia. (mm) 11.6 14.6 20.4 26.7 32.8 45.3 56.3
FLEXIBLE CONDUIT ACCESSORIES Flexicon - FU Fixed Fitting Type M IP40
• • • •
Fixed external thread Nickel plated brass Two part fitting comprising shell and body with external shell Fitting can be inserted into knockout and secured with a locknut
Code Size (mm) FU16-M16-M 16 FU20-M20-M 20 FU25-M25-M 25 FU32-M32-M 32 Larger Sizes Are Available
59
Finish Brass Brass Brass Brass
