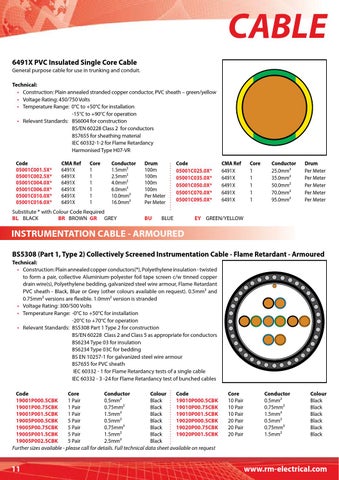

CABLE 6491X PVC Insulated Single Core Cable General purpose cable for use in trunking and conduit. Technical: • Construction: Plain annealed stranded copper conductor, PVC sheath – green/yellow • Voltage Rating: 450/750 Volts • Temperature Range: 0°C to +50°C for installation -15°C to +90°C for operation • Relevant Standards: BS6004 for construction BS/EN 60228 Class 2 for conductors BS7655 for sheathing material IEC 60332-1-2 for Flame Retardancy Harmonised Type H07-VR Code 05001C001.5X* 05001C002.5X* 05001C004.0X* 05001C006.0X* 05001C010.0X* 05001C016.0X*
CMA Ref 6491X 6491X 6491X 6491X 6491X 6491X
Core 1 1 1 1 1 1
Conductor 1.5mm² 2.5mm² 4.0mm² 6.0mm² 10.0mm² 16.0mm²
Substitute * with Colour Code Required BL BLACK BR BROWN GR GREY
Drum 100m 100m 100m 100m Per Meter Per Meter BU
Code 05001C025.0X* 05001C035.0X* 05001C050.0X* 05001C070.0X* 05001C095.0X*
BLUE
CMA Ref 6491X 6491X 6491X 6491X 6491X
Core 1 1 1 1 1
Conductor 25.0mm² 35.0mm² 50.0mm² 70.0mm² 95.0mm²
Drum Per Meter Per Meter Per Meter Per Meter Per Meter
EY GREEN/YELLOW
INSTRUMENTATION CABLE - ARMOURED BS5308 (Part 1, Type 2) Collectively Screened Instrumentation Cable - Flame Retardant - Armoured Technical: • Construction: Plain annealed copper conductors(*), Polyethylene insulation - twisted to form a pair, collective Aluminium-polyester foil tape screen c/w tinned copper drain wire(s), Polyethylene bedding, galvanized steel wire armour, Flame Retardant PVC sheath - Black, Blue or Grey (other colours available on request). 0.5mm² and 0.75mm² versions are flexible. 1.0mm² version is stranded • Voltage Rating: 300/500 Volts • Temperature Range: -0°C to +50°C for installation -20°C to +70°C for operation • Relevant Standards: BS5308 Part 1 Type 2 for construction BS/EN 60228 Class 2 and Class 5 as appropriate for conductors BS6234 Type 03 for insulation BS6234 Type 03C for bedding BS EN 10257-1 for galvanized steel wire armour BS7655 for PVC sheath IEC 60332 - 1 for Flame Retardancy tests of a single cable IEC 60332 - 3 -24 for Flame Retardancy test of bunched cables Code Core Conductor Colour Code 19001P000.5CBK 1 Pair 0.5mm² Black 19010P000.5CBK 19001P00.75CBK 1 Pair 0.75mm² Black 19010P00.75CBK 19001P001.5CBK 1 Pair 1.5mm² Black 19010P001.5CBK 19005P000.5CBK 5 Pair 0.5mm² Black 19020P000.5CBK 19005P00.75CBK 5 Pair 0.75mm² Black 19020P00.75CBK 19005P001.5CBK 5 Pair 1.5mm² Black 19020P001.5CBK 19005P002.5CBK 5 Pair 2.5mm² Black Further sizes available - please call for details. Full technical data sheet available on request
11
Core 10 Pair 10 Pair 10 Pair 20 Pair 20 Pair 20 Pair
Conductor 0.5mm² 0.75mm² 1.5mm² 0.5mm² 0.75mm² 1.5mm²
Colour Black Black Black Black Black Black
