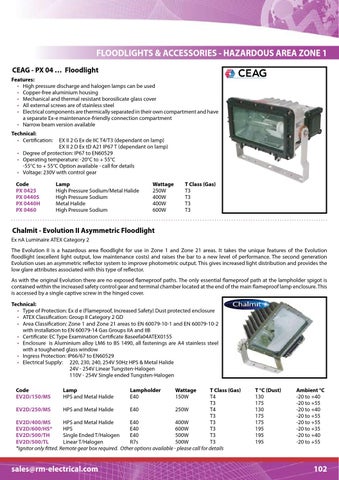

FLOODLIGHTS & ACCESSORIES - HAZARDOUS AREA ZONE 1 CEAG - PX 04 … Floodlight Features: • High pressure discharge and halogen lamps can be used • Copper-free aluminium housing • Mechanical and thermal resistant borosilicate glass cover • All external screws are of stainless steel • Electrical components are thermically separated in their own compartment and have a separate Ex-e maintenance-friendly connection compartment • Narrow beam version available Technical: • Certification: EX II 2 G Ex de IIC T4/T3 (dependant on lamp) EX II 2 D Ex tD A21 IP67 T (dependant on lamp) • Degree of protection: IP67 to EN60529 • Operating temperature: -20°C to + 55°C -55°C to + 55°C Option available - call for details • Voltage: 230V with control gear Code PX 0425 PX 0440S PX 0440H PX 0460
Lamp High Pressure Sodium/Metal Halide High Pressure Sodium Metal Halide High Pressure Sodium
Wattage 250W 400W 400W 600W
T Class (Gas) T3 T3 T3 T3
Chalmit - Evolution II Asymmetric Floodlight Ex nA Luminaire ATEX Category 2 The Evolution II is a hazardous area floodlight for use in Zone 1 and Zone 21 areas. It takes the unique features of the Evolution floodlight (excellent light output, low maintenance costs) and raises the bar to a new level of performance. The second generation Evolution uses an asymmetric reflector system to improve photometric output. This gives increased light distribution and provides the low glare attributes associated with this type of reflector. As with the original Evolution there are no exposed flameproof paths. The only essential flameproof path at the lampholder spigot is contained within the increased safety control gear and terminal chamber located at the end of the main flameproof lamp enclosure. This is accessed by a single captive screw in the hinged cover. Technical: • Type of Protection: Ex d e (Flameproof, Increased Safety) Dust protected enclosure • ATEX Classification: Group II Category 2 GD • Area Classification: Zone 1 and Zone 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 Gas Groups IIA and IIB • Certificate: EC Type Examination Certificate Baseefa04ATEX0155 • Enclosure is Aluminium alloy LM6 to BS 1490, all fastenings are A4 stainless steel with a toughened glass window • Ingress Protection: IP66/67 to EN60529 • Electrical Supply: 220, 230, 240, 254V 50Hz HPS & Metal Halide 24V - 254V Linear Tungsten-Halogen 110V - 254V Single ended Tungsten-Halogen Code Lamp Lampholder Wattage T Class (Gas) EV2D/150/MS HPS and Metal Halide E40 150W T4 T3 EV2D/250/MS HPS and Metal Halide E40 250W T4 T3 EV2D/400/MS HPS and Metal Halide E40 400W T3 EV2D/600/HS* HPS E40 600W T3 EV2D/500/TH Single Ended T/Halogen E40 500W T3 EV2D/500/TL Linear T/Halogen R7s 500W T3 *Ignitor only fitted. Remote gear box required. Other options available - please call for details
sales@rm-electrical.com
T °C (Dust) 130 175 130 175 175 195 195 195
Ambient °C -20 to +40 -20 to +55 -20 to +40 -20 to +55 -20 to +55 -20 to +35 -20 to +40 -20 to +55
102
