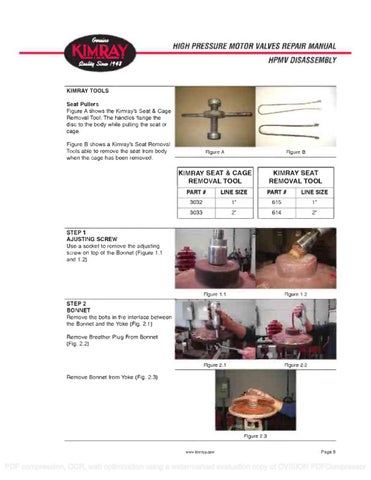

HIGH PRESSURE MOTOR VALVES REPAIR MANUAL
HPMV DISASSEMBLY
KIM RAY TOOLS
Seal Pullers Figure A shows the Kimray's Seat & Cage Removal Tool. The handles flange the disc to the body while pulling the seat or cage.
Figure B shows a Kimray's Seat Removal Tools able to remove the seat from body when the cage has been removed.
Figure
Figure A
KIMRAY SEAT & CAGE REMOVAL TOOL PART #
LINE SIZE
3032
1"
3033
KIMRAY SEAT REMOVAL TOOL LINE SIZE
PART
615
1"
614
2'
STEP 1 AJUSTING SCREW
Use a socket to remove the adjusting screw on top of the Bonnet (Figure 1.1 and 1.2)
Figure 1.2
Figure 1.1
STEP 2 BONNET
Remove the bolts in the interface between the Bonnet and the Yoke (Fig. 2.1) Remove Breather Plug From Bonnet (Fig. 2.2)
Figure 2.1
figure
Remove Bonnet from Yoke (Fig. 2.3)
Figure 2.3 www.kirnray.com
Page 9
