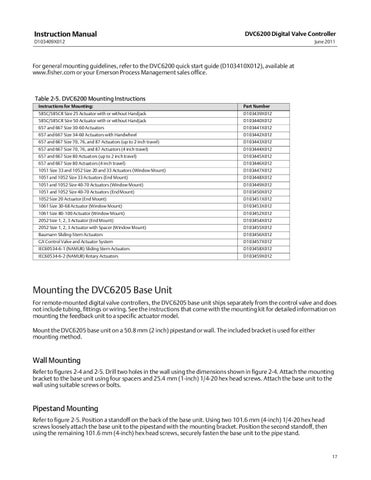

For general mounting guidelines, refer to the DVC6200 quick start guide (D103410X012), available at www.fisher.com or your Emerson Process Management sales office.
Table 2‐5. DVC6200 Mounting Instructions Instructions for Mounting:
Part Number
585C/585CR Size 25 Actuator with or without Handjack
D103439X012
585C/585CR Size 50 Actuator with or without Handjack
D103440X012
657 and 667 Size 30-60 Actuators
D103441X012
657 and 667 Size 34-60 Actuators with Handwheel
D103442X012
657 and 667 Size 70, 76, and 87 Actuators (up to 2 inch travel)
D103443X012
657 and 667 Size 70, 76, and 87 Actuators (4 inch travel)
D103444X012
657 and 667 Size 80 Actuators (up to 2 inch travel)
D103445X012
657 and 667 Size 80 Actuators (4 inch travel)
D103446X012
1051 Size 33 and 1052 Size 20 and 33 Actuators (Window Mount)
D103447X012
1051 and 1052 Size 33 Actuators (End Mount)
D103448X012
1051 and 1052 Size 40-70 Actuators (Window Mount)
D103449X012
1051 and 1052 Size 40-70 Actuators (End Mount)
D103450X012
1052 Size 20 Actuator (End Mount)
D103451X012
1061 Size 30-68 Actuator (Window Mount)
D103453X012
1061 Size 80-100 Actuator (Window Mount)
D103452X012
2052 Size 1, 2, 3 Actuator (End Mount)
D103454X012
2052 Size 1, 2, 3 Actuator with Spacer (Window Mount)
D103455X012
Baumann Sliding‐Stem Actuators
D103456X012
GX Control Valve and Actuator System
D103457X012
IEC60534‐6‐1 (NAMUR) Sliding Stem Actuators
D103458X012
IEC60534‐6‐2 (NAMUR) Rotary Actuators
D103459X012
Mounting the DVC6205 Base Unit For remote‐mounted digital valve controllers, the DVC6205 base unit ships separately from the control valve and does not include tubing, fittings or wiring. See the instructions that come with the mounting kit for detailed information on mounting the feedback unit to a specific actuator model. Mount the DVC6205 base unit on a 50.8 mm (2 inch) pipestand or wall. The included bracket is used for either mounting method.
Wall Mounting Refer to figures 2‐4 and 2‐5. Drill two holes in the wall using the dimensions shown in figure 2‐4. Attach the mounting bracket to the base unit using four spacers and 25.4 mm (1‐inch) 1/4‐20 hex head screws. Attach the base unit to the wall using suitable screws or bolts.
Pipestand Mounting Refer to figure 2‐5. Position a standoff on the back of the base unit. Using two 101.6 mm (4‐inch) 1/4‐20 hex head screws loosely attach the base unit to the pipestand with the mounting bracket. Position the second standoff, then using the remaining 101.6 mm (4‐inch) hex head screws, securely fasten the base unit to the pipe stand.
