15-43
Diagnostics

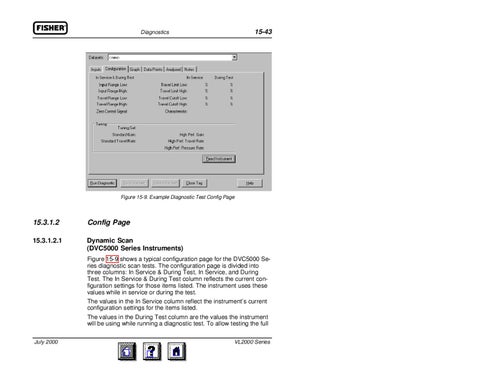

Figure 15-9. Example Diagnostic Test Config Page
15.3.1.2
Config Page
15.3.1.2.1
Dynamic Scan (DVC5000 Series Instruments) Figure 15-9 shows a typical configuration page for the DVC5000 Series diagnostic scan tests. The configuration page is divided into three columns: In Service & During Test, In Service, and During Test. The In Service & During Test column reflects the current configuration settings for those items listed. The instrument uses these values while in service or during the test. The values in the In Service column reflect the instrument’s current configuration settings for the items listed. The values in the During Test column are the values the instrument will be using while running a diagnostic test. To allow testing the full
July 2000
VL2000 Series
