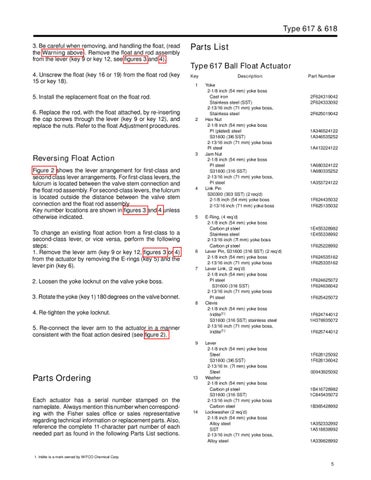

Type 617 & 618 3. Be careful when removing, and handling the float, (read the Warning above). Remove the float and rod assembly from the lever (key 9 or key 12, see figures 3 and 4).
Parts List
4. Unscrew the float (key 16 or 19) from the float rod (key 15 or key 18).
Key
Type 617 Ball Float Actuator 1
5. Install the replacement float on the float rod. 6. Replace the rod, with the float attached, by re-inserting the cap screws through the lever (key 9 or key 12), and replace the nuts. Refer to the float Adjustment procedures.
Reversing Float Action Figure 2 shows the lever arrangement for first-class and second class lever arrangements. For first-class levers, the fulcrum is located between the valve stem connection and the float rod assembly. For second-class levers, the fulcrum is located outside the distance between the valve stem connection and the float rod assembly Key number locations are shown in figures 3 and 4 unless otherwise indicated. To change an existing float action from a first-class to a second-class lever, or vice versa, perform the following steps: 1. Remove the lever arm (key 9 or key 12, figures 3 or 4) from the actuator by removing the E-rings (key 5) and the lever pin (key 6).
2
3
4
5
6
7
2. Loosen the yoke locknut on the valve yoke boss. 3. Rotate the yoke (key 1) 180 degrees on the valve bonnet. 8
4. Re-tighten the yoke locknut. 5. Re-connect the lever arm to the actuator in a manner consistent with the float action desired (see figure 2). 9
Parts Ordering Each actuator has a serial number stamped on the nameplate. Always mention this number when corresponding with the Fisher sales office or sales representative regarding technical information or replacement parts. Also, reference the complete 11-character part number of each needed part as found in the following Parts List sections.
13
14
Description Yoke 2-1/8 inch (54 mm) yoke boss Cast iron Stainless steel (SST) 2-13/16 inch (71 mm) yoke boss, Stainless steel Hex Nut 2-1/8 inch (54 mm) yoke boss Pl (plated) steel S31600 (3l6 SST) 2-13/16 inch (71 mm) yoke boss Pl steel Jam Nut 2-1/8 inch (54 mm) yoke boss Pl steel S31600 (316 SST) 2-13/16 inch (71 mm) yoke boss, Pl steel Link Pin S30300 (303 SST) (2 req’d) 2-1/8 inch (54 mm) yoke boss 2-13/16 inch (71 mm) yoke boss E-Ring, (4 req’d) 2-1/8 inch (54 mm) yoke boss Carbon pl steel Stainless steel 2-13/16 inch (7l mm) yoke boss Carbon pl steel Lever Pin, S31600 (316 SST) (2 req’d) 2-1/8 inch (54 mm) yoke boss 2-13/16 inch (71 mm) yoke boss Lever Link, (2 req’d) 2-1/8 inch (54 mm) yoke boss Pl steel S31600 (316 SST) 2-13/16 inch (71 mm) yoke boss Pl steel Clevis 2-1/8 inch (54 mm) yoke boss Iridite(1) S31600 (316 SST) stainless steel 2-13/16 inch (71 mm) yoke boss, Iridite(1) Lever 2-1/8 inch (54 mm) yoke boss Steel S31600 (3l6 SST) 2-13/16 ln. (7l mm) yoke boss Steel Washer 2-1/8 inch (54 mm) yoke boss Carbon pl steel S31600 (316 SST) 2-13/16 inch (71 mm) yoke boss Carbon steel Lockwasher (2 req’d) 2-1/8 inch (54 mm) yoke boss Alloy steel SST 2-13/16 inch (71 mm) yoke boss, Alloy steel
Part Number
2F624319042 2F624333092 2F625019042
1A346524122 1A346535252 1A413224122
1A680324122 1A680335252 1A353724122
1F624435032 1F625135032
1E455328982 1E455338992 1F625228992 1F624535162 1F625335162
1F624625072 1F624636042 1F625425072
1F624744012 1H376935072 1F625744012
1F628125092 1F628136042 00943925092
1B416728982 1C845435072 1B365428992
1A352332992 1A518838992 1A339828992
1. Iridite is a mark owned by WITCO Chemical Corp.
5
