4200 Series
APPLY LUBRICANT 49A7766-B / DOC

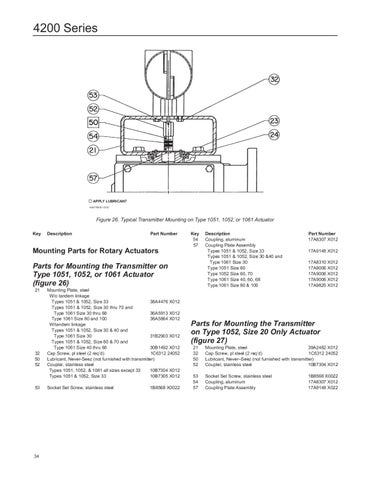

Figure 26. Typical Transmitter Mounting on Type 1051, 1052, or 1061 Actuator Key
Description
Part Number
Key 54 57
Mounting Parts for Rotary Actuators
Parts for Mounting the Transmitter on Type 1051, 1052, or 1061 Actuator (figure 26) 21
32 50 52
53
34
Mounting Plate, steel W/o tandem linkage Types 1051 & 1052, Size 33 38A4476 X012 Types 1051 & 1052, Size 30 thru 70 and Type 1061 Size 30 thru 68 36A5913 X012 Type 1061 Size 80 and 100 38A5864 X012 W/tandem linkage Types 1051 & 1052, Size 30 & 40 and Type 1061 Size 30 31B2903 X012 Types 1051 & 1052, Size 60 & 70 and Type 1061 Size 40 thru 68 30B1492 X012 Cap Screw, pl steel (2 req’d) 1C6312 24052 Lubricant, Never-Seez (not furnished with transmitter) Coupler, stainless steel Types 1051, 1052, & 1061 all sizes except 33 10B7304 X012 Types 1051 & 1052, Size 33 10B7305 X012 Socket Set Screw, stainless steel
1B8568 X0022
Description Coupling, aluminum Coupling Plate Assembly Types 1051 & 1052, Size 33 Types 1051 & 1052, Size 30 &40 and Type 1061 Size 30 Type 1051 Size 60 Type 1052 Size 60, 70 Type 1061 Size 40, 60, 68 Type 1061 Size 80 & 100
Part Number 17A8307 X012 17A9148 X012 17A8310 X012 17A9006 X012 17A9006 X012 17A9006 X012 17A9825 X012
Parts for Mounting the Transmitter on Type 1052, Size 20 Only Actuator (figure 27) 21 32 50 52
Mounting Plate, steel 39A2482 X012 Cap Screw, pl steel (2 req’d) 1C6312 24052 Lubricant, Never–Seez (not furnished with transmitter) Coupler, stainless steel 10B7304 X012
53 54 57
Socket Set Screw, stainless steel Coupling, aluminum Coupling Plate Assembly
1B8568 X0022 17A8307 X012 17A9148 X022
