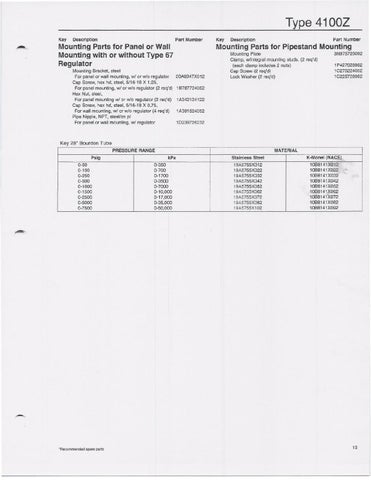

Type 4100Z Key
Description
Part Number
Key
Mounting Parts for Panel or Wall Mounting with or without Type 67 Regulator
Description
Part Number
Mounting Parts for Pipestand Mounting Mounting Plate Clamp, wlintegral mounting studs. (2 req'd) (each clamp includes 2 nuts) Cap Screw (2 req'd) Lock Washer (2 req'd)
Mounting Bracket, steel For panel or wall mounting, wI or wlo regulator 20A8947X012 Cap Screw, hex hd, steel, 5/16-18 X 1.25, For panel mounting, wI or wlo regulator (2 req'd) 1B787724052 Hex Nut, steel, For panel mounting wI or wlo regulator (2 req'd) 1A342124122 Cap Screw, hex hd, steel, 5/16-18 X 0.75, For wall mounting, wI or wlo regulator (4 req'd) 1A381624052 Pipe Nipple, NPT, steel/zn pi For panel or wall mounting, wI regulator 1D239726232
3N975725092 1P427028982 1C275224052 1C225728982
Key 28* Bourdon Tube MATERIAL
PRESSURE RANGE Psig 0-50 0-100 0-250 0-500 0-1000 0-1500 0-2500 0-5000 0-7500
"'Recommended
spare parts
kPa 0-350 0-700 0-1700 0-3500 0-7000 0-10,000 0-17,000 0-35,000 0-50,000
I
I , I
I
Stainless Steel
K-Monel (NACE)
19A5755X012 19A5755X022 19A5755X032 19A5755X042 19A5755X052 19A5755X062 19A5755X072 19A5755X082 19A5755X102
10B8141X012 10B8141X022 10B8141X032 10B8141X042 10B8141X052 10B8141X062 10B8141X072 10B8141X082 10B8141X092
13
