Type 1061 Styles F & G
NOTES: KEYS 55, 56 AND 87 ARE NOT SHOWN APPLY LUBRICANT OR SEALANT 58A9228-B / DOC

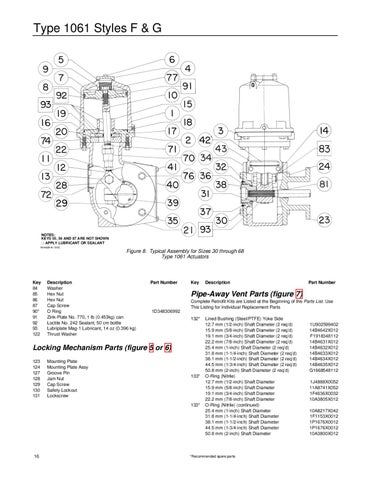

Figure 8. Typical Assembly for Sizes 30 through 68 Type 1061 Actuators
Key 84 85 86 87 90* 91 92 93 122
Description Washer Hex Nut Hex Nut Cap Screw O Ring Zink-Plate No. 770, 1 lb (0.453kg) can Loctite No. 242 Sealant, 50 cm bottle Lubriplate Mag-1 Lubricant, 14 oz (0.396 kg) Thrust Washer
Part Number
Key
Mounting Plate Mounting Plate Assy Groove Pin Jam Nut Cap Screw Safety Lockout Lockscrew
Complete Retrofit Kits are Listed at the Beginning of the Parts List. Use This Listing for Individual Replacement Parts 1D348306992 132*
133*
133*
16
Part Number
Pipe-Away Vent Parts (figure 7)
Locking Mechanism Parts (figure 5 or 6) 123 124 127 128 129 130 131
Description
Lined Bushing (Steel/PTFE) Yoke Side 12.7 mm (1/2-inch) Shaft Diameter (2 req’d) 15.9 mm (5/8-inch) Shaft Diameter (2 req’d) 19.1 mm (3/4-inch) Shaft Diameter (2 req’d) 22.2 mm (7/8-inch) Shaft Diameter (2 req’d) 25.4 mm (1-inch) Shaft Diameter (2 req’d) 31.8 mm (1-1/4-inch) Shaft Diameter (2 req’d) 38.1 mm (1-1/2-inch) Shaft Diameter (2 req’d) 44.5 mm (1-3/4-inch) Shaft Diameter (2 req’d) 50.8 mm (2-inch) Shaft Diameter (2 req’d) O-Ring (Nitrile) 12.7 mm (1/2-inch) Shaft Diameter 15.9 mm (5/8-inch) Shaft Diameter 19.1 mm (3/4-inch) Shaft Diameter 22.2 mm (7/8-inch) Shaft Diameter O-Ring (Nitrile) (continued) 25.4 mm (1-inch) Shaft Diameter 31.8 mm (1-1/4-inch) Shaft Diameter 38.1 mm (1-1/2-inch) Shaft Diameter 44.5 mm (1-3/4-inch) Shaft Diameter 50.8 mm (2-inch) Shaft Diameter
*Recommended spare parts
1U902599402 14B4642X012 F1918348112 14B4631X012 14B4632X012 14B4633X012 14B4634X012 14B4635X012 G1668548112 1J4888X0052 11A8741X052 1F4636X0032 10A3805X012 10A8217X042 1F1153X0012 1P1676X0012 1P1676X0012 10A3800X012
