RANI KAYLANI
MArch, LEED AP BD+C
Resume + Portfolio
RANI KAYLANI - LEED AP BD+C
EDUCATION
2022 May:
MArch - University of Illinois at Urbana-Champaign (UIUC)
*Recipient of Fulbright Foreign Student Grant GPA: 4.00/4.00
*1st place award in “2020 Fall Earl Prize Graduate Excellence Award”
*Nominated for “2021 AIA Chicago Student Award in Architecture”
2015 May:
B.SC.Arch - University of Jordan (UJ)
*Recipient of Jordanian Royal Highness Grant
SELECTED PROFESSIONAL EXPERIENCE
2022 Jun - 2023 May:
Academic Trainee - SOLOMON CORDWELL BUENZ. Chicago, IL
- University of Toledo – Presidents Hall Housing Renovation. Toledo, OH 2022
- University of Michigan – North Campus Housing. Ann Arbor, MI 2022
- DuPagePads – Renovation of Interim Housing. Chicago, IL 2022
- University of Utah – University Housing Study. Salt Lake City, UT 2022
- Stratus – Block 150 Austin Texas Residential Tower. Austin, TX 2022
- ASU Herberger Student Housing. Tucson, AZ 2022-2023
- OSU Ohio West 10th Ave – University Housing Study. Columbus, OH 2022
- Strada – 555 Bryant Street Residential Tower. San Francisco, CA 2023
2021 Aug - 2021 Dec:
Teaching Assistant - Graduate “Structures Planning” Course at UIUC. Urbana, IL
2016 Jun - 2019 Nov:
Architect - DAR GROUP: DAR AL-HANDASAH (Sister Company of Perkins & Will). Amman, Jordan
*Awarded “Outstanding” Performance Rating in 2018
- Grand Cruise Terminal at Old Doha Port. Doha, Qatar 2018-2019
*Project Architect, Integrative Design, Consultants Coordination, Concept to Tender Design
- DAR Group Headquarters Office Expansion. Amman, Jordan 2018-2019

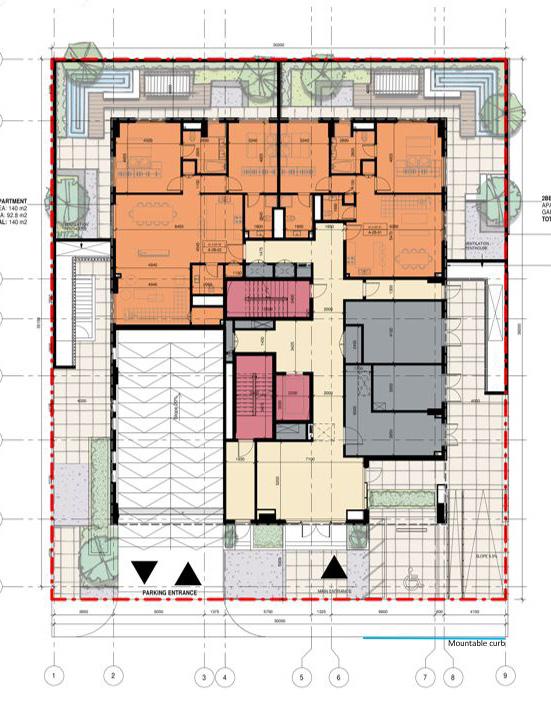

*As-Built Drawings, Design & Construction Drawings, Integrative Design, Contractor Coordination
- Gewan Island Residential Low-Rise. Doha, Qatar 2018-2019
*Integrative Design, Masterplan Coordination, Presentation Preparation, Concept to Tender Design
- The Ritz Carlton Hotel and Residences. Amman, Jordan 2017-2018
*Concept to Tender Design, Integrative Design, Design Proposals, Consultant Coordination
- Al Maktoum International Airport Air-side Airport Facilities. Dubai, UAE 2016-2017
*BIM Modelling LOD 300, Zero-Clash Detected Model, Integrative Design, Concept to Tender Design
- Yasmeen City Residential Low-Rise. Lusail, Qatar 2016-2016
*Layout & Facade Concept Design, Masterplan Coordination, Presentation Preparation
2015 Aug - 2016 May:
Interior Architect - SOURA MADANI HOUSE OF DESIGN. Amman, Jordan
- St. Regis Hotel On-Site Construction Supervision. Amman, Jordan
- Royal Hashemite Court Celebration Hall Interior & Landscape Design. Amman, Jordan
- Saraya Aqaba Beach Houses Interior Design. Aqaba, Jordan
- Restaurant and Villas Interior Design. Amman, Jordan
2014 Aug - 2014 Sep:
Architectural Intern - PRAXIS, ARCHITECTS | URBAN DESIGNERS. Amman, Jordan
2014 Jun - 2014 Jul:
Architectural Intern - BERNARD KHOURY DW5. Beirut, Lebanon
SOFTWARE SKILLS
Advanced: Revit (8/10), AutoCAD (8/10), Sketchup (8/10), Photoshop (7/10), InDesign (7/10), Illustrator (6/10), Microsoft Word (9/10), Microsoft Excel (6/10), Covetool (7/10), Lumion (8/10), Enscape (8/10) Basic: Navisworks (4/10), 3ds max (3/10), Rhino (3/10), Velux Daylighting Visualizer (3/10), THERM (2/10) +962 797642704 rkaylani92@hotmail.com
ACADEMIC WORK - UIUC ACADEMIC WORK - UJ PROFESSIONAL WORK SELECTED SEMINARS - UIUC OTHER WORK 01. THE APEX 01 02. THE HUB 15 03. THE MODULE 25 04. THE STAIRS 35 05. THE GATE 43 06. THE PIT 53 07. RITZ CARLTON HOTEL & RESIDENCES 61 08. GEWAN ISLAND 63 09. GRAND TERMINAL AT OLD DOHA PORT 65 10. YASMEEN CITY 67 11. PRIVATE VILLA 69 12. ARCH 576 EXPERIMENTAL ENVELOPES 71 13. ARCH 592 URBAN ZED 73 14. ARCH 574 PLYM STUDIO (ANALOG) 75 15. FREEHAND 77 16. PIANO 79
TABLE OF CONTENTS TABLE OF CONTENTS
University
Illinois at Urbana Champaign | 2021 Academic Professor P. Armstrong Group Work
Nominated for “Fall 2021 Earl Prize Graduate Excellence Award”
Chicago, IL, USA
THE APEX
01.
of
Youtube Link: The Chicago Apex - Rani Kaylani https://www.youtube.com/watch?v=T4vrzQ7309w
The site is located in Chicago’s Streeterville district, on the north bank of the Chicago river immediately to the south of the NBC tower, and is bordered by north city-front plaza drive on its western edge, north water street on its northern edge, and north Columbus drive on its eastern edge. Even in the current recession, this is an area of growing demand for housing and hotel accommodations.
The location is premium because of the incredible views it provides of Lake Michigan and the skyline of the Loop, and, accordingly, demands an iconic structure.
Previous: Render from Street South West View
Above: Riverwalk Facade South View

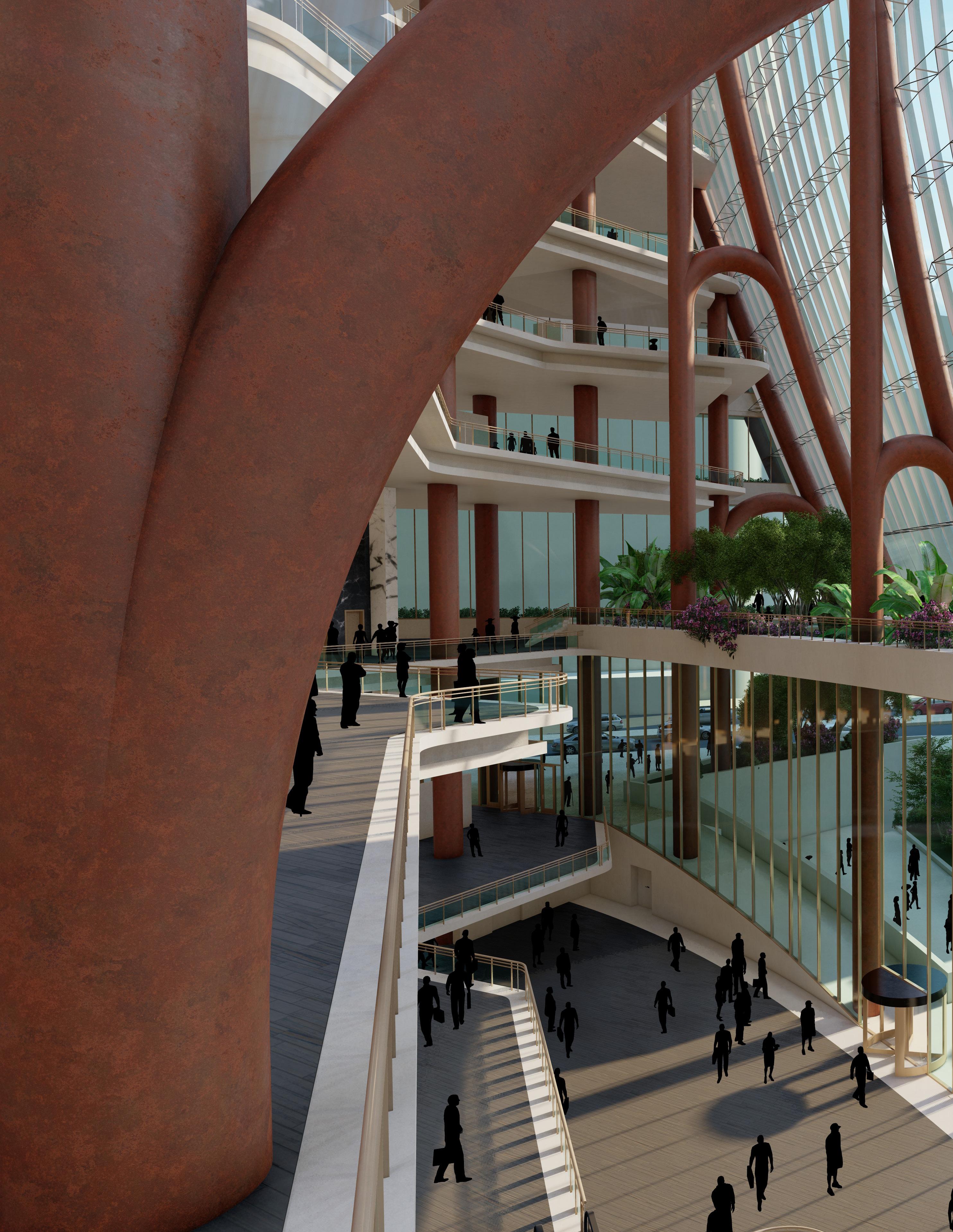

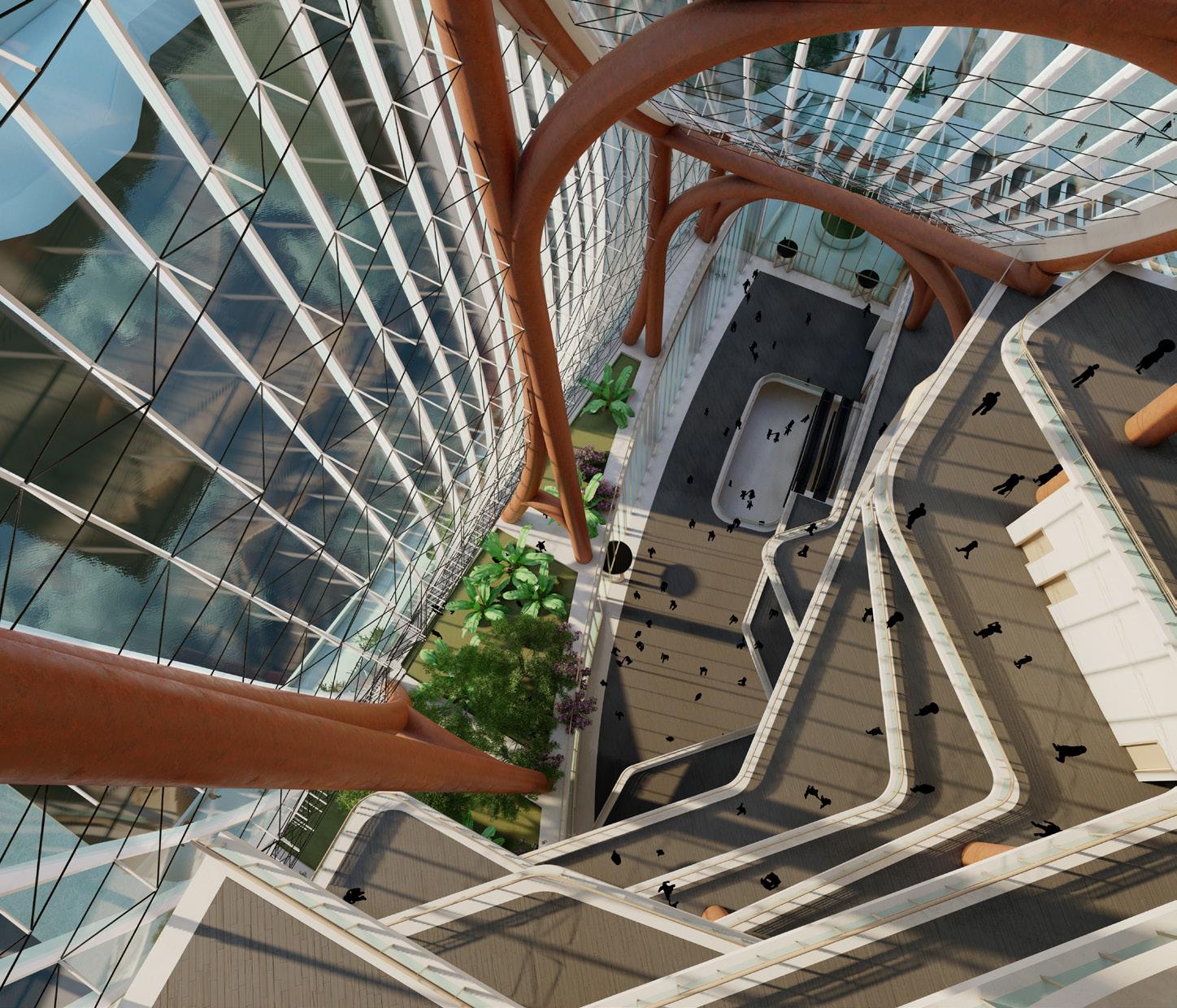

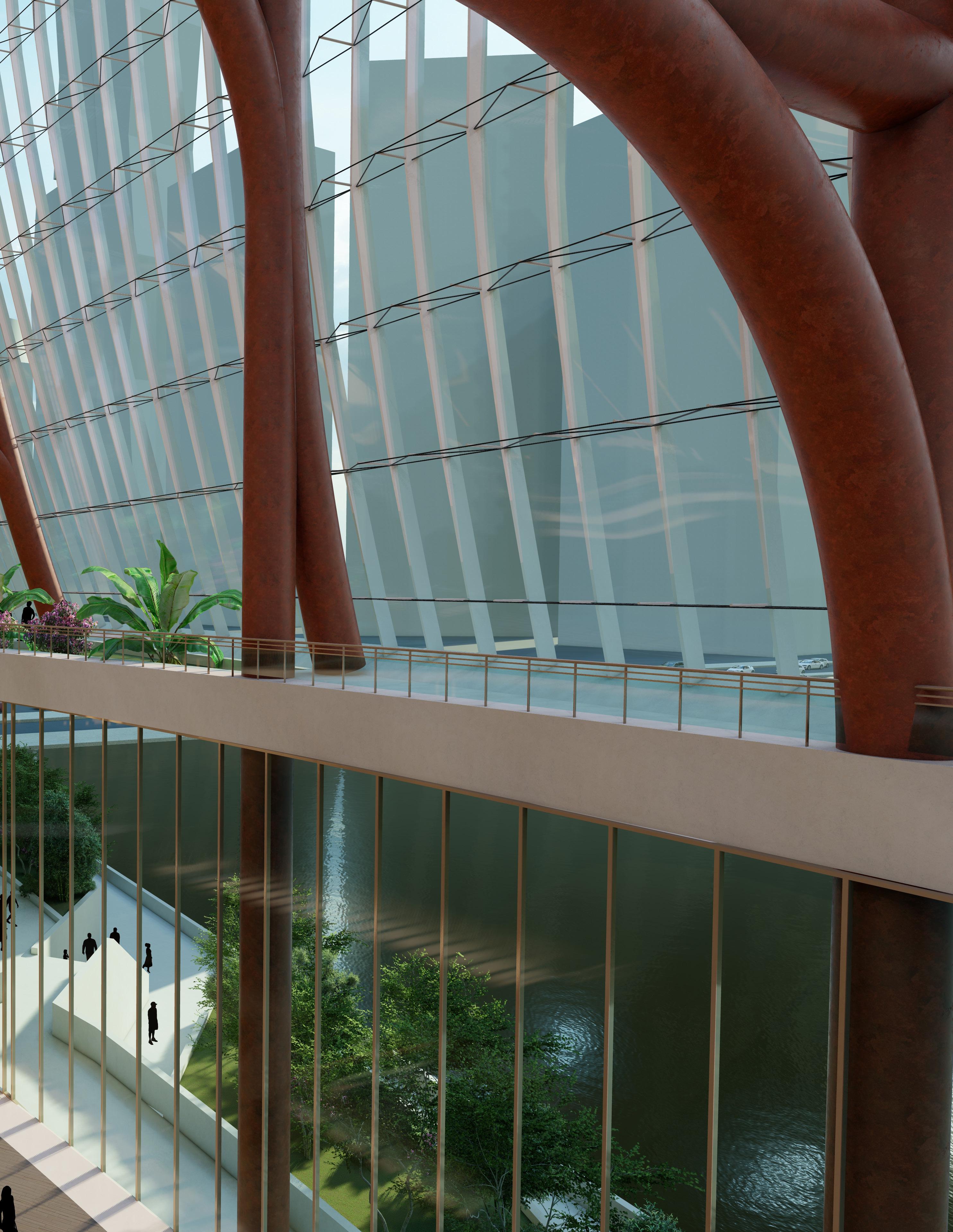

Below: Atrium from Above Interior View

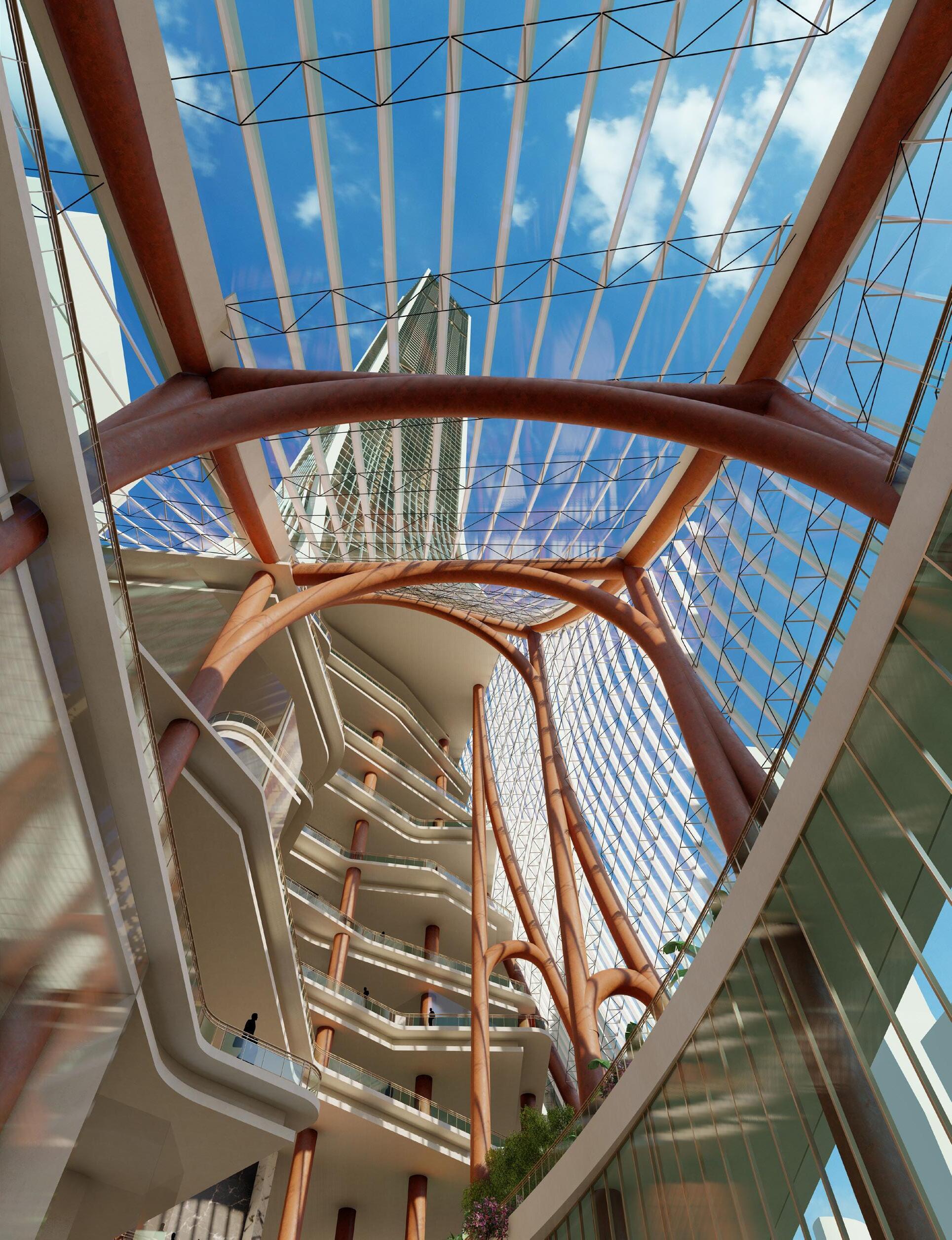

Opposite: Atrium from Below Interior View
03
04
05
The initial idea was to extrude a basic building mass, having a height of 120 stories and place it in the site.
To attain this space, the mass was pushed towards the corner edge along the north water street and Columbus drive and the central space was dedicated to the public. The mass was rotated to have maximum views around.
The rotation opened up views that were blocked by the NBC tower, the Sheraton Hotel and the Equitable Building.
The mass was divided according to the function, having a podium at the base, hotels at the middle and residential at the top.
A tripartite volume was generated maximizing the mass according to the function provided. The mass became slender as it rose to the top. A large percentage of the mass was at the ground-level for the public, thus increasing the human interaction with space, and, as it rose above, the mass gets slenderer to provide adequate daylight to the hotel and residence.
The building was merged with the context, so that it looks like it grows from the site and interacts with the surrounding in order to make it a more inviting space.

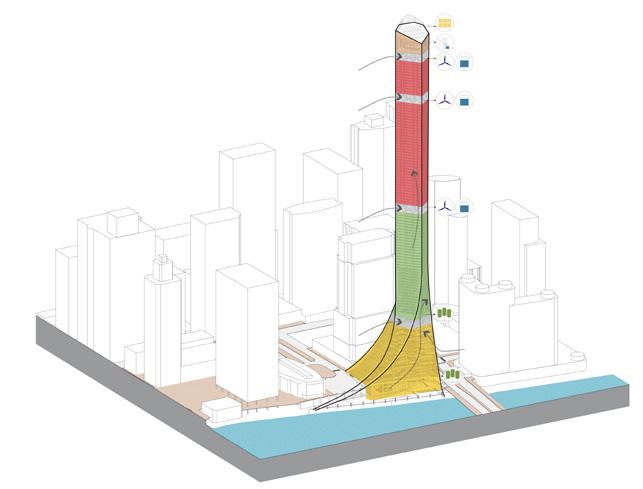

In terms of sustainability, mechanical floors were provided with wind turbines for electric energy and water tanks for rainwater harvesting. The tower provides ample daylight and views to its occupants. Photo-voltaic cells were added to the top. Winter gardens were provided within the podium to create a bio-climatic environment.

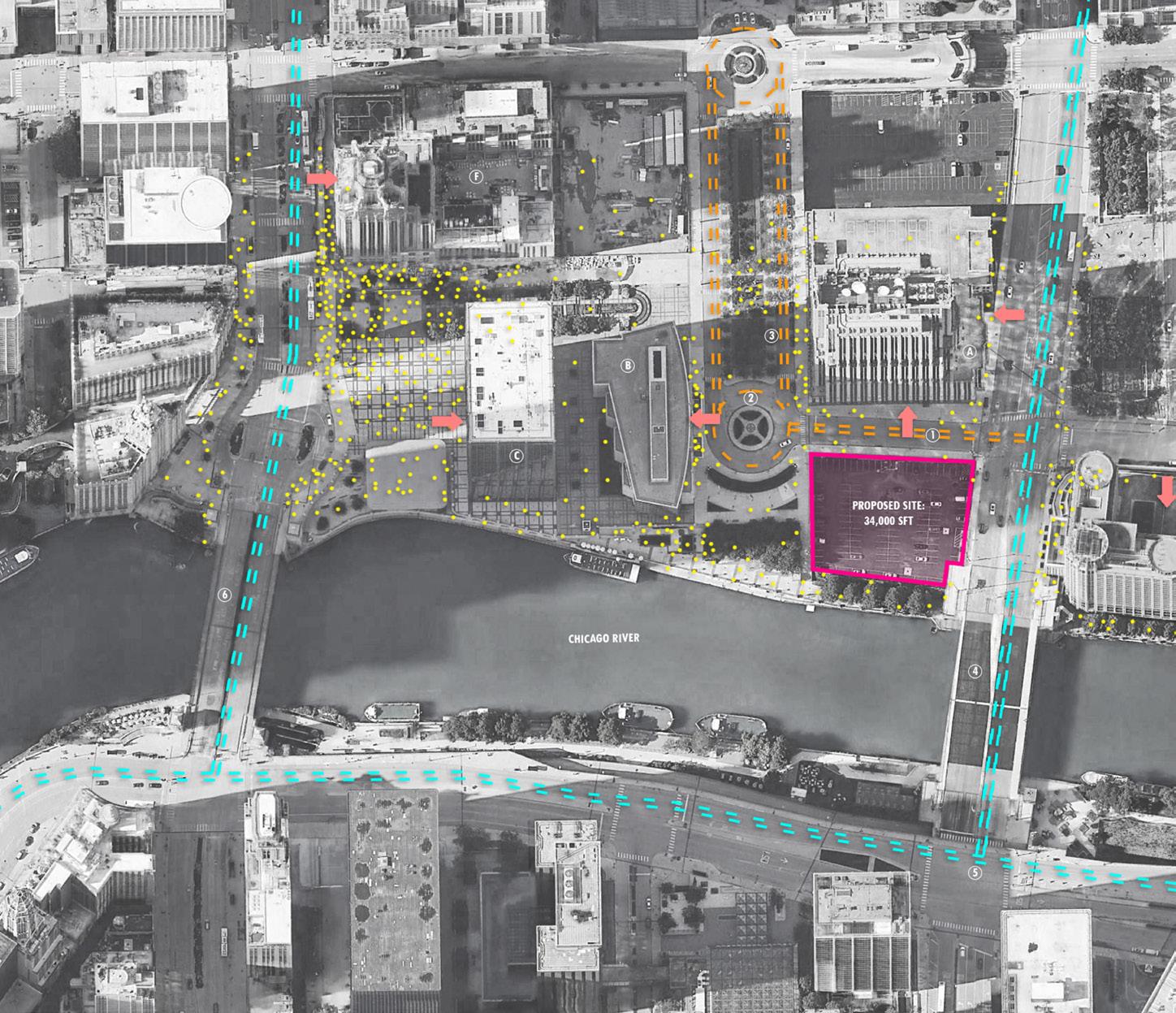

Above: Site Analysis
Google Earth View

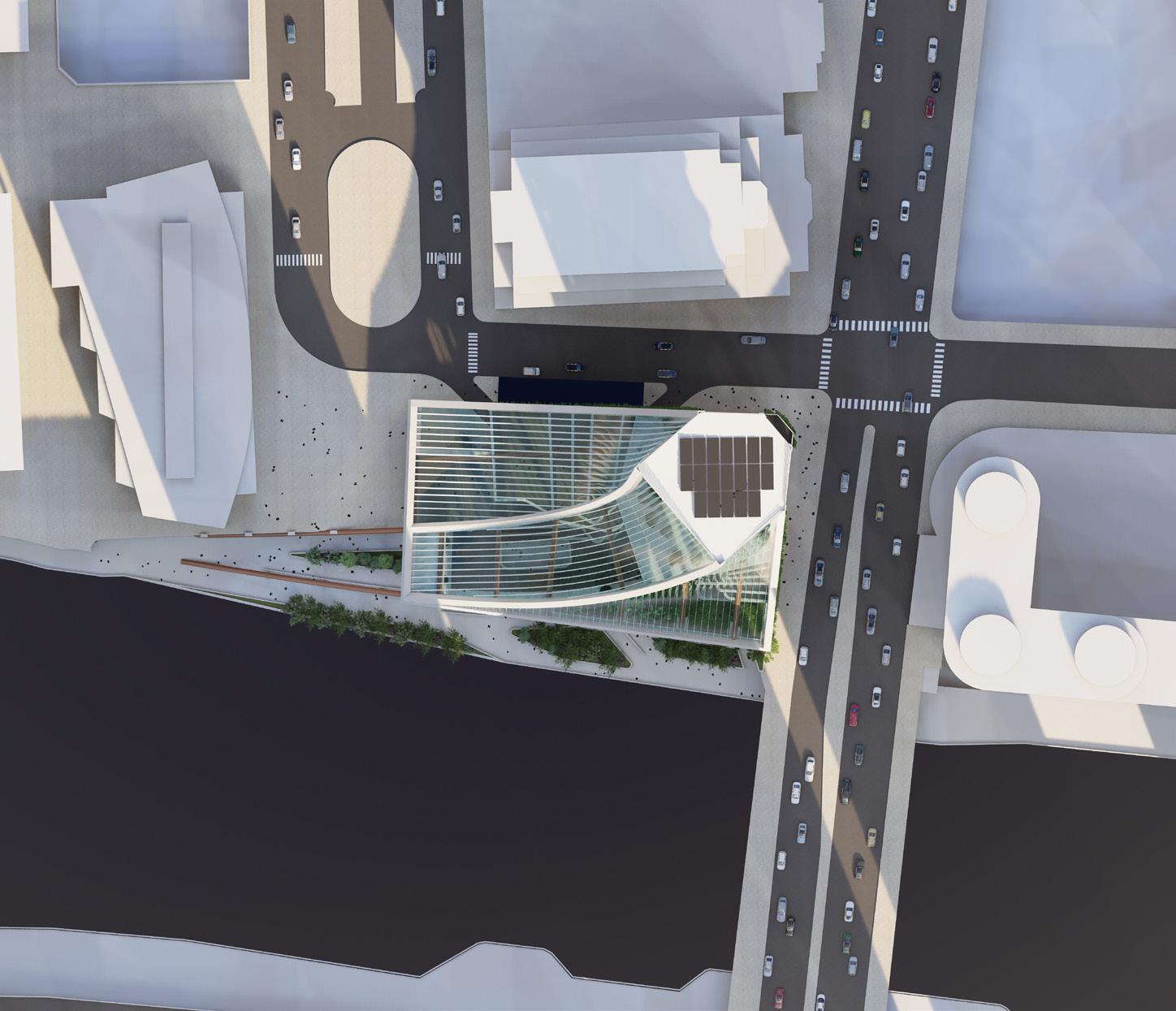

Below: Rendered Site Plan
Lumion Render
Opposite Right: 3D Section
South East View

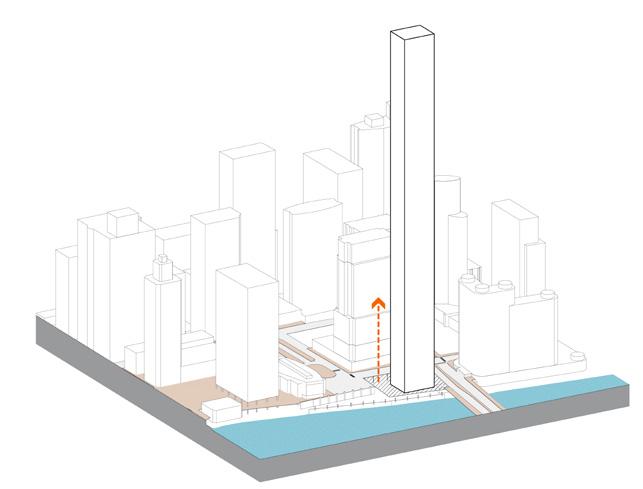

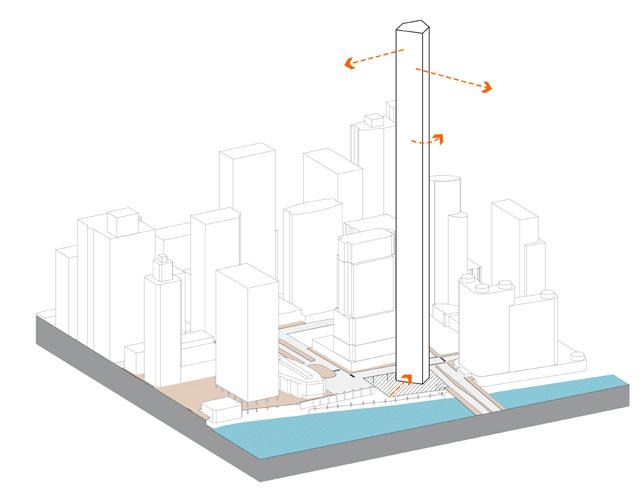

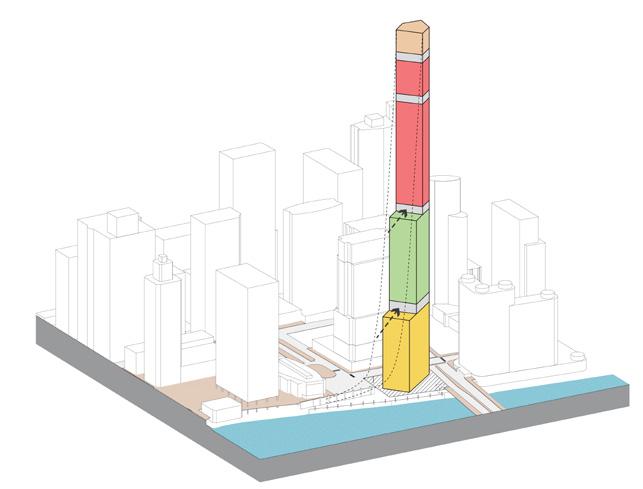

Opposite Left: Concept Diagrams
South West View
06
Above:
07

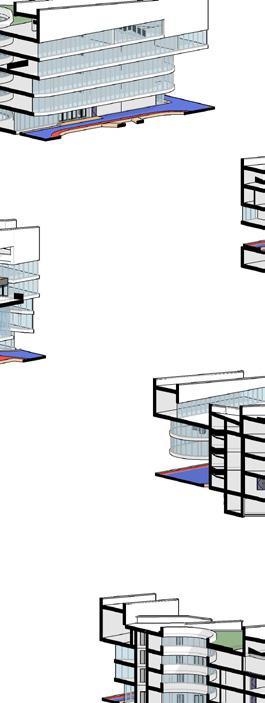

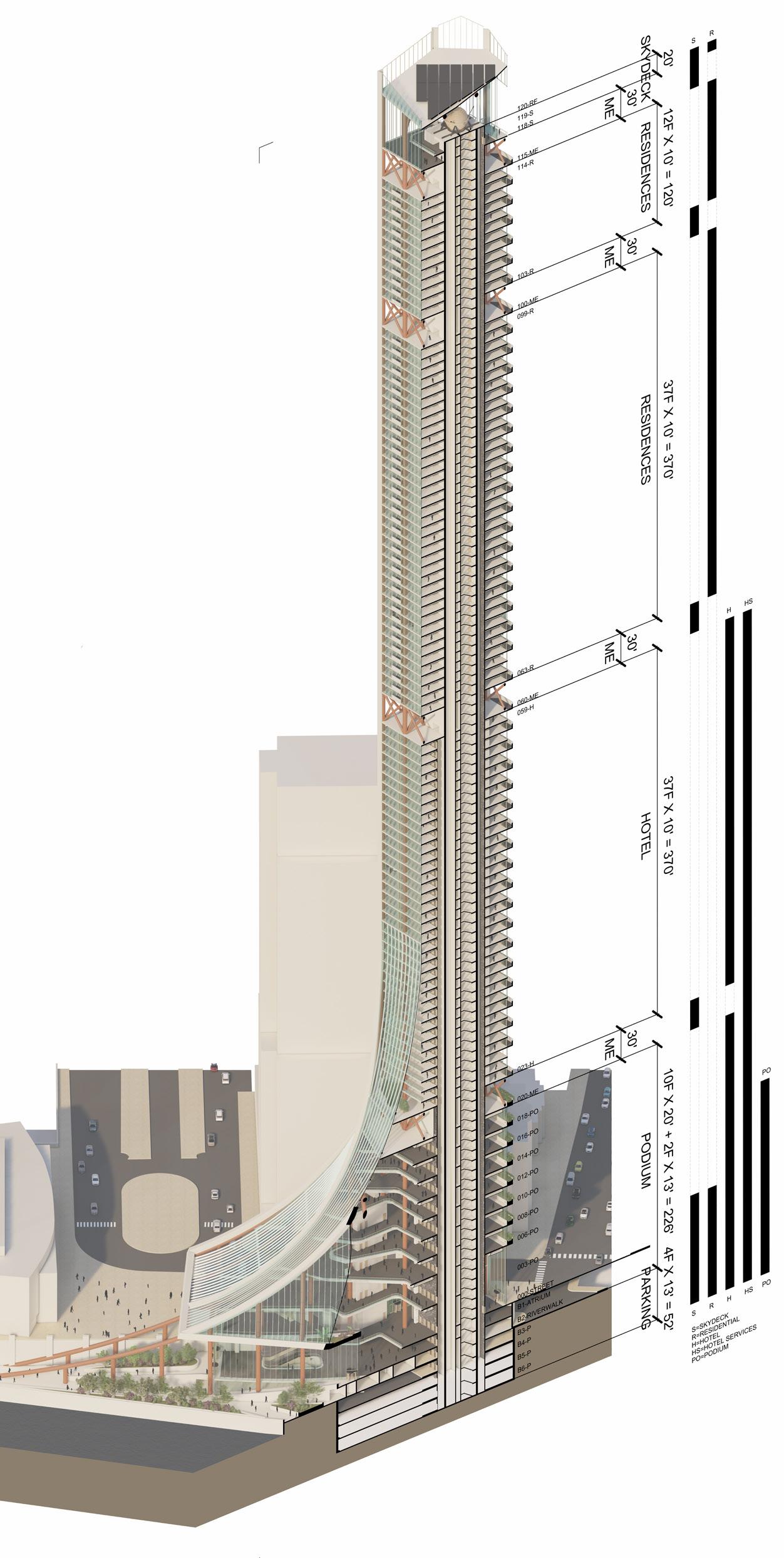

Axonometric Diagrams Floor Plates, Structural Systems, Curtain Walls

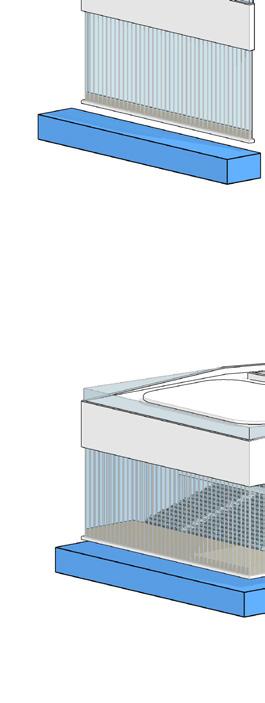

Above: Axonometric Diagram F57-64
ResidentialTypical Floor

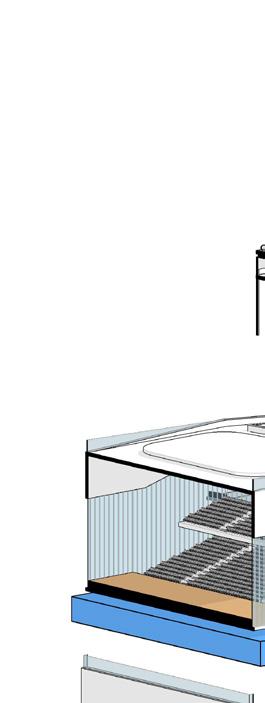

Below: Axonometric Diagram F57-59
Hotel Typical Floor
Above: Axonometric Diagram F114-120 Skydeck Floor
Below: Axonometric Diagram F57-63 Mechanical Floor
CONCRETE MEGA COLUMNS SHEAR WALL OF CORE STEEL OUTRIGGER TRUSS STEEL BELT TRUSS 1 CENTRAL HVAC SHAFT INTERIOR WALL TRASH CHUTE ELECTRICAL SHAFT 2 3 4 HVAC DUCTS 5 1 4 4 1 2 1 CENTRAL HVAC SHAFT INTERIOR WALL TRASH CHUTE ELECTRICAL SHAFT 2 3 4 HVAC DUCTS 5 1 CONCRETE MEGA COLUMNS SHEAR WALL OF CORE STEEL OUTRIGGER TRUSS STEEL BELT TRUSS 2 3 4 3 1 TUNED MASS DAMPER MEZZANINE FLOOR CONCRETE MEGA COLUMNS 2 3 2 1 2 3 4 1 2 4 4 5 1 CENTRAL HVAC SHAFT INTERIOR WALL TRASH CHUTE ELECTRICAL SHAFT 2 3 4 HVAC DUCTS 5 1 CONCRETE MEGA COLUMNS SHEAR WALL OF CORE STEEL OUTRIGGER TRUSS STEEL BELT TRUSS 2 3 4 3 1 TUNED MASS DAMPER MEZZANINE FLOOR CONCRETE MEGA COLUMNS 2 3 2 1 2 3 4 1 TUNED MASS DAMPER MEZZANINE FLOOR CONCRETE MEGA COLUMNS 2 3 1 2 3
08
09
16'
HVAC SPACE
AIR DUCTS SUPPLY AND RETURN VENT OPENINGS
REINFORCED CONCRETE SLAB
REINFORCED CONCRETE COLUMN
GYPSUM BOARD CEILING WITH INDIRECT LIGHT
BRASS COATED RA ILING WITH FULLY TEMPERED GLAZED PANELS
ARC STRUCTURAL BEAM BETWEEN COLUMN AND RC FACADE SUPPORT
FRITTED CLEAR DOUBLE GLAZING UNITS
STRUCTURAL SILICON HORIZONTAL JOINT
CABLE TRUSS WITH STEEL SUPPORTS
RC FACADE SUPPORT
STEEL VERTICAL MULLION
PLANTER
GFRC CLADDING WITH METAL SUBFRAME
STEEL CONNECTOR TRUSS WITH MULLIONS
STRUCTURAL BEAM RC SLAB
16'
GYM
16'
POOL
16'
RECREATION
16'
CONFERENCE CENTER
16'
CONFERENCE CENTER
16'
BALLROOM
26'
WINTER GARDEN
DRAINAGE ME PIPING LOBBY
RESTAURANT 12'
26'
Level B01 13' - 0" Level_000 26' - 0" Level_003 56' - 0" Level_006 86' - 0" Level_008 106' - 0" Level_010 126' - 0" Level_012 146' - 0" Level_014 166' - 0" Level_016 186' - 0" Level_018 206' - 0" Level_020 226' - 0" 200' 13' 20' 20' 20' 20' 20' 20' 20' 30' 30' 13'
PLANTER
CURTAIN WALL LOBBY

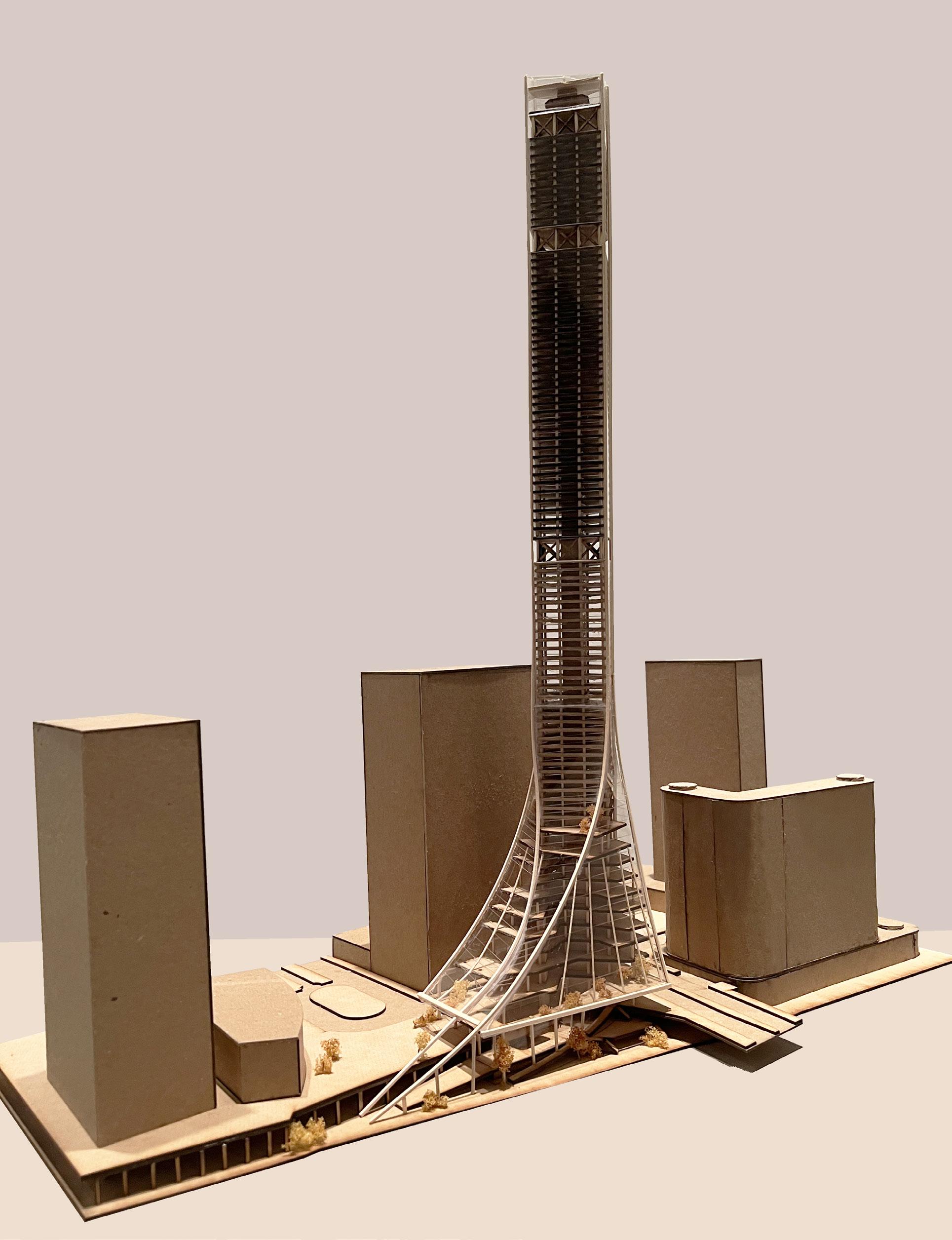

Below: Physical Model South West View
Opposite: Podium Wall Section West View
10
RETAIL RETAIL SKY DECK LOUNGE RESIDENCE LOBBY HOTEL LOBBY RETAIL STAIRS RETAIL RETAIL ELEVATORS HOTEL LOBBY RESIDENCE LOBBY RETAIL SERVICES SKY DECK LOUNGE STAIRS F000-STREET LEVEL 15150 SQF MEETING ROOM MEETING ROOM MEETING ROOM LOBBY WAITING AREA STAIRS MEETING ROOM MEETING ROOM WAITING AREA MEETING ROOM WC WC ELEVATORS LOBBY MEETING ROOM SERVICES STAIRS WAITING AREA WC F008-CONFERENCE CENTER 11540 SQF OPEN TO BELOW
Podium Floor Plan 8th Floor
Street Level Floor Plan Ground Floor 11
Above:
Below:
Above: Skydeck Floor Plan 118th Floor
Below: Typical Hotel Floor Plan 24th-59th Floors
Above: Skydeck Lounge Floor Plan 119th Floor
Below: Typical Residential Floor Plan 63rd-114th Floors
WC HOTEL ROOM LOBBY HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM WC WC WC WC WC WC WC WC WC HOTEL ROOM HOTEL ROOM HOTEL ROOM WC WC HOTEL ROOM WC HOTEL ROOM WC ELEVATORS HOTEL ROOM LOBBY SERVICES STAIRS WC F024-059-HOTEL 6770 SQF SKYDECK SOUVENIR SHOP BAR OBSERVATION DECK BAR ELEVATORS LOBBY OBSERVATION DECK SERVICES SKYDECK SOUVENIR SHOP STAIRS F118-SKYDECK 7450 SQF LIVING LIVING LIVING LIVING BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM WC WC WC WC LOBBY WC WC CLOSET CLOSET WC OFFICE BEDROOM CLOSET ELEVATORS LIVING LOBBY OFFICE SERVICES STAIRS WC F063-114-RESIDENCES 7450 SQF LOBBY LOUNGE ELEVATORS LOBBY LOUNGE SERVICES STAIRS F119-SKYDECK LOUNGE 2340 SQF OPEN TO BELOW OPEN TO BELOW WC HOTEL ROOM LOBBY HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM HOTEL ROOM WC WC WC WC WC WC WC WC WC HOTEL ROOM HOTEL ROOM HOTEL ROOM WC WC HOTEL ROOM WC HOTEL ROOM WC ELEVATORS HOTEL ROOM LOBBY SERVICES STAIRS WC F024-059-HOTEL 6770 SQF BAR DECK LIVING LIVING LIVING LIVING BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM BEDROOM WC WC WC WC LOBBY WC WC CLOSET CLOSET WC OFFICE BEDROOM CLOSET ELEVATORS LIVING LOBBY OFFICE SERVICES STAIRS WC
LOBBY LOUNGE LOUNGE 2340 SQF OPEN TO BELOW OPEN TO BELOW
F063-114-RESIDENCES 7450 SQF
12
02. THE HUB
University of Illinois at Urbana Champaign | 2020
Academic Professor R. Vidal Partner Work
Awarded 1st place in “Fall 2020 Earl Prize Graduate Excellence Award.”
Nominated for “2021 AIA Chicago Student Award in Architecture”
Buenos Aires, Argentina
Every day, 3.5 million daily commuters enter Buenos Aires city; leading to traffic congestion inside. To mitigate this, a transit hub is introduced to provide adequate parking, multiple alternative modes of transportation to the city center and on-site services within a recreational natural park.
The site is one of six proposed sites allocated at the entrance points of Buenos Aires. It borders the Mantanza River which is neglected and used for dumping industrial waste. The project is located in a highly-industrial lowincome context; where green areas are very scarce.
The project’s location serves as a terminus for a series of boulevards and avenues. It faces a contrasting province and is connected physically to it through an elevated highway that cuts the site into halves. The site is bordered with a future railway which is elevated above both the site and the highway; overlooking the polluted river.

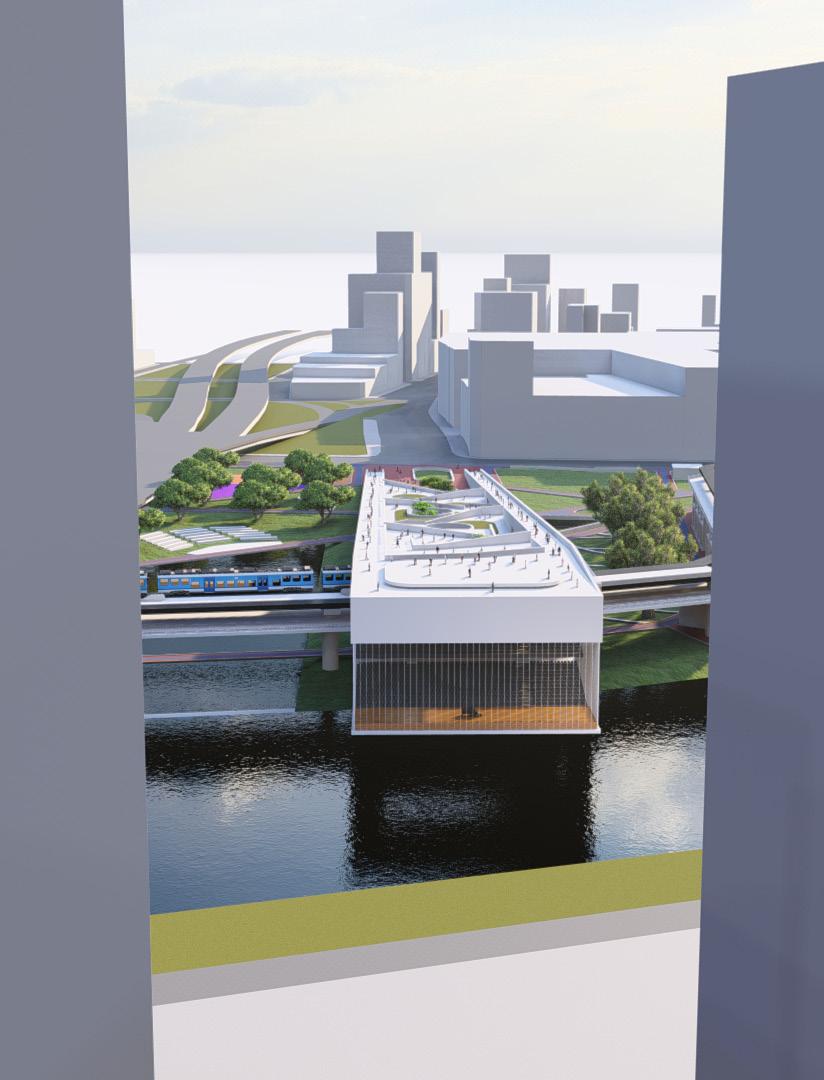

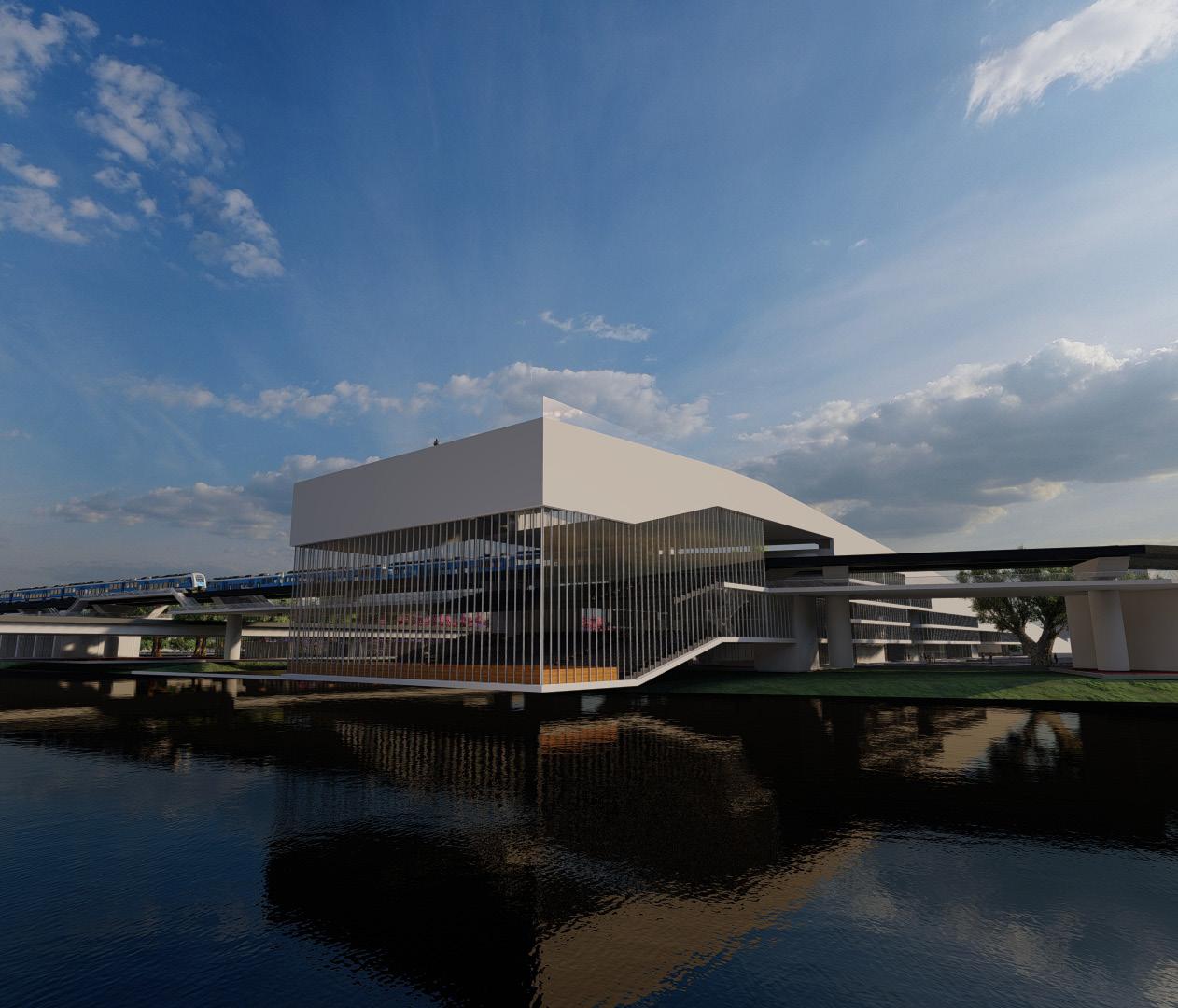

Right: Auditorium on the Water South East View

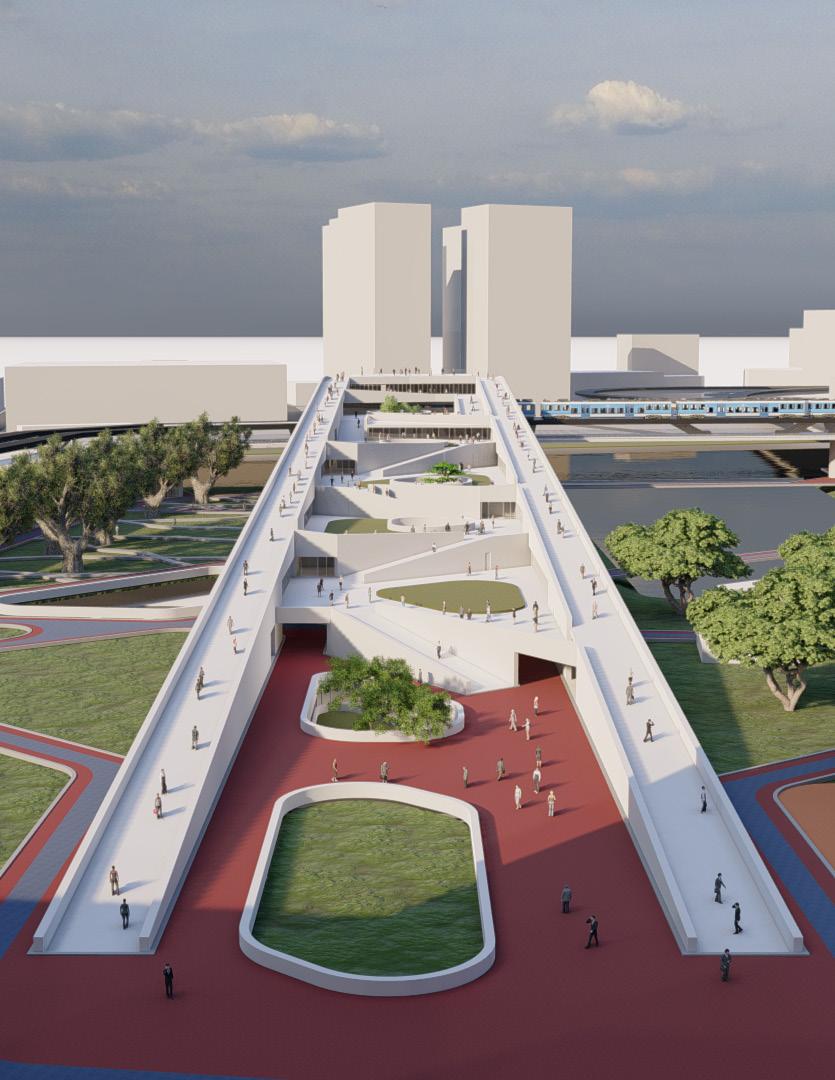

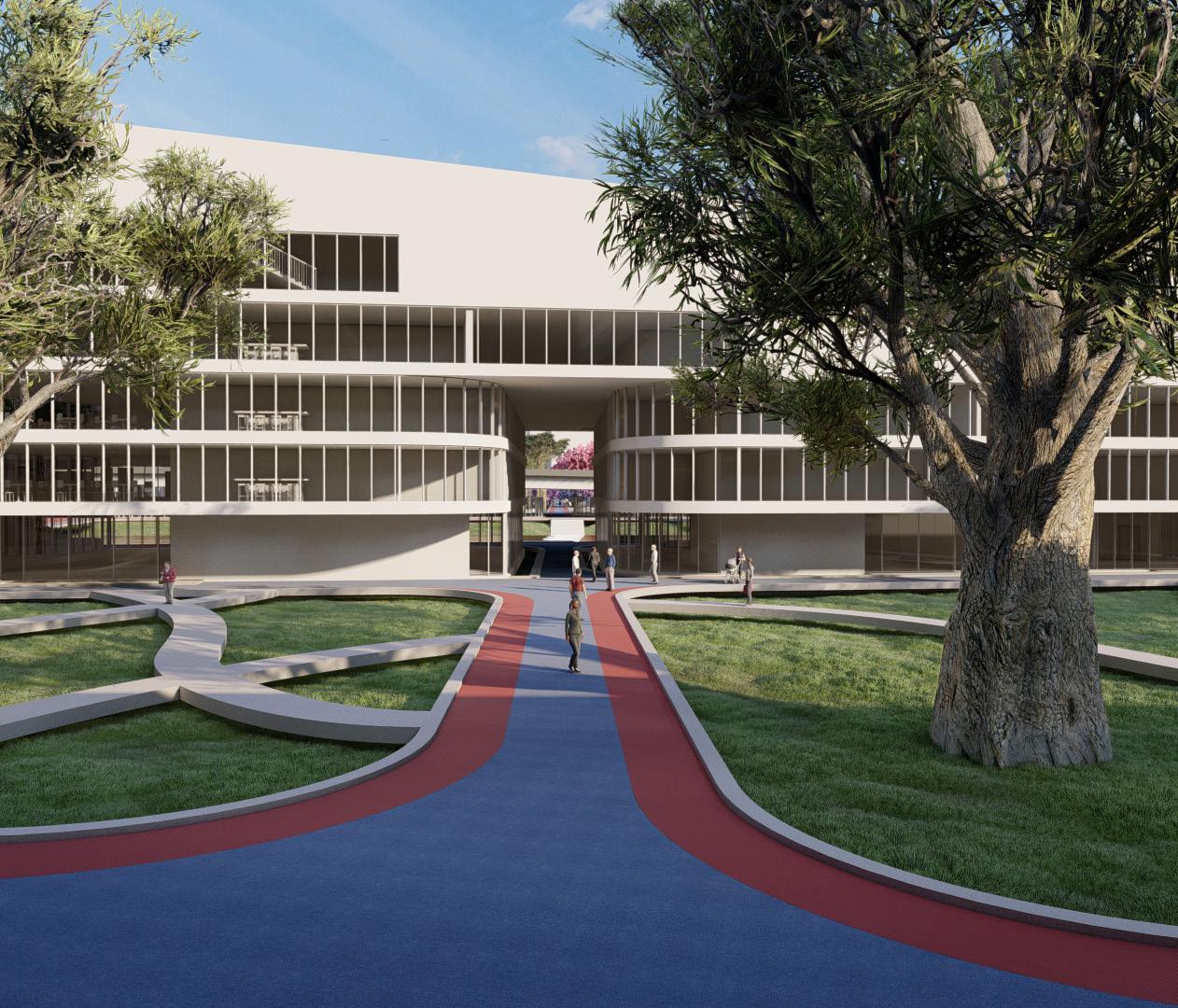

Previous: Boulevard Connections South View
The boulevard and series of avenues form an axis that is extended into the site; protruding onto the river. The extension is elevated at the river edge with a walkable incline; starting from the street edge. This surface allows direct pedestrian access and ends with a “Viewing Platform” that offers 360-degree views of the city; while remaining sensitive to the skyline.
With minimal footprint, the urban surface provides pedestrian access to the program underneath; unifying contrasting functions (a police station, a hospital, a court, an auditorium, a train station and offices). People ascending the surface can either reach the “Viewing Platform” directly or through the different recessed platforms that offer program entrances. These plazas are great opportunities for urban interaction.
The dead areas under the railway tracks are utilized for a “River Walk” with retail spaces and further emphasize the river edge. The roofs of these retail spaces form the “Train Platform”.
East View

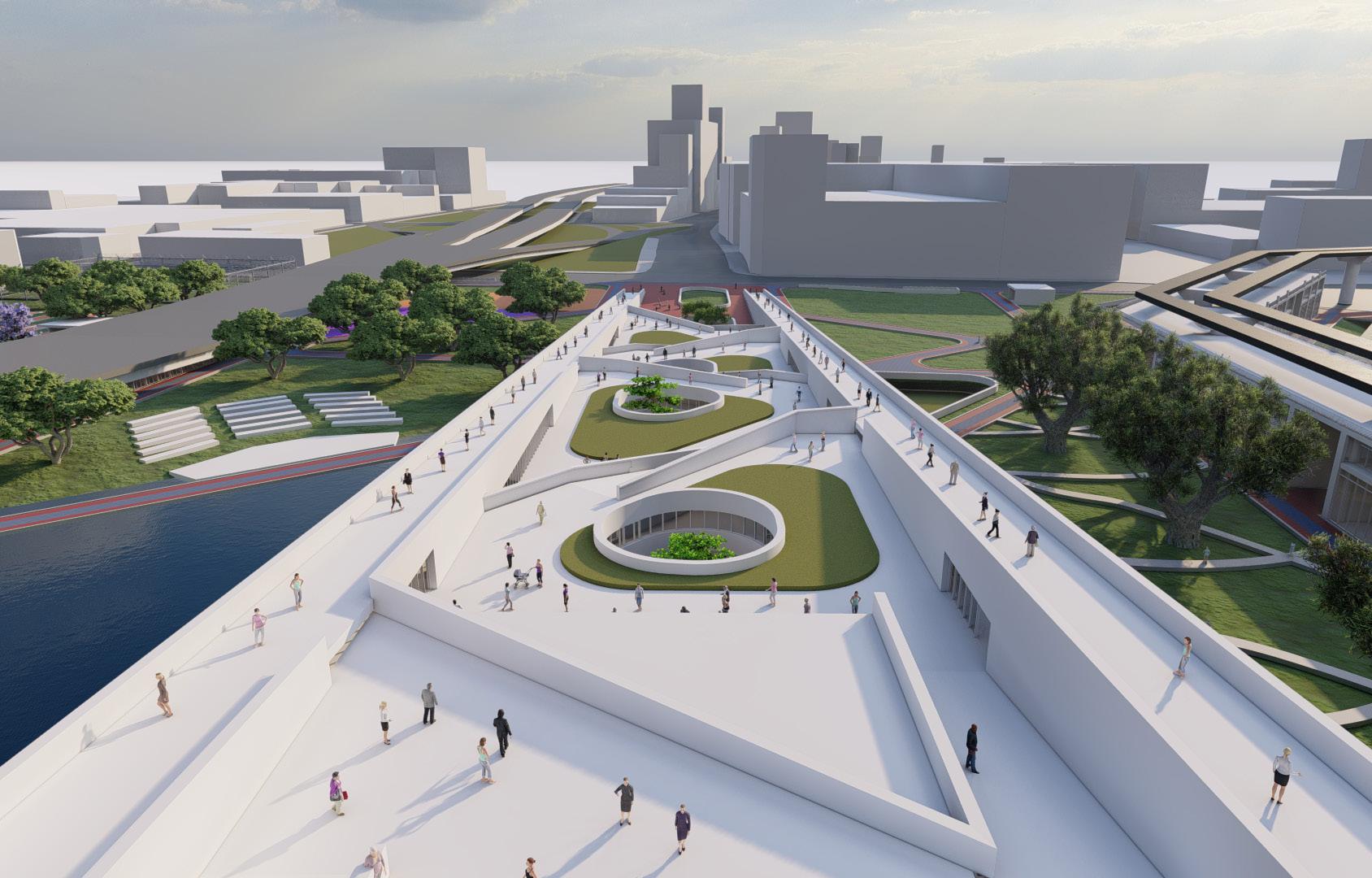

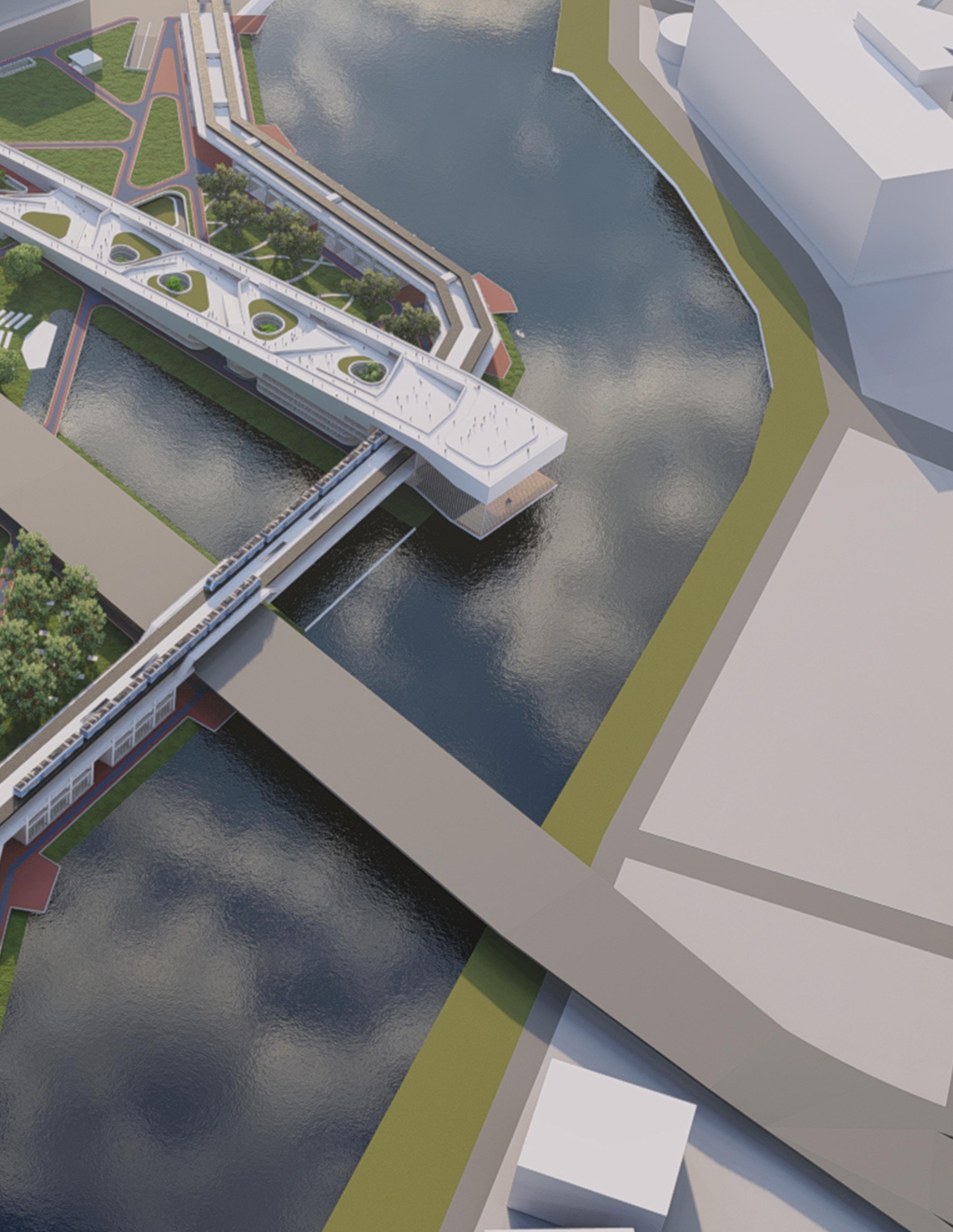

Opposite: The Urban Platform North View
Right: Openings Define Functions17
18
ELEVATION TOWARDS A TERMINUS

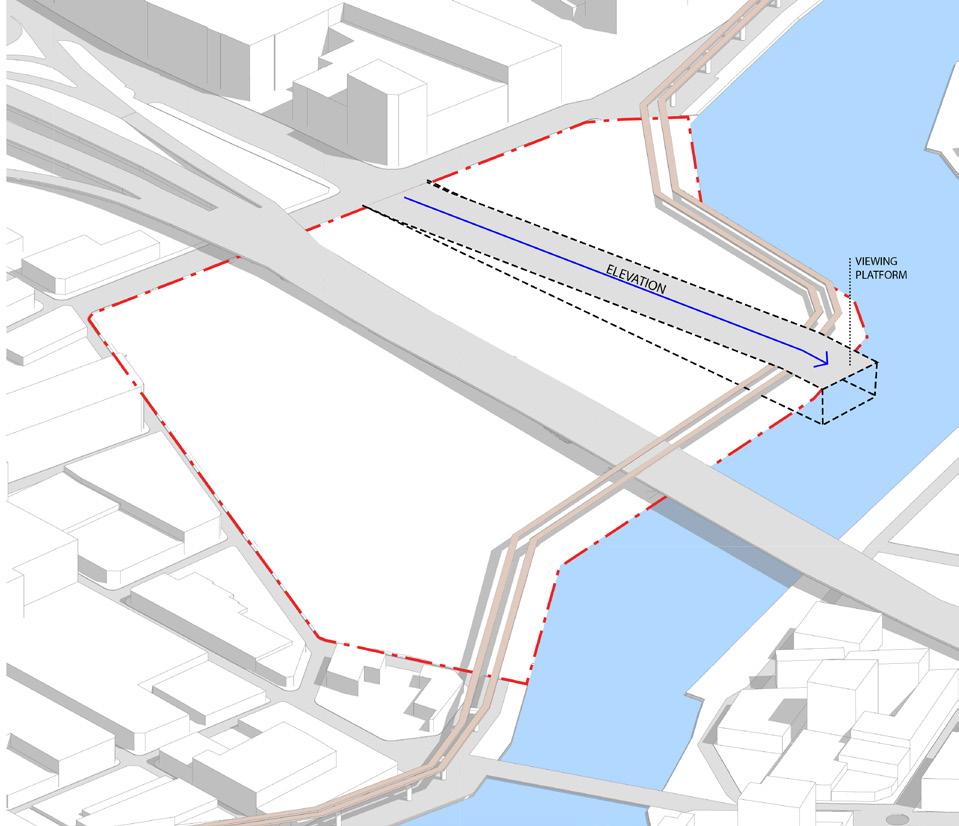

AXIS AS EXTENSION OF BOULEVARDS

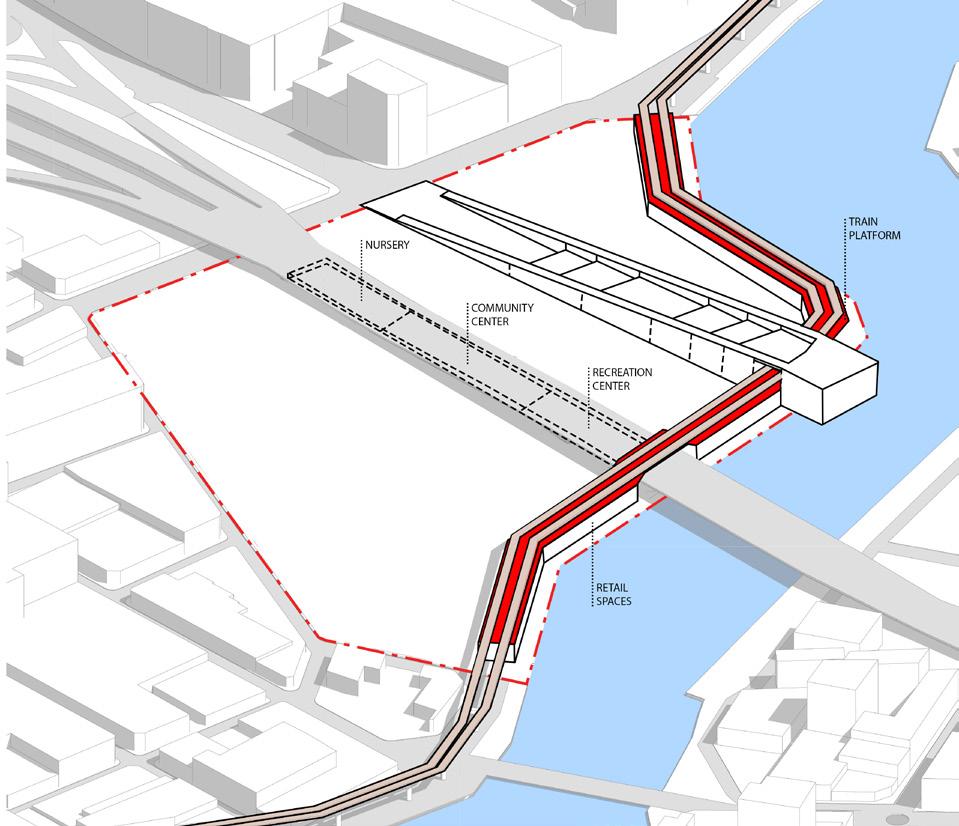

UTILIZING DEAD AREAS
ESTABLISHING URBAN SPACE

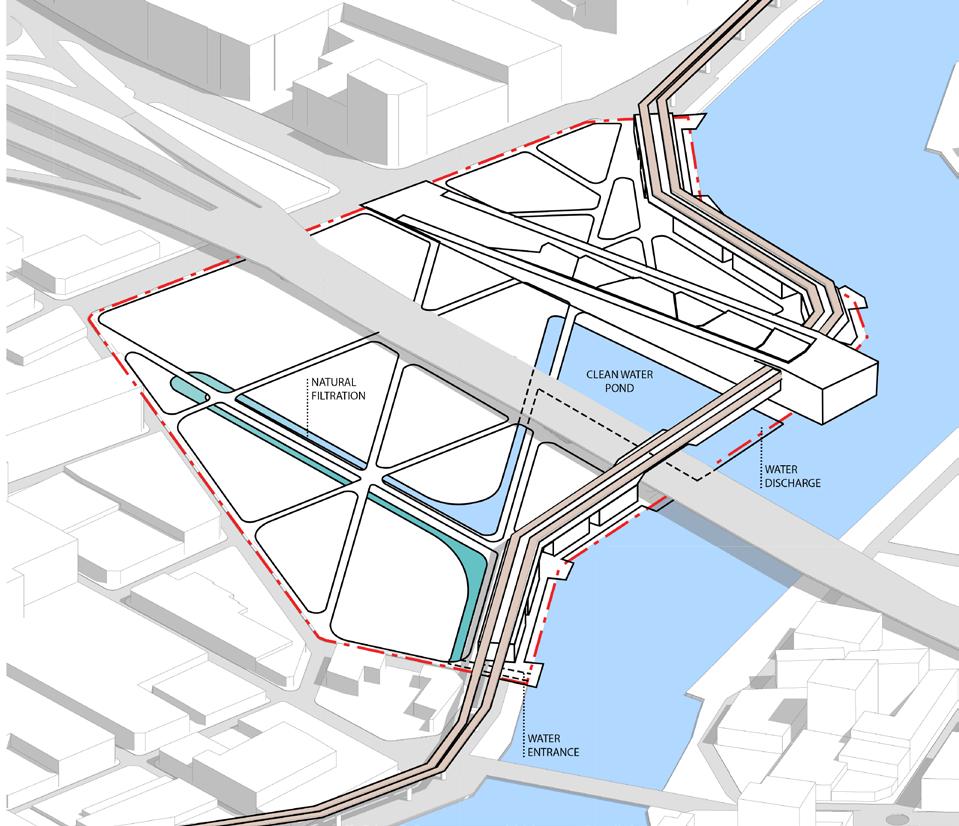

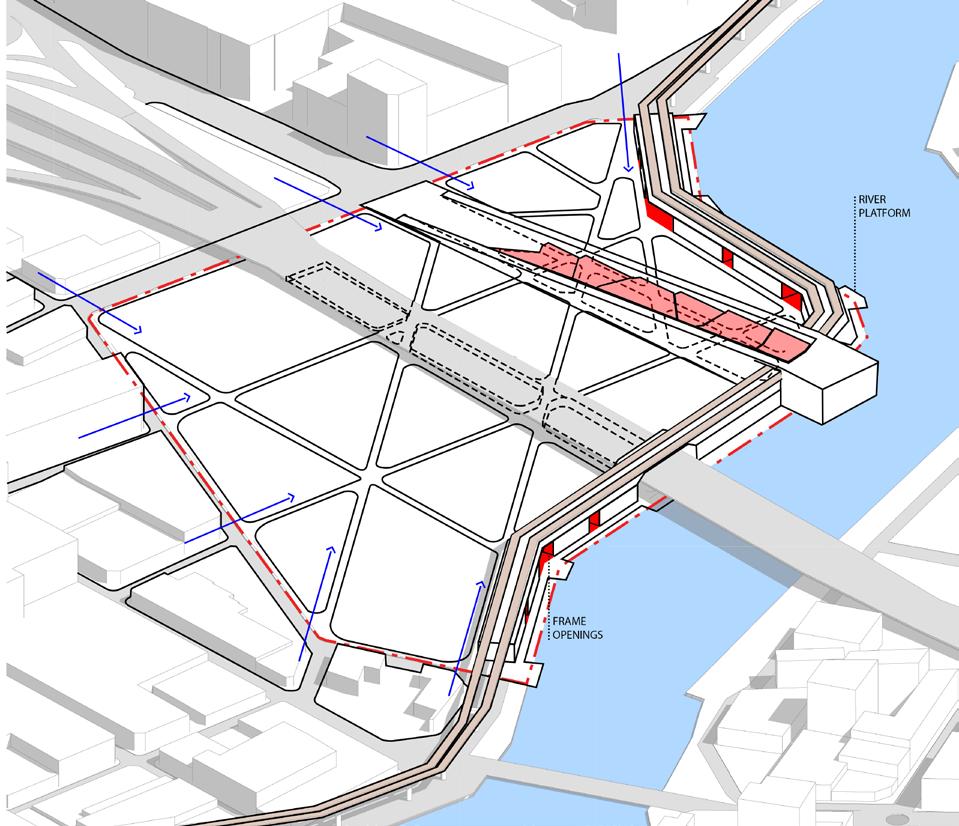

EXTENSION OF NEIGHBORHOOD LINES WATER NATURAL FILTRATION AS A LANDSCAPE FEATURE
19
Right: 3D Section South East View
20

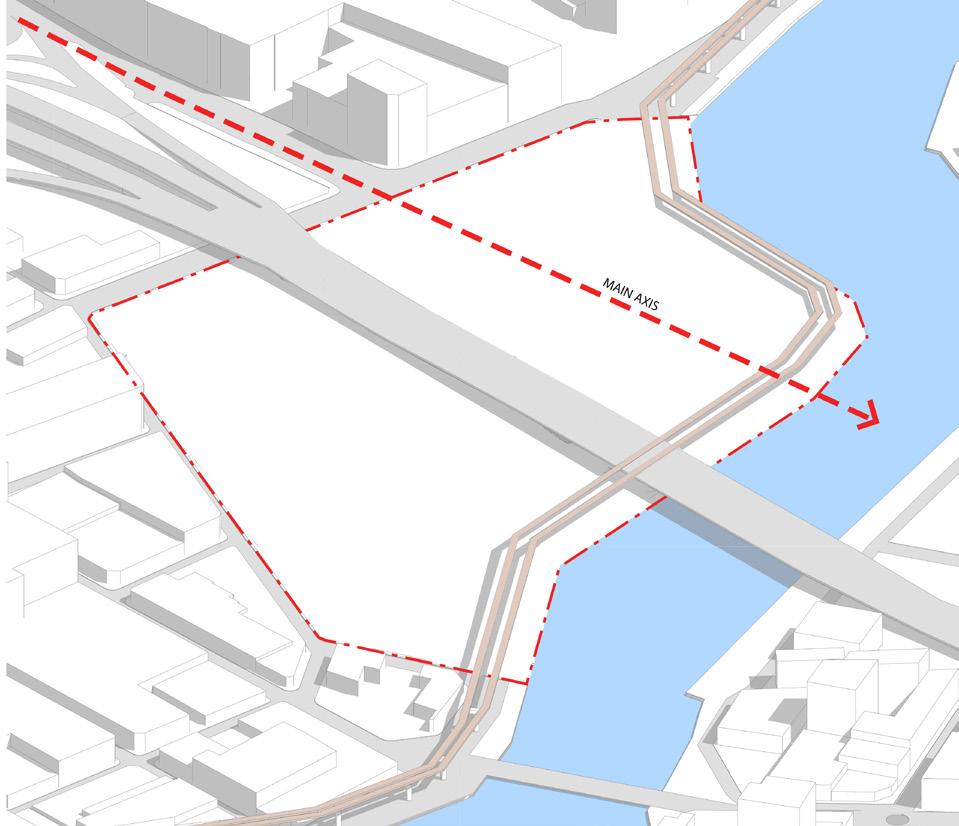

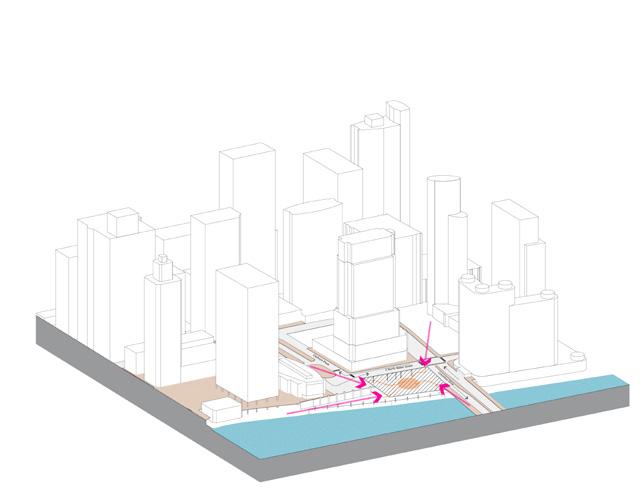

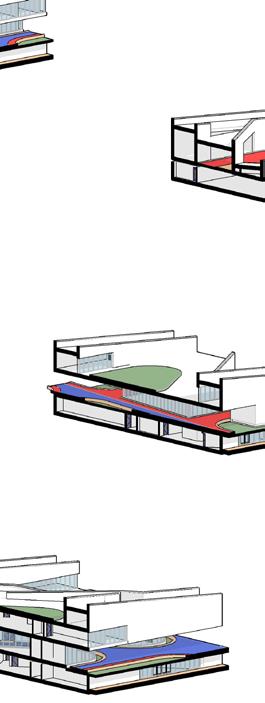

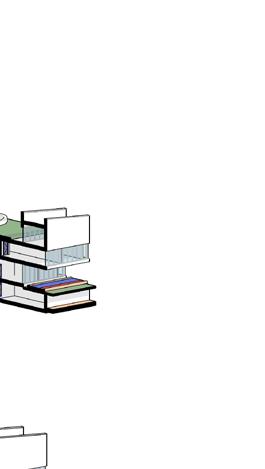

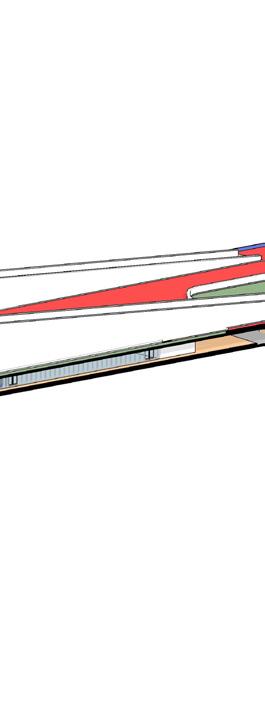

Left: Concept Diagrams South West View
ORANGE: Auditorium
YELLOW: Train Station
GREEN: Offices.
TURQUOISE: Library.
BLUE: Court
PURPLE: Hospital
VIOLET: Police Station.
PINK: Supermarket.
RED: Circulation.
The dead areas under the highway bridge are also utilized for a nursery, a community center and a recreation center. This will add a safety element to the site by allocating program in the middle of the park. The rest of the site is green spaces.
The street lines from the surrounding neighborhoods are projected into the site as secondary axes; defining pedestrian pathways and scenic frames under the railway tracks; followed by river platforms. The axes also define the geometries of the program masses, under the building and the bridge; emphasizing their ground level entrances and identifying them visually.
Water is introduced into the site from the river. Along the artificial paths, the water goes through processes of natural filtration. The filtered water reaches the clean-water pond which acts a vital landscape element for use; instilling a tacit statement of the importance of clean river water.
The building platforms and park spaces provide adequate spaces for temporary fairs, bazaars and installations for various events and celebrations.
An open public space with a spacious design, is key to providing a physiologically and psychologically safe project. The project attempts to provide a destination that brings people together from diverse places and backgrounds.

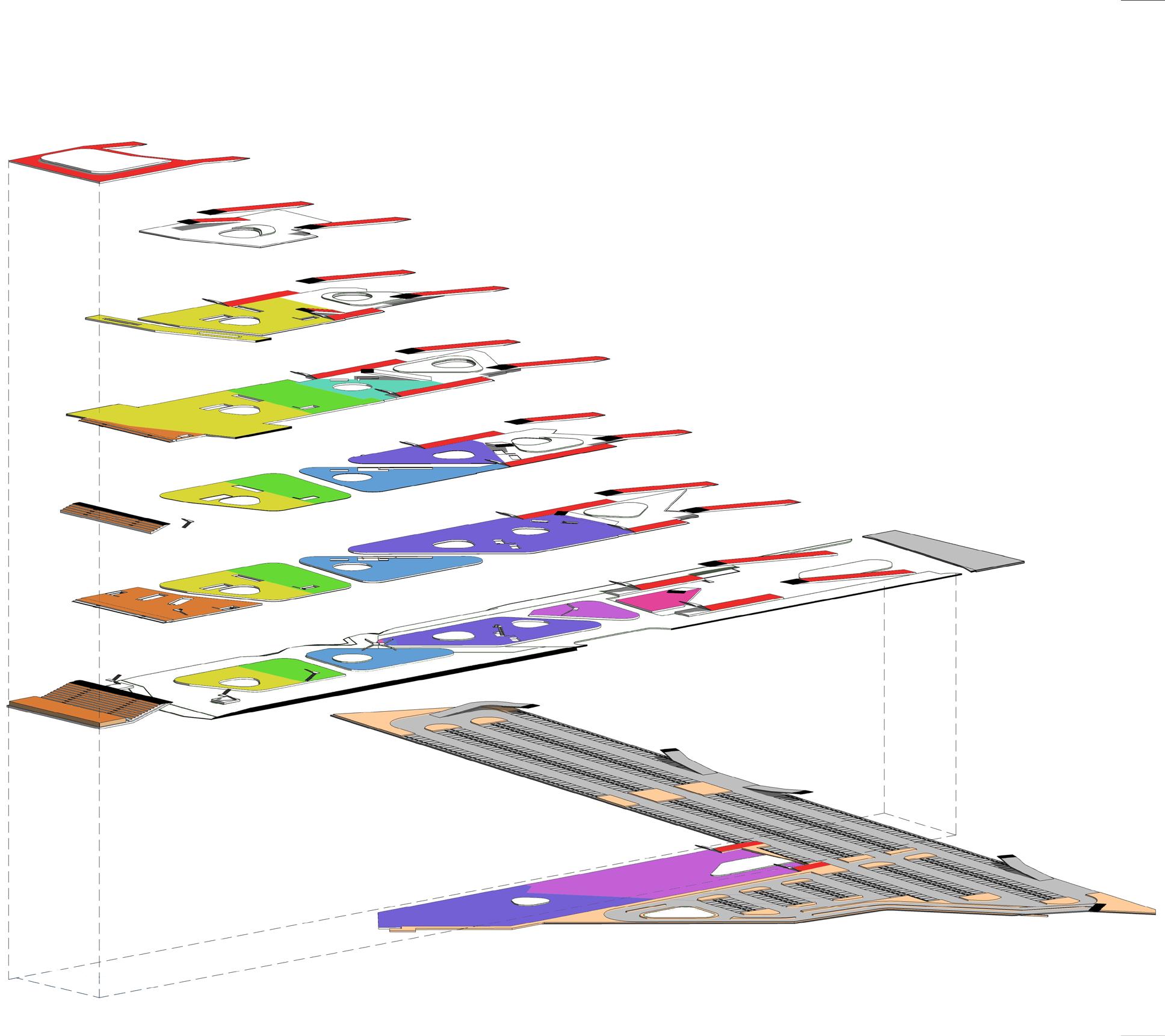

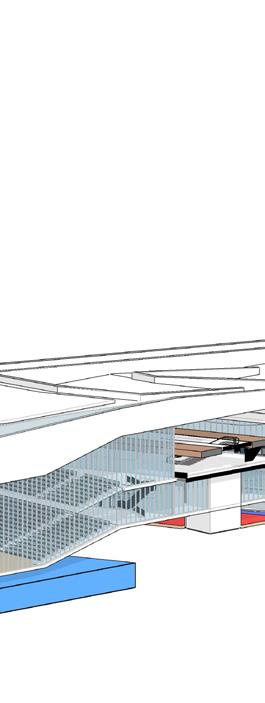

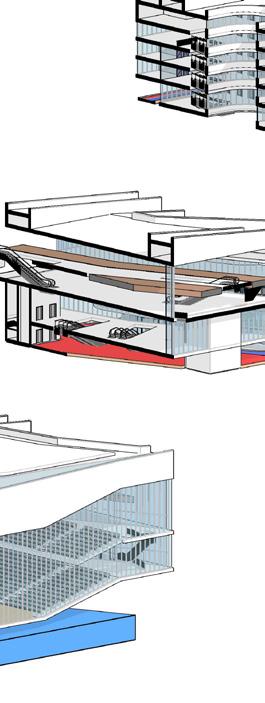

Above: Exploded Zoning Diagram South East View

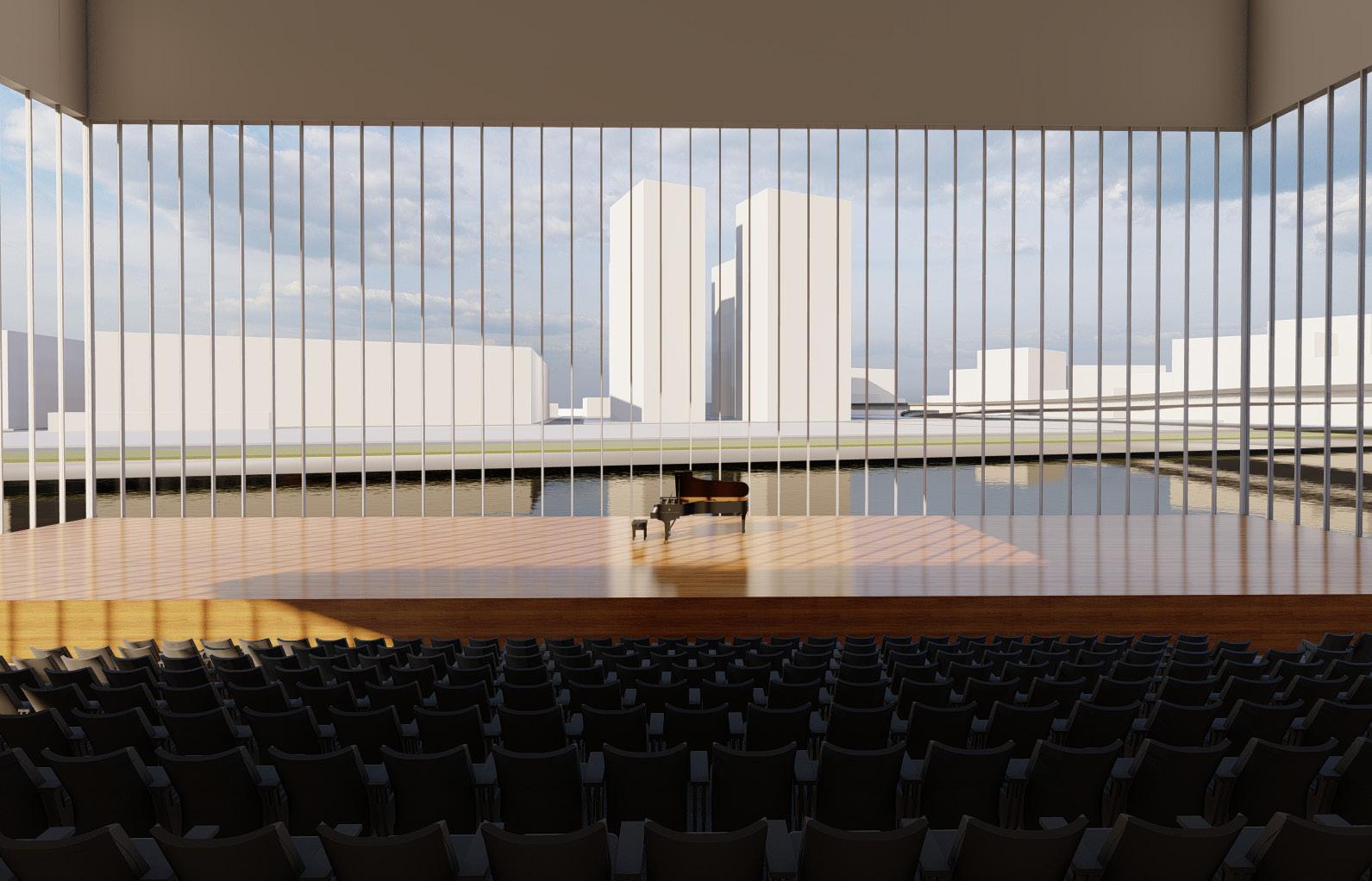

Opposite Above: Auditorium Interior View

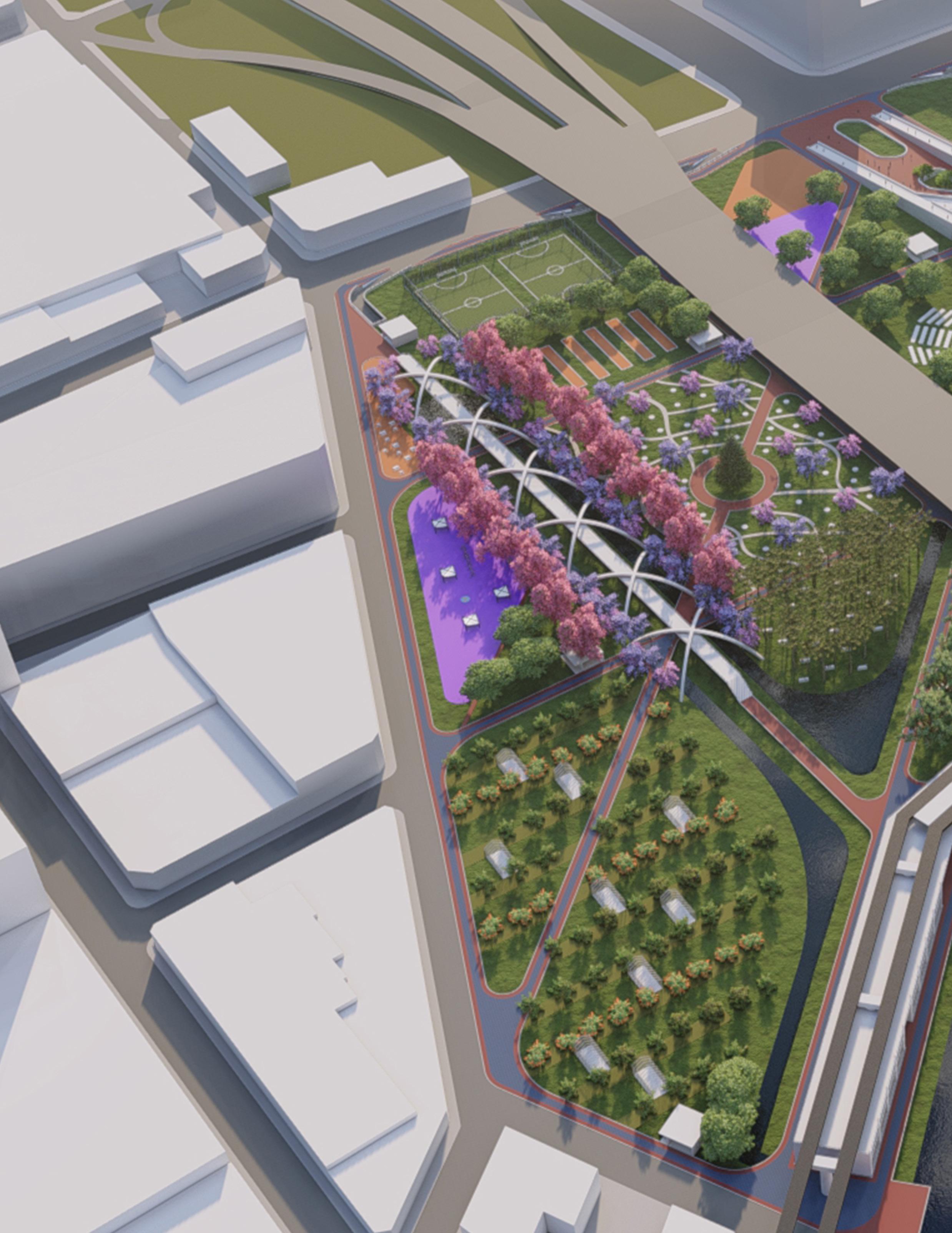

Opposite Below: Urban Plazas South View
21
22
03. THE MODULE University of Jordan | 2013 Academic Professor K. Al Omari Partner Work Barqash Forest, Ajloun, Jordan
“The Module” is a Rehabilitation Center located in Barqash forest. Barqash is a natural reserve located in the highlands of the northern province of Ajloun. It holds expansive forests of 500 year old trees that are homes for hundreds of living species and ecosystems. It has a plant cover density of 90%; including medical, rare and endangered plant species.
Abundant in trees and wildlife, the forests of Barqash form a part of the scarce green cover of Jordan. That being said, the architectural approach in such areas should aim for the preservation of every tree possible and should respect visually the dominance of nature.
The site is located downhill. A lower proposed access road provides circulation from the existing dirt road through ramps to the different parts of the project; that is hidden among the trees. The project is divided into 3 main zones: the visitor/ parents’ accommodation compound north, the reception/ staff compound in the middle and the patients’ compound south. Being a physical rehabilitation center, the modules are easily connected together and isolated to assure the restful stay of patients.

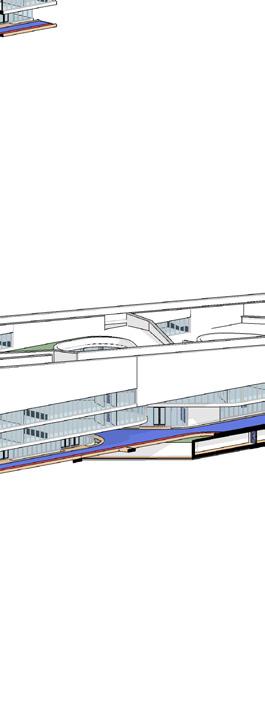

SITE PLAN LEVEL
North

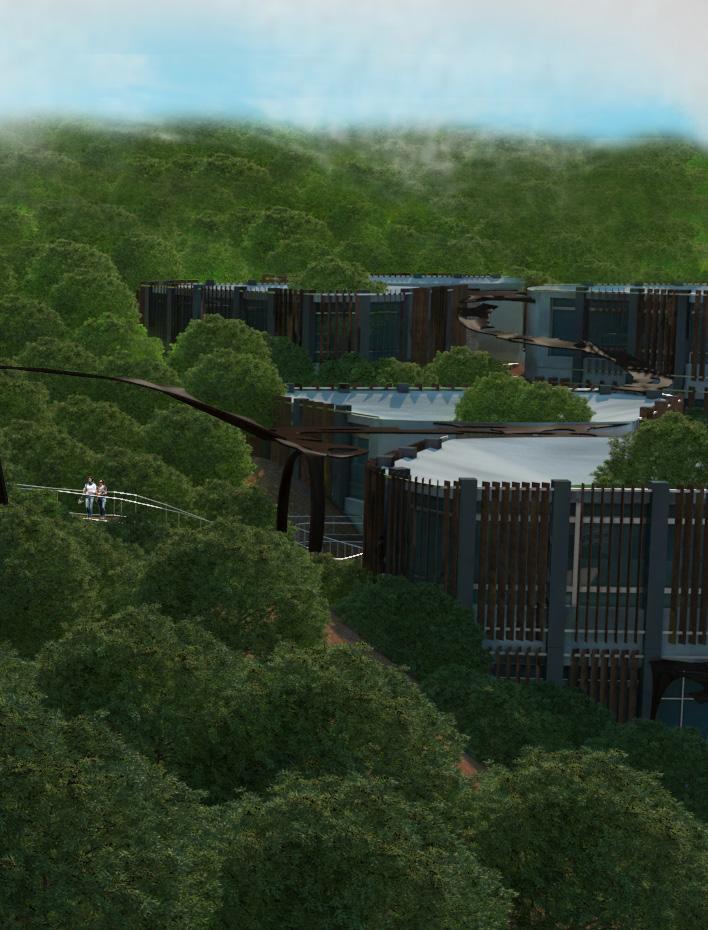

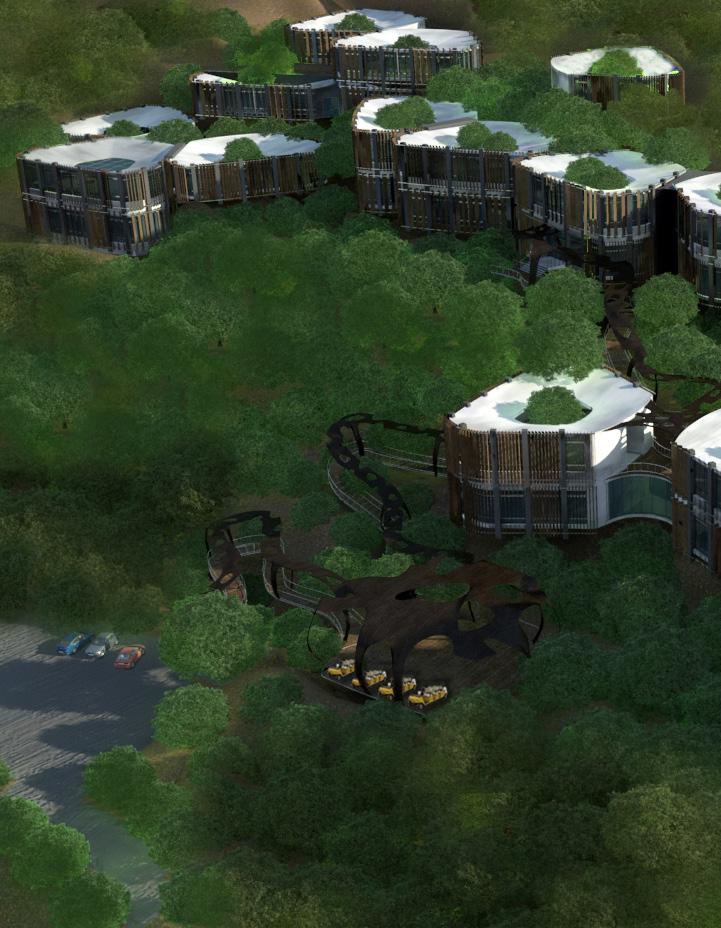

Previous: 3D Shot
View
Above: Floor Plans
West
27

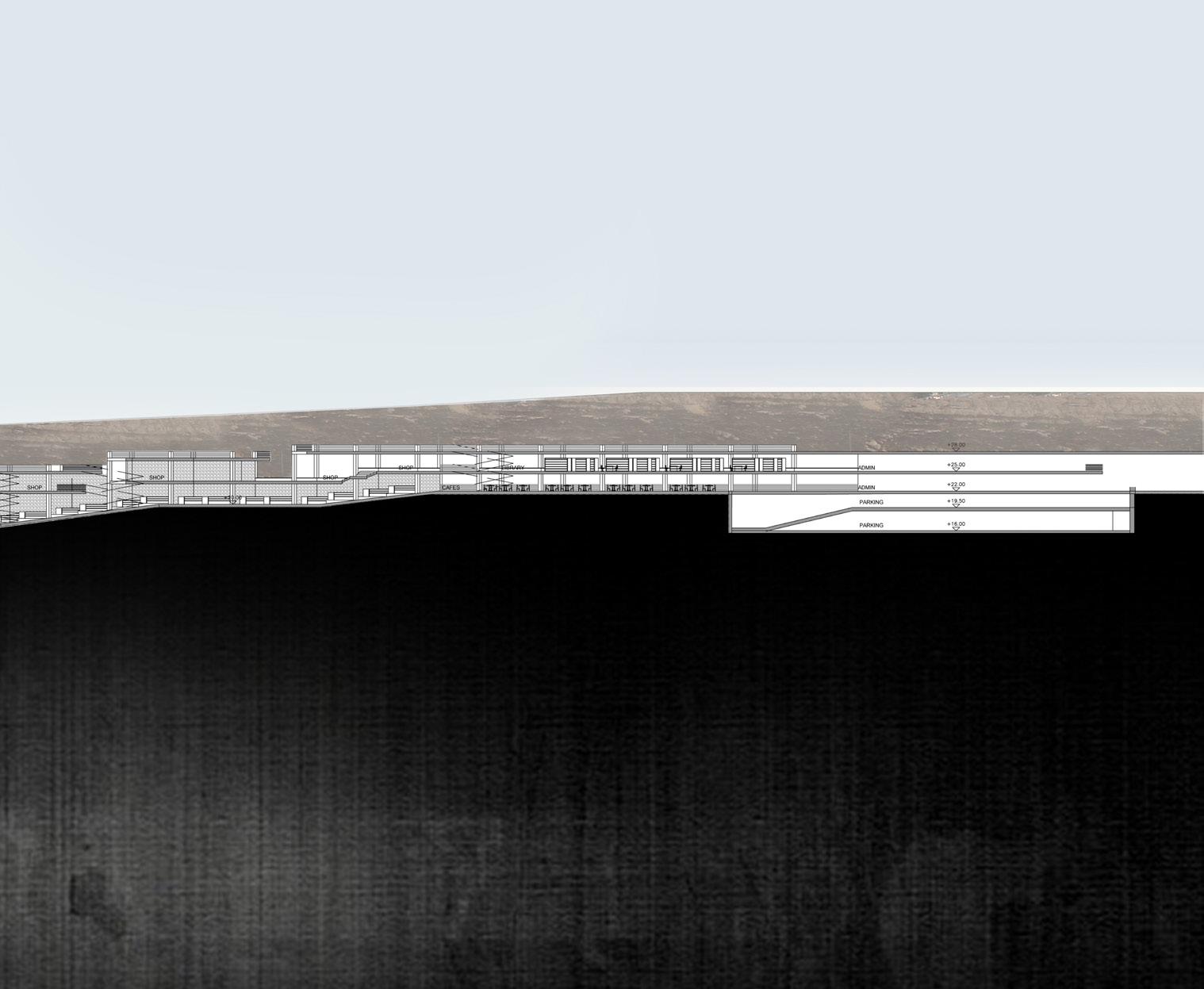

Below: Main Elevation
View
LEVEL 35 m LEVEL 30 m LEVEL 25 m LEVEL 20 m LEVEL 15 m 28
The scale and distribution of the pre-cast concrete modules reflect a sensitive approach to the nature around. The modules encase inner safe courts that connect the different elements of a module and sacredly revolve around a tree in each center. The inwards-sloped roof above the courts is used for water harvesting.
The double skin of glass and vertical wooden louvers reflect privacy and hierarchy of its module; using different densities of louvers. These louvers establish a connection between the exterior and interior; controlling its transparency.

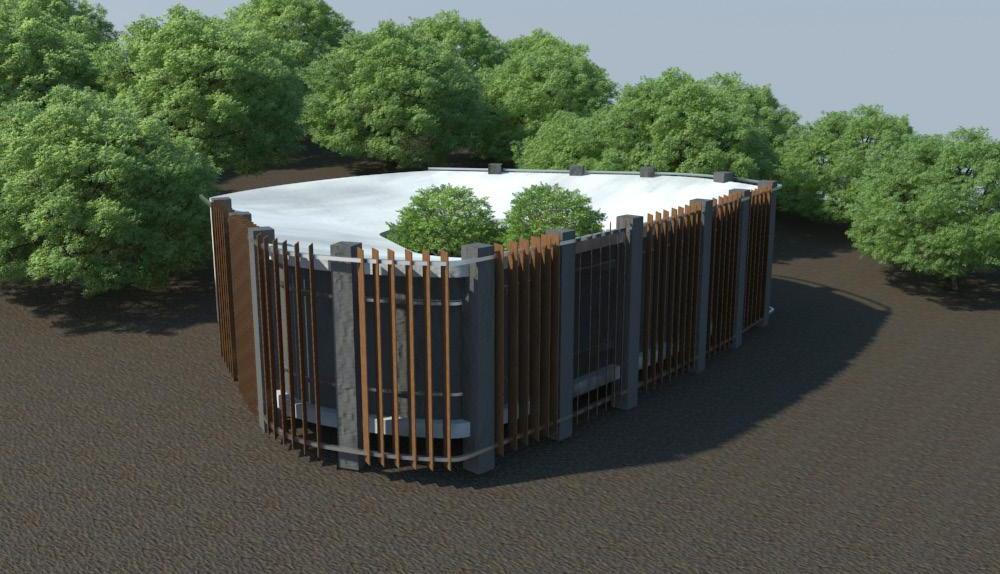

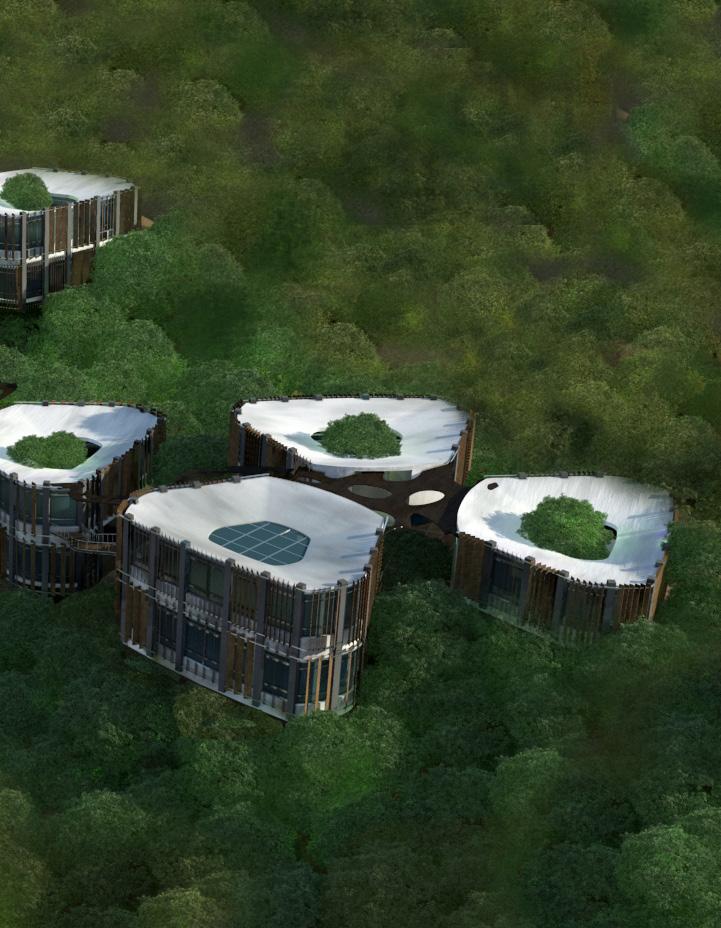

Above: Module 3D Shot
Center: Side Elevation North View

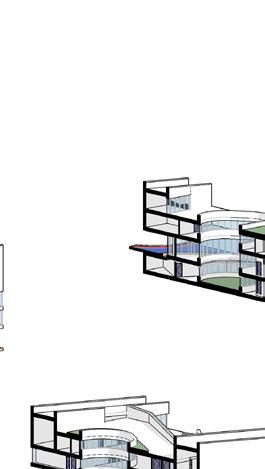

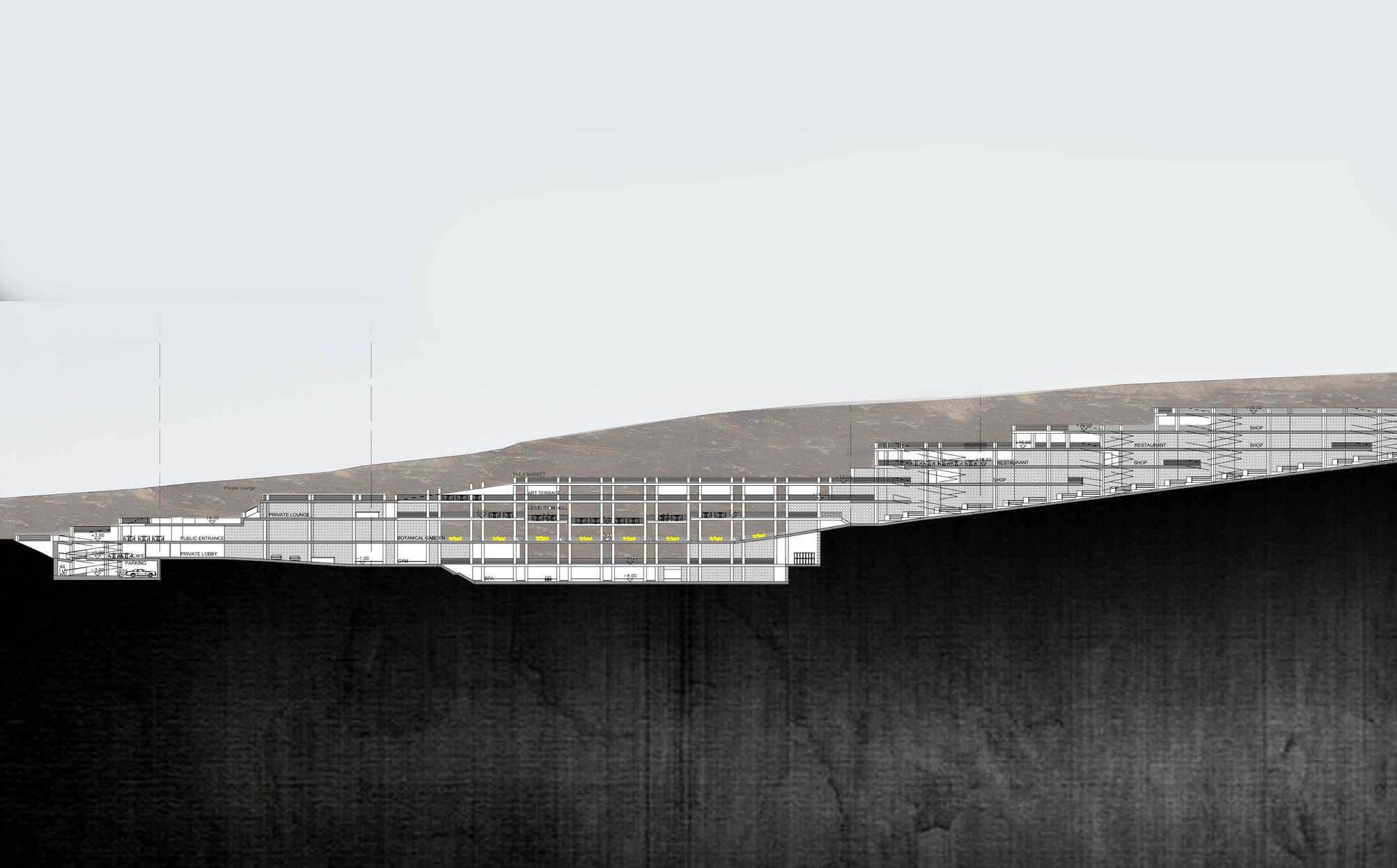

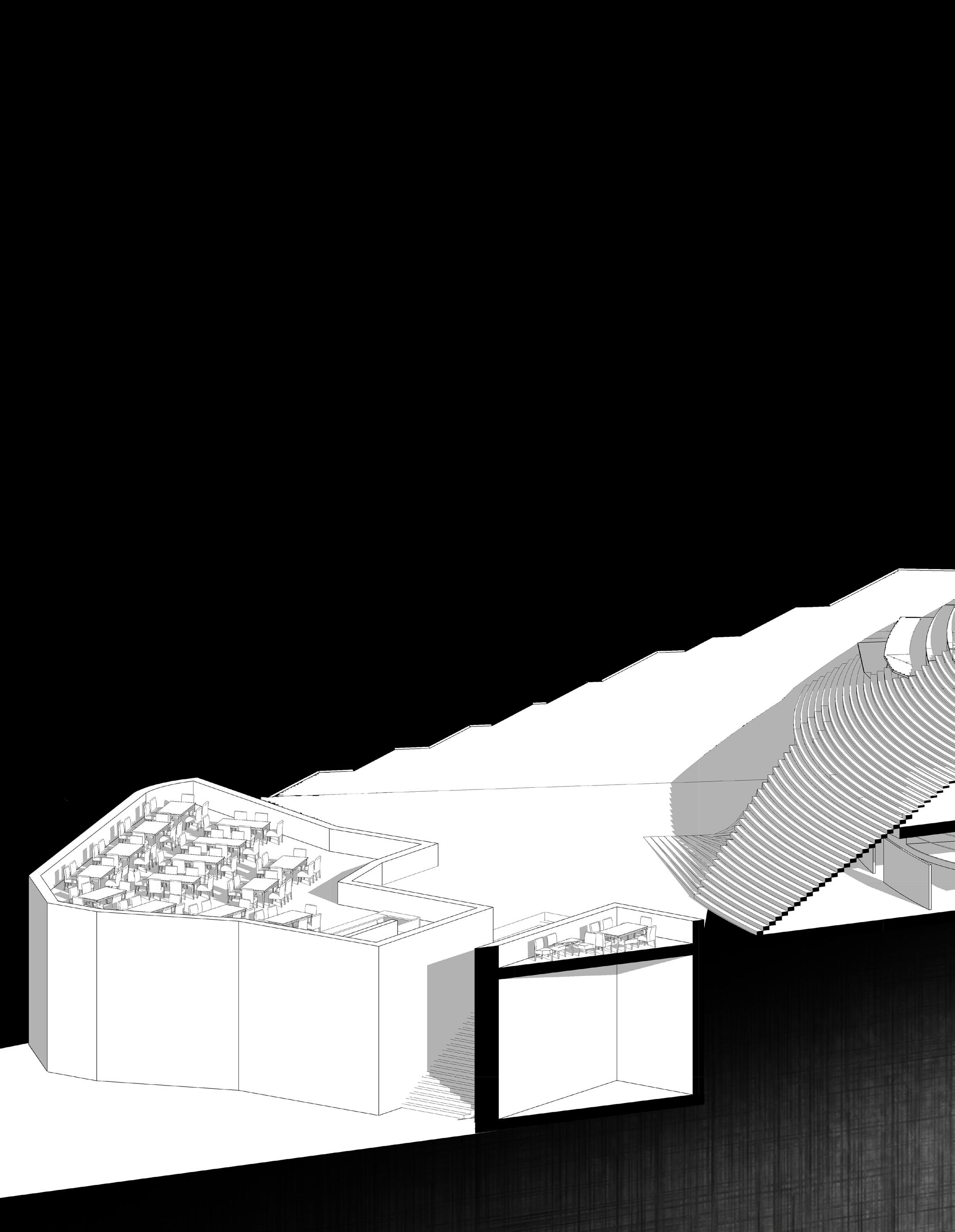

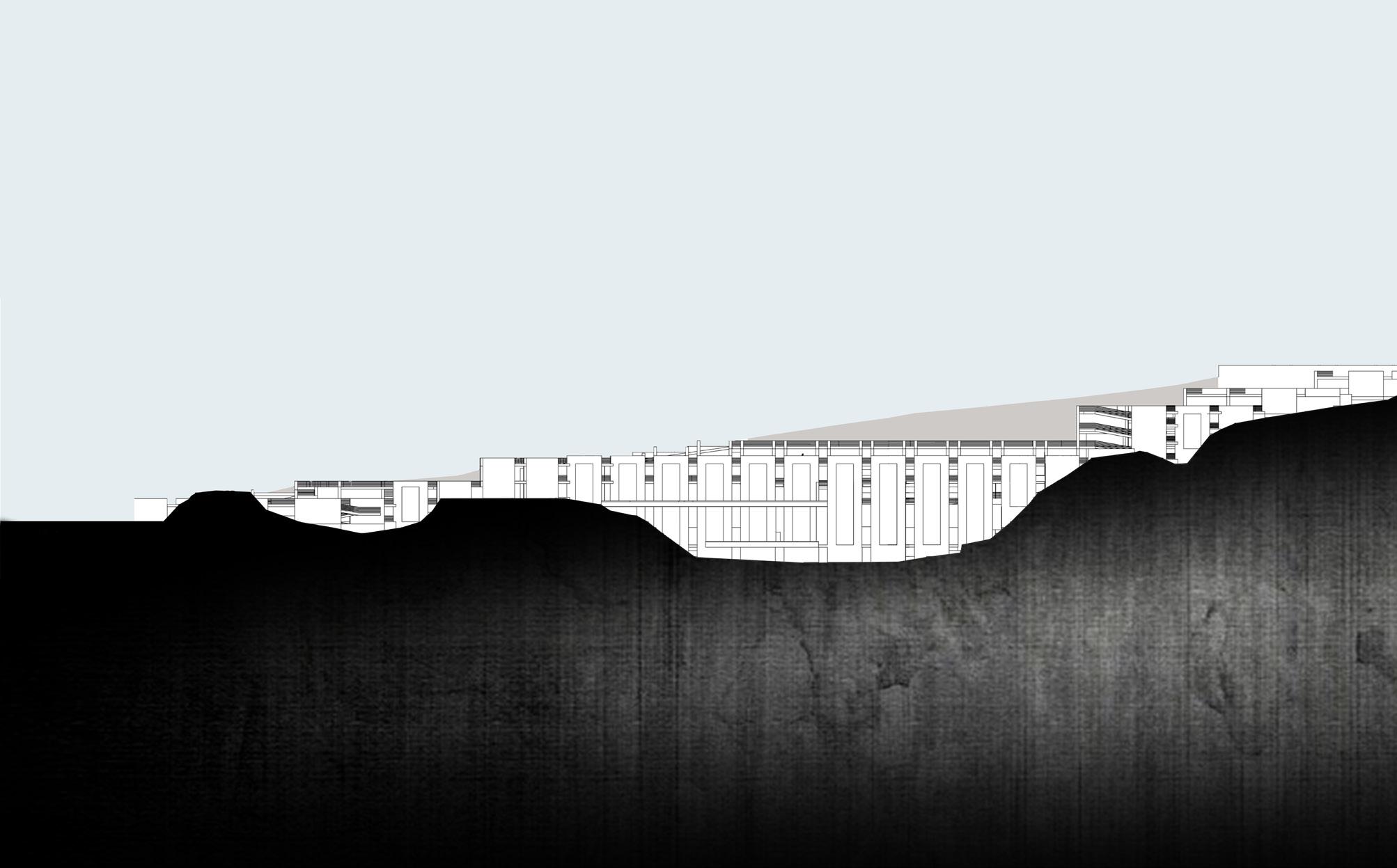

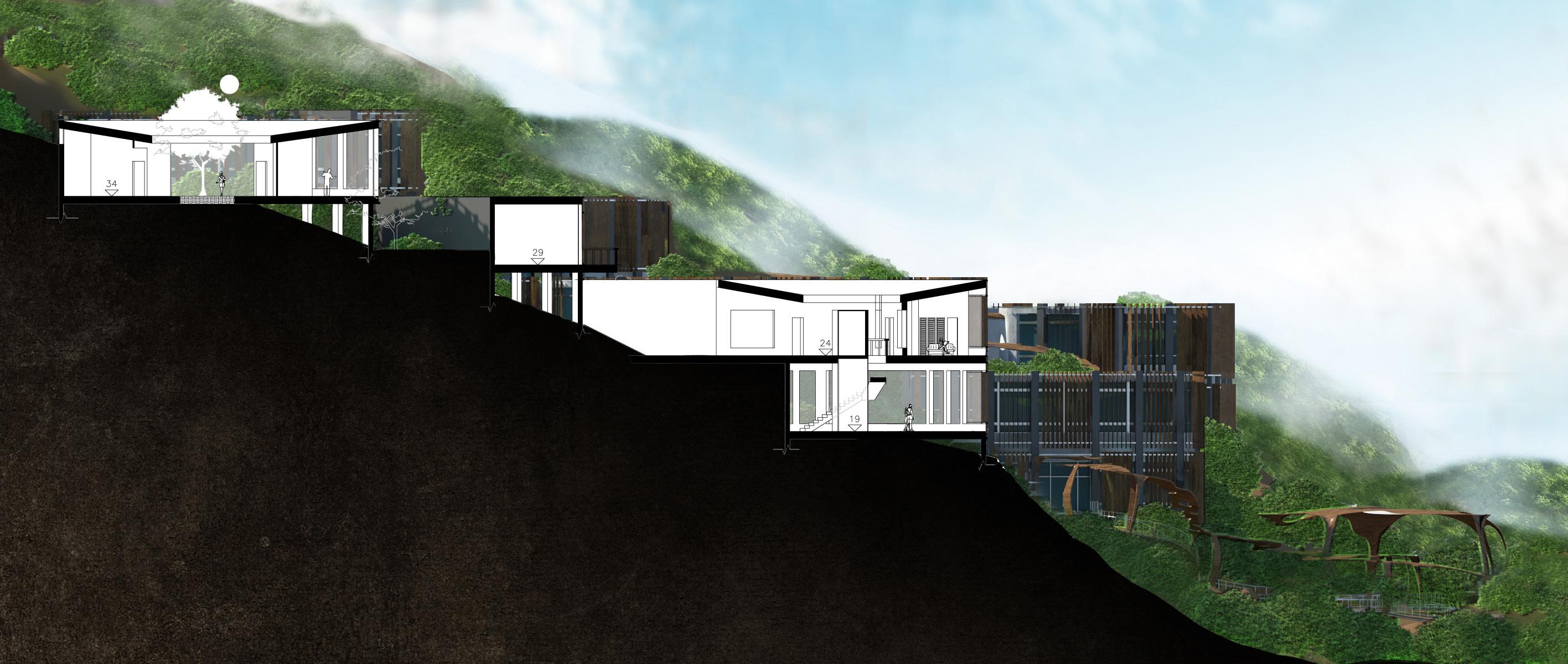

Below: Section North View
29

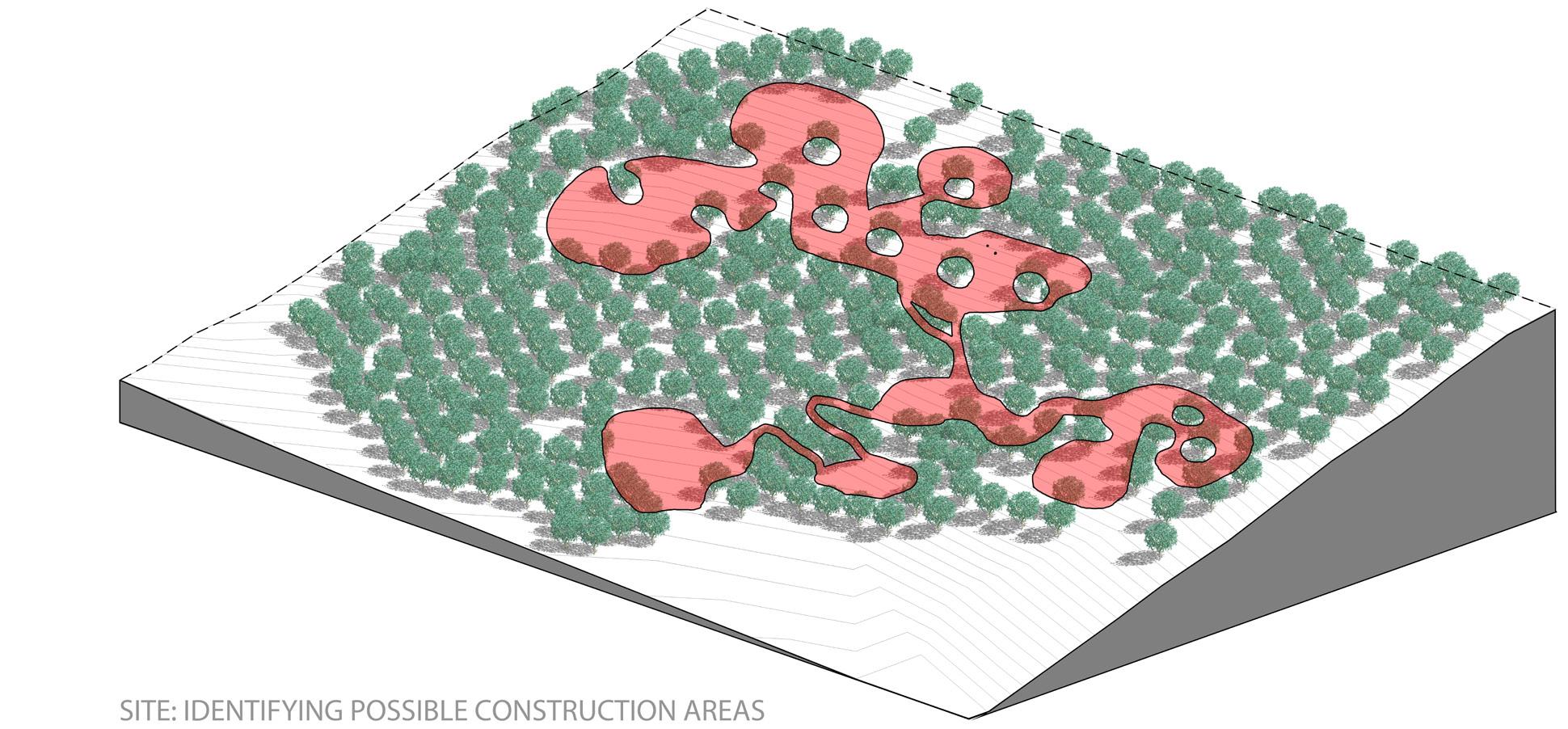

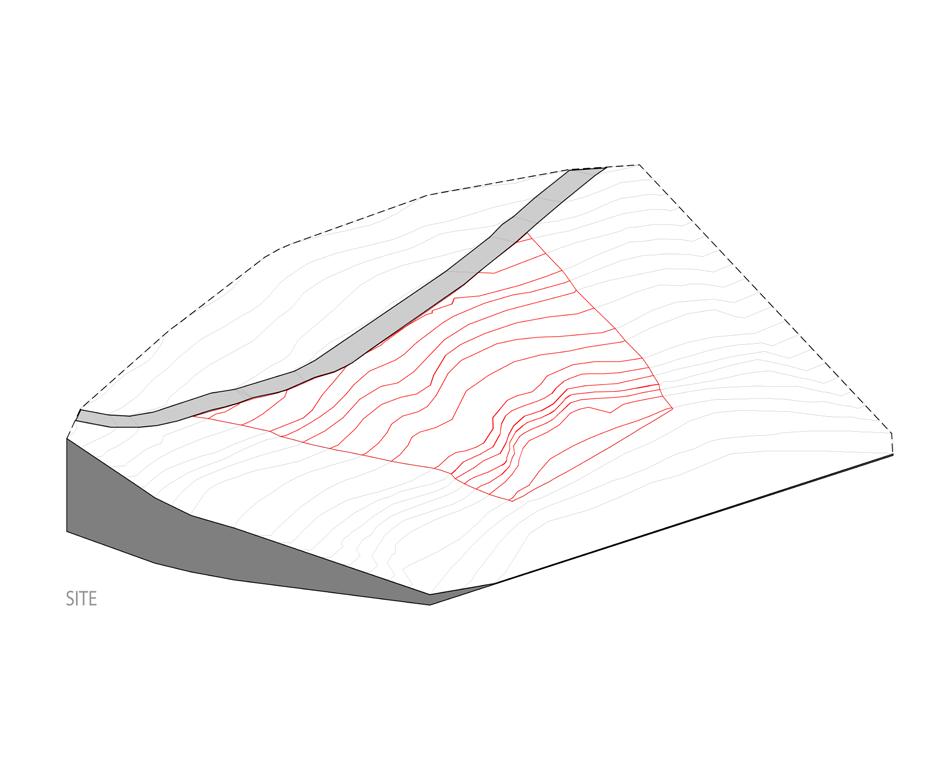

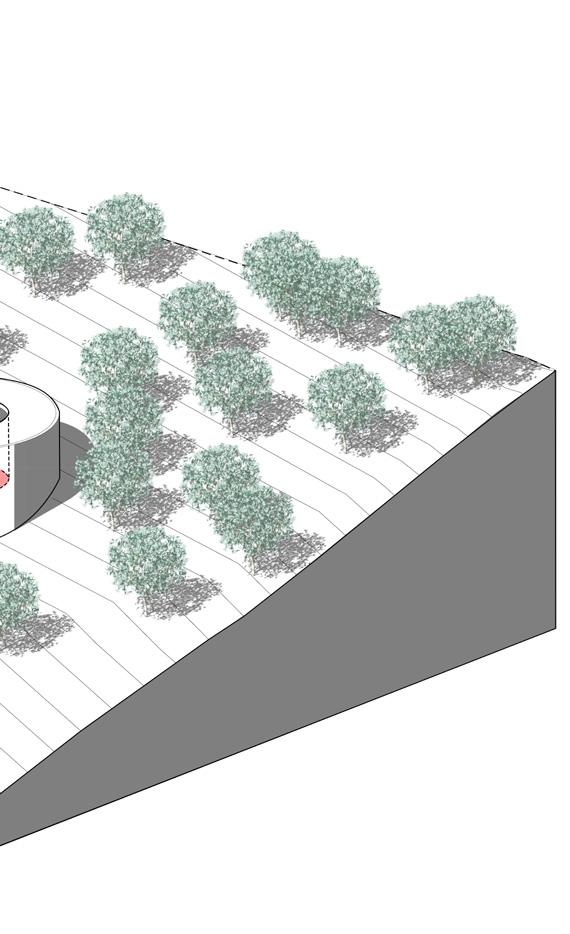

SITE: IDENTIFYING POSSIBLE CONSTRUCTION AREAS
STAFF ACCOMMODATION
PATIENT ACCOMMODATION
ENTERTAINMENT
GYM AND SPA
RESTAURANT AND CAFE
ADMINISTRATION

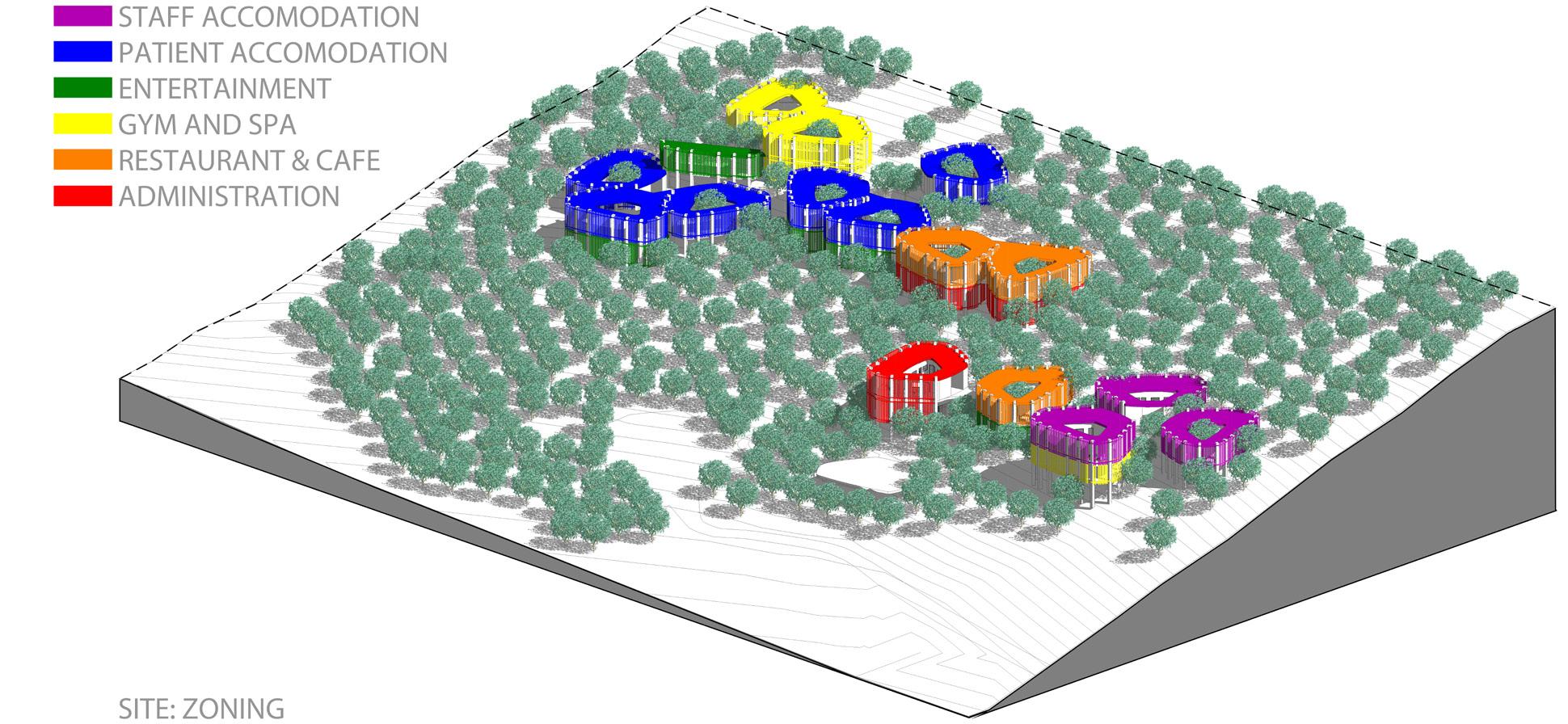

SITE: ZONING
30

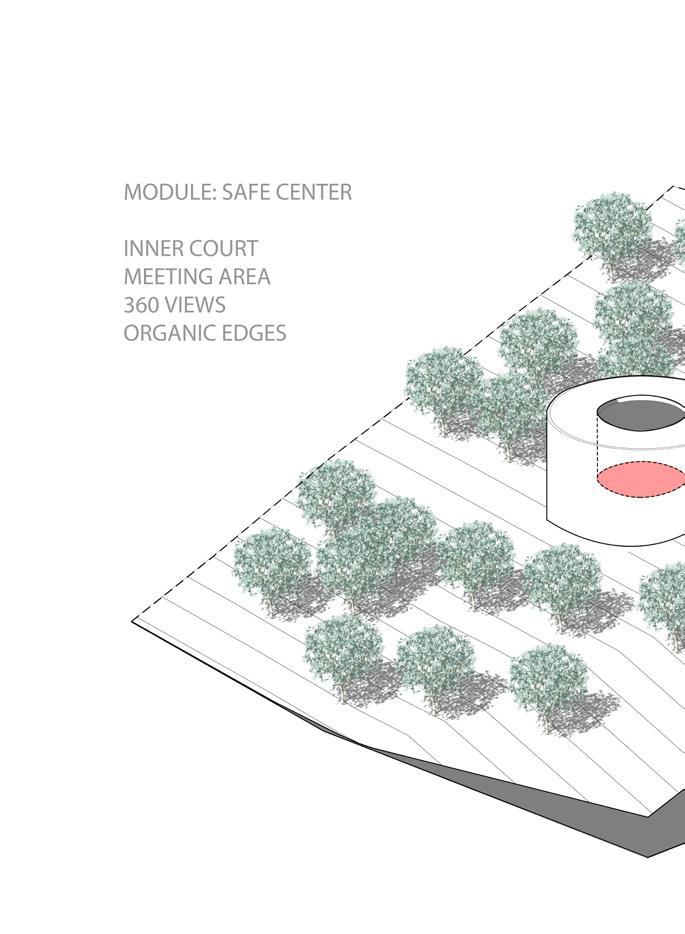

MODULE: SAFE CENTER
INNER COURT MEETING AREA 360 VIEWS ORGANIC EDGES MODULE: PROGRAM

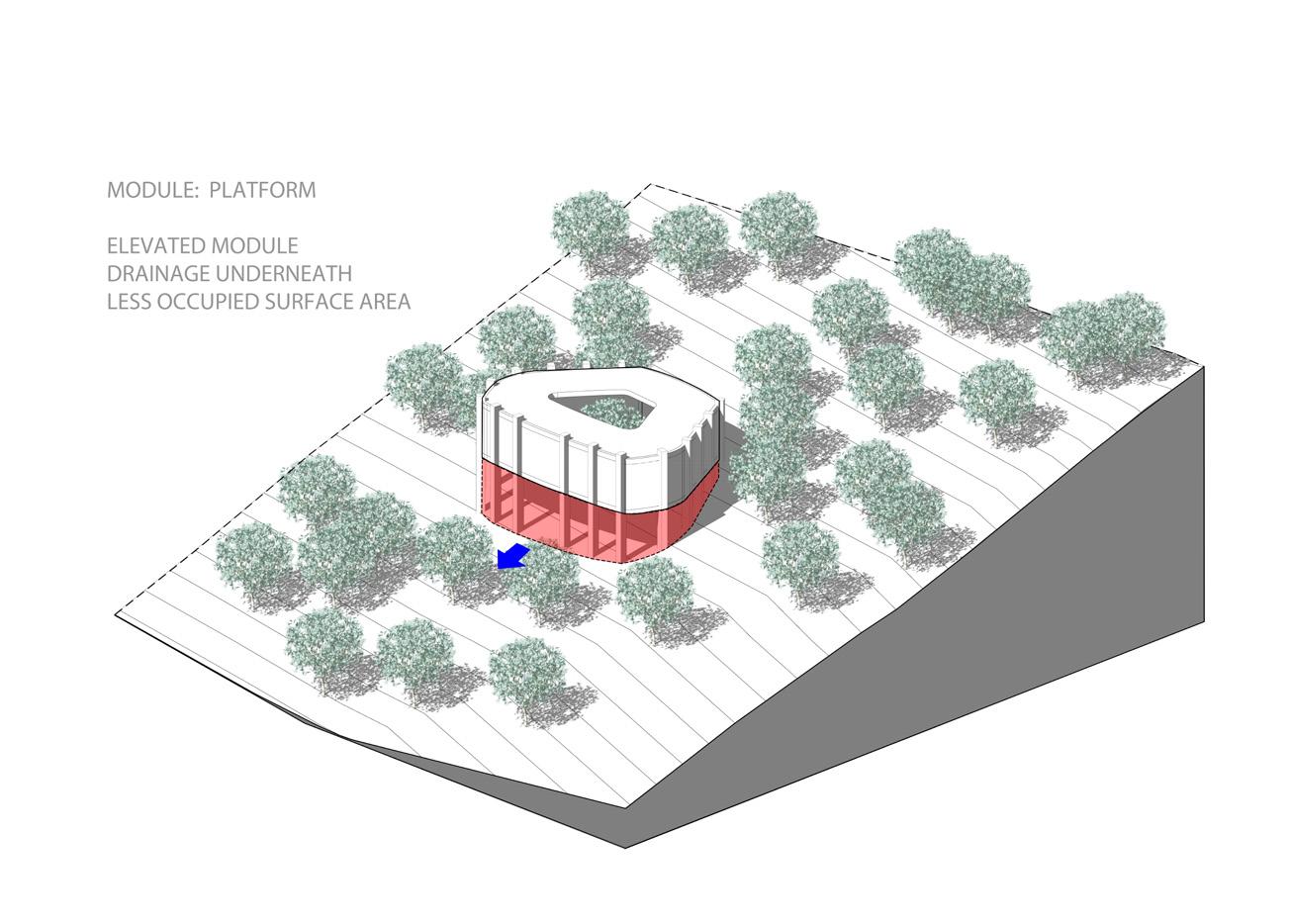

MODULE: PLATFORM
ELEVATED MODULE
PRESERVE SURFACE
DRAINAGE
MODULE: ASSEMBLY

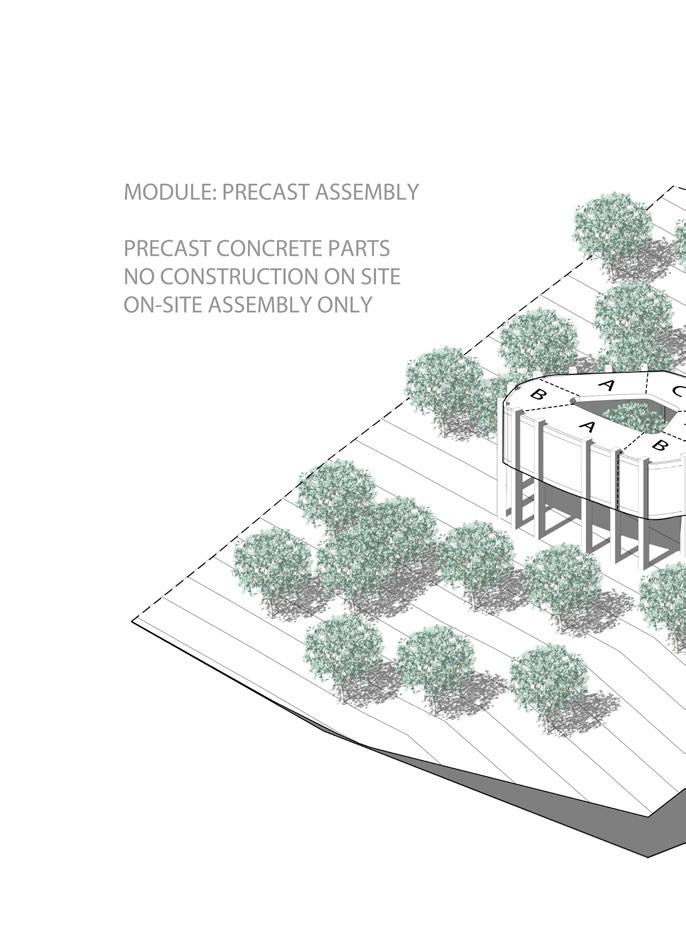

PRE-CAST CONCRETE PARTS LIMITED SITE CONSTRUCTION ON-SITE ASSEMBLY ONLY
31

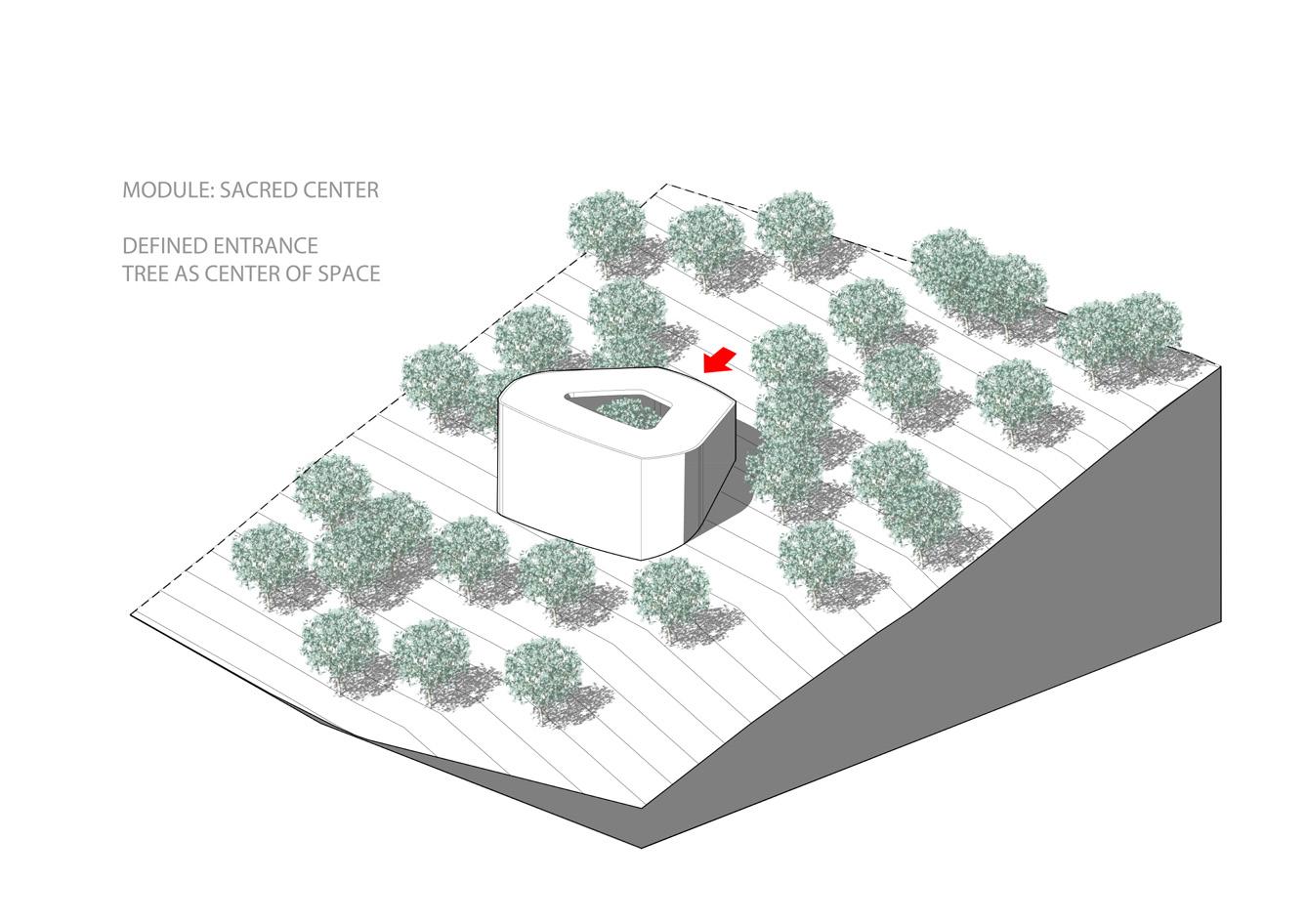

MODULE: SACRED CENTER
DEFINED ENTRANCE TREE AS CENTER OF SPACE
MODULE: WATER

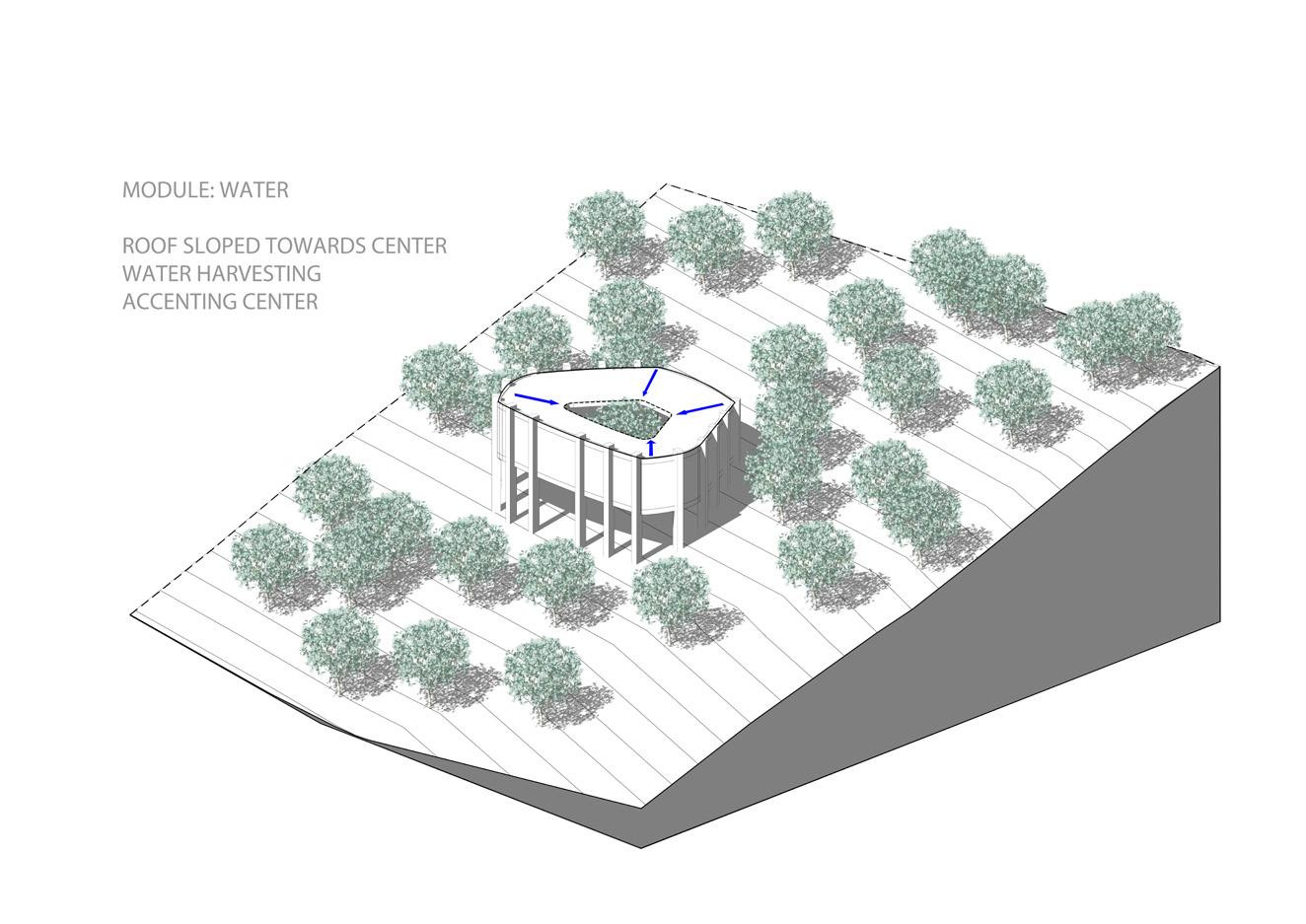

ROOF SLOPE TO CENTER WATER HARVEST ACCENTING TREE IN CENTER

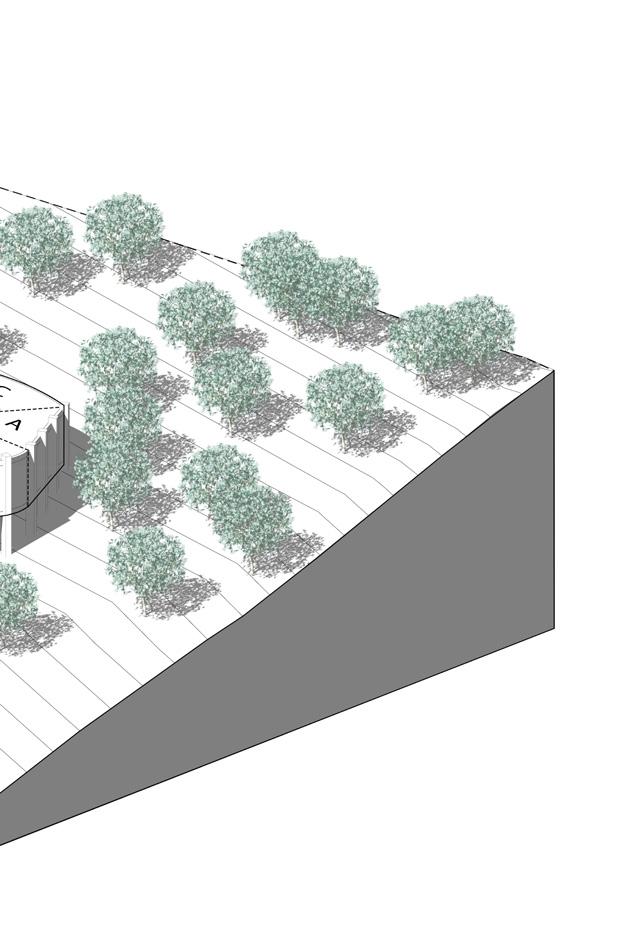

Previous Page: Site 3D Diagrams
South West View

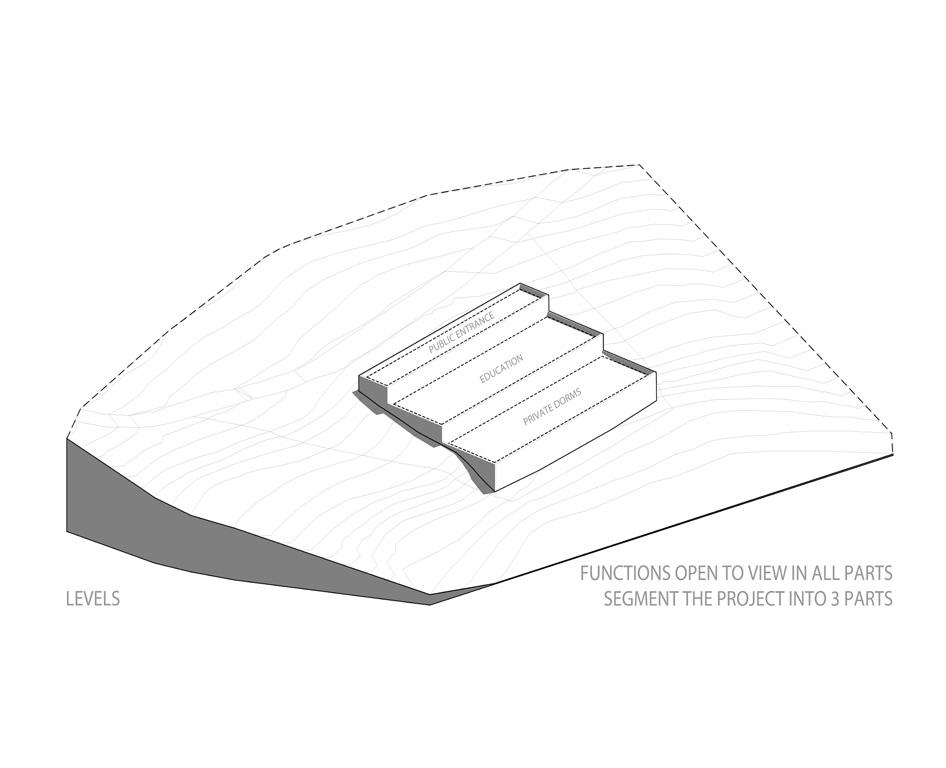

Above: Module 3D Diagrams

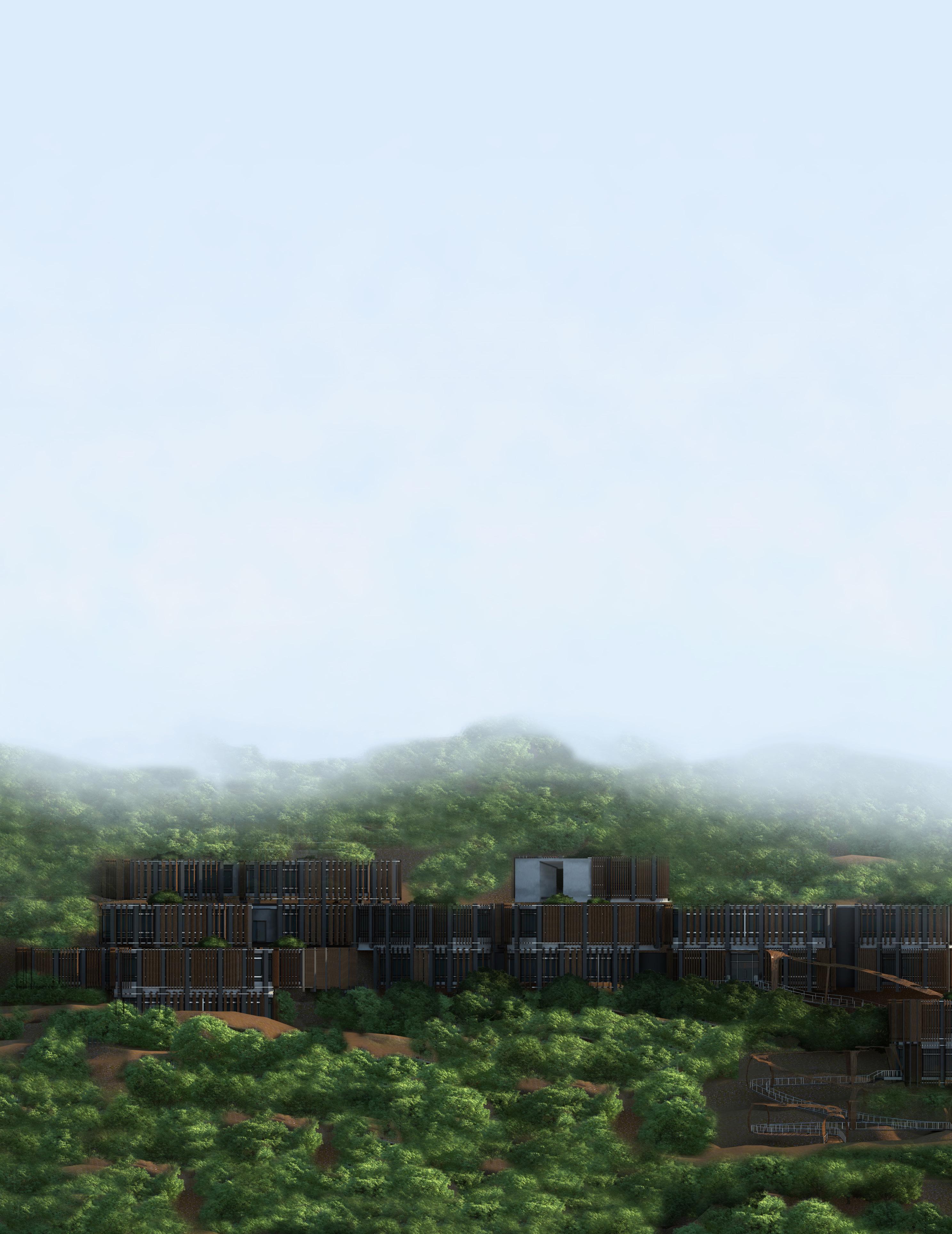

Next Page: 3D Shot West View
32
33
34
04. THE STAIRS
University of Jordan | 2012 Academic Professor A. Abu Ghanimeh Individual Work Downtown, Amman, Jordan
EXHIBITS/ SHOP
EXHIBITS/ WORKSHOP
EXHIBITS/ AUDITORIUM
EXHIBITS/ ADMINISTRATION
BASE
URBAN SKIN CAFE
EXPLODED GEOMETRY
“The Stairs” is Amman’s City Museum that is located in the old downtown Amman. A sloped site was chosen between the antique housing units of the area. Viewing directly the Roman Amphitheater, the site is elevated; giving a magical scenery and making the old city around a part of the museum’s attractions. The site is located between two of the oldest stairs in Amman; connecting the site to the lower main street and a parallel higher street. The site is disconnected from the lower street by local on–street shops and restaurants.
Stairs in old Amman are historically important urban interaction spots. That’s why, the elevation gives a clear respectful contrasted statement that is different, yet, not dominant to the traditional downtown housing; preserving its historical identity.
THIRD LEVEL
37
FOURTH LEVEL

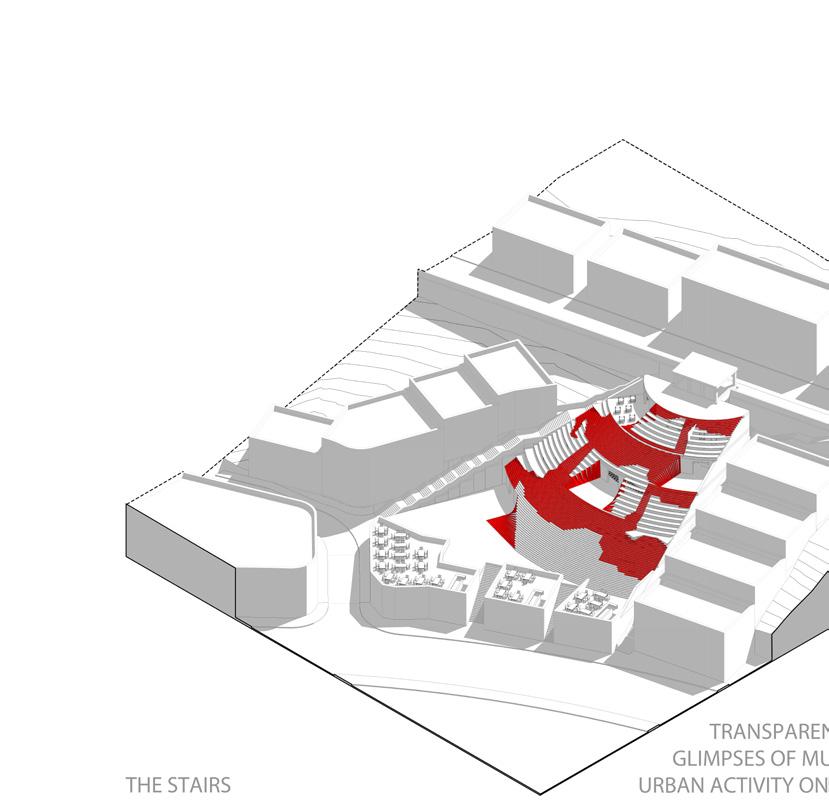

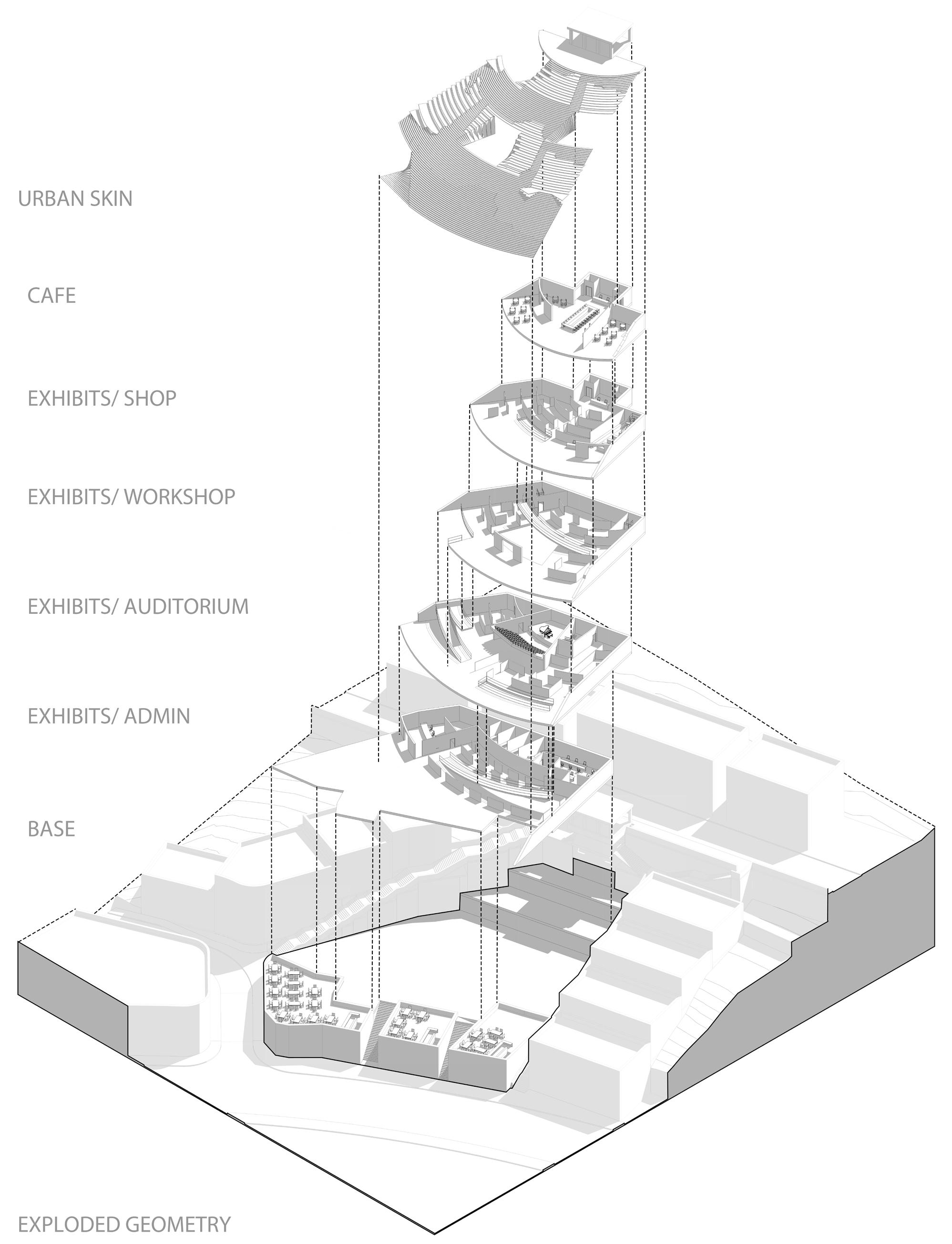

Previous Page: 3D Exploded Diagram South View
Above: Floor Plans

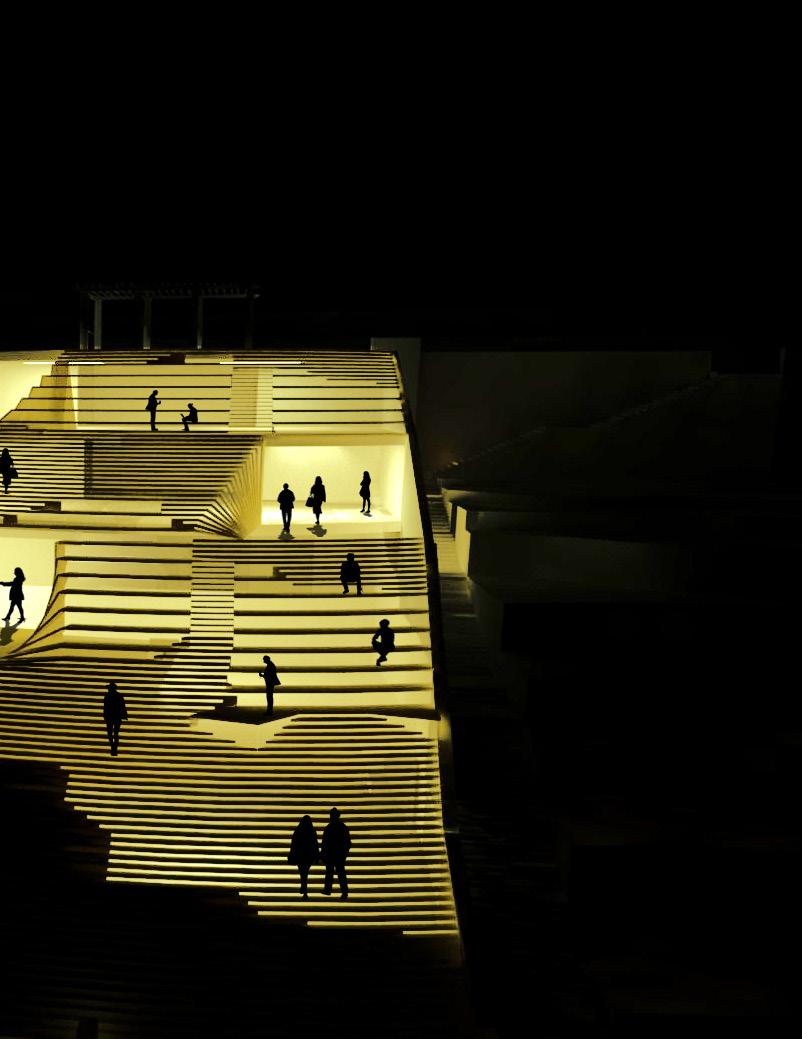

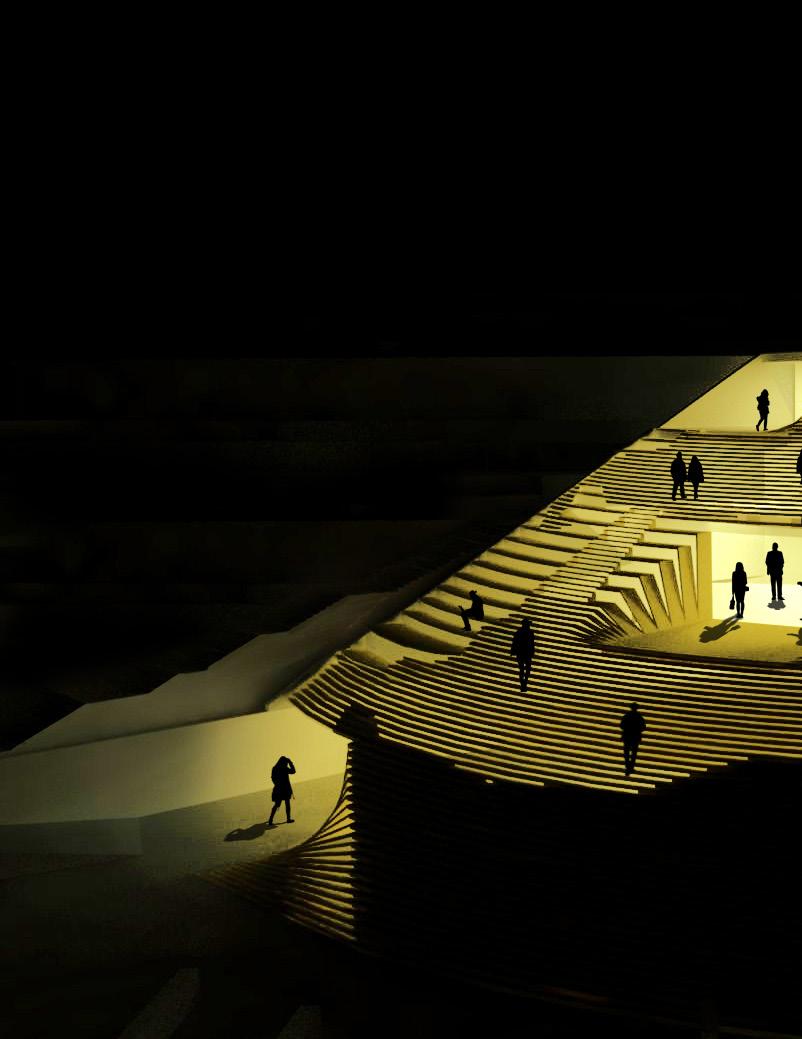

Below: Night 3D Shot South View
SECOND LEVEL FIRST LEVEL BASE LEVEL
38

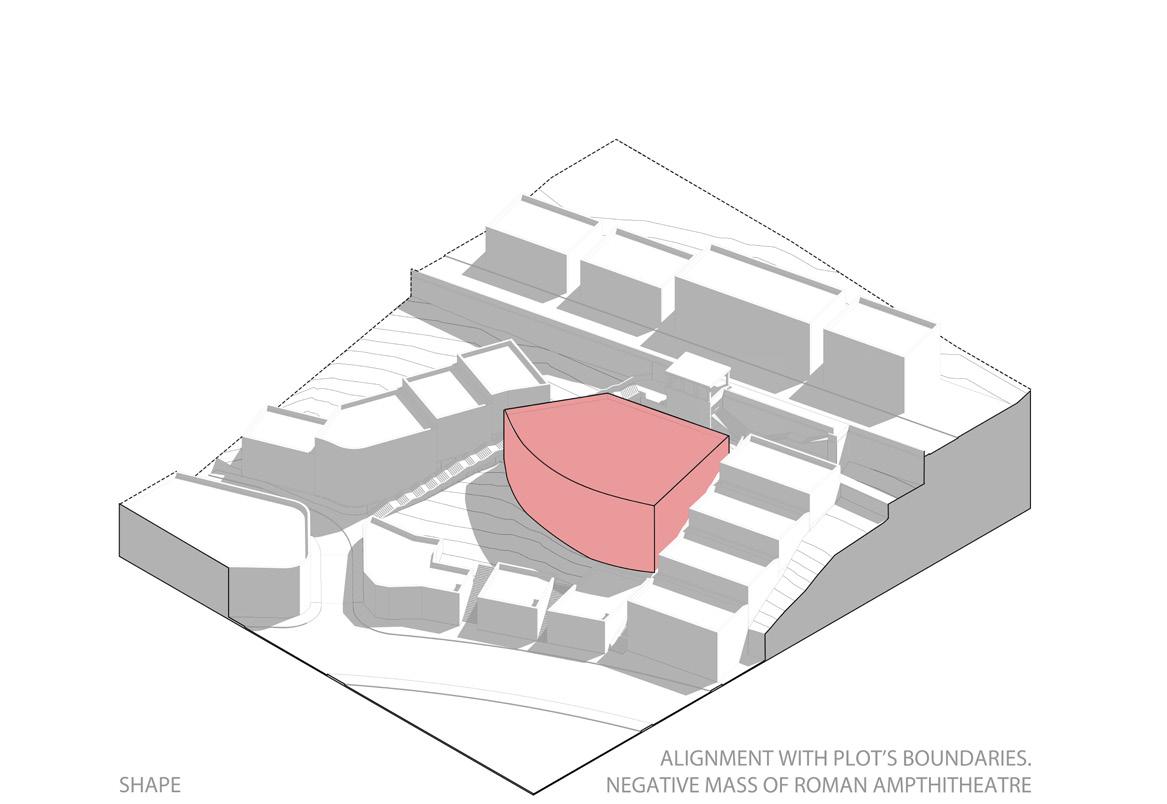

FACADE AS URBAN SPACE SHAPE ADAPTATION THE STAIRS THE STAIRS ALIGNMENT WITH PLOT LIMITS INVERTED MASS OF AMPHITHEATER THE START OF THE JOURNEY SOLID RISER STAIRS NEIGHBORHOOD CONTRASTING TRANSPARENT GLIMPSES OF MUSEUM URBAN ACTIVITY SITE PROGRAM 39
The sloped stair-like elevation of the museum is walk-able and accessible to the public; giving access to different parts of the project from the exterior. The rise of each stair is see-through glass which allows the public to have a sneak peak of the museum. On the contrary, the public behavior, on the stairs, is a sight to see for the visitors inside and gives an idea about their cultural interaction. Through the lines of the stairs, visitors can spot what’s going on in Amman.
The museum gives a different experience and tells a story of the people of the city. A journey through ramps lets the visitor explore all of the attractions of the building; starting from bottom to top, or vice versa, and finishing at either the restaurant above or the plaza above the existing shops below. These shops were further developed and preserved by using their rooftops as a plaza with food courts and sitting areas; serving the authentic restaurants below; which didn’t have any sitting areas.

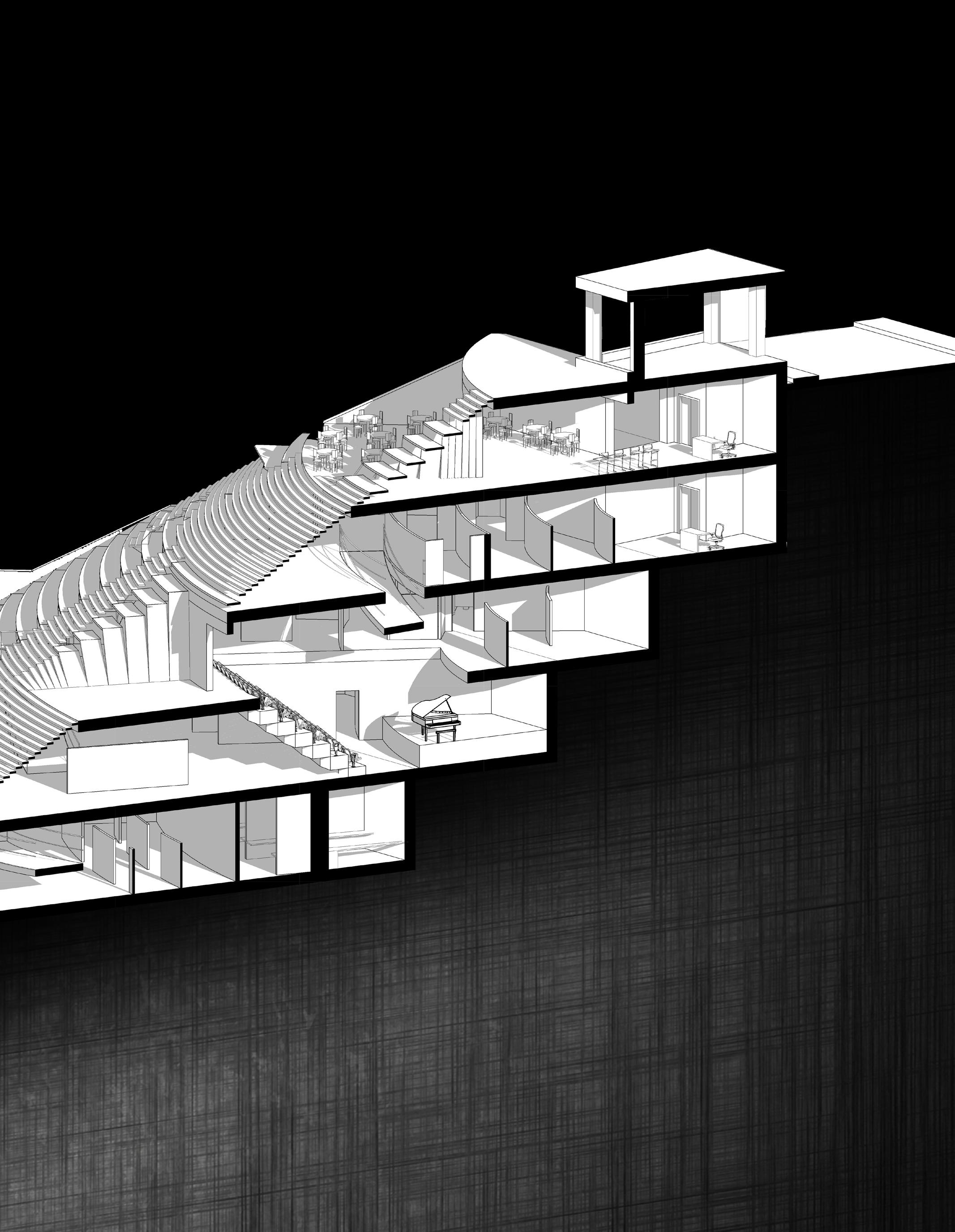

Next Page: 3D Section East View

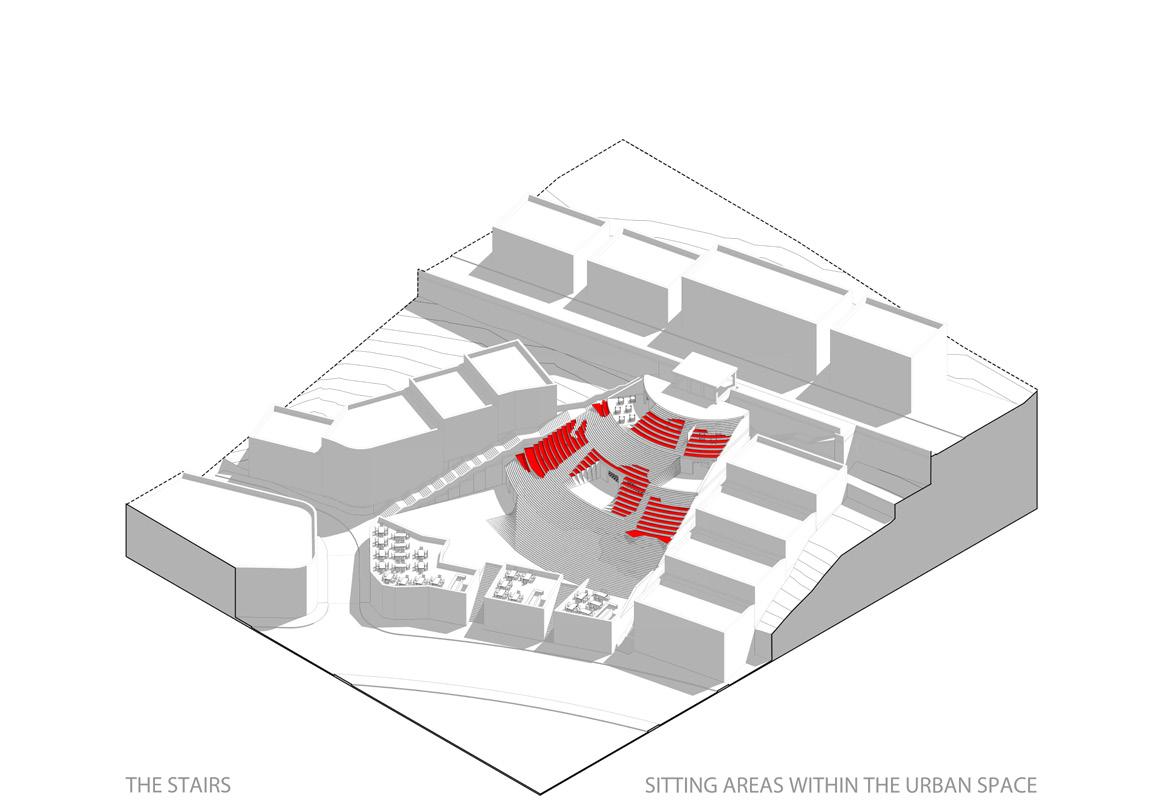

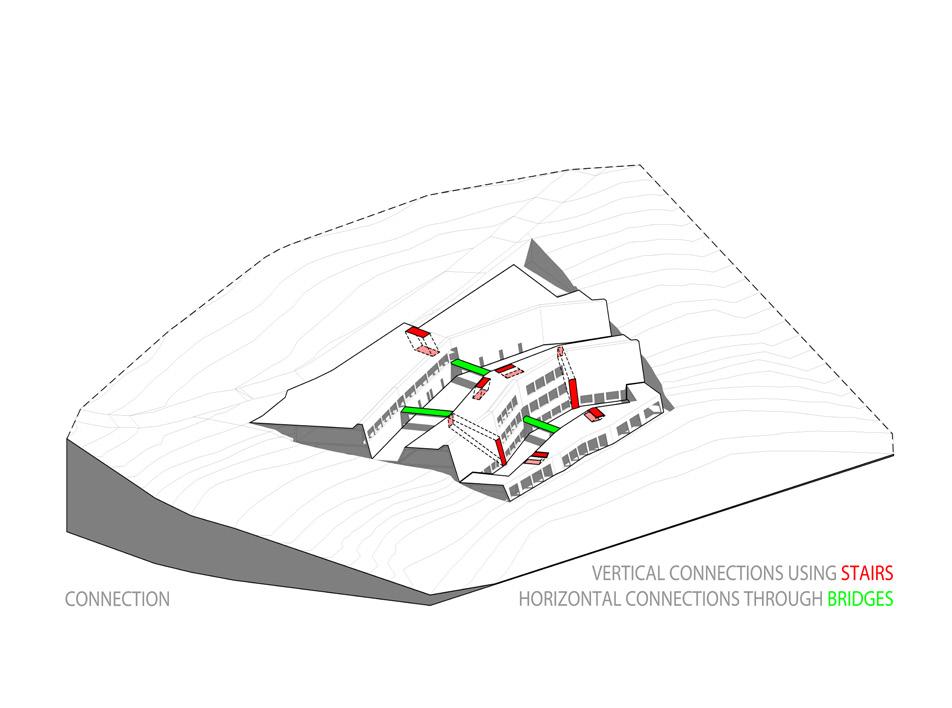

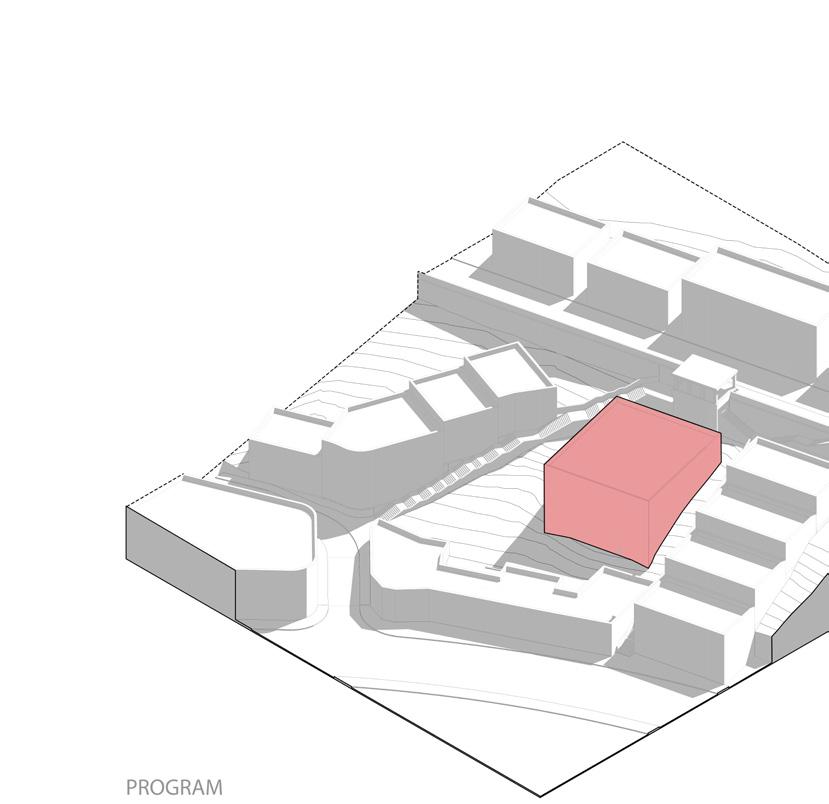

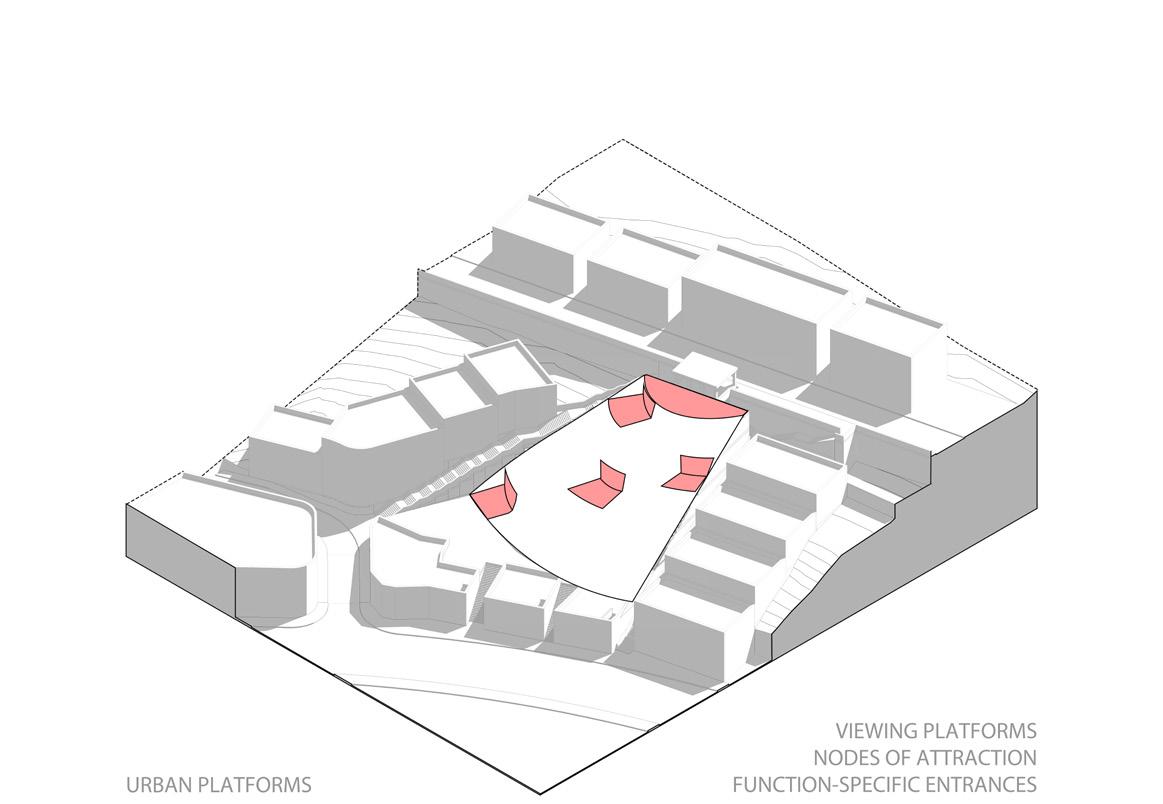

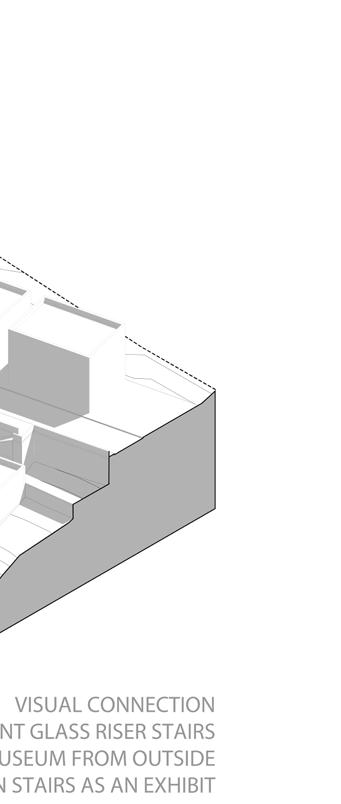

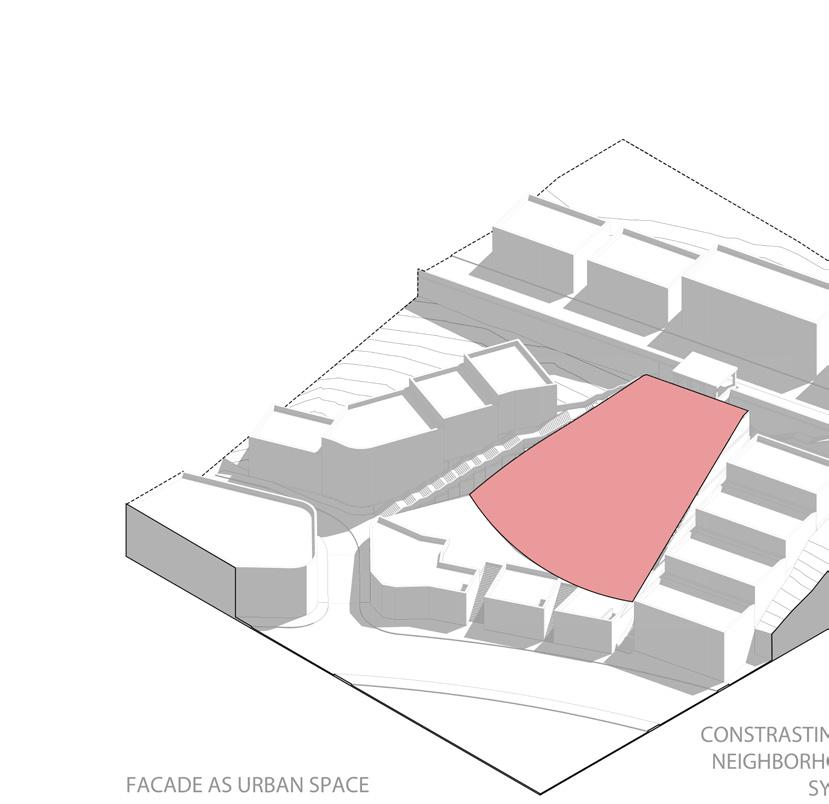

Left: 3D Diagrams South East View

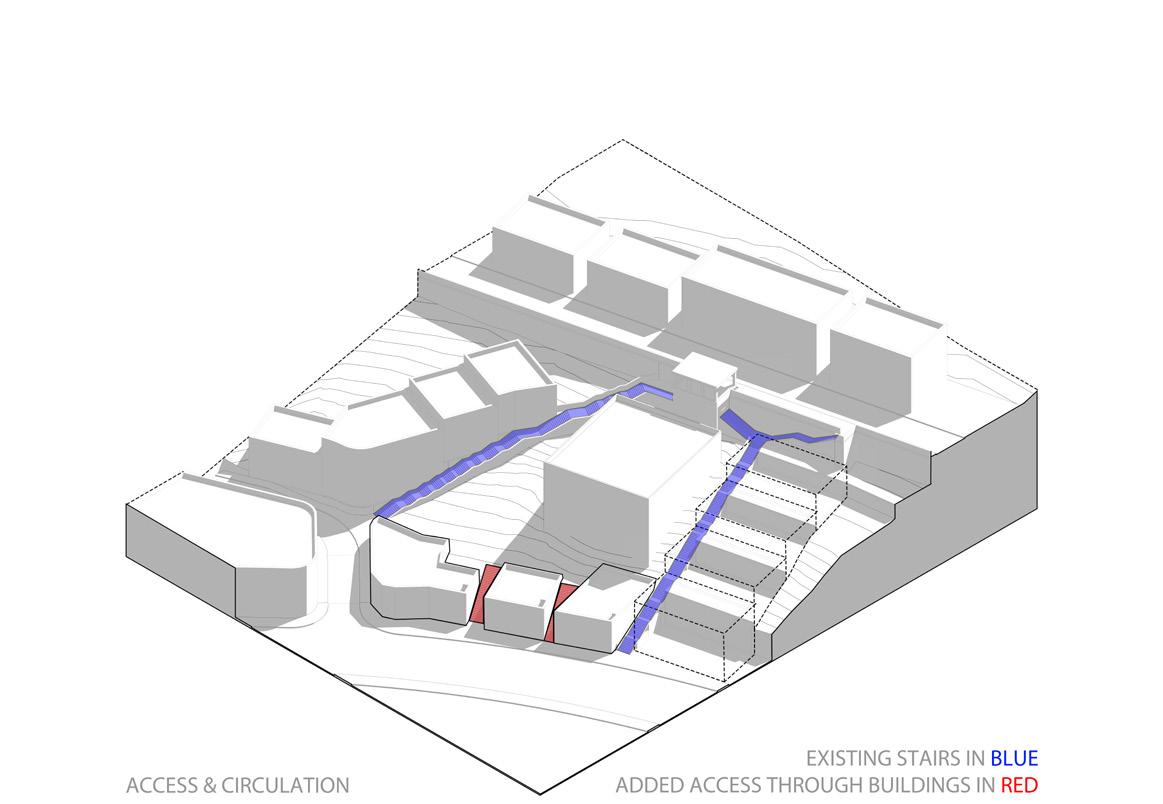

URBAN PLATFORMS THE STAIRS ACCESS
& CIRCULATION
EXISTING STAIRS ADDED ACCESS VIA BUILDINGS
SYMBOLIZES STAIRS NEIGHBORHOOD VIEWS’ SENSITIVE CONTRASTING WALK-ABLE FACADE VISUAL CONNECTION TRANSPARENT GLASS RISER STAIRS MUSEUM FROM THE EXTERIOR ACTIVITY ON STAIRS AS AN EXHIBIT
VIEWING PLATFORMS NODES OF ATTRACTION
FUNCTION-SPECIFIC
ENTRANCES SITTING AREAS WITHIN THE URBAN SPACE
40
05. THE GATE University of Jordan | 2015 Academic Professor F. Sharaf Individual Work Abu Nseir, Amman, Jordan
“Amman Gate” is an urban space located on a major Amman gateway; welcoming visitors into the capital from the Northern provinces. Throughout history, city gates usually defined city edges and monumentally delivered a physical and symbolic impression of power and security. They out-scale the human; screening physically and visually whatever private zones behind. However, they allow for a visual contact for its users of the surroundings while circulating within between different parts. Formally, they embrace a sense of linearity with unifying modular elements within, which, along the linearity, allow for various functions.
The site is S-shaped with a 445 meter length with an average offset of 50 m. It encloses an area of 22500 m2 with a difference in elevation of 35-40 meters. It offers two sharply sloped natural pockets with a unique stone texture that are hard to inhabit or vegetate.
The project aims to tackle the urban and social segregation happening between different economical classes of society. The project seeks to offer a diverse set of spaces in order to attract a variety of interests and activities. It will house a promenade, plazas, viewing platforms, private retail spaces, private event halls, restaurants, cafes, a library, a spa, a gym, rentable kiosk spaces, craft centers, workshops and multiple car parking platforms. The diversity of the spaces’ program aims to welcome users from all socioeconomic backgrounds. The program ranges between private high-end spaces and affordable public open spaces. The assembly of these two types of spaces is to allow a mix in the different social backgrounds through interaction in the public spaces.

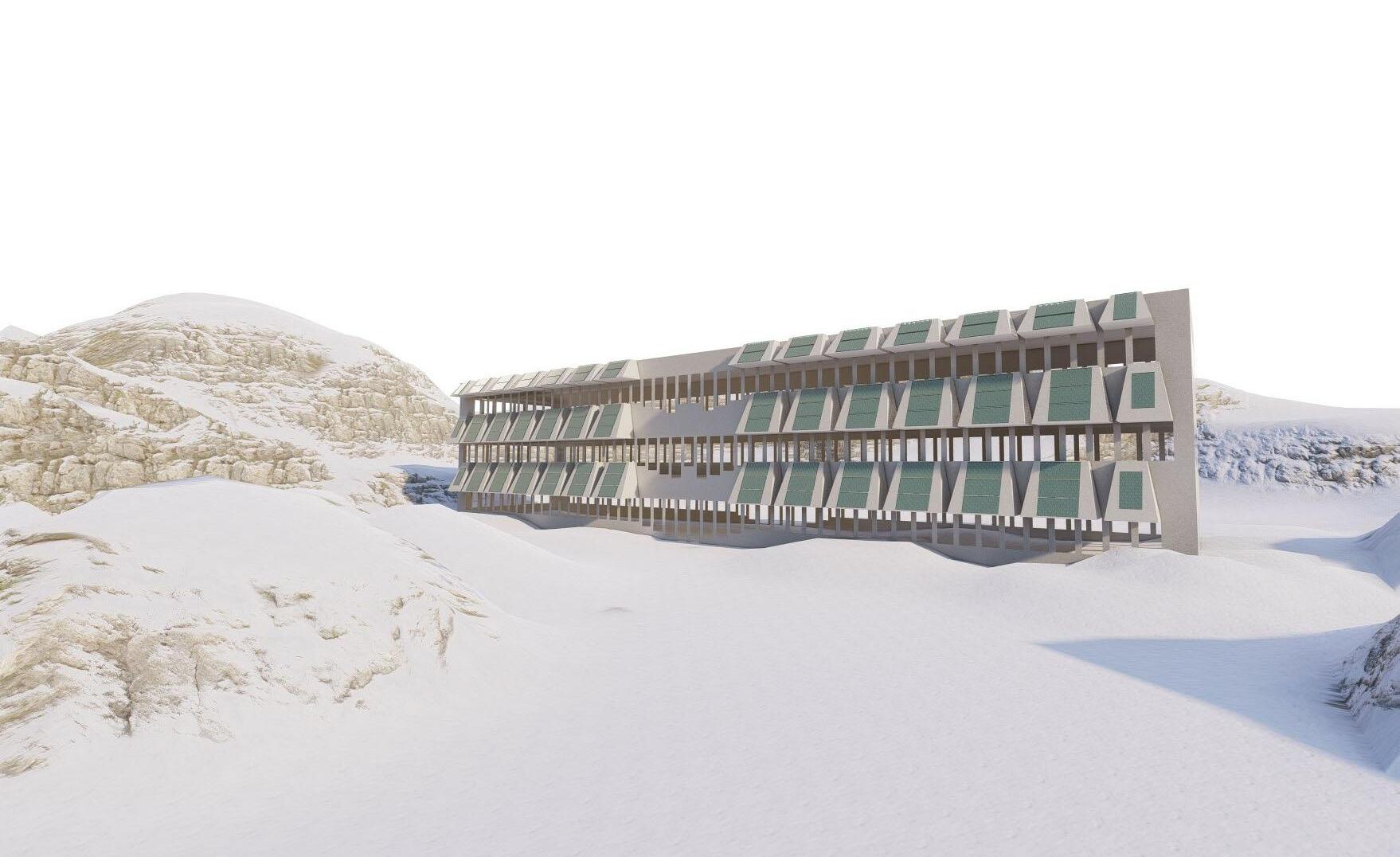

Previous: Promenade Shot Interior View Above: Plans Below: Day Shot North View 45
46
The site is adjacent to a high speed connection street that exhibits a unique behavior. People linearly park on the sides to spend some time looking at the view of the Baqaa Refugee camp with the mountains in the background. However, nearby existing public services are limited, which makes the site of great potentials.
A promenade, which is an offset of the site borderline, establishes the main axis of the project with a maximum exposure to the view and a minimum footprint. Although the site is of great slope, the promenade comfortably ramps access to all parts of the site; taking advantage of the two pockets for 2 main functions. This eliminates any need to use stairs or elevators. The promenade penetrates the earth at some points to achieve a suitable incline for pedestrian circulation.

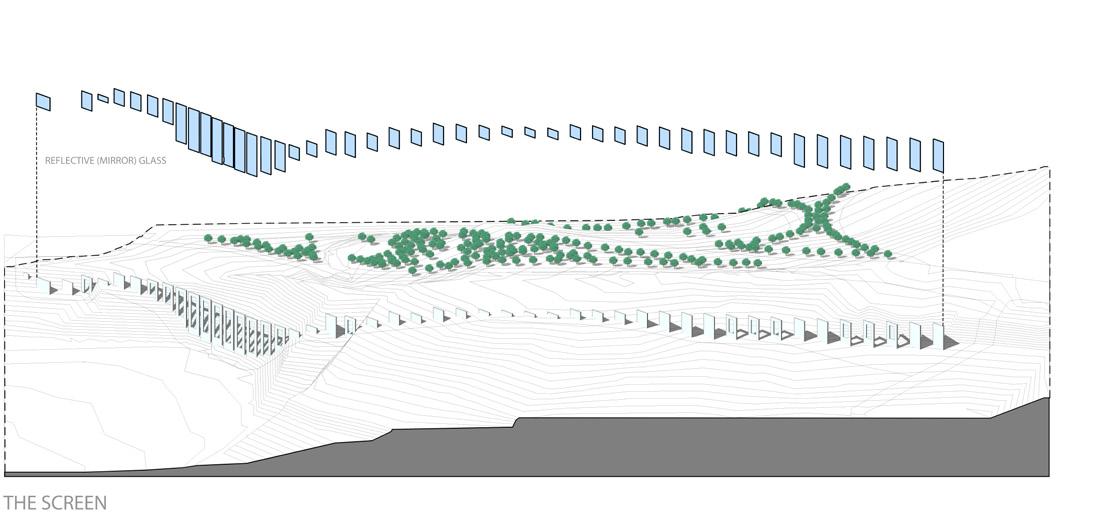

A street-sensitive screen arises from the promenade; enclosing spaces between itself and the mountain and sheltering the project from the cold northwest winds of Jordan. The screen doesn’t interrupt street users from viewing the scenery. The screen is fragmented into even modules of free standing windshields; allowing sunlight and fresh air to enter from the sides. The free standing modules create spaces between each other; providing all functions needed for the project and giving a unified form and language for the promenade.

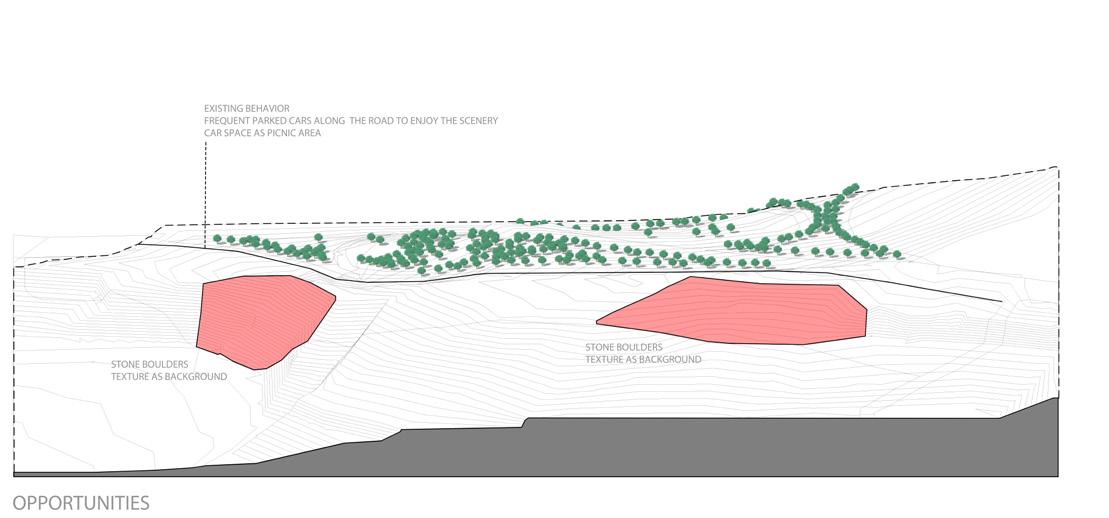

OPPORTUNITIES
EXISTING BEHAVIOR FREQUENT PARKED CARS ALONG TH ROAD TO ENJOY THE SCENERY CAR SPACE AS PICNIC AREA
SENSITIVE ENCLOSURE THE REFLECTIVE SCREEN REFLECTIVE

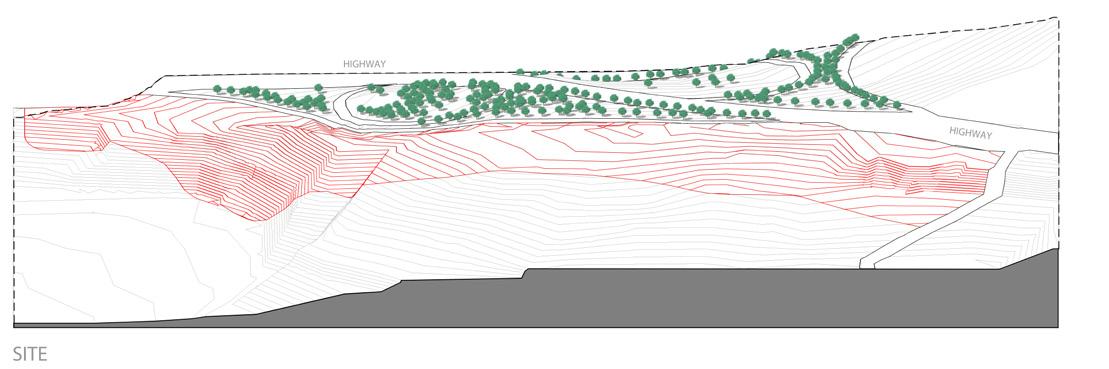

SITE HIGHWAY
THE PROMENADE OFFSET
TERRAIN
MIRROR GLASS
STONE BOULDERS AS BACKGROUND
STONE BOULDERS AS BACKGROUND
Left: Concept Diagrams North View
47

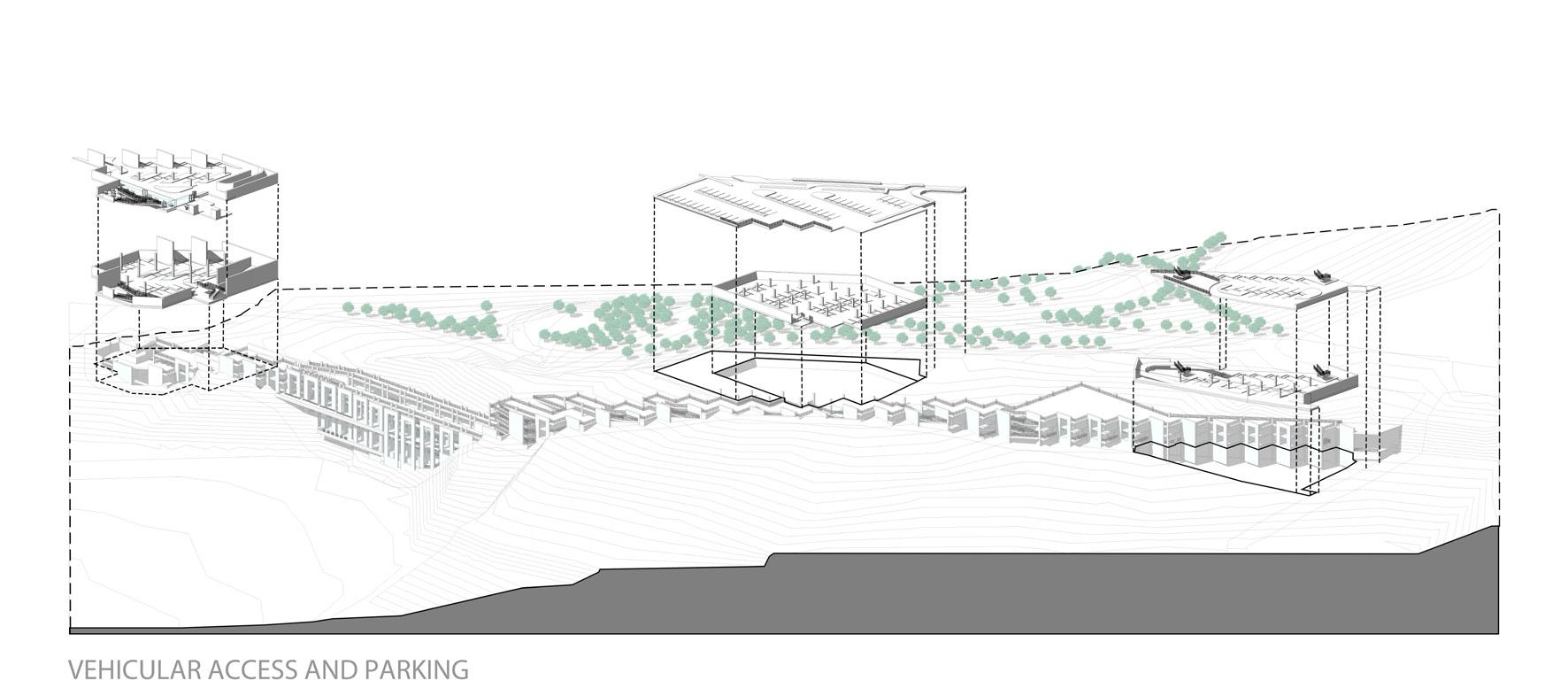

Right: Blowups North View

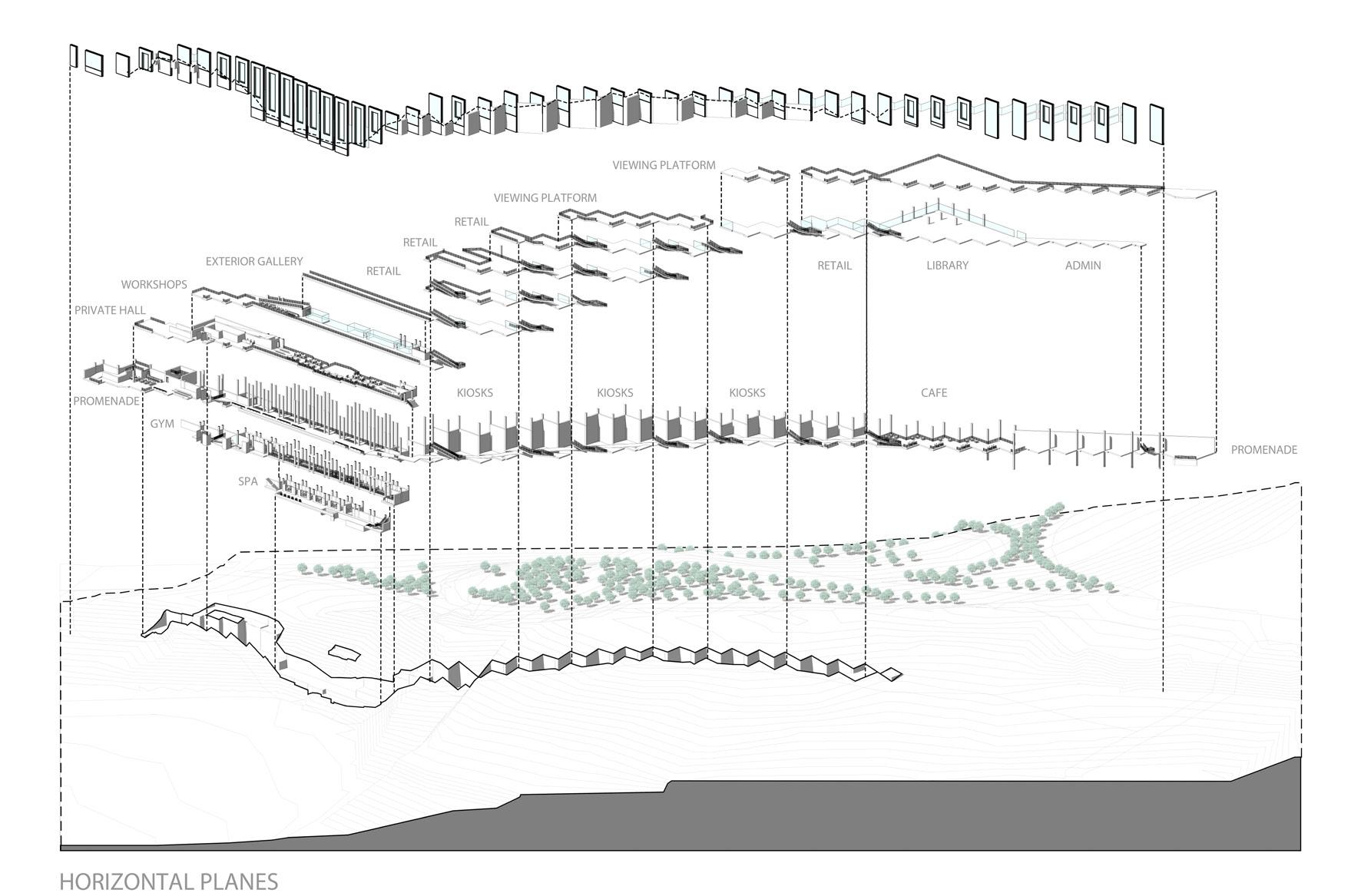

HORIZONTAL PLANES SPA GYM PROMENADE PROMENADE CAFE KIOSKS KIOSKS KIOSKS RETAIL EXTERIOR GALLERY WORKSHOPS PRIVATE HALLS RETAIL LIBRARY ADMINISTRATION RETAIL RETAIL VIEWING PLATFORM VIEWING PLATFORM VEHICULAR ACCESS AND PARKING 48
49
The (Promenade - Screen - Modules) interaction results in a traditional market on the same level of the promenade. The slope interacts vertically to create high end shops at different levels that are accessed with side ramps. In the stone pockets, a library and a private club emerge; using the stone boulders texture as a back elevation. A vast forest buffer zone is used to protect the site from street noise, fumes and incidents. Three different parking spots support different areas and hierarchies of use. Blocks of concrete are used for structural columns with traditional mudded stone walls in between; integrating the excavated rocks that fill the site.
Above: Main Elevation North View
Below: Segmented Section North View
Next Page: Night Shot North View
50
06. THE PIT
University of Jordan | 2013 Academic
Professor A. Abu Ghanimeh Individual Work
Holy Site, Madaba, Jordan

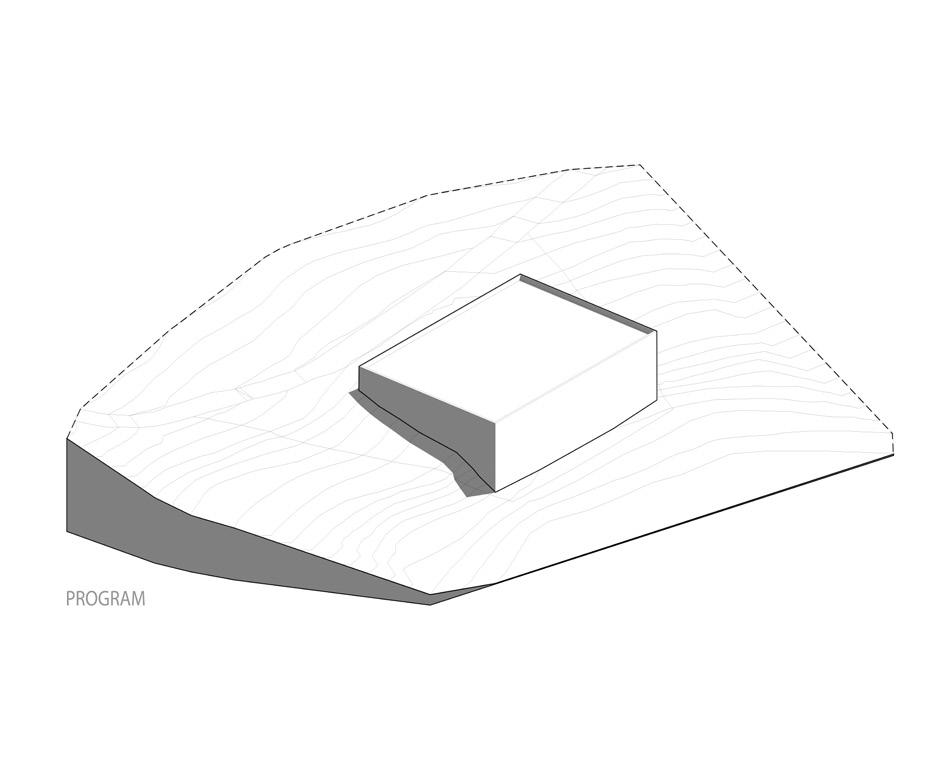

PROGRAM

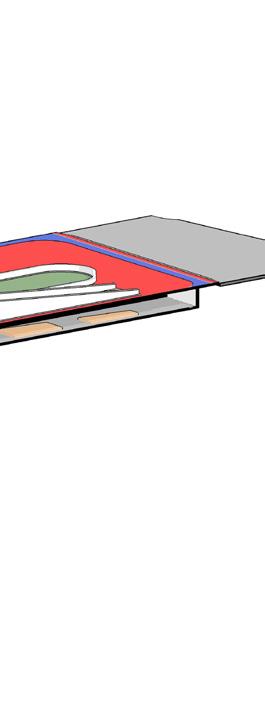

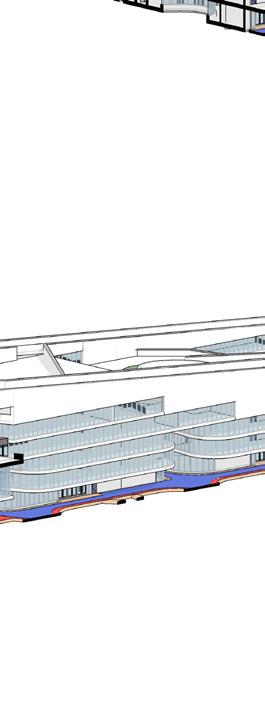

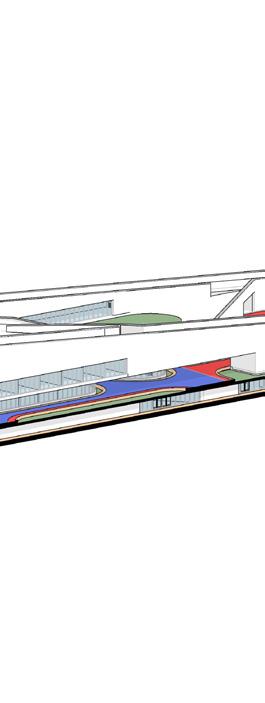

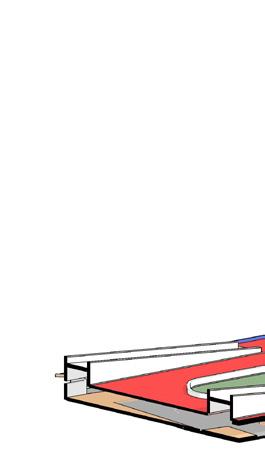

FUNCTIONS OPEN TO VIEW IN ALL PARTS SEGMENT THE PROJECT INTO 3 PARTS

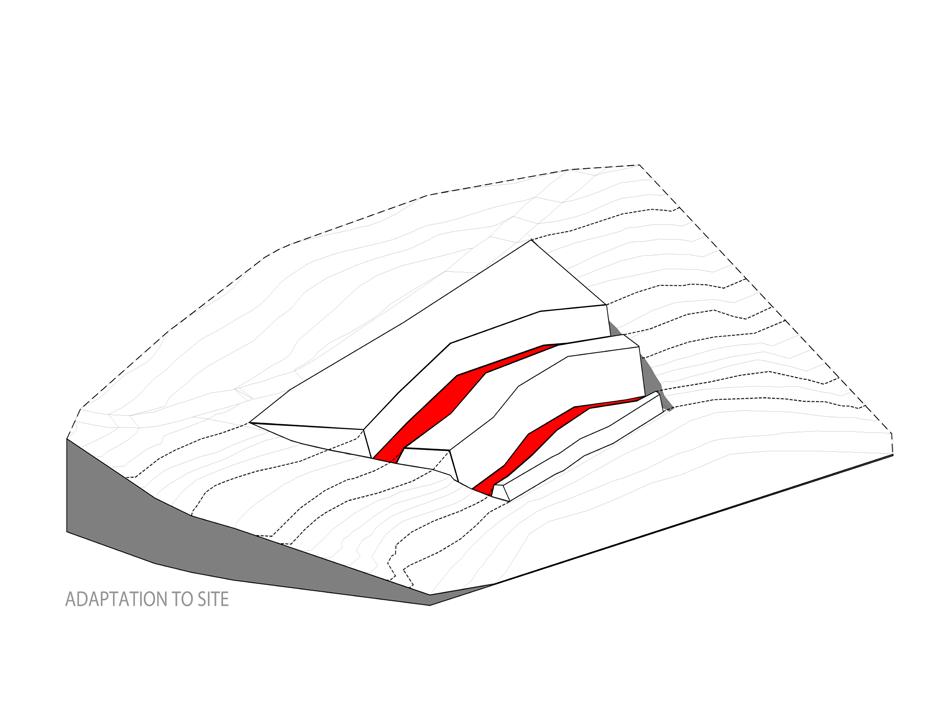

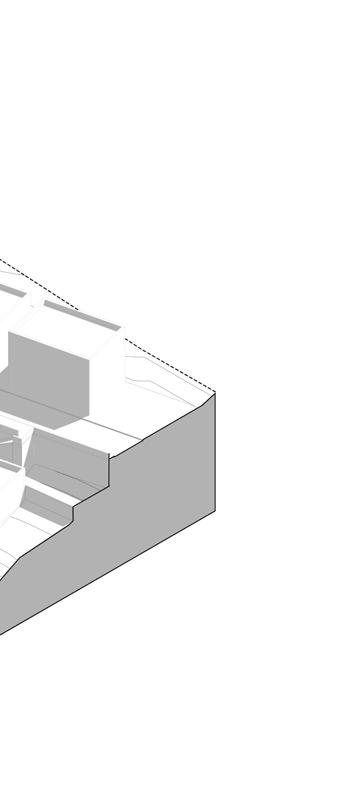

OUTDOOR ACTIVITY COURTS ADAPTATION TO SITE

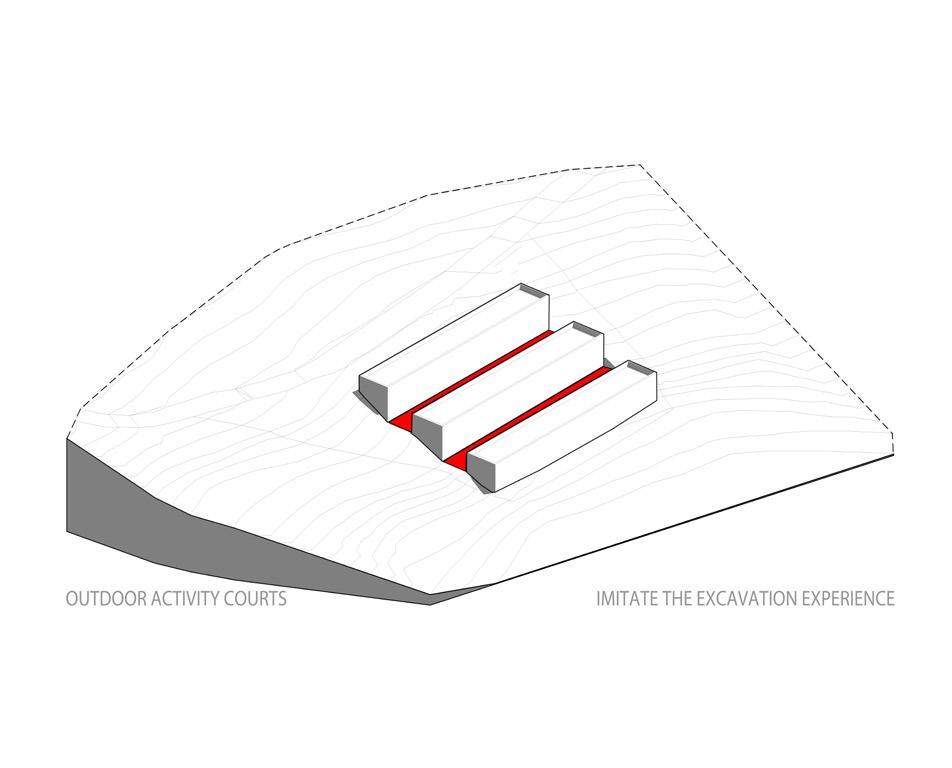

IMITATE THE EXCAVATION EXPERIENCE
LEVELS

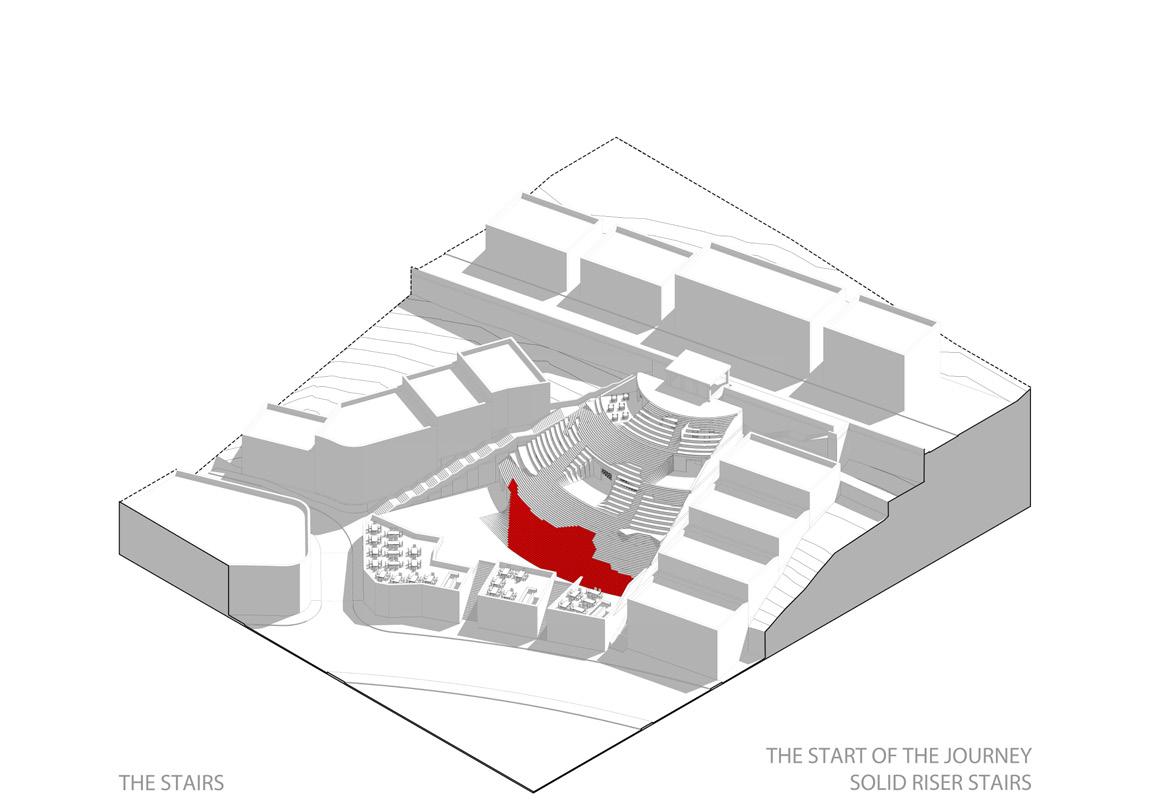

VERTICAL CONNECTIONS USING STAIRS HORIZONTAL CONNECTIONS THROUGH BRIDGES
CONNECTION

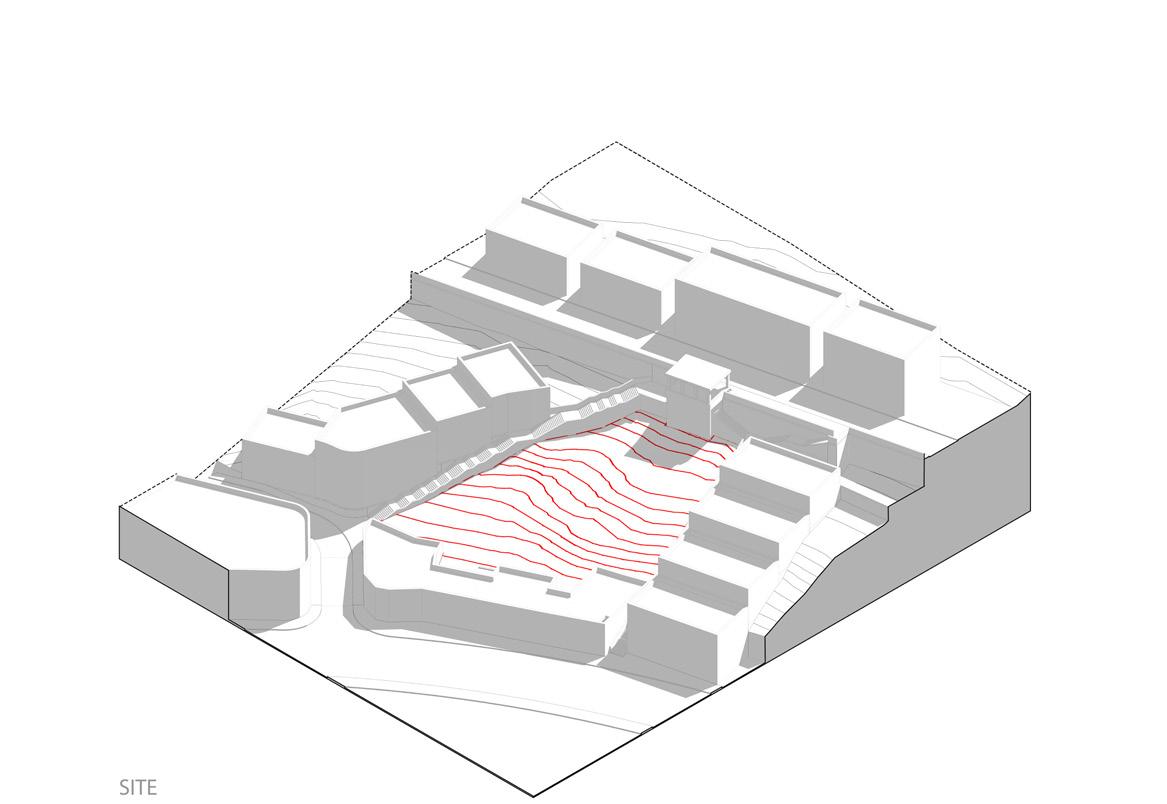

SITE
55
“The Pit” is an Archaeological Center located in Madaba, Jordan. Madaba is a province of many archaeological findings that hold important historical and religious sites; including the baptism site and the staff of Moses.

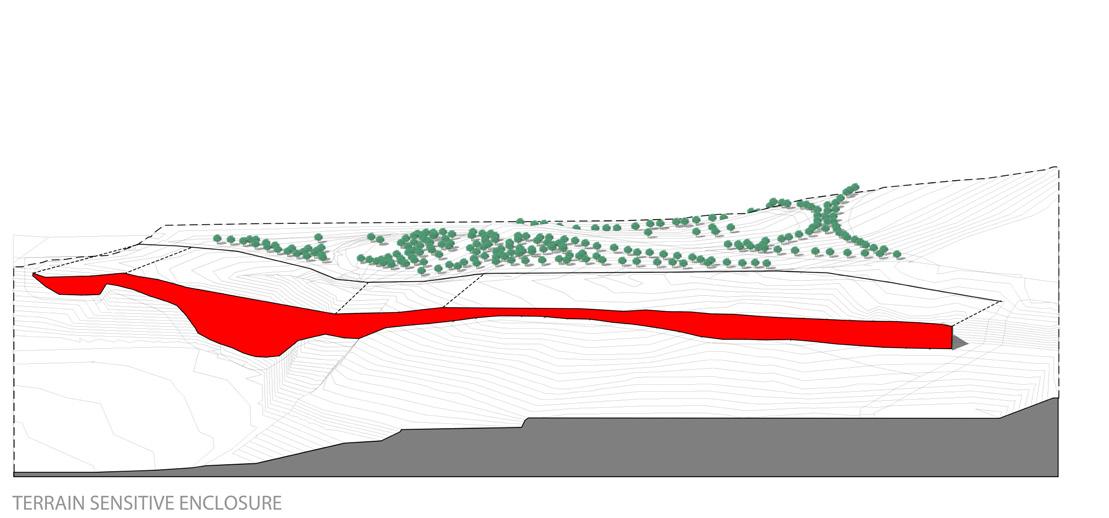

The highly sloped rocky site views the Jordan valley’s series of mountains. The site is textured with massive stone boulders and scattered areas of forests. The project was designed of multiple masses that are sensitive to the contour lines of the site. These masses are built using fair faced concrete façades that provide a contrast in texture with the surroundings.

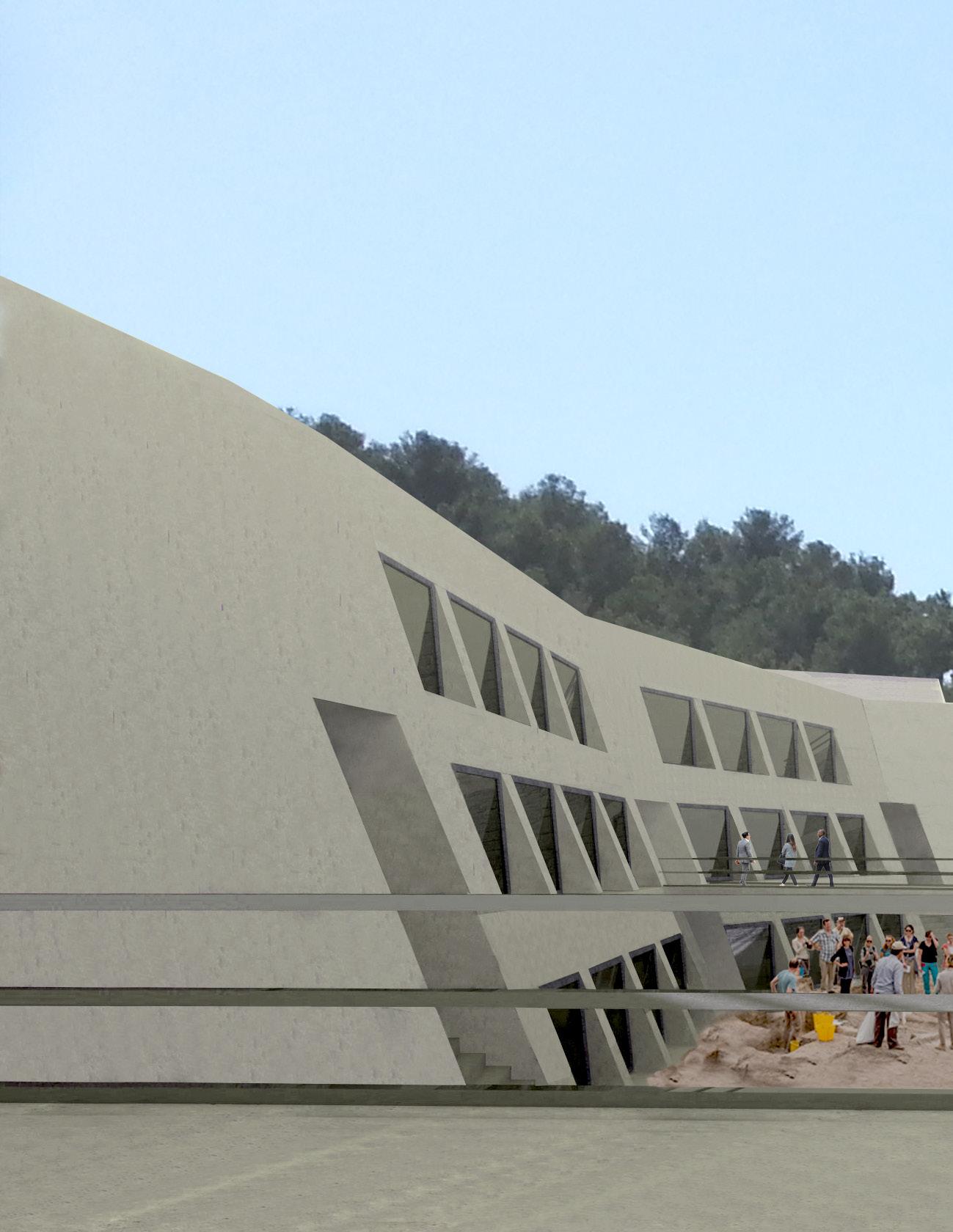

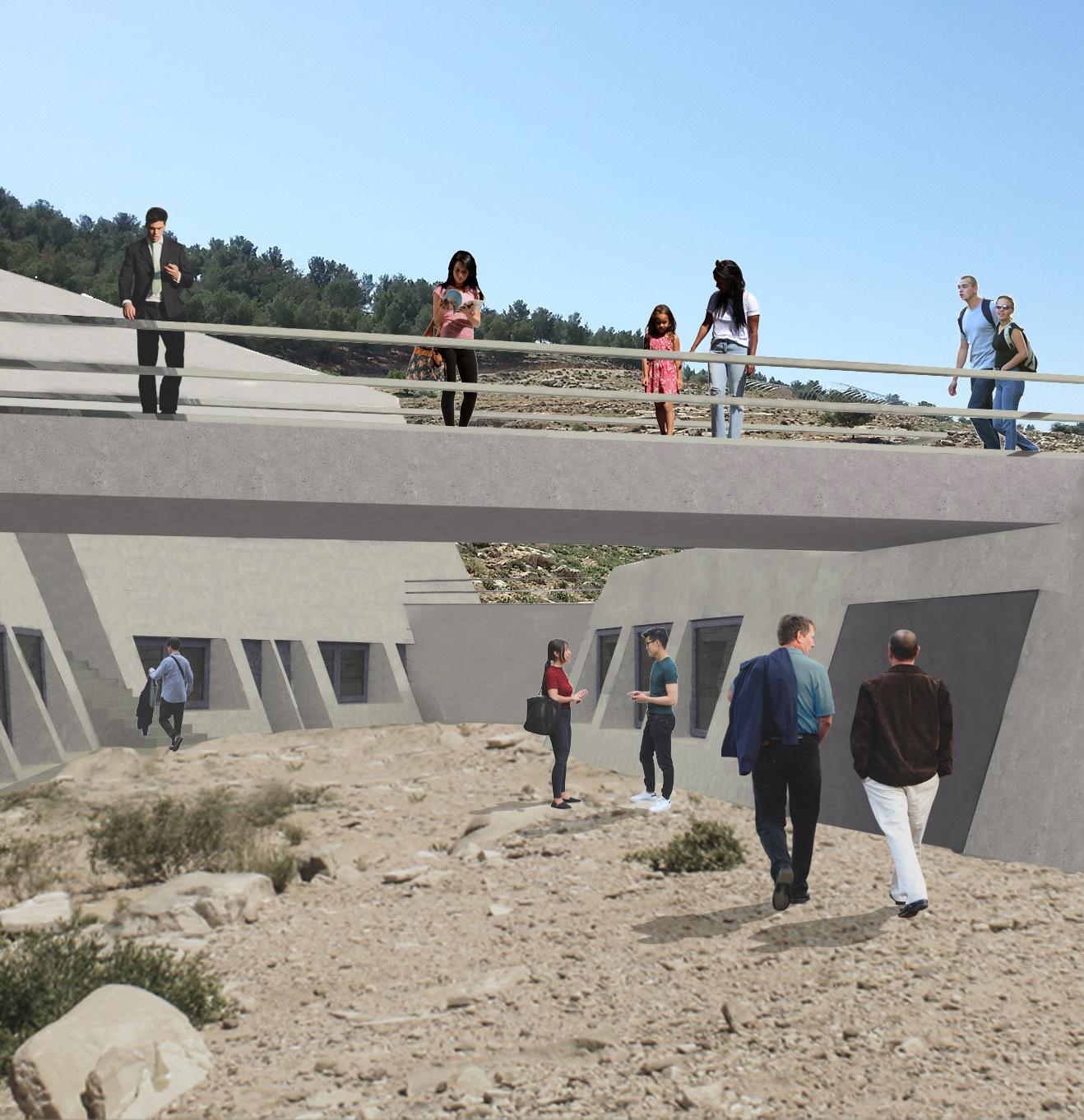

Above: Courtyard Shot
Interior View

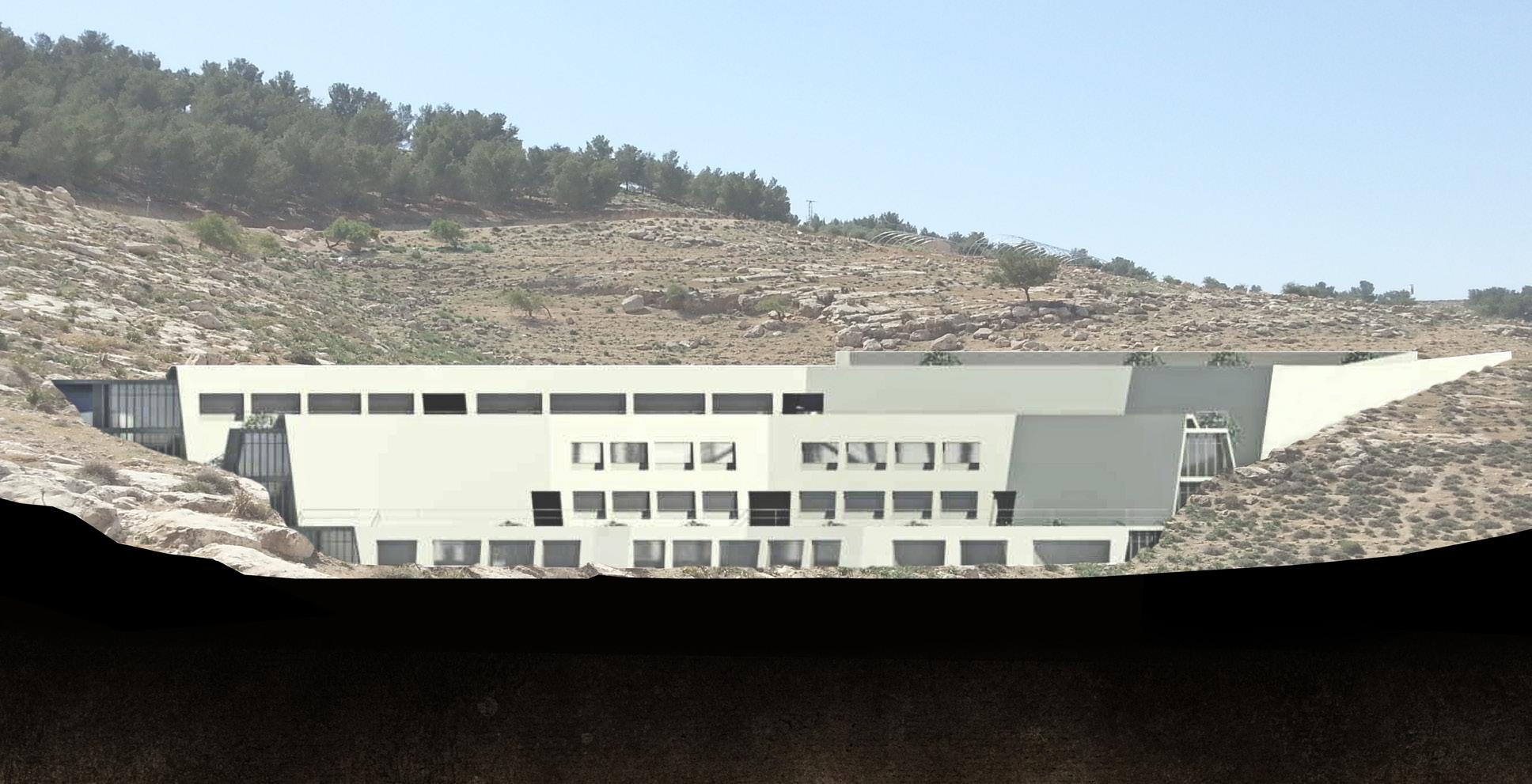

Below: Main Elevation
West View

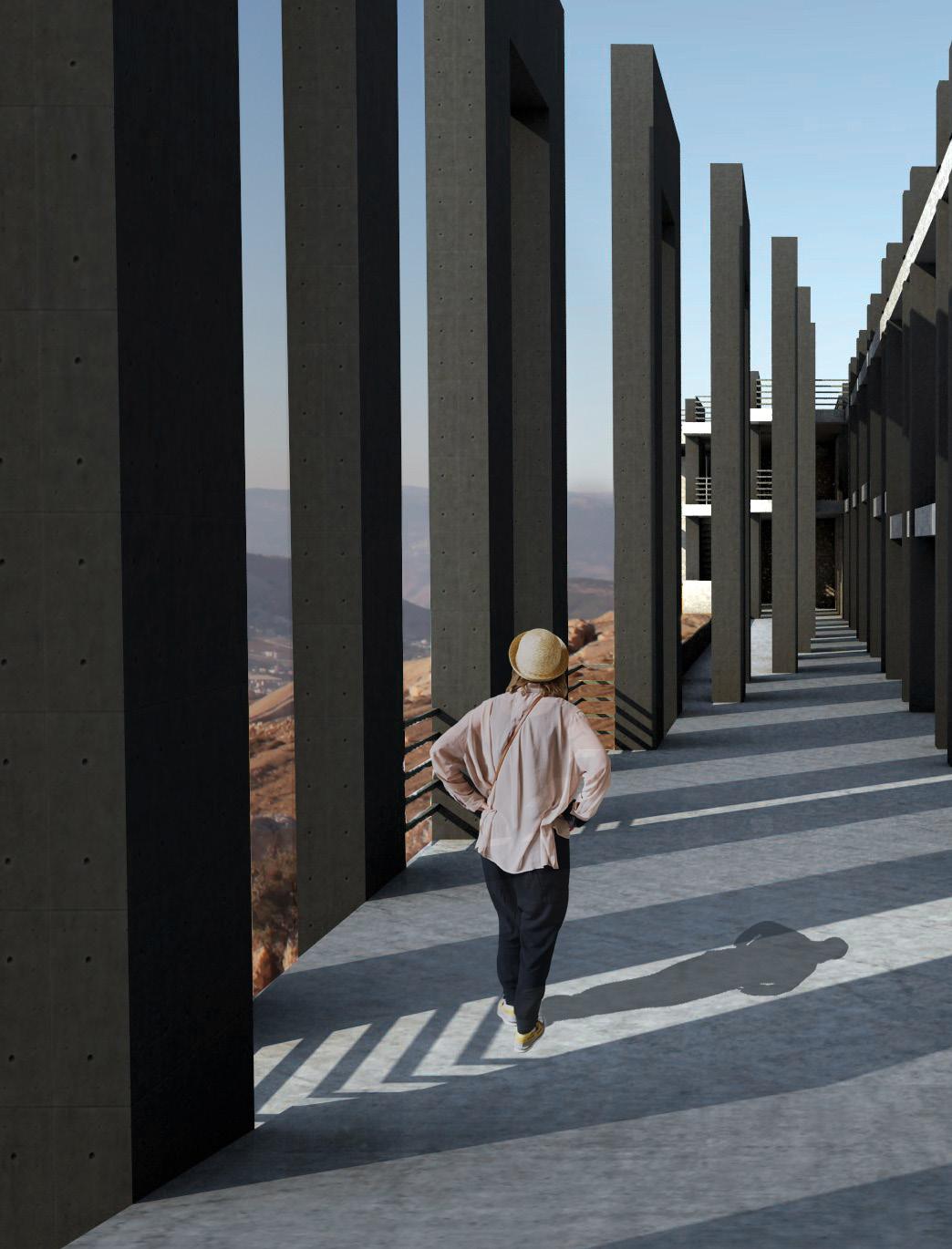

Next Page: Terrace Shot
Interior View
56
These masses are distributed into 3 parts: upper public spaces, middle educational spaces and lower lodging units. Between parts, a prolonged court connects the spaces and provides activity areas. Above the courts are bridges that connect the masses together.
There are two courts. One is a science court that provides connection between the public mass and the educational mass. It houses educational activities and pseudo excavation missions. The other is a dorms’ court that connects the educational mass with the lodging mass; allowing students and professors to access their laboratories and rooms easily. These courts lay suffocated between the slanted facades of the buildings around; giving the visitors the mood and experience of an actual Archaeological excavation.
GROUND LEVEL FIRST LEVEL SECOND LEVEL
57
THIRD LEVEL SITE PLAN 58
07. RITZ CARLTON HOTEL & RESIDENCES
Dar Al Handasah | 2017-2018
Professional - Design Team
The residential tower (left) is of an area of 35360 sqm that encompasses 19 floors atop a podium. I contributed in designing the residential building from concept design up to tendering and permitting. I was involved in layout planning, facade development, issuing construction drawings, 3D modelling, value engineering exercises, dealing with various sub-consultants and interdisciplinary coordination.
Amman, Jordan. Under Construction. Expected Completion Date 2022.

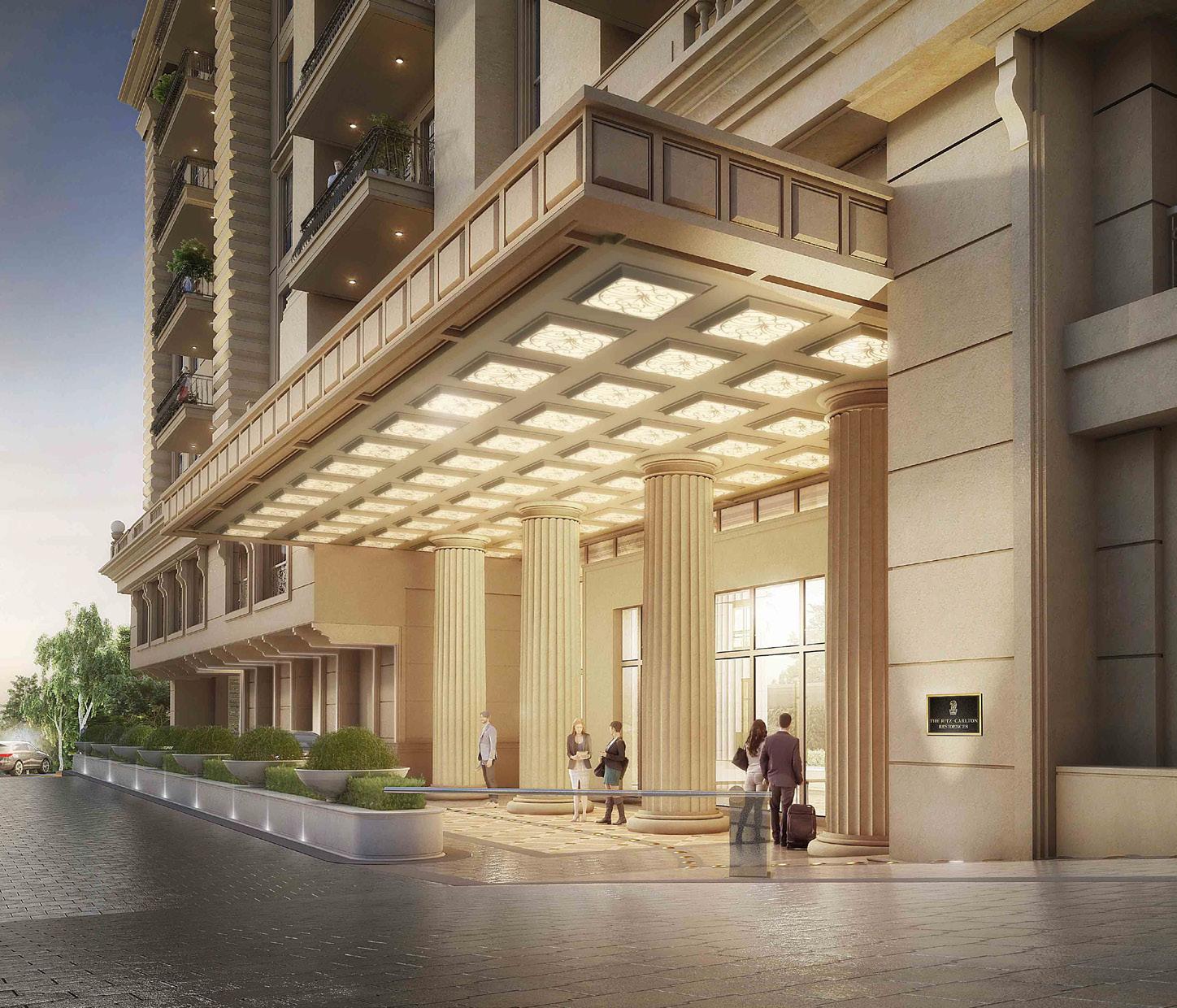

Above: Entrance Canopy Design Residential Tower

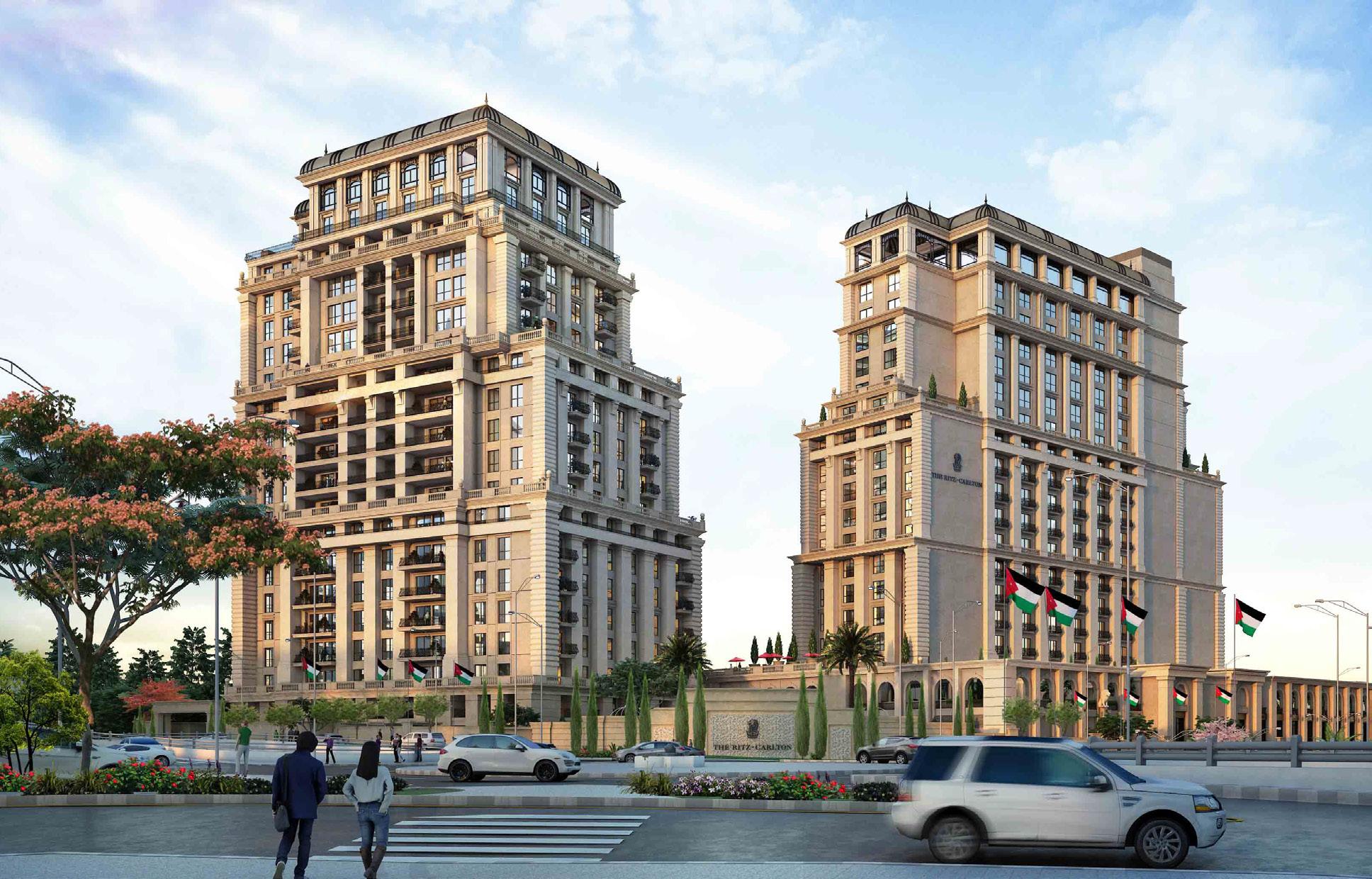

Below: 3D Shot Residential & Hotel Tower
61
POOL GARDEN OPEN TO ABOVE R-8 R-3 R-5 R-2 R-1 PLOT LIMIT RAMP SLOPE 10%-17%-10% REFER TO ME. SHAFT BELOW. 7000X1500 mm 2600X2450 mm -0.55 -0.55 17% 10% 10% AREA IN HOTEL PLOT 2900 8400 7700 4400 7800 3500 6000 9600 8700 SHAFT ABOVE ME SHAFT ABOVE ME SHAFT ABOVE ABOVE LUGGAGE BN GF-21 WC ROOM MEDIA CORRIDOR ME SHAFT. ME SHAFT. SHAFT ABOVE. REFER TO P3 REFER TO P3 REFER TO LS REFER TO LS REFER TO LS -0.60 -0.60 -0.60 F C L 1740 1650 2115 2315 1545 325 1100 4700 4200 2100 250 1100 50 1800 2900 5250 9260 1100 3340 1400 9450 1550 19340 940900370 3710 4700 2440 10850 2900 140 3470 300 1450 300 2730 8250 1270 1270 8490 20606002750 3660 14501450800 8000 12952550100059510002935 1000 6045 4605 1800 460 1000 290 1600 460 1000 285 1605 3350 620 1290 1135 800 1650 1400 1360 905 1410 990 1310 1890 1645 3505 1310 2090 1645 1890 620 8700 1001100 1500 500 1200 1000 5200 5850 3850 3001000300 7390 1600 4250 1600 5250 900 1000 350 1500 3150 3900 1500 5300 5250 8600 3145 STAIR SERVICE LOBBY FIRE LOBBY SECURITY WC SERVICES/ BR GF-15 BN GF-01 2550X1400 mm 950 700 855990855 5 2 3 DRAWN BY: CHECKED BY: APPROVED BY: ProjectName: Owner: HotelOperator: OwnerRepresentative: GeneralKeyPlan: Consultant: Al Eqbal Real Estate Development D.G.Jones & Partners (ME) Ltd./Jordan Notes: (Shair and Partners) Ritz Carlton Hotel & Residences Company LLCRitz Carlton Residences Dimension Plans Ground Floor Plan NOVEMBER 2018 FOR CONSTRUCTION RCHR-R-FD-P4-A-105 100 Ground Floor Dimension Plan 1 RevPhaseDateDescriptionAppr 01.05 CONCRETE PADS UPDATED.01.07 BLOCK WALL ADDED INSIDE THE SPACES 01.10 -0.60 AR-00-GF-CL 4.45 8.00 11.55 AR-04-F4-FFL AR-05-F5-FFL 25.75 29.40 32.95 4.30 AR-02-F2-CL AR-03-F3-CL 18.50 22.05 AR-07-F7-CL AR-08-F8-CL AR-09-F9-CL R-10 3550 1150 2500 1050 2500 1050 2500 1050 2500 2399 1151 1050 2500 1050 2500 1505 2720 575 250 IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT 3 WROUGHT IRON BALUSTRADE BEYOND INSULATED GLAZED 150MM THICK HOLLOW INSULATED GLAZED CLADDING GFRP CORNICE PANEL 150MM THICK HOLLOW BEIGE HARD LIMESTONE INSULATED BLOCKWORK 100MM THICK ROCKWOOL OPERABLE PANEL CONCRETE LINTEL 100MM THICK ROCKWOOL OPERABLE PANEL 100MM THICK ROCKWOOL GLAZING BEIGE CEMENT BOARD CONCRETE LINTEL CLADDING HANDRAIL SOFFIT BEIGE HARD LIMESTONE -A-501 3550 3650 3550 3550 3550 3550 3550 3550 5050 2700 FOR EXACT CEILING REFER TO DRAWINGS LOCATION AND HEIGHT LOCATION AND HEIGHT -A-501 G-FD-PC 32.95 36.50 AR-11-F11-FFL AR-12-F12-FFL AR-13-F13-FFL 54.35 57.90 AR-17-F17-FFL AR-18-F18-FFL AR-09-F9-CL AR-10-F10-CL AR-11-F11-CL 43.45 47.10 50.65 AR-15-F15-CL AR-16-F16-CL AR-17-F17-CL 64.95 3650 3550 3550 3550 3550 3650 3550 3550 3550 32150 IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT INSULATEDGLAZED DOOR BEIGE CEMENT BOARD HANDRAIL WROUGHT IRON CLADDING CONCRETE LINTEL WROUGHT IRON CLADDING CONCRETE LINTEL 100MM THICK ROCKWOOL 150MM THICK HOLLOW BALUSTRADE BEIGE CEMENT BOARD CONCRETE LINTEL BLOCKWORK LIMESTONE CLADDING IN OUT G-FD-PC -A-501 3650 3550 3550 3550 3550 3650 3550 3550 3550 AR-18-F18-FFL AR-19-F19-FFL AR-20-RF01-FFL 64.95 69.05 73.15 3471 4200 4100 IN OUT IN OUT IN OUT 12 13 LIMESTONE CLADDING CONCRETE LINTEL ST. DRAWINGS LIMESTONE CLADDING ALUMINUM SHEET SUPPORT POLYCARBONATE PANLES G-FD-PC 4200 4100 4 D Issue: DRAWN BY: DESIGN BY: APPROVED BY: SheetNo. ProjectName: Project Number Owner: HotelOperator: OwnerRepresentative: SpecificKeyPlan: GeneralKeyPlan: Consultant: Al Eqbal Real Estate Development D.G.Jones & Partners (ME) Ltd./Jordan Notes: Dar Al-Handasah (Shair and Partners) Amman-Jordan Ritz Carlton Hotel & Residences Ritz Carlton Hotel Company LLC Ritz Carlton Residence Large Scale Views Windows Wall Sections Partial Wall Sections R.ZK. J17006-0100D For Construction RCHR-R-FD-PC-A-402 WINDOW WALL SECTION 1 1 PARTIAL A PARTIAL B PARTIAL C -FOR EXTERNAL LANDSCAPE LEVELS, TILING AND DETAILS, RevPhaseDateDescriptionAppr 00FD28/03/2018ApprovedIssueK.F. 01FD24/04/2018AsCloudedK.F. 02FD19/05/2018GeneralRevisionK.F. 03FD14/11/2018AsCloudedK.F. -CEILINGS ARE INDICATIVE ONLY. FOR EXACT LOCATION AND HEIGHT OFAbove: Wall Section Residential Tower Below: Ground Floor Plan Residential Tower 62
08. GEWAN ISLAND
Dar Al Handasah | 2018-2019
Professional - Design Team
The project included designing 4 mixed-use buildings (bottom middle four) on a man-made island. The buildings sit on a combined raft basement with the other 12 buildings. I contributed, in all phases from concept design till permitting, in planning, image development, construction packaging, LOD 300 BIM clash free modeling and interdisciplinary coordination.
Doha, Qatar.
Under Construction. Expected Completion Date 2022.
Above: Gewan Island General View West View63

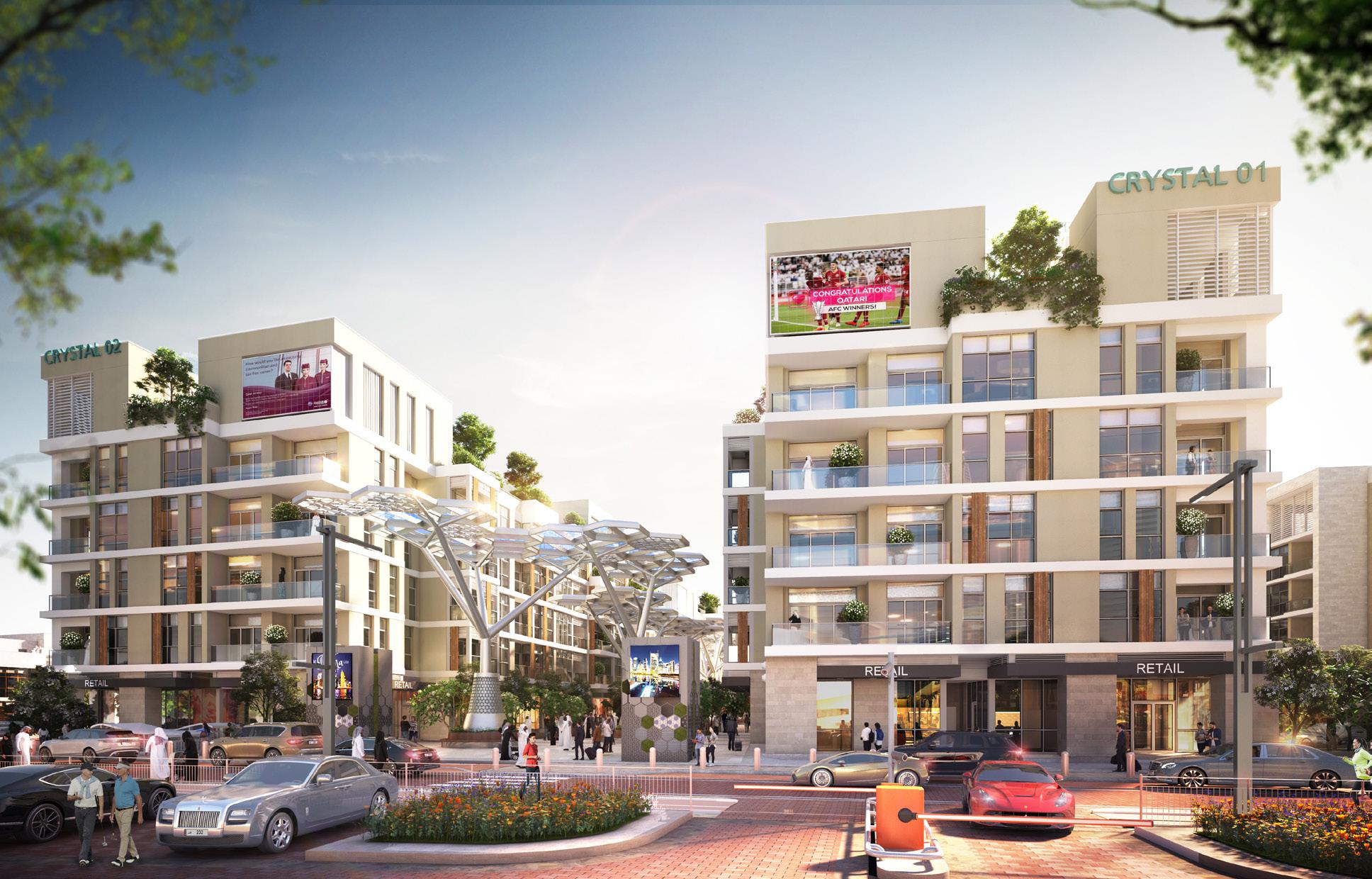

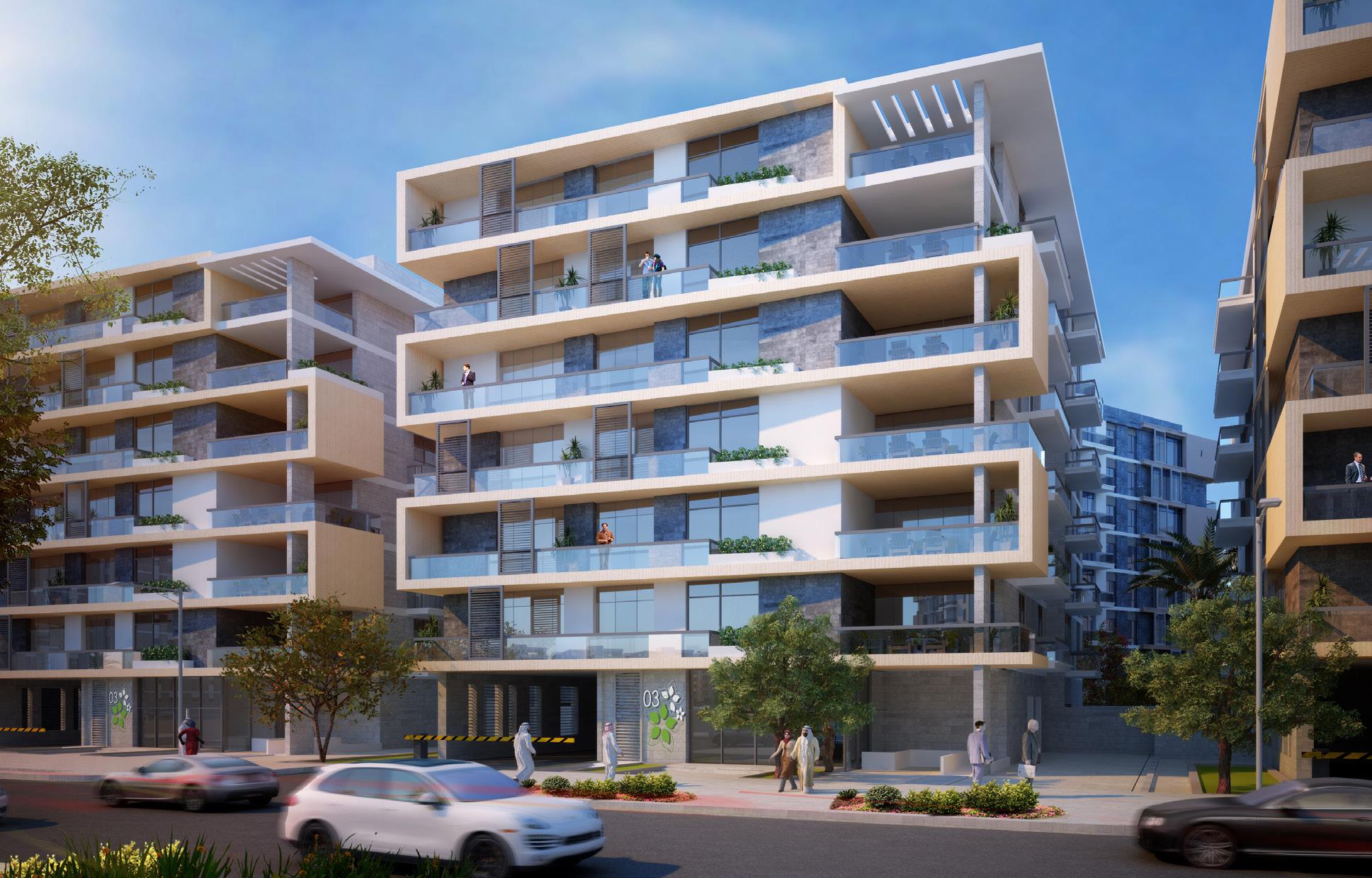

Below: 3D Shot of Buildings West View
Above: Stairs Details Building 03D
Below: Fire & Life Safety Plans Building 03D
14m m² PERS. OCCUPANT FACTOR LEGEND: TOTAL APARTMENTS EXIT STAIRS TOTAL EXIT STAIR WIDTH PROVIDED = 120 2 =240cm TOTAL EXIT STAIRS CAPACITY = 158 x 2 = 316 PERSON NUMBER OF EXITS REQUIRED = 2 NUMBER OF EXITS AVAILABLE = 2 EXIT STAIRS SUMMARY: ELECTRICAL ROOMS 27.9 m²/PERSON 1031 56 6 58 1 1 67m 30m 120 cm 158 p. 20m 18m 7m 15m 88 cm 176 p. 177 p. 88 cm 176 p. 120 cm 158 p. 14m 15m m² PERS. OCCUPANT FACTOR LEGEND: 27.9 m²/PERSON TOTAL APARTMENTS EXIT STAIRS TOTAL EXIT STAIR WIDTH PROVIDED = 120 x 2 =240cm TOTAL EXIT STAIRS CAPACITY = 158 x 2 = 316 PERSON NUMBER OF EXITS REQUIRED = 2 NUMBER OF EXITS AVAILABLE = 2 EXIT STAIRS SUMMARY: ELECTRICAL ROOMS 27.9 m²/PERSON 1252 67 53 55 14m 67m 30m 120 cm 158 p. 20m 18m 7m 15m 88 cm 176 p. 177 p. 88 cm 176 p. 120 cm 158 p. 14m 15m EXIT STAIRS QIBLA Notes: Sheet Title General Key Plan: Designer: Project Number APRIL 2019 Building 03D Fire Zoning First & Second Floor Plan 03D-A-8002 Q18020-0100D CENTRAL SPINE (RESIDENTIAL / RETAIL ) PLOT 03 PLANNORTH QIBLA 00 TD 04/04/2019 Approved Issue S.R. 120 cm 158 p. 120 cm 158 p. 237 p. m² PERS. OCCUPANT FACTOR LEGEND: zone1 STORAGE GARBAGE 27.9 m²/PERSON TOTAL EXIT STAIRS TOTAL EXIT DOOR WIDTH PROVIDED = (118X3) = 354cm TOTAL EXIT DOOR CAPACITY = (236X3) =708 PERSON NUMBER OF EXITS REQUIRED = 2 NUMBER OF EXITS AVAILABLE = 3 EXIT DOORS SUMMARY: ELECTRICAL ROOMS 27.9 m²/PERSON 73 2 AREA m² NUM PERS. LEGEND: zone2 STORAGE JANITOR 27.9 m²/PERSON TOTAL EXIT STAIRS TOTAL EXIT DOOR WIDTH PROVIDED = (118X2) = 236cm TOTAL EXIT DOOR CAPACITY = (236X2)=472 PERSON NUMBER OF EXITS REQUIRED = 2 NUMBER OF EXITS AVAILABLE = 2 EXIT DOORS SUMMARY: 23 1 39 1 236 p. 33m 33m 26m 25m 118 cm 236 p. 236 p. 176 cm 352 p. 176 p. 20m 12m 18m 11m 108 cm 216 p. Area 43 m2 OL 43/2.8=15 persons Area 115 m2 OL 115/2.8= 41 persons Area 52 m2 OL 52/2.8= 19 persons Area 123 m2 OL 123/1.4= 90 persons OL 132/1.4= 94 persons 176 cm 352 p. Area 54 m2 OL 54/2.8=20 persons Area 54 m2 OL 30/27.9=1 persons 352 p. 178 cm 356 p. 176 cm 352 p. 352 p. 352 p. 352 p. 176 cm 352 p. 352 p. 352 p. CCTV ROOM CCTV RROM 13 1 184 p. 237 p. 216 p. QIBLA General Key Plan: Designer: Gewan Island Project Number Project Name: ISSUED FOR TENDER Building 03D Q18020-0100D CENTRAL SPINE (RESIDENTIAL / RETAIL ) PLOT 03 PLANNORTH QIBLA Zone Key Plan: Rev. Phase Date Description Appr. UP UP UP UP A7 AD AC 03D-F1-002 1300 11 300 3000 3300 3975 1300 12 300 =3600 3600 2125 320 320 320 40 7 1200 3100 LOBBY A7 AD AC CORRIDOR 12001001200 1300 11 300 3000 3300 2425 1550 5850 1300 11 TREADS 300 3300 3300 725 1000 700 320 320 320 320 880 LOBBY 1200 1 300 A7 AD AC 03D-F3-ST02 12001001200 1300 11 300 3300 3300 2425 1550 F3-ST02 5850 2400 320 320 40 1200 16 880 A7 AD AC 2500 D 03D-F4-ST02 CORRIDOR 11 300 3300 5850 1300 11 300 3300 3300 2425 320 320 16 100 880 A7 AD AC 9 2500 RF-ST02 5850 1300 11 300 3300 3300 2425 320 320 1 1 100 3100 300 1080 A7 AD AC 03D-GF-ST02 1300 14 300 4200 4200 1475 6975 1300 12 300 3600 3600 2125 320 1080 03D-06-TOR-FFL 28.36 24.51 03D-05-RF-CL 03D-04-F4-FFL 20.70 03D-04-F4-CL 03D-03-F3-FFL 17.10 03D-02-F2-FFL 13.50 10.05 03D-01-F1-FFL 9.90 03D-00-GF-FFL 4.90 03D-00-GF-CL 0.00 -1.60 AD AC 6650 C.L. -1.60 -1.70 LANDING VALVE 03D-GF-ST02 03D-F1-ST02 ST02 C.L. +7.73 C.L. C.L. +5.05 C.L. +11.85 C.L. +15.45 +19.05 C.L. +22.77 +24.69 3390 3620 3380 3380 3380 4780 15 RISERS 179 2679 12 RISERS 150 1800 12 RISERS 150 1800 12 RISERS 150 1800 12 RISERS 160 1920 11 RISERS 160 1740 1800 12 RISERS 300 1800 12 RISERS 150 1800 13 RISERS 179 2321 2459 3901 3380 3380 3500 +10.05 +5.05 C.L. +20.85 900 900 900 900 900 900 900 NOZING DETAIL NOZING DETAIL NOZING DETAIL NOZING DETAIL 320 Q DRAWN BY: Notes: General Key Plan: Designer: Issue: 4 PHASE SHEET Gewan Island CODE Project Number Project Name: ISSUED FOR TENDER APRIL 2019 Project Manager: ENGINEER/ARCHITECT ON SITE ALL REFLECTED DISCREPANC ADEQUATE PROVIDED 26.ALL LOUVERS ARE FIXED ON ADEQUATE PROVIDED Building 03D Enlarged Details Stairs Details F.H. 03D-A-5002 Q18020-0100D-PK3-03D-TD-A-5002-00 Q18020-0100D CENTRAL SPINE (RESIDENTIAL / RETAIL ) PLOT 03 A ORH 1 50 Staircase 02-F1 2 1 50 Staircase 02-F2 3 Staircase 02-F3 4 Staircase 02-F4 5 Staircase 02-RF 6 50 Staircase 02-GF 1 1 50 Staircase 02-Section 9 Rev.PhaseDateDescriptionAppr. 00 TD04/04/2019Approved IssueS.R.
64

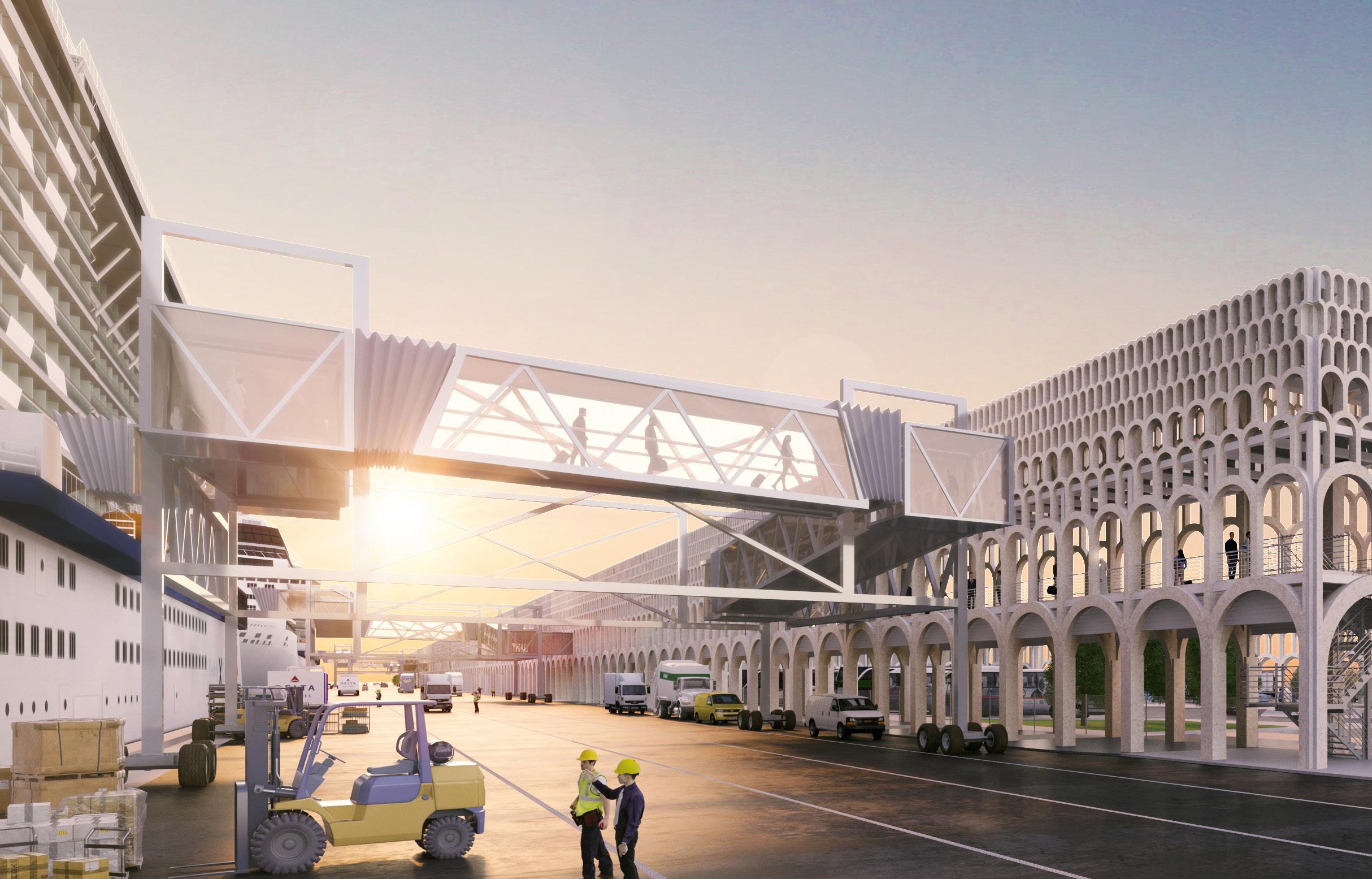

09. GRAND TERMINAL AT OLD DOHA PORT
Dar Al Handasah | 2018-2019 Professional - Design Team
In collaboration with another Architectural design firm, a twin cruise terminal was designed to cater for two 6000 passenger cruises. I contributed in interdisciplinary coordination, planning, issuing design packages, 3D modeling, facade details, preparing a designbuild tender and coordination with multiple sub-consultants, operators, authorities and manufacturers.
Doha, Qatar. Under Construction. Expected Completion Date 2022.

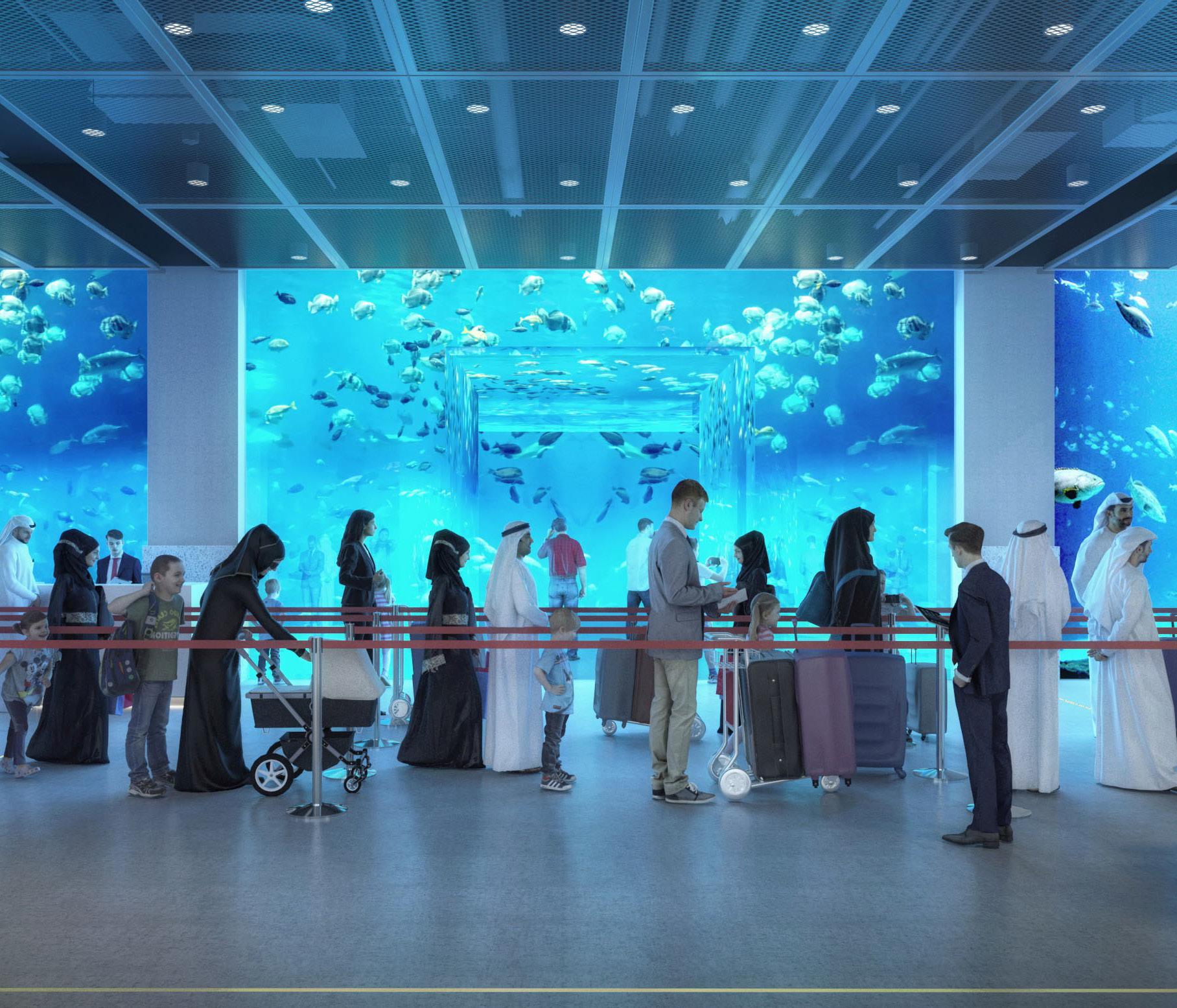

Above: Indoor Aquarium Interior View
65

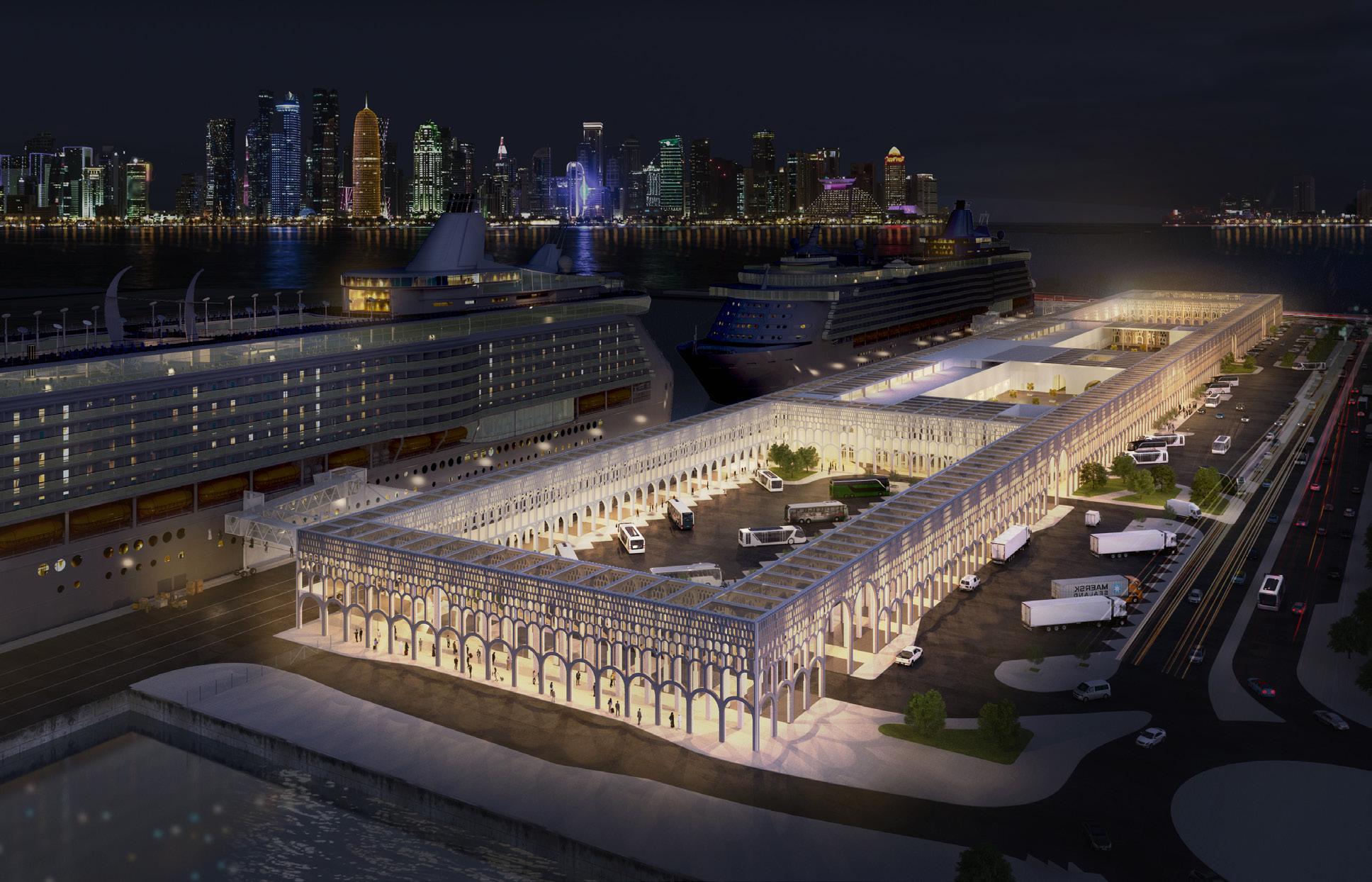

Below: Aerial 3D Shot South East View
A 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 B D E F G H J L 44 K C 8100 9000 9000 9000 9000 9000 8100 61200 BAGGAGE SCREENING OFFICE ROOM BAGGAGE SCREENING APRON OFFICE BAGGAGE HALL STAIR STAIR MALE DET. BOH CUSTOMS LOST PROP. OFFICE LOST PROP. WC SECURITY OFFICE SEARCH ROOM GREEN CHANNEL SEARCH ROOM EL ROOM EL ROOM SECURITY EQUIPMENT CCTV CLOSET ROOM TRANSFORMER ROOM SERVICE PROVIDER 9000 900 900 5600 DOMESTIC LV ROOM TRANSFORMER ROOM ARRIVALS SECURITY CUSTOMS OFFICE FIRE TANK STAIR ELEVATOR P02 ELEVATOR P04 CUSTOMS OFFICE Q A GENERAL NOTES: Copyright by the Supreme Committee for Delivery & Legacy (SC). All rights reserved. This document may in part, be reproduced, stored, transmitted or distributed in any form or by any means, whether electronic, mechanical, by photocopy, recording or otherwise, without the prio written permission of SC. Except where otherwise expressly agreed in writing by SC, SC shall have no responsibility o liability for any loss (direct, consequential or otherwise) which may arise from reliance on or use of this document or he information contained therein. DO NOT SCALE THIS DRAWING. KEY PLAN AUTHORITY STAMP: Legend Coordination Reference Drawings Description SAFETY, HEALTH AND ENVIRONMENT INFORMATION Brief details on the identified hazard symbol referencing the unusual residual hazards risks are listed above. CLIENT Project Manager Design Consultant Project Title Stage Type Revision Model File Ref. Scale Designed Engineering Discipline Description A0(841X1189) Doha, Qatar Design Consultant Dar Al Handsah ASTAD Project Management Supreme Committee For Delivery Legacy B GRAND TERMINAL AT OLD DOHA PORT *ARCHITECTURAL PLANS ARE FOR INFO ONLY AND NOT FOR CONSTRUCTION. 1.DO NOT SCALE THIS DRAWING (DIMENSIONS SHOULD BE CALCULATED NEVER SCALED). 3.ALL LEVELS ARE IN METERS UNLESS OTHERWISE INDICATED.ALL LEVELS ARE REFERRED TO QND (QATAR NATIONAL DATUM) 4.EACH DRAWING SHOULD BE READ IN CONJUNCTION WITH ALL OTHER TRADES DOCUMENTS. 5.CONTRACTOR SHALL VERIFY ALL EXISTING CONDITIONS ON SITE & SECURE NECESSARY PERMITS FOR DESIGN AND 6.THE FINISH FLOOR LEVELS (F.F.L.) IN THE ARCHITECTURAL DRAWINGS ARE THE BASIS OF ALL LEVELS FOR ALL OTHER ENGINEERING DISCIPLINES (STRUCTURAL, ELECTRICAL, MECHANICAL…) 7.LOCATION OF CONCRETE PADS AND ROOF OPENINGS SHOWN IN ARCHITECTURAL LAYOUTS DRAWINGS ARE ONLY INDICATIVE INSTALLATIONS ARE ACCOMPLISHED FOR FIREPROOFING PURPOSE AS PER "NFPA" AND GULF CODES. 9.ALL WET AREAS (TOILETS & KITCHENS) ARE TO BE PROV 10.ALL SHOWN DETAILS ARE FOR DESIGN INTENT ONLY. 11.THE CONTRACTOR SHALL VERIFY ALL DIMENSIONS, ELEVATIONS, ALIGNMENTS, AND LOCATIONS 12.CONTRACTOR SHOULD VERIFY THAT ALL FLOOR LAYOUTS ARE IN ACCORDANCE WITH SITE 13.ALL UNFORESEEN ITEMS SHOULD BE CARRIED OUT BY THE CONTRACTOR. THEY SHOULD BE CONFORMED TO DRAWINGS, SPECIFICATIONS & DESIGN INTENT AND SUBMITTED FOR APPROVAL BY THE CLIENT. D ON ADEQUATE PROVIDED STRUCTURE. CONTRACTOR TO PROVIDE SHOP DRAWINGS AND DETAILS FOR ALL GLAZING ACCESSORIES. 16.THE CONTRACTOR WILL BE HELD RESPONSIBLE FOR CHECKING DIMENSIONS AND SCALE ON SITE. 17.ALL MECHANICAL ROOMS, WALLS AND CEILINGS TO BE ACOUSTICALLY TREATED AS PER BASIS OF DESIGN REPORT. T0 DPP-DAH-D-GTP-L-AR-00-TB-1010 S.R. F.H. R.K. MAY 2019 Ground Floor Terminals & -Phase OVERALL GROUND FLOOR PLAN PLANS(HORIZONTAL VIEWS) ARCHITECTURAL TENDER DESIGN 1 400 Phase 1 -Ground Floor Terminals 1 & 2 1 Rev Description ApvrChk'd Date T0 Approved Issue K.F. S.R. 28/05/2019 Above: Floor Plan General Ground Floor Below: 3D Shots Gangways and Loading Dock 66
10. YASMEEN CITY
Dar Al Handasah | 2016Professional - Design Team
The project included working on the concept designs of 5 residential typologies in Yasmeen’s residential compound. During the concept design, I contributed in facade concept proposals and development, planning apartment modules, 3D modeling, masterplan coordination, marketing plans, client graphic presentations and interdisciplinary coordination.
Lusail, Qatar.
Under Permitting Estimated Completion Date 2022.

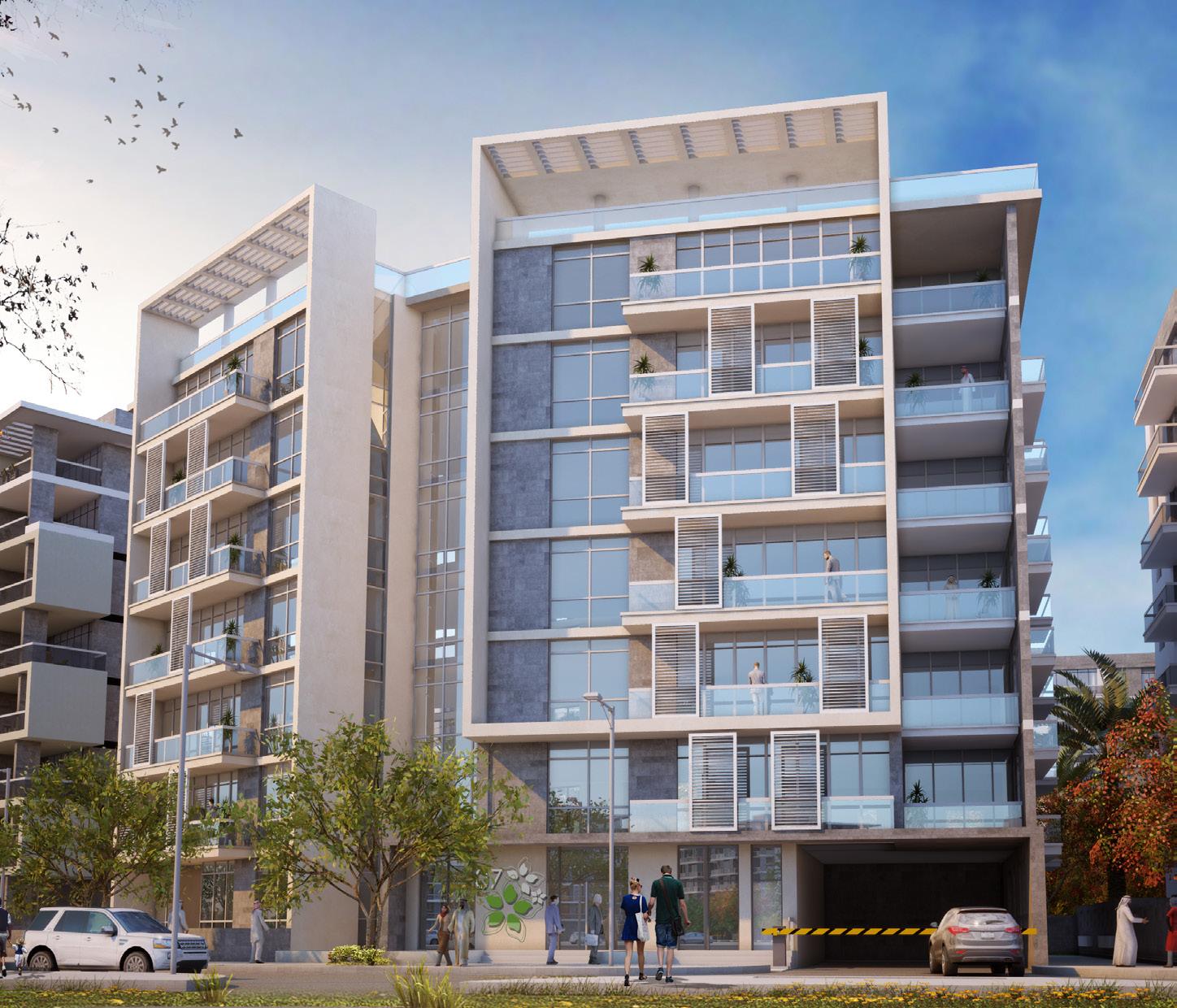

Above: 3D Shot Corner Typology
Below: 3D Shot A1.3 Typology
67

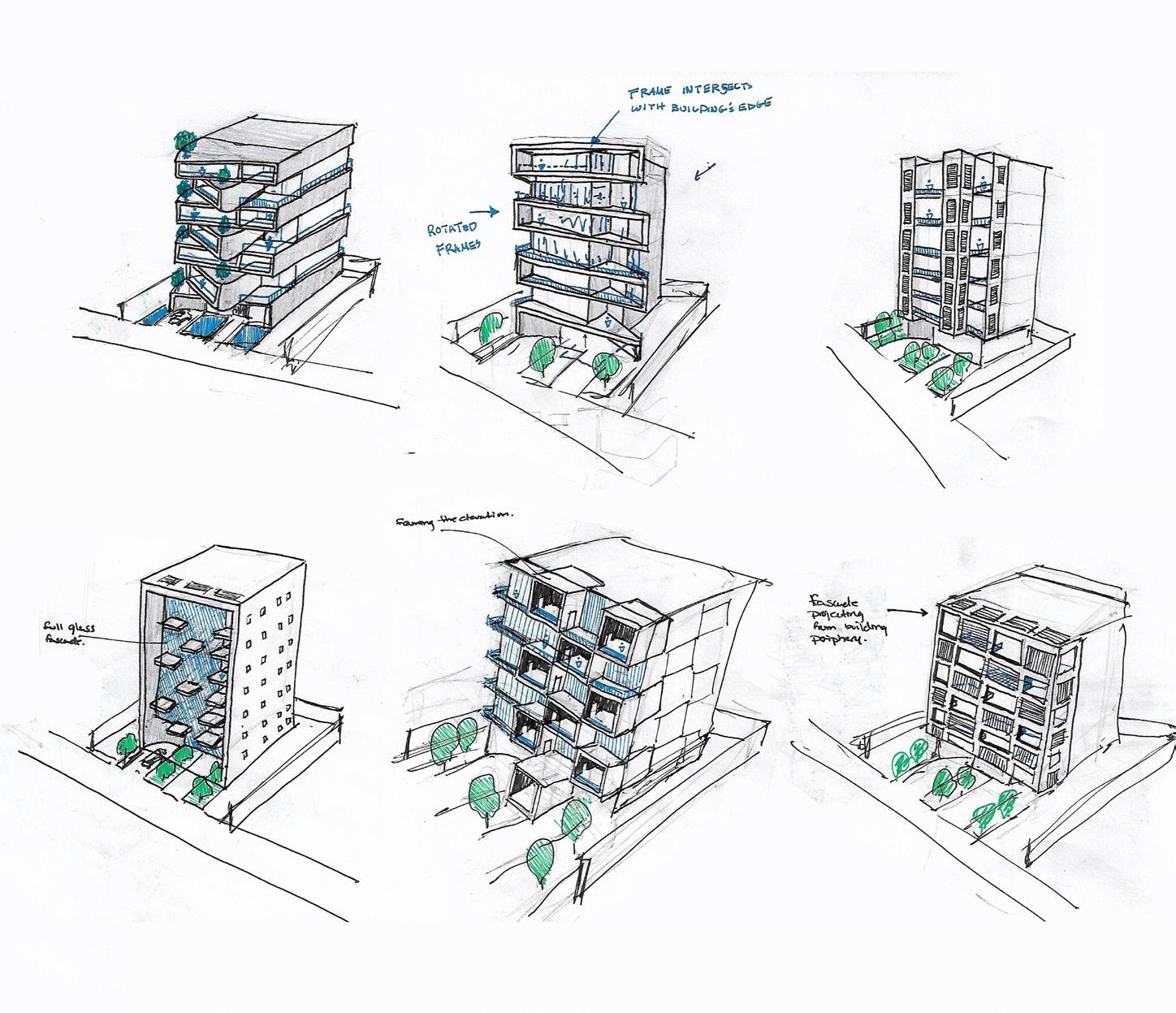

Above: Conceptual Sketches
A1.3 Typology

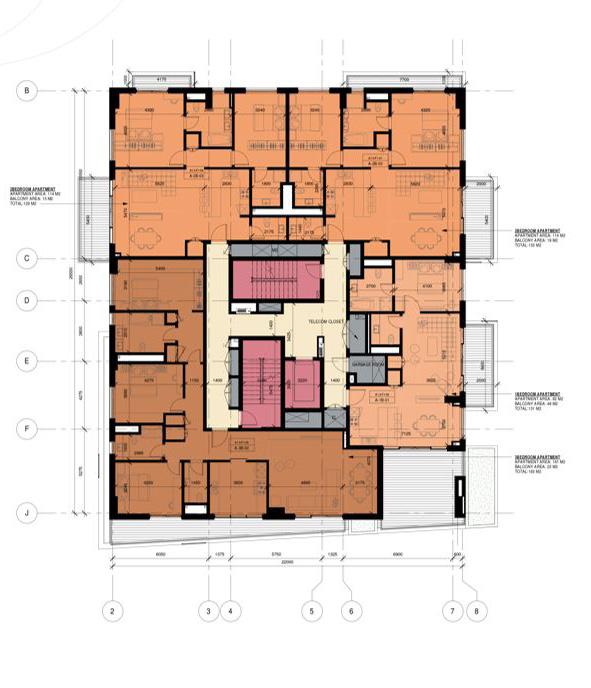

Below: Floor Plans
A1.3 Ground Floor and Typical Floor
68
11. PRIVATE VILLA
Soura Madani House of Design | 2016 Professional - Partner Work.
The project included working on an interior renovation of an existing villa. The spaces included a salon, a living room, a dining room, a recreation area and several bedrooms. My contribution included making as built drawings, proposing a new interior scheme, developing design alternatives, interior layout planning, selecting finishes, client graphic presentations and 3D modeling. The project also included issuing construction drawings of all interior elements including: demolition plans, furniture plans, interior elevations, wood-works, flooring plans and ceiling details. The work also encompassed communicating with various suppliers, manufacturers and contractors.
Amman, Jordan.

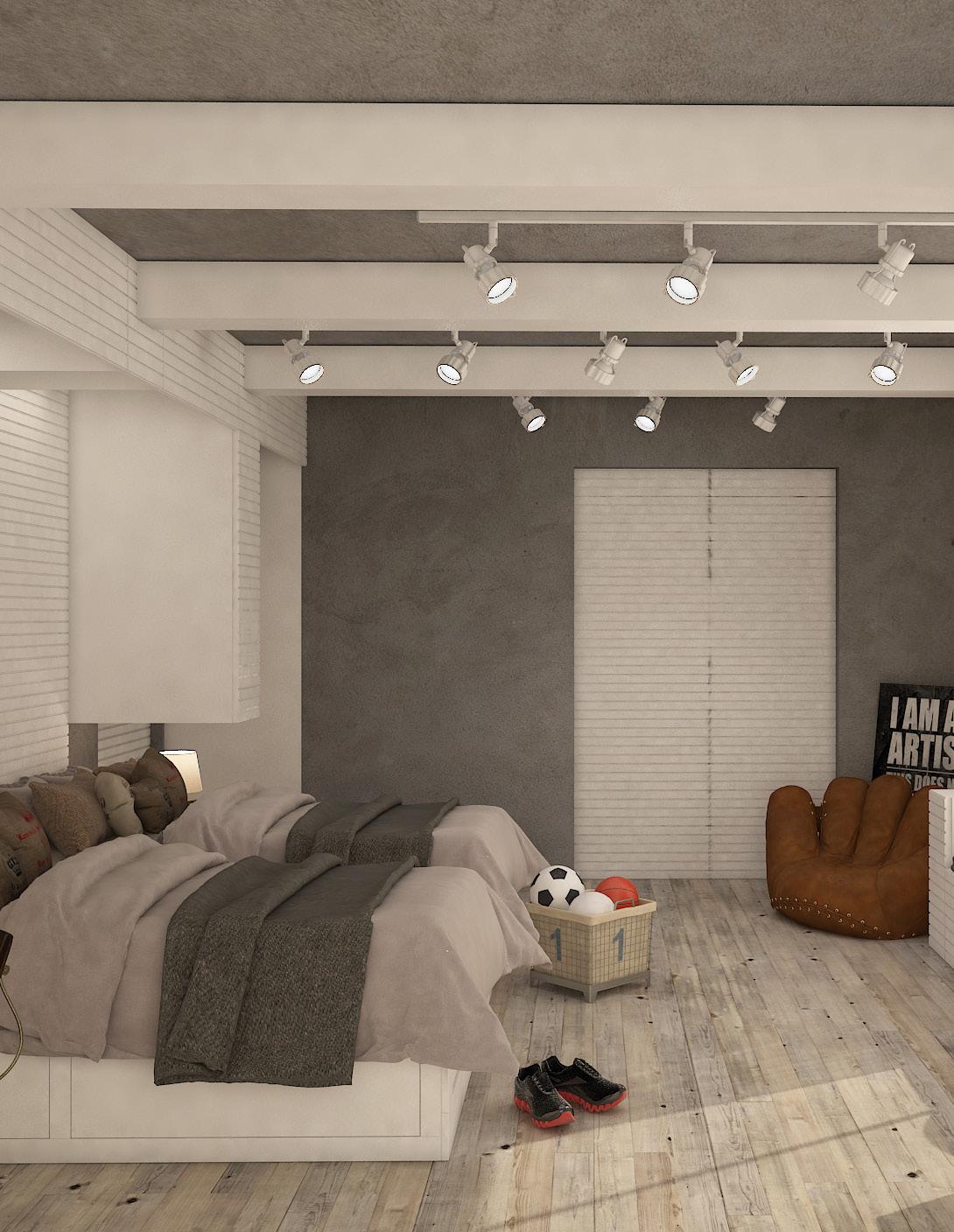

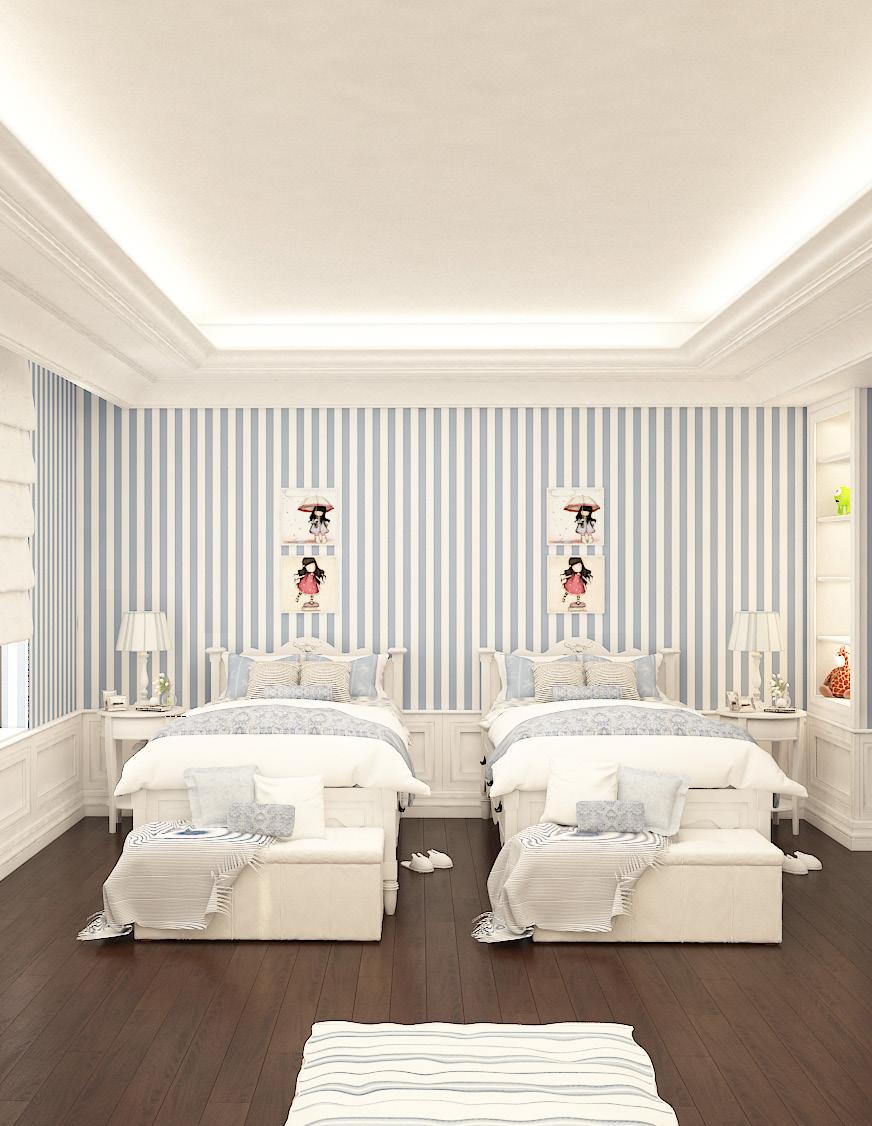

Opposite: Interior Shots Bedrooms

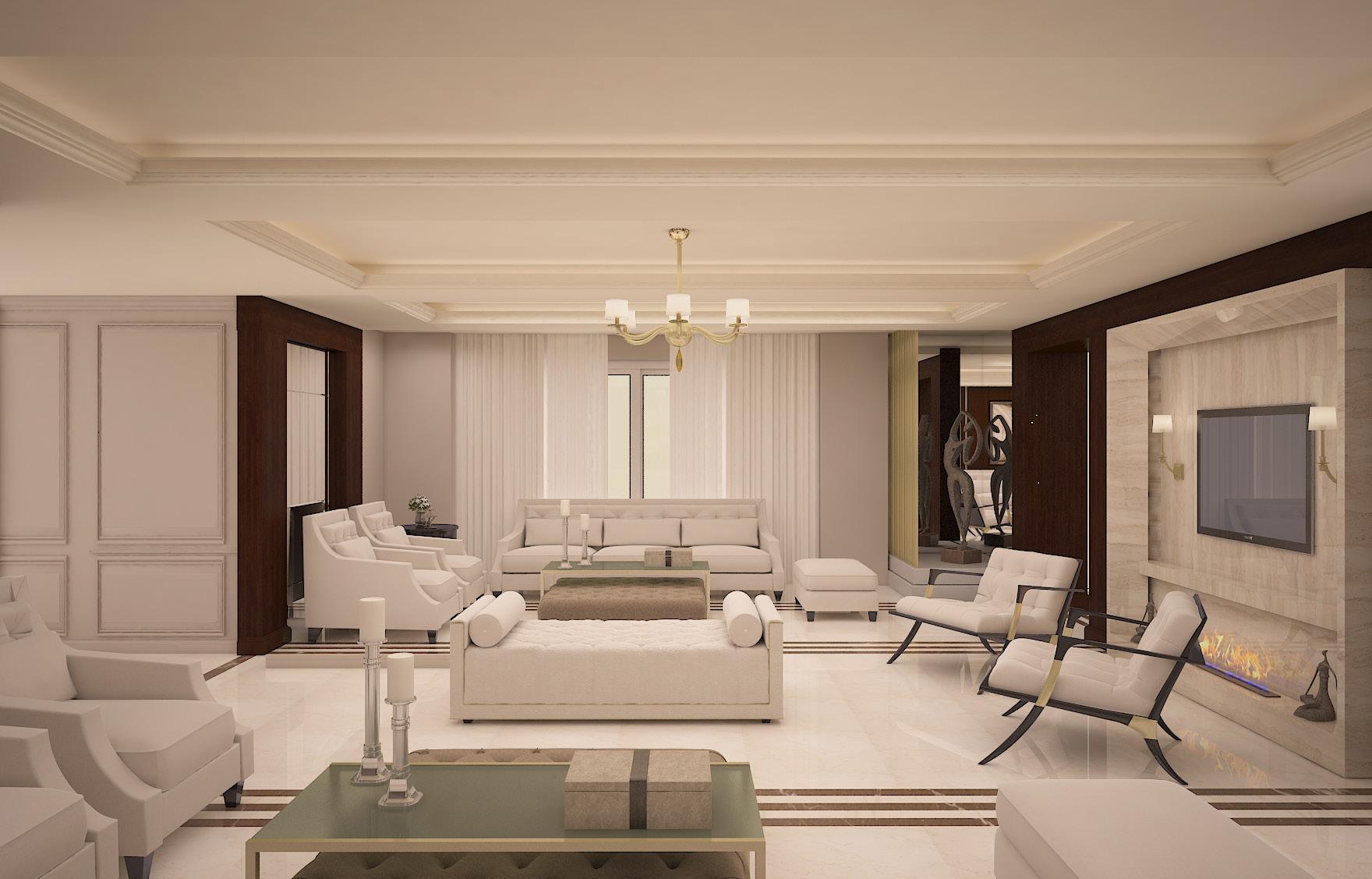

Above & Below: Interior Shots Living Room & Salon
69
70
g in walls.
HADING WITHOUT PV CELLS
g in walls.
area: 21,600 sq.ft.
HADING WITHOUT PV CELLS
glazing area: 2,775 sq.ft.
area: 21,600 sq.ft.
glazing area: 2,775 sq.ft.
12. ARCH 576 EXPERIMENTAL ENVELOPES
glazing area: 2,775 sq.ft.
glazing area: 465 sq.ft.
glazing area: 2,775 sq.ft.
glazing area: 465 sq.ft.
University of Illinois at Urbana Champaign | Fall 2021
glazing area: 465 sq.ft.
Autonomy (sDA):90%
glazing area: 465 sq.ft.
Exposure (ASE): 62%
Autonomy (sDA):90%
Breakdown (kBtu/ft²/yr):
Exposure (ASE): 62%
Breakdown (kBtu/ft²/yr):
The seminar, led by Professor Scott Murray, investigates the different elements that make up a facade. The different facade materials and their assemblies are discussed throughout the semester.
A semester-long project is concerned with experimenting different facade arrangements, fenestration percentages, photo-voltaic cells, and wall materials to achieve a sustainable and energy efficient building. Accordingly, a suggested wall section was drawn with a simple facade design for the building.

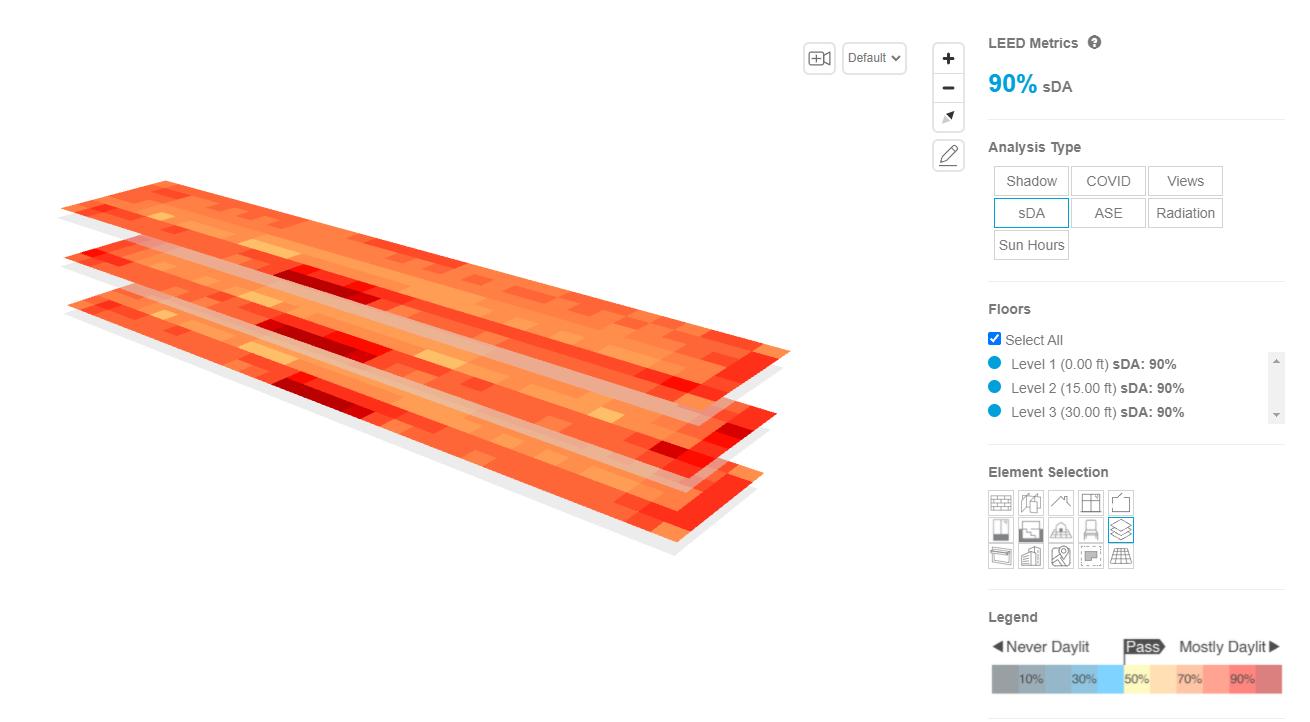

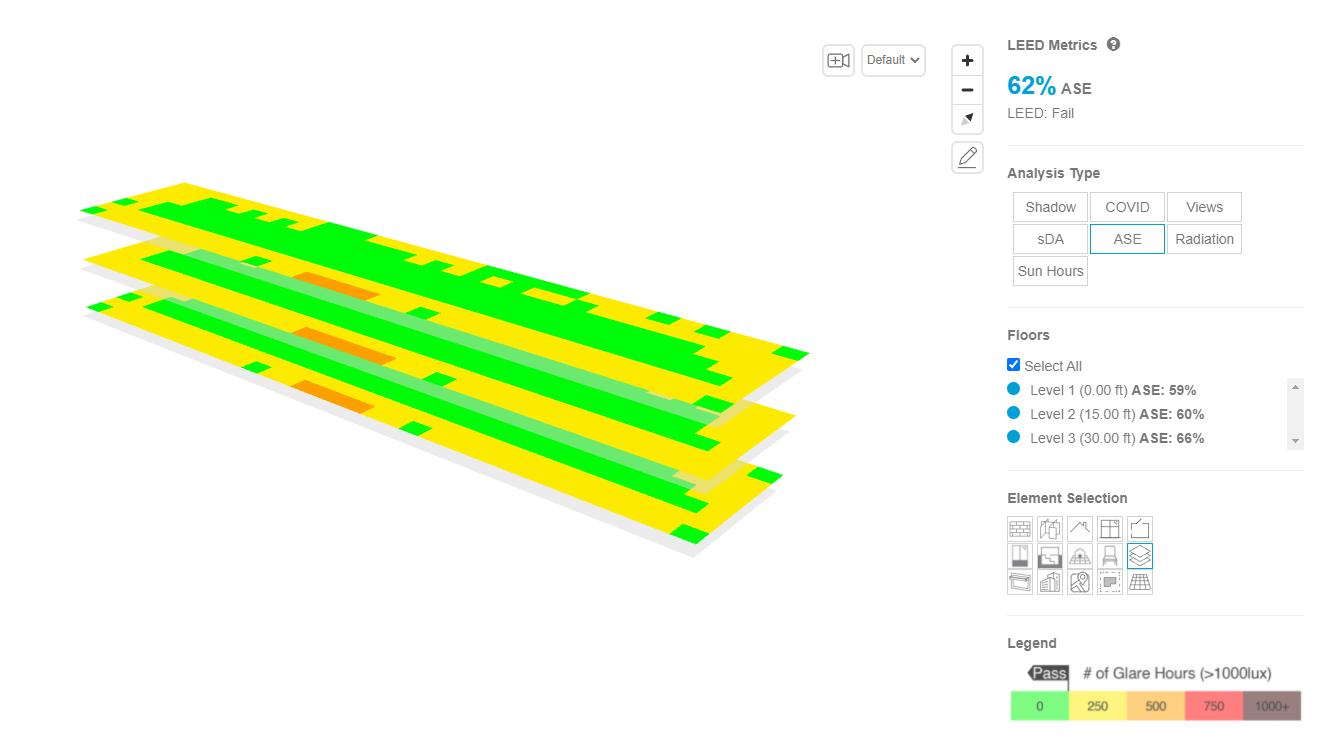

Daylighting and temperature ranges are taken into consideration into the design; using the software Climate Consultant. The designed building is simulated in its actual location, using the software Covetool, to determine the sDA (Spatial Daylight Autonomy) and ASE (Annual Sunlight Exposure). Through Covetool, an estimated energy consumption is calculated.
North / West Elevations
North / West Elevations
21, 12:00 PM
PM
21, 12:00 PM
Interior view looking east, 3rd Floor: June Interior view looking east, 3rd Floor: December Interior view looking east, 3rd Floor: June 21, 12:00 Interior view looking east, 3rd Floor: December 21, 12:00 PM71
13. ARCH 592
URBAN ZED
University of Illinois at Urbana Champaign | Spring 2021
The seminar, led by Professor John Stallmeyer, investigates chosen urban sections within different cities. It also emphasizes the importance of architectural and urban expression using freehand drawing.
Two locations were selected: Downtown Amman, Jordan, and Chicago’s Lake Shore Drive, USA.

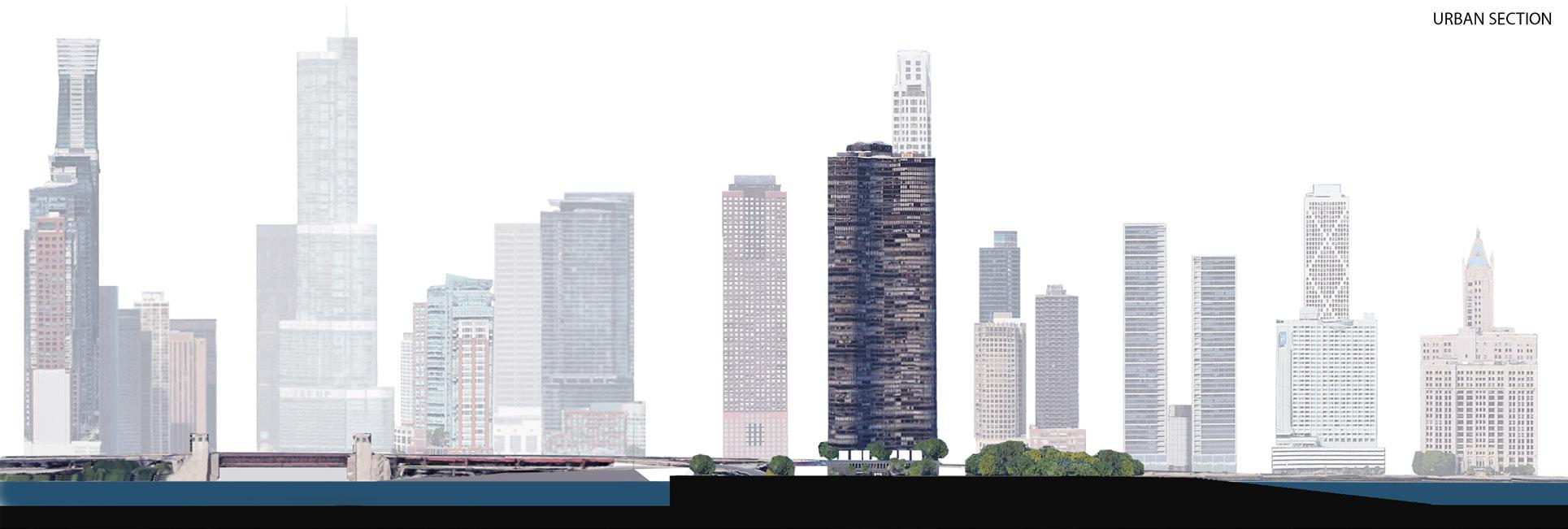

Opposite Above: Chicago Skyline Photoshop Using Google Earth Images
Opposite Below: Chicago Skyline Charcoal on Paper

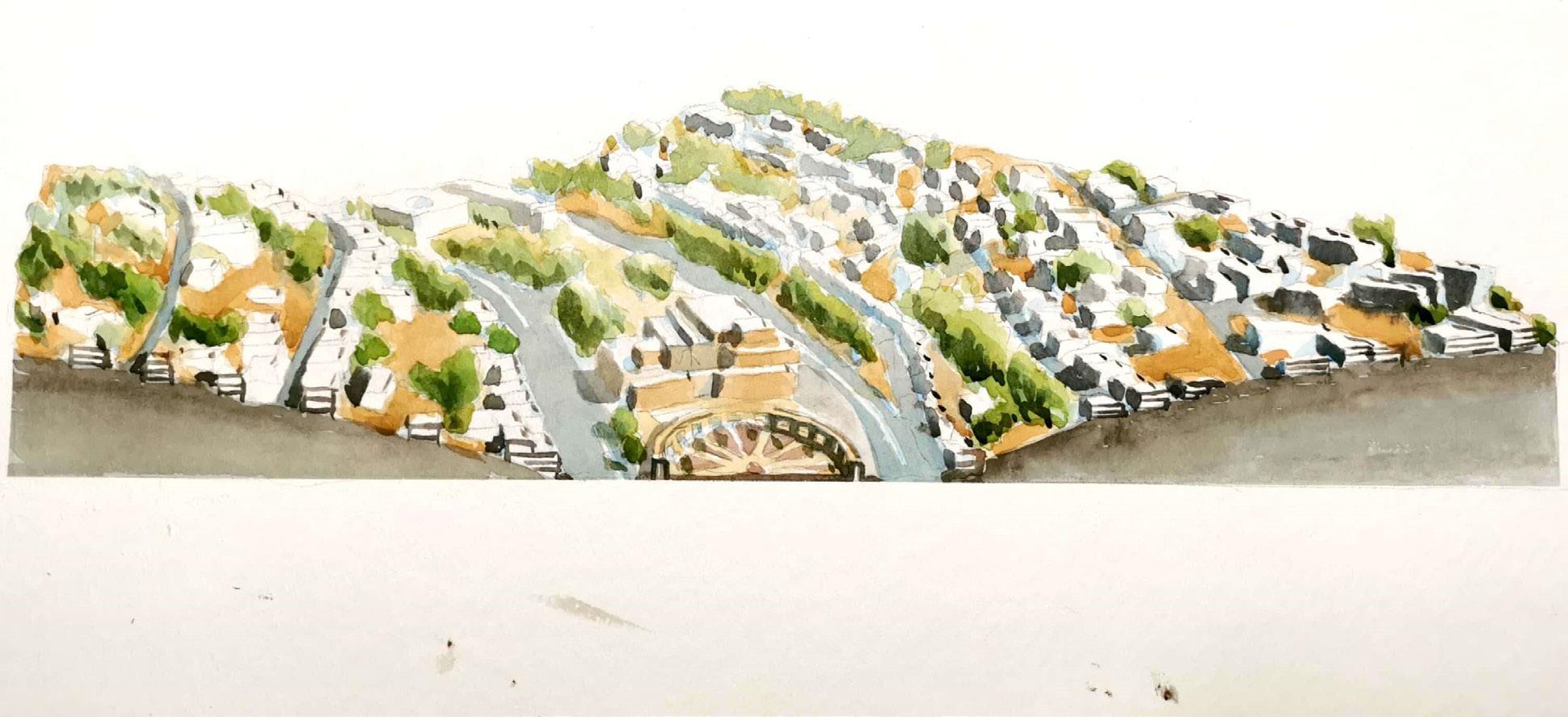

Above & Below: Amman Downtown Plan & Section Watercolor on Aquarell Paper
73
74
14. ARCH 574 PLYM STUDIO (ANALOG)
University of Illinois at Urbana Champaign | Spring 2021
The Plym studio, led by Professor Mark Raymond, is dedicated to the discussion of the idea of Analog. The studio was in collaboration with the University of Johannesburg. After a discussion with the counterparts in South Africa, the students were asked to illustrate certain ideas using drawing for different scales of the world. The scales given were the figure, the objects, the room, the common room the urban, and the landscape. Students were free to choose whatever medium they prefer. The drawings should not relate to architecture.
Right: Common Room Charcoal on Paper75
Left: Figure Charcoal on Paper
Right: Urban Charcoal on Paper
76
Left: Landscape Charcoal on Paper
15. FREEHAND
Amman | 2004 - 2010
A key for success in architectural conceptual thinking is, I believe, having elaborate instruments that can convey the designer’s ideas. Along with all computer graphical software, having a profound free hand is a must. A 6 year Fine Arts education in Studio 11 was directed by Professor Husni Abu Kurayyem and Professor Ahmad Al Shaweesh. With the use of live models, sculptures and stilllife, I’ve received intensive courses in Sketching as well as Rendering in Pencil, Charcoal, Sanguine and Watercolor. Graphical concepts, history of art and composition were discussed thoroughly throughout the course.
Above Right: Live Model Watercolor on Aquarelle Paper
Above Left: Still Life Watercolor on Aquarelle Paper
Below Right: Live Model Charcoal on Paper
Below Left: David Portrait Charcoal on Paper
77
78
Left: Venus Portrait Charcoal on Paper
16. PIANO
Deeply enthusiastic about music, I take the knowledge of piano performance, history and education seriously. In 2014, I achieved my ABRSM LRSM in Piano Performance (Licentiate of the Royal Schools of Music) and taught part time at the International Community School Amman along with private lessons ever since 2010. I also worked, ever since 2015, as a rehearsal pianist with multiple choirs. I’m also very passionate about performing in public; having performed and accompanied singers and choirs in many events including recitals, receptions, charity gatherings, competitions, masses, national occasions and weddings. As in the case of all forms of arts, Architecture and Music historically go along in their development, styles and taste. Resemblance in how Music and Architecture changed through the eras and the elements that composers/ architects follow in their inventions, is undoubtedly clear.
79
80
