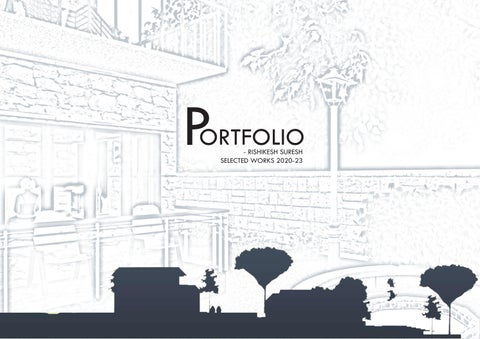

PORTFOLIO

- RISHIKESH SURESH SELECTED WORKS 2020-23

Rishikesh Suresh

D.O.B 09-04-2001

ABOUT

HELLO

!

I am Rishikesh Suresh, I am an architecture student at NIT Calicut ,currently 3rd-year, impassioned on designing spaces from the opportunity given by the natural environment. Creating spaces in maximum utilisation of environment characteristics in a sustainable way, persevering the functonal need, is the essence of my design.

I am excited to learn more, and get hands-on experience on architectural field.

942001rishikesh@gmail.com

9947920471

RISHIKESH SURESH

EDUCATION

NATIONAL INSTITUTE OF TECHNOLOGY, CALICUT

KAILASANADHA VIDYANIKETHAN, POONKUNNAM, THRISSUR

CHAVARA DARSAN CMI PUBLIC SCHOOL, KOONAMMAVU, KOCHI, ERNAKULAM

ST. JOSEPH PUBLIC SCHOOL , PATTANAKKAD, ALAPPUZHA

CO - CURRICULAR

ANDC 2022 I COMPETETION SHORTLISTED TOP 50 ENTRIES (ON GOING)

ADIZYA ‘22 I SENIOR EXECUTIVE ANNUAL ARCHITECTURAL FEST NIT CALICUT

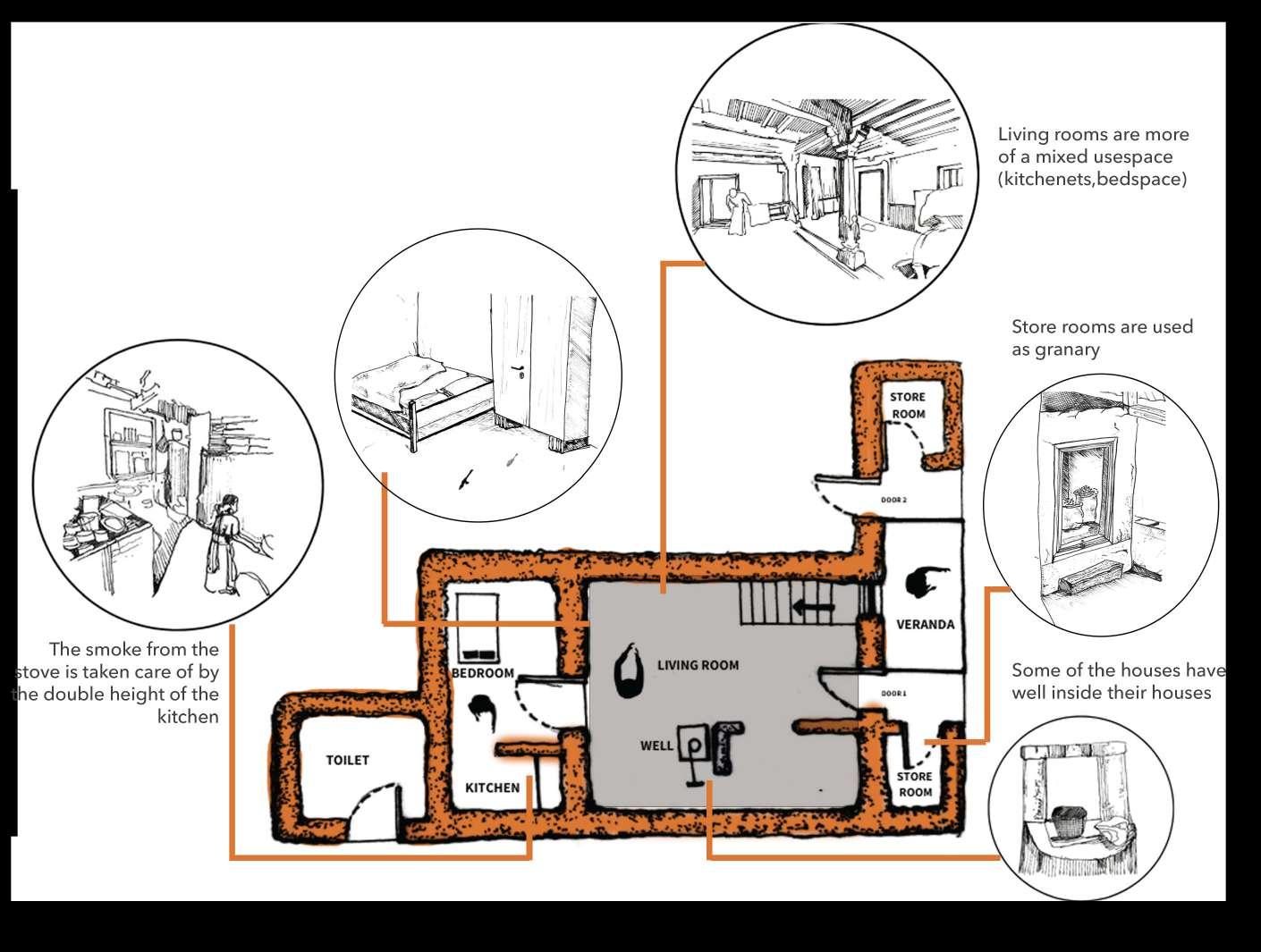

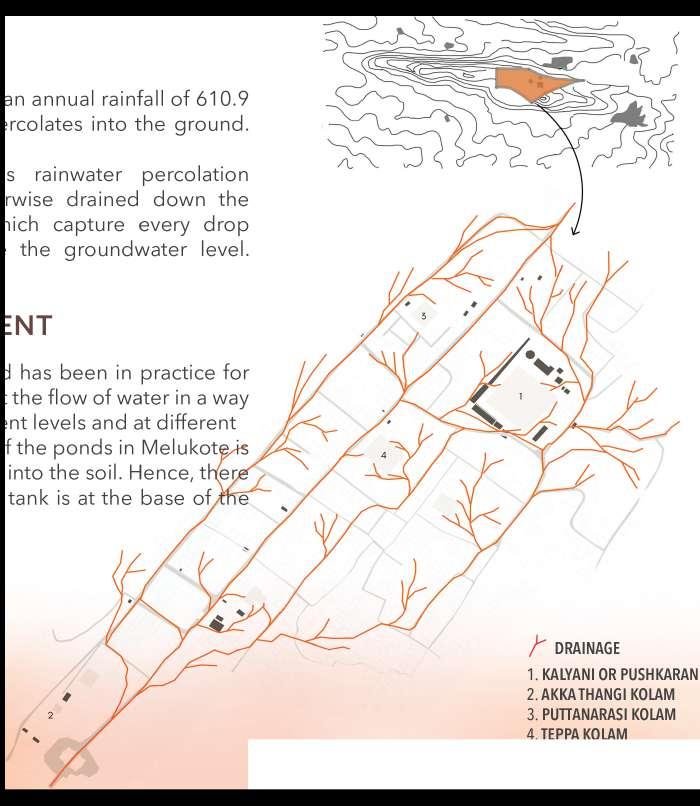

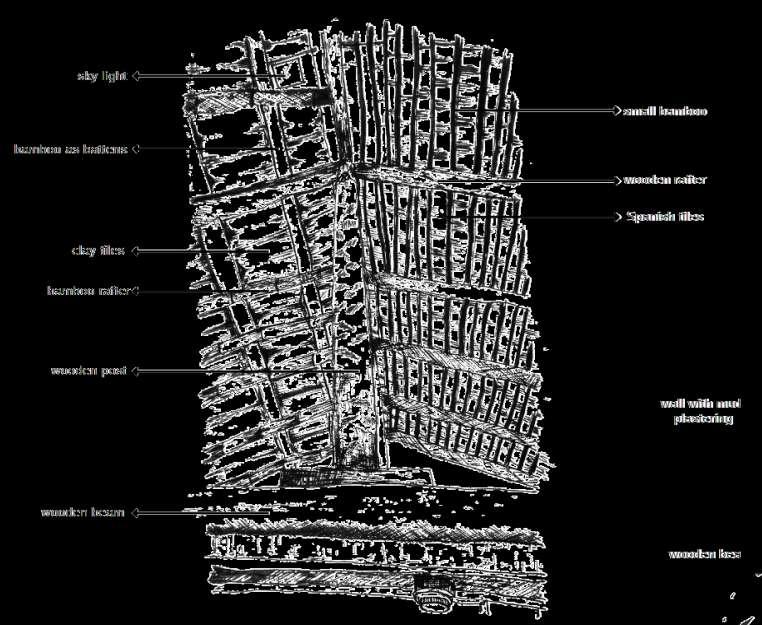

DOCUMENTATION THROUGH THE LANES OF MELUKOTE HOBBIES

: (PRESENT 2020-25)

: (2017-2019)

: (2012-2017)

: (2006-2012)

SOFTWARE SKILL

AUTOCAD

SKETCHUP

LUMION

ENSCAPE

CANVA

REVIT

ADOBE INDESIGN

ADOBE PHOTOSHOP

CONTACT 942001rishikesh@gmail.com

Architecture is a code. It’s a pure code, derived from the dimensions of nature

- Santiago Calatrava

12-17

IN-CORE ABODE

01 DN DN BED ROOM BALCONY 1500X3000 LIVING ROOM 3800X3000 DINING ROOM 3800X3800 MASTE BED ROOM 4200X4200 WORK AREA 1200X2800 TOILET 3600X1600 D1 D3 D1 D3 D1 D1 D1 D1 D1 D1 D2 D2 D1 D2 D1 3800X3000 TOILET 3600X1600 TOILET 3600X1600 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +460 SSL +440 FFL +460 SSL +440 FFL +460 SSL +440 W3 W1 W W 2 W W W 2 W 2 W1 W1 W3 A STATE INSTITUTE OF DESIGN 03 CUBEX APPARTMENT 04 SAHAY NIVASA 05 WORKING DRAWING 06 MELUKOTE DOCUMENTATION 4-11 18-23 32-37 24-31 38-39

01 - STATE INSTITUTE OF DESIGN

8700 113000 37000 66000 85000 57000 103000 LVL +16 M LVL +17 M LVL +18 M LVL +19 M LVL +20 M LVL +20M LVL +19 M LVL +21 M LVL +20 M LVL +20 M LVL +21 M LVL +20 M LVL +18 M WORKSHOP BLOCK ACADEMIC BLOCK LIBRARYBLOCK ADMINBLOCK CANTEENBLOCK 10000 5000 3000 PARKING SPACE MAIN ENTRANCE SERVICE ROAD O A T 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 22 23 24 25 26 27 28 29 30 31 32 33 ELECTRICSERVICE STP RAIN WATER TANK

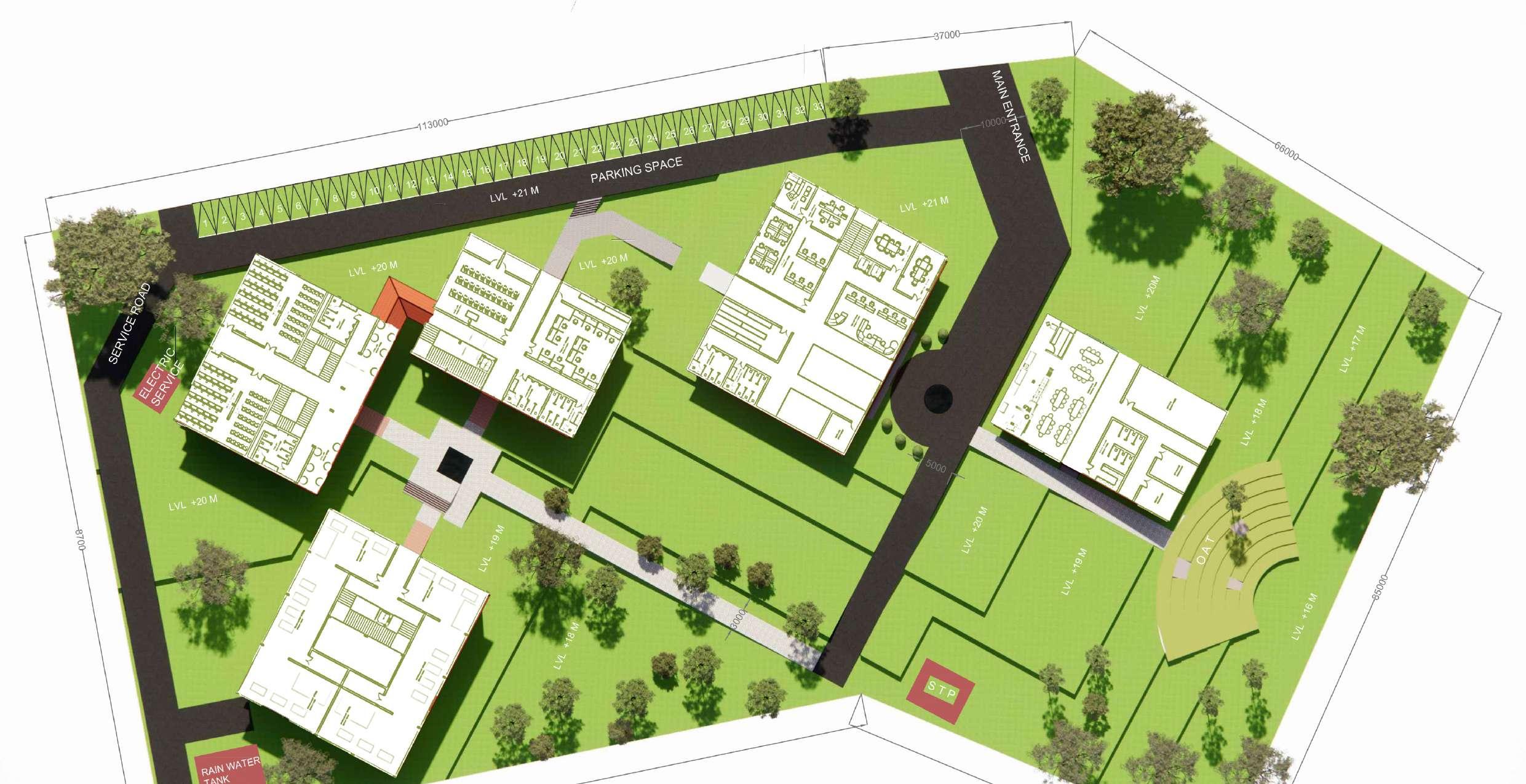

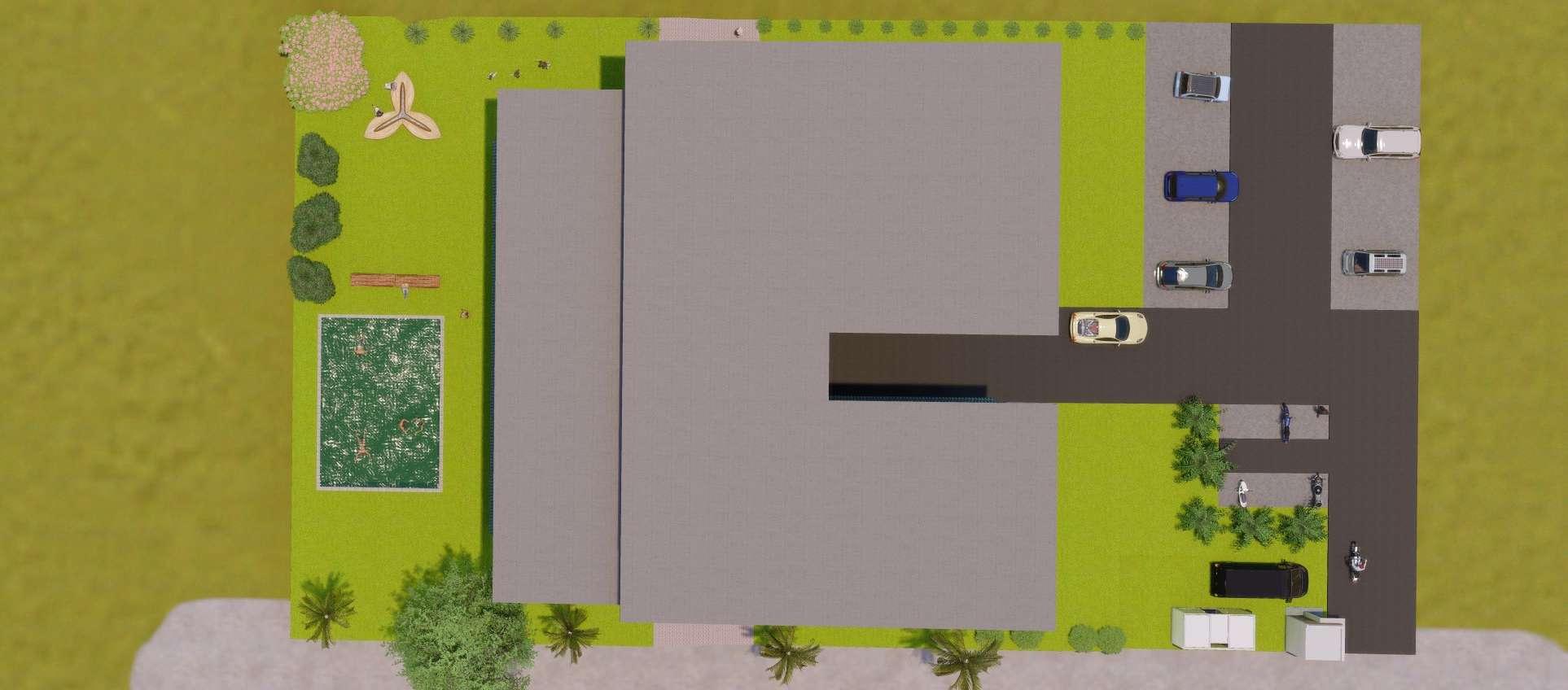

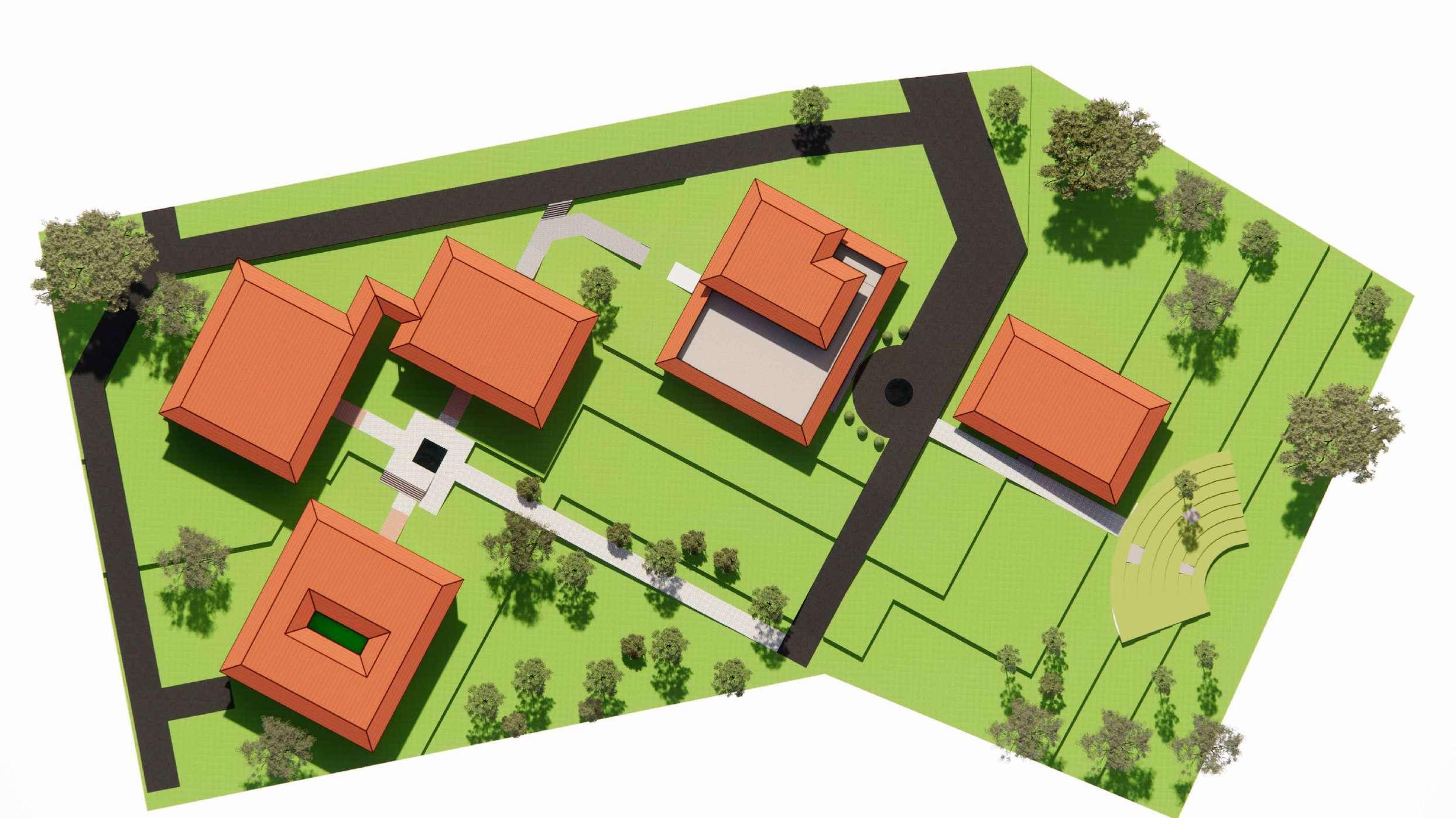

BLOCK LIBRARY BLOCK SITE PLAN SITE

WORKSHOP

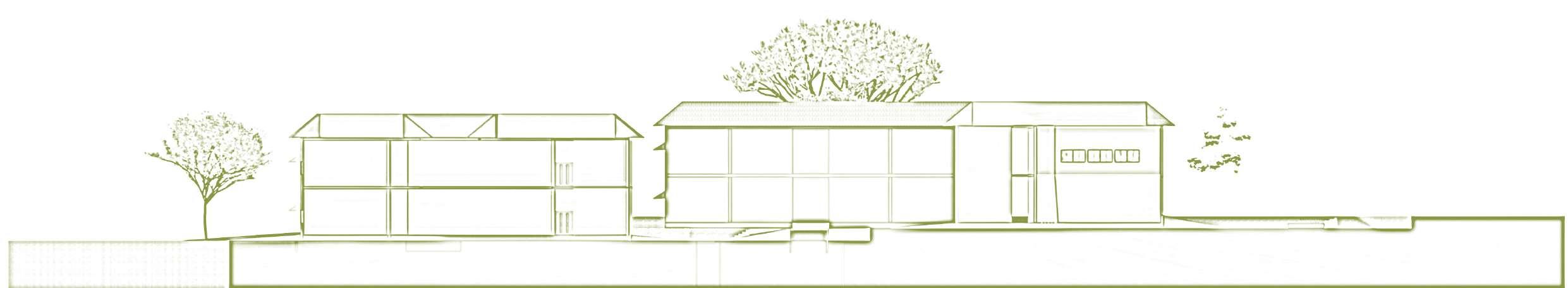

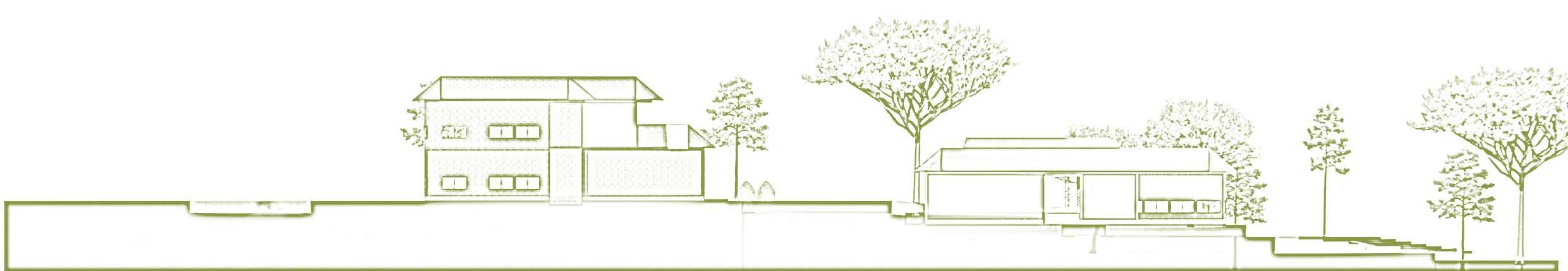

SECTIONS

57000

SITE PLAN

BLOCK

103000 TANK RISHIKESH SURESH B200099AR SEMESTER VI B-ARCH NITC

STATE INSTITUTE OF DESIGN ADMIN

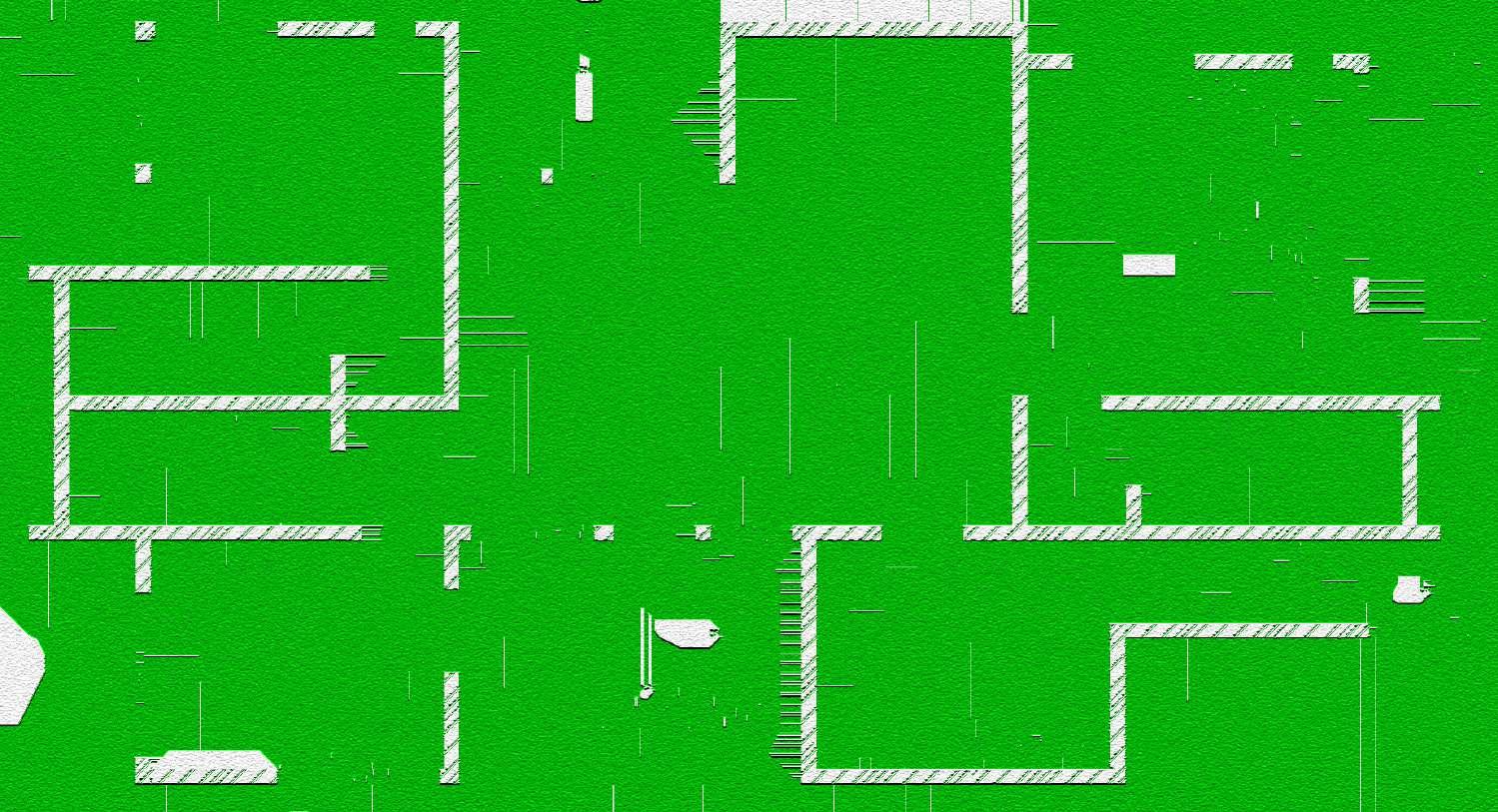

FLOOOR PLAN

CANTEEN BLOCK

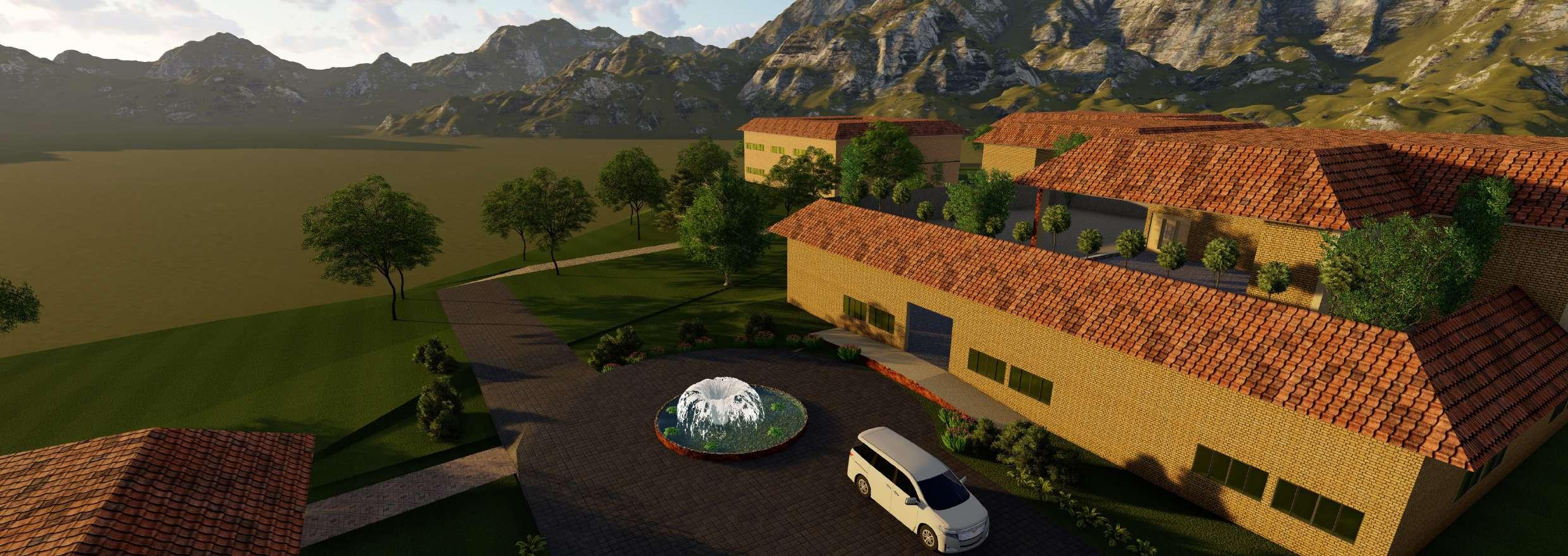

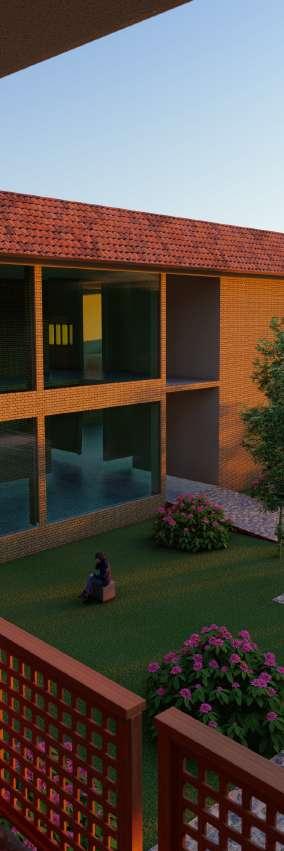

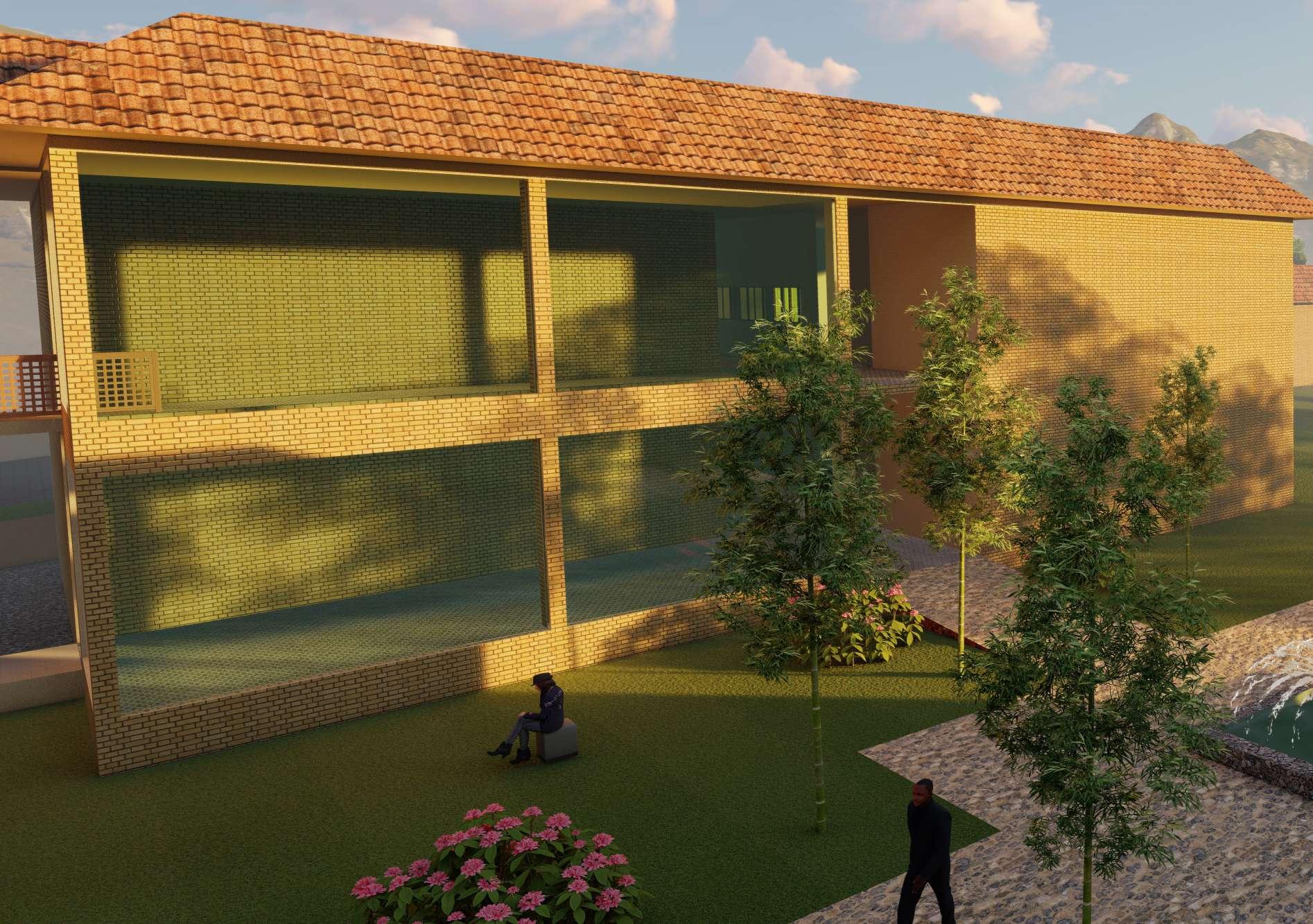

VIEWS

02 - IN-CORE ADOBE

LIVING SPACE

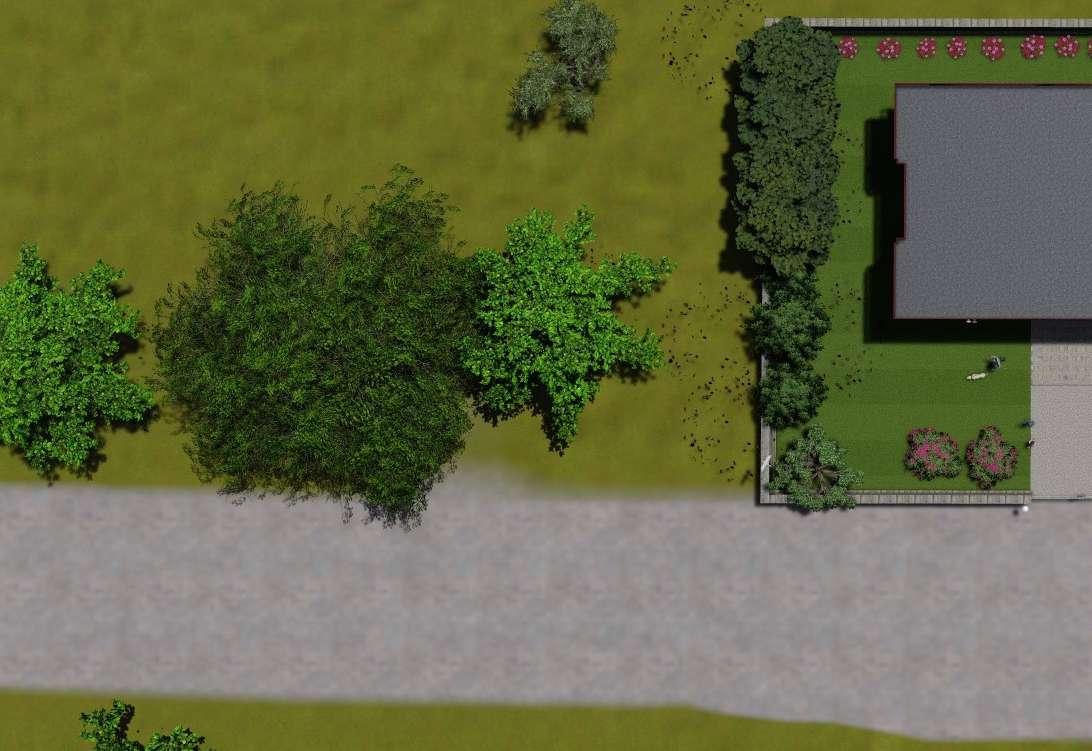

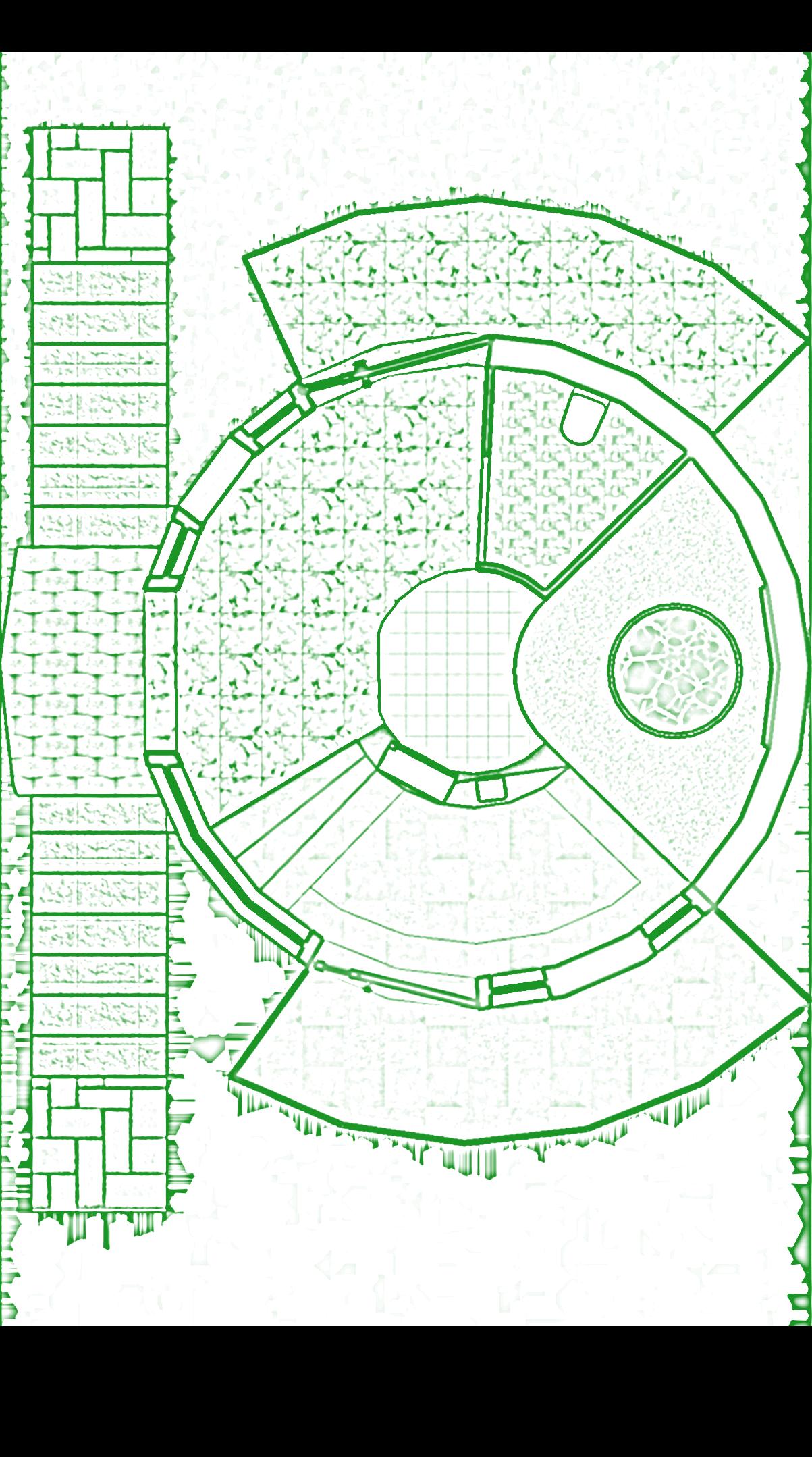

TOILET SITE PLAN FLOOR PLAN

GARDEN BALCONY BALCONY

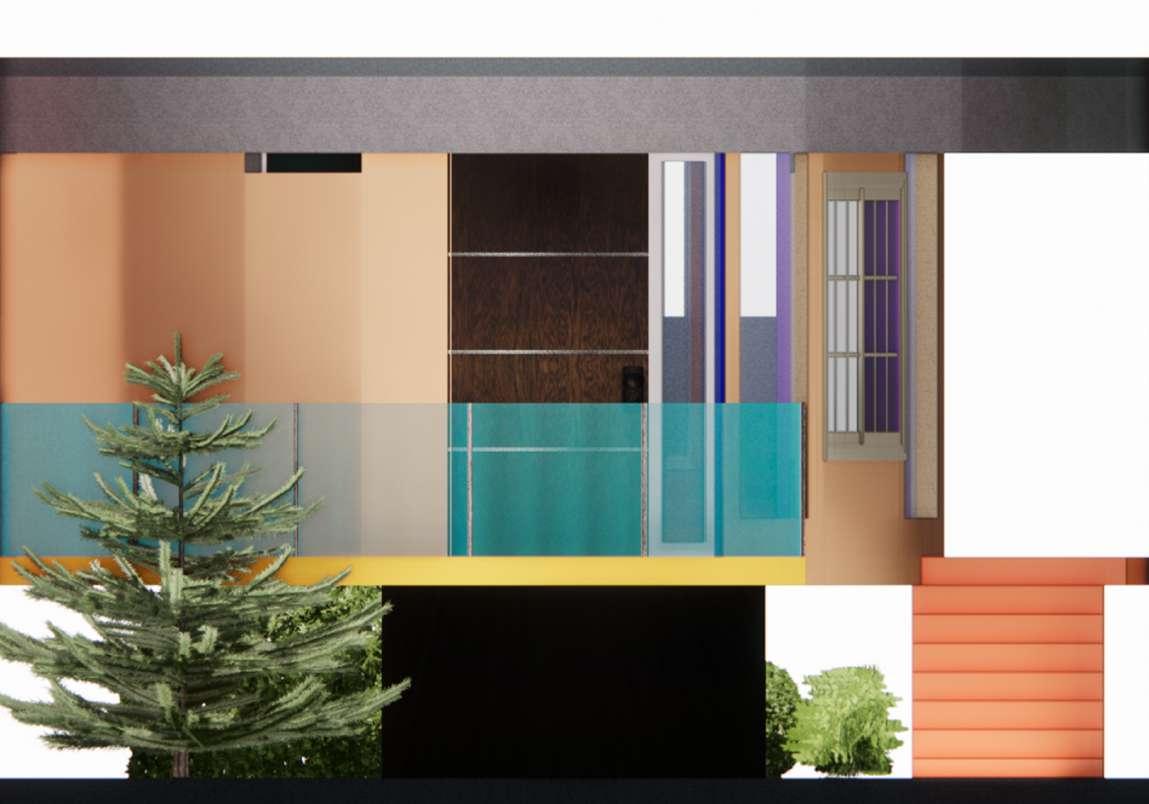

FRONT ELEVATION REAR ELEVATION

GARDEN

SECTION

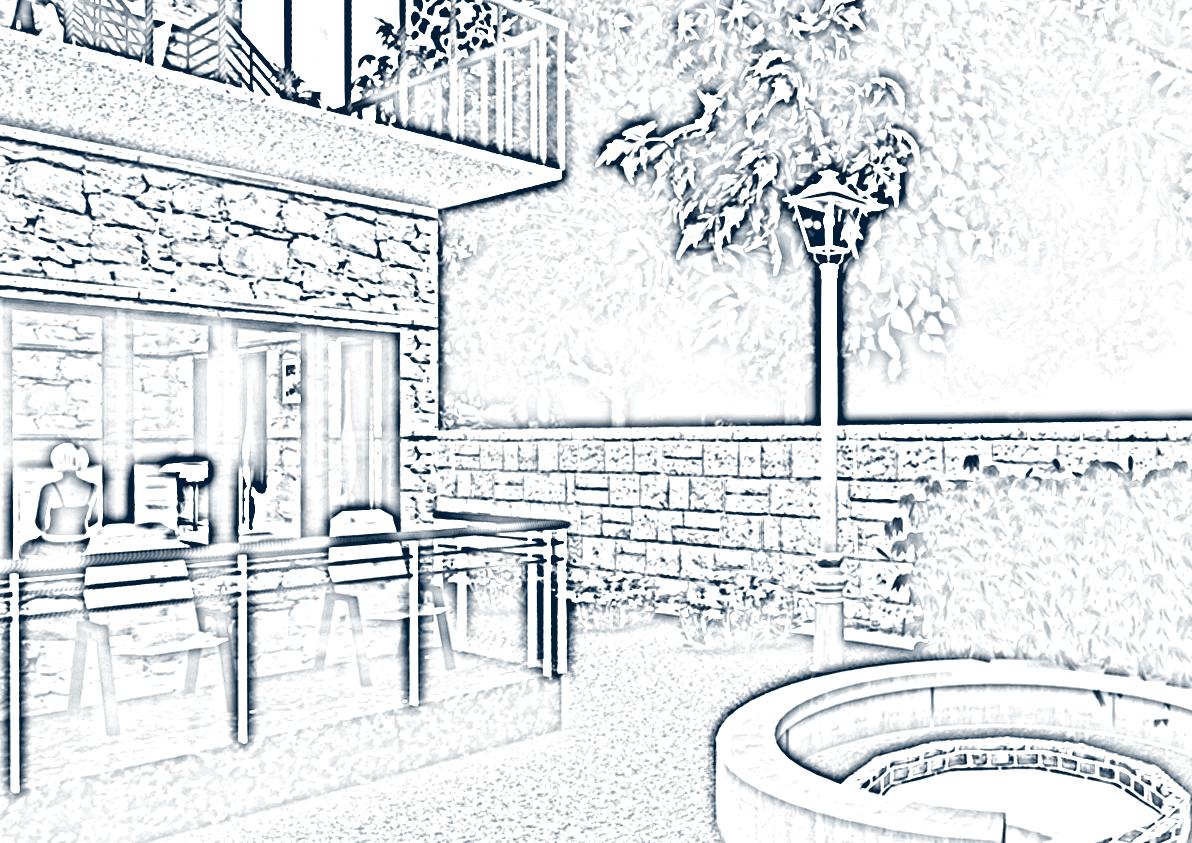

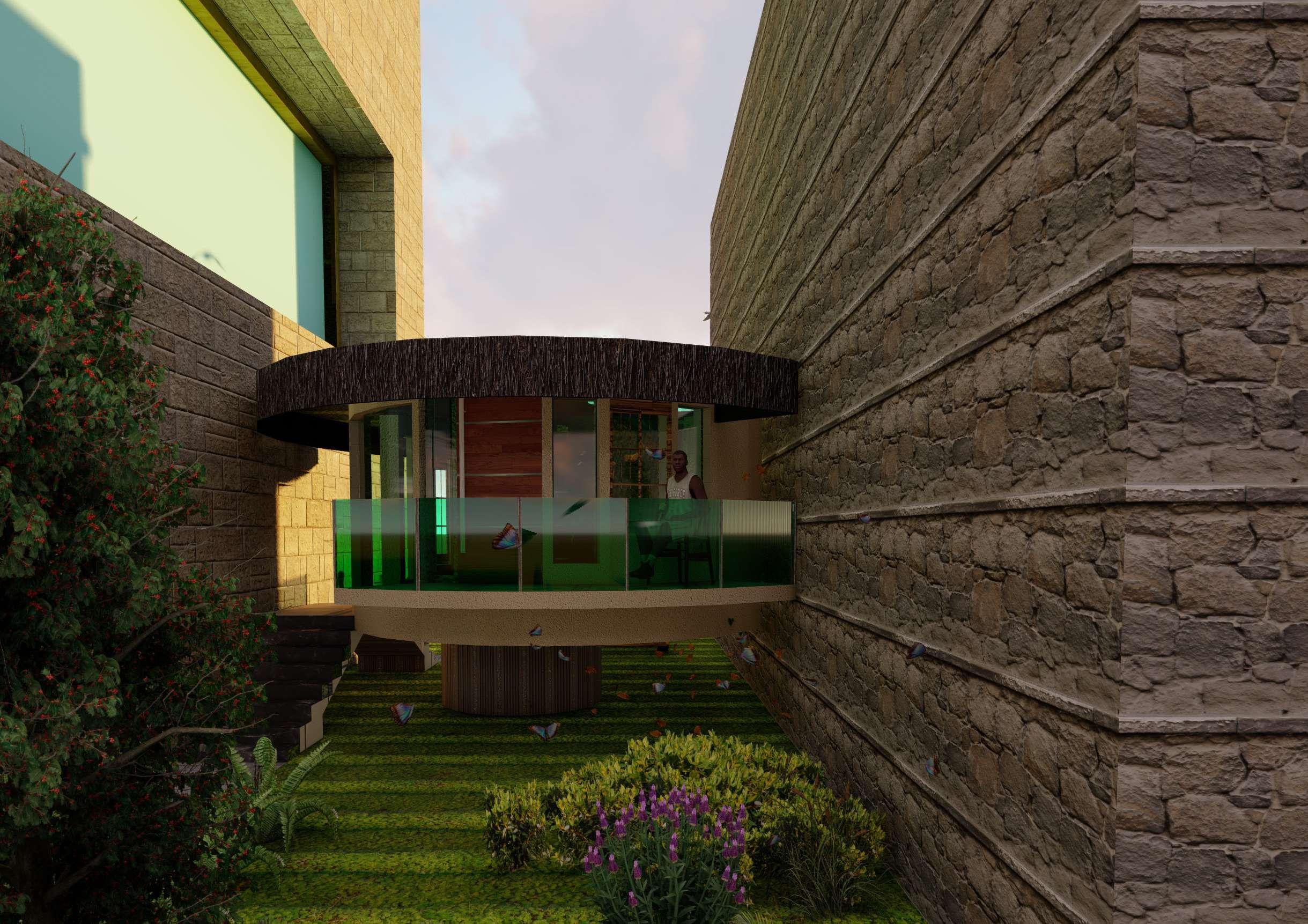

GARDEN - EXTERIOR

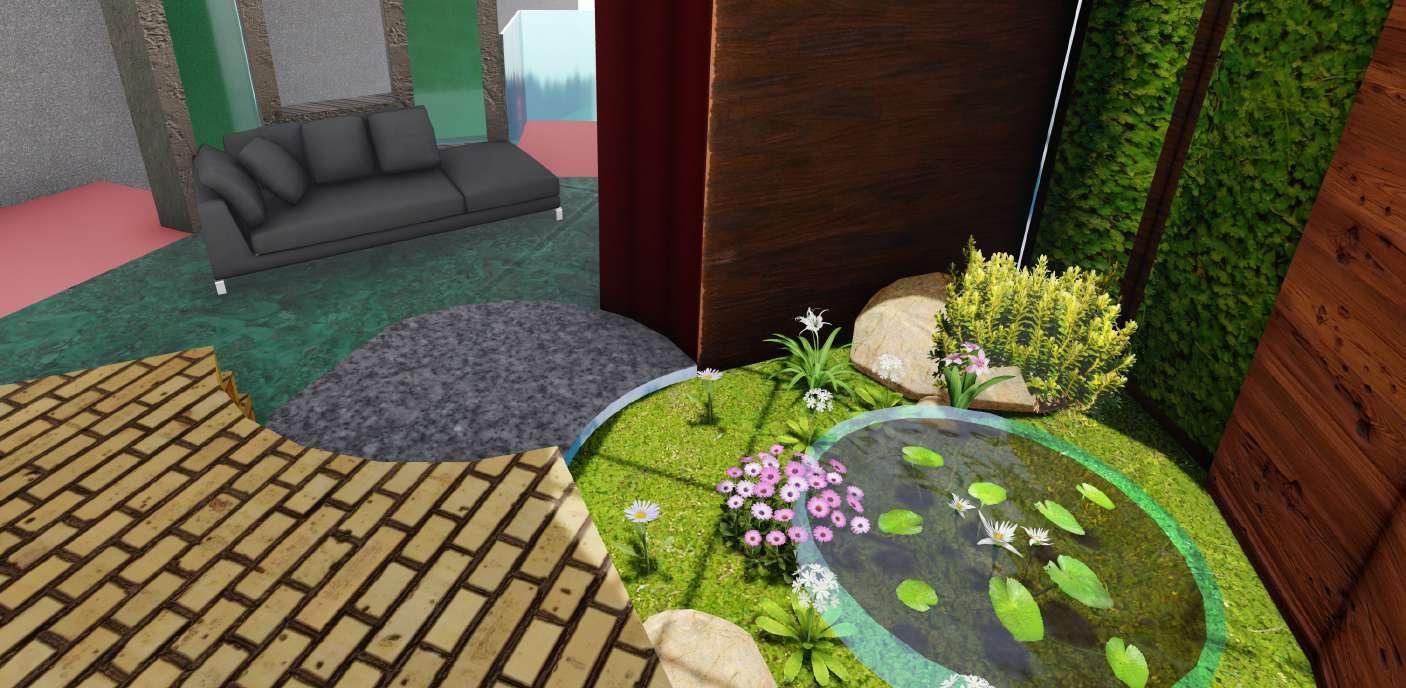

GARDEN - INTERIOR

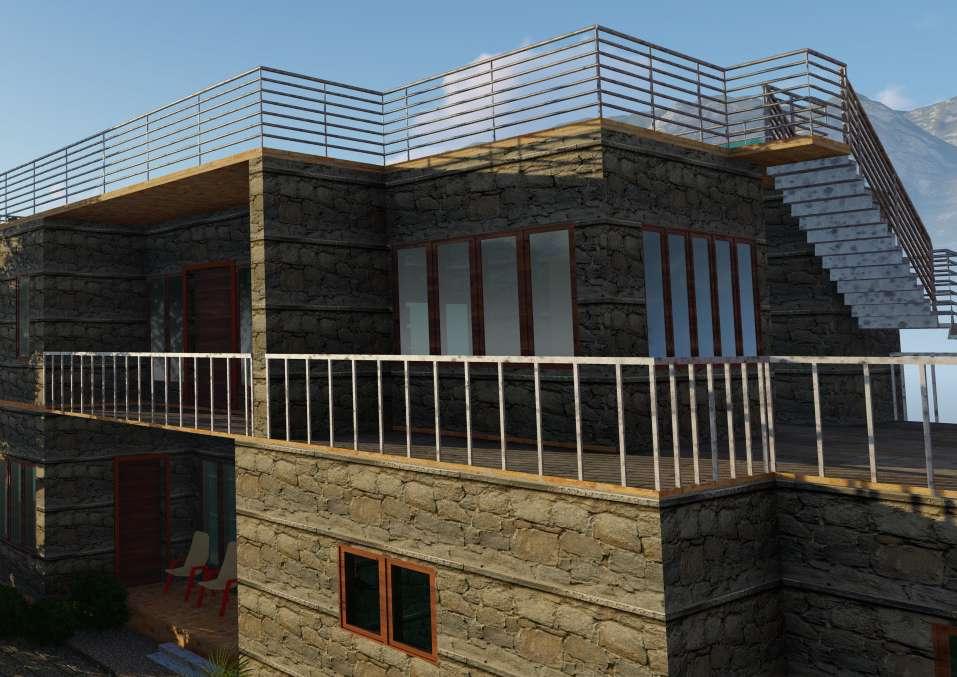

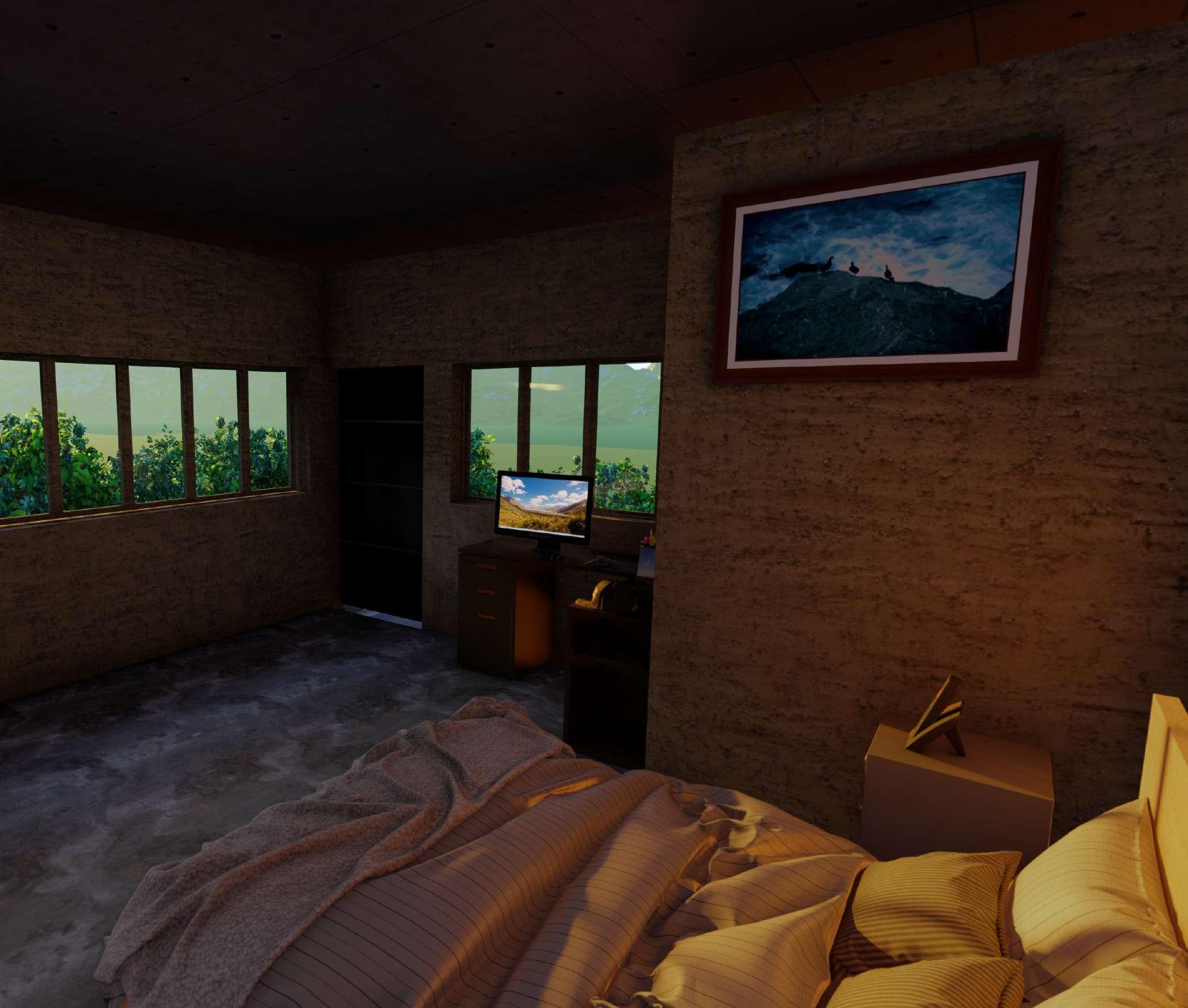

VIEWS

03 - CUBEX APPARTMENTS

SIDE ELEVATION

SITE PLAN

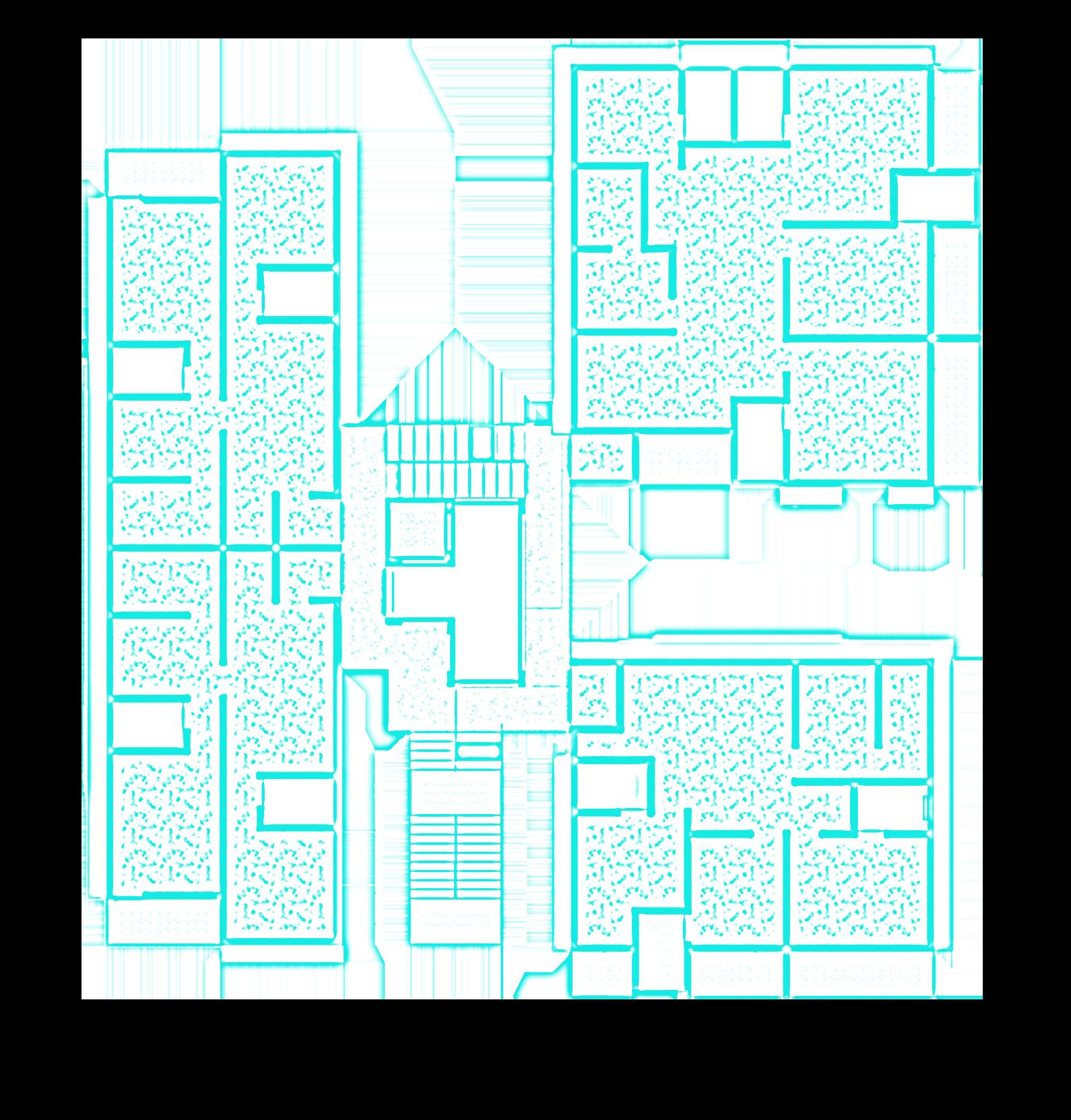

FIRST FLOOR PLAN

GROUND FLOOR PLAN

MASTER BEDROOM BEDROOM TOILET TOILET TOILET TOILET TOILET TOILET TOILET TOILET TOILET TOILET BEDROOM BEDROOM BEDROOM MASTER BEDROOM BEDROOM BEDROOM BEDROOM DINING DINING DINING DINING LIVING LIVING LIVING LIVING KITCHEN KITCHEN KITCHEN KITCHEN PARKING PARKING LIFT LIFT MASTER BEDROOM MASTER BEDROOM MASTER BEDROOM BEDROOM BEDROOM MASTER BEDROOM BEDROOM BEDROOM MASTER BEDROOM BEDROOM BEDROOM MASTER BEDROOM BEDROOM BEDROOM BEDROOM MASTER BEDROOM BEDROOM MASTER BEDROOM BEDROOM MASTER BEDROOM BEDROOM MASTER BEDROOM

SECTION

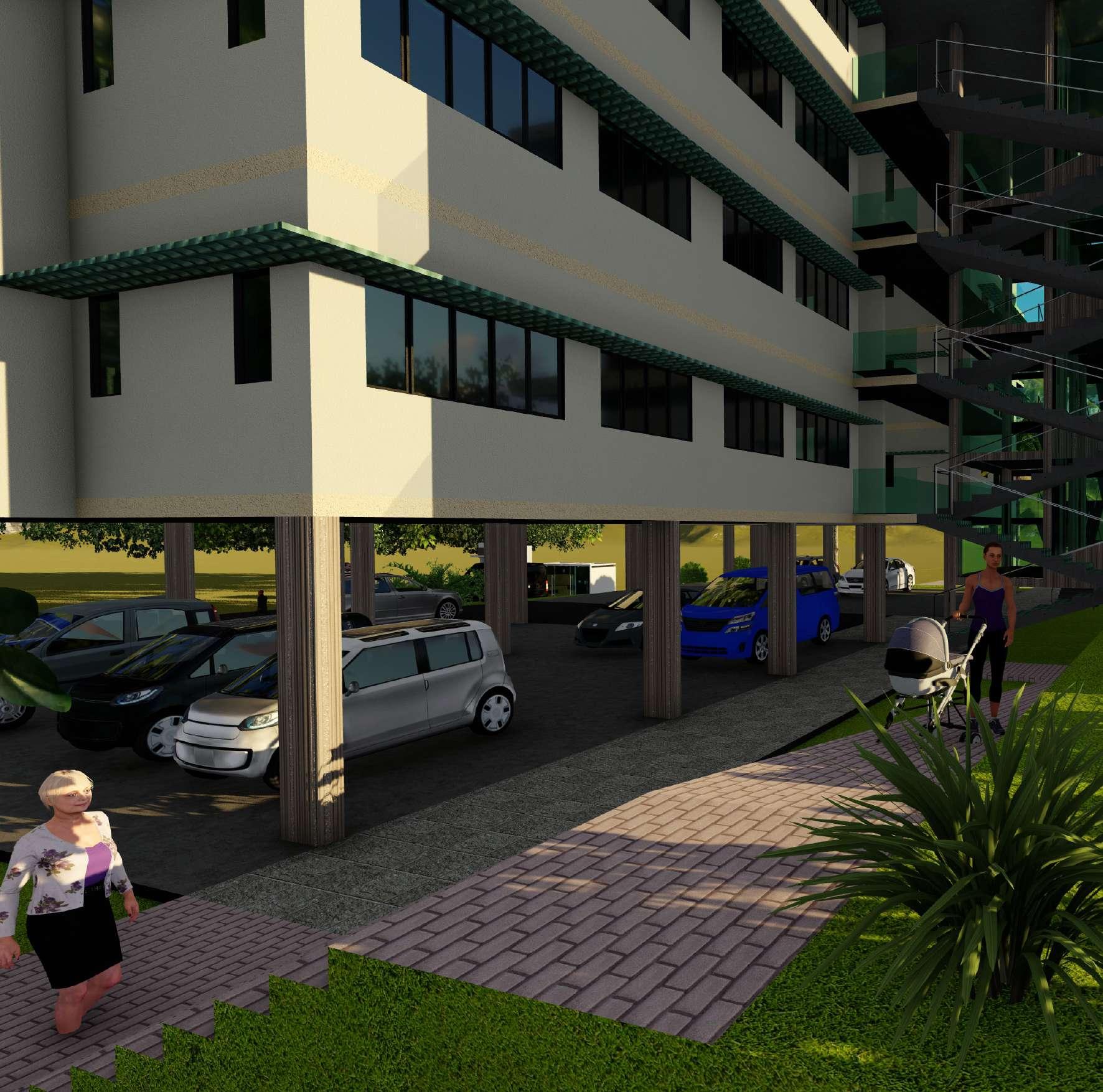

VIEWS

- SAHAY

NIVASA

SITE

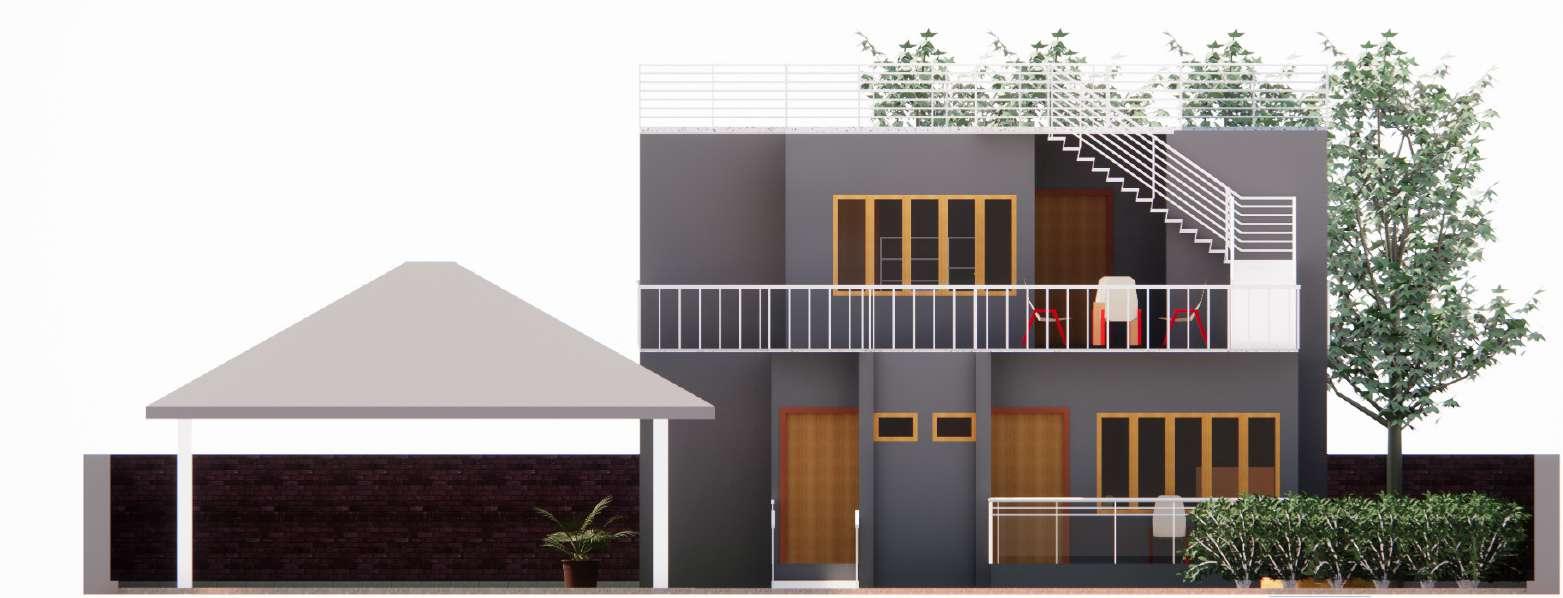

FRONT

PLAN

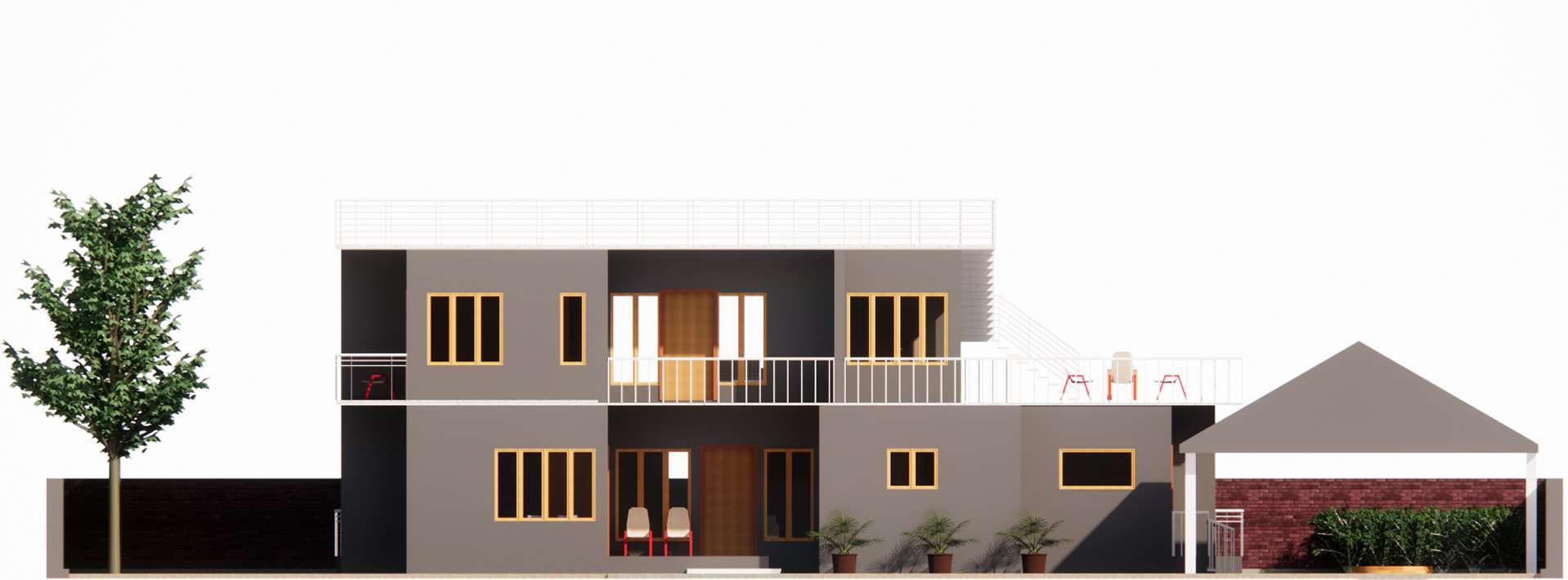

FRONT ELEVATION

SIDE ELEVATION

PLAN

GROUND FLOOR PLAN

FIRST FLOOR PLAN BEDROOM BEDROOM TOILET TOILET BALCONY BALCONY LIVING ROOM STUDY ROOM TERRACE TERRACE TERRACE TOILET TOILET TOILET BEDROOM MASTER BEDROOM BALCONY BALCONY LIVING ROOM DINING ROOM KITCHEN SITOUT OFFICE UTILITY DRESS ROOM DRESS ROOM DRESS ROOM DRESS ROOM

SECTION TOILET TOILET LIVING ROOM DINING ROOM LIVING ROOM MASTER BEDROOM

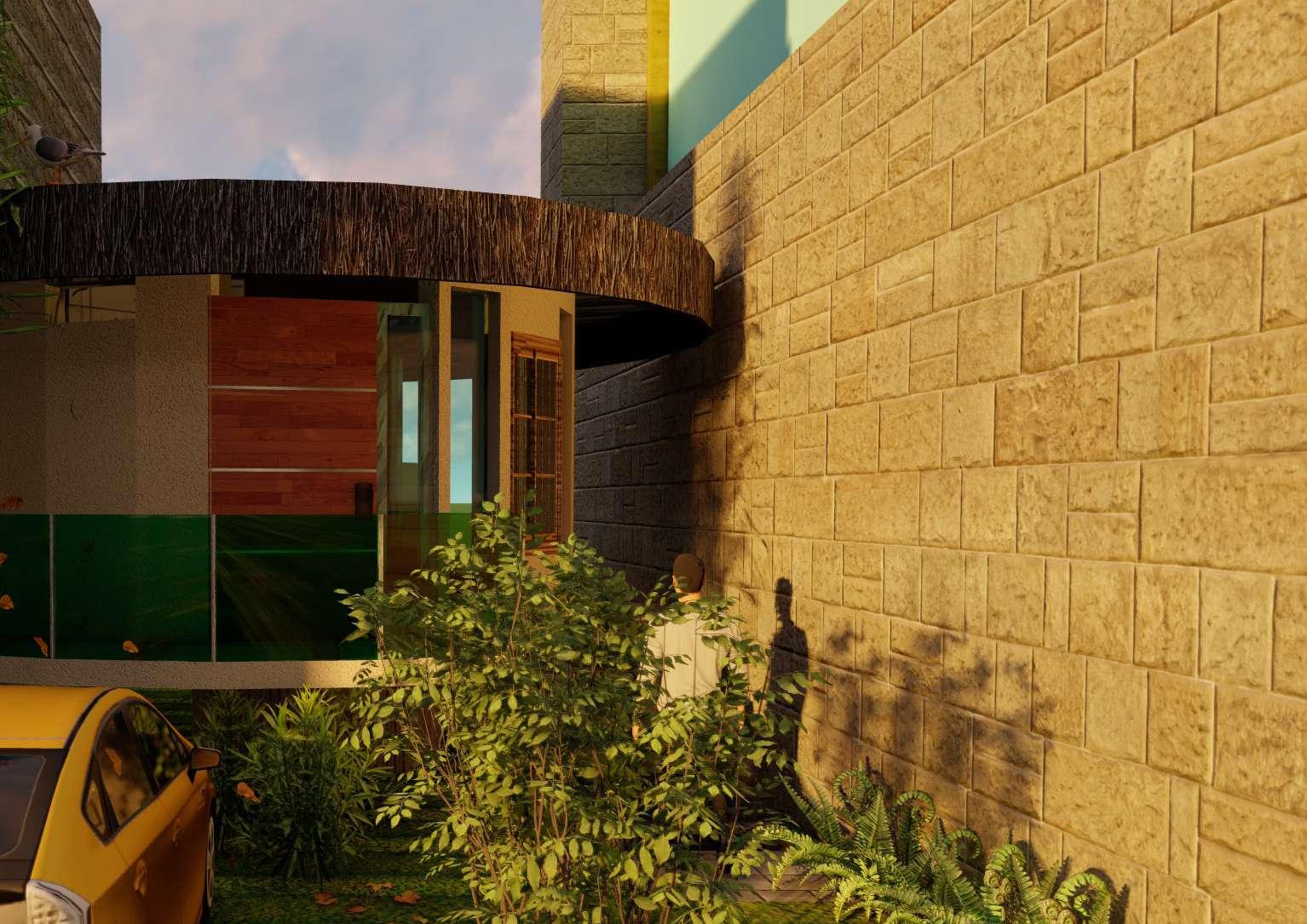

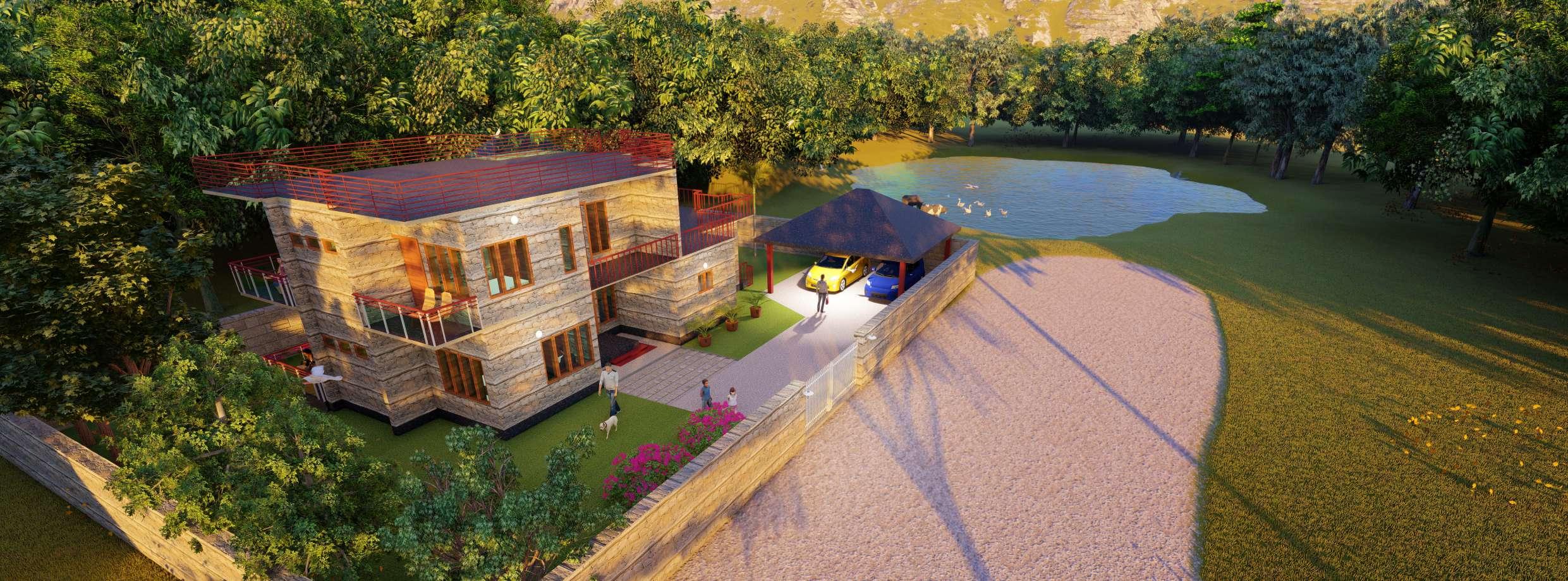

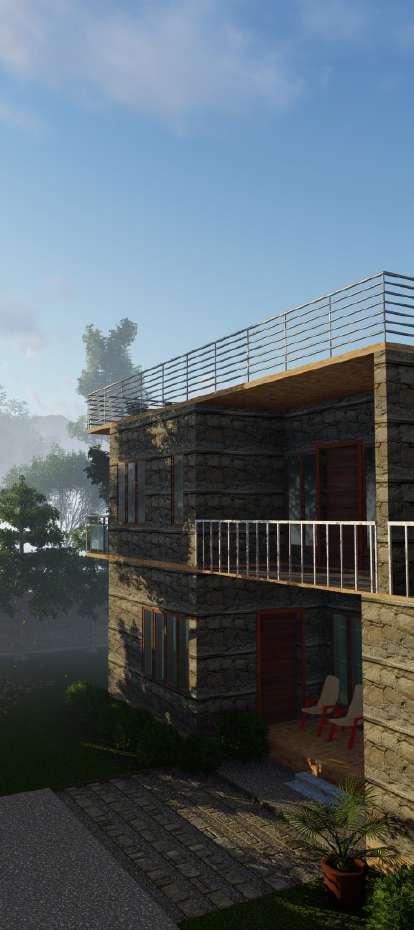

VIEWS

VIEWS

WORKING DRAWING

1 2 3 4 A LVL LVL +0 05

NOTE:

1. All dimensions are in mm.

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

PROJECT NO: 2:

4. Refer dimensions for actual dimensions.

2. All drawings are the sole property of PRIME architects and interior designers, MG road, Kochi - 682516

PROJECT NAME: RESIDENCE AT THONNIYAKAVU, NORTH PARAVUR, ERNAKULAM, KERALA - 683513

5. Do not measure from the drawing.

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

NOTE:

7. All levels mentioned in meters and from ground level

4. Refer dimensions for actual dimensions.

1. All dimensions are in mm.

5. Do not measure from the drawing.

KEY PLAN

2. All drawings are the sole property of PRIME architects and interior designers, MG road, Kochi - 682516

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

4. Refer dimensions for actual dimensions.

5. Do not measure from the drawing.

KEY PLAN

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level

KEY PLAN

SITE PLAN

ARCHITECT:

RISHIKESH SURESH

B200099AR

SEMESTER-VI

PROJECT

DEPARTMENT OF ARCHITECTURE & PLANNING, N.I.T CALICUT, 673601

SITE PLAN

NOTE: ALL DIMENSIONS ARE IN MILLIMETERS

DATE: 12-04-2023

ARCHITECT: RISHIKESH SURESH

B200099AR

SCALE: 1:100

SEMESTER-VI

DEPARTMENT OF ARCHITECTURE & PLANNING,

interior designers, MG road, Kochi - 682516

D1 D1 10 11 W3 B'

DN 5 6 7 8 9 10 11 A B C D E F G H A' B B' LVL +6450 LVL +3450

DINING ROOM SITOUT OFFICE D1 D3 D1 D2 10 11 G BALCONY FFL +460 SSL +440 W3 DN 5 6 7 8 9 10 11 A B C D E F G H A' B B' LVL +3450

3800X3000 1200X2800 D1 D1 10 11 G TOILET SSL +450 FFL +470 W1 W3 PROJECT DN 5 6 7 8 9 10 11 A B C D E F G H A' B B' LVL +3450

SHEET NO:1 3800X3800 D3 D1 10 11 FFL +470 FFL +470 FFL +470 SSL +440 W W W W1 W3 W3 A A' B'

DN 5 6 7 8 9 10 11 C D E F G H A' B' LVL +3450

PROJECT

PROJECT NO: 2:

PROJECT NAME: RESIDENCE AT THONNIYAKAVU, NORTH PARAVUR, ERNAKULAM, KERALA - 683513

NOTE:

1. All dimensions are in mm.

2. All drawings are the sole property of PRIME architects and interior designers, MG road, Kochi - 682516

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

4. Refer dimensions for actual dimensions.

5. Do not measure from the drawing.

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level

KEY PLAN

PROJECT GROUND FLOOR PLAN

ARCHITECT: RISHIKESH SURESH B200099AR

SEMESTER-VI

DEPARTMENT OF ARCHITECTURE & PLANNING, N.I.T CALICUT, 673601

NOTE: ALL DIMENSIONS ARE IN MILLIMETERS DATE: 12-04-2023

SCALE: 1:100 SHEET

NO:2

10 11

DN DN DN DN BED ROOM BALCONY 1500X3000 LIVING ROOM 3800X3000 DINING ROOM 3800X3800 MASTE BED ROOM 4200X4200 KITCHEN 3800X3000 SITOUT 3400X2000 OFFICE 3800X3000 WORK AREA 1200X2800 TOILET 3600X1600 D1 D3 D1 D3 D1 D1 D1 D1 D1 D1 D2 D2 D1 D2 D1 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H 3800X3000 BALCONY 1500X4200 TOILET 3600X1600 TOILET 3600X1600 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +470 SSL +450 FFL +460 SSL +440 FFL +460 SSL +440 FFL +460 SSL +440 W3 W1 W 2 W 2 W W W W 2 W W W W1 W1 W3 W3 A A' B B' DOOR SCHEDULE HEAD HEIGHT WIDTH MARK COUNT 2 2200 1200 D3 3 1900 900 D2 11 2000 1000 D1 WINDOW SCHEDULE HEAD HEIGHT WIDTH MARK COUNT 9 1500 500 W1 24 1000 500 W2 3 300 450 W3 2 500 500 W4

PROJECT NO: 2:

PROJECT NAME: RESIDENCE AT THONNIYAKAVU, NORTH PARAVUR, ERNAKULAM, KERALA - 683513

NOTE:

1. All dimensions are in mm.

2. All drawings are the sole property of PRIME architects and interior designers, MG road, Kochi - 682516

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

4. Refer dimensions for actual dimensions.

5. Do not measure from the drawing.

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level

KEY PLAN PROJECT SECTIONAL ELEVATION

ARCHITECT: RISHIKESH SURESH B200099AR

SEMESTER-VI DEPARTMENT OF ARCHITECTURE & PLANNING, N.I.T CALICUT, 673601

NOTE: ALL DIMENSIONS ARE IN MILLIMETERS DATE: 12-04-2023

SCALE: 1:100 SHEET NO:3

1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H 200 MM R.C.C SLAB LVL +3450 200 MM R.C.C SLAB LVL +7450 PLINTH FFL + 470 PCC + 450 150 MM R.C.C LINTEL 200 MM R.C.C SLAB LVL +3450 200 MM R.C.C SLAB LVL +7450 PLINTH FFL + 470 PCC + 450 150 MM R.C.C LINTEL FFL +470 SSL +450 FFL +470 SSL +450 FFL +420 SSL +400 FFL +3470 SSL +3450 FFL +3470 SSL +3450 SSL +3370

SECTION

A A' SECTION B B'

PROJECT NO: 2:

PROJECT NAME: RESIDENCE AT THONNIYAKAVU, NORTH PARAVUR, ERNAKULAM, KERALA - 683513

NOTE:

1. All dimensions are in mm.

2. All drawings are the sole property of PRIME architects and interior designers, MG road, Kochi - 682516

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

4. Refer dimensions for actual dimensions.

5. Do not measure from the drawing.

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level

KEY PLAN PROJECT ELEVATION

ARCHITECT: RISHIKESH SURESH B200099AR

SEMESTER-VI

DEPARTMENT OF ARCHITECTURE & PLANNING, N.I.T CALICUT, 673601

NOTE: ALL DIMENSIONS ARE IN MILLIMETERS DATE: 12-04-2023

SCALE: 1:100 SHEET NO:4

1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H GROUND FLOOR LVL FIRST FLOOR LVL ROOF LVL TOP RAIL LVL +450 +3450 +6450 +7450 GROUND LVL +0 GROUND FLOOR LVL FIRST FLOOR LVL ROOF LVL TOP RAIL LVL +450 +3450 +6450 +7450 GROUND LVL +0 STEEL RAILING GLAZED RAILING STEEL RAILING GLAZED RAILING ACRYLIC RENDER 2 MM THICK

ACRYLIC RENDER 2 MM THICK FRONT ELEVATION WEST SIDE ELEVATION

DRESS ROOM 1500X1500

PROJECT NO: 2:

PROJECT NAME: RESIDENCE AT THONNIYAKAVU, NORTH PARAVUR, ERNAKULAM, KERALA - 683513

NOTE:

1. All dimensions are in mm.

2. All drawings are the sole property of ABC architects and interior designers, Cunningham road, Bengaluru - 560078

3. No part of this drawing should be reproduced, copied or exchanged without the written permission of the architect.

4. Refer dimensions for actual dimensions.

5. Do not measure from the drawing.

6. All levels given in architectural drawings are finished floor levels, unless mentioned otherwise. Accordingly leave clearances for finished when doing structures

7. All levels mentioned in meters and from ground level KEY PLAN

FFL +470

SSL +450

MASTE BED ROOM 4200X4200

BALCONY 1500X4200

FFL +470 SSL +450

ELECTRICAL LEGEND

SYMBOL ITEM ELECTRIC FAN

MEP ELECTRIC SWITCH CENTRE WALL MOUNTED LIGHT

CFL- CEILING MOUNTED LIGHT

DIM LIGHT
