A Review on ISAR Imaging Techniques for Low RCS Targets

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

A Review on ISAR Imaging Techniques for Low RCS Targets

Sakshi Latthe1 , Sagar Mohite1 , Latish Tagde1 , P.G. Chilveri1 , Nargis Akhter2* , A Arockia Bazil Raj2*

1Electronics and Telecommunication Engineering, Smt. Kashibai Navale College of Engineering, Vadgaon, Pune, India –411041

2RF Photonics Laboratory, Electronics Engineering, Defence Institute of Advanced Technology, Pune, India – 411025

DOI: https://doi.org/10.5281/zenodo.7486091

Published Date: 27-December-2022

Abstract: An efficient method for reassembling high quality images using datasets obtained through a miniature antenna is the Inverse Synthetic Aperture Radar (ISAR). In contrast to radar, Using ISAR, a moving target is depicted electromagnetically. A radar image of adequate quality can be produced by ISAR radars, which are frequently used on boats or airplanes. In order to analyze the target's performance, the target basically comprises of numerous scatter points, and the Doppler frequency shift produces dispersed data that is returned for the radar to collect. The MATLAB simulation generates two-dimensional images with high resolution and provides crossrange and range (Time-domain signal from the target received) Algorithms for identification and classification can later employ the Range-Doppler pictures.

Keywords: ISAR, DFS, range Doppler, cross-range, azimuth, Dispersion.

1. INTRODUCTION

Radio Detection and Ranging makes use of electromagnetic technology to identify an object’s location and calculate the distance between it and the location where the RADAR is situated [1-3]. It tracks, finds, and identifies various items that are distantly located.

Radar consists of: (a) An Antenna, to transmit the electromagnetic signals out into the atmosphere and receive the reflected signal back [4] (b) A Transmitter, to produce the EM Signals [5] (c) Receiver, to detect, and amplify the received signals [6]

When the object/ target is detected the greatest radar detection range can be expressed as ���� =((���������������� 2���� 2��)/((4��)2��1) 4 (1)

In this equation ‘Ptrans’ = Power transmitted by antenna, ‘Pl’ = lowest possible signal, ‘λt’ = Transmit wavelength, ‘σ’ = Target’s radar cross-section, ‘Ga’ =Antenna Gain

How does it actually work?

A concentrated pulse of microwave radiation, stronger than that from a microwave oven or a cell phone, is emitted by the radar at an object, most likely a cloud [7-9] A portion of this energy stream that reflects and provides information on the target is measured by the radar. Radar can gauge the size, amount, speed, and direction of flowing precipitation within a 100-mile range of its location [10, 11].The radar sensor calculates angles, speeds, and distances. Byobservingthe reflection of a high-frequency signal from an object, the sensor determines the distance to that item. The signal that is emitted is reflected by objects like liquids and buildings [12, 13]

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online) Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

1.1Types of radar

Different kinds of radar are Monostatic Radar and Bistatic Radar depending on the working of Antennas

16, 2022

1.1.1Monostatic Radar

Monostatic Radar is a single antenna radar for transmission and reception of the signals.

Antenna

Fig.1 Monostatic Radar

Fig. 1 is a Monostatic Radar which uses same single antenna for transmitting signals and receiving signals. The transmit chain must be separated from the receive chain, and vice versa, because only one antenna is utilized for both directions [1416].

The following is how the equation for a monostatic radar is written as ������ =(������ ∗��2 ∗���� 2 ∗������)/((4��)3 ∗���� 4 ∗������ ∗ ������ ∗������ (2)

In Equation (2) Ptr =Total power received, G = Antenna Gain, λa = Wavelength, Mtp = Maximum transmission power, dt = distance between radar source and the target, Ltm= loss of the transmitter, Lrc = loss of the receiver, Lmd=Medium losses, σcs = Target Radar Cross Section [17-19]

1.1.2Bistatic Radar

Bistatic Radar is a double antenna Radar type that uses different antennas for transmission and reception.

TARGET Page 1

Fig. 2 Bistatic Radar

Fig. 2 is a Bistatic Radar in which the transmitting antenna and receiving antenna in this type of radar are two different, distributed antennas. CW radar, for instance, can be used as both monostatic and bistatic radar. The bistatic radar equation appears as follows: ������ =(������ ∗������ ∗������ ∗���� 2 ∗����)/((4��)3 ∗������ 2 ∗������ 2 ∗������ ∗������ ∗������) (3)

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

In equation (3), Pra = total power received by the, Gtm =transmitting antenna Gain, Grc =receiving antenna Gain, λs = Wavelength, Ptp = Peak transmit Power, dta = object's distance from the radar transmitting antenna, dra = the distance between the receiver antenna and the target, Ltm= losses of the transmitter, Lrc= losses of the receiver, Lmd=Medium losses, σb =(4������ 2)/���� 2 Here Ae is the area where the target is projected [20-23]

1.2Classification of RADAR

Radars can be classified into various categories based on its characteristics, radars are classified as Pulse Radar and Continuous Wave Radar.

1.2.1Pulse Radar

The Pulse Radar operates with transmission of pulses. The following two types of pulse radars can be distinguished depending on the type of the target they detect [24].

(a) Basic Pulse Radar

The Basic Pulse Radar locates stationary targets by using pulse signals. It uses a duplexer and a single antenna to simultaneouslyfortransmissionandreceptionofsignals [26,27] Everytimetheclockpulses,anelectricalpulseisproduced by an antenna [28]. To detect the echo signal identical to the current clock pulse, it is very essential to know the interval between the two clock pulses [29, 30].

(b) Moving Target Indication Radar

Moving Target Indication Radar that uses pulse signal to find non stationary objects is known as MTI Radar or just Radar. With the use of a duplexer, it uses a single antenna for both transmission and reception [31] To distinguish between stationary and non-stationary objects, MTI Radar uses the Doppler effect hypothesis [32]

1.2.2Continuous

Wave Radar

Continuous Wave Radar utilizes a wave or a continuous signal to operate as a form of radar. To locate moving targets, they use the Doppler Effect. These two types of continuous wave radars can be distinguished [33-35]

(a) Unmodulated CW Radar

It is kind of radar that detects moving targets by sending out a continuous signal. It also goes by the name CW Doppler Radar. Two antennas are needed for this radar. Only the target's speed is measured, not how far away the target is from the radar. From the two antennas one is used for signal transmission and the other for signal reception [36, 37]

(b) FMCW Radar:

It is referred to as frequency modulated continuous wave Radar which includes two antennas. One antenna is used for signal transmission and another for signal reception. Both the target’s speed and its distance from the radar are approximately calculated [38, 39] This work conducts a thorough investigation of frequency-modulated continuous waves [40]

1.3Advantages Of FMCW Radar

a) IT works well in a variety of weather and atmospheric situations, including those with high humidity, fog, and dust [41]

b) DOES not GET affected by temperature variations or extreme heat [42].

c) Improved radiation and electrical safety Due to their greater signal propagation, FMCW radars have a better range than other non-radio technologies like those utilizing the visible or infrared light spectrum or ultrasonic waves can be mounted invisibly [43]

1.4Disadvantages of FMCW Radar

a) They are utilized for very close-range targets. This is because less peak output power is being used [44].

b) The signal is attenuated and impacted by the atmosphere and channel before it is received by the receiver as a result of the usage of reduced transmit power [45]

c) As opposed to pulsed radar, it costs more [46]

d) Due to the wide frequency range and low peak power for the transmitter component, the FMCW radar transmits with interference from other neighbouring radio systems [47].

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

2. BACKGROUND LITERATURE

A powerful signal processing method called ISAR i.e. Inverse Synthetic-Aperture Radar uses radar imaging to produce a 2D image, highlydetailed representationofan object [48]. Atarget signal is processed at different aspect angles withrespect to the stationary radar to produce an ISAR Image. This imaging method can be used in any weather or night or day because it is based on radar. The radar echoes of the transmitted pulses that were received are coherently processed to create ISAR images [49, 50]. High resolution is a common characteristic of ISAR images, both in the cross-range and the range directions. Along with the range determined by radar LOS, the LOS and the cross-range direction are parallel, or notional line, which connects the observer and the target [51, 52] The radar system's bandwidth and the target aspect angle's differential range are what determine the cross range and the down range resolutions in an image of an ISAR [53]. Radar imaging, on the other hand, is always high resolution and can be accomplished by choosing a signal waveform with a wide bandwidth. In ISAR imaging, the radar is fixed while the objects are moving [54, 55] The capacity to differentiate between two closely spaced scattered centres along the radar image’s resolution, is another characteristic of the image [56] One of the most significant methods for non-cooperative target recognition, Atarget imagingtechnique called ISARimaging which is based on a computing partial structure’s Doppler Spectrum can also effectively illustrate the target's scattering centers, or detect the locations with the most intense scattering [57-59] Typically, targets are identified and categorized using ISAR processing. The standard ISAR image is produced by gathering the dispersed fields at various view points and Doppler histories [60].

3. IMAGING TECHNIQUES

The goal of Imaging radar techniques is to create images like map from the data that is received but at radio wavelengths.

3.1 Range-Doppler Algorithm (RDA)Technique

Range-Doppler methods are particularly helpful for imaging a target with AWGN that is additive white Gaussian noise to produce a signal to noise gain, Range Doppler makes use of the Fourier transform’s processing gain [61-63] One Dimensional RDA operates in the azimuth and the range frequency domain. Energy reflected from sites on the surface of the earth that are in similar ranges but at different azimuths shares the different azimuth frequency [64] As a result, whenever this frequency changes all target locations with the similar frequency would also change [65] Range Cell Migration Correction is used by RDA to roughly segregate processing in these two directions based on the significant time scale difference between range and azimuth data (RCMC). The most crucial component of this algorithm is RCMC [6668] In Fig. 3 Range frequency and azimuth frequency domains are used for RCMC. Range Doppler Algorithm is termed because azimuth frequency being altered by the doppler effect and therefore it is linked to doppler frequency [69, 70]

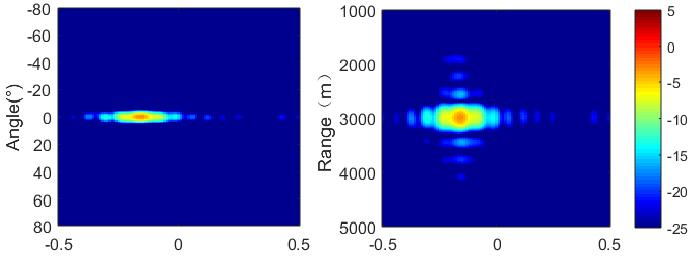

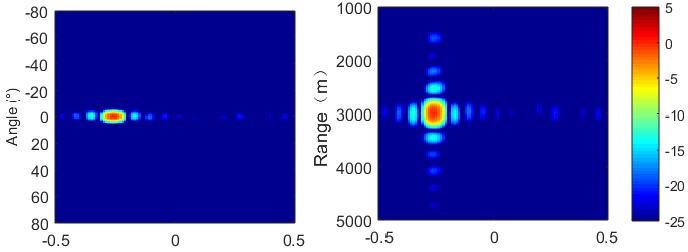

Fig. 3 Range-Doppler Algorithm

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

3.2 Subspace Technique

In Subspace technique noise and signal subspaces are separated to eliminate additive noise. Numerous pattern recognition tasks have made extensive use of the subspace approach [71] It is used to determine how similar two vectors are by computing the smallest angle between the vectors in the learning set-subspaces and the test vector [72]. While it performs rather well in the majority of jobs, it has a limited capacity for recognition in more challenging operations.

The Mutual Subspace Approach (MSM) is a development of the methods like subspace where input patterns as well as reference patterns are used [73] The greatest eigenvalue of a matrix is used to compute the similarity, of which the smallest angle between the subspaces determines. Compared to conventional subspace technique, the multi appearance object recognition rate is high because diverse patterns are compared to determine the angle [74-77]

Moreover our goal of ship identification, MSM's classification capacity still seems insufficient, despite its ability to handle a diversity of appearances [78] This is due the diversity of the record profile vectors is dependent on the type of physical target motions, including pitch or the roll, as the performance of the ISAR performance of ship height structure is dependent on the motion of the target [79] Because of this, the difference vector ��(|��|=|��|!=0), the angle between the subspaces will therefore diverge from what must be observed just between targets since certain components of the two vectors u and v constituting the minimal angle theta will be obtained from such diversity [80] To decrease the effect of such variability we propose adopting the Constrained Mutual Subspace Method [81]

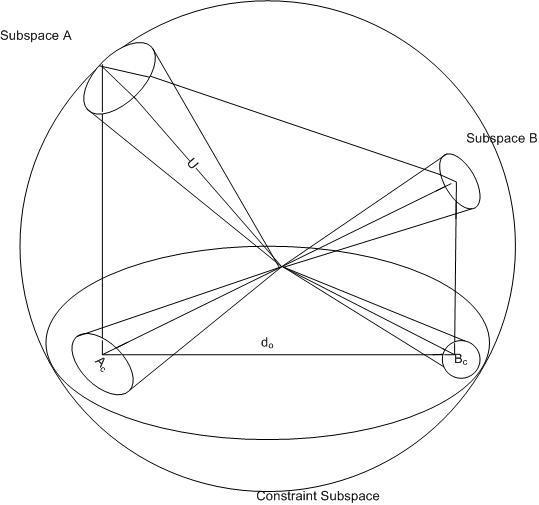

Fig. 4 Subspace Technique

3.3 Compressive Sensing Algorithm.

Although compressive sensing often struggles in the presence of additive noise, it can attain extremely high resolutions in low-noise environments [82] The literature has developed and validated these techniques for the situation of additive noise, but they do not work in case of multiplicative noise [83].

ISAR Image with high resolution is rebuilt using the compressive sensing algorithm with minimal samples for a linear frequency modulated signal [84] We use a two-dimensional optimization method to the sparsity-driven optimization issue to speed up the regeneration and use less memory [85] Finally test findings utilize actual data from a ship and an airplane show that the technique performs better than the conventional range doppler algorithm.

4. ISAR ARCHITECTURE

ISAR Imaging is done using Electromagnetic waves radiated bythe radar with reference to data of the waves scattered from the target because the phase is directional proportional to range. Radar Imaging involves determining the locations of this points scatterers on the target from the stationary radar positions at various frequencies and different look angles [86-88] Next, different frequencies and look angles are used to process the reflected data for these dispersing center [89] While the angle diversity in the ISAR dataset will aid to resolve multiple locations throughout the cross-range domain, the frequency

International Journal of Engineering Research and Reviews

ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

diversity will solve multiple points across the range domain [90] The backscattered field is collected and is connected to FT to help create the ISAR image. This is done bytransferringthe dispersed data collected fromthe frequencyangle domain to the pictorial domain using the inverse FT technique [91] We therefore obtain an "ISAR image" of that target when translated back to the location where the scattering phenomenon happened [92]. Thus, a 2D plot can depict the properties of an ISAR image’s cross-range and range [93] To make the computations easier, we focused on the basic plot used in this work for short angle, wide-bandwidth ISAR imaging of range and cross-range [94]

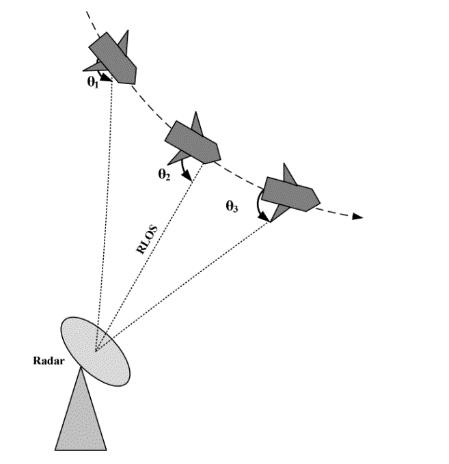

Fig 5 ISAR Geometry

In Fig. 5 the image quality is significantly influenced by the cross-range and the range resolution of the radar. Range resolution is obtained by using the reflected signal’s frequencydiversity, whereas resolution of the cross-range is performed by sending the reflected signal over the range [95-97].

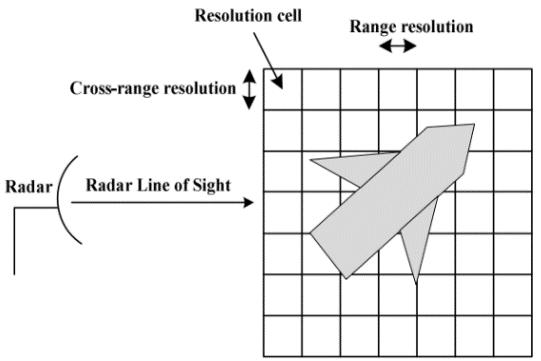

Fig. 6 ISAR Image Representation

5. APPLICATIONS

a) Maritime surveillance

ISAR systems are frequently used by maritime surveillance aircraft to find, capture, and categorize surface ships and other target in all kinds of weather [98] Vessel hull, superstructure, and masts typically show out in ISAR photos as the vessel moves on the sea's surface due to varied radar reflection properties of the sea [99] The ship motion, including pitching and rolling, can yield enough radar data that the ISAR operator can identify the sort of vessel being watched manually or automatically [100] The multimode radar system like AN/APY-10, which is equipped on the Poseidon patrol aircraft like United States Navy’s P-8, supports both SAR and ISAR modes of operation [101-103]

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

b) Imaging Space Objects

One more application of ISAR, sometimes known as "delayed Doppler," is the creation of radar images of space objects at very distant distances using one or more sizable radio telescopes [104-107]. The only three ground-based radars which are capable of studying objects in solar system at this time are the National Aeronautics and Space Administration (NASA), the National Science Foundation (NSF) the Puerto Rico’s Arecibo Observatory and the Goldstone Solar System Radar (GSSR) in California [108]. If the new FAST radio telescope from China can also function as a planetaryradar has not been made clear in news announcements [109].

c) Miniaturization

The size of SAR equipment has recently decreased, and the hardware integration have increased. For usage in small, lightweight UAVs like the Boeing ScanEagle, Utah-based Barnard Microsystems, for instance, offers a miniaturized SAR [110112] Whenit was unveiledinMarch2008,thecompanyassertedthattheirtwo-pound"Nano-SAR" radar(usuallyweighing 30 to 200 pounds; 13.6 to 90.7 kg) was one-tenth as heavy as the smallest regular SAR. The Nano SAR is designed for tactical usage on tiny UAVs flying at an altitude of roughly 16,000 feet, which is common for ScanEagle UAV operational height, and has a relatively short range because small UAVs have a limited power source and have power limitations imposed by radar circuits boards [113-116]

6. RESULTS AND DISCUSSIONS

6.1 Technique 1

We have introduced a straightforward yet efficient approach to vectorize the profile for the stable extraction of the profiling a multiframe accumulation preceded by accurate target detection and picture normalization [117-125] Constrained Mutual Subspace Method (CMSM) is a system used for pattern identification performed on the profile vectors in our preliminary studies utilizing databases of simulated ISAR images, and the total performance was satisfactory [126-130]

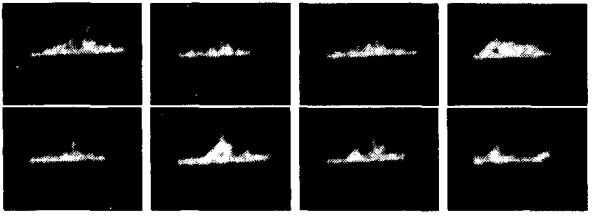

Fig. 7 Constrained Mutual Subspace Method (CMSM) technique

6.2 Technique 2

This section will present some experimental findings related to CS-based ISAR imaging [130-134].

The ISAR image’s cross-range and range resolutions would be three times higher than those of the traditional RDA method [135-138] The first data set consists of actual airplane data that a radar in C-band has captured [139-152]

(a) (b)

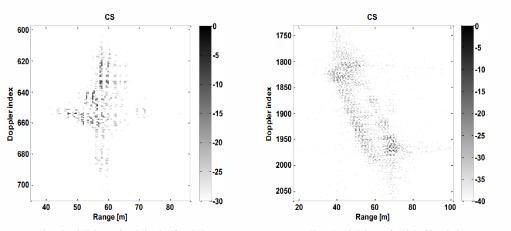

(a) CS Method: Airplane ISAR Image (b) CS Method: Ship ISAR Image

Fig. 8: CS Method

International Journal of Engineering Research and Reviews ISSN 2348-697X (Online)

Vol. 10, Issue 4, pp: (15-27), Month: October - December 2022, Available at: www.researchpublish.com

(a) (b)

(a) Conventional RDA: Airplane ISAR Image (b) Conventional RDA: Ship ISAR Image

Fig. 9: Conventional RDA Method

7. CONCLUSION

In the study the various ISAR Imaging Techniques are reviewed along with its few pros and cons. Various Researchers have tried to tackle the issues and bring up the solution

Hence Range-Doppler Algorithm (RDA) Technique is used for better resolution of range and ISAR images and it can capture the drone shape and size despite its small size and low reflectivity.
