rene james architecture porftfolio
spring 2023
spring 2023
1
table of contents 3 4-7 8-11 12-13 14 15 16-17 18-23 bio chinatown library chinatown pavilion cavity masonry wall sendai mediatheque study adjacent buildings study MFA model personal artwork 2
about me
my name is rene james, and i am a second-year architecture student at northeastern university, originally from bridgeport, connecticut. i have an intense passion for art and creativity.
my favorite aspect of architecture is the ability to explore other disciplines, which can help to enrich my design and representation skills. this past year, i have learned new methods of creation, such as model-making, lasercutting, rhino, and more. in the future, i hope to incorporate even more art forms within my work and express my creativity to the fullest.
3
arch2130
4TH FLOOR
chinatown library
5TH FLOOR

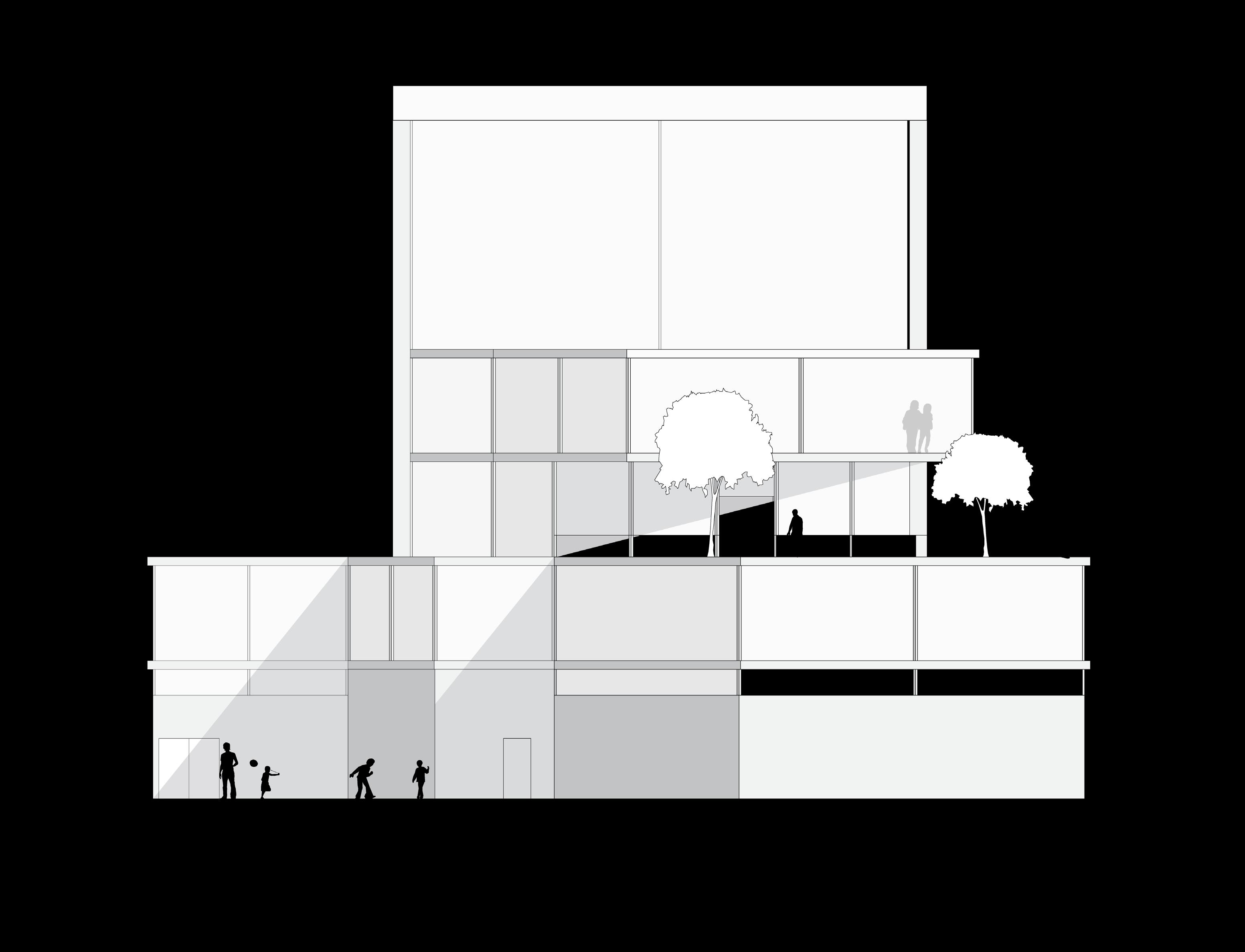

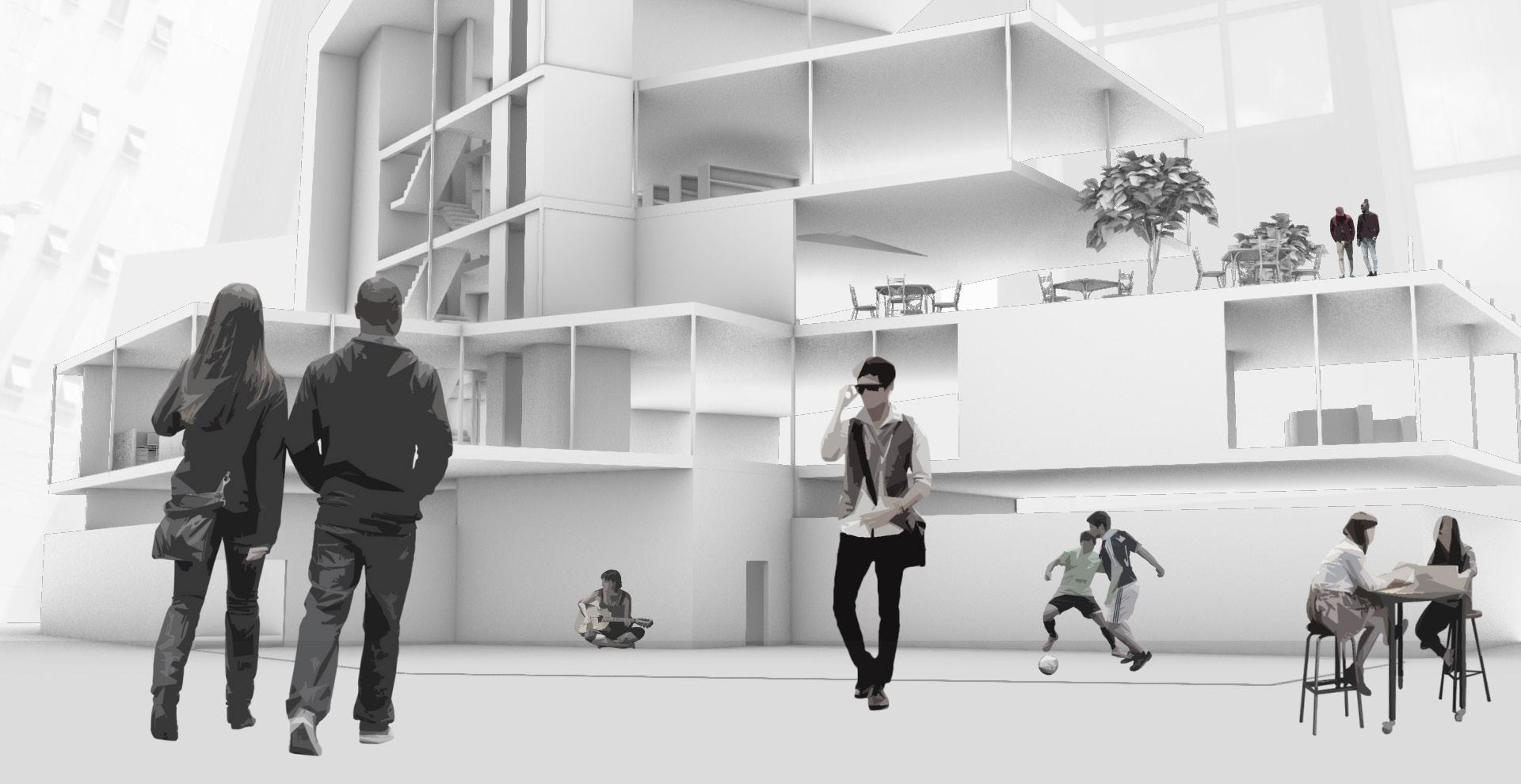

this library project fills the need of a Boston Public Library branch for the Chinatown community. the building is organized vertically, with the louder, public spaces located on the lower floors. As you travel upwards, the spaces become increasingly private and quieter. | fall 2023 4

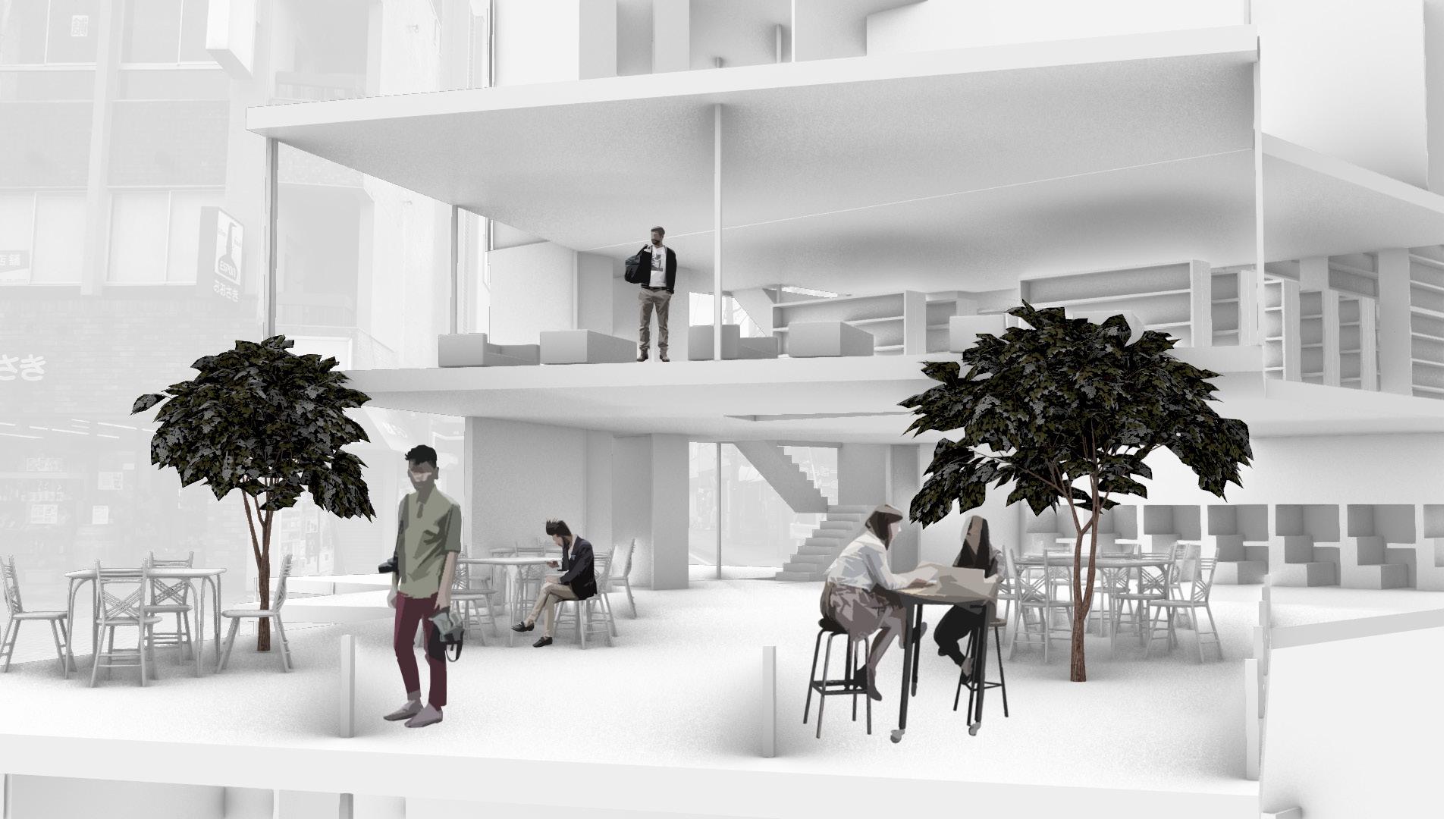

the library employs amenities that serve a variety of groups - a majority of library visitors are either computer-users or children, so both areas are located on the second floor for immediate access. the quieter reading rooms, collections, and meeting rooms are on the upper floors, which help visitors to depart from the busy pedestrian traffic of the street level.
PRIVATE/ QUIET SPACES
PUBLIC/LOUD SPACES
6
ASCENT TO
3RD FLOOR 4TH FLOOR 3RD FLOOR 5TH FLOOR 1ST FLOOR 7
chinatown pavilion
arch2130 | fall 2023

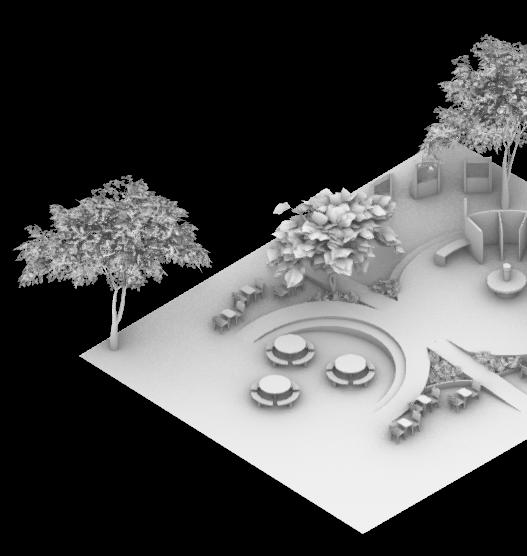

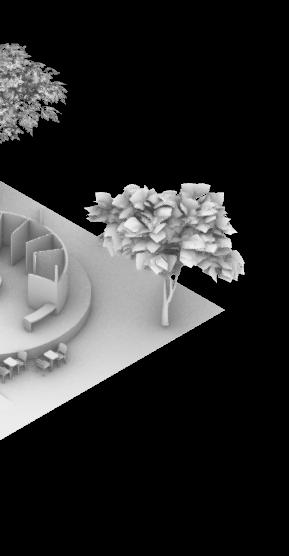

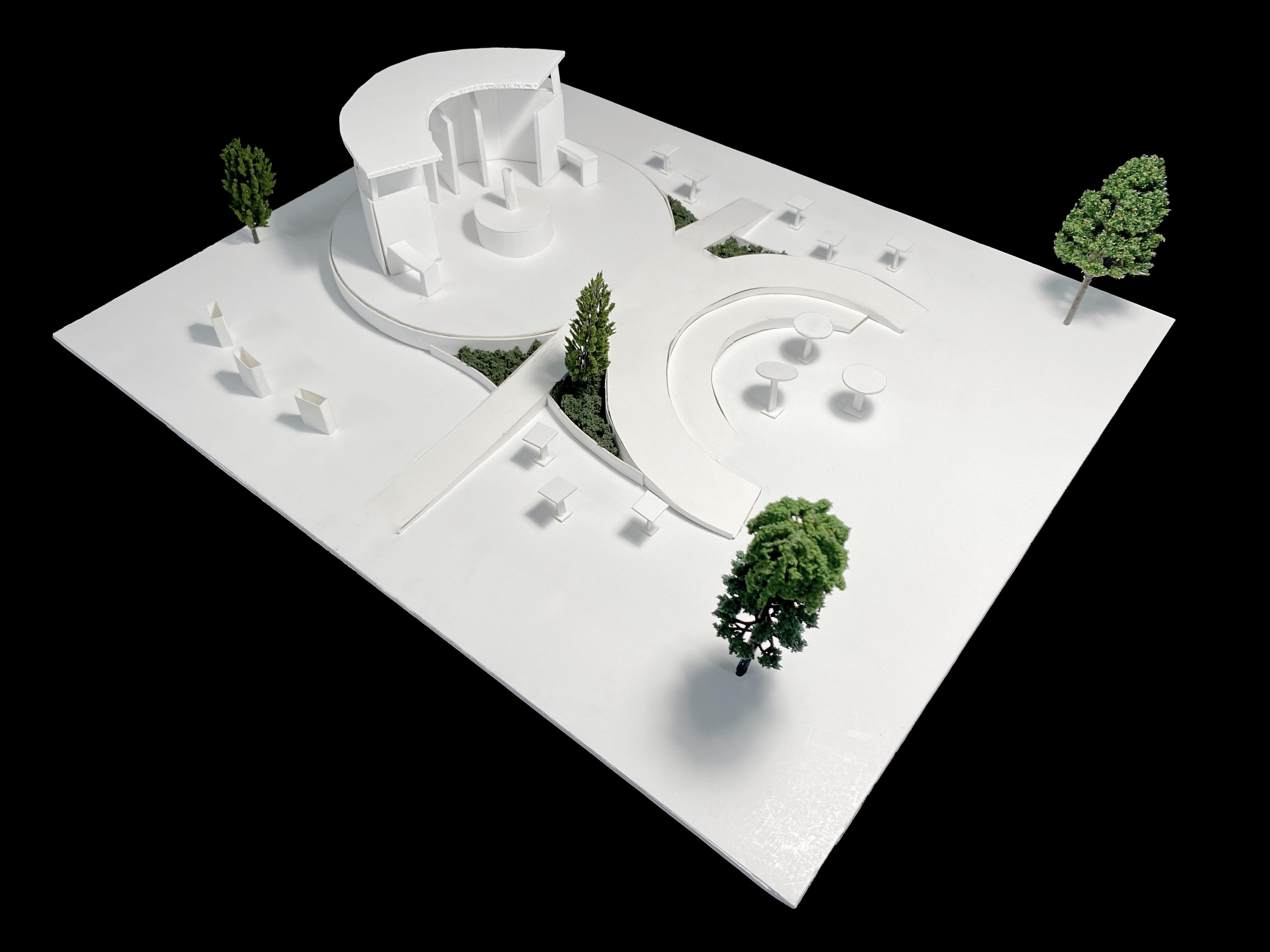

this pavilion aims to serve as a restroom and rest-stop for the members of chinatown. located adjacent to the Chinatown gate and Mary SooHoo park, the structure provides ample seating, space for farmer’s market stands, and a sheltered bathroom space. after studying the site’s neighboring park, i observed that there was a large amount of visitors playing cards, with a crowd of people watching the game. with this, i decided to incorprate a circular ampitheatre-like seating area, giving a dedicated space to the card players and emphasizing unity within visitors.
8
Hudson Street Pavilion
of Use
Not to Scale
21, 2022 9
Patterns
Diagram Chinatown Pavillion
October
Street Pavilion Patterns of Use Diagram Chinatown Pavillion Not to Scale October 21, 2022 activity area mary soo hoo park
design 10
Mary Soo Hoo Park Hudson
pavilion

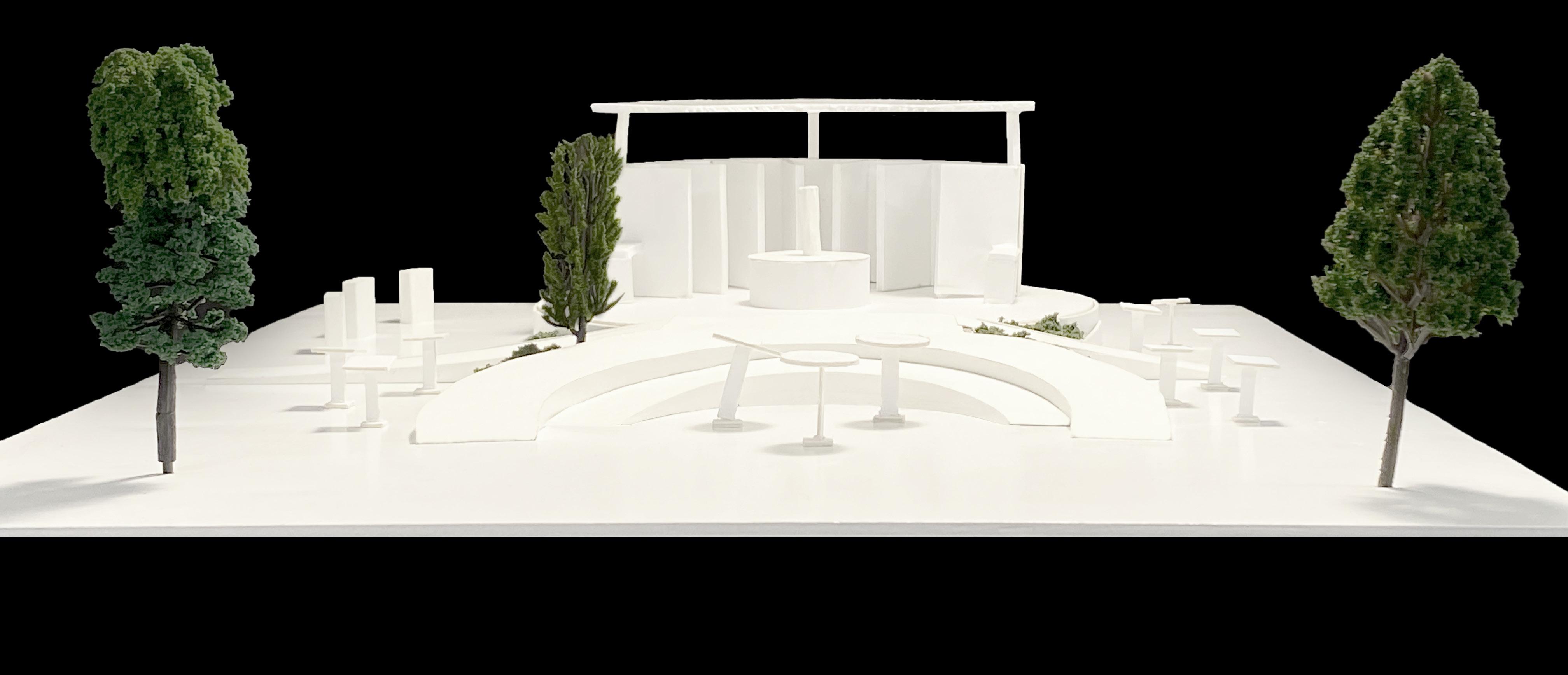

model photos
11
masonry cavity wall
arch2240 | fall 2023
in our architectonics course, we were tasked with creating a detailed masonry cavity wall section. this drawing helped us to better understand the construction and use of materials within a concrete masonry wall, as well as how to prepare construction documents.
12
Counter ashing
1” Air Cavity
Rigid Insulation
Modular Concrete Masonry Unit
Masonry Tie
Brick Veneer
Waterproo ng
Solar Shading Device
Steel Lintel
Prefabricated Window Sill
Flashings
1” Air Cavity
Rigid Insulation
Modular Concrete Masonry Unit
Brick Veneer
Masonry Tie
Waterproo ng
Solar Shading Device
Steel Lintel
Prefabricated Window Sill
Flashings
1” Air Cavity
Rigid Insulation
Modular Concrete Masonry Unit
Masonry Tie
Brick Veneer
Waterproo ng
Rigid Insulation
Drainage Mat
Waterproo ng
Gravel Footing Drain
Sedum Green Roof System
Root Barrier
Single Ply Roof Membrane
Drainage Pipe
Rigid Insulation
Roof Decking
Sheathing
Wood Roof Rafter
Metal Tie Straps
Ceiling Strapping
5/8” Gypsum Wall Board
Furring
1” Solid Wood T&G decking
3/4” Sub oor
Deep Heavy Timber Beam
Metal Tie Strap
Bond Beam
3/4” Finished Floor
3/4” Sub oor
Wood Floor Joist
Metal Tie Strap
Poured-in-Place Concrete Wall
Basement Floor Slab w/ Wire Mesh
Vapor Barrier
Gravel
3" 4" 7" 7'-115 8 91 4 112 103 4 8'-85 8 1'-2" 13 4 1'-33 4 8'-1012 11 4 " 91 4 3 4 2" 1' 8'-31 4 3'-8" 4' 1'-113 8 4'-37 8 " 4' 1'-11" 3'-918"
Rene James 13
Structure Solid Column Rene James Materiality Diagram September 23, 2022 Porosity + Load Bearing Form Abstraction Functionality
mediatheque
arch2130 | fall 2023 14
sendai
study

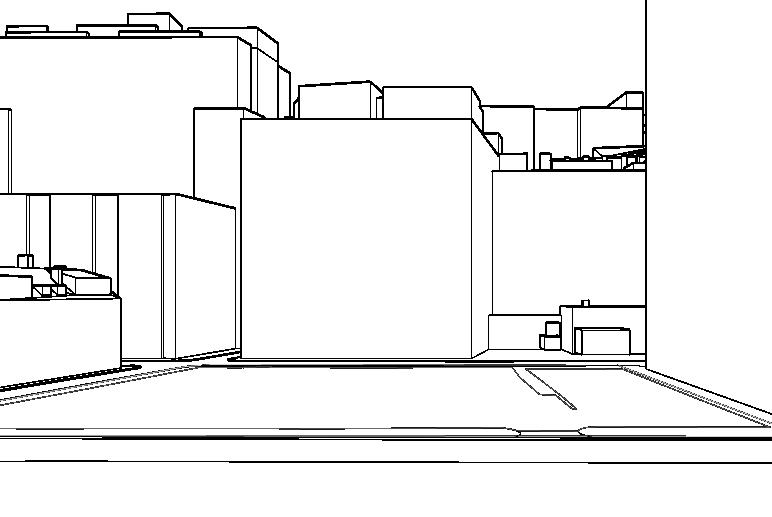

adjacent buildings study
HARVARD ST TYLER ST OXFORD ST PROXIMITY TO SITE FARTHER CLOSER
arch2130 | fall 2023 15
museum of fine arts model
arch2240 | fall 2023

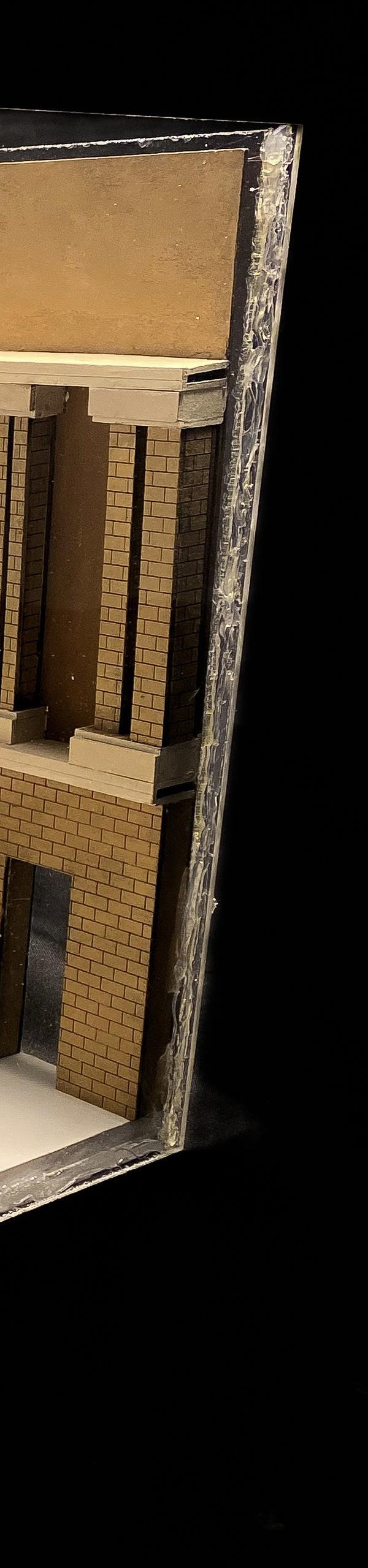

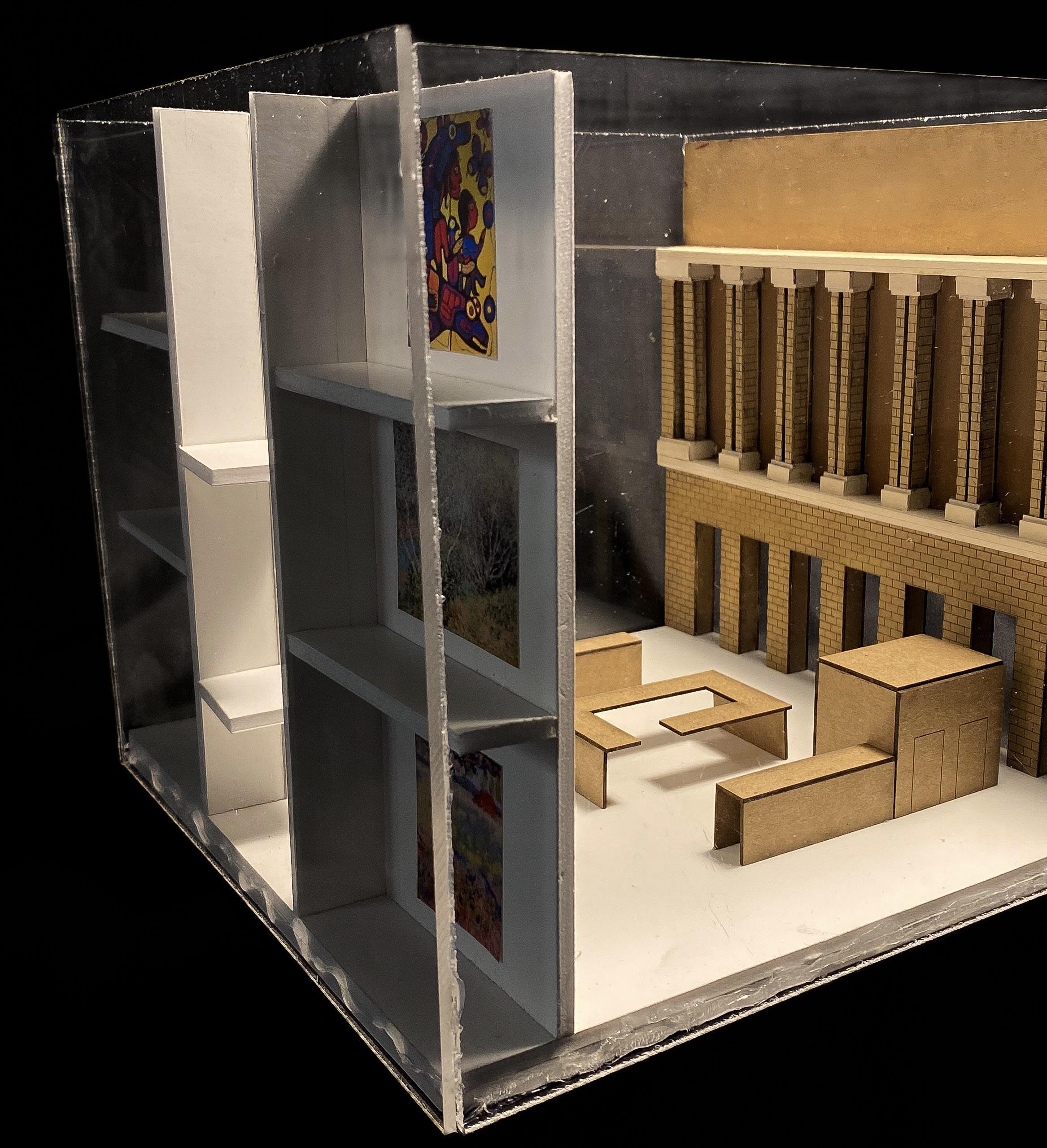

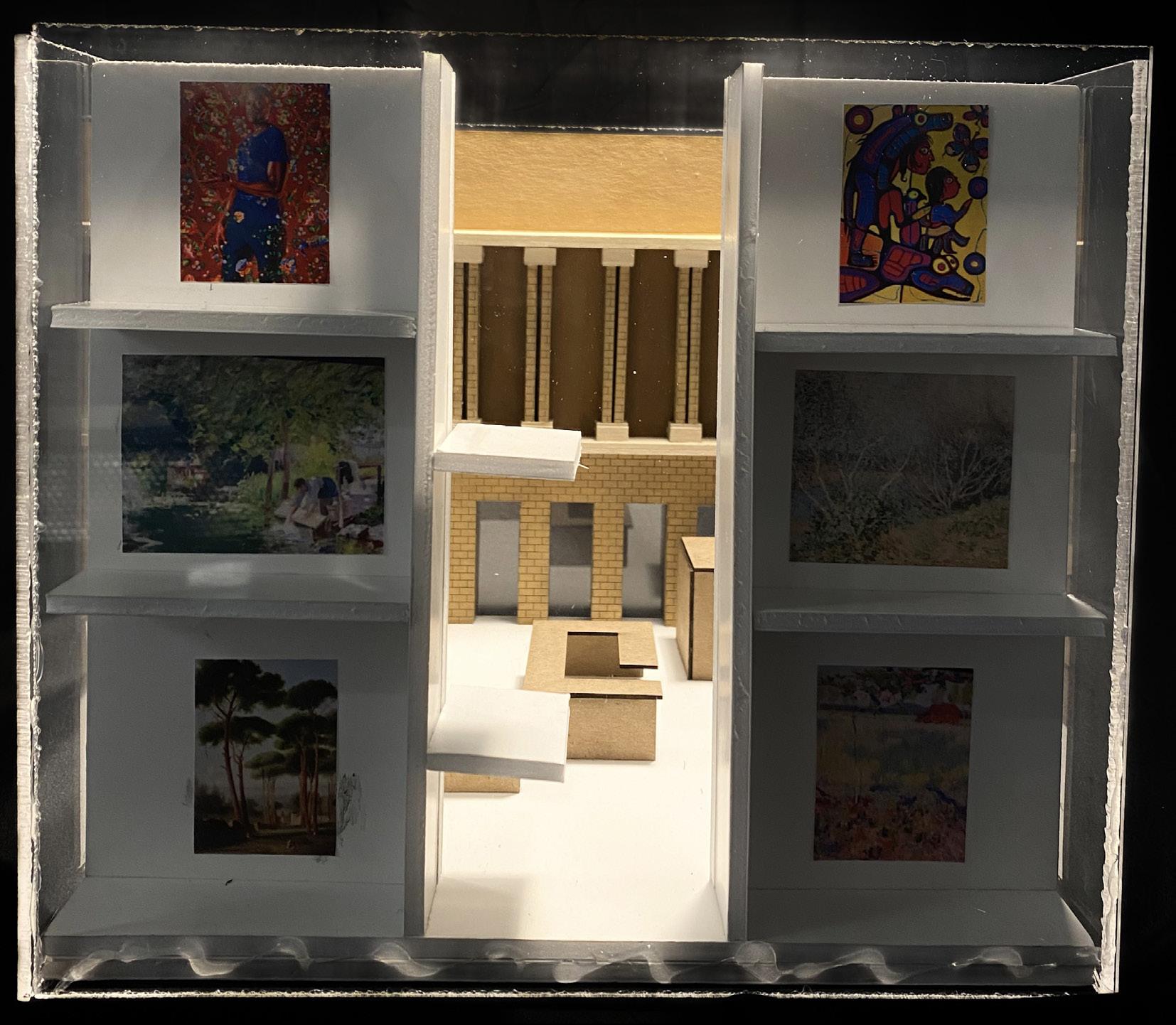

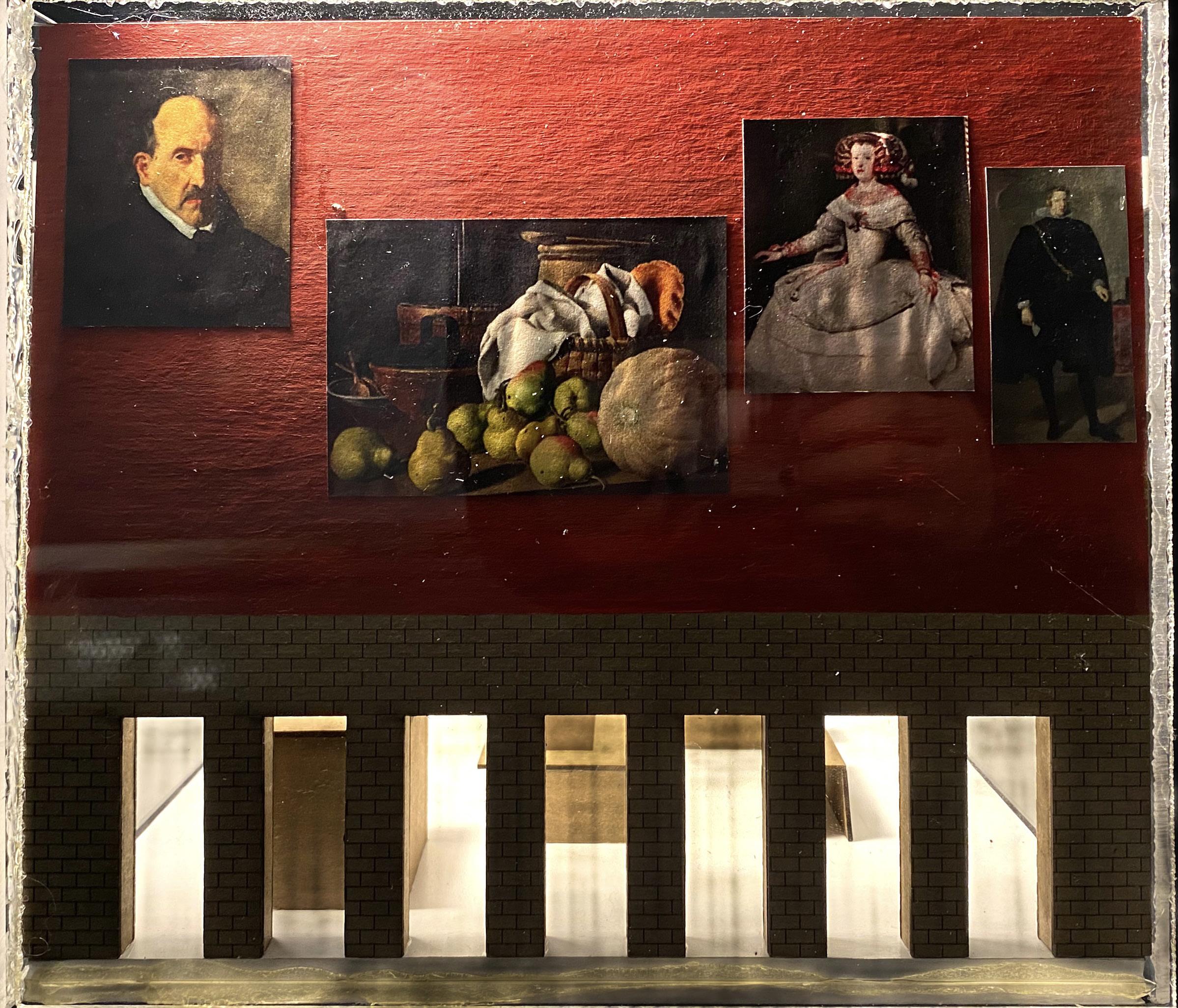

using a 10” x 10” base and 3 primary materials, i created an boston. this model aims to capture the transition between construction and the new construction of the museum - specifically older, classical construction, the foamcore represents the modern the display case-like quality of the courtyard.
16
an abstracted study model of the museum of fine arts in architectural style, material, and texture within the old specifically the indoor courtyard. the wood represents the modern construction, and the acrylic casing emphasizes
17
