Here at Roofbase we are proud to offer a comprehensive range of products for your insulation requirements including Flat, Pitched, Wall, Floor and Cut to Falls insulation, from a wide range of leading insulation manufacturers.
We have a dedicated Insulation Manager, Nicki Brodie, who supports our branch network to work closely with customers to offer the best building insulation advice regardless of the size of project. We have successfully fulfilled customer requirements, from a single roll of Loft insulation to several thousand meters of Flat Roofing insulation, and in each instance we have listened carefully to understand the requirements of the task enabling us to offer the most appropriate and knowledgeable advice.
All of our branches carry a comprehensive range of insulation in stock so your projects can start at short notice using our rapid collection or delivery service. If you have any insulation requirements regardless of size, please contact your local Roofbase branch for sound impartial advice.
Benefits include:
Avoids Intrusion into Living Area
Reduced Risk of Condensation
Low Emissivity Foil Facings
Lightweight and Easy to Install
Reduced Thermal Bridging
Suitable for New Build and Refurbishment
Achieves A+ rating under the BRE Green Guide
Thin-R Pitched Roof XT/PR on sloped roofs (ventilated, hybrid or warm) provides the most efficient U-Values with minimal intrusion into valuable living space. The roof construction is a critical element in the building fabric and is an area at high risk of heat loss. Using XT/PR will reduce heat loss while also delivering excellent thermal bridging details.
Warm Roof construction is a particularly effective way of insulating complex roofs. Insulating above – or above and between – the roof timbers ensures that the structure is kept at or near the internal environmental conditions, reducing thermal stress and condensation risk.
XT/PR
Length (mm) 2400
Width (mm) 1200
Thickness (mm) 25, 30, 40, 50, 60, 70, 80, 90, 100, 120, 150
Other thicknesses may be available depending on minimum order quantity and lead time.
Property & Units
Thermal Conductivity 0.022 (W/mK)
Compressive Strength >150 (kPa)
Reaction to Fire NPD
Xtratherm CE Declaration of Performance (DoP) for this product is available for download from the Xtratherm website.
A flat roof should always allow for water channelling and drainage to prevent issues such as ponding.
The product range offers various insulation boards in a number of different tapered falls, thicknesses and waterproofing applications to suit project requirements.
NO JOB TOO SMALL!
The service includes:
Projects priced off drawings
U-value calculations
Full quote and design drawing supplied
By creating appropriate falls and drainage a flat roof is more likely to last for its designed life.
IKO enertherm BM PIR Insulation Board is laminated on one side with polypropylene coated bituminised sand and talc free glass fibre for the installation of torch-on bituminous membranes. The other side is covered with a perforated coated glass fibre for flame-free applications or mastic asphalt systems.
IKO enertherm BM PIR Insulation Board is a 100% CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core. This board can be used for flat roofing when using a fully adhered, partial bond, or torch-on application.
Kingspan Thermaroof TR26 is a high performance insulation with a fibre-free rigid thermoset polyisocyanurate (PIR) core. It is suitable for flat roofs waterproofed with mechanically fixed single-ply waterproofing, and has a thermal conductivity of 0.022 W/mK.
Multi-Roll 44 has a fire classification of A1 (the highest possible rating) when tested to BS EN 13501-1 Reaction to Fire.
Thermal Conductivity: 0.044W/mK
Recycled Content: Multi-Roll 44 is manufactured from up to 84% recycled glass which would otherwise go to landfill.
Easy and quick to install: Manufactured to allow for quick and easy installation
Superglass Multi-Roll 44 is lightweight, non-combustible glass mineral wool insulation roll. Multi-Roll 44 is primarily used as thermal insulation in new and existing lofts/cold roofs. However, it can be used in a number of other applications including suspended timber ground floors. When used in the loft/cold roof it can be installed between and over the joists. The flexible roll is perforated to allow easy installation between common joist spacings and minimum on-site cutting and waste.
Typical U-Values used in cold roofs using Superglass Multi-Roll and Handy Pack
Calculated using 600mm timber joist centres (9% bridging)
Delivering either A1 or A2, s1-d0 Euroclass reaction to fire, ROCKWOOL® stone wool is a robust and durable specification which provides additional acoustic and thermal benefits.
When used in through-wall and façade build-ups, ROCKWOOL® products ensure compliance with the latest fire safety standards while facilitating ease of installation and handling on-site.
As the fifth façade in the building fabric, fire safety is a key consideration when insulating the modern roof. The non-combustible nature of ROCKWOOL® delivers the highest levels of fire performance, which also facilitates the safe completion of hot works during the construction and maintenance of flat roofs.
The ROCKWOOL® range of non-combustible insulation products for roofing and cladding applications includes:
A versatile insulation solution for flat roofs, suitable for areas subject to pedestrian traffic and frequent maintenance, and compatible with all roof covering types.
This recovery board secures a strong bond between membrane and insulation on flat roof refurbishment projects.
ROCKWOOL®
ROCKWOOL® ROLL
The ideal insulation solution for horizontal loft application.
ROCKWOOL® FIRE BARRIER SYSTEM
This is used to prevent the spread of fire and smoke in pitched roof spaces.
ROCKWOOL® RW SEMI-RIGID AND RIGID SLABS
Thermal insulation for floors, walls, and roofs.
moisture entering the roof void from the inside of the building.
Installed to the underside of rafters and across joists, it’s also certified for use in timber frame and solid masonry walls. Combined with other products TLX Silver can deliver U-values as low as 0.13 W/m2 K in a standard roof.
simply when upgrading the performance of existing structures. Ask to see the TLX Silver case studies for examples or ask in your local Roofbase for additional customer support.

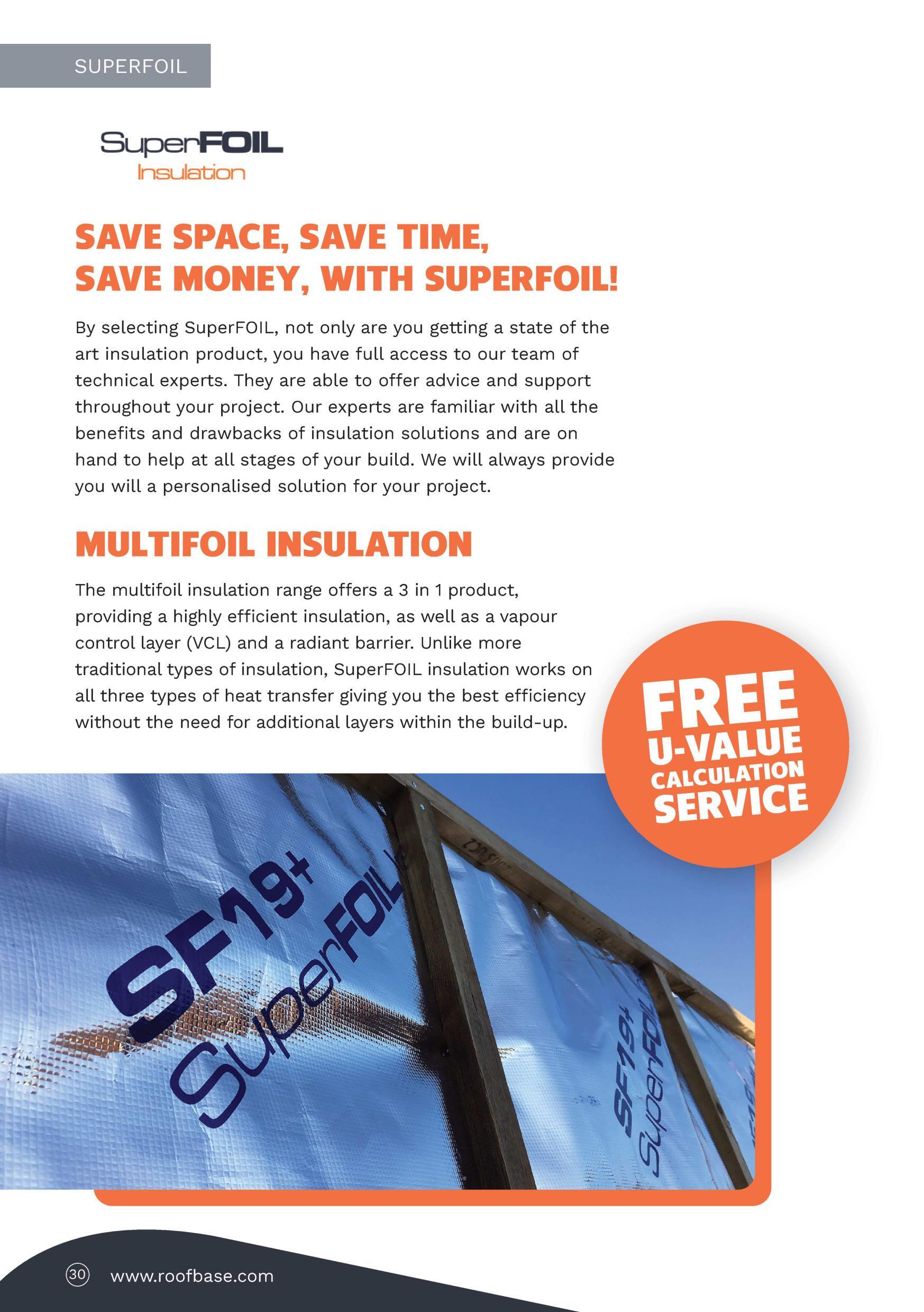

3 IN 1 DESIGN
Foil insulation, vapour control layer & radiant barrier
Cost effective
BBA Certified
3 IN 1 DESIGN
Foil insulation, vapour control layer & radiant barrier
Excellent thermal performance
BBA Certified
Benefits include:
Suits all build types
Quick and easy to install
Made from up to 40% recycled materials
Cost effective
We can help you with build-up solutions, bespoke U-value calculations, condensation risk analysis and installation advice.
3 IN 1 DESIGN
Foil insulation, breather
membrane & radiant barrier
Helps to prevent the formation of mould and damp
Integrated W1 Breather
Membrane
3 IN 1 DESIGN
Foil insulation, breather
membrane & radiant barrier
Excellent thermal performance
Integrated W1 Breather
Membrane
We can help you with build-up solutions, bespoke U-value calculations, condensation risk analysis and installation advice.
The Hybrid system is made up of 4 products, BoostR Hybrid roof, Hybris, HControl Hybrid, and BoostR Hybrid. They can all be used either separately or together as a complete system.
HYBRIS is a unique high performance honeycomb insulation, certified to European and international standards, intended for thermal and acoustic insulation of buildings on timber frame or masonry walls, pitched roofs, suspended timber floors and ceilings. It does not compact over time. Light, clean, non-irritating, HYBRIS is very pleasant to implement.
ACTIS thin multifoil insulation products can be thinner than traditional thick insulation and can perform to the same standard. They are easy to install and are perfectly adapted for both new or refurbishment projects.
Key features & benefits:
Forms a total vapour barrier
Waterproof & self-adhesive
Cold applied without use of flames
High tear resistance and tensile strength
Self-sealing, fast installation
Can be applied to various substrates; concrete, metal, timber
Compatible with most substrates
High levels of adhesion
Flexible, tough and durable, impact resistant
Cold liquid applied – no risk of fire during application
Exceptionally fast curing even at low temperatures
6 sizes from 8mm to 230mm –compensates for most deck slopes
8-20mm support for terrace and patios (Slabs/Ceramics)
Maximum height 470mm (inc. ext pieces)
Large 200mm base to spread load, interlocking grooves to strengthen floor grip
Compatible with InStar Perimeter Pads
For easy installation at edges and corners
Can be used with Plinth Clip and Access
Adjustable Paving supports
UV and frost resistant
100% recyclable
A great form of decoration, our roofing pebbles come in a variety of shapes and colours to match the roof and its surroundings. This gives an aesthetically pleasing look to the surface or border of any flat roof. Supplied washed and rounded, and available in small bags, one tonne bags or loose.
Plywood can be used for the build of any flat roofing, balcony or outdoor building projects. For all your plywood board requirements, look no further than Roofbase. Our merchants stock a variety of options ensuring you choose the right roofing plywood for your project. Available in-store for immediate delivery.
Quantum Insulation has over 100 years of flat roof insulation expertise, aiding roofing contractors to select the right product for each individual application.
QI offers Approved Document B compliant noncombustible insulation for use with Single Ply, Liquid Applied, Hot Melt or Reinforced Bitumen Membrane waterproofing. We also stock QI’s non-combustible upstand insulation boards, with uniform thickness or tapered roof insulation.
The VIP panel consists of a compressed fumed silica sand microporous core which is evacuated of air and moisture before being encased and sealed in a special thin, gas-tight, hybrid aluminium foil envelope, encapsulated in a solvent free polyurethane waterproof coating. The coating is a
20/5769
factory applied solvent-free twocomponent elastomeric polyurethane waterproofing membrane. The resulting panel gives outstanding thermal conductivity, with the thinnest possible insulation solution.
RockFace A2 is a Non-Combustible Upstand Insulation Board used to thermally insulate and protect upstand walls in inverted flat roof systems.
Classified Euroclass A2-s1,d0 to BS EN13501-1:2108 by WarringtonFire under classification report no. 19808F dated 10 10 2019. Building Regulation Approved Document B volume 1 – dwellings and volume 2 - non-dwellings compliant solution for buildings over 18m high in England. Technical Handbook – domestic Annex 2.C and Technical Handbook – nondomestic Annex 2.F compliant solution for buildings over 11m high in Scotland.
Manufactured with non-combustible stonewool it will not develop smoke or promote flame spread, even when directly exposed to fire. It also repels and drains water away from the product, and will completely dry out while maintaining its original physical properties. Stonewool and factory laminated to a 6mm thick weather resistant high impact facing board. Available in a range of thicknesses, see declared performance table for available thickness.
RockFace A2 has a Zero Ozone Depletion Potential (ODP), a Global Warming Potential (GWP) of less than 5. For use with appropriate waterproofing systems.
RAVATHERM XPS X 300 SL ULTRA
Inverted Roof Insulation is a unique rigid, closed cell type extruded polystyrene board with integral high density skin.
RAVATHERM XPS X 300 SL ULTRA
Inverted Roof Insulation utilises infrared blocking particles to scatter and reflect heat radiation. RAVATHERM XPS X 300 SL ULTRA Inverted Roof
Insulation has a Zero Ozone Depletion Potential (ODP), a Global Warming Potential (GWP) of less than 5. Use with RAVATHERM XPS X MK Water Flow Reducing Layer prior to the installation of paving, ballast and green roof.
For use with appropriate Waterproofing Systems.
