Flat Roofing & Waterproofing Components

SPECIALIST FLAT ROOFING & WATERPROOFING COMPONENTS

INSTA-STIK Applicator Guns

Pitch/Pipe Pocket Sealer

Pitch/Pipe Pocket Sealer

Paving & Decking Supports

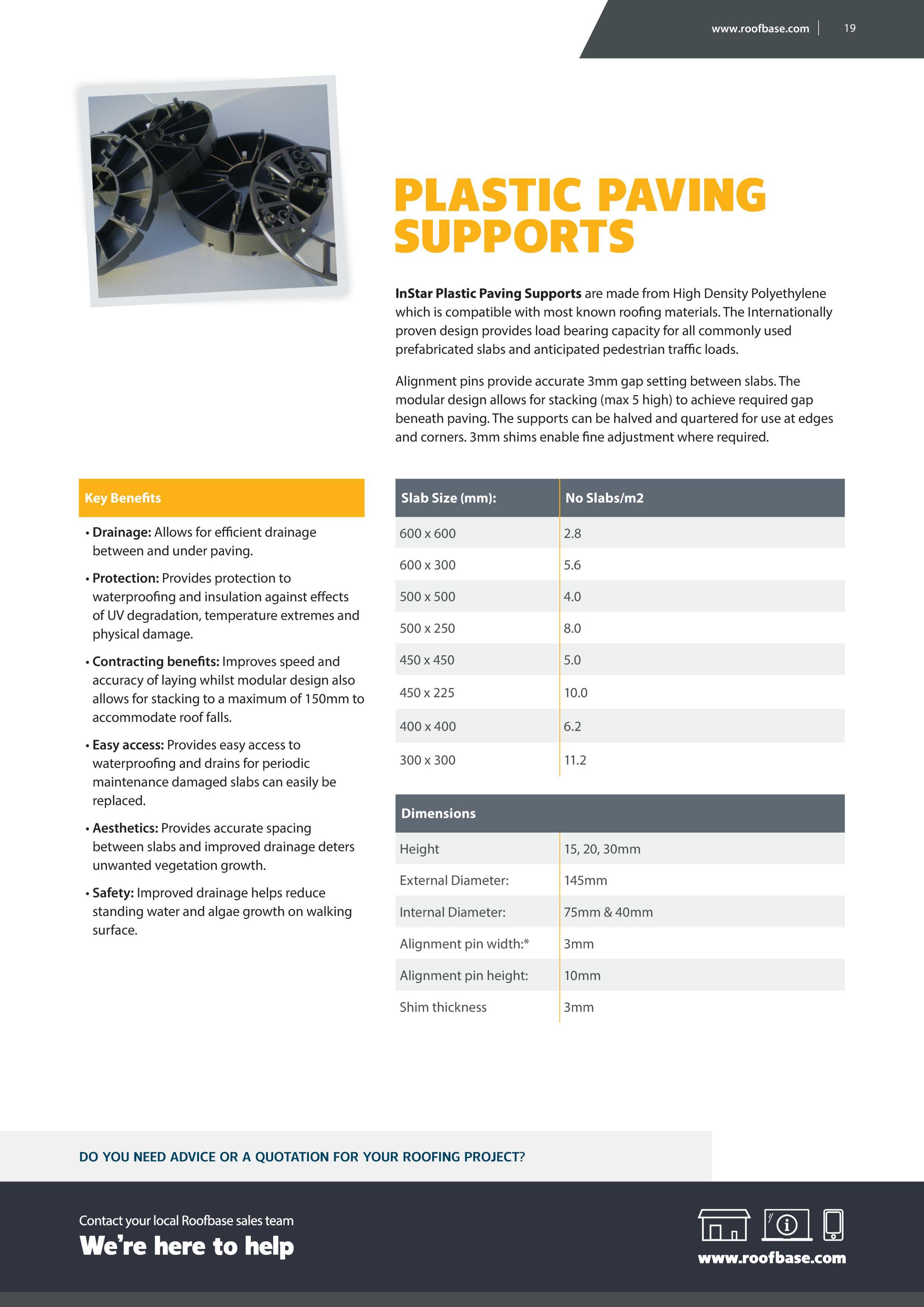

Plastic Paving Supports

Access Adjustable

Installation guide

Access SLH

Perimeter Pad

Plinth Clip

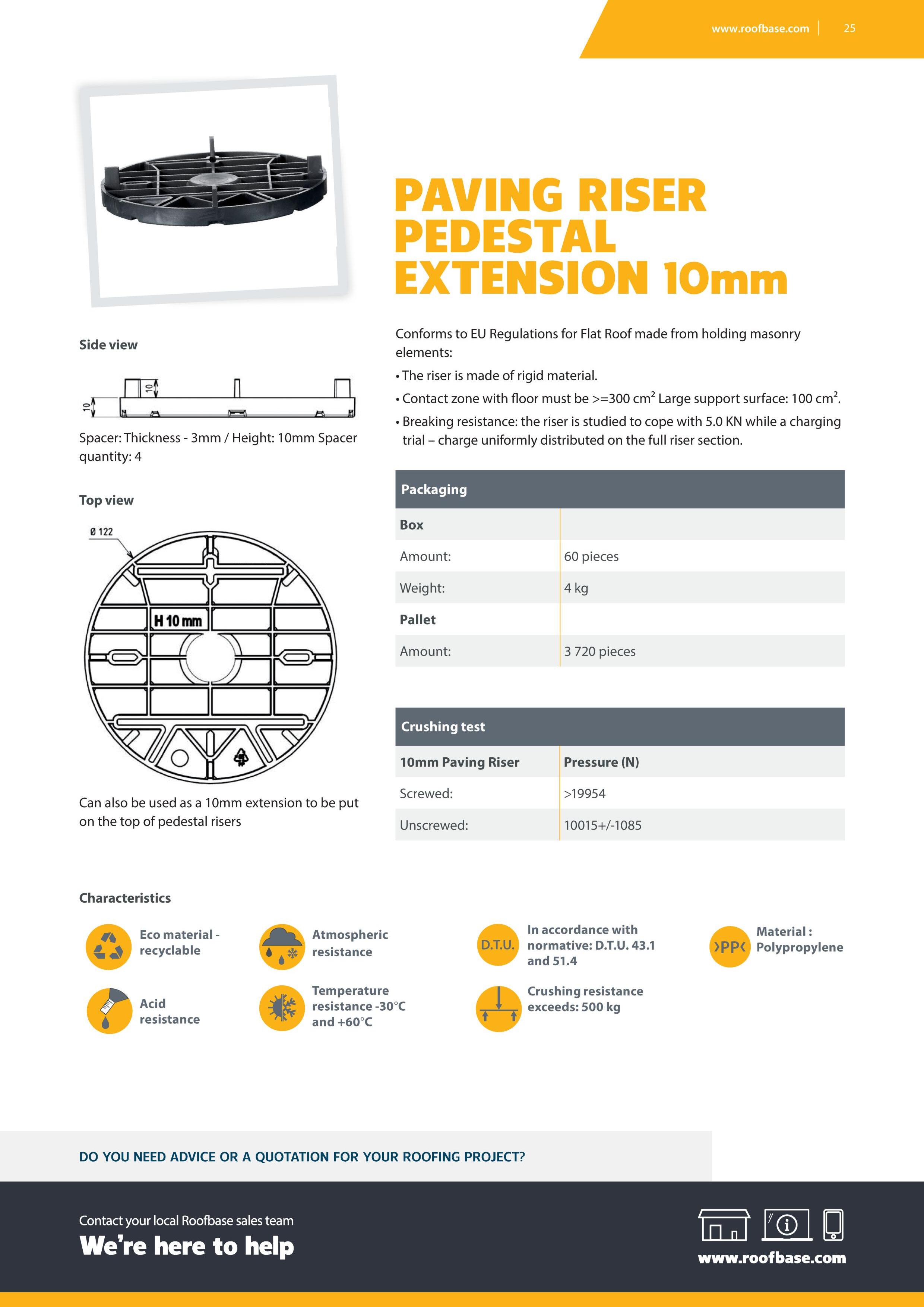

Paving Riser 10mm

Paving Riser 25mm

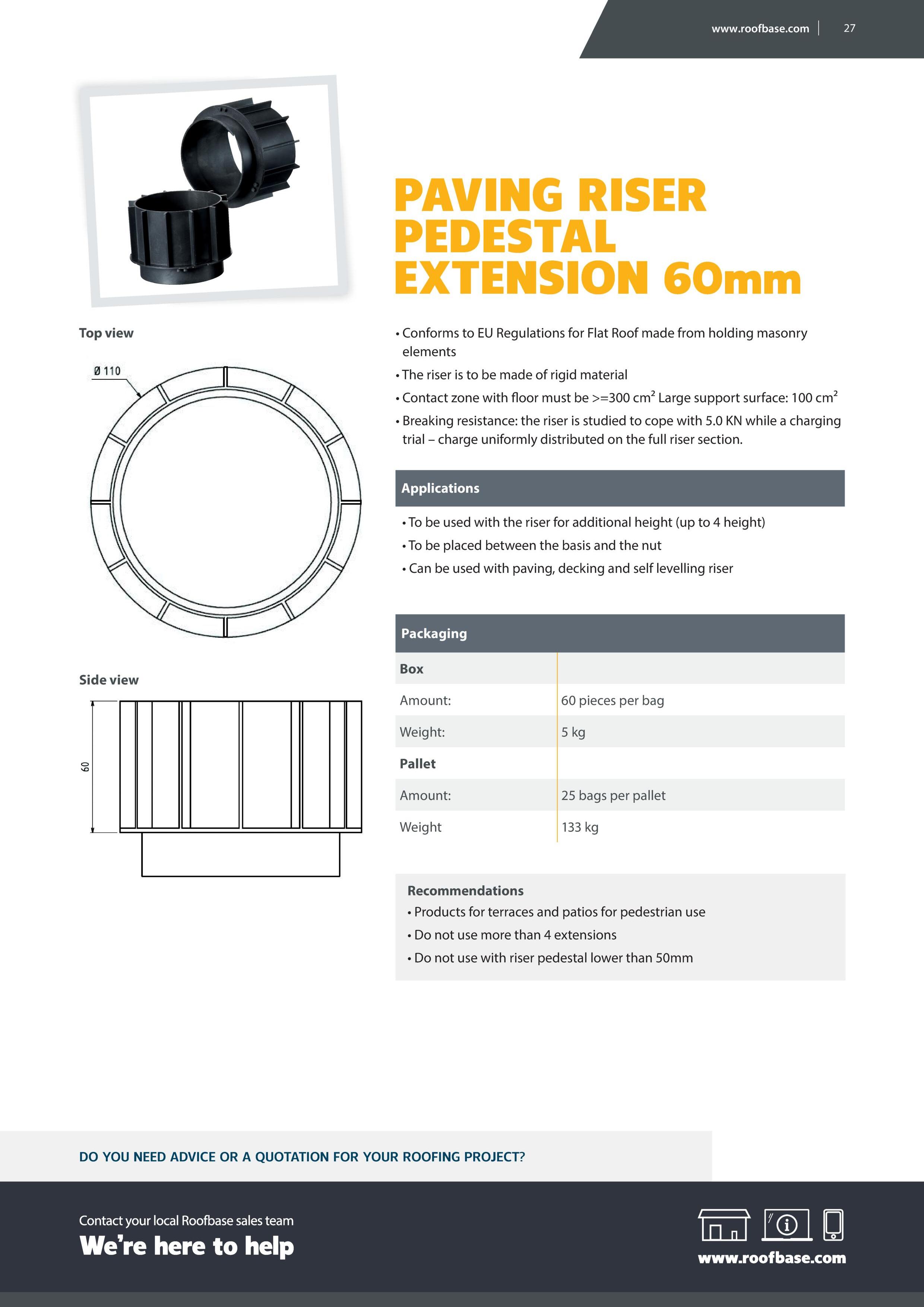

Paving Riser 60mm

SELF-ADHESIVE

MEMBRANES,

TAPES & PRIMERS

Flash Point

Shelf Life

Storage Temperature

REDSTAR PRIMER

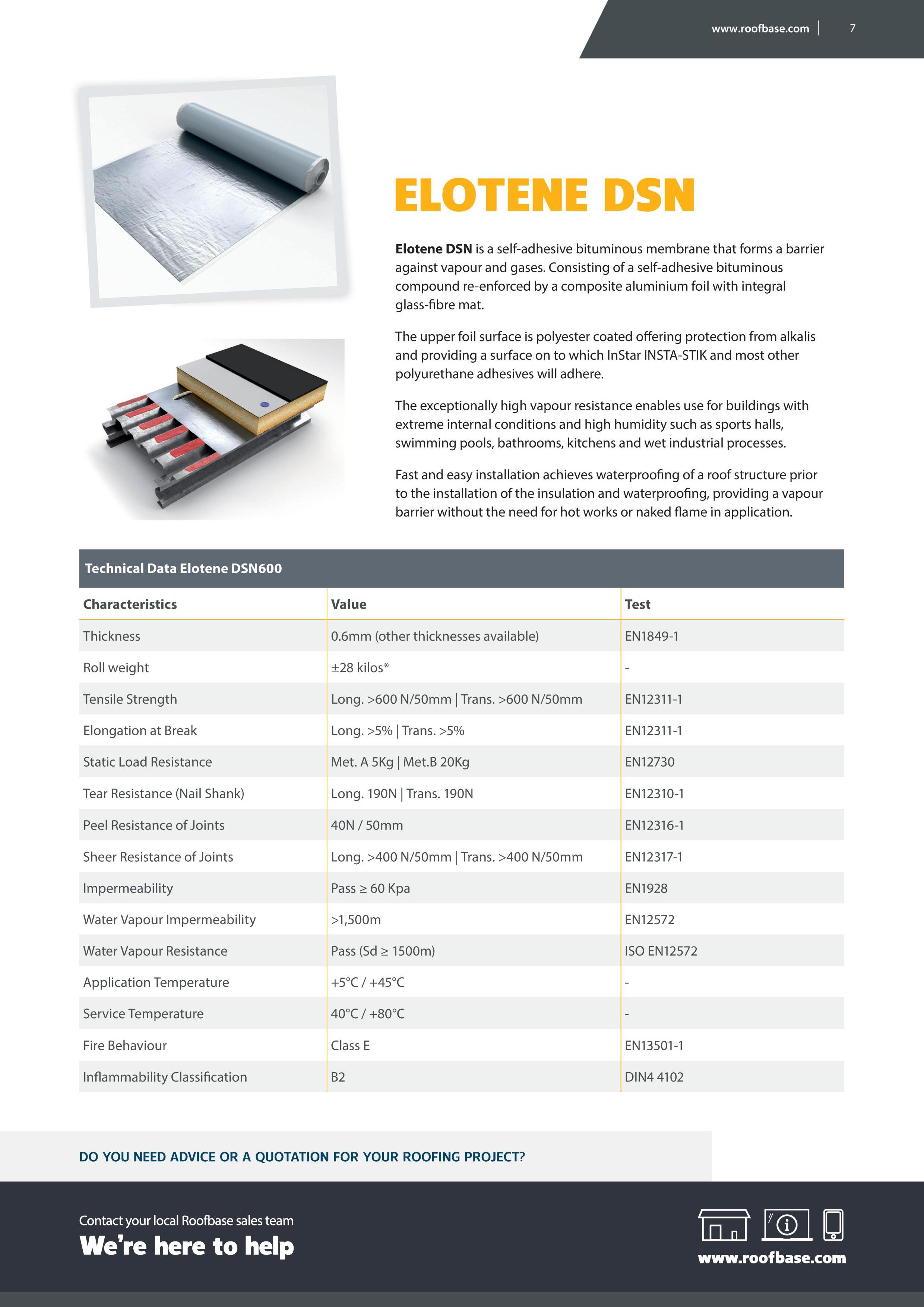

A rapid drying primer made with SBS resins and non flammable solvent. Non flammable solvent based SBS adhesive primer. RedStar Primer is designed for use with Elotene DSN a self adhesive SBS modified bitumen roofing membranes and is intended for use on concrete and various porous substrates to aid initial and long term adhesion of the membrane particularly when application is taking place at the lower end of the temperature range (+5°c).

Long. >5% | Trans. >5%

Although a quantity of a flammable material is present, this preparation is non flammable as supplied

12 months unopened

5°C - 25°C

NOTE: It is essential that sufficient drying time is allowed as any entrapment of solvent will result in blistering/delamination. Only prime areas that will be covered within 2-3 hours. Avoid walking over, as far as practical, areas already primed.

• For best results ensure that surface to be primed is free from oil or dust.

• Sweep clean where necessary.

• Apply thinly with roller in one sweep (the red colour will denote area treated)- refill roller if “cobwebbing” occurs.

• Avoid puddling of the primer.

• Drying time will be affected by surface porosity, film thickness and temperature and can vary between 40-90 minutes.

• Product will remain tacky even after dry. To test, using the back of a glove or dry object press into the primer and remove, there should be no transfer of the primer when the primer is ready.

Key Benefits

• Ensures quick setting

• Enhances adhesion to membranes

• Suitable for use at low temperatures

• Easily applied by brush

GREENSTAR PRIMER

GreenStar Primer is a synthetic rubber based primer designed for use with hot melt waterproofing systems.

Technical Data GreenStar Primer Base SBS Appearance Green liquid Size / Weight 25L / 23.75 kg Temperature Resistance Up to 75ºC Coverage* 4-6 m² / L Application Temperature 5ºC - 30º C Viscosity CPS @ 20ºC 150 cps Drying Time @ 20ºC** 15-30 minutes Working-Time

Application

• Surfaces should be clean, dry, and free from frost, oil and any other contaminants.

• Apply by brush or roller.

• Allow to dry before applying hot-melt waterproofing system.

* Coverage stated is approximate and dependant on porosity and type of substrate (two coats may be required on very porous substrates). ** Drying times can vary depending on temperature fluctuations.

Storage and handling

The product should be stored unopened in a dry condition at a temperature of 5ºC - 25°C. This will ensure the stated shelf-life. The adhesive will have a limited life once the container is opened. The rolls are packed individually in cardboard boxes and placed on pallets.

Temperature and timings

All information on temperature and timings represent normal working conditions and is provided as a guideline only. However, please contact Apollo for advice if you wish to operate outside of these parameters.

Key Benefits

• Safe and clean

• Fast to apply and cure

• Easy to use

• Controllable

• Economical

• Proven

INSTA-STIK™ 750ml HANDY SIZE

Based on 25 years experience of INSTA-STIK™ Professional Roofing Adhesive in its industrial (13.5kg) large tank format, INSTA-STIK™ Roofing Adhesive 750ml meets the roofers need for a highly portable version for the fixing of rigid insulation boards on smaller commercial and residential roofs.

Under Part L of the building regulations it is now a requirement to upgrade the existing insulation to the current standards when replacing or renewing the waterproofing layer.

INSTA-STIK™ Roofing Adhesive will bond up to 14m2 of roof insulation board (based on 19-25 mm beads at 300mm centres).

Surface Preparation and Installation

Surfaces should be dry and clean. Apply INSTA-STIK™ 750ml in 19-25mm beads at 300mm centres in the field of the roof and at 150mm centres around the perimeter. Perimeter width is 1 metre for roofs up to 6.00 metres high, for higher roofs consult with distributor. It is recommended that insulation board sizes do not exceed 1.2m x 1.2m.

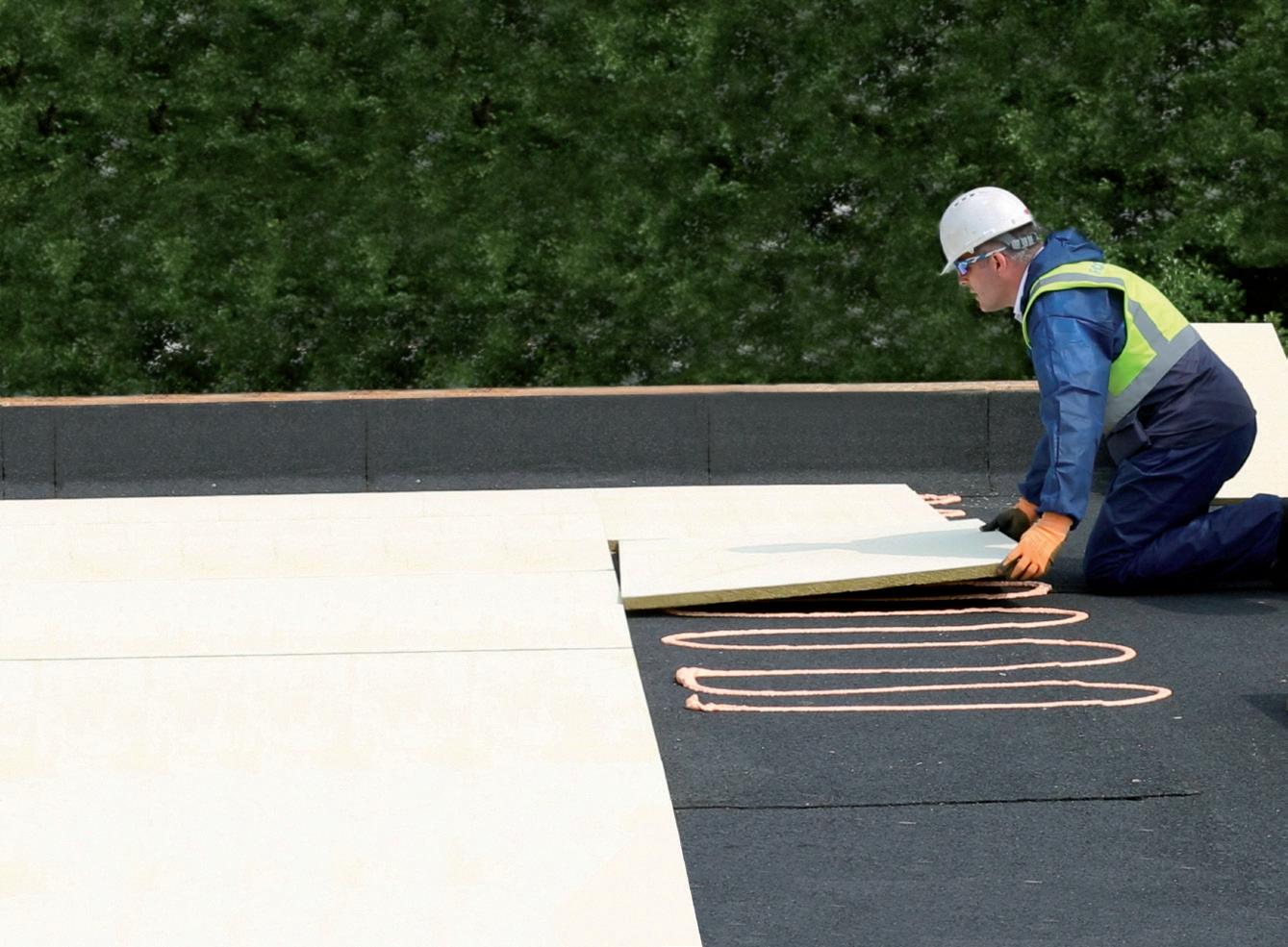

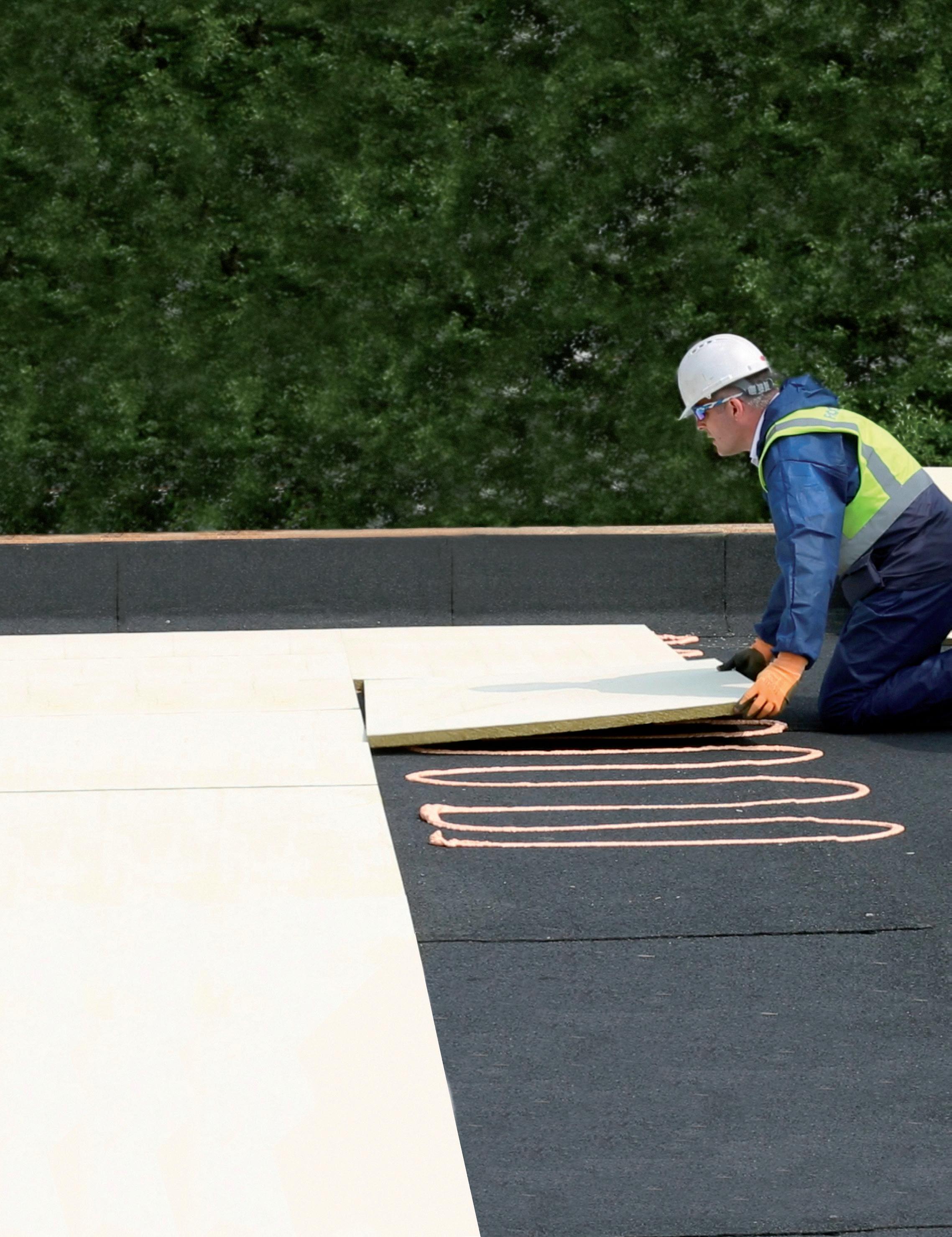

INSTA-STIK™ is applied to the roof substrate in beads or ribbons, the roof insulation board is then placed on to the beads straight away or within 10 minutes and will be firmly adhered typically within 20-30 minutes.

CONTRACT

PACK

INSTA-STIK Contract Pack meets the roofers need for a highly portable pack suitable for up to 70m2, for the fixing of rigid insulation boards on smaller commercial and residential roofs.

NEW Contract Pack contains:

• 5 x 750ml INSTA-STIK Roofing adhesive

• 1 x 500ml INSTA-STIK Gun Cleaner

• Covers up to 70m2 per pack

• 1 x FREE Short Barrel Applicator Gun (reusable)

Application

For bonding insulation to a variety of vapour barriers (see detailed literature or contact distributor for complete list) and existing roof surfaces including Bitumen felt, Asphalt, Metal, Plywood, OSB, Concrete. Bonding insulation layers together.

To apply INSTA-STIK™ 750 ml a standard polyurethane foam gun is required of which two types are available: Standard short barrel and Long barrel “stand up”.

PITCH/PIPE POCKET SEALER KIT

PAVING & DECKING SUPPORTS

Key Benefits

• 6 sizes from 8mm to 230mm – compensates for most deck slopes

• 8-20mm support for terrace and patios (Slabs/ Ceramics)

• Maximum height 470mm (including extension pieces)

• Large 200mm base to spread load, Interlocking grooves to strengthen floor grip

• Snap off spacing tabs notched at right angles for easy installation

• Special head designed for use with decking joists (Special order)

• Fully compatible with InStar Perimeter Pad, Extensions and Plinth Clip accessories

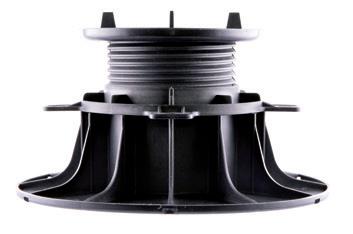

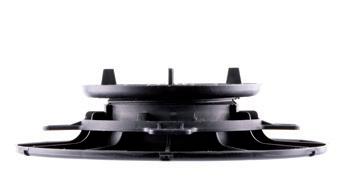

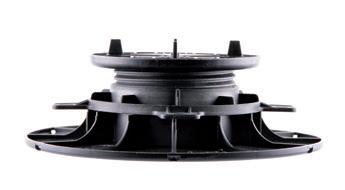

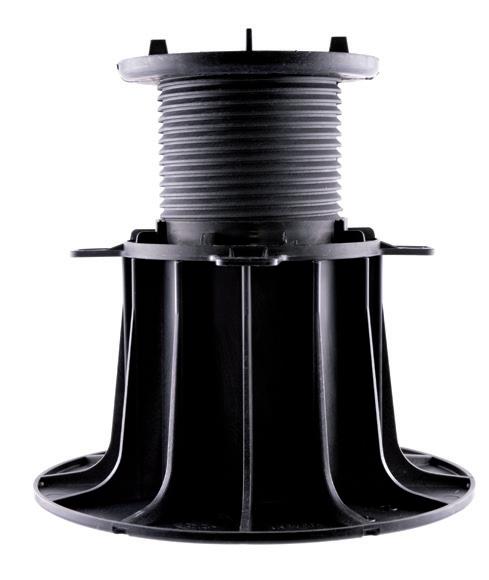

ACCESS ADJUSTABLE

Access Adjustable Paving and Decking Supports are available in 6 sizes, starting from 8mm up to 230mm (greater height adjustment can be achieved by the use of extension pieces) Maximum height of 470mm.

Benefits Description

The range in height adjustment means that paved/ decked areas can be laid flat even when drainage slopes have been incorporated into the underlying substrate. Threaded nut system for adjusting and maintaining the desired height.

Specification

Access Adjustable Paving Support

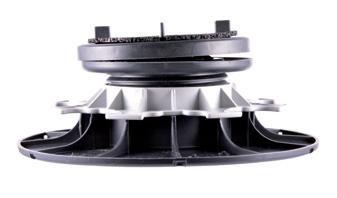

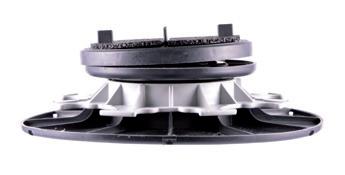

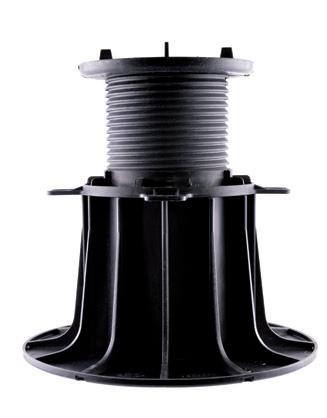

ACCESS SELF LEVELLING HEAD

Access Self Levelling Head Supports are available in 5 sizes, starting from 29mm to 245mm. The range in height adjustment means that paved areas can be laid flat even when drainage slopes have been incorporated into the underlying substrate.

The self levelling head which is the key feature of this support compensates gradients of up to 5%.

Key Benefits

• Uniform spacing between paving slabs

• Water drainage between and beneath paving

• Safer walking surface

• Sound and vibration insulating qualities

• Enables easy removal of paving for inspection and maintenance

• Fast and clean application of paving system without mortar

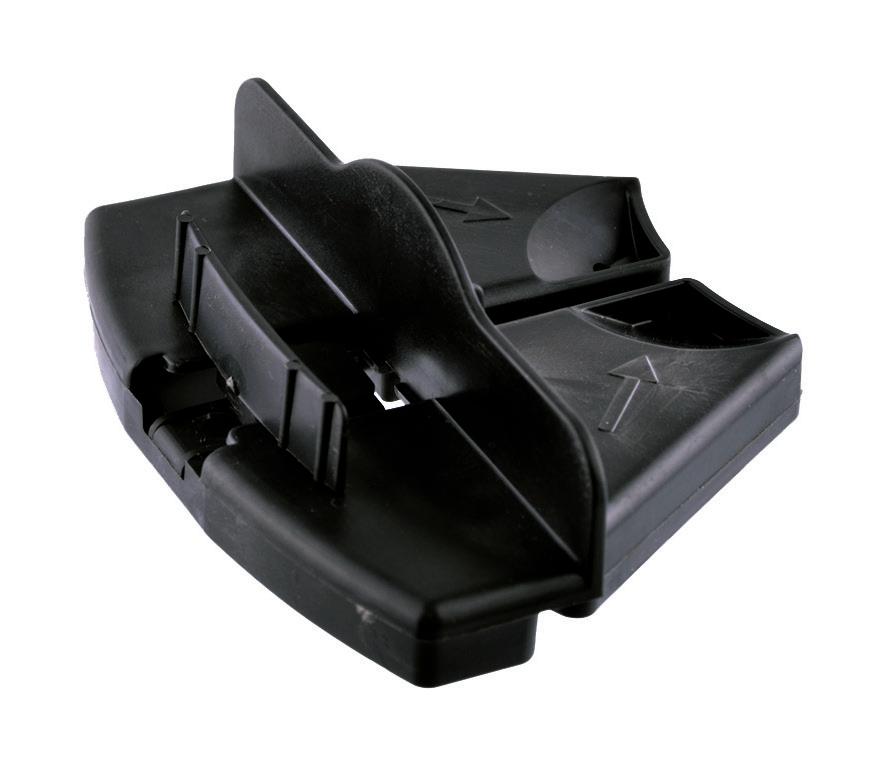

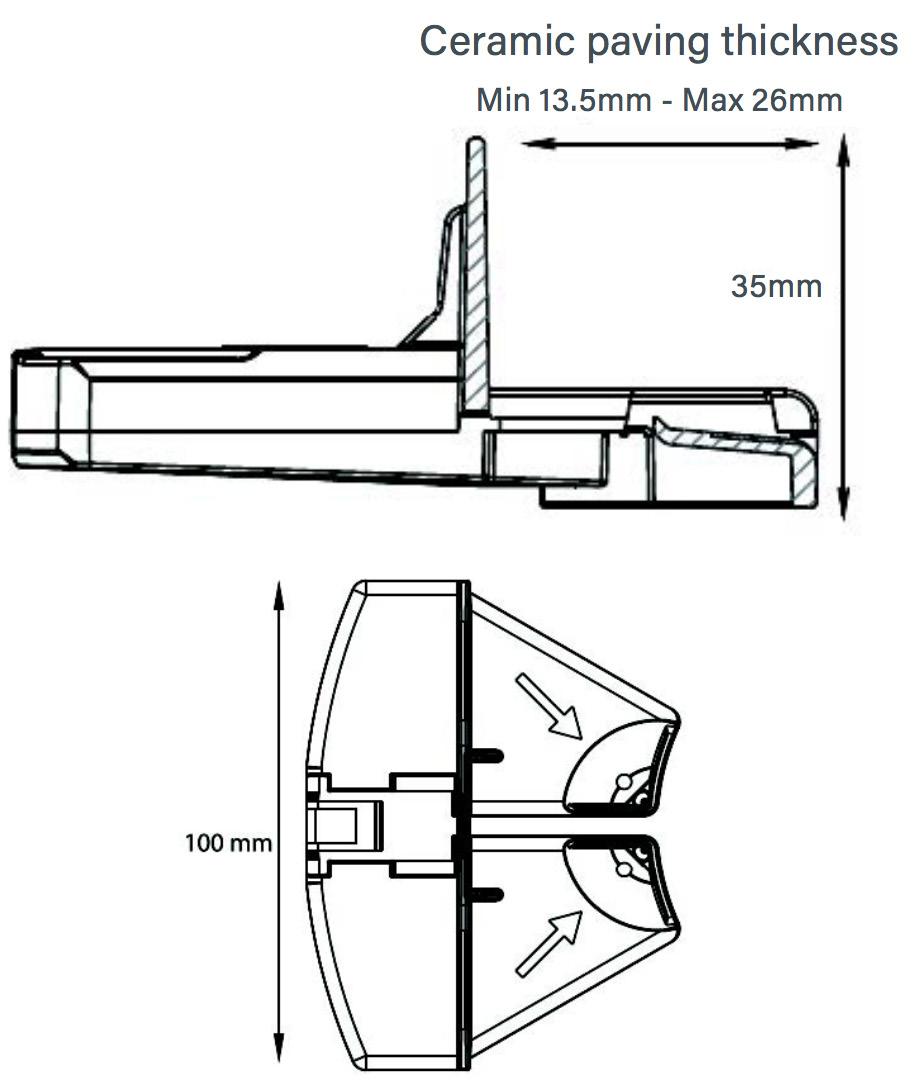

PLINTH CLIP

InStar Plinth Clip provides a platform to create a vertical edge around the perimeter of the installation.

Plinth Clip can be used with InStar Perimeter Pad.

Dimensions

Material Polypropylene

Colour Black

Dimensions 100 mm x 75 mm x 35 mm

Weight 35 g

UV and frost resistant yes

Recyclable 100 %

Packaging

Box

Application

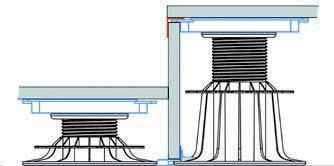

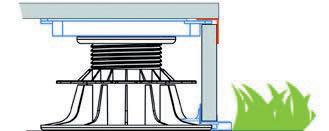

Using the Perimeter Pad (ACCPP) and Plinth Clip (ACCPC) allows 4 finishing possibilities:

• Finish with a plinth

Amount: 10 pieces per box

Weight: 0.5 kg

Dimensions: 32 x 15 x 10 cm

Pallet

Amount: 273 boxes per pallet

Weight: 143 kg

• Invisible finishing

• Finish with a butress

• To create a step

Characteristics

Eco materialrecyclable

Acid resistance

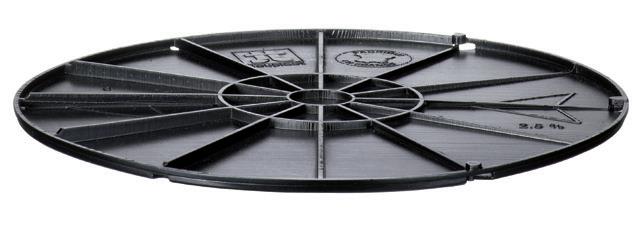

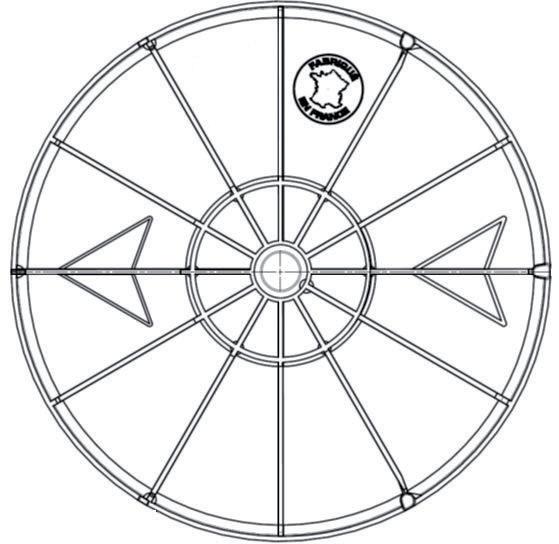

SLOPE REGULATOR

InStar Slope Regulator is used to level slopes Can be used with paving and decking riser pedestals.

Key Benefits

• 1 regulator can cope with a 2.5% slope

• The regulator is stackable up to 4 high (ie 10% slope regulation)

• Laying direct UNDER the pedestal, no glue, no screw needed

Atmospheric resistance

Temperature resistance -30 °C and +60 °C

D.T.U.

In accordance with normative: D.T.U. 43.1 and 51.4

Crushing resistance exceeds: 500 kg

›PP‹

Material : Polypropylene
