ROOFING & VENTILATION

HAMBLESIDE DANELAW BUILDING PRODUCTS

Roofbase has partnered with Hambleside Danelaw to offer our customers the best choice in flashing, ventilation and roofing accessories from the UK’s market leader. Our comprehensive product range available in-store covers everything needed for your pitched roofing projects from dry fix valley troughs to tile roof vents.

With over 40 years’ experience in the construction industry, Hambleside Danelaw has unrivalled expertise in the development, manufacturing and distribution of their products. All products are produced in their state of the art manufacturing facilities, here in the UK.

The environment is important to Hambleside Danelaw, a company that strives to be an environmentally responsible manufacturer, working to reduce production waste and carbon footprint through product innovation and sophisticated manufacturing processes.

Today all their products are manufactured to BS EN ISO 9001 and ISO 14001 Environmental Standards, whilst operating to BS OHSAS 18001 Occupational Health and Safety standard.

FLASHINGS

Maintain a watertight roof with our range of quality roof flashings made from GRP (Glass Reinforced Polyester) or polypropylene. Ensure your valleys, verges and abutment roof junctions are durable and sound for years to come with our tried and tested range.

Danelaw® flashings come in many types and styles, but are generally strip products or at details that form a junction between construction elements to make them weathertight.

The more commonly known roof flashings, are apron flashings sometimes known as abutment flashings, cover flashing, step flashings, step and cover flashings and chimney flashings, but they can also include pitched roof valley linings, secret gutters and flashing for joining pitched roofs with different covering types.

Soakers are also used where a slated or double-lap plain tiled pitched roof abuts a wall, usually in conjunction with a flashing.

Danelaw’s tried-and-tested range of durable flashing and soaker products will ensure your roof remains watertight. From their market leading Dry Fix Valley Troughs and traditional Open Valley Toughs, through to their continuous abutment

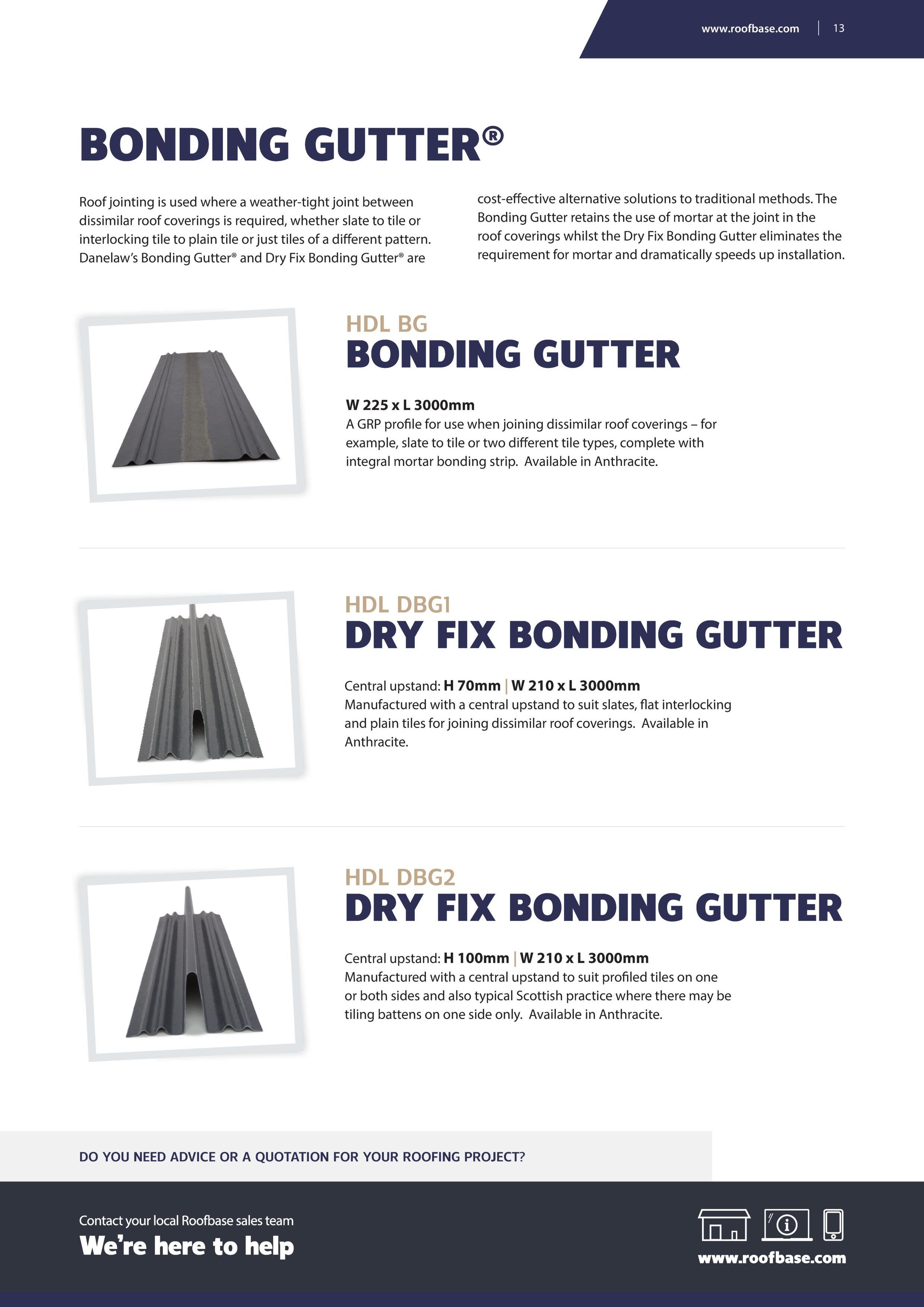

soakers/Conti-Soakers and both mortared, Dry Fix Bonding Gutters® and continuous slate verges all made from Glass Reinforced Polyester (GRP), making them superior to plastic alternatives and an ideal lead replacement solution.

There are lots of benefits of selecting flashing products made from GRP. Firstly, when compared with lead, GRP products take less than half as much time and cost to install. This is partly because they are so lightweight and easy to handle, and also because they are preformed to the required shape.

GRP roofing products are Anthracite and can look similar to lead when installed, but they do not hold the same value, so deter criminals from theft and the associated damage to the property. GRP does not streak or stain. We offer a 30-year service life guarantee for all GRP flashing products, which ensures the roof will remain leak-free for years to come.

GRP VALLEY TROUGHS

The Danelaw® product range includes both dry fix and traditional open valley troughs for a variety of tiles. All our valley troughs are made from glass-reinforced plastic (GRP), an excellent alternative to lead.

Dry fix valley troughs are mortar-free, providing hidden water gulleys at the roof valleys. They create a close-cut appearance therefore additional eaves closure pieces and counter battens are not required.

Open valley troughs have been designed as a simple alternative to traditional lead troughs. Open troughs are a safe and efficient way to collect rainwater run-off. They provide a weatherproof drainage channel where cut tiles meet.

There are lots of benefits of selecting flashing products made from GRP. Firstly, when compared with lead, GRP products take much less time and cost to install. This is partly because they are so lightweight and easy to handle, and also because they are preformed to the required shape.

GRP roofing products are Anthracite and can look similar to lead when installed, but they do not hold the same value, so deter

criminals from theft and the associated damage to the property. GRP does not streak or stain. We offer a 30-year service life guarantee for all GRP flashing products, so you can be safe in the knowledge your roof will remain leak-free for years to come.

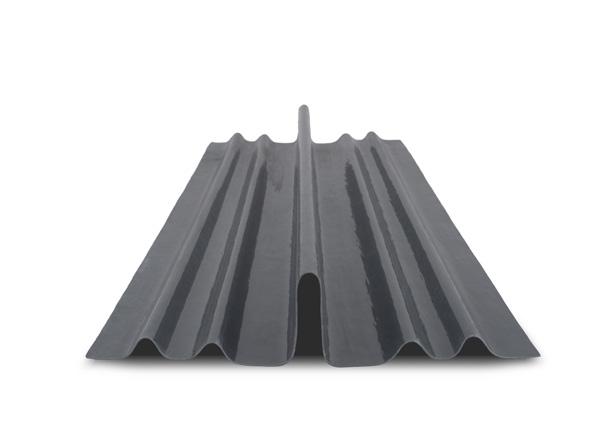

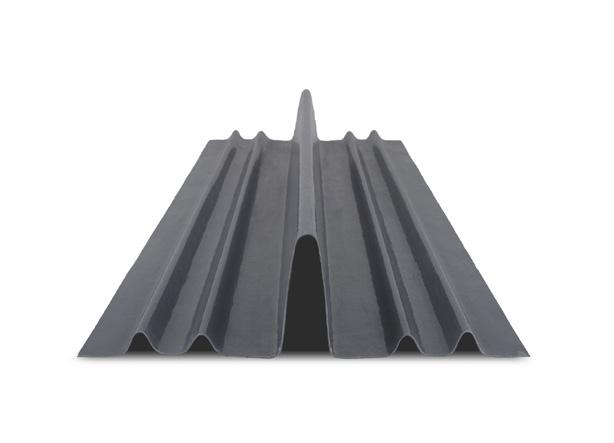

DRY FIX VALLEY TROUGH

Central upstand HDL DVT/1: H 105mm | L 3000mm

Central upstand HDL DVT/2: H 105mm | L 2400mm

Dry Fix mortarless GRP valley troughs create close- cut appearance on new builds and refurbishments. Suitable for all profiled tiles. Available in standard Anthracite colour, this unique product cuts fixing time by more than 50%.

HDL DVLPT/1 / HDL DVLPT/2

DRY FIX VALLEY TROUGH LOW PROFILE

Central upstand HDL DVLPT/1: H 80mm | L 3000mm

Central upstand HDL DVLPT/2: H 80mm | L 2400mm

Dry Fix mortarless GRP valley trough creates close- cut appearance on new build and refurbishment. Suitable for all flat and plain tile types. Available in standard Anthracite colour, this unique product cuts fixing time by more than 50%.

HDL DVT/1 / HDL DVT/2

DRY FIX VALLEY TROUGH COMPATIBILITY CHART

DOUBLE LAP PRODUCTS

Plain tiles (all)

Slates up to 6mm thick

Slates 7mm to 15mm thick

Slates 16mm to 22mm thick

DVLPT

DVS

DVLPT

DVT

Square Top

MARLEY ETERNIT

DVT

Anglia Plus

DVLPT

DVT

DVT

DVT F12

F8.5

DVT F15

DVT G10

DVLPT H10

DVT H14

DVLPT

Ashmore

Duo Modern

Double Roman

Edgemere

Lincoln

Ludlow Major

Ludlow Plus

DVLPT

DVLPT

DVT

DVLPT

DVT

DVT

DVT

S9

Double Pantile

Double Roman

DVT

DVT

DVLPT

Malvern

Maxima

Melbourn

Melodie

DVT

DVT

DVLPT

DVT

DVT

DVLPT

Minislate

DVT SL8

DVLPT V2

Mendip

DVT Modern

Wessex

QUINN

Devenish

Locherne

Rathmore

Western Slate

DVLPT

DVT

DVLPT

DVT

DVLPT

DVLPT

This table is a guide to the recommended application criteria for the Hambleside Danelaw Dry Fix Valley Trough range. It assumes a standard roof intersection of 90o and roof drainage area of 100m2. For applications other than this, specific advice should be sought from our sales department.

TILE TYPEPRODUCT

REDLAND (MONIER)

49 TypeHDL DVT

CambrianHDL DVS

CathedralHDL DVT

Double RomanHDL DVT

Duo PlainHDL DVLPT

FenlandHDL DVT

GroveburyHDL DVT

Landmark Double PantileHDL DVT

Landmark SlateHDL DVLPT

Mini StonewoldHDL DVLPT

Norfolk PantileHDL DVT

Old HollowHDL DVT

PostelHDL DVT

RegentHDL DVT

RenownHDL DVT

RichmondHDL DVLPT

SaxonHDL DVLPT

Stonewold MkIIHDL DVLPT

RUSSELL

ArgyllHDL DVT

ButeHDL DVLPT

CheviotHDL DVT

DerwentHDL DVT

Double RomanHDL DVT

GallowayHDL DVLPT

GrampianHDL DVLPT

HighlandHDL DVLPT

LothianHDL DVLPT

MorayHDL DVLPT

PennineHDL DVT

PoldenHDL DVLPT

TILE TYPEPRODUCT

SANDTOFT (WEINERBERGER)

20/20HDL DVLPT

ActuaHDL DVLPT

ArcardiaHDL DVT

BalmoralHDL DVLPT

BridgewaterHDL DVT

BritlockHDL DVS

Calderdale SlateHDL DVLPT

CassiusHDL DVLPT

CountyHDL DVT

Dual CalderdaleHDL DVLPT

Double RomanHDL DVT

FlemishHDL DVT

GaelicHDL DVT

GreenwoodHDL DVT

LindumHDL DVT

ModulaHDL DVT

Old EnglishHDL DVT

Old HollowHDL DVT

OlympusHDL DVT

Neo PantileHDL DVT

RiviusHDL DVLPT

Shire PantileHDL DVT

Standard PatternHDL DVT

TempestHDL DVT

TLEHDL DVLPT

VaubanHDL DVLPT

RAFTER PITCHMAX. VALLEY LENGTH MIN. LAP LENGTH

15 to 17°10.0m400mm

17.5 to 22.5°12.0m350mm

22.5 to 29°14.5m300mm

30 to 34°15.0m250mm

35 to 39°15.5m200mm

40 to 44°16.5m150mm

45 to 49°17.5m150mm

50 to 55°18.5m150mm

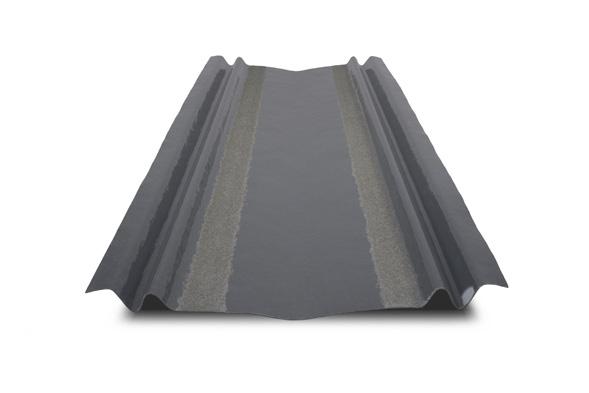

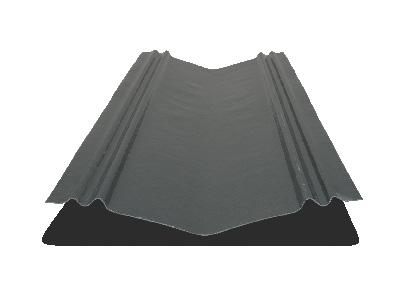

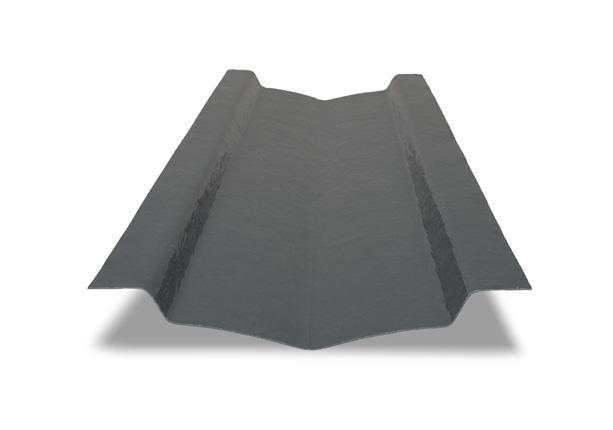

OPEN VALLEY TROUGHS

HDL RP3

OPEN VALLEY TROUGH

W 380 x L 3000mm

GRP valley troughs with mortar bonding strip, in standard Anthracite colour.

HDL SVTU / STV

OPEN SLATE VALLEY TROUGH

HDL SVTU W 360 X L 3000mm

HDL SVT W 330 x L 3000mm

GRP valley trough in standard Anthracite colour.

HDL SSVT

OPEN SLATE VALLEY TROUGH

W 330 x L 3000mm

GRP valley trough in standard Anthracite colour. For use on fully boarded roofs , designed for the Scottish practice.

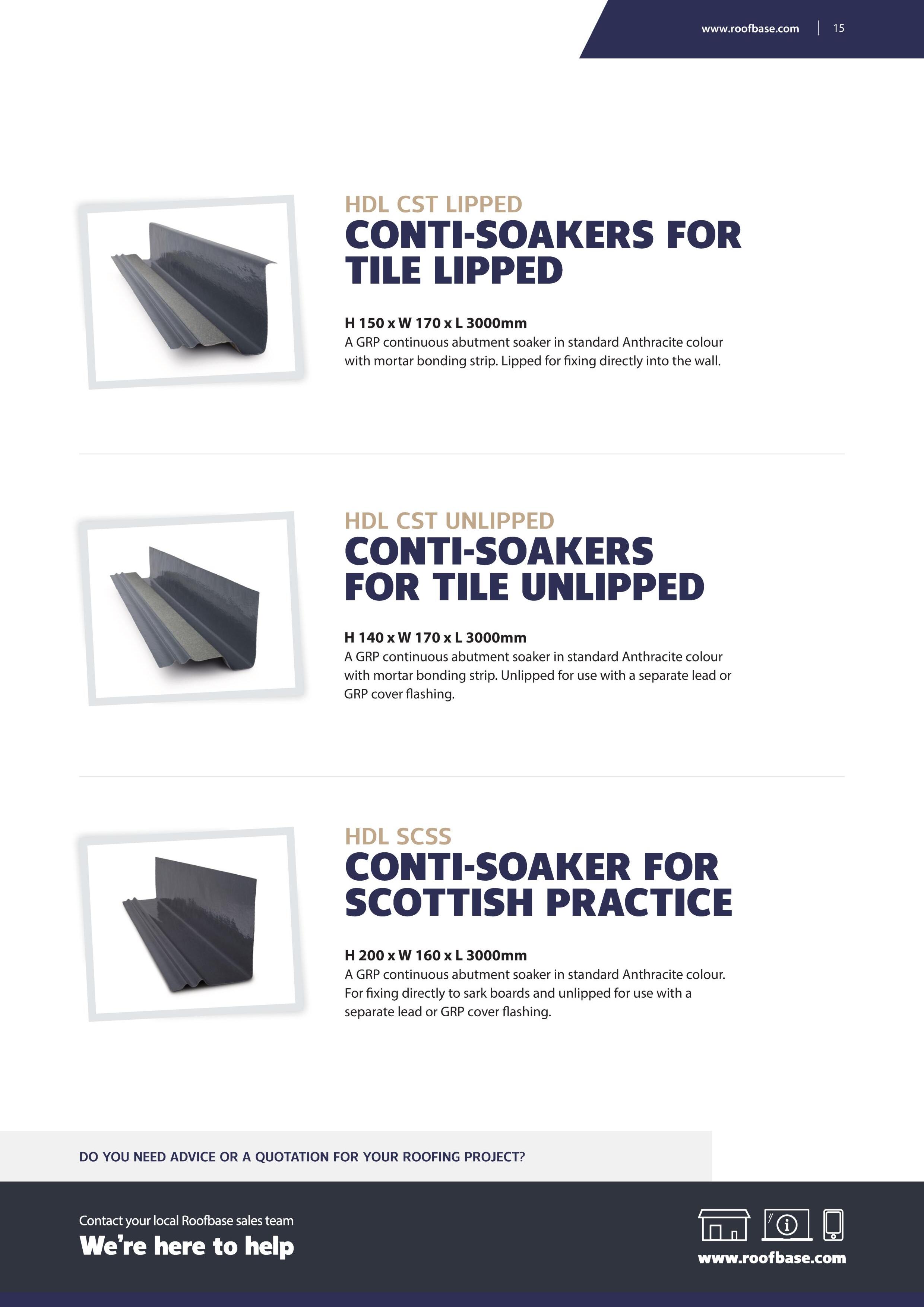

SOAKERS

All abutment flashings are designed to prevent rainwater from penetrating between the wall and the roof covering. We stock Danelaw’s Conti-Soakers for slates and tiles, or a range of individual dry soakers for use in combination with rigid Universal Abutment Cover Flashing or the extremely versatile flexible fully adhesive backed Fast Flash®

The Hambleside Danelaw continuous soaker range offers a secondary line of protection against wind driven rain where the roof meets an abutment wall. Being manufactured from GRP, the continuous soakers have the following benefits;

Up to half the cost and time of traditional lead installation

Semi-skilled fitting procedure

Light in weight and easy to handle

30 year service life guarantee

Do not streak or stain

No value to the thief

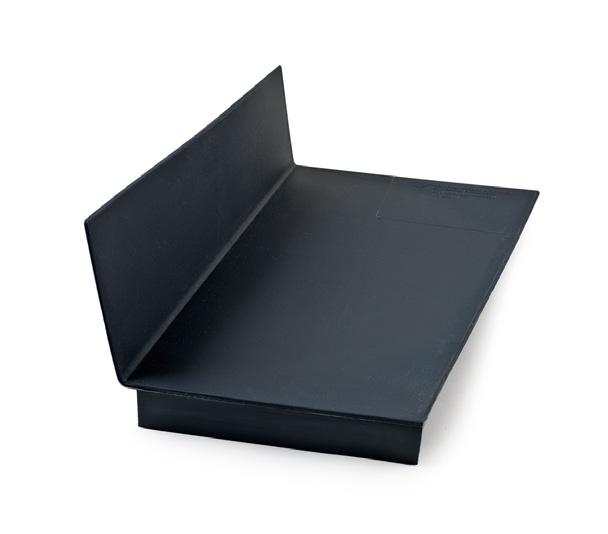

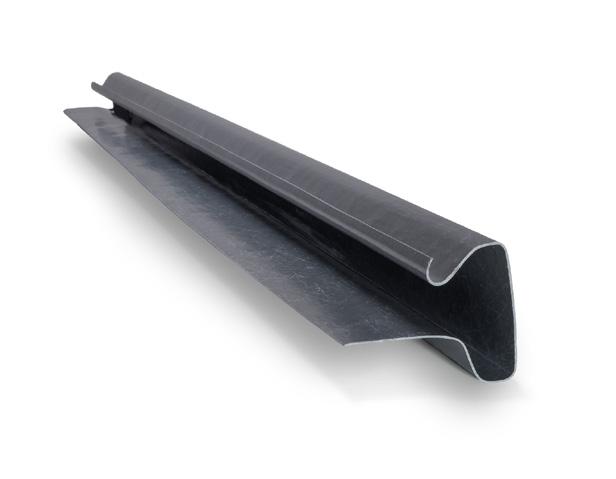

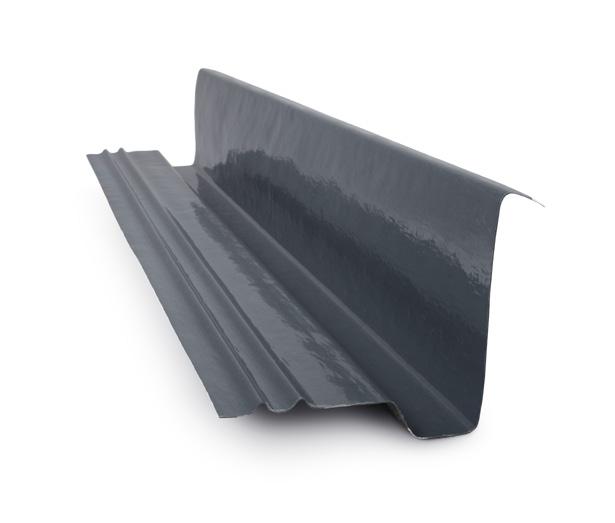

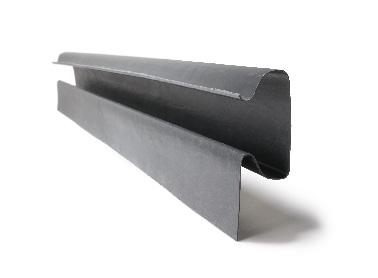

HDL CSS LIPPED CONTI-SOAKERS FOR SLATE LIPPED

H 150 x W 170 x L 3000mm

A GRP continuous abutment soaker in standard Anthracite colour. Lipped for fixing directly into the wall.

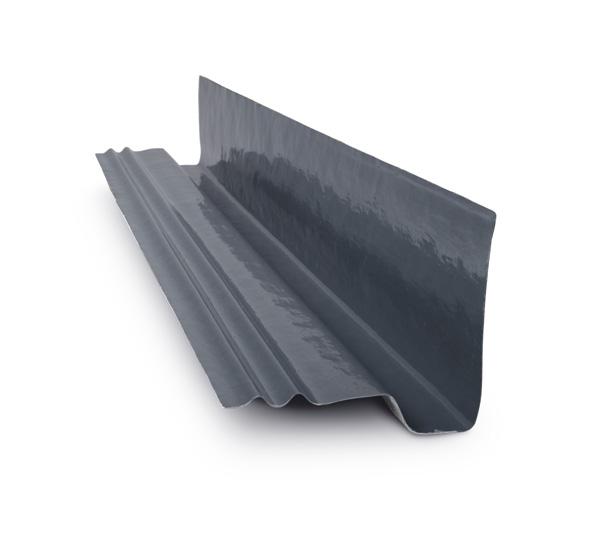

HDL CSS UNLIPPED CONTI-SOAKERS FOR SLATE UNLIPPED

H 140 x W 170 x L 3000mm

A GRP continuous abutment soaker in standard Anthracite colour. Unlipped for use with a separate lead or GRP cover flashing.

HD MDS

HD RRS

HD RTS

HD SRRS

HD PCS

HD DTS

HD RCS

HD SS500

HD SS600

INTERLOCKING TILES - RIGHT OR LEFT HANDED

INTERLOCKING TILES - RIGHT OR LEFT HANDED

INTERLOCKING TILES - RIGHT OR LEFT HANDED

INTERLOCKING TILES - RIGHT OR LEFT HANDED

PLAIN TILES - RIGHT OR LEFT HANDED

INTERLOCKING PLAIN TILES - RIGHT OR LEFT HANDED

INTERLOCKING SLATES - RIGHT OR LEFT HANDED

SLATES

SLATES

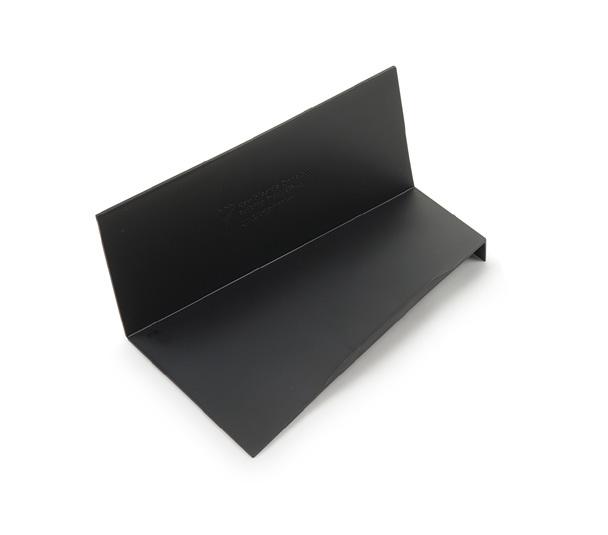

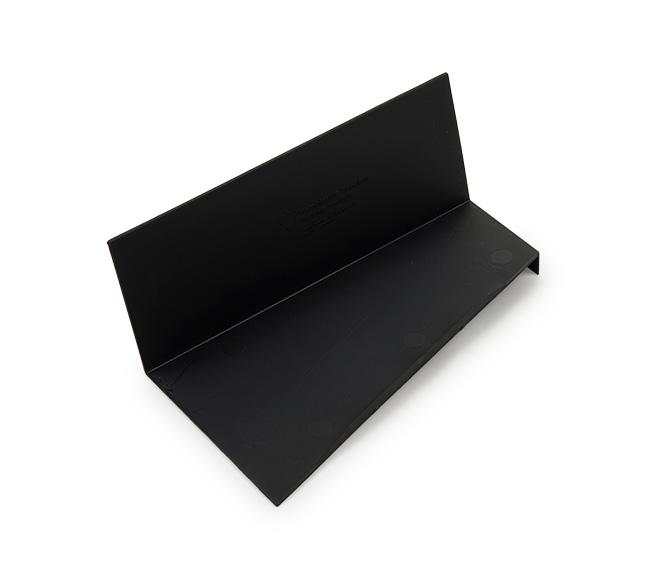

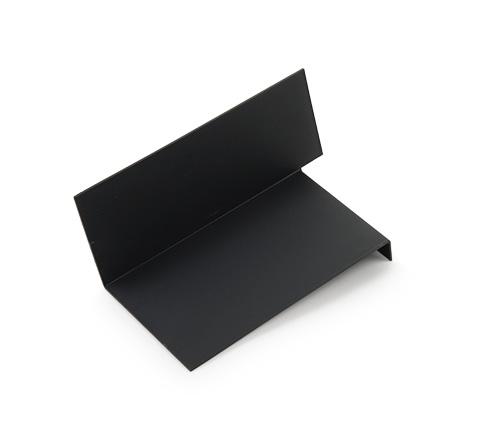

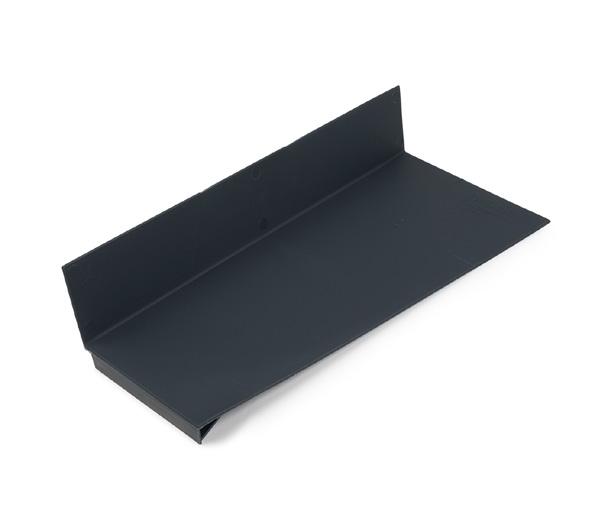

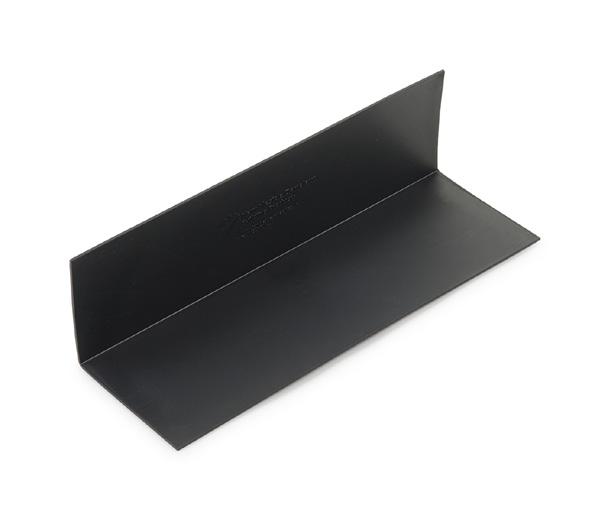

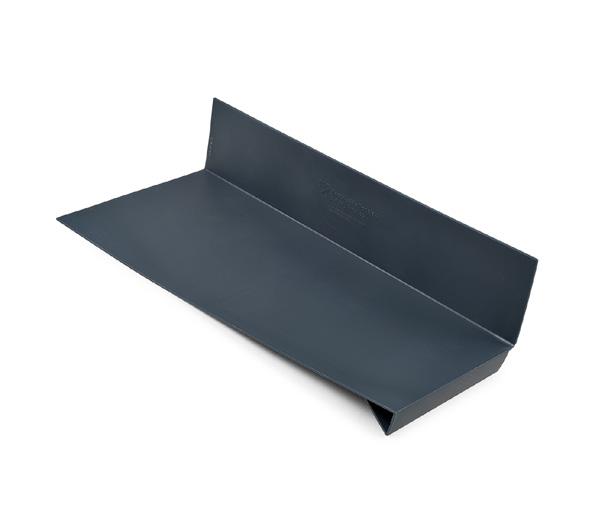

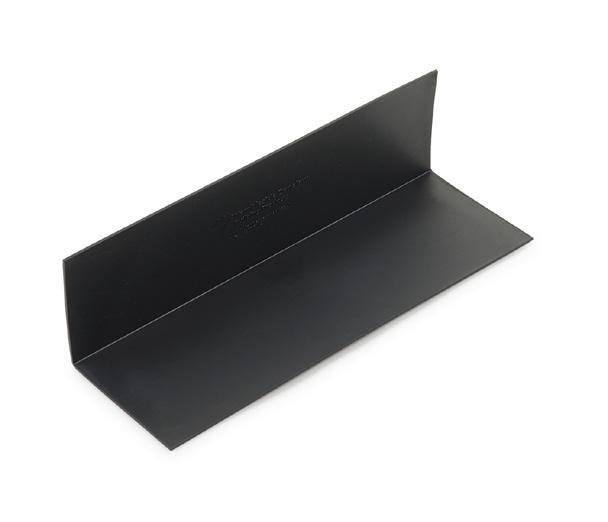

INDIVIDUAL DRY SOAKERS

Lightweight pre-formed polypropylene soakers, designed to prevent rainwater from penetrating between wall and roof coverings.

HDRCS

HD SS500

HD PCS

HDRTS

HD SS600

HD RRS

HDDTS

HD MDS

HD SRRS

INDIVIDUAL SOAKER COMPATIBILITY CHART

SANDTOFT (WEINERBERGER)

* subject to a minimum rafter pitch of 30o and minimum headlap of 95mm. ** longer than the tiles; the length may be trimmed at the head if required.

DO YOU NEED ADVICE OR A QUOTATION FOR YOUR ROOFING PROJECT?

FAST FLASH 560MM

FAST FLASH 370MM

FAST FLASH 280MM

FAST FLASH 140MM

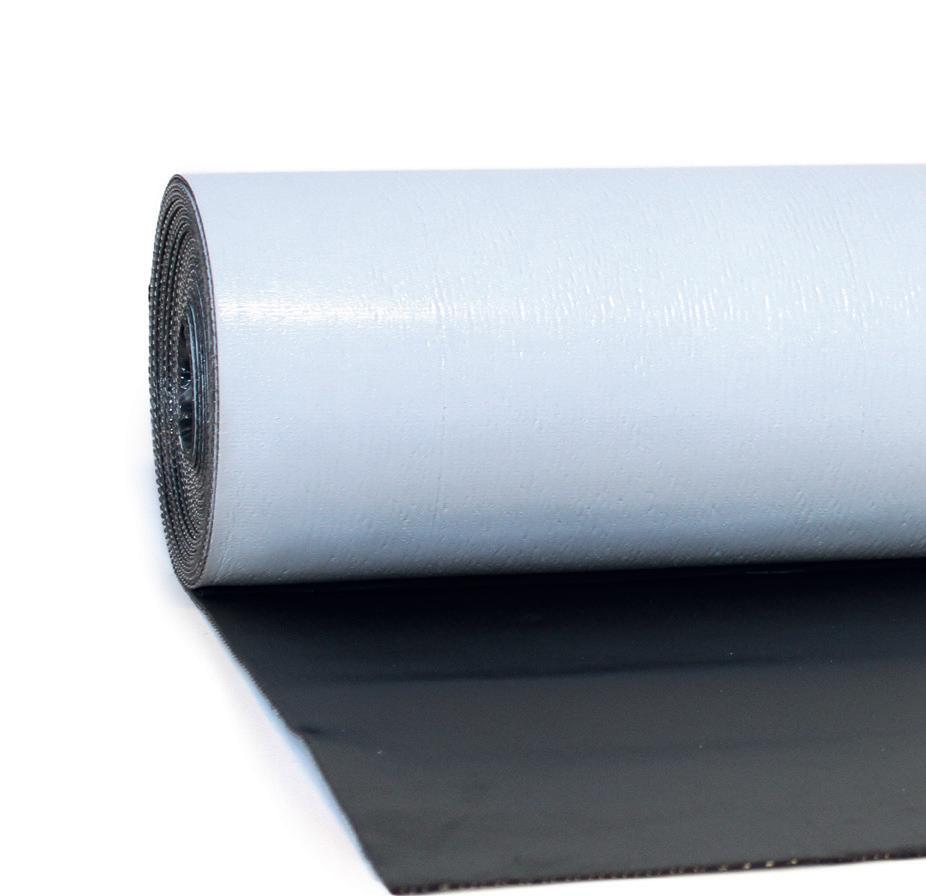

FAST FLASH®

Fast Flash is a premium environmentally friendly, lead-free flashing that is simple to install on multiple applications and common roof coverings. No specialist tools are required, Fast Flash is extremely flexible, malleable and easily workable by hand. Backed with a 10 year guarantee, it can be installed on roofs with a slope of a minimum 5o pitch.

FEATURES AND BENEFITS

BBA Certifcate No 09/4681

Lead look-a-like

Twice as fast to install than lead

Lighter in weight than lead

No scrap value

No gluing required

Minimal waste

Reusable off-cuts

Fully adhesive backing

60% extension length, 20% extension width

SPECIFICATION

Length 5,000mm

Width 140mm (2 rolls), 280mm, 370mm and 560mm

Available in Fast Flash comes in standard Traffic Grey, for additional colours of Black and Tile Red please contact our sales department

Flexible non-lead flashing with patented design.

MATERIALS

Fast Flash is a composite consisting of an aluminium grid, embedded in an environmentally friendly polymer rubber. The composite has great stretching ability and can be increased by 60% in length and 20% in width.

DO YOU NEED ADVICE OR A QUOTATION FOR YOUR ROOFING PROJECT?

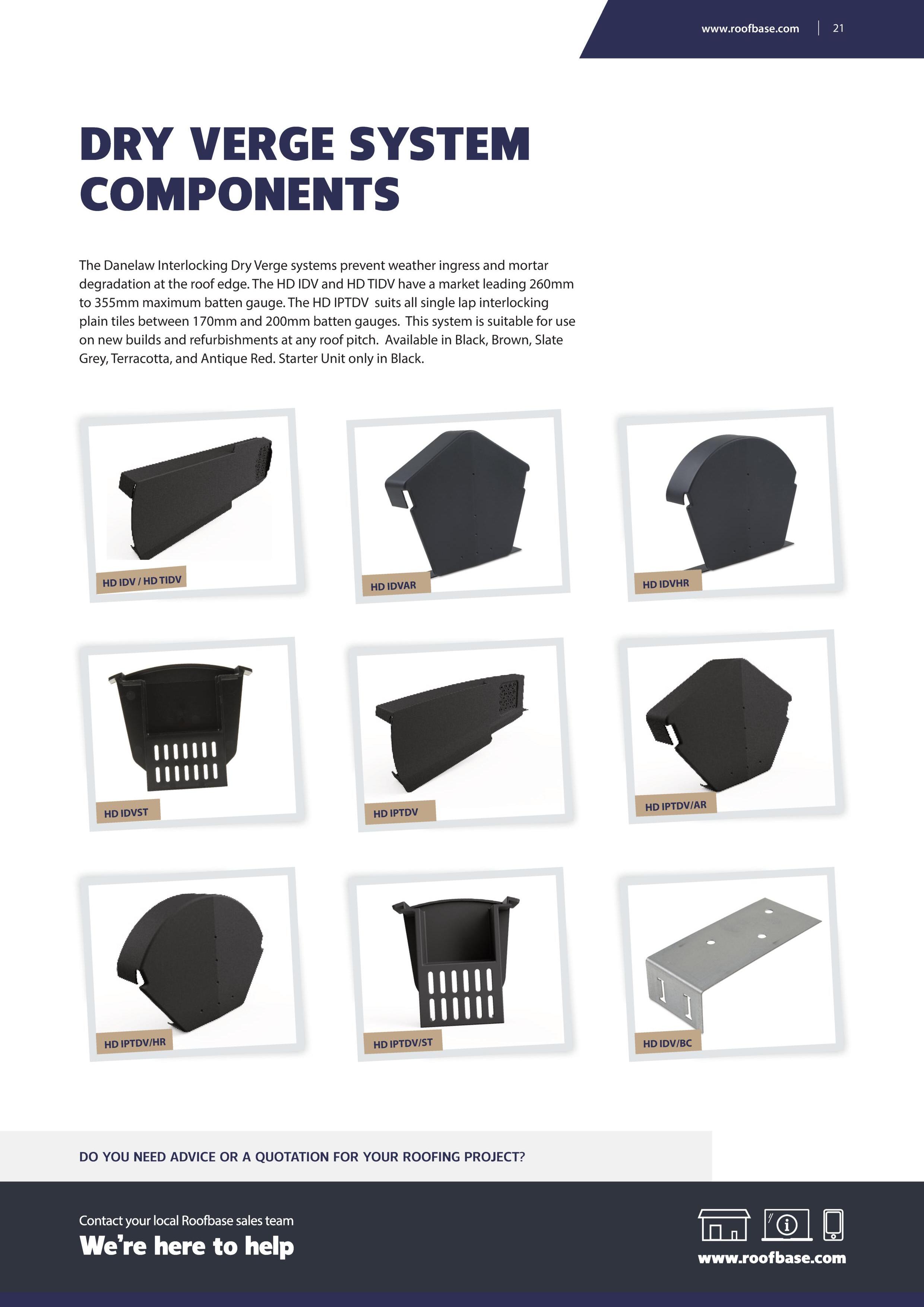

INTERLOCKING DRY VERGE SYSTEMS

The Interlocking Dry Verge systems are mortar free with clip-over design for fast installation. It minimises water run-off staining and has high heat distortion resistance. The aesthetic design gives style to the finished look.

HD IDV / HD TIDV / HD IPTDV

INTERLOCKING

DRY VERGE SYSTEMS

The systems are designed to provide clearance for the installation of guttering. The ridge end caps have integral closures to suit either half-round or angle ridge tiles of most commonly available ridge tile types. Complies with the requirements of BS 8612.

HD IDV - Interlocking Dry Verge units, Left or Right Handed

HD TIDV - Thin Leading Edge Dry Verge units, compatible with most thin leading edge tile types, Left or Right Handed

HD IPTDV - Interlocking Plain Tiles Dry Verge units, Left or Right Handed

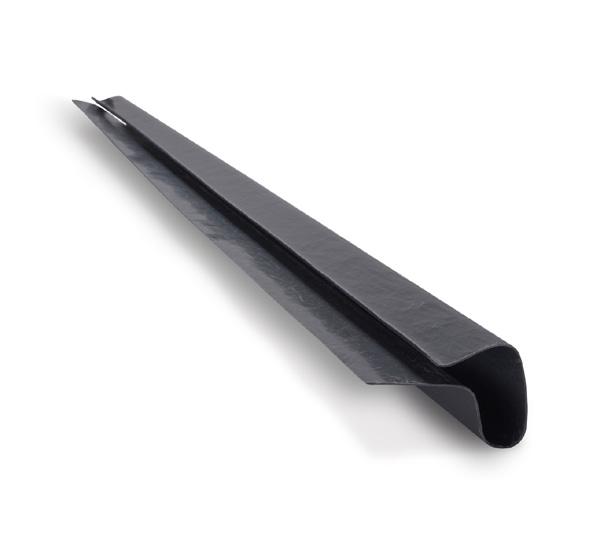

HDL DV6

CONTINUOUS DRY VERGE FOR SLATES

GRP dry fix verge in standard Anthracite colour. Under batten fixing, suitable for natural and man-made slates.

Slate gap: 40mm Length: 3,000mm

HDL DV7

CONTINUOUS DRY VERGE FOR SLATES

For the Scottish practice, sark board or over-batten fixing, suitable for natural and man-made slates. Available in standard Anthracite colour.

Slate gap: 16mm Length: 3,000mm

HDL DV8

CONTINUOUS DRY VERGE FOR SLATES

GRP dry fix verge in standard Anthracite colour. Face fixing, suitable fornatural and man-made slates.

Slate gap: 55mm Length: 3,000mm

HDL DV9

CONTINUOUS DRY VERGE FOR SLATES

GRP dry fix verge in standard Anthracite colour. For the Scottish practice, face fixing, suitable for natural and man-made slates.

Slate gap: 35mm Length: 3,000mm

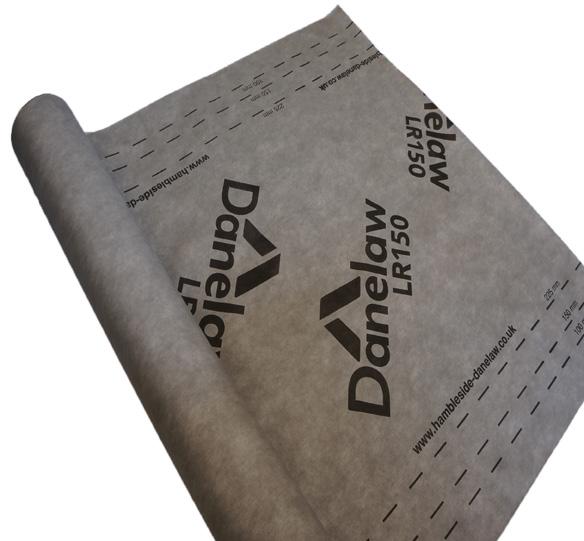

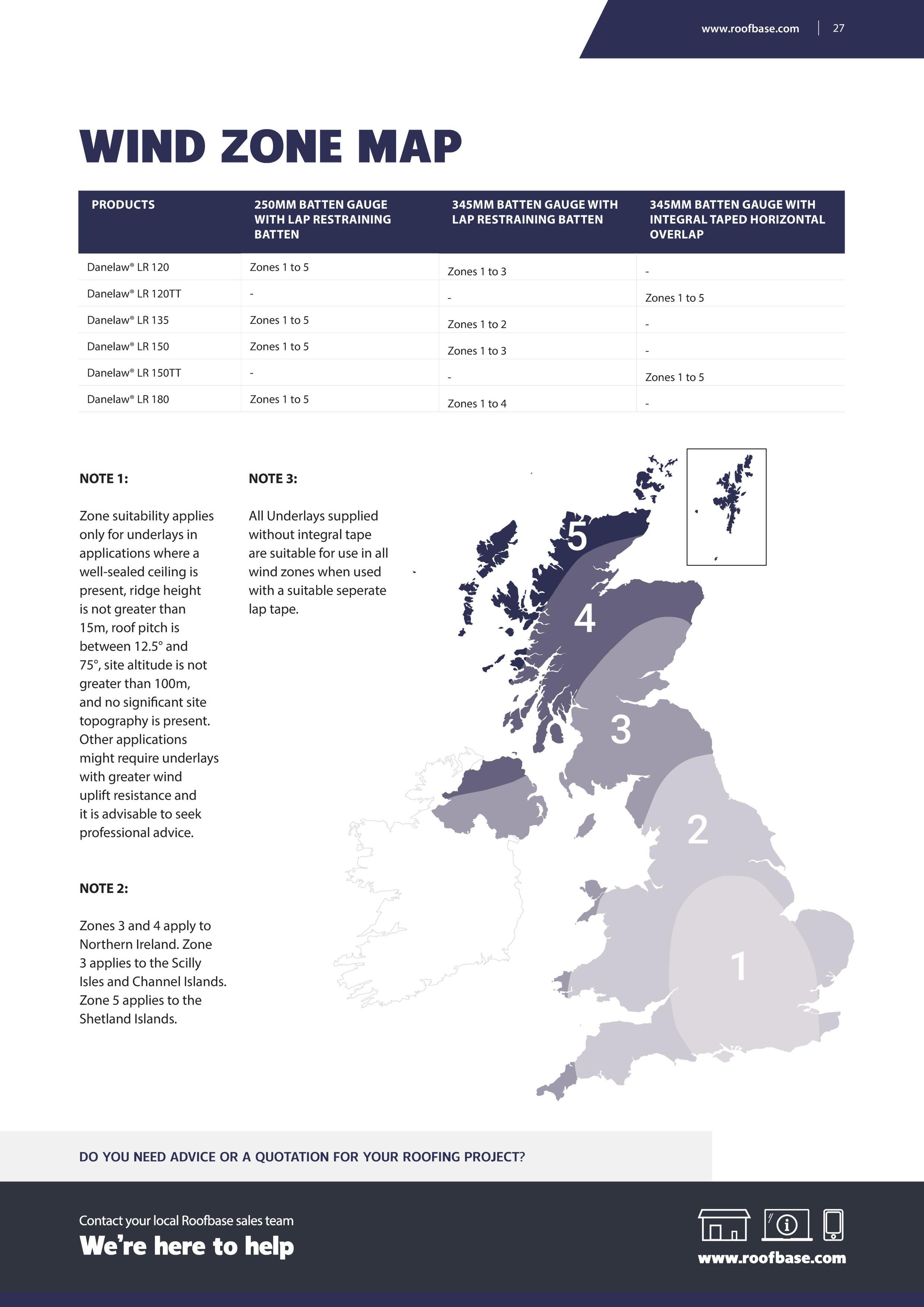

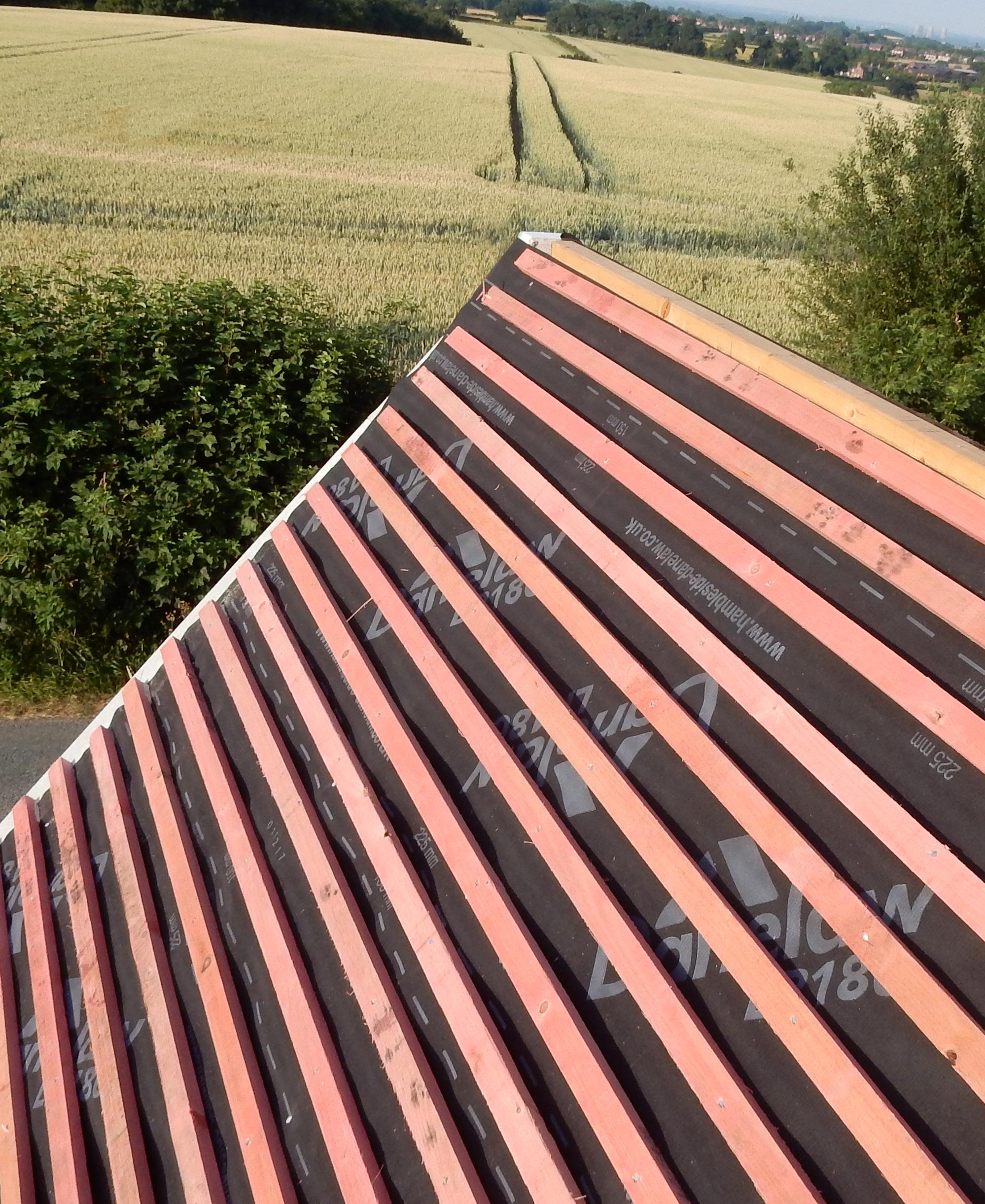

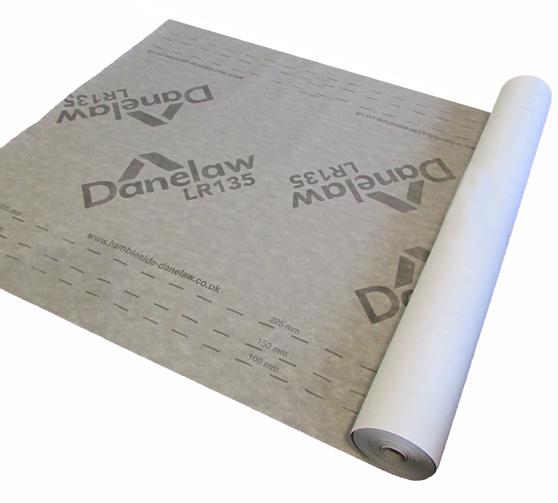

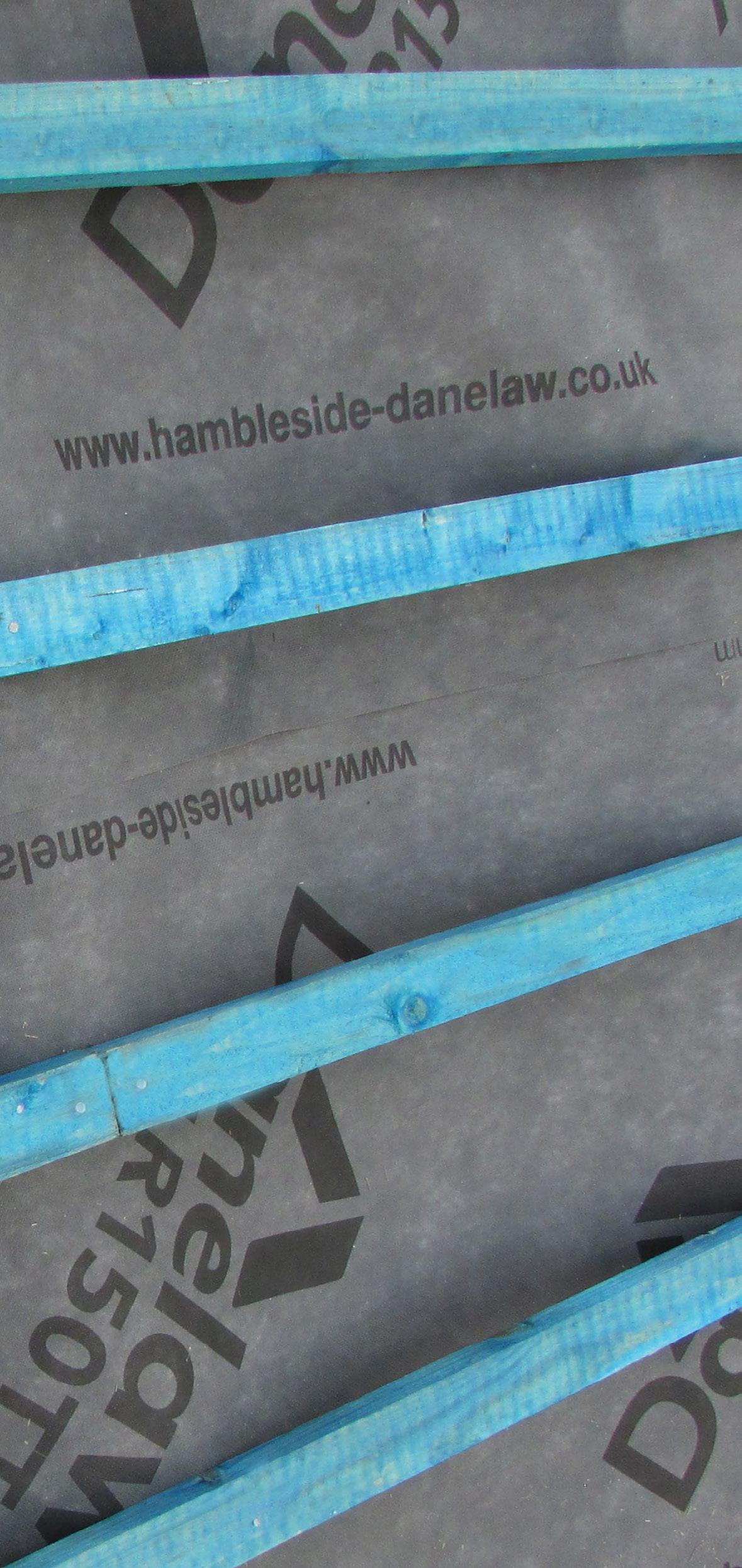

UNDERLAYS

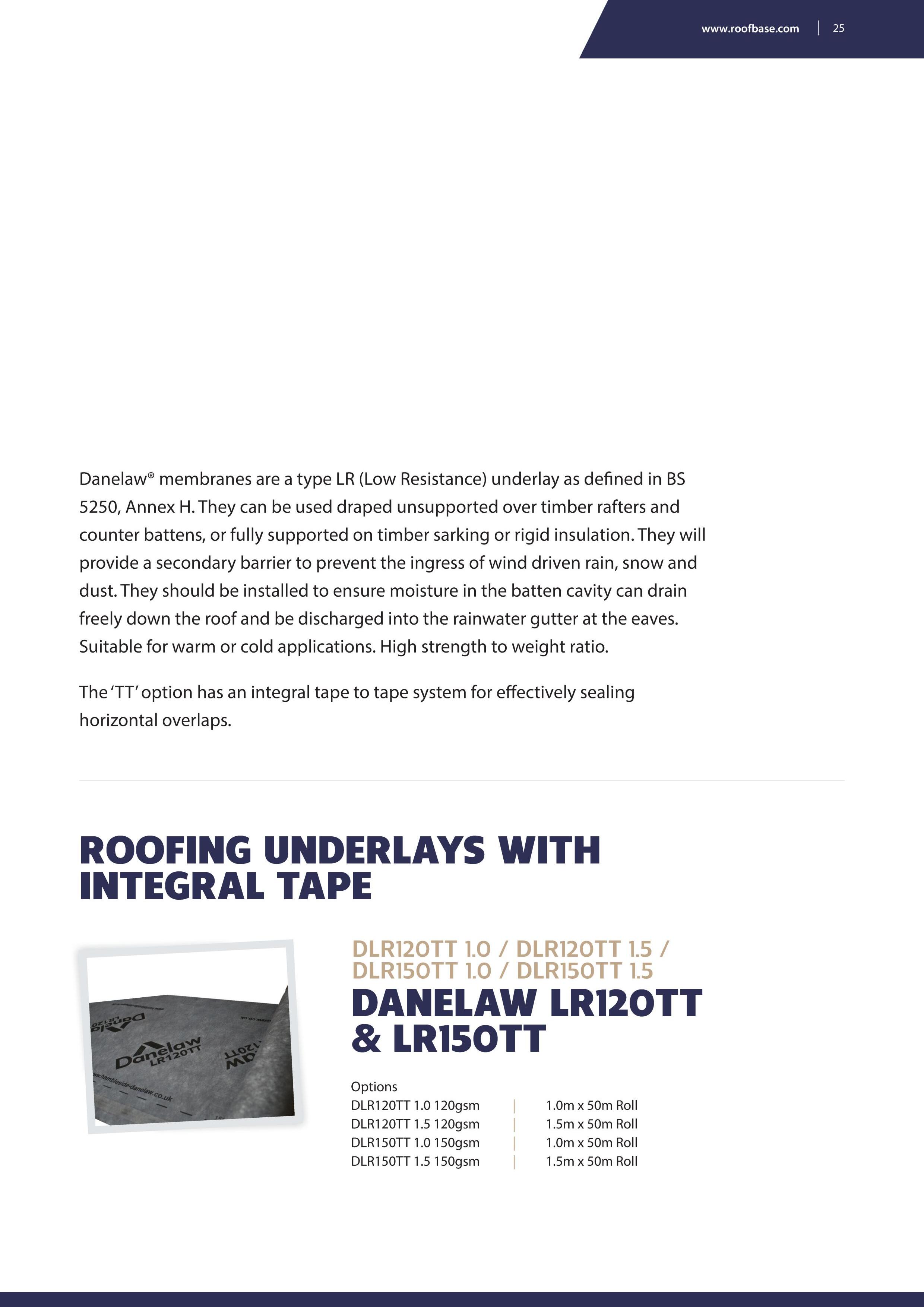

Danelaw® membranes have been developed as a low resistance breathable roof tile and slate underlay which also act as a secondary barrier.

ROOFING UNDERLAYS

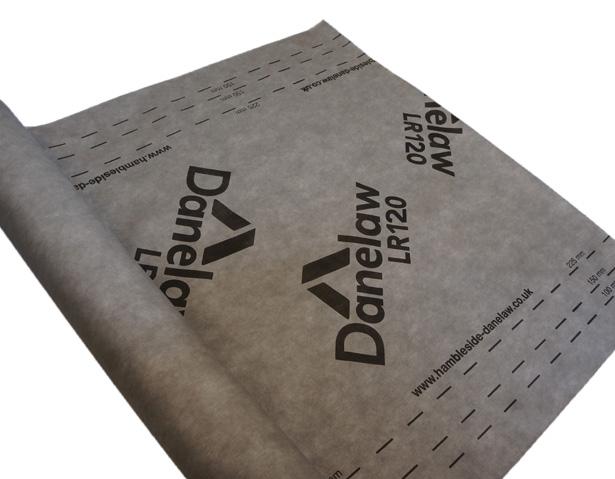

DANELAW LR 120

DANELAW

DANELAW

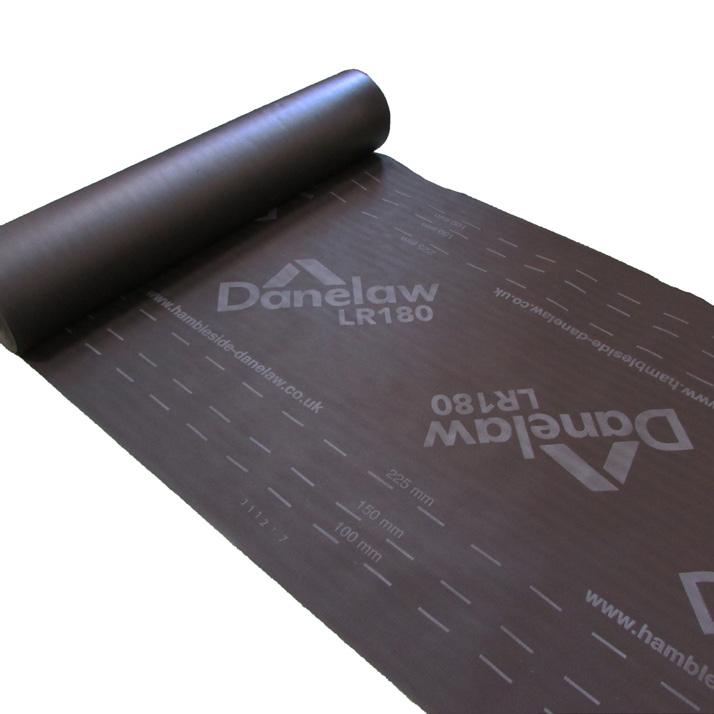

DANELAW LR 180

VENTILATION

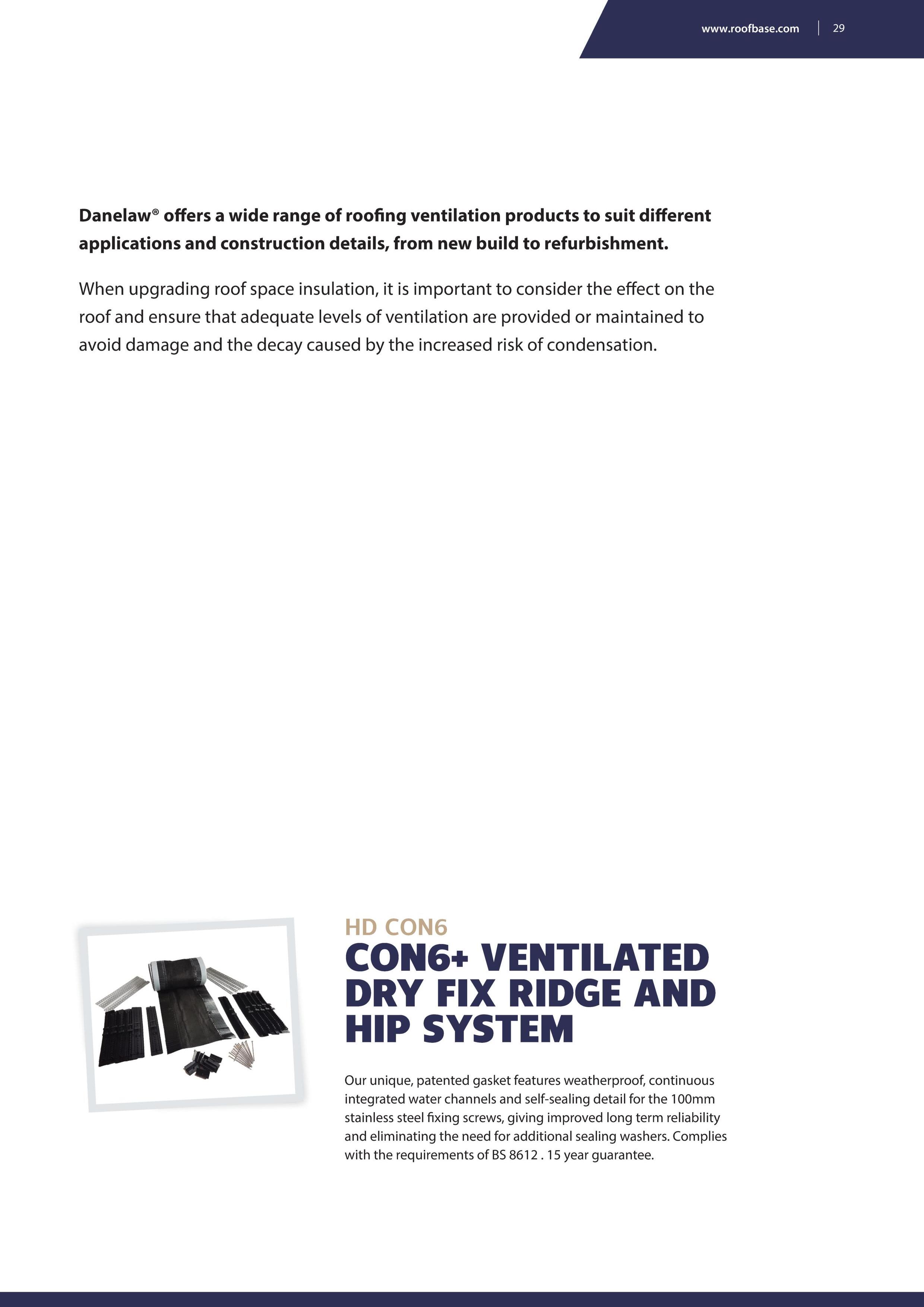

Danelaw® provides a range of roofing ventilation products for many applications to suit design and regulation requirements.

TILE VENT AND SOIL PIPE ADAPTOR COMPATIBILITY

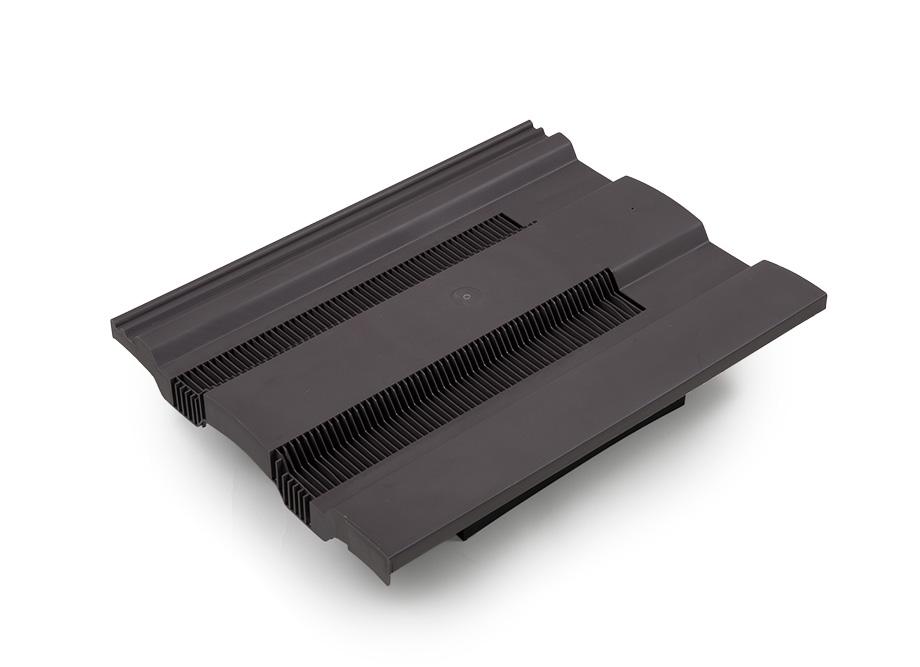

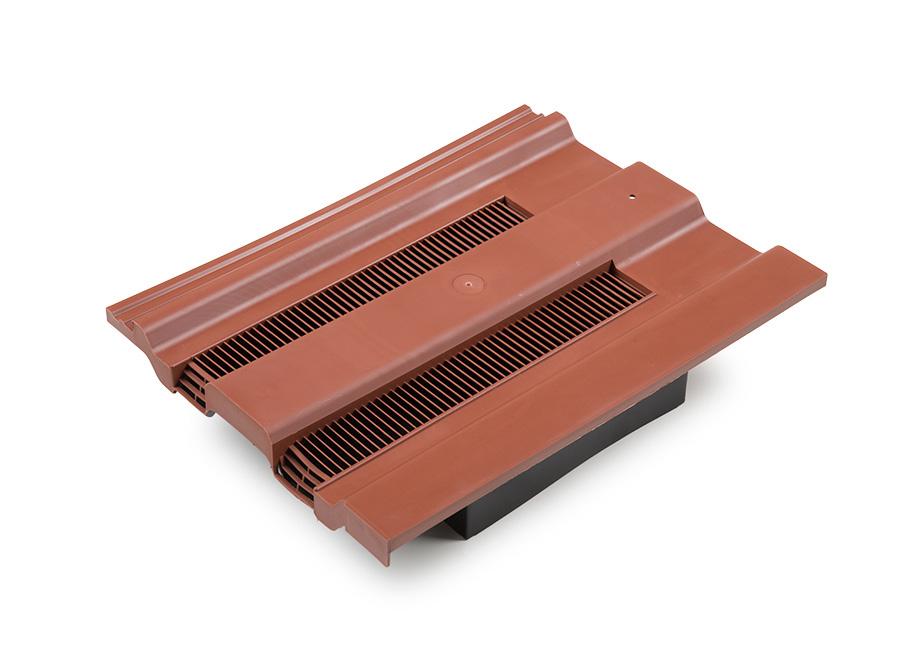

HD TV15/4

TILE ROOF VENT

Compatible with Marley Ludlow Major type and Russells Cheviot type tiles. Made from polypropylene. Available in Black, Brown, Slate Grey, Terracotta and Antique Red

Actual ventilation area 15,000mm2

Minimum rafter pitch 17.5°

HD TV15/7

TILE ROOF VENT

Compatible with Redland Renown type tiles. Made from polypropylene. Available in Black, Brown, Slate Grey, Terracotta and Antique Red.

Actual ventilation area 15,000mm2

Minimum rafter pitch 17.5°

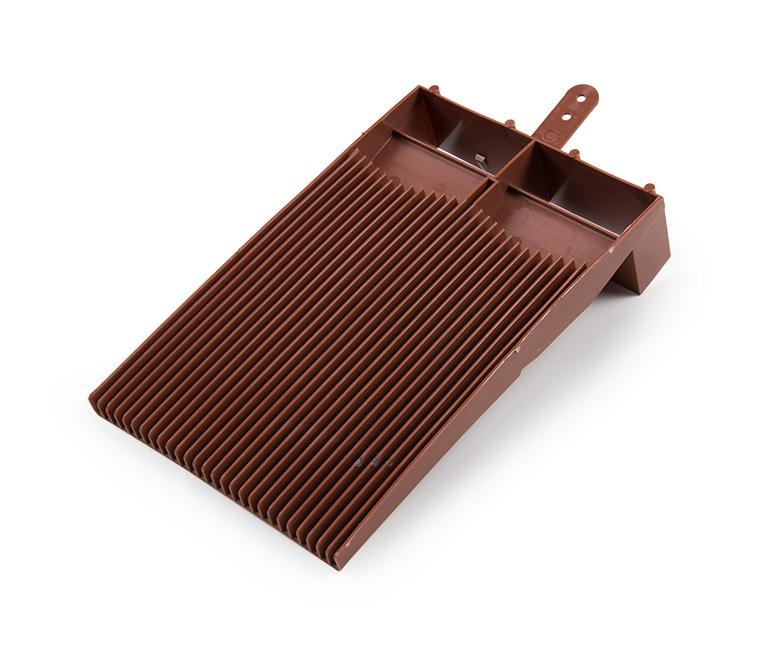

HD TV10/5

PLAIN TILE ROOF VENT

Tile vent compatible with most plain concrete and clay tile types. Made from polypropylene. Available in Black, Brown, Slate Grey, Terracotta and Antique Red.

Actual ventilation area 2,000mm2 Fit 5 per metre to achieve 10,000mm² airflow

Not suitable for mechanical extraction

Minimum rafter pitch 35°

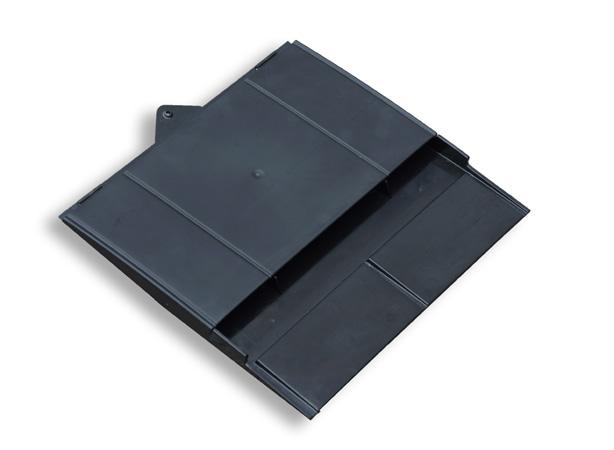

HD TV10/10

DOUBLE SLIP TILE ROOF VENT

This flush fitting tile vent is designed to incorporate adhered small cuts of plain clay or concrete tiles to complete an uninterrupted roofscape. Ideal for mass produced or hand made plain tile types. Available in Black.

Ventilation airflow area 6,100mm²

Length: 310mm

Width: 330mm

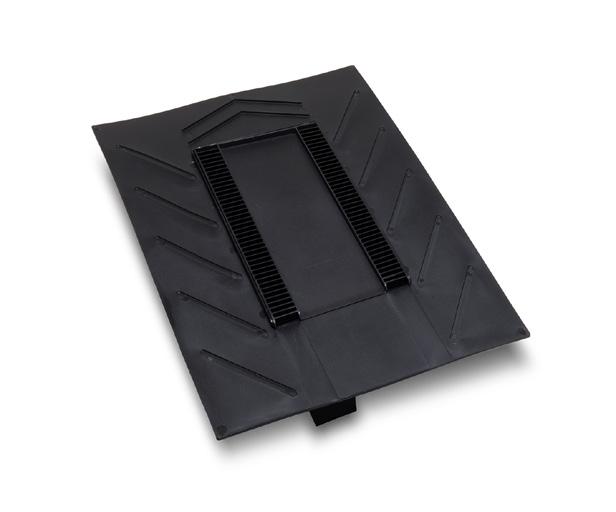

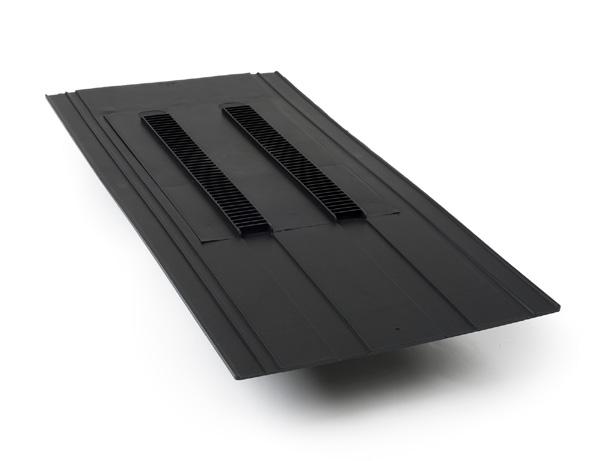

HD ILSRV10/20 / HD ILSRV10/24

FLUSH FIT SLATE ROOF VENT

Flush fit slate roof vent for man-made or natural slates. Suitable for soil ventilation or mechanical extraction. Available in Black, Grey to order.

HD ILSRV10/20

Base size 565 x 290mm to suit 500 x 250mm slates

HD ILSRV10/24

Base size 615 x 300mm to suit 600 x 300mm slates

Actual ventilation area 10,000mm2

Minimum rafter pitch 22.5º or 25º depending on head lap.

HD ILSRV10U

UNIVERSAL FLUSH FIT SLATE ROOF VENT

Flush fit slate roof vent with universal application. Suitable for soil ventilation or mechanical extraction. Available in Black.

Size to suit either: 600 x 300mm or 500 x 250mm or 450 x 230mm slates

Actual ventilation area 10,000mm2

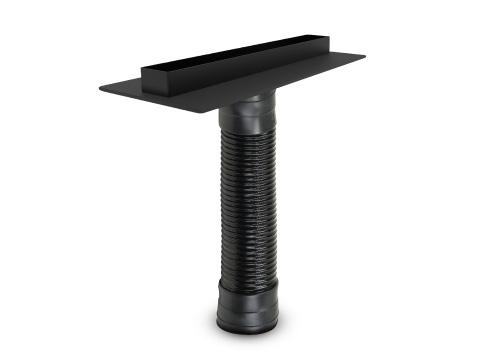

HD DPCSPA

SOIL PIPE ADAPTOR KIT FOR TILE VENTS

Connects standard 110mm pipework to the HD TV10/9 and HD TV10/10 vents.

HD DPCA Adaptor only

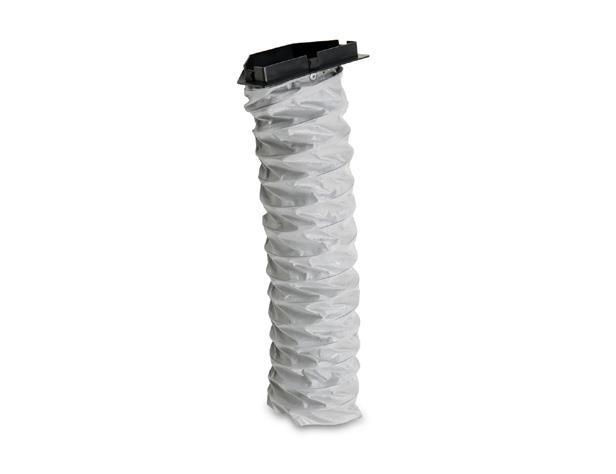

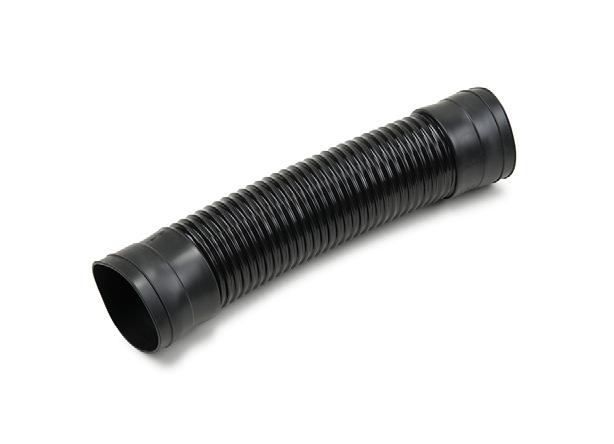

HD FPC

FLEXI PIPE CONNECTOR

Flexi pipe can be used as an extension to all HDL Soil Pipe Adaptor kits. Suitable for external fit to standard 110mm plastic pipes for soil ventilation and mechanical extraction.

Overall length: 510mm

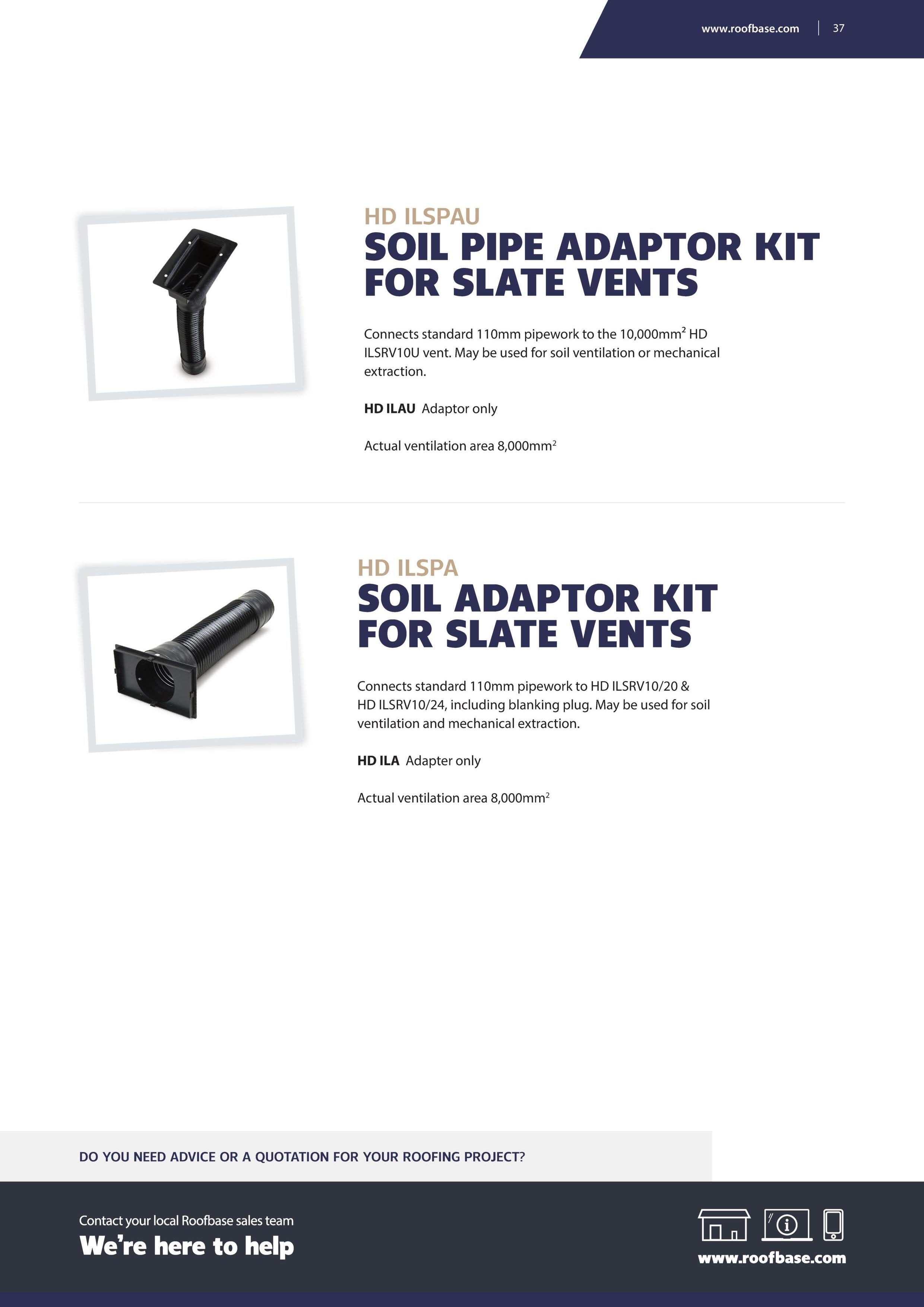

HD SPA

SOIL PIPE ADAPTOR KIT FOR SLATE VENTS

Connects standard 110mm pipework to 10,000mm2 vents. May be used for soil ventilation and mechanical extraction.

Actual ventilation area 8,000mm2

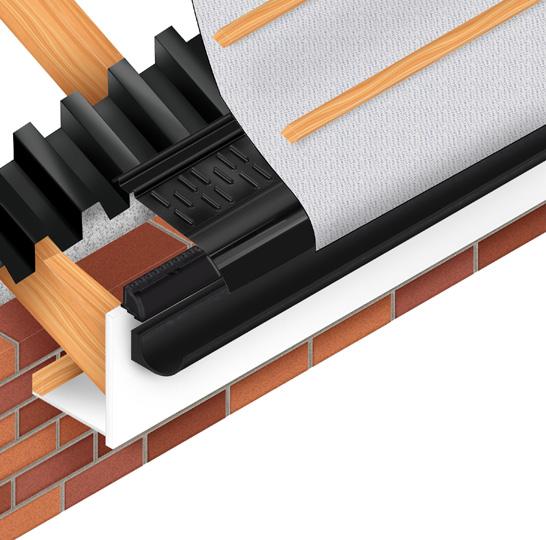

HD3025VP / HD3000VP

UNIVERSAL 3-IN-1 VENT PACK

Ideally suited for eaves refurbishment, but can also be used on new build, this rigid PVC unit provides an immediate and cost effective solution to situations where damage to the roof underlay or felt has occurred.

HD 3025VP Comprising 1 x 6m roll panel vent, 10 x 600mm underlay support trays and 6 x 1m lenghts of universal over fascia vent. Airflow at 10mm fixing position 25,000mm2

Airlfow at 25mm fixing postiion 25,000mm2

HD 3000VP Compirsing 6 x 1m lengths of standard over fascia vent. All other components as HD 3025VP. Actual airflow per metre 10,000mm2

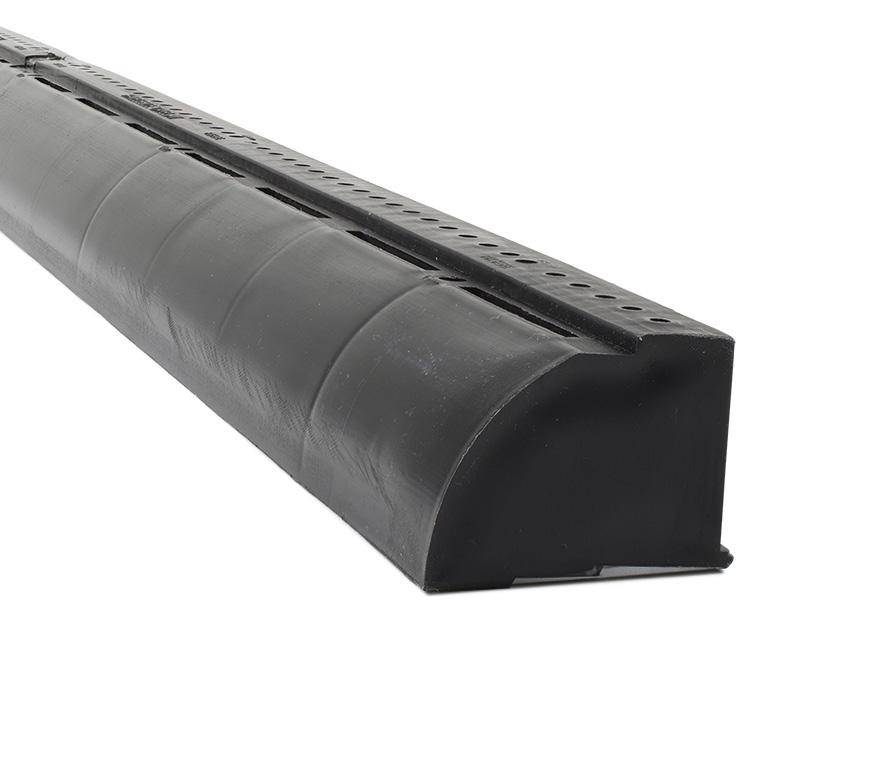

HD12000U / HD1200M OVER FASCIA VENTILATORS

For refurbishment and new build details.

HD12000U to suit 10mm and 25mm opening requirements

Airflow at 10mm fixing position 10,000mm2

Airflow at 25mm fixing position 25,000mm2

H 36mm x W 48mm x L 1,000mm

HD12000M to suit 10mm opening requirements

Actual ventilation per metre run 10,000mm2

H 19mm x W 33mm x L 1,000mm

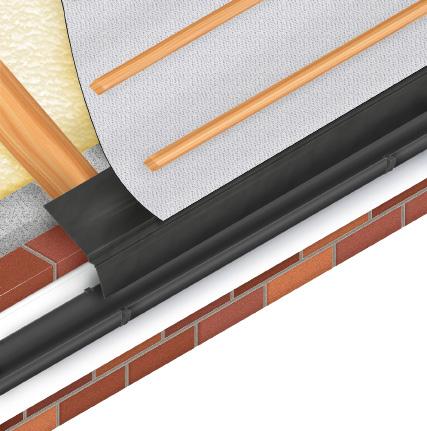

HD RFST RIGID UNDERLAY SUPPORT TRAY

Ideally suited for eaves refurbishment, but can also be used on new build. This support tray provides an immediate and cost effective solution to situations where damage to the roof underlay or felt has occurred.

L 1,500mm

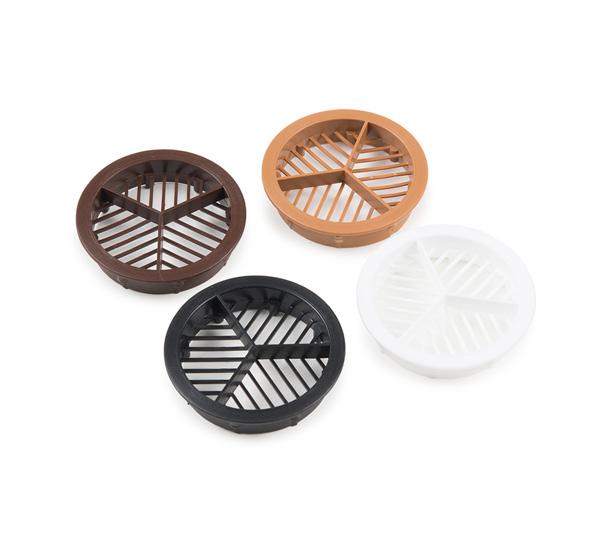

HD7000

CIRCULAR SOFFIT VENT

Easy to fix vent ideal for refurbishment projects. Black, White, Brown and Light Oak polypropylene. Airflow varies according to spacing.

Airflow per unit 2,500mm2

Airflow per metre at 250mm centres 10,000mm2.

Height 16mm

Hole size 70mm

Base diameter 80mm

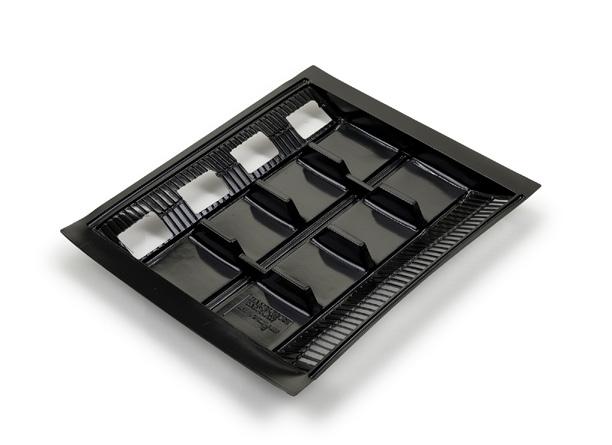

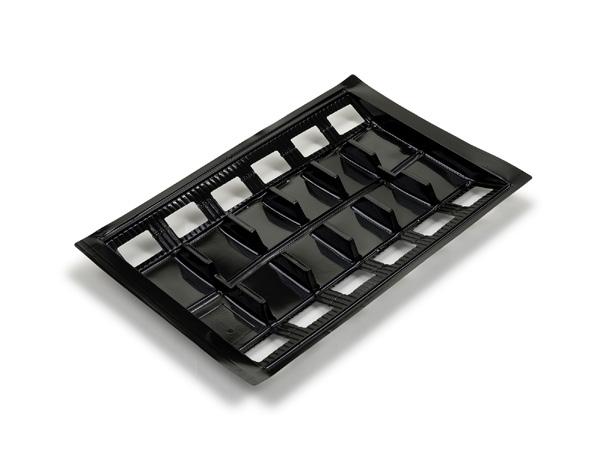

HD6000 / HD4500 / HD4000 UNIVERSAL PANEL VENT

HD 6000

Size to suit 600mm rafter centres Universal Panel Vents for use over the insulation, positioned between rafter centres to ensure clear airway. Unique design enables use on roof pitch either below 15° or above 15°.

Actual airflow per panel 16,000mm2

HD 4500

Size to suit 450mm rafter centres

Actual airflow per panel 12,000mm2

HD 4000

Size to suit 400mm rafter centres

Actual airflow per panel 9,000mm2

HD6050 / HD4550 / HD4050

SINGLE ROW FLYSCREEN PANEL VENT

HD 6050

Size to suit 600mm rafter centres

Panel vent for open eaves details with single row flyscreen, positioned between the rafters on roofs above 15° pitch.

Actual airflow per panel 6,843mm2

HD 4550

Size to suit 450mm rafter centres

Actual airflow per panel 5,132mm2

HD 4050

Size to suit 400mm rafter centres

Actual airflow per panel 4,474mm2
