Ravi N. Mistry | Architectural Internship Portfolio

Page 1


RAVI N. MISTRY

ARCHITECTURAL INTERNSHIP PORTFOLIO

VIVA School Of Architecture, Shirgaon Virar

11th December 2023 to 30th March 2024

EXAM SEAT NO. 24813

CRAFT SPACES is a multidisciplinary firm, of Architecture, Interior and Landscape founded in 2017 by Ar. Sudhanshu Yande and Ar. Abhishek Dukane.

Overview of the Firm

Located at B-001, Prestige Apartments, Yashavant Srushti, Boisar (West), Maharashtra, India, with a postal code of 401501, Craft Spaces is a dynamic architectural firm founded in the year 2017 Jointly led by Sudhanshu Yande and Abhishek Dukane, who serve as the Principal Architects, Craft Spaces has quickly established itself as a versatile player in the architectural landscape.

Scope of Work:

Craft Spaces specializes in a diverse range of projects, catering to both private clients and corporate entities. Their portfolio includes architecture, interior, and landscape design services for residential, commercial, institutional, and hospitality projects. From row houses and residences to commercial offices and large scale institutional developments, Craft Spaces prides itself on its ability to adapt and excel across various scales and typologies

Design Philosophy:

At Craft Spaces, the design ethos revolves around reconnecting architecture with nature and maximizing the use of space, natural materials, and lighting to redefine and enhance the built environment Their approach is characterized by a commitment to creating designs that not only inspire but also positively influence lifestyle and society at large. Attention to detail, honesty in design, and a focus on client satisfaction and sustainability are the driving forces behind every project undertaken by Craft Spaces.

Professional Accreditation:

The Principals of Craft Spaces are registered architects with the Council of Architecture and the Maharashtra Industrial Development Corporation (MIDC), ensuring a high level of professional expertise and adherence to industry standards

Vision:

Craft Spaces is dedicated to a creative design approach tailored to each project, striving to strike a harmonious balance between functionality and aesthetics, contextual relevance, climatic considerations, materiality, costeffectiveness, and project timelines.

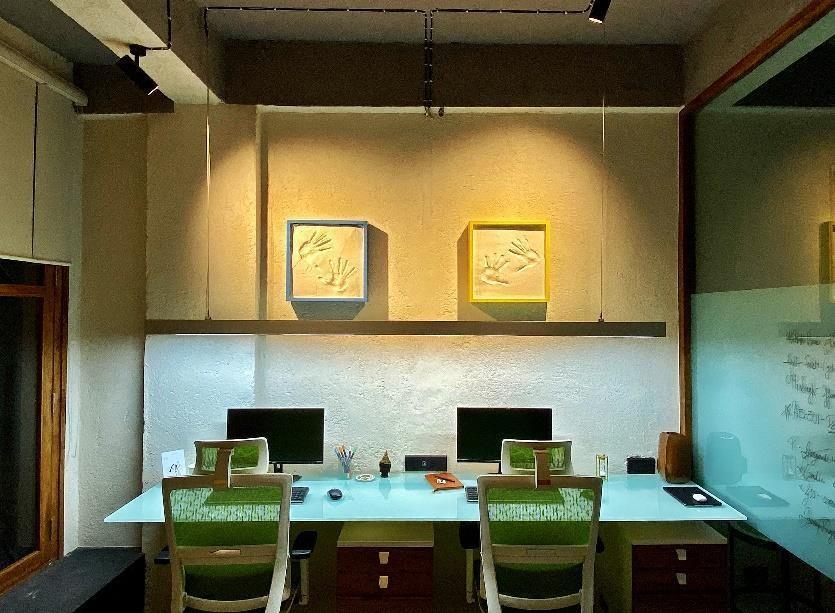

WORK STATION

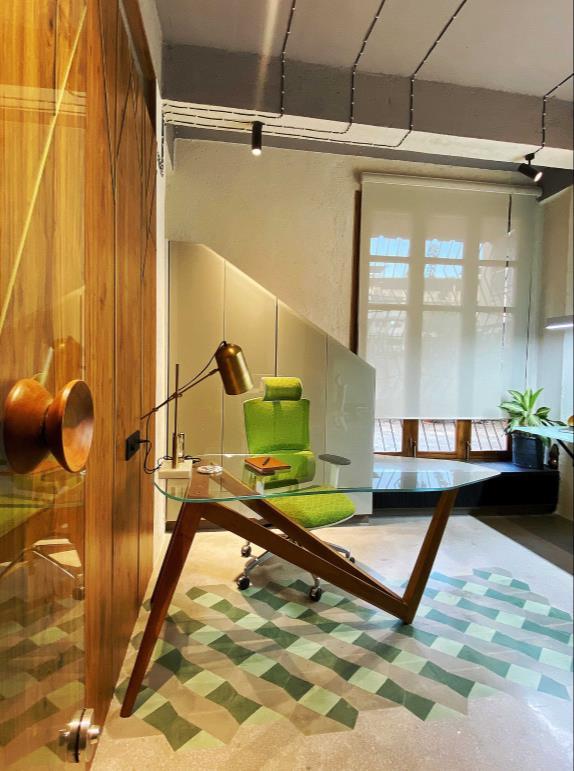

DIRECTOR’S CABIN
DIRECTOR’S CABIN

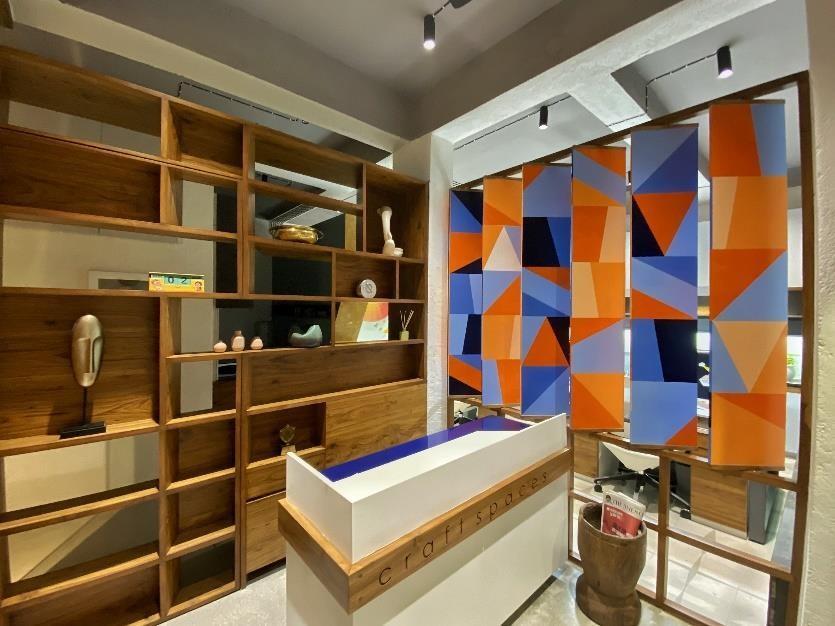

RECEPTION AREA

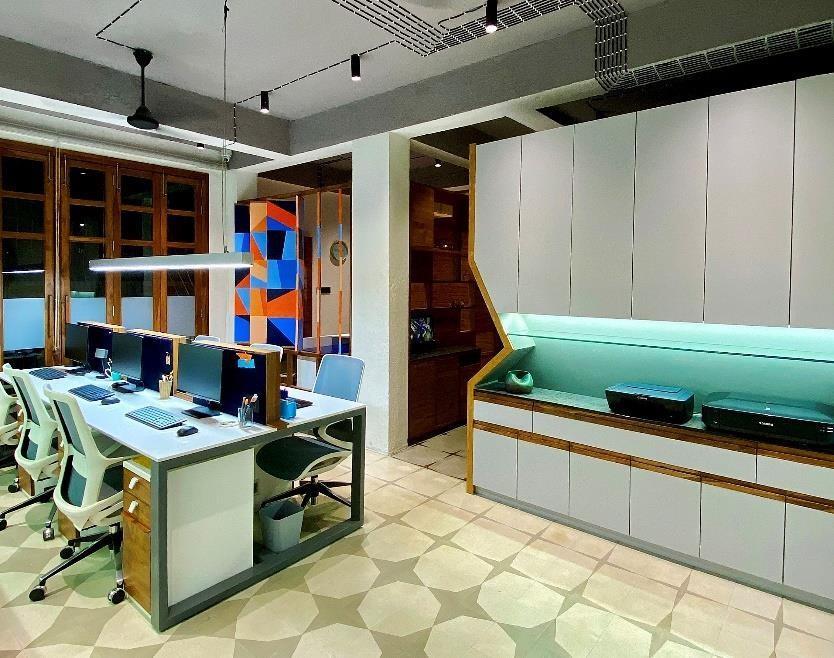

WORK STATION

Dilip Pimple

Name: Dilip Pimple

Location: Bordi Dahanu

Type: Architecture

Area: 5740.00 Sq.Ft.

Status: Under Execution

A harmonious blend of tradition and innovation, this residence exudes timeless charm while embracing contemporary living The terracotta roof, meticulously crafted with artisanal precision, crowns a home that whispers of craftsmanship and elegance at every turn. From its inviting façade to the thoughtfully curated interior spaces, this house is a testament to creating dwellings that transcend mere structure, offering a sanctuary where heritage meets modernity.

Name: RC-22

Location: Boisar

Type: Architecture

Area: 10763.9 Sq.Ft.

Status: Under Execution

TYPICAL FLOOR PLAN

Name: TVM Tarapur Vidhya Mandir School

Location: Boisar

Type: Institutional

Area: 174579.86

Status: Under Execution

SECTION AA’
SECTION BB’
GROUND FLOOR PLAN
FIRST FLOOR PLAN

JSW RECREATIONAL CENTER

Name: JSW Recreational Cente

Location: Boisar

Type: Commercial

Area: 61324 Sq.ft

Status: Proposal

SITE ANALYSIS

GROUND FLOOR PLAN
FIRST FLOOR PLAN

Heather Grey

Name: Heather Grey

Location: Lodha Industrial and Logistics

Park– 2, Palava Maharashtra

Type: Industrial

Area: 100,351.94 Sqft.

Status: Proposal

BLOCK MODEL

• Stitching Area

• Lift 1 & Lift 2

• Sampling unit

• Warehouse

• Creche

• Canteen

• Lift 1 & Lift 2

• Utility Room

• Labor Entry

• Green Space

• Services Area

• Finished Goods Storage

• Raw Fabric Storage

• Locker room

• Parking for Cars and Bikes

• Warehouse

• Cutting Checking

• Embroidery Area

• Printing Area

• Stitching Area

• Design room

• Warehouse

• Admin

• Design room

• Warehouse

• Green Area

Interior Design

Name: Chinchani Bedroom

Location: Chinchani

Type: Interior design

Area: 205.00 Sq.Ft.

Status: Under Execution

HEADBOARD ELEVATION

M-4, M-15 MIDC, Tarapur, Boisar Industrial 19577 sq. mt. 2022-2023 Completed

Client:

JSW Steel Ltd

B-6 MIDC, Tarapur, Boisar Industrial 222385 sq. mt. 2021-2022 Completed

Client: Location: Type: Area: Year: Status: Camlin D 2/3 MIDC, Tarapur, Boisar Industrial 28077 sq. mt. 2023- 2024 Under - Execution

Client: Location: Type: Area: Year: Status: Tata Steel Pvt Ltd. F-8/1 MIDC, Tarapur, Boisar Industrial 115020 sq. mt. 2022 Completed
