PORTFOLIO RODRIGUEZRAMIRO UNIVERSITY OF TEXAS AT RAMIRO.RODRIGUEZ@MAVS.UTA.EDUARLINGTON(214)533-4189
CONTENTSOFTABLE ■ (1) MAISON COOK ENTRY SEQUENCE STUDY ■ (2) LIBRARY AND GARDEN ■ (3-4) GENERATOR ■ (5-6) INCUBATOR ■ (7-10) AULDBRASS VISITOR CENTER
■ (17-18) COMMUNITY CATALYST CENTER ■ (19-20) THE DWELL ■ (11-14) AULDBRASS EXHIBIT DESIGN ■ (15-16) WORK/LIVE
THE BOTTOM LEFT IMAGE FURTHER STUDIES THE SLOTS BY THE USE OF TWENTY-ONE PLANES WITH THE SLOTS EXTRACTED FROM THEM TO PORTRAY THE STEADY FLOW.
1

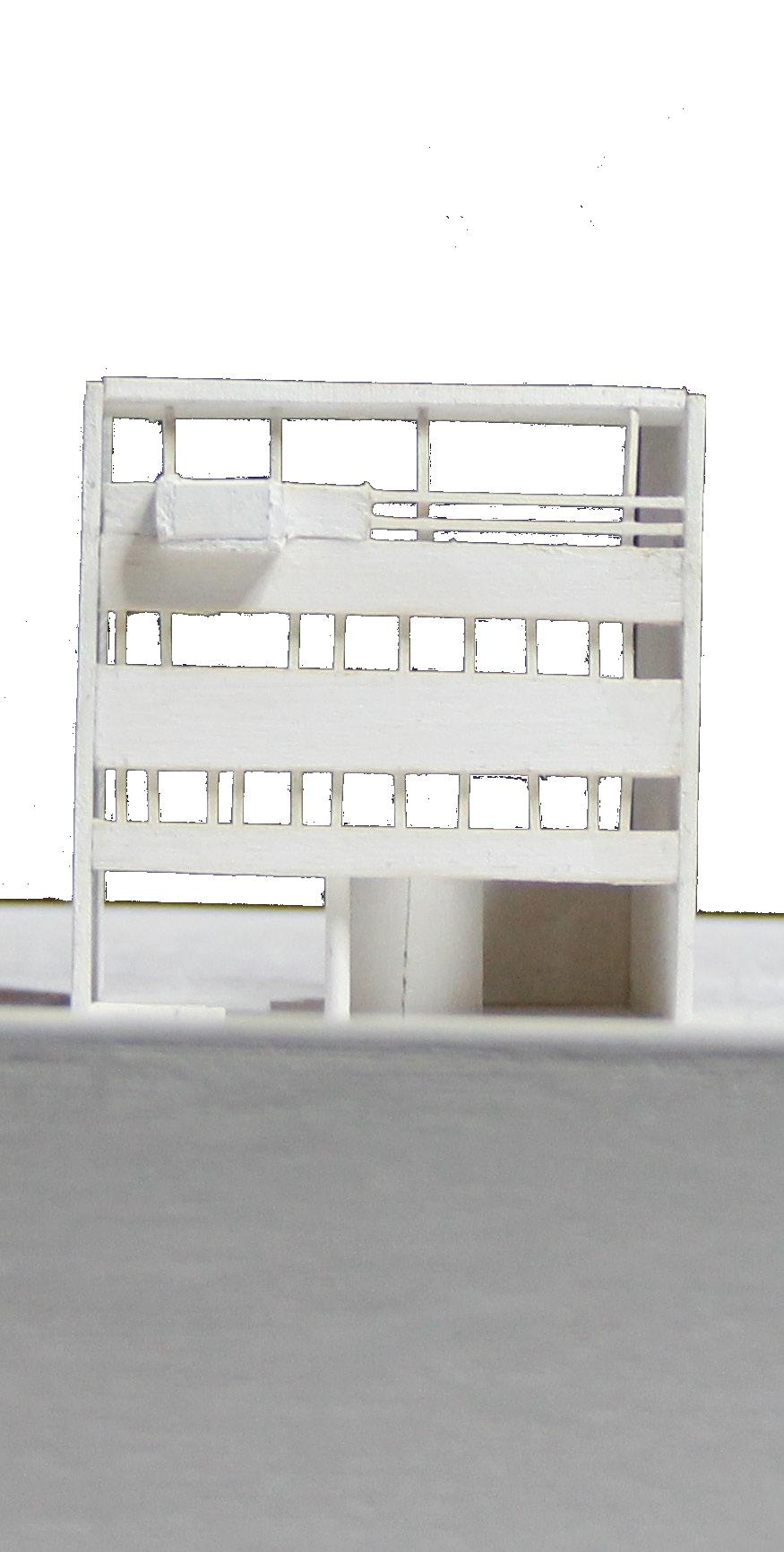

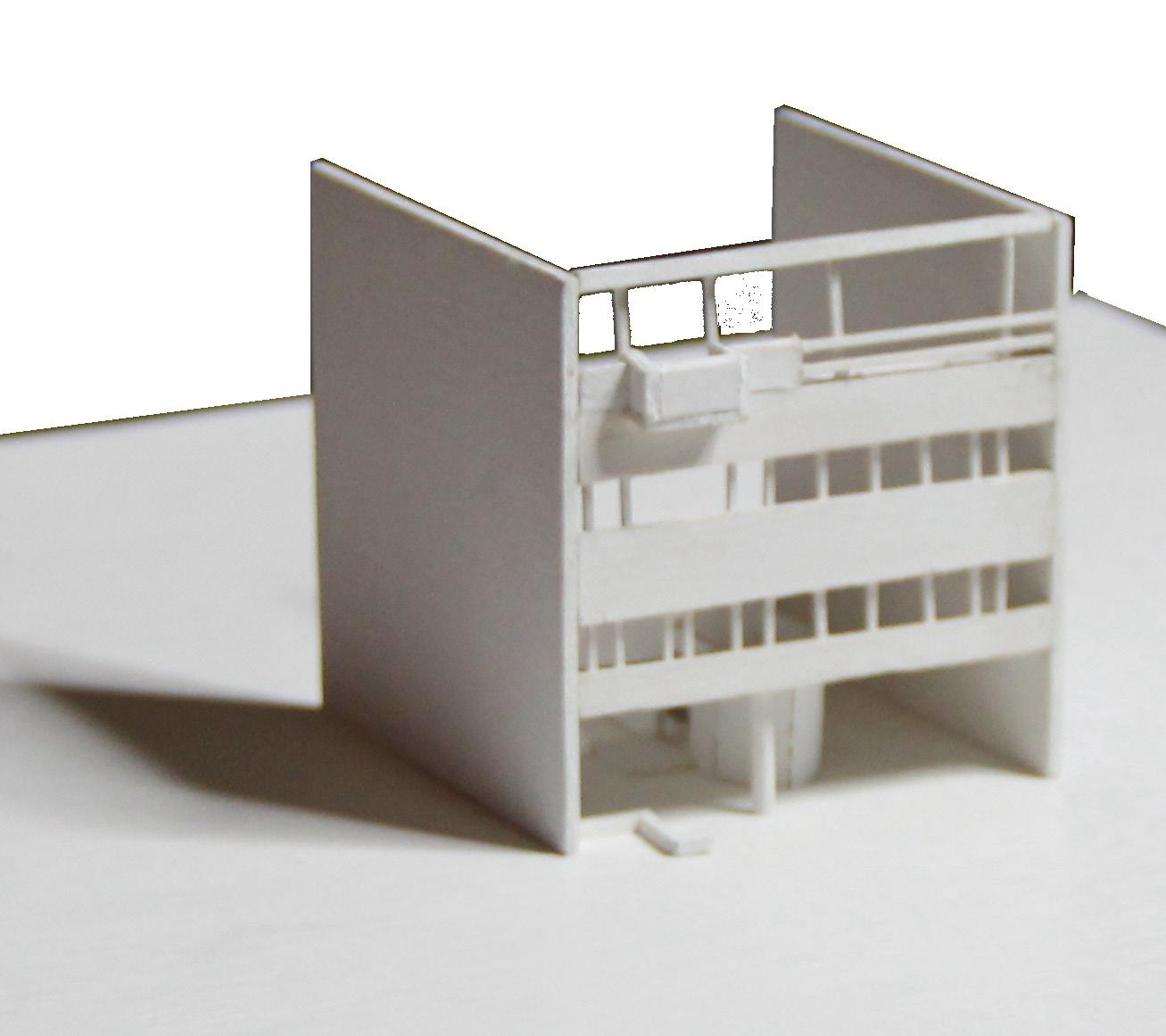

THESE ARE ENTRY SEQUENCE STUD IES OF MAISON COOK DESIGNED BY LE CORBUSIER CONSISTING OF THREE MAIN SLOTS THAT THE OUTER TWO LEAD YOU TO THE MAIN STAIRCASE.
STUDYSEQUENCEENTRYCOOKMAISON
THE BOTTOM RIGHT IMAGE IS A STUDY DONE WITH ONE HORIZONTAL AND SEVEN VERTICAL PLANES TO CREATE A SLOT STUDY OF THE ENTRY SEQUENCE.
2
GARDENANDLIBRARY
THIS PROJECT TO DESIGN A LIBRARY AND GARDEN SPECIFICALLY FOR A CLIENT THAT INCORPORATES MULTIPLE PROGRAMS SUCH AS A LIBRARY FOR THE CLIENT AS WELL AS A GARDEN INCLUDING A BERM, A NORTH STAR VIEWING WINDOW, AN EXTRACTION, A WATER SEQUENCE AND AN ALLY OF TREES. THE REST OF THE DESIGN WAS LEFT TO US WITH THE USE OF MODU LAR AND SCALAR GRIDS THAT ASSIST IN THE APPLICATION OF MULTIPLE SLOT CONDITIONS AND VIEW POINTS. LASTLY WE WERE PAIRED UP WITH A CLASSMATE TO ALIGN OUR GRIDS AND APPLY SOME OF THEIR GRIDING INTO OUR PLANS OF THE GARDEN.
GENERATOR
4

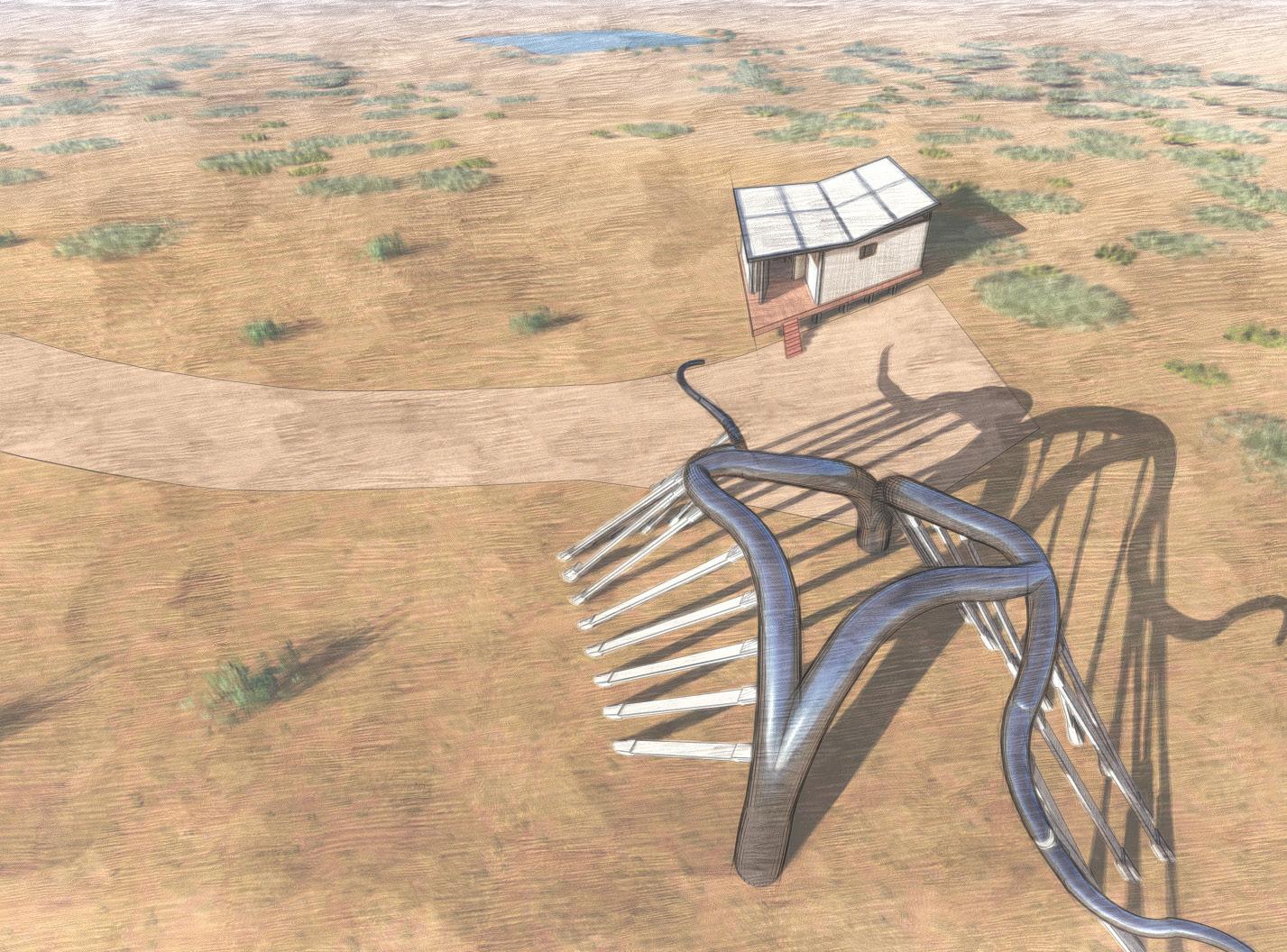

THIS PROJECT WAS BASED OFF OF THE GUIDELINES FOR THE LAGI COMPETITION. THE PURPOSE WAS TO CREATE A GENERATOR THAT SERVED WAS BUILT TO LAST AND SUPPORT ENVIRONMENTAL PRESERVATION ALL WHILE CREATING AN ART PIECE AS WELL. MY PARTNER, ALEXIA SIMIONI, WERE APPOINTED THE TASK TO CREATE A WIND POWERED GENERATOR THAT SHOWS WIND AND MOVEMENT WHICH WAS SUPPORTED THROUGH THE WINDBELT TECHNOLOGY AS WELL AS HE ORIENTATION OF THE STRUCTURE.
5 INCUBATOR
6
THIS SHELTER IS SPECIFICALLY DESIGNED FOR AN ENVIRONMENTAL STUDIES COURSE TO COME OUT COMPOSED OF THREE STUDENTS AND ONE PROFESSOR TO STUDY THE NATIVE SPECIES AS WELL AS WAYS TO PRESERVE THE LAND.
THE SHELTER USES A SERIES OF 3’ PANELS TO ASSEMBLE BETWEEN STEEL BEAMS.
THIS PROJECT WAS TO CREATE A TEMPORARY SHELTER FOR THE LAGI COMPETITION THAT WOULD BE POWERED BY THE GENERATORS CREATED FOR THE COMPETITION AND POTENTIALLY BE ALIGNED OR BUILT WITHIN IT.

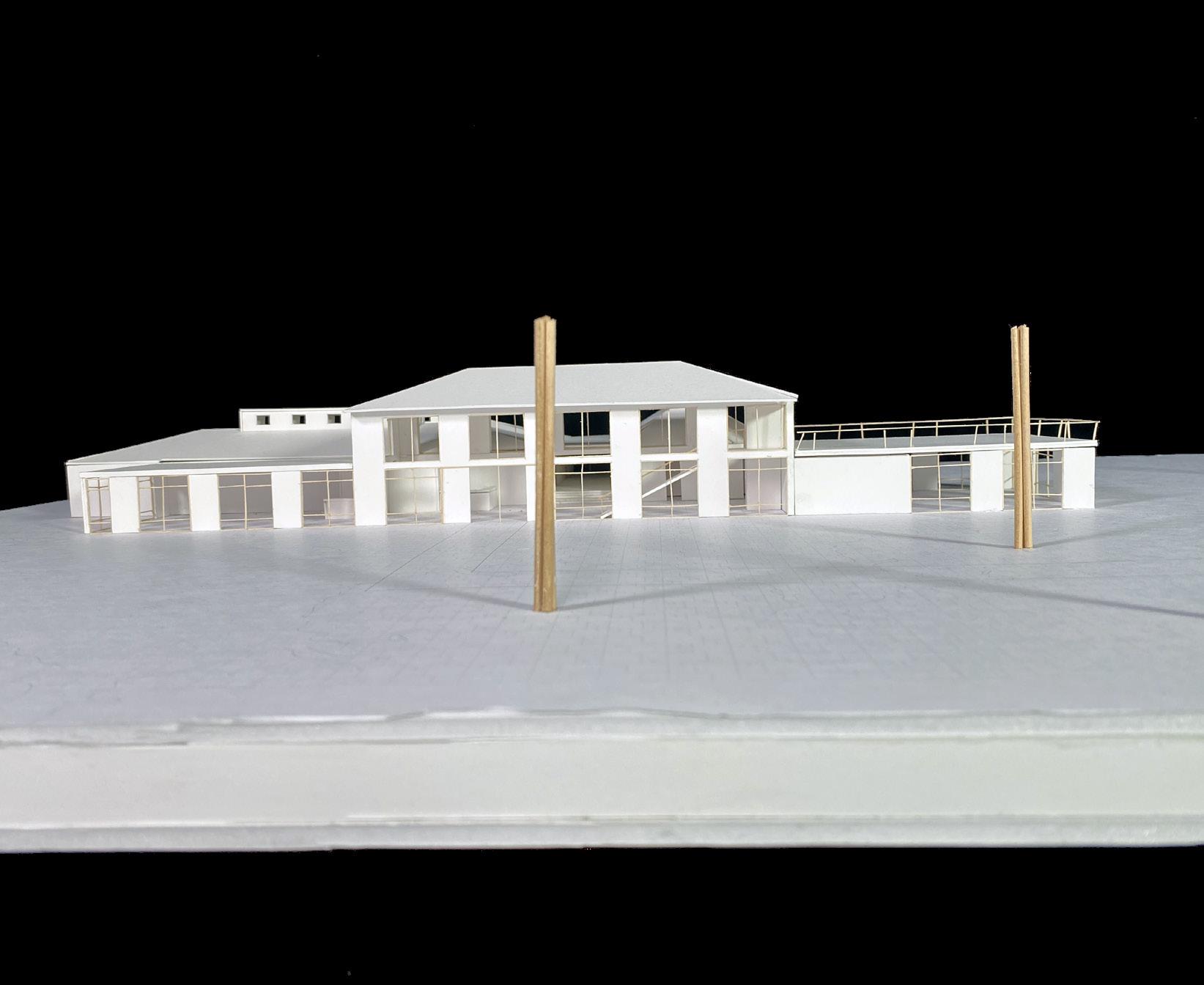

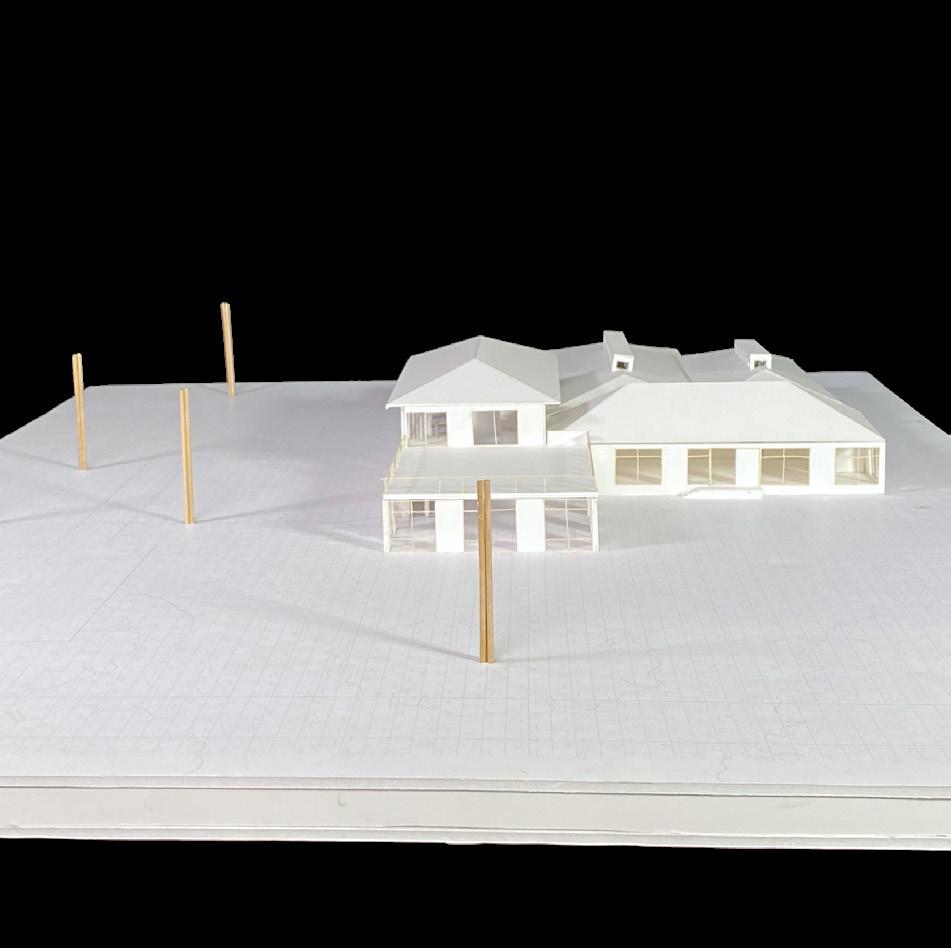

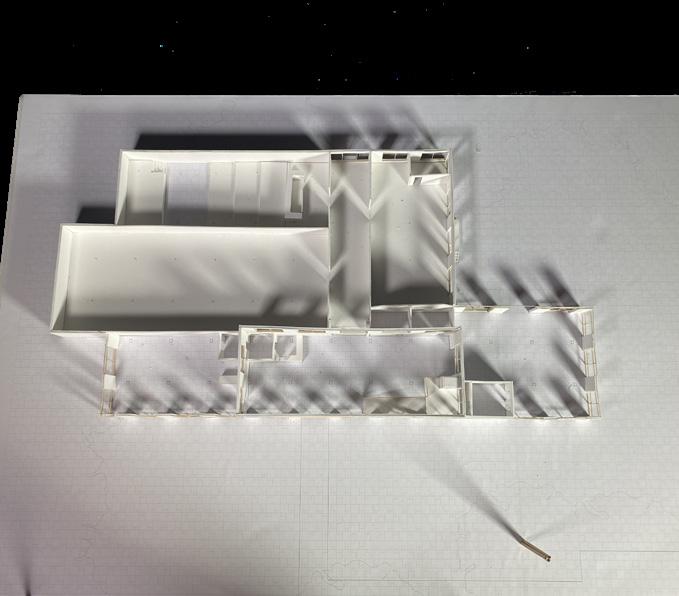

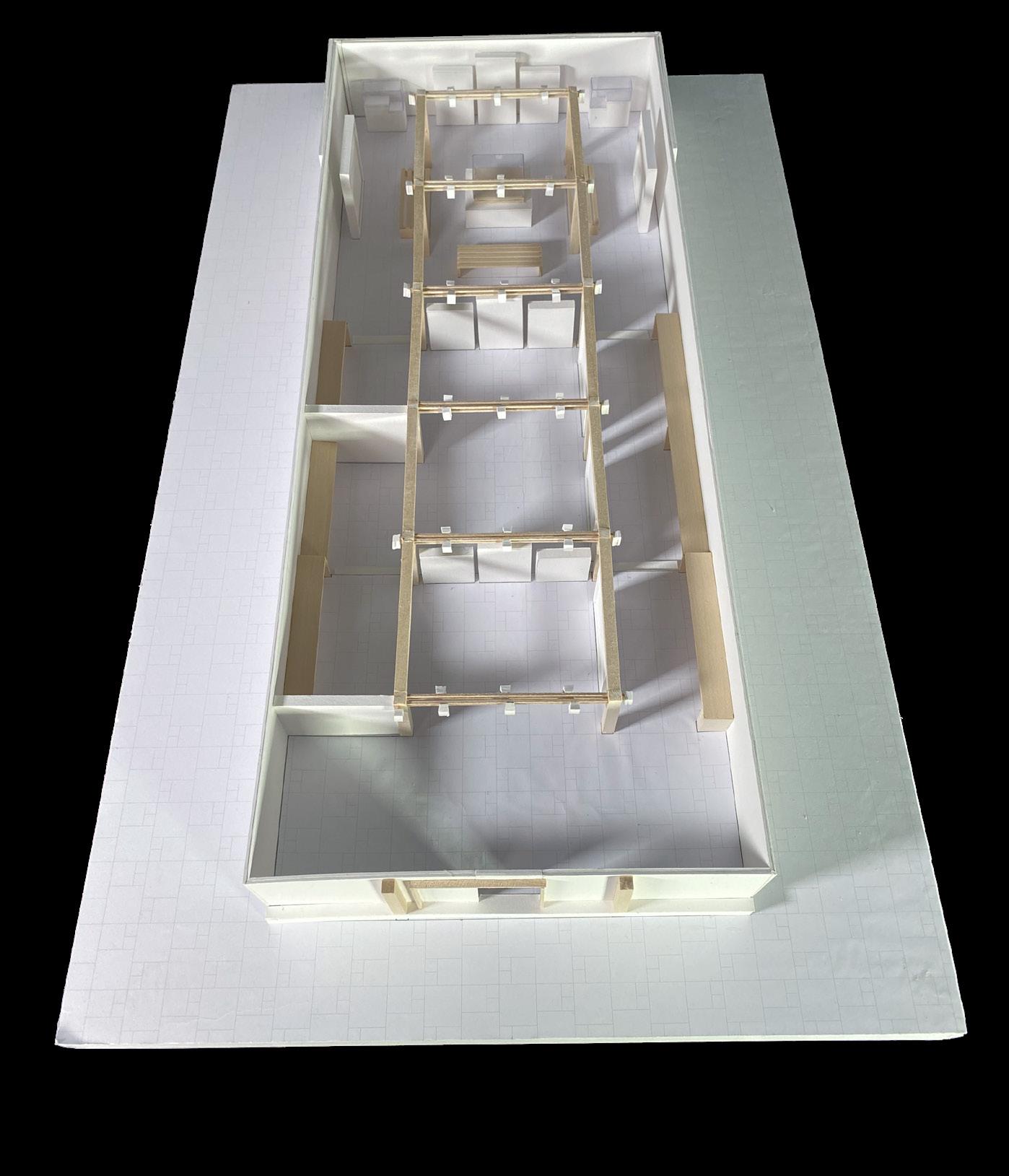

CENTERVISITORAULDBRASS THE VISITOR CENTER PHYSI CAL MODEL WAS BUILT AT A 1/8 INCH SCALE. 7

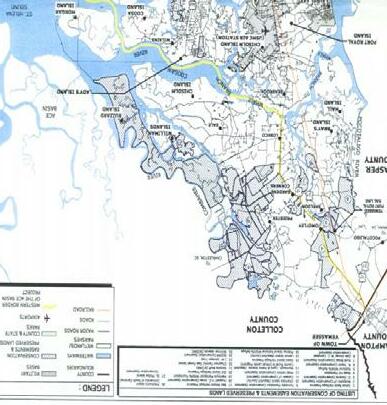

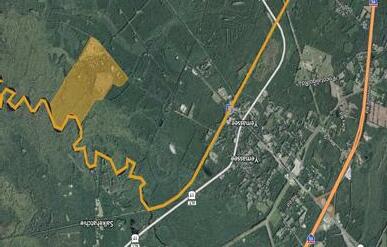

HERE IS THE PLAN, MATERIAL STUDIES, AND ELEVATIONS. W S E N LISTINGOFCONSERVATIONEASEMENTS&PRESERVEDLAND WINTER CLOSETCOTTAGESSOLSTICEWINDSWINDSSUMMERSUMMERWINTERSOLSTICECARACCESSRIVERROADVISITORCENTERLOCATION1.MAINHOUSE2.GUEST3.STAFFCABINS4.CYPRESSLAKE5.SWIMMINGPOOL6.AVIARY7.TENNISCOURT8.BARN9.HORSESTABLES10.WORKSHOP11.TACKROOM12.OFFICES13.GUESTROOMS14.SPORTSMAN’S15.JOEL’SOFFICE16.MULESTABLES17.COOKSHED18.KENNELS19.MAINENTRANCE20.GATETOMAINHOUSE21.ENTRANCETOHOUSE22.GARDEN 22 4 2 7 8 9910 111213 19 18 14 20 21 15 16 17 3 2 AULDBRASS SPECIFICATIONS:DESIGNEDBYFRANKLLOYD BUILDINGWRIGHTBEGAN1939 FINISHEDIN1951 PRIVATEOWNEDBYJOEL HOUSESILVERSMAINISROUGHLY 1200SQUAREFEET ON326ACRESOFLAND LOCATION:YEMASSEE,SOUTH CAROLINA
9

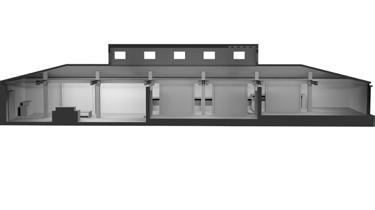

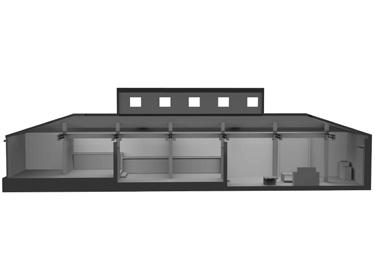

SECTION C AA SECTIONSECTIONB A B THE FINAL RESULT OF THE VISITOR CENTER IS LOCATED RIGHT IN THE MIDST OF MANY TREES WHICH IS WHY THERE A VAST AMOUNT OF WINDOWS TO ALLOW A VAST AMOUNT OF INDIRECT LIGHT IN WHILE CASTING GREAT SHADOWS FROM THE LARGE OAK TREES ON SITE. THIS IS ALSO THE REASONING FOR THE NONINCLUSION OF WINDOWS IN THE AUDITORIUM AND EXHIBIT, BUT INCORPORATING THE CLERESTORY ROOF. CC SECTION B 10 STUDIESSTRUCTURE SECTION PERSPECTIVES
DESIGNEXHIBITAULDBRASS LEFTRIGHT-SECTIONABOVE-SECTIONSELEVATIONSPERSPECTIVES 1 2 3 5 8 SECTION SECTION 11

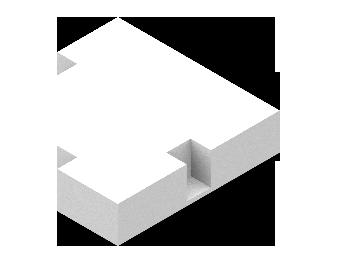

TO THE RIGHT ARE VIEWS OF THE MODULES AND DESIGN ELEMENTS THAT ARE USED THROUGHOUT. 12

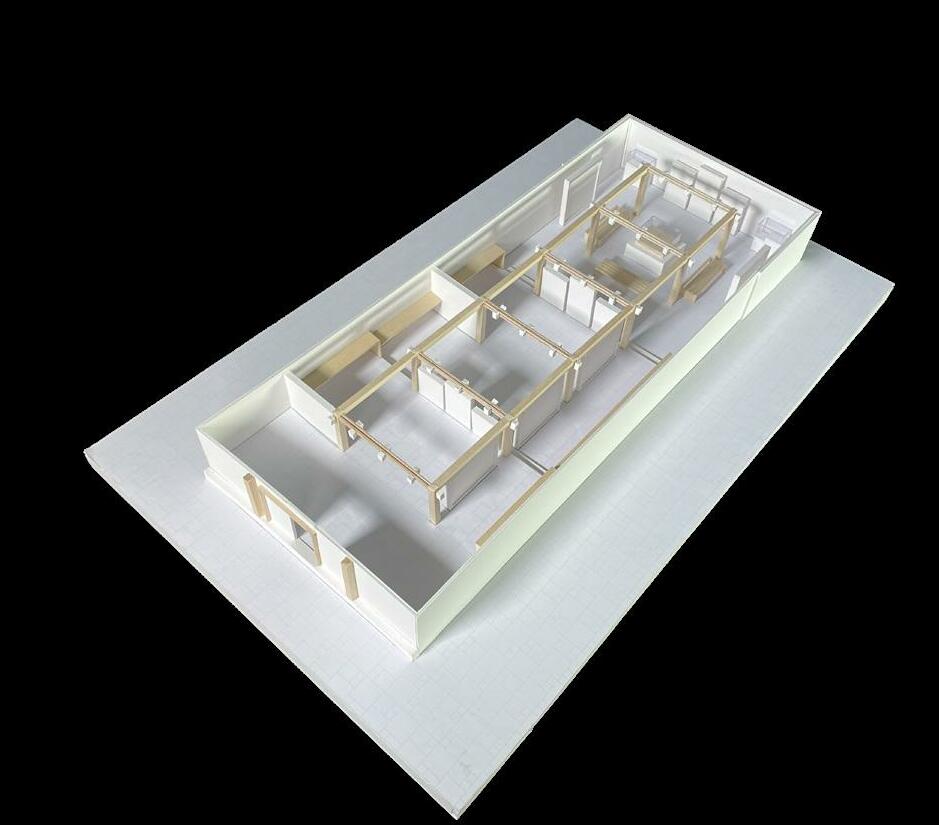

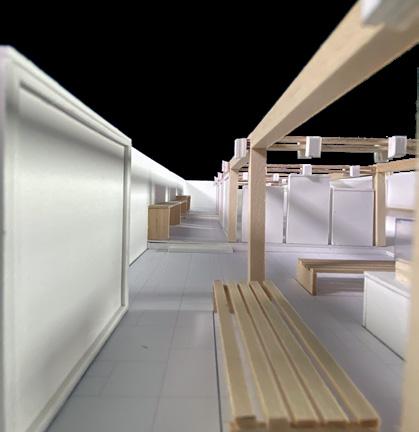

THIS PAGE STARTING FROM THE IMAGE DIRECT LY TO THE RIGHT, THEN FROM THE TOP DOWN, SHOWS THE PATH TRAVELED FROM THE BE GINNING OF THE EXHIBIT TO THE ENDING EXIT STRETCH. THE BOXES ARE COLOR CODED TO SHOW THE VIEWS AND WHERE THEY ARE ON THE MODEL. 13
THE EXHIBIT WAS DESIGNED TO HAVE ONE DIRECT PATH DOWN WHICH IS WHERE THE VISITORS WILL PRESENTED WITH A GREAT DEAL OF HISTORY BEHIND AULDBRASS, THE OWNERS, AND EVEN THE LAND THEY WOULD CURRENTLY BE STANDING ON. AT THE END OF THE JOURNEY THERE IS A SQUARE THAT AT THE CENTER WOULD HOLD VERY DETAILED INFORMATION COVERING THE HOUSE ITSELF.
14

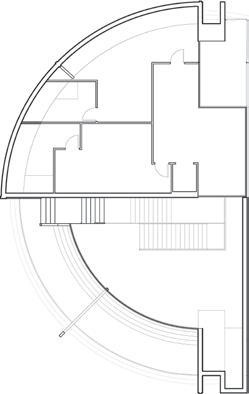

WORK/LIVE 15 ' ' ' ' ' ' ' � I.I� kr}� ' ' SECTION LIVING LEVEL 3 PLAN THE IMAGE DIRECTLY ABOVE IS A COMPILATION OF DRAWINGS DONE STUDYING A CLOSE WORK LIVE SCENARIO, IN THIS CASE A CIRCUS ACROBAT.
16 SECTION 01 L d,;_r ==i ! SECTION 02 PLAN4LEVELTHEATRE THEATRE LEVEL 4 PLAN THE SECOND PART TO THIS PROJECT WAS WORKING ON REDESIGNING OUR VERSION OF THESE WORK/LIVE SPACES TO FIT WITHIN A COMMUNITY. THIS BUILDING SERVES AS A PUBLIC SPACE ON THE FIRST AND SECOND FLOOR THEN PARTIAL THIRD THEN FINALLY THE STAGE LEVEL ON THE FOURTH FLOOR. SOUTH ELEVATION
ORIGINAL SITE THE ANALYSIS OF THE SITE LOCATED NEAR THE DALLAS CITY HALL. CENTERCATALYSTCOMMUNITY 17
18

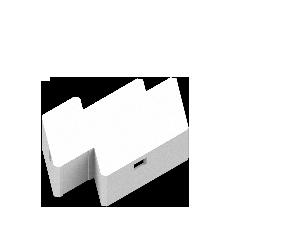

HERE ARE SOME OF THE INITIAL STUDY MASSES AND MODELS THAT STRONGLY INFLUENCED THE FINAL DESIGN. THESE STUDIES BEGAN THE USE OF TWO GRIDS DIVIDING THE 300’X180’ AND A SMALLER ONE 30’X20’ TO FURTHER DIVIDE INTO THIRDS. THESE MASSES INTEGRATED STRATEGIES SUCH AS THE USE OF ALIGNMENTS, STACKING AND CARVING IN ORDER TO CREATE AN INVERTED TIERING SYSTEM.
DWELLTHE 19

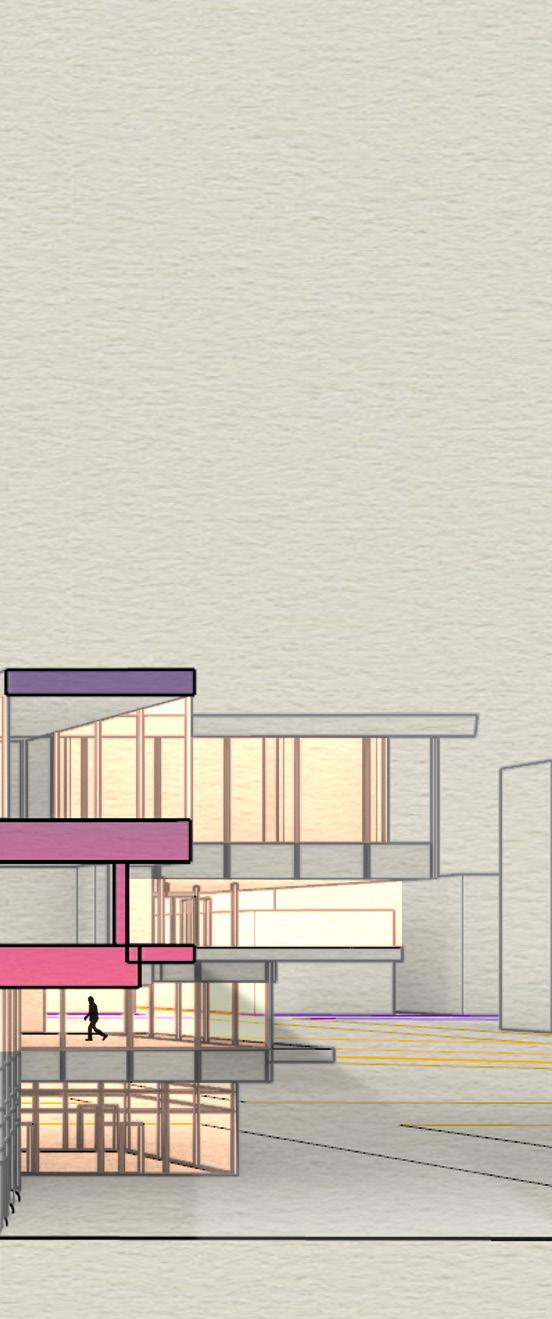

THE RESULT OF THE COMMUNITY CATAYLIST CENTER WAS THE DESIGN OF A MULTIUSE BUILDING FOR RESIDENTS, OFFICE SPACE, AND PUBLIC PROGRAM. USING SIMILAR SCHEMES AS THE STUDY MODELS ALLOWED FOR THE CREATION OF AN OPEN CENTER THE FORM A PUBLIC PLAZA THAT IS THE TERMINUS FROM DOWNTOWN. THERE WAS A PREVIOUS PRECEDENT STUDY OVER LA TOURETTE THAT ALSO INSPIRED MANY THINGS THROUGHOUT THIS DESIGN. ONE VERY PROMINENT USE OF INSPIRATION WAS FROM THE USE OF MULTIPLE PROGRAMS AND HAVING THEM INTERTWINE SLOWLY, AS WELL AS THE USE OF STACKING TO CREATE BRISE SOLEIL.
20
