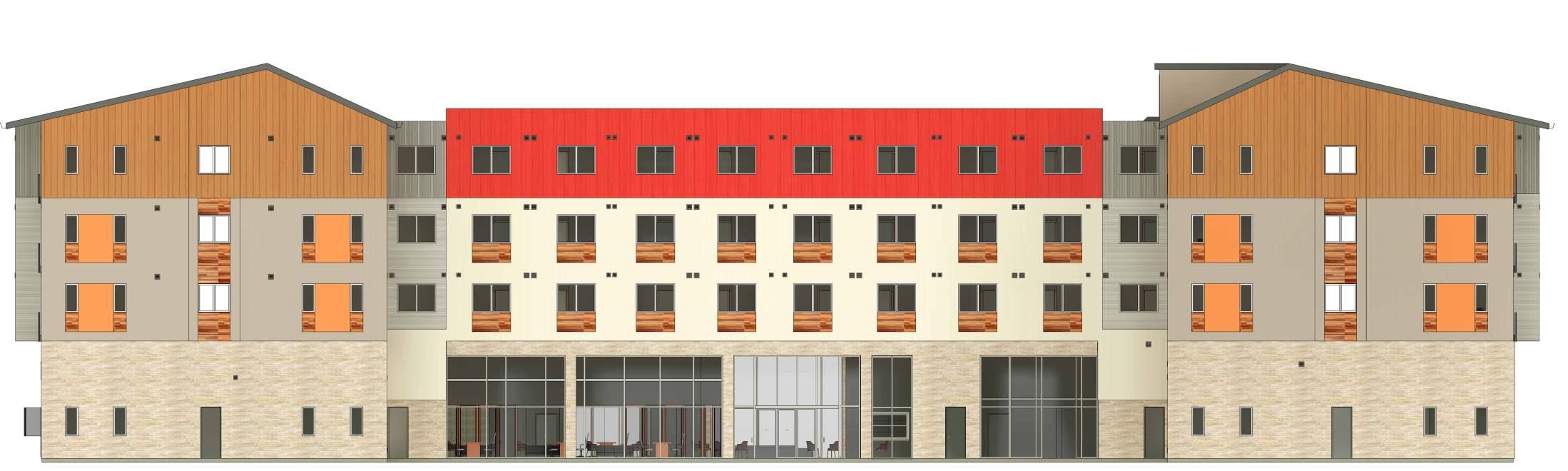

EAST_CLADDING
EXTERIOR
METAL CAPPING
UNDERLAY TO PROVIDE ISOLATION OF METAL FLASHING TO FRAMING
WOOD FRAMING
INSULATION WHERE REQUIRED
HARDIEPANEL SIDING
WATER RESISTIVE BARRIER
HARDIEWROP TM OR EQUIVALENT SHEATING
2X6 WOOD STUD
FINISH ROOF MATERIAL
EXTERIOR SHEATHING
ASPHALT SHINGLES OVER ROOF SHEATHING
CAP SHEET RUNS UP & OVER PARAPET
SELF ADHEREHED MEMBRANE
SHEATHING
ROOF DECK
PERLITE CANT STRIP CRICKET - TAPERED INSULATION AS REQUIRED FOR SLOPE TO DRAIN MECH.
HARDIE REVEAL PANEL VERTICAL SIDING
MINIMUM 3/4" FURRING
EXTERIOR SHEATHING
SELF ADHERED FLASHING
MINIMUM 1/16" EPDM
SEALANT W/ BACKER ROD
CODE APPROVED WATER REDIDTIVE BARRIER 2X6 WOOD STUD
MINIMUM 3/4" FURRING
ASPHALT SHINGLES OVER ADHESIVES OVER ROOF SHEATHING
SELF ADHERED MEMBRANE
RIGID INSULATION ROOF JOIST ROOF SHEATHING
DRIP EDGE EXTENDS INTO ROOF HALFWAY DOWN THE FACE OF THE SHADOW BOARD
SHADOW BOARD
EXTERNAL GUTTER
RAIN WATER PIPE
R38 NONCOMBUSTIBLE INSULATION
CONTINUOUS TOP PLATES PER STR.
EXTERIOR HARDIE BOARD PANELLING
FRAMING TO SUPPORT PANELLING
FRAMING TO SUPPORT PANELLING
