Architecture Portofolio

DOPAMINE ELDERCARE

Designing a modern nursing home area in Lembang, West Bandung.

Final Project

Rafi Azani M

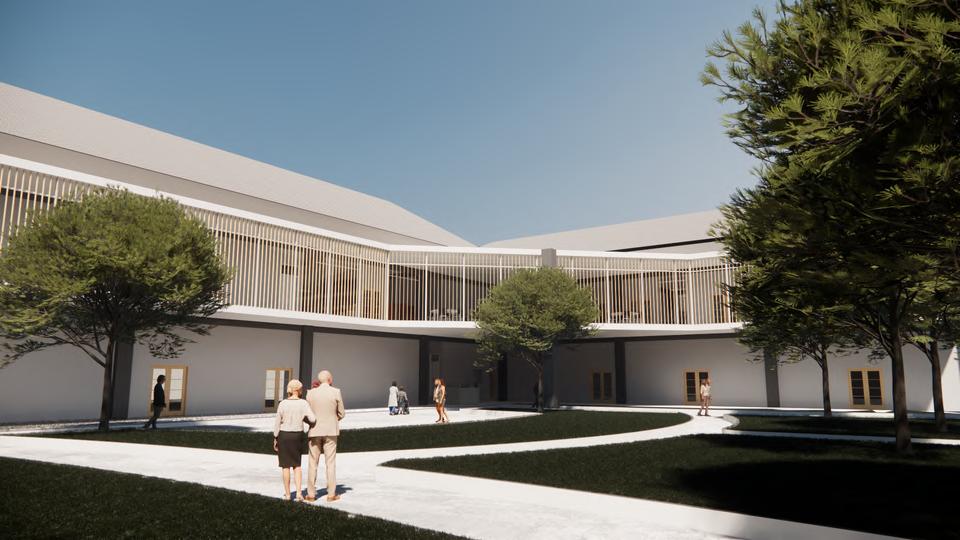

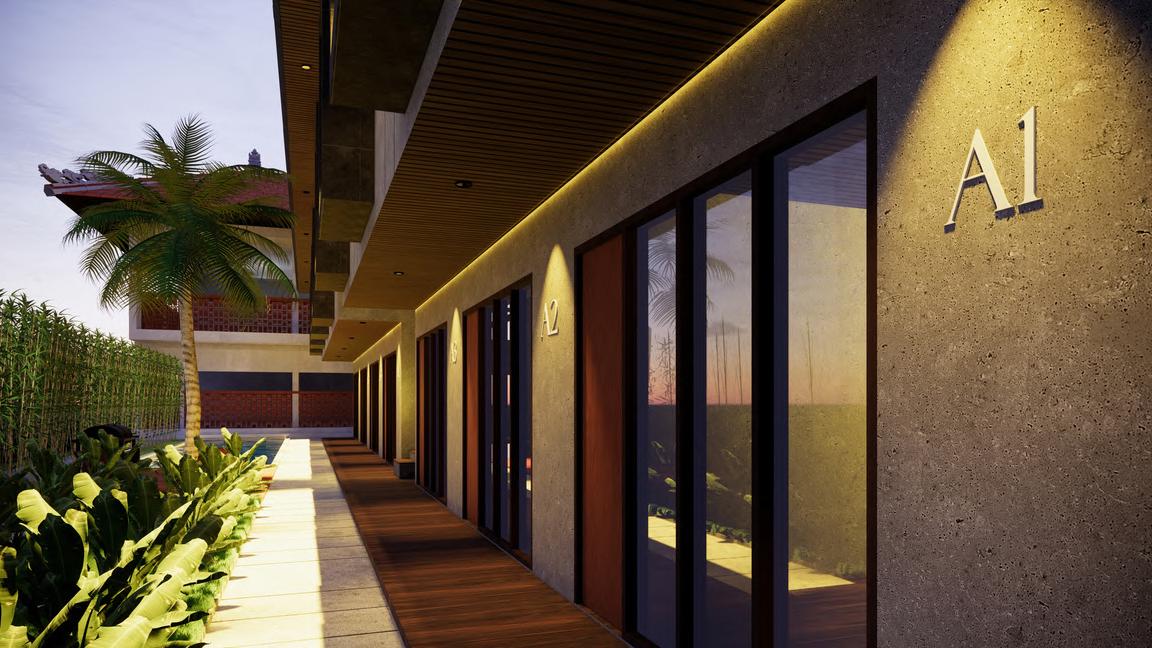

DOPAMINE ELDERCARE

Design Issues

Design Objective

Implementation of Biophilic Architecture

Project Name : Dopamine Eldercare Function : Nursing Home Land Area : 18,007 58 square meters

D W D W D W D W D W G C 06 PLA LANTABETON 30 PASDINDNGBATA CM AUECFOLDNGDOOR G C WALL MX15C PLATBETONT15CM PASDINDINGBATA15CM RUMPUT AIR RUMPUT PASDINDING TRASRAM15CM LANSKAP FINISHINGBETON Utilization of Natural Light Biofilic architectural design aims to maximize the us ofnaturallightindoors Thiscanbeachievedthroug largewindows,glassroofs,andotherdesignelement that allow sunlight to enter the space Natural ligh can enhance the indoor environment quality an influencethemoodandproductivityoftheoccupants

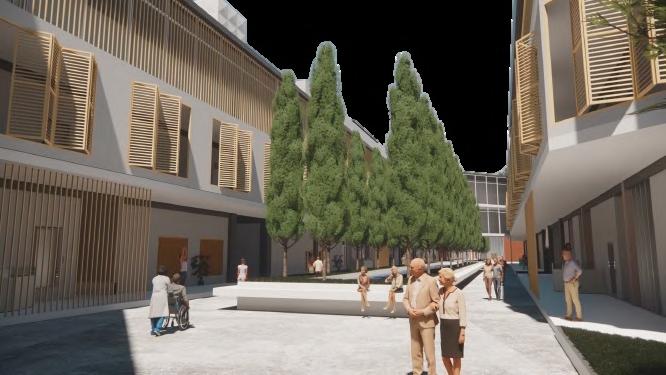

with Nature

Open Space Creating open spaces such as gardens, terraces, courtyards in building design allows occupants interact more with nature and create comfortab relaxationareas

Building Area

6,000

13,000 square meters

Location

Location and Accessibility: Choosing the right location in Lembang that is easily accessible for residents families and staff Infrastructure such as roads transportation and accessibility for individuals with limited mobility should also be considered 1 Facility Needs: Identifying and understanding the facility needs appropriate for nursing home residents, including bedrooms, bathrooms, common areas, medical facilities, and recreational facilities 2 Security Factors: Ensuring the protection and safety of residents by designing adequate security systems such as CCTV, security guards, and restricted access 3 Healthcare Facilities: Designing adequate medical facilities including medical beds, medical equipment and health examination rooms 4

Integration

Biophilicdesignseekstointegratebuildingswiththeir surrounding nature This can mean incorporating natural landscapes, creating gardens within or around buildings, or even constructing organic-shaped buildingsthatfollownaturalcontours

Estimated

Additional Functions : Healthcare Facilities, Sports Facilities

: Lembang, Lembang District, West Bandung Regency

Providing a Good Quality of Life: The main objective is to provide a good quality of life for nursing home residents including comfort safety and proper care 1 Independence: Assisting residents to remain as independent as possible by designing facilities that support their mobility and independence 2 Healthcare Support: Providing appropriate healthcare for residents, including easy access to medical services and nursing care 3 Social Activities and Recreation: Encouraging social interaction and recreational activities that can enhance residents' quality of life and happiness 4

E F W E F W E F WE F W E F W DNDNGKACAT06CM KISKAYUUK5CMX5CM PA LANABETONT30CM PASDINDINGBATA15CM RANGKACURTAN WAL5CMX15CM 2024

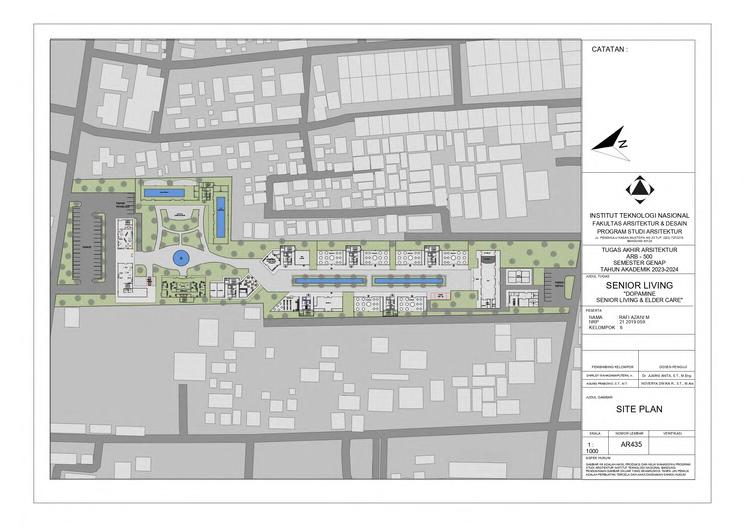

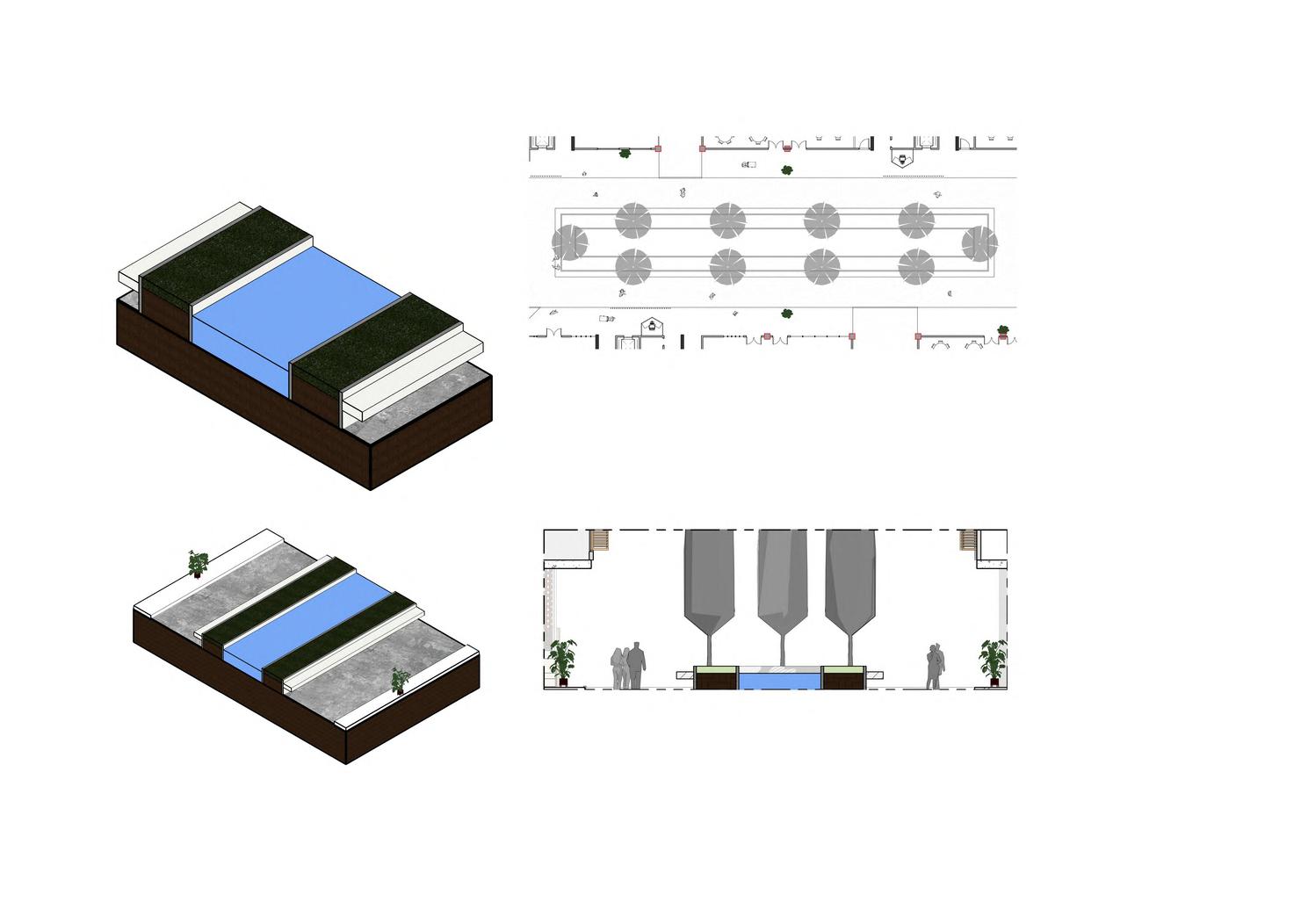

Block Plan Site Plan Facade Detailing Landscape Detailing

Rafi Azani M

2024

Rafi Azani M

2024

Bamed Management Office Development Plan

Jl Jatayu, Meruya Utara, Kec Kembangan, Jakarta Barat

Proposal Design

Rafi Azani M

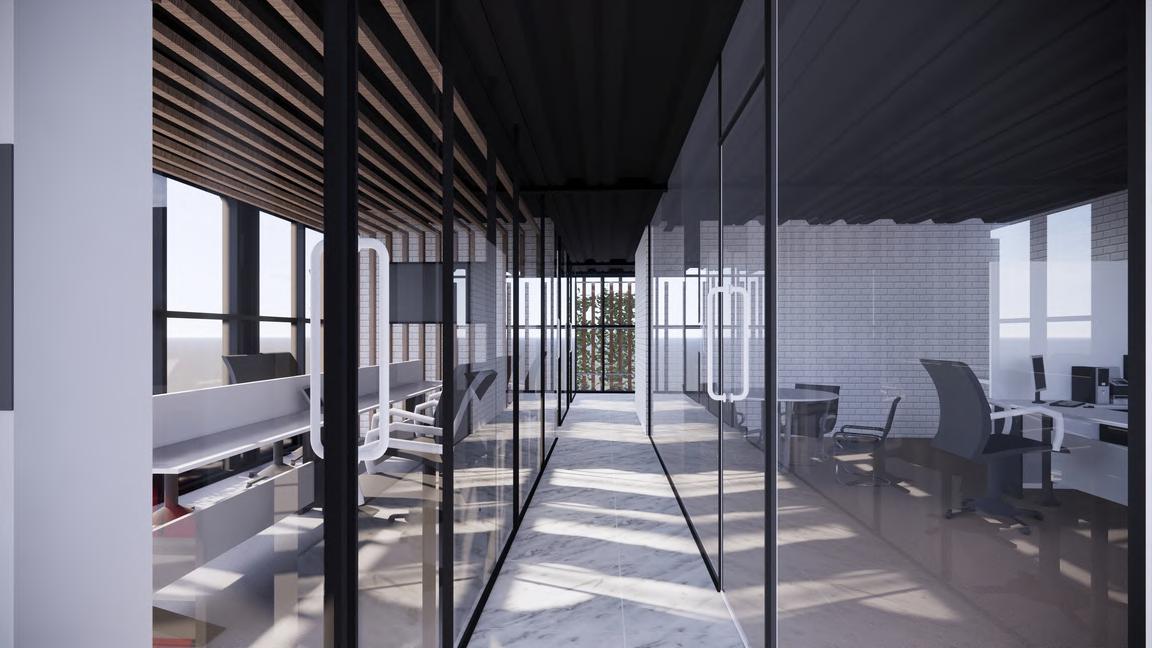

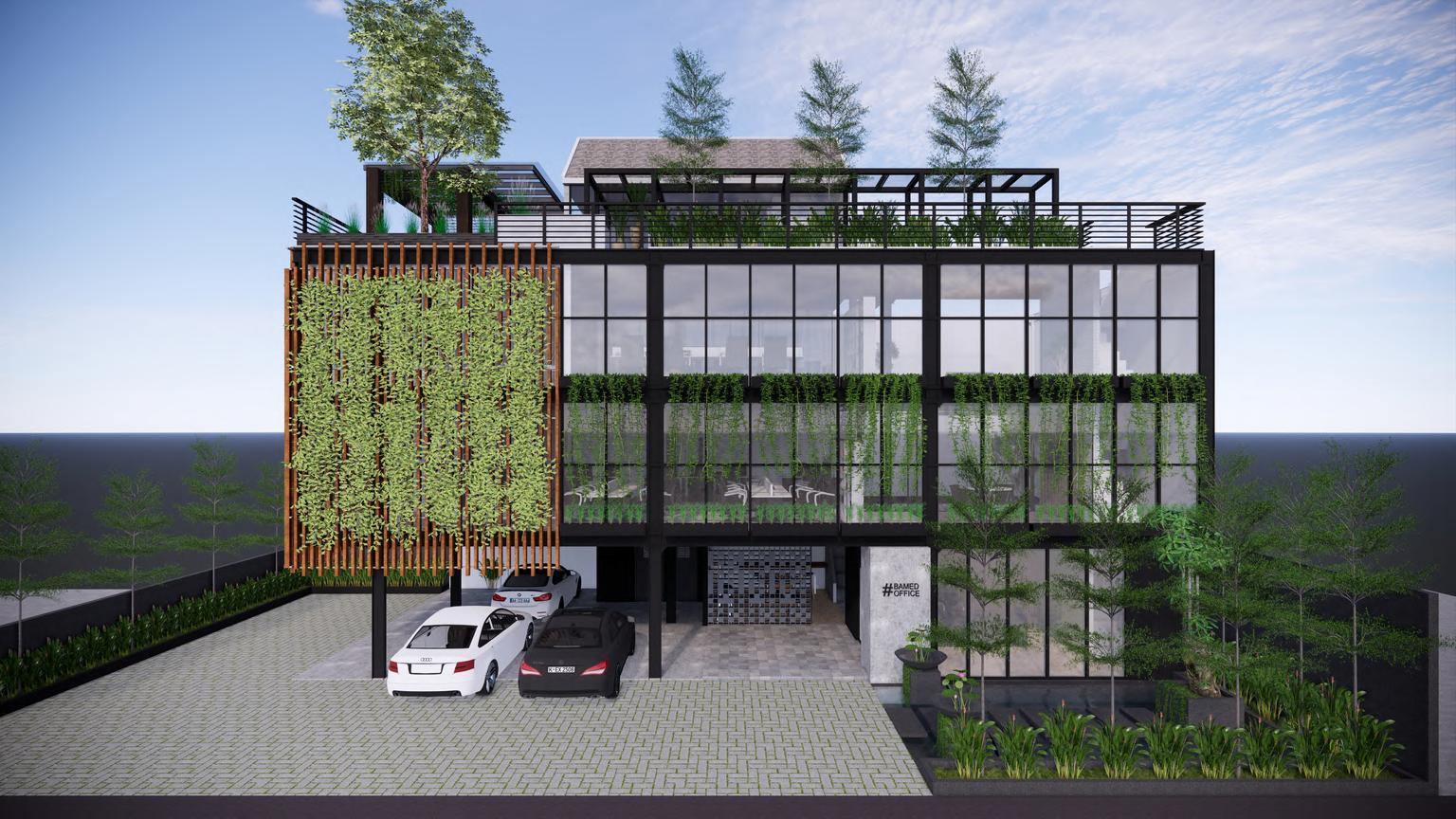

Bamed Management Office Development Plan

ABOUT BAMED

Bamed Clinic is a healthcare facility established by PT Bintang Ades Multimedika, a subsidiary of Bintang Group, a production house located Meruya, West Jakarta. Operating since August 24, 2010, Bamed Clinic been providing quality, friendly, comfortable, and affordable healthcare services to the community, addressing various health issues. The clinic was founded by Dr. Yassin Yanuar MIB, SpOG, MSc, and Adhimukti T Sampurna, SpKK, two friends who pursued their education the same institution, the Faculty of Medicine, University of Indonesia. Today, Bamed Clinic has expanded to offer a range of excellent services including general practitioners, dentists, dermatologists venereologists, obstetricians and gynecologists, and pediatric specialists. Additionally, the clinic is supported by supporting facilities such pharmacy and laboratory.

Bamed Clinic continually strives to improve itself as a healthcare provider that keeps pace with medical advancements and is at the forefront of delivering services to the wider community.

SITE

Base building area : 250m2

Number of floors : 4 Floors

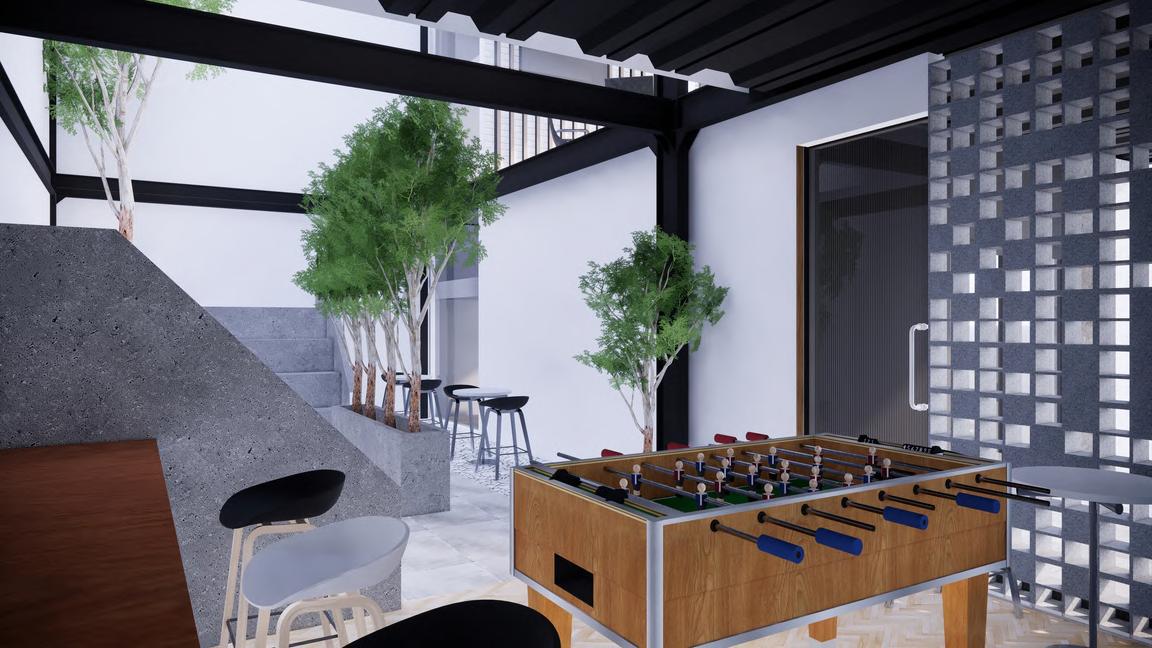

ROOM

Ground Floor

2nd Floor

3rd Floor

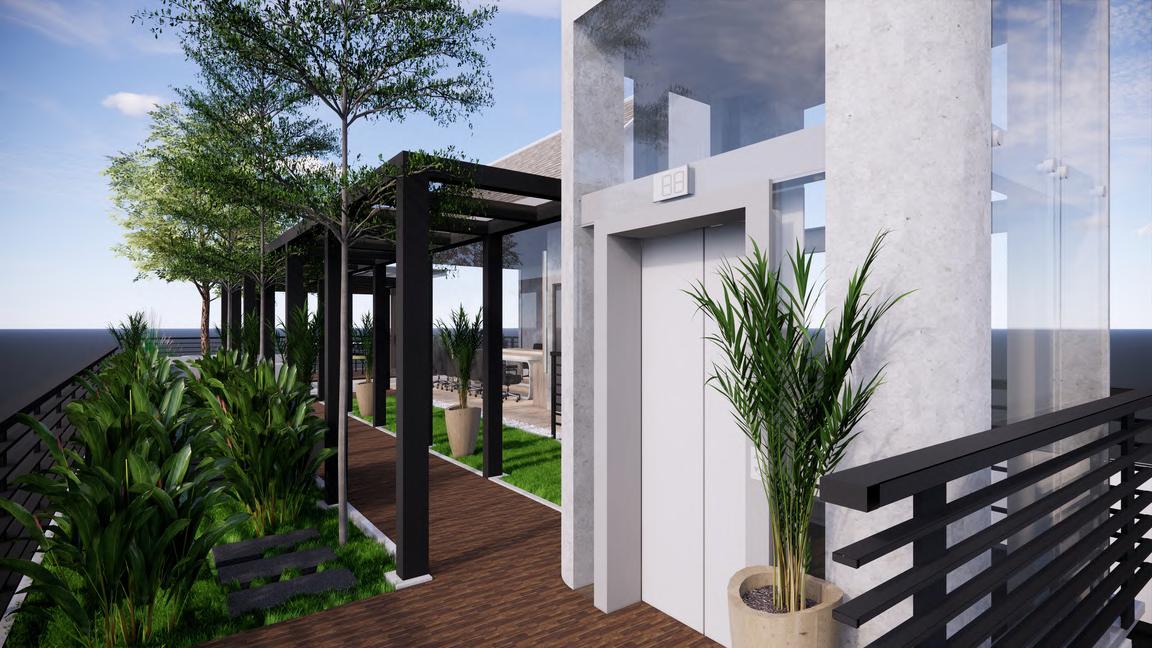

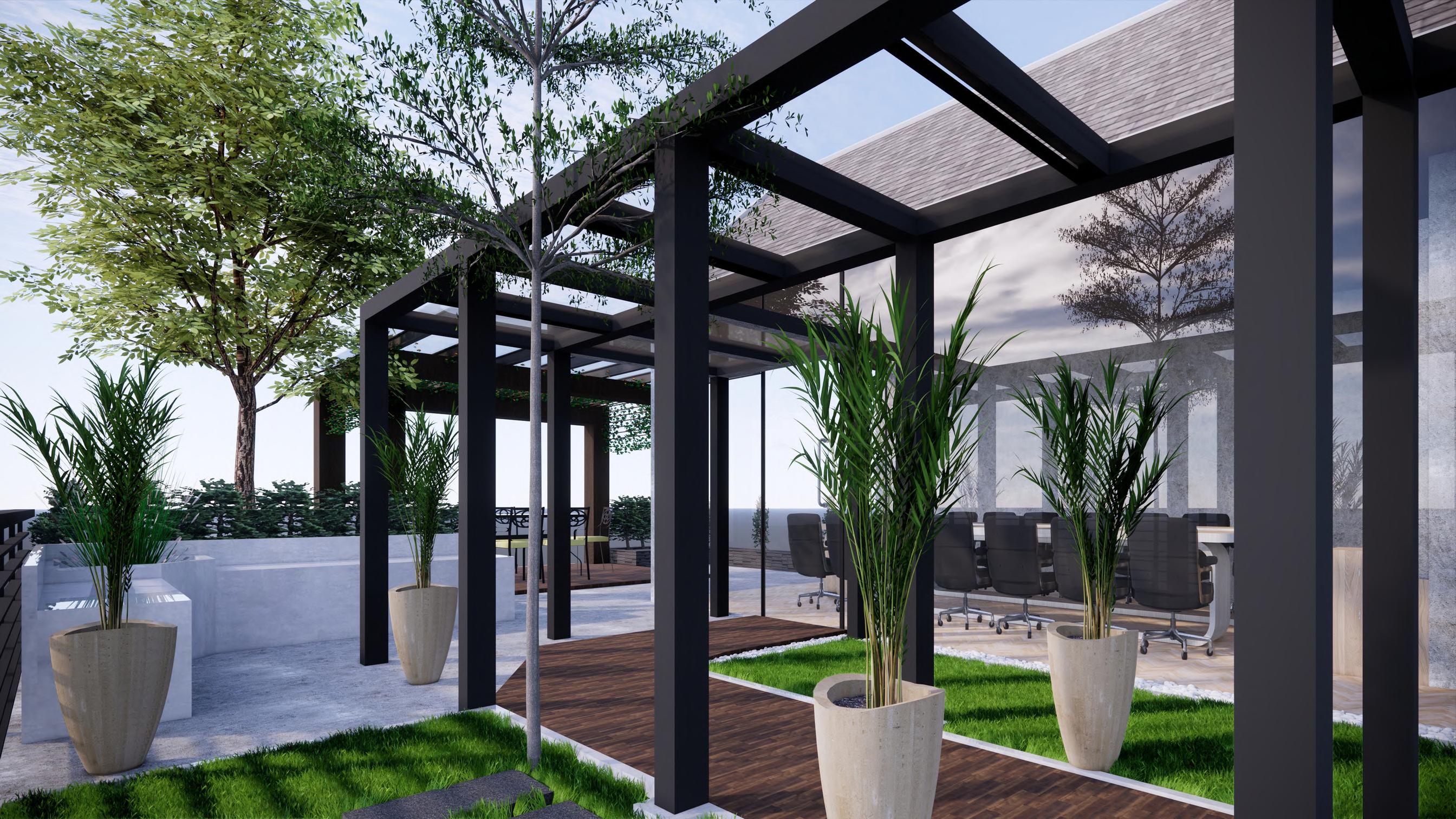

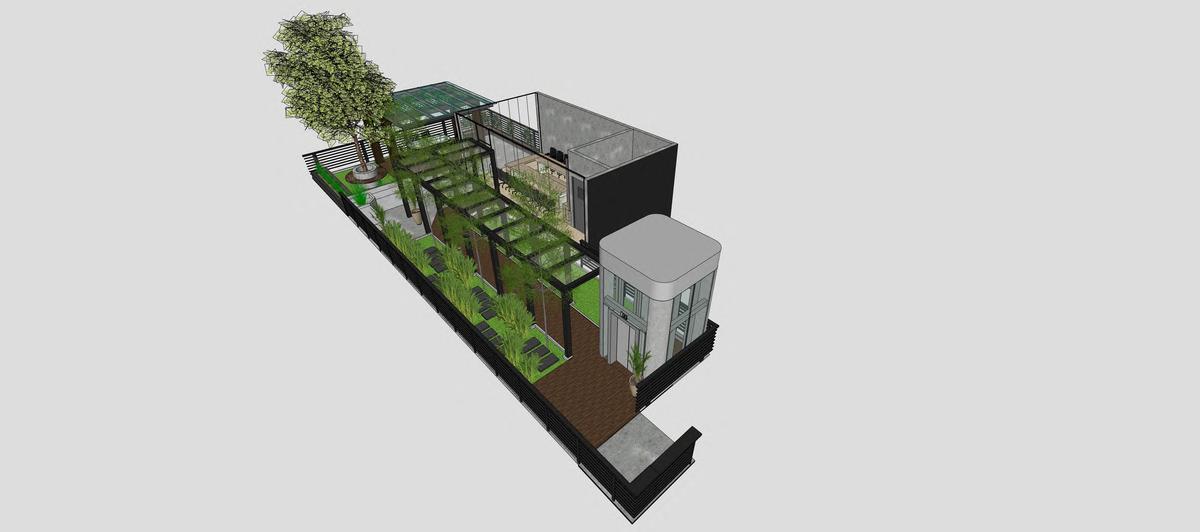

Rooftop

:Parkir,Entrance,Reception,Break Room,Mushola

:Staff & Manager Operational,Pantry,Mini Lounge

:Big Meeting,HRD,Direction,Small Meeting,Mini Lounge

:Multipurpose Room,Garden

SITE ANALYSIS

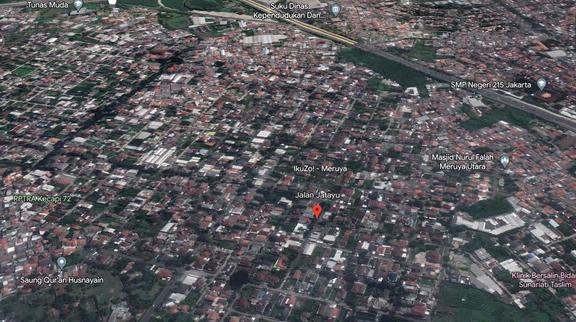

JJatayuRT1/RW4NorthMeruya

KembanganWestJakartaCityJakarta11620

JktOuterRingRoad LokasiRencanaBamedManagementOffice

BamedMeruya PemukimanWarga

LokasiRencanaBamed ManagementOffice lJatayuRT1RW4 North Meruya Kembangan WestJakara CiyJakarta11620 Akss/sumbuyangdibentukoeh okas BamedMeruyadanlokasi rencanaBamedManagementOffice Poaakssdapatdgunakansebagai konekskedekatanfungsonalkedua bangunan Reception Breakroom Terace Toilet& Storage Carport FshPond Lift Lift Manager Operational Pantry& Toiley Staff Operational MiniLounge Direction Big Meeting Direction Mushola Lift MiniLounge Multifunction Room Roofgarden SpiralTree Benches Gazebo Lift Footpath Toilet

2024

BamedMeruya

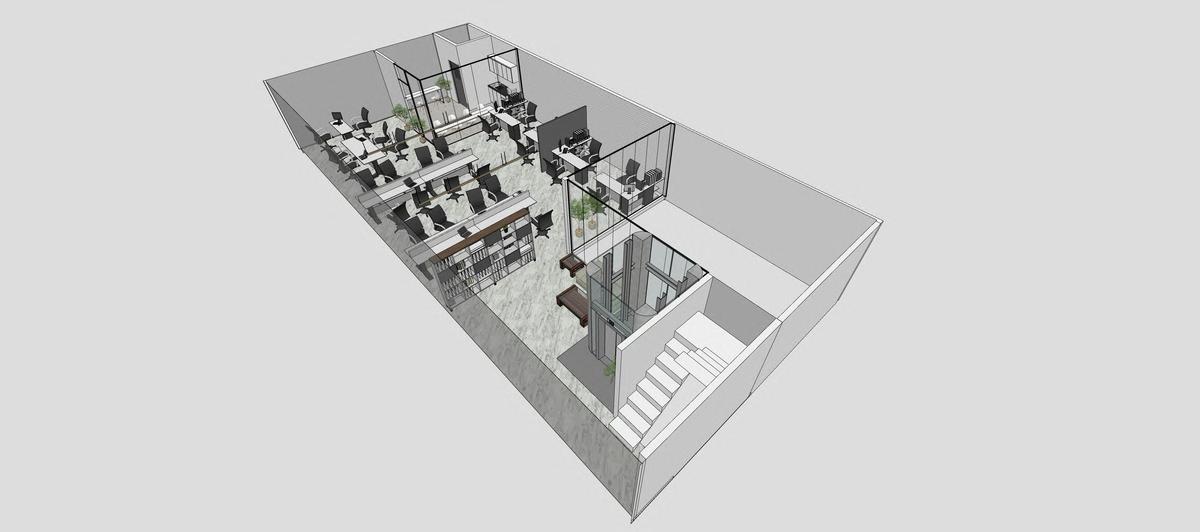

PLANS

Rafi Azani M

WHITE SWAN MUSIC THEATRE

Designing a music theater building in Dago area, Bandung.

Academic Project

Rafi Azani M

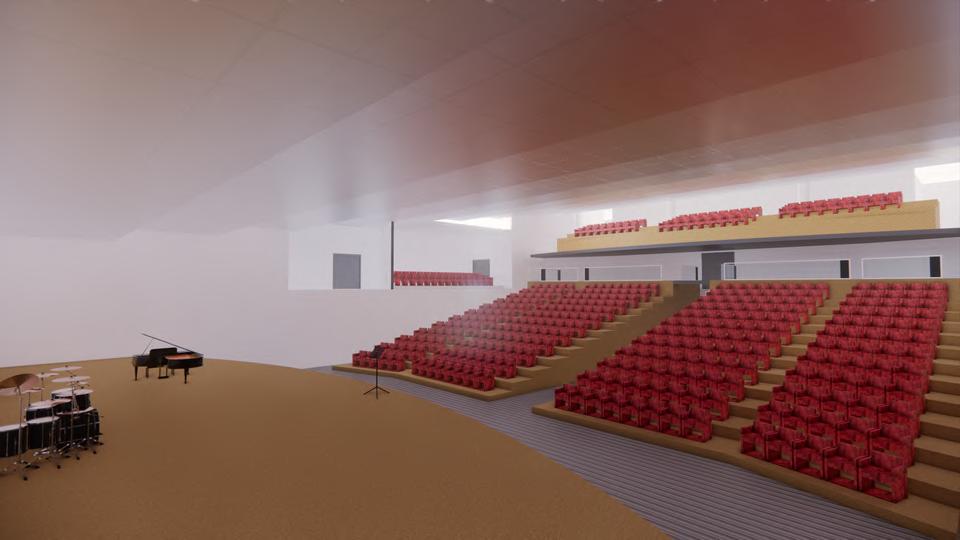

WHITE SWAN MUSIC THEATRE

PROJECT BACKGROUND

Currently, there are many people who are interested in the field of arts and also in art performances, whether it's music, drama, dance, or film. One of the places to appreciate art performances is an arts building. An arts building is a facility used to facilitate various art performances. This Arts Building is created to facilitate and appreciate art performances in the city of Bandung.

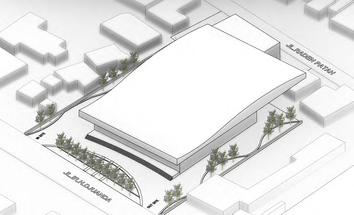

BLOCK PLAN

PROJECT DATA

Project: Arts Building

Site Function: Arts Performance Facility

Building Type: Wide-span Building

Site Area: 9,500 m2

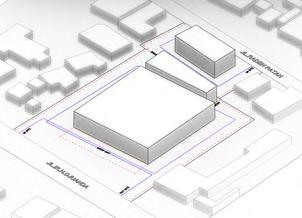

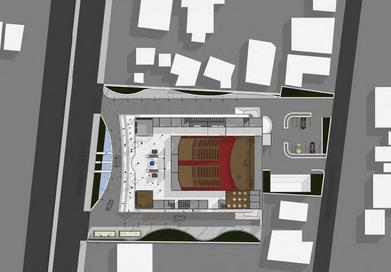

SITE PLAN

2024

SUN WIND

SIRKULASI

Rafi Azani M

2024

Rafi Azani M

2024

O.M APARTMENT & MARKET

Designing a mixed-use building consisting of apartments and market located in Pasar Sederhana, Bandung.

Academic Project

Rafi Azani M

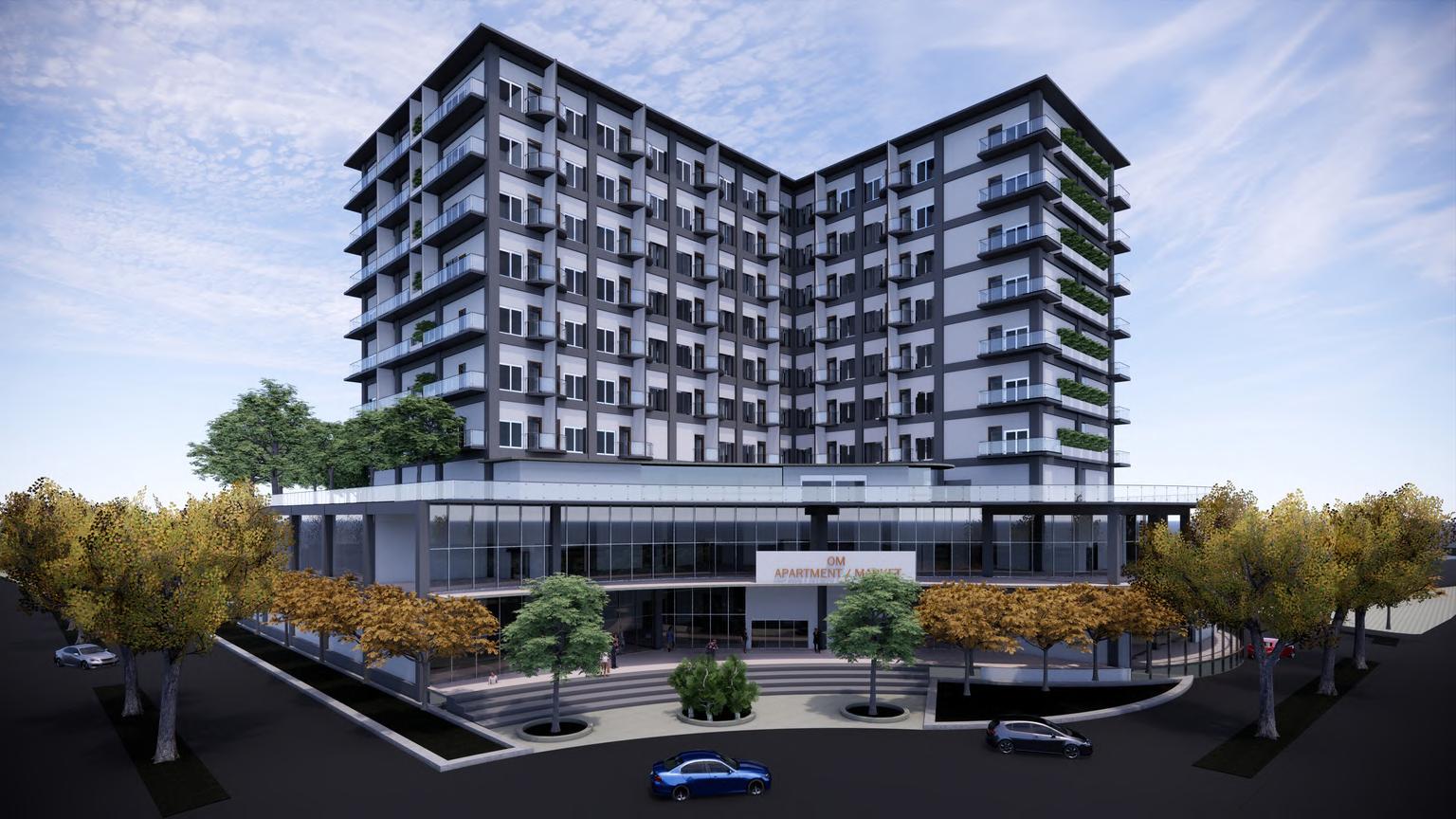

APARTMENT & MARKET

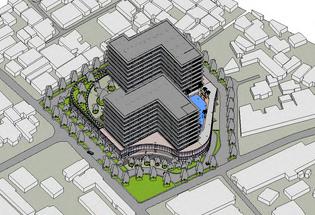

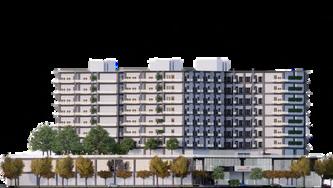

SITE & SUSTAINABILITY

Due to the planned product having commercial functions, namely the market and apartment, the product is designed to maximize the land area in order to obtain optimal profit and commercial functionality. The 3rd floor (Rooftop Podium) is utilized as apartment facilities and as a center for the activities of apartment residents.

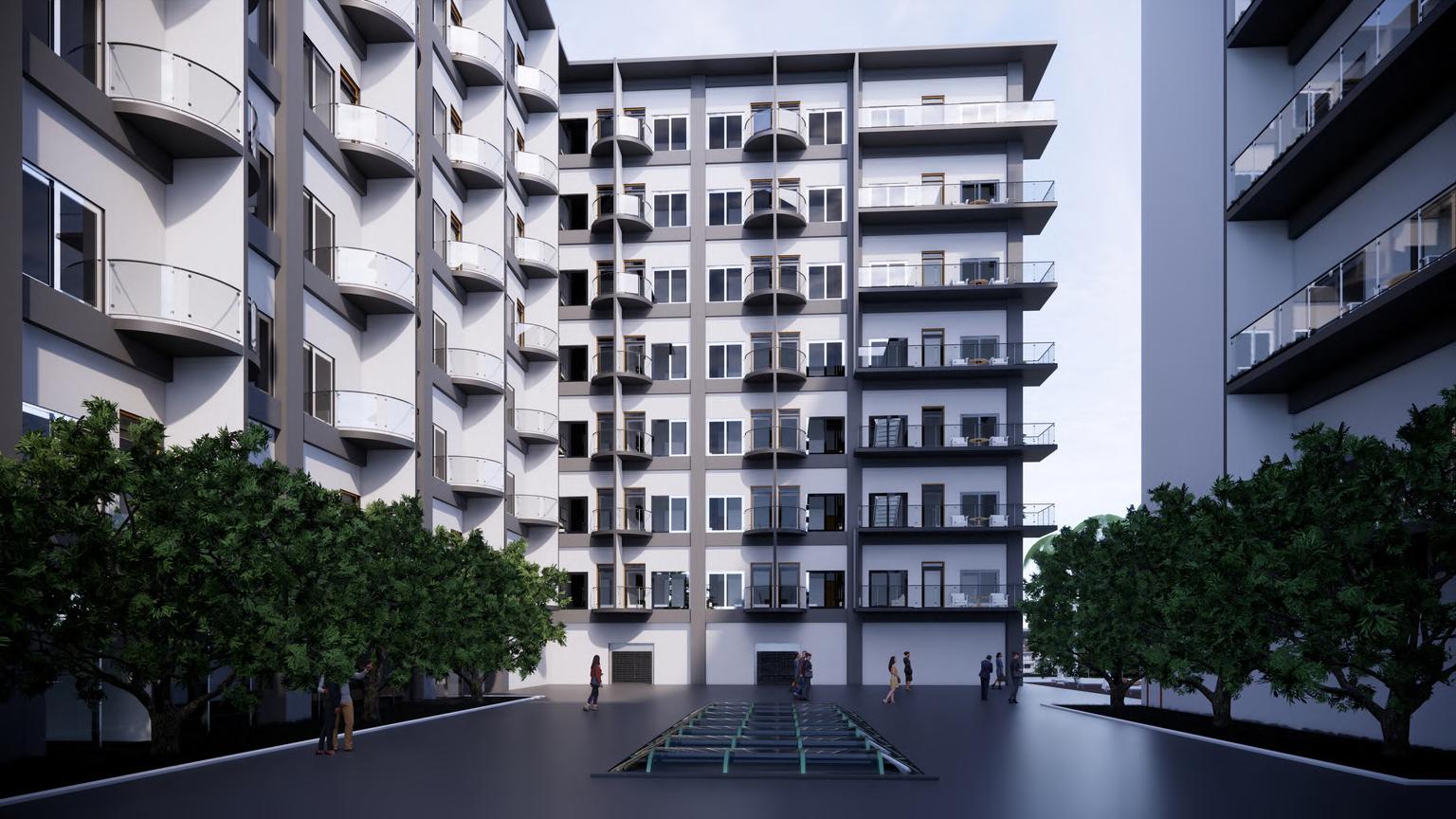

APARTMENT

The apartment units are divided into Tower A and Tower B. Each tower has Studio units, 2 Bedroom units, and one 3 Bedroom unit on each floor (very limited). This apartment is classified as uppermiddle class based on the facilities and furniture provided.

MARKET

The market theme used is a clean market, so the area between the wet market and the dry market is separated, and the market is cleaned every day. The market is divided into two categories, namely the wet market and the dry market. The wet market is used to sell meat, vegetables, fruits, and other food ingredients

PRINCIPLE OF BIOPHILIC ARCHITECTURE

According to Browning, Ryan, & Clancy (2014), biophilic design is based on the aspect of biophilia with the aim of creating a space that can contribute to the enhancement of human well-being both physically and mentally by fostering a positive relationship between humans and nature. Biophilic design provides opportunities for humans to live and work in healthy environments with minimal stress levels, promoting overall well-being by integrating nature, both through natural materials and natural forms, into the design.

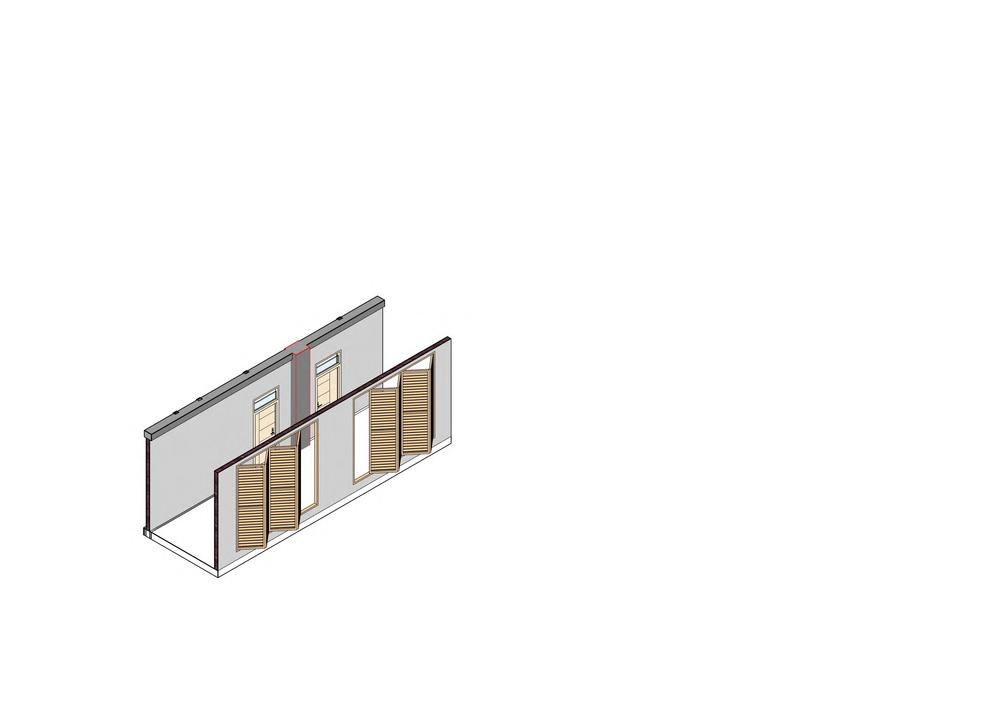

APPLICATION

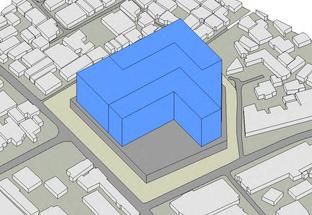

DESIGN TRANSFORMATION

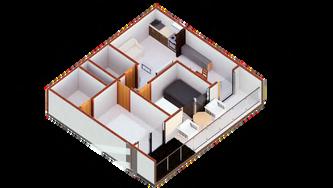

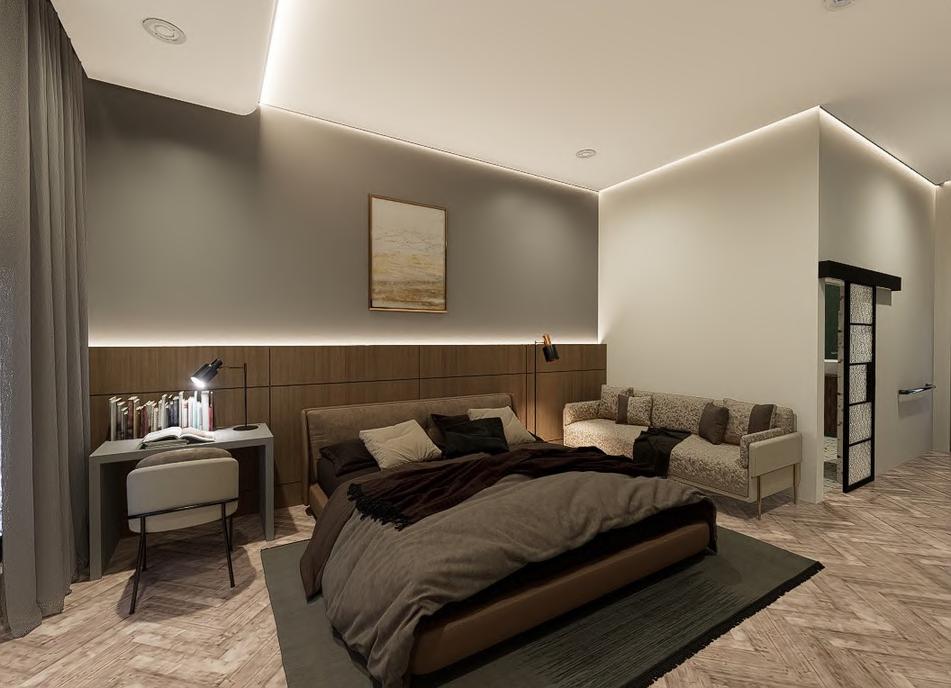

2 BEDROOM UNIT

The selection of the 2bedroom unit type is due to the simple site layout with office buildings, and based on data indicating that the average number of people with families still does not have permanent housing, with a middle to uppermiddle income level. Therefore, the 2-bedroom unit is chosen as one of the units in this apartment.

STUDIO UNIT

The selection of the studio unit type is due to the simple site layout with office buildings and the presence of Telkom University's Faculty of Economics and Business. It is estimated that there will be many employees and students who will occupy the studio units in this apartment.
