430E Caterpillar Backhoe Loader Operation and Maintenance Manual by quality service repair manual

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine OperationandMaintenanceManual

s00037320

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

AxleBreathers-Clean/Replace

SMCS-3278-510-BRE;3278-070-BRE

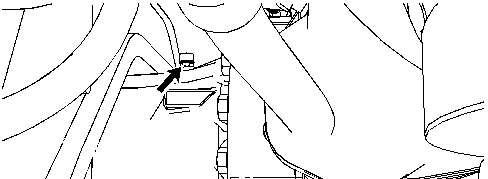

Illustration1g01216797 Thefrontaxlebreatherislocatedonthetoprightsideofthedifferentialhousing.

i02436158

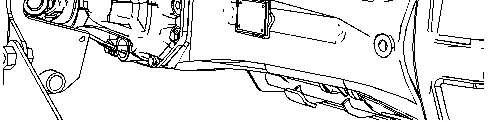

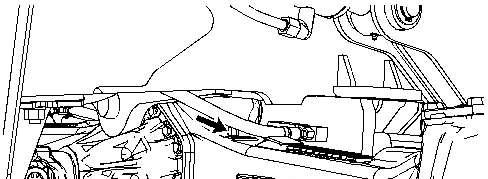

Illustration2g01216798 Therearaxlebreatherislocatedtotheleftofthedifferentialhousing.

1.Cleantheareaaroundthebreathers.Removethebreatherfromthefrontaxle.

2.Washthebreatherincleannonflammablesolvent.Wipethebreatherdryandcheckthe breatherfordamage.

3.Installthecleanbreatherbackintotheaxle.Replacethebreatherifthebreatherisdamaged.

Note:Makesurethattheslotinthebreatherisparalleltotheaxlehousing.

SatMar2610:42:08UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BackhoeBoom,Stick,Bucket,andCylinderBearingsLubricate

SMCS-6501-086-BD;6502-086-BD;6503-086-BD;6511-086-BD;6512-086-BD;6533-086BD;7562-086-BD Illustration1g01194613

Positionthebackhoeintotheservicepositionthatisshownabove.Lowerthebuckettothe ground.Relievethehydraulicpressure.

i02968284

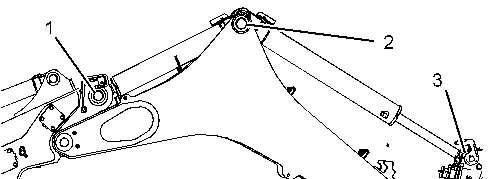

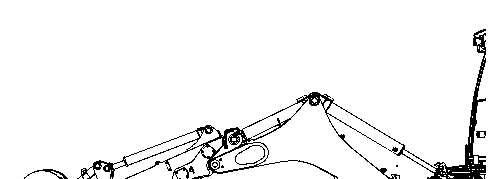

Illustration2g01194615

Applylubricanttothegreasefitting(1)fortherodendofthestickcylinder.

Applylubricanttothegreasefitting(2)fortheheadendoftheboomcylinderandtheheadendof thestickcylinder.

Applylubricanttothegreasefitting(3)fortherodendoftheboomcylinder.

Applylubricanttothegreasefitting(4)fortheboompivot.Thereisonegreasefittingoneach sideofthemachine.

Illustration3g01194617

This is the sample of the manual Click on the download link for complete Manual

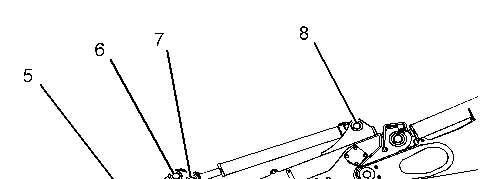

Illustration4g01491621

Applylubricanttothegreasefitting(5)forthebucketpivotpin.

Applylubricanttothegreasefitting(6)forthelink.

Applylubricanttothegreasefitting(7)fortherodendofthebucketcylinder.

Applylubricanttothegreasefitting(8)fortheheadendofthebucketcylinder.

Applylubricanttothegreasefitting(9)forthepivotpinforthestick.

Applylubricanttothegreasefitting(10)forthepivotpin.Thereisonegreasefittingoneachside ofthemachine.

Applylubricanttothegreasefitting(11)forthepivotpin.

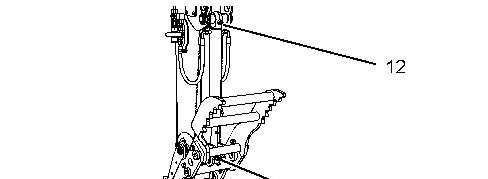

Applylubricanttothegreasefitting(12)fortheheadendofthethumbcylinder.

Applylubricanttothegreasefitting(13)fortherodendofthethumbcylinder.

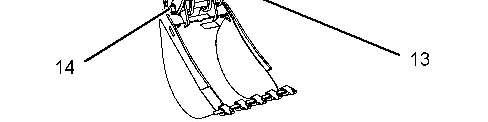

Applylubricanttothegreasefitting(14)forthepivotpinoneachsideofthethumb.

SatMar2610:42:19UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual 420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BackupAlarm-Test

SMCS-7406

TurntheenginestartswitchkeytoONinordertoperformthetest.

Applytheservicebrake.MovethetransmissiondirectioncontrollevertoREVERSEposition. Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissiondirectioncontrolleverismovedtotheNEUTRALpositionortotheFORWARD position.

SatMar2610:42:30UTC+05302022

i00080741

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

Battery-Recycle

SMCS-1401-561

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

SatMar2610:42:42UTC+05302022

i06543763

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BatteryorBatteryCable-Inspect/Replace

SMCS-1401

1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.

2.Disconnectthenegativebatterycablefromtheframe.

Note:Donotallowthedisconnectedbatterycabletocontacttheframeofthemachine.

3.Disconnectthenegativebatterycableatthebattery.

4.Inspectthebatteryterminalsandinspectthebatterycables.Keeptheterminalscleanand keeptheterminalscoatedwithpetroleumjelly.

5.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.

6.Connectthenegativebatterycableatthebattery.

7.Connectthebatterycabletotheframeofthemachine.

8.Installtheenginestartswitchkey.

SatMar2610:42:59UTC+05302022

i01833495

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

Belts-Inspect/Adjust/Replace

SMCS-1357-040;1357-510;1357-025

Ifnewbeltsareinstalled,checkbeltadjustmentafter30minutesofoperation.Formultiplebelt driveapplications,alwaysreplacethebeltsinmatchedsets.Replacingonlyonebeltofamatched setwillcausethenewbelttocarrymoreloadbecausetheolderbeltsarestretched.Theadditional loadonthenewbeltcouldcausethenewbelttobreak.

1.Installtheliftcylinderbrace.RefertoOperationandMaintenanceManual,"LiftCylinder Brace-ConnectandDisconnect"formoreinformation.

2.Removetheengineaccesspanelontheleftsideofthemachine.

i03316203

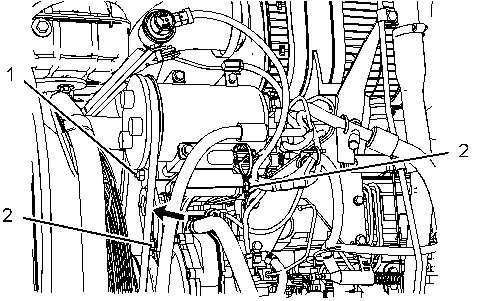

3.Inspecttheconditionoftheairconditionerbeltandtheadjustmentoftheairconditioner belt.Theairconditionerbeltshoulddeflect10mm(0.38inch)under110N(25lb)offorce.

4.Loosentheadjustinglocknut(1).Loosenthetwocompressorbracketmountingbolts(2).

5.Movethecompressoruntilthecorrectbelttensionisreached.

6.Tightentheadjustinglocknut(1).Tightenthetwocompressorbracketmountingbolts(2).

7.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep4toStep6.

8.Installtheengineaccesspanel.

9.Removetheengineaccesspanelontherightsideofthemachine.

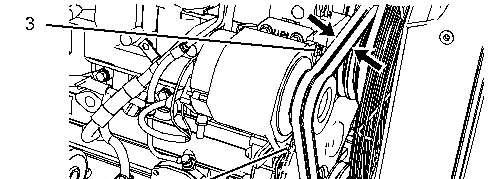

10.Inspecttheconditionofthealternatorbeltsandtheadjustmentofthealternatorbelts.The alternatorbeltsshoulddeflect10mm(0.38inch)under110N(25lb)offorce.

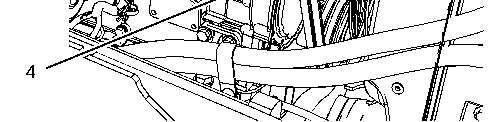

11.Loosenthemountingbolt(3).Loosentheadjustinglocknut(4).

12.Movethealternatoruntilthecorrecttensionisreached.

13.Tightentheadjustinglocknut(4).Tightenthemountingbolt(3).

14.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep11toStep 13.

15.Installtheengineaccesspanel.

16.Starttheengine.Raisetheloaderarmstothemaximumheight.

17.Removethepinandreplacethebracefortheloaderliftarmtothestoredpositiononthe loaderliftarm.

18.Lowerthebuckettotheground.

SatMar2610:43:12UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BrakingSystem-Test

SMCS-4251;4267;7000

ServiceBrakeHoldingAbilityTest

Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.

Testthebrakesonadry,levelsurface.

Fastentheseatbeltbeforeyoutestthebrakes.

Thefollowingtestsareusedtodetermineiftheservicebrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequired tosustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsare thedifferencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability, etc.

1.Starttheengine.Raisethebucketslightly.

2.Applytheservicebrake.Releasetheparkingbrake.

3.MovethetransmissioncontrollevertoTHIRDSPEEDFORWARD.

4.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.

Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand engagetheparkingbrake.

i04002955

5.Reducetheenginespeedtolowidle.MovethetransmissiontoNEUTRAL.Engagethe parkingbrake.Lowerthebuckettotheground.Stoptheengine.

NOTICE

Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.Havethedealerinspectand,ifnecessary,repairthe servicebrakebeforereturningthemachinetooperation.

SecondaryBrakeHoldingAbilityTest

Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.

Testthebrakesonadry,levelsurface.

Fastentheseatbeltbeforeyoutestthebrakes.

Thefollowingtestsareusedtodetermineiftheparkingbrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequired tosustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsare thedifferencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability, etc.

1.Starttheengine.Raisethebucketslightly.

2.Engagetheparkingbrake.

3.MovethetransmissioncontrollevertoTHIRDSPEEDFORWARD,thentoNEUTRAL, thenbacktoTHIRDSPEEDFORWARD.

Note:Theparkingbrakeindicatorlightshouldcomeonandtheparkingbrakealarmshould sound.

4.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.

Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand applytheservicebrakepedal.

5.Reducetheenginespeed.MovethetransmissiontoNEUTRAL.Lowerthebuckettothe ground.Stoptheengine.

Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.

Havethedealerinspectand,ifnecessary,repairtheparkingbrakes beforereturningthemachinetooperation.

SatMar2610:43:22UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BucketCuttingEdges-Inspect/Replace

SMCS-6801

Personalinjuryordeathcanresultfrombucketfalling. Blockthebucketbeforechangingbucketcuttingedges.

1.Raisethebucket.Placeablockunderthebucket.

2.Lowerthebuckettotheblocking.

Donotblockupthebuckettoohigh.Blockupthebucketsothatthebucketishighenough toremovethecuttingedgesandtheendbits.

3.Removethebolts.Removethecuttingedgeandtheendbits.

4.Cleanthecontactsurfaces.

5.Usetheoppositesideofthecuttingedge,ifthissideisnotworn.

6.Installanewcuttingedge,ifbothedgesareworn.

7.Installthebolts.Tightentheboltstothespecifiedtorque.

8.Raisethebucket.Removetheblocks.

9.Lowerthebuckettotheground.

10.Afterafewhoursofoperation,checktheboltsforpropertorque.

i01920076

SatMar2610:45:39UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

BucketTips-Inspect/Replace

SMCS-6805

Personalinjuryordeathcanresultfromthebucketfalling. Blockthebucketbeforechangingbuckettips.

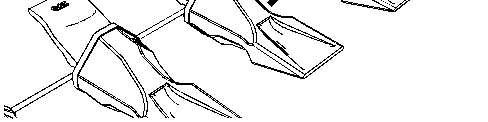

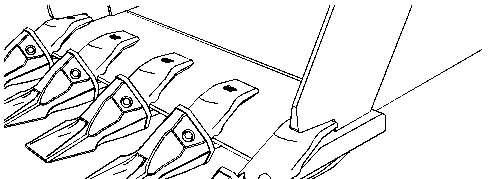

Illustration1g00101352 (1)Thistipisusable.(2)Thistipshouldbereplaced.(3)Thistiphasbeenoverworn.

Checkthebuckettipsforwear.Ifthebuckettiphasahole,replacethebuckettip.

i02540747

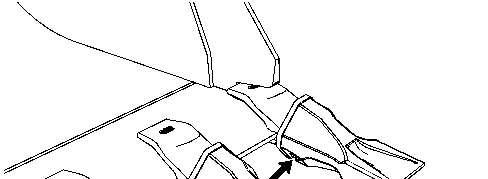

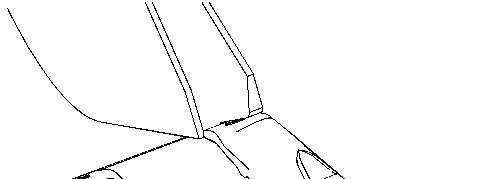

Illustration2g01272671

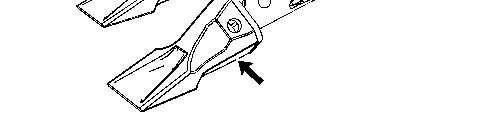

1.Drivethepinoutofthebuckettipfromtheretainersideofthebuckettip.Removethe buckettipandtheretainer.

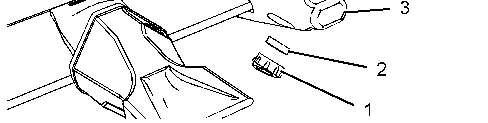

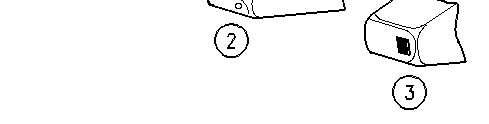

Illustration3g01272854

(1)Retainingwasher (2)Retainer (3)Adapter

2.Cleantheadapterandthepin.

3.Fitretainer(2)intoretainingwasher(1).Installthisassemblyintothegroovethatisinthe sideofadapter(3).

4.Installthenewbuckettiportherotatedbuckettipontotheadapter.Toallowgreater penetrationorlesspenetration,thebuckettipmayberotatedby180degrees.

5.Fromtheothersideoftheretainer,drivethepinthroughthebuckettip,theadapter,andthe retainer.

6.Afteryoudrivethepin,makesurethattheretainerfitssnuglyintothepingroove.

SatMar2610:45:48UTC+05302022

Product:BACKHOELOADER

Model:430EBACKHOELOADERDDT

Configuration:430EBackhoeLoaderCenterPivotDDT00001-UP(MACHINE)POWEREDBY3054CEngine

OperationandMaintenanceManual

420E,430E,432E,434E,442Eand444EBackhoeLoaders

MediaNumber-SEBU7687-10PublicationDate-01/02/2015DateUpdated-26/02/2015

CabFilter(FreshAir)-Clean/Inspect/Replace

SMCS-7342-070;7342-510;7342-040

NOTICE

Donotcleantheelementsbybumpingortappingthem.

Inspecttheelementsaftercleaning.Donotuseanelementwith damagedpleats,gasketsorseals.

Whencleaningwithpressureair,use205kPa(30psi)maximumto preventelementdamagebytoomuchairpressure.

Whencleaningwithpressurewater,use280kPa(40psi)maximumto preventelementdamage.

Cleanthefilterelementweekly,butcleanthefilterelementdailywhenthereisareductionofair circulation.

i02502577
