287B Caterpillar Multi Terrain Loader Service Repair Manual

Product: MULTI TERRAIN LOADER

Model: 287B MULTI TERRAIN LOADER ZSA

Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

267B, 277B and 287B Multi Terrain Loaders Engine Supplement

Media Number -RENR4883-01

Publication Date -01/11/2009

Air Cleaner - Remove and Install

SMCS - 1051-010

Removal Procedure

Date Updated -17/11/2009

i02049815

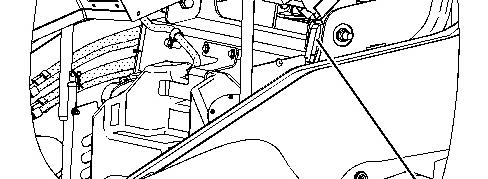

1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".

1 g01038364

Illustration

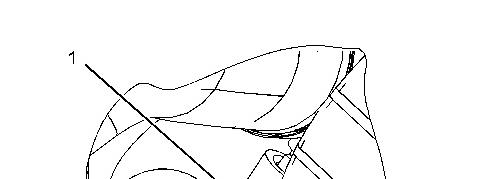

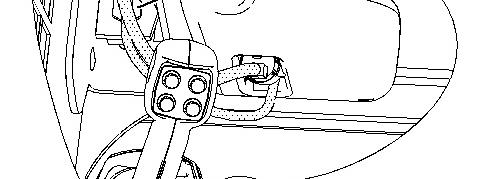

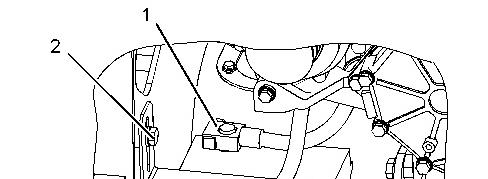

2. Disconnect harnessassembly (1) .

Illustration 2 g01038365

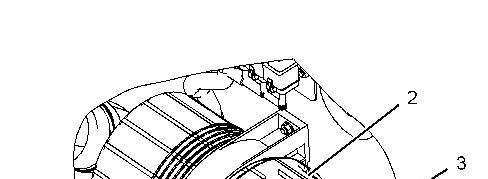

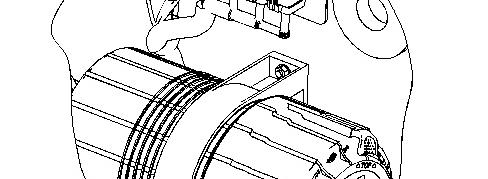

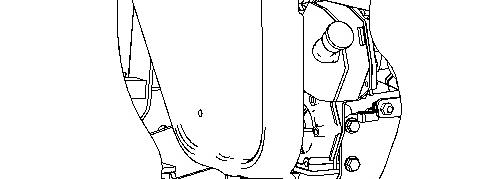

3. Release clamps (2). Remove cover (3) for the air cleaner.

Illustration 3 g01038368

Illustration 4 g01038369

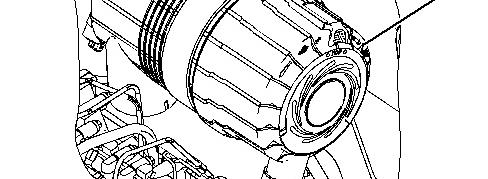

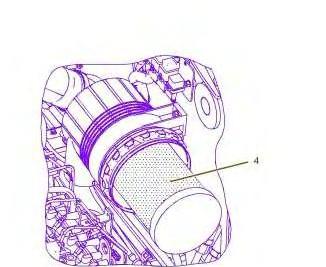

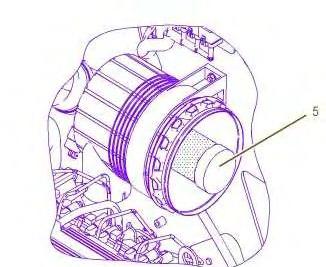

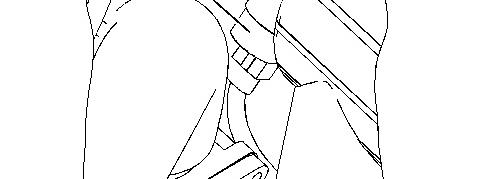

4. Remove primary air cleaner (4) and secondary air cleaner (5) .

Illustration 5 g01038372

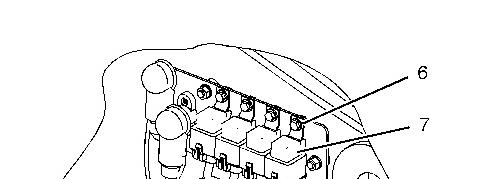

5. Remove bolt (6) and move fuse (7) out of the way.

Illustration 6

g01038385

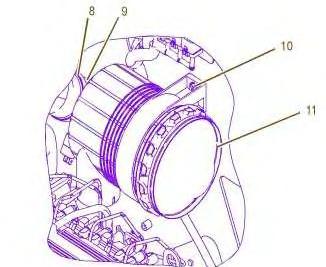

6. Loosen clamp (8) and disconnect hose (9). Remove bolts (10) and remove air cleaner housing (11) .

Installation Procedure

Illustration 7

g01038385

1. Install air cleaner housing (11) and install bolts (10). Connect hose (9) and tighten clamp (8) .

Illustration 8 g01038372

2. Move fuse (7) into position and install bolt (6) .

This is the sample of the manual

Click on the download link for complete Manual

Illustration 9 g01038369

Illustration 10 g01038368

3. Install secondary air cleaner (5) and install primary air cleaner (4) .

Illustration 11 g01038365

4. Install cover (3) for the air cleaner. Secure clamps (2) .

Illustration 12 g01038364

5. Connect harness assembly (1) .

6. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting".

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:52:40 UTC+0530 2020

Product: MULTI TERRAIN LOADER

Model: 287B MULTI TERRAIN LOADER ZSA

Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

267B, 277B and 287B Multi Terrain Loaders Engine Supplement

Media Number -RENR4883-01

Publication Date -01/11/2009

Alternator - Remove and Install

SMCS - 1405-010

Removal Procedure

Start By:

Date Updated -17/11/2009

i02045531

A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery Cable - Separate and Connect".

Note: The muffler has been removed for clarity.

Illustration 1 g01050334

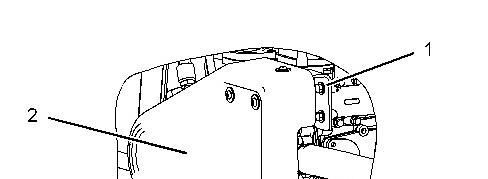

1. Remove bolts (1) and remove cover (2) .

Illustration 2 g01038433

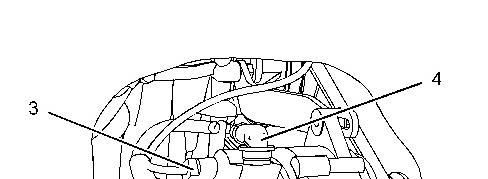

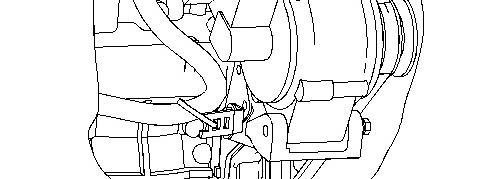

2. Disconnect harnessassembly (3). Raise the boot and disconnect harnessassembly (4) .

Illustration 3 g01038438

Installation Procedure

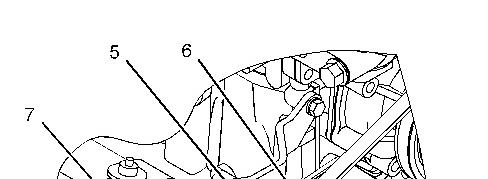

3. Loosen bolts (5) and (8). Remove belt (6) and remove alternator (7) .

Illustration 4 g01038438

1. Install alternator (7). Install belt (6). Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts(5) and (8) .

Illustration 5 g01038433

2. Connect harness assembly (3). Raise the boot and connect harnessassembly (4) .

3. Install cover (2) and install bolts (1) .

End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery Cable - Separate and Connect".

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:50:23 UTC+0530 2020

Product: MULTI TERRAIN LOADER

Model: 287B MULTI TERRAIN LOADER ZSA

Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

267B, 277B and 287B Multi Terrain Loaders Engine Supplement

Media Number -RENR4883-01

Publication Date -01/11/2009

Battery and Battery Cable - Separate and Connect

SMCS - 1401-029-KA

Removal Procedure

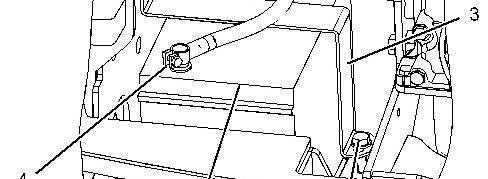

1. disconnect negative battery cable (4) .

2. Disconnect positive battery cable (1) .

Date Updated -17/11/2009

i02045347

Illustration 1 g01041274

3. Remove battery (5) and remove clamp (3). Remove bolts (2) and (6) .

Installation Procedure

Illustration 2 g01041274

1. Install battery (5) and install clamp (3). Install bolts (2) and (6) .

2. Connect positive battery cable (1) .

3. Connect negative battery cable (4) .

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:50:10 UTC+0530 2020

Product: MULTI TERRAIN LOADER

Model: 287B MULTI TERRAIN LOADER ZSA

Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

267B, 277B and 287B Multi Terrain Loaders Engine Supplement Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009

i02046831

Cab - Tilt

SMCS - 7301-084

Procedure to Tilt the Cab

Start By:

A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".

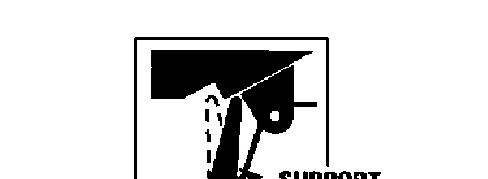

Do not go beneath cab unlesscab isempty and support lever is engaged.

Failure to follow the instructionsor heed the warnings could result in injury or death.

Note: Empty the water tank (if equipped) before you tilt the cab.

Illustration 1 g01049069

Note: Bolt (1) will be retained in the cab.

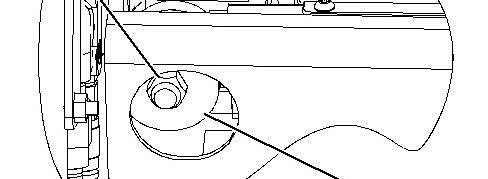

1. Loosen bolt (1) .

Illustration 2 g01049070

2. Remove nut (2) and large washer (3) from the inside of the cab.

3. Repeat Steps 1 and 2 on the opposite side of the cab.

3 g01049074

Illustration

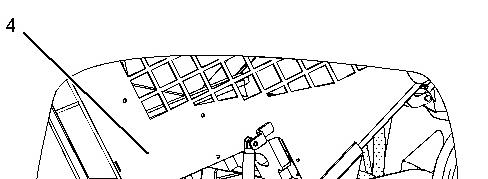

4. Raise cab (4) .

Illustration 4 g00563598

5. Engage cab support lever (5) .

Lower Procedure

Illustration 5 g01049074

Illustration 6 g00563674

1. Tilt the cab upward.

2. Disengage cab support lever (5) .

3. Lower cab (4) .

This is the sample of the manual

Click on the download link for complete Manual

7 g01049069

Illustration

4. Align bolt (1) .
