COALESCE

Waste to Energy +Recycling Plant+ Nantatorium ARCH 704 Design 4: INTEGRATED STUDIO Professor: Stephanie Bayard Project with Ayesha Nathani Exhibition: Wast(ED): Living with Waste conducted by AIA The City That Never Sleeps has a bigger problem than the flashing lights and noisy streets- it’s all of the trash that’s left to sit out on the sidewalks.

New Yorkers produce 26,000 tons of garbage each day, 80% of which goes either to the Fresh Kills landfill or to out-of-state dumps. Eventually destroying a lot of our natural environment and compromising the air quality and health in nearby community.

Our main goal is to draw in the local community members to learn about the effects of trash disposal. To build a connection between the waste and the other programs. Hence, a studio project with a brief to design waste to energy recycling plant with natatorium speculates the opportunities to blur the boundaries between various stages of industrial process of the factory. The formal language of the project involves the Natatorium’s activities spread across, with the goal of providing visitors with an insight into the ongoing industrial processes of WTE and recycling units that are occurring concurrently. The depressions are highly inspired by the contextual residential blocks while the scale of the massing is industrial, keeping in mind the functionality of the machinery. Interior follows the similar architectural language to carve the spaces that allows the users to experience different scale and volumes. The horizontal connectivity of glass bridges throughout the building that forms the critical point of visual connection of programs and the outside.

ACADEMIC

COALESCE WASTE TO ENERGY

CONCEPTUAL Site: Bronx, University Heights Area: 162,200 Sqft Lot Frontage: 742.17 ft Lot Depth: 267 ft FAR: 2.0

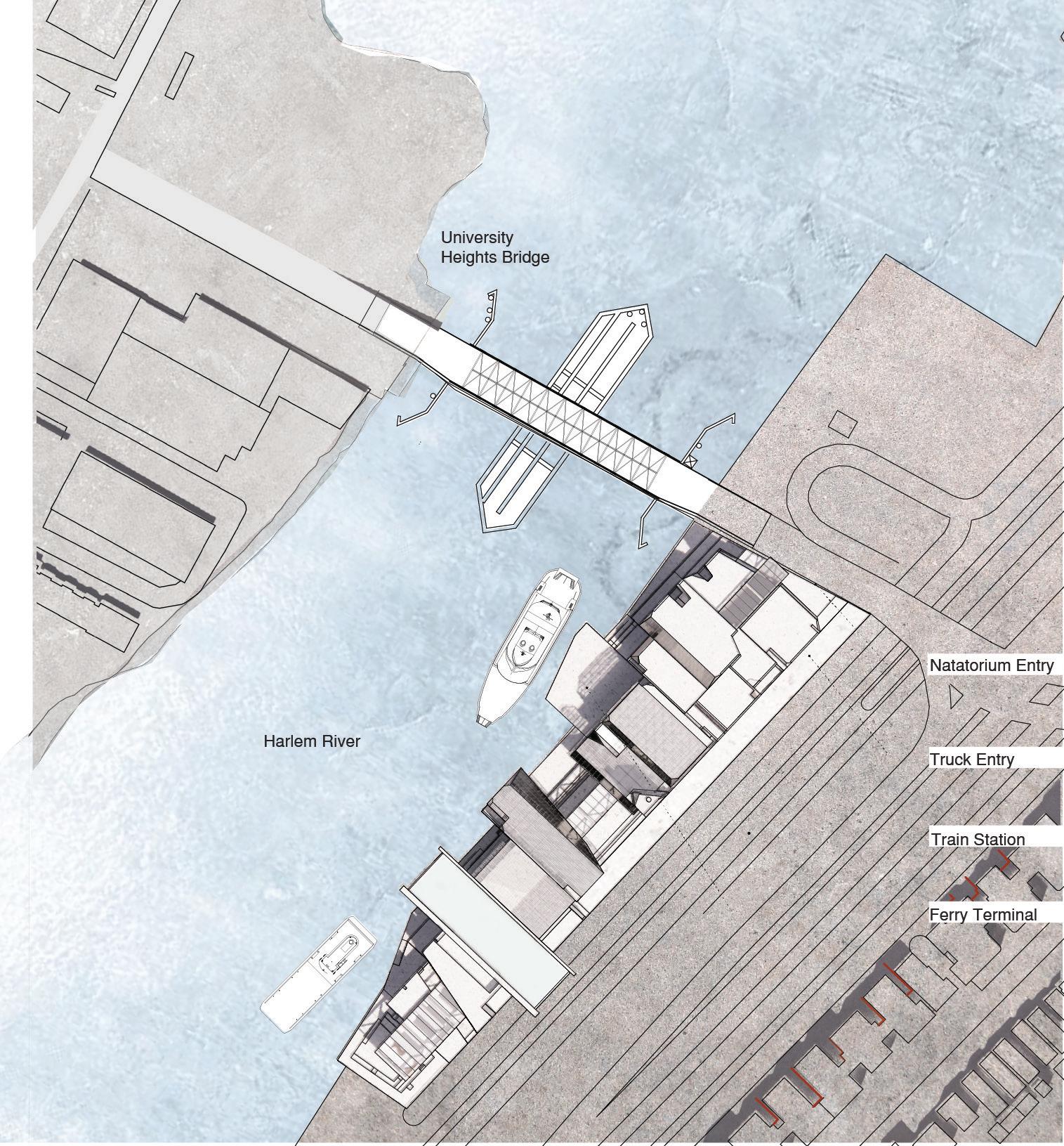

SITE PLAN

COALESCE WASTE TO ENERGY

GROUND LEVEL

MID LEVEL

TOP LEVEL

1. Tipping Hall (WTE) 2. Trash Collector 3. Central Air Conditioning Room 4. Incinerator 5. Gas Scrubber Reactor 6. Chimney Stack Exhaust 7. Tipping Hall (Recycling Plant) 8. Sorting Area 9. Baling Area

1. Reception & Waiting (Natatorium) 2. Admin Office 3. Trash Collector (WTE) 4. Incinerator 5. Electrostatic Precipitator & Fuel Gas Treatment 6. Gas Scrubber below 7. Bridge connecting 8. InformationRoom 9. Sauna

1. Fitness Centre (Natatorium) 2. Green House 3. Thermal Bath 4. Swimming Pool 5. Changing Rooms 6. Recreational Pool

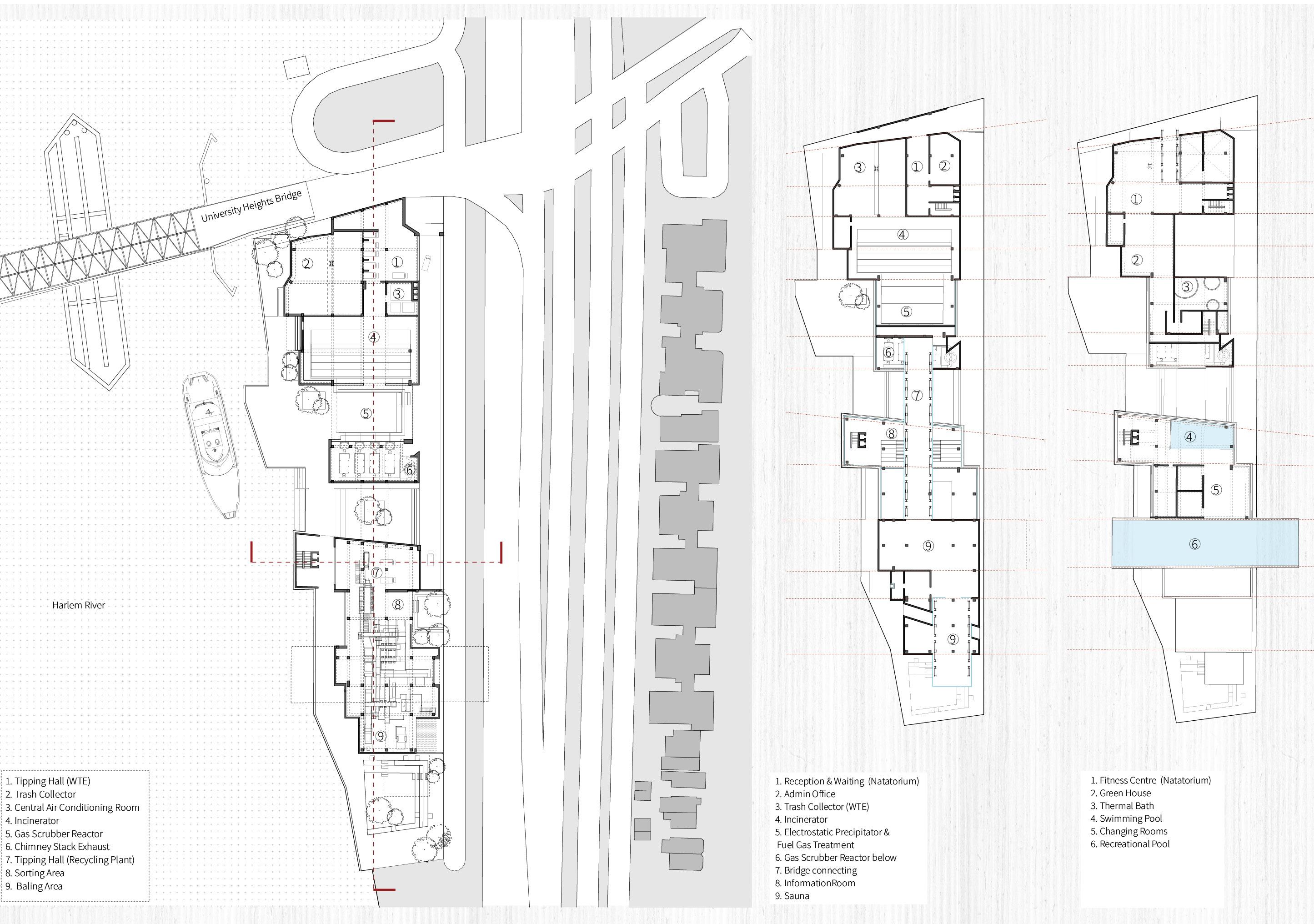

PLANS

a.

b.

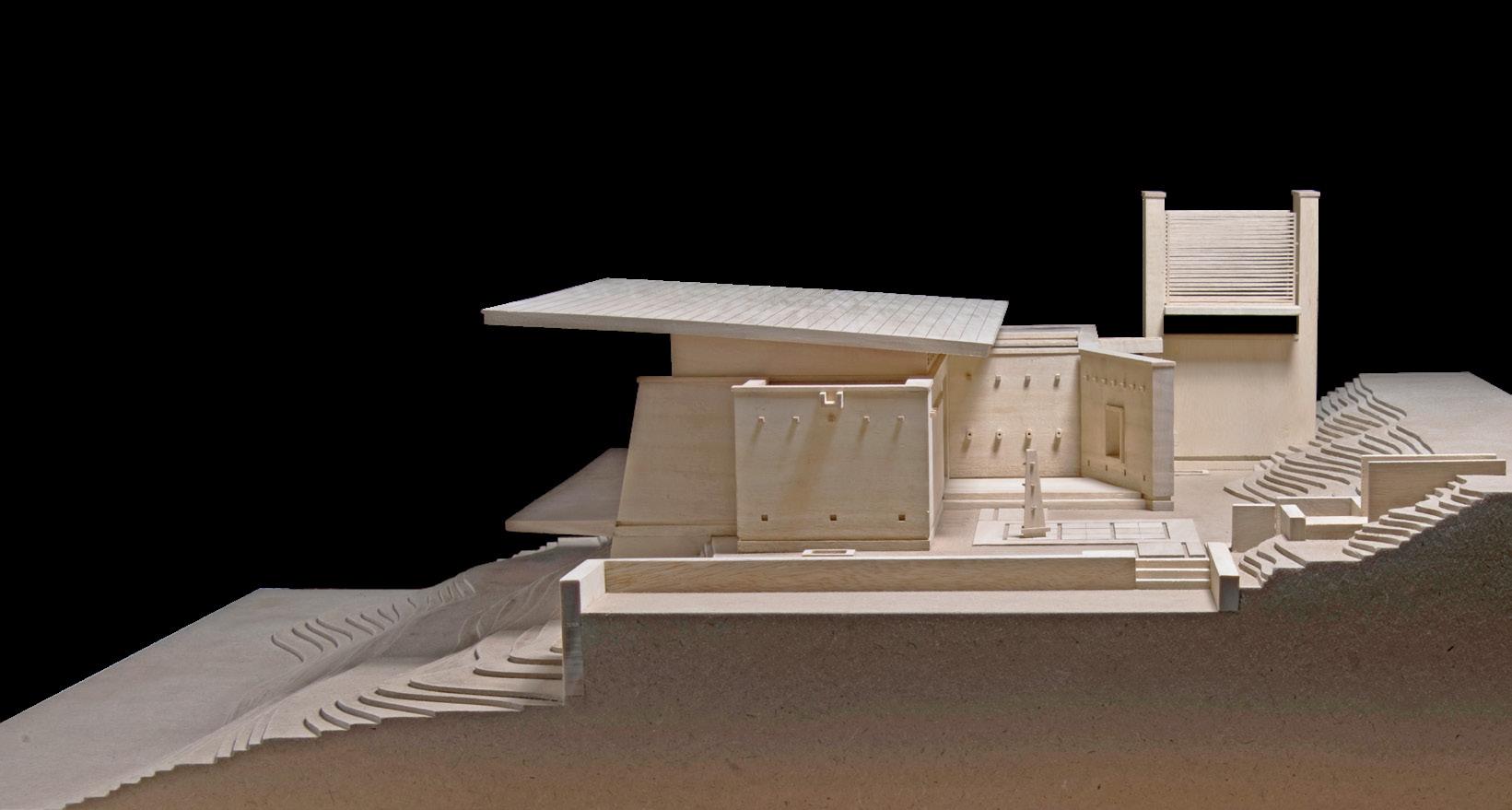

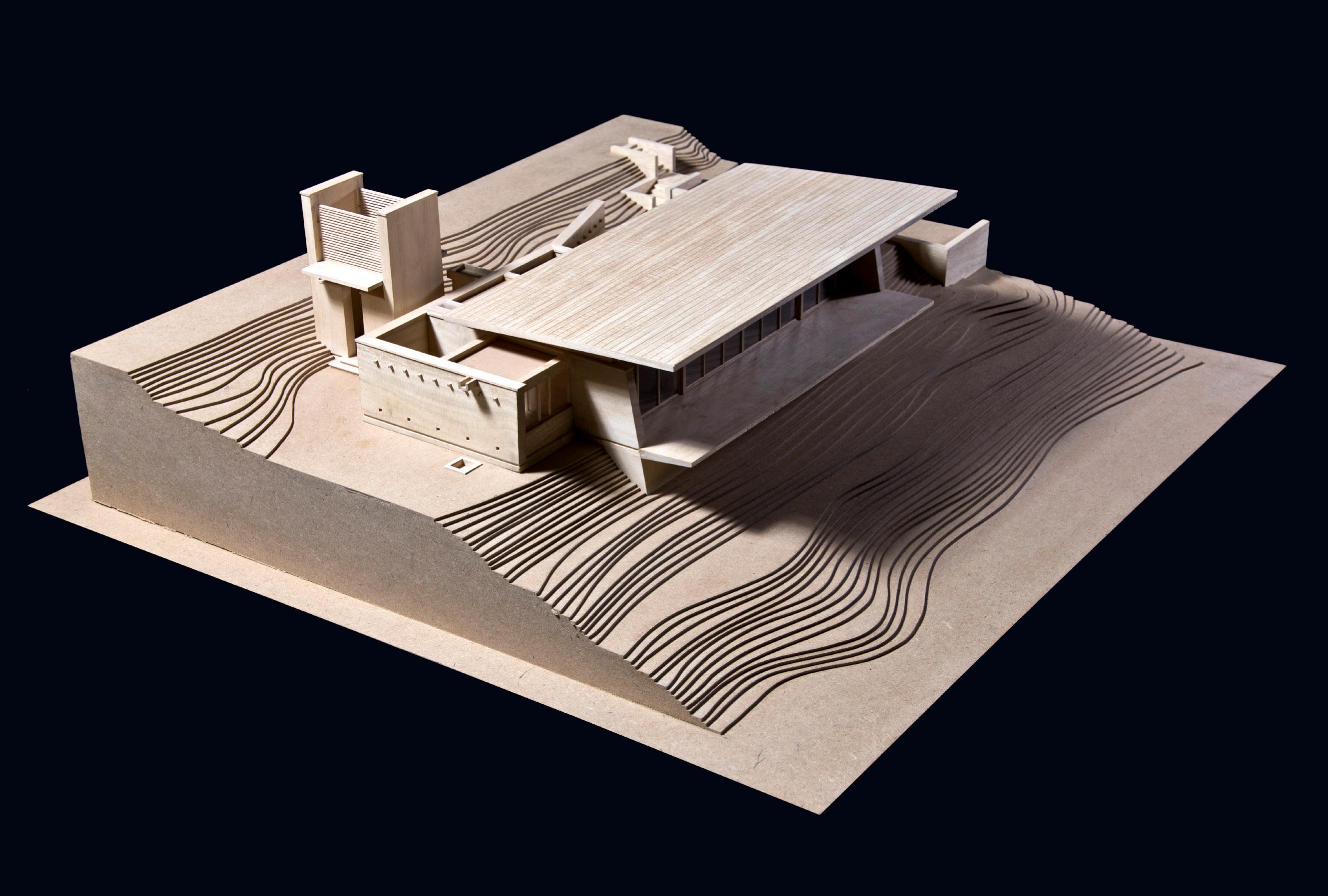

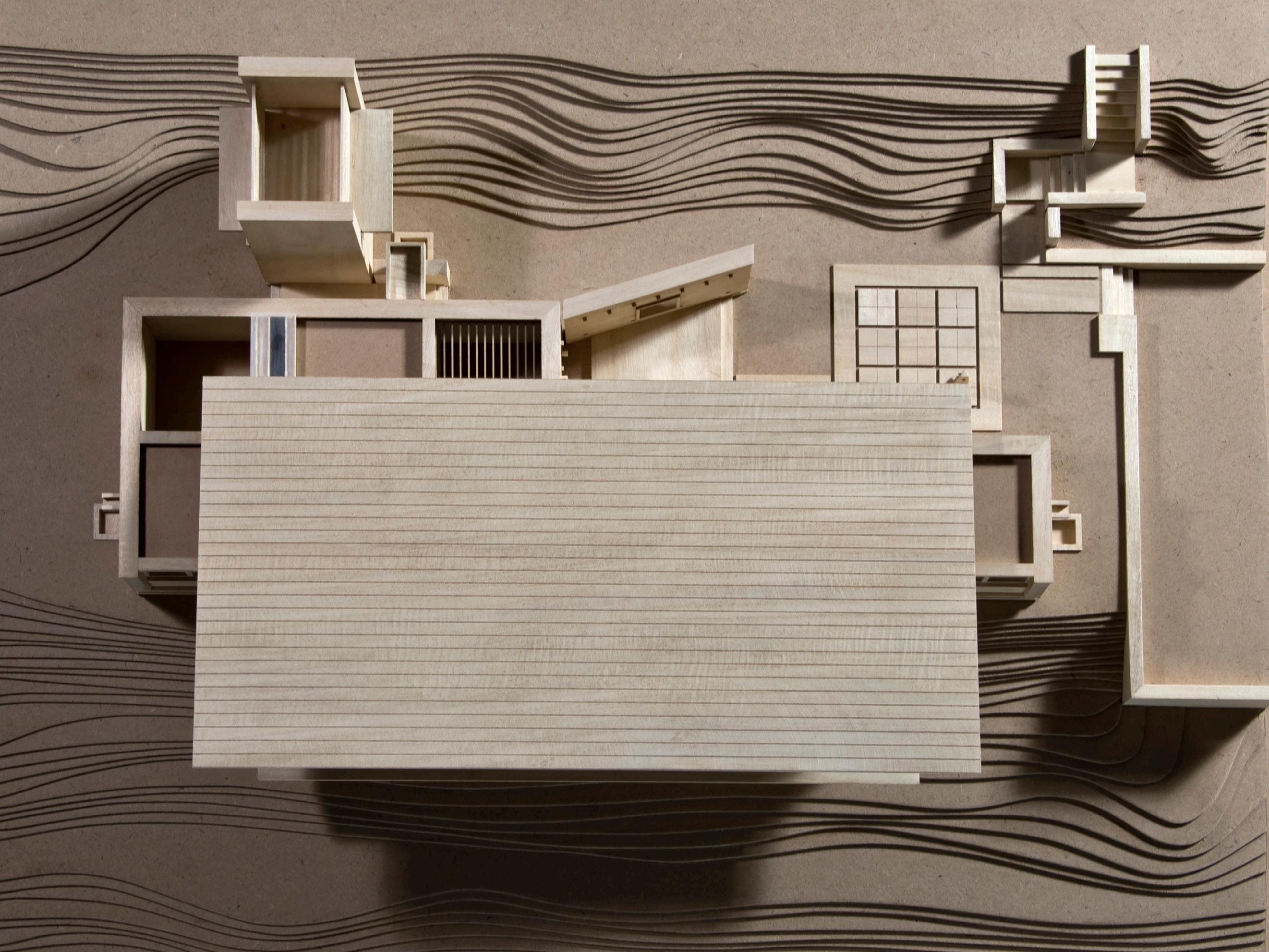

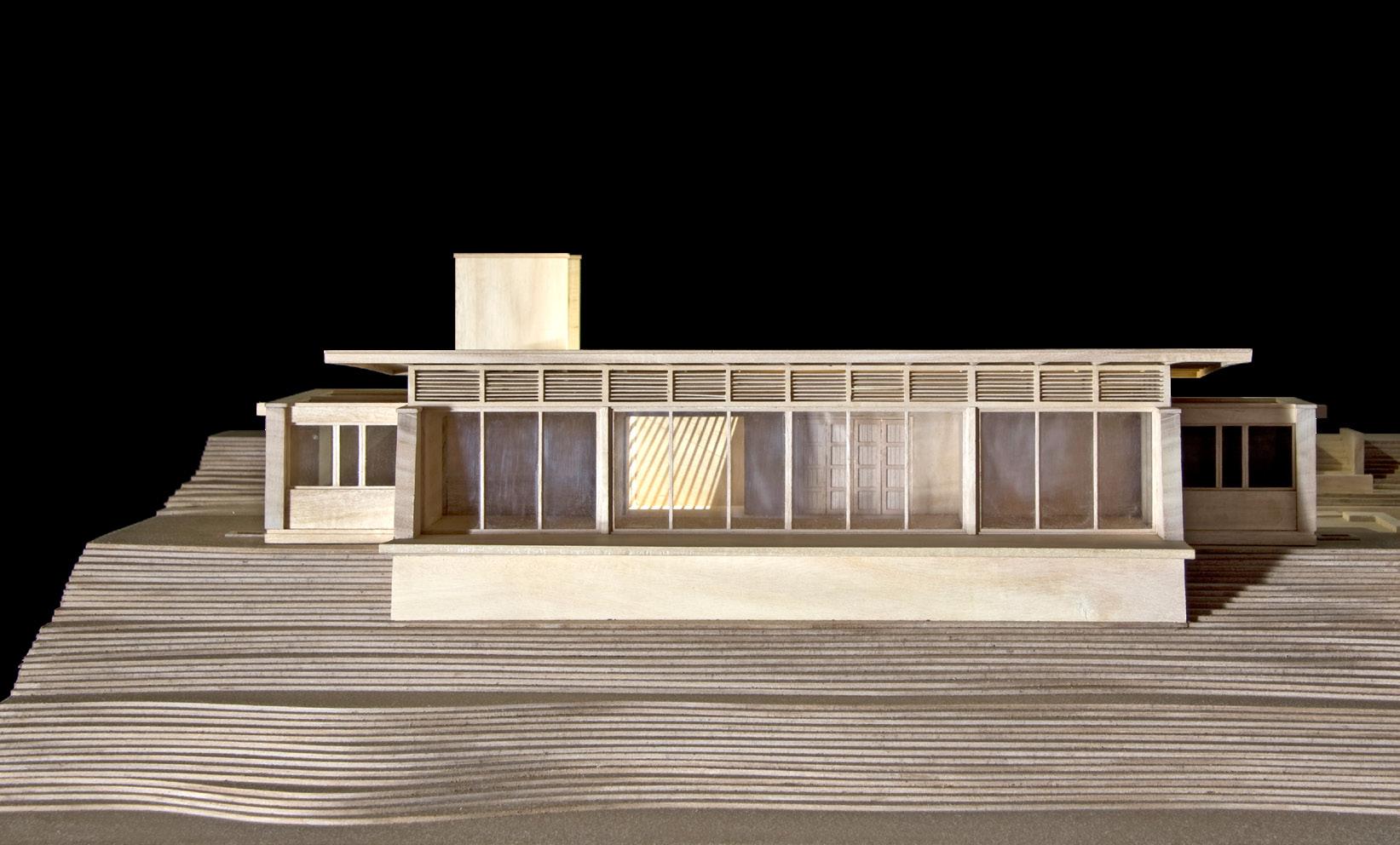

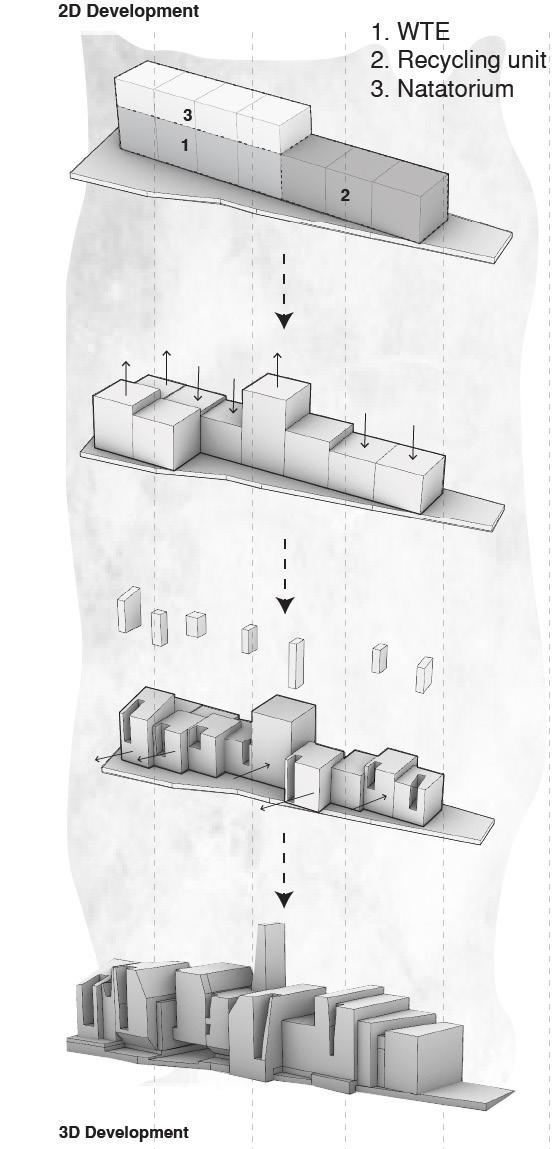

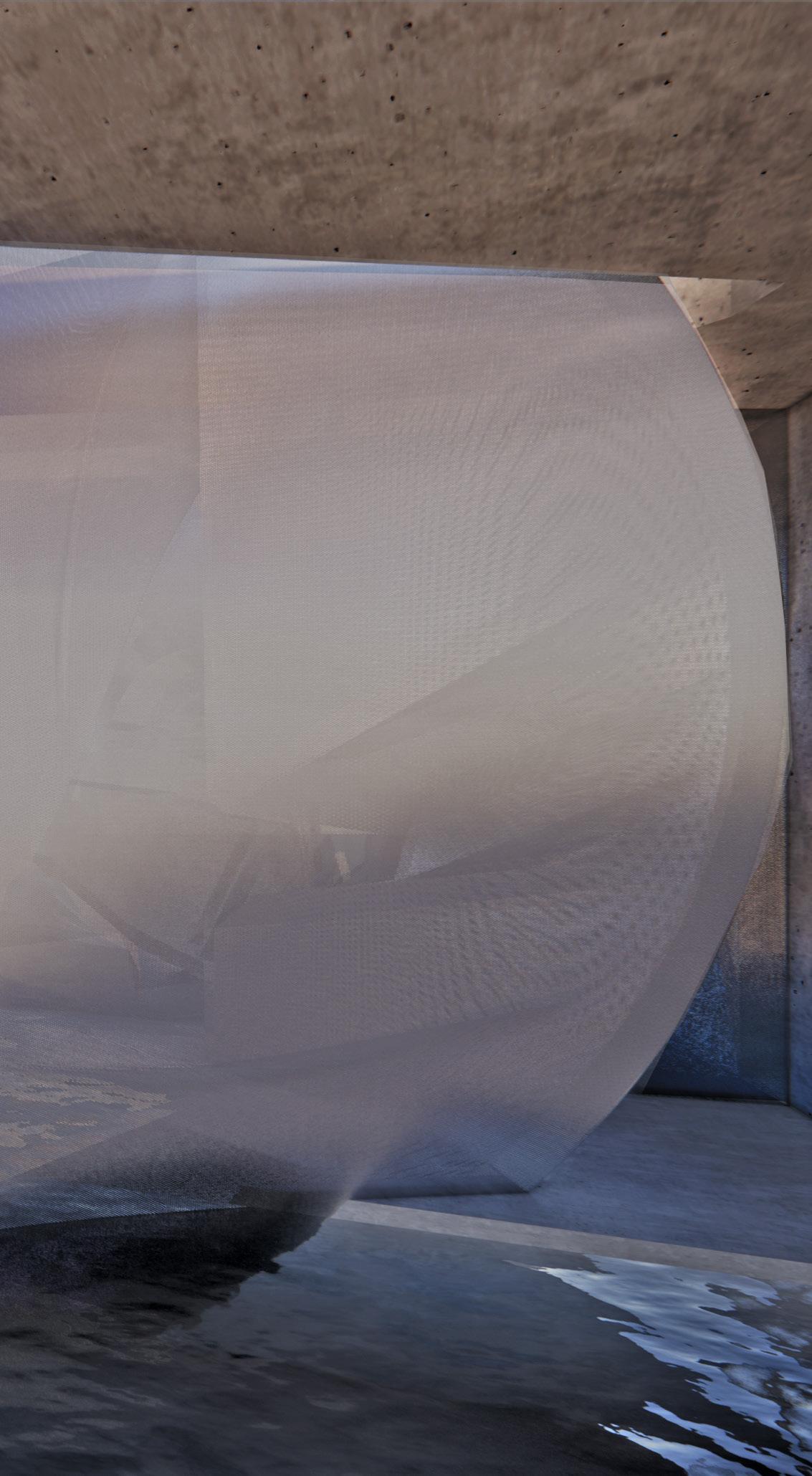

MASSING MODEL

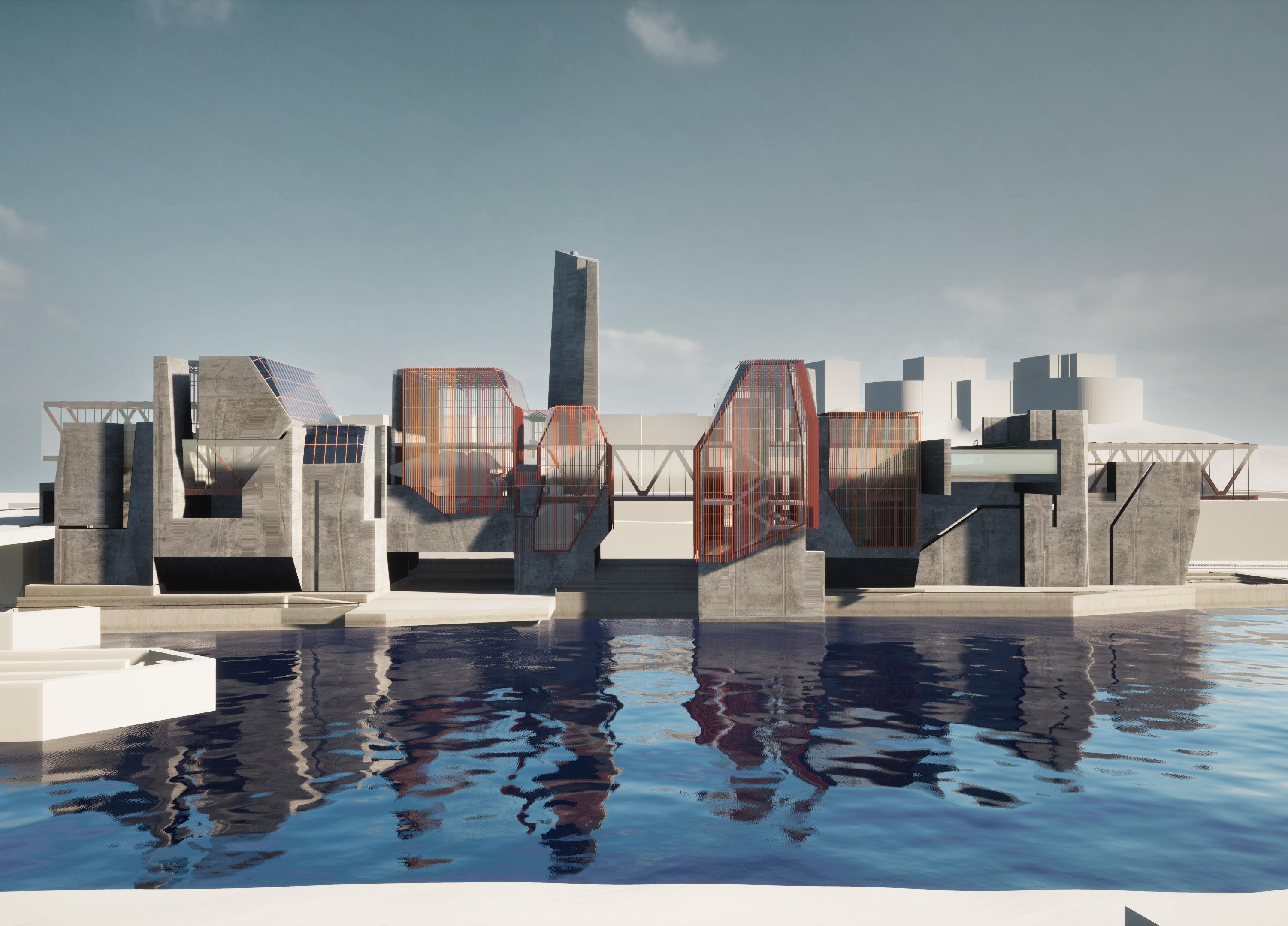

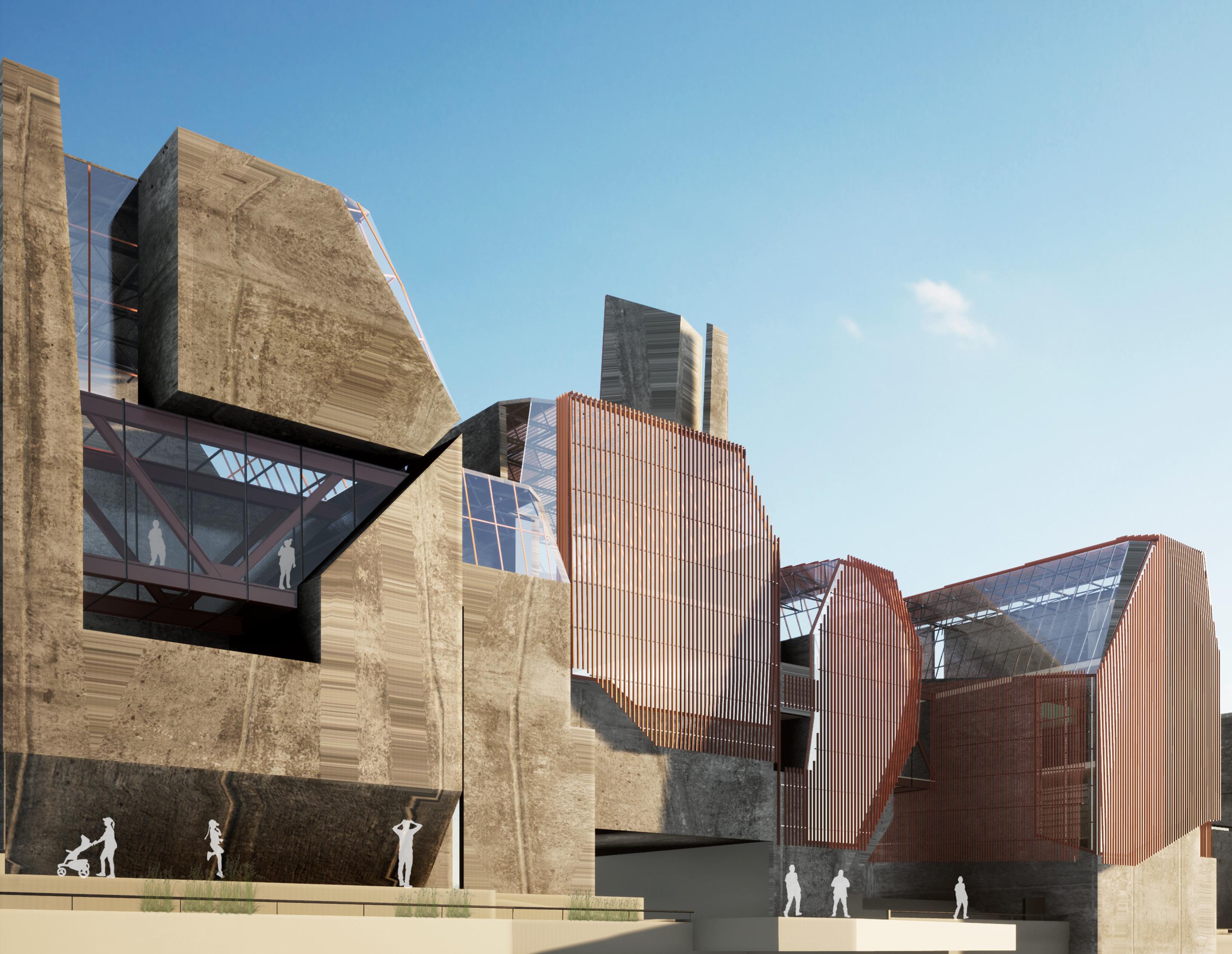

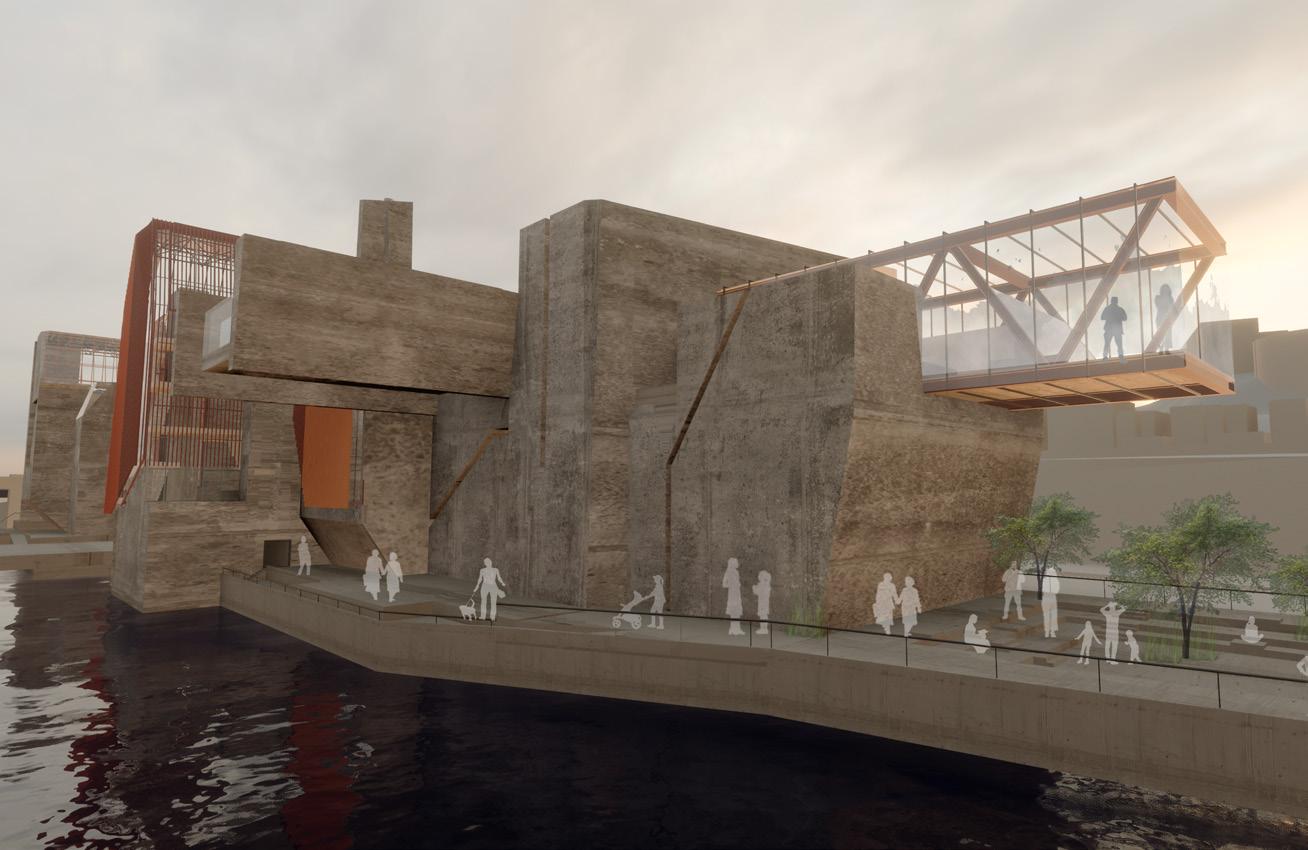

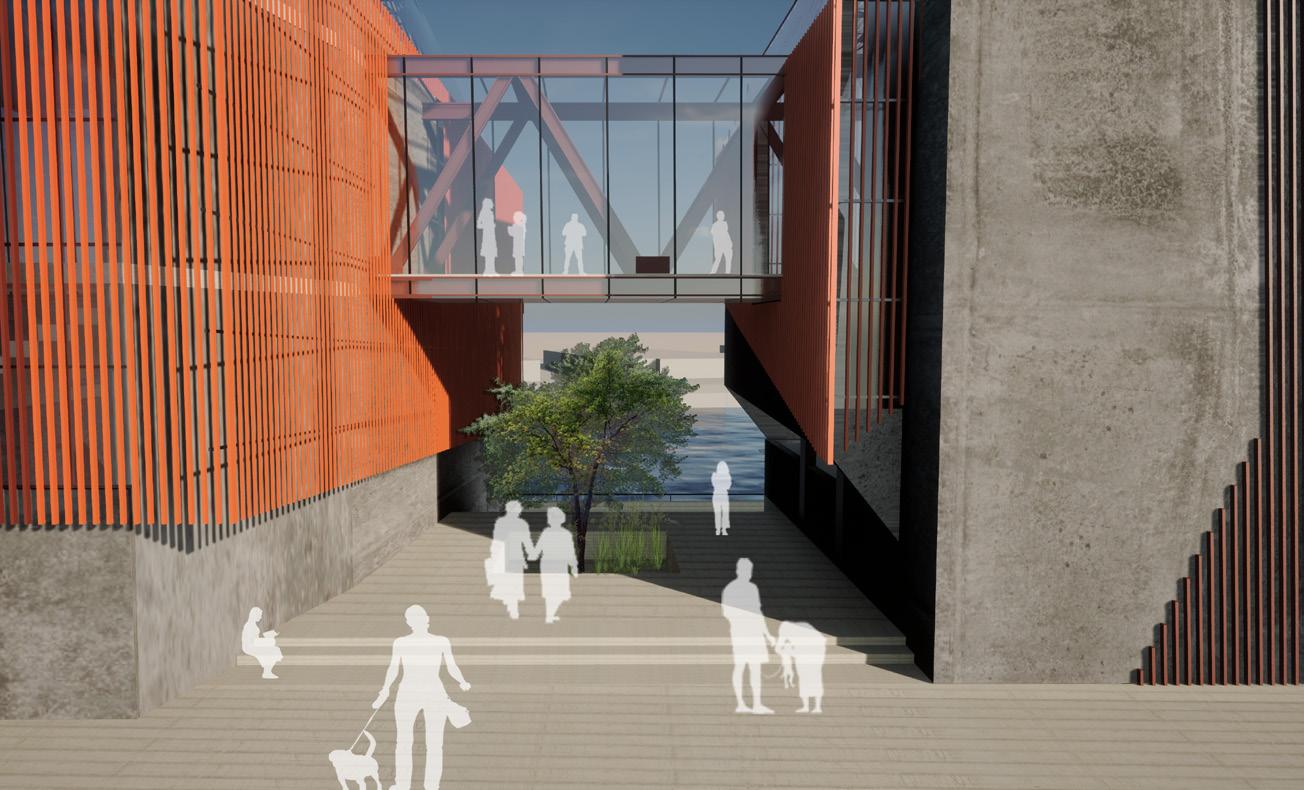

a. -Entry view to the Facility b. -View from Harlem river

COALESCE WASTE TO ENERGY

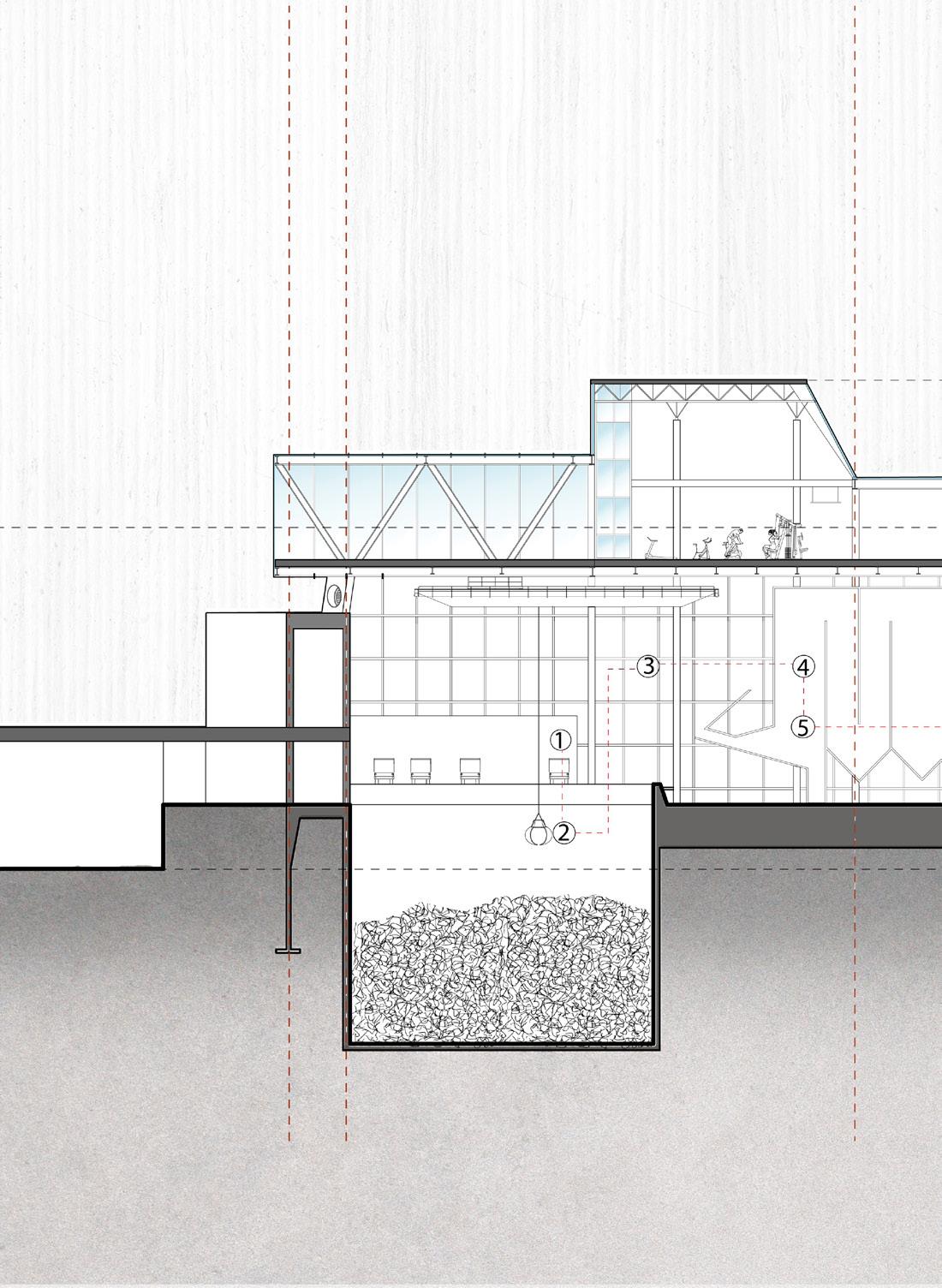

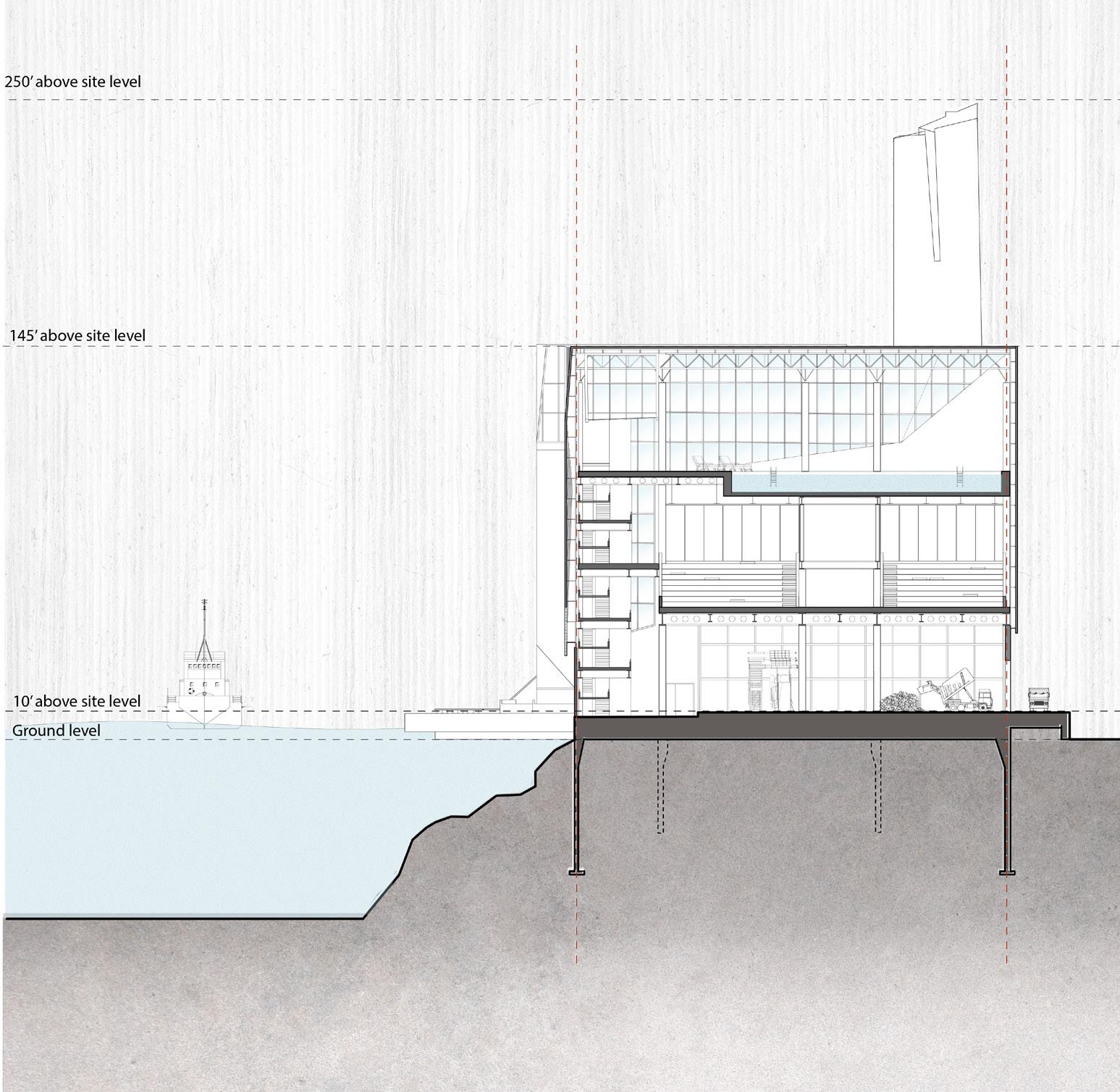

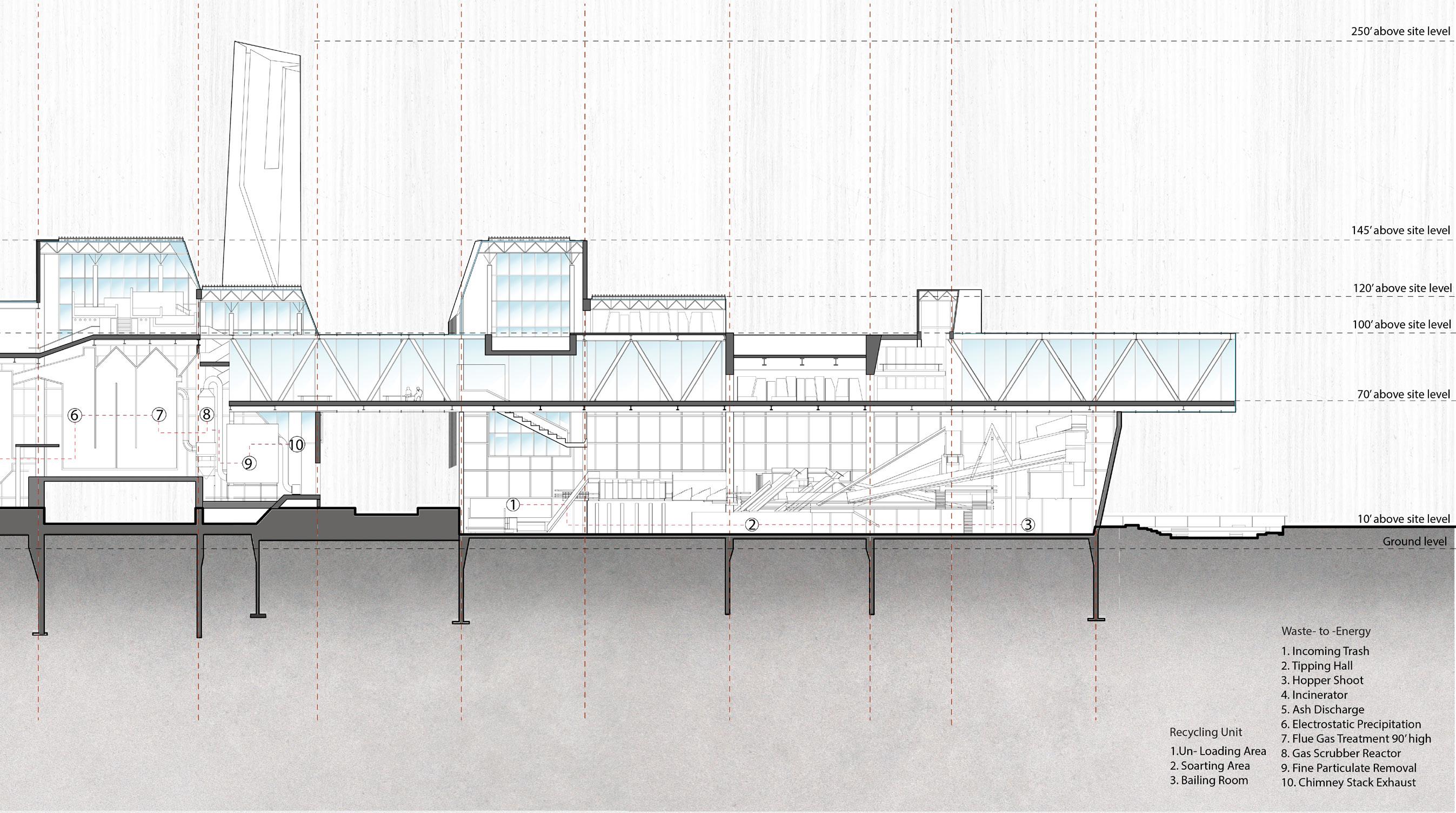

TRANSVERSE SECTION

LONGITUDINAL SECTION

COALESCE WASTE TO ENERGY

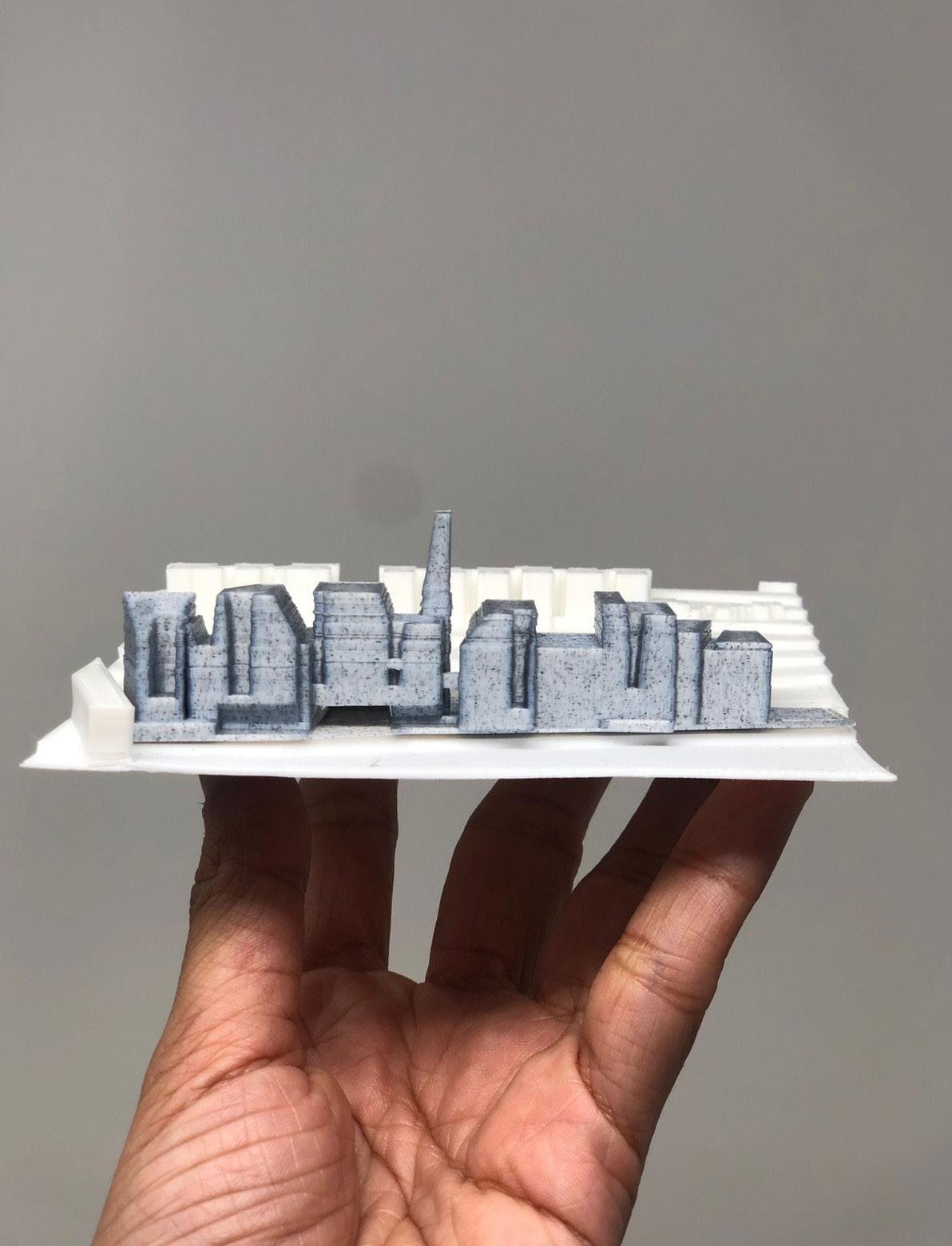

CHUNK MODEL

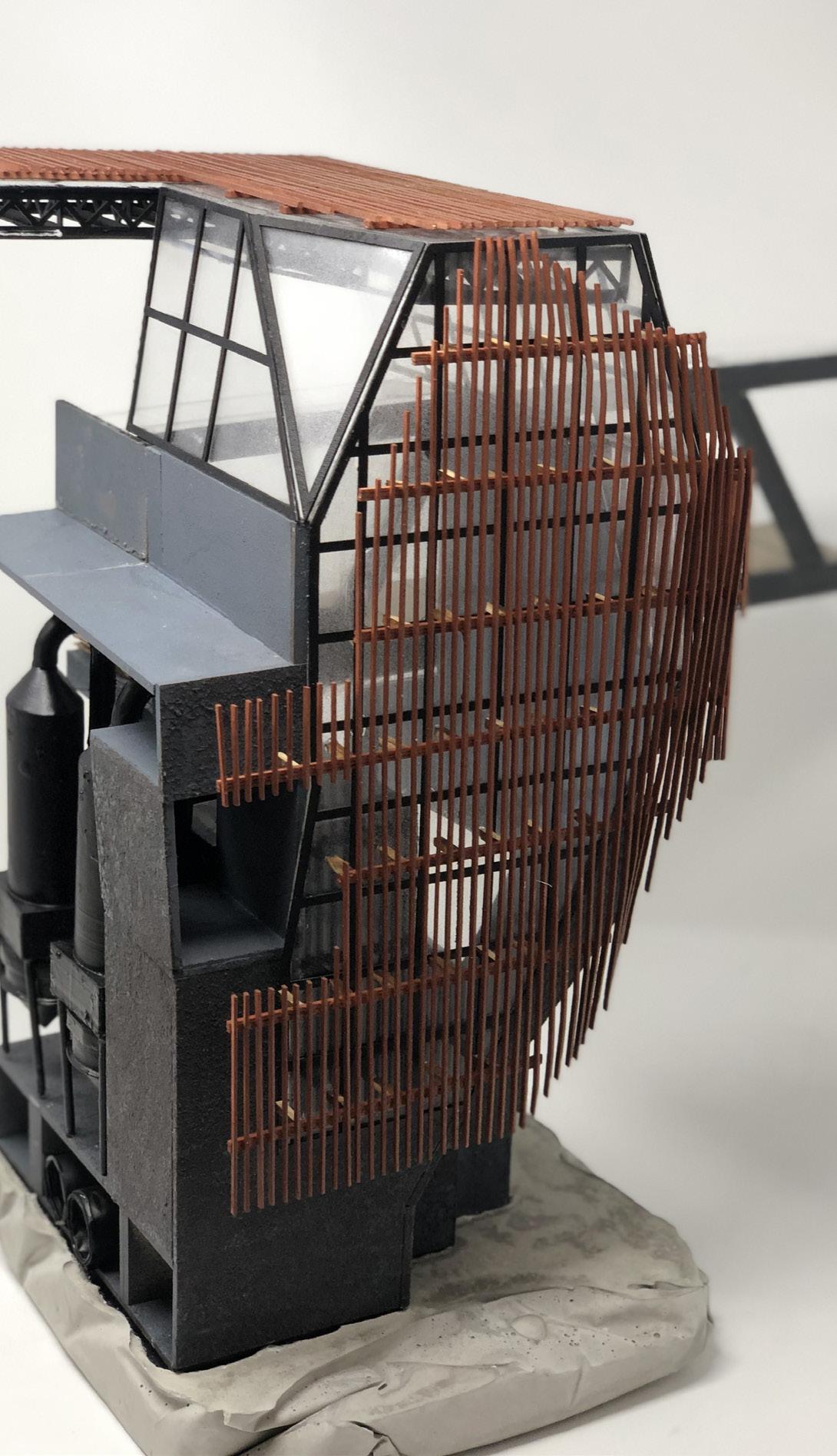

CHUNK- PHYSICAL MODEL

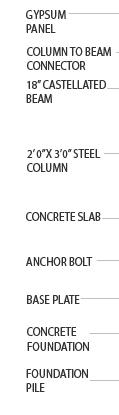

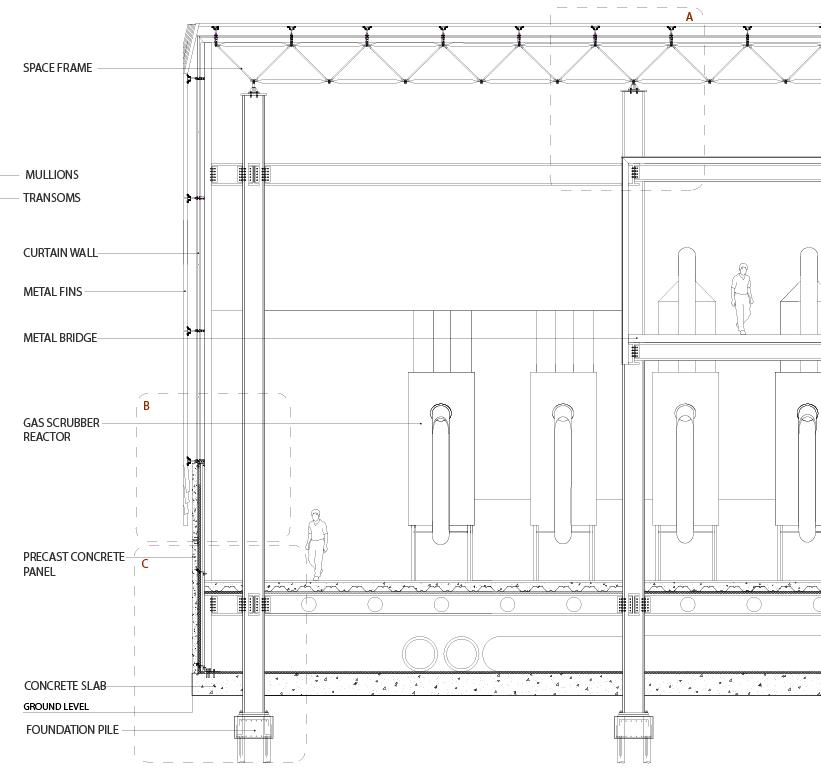

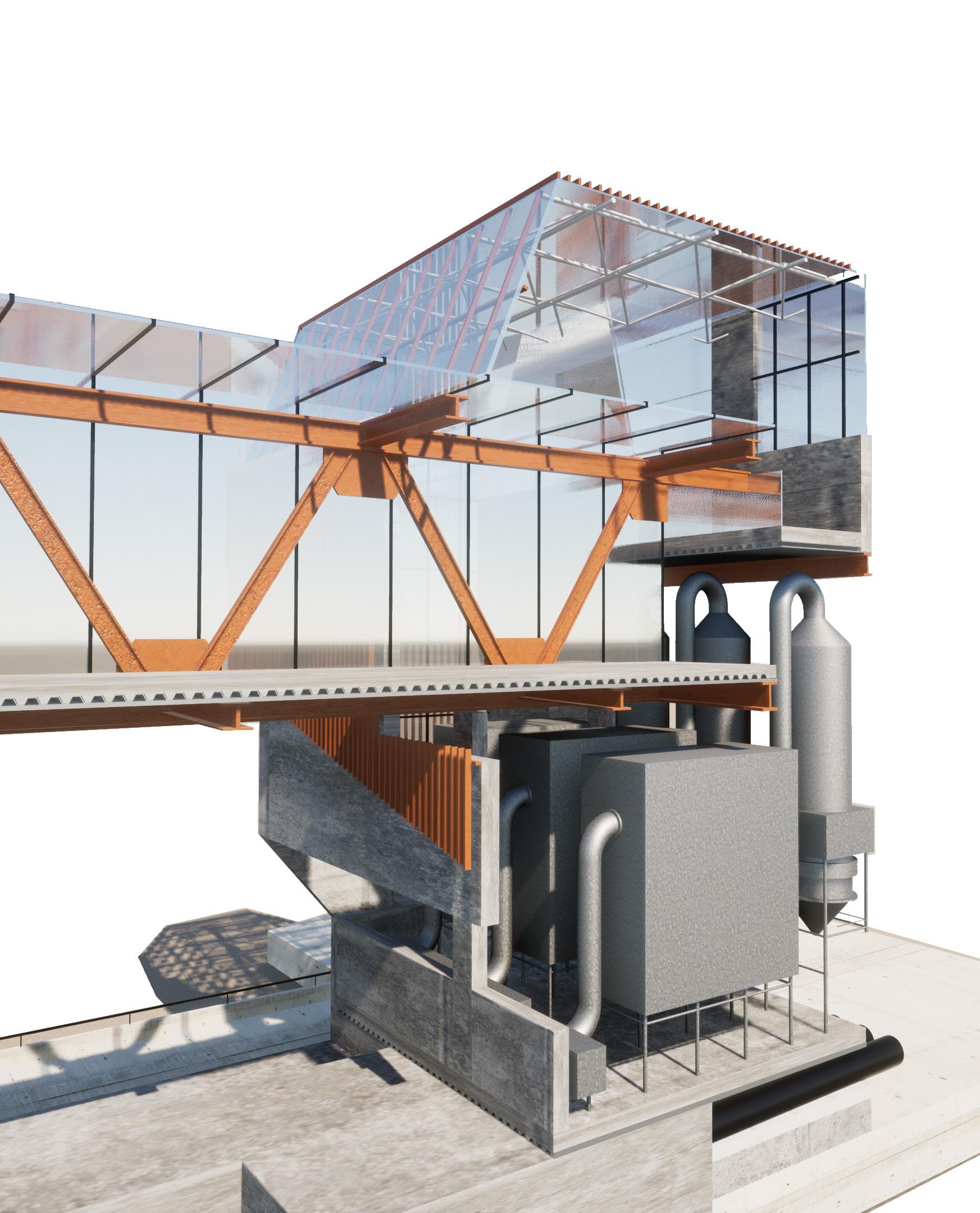

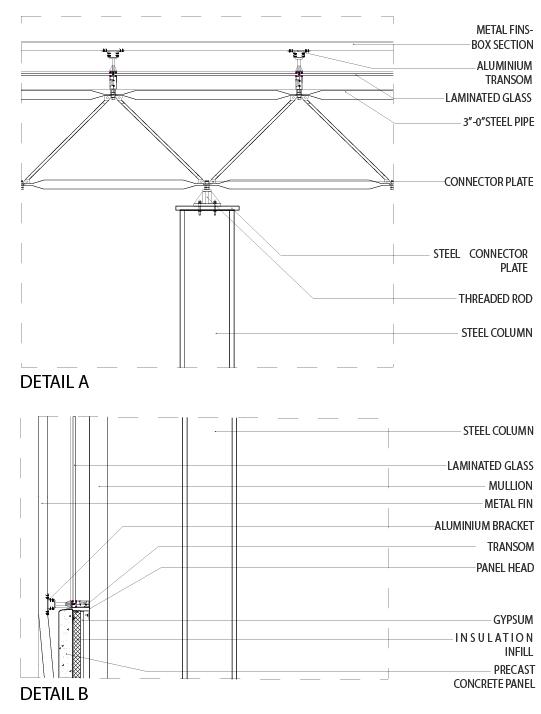

SECTIONAL DETAIL

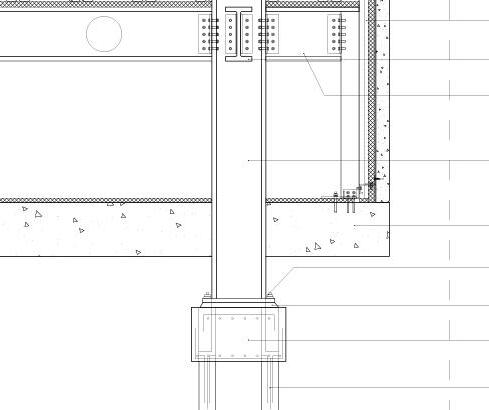

DETAIL C

ECOLOGICAL PERCEPTION A Museum of emotions

ARCH 805 Design 5: EXPERIMENTAL STUDIO Professor: William Macdonald

Experiments in ‘Meta-Affordances’ and other Manifold Manifestations of ‘Ecological Perception/Action in Architecture’ and/or, rather The Museum of Emotions.

Film is a dynamic representational medium offering the ability to collapse time and compose visual narratives frame-by-frame. Like cinematography, architecture engages spaces within the view frame as well as the ambient effects of spaces beyond. In both practices, time may be translated into measures of movement and occupancies of space. Movie emotion, is tightly framed and boundaried but permissive and uncontrolled in content.

The idea was to exchange and fusion the object and subject through a movie sequence and analysing emotions frame by frame. Eventually creating a 3-dimentional architectural form which will derive different emotion in a user . The role of architecture is to enrich an environment and infuse it with emotion through its interaction in space. It possesses the ability to shape space, softening or hardening surfaces, volumes and profiles, generating an ever evolving experience. Allowing the user to see the horrifying beauty and imagine a full spectrum of joyful activities inside spaces that are naturally formed. It can be “mystical” as well as “serene” or “chaotic” and “complex”.

ACADEMIC

ECOLOGICAL PERCEPTION MUSEUM OF EMOTIONS

MOVIE- REAR WINDOW

LIGHT AND SHADOW

1.

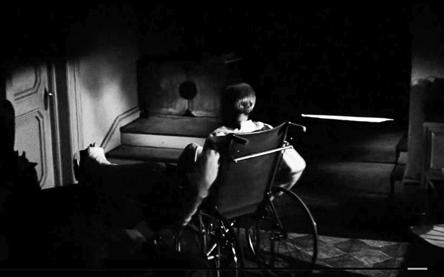

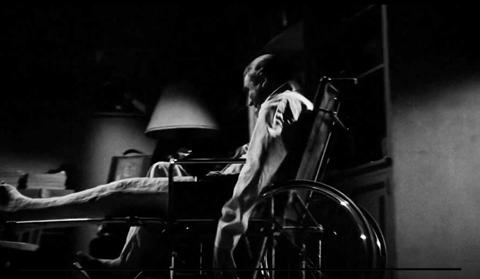

A sequence of a scene from the movie “Rear Window” The main protagonist rushing towards the door in panic.

Scene-1

01:46:08

Scene-2

01:46:09

Scene-3

01:46:10

Scene-4

01:46:13

Scene-5

01:46:14

Scene-6

01:46:15

Scene-7

01:46:16

Scene-8

01:46:17

2.

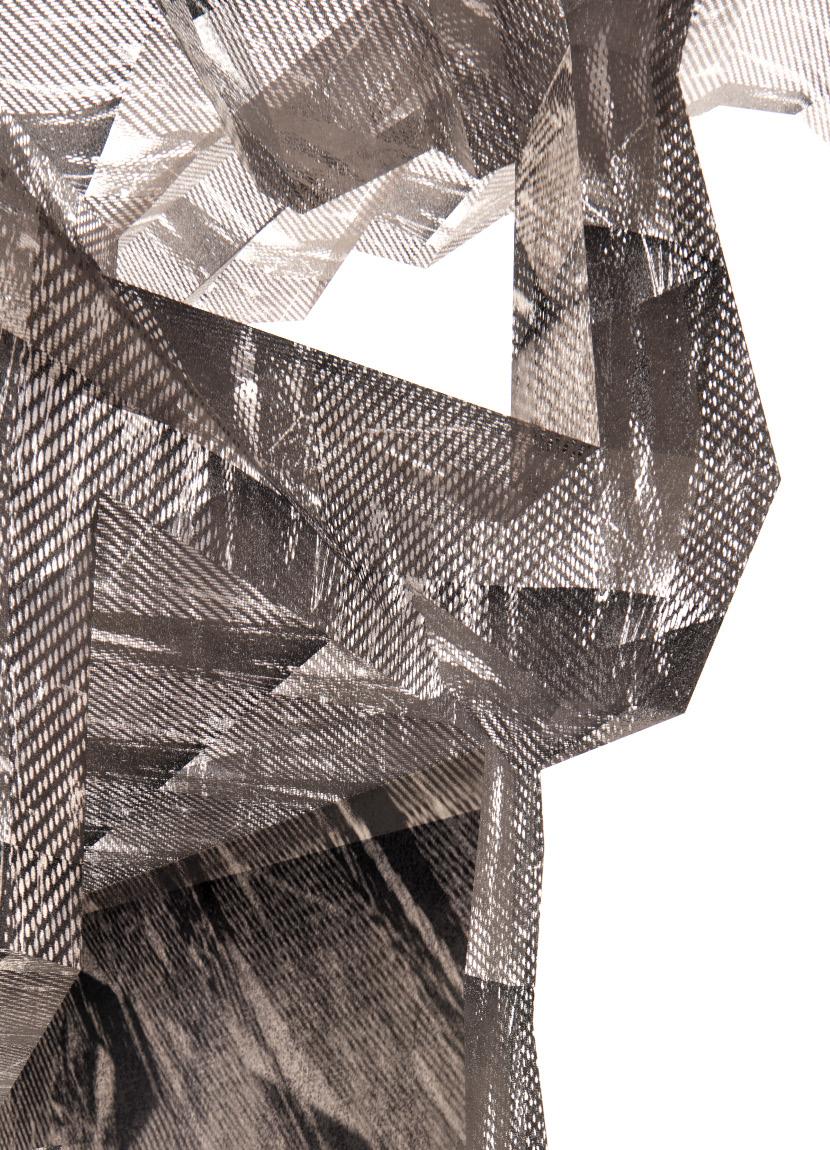

Overlapping each frame of the scene with respect to time, space and motion.

The resulting image creates a space through light and shadow.

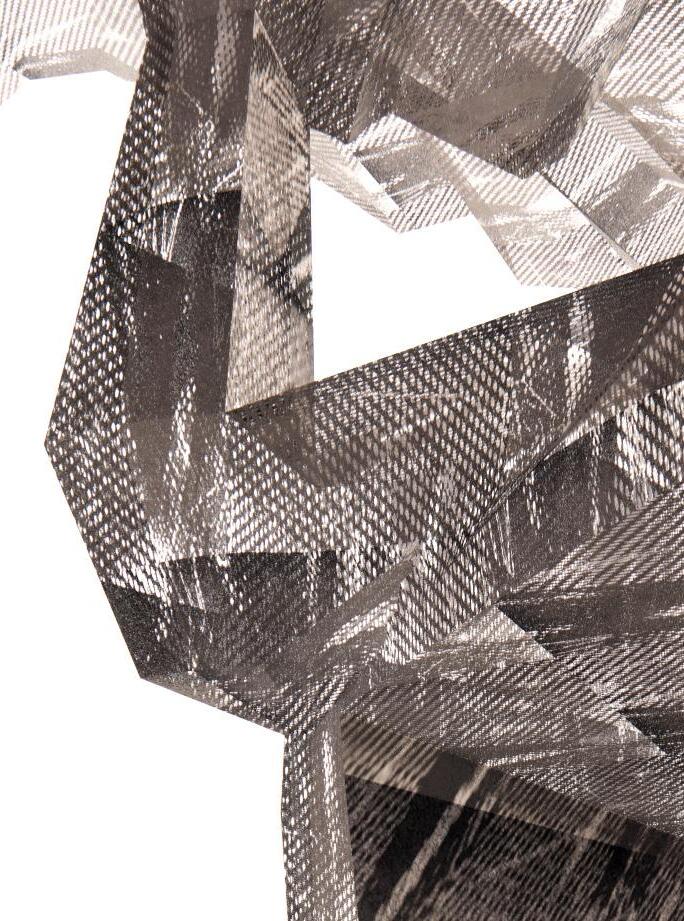

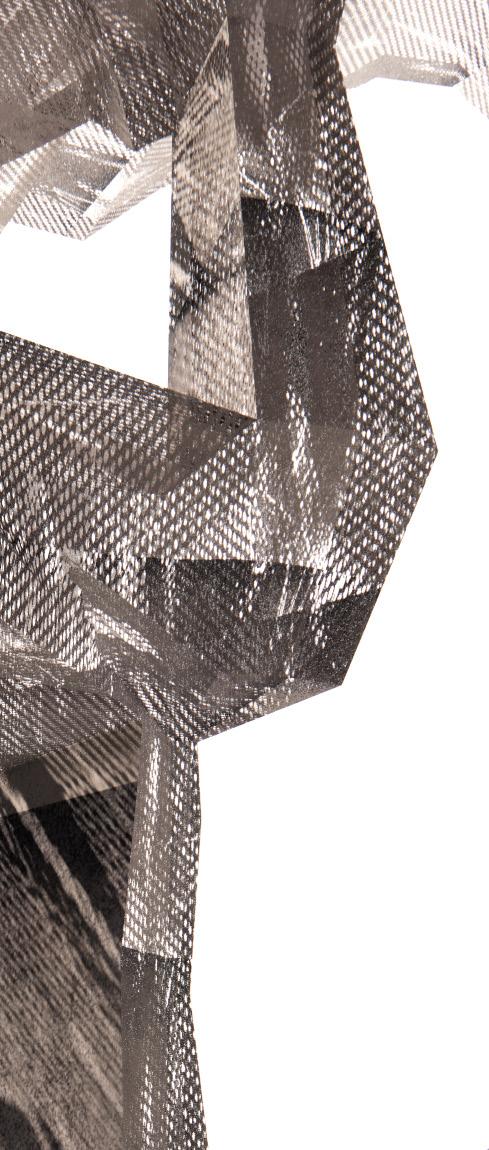

EDGERTON EFFECTOverlapping of scenes

EMOTION:

CONCEPTUAL

TRAPPED

IDEONOMIES:

FRANTIC, AGITATED, PANICKY, DISTRAUGHT

3.

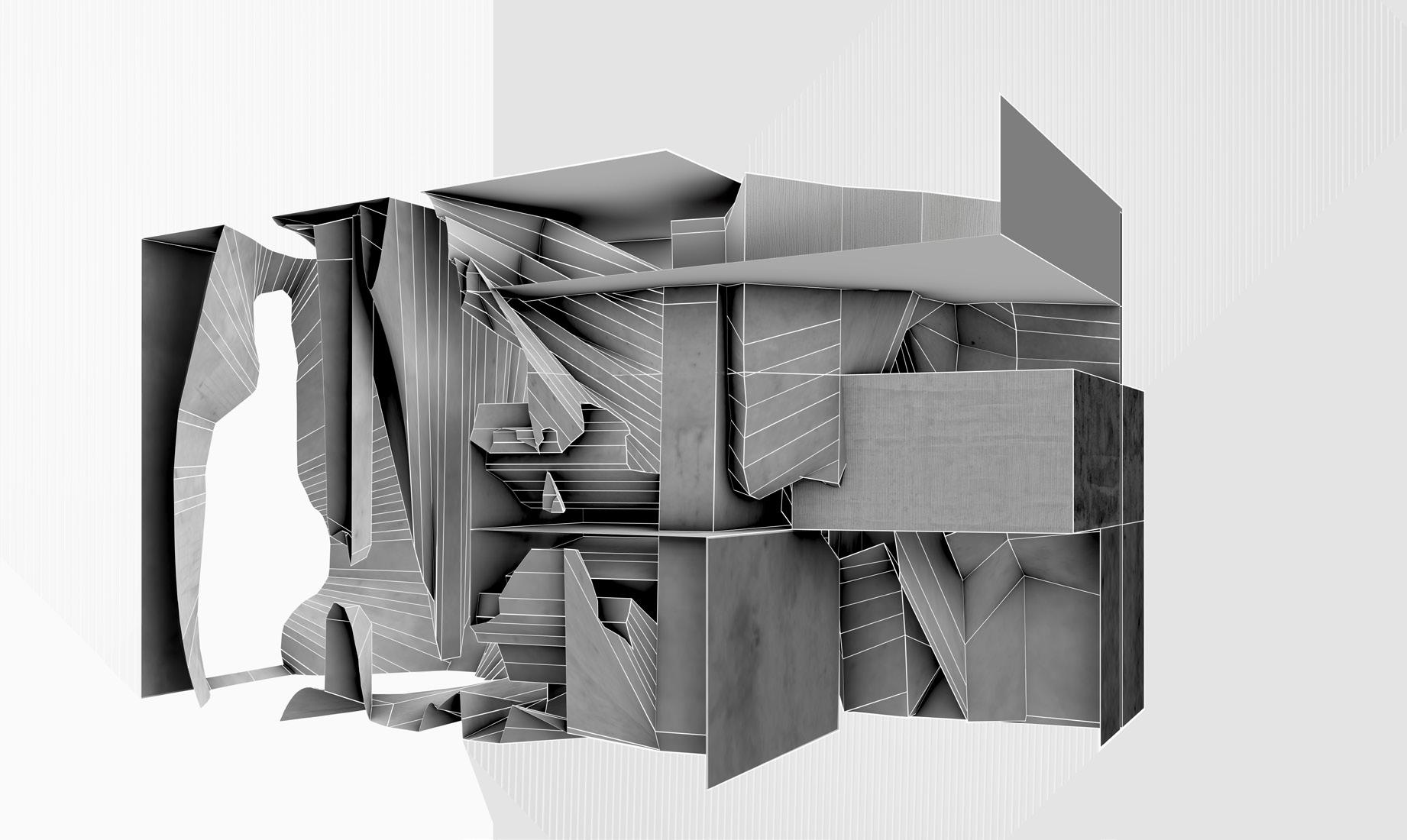

It is but the ideas of forms and spaces.The complexities are visible from the outside. The intersection of planes shows the chaoticness with intertwingling thoughts. The structure looks like a free collage of variegated surfaces and materials. The spaces embrace individuality and celebrated the lonesome. It creates many individual spaces in one large space. It gives us a sense of belonging, where the user perceives the space as an extension of themselves. It emphasizes a provocative assemblage of assorted elements, and spaces, in the case of this project attains a monumental quality.

SUBJECT

SHADOW

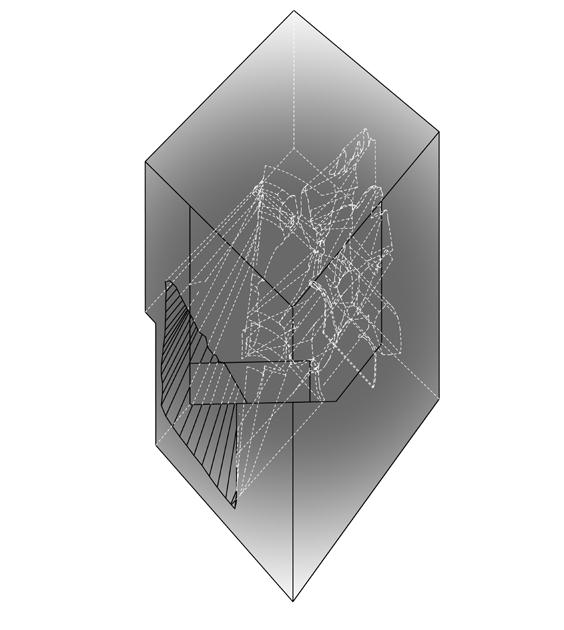

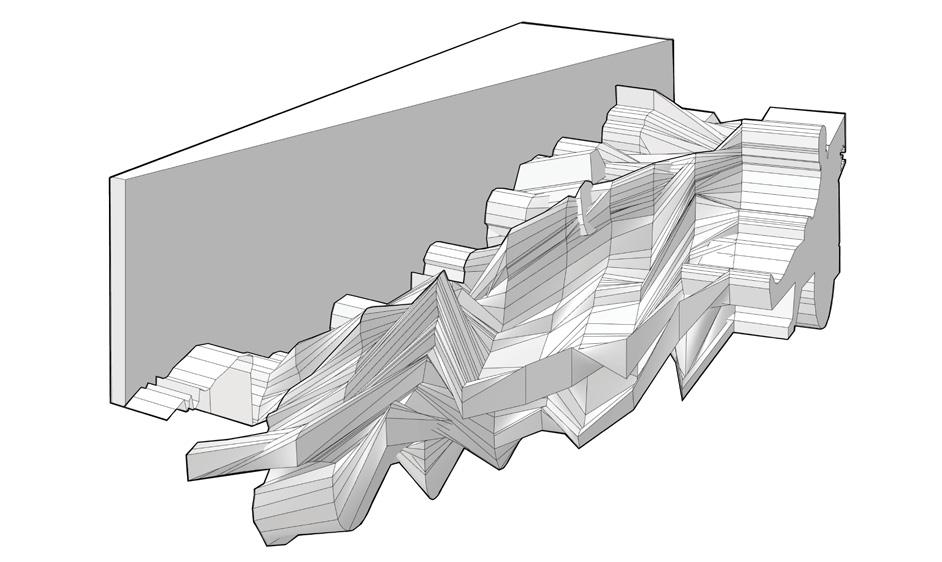

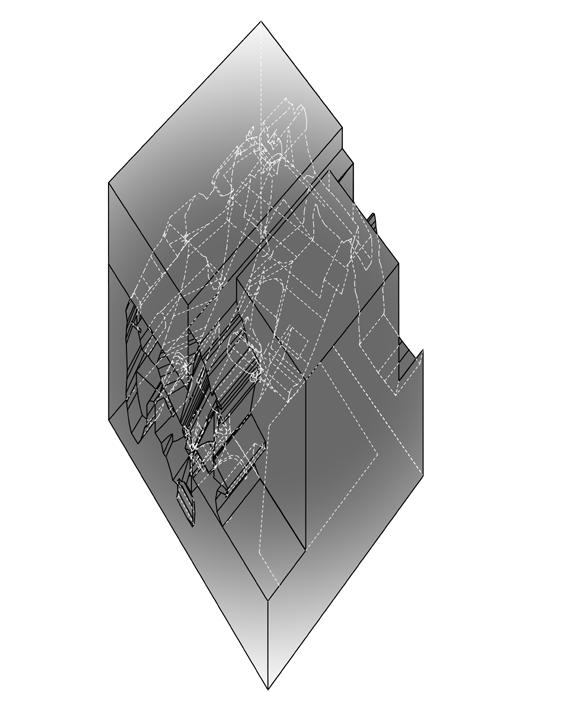

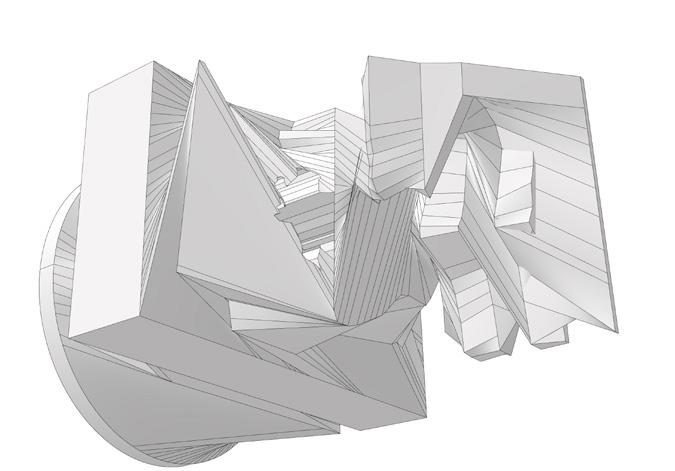

SUBJECT OBJECT Diagram

Light has the ability to create the space that surrounds it, revealing its essence with a power that goes beyond simply illuminating an object; it becomes a means of construction, efficient and emotional, yet completely untouchable. Reflective — Where the design evokes meaning to the user that impacts their experience.The link to the user’s memory and sense of belonging is where the user perceives the space as an extension of themselves.

ECOLOGICAL PERCEPTION MUSEUM OF EMOTIONS

4.

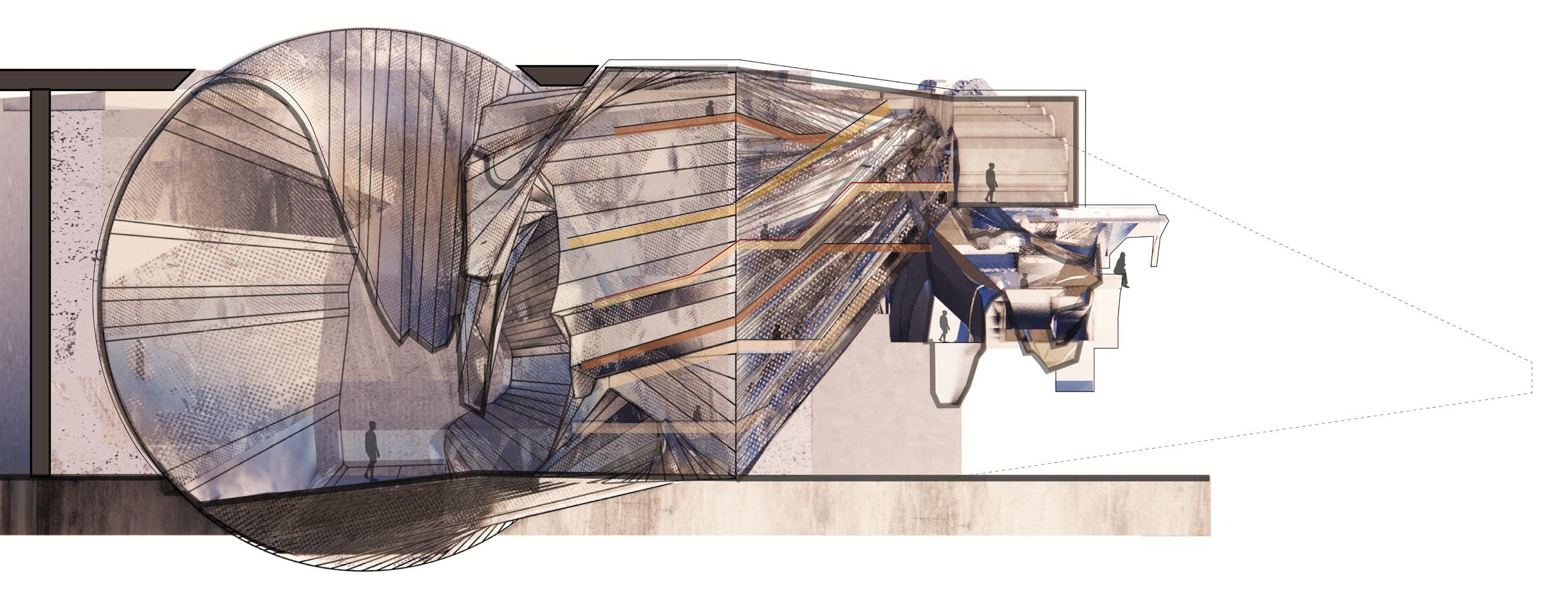

SECTION

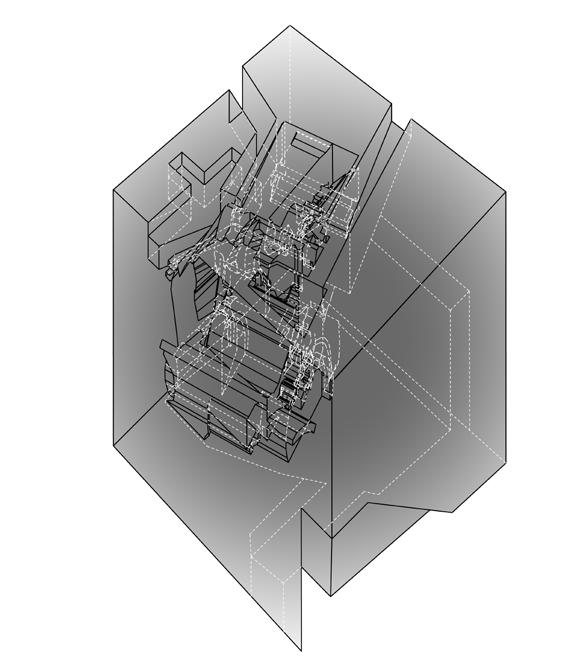

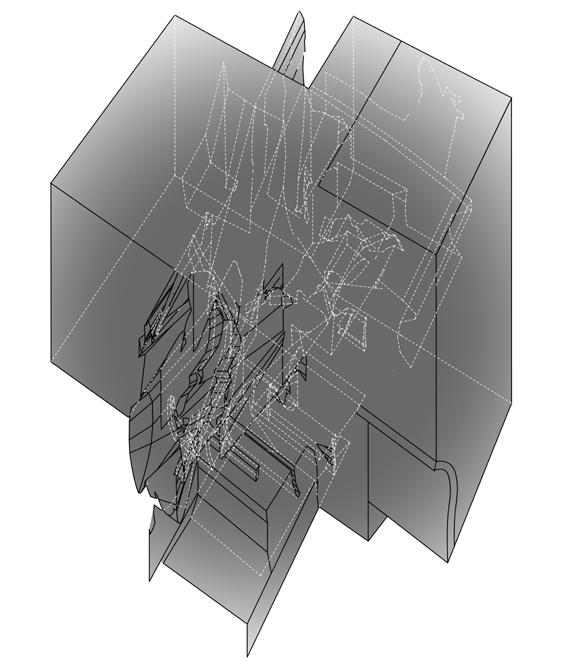

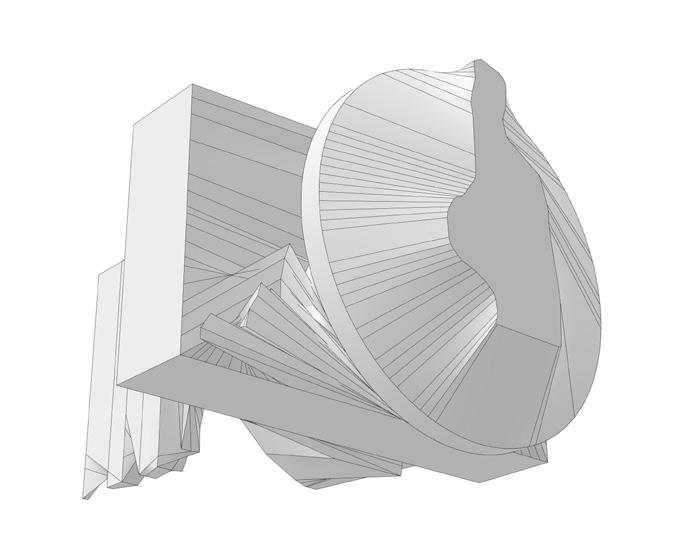

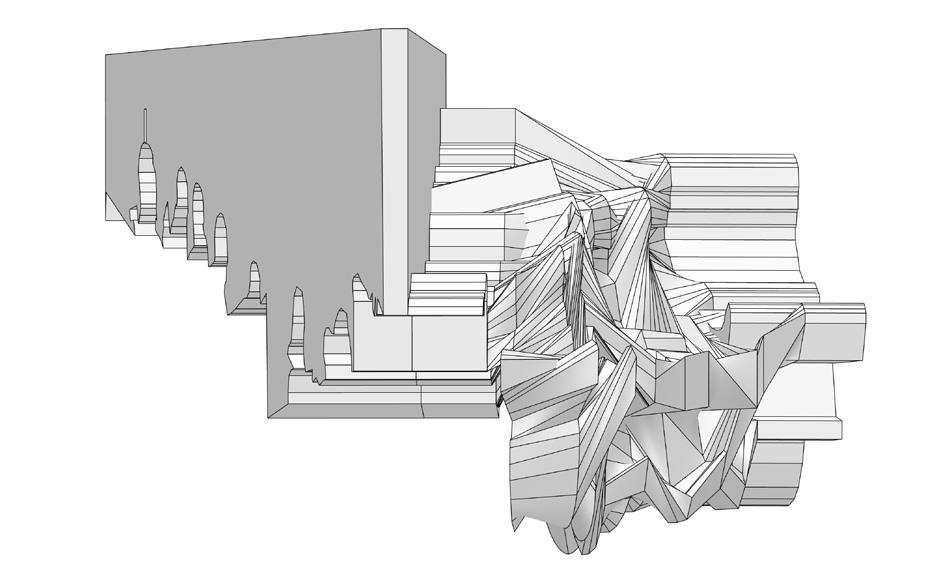

BLOCK Diagram

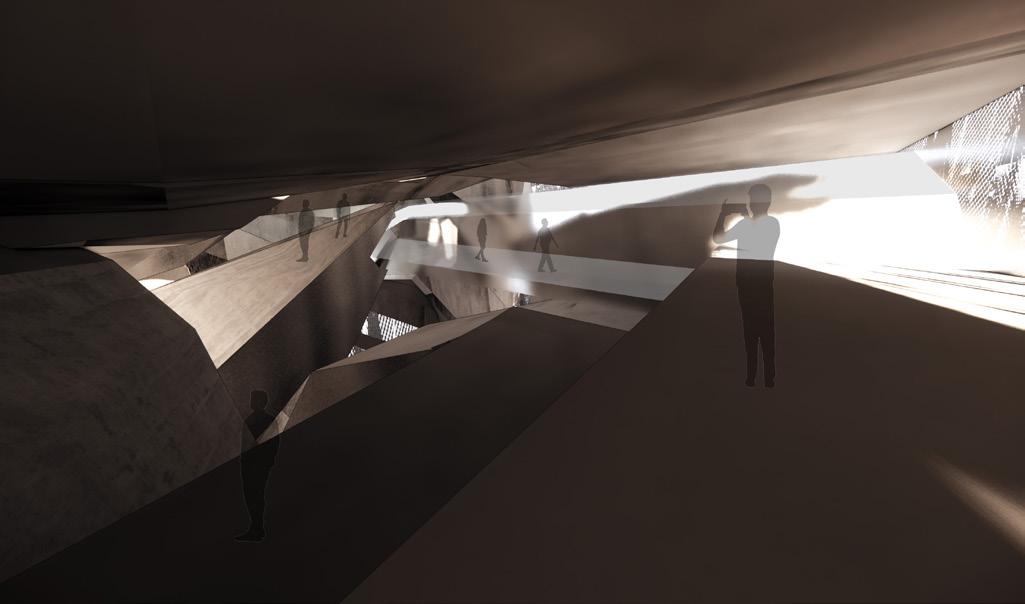

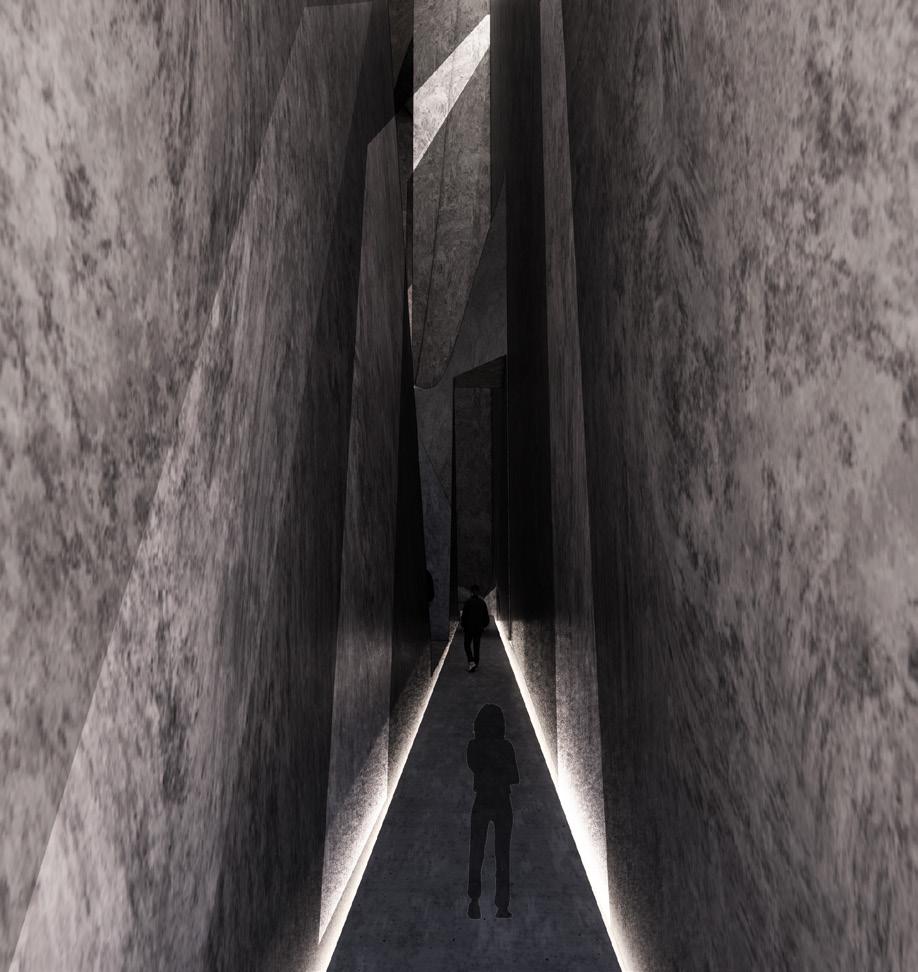

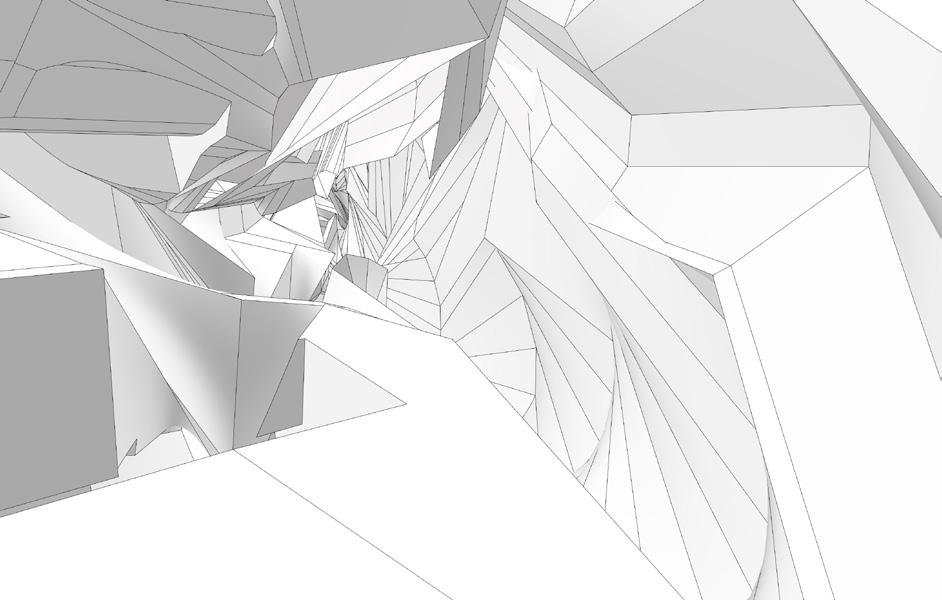

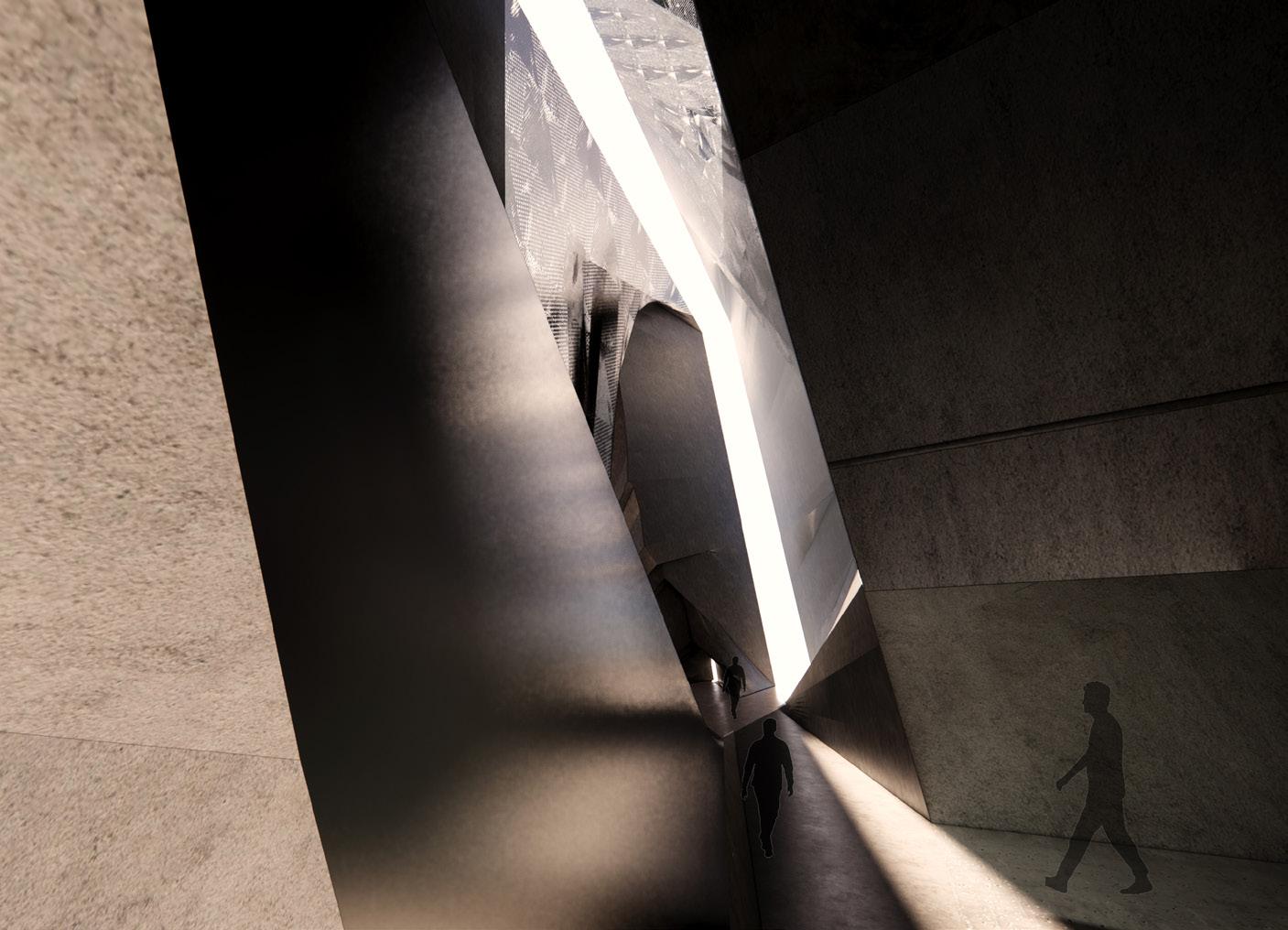

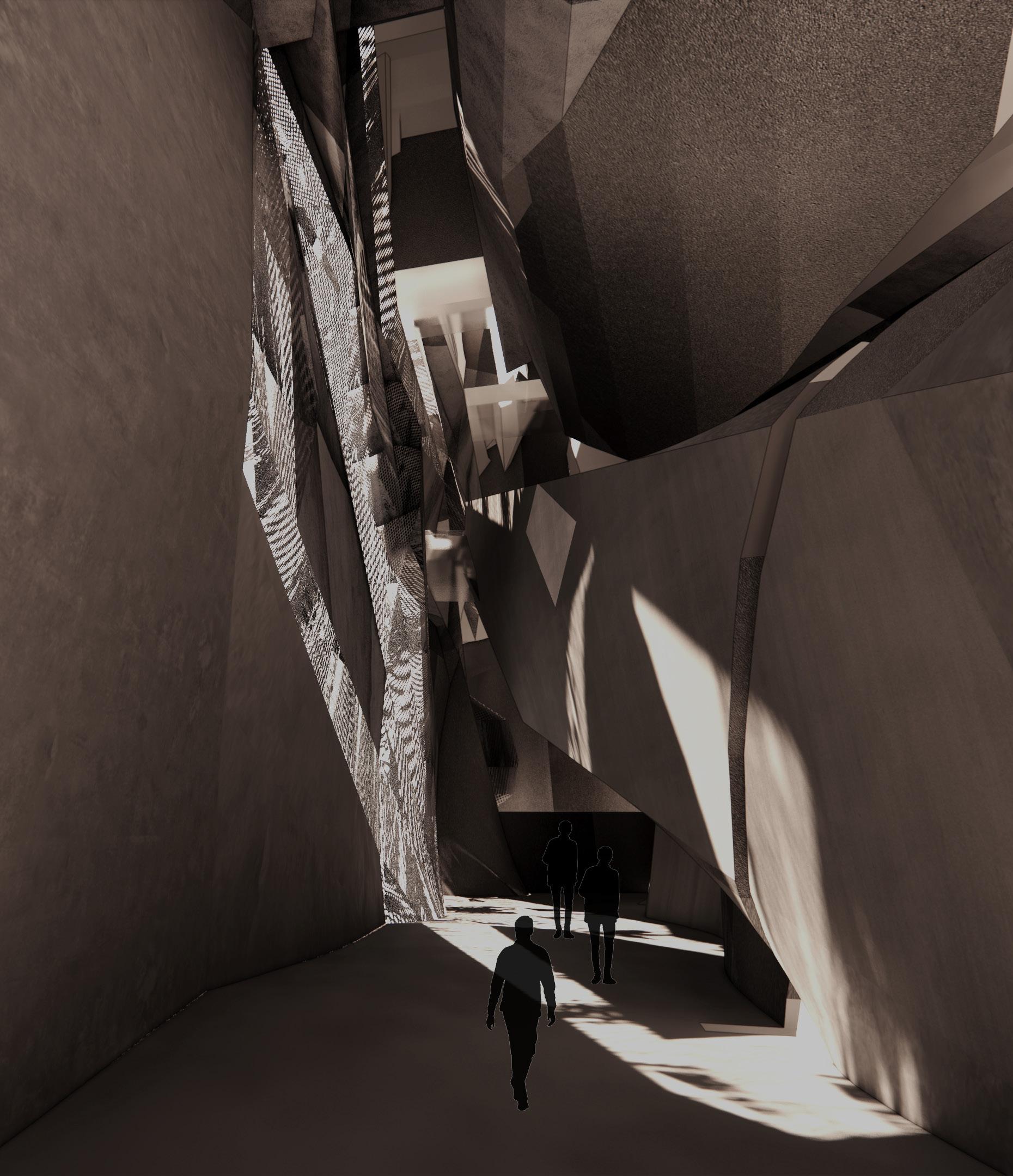

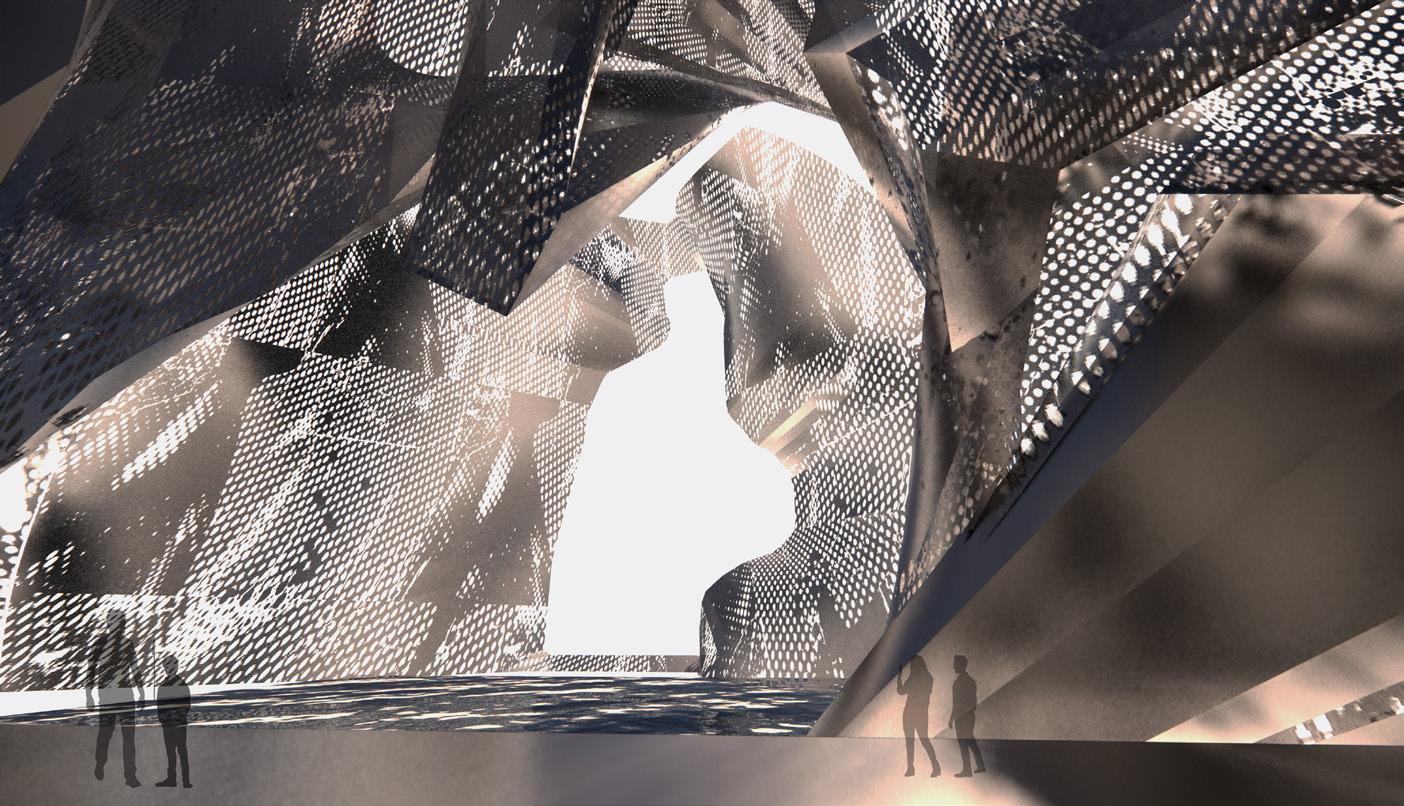

INTERIOR JOURNEY OF EMOTIONS

b.

c.

a. a. -amazed | clautrophobic | bewildered b. -excited | amazed

d. c. -labyrinth | amazed d. -abstruseness | confusion

ECOLOGICAL PERCEPTION MUSEUM OF EMOTIONS

BLOCK Diagram

CONCEPTUAL

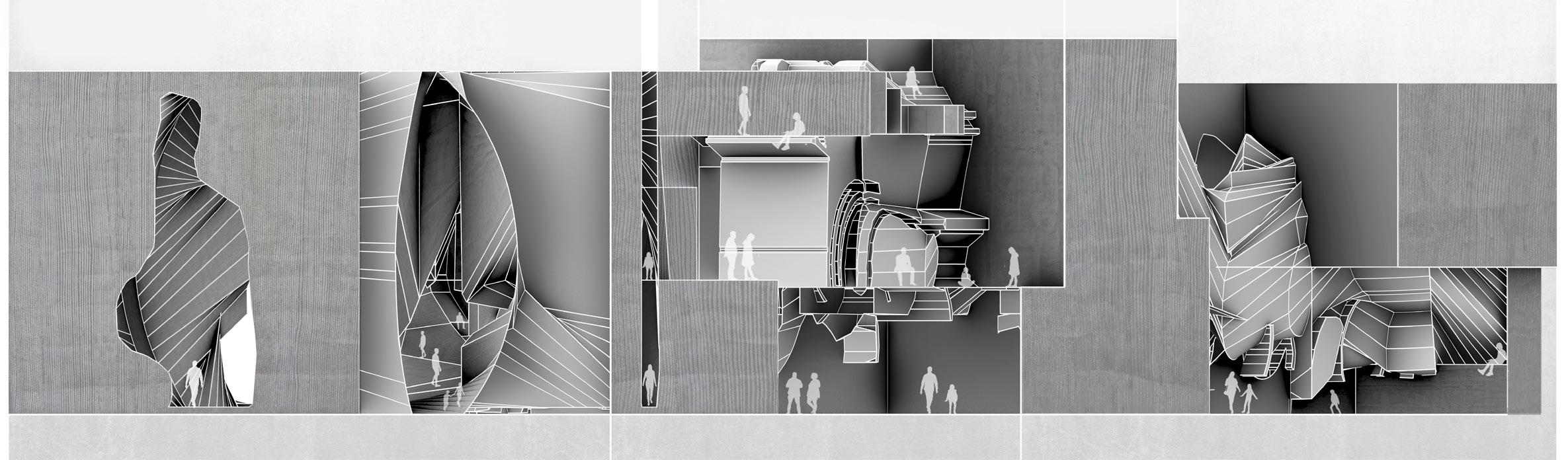

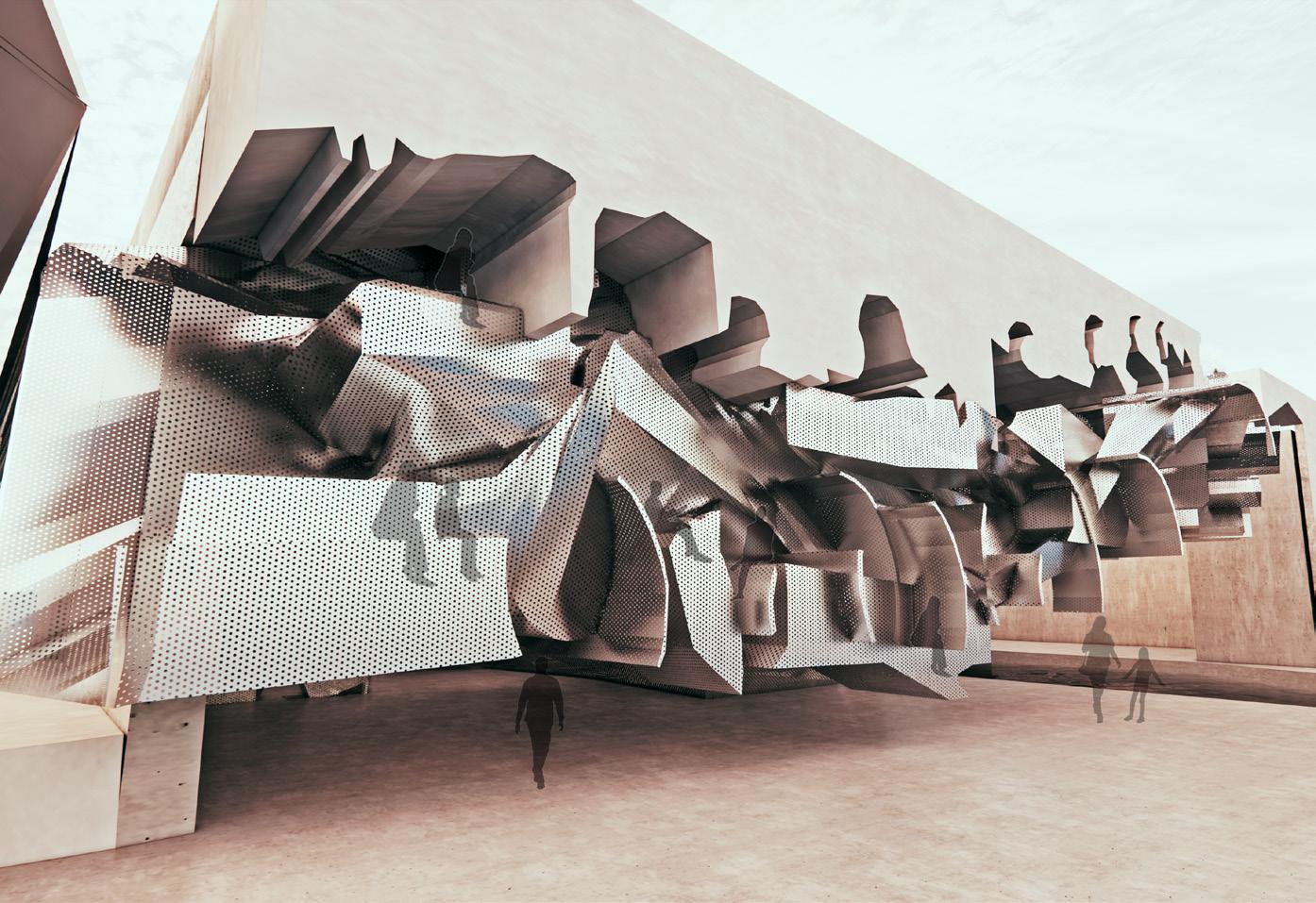

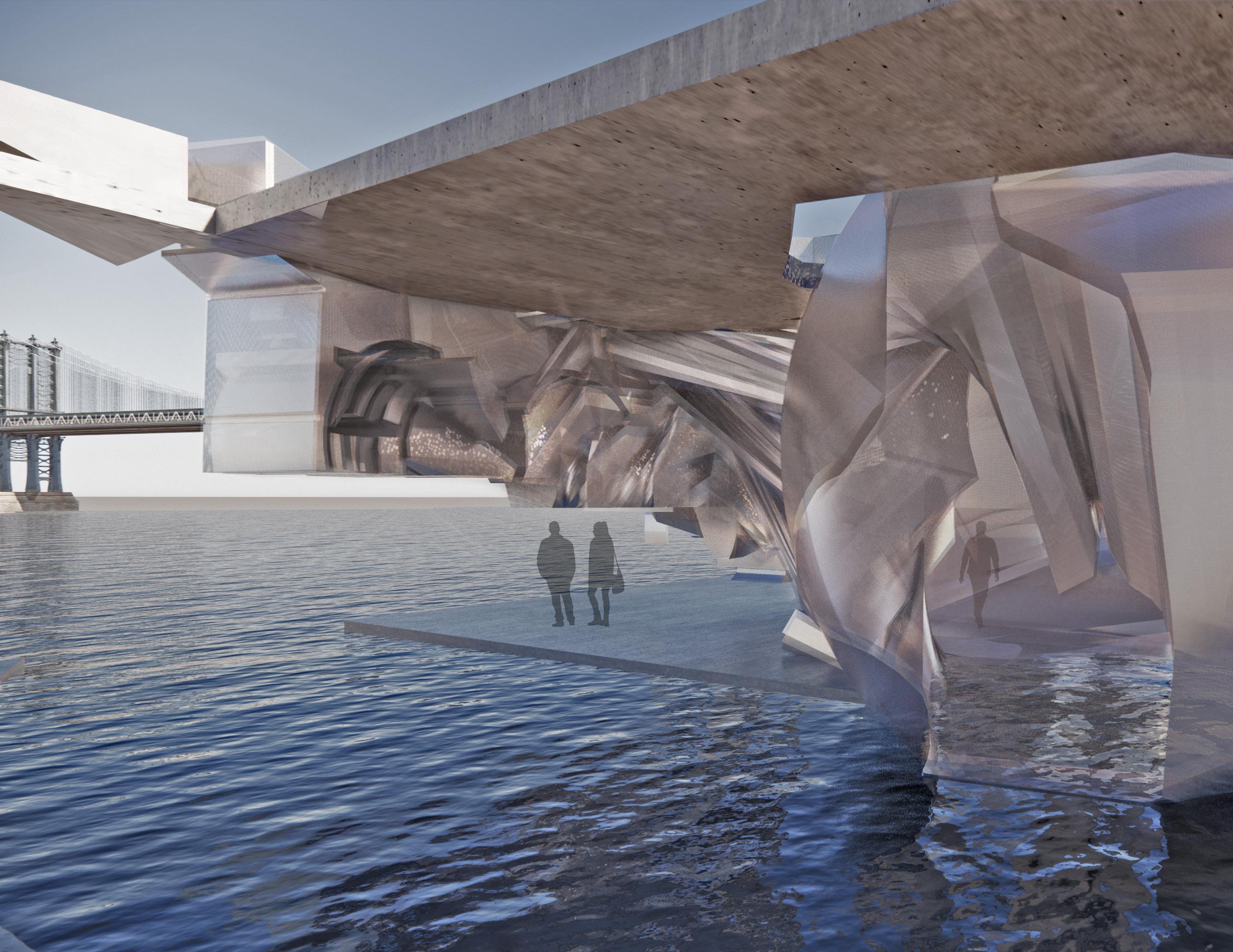

ELEVATION- INSIDE OUTSIDE

a. c.

b.

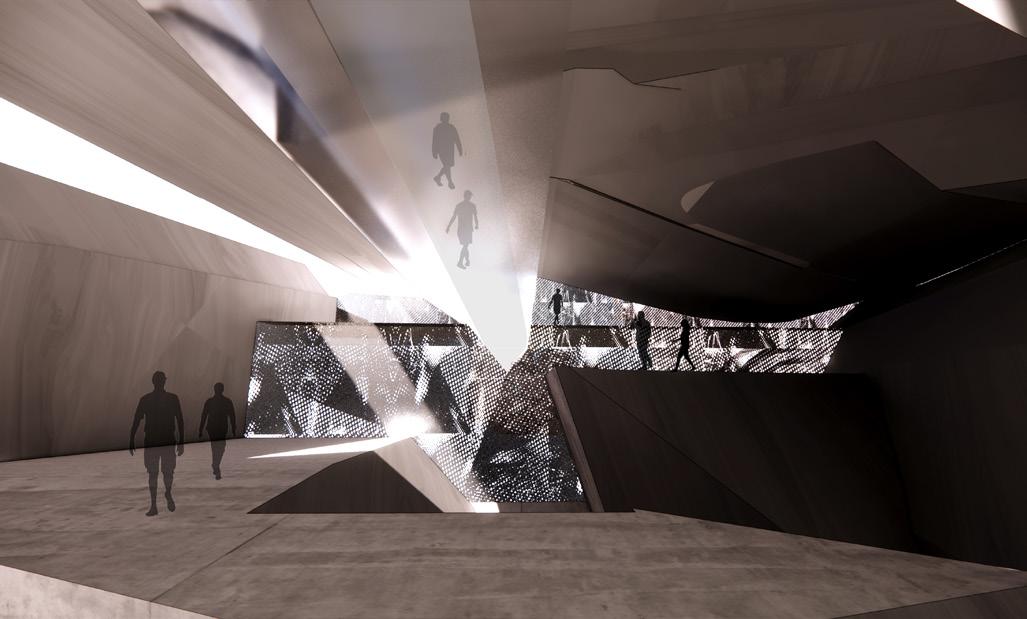

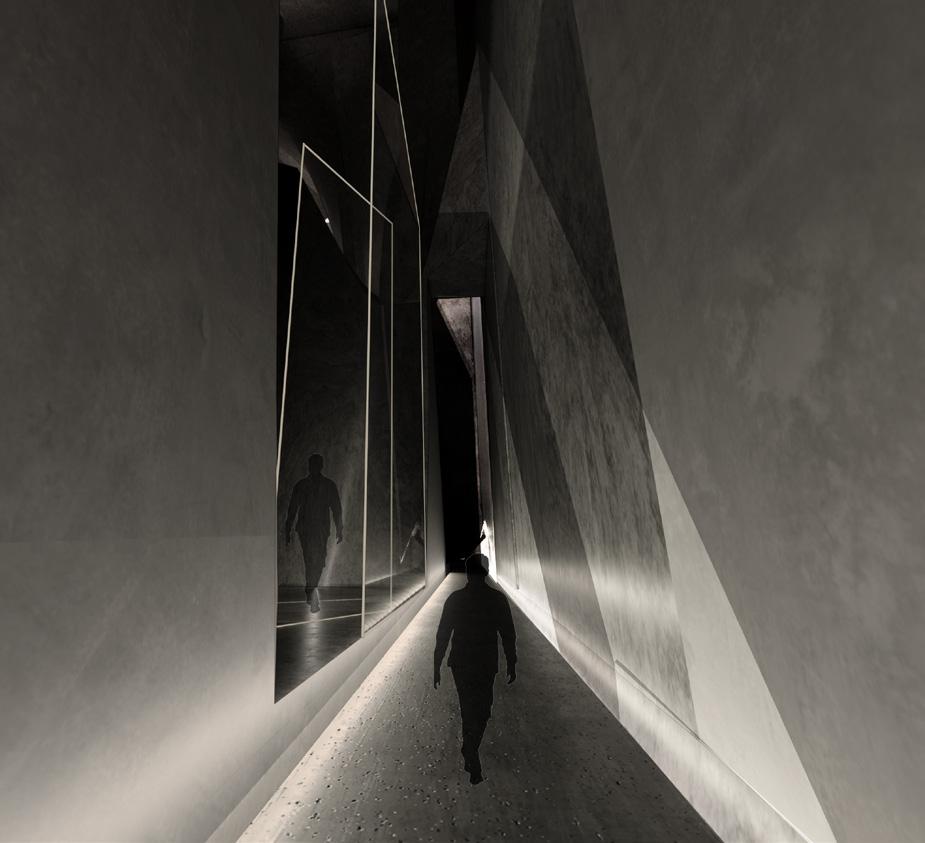

INTERIOR JOURNEY OF EMOTIONS

a. -amazed | astonished | bewildered b. -confusion | abstruseness

d. c. -clautrophobic | anxious d. -confound | alarmed

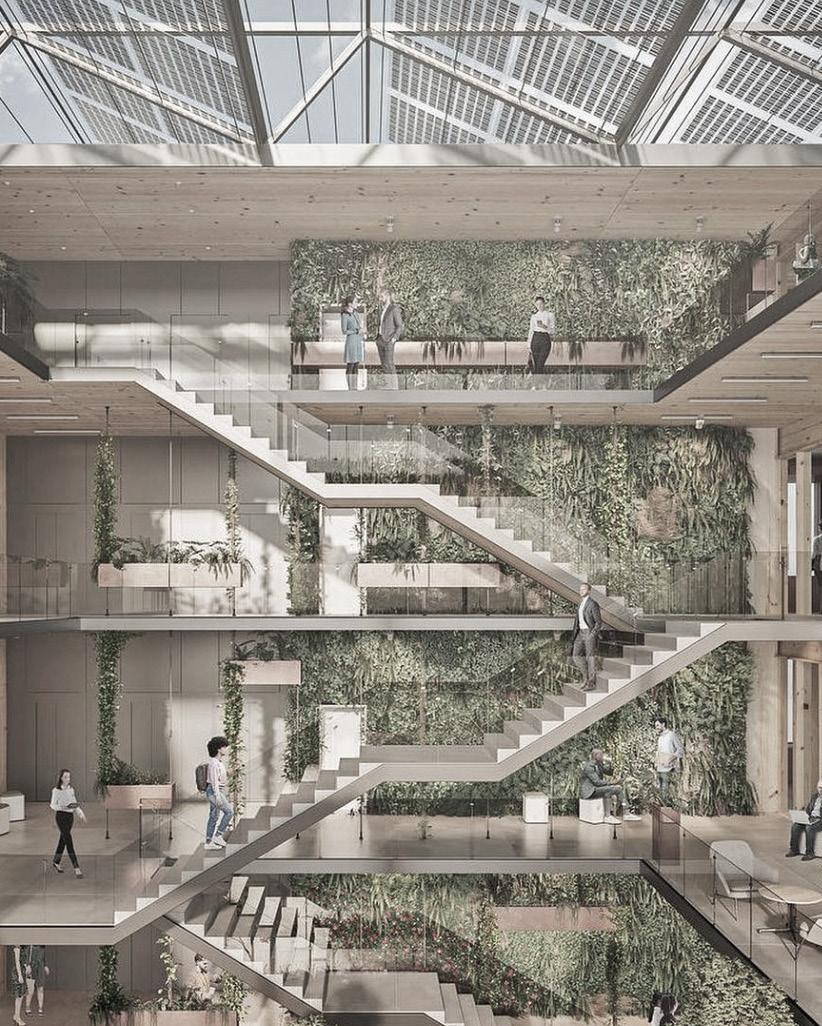

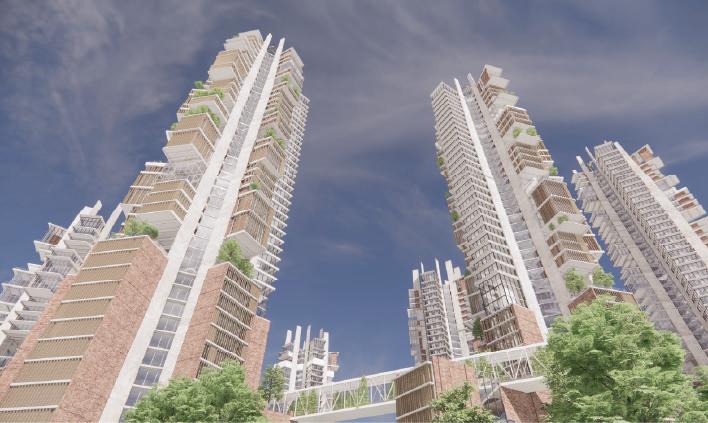

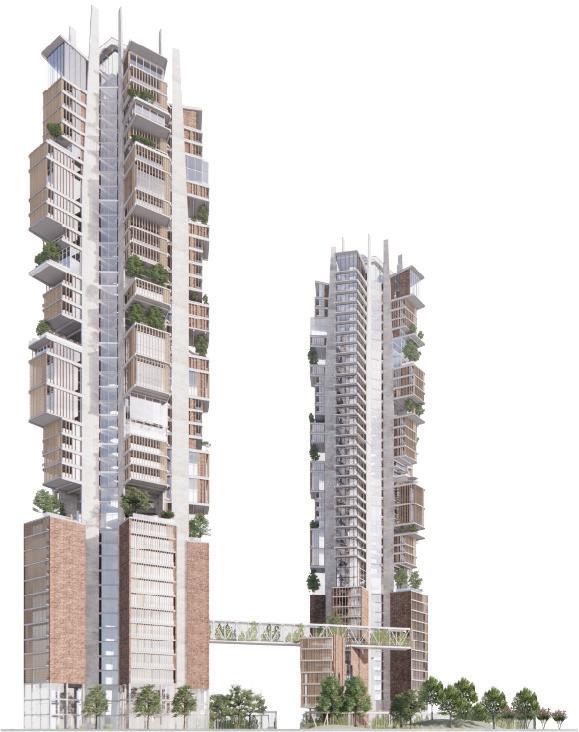

REGENERATIVE CITY

Housing: Transformation | Addition | Interaction ARCH 703 Design 3: URBAN QUALITIES & MATERIALITIES Professor: James Garrison Project with Jennifer Boswell

Pandemic disrupt everything. Regenerative City presents an approach that allows urban residents to live, work and enjoy in the same premises.

The design studio focus on contemporary aspects of architectural urbanity.

Designing from the outside in, issues such as mixed land use, composite building use, transportation, and environment will be coordinated through the specificities of a building enclosure and site. The studio seeks to explore both organizational and spatial ideas for individual apartment units, configuration, and vertical/horizontal circulation of building sections as well as overall formal ideas.

A city which generates a livable space by celebrating the site’s existing features but also by adding to it. The program comprises of High-rise residential tower with amenities with various possible Housing types (Micro housing/mix unit sizes/lo/lux, etc)-and various amenities which are lacking at present. The project aid to create jobs, and increase interaction and socialization by producing eyes on the street which will allow the site to be self-sustainable for the future generation. Furthermore, design is environmentally responsive, removal of excess carbon through the Carbon Sequestration Process. Also, optimizing natural light and adding green spaces creating a healthy sustainable environment.

ACADEMIC

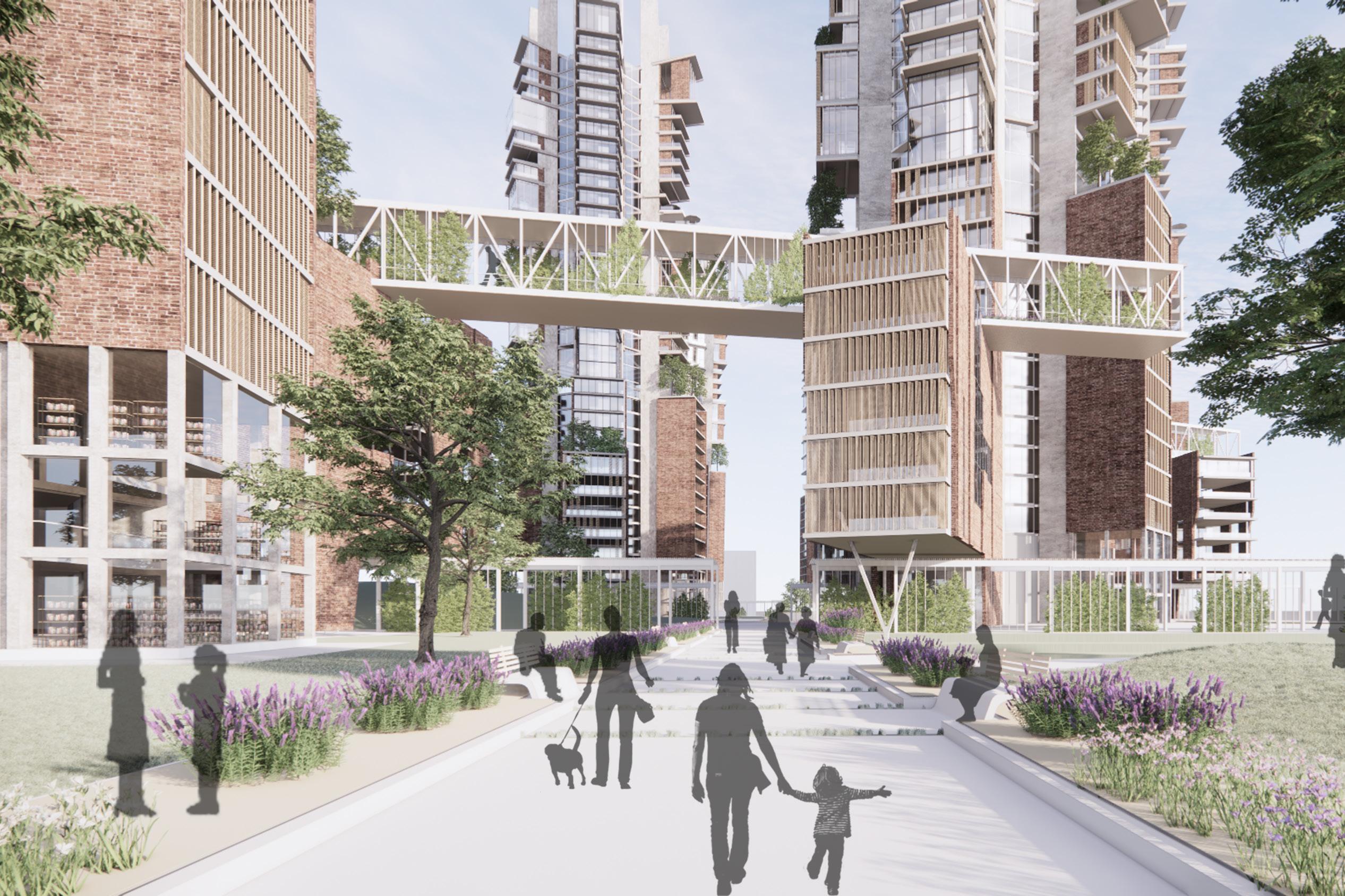

REGENERATIVE CITY LOW INCOME HOUSING

Original Plan

Original Farragut

CONCEPTUAL

Enlarged openings. relocation of core

Enlarged openings.

GF opened up

Tapered Plates

Additional floors

Responding to program

New addition structure of proposed layout

Farragut Houses Site: Brooklyn, NYC Public Housing

Additonal Units

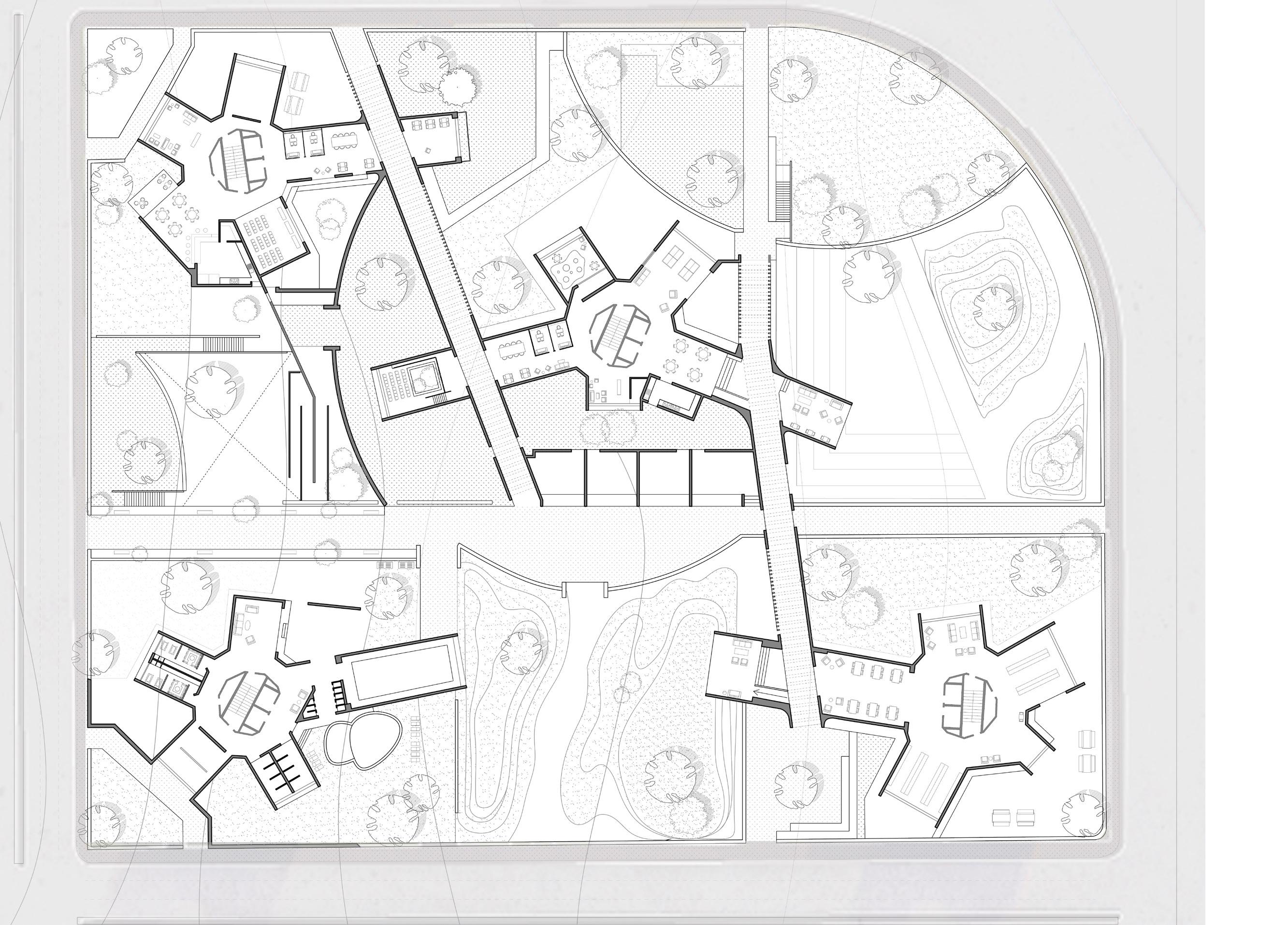

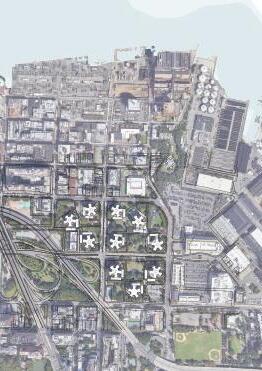

SITE PLAN

REGENERATIVE CITY LOW INCOME HOUSING 1

1

12

11

2

5

4

3

10

6 1 1

2

Legend 9 7

8

1

1. Entry Points 2. Connected Pathways 3. Main office, Lounge 4. Amphitheater Community Garden 5. Daycare Co-working space 6. Farragut shops 7. Library 8. Zen garden 9. Swimming Pool, Sauna 10. Makers Space 11. Cafe, movie room 12. Workshop- Fabrication

SITE PLAN

REGENERATIVE CITY LOW INCOME HOUSING

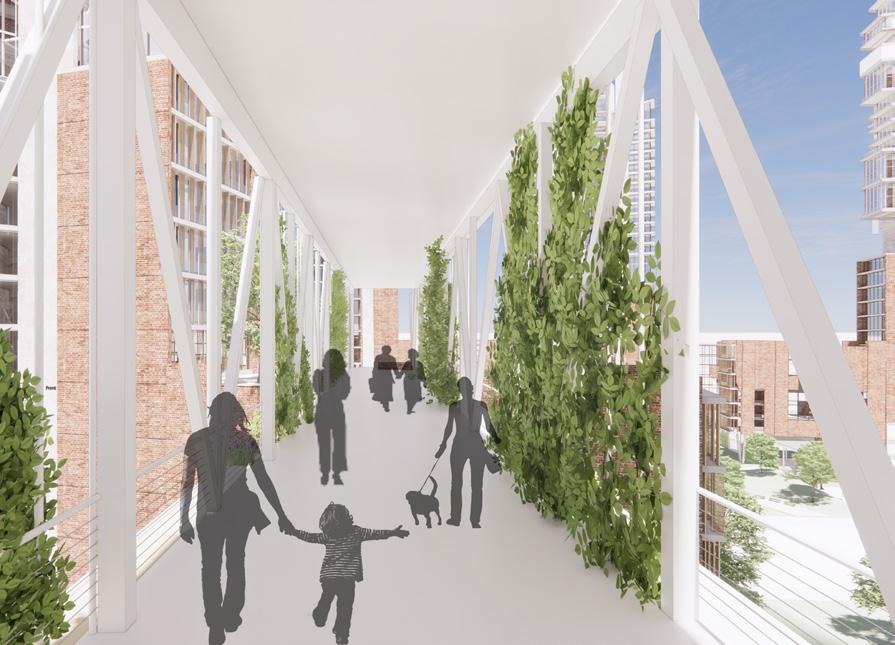

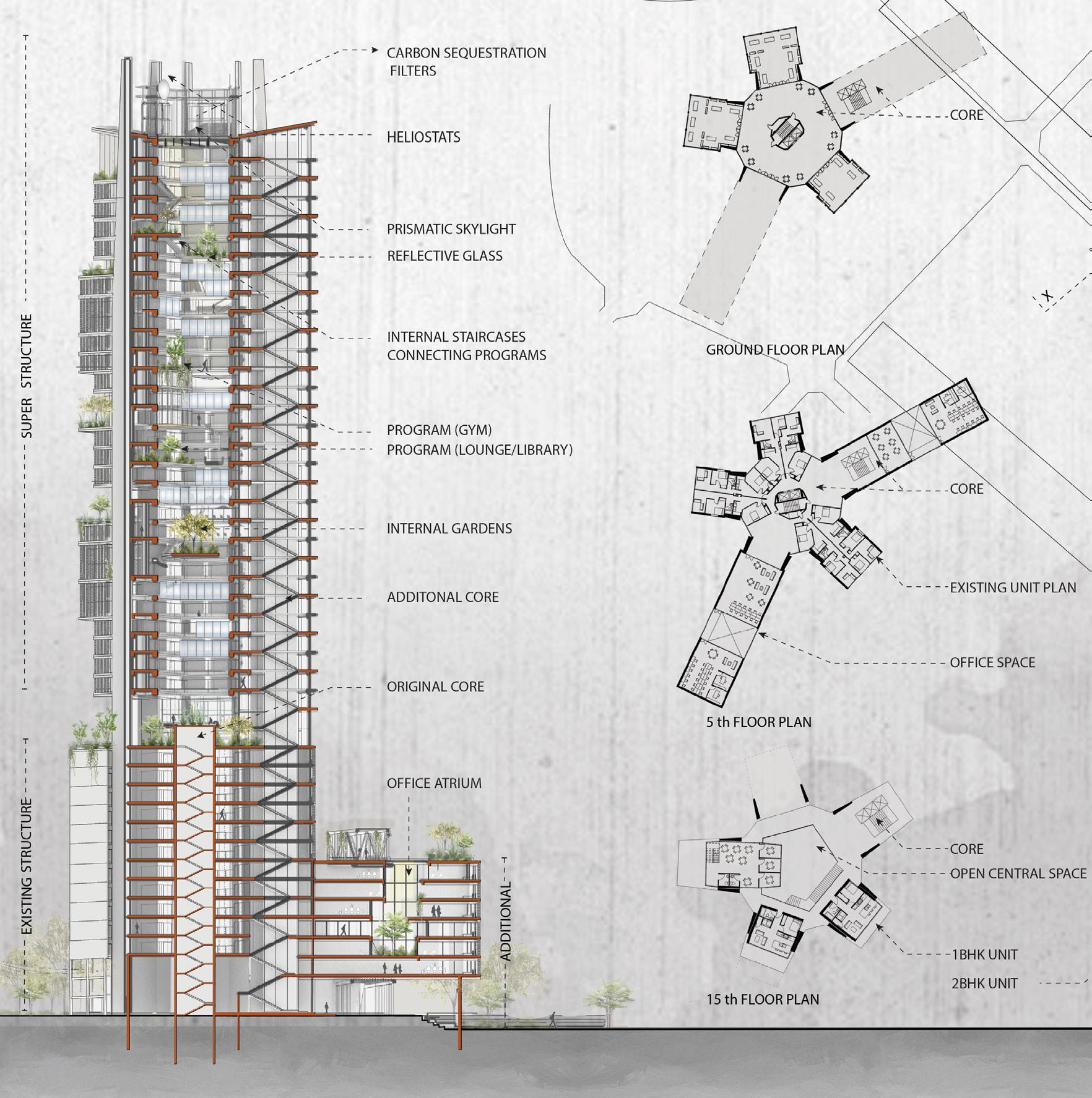

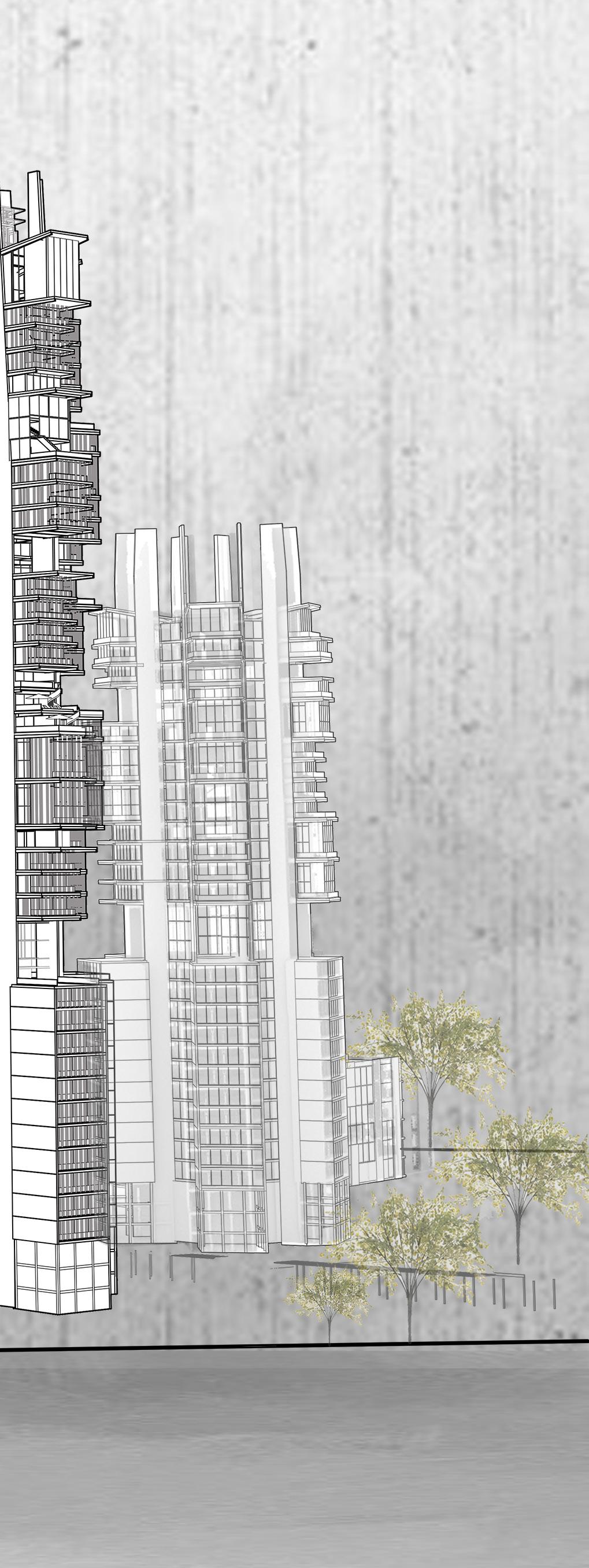

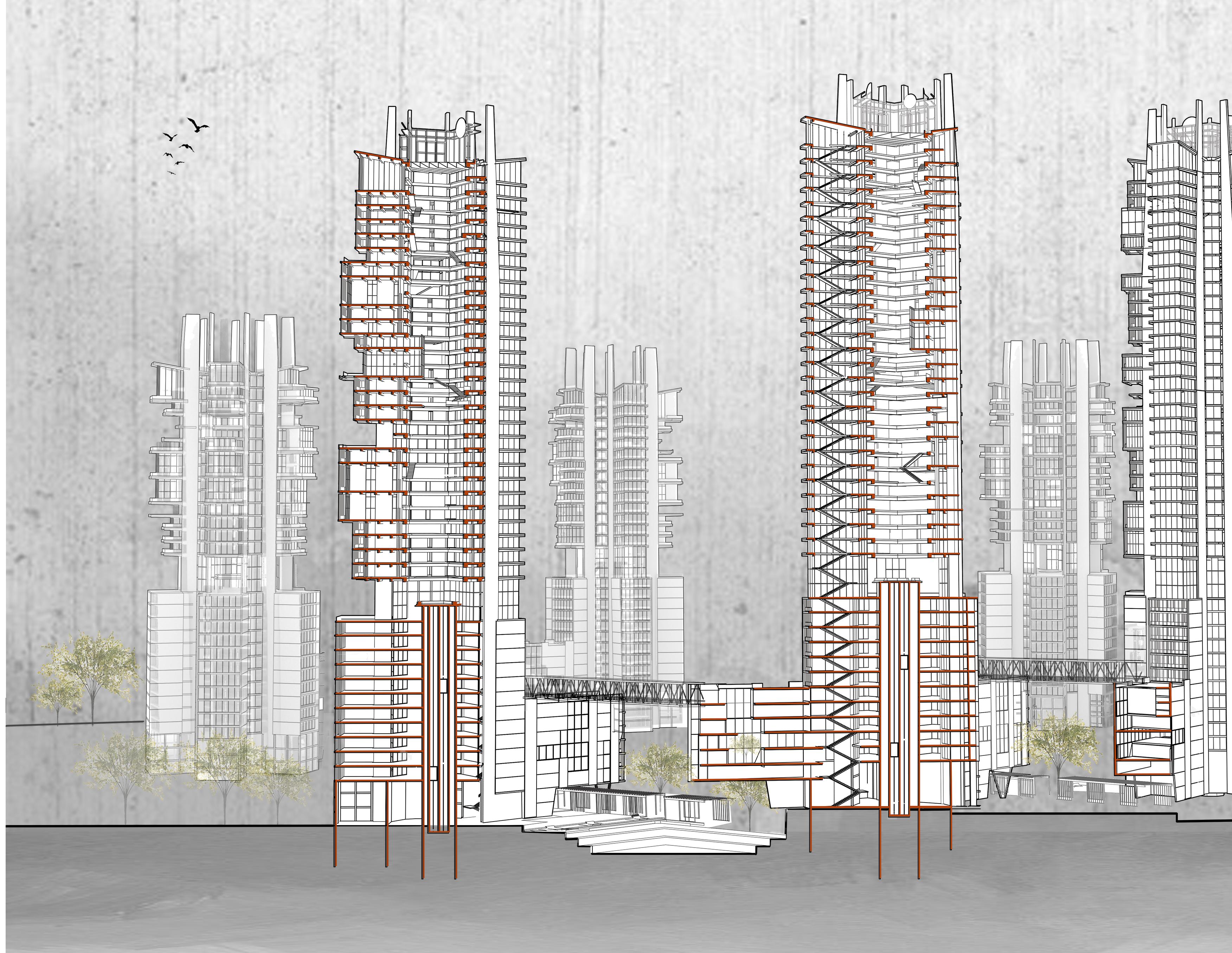

SECTION

UNIT LAYOUTS

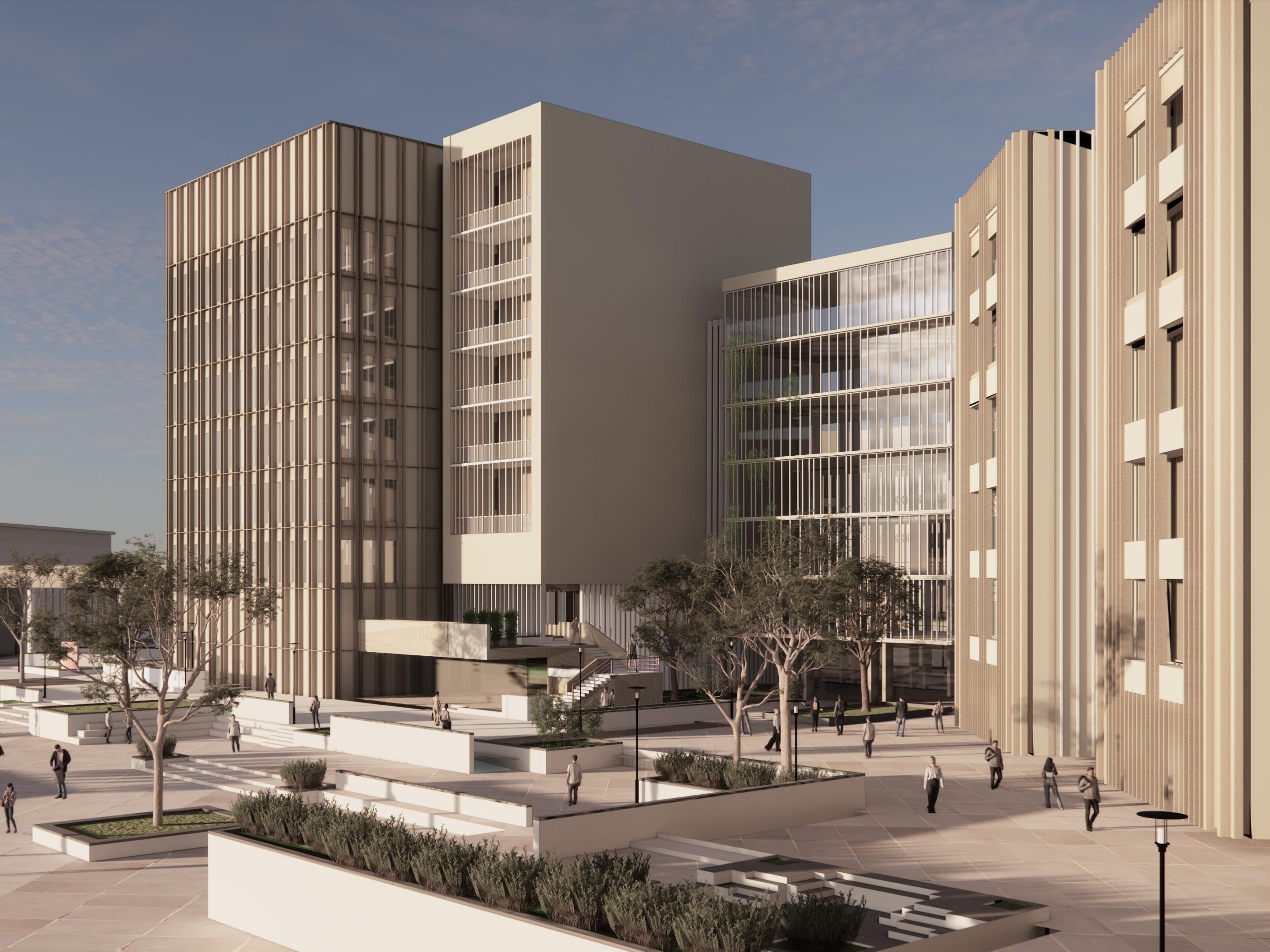

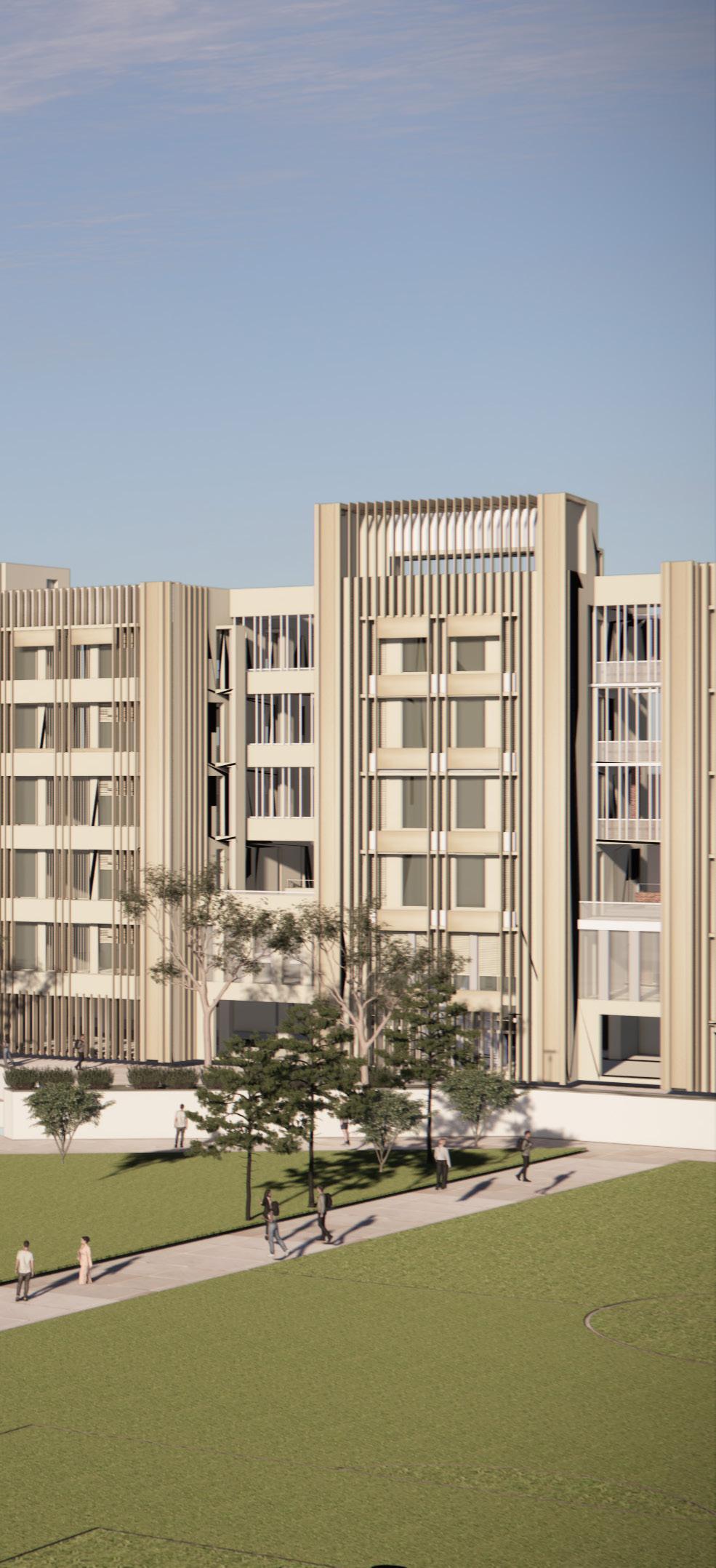

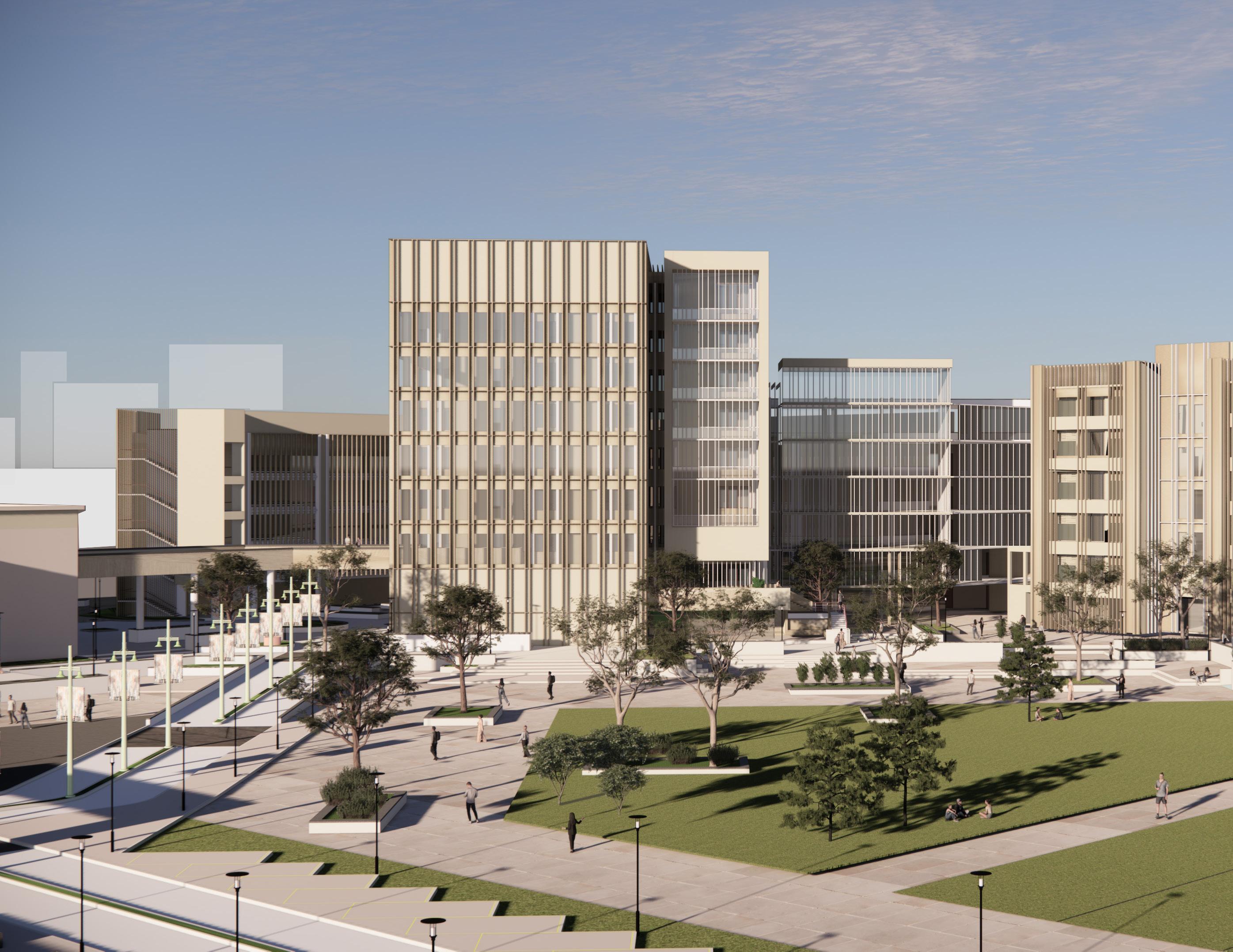

IIT SCIENCE & RESEARCH CENTER An Institutional Campus

Architect: STUDIO 3087, INDIA Scope of work: Master Plan development, working drawing and detailing.

A design competition floated by Gujarat Government with a brief to design a institute on a parcel of land measuring 9.8 acres keeping the existing structure intact and creating additional infrastructure which includes studios, classrooms, labs, auditorium and other common amenities with a provision for future expansion. An effective school facility that is responsive to the changing programs of educational delivery, and should provide a physical environment that is comfortable, safe, secure, accessible, well

illuminated, well ventilated, and aesthetically pleasing. Moreover, the classroom layout should be flexible , the design provides a column-free zone, creating an open, flexible space and the structure allows a possible future embedding within the school.

The master plan includes- academic block, faculty block, class rooms, department library, laboratories, boys and girls hostel, convention center, Sports complex, auditorium, cafeteria, and other amenities like swimming pool, open ground, football ground and amphitheater.

PROFESSIONAL

IIT SCIENCE & RESEARCH CENTER AN INSTITUTIONAL CAMPUS

9 5 10 6

4

3 11

7

13

8

12

2

14

1

Legend 1. Main Entry 2. Auditorium 3. Exhibition Space 4. Amphitheatre 5. Faculty Block 6. Academic Block 7. Open Ground

8. Football ground 9. Cafeteria, Kitchen 10. Indoor Sports 11. Outdoor Sports 12. Swimming Pool 13. Existing School building 14. Parking

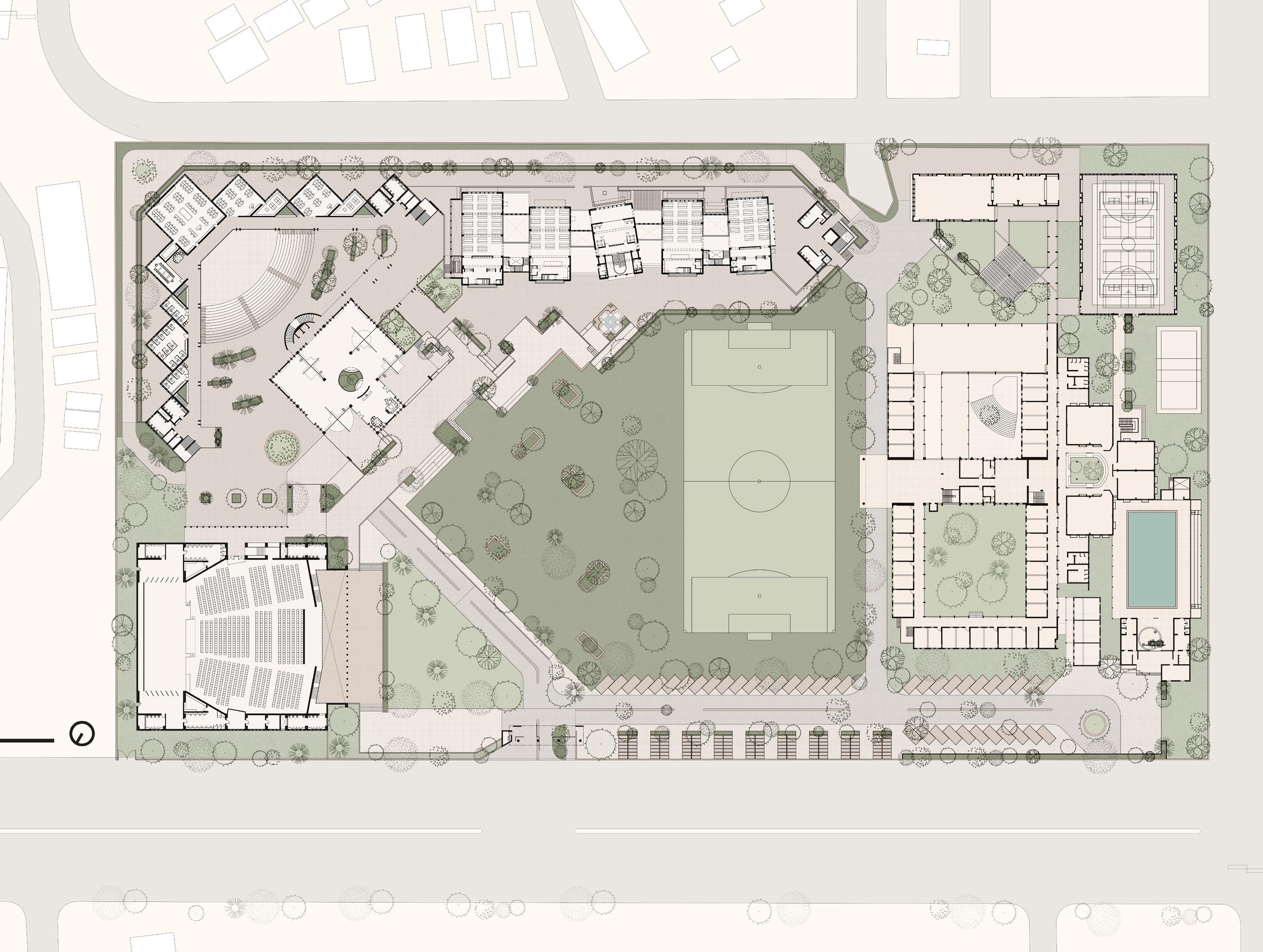

SITE PLAN

IIT SCIENCE & RESEARCH CENTER AN INSTITUTIONAL CAMPUS

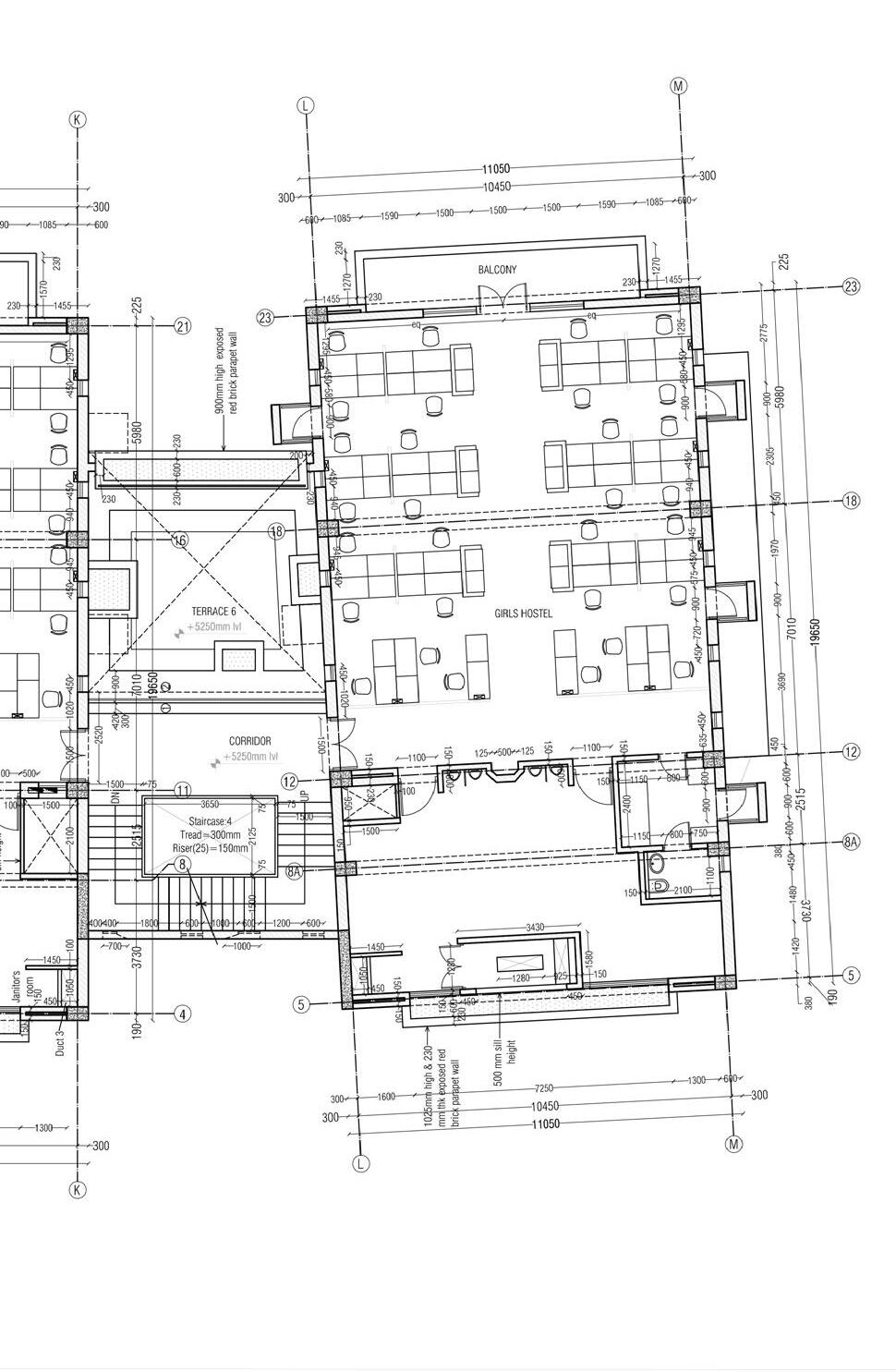

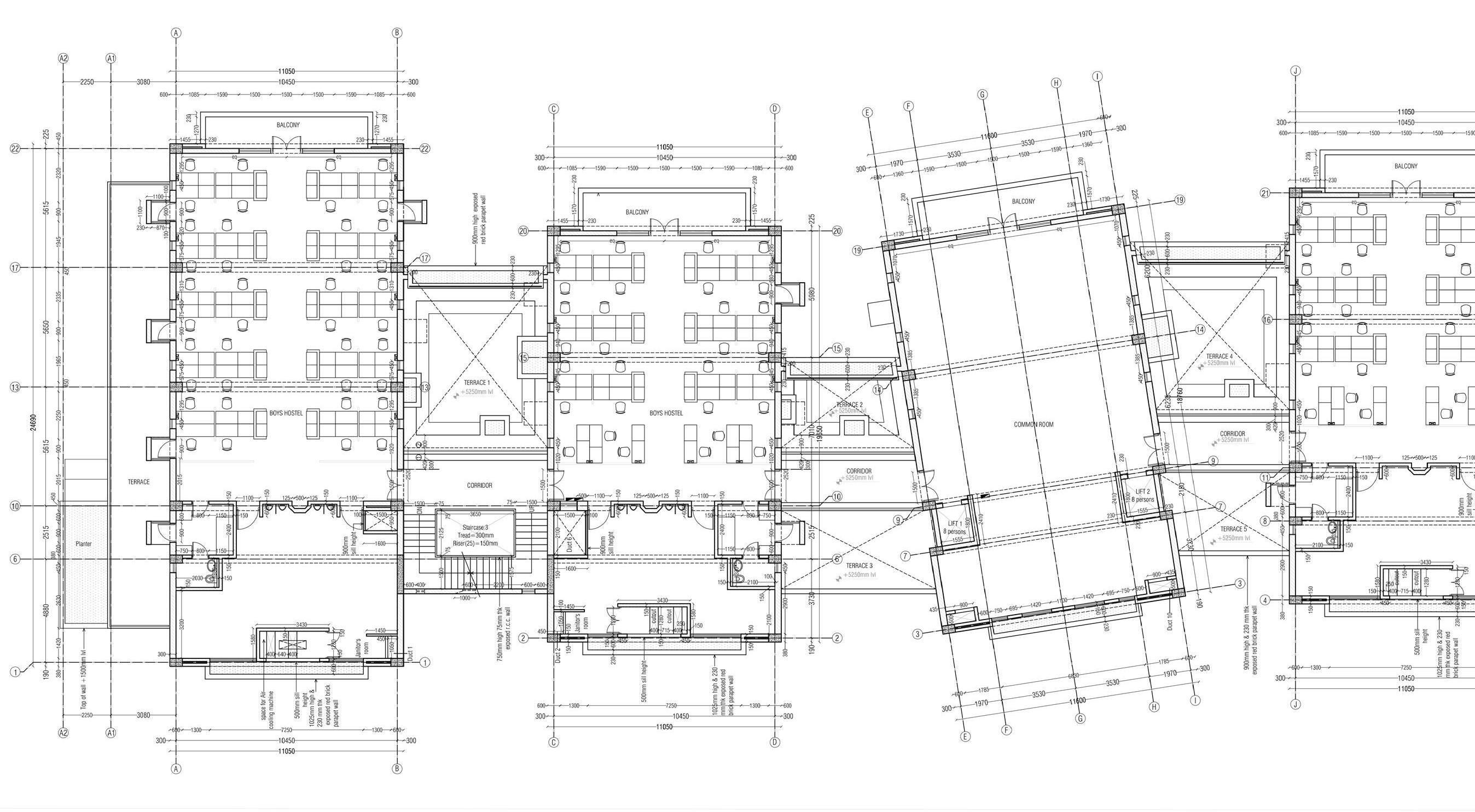

GROUND FLOOR PLAN

WORKING DRAWING

SECTIONAL DETAILS

IIT SCIENCE & RESEARCH CENTER AN INSTITUTIONAL CAMPUS

STAIRCASE DETAIL

WORKING DRAWING

TOILET DETAIL

The HERMITAGE RETREAT

A weekend home

Architect: STUDIO HUMANE, INDIA Scope of work: Conceptual, Design development, 3D modelling, working drawing, detailing and physical model.

The Hermitage retreat is a compact composition of intricately detailed spatial experiences, a contemporary interpretation of vernacular domains. The site has a panoramic views of the city and mountains The primary aim while designing this house was to provide maximum benefits of the city view and the vast landscape surrounded by the site, while using the sloping topography of the land to its advantage. The linearity in planning is complemented by dynamism in the form. The structure is designed with a concept of |Parallel walls| with all the functional spaces positioned between them.The walls cut through the slopes on the site perpendicularly orienting the entire house in the East- West direction, facing the city and the vast landscape. As a result all the spaces inside enjoy panoramic views of the valley beyond.

PROFESSIONAL

THE HERMITAGE RETREAT A WEEKEND HOME

12

11

10

8

7

7

8

9

Legend

13

1. Entry Gate 2. Drive way 3. Parking 4. Garden 5. Foyer Space 6. Living Room 7. Bedroom 8. Bathroom 9. Deck 10. Kitchen 11. Servant Room 12. Kitchen Garden 13 Watchman Cabin

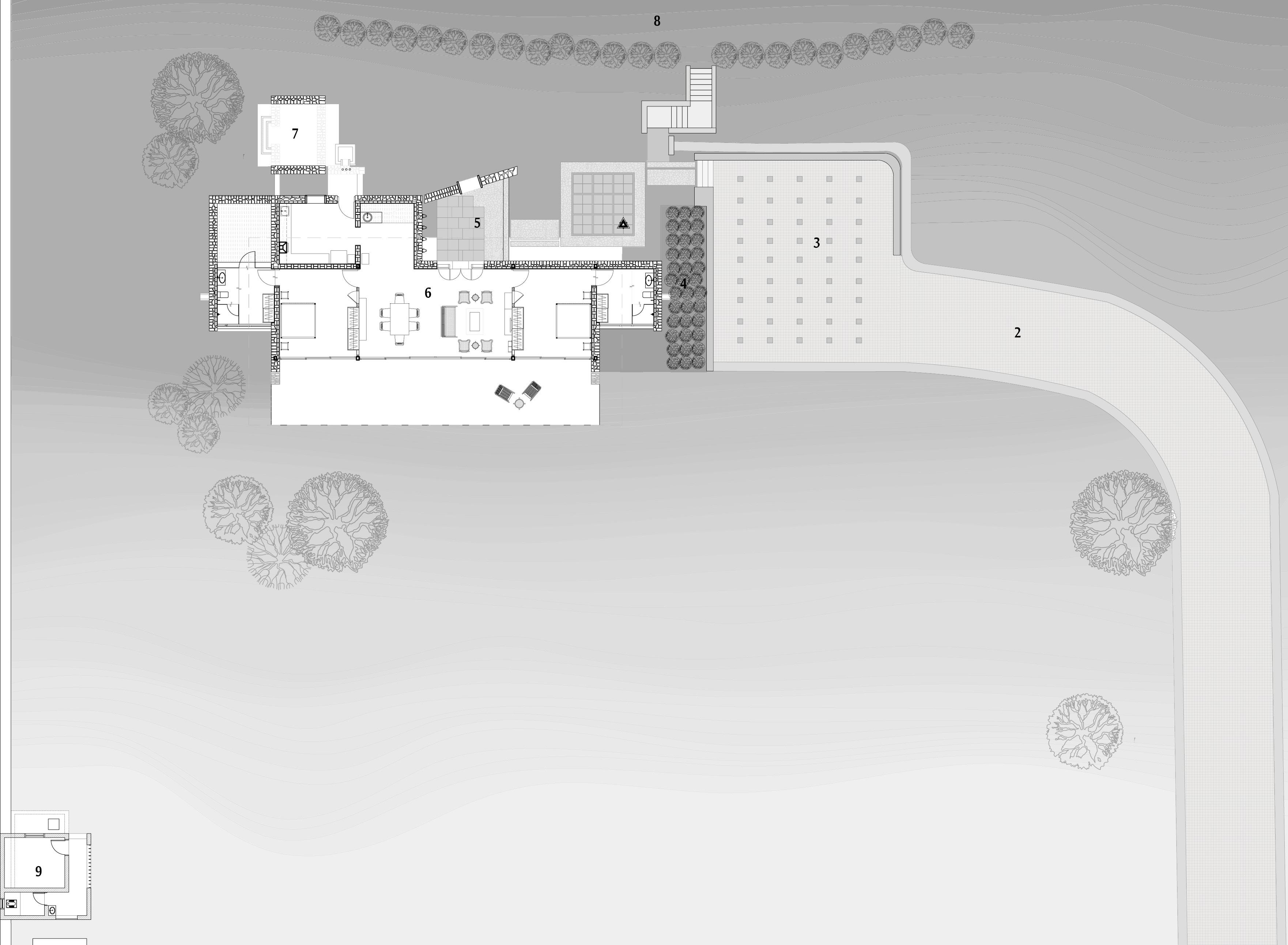

SITE PLAN

THE HERMITAGE RETREAT A WEEKEND HOME

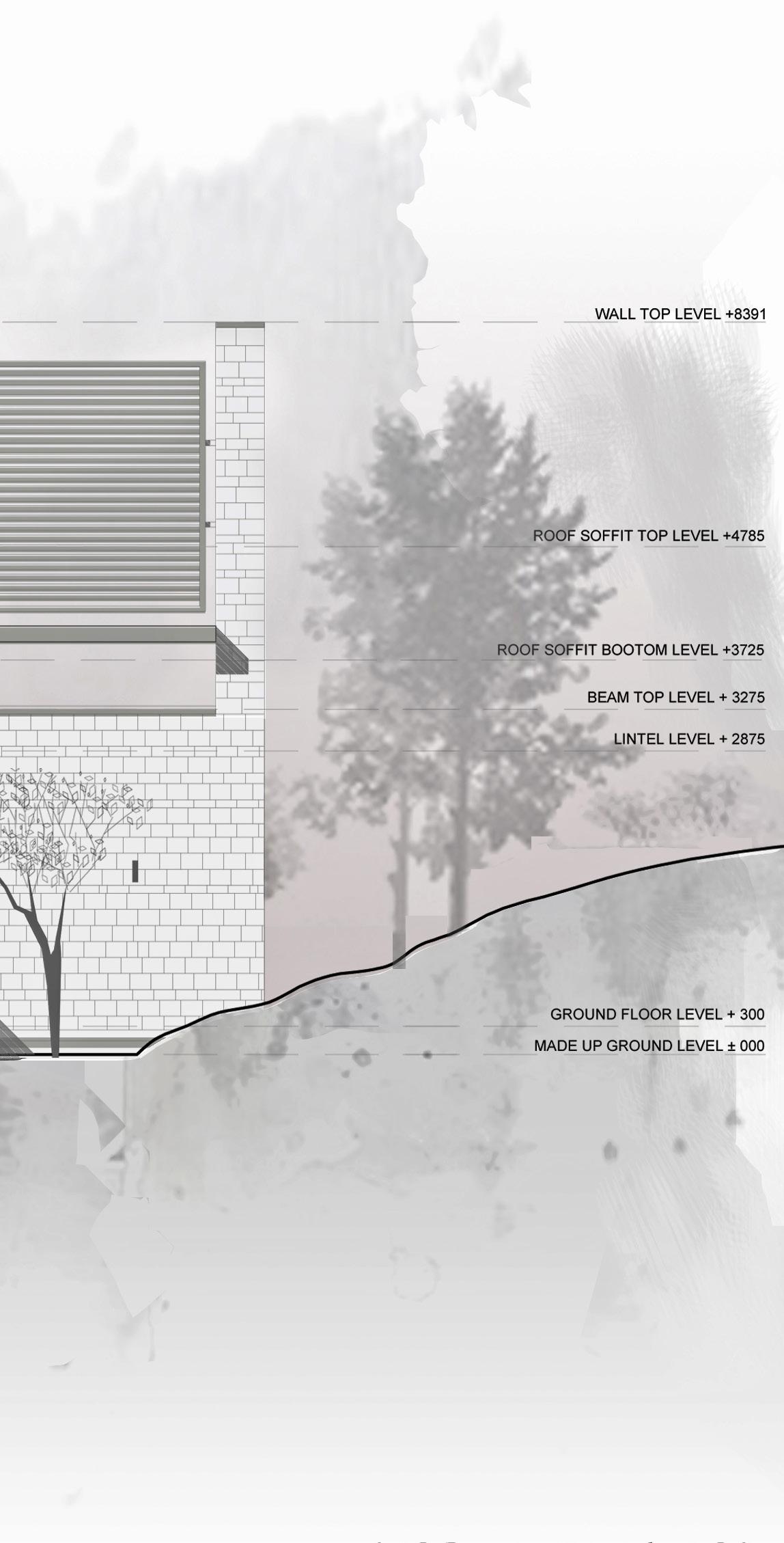

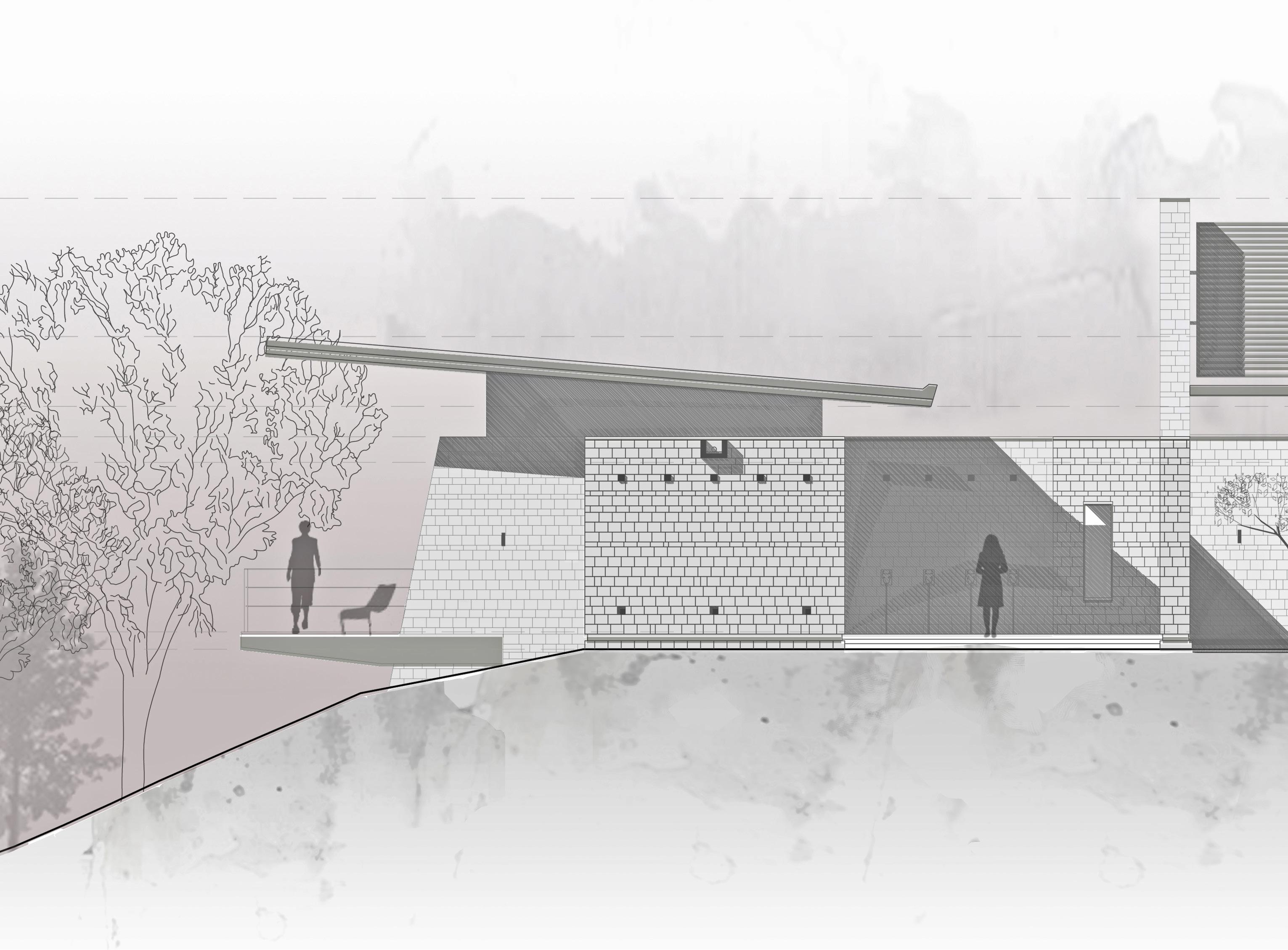

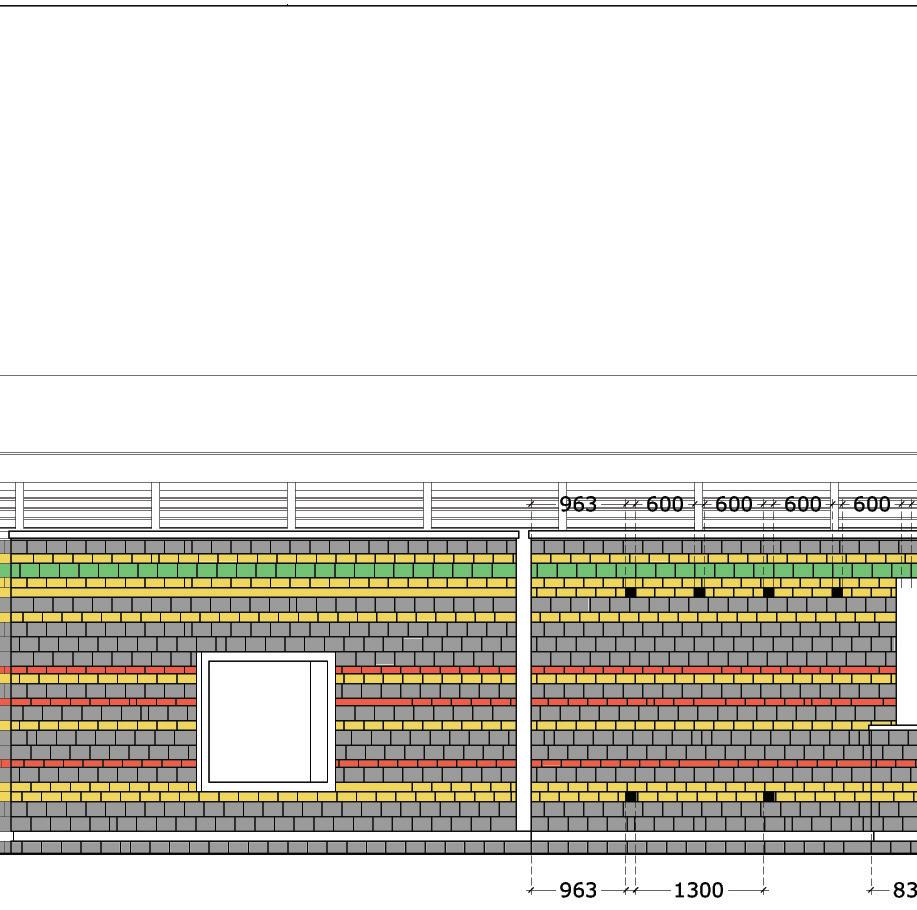

NORTH ELEVATION

THE HERMITAGE RETREAT A WEEKEND HOME

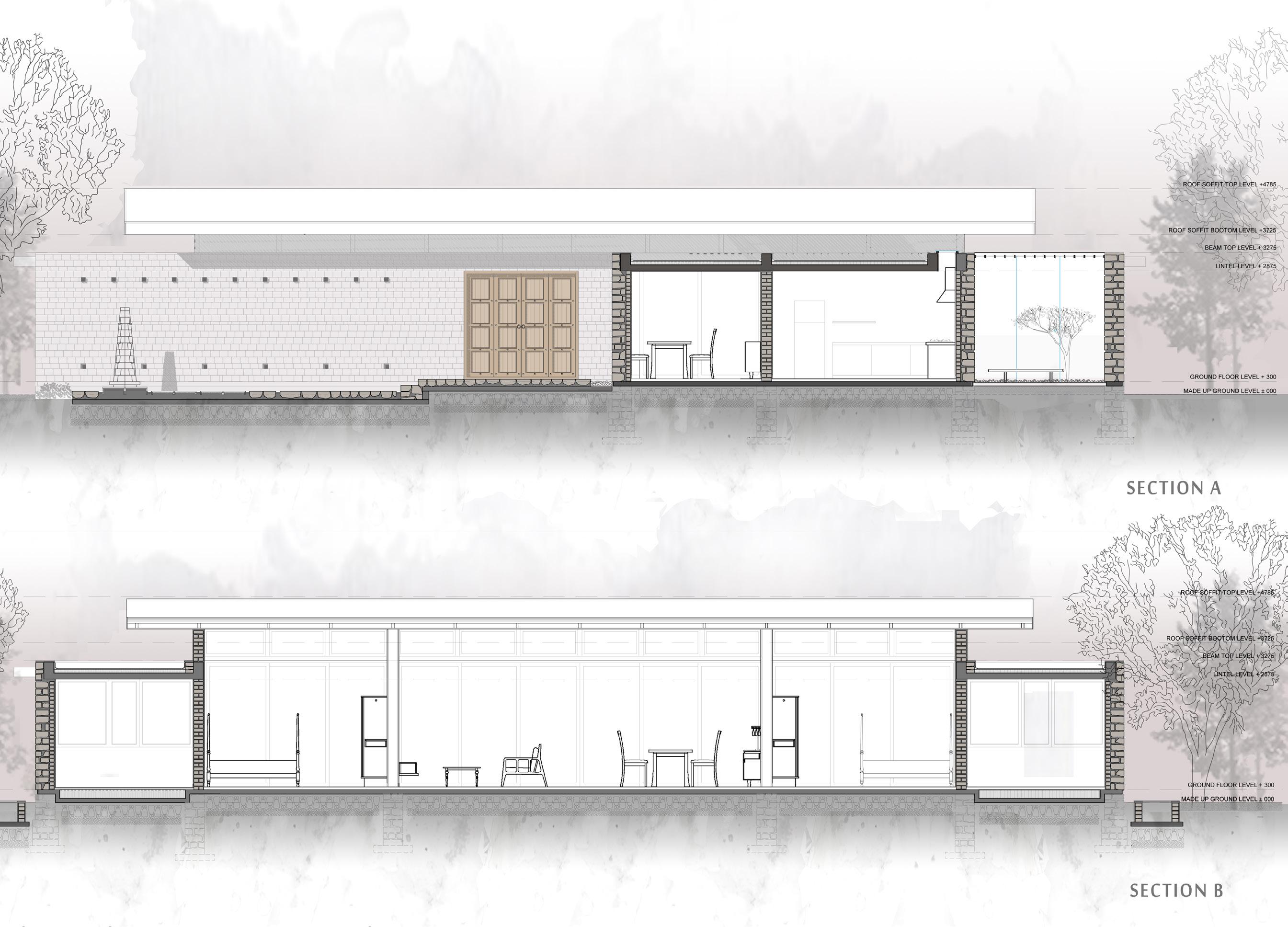

SECTION A

SECTION B

85MM THK WATER PROOFING SKY LIGHT 100 MM DIA PVC VENT. 75 MM THK COPING

85 MM THK WATER PROOFING 100 MM DIA PVC VENT. 75 MM THK COPING SKY LIGHT

280

BRICK WALL STONE WALL FORM FINISH WINDOW GLEN CHIMNEY

15MM PLASTER DADO TILE

425 KEY PLAN NOTES

2925

800

490

975 BED ROOM

WORKING DRAWIN

75

TERRACE

490

PROJECT STAGE

KITCHEN

100 MM DIA PVC ELBOW

PORCH

280

TILING GROUTING 100THK PCC BED SOLING COMPACTED MURRUM

950

GLEN CHIMNEY STONE WALL BRICK WALL 15MM THK PLASTER DADO TILES

1. THIS DRAWING IS PROPERTY ARCHITECTS AND SHALL NOT PURPOSE THAN SPECIFIED WITH 2. DRAWING IS NOT TO BE SCALE BE FOLLOWED. 3. THIS DRAWING IS TO READ IN RELEVANT ARCHITECTURAL / EN 4. ALL RCC / STRUCTURAL DETAI STRUCTURAL ENGINEER'S DRAW 5. ALL DETAILS REGARDING SER MEP / RESPECTIVE SERVICE CON 6. DISCREPANCIES IF ANY SHOULD TO THE NOTICE OF THE ARCHIT IN WRITING PRIOR TO CONSTRUC

CONSULTANTS

LIASONING ARCHITECT XXX

SUNIL PHADKE PMC

PUNE

SUNIL MUTALIK ST CONSULTANTS

SHUKRAWAR PETH, PUNE. P

HUMANE + HUMAN PROJECT

FARM HOUSE BHUGAON

CLIENT

MR.SANDEEP JAG PUNE

DRAWING TITLE

TOILET COURT

KITCHEN CHIMNEY

SLEEVE

KITCHEN

825

TOILET COURT

DRAWING NO.

SJ-WD-KITCHEN-C SCALE

AS MENTIONED

988

NORTH

GAS STOVE SINK 2368

REVISION NO.

R0

WINDOW PORCH

REFRIGERATOR AS PER SELECTION

DRAWN

CHECKE

KARAN

SUNIL

PURPOSE & STAMP

FOR STUDY

TILING GROUTING 100THK PCC BED SOLING COMPACTED MURRUM

HUMANE + HU

ARCHITECTS, LANDSC AND INTERIOR DESIGNE

PULL OUT SLIDING GLASS DOOR

70/2B, FIRST FLOOR, GOVI GIRIJA RESTAURANT, NAL PUNE. TELEPHONE : 020 25455 PATH

COURT

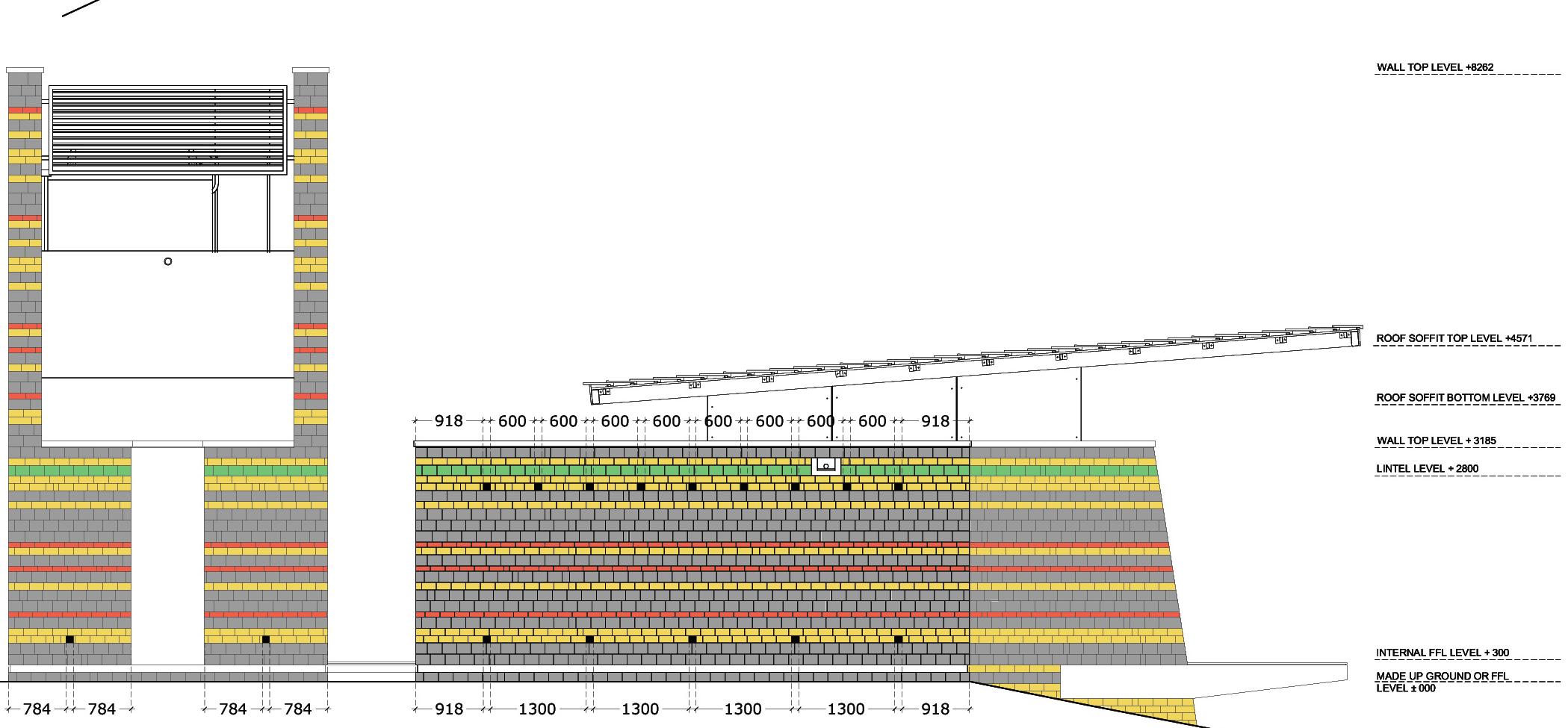

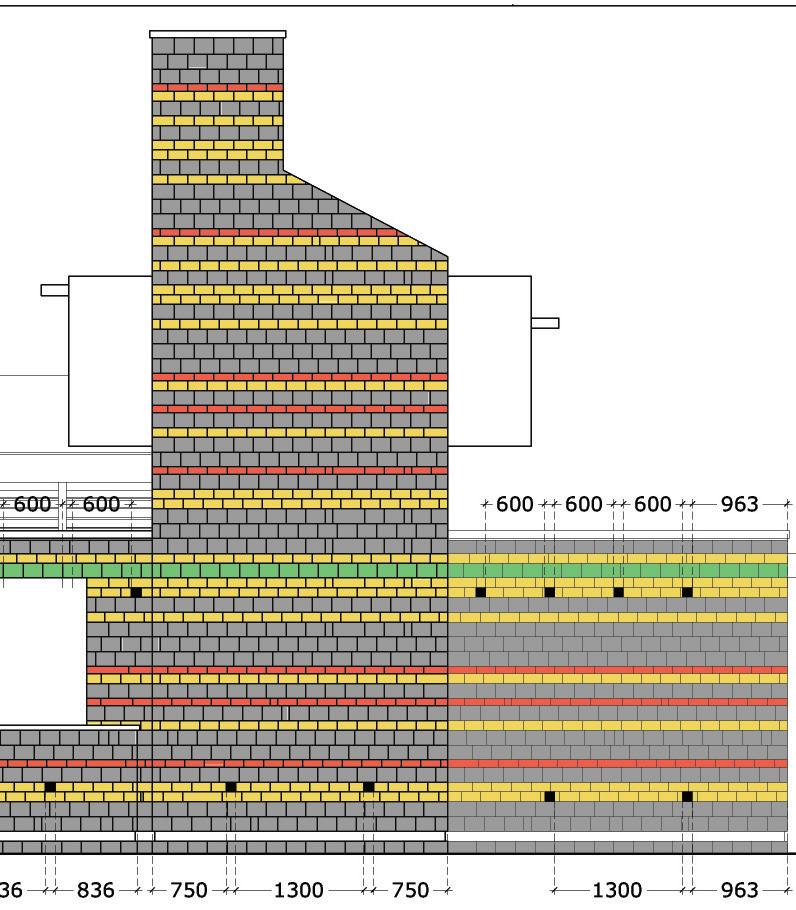

KITCHEN CHIMNEY DETAIL

THE HERMITAGE RETREAT A WEEKEND HOME

855

70 100

150

80

325 25 150

950

990

WINDOW FRAME FORM FINISH WINDOW FRAME 100

80

STONE WALL

50

BRICK WALL 15MM THK PLASTER 10MM THK POP

KITCHEN

100

990

995 FROM INTERNAL PCC

12MM GROOVE

+100.325[FFL]

PORCH

10MM THK POP

100

75 425 50

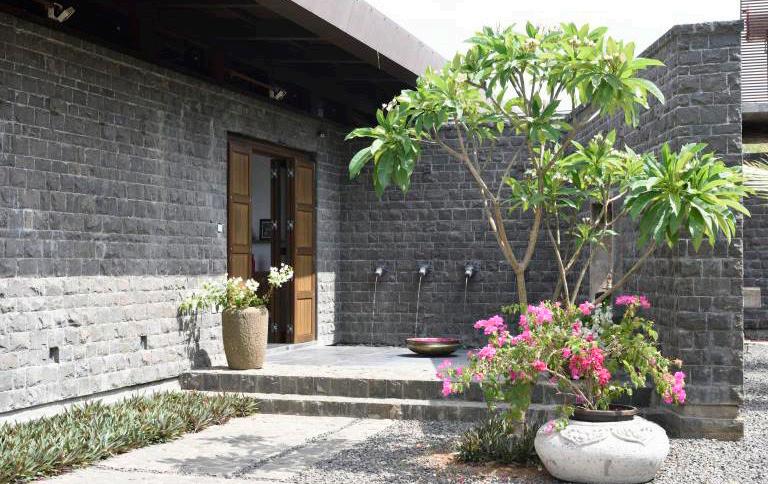

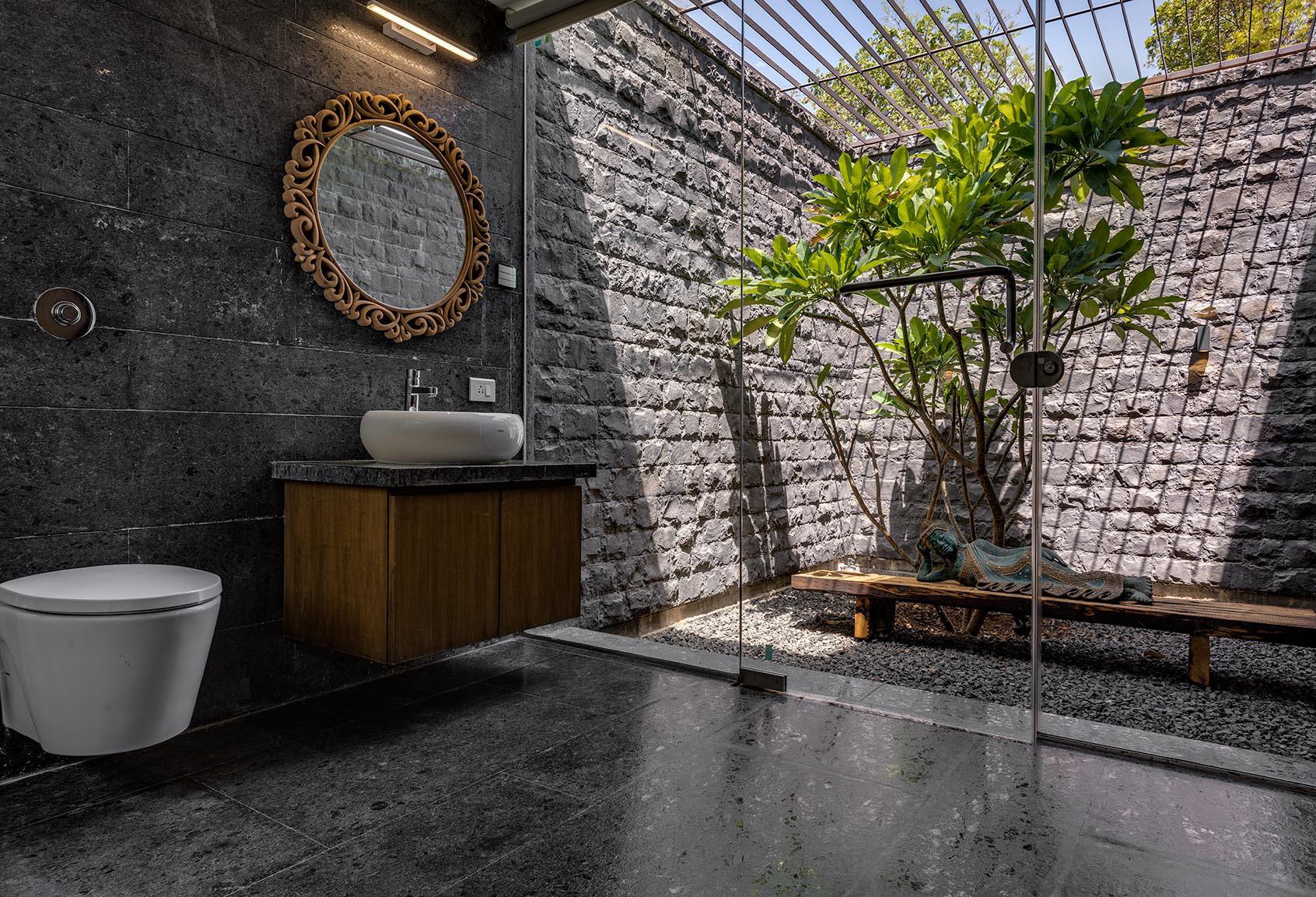

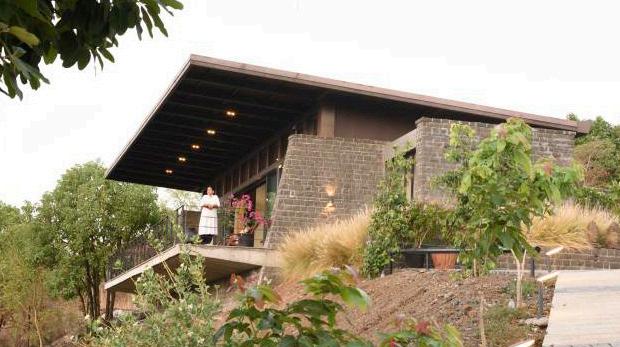

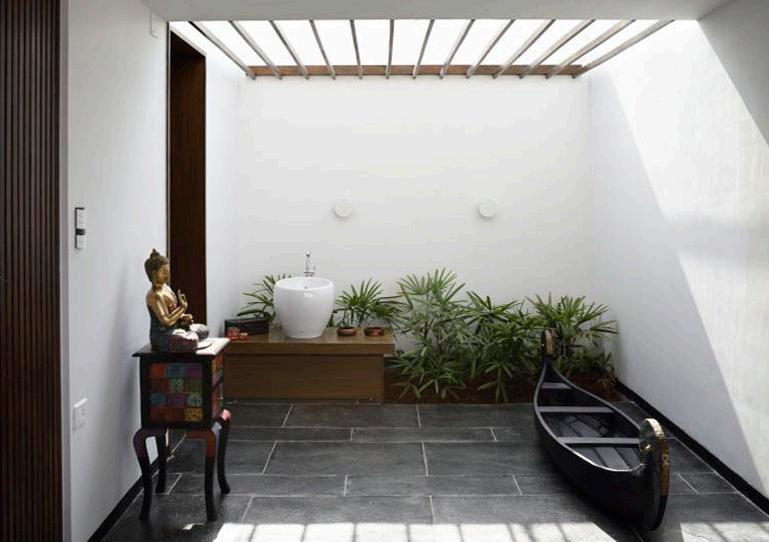

PROJECT IMAGES

FORM FINISH WINDOW FRAME

990 80

80

EQ EQ EQ EQ EQ EQ EQ

EQ EQ EQ EQ EQ EQ EQ

EQ EQ EQ EQ EQ EQ EQ

FORM FINISH RCC SPOUT FORM FINISH RCC SPOUT FORM FINISH RCC SPOUT 100MM DIA DOWN TAKE PVC PIPE 100MM DIA DOWN TAKE 100MM PVC PIPE DIA DOWN TAKE PVC PIPE 3 NOS CONCEALED IN WALL 3 NOS CONCEALED IN WALL 3 NOS CONCEALED IN WALL

855 1180

0

1180

1180 85MM THK WATER PROOFING 100MM DOWN TAKE PVC PIPE 85MM THK WATER PROOFING 85MMDIA THK WATER PROOFING 100MM DIA DOWN TAKE 100MM PVC PIPE DIA DOWN TAKE PVC PIPE 75MM THK COPING 75MM THK COPING 3 NOS CONCEALED IN WALL 3 NOS CONCEALED IN WALL 75MM THK COPING 3 NOS CONCEALED IN WALL 100MM DIA SLEEVE 100MM DIA SLEEVE 25 DIA SLEEVE 150 25 150 100MM 150 25

80

25 5 150

990

OW FRAME FINISH OW FRAME

515

1000 515

515 150 1000 515

515 1000 150

515

150

RCH

995 FROM INTERNAL PCC

80 50

325[FFL]

0

WINDOW FRAME FORM FINISH WINDOW FRAME

FORM FINISH RCC SPOUT FORM FINISH RCC SPOUT FORM FINISH RCC 300 SPOUT 500 80

ENTRANCE 100 PORCH +100.325[FFL]

PORCH

+100.325[FFL]

ENTRANCE 100 PORCH +100.325[FFL]

100MM THK PCC

ENTRANCE

100

570 PORCH

+100.325[FFL]

570

420 80 80

100MM THK PCC

300 500

420 80

300 500 80

12MM GROOVE 12MM GROOVE 100

TERRACE

TERRACE +100.375[FFL]

W FINISH FRAMEWINDOW M FRAME FORM FINISH WINDOW FRAME 100

80

80

650

100 1090

KITCHEN

100MM DIA PVC PIPE100MM DIA PVC PIPE

650

80

SLEEVE 3 NOS

10MM THK POP

PORCH KITCHEN

10MM THK POP

100MM DIA PVC PIPE SLEEVE 3 NOS

100MM DIA DOWN TAKE PVC PIPE 100MM DIA DOWN TAKE 100MM PVC PIPE DIA DOWN TAKE PVC PIPE 3 NOS CONCEALED IN WALL 3 NOS CONCEALED IN WALL 3 NOS CONCEALED IN WALL 65 300 150 65 300 150 65

100 1090 80

+100.325[FFL] +100.375[FFL]

FORM FINISH RCC SPOUT FORM FINISH RCC SPOUT FORM FINISH RCC SPOUT

100

115

1090 80

80

150

150

150

150

150

150 150

10MM THK POP

FORM FINISH WINDOW FRAMEWINDOW 10MM THK POP FORM FINISH FRAME FORM FINISH WINDOW FRAME SLEEVE 3 NOS

650

0

12MM GROOVE

150

150

TERRACE

100

75

100MM THK PCC

450MM THK STONE WALL 450MM THK STONE 450MM WALL THK STONE WALL

100

420 80

570

+100.025 +100.025 +100.025 [MADEUP GROUND[MADEUP LVL] GROUND LVL] [MADEUP GROUND LVL]

POP 10MM THK POP

175 175 300 300 125 125 80 80 80 FORM FINISH FORM FINISH FORM FINISH CONCRETE SPOUT150 CONCRETE SPOUT150 CONCRETE SPOUT150 100 100 100 100MM DIA PVC 100MM DIA PVC 100MM DIA PVC 150 PIPE-3 NOS 150 PIPE-3 NOS 150 PIPE-3 NOS 75 75 75 150 150 150 100 100 100

80

350

150

700 150 115 150 1000 350

80

500

8080

300 150

115 700 115150 150150 115 700150 1000 350 1000 500

8080

500

150 80

115

150

75

175 125

150 150 75

150

150 150 100MM DIA PVC PIPE100MM DIA PVC PIPE 150 SLEEVE 3 NOS 150 SLEEVE 3 NOS

125

150FORM FINISH 150 FINISH FORM CONCRETE SPOUT CONCRETE SPOUT 125 125

150

150

150 100 120 300 150 +100.375[FFL]

150 350 120 150

+100.325[FFL]

KITCHEN PORCH 150 100

220 80100 300 +100.325[FFL]

150+100.3PORCH [P.C.C TOP] 100

300

150 220 150 80 350 120 150

FORM FINISH CONCRETE SPOUT 220

100 300

150 [P.C.C TOP] +100.3 100

100MM DIA PVC PIPE SLEEVE 3 NOS

350

80

+100.3 [P.C.C TOP]

+100.025 +100.025 +100.025 [MADEUP GROUND LVL] [MADEUP GROUND LVL] [MADEUP GROUND LVL]

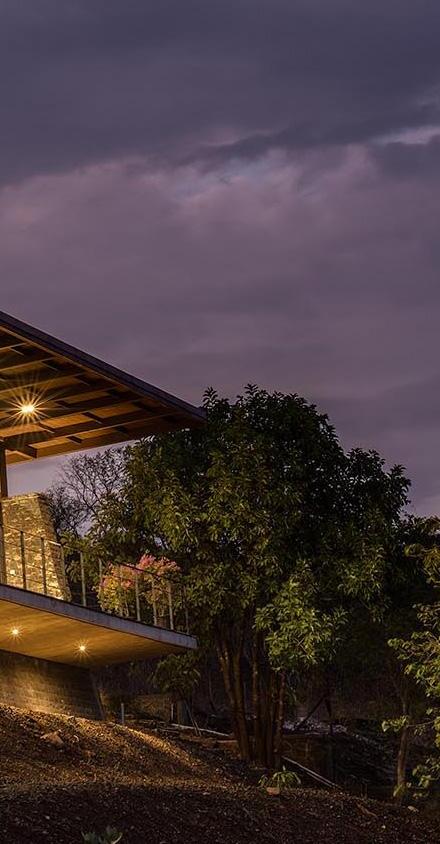

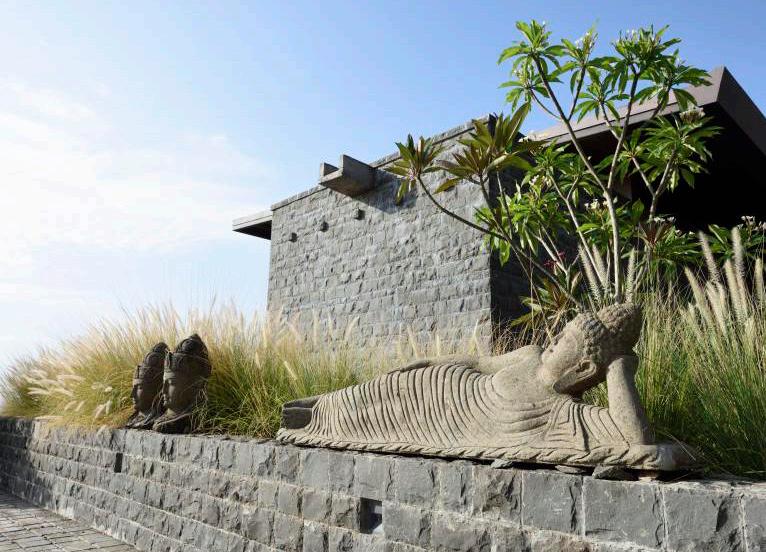

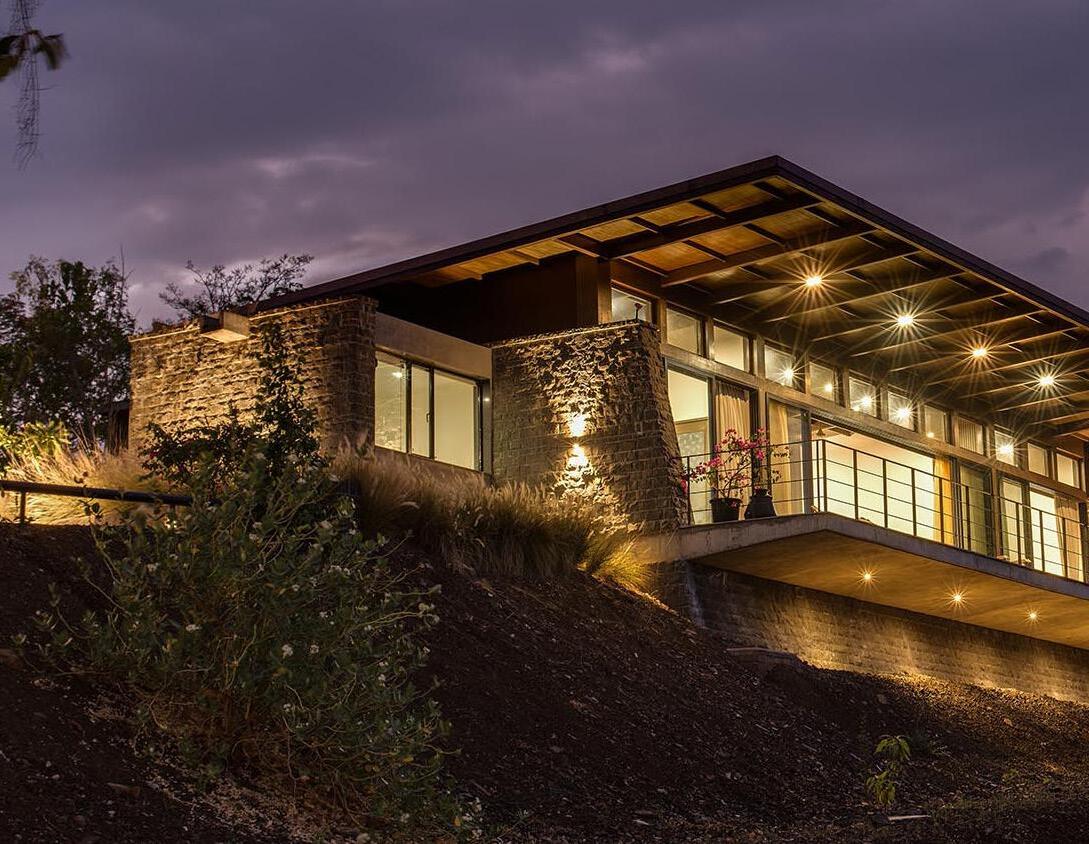

THE HERMITAGE RETREAT A WEEKEND HOME

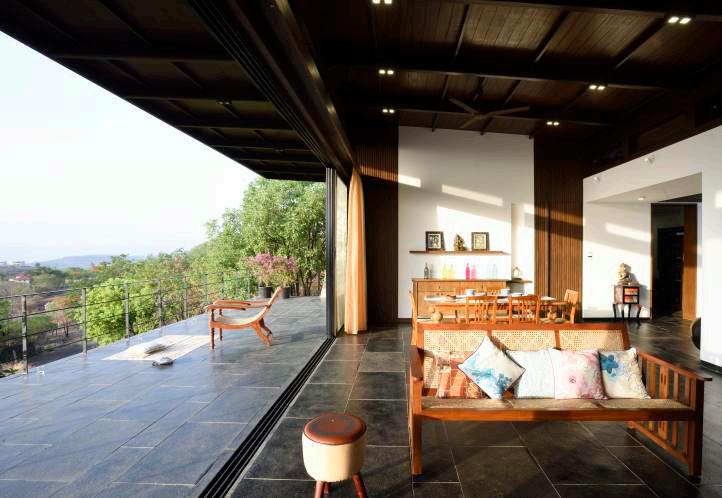

PROJECT IMAGES
