10 minute read

Tried & Tested

REVIEWS

An overview of some of the products we have featured in PSI independent test reports over recent months. Manufacturers and distributors have no input in the testing or the final results so you can rest assured that these are genuine reports and not based on external influences.

Bosch – Flexidome NDE-3503-AL

Part of the Bosch Flexidome IP 3000i IR range, this fixed dome camera is impact resistant to IK10 with IP66 protection rating and has a 1/2.9” 5MP CMOS sensor, 3.2 to 10mm motorised lens and a range of “Essential” video analytic functions. It has a diameter of 137mm and height of 122.5mm. It has an operating temperature of 30°C to +50°C. Review: A very capable dome camera with a wide range of configuration options. Score: 8.5/10

IDIS – DC-S6283HRXL

The DC-S6283HRXL dome is an external IP66, IK10 rated, 1/2” CMOS 2MP Lightmaster PTZ ONVIF compliant dome with 36 times zoom lens and long range IR capability. Review: A well featured PTZ dome with simple setup, excellent optical performance and enhanced IR illumination. Score: 8/10

Uniview – IPC2325EBR5-DPZ

Promoted as a 5MP WDR Starlight Varifocal IP67 network bullet camera, the unit is based on a 1/ 2.7” sensor with a 2.7 to 13.5mm auto-focus motorized zoom lens giving a horizontal angle of view from 93.28° to 28.56°.

Review: A versatile solidly built external bullet camera with a wide range of configuration settings. The security settings allow the camera to be suitably locked-down but the lack of a forced “strong” password is a concern; perhaps a future firmware update will remedy this. Score: 8/10

3xLogic – VX-VT-56

The 3xLogic VX-VT-56 is an IP66 bullet style external thermal camera with a 56° horizontal field of view. It has motion detection including video content analysis and temperature alarm capabilities built in. Review: A very compact thermal bullet camera that is straightforward to install and set up. t is capable of detecting scene intrusion and creating alarms regardless of light levels and weather conditions. A variety of specialist analytics is included. Score: 8/10

SMOKE DETECTION

Hikvision – ColorVu DS-2CD2087G2-LU

This IP67, 8MP bullet camera is from the Hikvision ColorVu range. It is designed for 24-hour colour imagery with warm-white visible LED illumination support for zero light scenes. A wide 2.8mm lens version is standard with 4mm and 6mm options. Review: An extremely sensitive 8MP high-resolution camera with advanced detection capabilities, 24-hour colour capability and a wide range of security features. Score: 9/10

Tyco – Illustra Multi Sensor Dome

The Illustra Flex multi-sensor camera provides four 4MP camera views from a single location over a single network cable using just one IP address. The IP66 cameras can be flexibly positioned within the housing for full 360° coverage. Review: An interesting approach to the provision of multi-camera highly detailed wide-angle views from a single housing with straightforward installation and configuration. Score: 8/10

Oncam – C-12 Indoor

This internal 360° view camera designed for ceiling or wall mounting, is based on a 12MP sensor and provides a fisheye image with a wide range of configuration options. Review: A very powerful compact fisheye view camera compatible with a wide range of video management systems with simplicity of installation and good support documentation. Score: 8.5/10

Dahua – TiOC 2.0

The DH-IPC-HDW3549H-AS-PV-S3 is a 5MP full-colour fixed-focal eyeball WizSense network camera. It is the latest in the company’s TiOC (three- in-one camera) line which integrates 24/7 full-colour monitoring, active deterrence and AI into one solution. Review: A very capable Eyeball style dome that has a wide range of features to help detect and deter intruders, with extensive cyber security settings. When used with the Dahua Smart NVR, the camera supports intelligent search capabilities. Score: 8.5/10

Wisenet – PNM-C7083RVD

The PNM-C7083RVD multi-directional camera is a dual dome device that provides two 2MP views that can be individually set to suit locations while requiring only one network lead. The cameras provide AI object classification analytics and low light operation. They are

IP66 & NEMA4X environmentally rated with an IK10 impact protection rating.

Review: An impressive and very flexible dual camera unit that is easy to install, configure and maintain. Score: 9/10

TRIED & TESTED

Hikvision – AX Pro

The AX Pro can be purchased as a kit or individual components. The reviewed system was a DS-PWA96-Kit1-WE kit with the seven parts as listed. It is a wireless Grade 2 alarm system that can be used stand-alone or integrated into a management system. Additional modules are available to link to home automation products and systems. The DS-PWA96-M-WE panel supports up to 32 areas and 96 zones. Review: A compact wireless alarm system with extended battery duration and flexible remote management. The product is well suited to central monitoring with a range of protocols supported. A reasonably wide and increasing range of detector types with scope for integration with home-automation systems. Score: 8.5/10

Pyronix – MCEXTERNAL-WE

This tamperproof and weatherproof contact extends perimeter protection applications to securing sheds, garages, gates etc, with remote voice push notification alerts via the smart device apps, HomeControl2.0 and ProControl+. Featuring an IP66 rating, this discreet and versatile Grade 2 device is described as easy to fit and calibrate.

Review: The product is constructed very well. The casing is made of a hard polycarbonate with a deep grey (anthracite) finish which makes the door contact look great. The overall performance of the product did not disappoint during testing as it managed to maintain a high signal strength at all times as well as being very responsive. Score: 8.5/10

Ajax – MotionCam Outdoor

The Ajax MotionCam Outdoor is an IP 55 rated combined external PIR sensor with inbuilt capture camera for use with the latest Ajax Hubs that support visual verification. The detector has settings for the image resolution and number of pictures sent on alarm. After dark the unit has two high-intensity infrared LEDs to provide illumination for the camera’s monochrome mode. Review: A very simple to install and manage, extended battery life external PIR detector for Ajax based Hub 2 systems, with the advantage of visual verification. Score: 9/10

Eaton – i-on10 KP

The i-on Compact Security System is a Grade 2 wired intrusion detection panel with 10 zones and up to 10 users and 4 keypads. It is promoted as being suitable for simple, entry-level burglar alarm systems to protect homes and small commercial installations. Review: A straightforward and engineer friendly grade 2 wired alarm system with a wide range of configuration options and simplicity of installation. Good documentation is supplied with the product. Score: 9/10

CSL – MiniAir 2

MiniAir 2 is a single-path signalling solution that utilises a 4G/LTE-M path to signal an alarm from a protected premises to an ARC. It comes with a standby SIM as a backup to safeguard the system, if the active SIM fails.

Review: The product overall is great. It is a perfect solution to the PSTN switch over/off as it means that existing systems that rely solely on PSTN signalling can continue to do so without the expense of upgrading the customers control equipment. Score: 9/10

Texecom – Capture

RISCO – LightSYS+

Capture motion detectors are intended for use in a wide variety of professional security applications. With a choice of EN Grade 2 wired or wireless connectivity, wall or ceiling mounting, and a choice of detection technologies including dual element, quad element or dual technology sensing, Capture suits a wide variety of security environments. Review: The ease of connection with a range of switchable, built-in EOL resistor values simplifies the installation process. The potential for device branding will likely be appealing to independent installers. Score: 9/10

The LightSYS+ is an alarm system that can be configured for Grade 2 or Grade 3 systems and supports up to 32 partitions, 512 zones and 500 users. It is structured around an RS485 bus architecture and is supported by a wide range of optional modules including GSM 2G, 3G and 4G, Audio messaging, Listen & Speak units, and VUpoint IP cameras for visual verification Review: A comprehensive alarm system which can be configured for small to large, single or multiple occupancy installations in residential, retail, or small to large commercial business properties. Score: 8.5/10

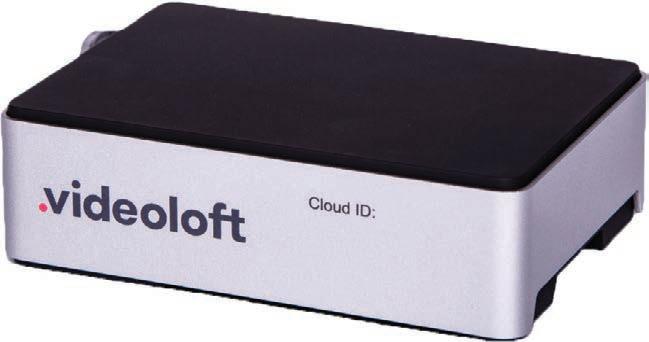

Videoloft – Cloud Adapter 8

The Videoloft Cloud Adapter 8 is an eight channel bridging device which equips new and legacy video surveillance systems with Videoloft’s offsite cloud video solution.

Review: It is a very cost effective solution for those looking to update existing systems, upgrade the overall storage solution, or wanting to connect independent cameras to a recording and viewing platform without the need for a recorder or controller. Score: 8.5/10

Wisenet – TID-600R

The Wisenet TID-600R is a compact IP65, IK08 intercom unit featuring a 1/2.8” 2MP camera with a very wide viewing angle and infrared support up to 5 metres. It supports SIP 2.0 connection, has a touchless call option, edge storage and ONVIF compliance. It measures 165(h) x 49(w) x 48(d) cm with a weight of 490g. Review: This is an impressive SIP 2.0 intercom unit that can be used in a wide range of situations especially in healthcare, where the touch-free method to initiate a call reduces infection risks. The HD camera and its event recording options can provide excellent evidential

2N – IP Style

This video intercom features a 10”touch display boosted by the Axis ARTPEC-7 processor, full-HD camera and WaveKey technology. The unit is rated IP65 and IK08, meaning that users can touch the display even if there is any water on its surface. Review: The unit is easily customisable depending on the project, with ability to customise each resident if used in a domestic setting, and importing business logos and grouping for businesses in a commercial setting – a very elegant solution and great addition to the outside of any building. Score: 8.5/10
