CONTENTS ARCHITECTURAL DESIGN 1. CAMPUS DESIGN, BELAPUR, NAVI MUMBAI. 2. APMC MARKET, DAHAGAON. 3. CITIZEN FACILITATION CENTER, MUMBAI. 4. COMMERCIAL COMPLEX, BELAPUR, NAVI MUMBAI. 5. MASS HOUSING PROJECT, MUMBAI. 6. MASS HOUSING PROJECT, MUMBAI.INTERIOR DESIGN 1. INTERIOR DESIGN FOR AN APARTMENT, WADALA. 2. INTERIOR DESIGN FOR AN OFFICE, KHARGAR. LANDSCAPE DESIGN 1. HOSPITAL LANDSCAPE WORKING DRAWING 1. WORKING DRAWING FOR AN OFFICE TOWER OF COMMERCIAL BUILDING, BEMAPUR, NAVI MUMBAI. COMPETITIONS 1. FACULTY MEDAL- PHC (2020) 2. FACULTY MEDAL SOS VILLAGE (2021) OTHER 1. REVIT WAREHOUSE MODEL 2. INTEREST

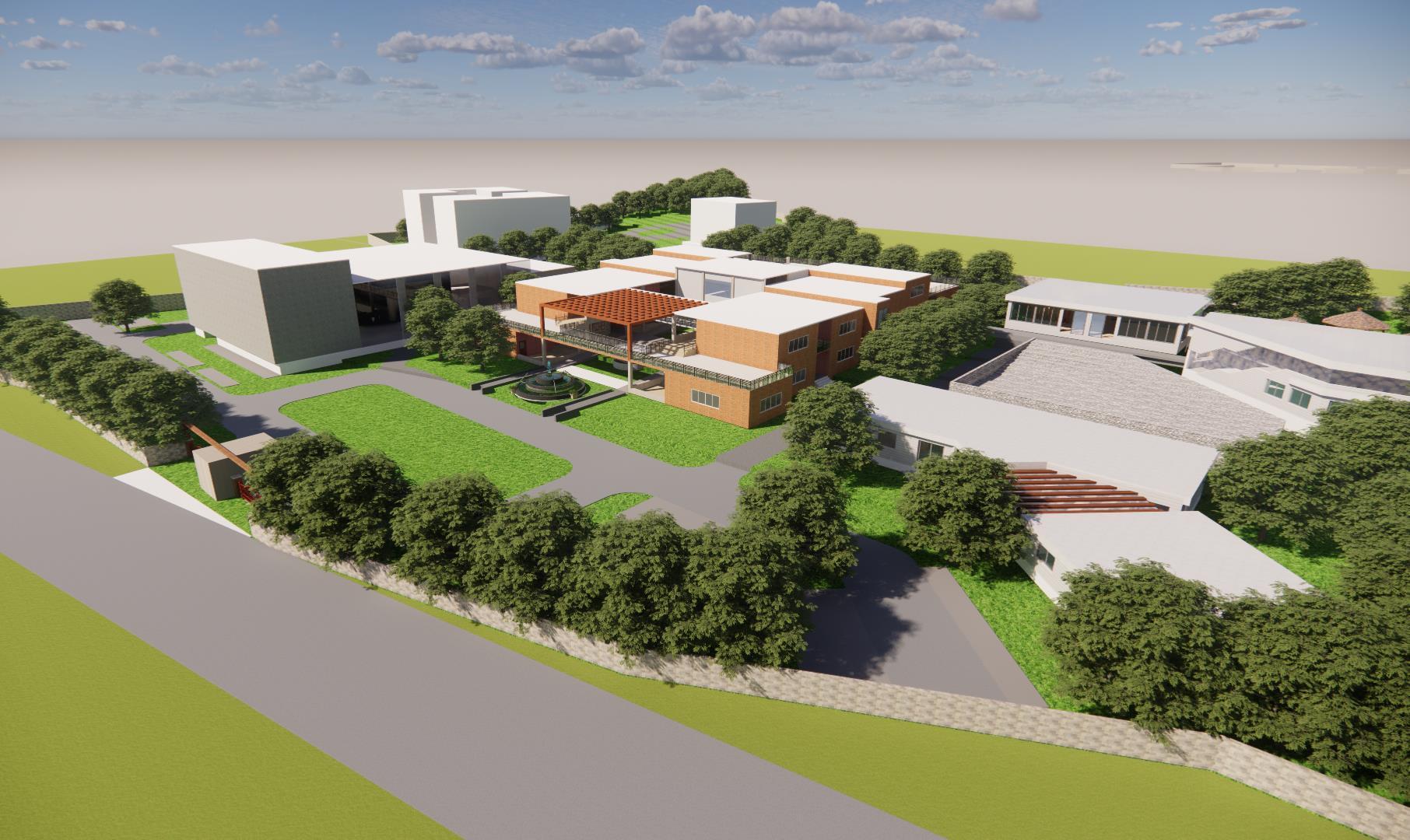

CAMPUS DESIGN

•

• SITE

NO.8,9,11,12

• TOTAL SITE AREA 29498

• NEAREST RAILWAY STATION

MUMBAI, MAHARASHTRA

(7.3

1.2 KM (SEAWOODS)

THE SITE IS ABOUT A 15 MIN WALKING DISTANCE

FROM THE SEAWOODS RAILWAY STATION

THE MAIN CONCEPT OF DESIGN

THE PLAYING

• ACADEMIC BUILDING IS THE MAIN STRUCTURE AND CENTER OF THIS PROPSED

• IT HAS WIDE PASSAGE WITH STEPS IN BETWEEN, AND SAME

• IT HAS OPEN TERRACE AT FIRST FLOOR.

FIRST

• ON THE FIRST FLOOR, THERE IS EXHIBITION HALL, WHICH ALSO HAS THE ACCESS FROM

• ACADEMIC BUILDING HAS SEPARATE ENTRY FROM RESIDENTIAL BLOCK, EHICH HAS ACCESS

PLAYGROUND, AND POCKET

FOR

•

WITH LEVELS TO ENHANCE THE BEAUTY OF STRUCTURE.

CAMPUS DESIGN.

FLOOR.

BACKSIDE.

THROUGH A

LANDSCAPE

AUDITORIUM. ARCHITECTURAL DESIGN l BELAPUR, NAVI MUMBAI l INSTITUTION l SEM 6 01CAMPUS DESIGN SITE LOCATION

LOCATION SECTOR 23, CBD BELAPUR, NAVI

PLOT

SQ.M

ACRES)

•

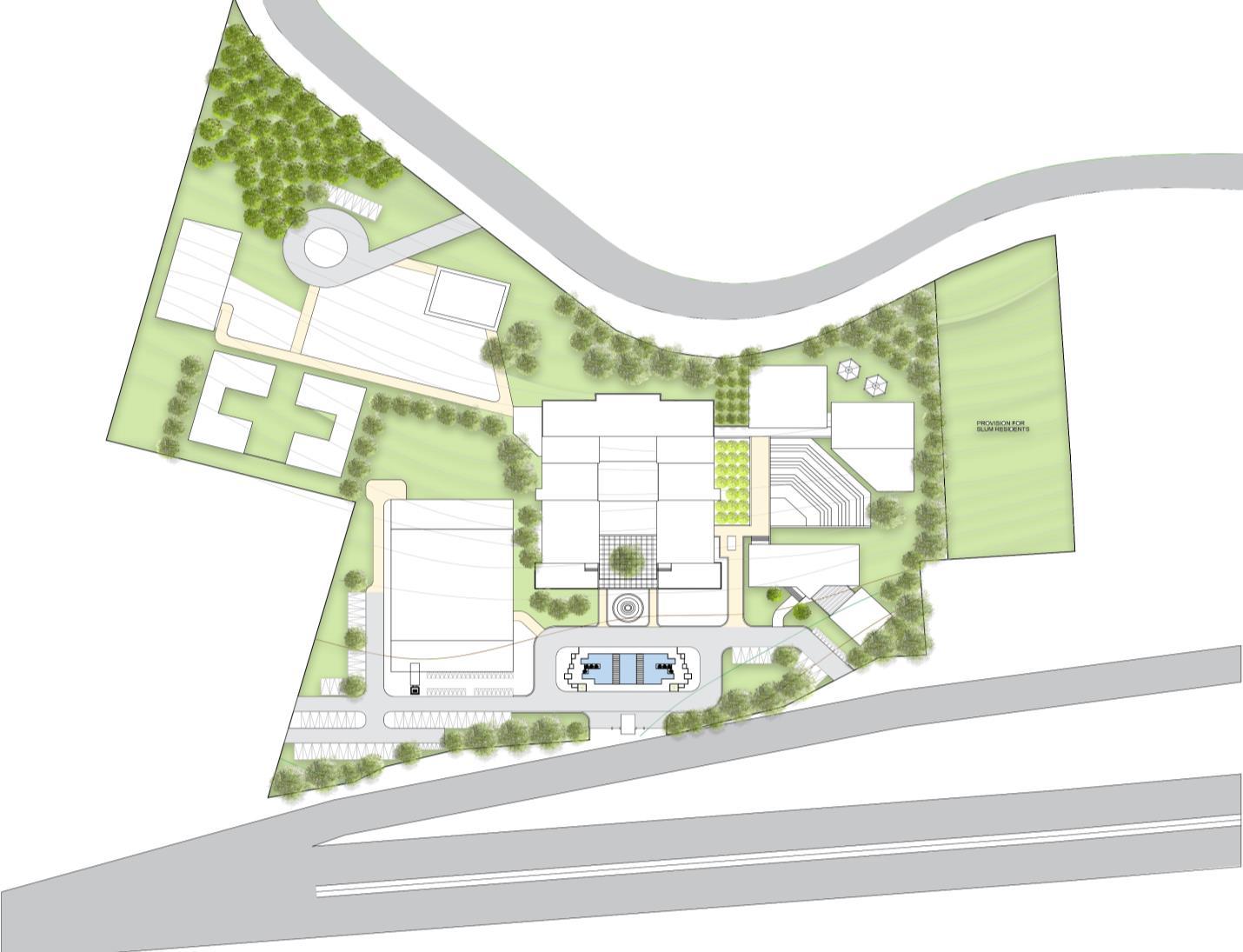

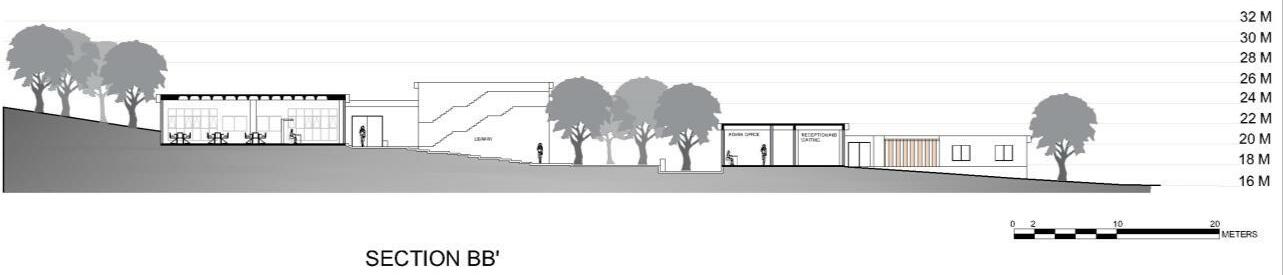

1 3 4 2 5 6 7 8 9 10 11 12 13 1. MAIN ENTRANCE TO THE SITE 2. WATER BODY 3. PARKING AREA 4. AUDITORIUM 5. ACADEMIC BUILDING 6. ADMIN BUILDING 7. AMPITHEATER 8. LIBRARY 9. CANTEEN 10. STUDENTS RESIDENTIL BLOCK 11. MESS 12. FACULTY RESIDENTIAL BLOCK 13. PROVISION FOR SLUM DEVELOPMENT ACADEMIC BUILDING AUDITORIUM LIBRARY AND CANTEEN ADMIN BUILDING RESIDENTIAL BLOCK AUDITORIUM STUDENT RESIDENTIAL BLOCK FACULTY RESIDENCE ACADEMIC BUILDING CANTEEN LIBRARY PARKING AREA WATER BODY ADMIN BUILDING AMPITHEATER

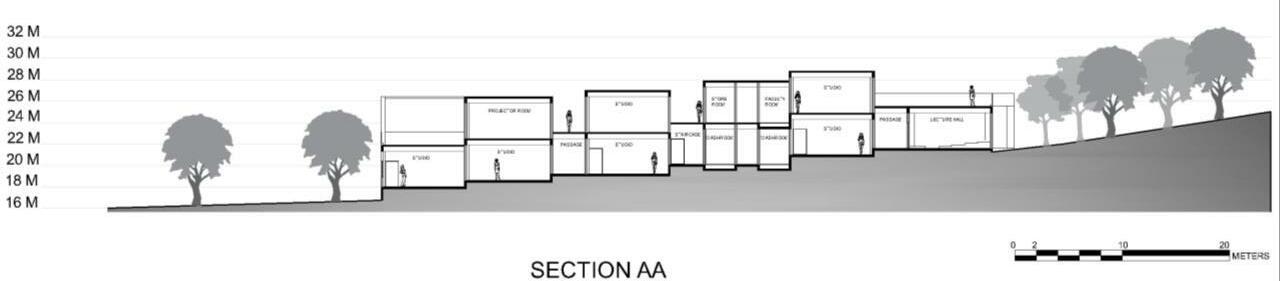

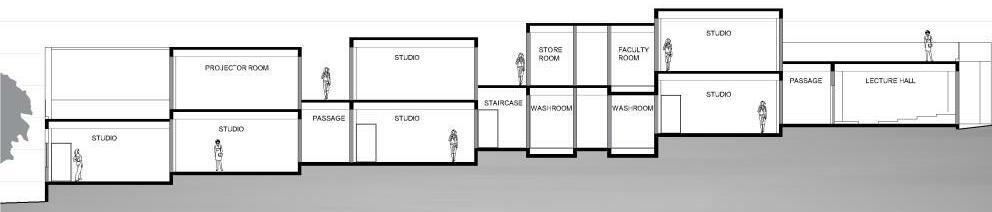

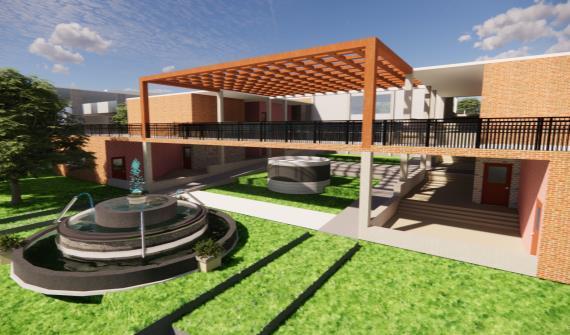

ACADEMIC BUILDING ADMIN BUILDING

• ACADEMIC BUILING CONSISTS OF LECTURE HALLS, STUDIOS.

• IT HAS OPEN TERRACE ON THE FIRST FLOOR.

• THE BRIDFE CONNECTING BOTH SIDES AT FIRST FLOOR ACT AS ENTRANCE FOR THE ACADEMIC BUILDING.

• LEVEL DIFFERENCE AND WIDE PASSAGES ENHANCE THE STRUCTURE’S BEAUTY.

• AT THE ENTRANCE, IN THE COURTYARD, THERE IS CIRCULAR OPEN SPACE FOR EXHIBITION, SHADED BY THE TREE.

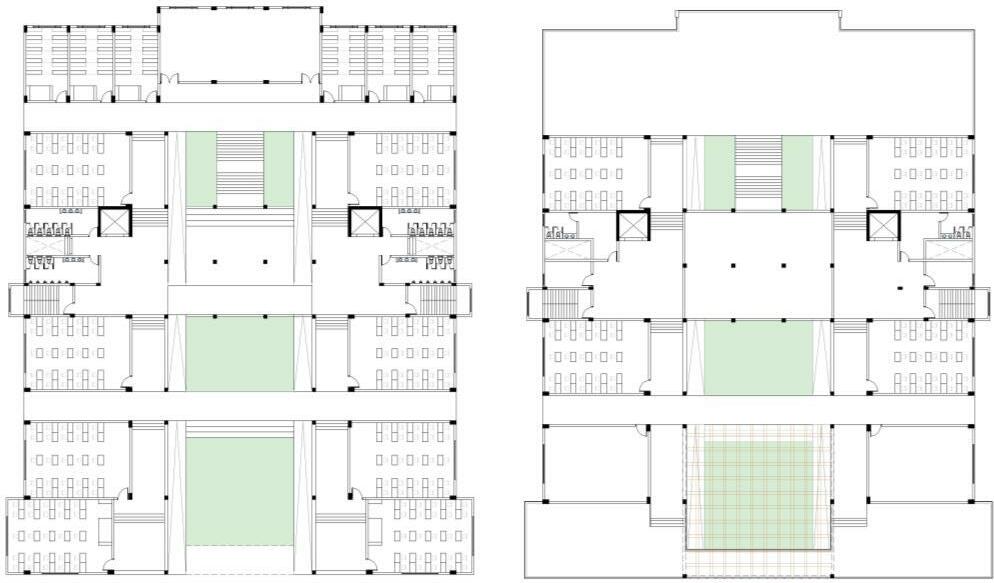

GROUND FLOOR PLAN

FIRST FLOOR PLAN

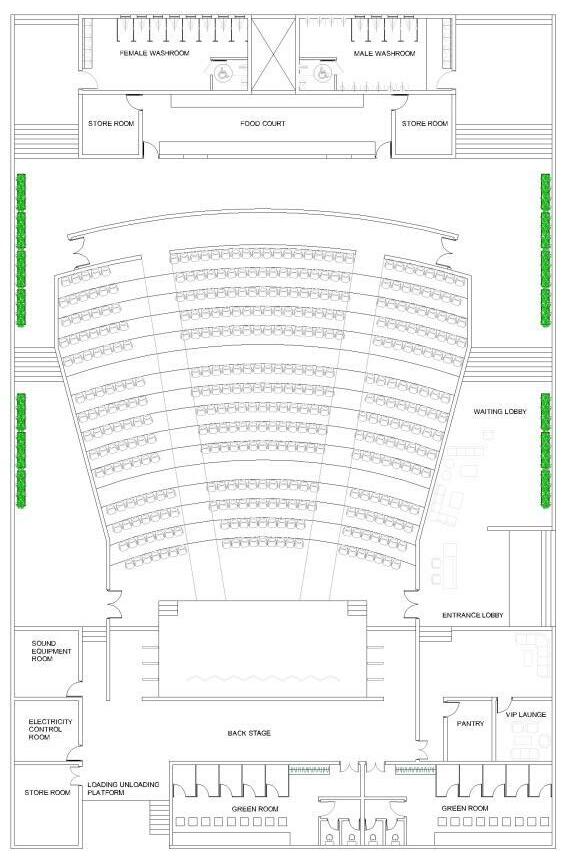

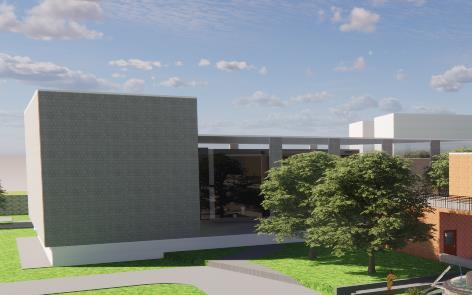

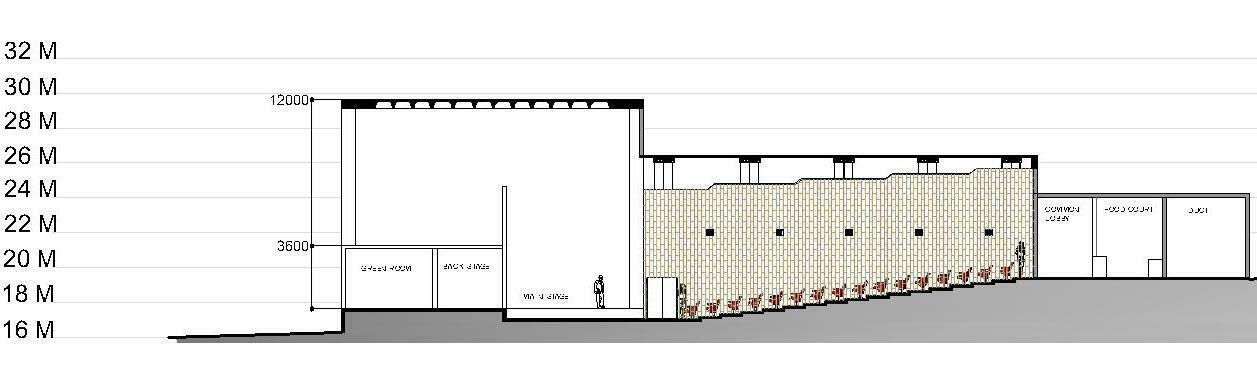

AUDITORIUM

• EXIT DOORS OF AUDITORIUM OPENS IN THE LANDSCAPE AREA AND USER HAS TO PASS THROUGH IT BEFORE COMING IN PARKING SLOT.

• AUDITORIUM HAS A CAPACITY OF 400 PEOPLE.

• IT IS USED BY BOTH THE STUDENTS AND OUTSIDERS, WHICH WILL BE RENTENTED SPECIFICALLY.

• MORE PARKING IS REQUIDERED FOR AUDITORIUM, SO PARKING AREA IS NEAR BY.

LIBRARY

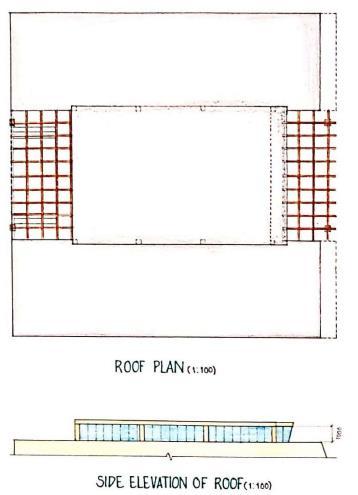

• ADMIN BUILDING CONSIST OF STAFF AREA AND VISITORS AREA SEPARATED BY PERGOLA WITH SAME PLINTH.

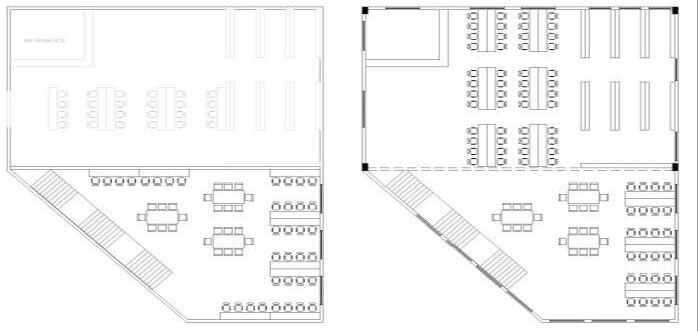

MEZZANINE FLOOR PLAN

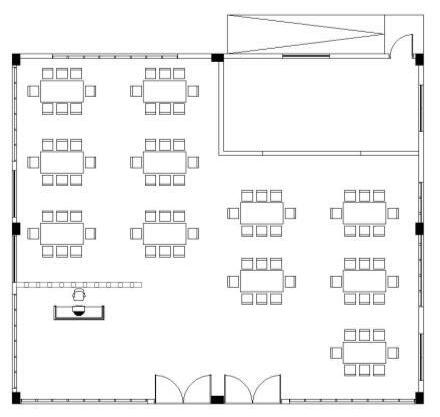

GROUND FLOOR PLAN

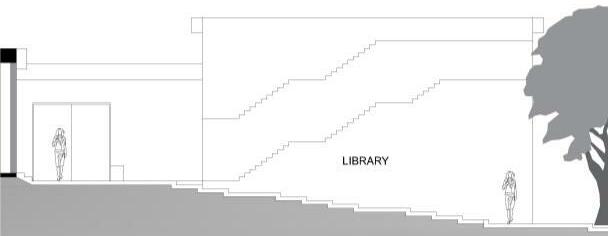

• LIBRARY HAS THE MEZZANINE FLOOR.

• FOR LONG SPAN, GRID FLOOR IS USED.

• WHICH HAS ACCESS WITH OUTSIDE VIEW AT STAIRCASE.

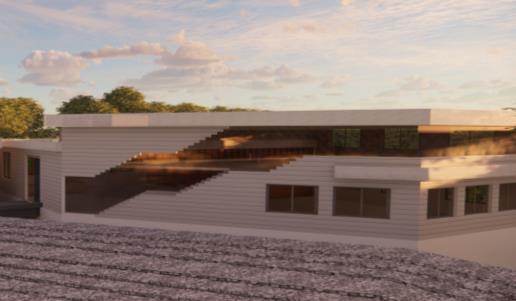

• ROOF HAS LEVEL DIFFERENCE BECAUSE OF MEZZANINE FLOOR, WHICH ENHANCE ITS BEAUTY.

• THERE IS A POCKET LANSCAPE BEHIND LIBRARY, WHICH CAN BE ACCESSIBLE FROM THE SPACE BETWEEN CANTEEN AND LIBRARY.

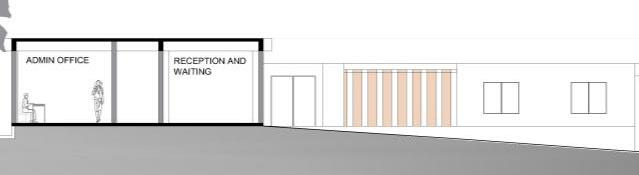

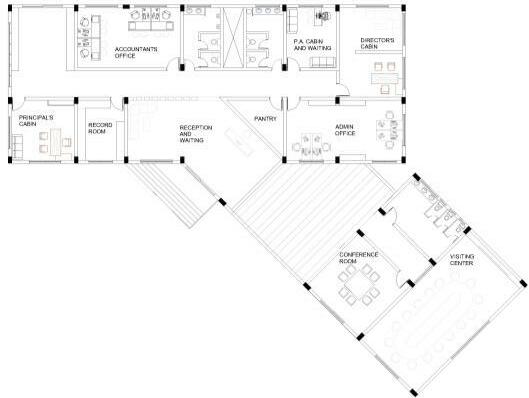

ADMIN BUILDING

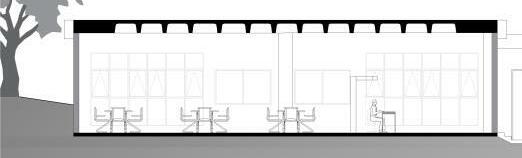

• TIMBER PANELS AND FABRIC ACAUDTIC PANELS ARE USED IN THE AUDITORIUM.

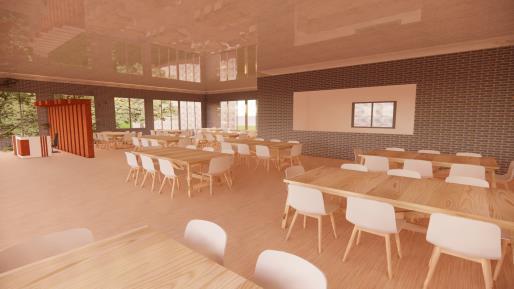

• GRID SLAB IS USED IN THE CANTEEN FOR LARGE COLUMN FREE SPACE.

• FRENCH WINDOWS ARE USED FOR THE BETTER VIEW.

RECEPTION AND INFORMATION

KITCHEN RECEPTION

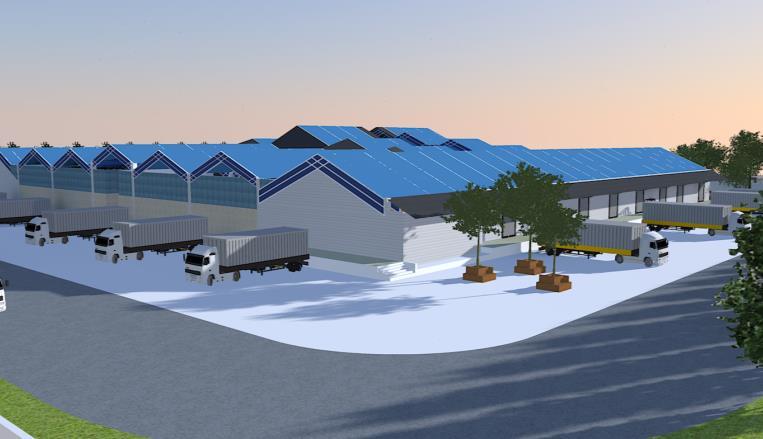

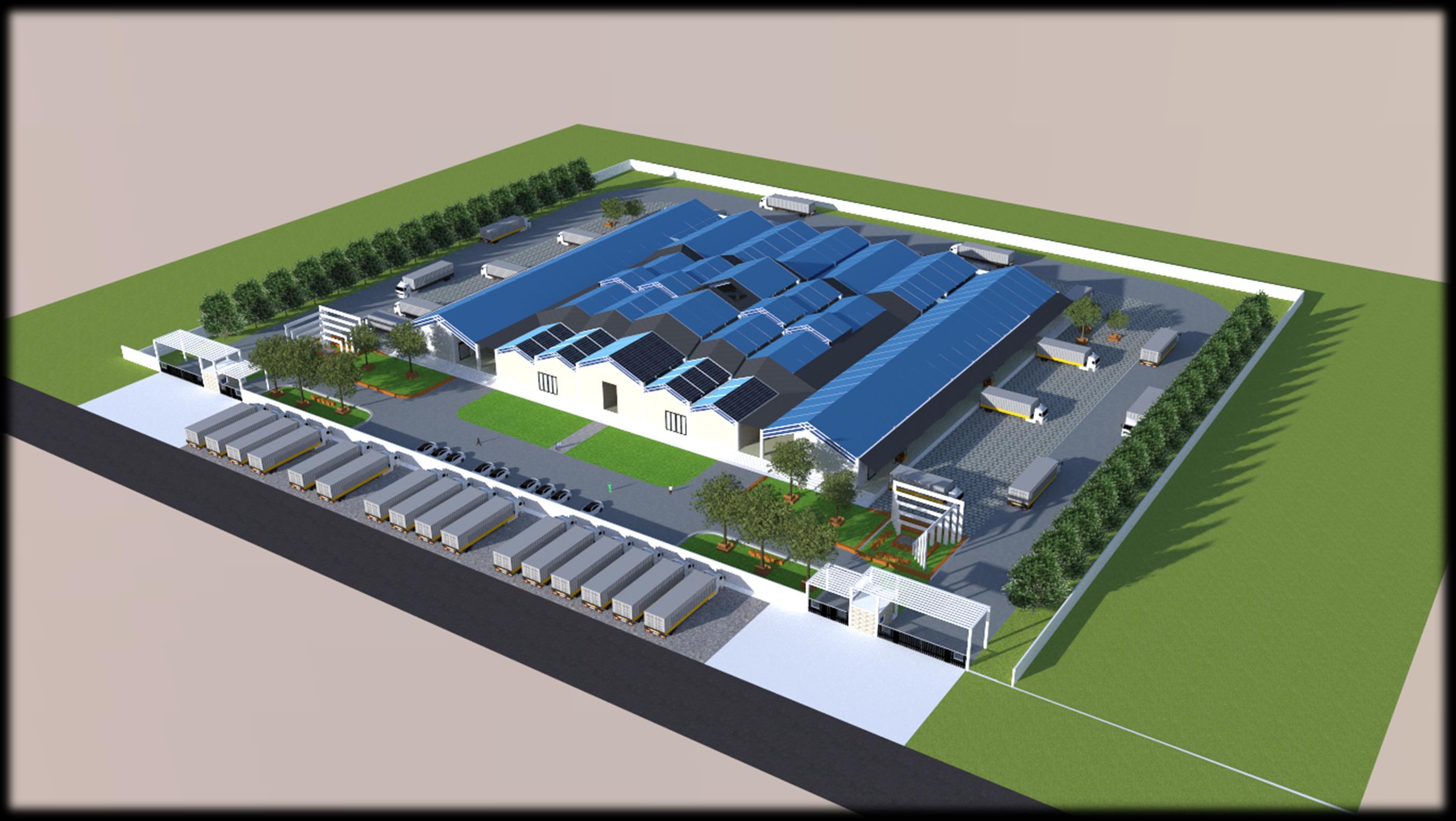

APMC MARKET

LOCATION : DAHAGAON ROAD NEAR MUMBAI NASHIK HIGHWAY DAHAGAON, KALYAN, THANE.

ACCESS TO THE SITE : BY PUBLIC BUS, PRIVATE VEHICLES AND RAILWAY.

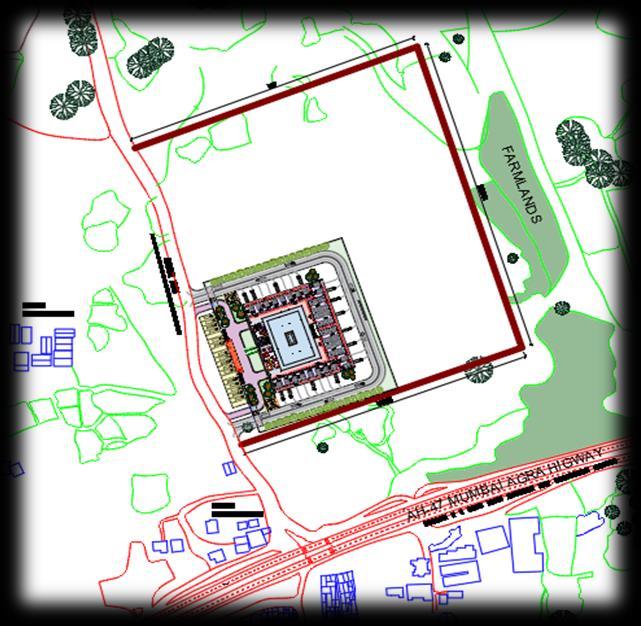

SITE ANALYSIS:

• SITE IS CONNECTED TO THE BRANCHED ROAD FROM MUMBAI AGRA NATIONAL HIGHWAY AND SURROUNDED BY FARMLAND FROM THREE SITES.

• PRIMARY OCCUPATION OF SURROUNDED BY VILLAGES IS FARMING, WHICH LEADS TO TRADING.

• MAJOR CROPS : RICE, SOYABEAN, TUR AND SOME OTHER VEGETABLES.

DESIGN CONSIDERATION

• AS PER GIVEN REQUIREMENT, MAIN AIM IS TO ACHIEVE MORE SUNLIGHT AND VENTILATION.

• THE DESIGN SHOULD BE SELF SUSTAINABLE.

• IT SHOULD HAVE DIFFERENT PEDESTRIAN AND VEHICULAR AREA.

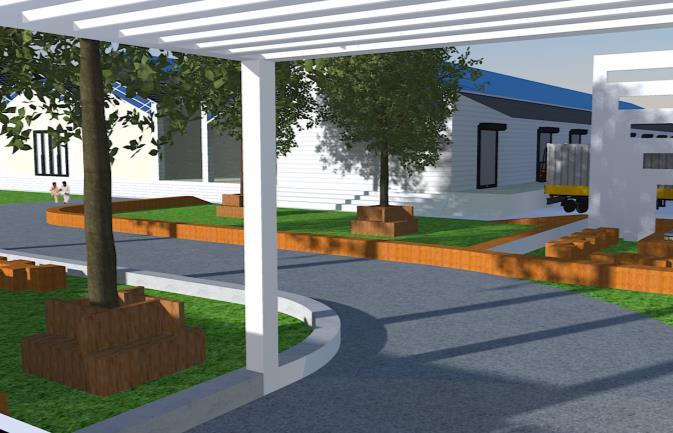

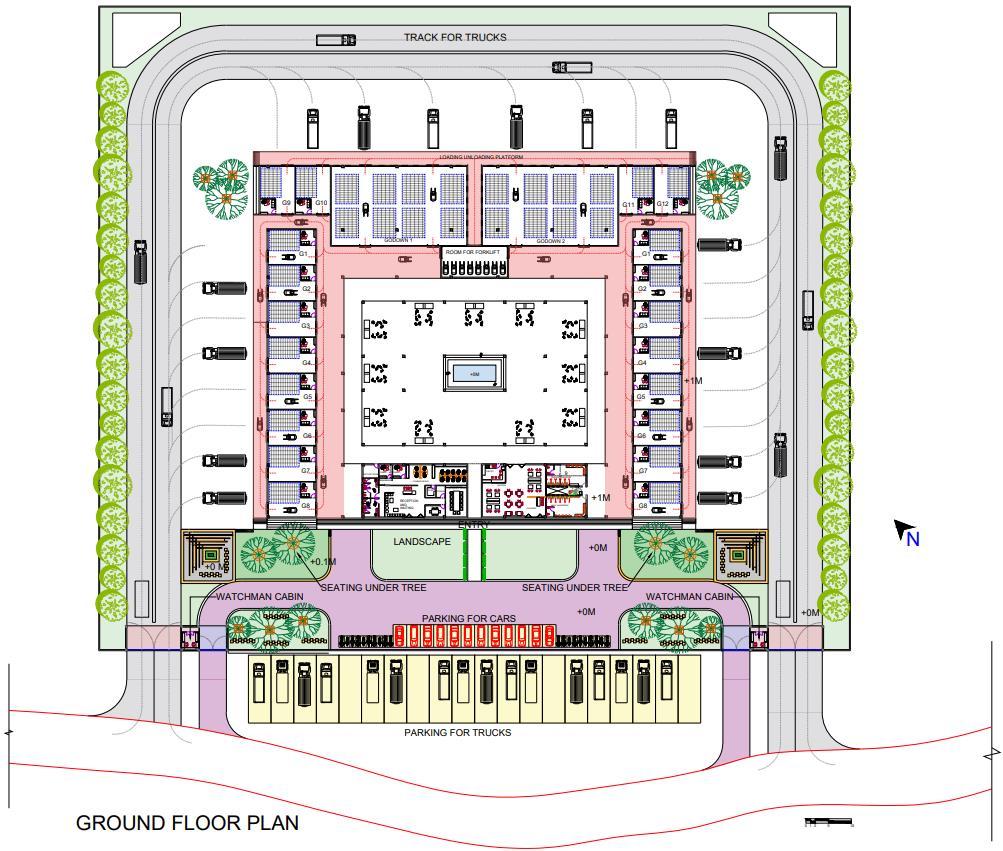

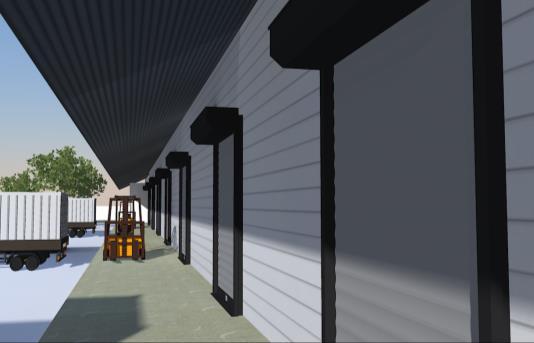

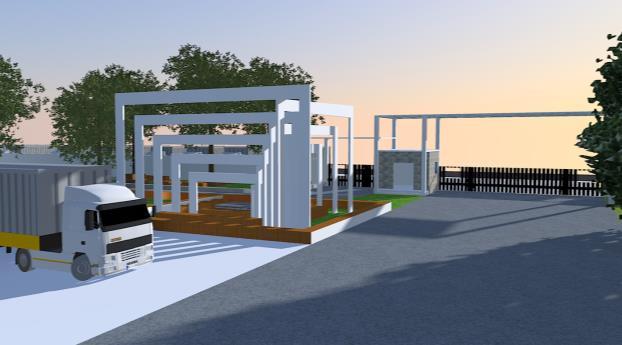

• PROPER CIRCULATION OF FORKLIFT AS WELL AS TRUCKS.

• IT SHOULD BE CENTRAL LOCATION FOR VILLAGES NEARBY AND ALSO SHOULD BE A GOOD COMMUNITY SPACE.

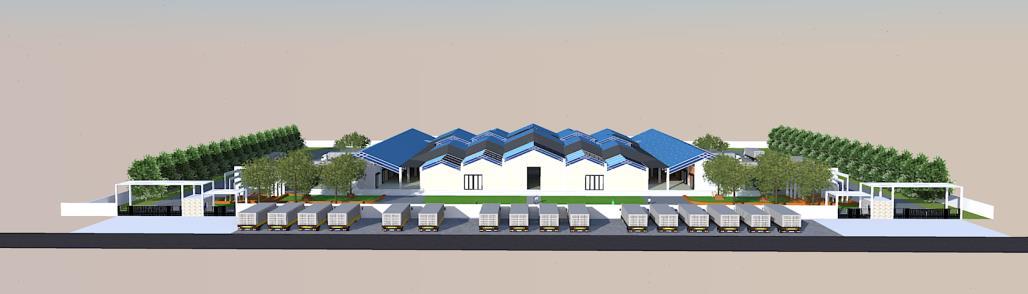

• AS THE CLIMATE HERE HAS HEAVY RAINFALL, DESIGN HAS SLOPING ROOF, WHICH ALSO LEADS TO THE SUSTAINABLE PRACTICE, I. E., RAIN WATER HARVESTING.

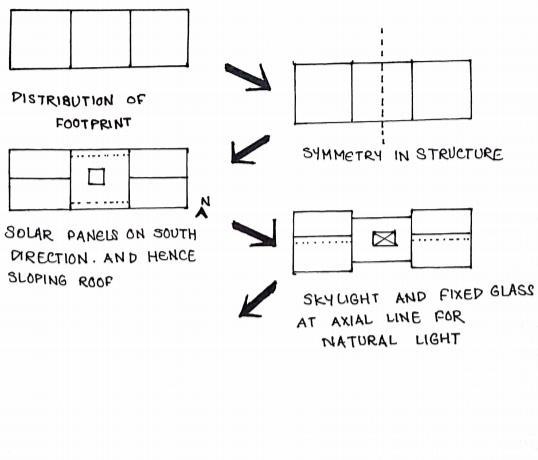

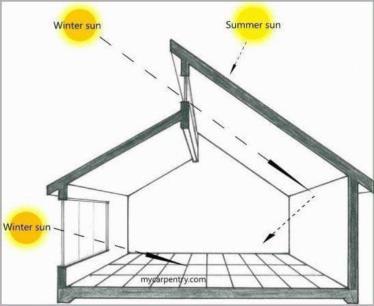

• TO GET MORE NATURAL LIGHT, GAP IS PRODUCED IN TWO CONSECUTIVE SLOPING ROOFS. AND VERTICAL SKYLIGHTS OF POLYCARBONATED SHEETS ARE USED IN THIS GAP.

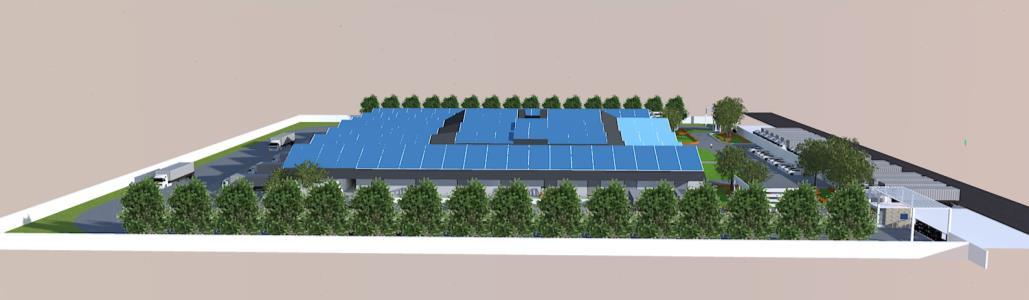

• TO MAKE THE DESIGN SUSTAINABLE FOR ELECTRICITY, SOLAR SYSTEM IS PROVIDED.

• VEHICULAR AND PEDESTRIAN CIRCULATIONS ARE MADE SEPARATELY.

ARCHITECTURAL DESIGN l DAHAGAON l MARKET l SEM 4 03APMC MARKET

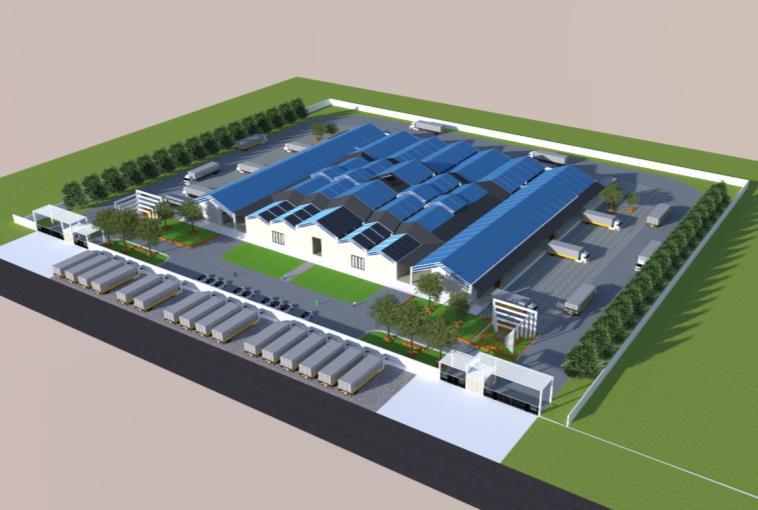

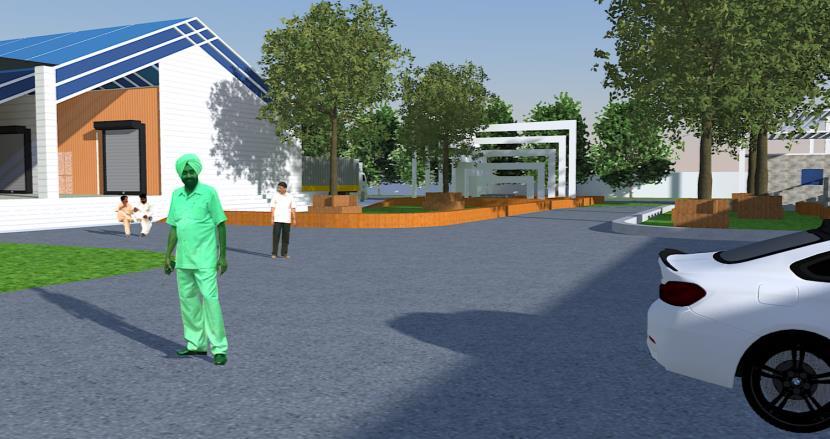

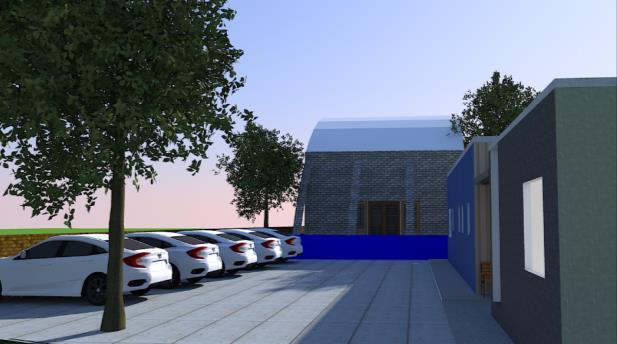

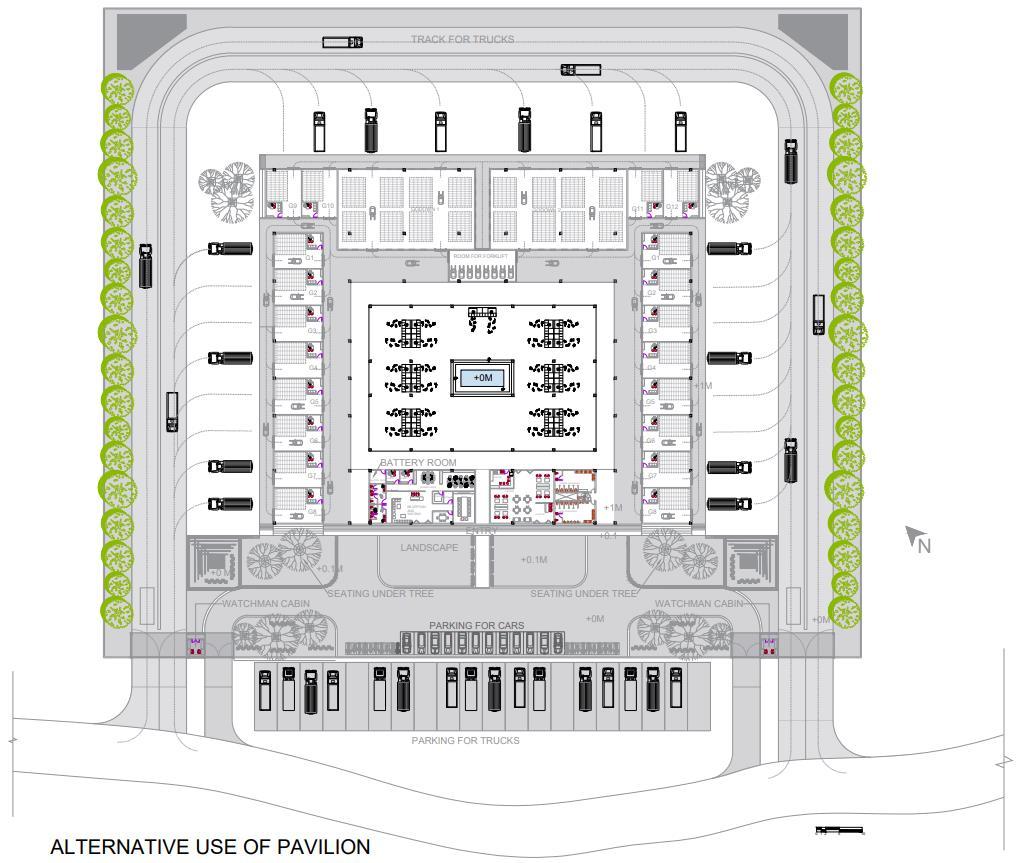

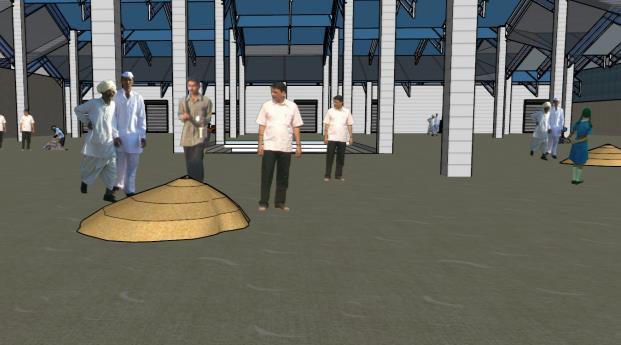

• FOR THE DAYS, OTHER THAN AUCTION DAYS, PAVILION CAN BE USED AS THE PLACE FOR WEEKLY MARKET, WHICH IS MORE ORGANISED AND SHADED PLACE.

• WHICH ALSO CAN PROMOTE THE APMC FUNCTION.

• USER CAN GET SPACE WITH ALL THE FACALITIES LIKE STORAGE SPACE, DRINKING WATER, TAILETS, CANTEEN, ETC.

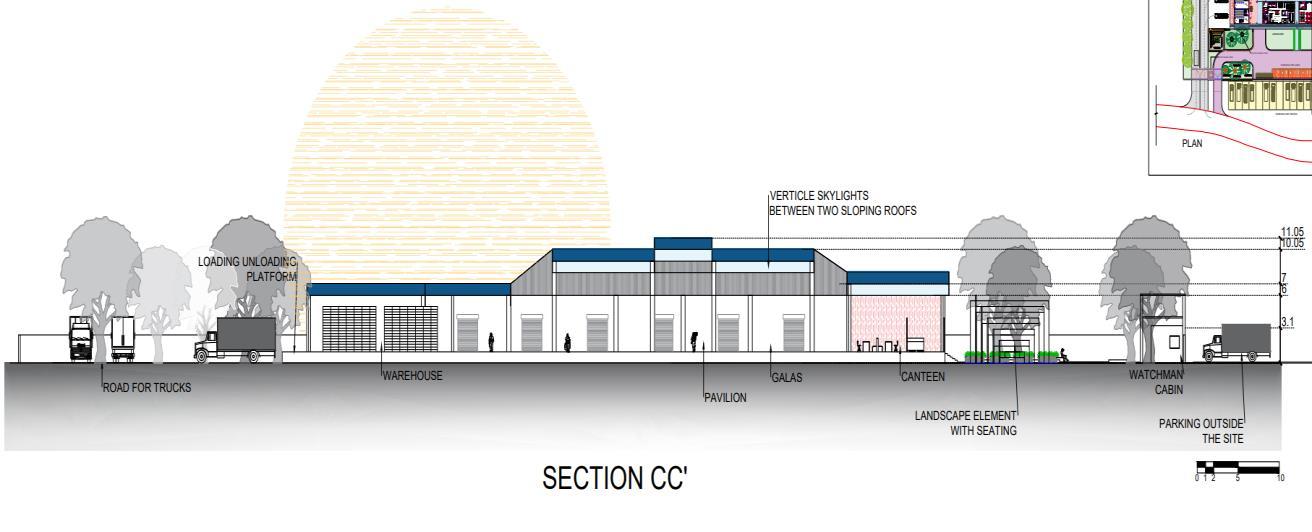

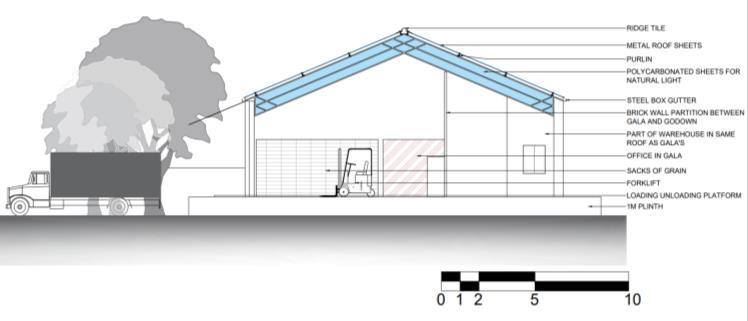

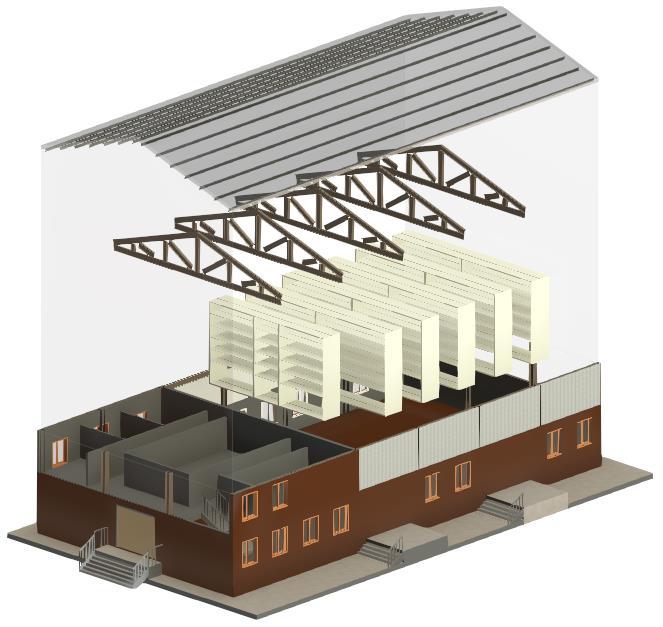

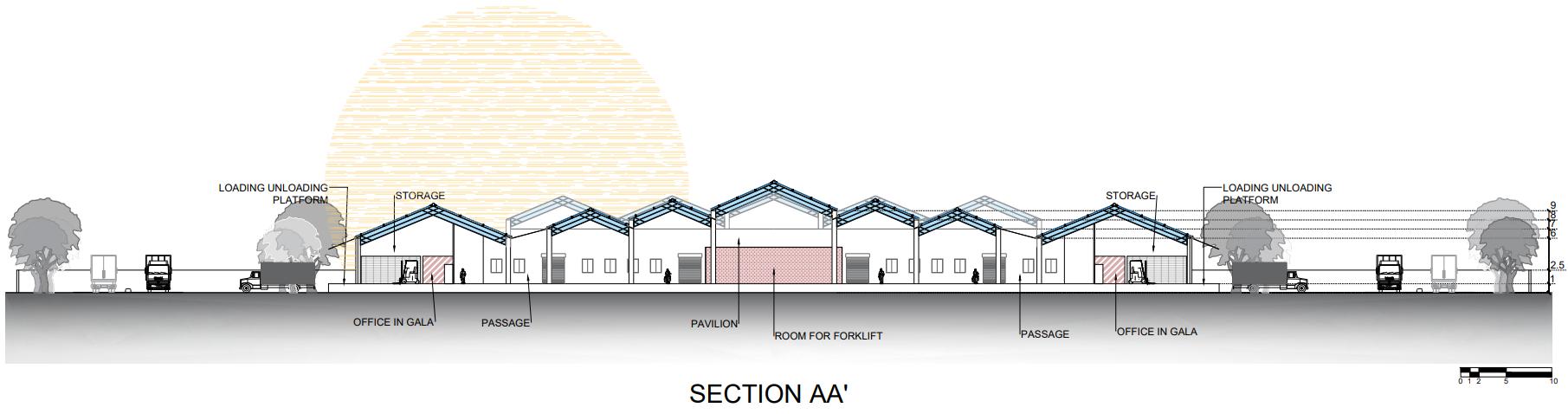

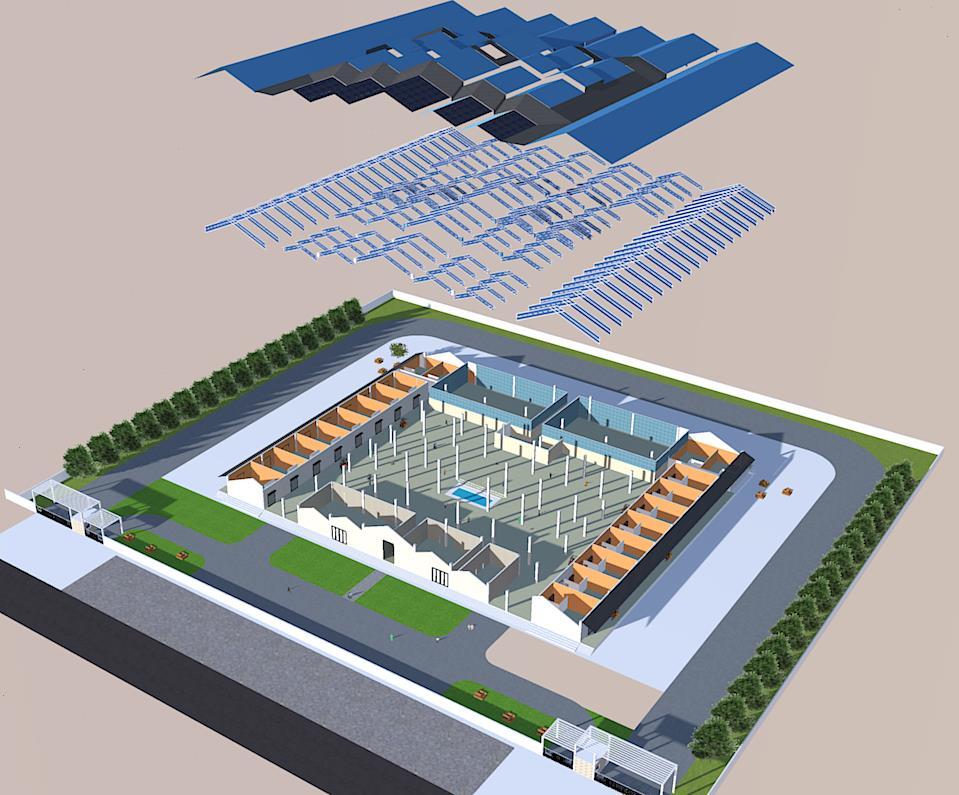

EXPLODED VIEW

METAL SHEET ROOFING

PORFORATED METAL SHEET FOR PASSAGE AND COURTYARD

TRUSSES FOR SUPPORT

PAVILION

COMMON TOILETS

BUILDING

STEEL

WAREHOUSE

GALAS

CANTEEN OFFICE

ENTRANCE GATE 1

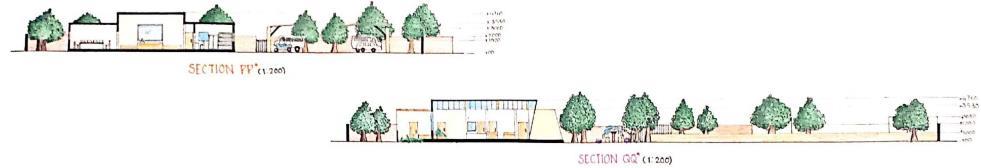

LEFT SIDE

ELEVATION

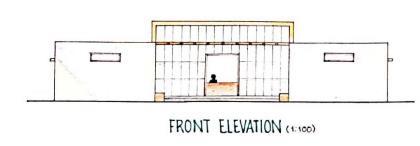

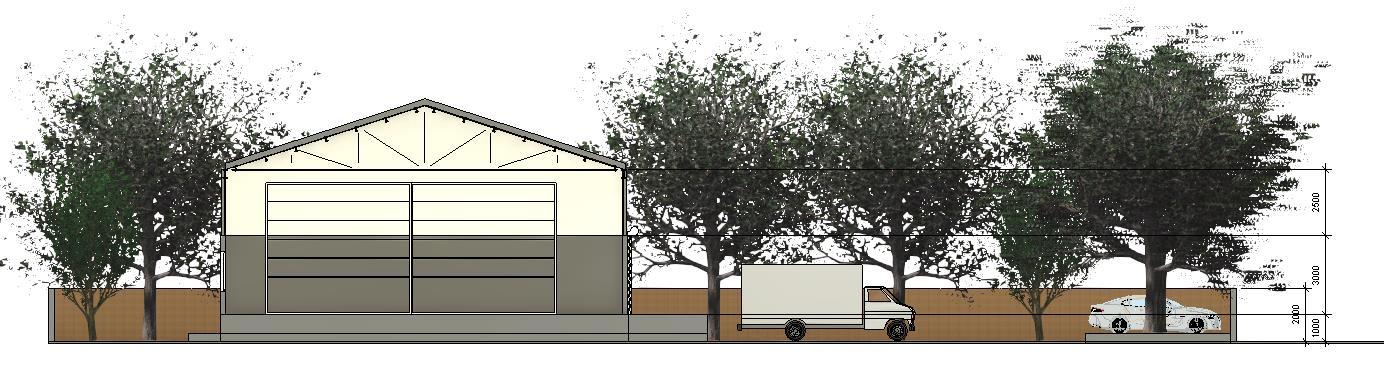

FRONT

ELEVATION

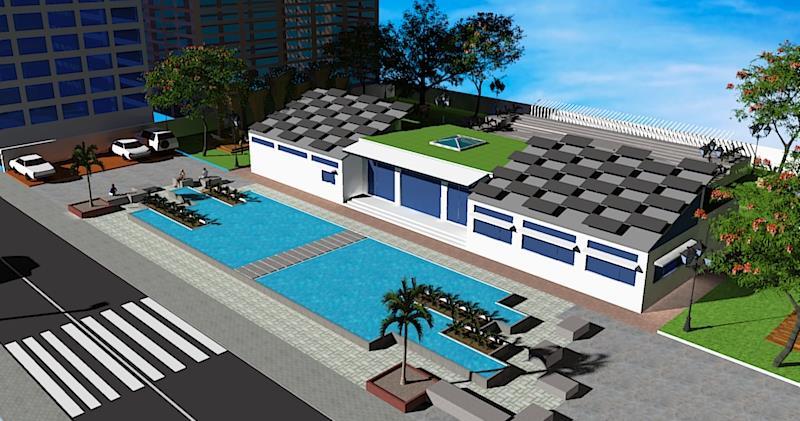

CITIZEN FACILITATION CENTER

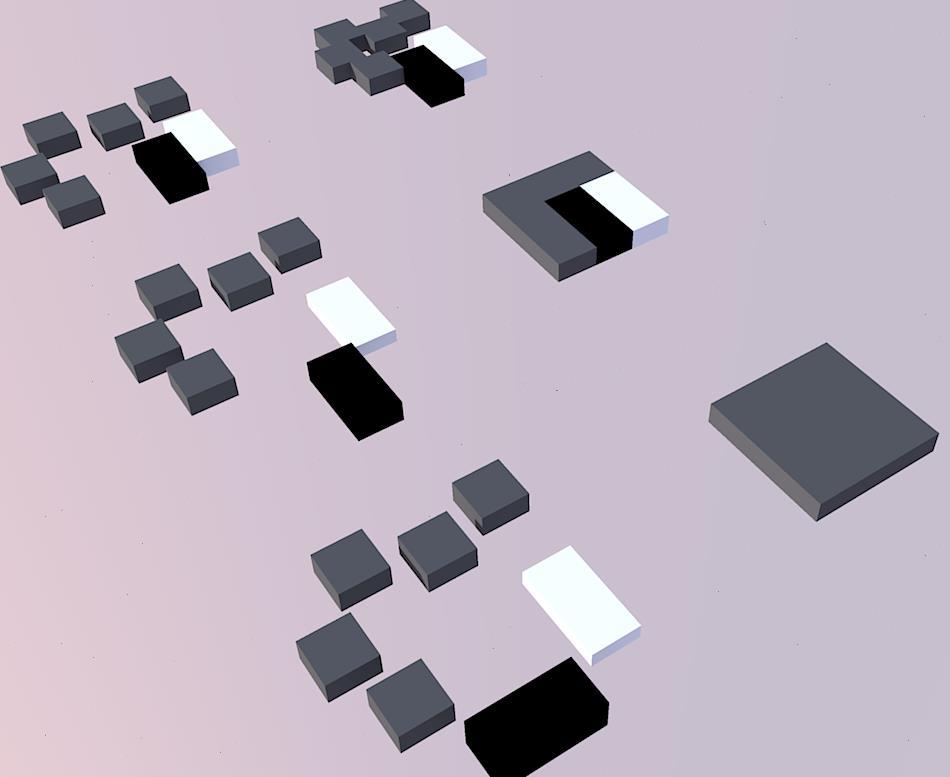

FORM DEVELOPMENT

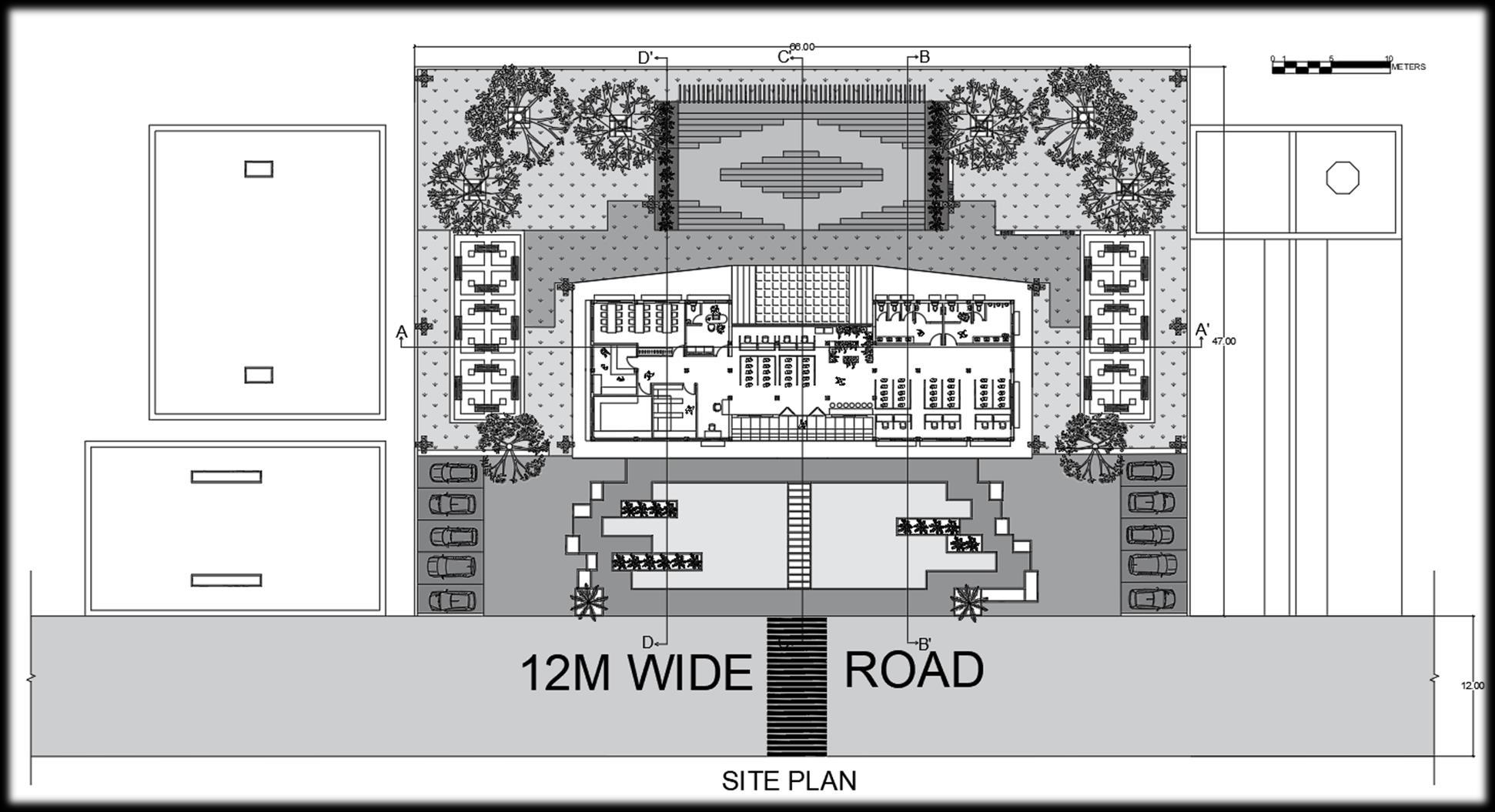

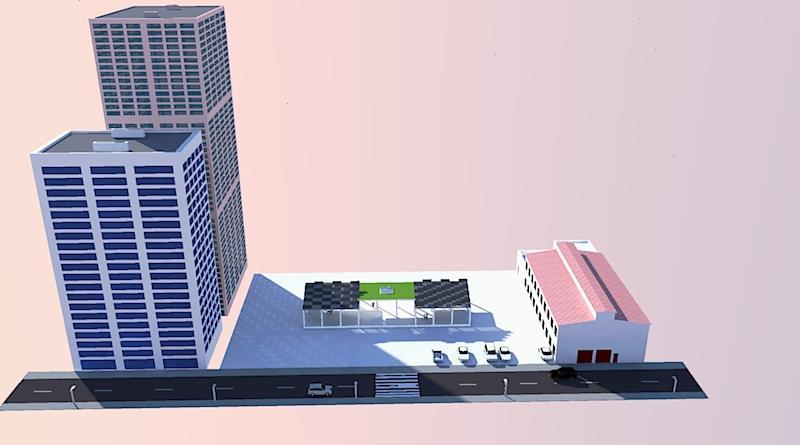

ARCHITECTURAL DESIGN l MUMBAI l PUBLIC SPACE l SEM 3 05CITIZEN FACILITATION CENTER VERTICAL COLUMN WITH SEATINGS PARKINGAMPITHEATRE FEMALE WASHROOM COMMERCIAL AND MUNCIPAL DEPARTMENT WATER BODY CONCRETE BLOCK SEATING • LOCATION MUMBAI, INDIA • SITE AREA 2772M² • BUILT UP AREA 432M² BRIEF OF SITE• AT THE FRONT I.E., ON THE SOUTH SIDE THERE IS A 12M WIDE ROAD. • ON WEST TO THE SITE ARE 15 20 FLOORS TALL BUILDINGS. • ON THE EAST ARE SMALLER BUILDINGS. • LOCATED IN HOT AND HUMID CLIMATE. UNDERGROUND WATER TANK FLUSHING WATER TANK 5M×3M DOMESTIC WATER TANK 3M×1.5M AMPITHEATRE VERTICAL COLUMN WITH SEATINGS PARKING SEATING UNDER TREE CONCRETE BLOCK SEATING WATER BODY UNDERGROUND WATER TANK DESIGN DEVELOPMENT • DISTRIBUTION OF FOOTPRINT FIRSTLY, DIVIDED THE FOOTPRINT INTO THREE EQUAL PARTS, AS THE FOOTPRINT IS IN THE RATIO OF 1:3. • THOUGHT OF SYMMETRY THE ROOF OF PART OF BOTH SIDES ARE MADE SAME BECAUSE OF SYMMETRY.

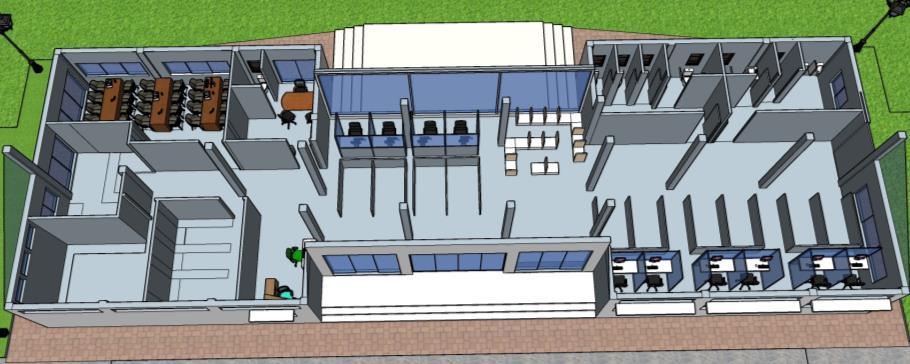

MANAGER’S

CABIN

STAFF ROOM

CAFETERIA

BATTERY ROOM

WAITING AREA

FEMALE WASHROOM

MALE WASHROOM

SLIDING DOOR LICENSE APPLICATION, COMMERCIAL DEPARTMENT COUNTER

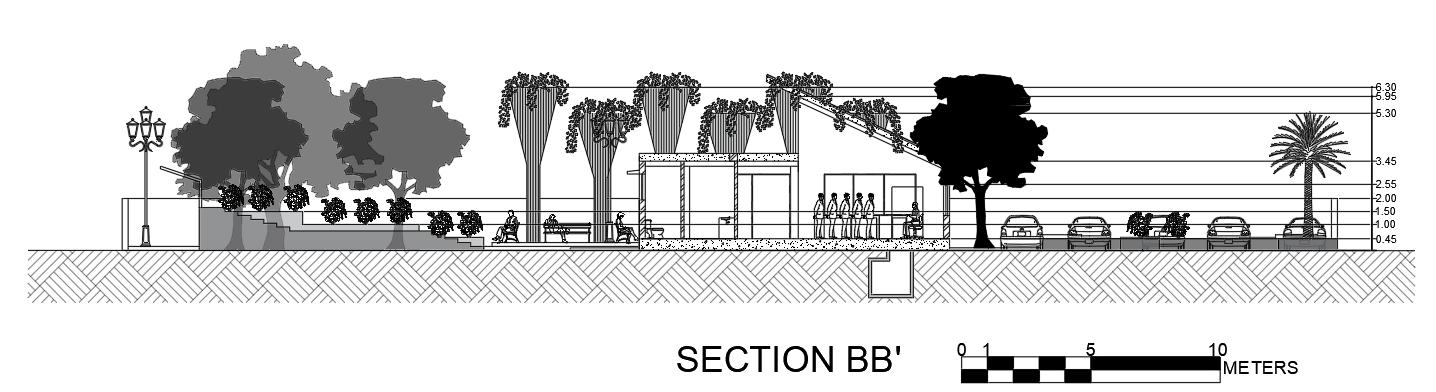

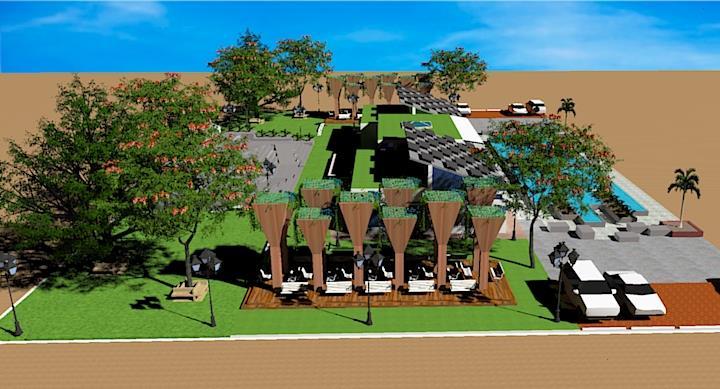

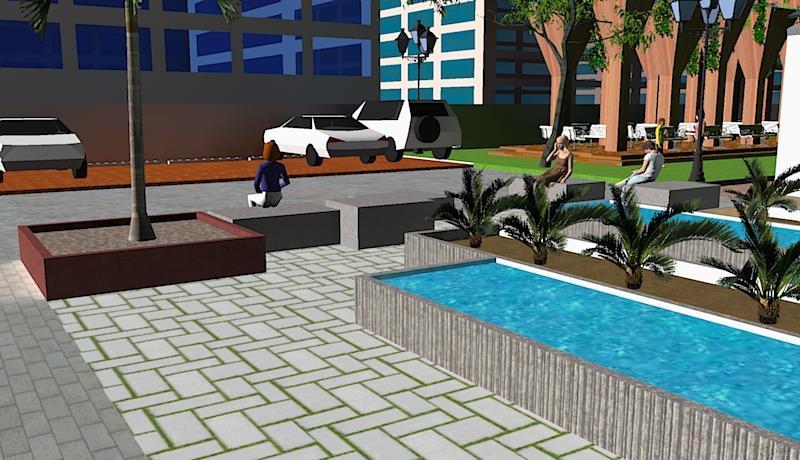

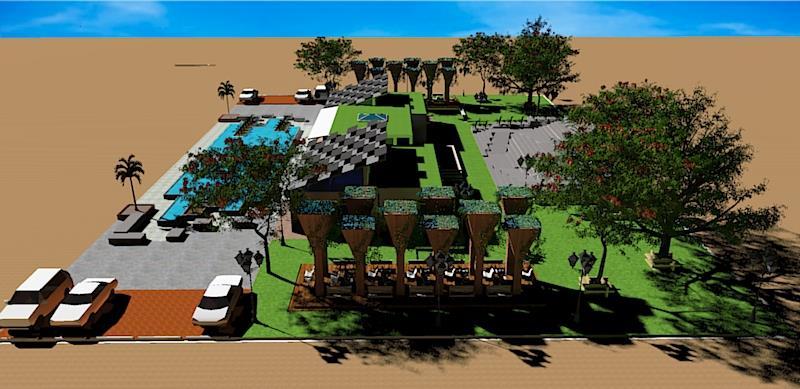

LANDSCAPE-

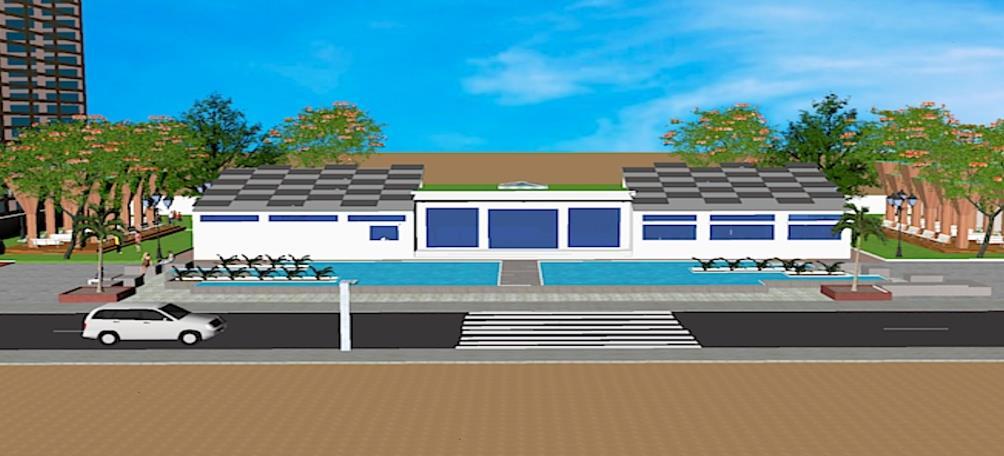

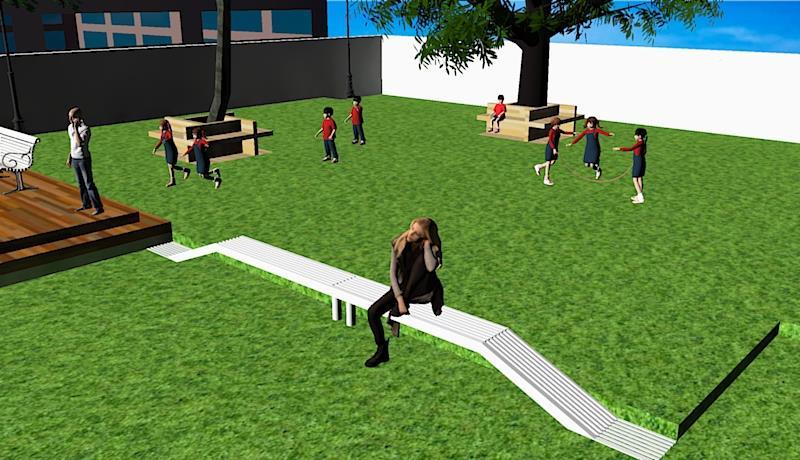

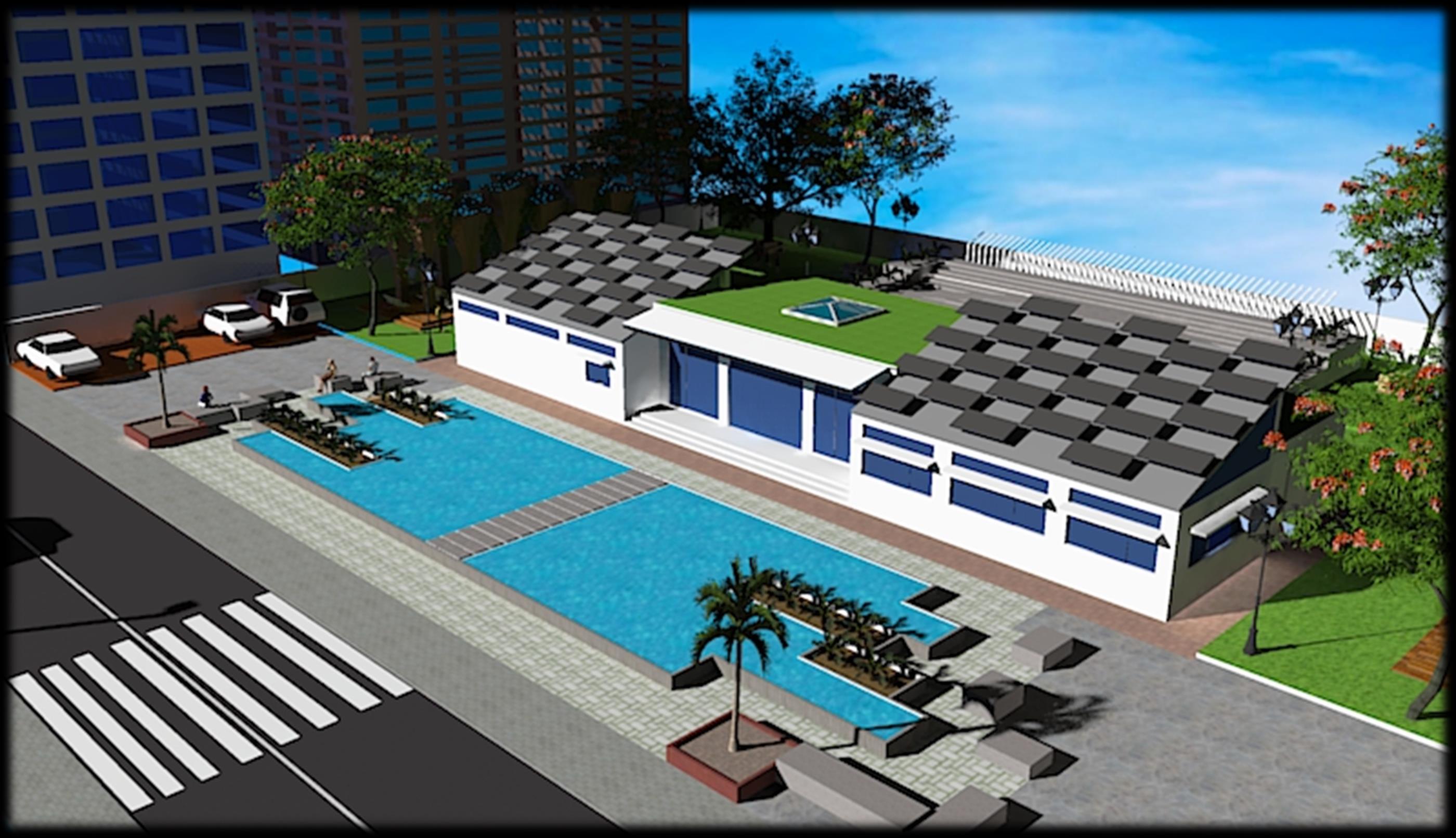

• PARK IS PROVIDED IN A CITE OF CFC, WHICH IS OPEN FOR ALL AT ANY TIME.

• IN ENTRANCE, WATER BODY IS GIVEN TO MAINTAIN COOLNESS.

• GULMOHAR AND MONGO TREES ARE PROVIDED FOR SHADING PURPOSE.

• SOME MODULAR SEATING IS GIVEN UNDER TREE AND OTHER PARTS OF PARK.

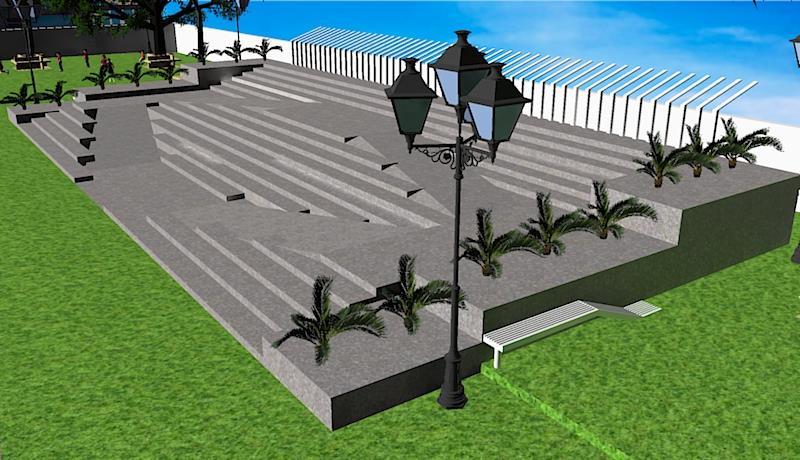

• STAGE IS GIVEN , ATTACHED TO THE CFC STRUCTURE, AND FRONT OF IT IS A AMPHITHEATRE.

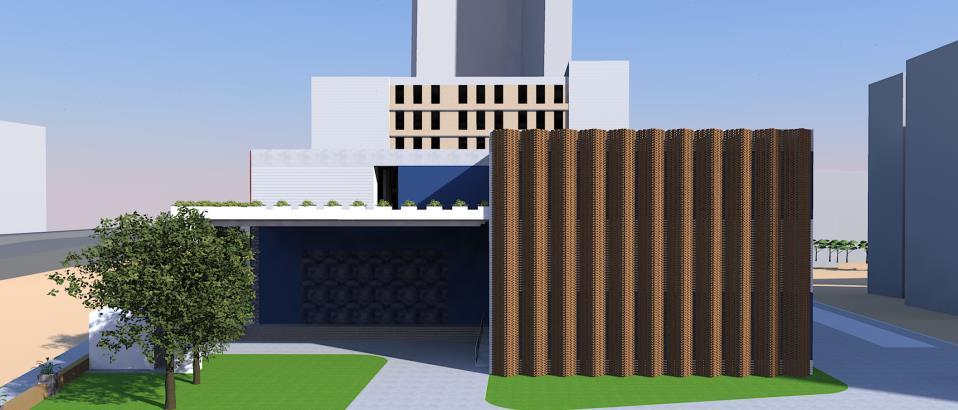

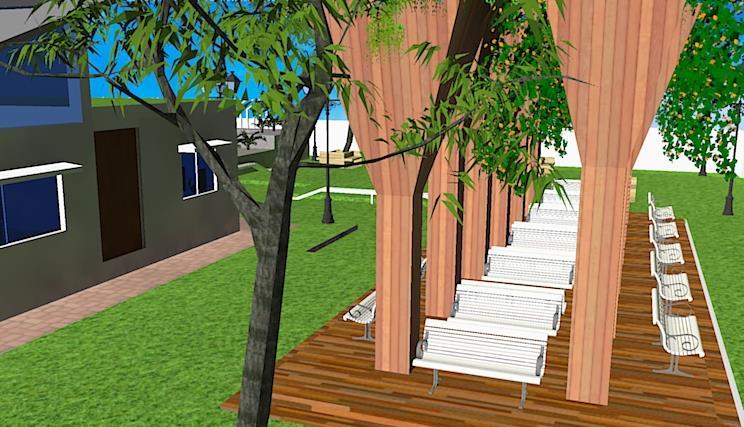

• SOME VERTICAL COLUMNS, MADE UP OF WOODEN BATTENS ARE PROVIDED WITH SEATING BELOW IT.

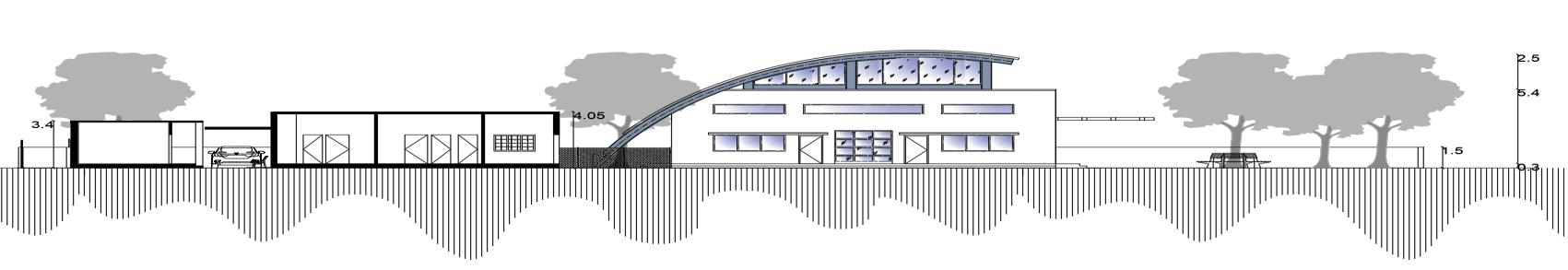

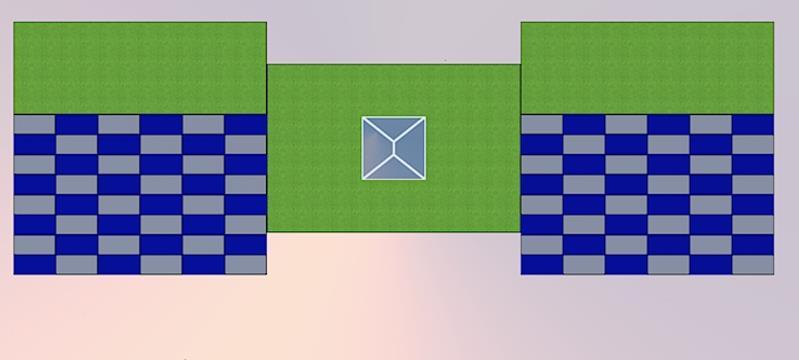

ROOF DESIGN

• COMBINATION OF SLOPING ROOF AND FLAT ROOF WITH LEVEL DIFFERENCE.

• BECAUSE OF HOT AND HUMID CLIMATE, AND HEAVY RAINFALL, SLOPING ROOF IS GIVEN.

• SOLAR PANELS ARE INSTALLED FOR THE SUSTAINABLE PRACTICE ON THE SLOPING ROOF, FACING TOWARDS SOUTH DIRECTION.

• AND GREEN FLAT ROOF IS PROVIDED FOR NATURAL COOLING PURPOSE.

• THE LEVEL DIFFERENCE BETWEEN FLAT AND SLOPING ROOF IS FORMED AT THE AXIAL LINE, AND THUS PROVIDED WITH FIXED GLASS FOR NATURAL LIGHT.

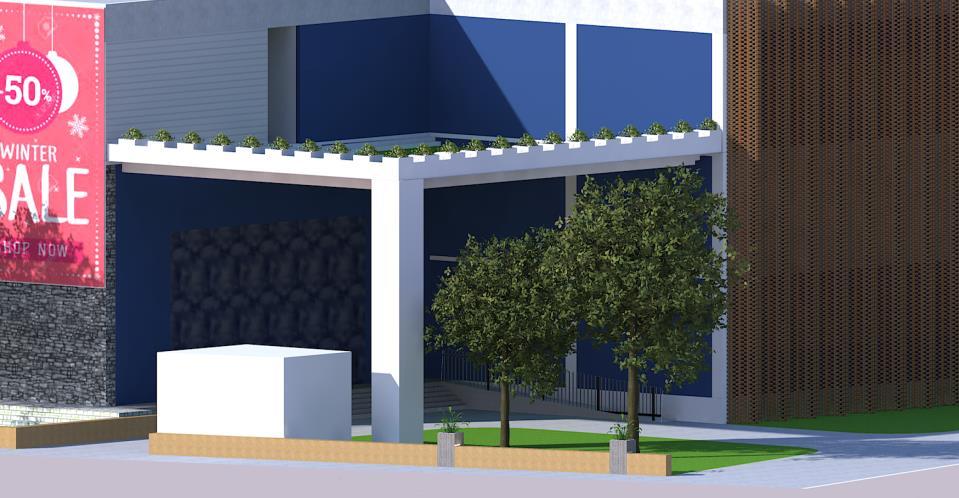

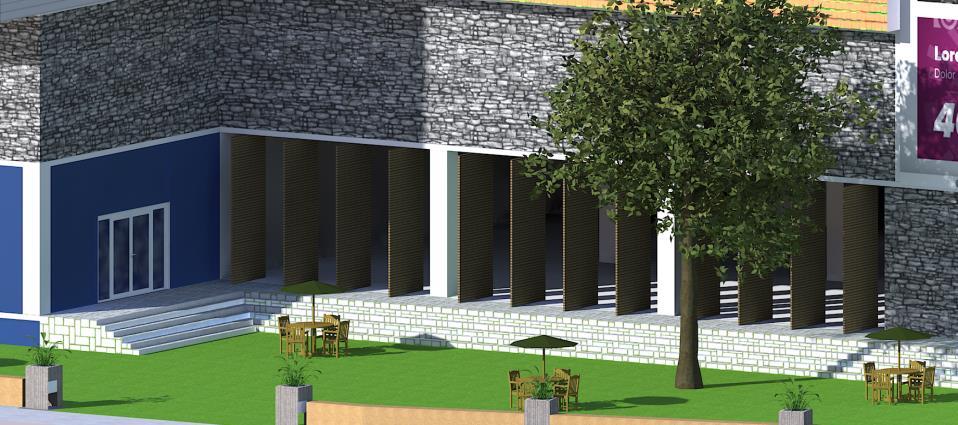

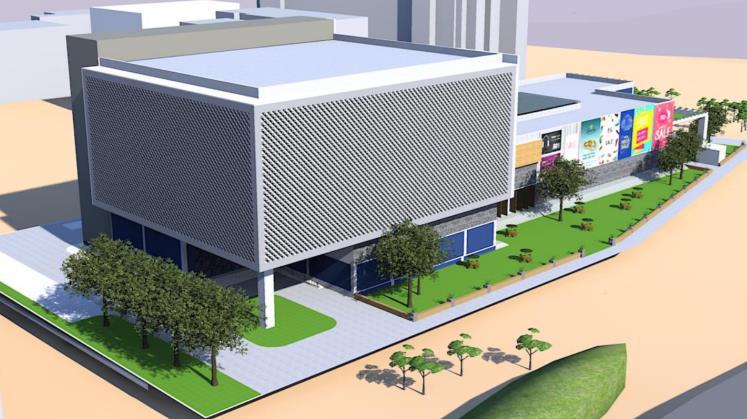

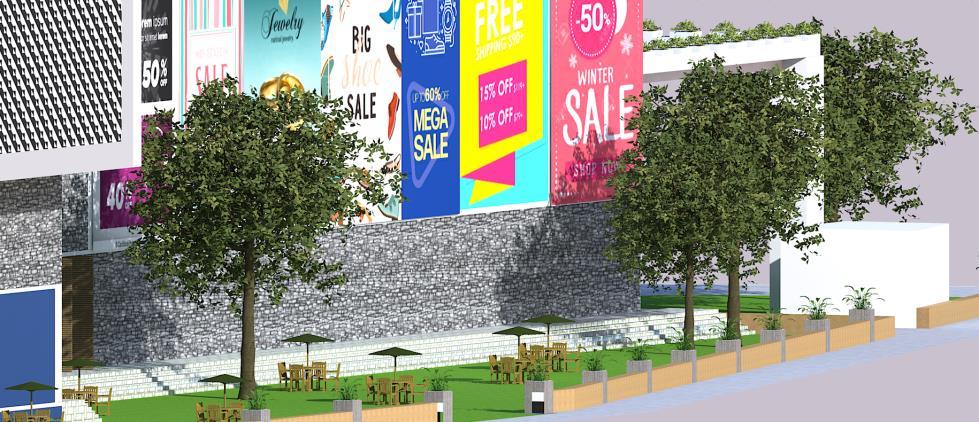

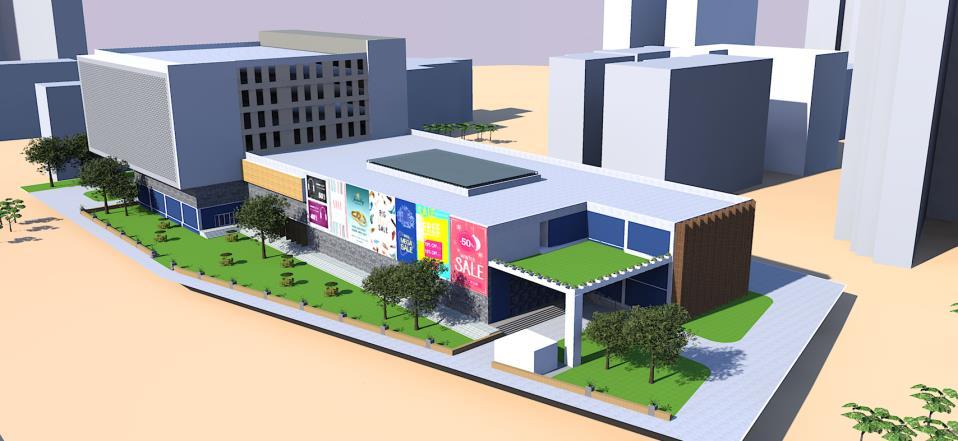

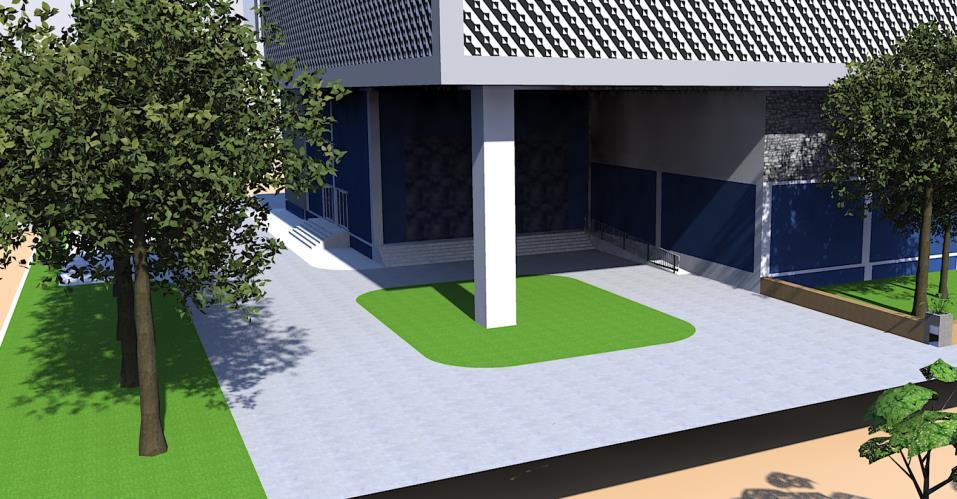

COMMERCIAL COMPLEX

• THE PROPOSED SITE HAS 2 EXISTING

• THE ROAD TO THE LEFT IS APPROX. 15M THICK WITH MSRDC SPA CBD OFFICE TO THE LEFT AND CIVIL COURT BELAPUR BUILDING TO THE RIGHT.

• THE SMALL SPLIT FROM THE GOPINATH PANDA PATIL MARG ALSO PASSES FROM OUR SITE LOCATION WHICH IS APPROXIMATELY 8 10MS WIDE.

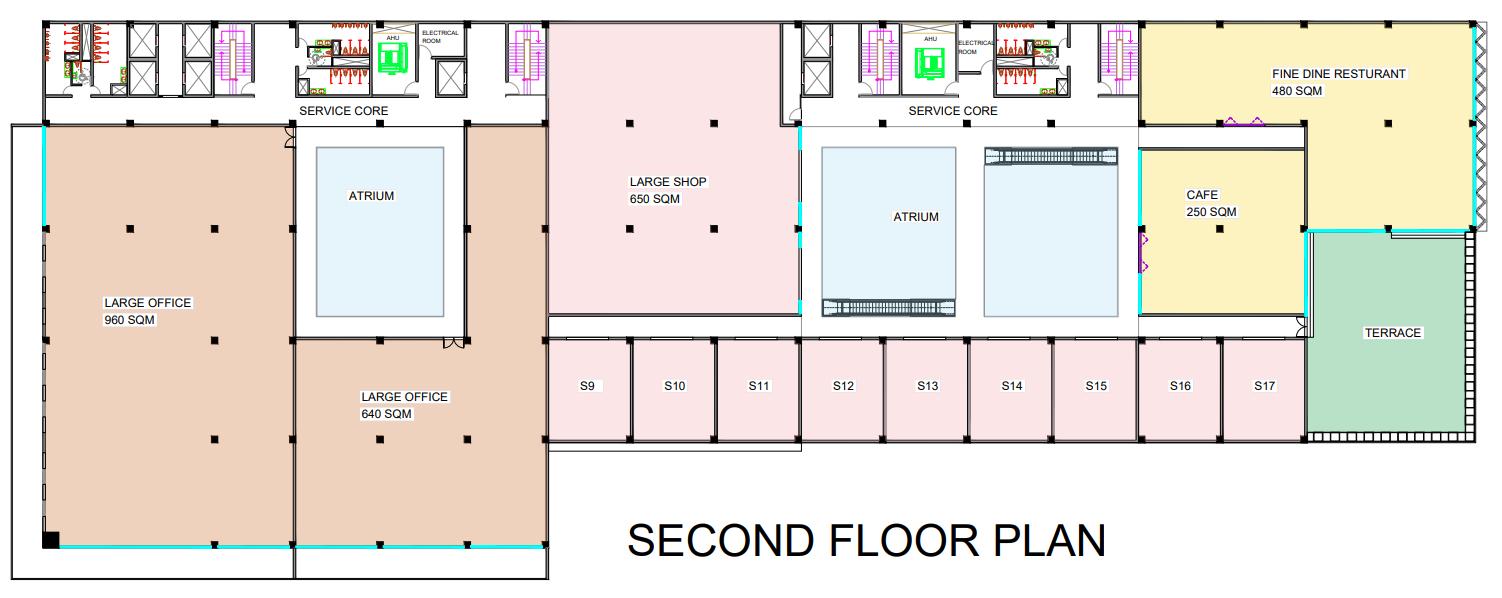

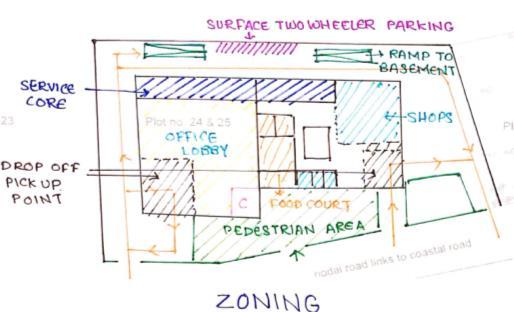

ARCHITECTURAL DESIGN l BELAPUR, NAVI MUMBAI l COMMERCIAL l SEM 5 07COMMERCIAL COMPLEX LOCATION : SECTOR 15, CBD BELAPUR, NAVI MUMBAI. PLOT NOS. : 23, 24 & 25 TOTAL SITE AREA : 13000 SQM

ROADS.

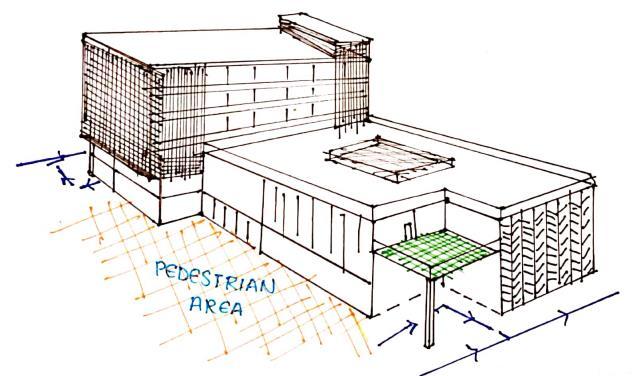

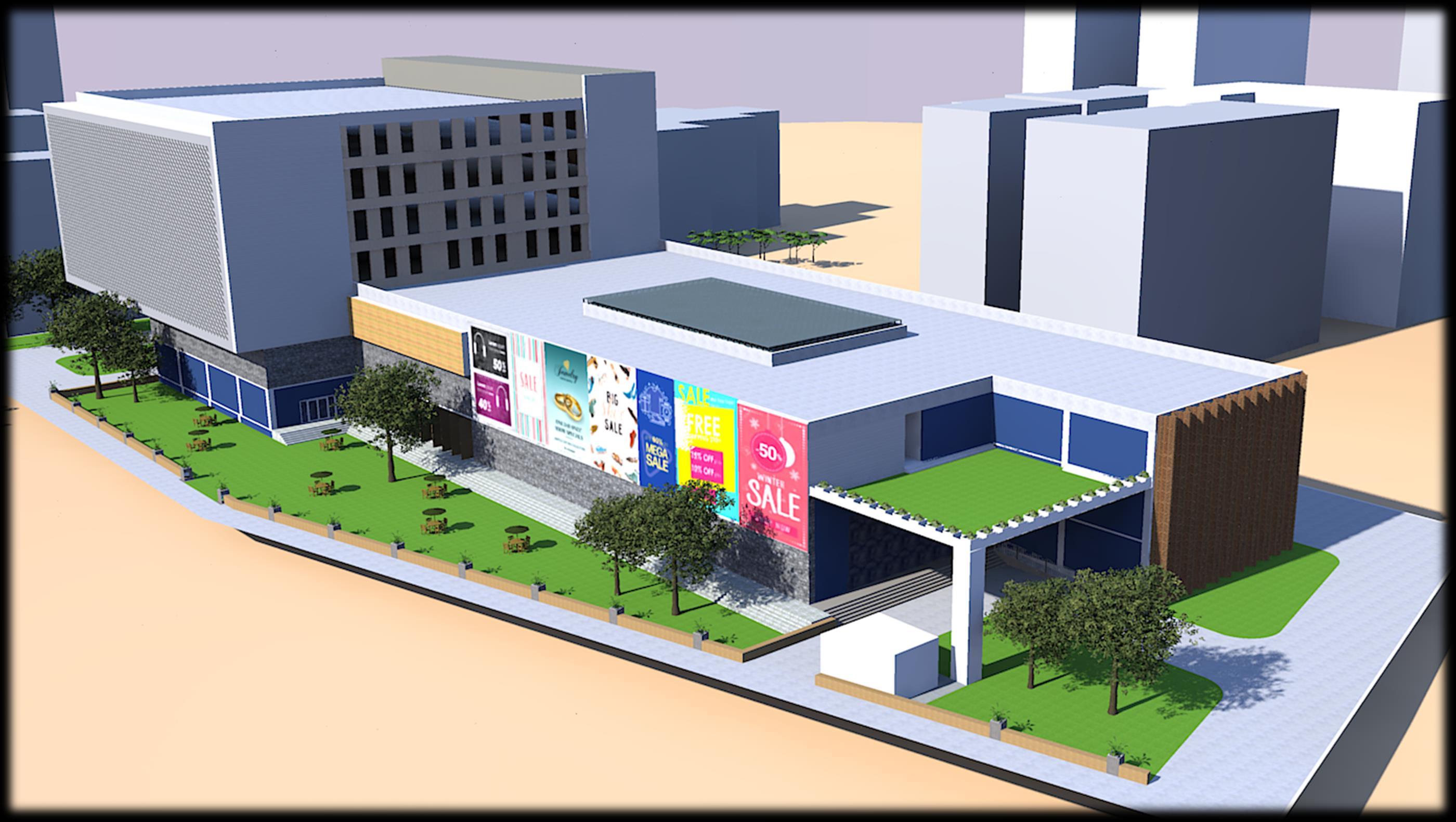

• THE AIM IS TO DESIGN A MIXED USE COMERCIAL COMPLEX . • IT MAINLY INCLUDES OFFICES, SHOPS AND EATERIES. • ENTRIES AND CIRCULATION FOR OFFICE AREA AND SHOPPING AREA SHOULD BE SEPARATE AND CAN BE EASILY DISTINGUISHED. • THOUGH THE FUNCTIONS ARE DIFFERENT, BUILDING SHOULD BE A SINGLE STRUCTURE FROM OUTSIDE. • DESIGN SHOULD BE MORE WELCOMINGAND COMFORTABLE FOR ANY USER. SHOPS 4000SQM •14 SMALL SHOPS 80SQM •20ANCHOR SHOPS 640 SQM •2 LARGE SHOPS 720 SQM & 940 SQM RESP. OFFICES 10400SQM •RECEPTION AND LOBBY •ADMIN OFFICE •TWO OFFICES 640SQM •SEVEN OFFICES 960SQM •COWORKING OFFICE 1920SQM EARERIES 1600SQM •CAFE 160SQM •FOOD COURT 480SQM •3 FOOD SHOPS 80SQM •CAFE 240SQM •FINE DINE RESTAURANT 480SQM

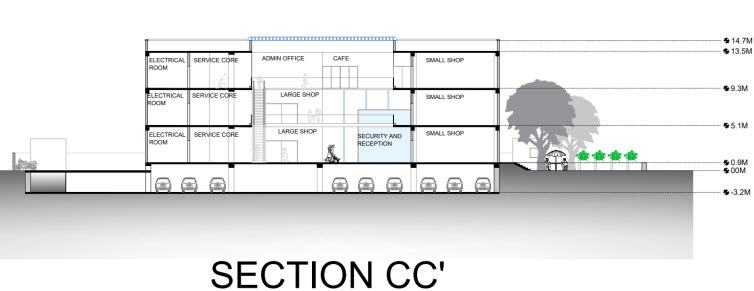

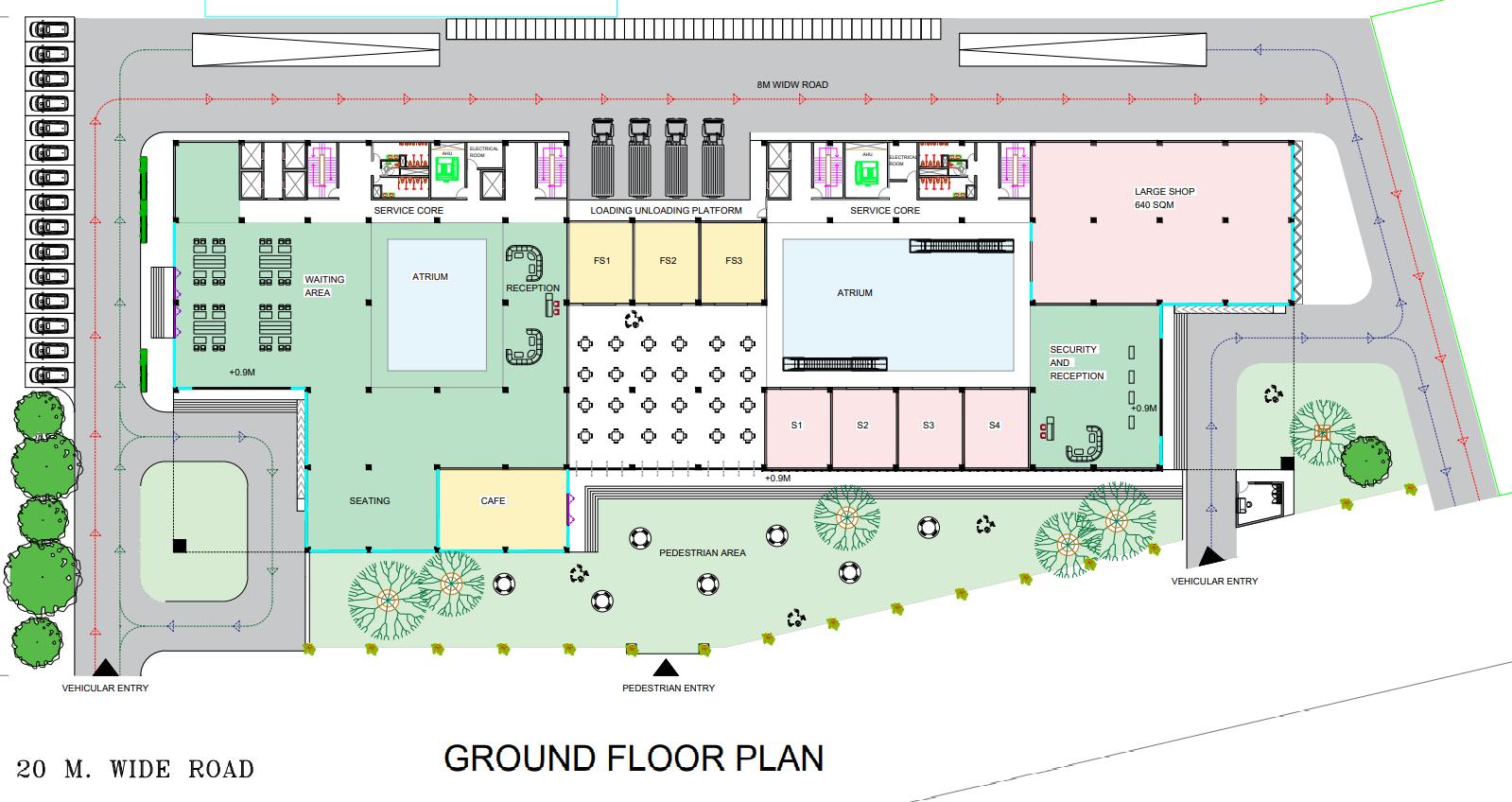

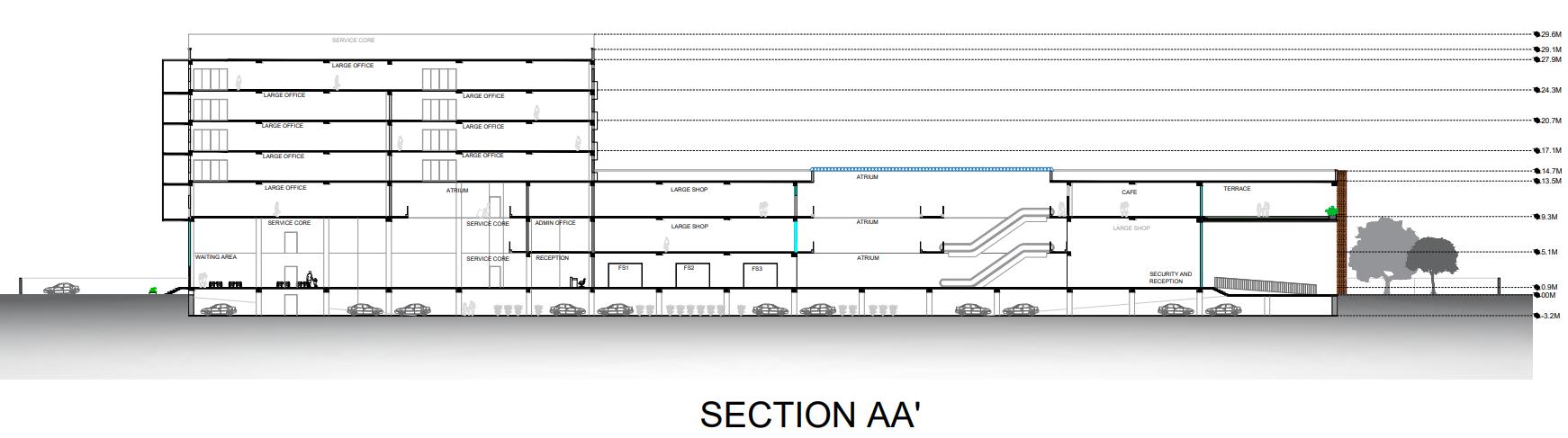

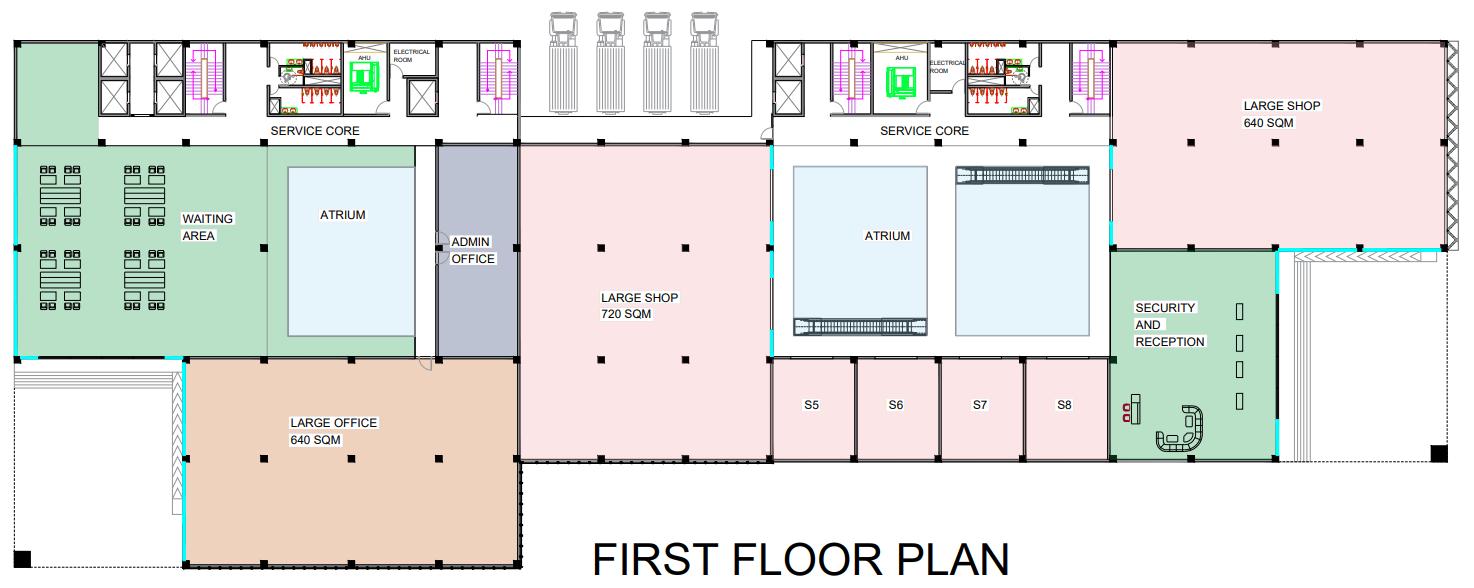

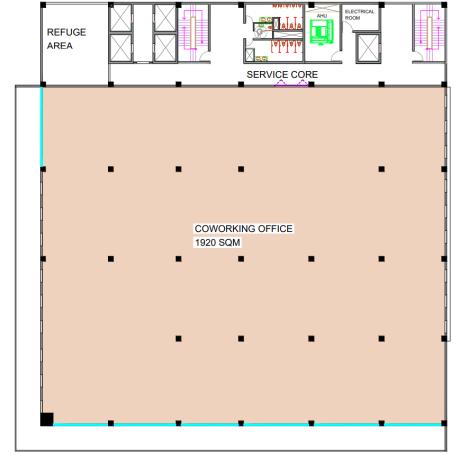

TYPICAL FLOOR PLAN

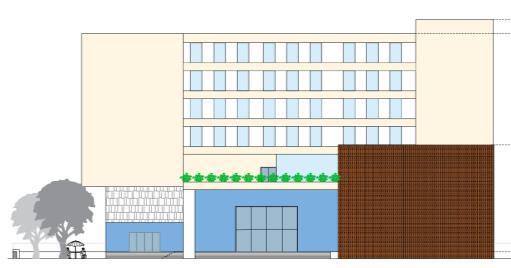

EAST ELEVATION

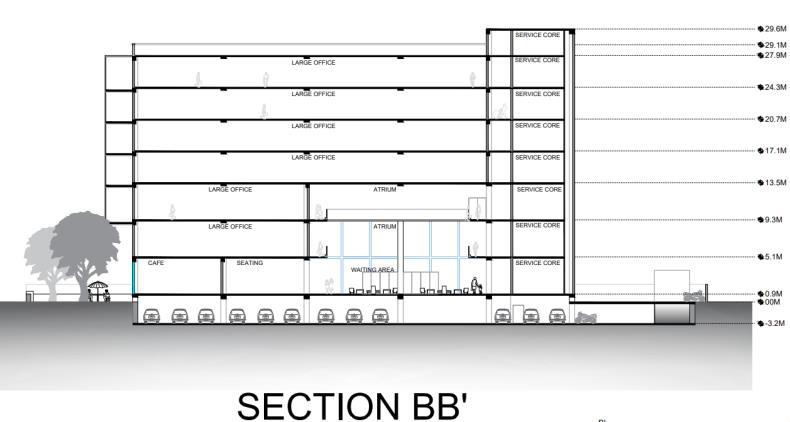

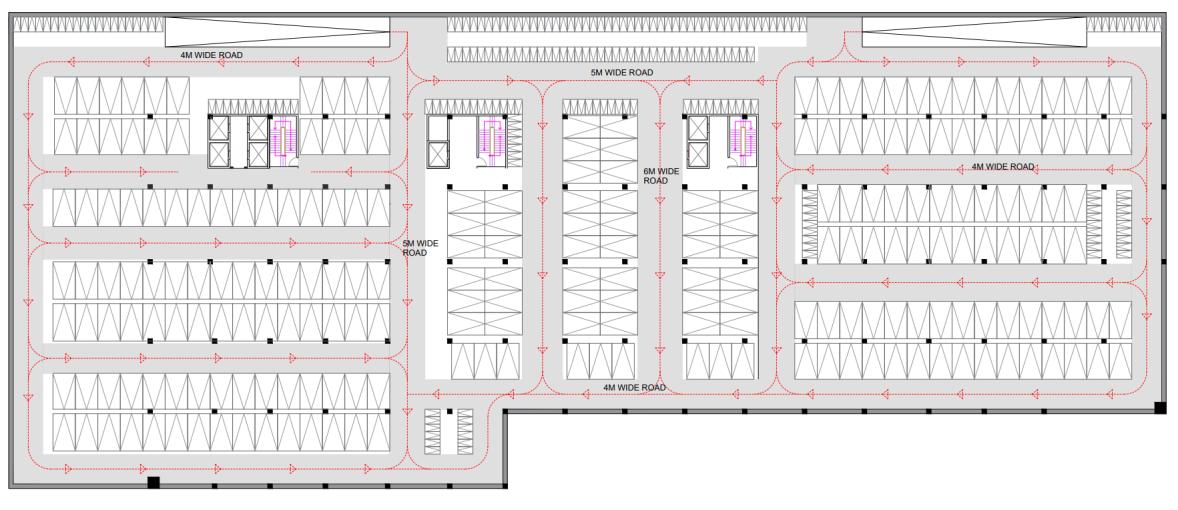

08 BASEMENT PLAN

COMMERCIAL COMPLEX

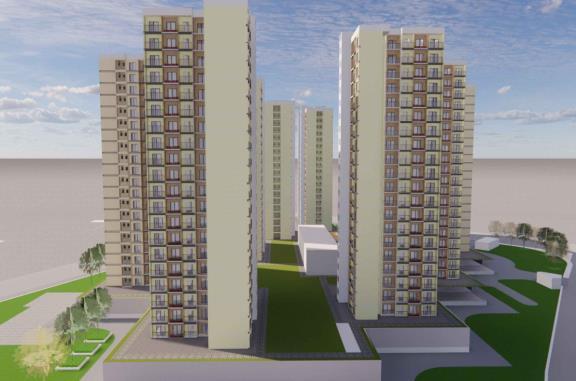

CONSIDERATIONS BEFORE THE DESIGN STARTS-

• NALA ON THE SOUTH WEST SIDE.

• PROVISION FOR AMENITY PLOT TO BE GIVEN.

• PROPOSED DP PLAN

• BETTER VIEW TO THE SOUTHAND EAST SIDES.

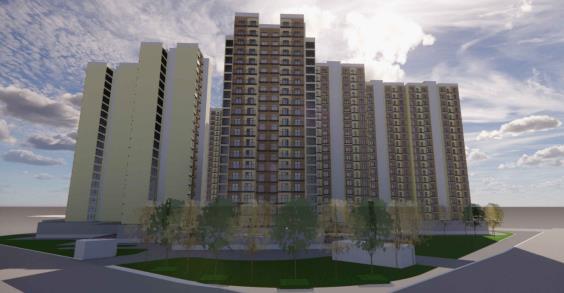

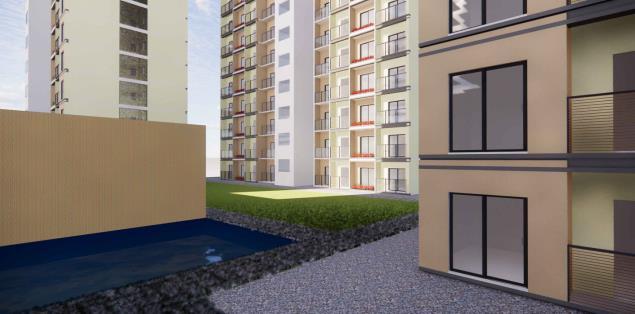

ABOUT THE DESIGN APPROACH-

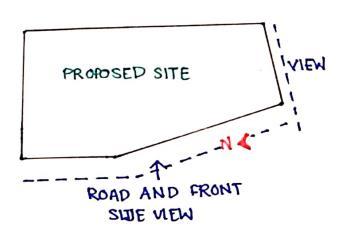

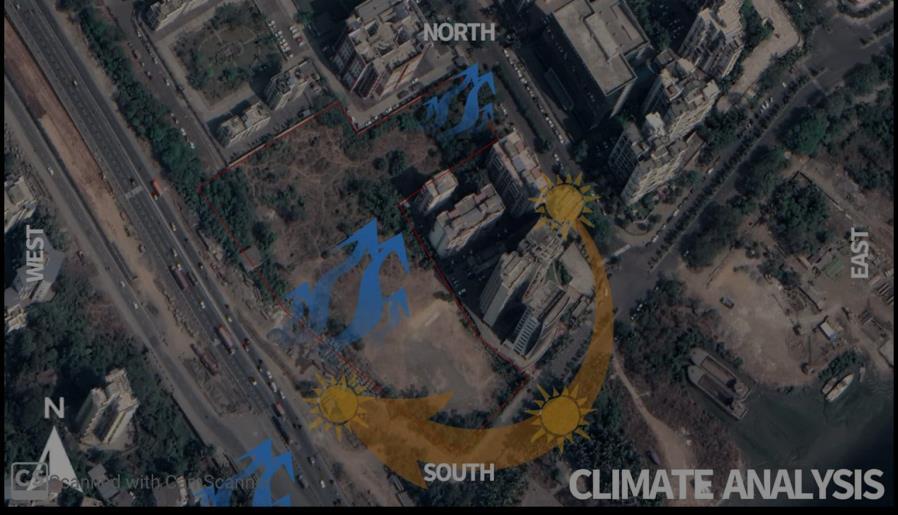

• THE WHOLE DESIGN IS INCLINED, THE ORIENTATION OF BUILDINGS ARE DONE WITH THE CONSIDERATION OF CLIMATEIC CONDITIONS, LIKE WIND DIRECTION AND SUNPATH.

• BUILDINGS ARE PLACED IN SUCH A WAY THAT ALL BUILDINGS GET A VIEW OF A CENTRAL SPACE, WHERE CLUBHOUSE IS LOCATED AS WELL AS OUTSIDE.

• THE LANDSCAPE IS DESIGNED SEPARATELY FOR DIFFERENT AGE GROUPS AS WELL AS DIFFERENT ACTIVITIES.

• AND CONNECTED BY THE PATHWAY WHICH REVOLVES AROUND THE PODIUM LEVEL.

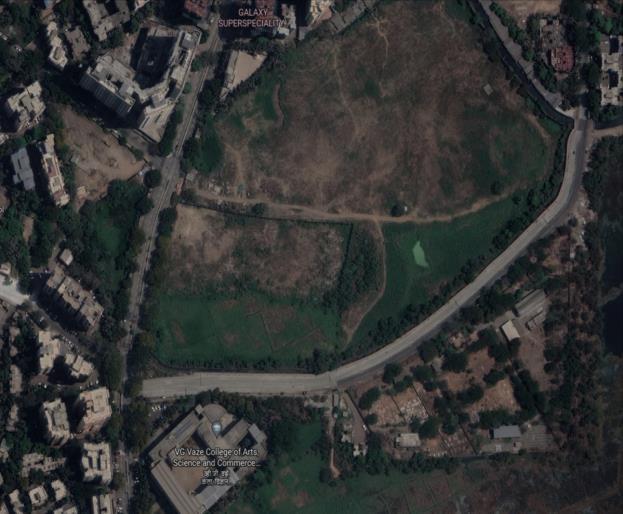

LOCATIONJAIHIND COLONY, TATA COLONY, NEAR V. G. VAZE COLLEGE OF ARTS SCIENCE AND COMMERSE, MULUND EAST, MUMBAI, MAHARASHTRA SITE LEVELSITE LEVEL IS 2 METER DOWN FROM NORTH WEST SIDE EXISTING 27.45M WIDE ROAD LEVEL AND 2 METER DOWN FROM SOUTH WEST SIDE 18.30 METER WIDE UNDER CONSTRUCTION ROAD LEVEL

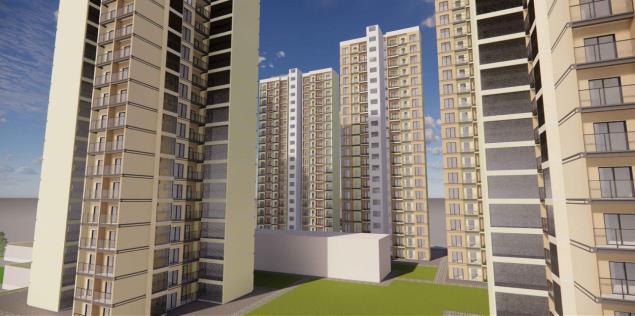

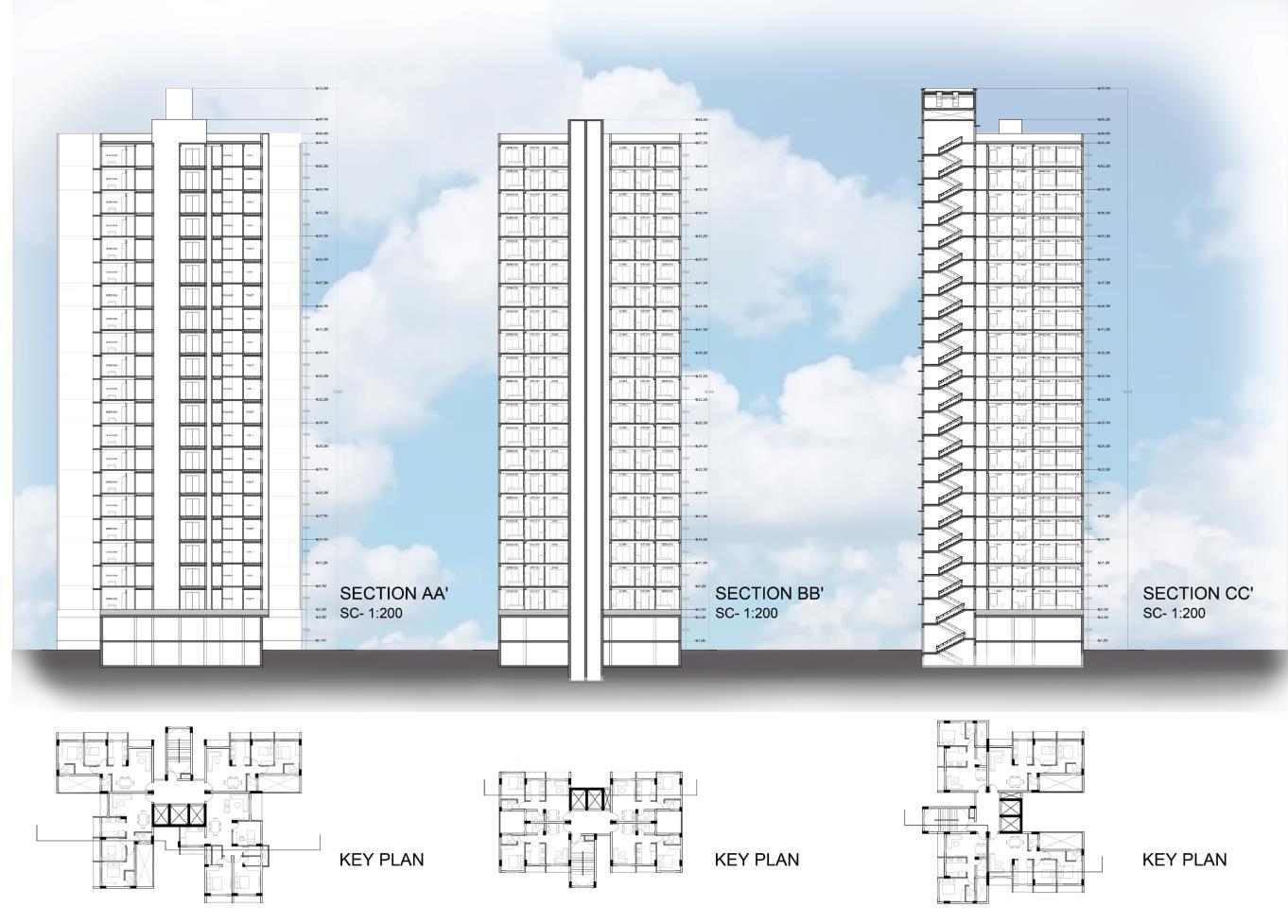

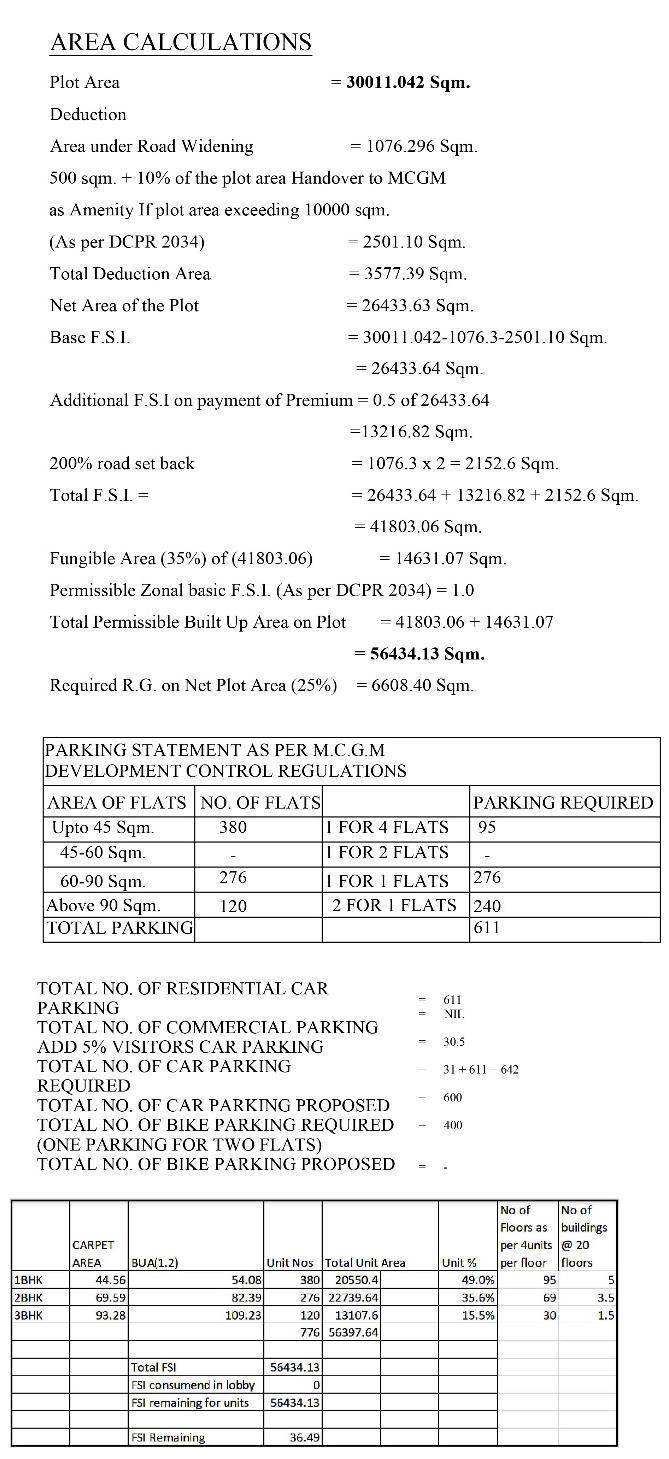

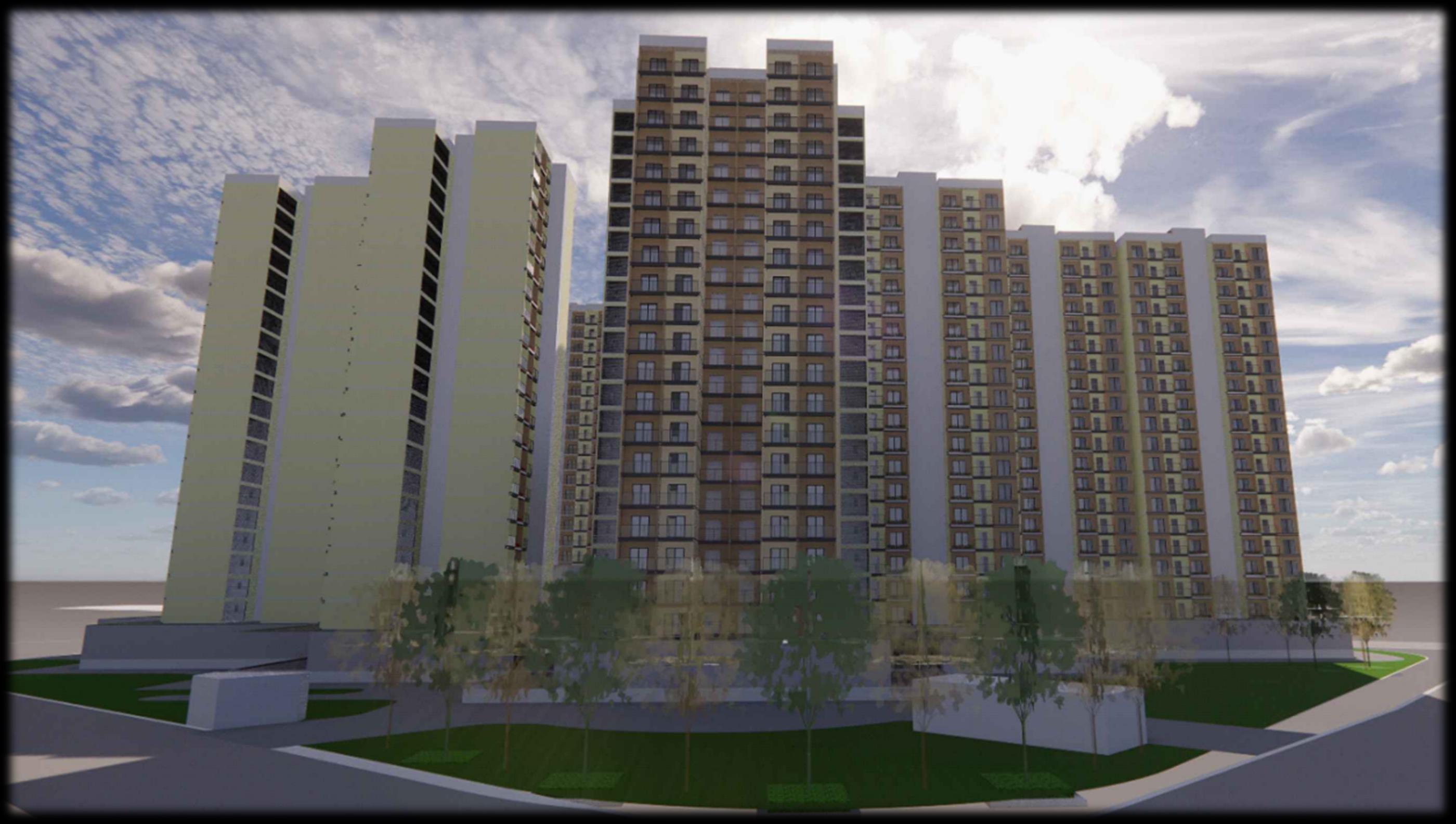

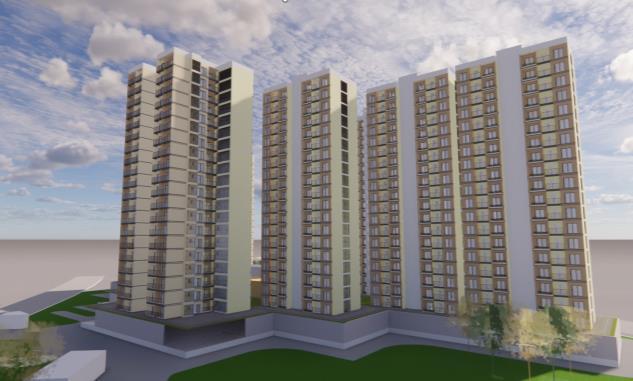

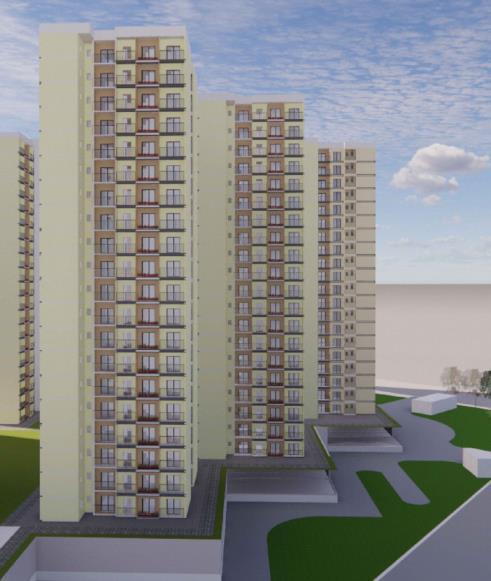

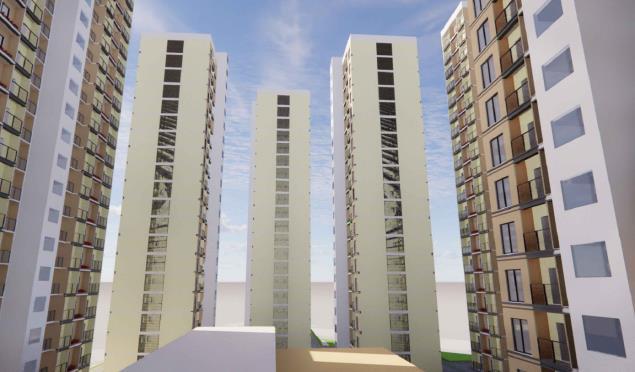

ARCHITECTURAL DESIGN l MUMBAI l RESIDENTIAL l SEM 3 09MASS HOUSING

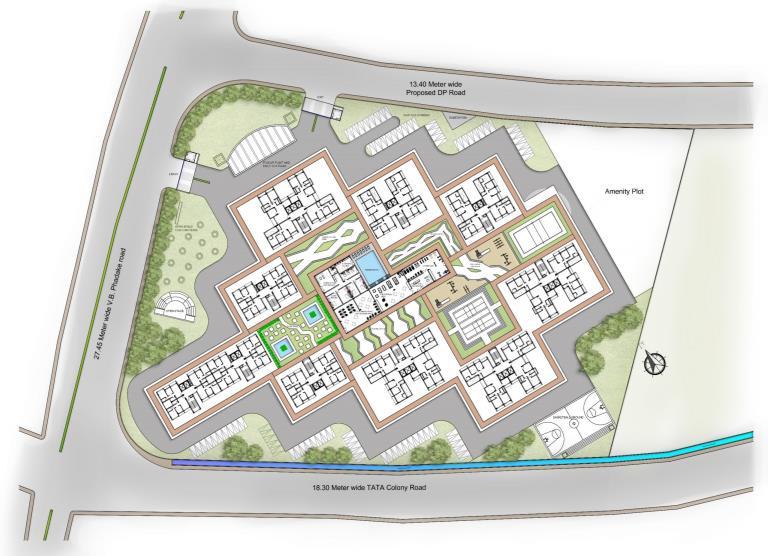

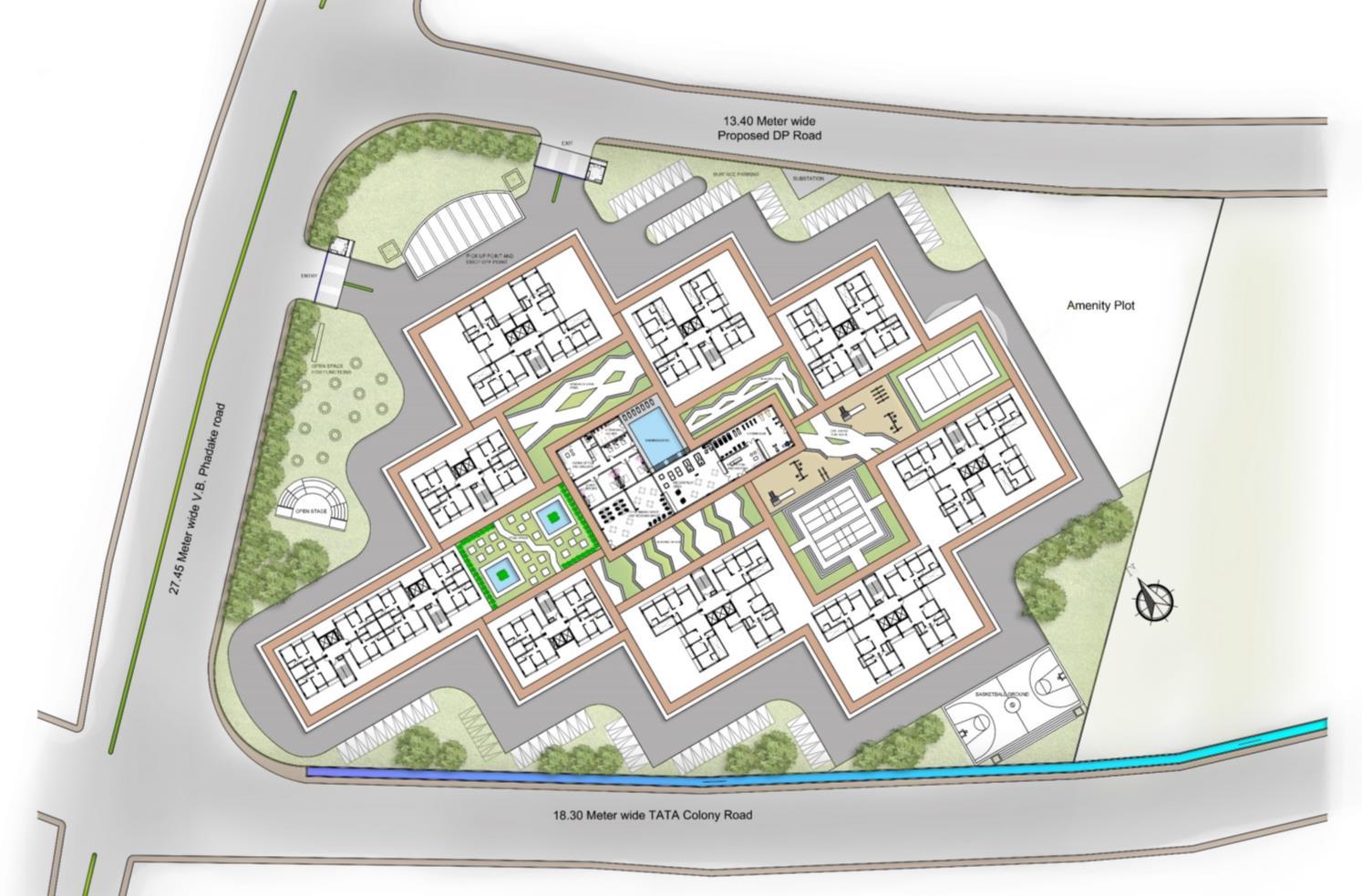

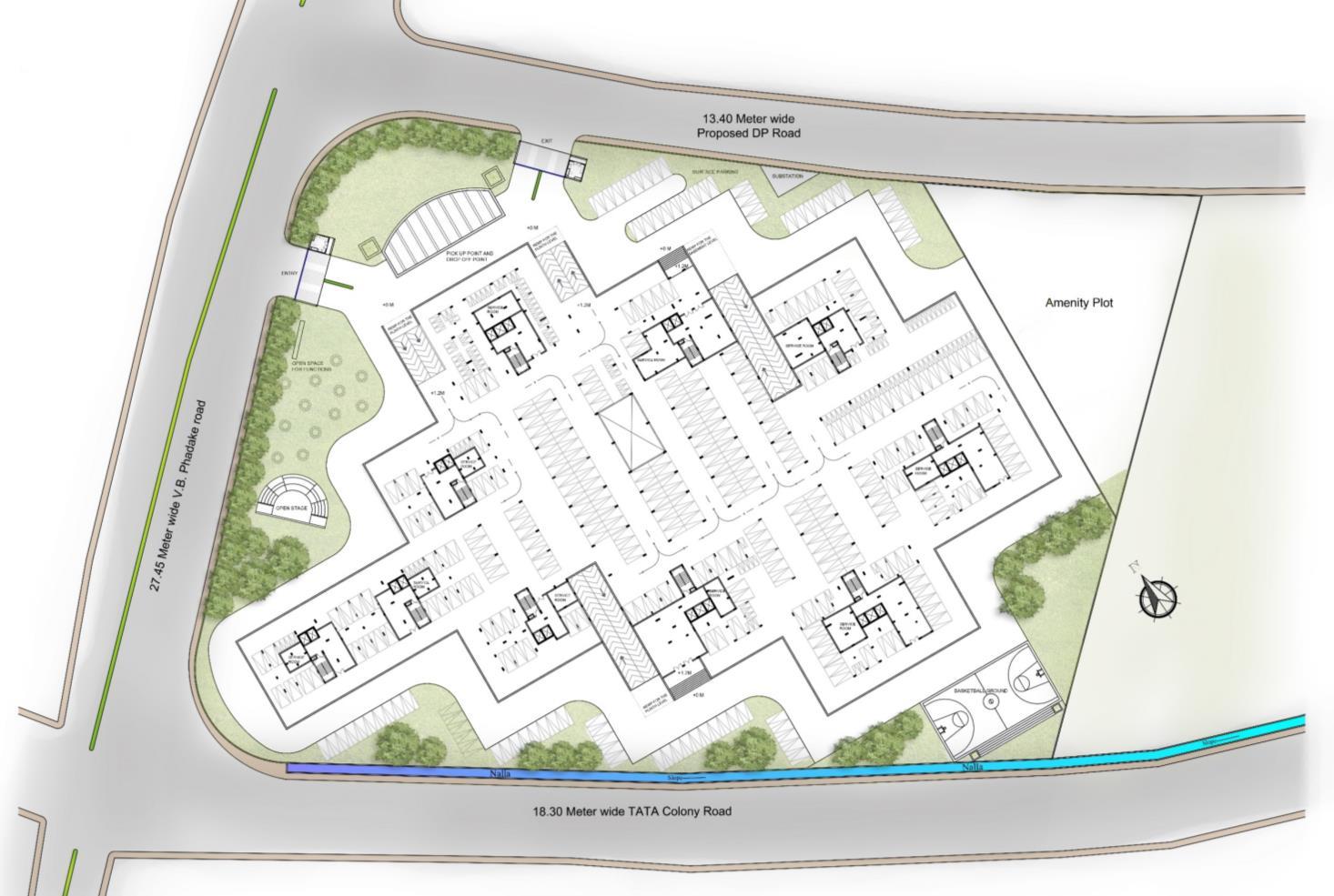

SITE PLAN (PODIUM LEVEL)

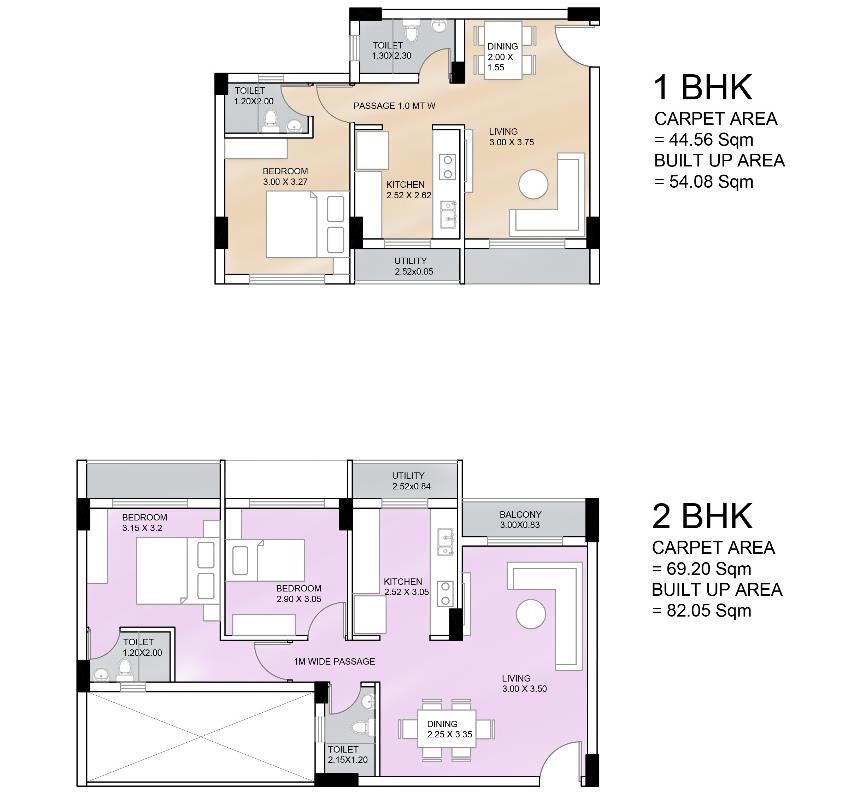

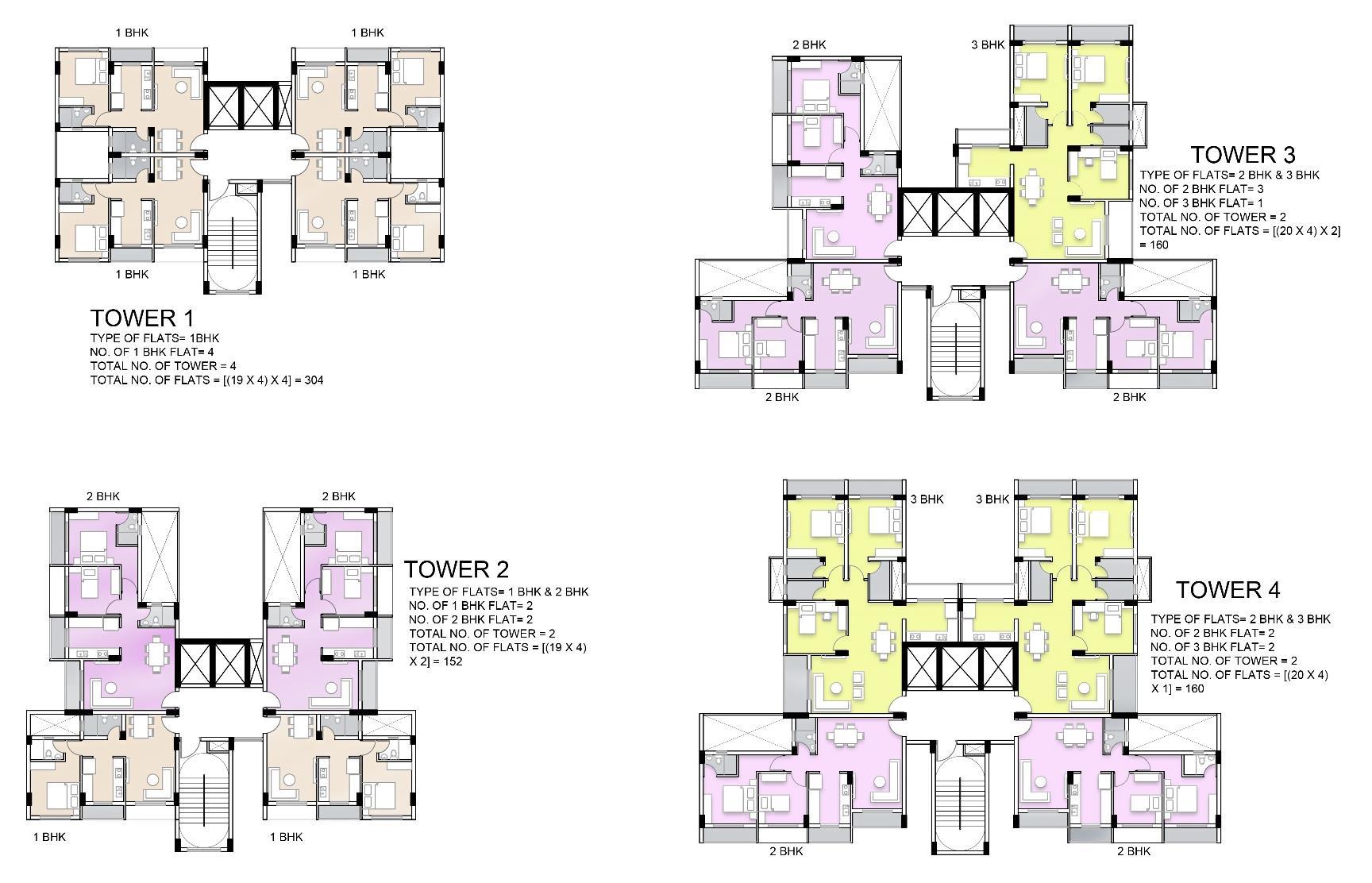

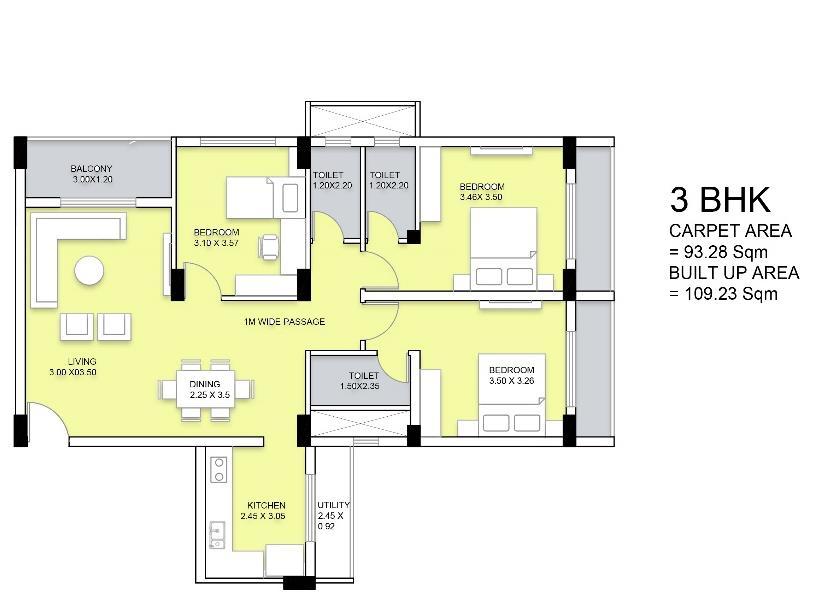

UNIT PLANS

CLUSTER PLANS

SITE PLAN (GROUND LEVEL)

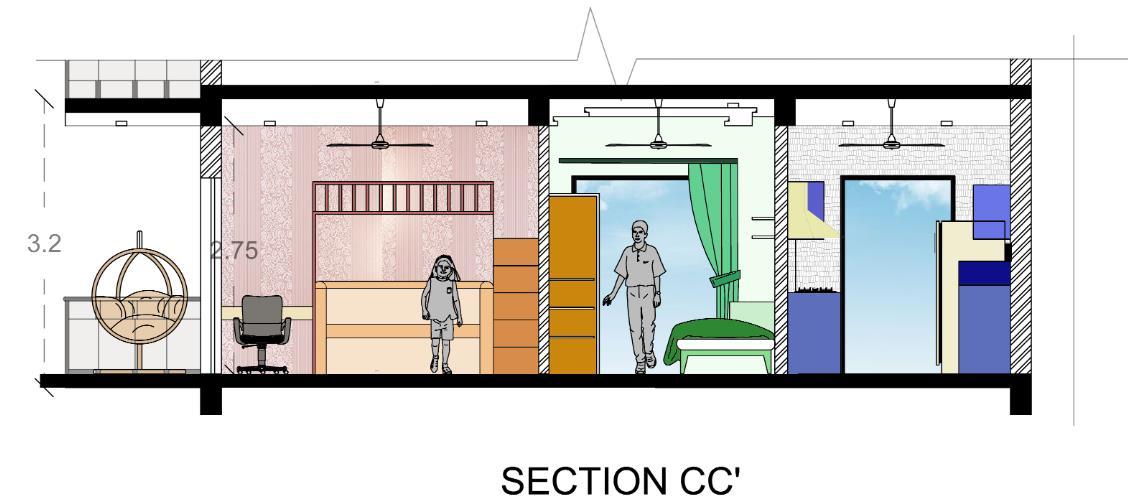

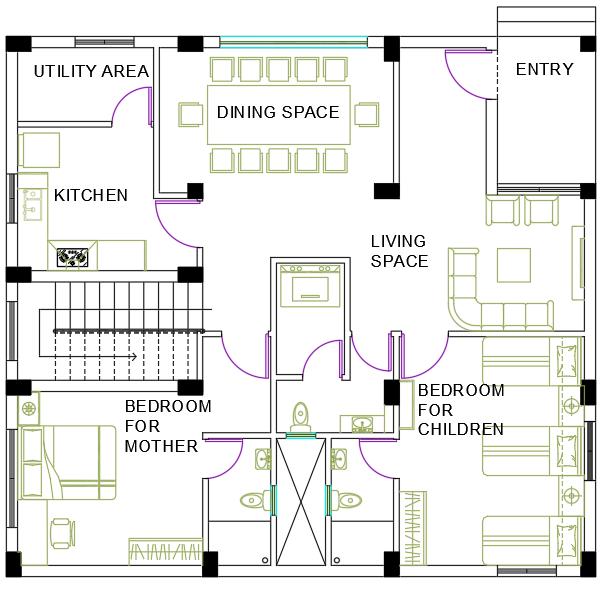

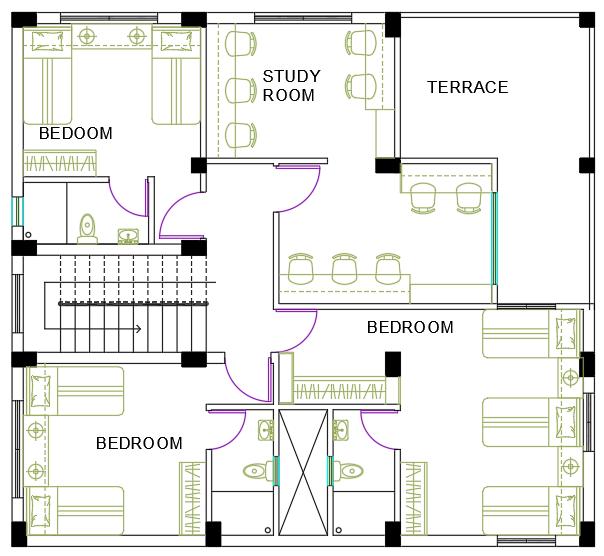

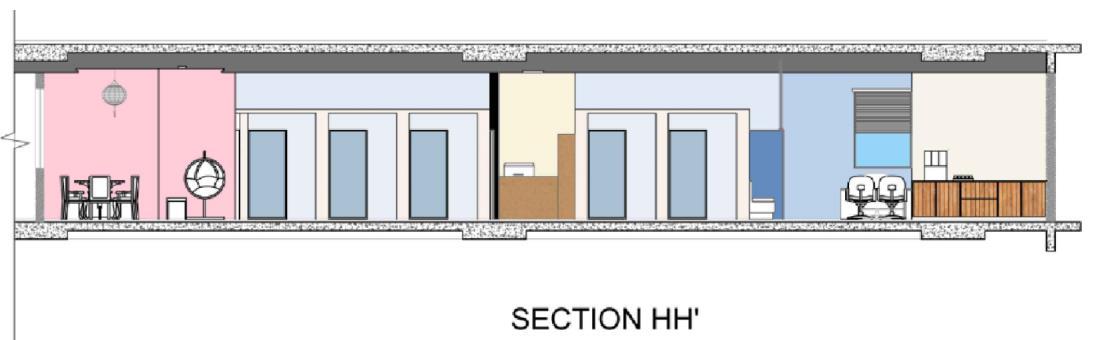

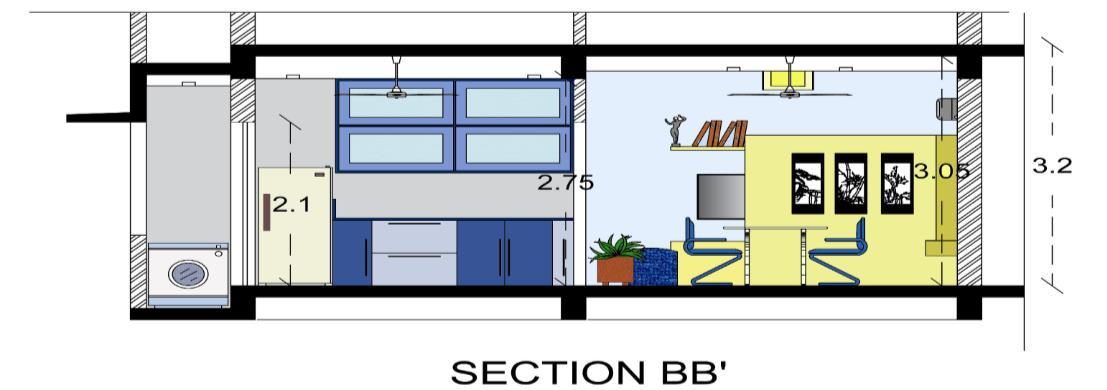

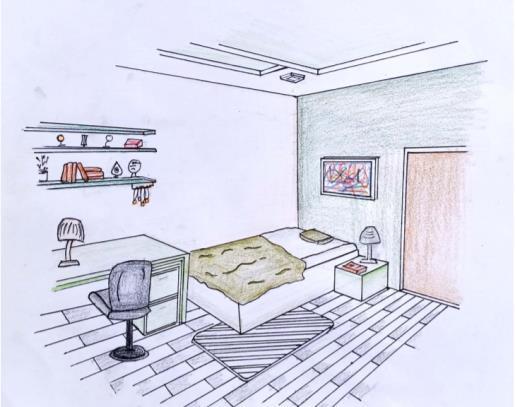

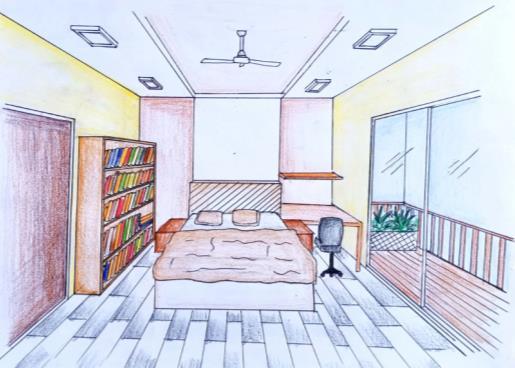

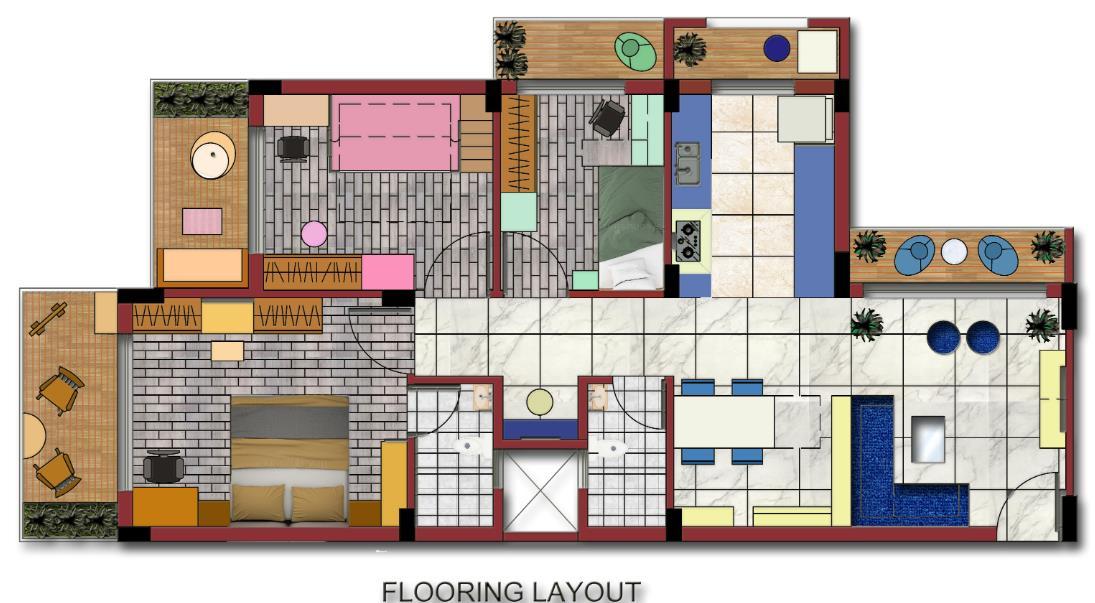

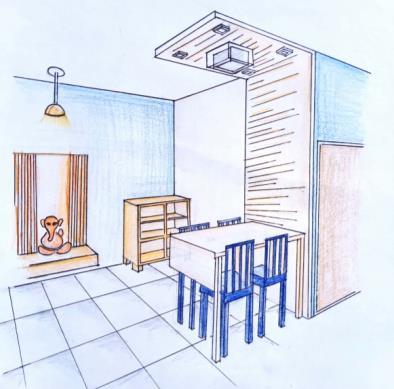

INTERIOR DESIGN (RESIDENTIAL)

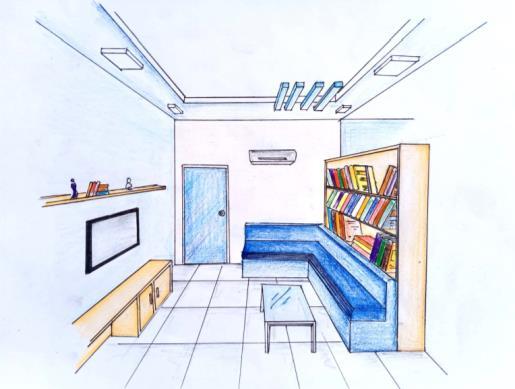

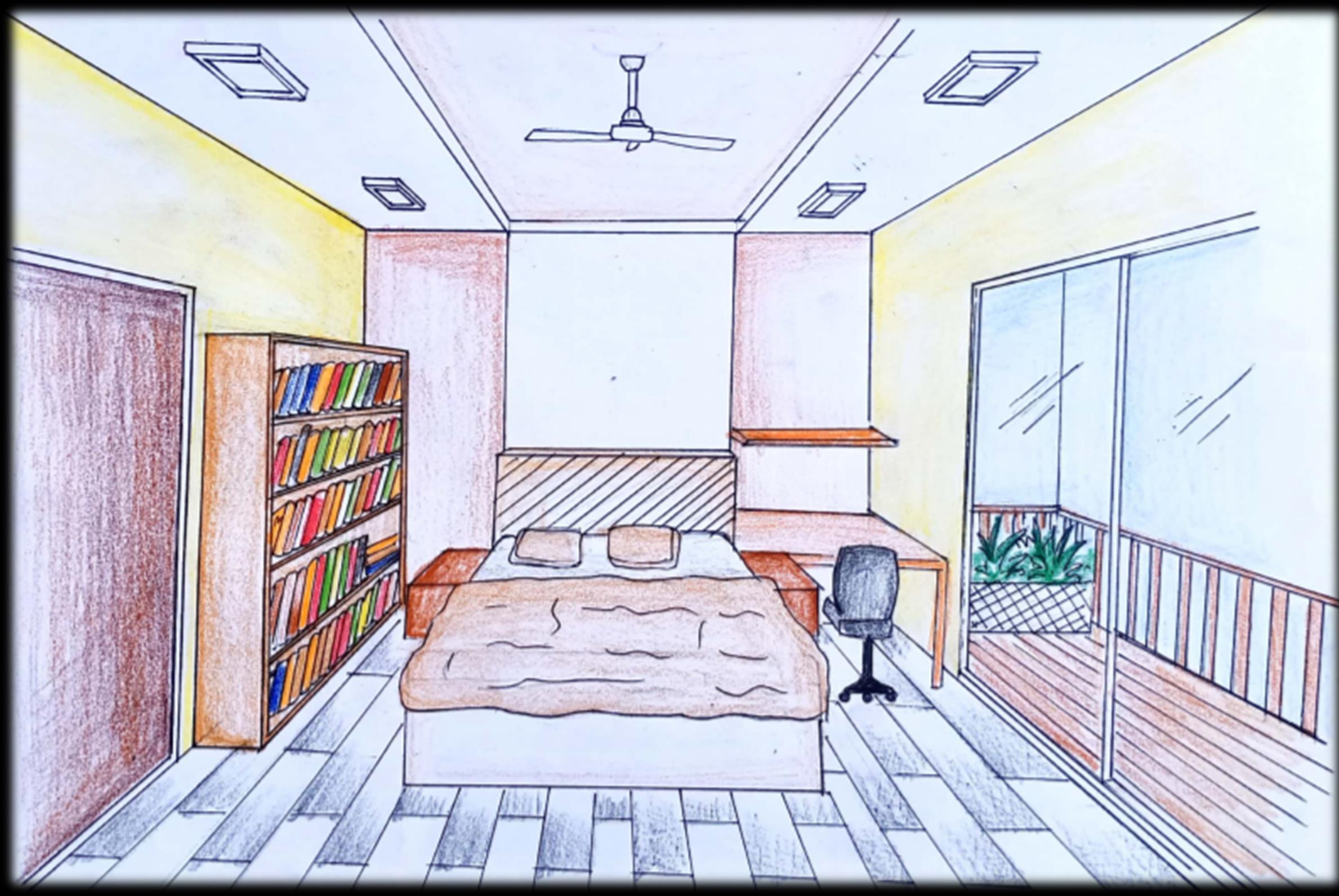

• THE AIM IS TO CREATE A SPACE WHICH IS A RELAXING, CALM AND COMFORTABLE. THE SPACE SHOULD BE WELCOMING, AND WELL ARRANGED IN ORDER TO LOOK THE HOUSE SPACIOUS.

• TO DESIGN A HOUSE WITH CONSIDERATION OF CLIENT’S PROFILE. I.E., THEIR WORK, TIME THEY WILL BE USING THE HOUSE, MAIDS AND GRANDPARENTS COMING TO VISIT THEIR HOUSE.

LOCATION:

• ON THE 12TH FLOOR,

• DOSTI ACRES, WADALA.

THEME:

• A CONTEMPORARY THEME IS A STYLE, DECORATING A SPACE WITH SIMPLICITY, SUBTLE SOPHISTICATION WITH USE OF CLEAN LINES IS USED IN THIS PROJECT.

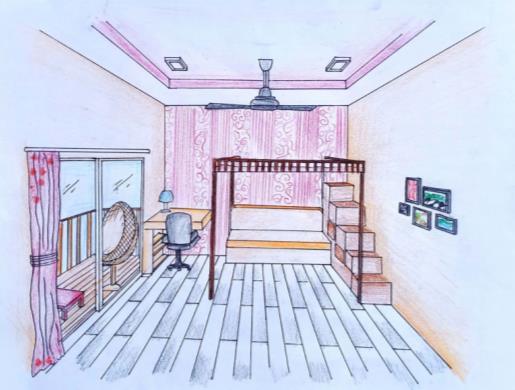

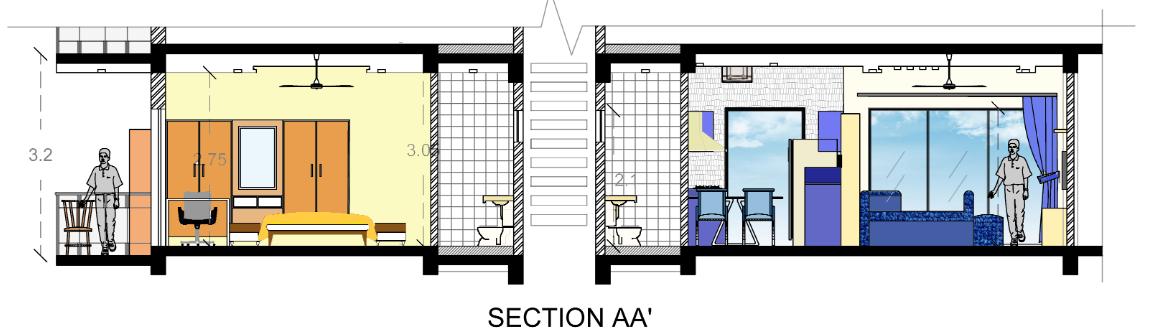

INTERIOR DESIGN l WADALA l SEM 3 112.5 BHK FLAT

COMMON LOBBY

AIM:

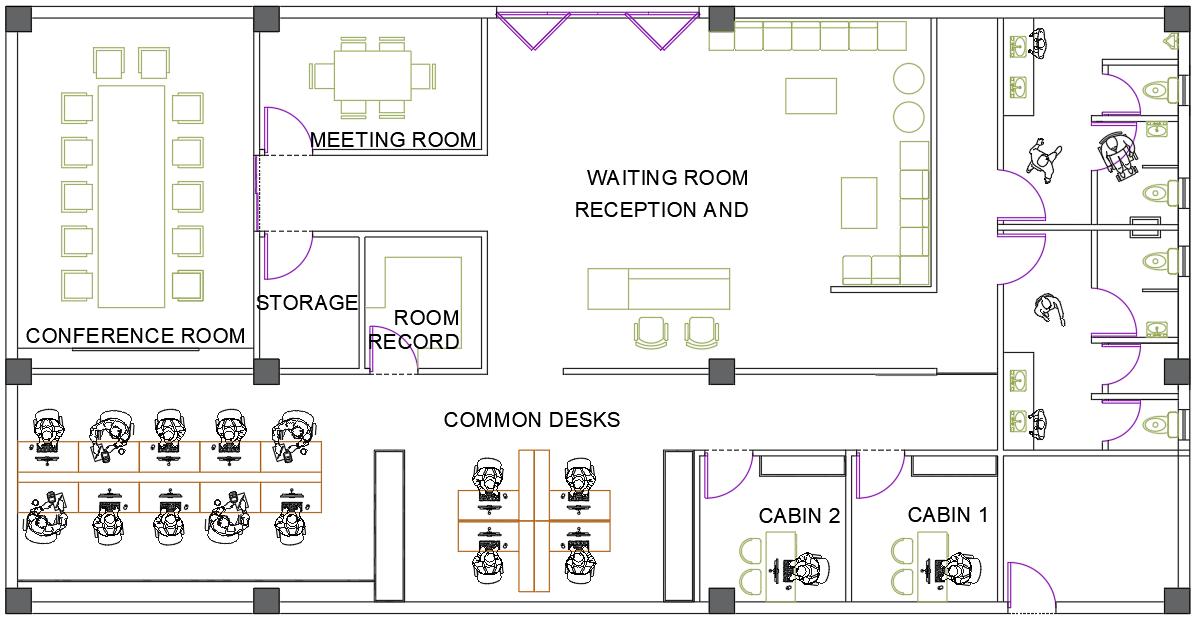

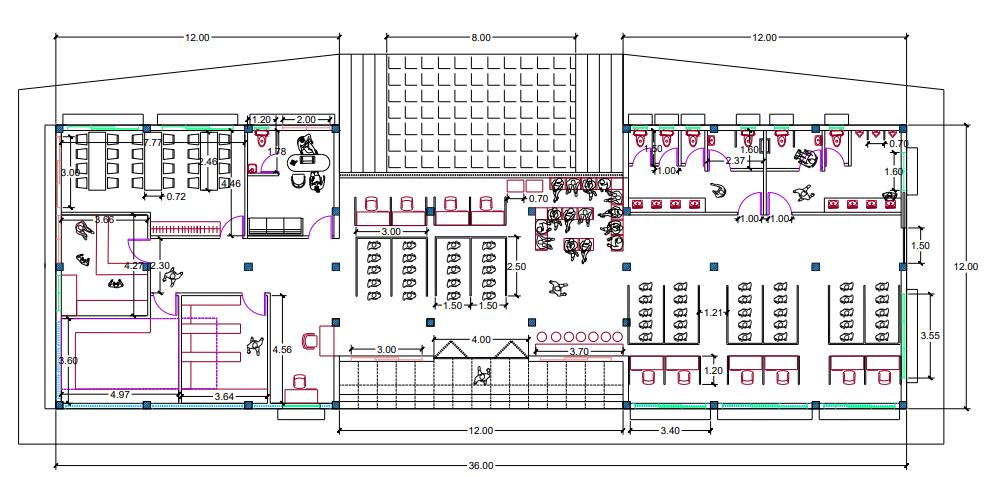

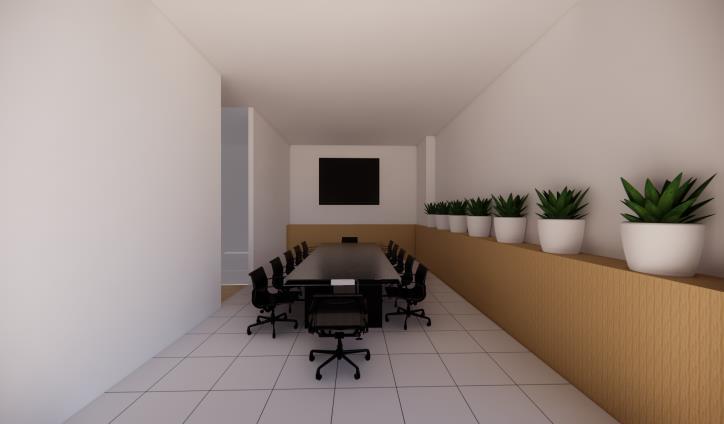

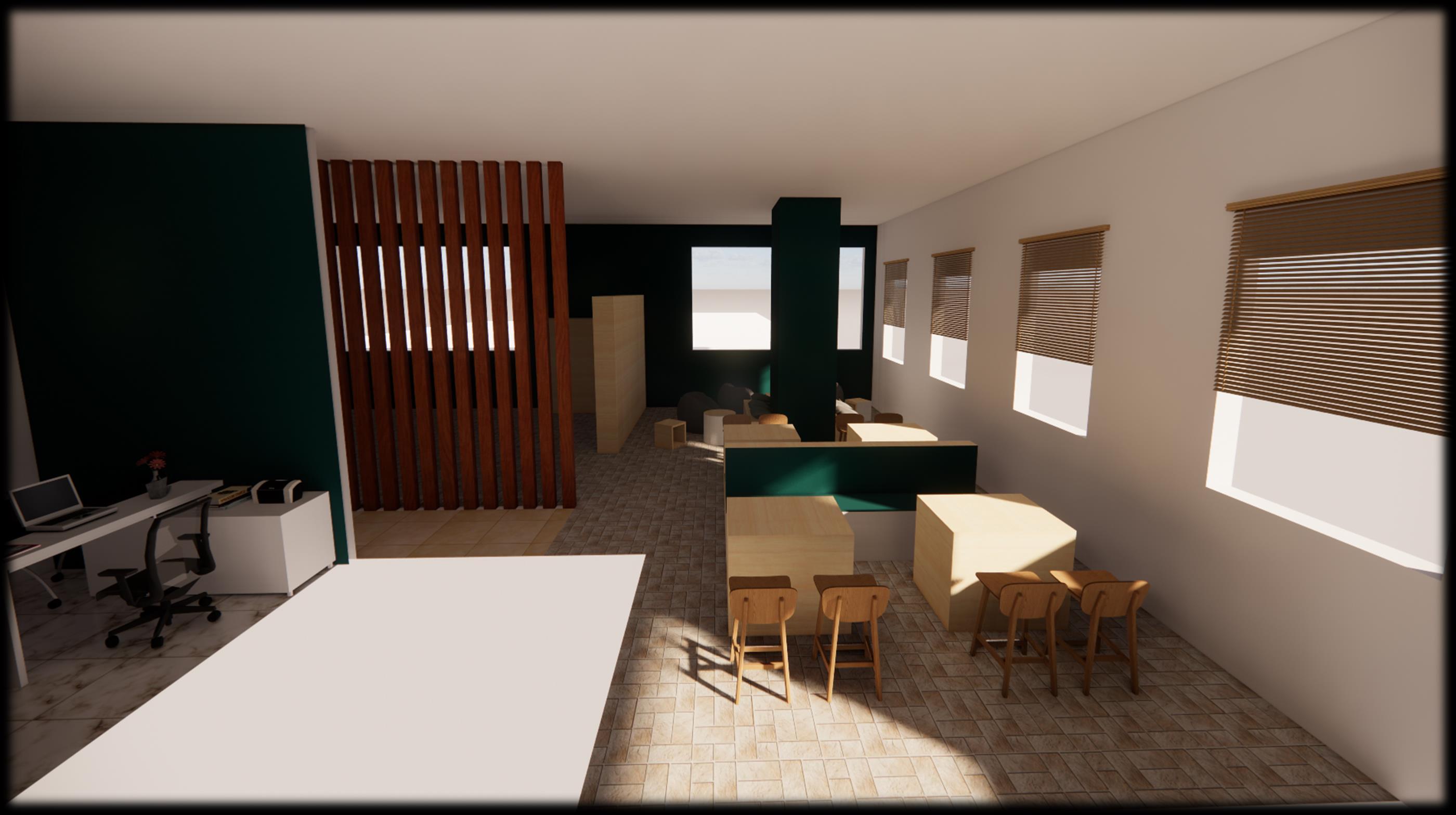

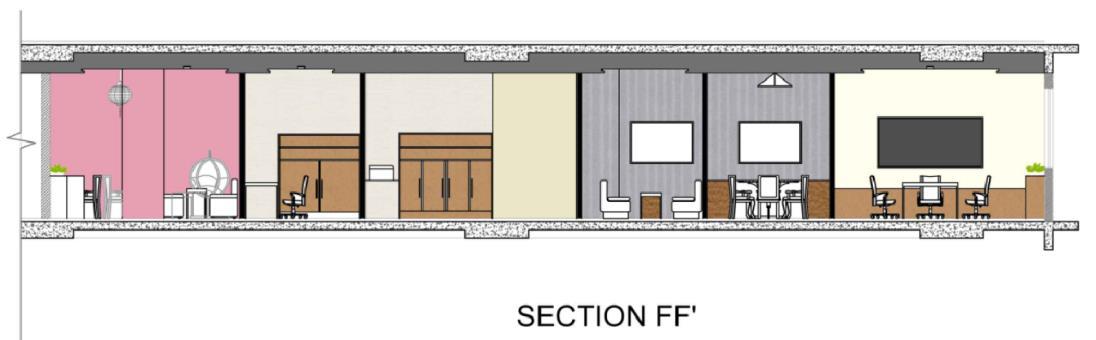

COWORKING OFFICE

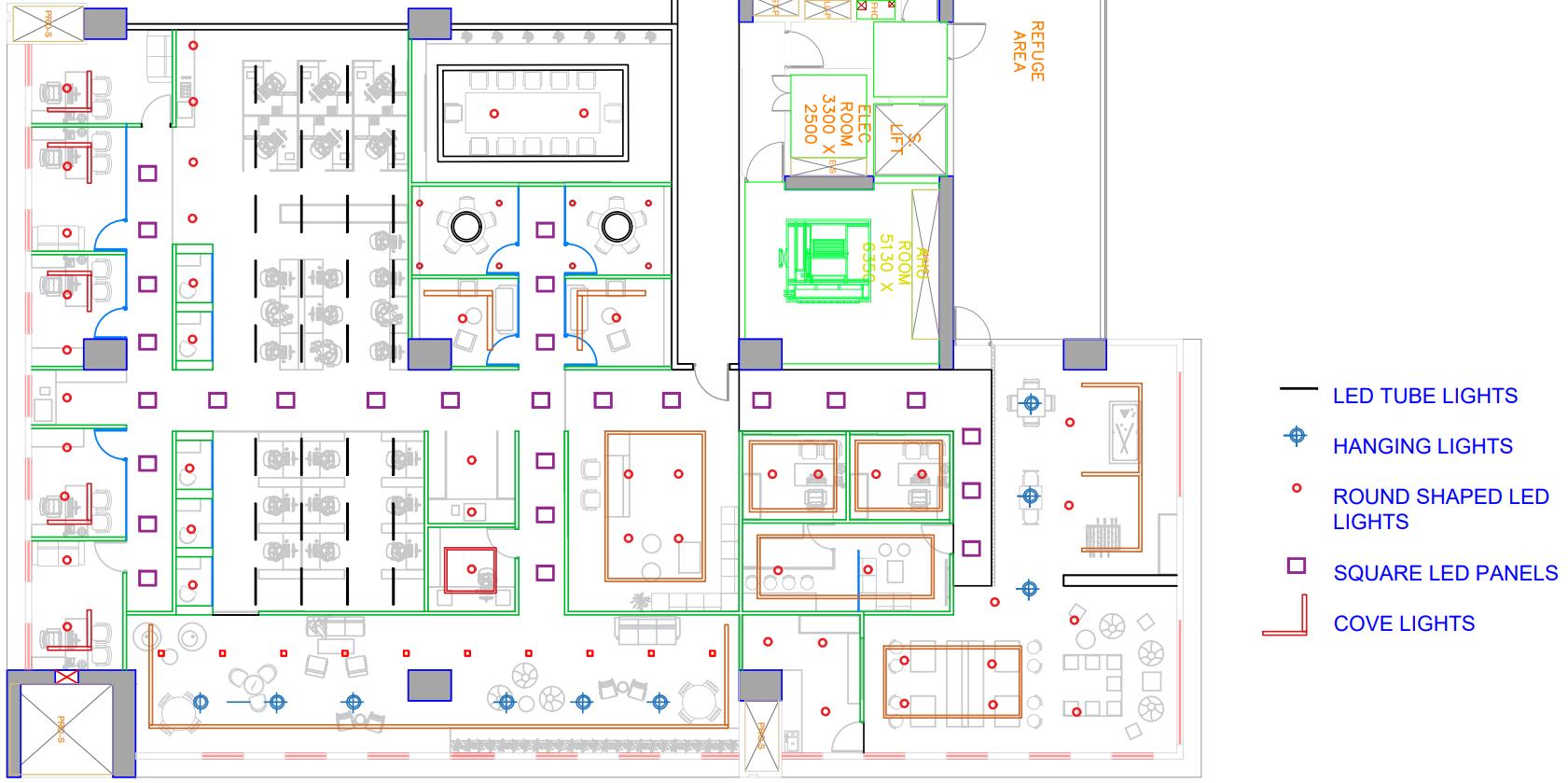

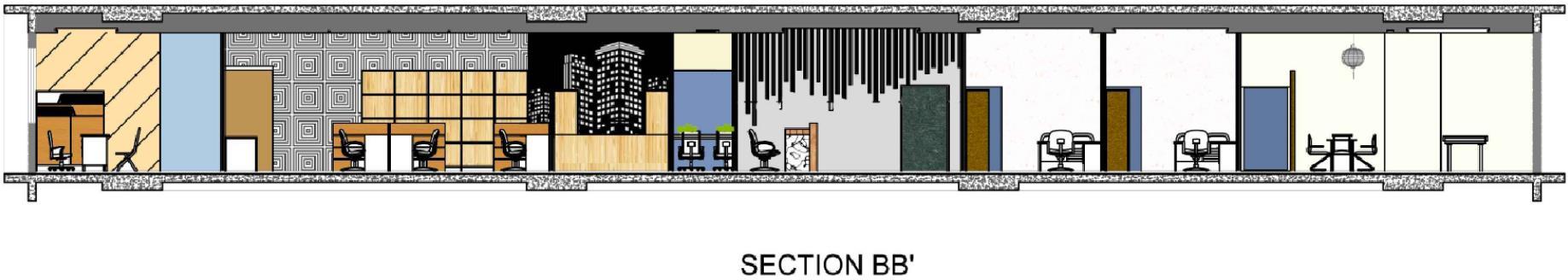

CEILING PLAN

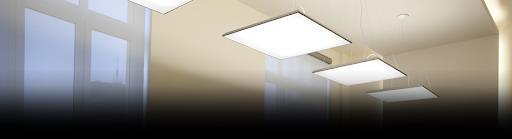

500X500MM SQUARE LED PANELS ARE USED IN COMMON PASSAGE AREA.

HANDING LIGHTS ARE USED IN HANGOUT SPACE AND BREAKOUT ZONES.

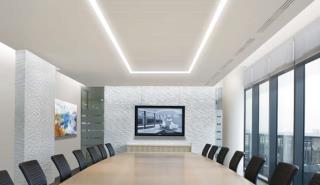

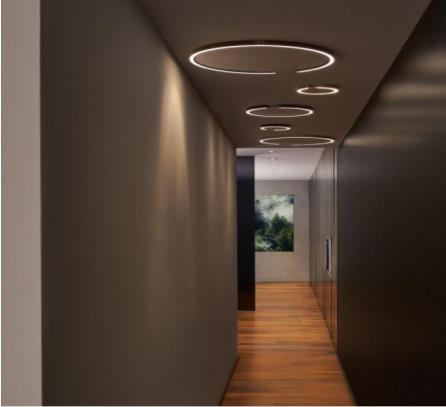

COVE LIGHTS ARE USED IN BOTH PRIVATE AND PUBLIC AREA.

250MM DIAMETER CIRCULAR LED LIGHTS ARE USED.

HANGOUT SPACES

OTHER WORK SPACES

BREAKOUT ZONE AND INFORMAL MEETING ROOMS

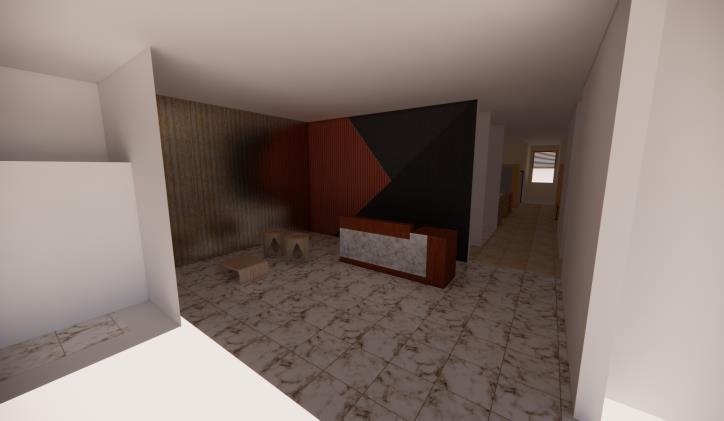

RECEPTION AND WAITING

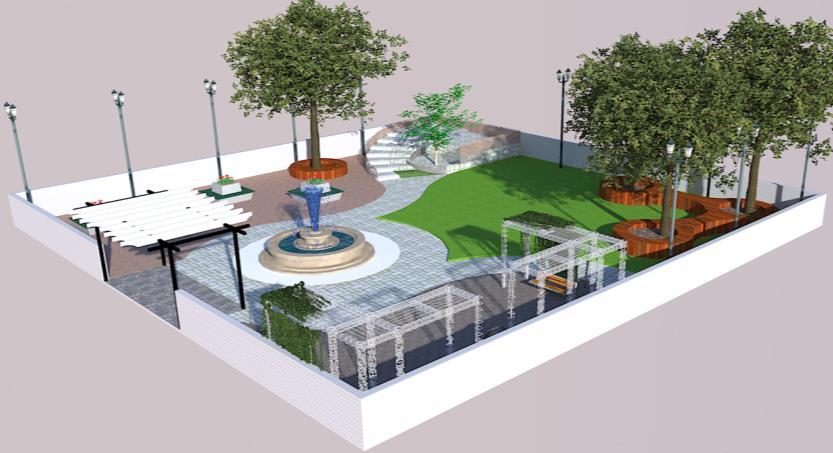

HOSPITAL LANDSCAPE

LOCATION:

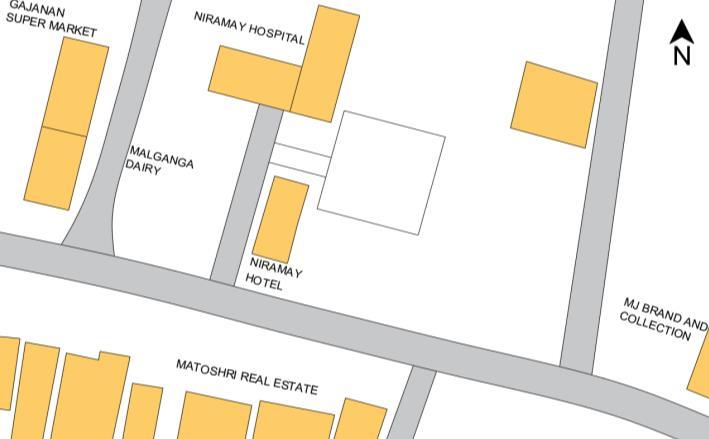

• SUPE, NEAR NIRAMAY HOSPITAL, AHMEDNAGAR, MAHARASHTRA.

SURROUNDING:

• NIRAMAY HOSPITAL AND HOTEL, UNUSED LAND ONEAST DIRECTION.

PROPOSAL:

• PUBLIC PARK.

ACCESSIBILITY:

• FROM SUPA PARNER ROAD AND FROM BRANCH ROAD OF NIRAMAY HOSPITAL.

• THE PLOT IS LOCATED IN BOTH RESIDENTIAL AND COMMERCIAL AREA.

• THE SITE IS IN BETWEEN TWO EXISTING STRUCTURE.

• IT IS THE HOSPITAL LANDSCPAE AREA, WHERE VISITORS CAN CAME AND WAIT OUTSIDE THE HOSPITAL OR CAN RELAX FOR A WHILE.

• AS IT IS IN BETWEEN THE HOSPITAL AND HOTEL, PATIENTS, DOCTORS OR VISITORS CAN ACCESS THE SITE FROM WEST DIRECTON TO GET FRESH AIR.

• THE IDEA WAS TO CREATE THE SPACE WITH THE OPPORTUNITY OF CREATING AN INTERESTING WAITING SPACE AND ALSO THE BREATHING SPACE FOR PATIENTS.

• MAIN ENTRANCE HAS PERGOLA OVER IT.

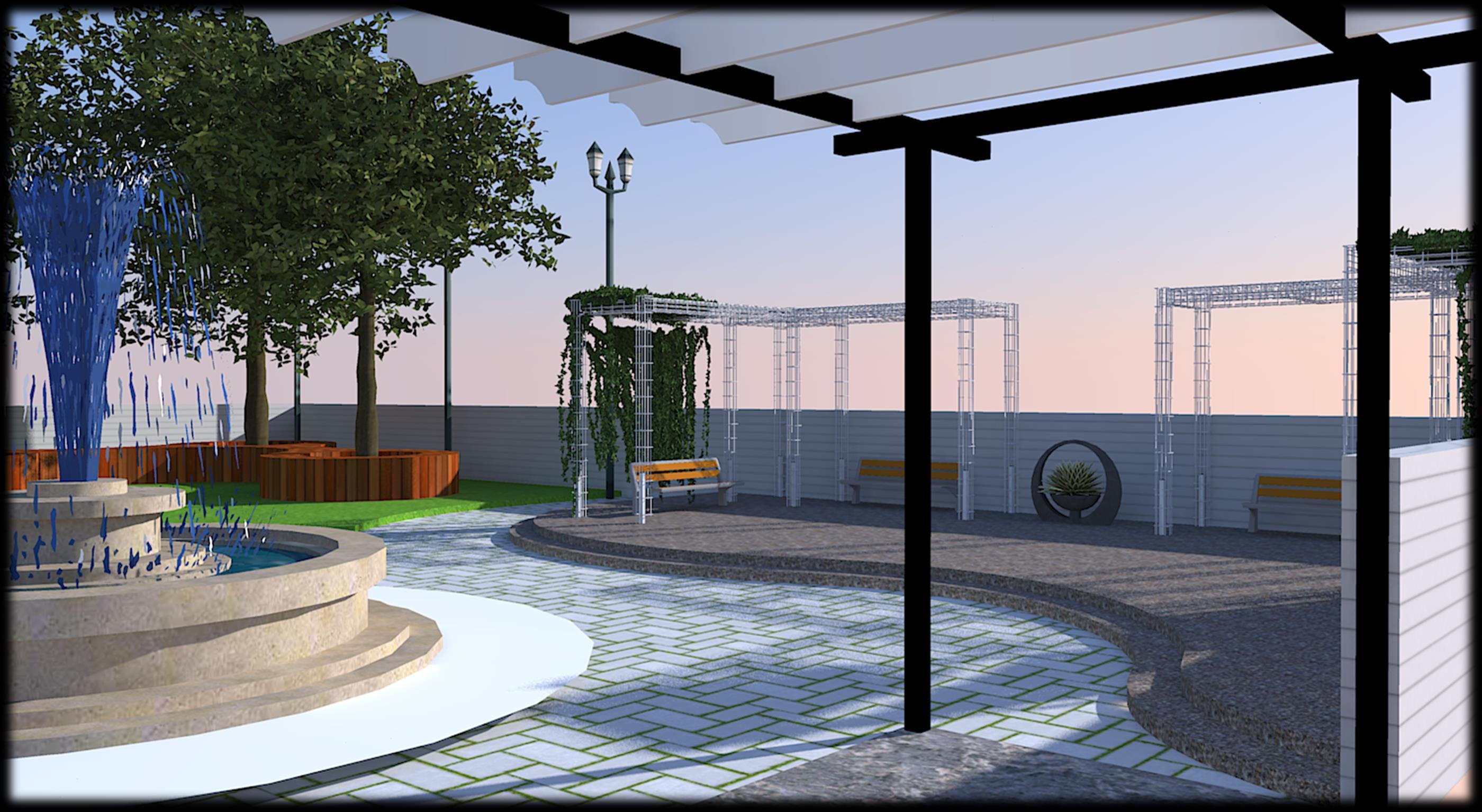

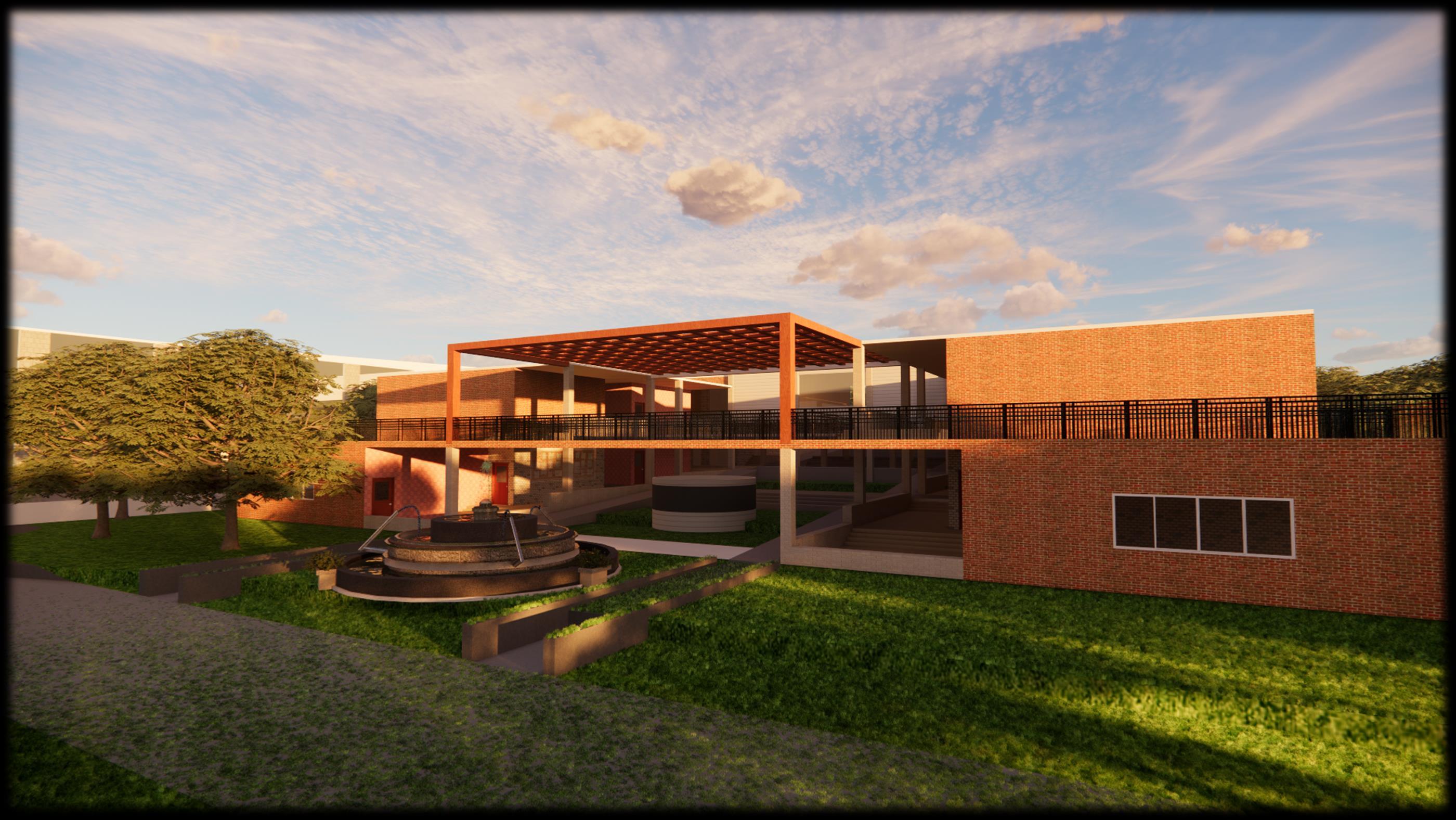

VIEW FROM ENTRANCE SEATING UNDER PERGOLA

VIEW FROM BREATHING

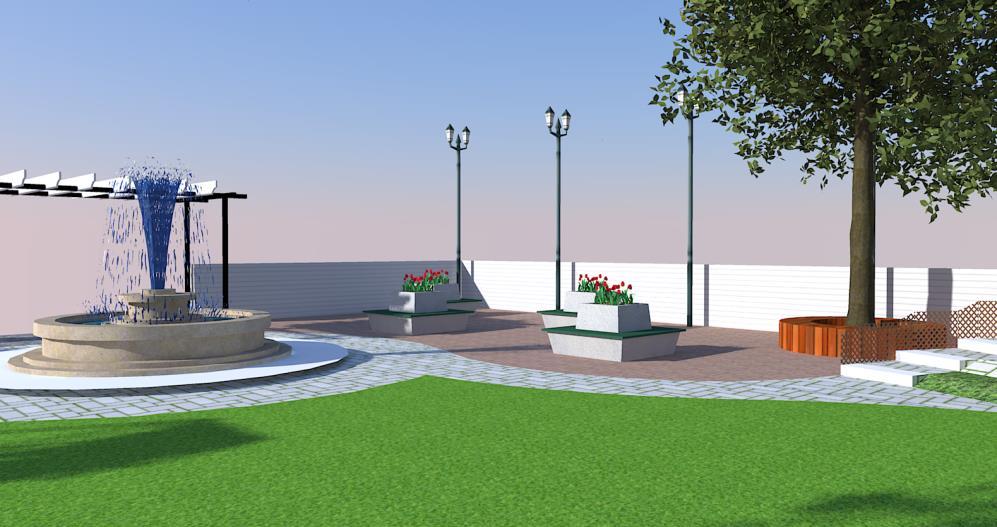

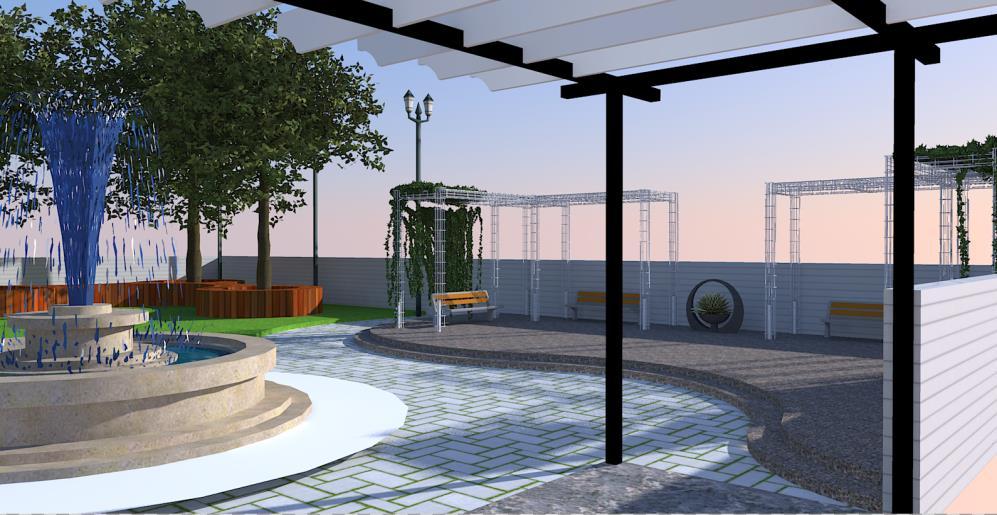

• FOUNTAIN IS THE CENTER OF THE SITE PROVIDED FOR COOLING PURPOSE.IT IS SURROUNDED BY STONE PATHWAY FOLLOWED BY THREE DIFFERENT ELEMENTS.

• THE SITE HAS FOUNTAIN, WAITING SPACE FOR VISITORS, BOTH SHADED AND UNSHADED SEATING AREA, BREATHING SPACE.

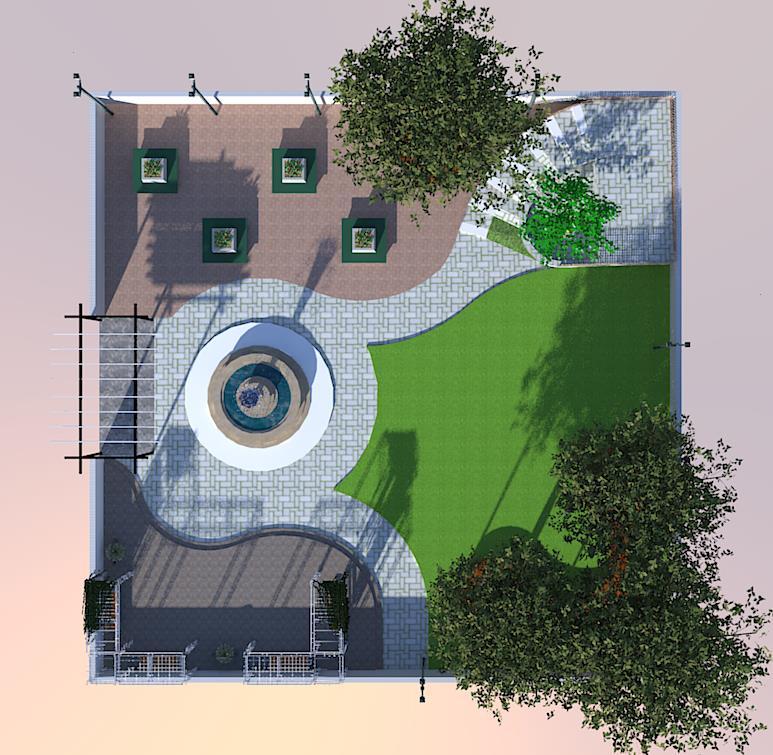

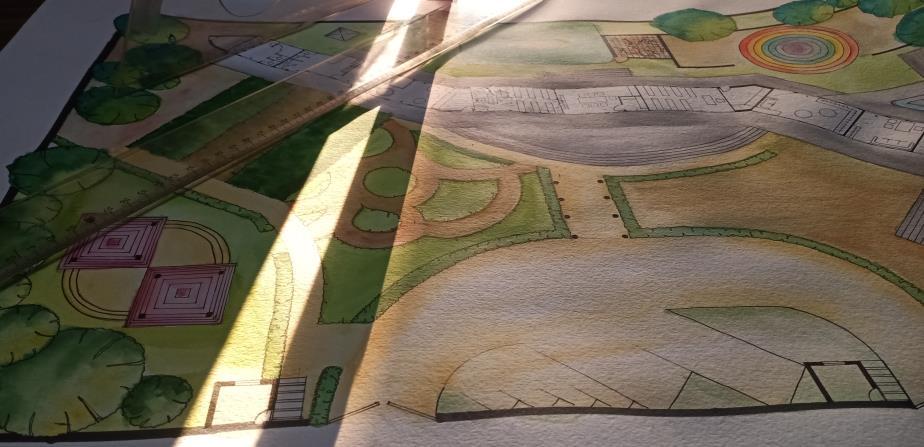

PLAN

OPEN WAITING SPACE WITH CUBOIDAL SEATING

STEPPED ELEMENT WITH RISED PLATFORM

MAIN ENTRANCE FROM HOSPITAL FRONT WOTH PERGOLA BREATHING SPACE FOR PATIENTS

FOUNTAIN AS A CENTER FOR COOLING PURPOSE

CIRCULAR SEATING UNDER TREE

BENCH SEATING UNDER PERGOLA

LANDSCAPE DESIGN l SUPE, AHMEDNAGAR l PUBLIC SPACE l SEM 5 14

SPACE CUBOIDAL SEATING & FOUNTAIN

VIEW

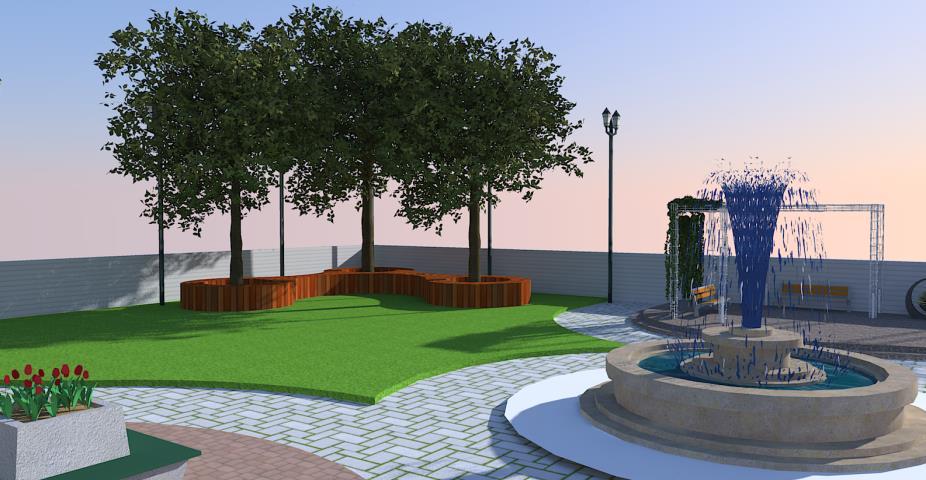

FROM WAITING SPACE SEATING UNDER TREE & FOUNTAIN

VIEW

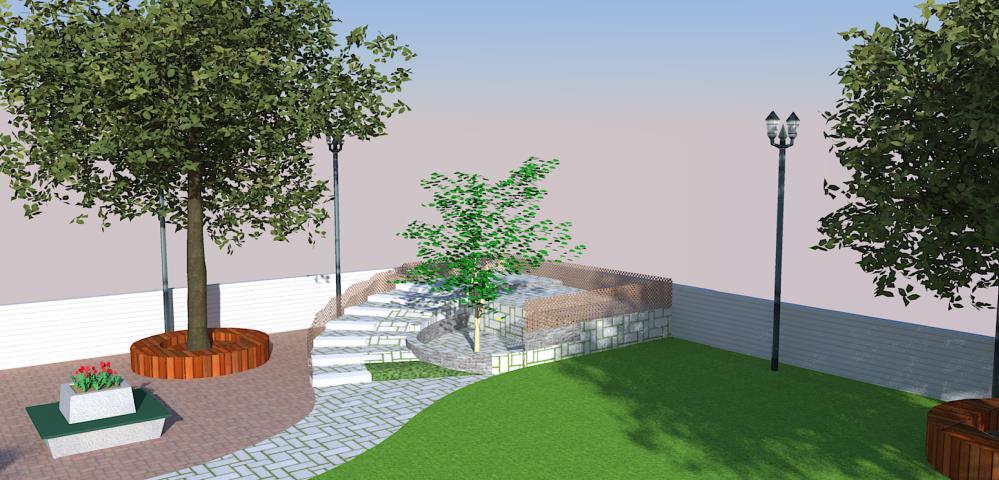

FROM PATHWAY STEPS WITH RISED PLATFORM SITE VIEW

WORKING DRAWING ELECTRICAL ROOM 7.4M DRIVE WAY 5M DRIVE WAY 5.4M DRIVE WAY6MDRIVEWAY 6MDRIVEWAY 4MDRIVEWAY 6M DRIVE WAY 4.5MDRIVEWAY C43C39C38C37 C44 C45 C46 C47 C49 C50 C51C48 C52 C53 C54 C55 C56 C57 C58 C66 C67 C68 C69 C70 C71 C72 C73 C74 C75 C76 C87 C88 C89 C90C85 C86 L12 C94 C95 C96 C97 C98 L14 L13 L16 L15 C103 C104 C105 C106 C107 C108 C109 C110 C111 1.51.5 SUMP 1.51.5 TWOWAYRAMP(7000X32800) SLOPE:-1:10 TWOWAYRAMP(7000X32800) SLOPE:-1:10 DOMESTICWATERTANK (15000X7000X2000) (2,10,000L) FIREFIGHTING (8000X7000X2000) TANK(1,12,000L) PUMPROOM (4500X7000) C2C1 C3 C4 C5 C6 C8C7 C9 C10 C11 C12 C13 C14 C16 C17 C18C15 C19 C20 C21 C22 C23 C24 C25 BC3 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C40 C41 C42 BC5 DOWNUP 25 24 23 UP C59 C60 C61 C62 C63 C64 C65 E1 E2 E3 E4 E5 RISERS-26 NO.OF RISERS-26 SERVICE LIFTLOBBY 2360 3170 ED FDD2 D2 W1 C77 C78 C79 C80 C81 C82 C83 C84 L5 L2 L6 L3 L7 L4 L8 C91 C92 L9 L10 L11C100 C101 C102 C99 0.2M 5.15MSTORE ROOM MAINTENANCE ROOM CHILLAR LOBBY BC46 BC47 BC48 BC49 BC50 BC51 BC53 BC54 BC55 BC56BC52 BC57 C93 BC12 BC13 BC1 BC2 BC4 BC6 BC10 BC11 BC14 BC36 BC7 BC8 BC9 BC15 BC16 BC17 BC18 BC19 BC20 BC21 BC22BC23 BC24 BC25 BC26 BC27 BC28 BC29 BC31 BC32 BC33 BC34 BC35BC30 BC37 BC38 BC39 BC40 BC41 BC42 BC43 BC44BC45 7470 8300 123007400 8000 8000 8000 8000 8000 8000 8600 7400 8000 8000 8300 7450 7350 12000 9000 9000 9000 9301 148000 63100 8000 8000 7400 8300 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 Y10 Y11 Y13 Y12 Y17 Y15 Y19 Y18 Y20 Y28 Y27 Y22 Y23 Y21 Y24 Y25 Y26 Y29 Y30 Y31 X41X42X44X45X46X47X48X49X50X51X52X32X33X35X36X37X38X39X43X21X24X26X27X28X29X30X31X34X9X10X13X14X15X16X17X19X20X22X23X1X2X3X5X6X7X8X11-X3-X2-X1X4 X0 Y5 Y14 Y16 X25 X40 D5 D5 D5 D2 D4 D4 D4 D4 LD LD LIFT LOBBY LD LD LD LD Y2 Y3 Y4 Y1 Y0 Y8 Y9 Y7 Y6 DOWNUP -3.4M

WORKING DRAWING l BELAPUR, NAVI MUMBAI l SEM 6 15COMMERCIAL COMPLEX

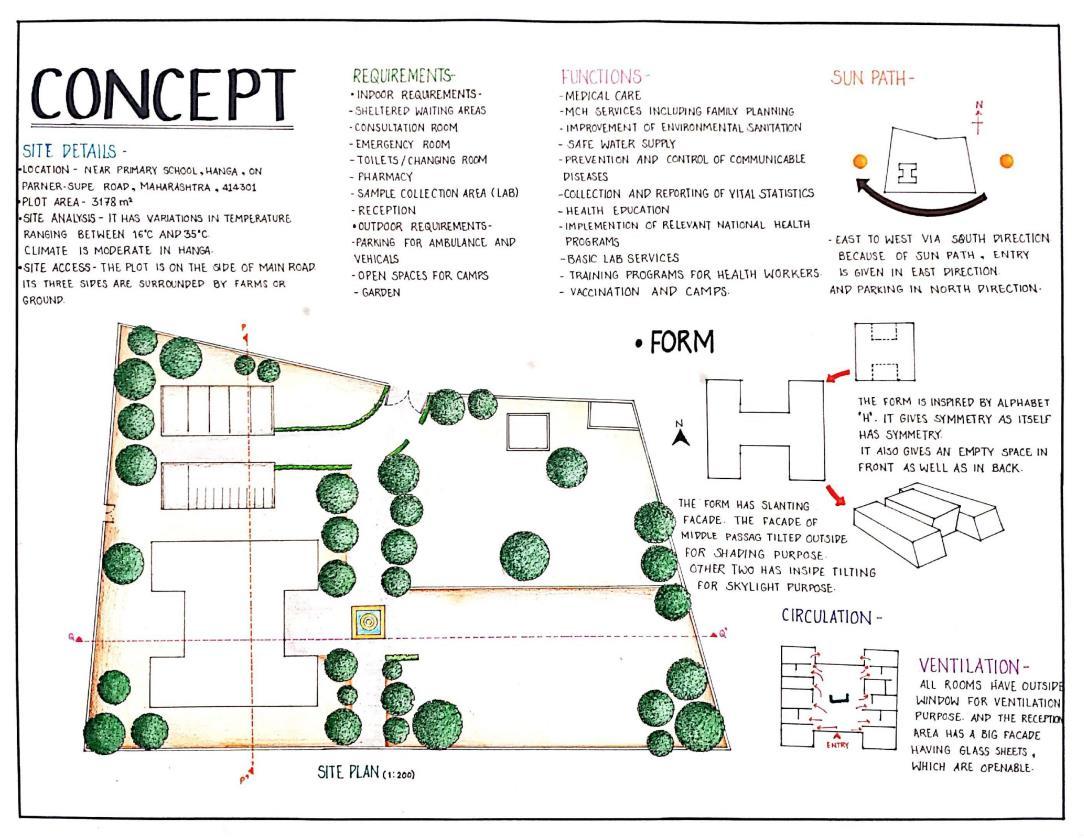

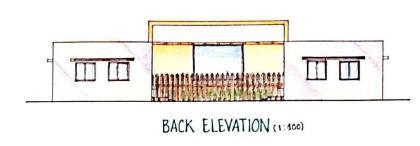

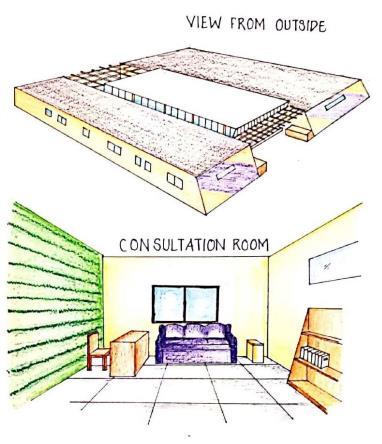

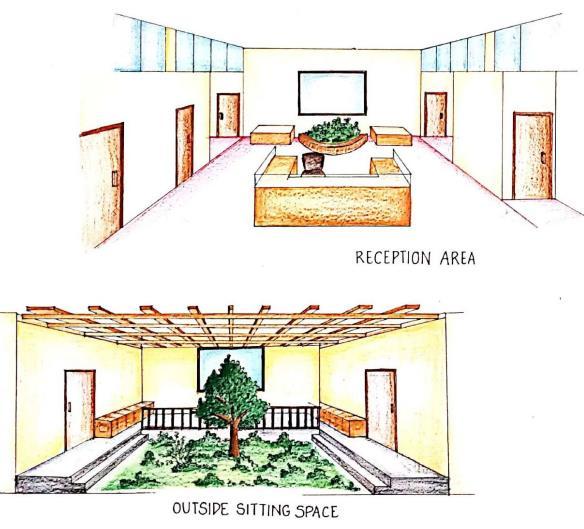

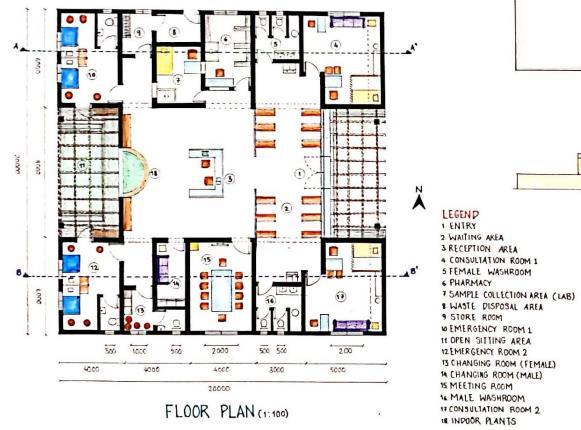

• IN THIS PROJECT, WE WERE FREE TO CHOOSE OUR SITE.

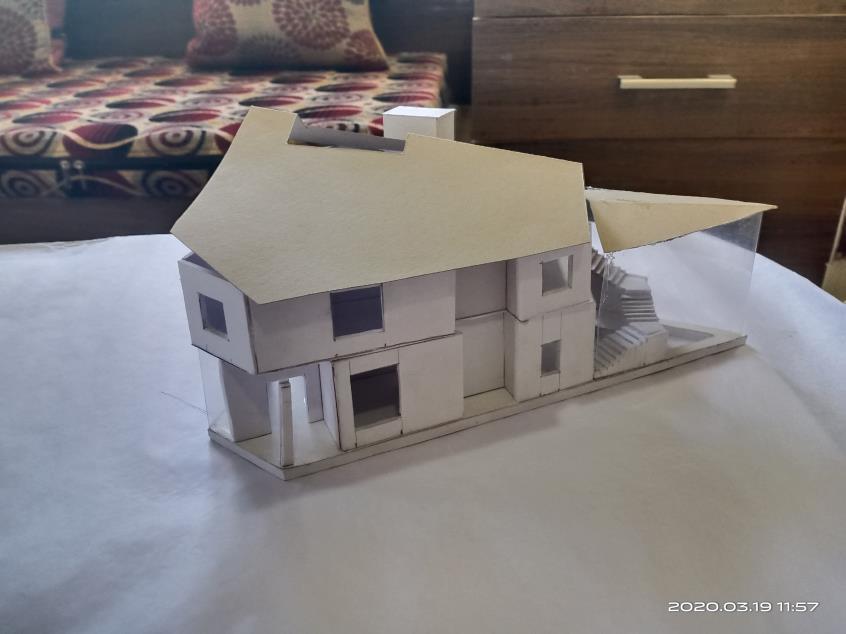

• THE FORM HAS BEEN INSPIRED BY THE ALPHABET ‘H’ AS IT HAS SYMMETRY AND ALSO IT REPRESENTS HEALTH.

• THE FORM PROVIDES EMPTY SPACE IN FRONT AS WELL AS BACK. AND THESE SPACES HAS BEEN UTILIZED NICELY.

• FRONT FACAD IS ATTRACTIVE BEACAUSE OF OPPOSITE TILTING OF FRONT WALL.

• THOUGH IT IS FLAT ROOF, THE LAYERS IN ROOF HAVE BEEN CREATED, WHICH LEADS TO FORM SKYLIGHT.

• THE CIRCULATION IS EASY TO UNDERSTAND, IT IS USER FRIENDLY.

FACULTY MEDAL DESIGN COMPETITION l YEAR II 18PRIMARY HEALTH CENTER

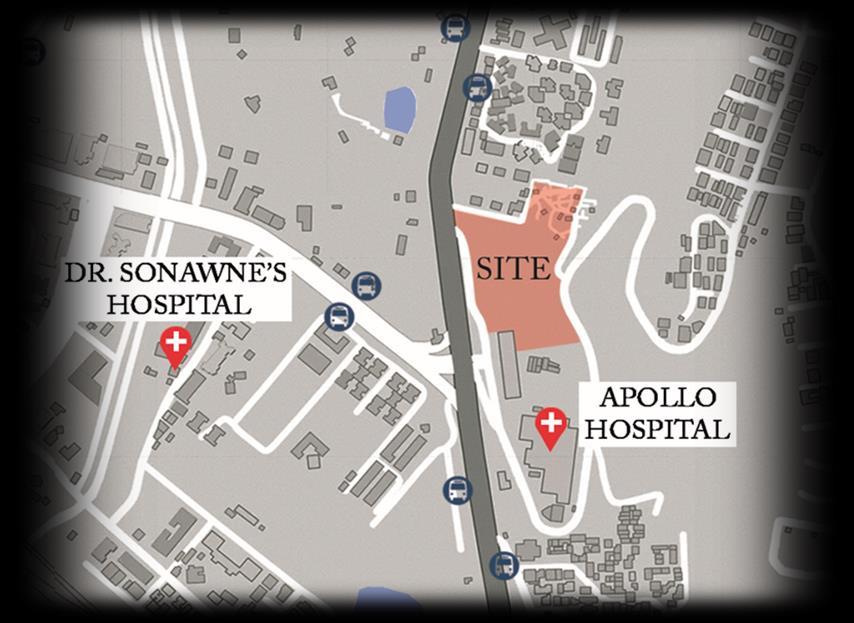

VIEW OF SITE

FORM DEVELOPMENT

❑ AIM- TO PROVIDE LOVING AND SUPPORTIVE CARE FOR THE CHILDREN WHO HAVE NO ONE OR WHO LOST THEIR PARENTS OR GUARDIANS DURING COVID 19. CREATING ENVIRONMENT FOR THEIR ALL ROUND GROWTH. SOS CHILDREN’S VILLAGE.

❑ DESIGN STRATEGIES

• MAXIMUM LIGHT AND VENTILATION IS PROVIDED.

• THE HOUSE FOR PROVIDING A REAL SENSE OF SECURITY AND BELONGING IS DESIGNED.

• EASY CIRCULATION IS PROVIDED.

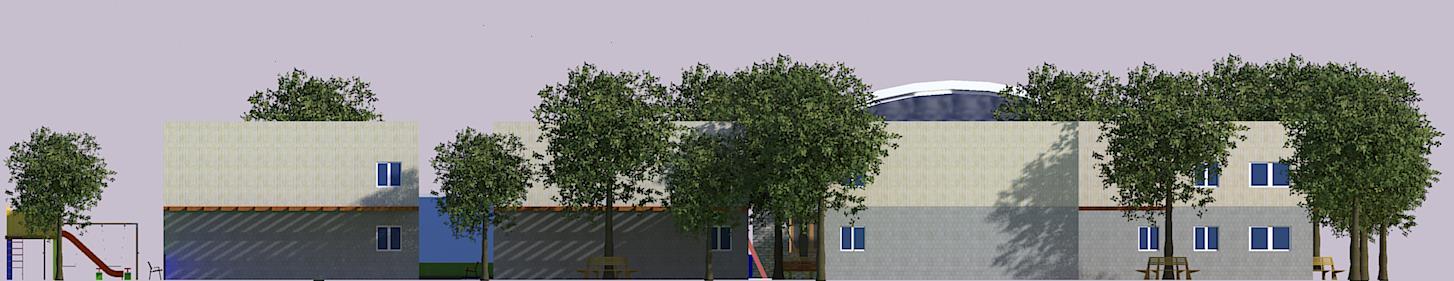

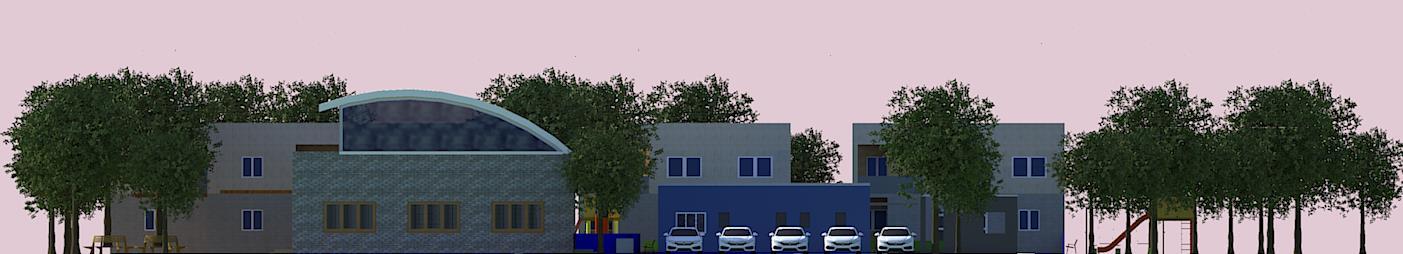

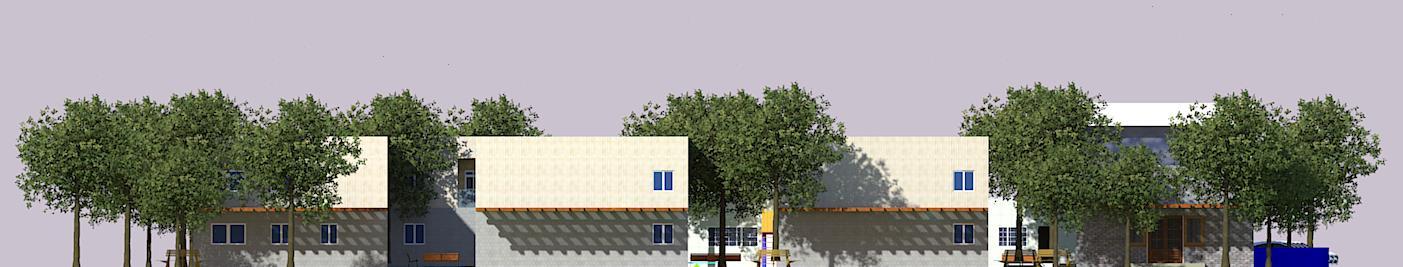

EAST ELEVATION

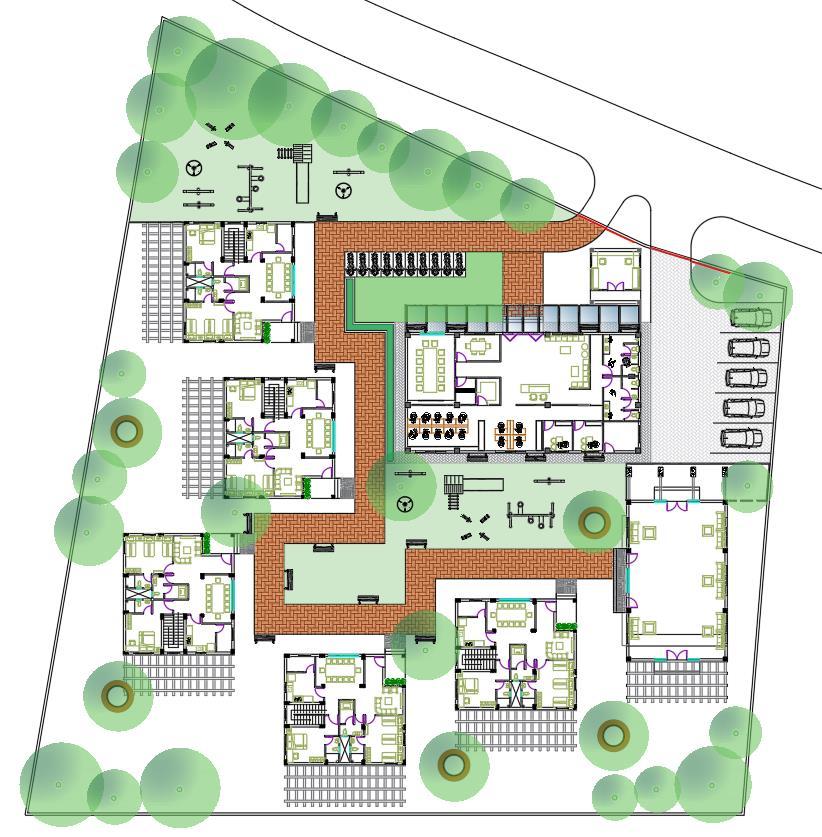

ARRANGEMENT OF FIVE HOUSE BLOCKS CREATING MIDDLE COMMON SPACE AND IT IS USED AS PLAYING SPACE. ALL THE HOUSES ARE CONNECTED TO A COMMON CIRCULATION ROAD WHICH ENDS AT MULTIPURPOSE HALL.

FORM IS DEVELOPED SUCH THAT AIR SHOULD FLOW THROUGHOUT THE SITE AND SHOULD NOT BE BLOCKED IN BETWEEN.

• 5 HOUSES ARE CONNECTED WITH A COMMON PATHWAY.

• PERGOLAS ARE PROVIDED AT THE BACKYARD OF HOUSE.

• SEATING UNDER TREES ARE GIVEN UNDER BIG TREES.

• BENCHES ARE PROVIDED AT THE INTERVALS AND IN THE PLAYING SPACE.

• PLAYING EQUIPMENTS ARE PROVIDED FOR SMALL AGE GROUP CHILDREN IN THE PLAYING SPACE AT THE CENTER AS WELL AS IN THE FRONT OF SIDE.

WEST ELEVATION

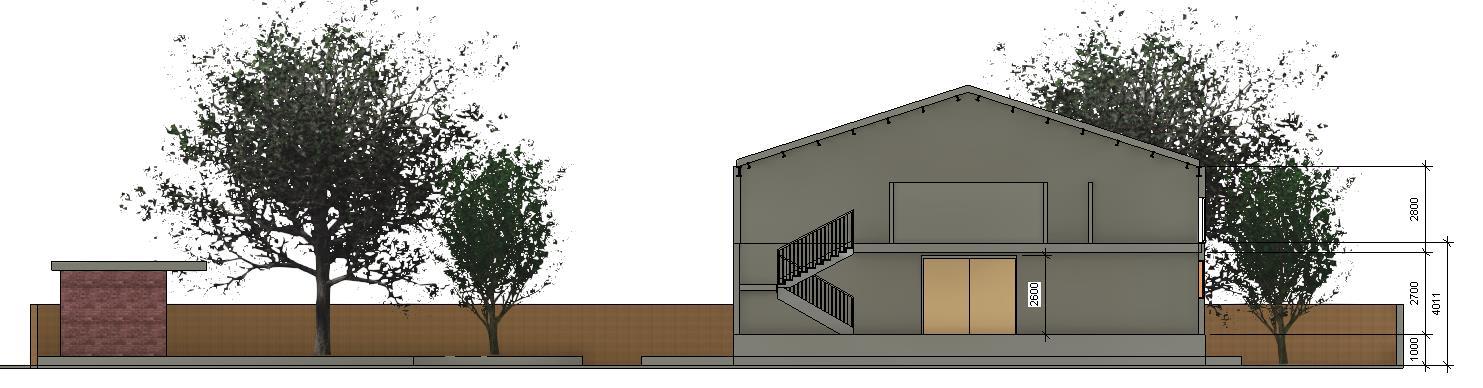

SOUTH ELEVATION

FACULTY MEDAL DESIGN COMPETITION l YEAR III 20SOS CHILDREN’S VILLAGE

❑ VILLAGE CONSIST OF-

• ADMINISTRATION OFFICE: FOR MANAGEMENT OF SOS VILLAGE.

• FIVE HOUSES: EACH HOSE FOR 10 CHILDREN WITH 1 MOTHER, 2 AUNT AND 2 TRAINEES.

• PLAYING SPACE: FOR CHILDREN WITH SOME LAWN SPACES.

• MULTIPURPOSE HALL: FOR THE GATHERINGS AND CELEBRATIONS.

❑ FAMILY HOUSE-

• THIS IS A UNIT IN AN SOS VILLAGE, IN WHICH 10 CHILDREN, 1 MOTHER 2 AUNT AND 2 TRAINEES WILL BE LIVING.

• IT CONSISTS TWO FLOORS, WHICH INCLUDES LIVING ROOM, KITCHEN, DINING SPACE FOR 12 PEOPLE, 2 BEDROOMS FOR TWO NUMBER OF CHILDREN AND 2 BEDROOMS FOR 3 NUMBER OF CHILDREN, BEDROOM FOR MOTHER, SEPARATE STUDY SPACE, SMALL TERRACE.

•

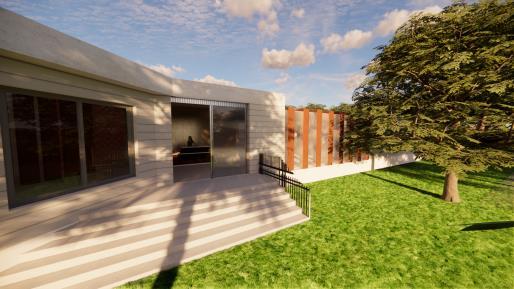

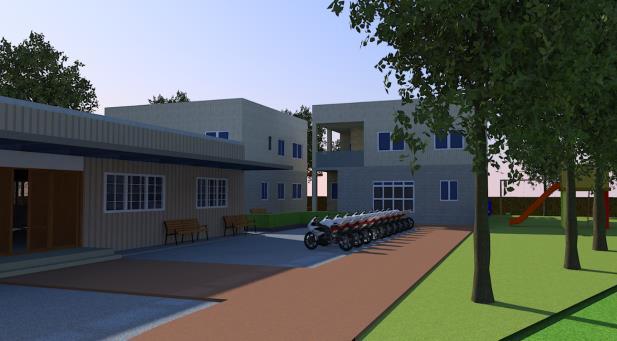

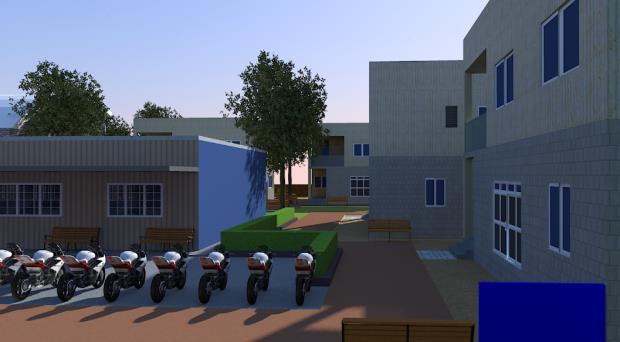

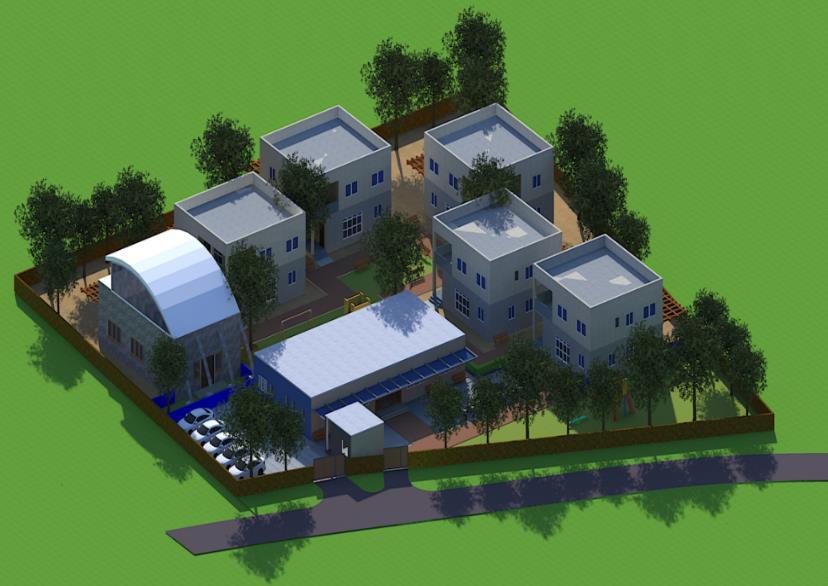

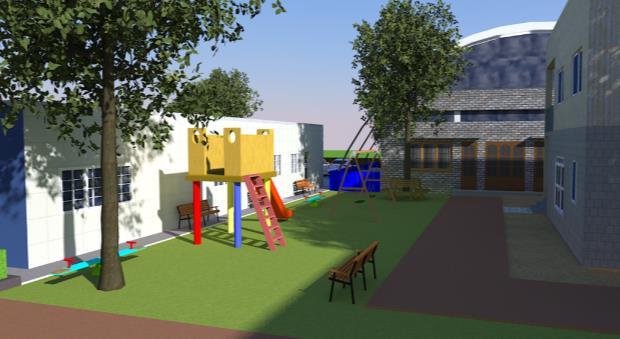

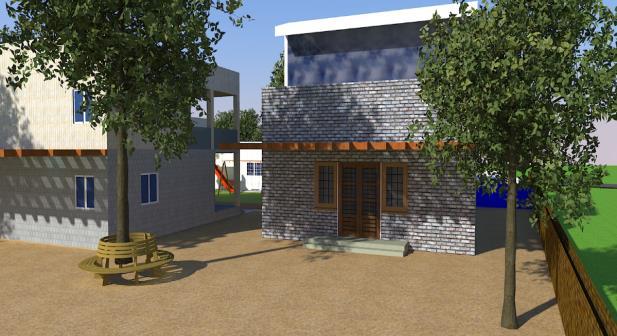

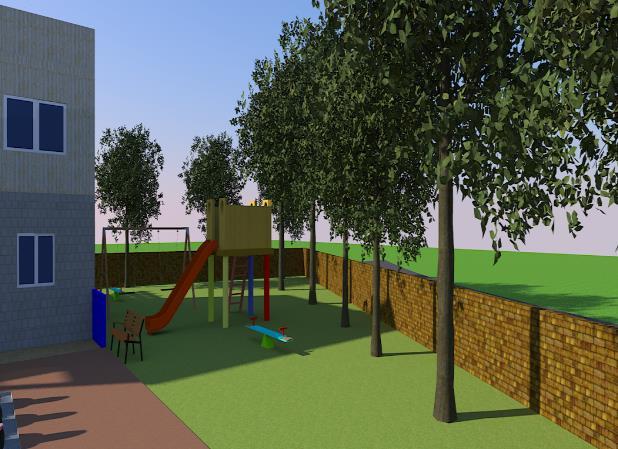

21 BACK SIDE OF HOUSE AND MULTIPURPOSE HALL TWO WHEELER PARKING AND ACCESS TO HOUSES OUTDOOR PLAYING SPACE AT CANTER PARKING SPACEVIEW AT ENTRANCE PLAYING SPACE IN FRONT

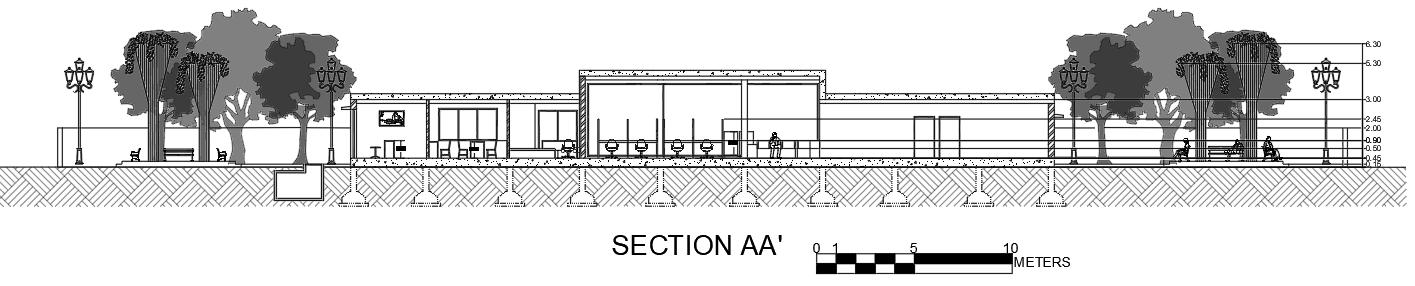

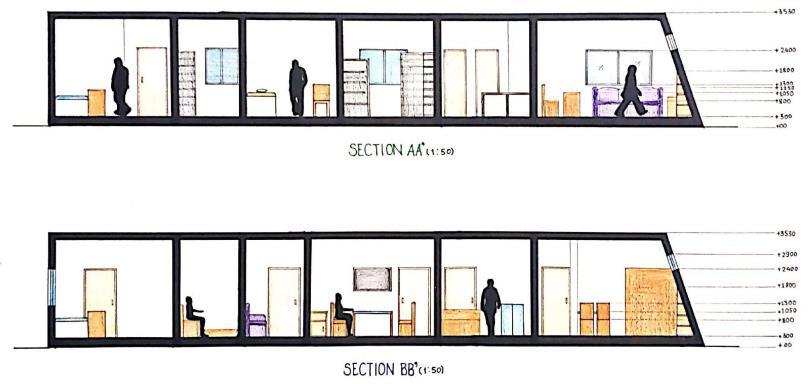

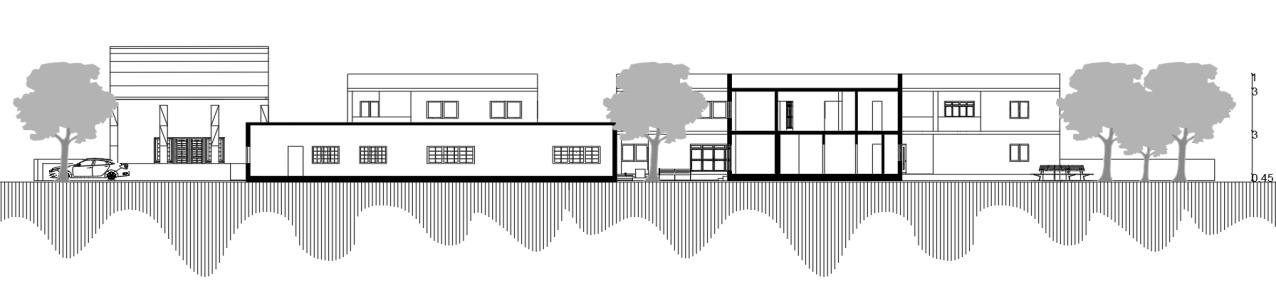

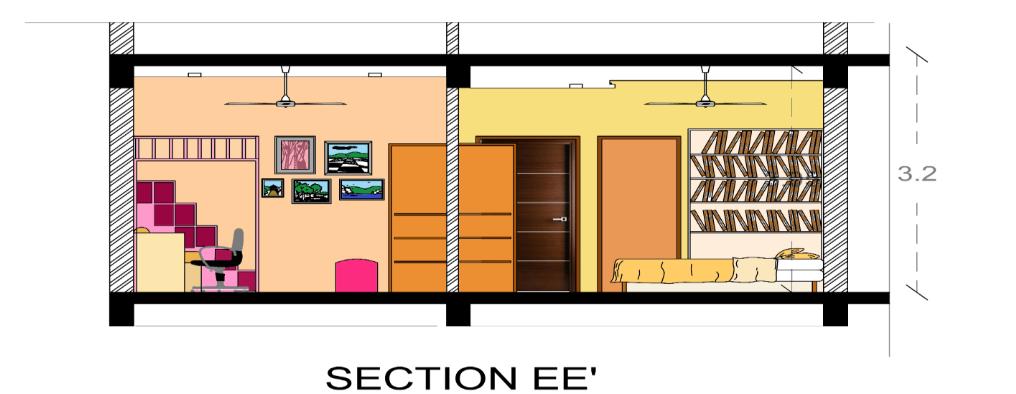

SECTION AA’ MULTIPURPOSE HALL ADMIN OFFICE PARKING HOUSE SEATING UNDER TREE SECURITY CABIN ADMIN OFFICE MULTIPURPOSE HALL SEATING UNDER TREE SECTION BB’

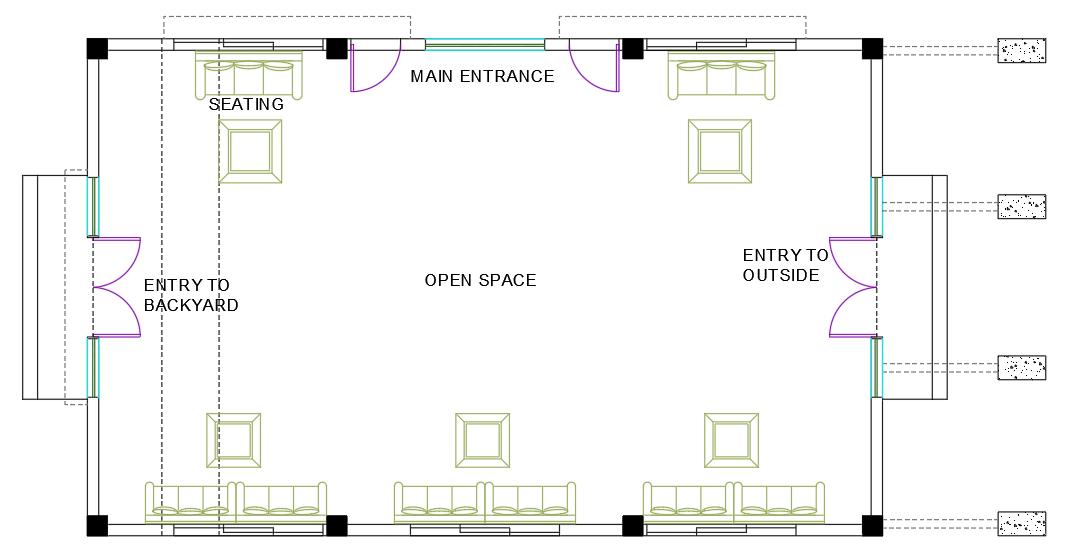

MULTIPURPOSE HALL IS PROVIDED WITH SEATING ON THE SIDES AND LEFT OPEN SPACE IN THE MIDDLE FOR VARIOUS ACTIVITIES.

IT HAS THREE ENTRIES, ONE MAIN ENTRY AND OTHERS GIVE ACCES TO BACKYARD. FIRST FLOOR OF HOUSE GROUND FLOOR OF HOUSE MULTIPURPOSE HALL ADMIN OFFICE
