WE ALL HAVE A SPATIAL DIMENSION,THAT DETERMINES OUR RELATIONSHIP TO EACH OTHER AND OUR SURROUNDINGS

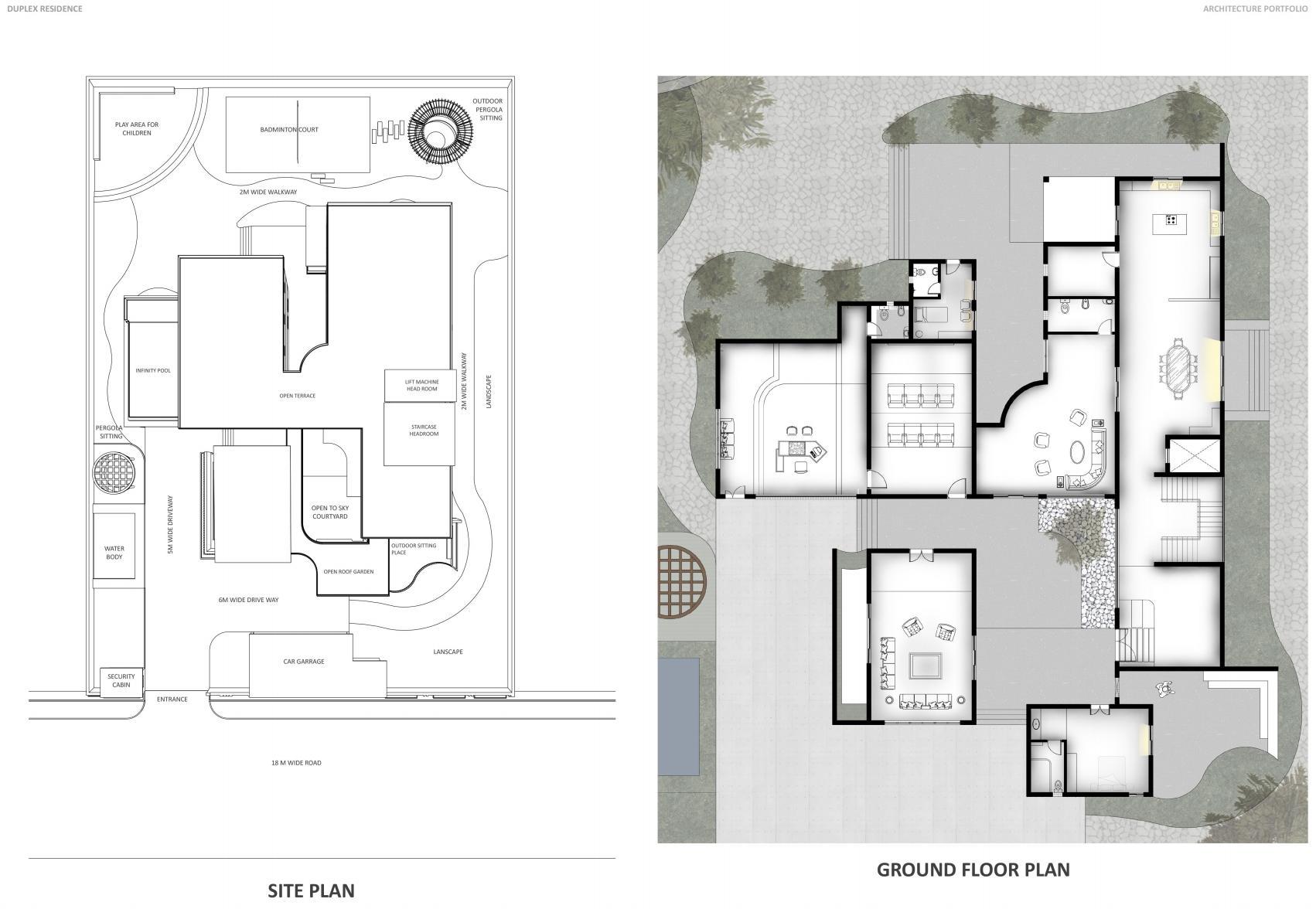

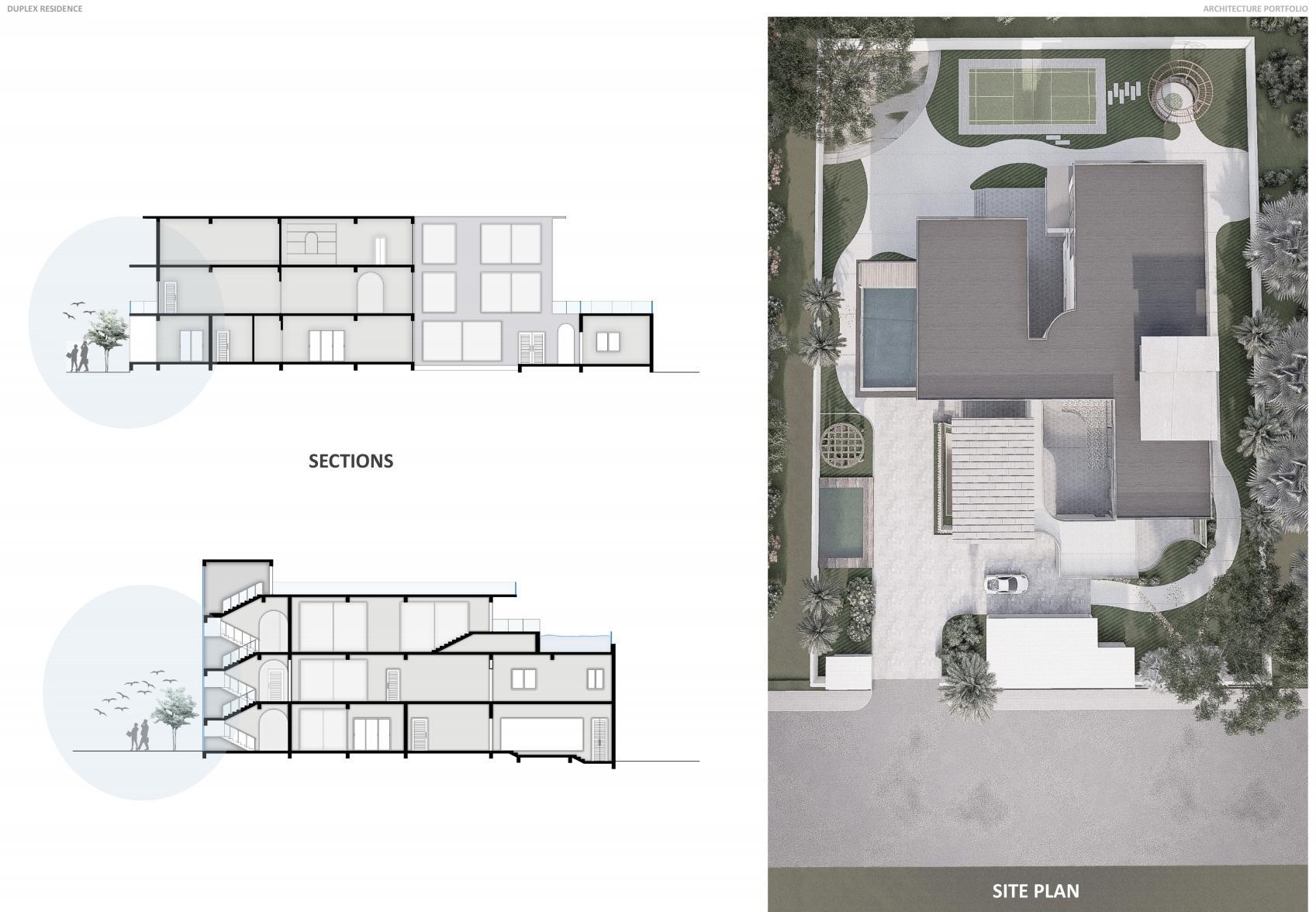

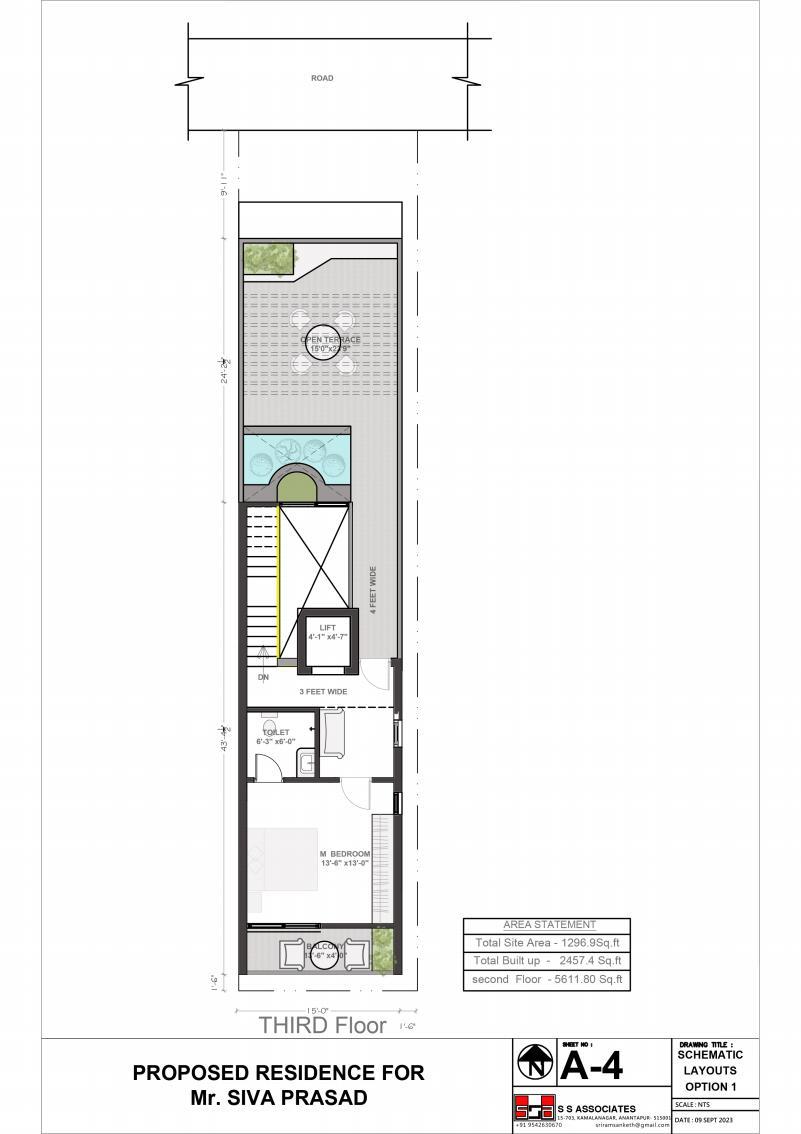

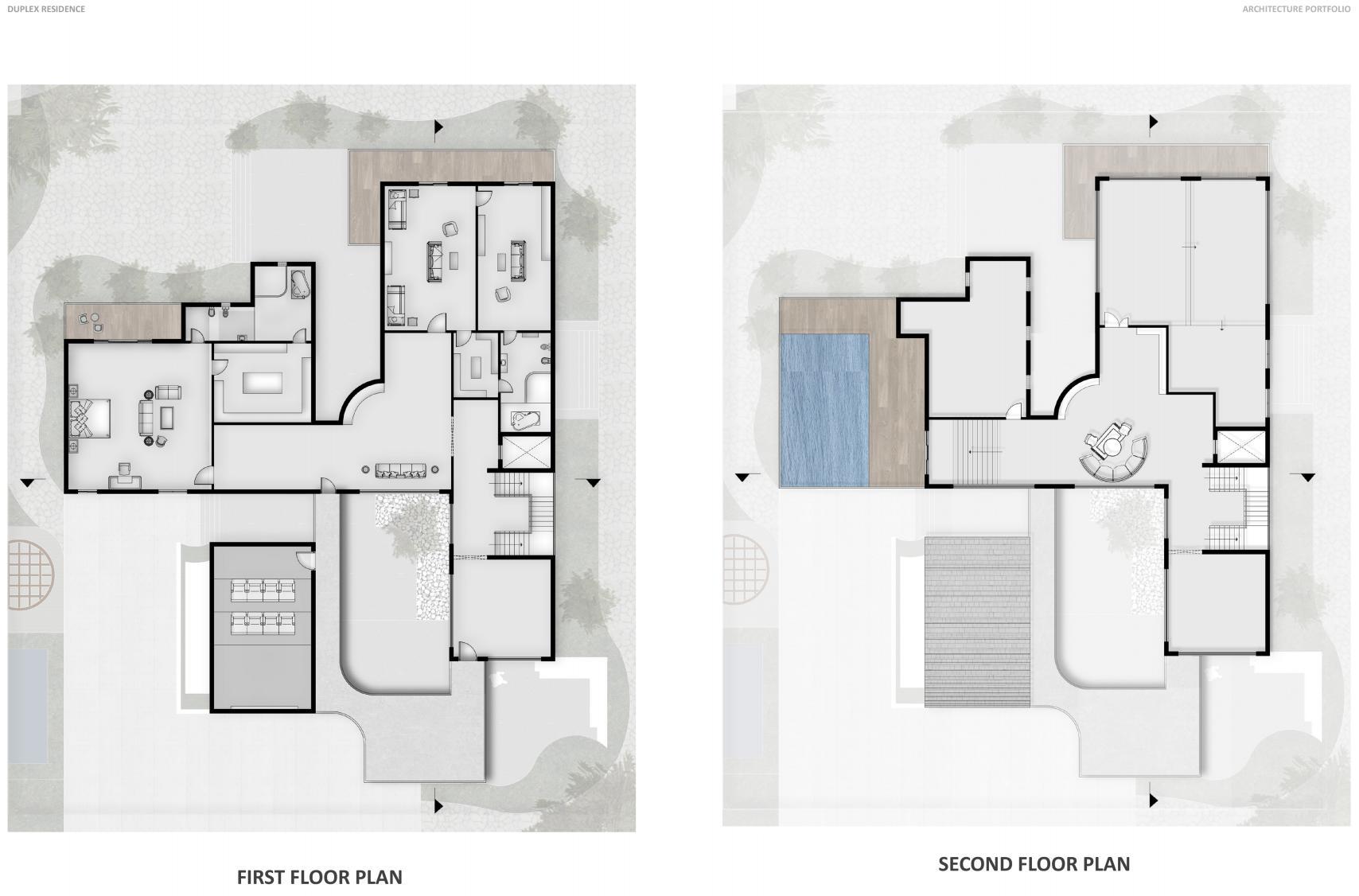

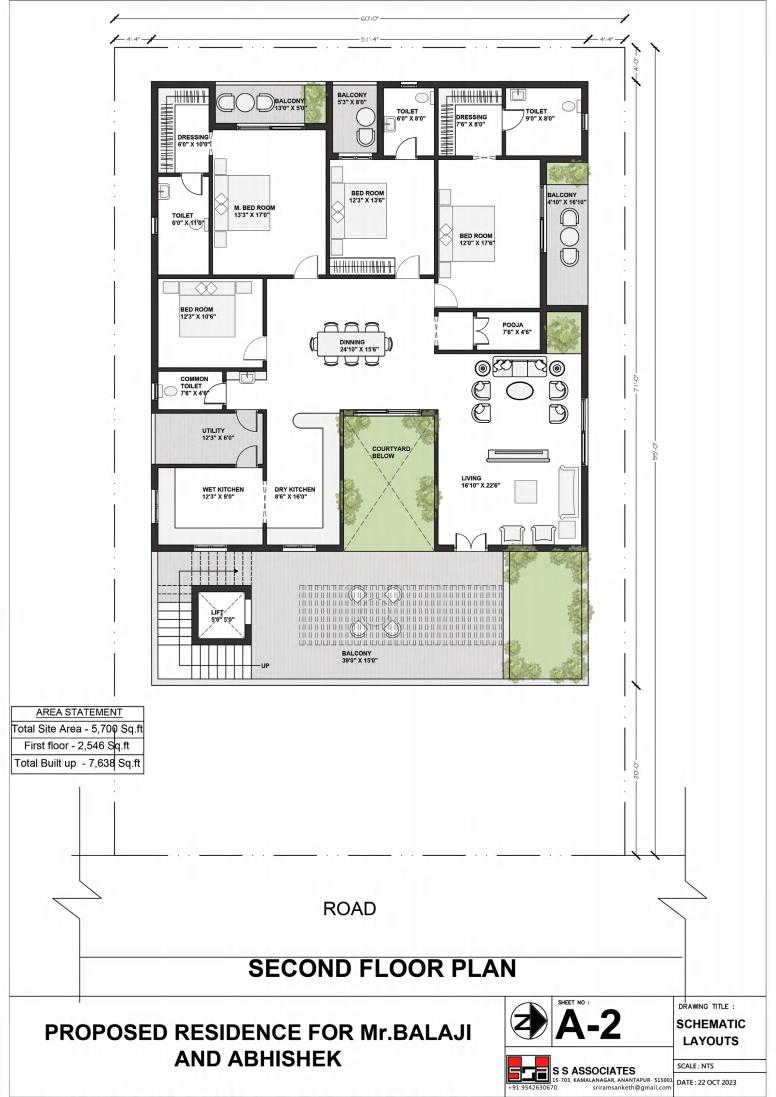

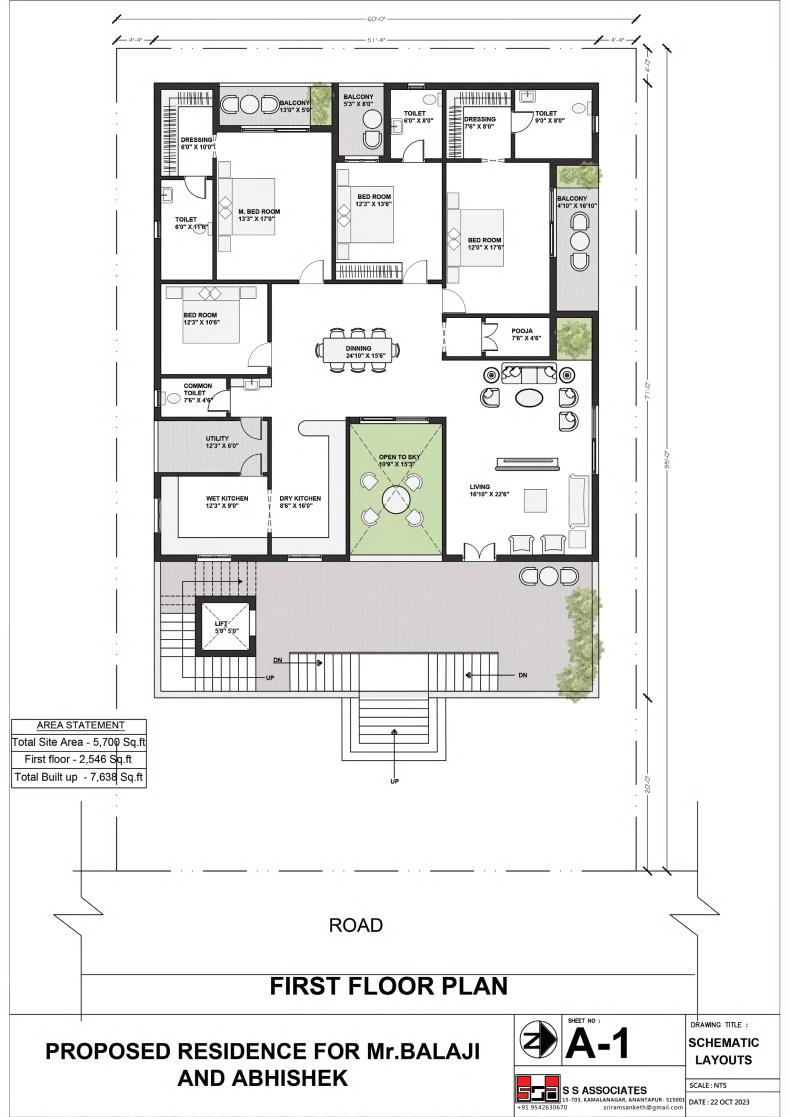

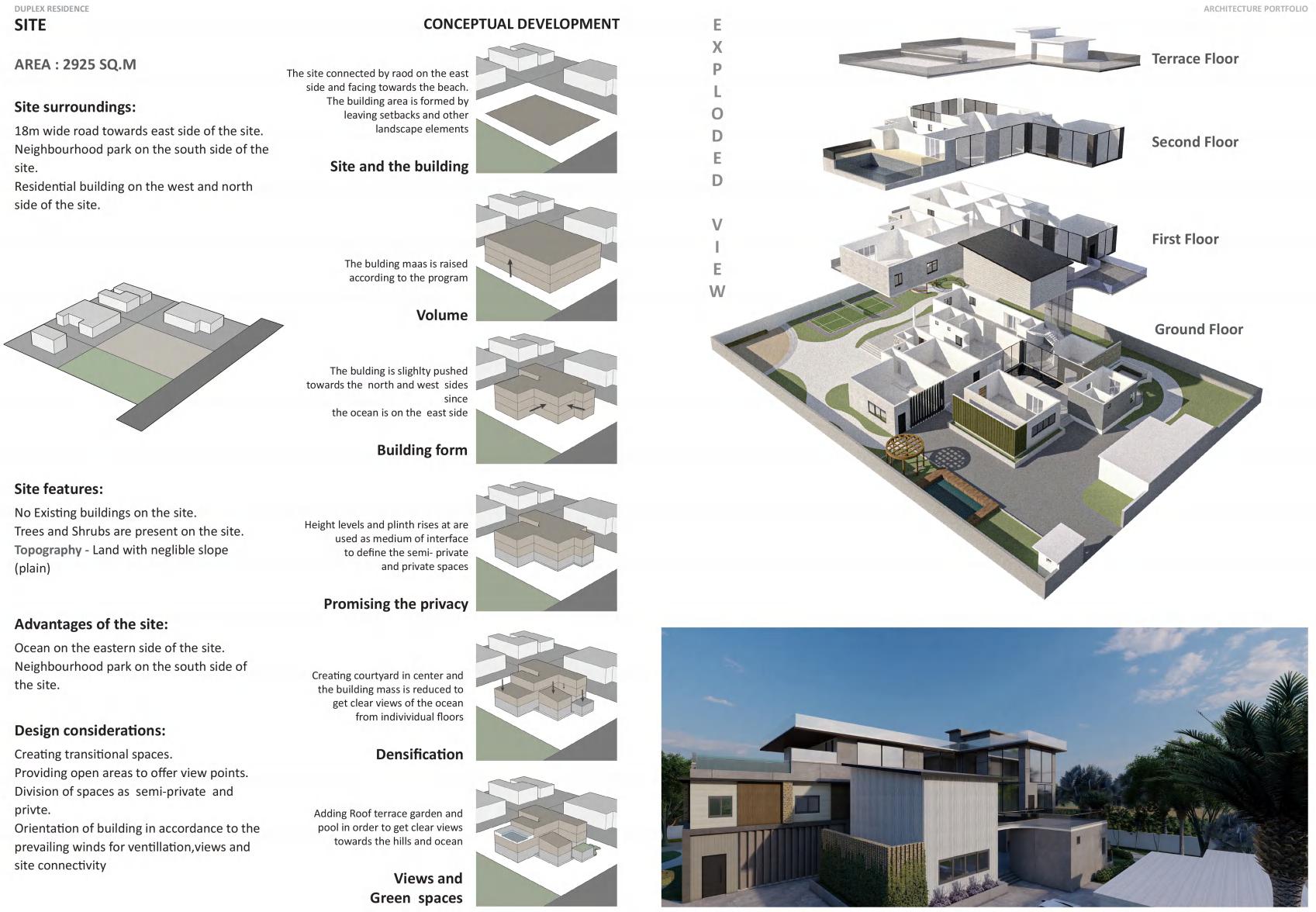

01 DUPLEX RESIDENCE

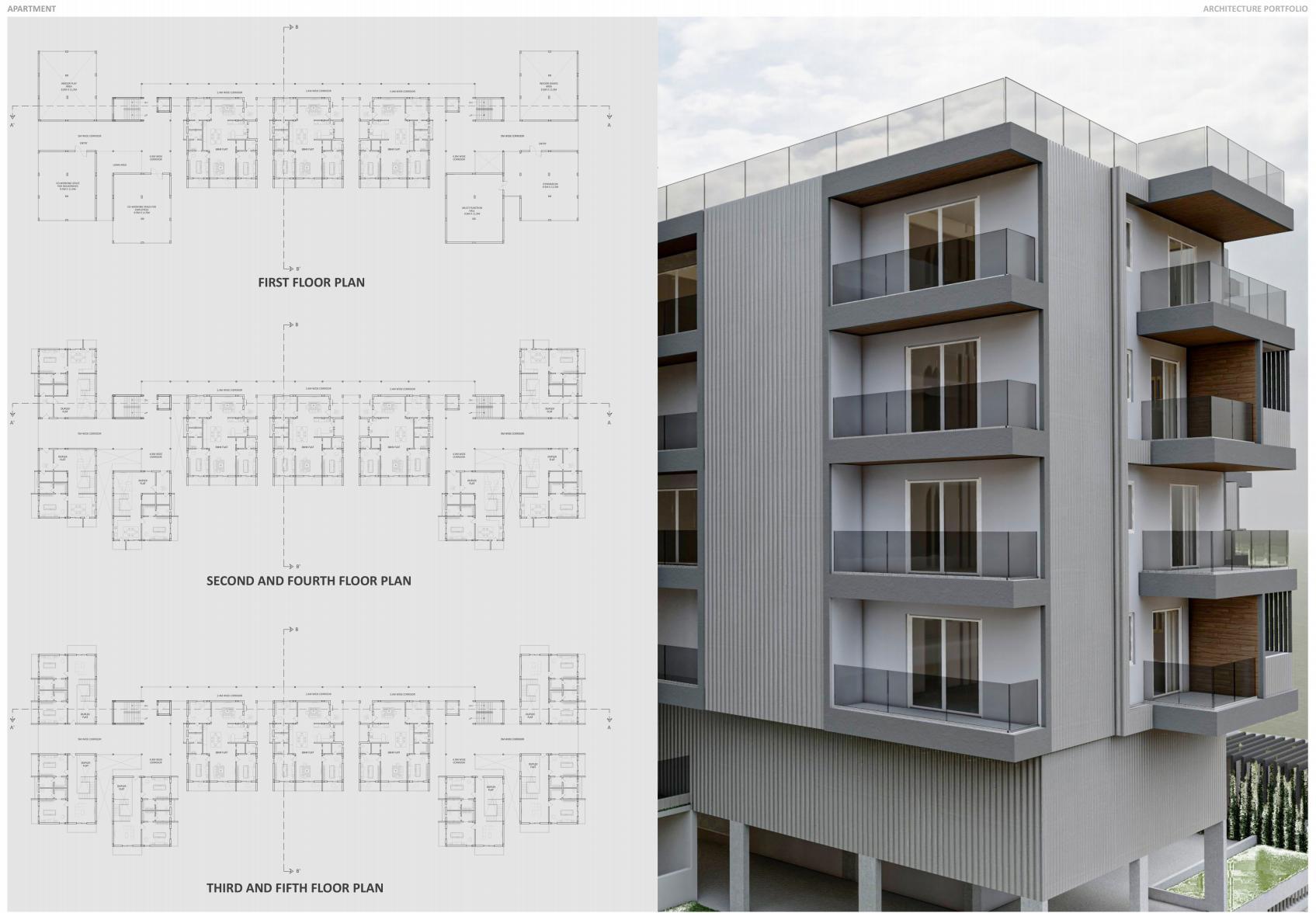

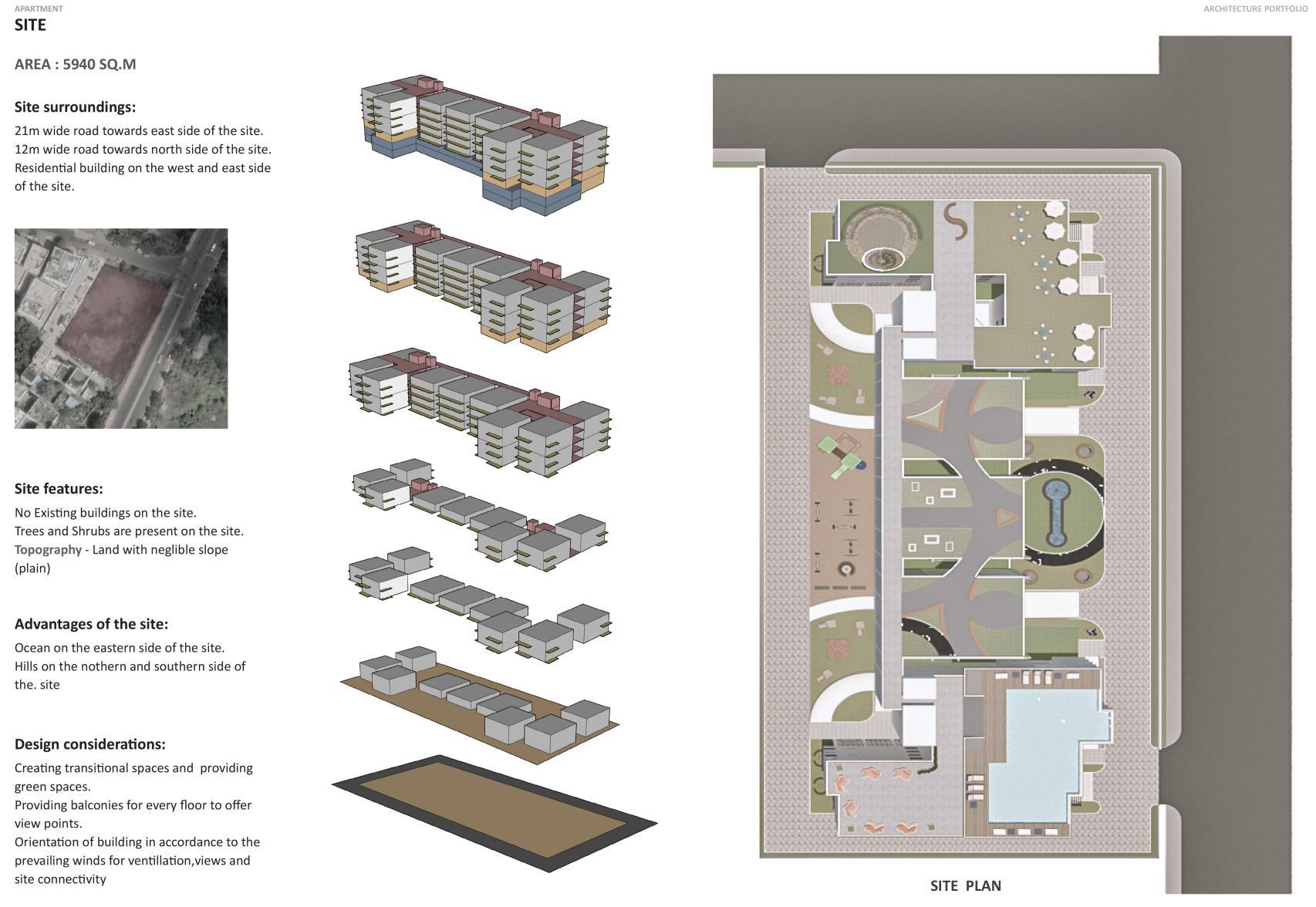

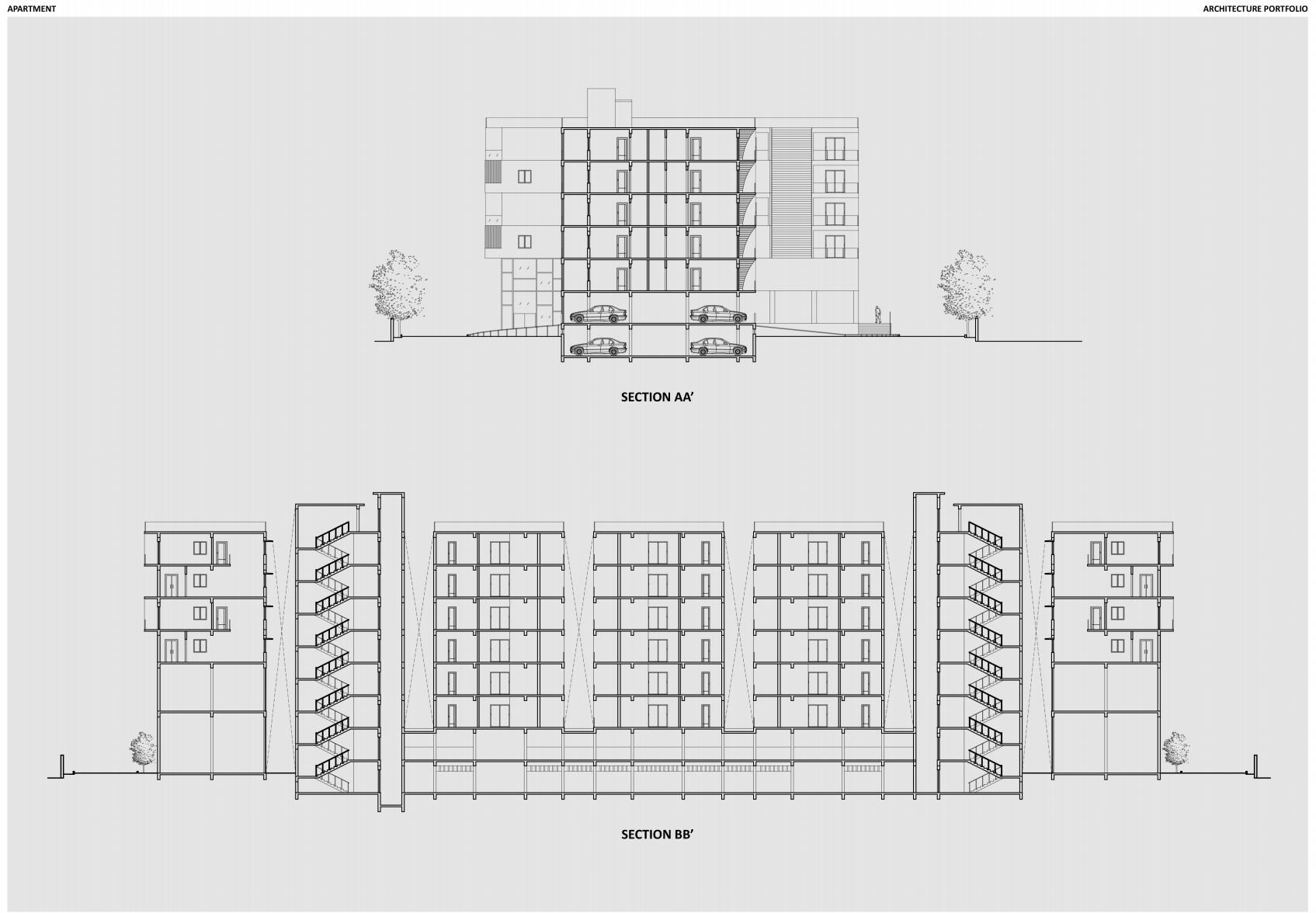

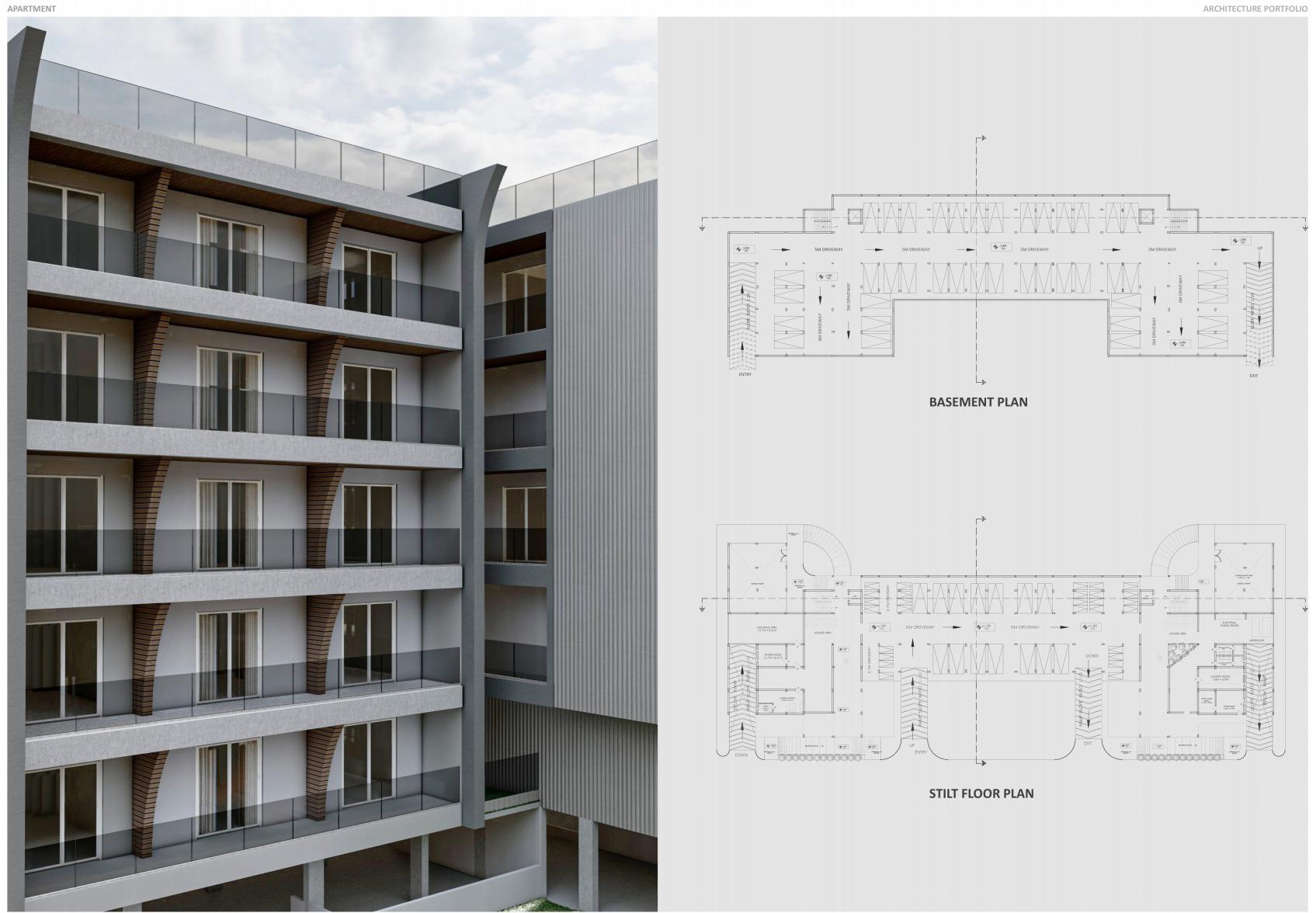

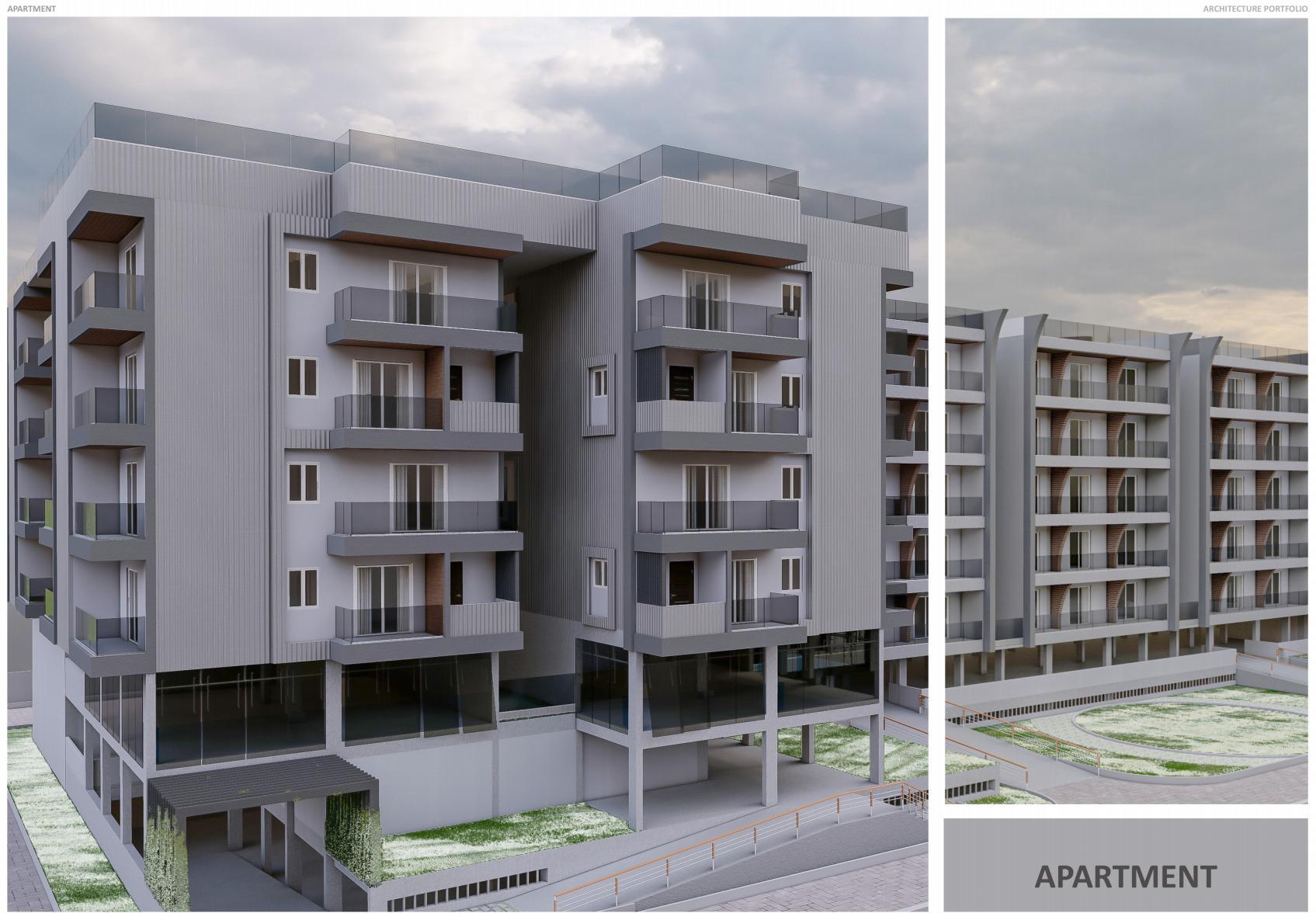

02 APARTMENT
03 GRILS HOSTEL WORKING DRAWINGS
04 PLANS,ESTIMATES,FUNCTION ALL,INTERIORS.

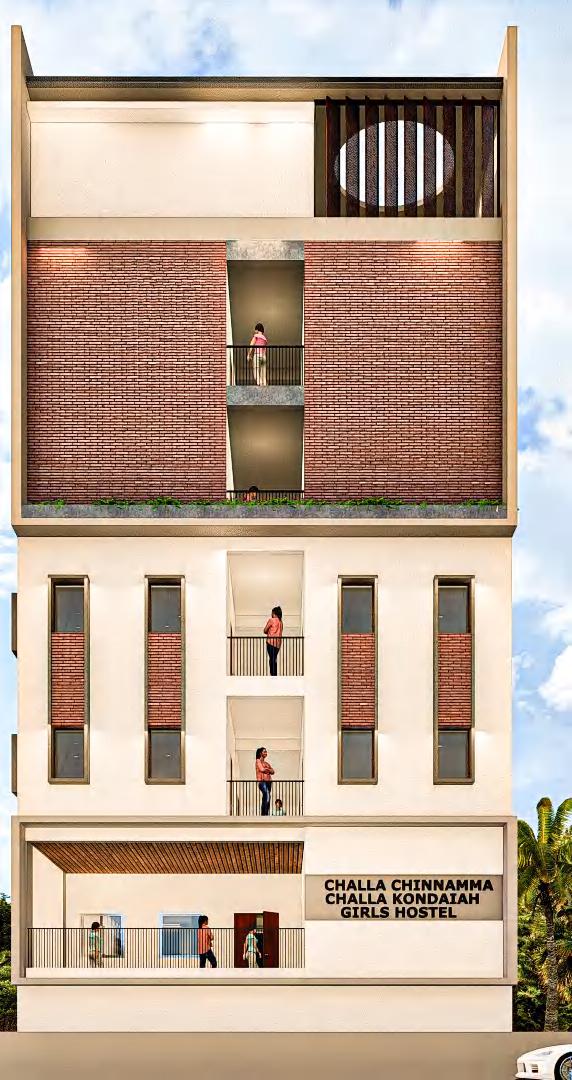

Smt. Challa Chinnamma & Challa Kondaiah Girls Hostel
GRATE SLAB FLOOR SLAB
DETAILS
SCHEDULE OF OPENINGS -DOORS

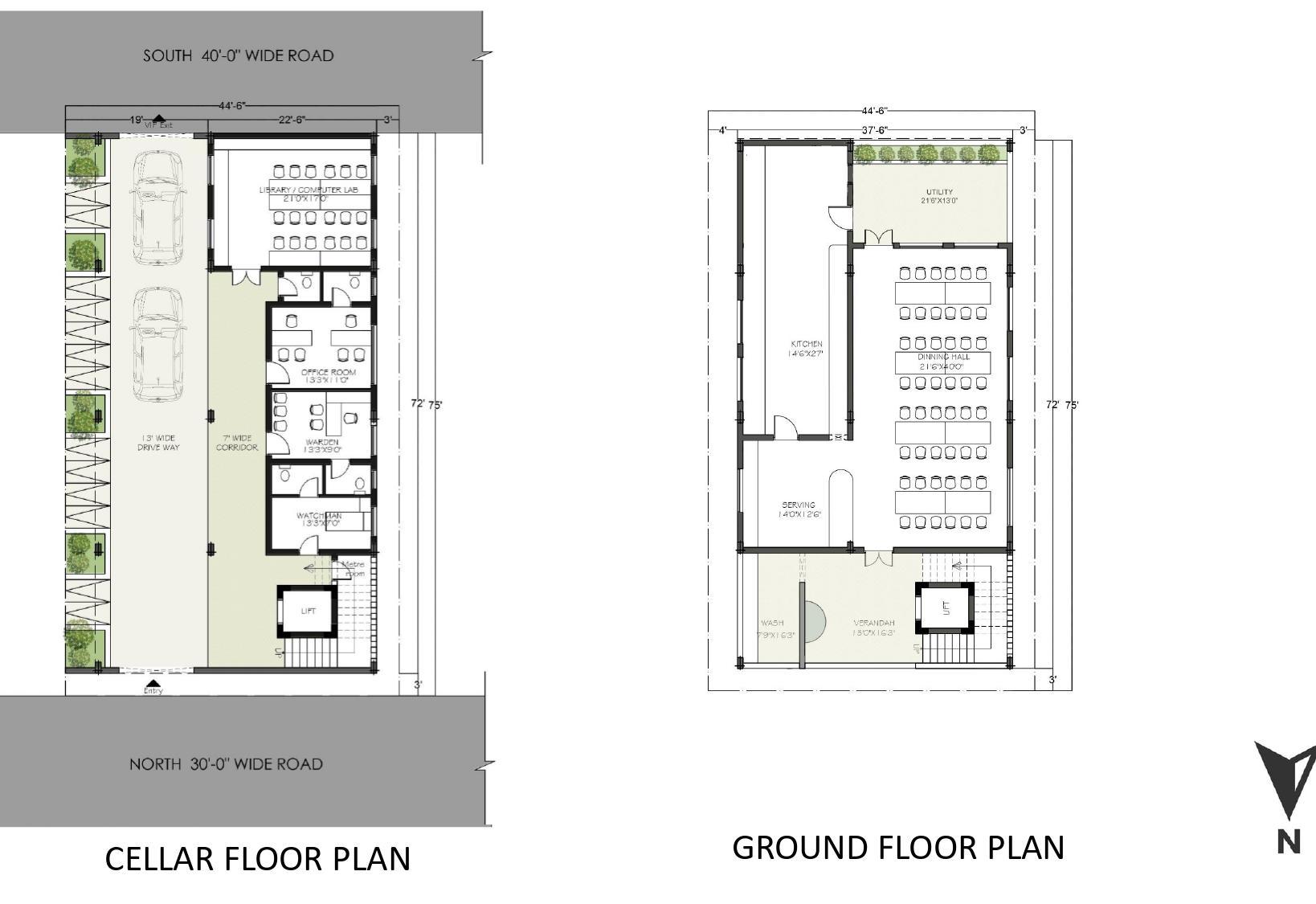

BRICK WORK BASEMENT FLOOR PLAN
BRICK WORK GROUND FLOOR PLAN
BRICK WORK GROUND FLOOR PLAN
Smt. Challa Chinnamma & Challa Kondaiah Girls Hostel
BRICK WORK 1st & 2nd
ALUMINIUM FRAME W/ 5MM THICK CLEAR GLASS-TYP.

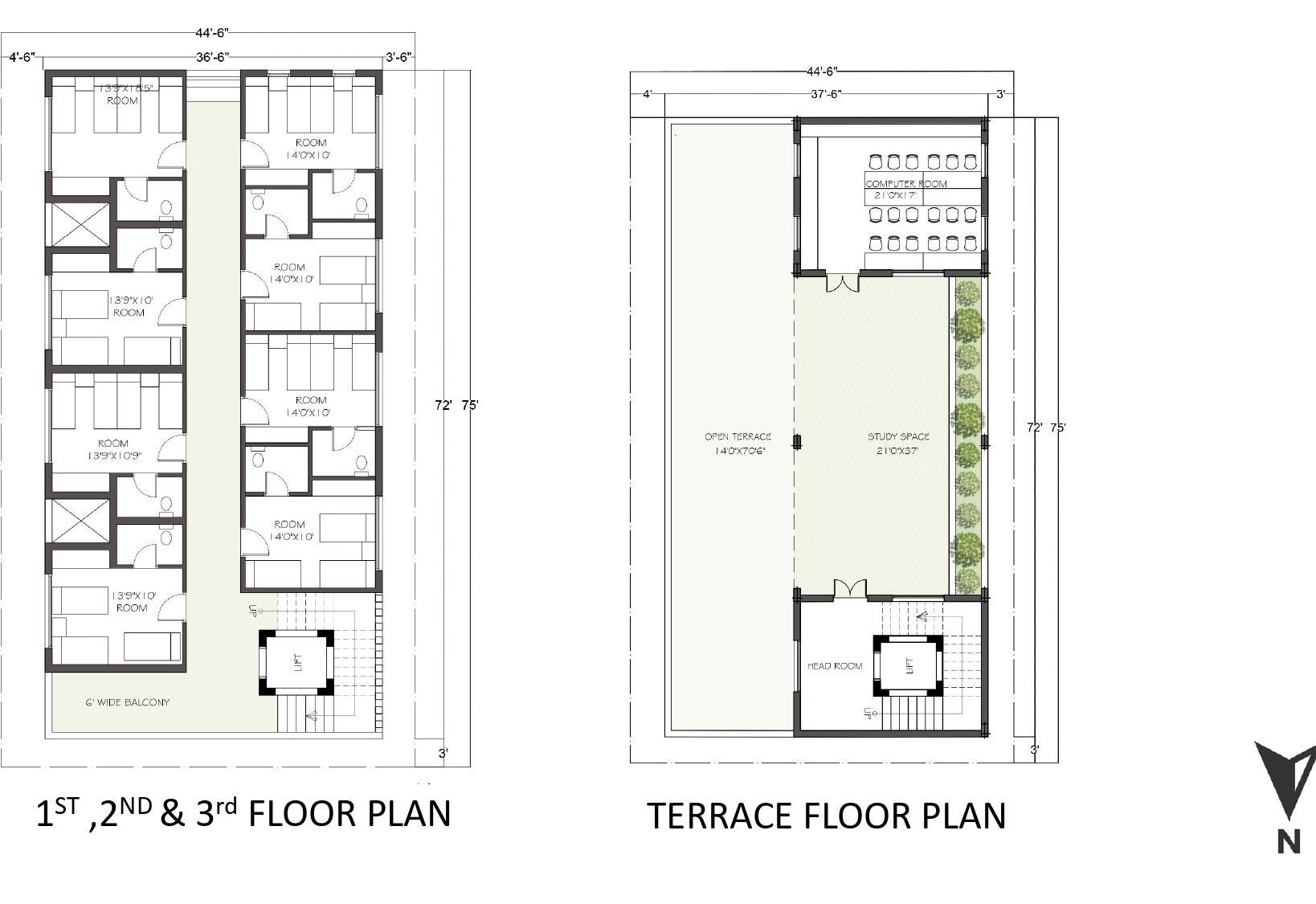

1st & 2nd TYPICAL FLOOR PLAN
BRICK WORK 3rd & 4th
SCHEDULE OF OPENINGS -DOORS
SCHEDULE OF OPENINGS -DOORS
3rd & 4th TYPICAL FLOOR PLAN
ELECTRICAL LEGEND
ELECTRICAL LEGEND HEIGHT
excavated suitable material as per Technical Specification 305 MORD / 304 MORTH
Alround the Building under RR Masonry for basement
RCC M- 25 Design mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all operational, incidental and labour charges such as machine mixing, laying concrete, curing etc.,complete but excluding cost of steel and its fabrication charges for finished item of work, including centering, shuttering for Footings
Filling with Sand in plinth from approved quarry /available sources in layers consolidating each deposited layer by watering and ramming including all operational, incidental, labor charges, hire charges of T & P etc., complete for finished item of work as per technical specification Clause 305.3.9 MORD & 304 MORTH
RCC M- 25 Design mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all operational, incidental and labour charges such as machine mixing, laying concrete, curing etc.,complete but excluding cost of steel and its fabrication charges for finished item of work, including centering, shuttering for Pedestals
Plain Cement Concrete corresponding to M7.5 grade as per IS 456 equivalent to (1:4:8) proportion nominal mix (cement: fine aggregate: Coarse aggregate) using 40mm size HBG (SS5) metal from from approved quarry including cost and conveyance of all materials like cement, sand, coarse aggregate, water etc. to site, including seigniorage charges, sales & other taxes on all materials, all operational, incidental and labour charges such as mixing, laying, curing concrete, etc., complete for finished item of work for Foundations and Flooring
R.C.C. M-25 Design Mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all operational, incidental and labour charges such as machine mixing, laying concrete, curing etc.,complete but excluding cost of steel and its fabrication charges for finished item of work, including centering, shuttering for Columns
R.C.C. M-25 Design Mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all operational, incidental and labour charges such as machine mixing, laying concrete, curing etc.,complete but excluding cost of steel and its fabrication charges for finished item of work, including centering, shuttering for Lintels ,sill beds
R.C.C. M-25 Design Mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all operational, incidental and labour charges such as machine mixing, laying concrete, curing etc.,complete but excluding cost of steel and its fabrication charges for finished item of work, including centering, shuttering for Sunshades of 7.50cms thick at fixed end and 5.00cms thick at free end
RCC M- 25 Design mix (Cement:fine aggregate: coarse aggregate) corresponding to Table 9 of IS 456 using 20mm size graded machine crushed hard granite metal (coarse aggregate) from approved quarry including cost and conveyance of all materials like cement, fine aggregate (sand) coarse aggregate, water etc., to site and including Seigniorage charges, sales & other taxes on all materials including all
of
but excluding the cost of conveyance of all materials
Providing skirting to internal walls to 15 cm height/risers of steps with Double Charged stain free porcelain Vitrified tiles of size 600 X 600 mm and thickness between 8-10 mm length equal to flooring stones, set over base coat of CM (1:5) 12 mm thick with cement slurry of honey like consistency spread at the rate of 3.30 kgs per sqm and jointed with white cement paste mixed with pigment of matching shade to full depth, including cost of all materials like tiles, cement, sand and water etc., complete including seigniorage charges, etc., complete for finished item of work, but excluding the cost of conveyance of all materials
Dadooing to internal walls with glazed red or white full body ceramic wall tiles of size 320 X 400 mm and thickness 6 mm Ist quality confirming to IS:13711, IS: 13712, IS: 13630 of any colour and finish in all shades and designs, set over base coat of CM (1:3) 12 mm thick with cement slurry of honey like consistency spread at the rate of 3.30 kgs per sqm and jointed with white cement paste mixed with pigment of matching shade to full depth, including cost of all materials like tiles, cement, sand and water etc., complete including seigniorage charges, etc., complete for finished item of work, but excluding the cost of conveyance of all materials
complete for finished item of work, but excluding the cost of conveyance of all materials.
Flooring with Non-skid red or white full body ceramic floor tiles of size 300 X 300 mm and thickness between 7-8 mm Ist quality confirming to IS:13711, IS:13712, IS:13630 of any colour and finish in all shades and designs, set over base coat of cement mortar (1:8), 12 mm thick over CC bed already laid or RCC roof slab, including neat cement slurry of honey like consistency spread @ 3.3.kgs per sqm & jointed neatly with white cement paste to full depth mixed with pigment of matching shade, including cost of all materials like cement, sand water and tiles etc., complete, including seigniorage charges, etc., complete for
Supplying and fixing of Unplasticised Poly Vinyl Chloride (UPVC) sliding windows two track sliding duly manufactured using UPVC reinforced profiles of (62 mm 60 mm)/(60 mm x 45 mm) x 2.0 mm for outer frames, (66 mm x 38 mm)/(58 mm x 39 mm) x 2.0 mm for sliding shutter frames capable of mounting single glazing system, structurally reinforced with hot dip galvanized up to 50 microns of minimum thickness of 1.2 mm prefabricated & welded through fusion welding the window sash shall be fitted with 5 mm thick Tinted glass of reputed make duly fixed with TPV Gaskets/ EPDM weathering seal resistant accessories like locking system 1 No., per set of sashes and the system is to be installed at the site using anchor fasteners, silicon rubber sealant, easy glazing/ deglazing at site etc., including cost and conveyance of all materials, accessories, labour charges for transportation, erection at site with templates for casement sizing complete for finished item of work

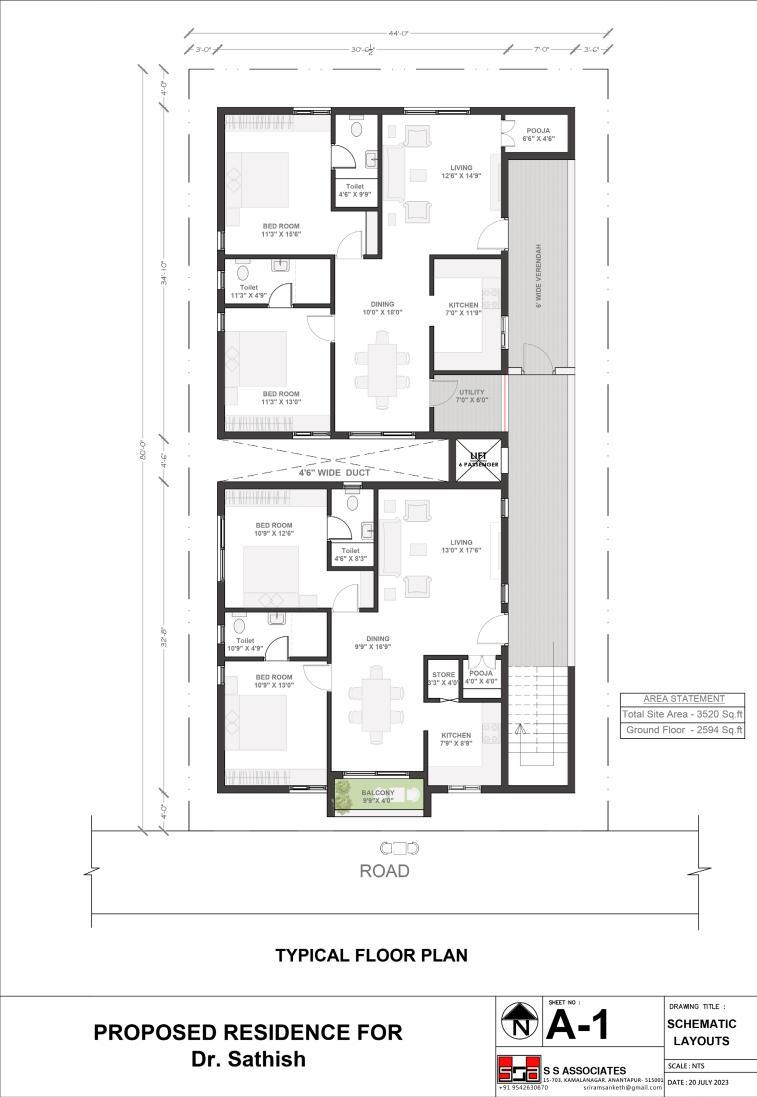

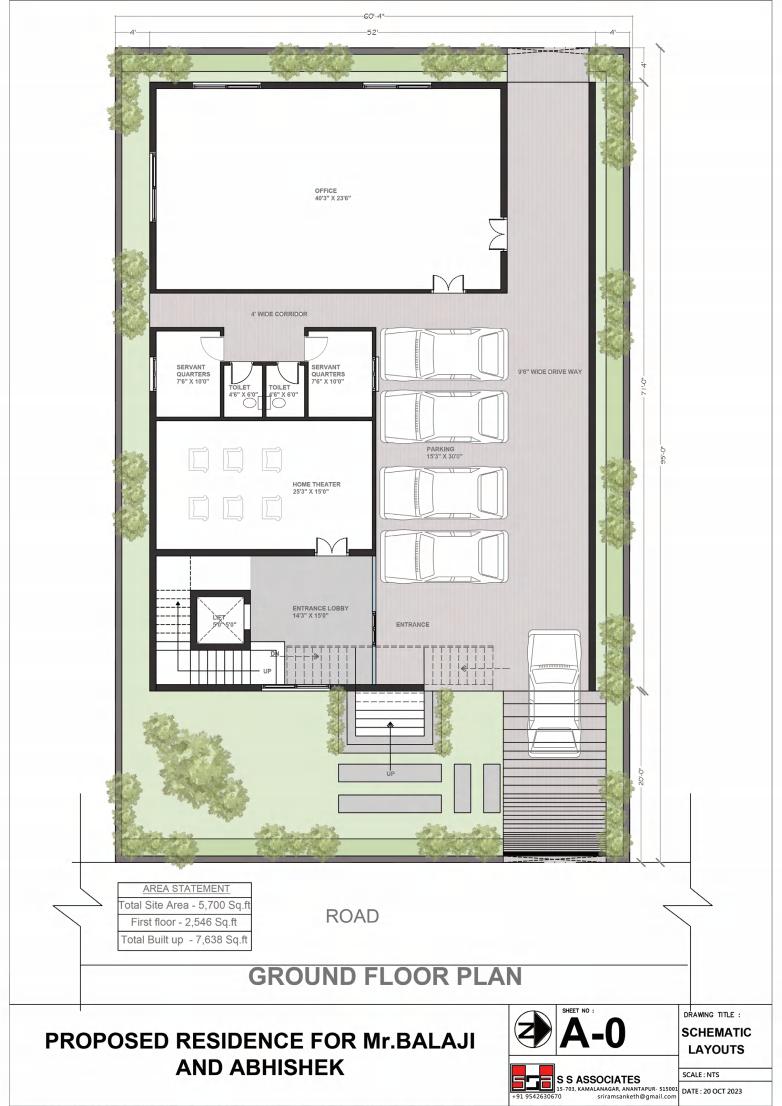

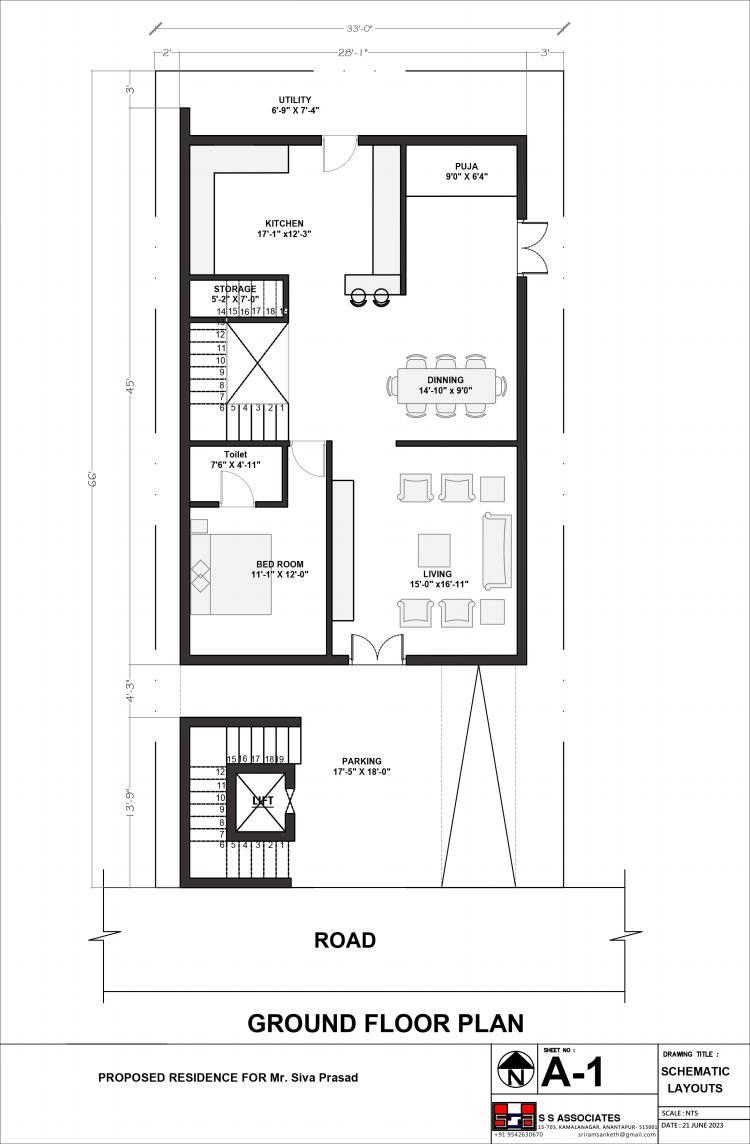

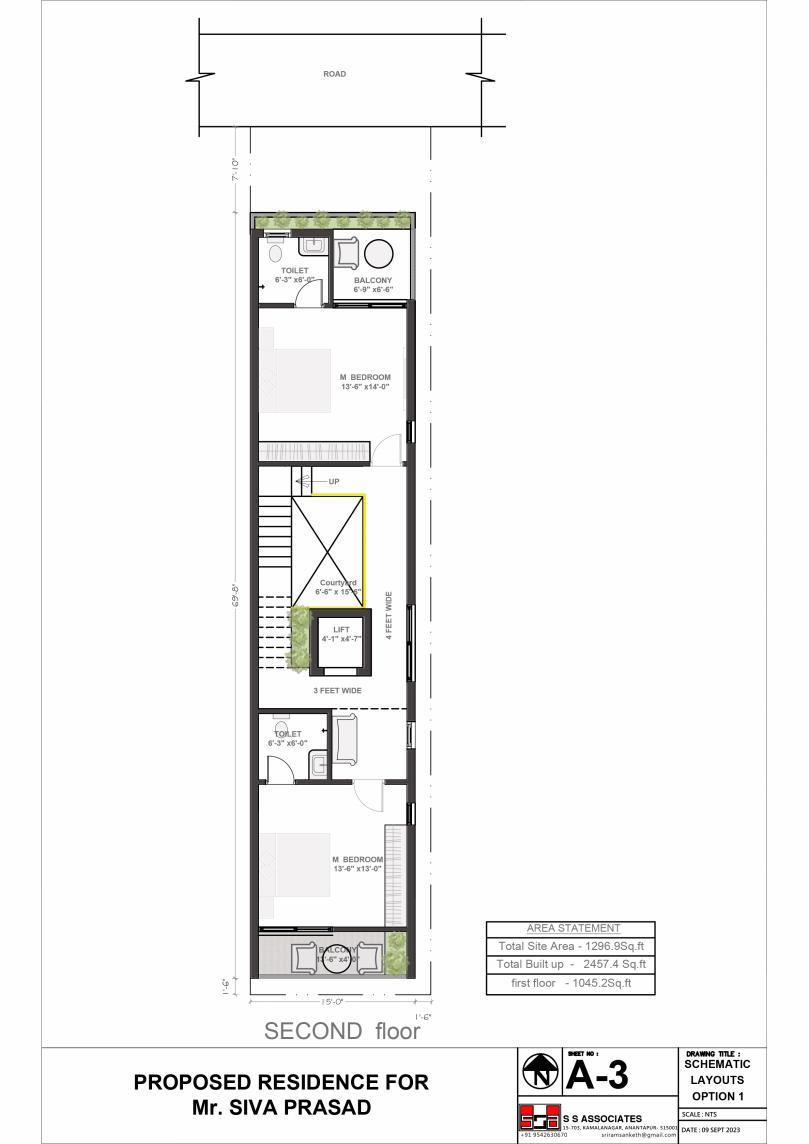

RESIDENCES PLANNING

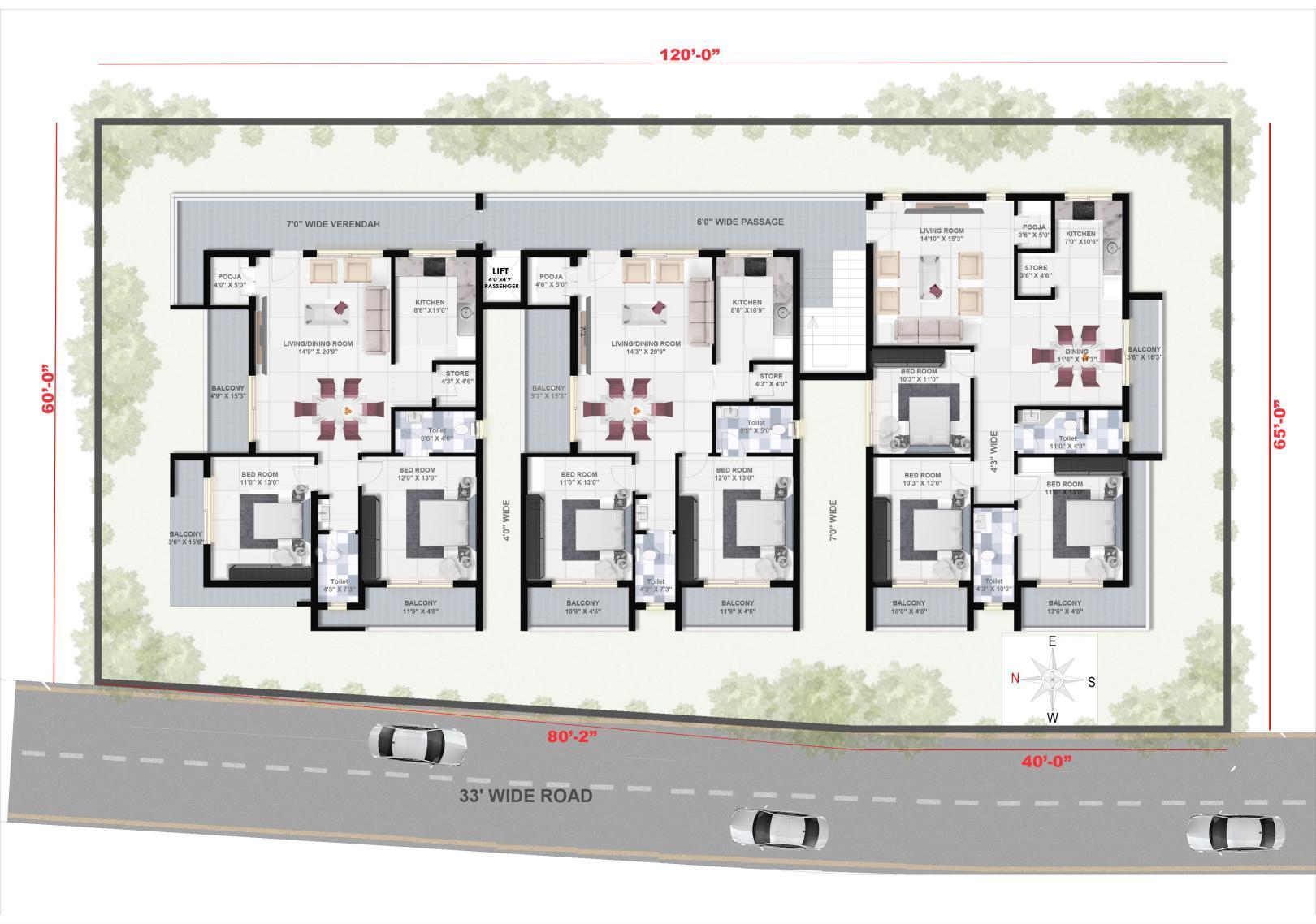

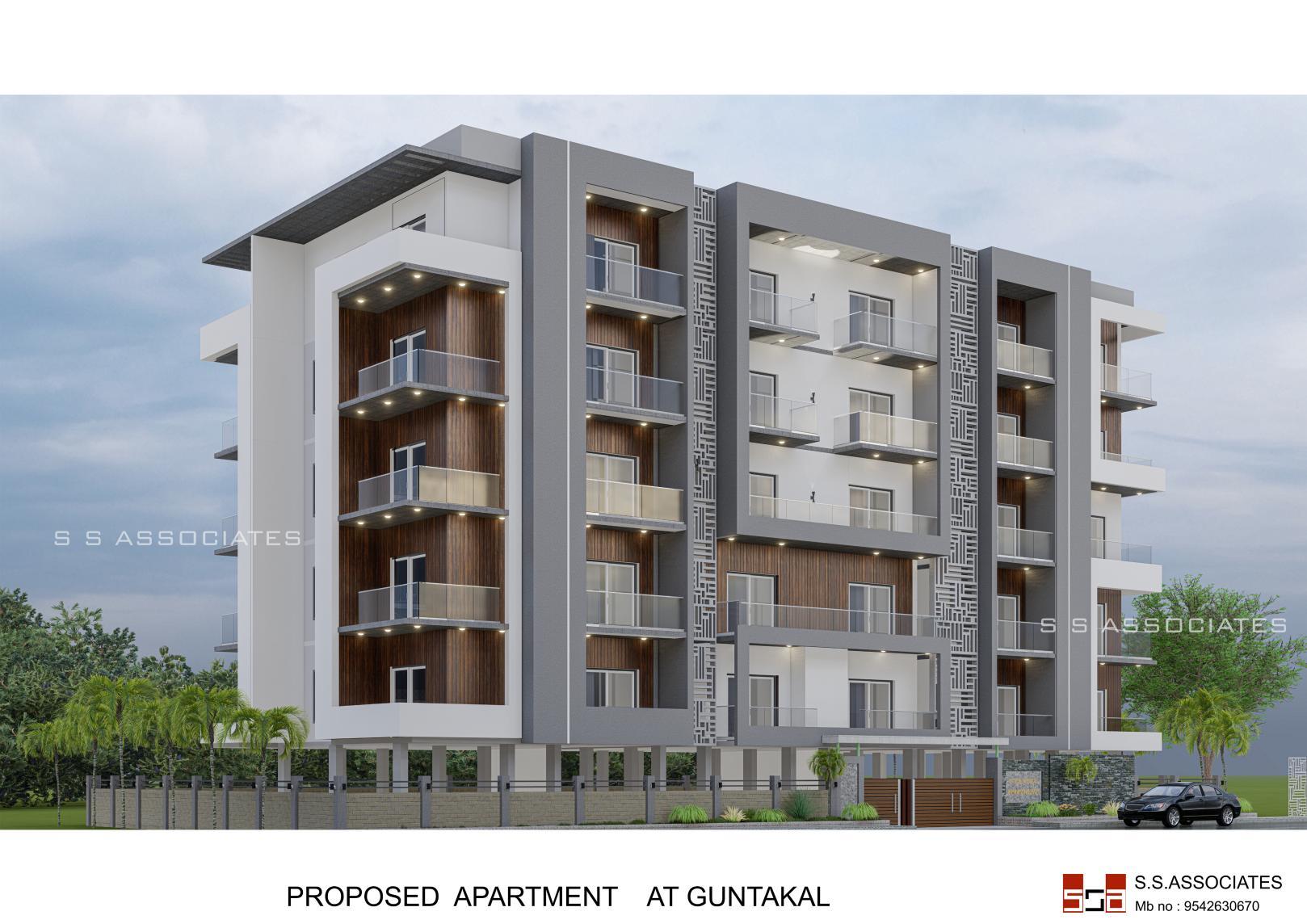

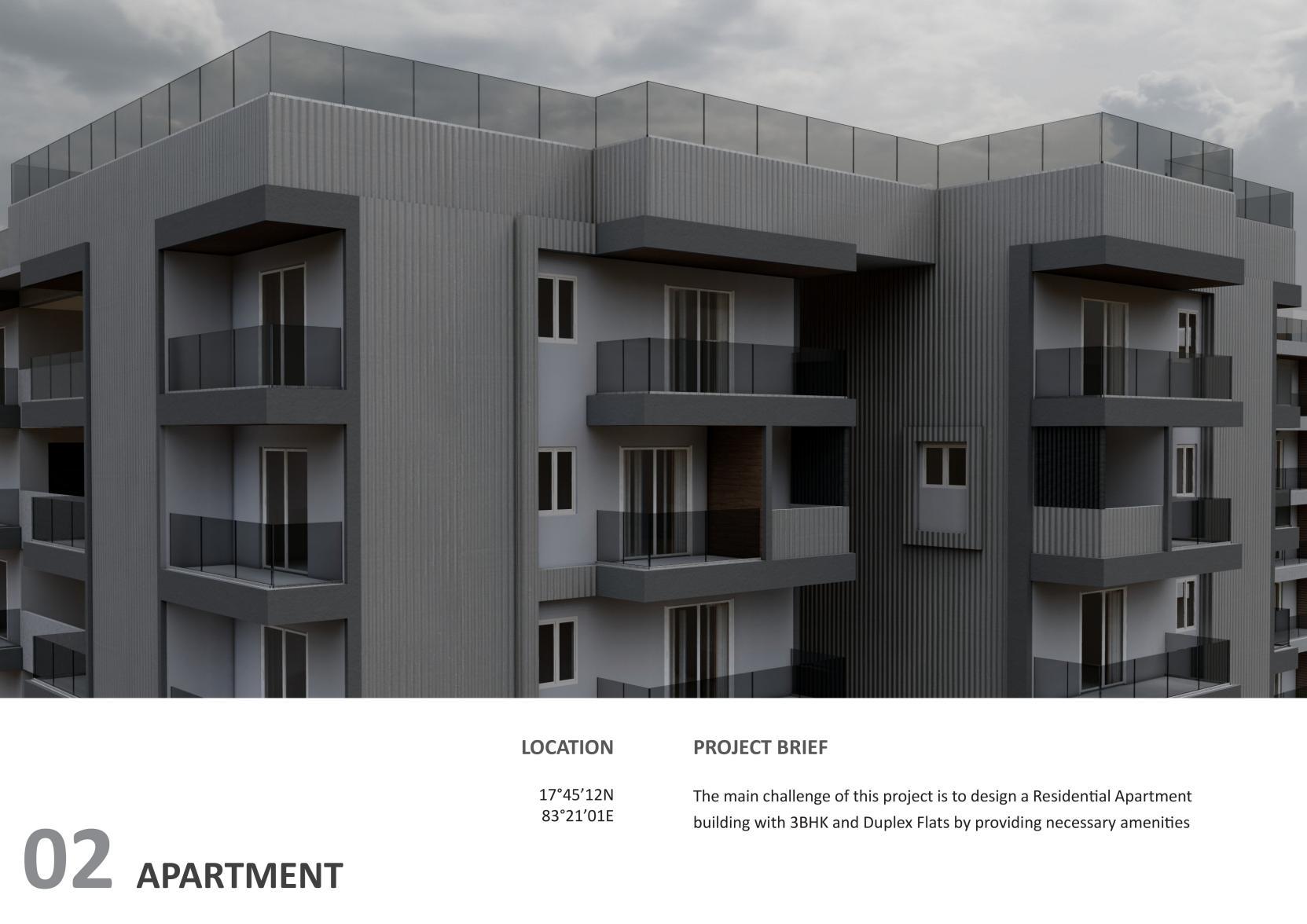

PROPOSED GUNTAKAL APARTMENT
GUNTAKAL APARTMENT

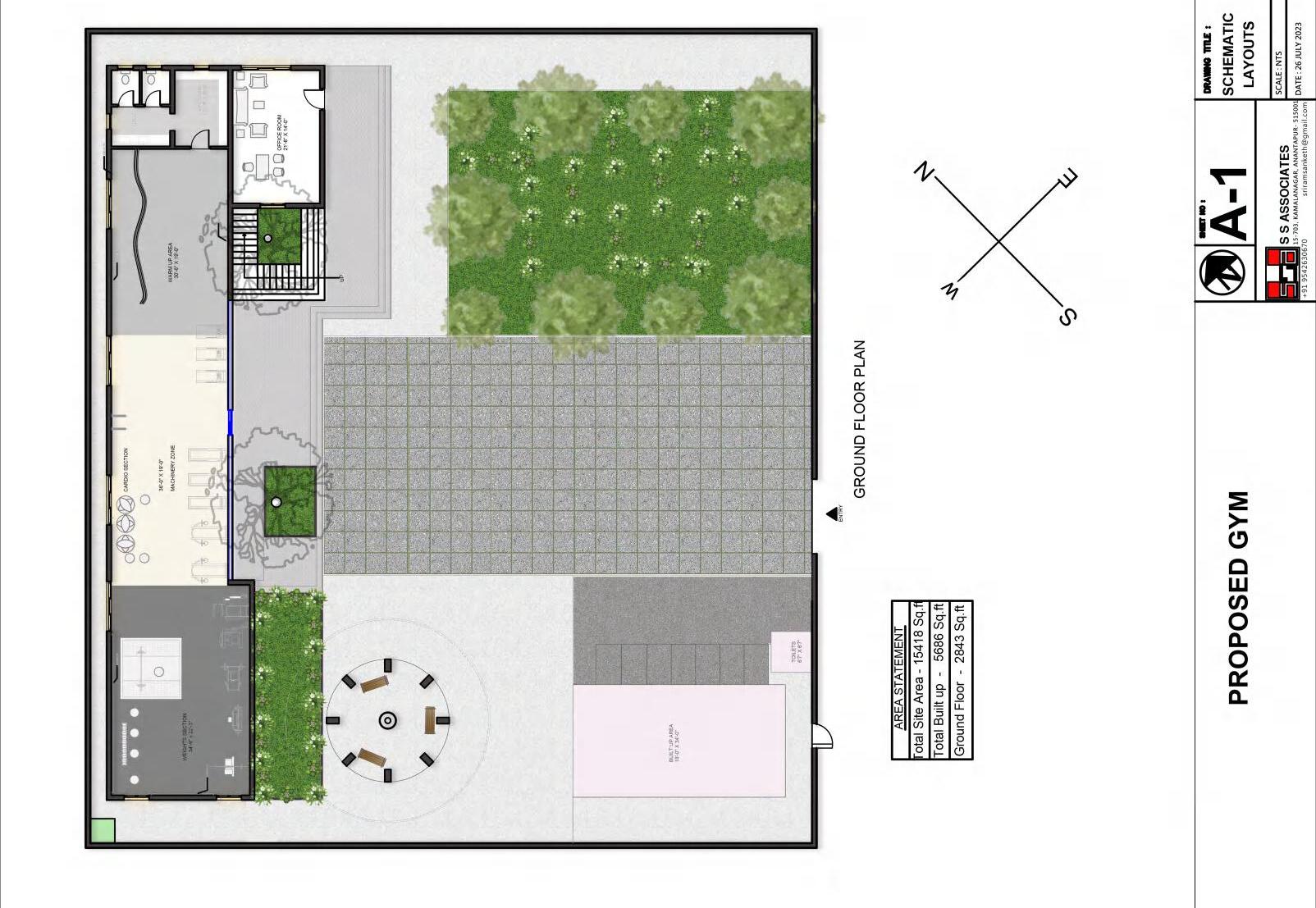

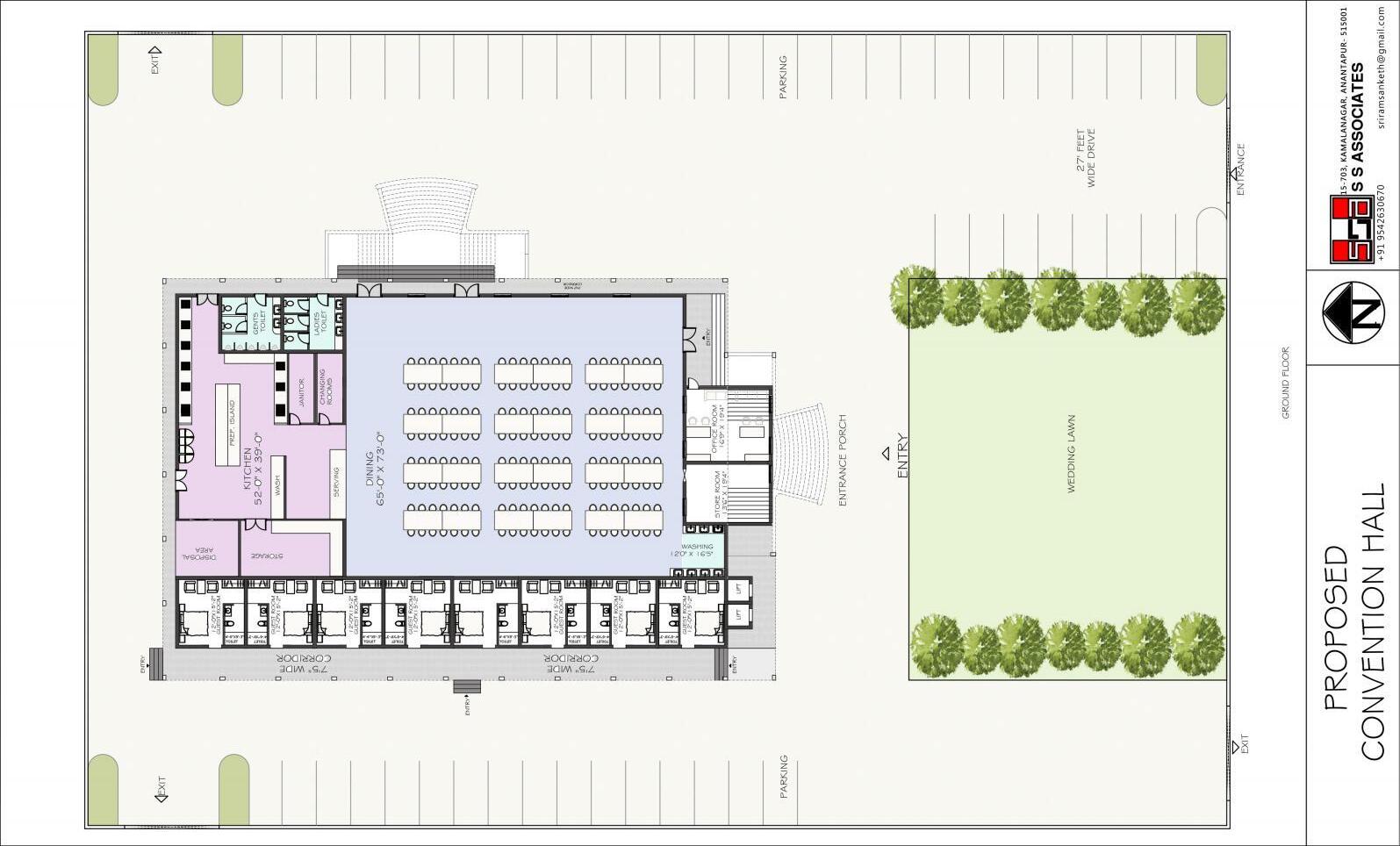

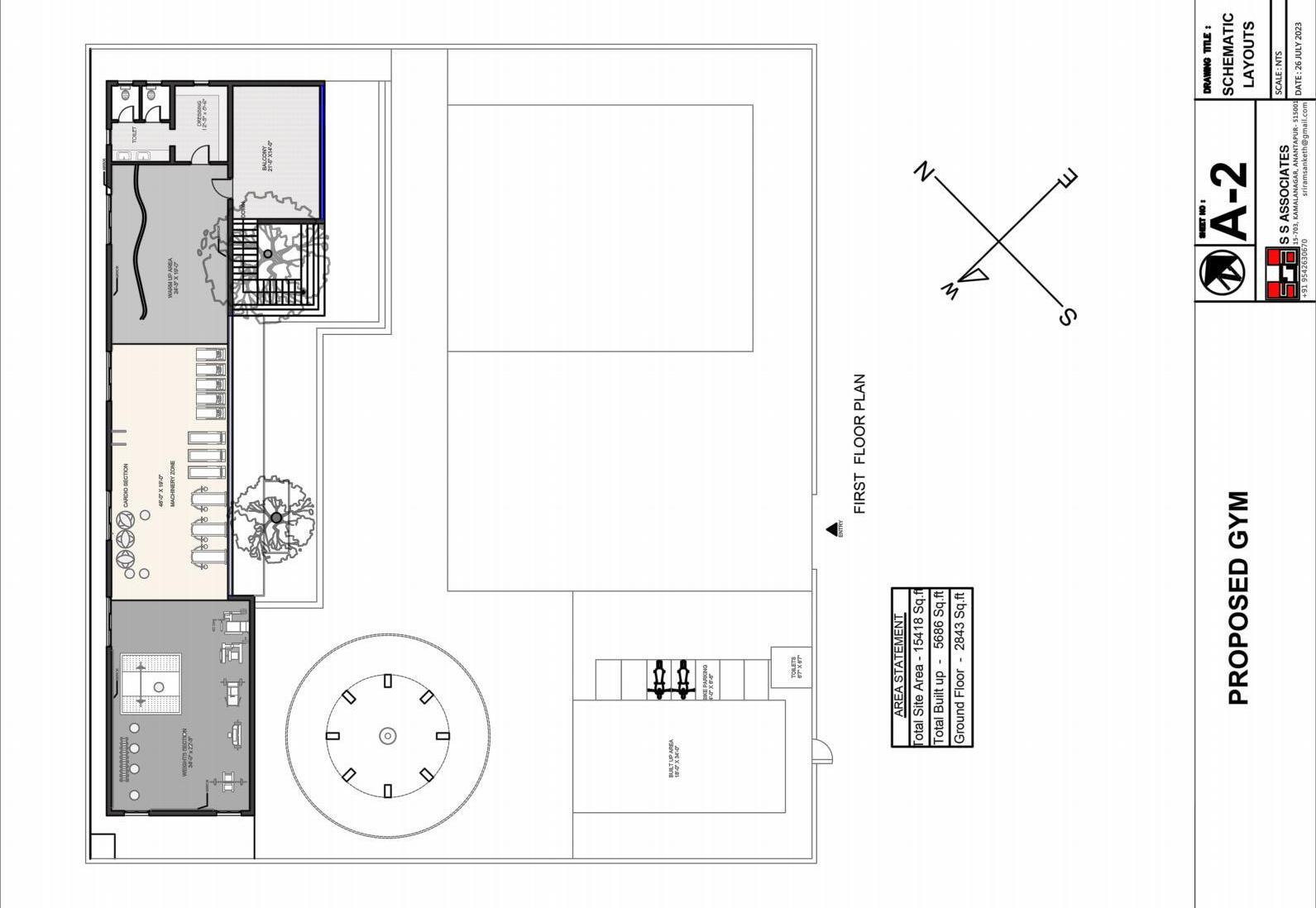

PROPOSED LAYOUTS AND FUNCTION
