02 strategic heights management campus 03 04 01 namma nildaana bus terminus | mixed use hub hearthside house residence kaiteki japanese restaurant Preethika Shetty | Portfolio 4

beehaus

working drawings

04 05 06 07 Contents

reversible housing for labourers restaurant | interiors

centerlines | details | interiors miscellaneous installations | art | photography DINING C TOILET A TOILET BEDROOM BEDROOM COURTYARD (SKYLIGHT ABOVE) WATERBODY + 450 mm LVL DOWN +150 mm LVL 1000 X 3600 3200 X 3500 3100 X 3500 1800 X 1800 2100 X 1750 2100 X 1650 UP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 4900 X 3600 3 4 5 1400 2050 600 1900 2100 1200 1200 1400 200 1750 100 1650 100 3600 1500 3600 3800 14450 1400 18000 1500 3600 3800 13500 1400 1400 200 3500 3600 100 900 1200 2100 4550 1400 1500 200 3200 200 3100 2100 200 1500 1500 200 900 1400 900 100 900 1200 900 850 600 750 1500 A B C 1600 5400 3400 1600 1500 9000 1500 12000 100 200 D1 D1 D2 D2 V V SW3 SW3 FW FW SW3 SW3 SW4 SW1 5

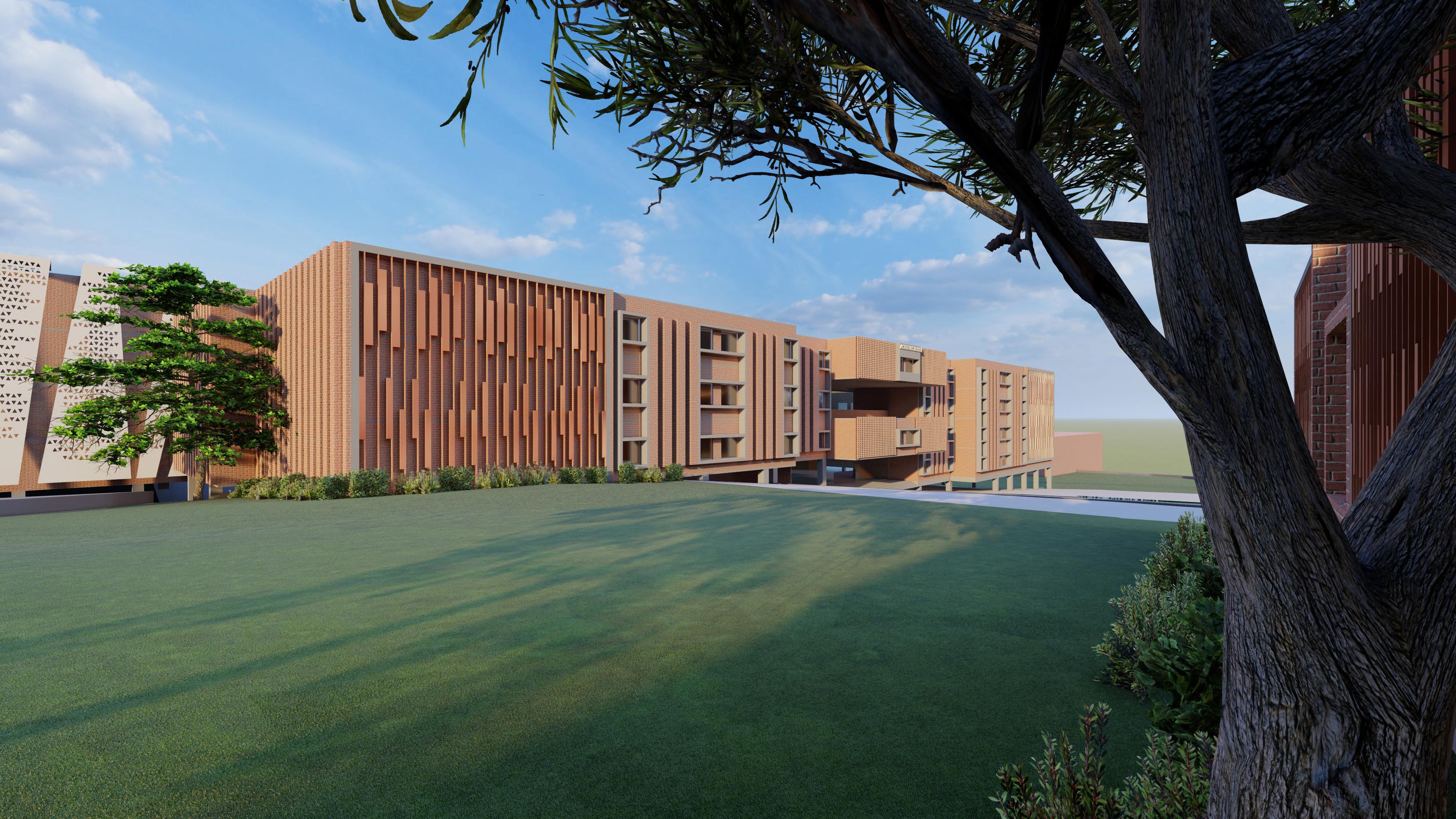

strategic heights

Campus | Institution | Green & Open Spaces

Project : Management Campus (VI Sem Studio)

Location : Nagarbhavi, Bangalore

Site Area : 31.5 acres = 127450 sqm

Softwares Used : AutoCAD, Sketchup, Lumion, PS

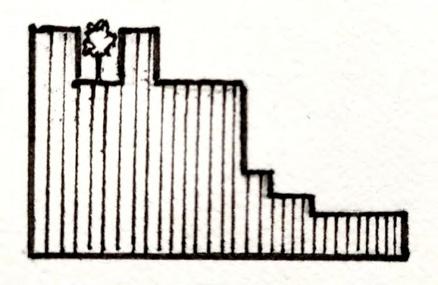

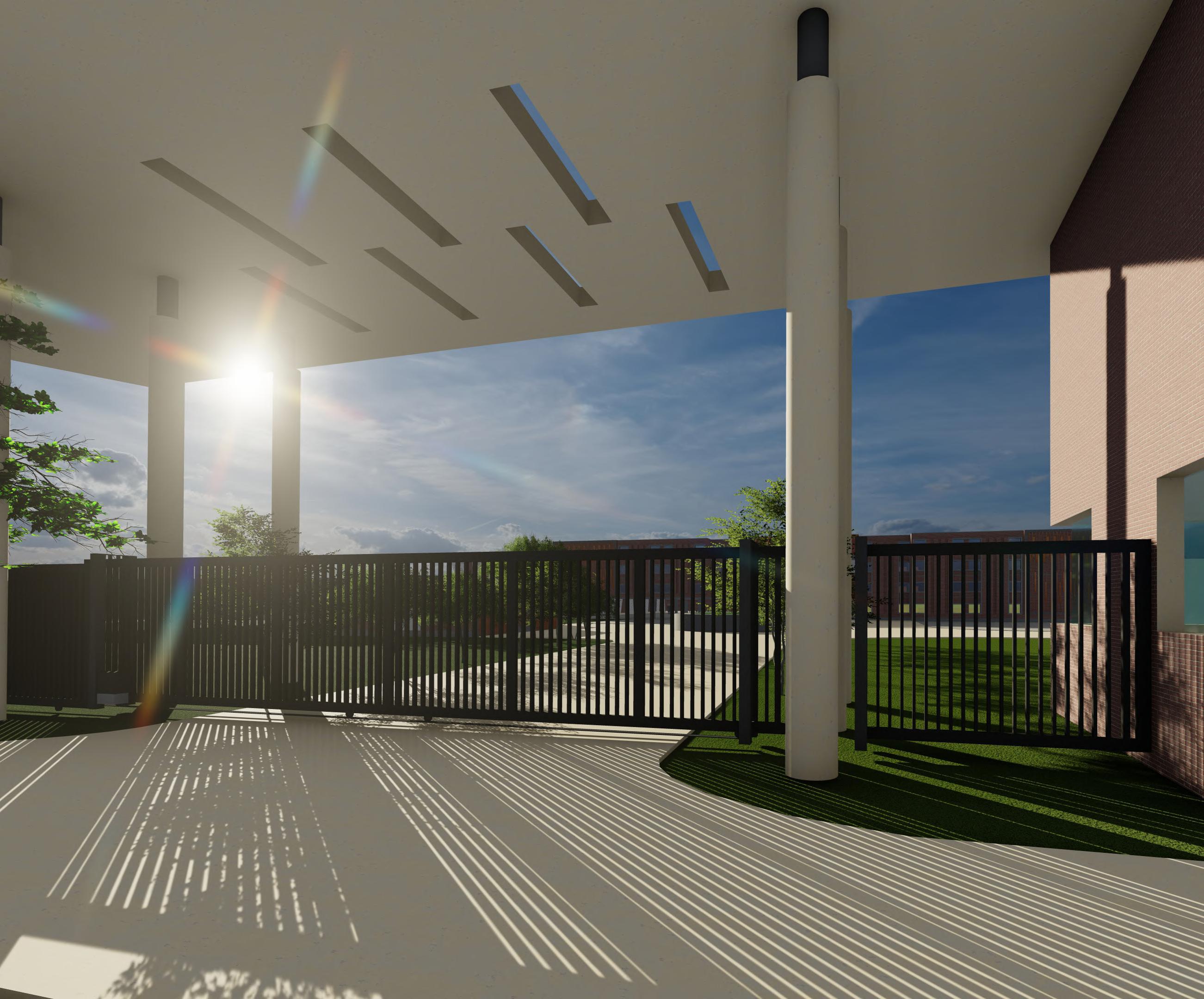

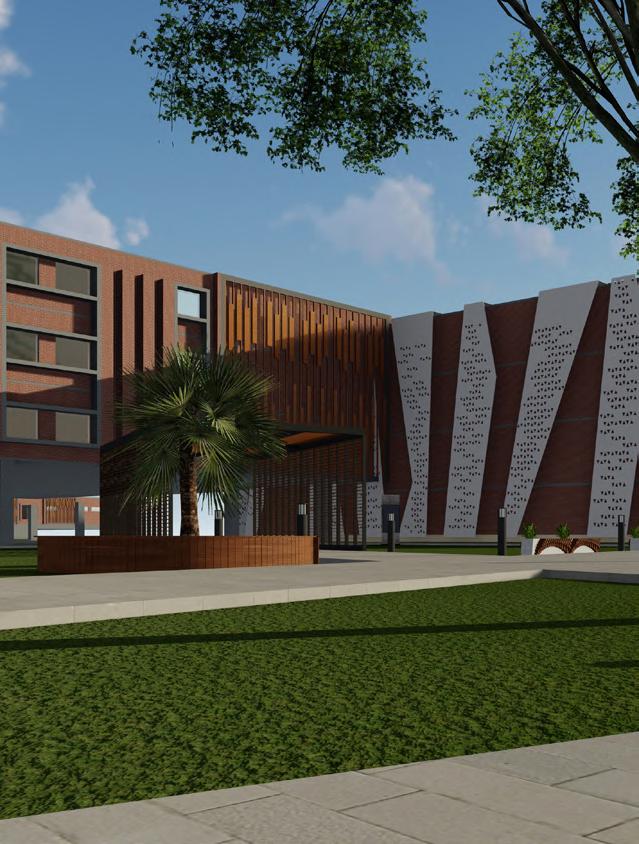

Strategic Heights University is a Mangament campus designed from a site derived concept. Keeping in mind the contours of the land, access to natural light & ventilation, and the naalas all facilities are places about a datum passing through the middle of the campus. The central plaza, located at a higher elevation, surrounded by the other primary blocks becomes the focal point of this design.

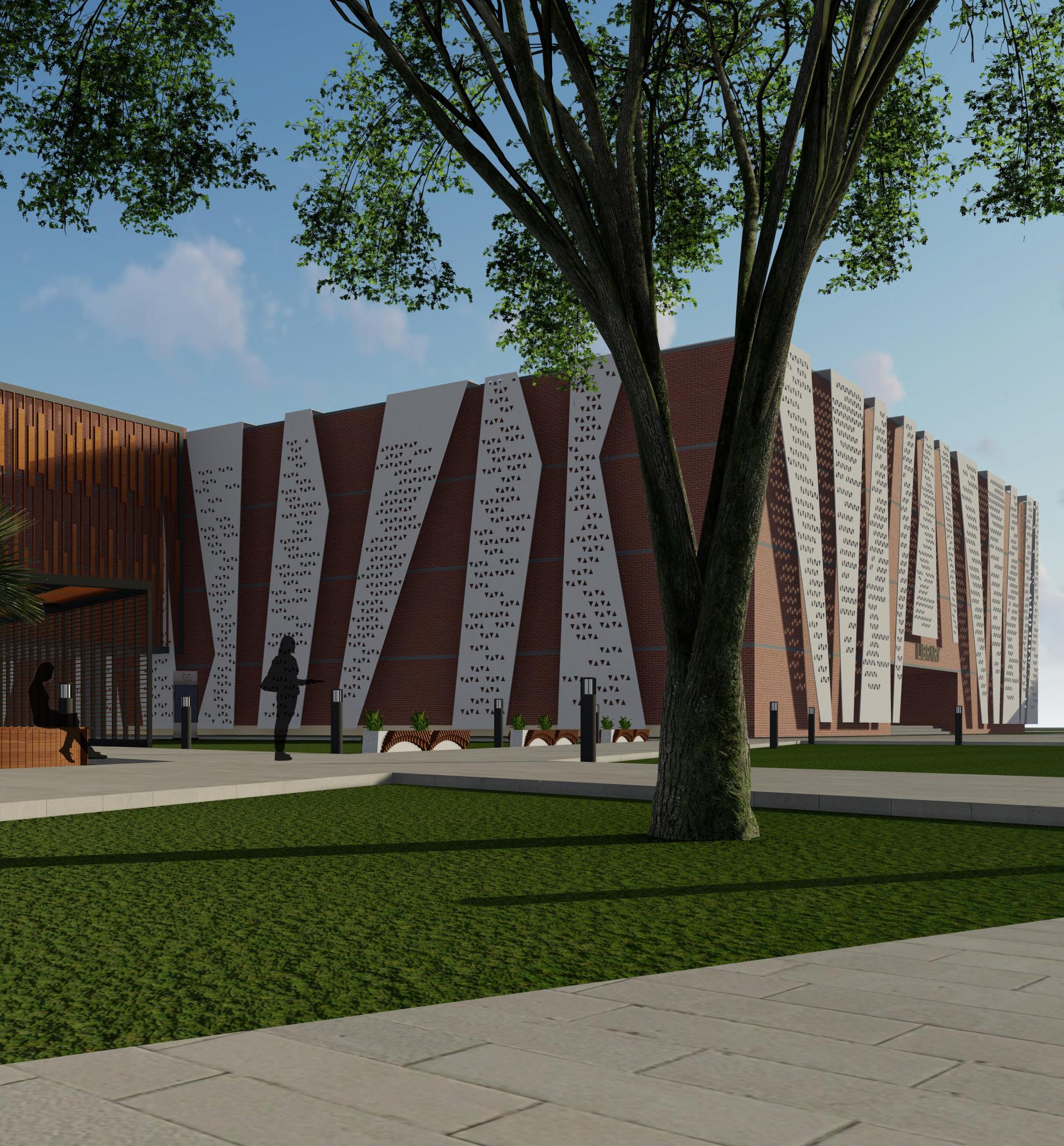

A horizontal development been developed with a contrast between the red in the brick and the green of the surrounding landscapes. This in combination with the white accents throughout the campus becomes the primary visual language of the project.

Preethika Shetty | Portfolio 6

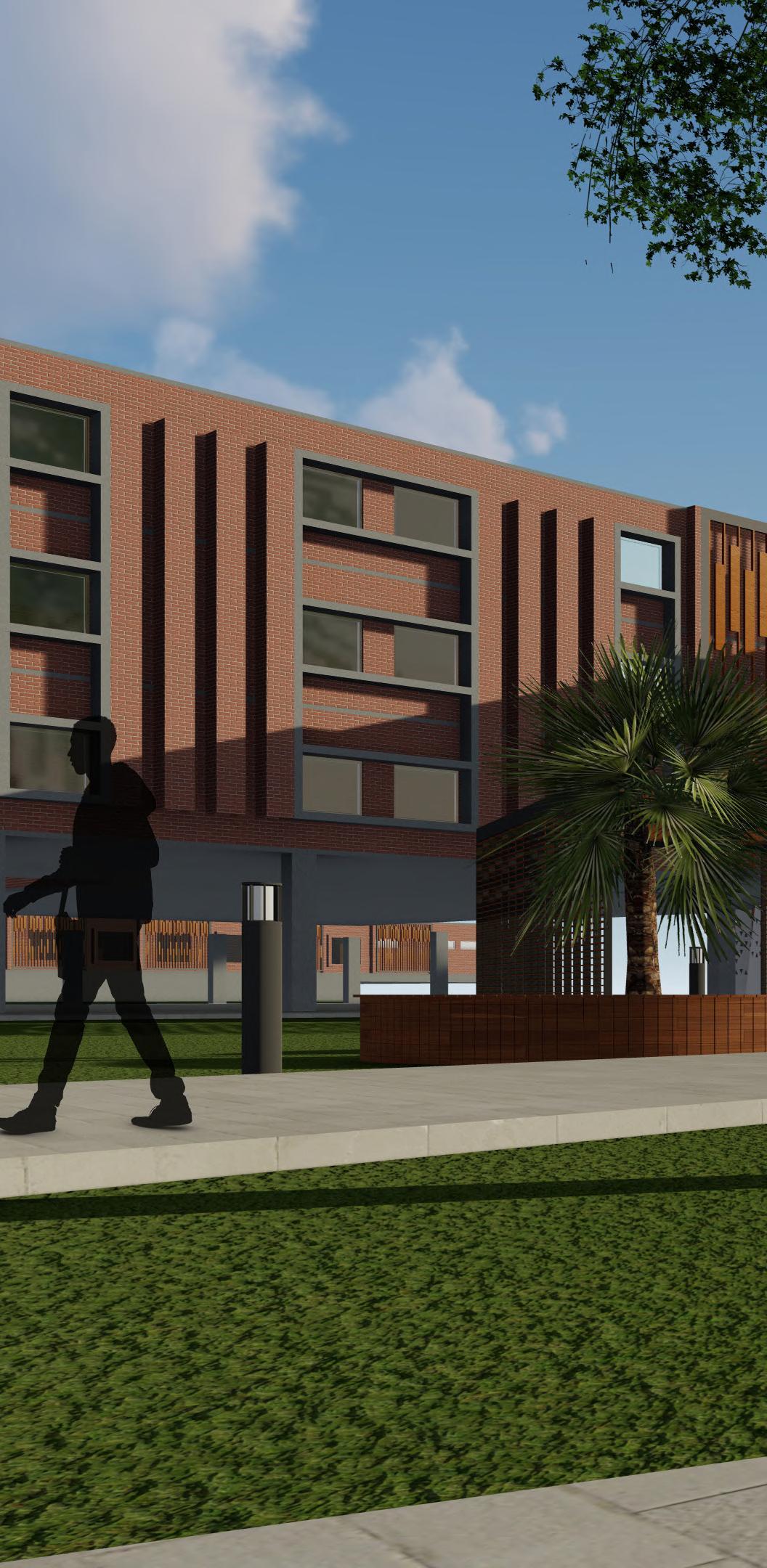

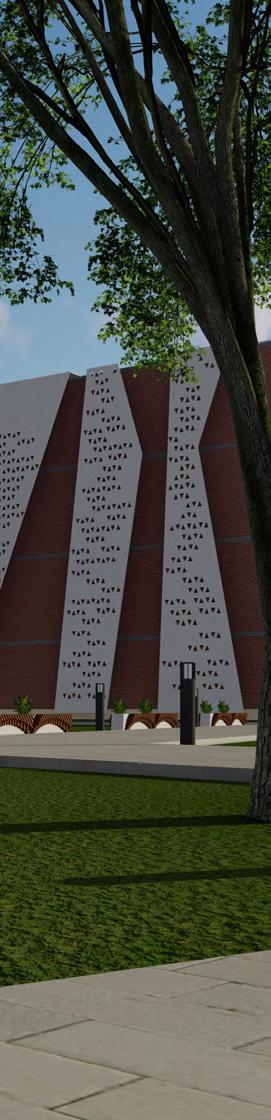

Strategic Heights 7

4 18 SITE Preethika Shetty | Portfolio 8

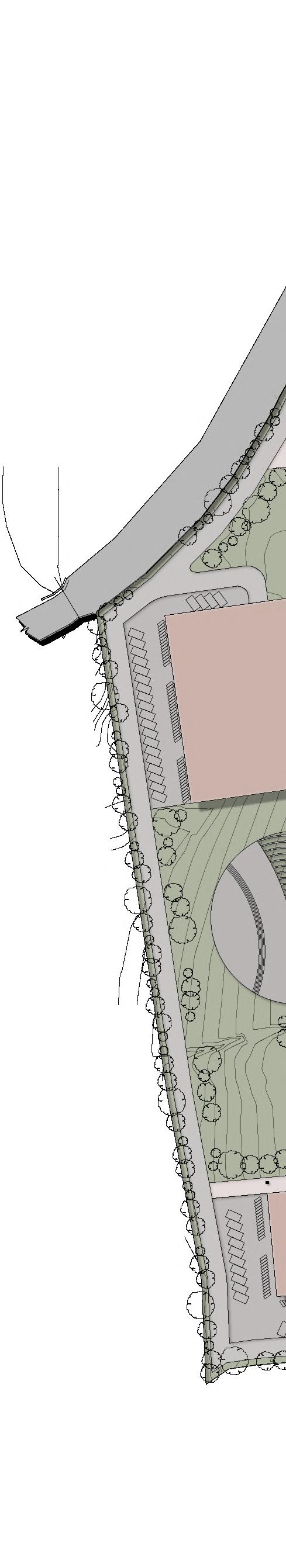

MASTER PLAN

Strategic Heights 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 19 19 19 19 19 21 21 22 LEGEND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 23 23 23 Admin Block Academic Block Library + Research Block Auditorium Plaza Canteen Sports Complex Girls’ Hostel Dining + Recreation Block Boys’ Hostel Non Academic Staff Guest Housing Junior Faculty Senior Faculty Registrar’s Residence Director’s Residence Private Garden for Faculty OAT Deck + Gazebos Services Installation Feature Walls Rocky Outcrop 13 20 20

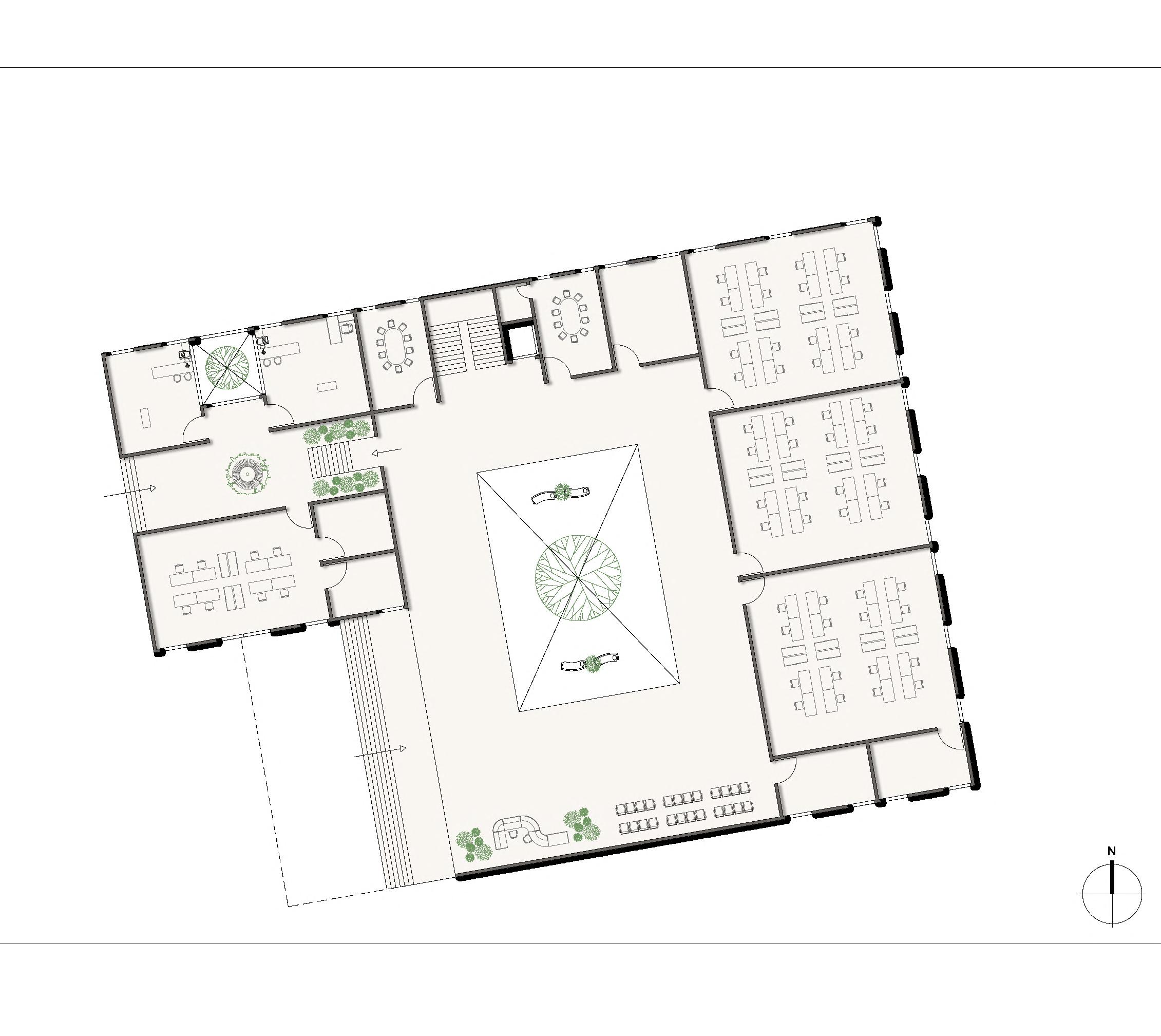

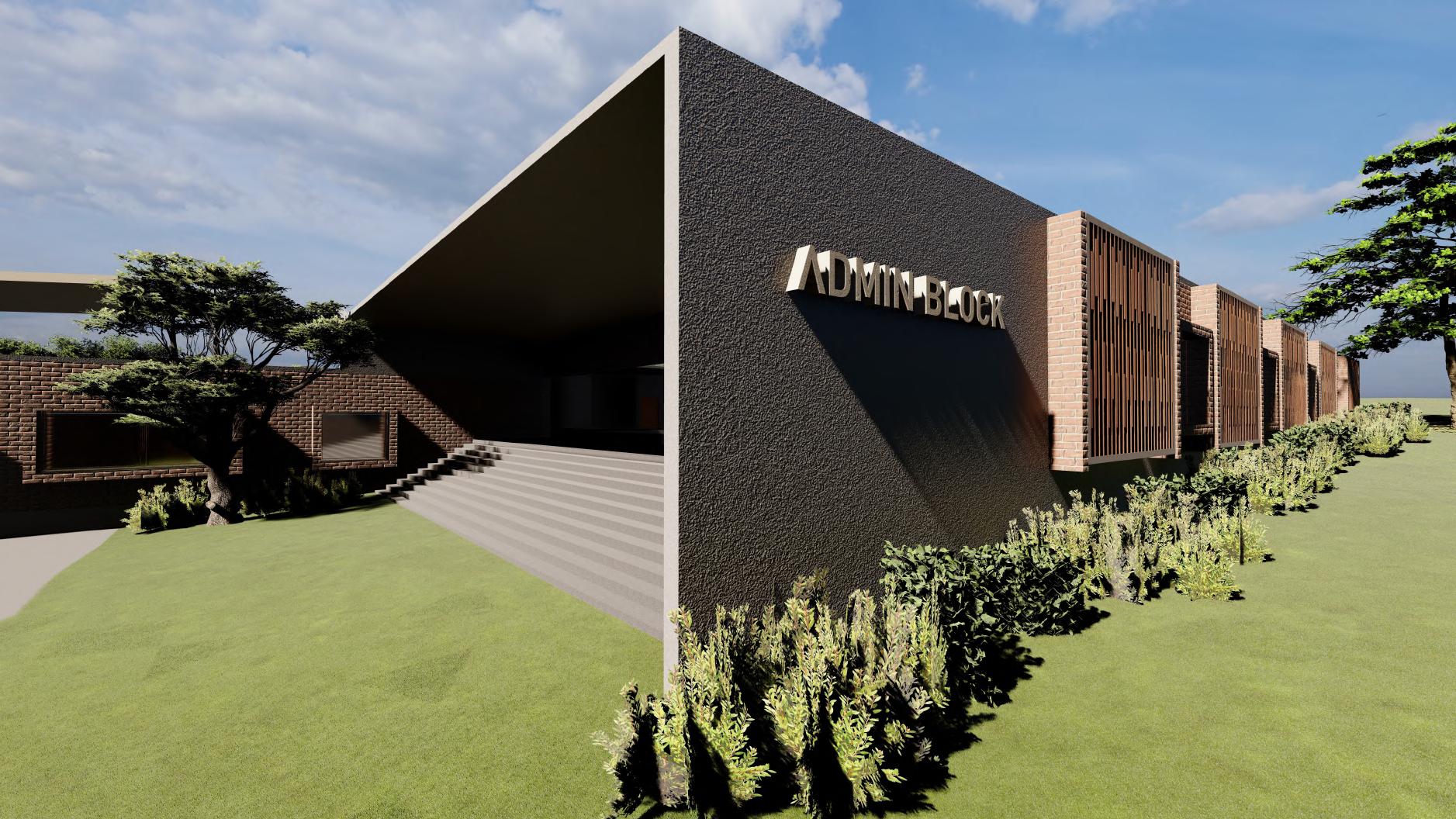

LEVEL ZERO PLAN ADMIN

1 2 3 3 12 13 4 10 11 4 4 5 6 7 8 9 9 LEGEND 1 2 3 4 5 6 7 8 9 10 11 12 13 Reception Waiting Lounge Court Toilet Admin Admissions COE Store + Maintenance Conference Registrar’s Cabin Director’s Cabin Accounts & Finance Records UP UP DN 52 M 38 M Preethika Shetty | Portfolio 10

BLOCK

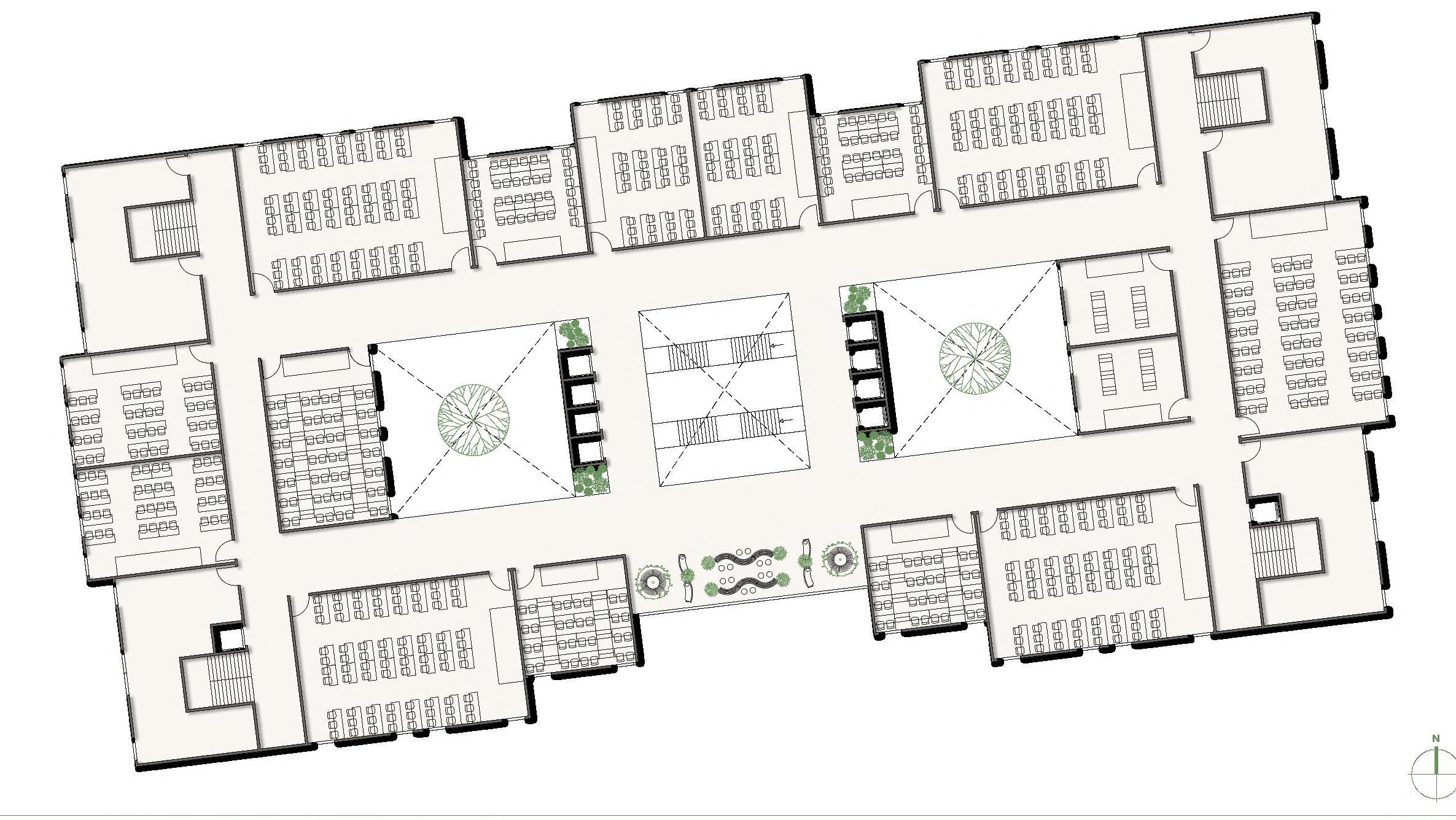

Strategic Heights LEGEND 1 2 3 Court Lounge Lab 4 5 6 Class (80 pax) Class (40 pax) Seminar (30 pax) 7 8 9 Seminar (30 pax) Faculty Room Toilet 1 1 2 3 3 4 4 4 4 5 5 4 ATRIUM 6 7 7 9 9 8 8 104 M 48 M 11

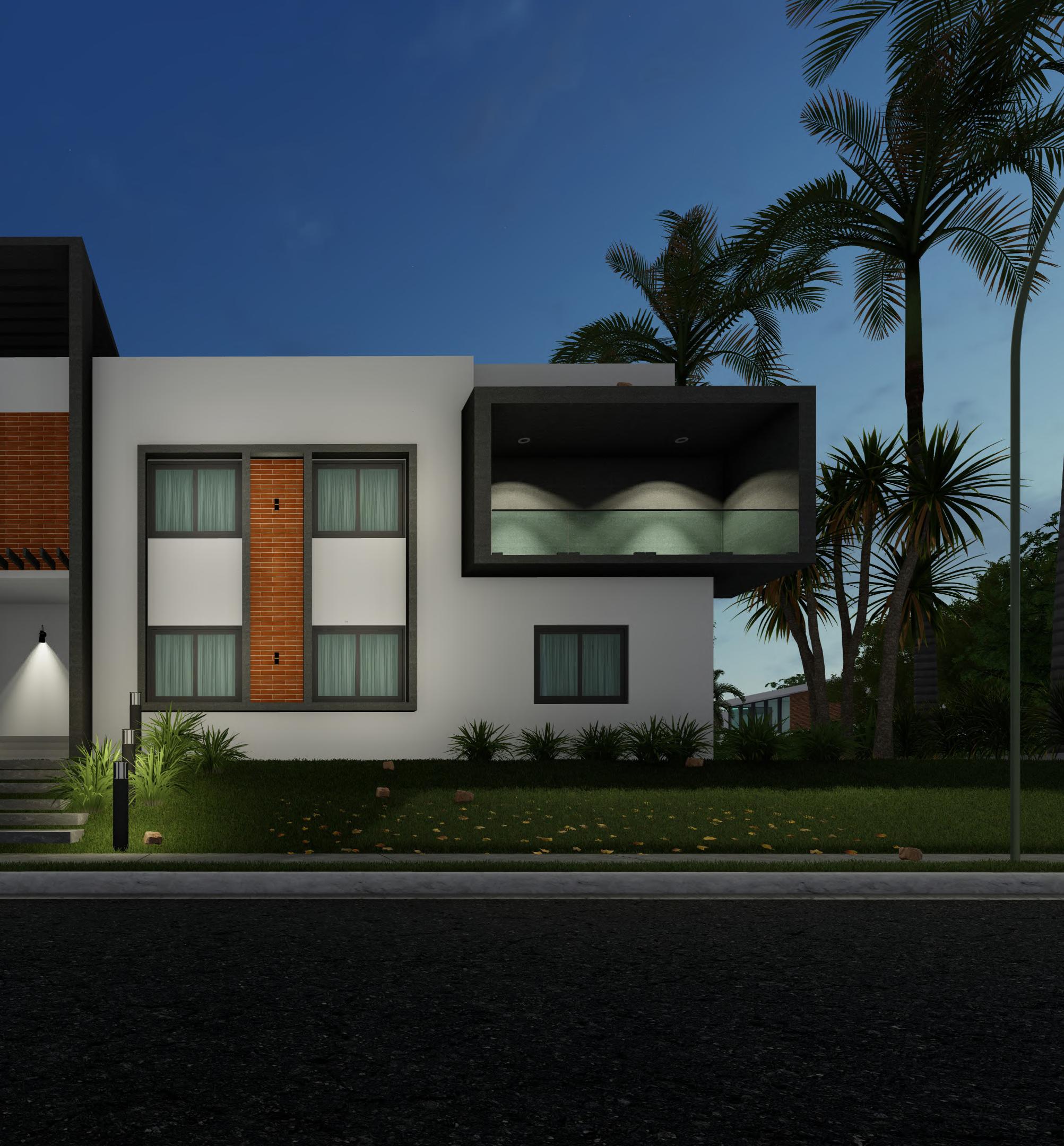

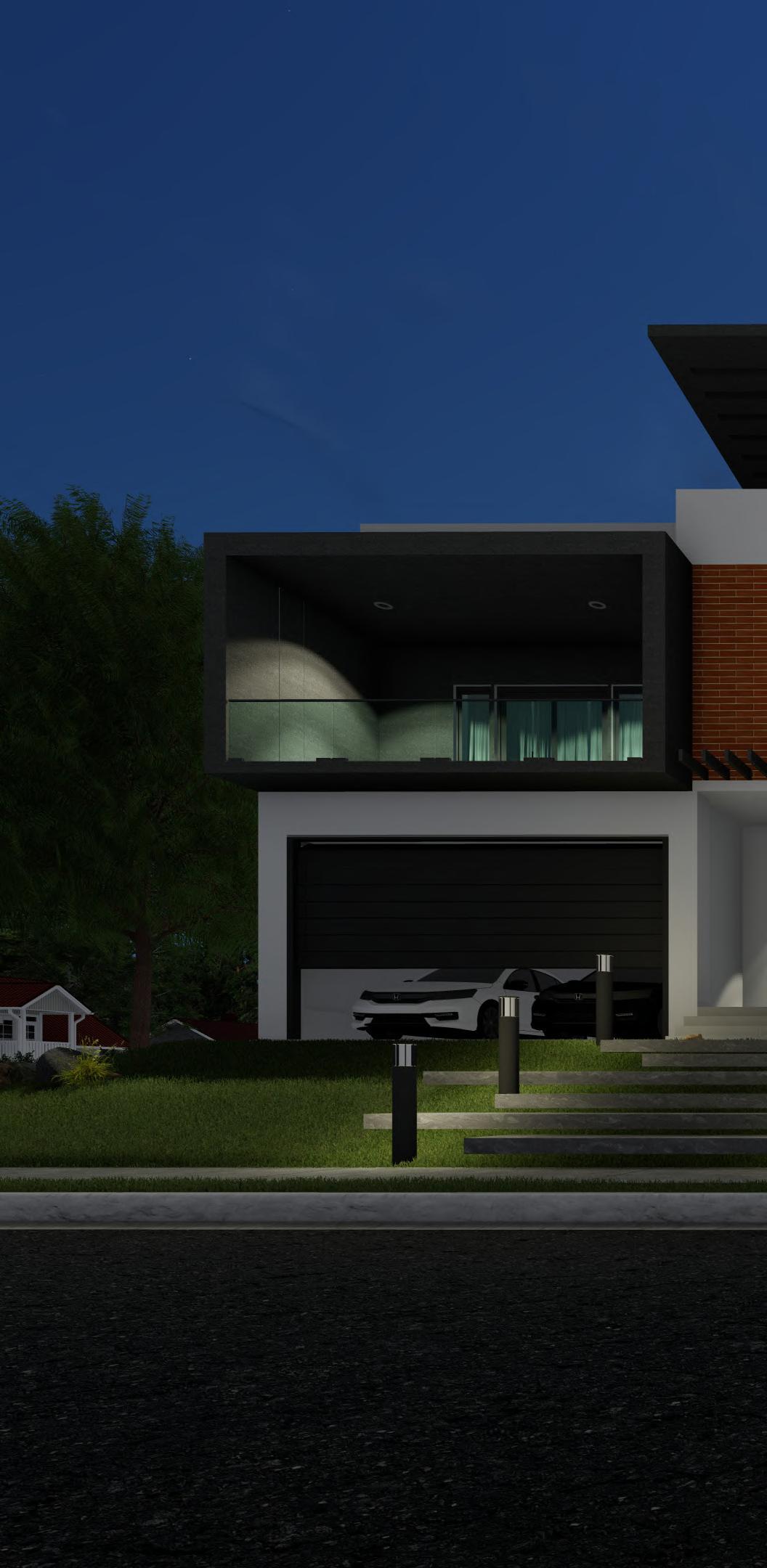

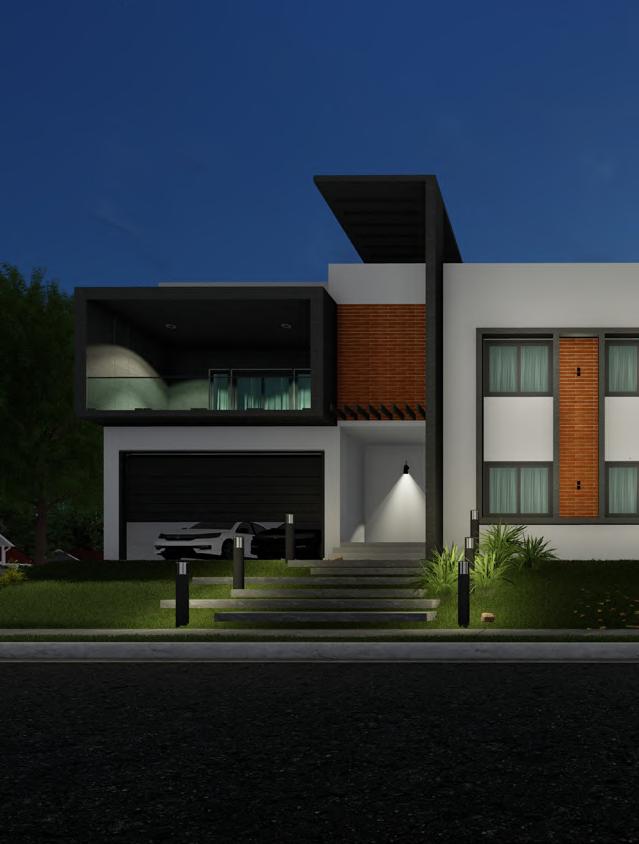

hearthside house

Residence | Multi Generational | Serene

Project : Residence (II Sem Studio)

Location : Hebbal, Bangalore

Site Area : 450 sqm

Softwares Used : CAD, Sketchup, Lumion, VRay, PS

The Hearthside House is a residential project focused on the accommodation of three generations in one house. The principle focus was to ensure spaces for quality family time, catered towards all three generations, and at the same time, providing the different environments each generation needs.

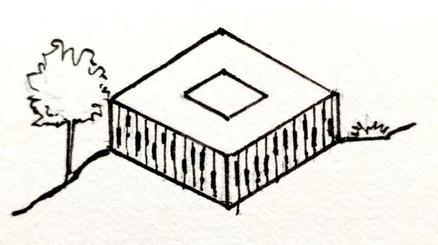

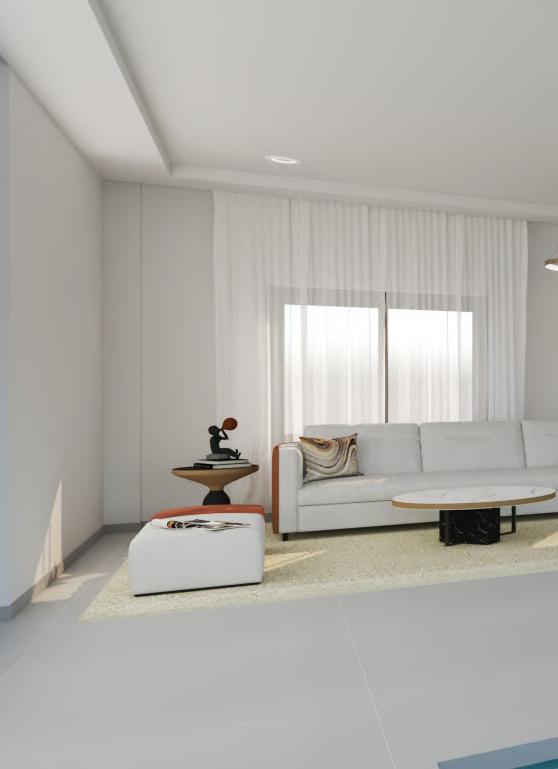

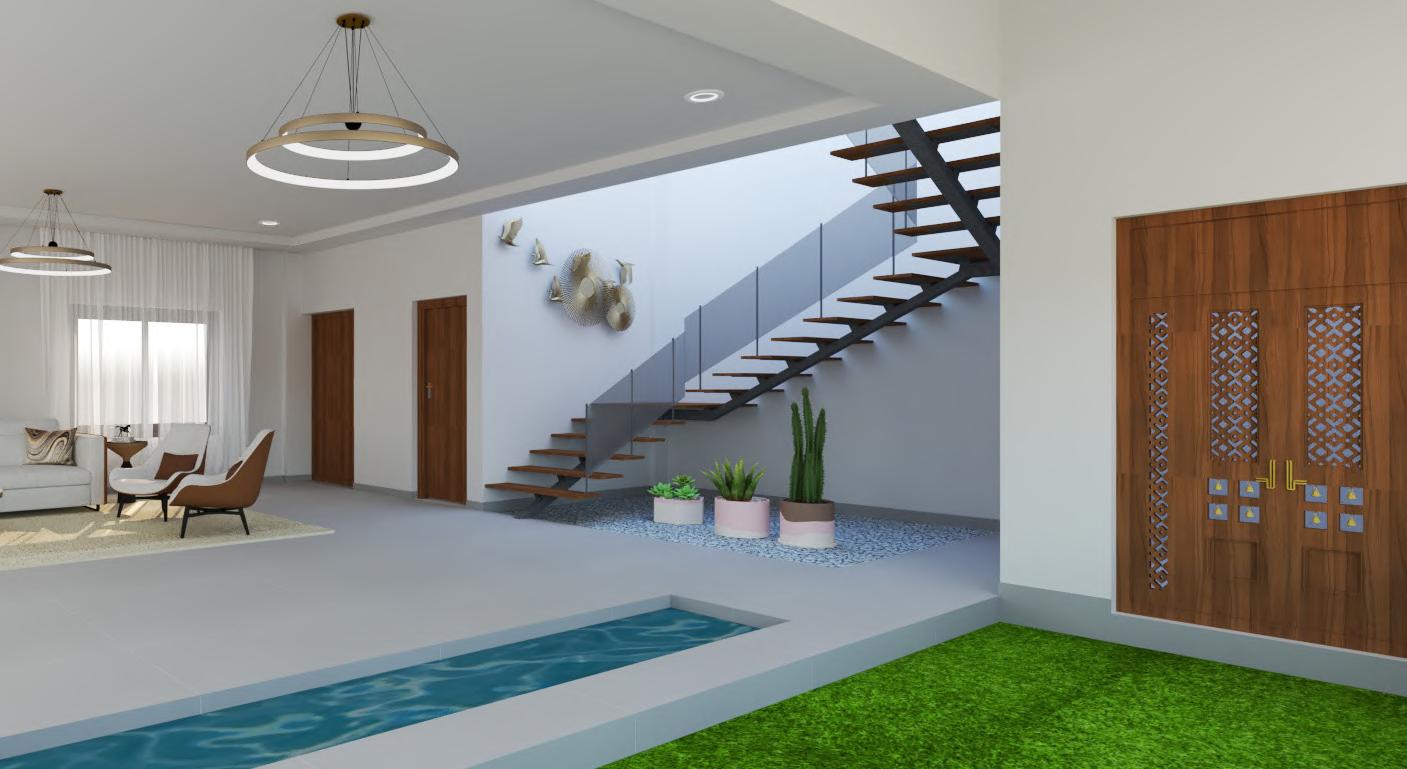

Nature acts as a central element in the house. The courtyard and waterbody in the center of the house is the element that the house is designed around. The white interiors bring about a visual lightness to the space, making it feel larger and more comforting in combination with the accents of wood.

Preethika Shetty | Portfolio 12

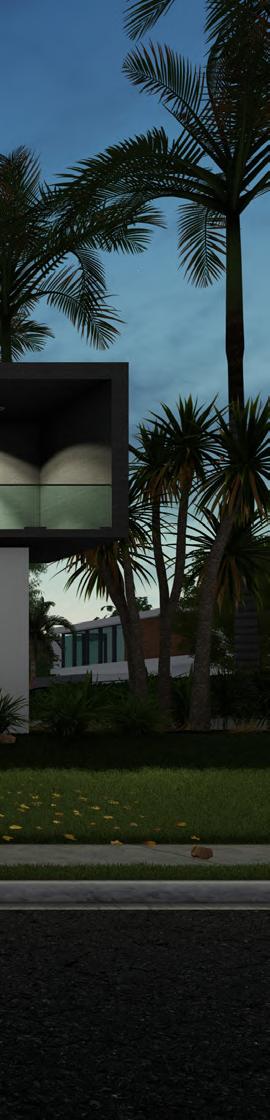

Hearthside House 13

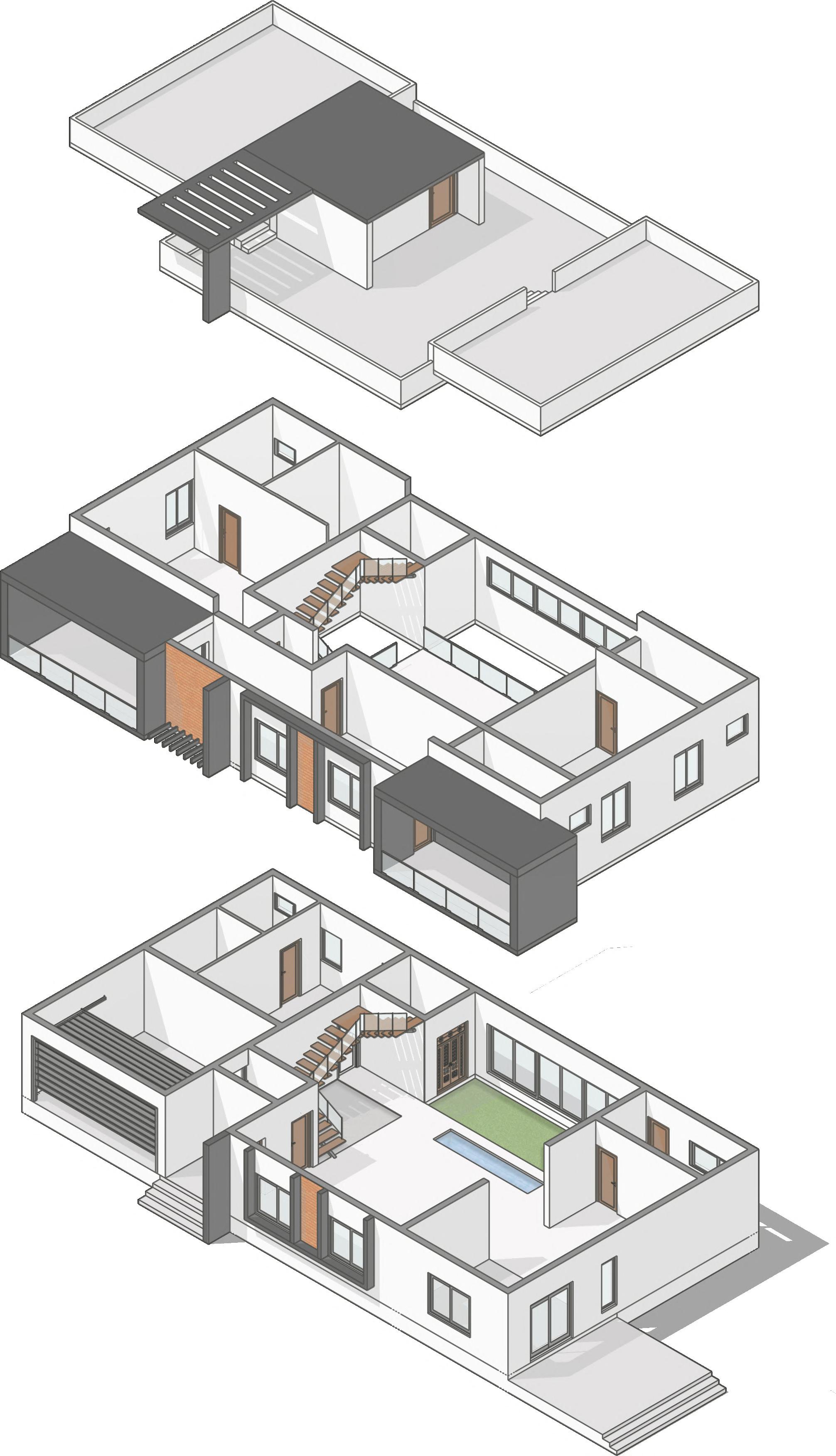

EXPLODED VIEW LEGEND 1 2 3 Garage

Living Room 1 2 3 10 11 4 12 13 4 5 6 Powder Dining Kitchen Preethika Shetty | Portfolio 14

Foyer

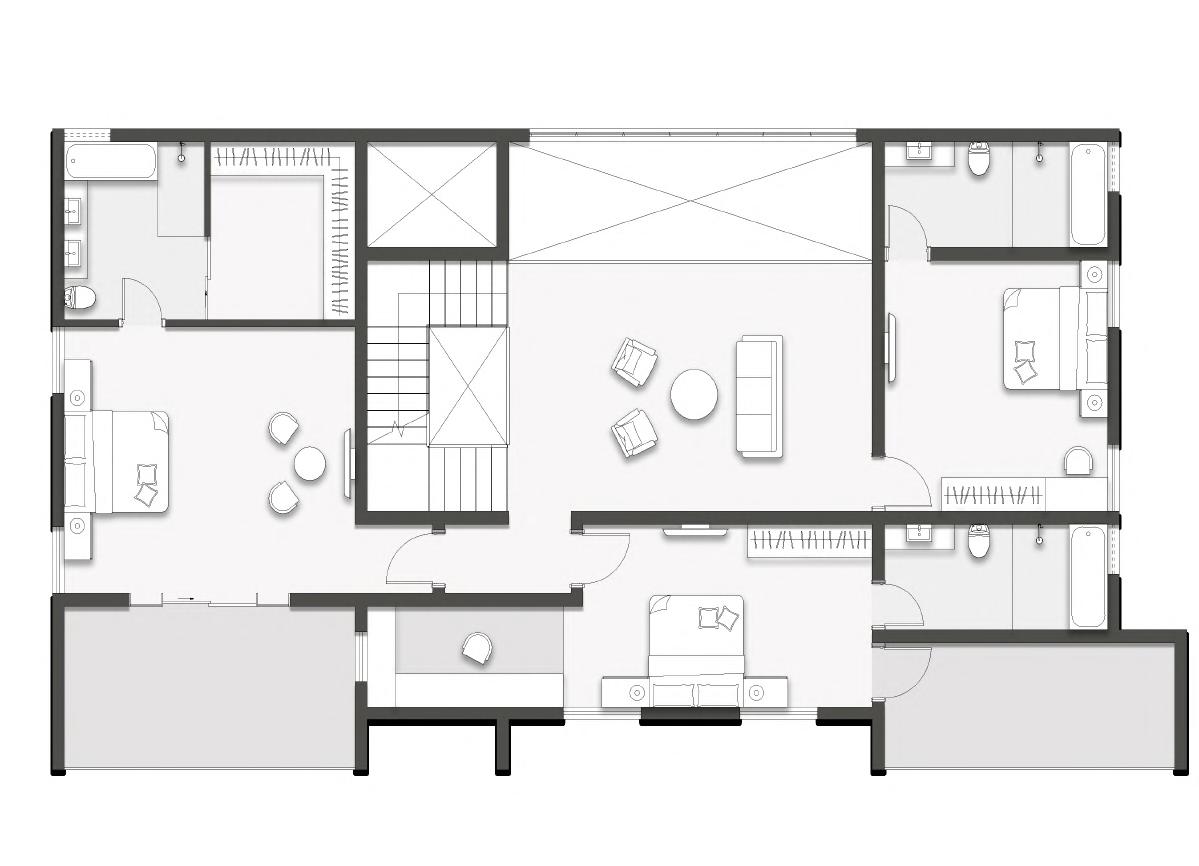

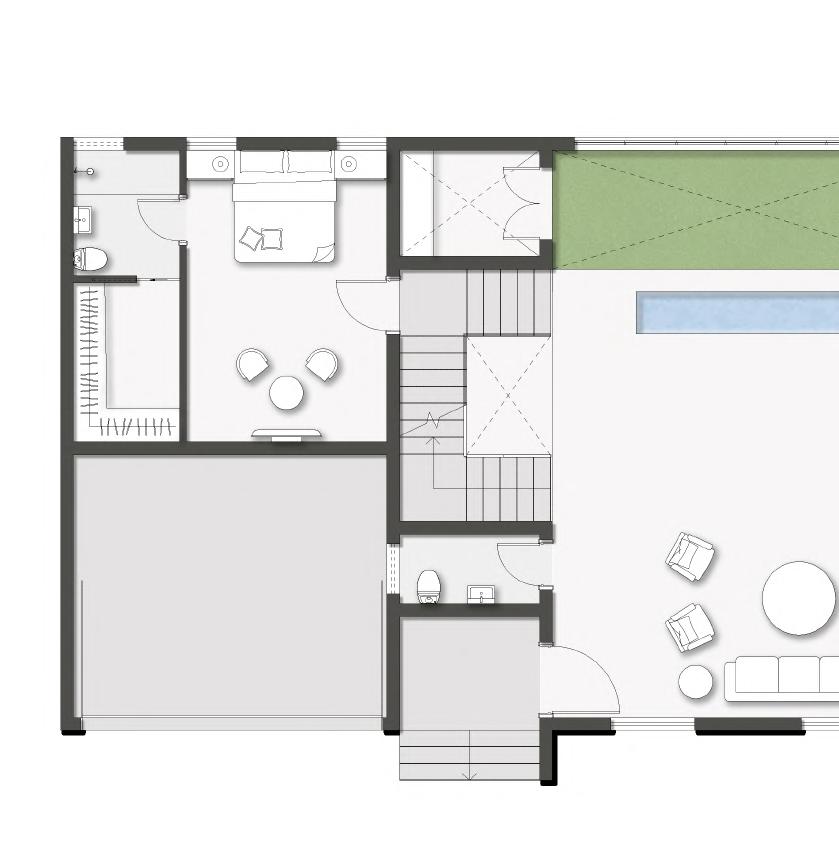

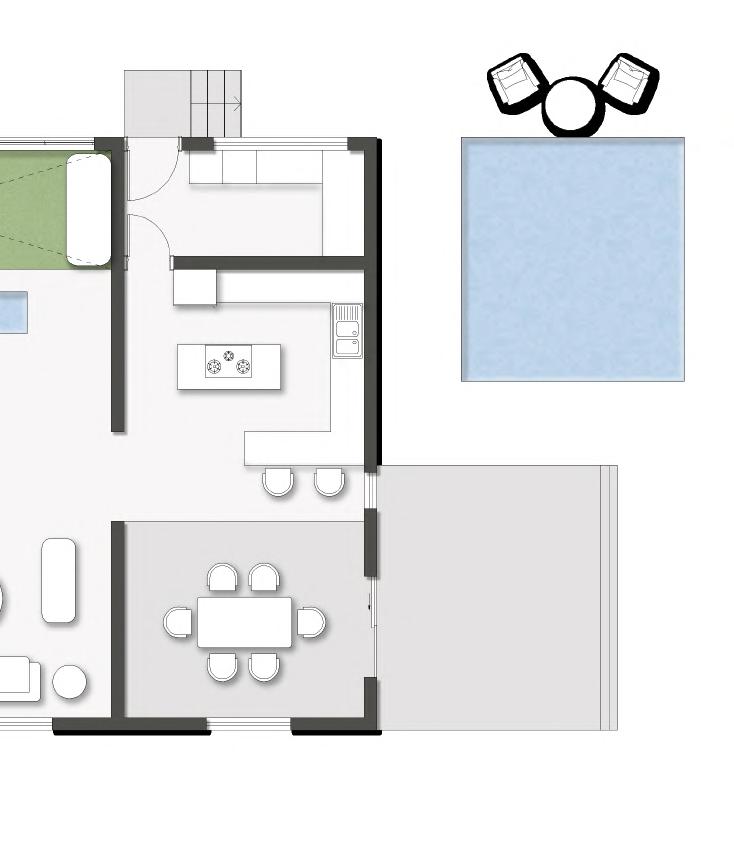

GROUND FLOOR PLAN FIRST FLOOR PLAN 7 6 5 8 9 14 15 16 18 17 18 Powder Dining Kitchen 7 8 9 Utility Deck Pool 10 11 12 Waterbody Indoor Garden Pooja Room 13 14 15 Grandparents’ Room Family Room Master Bedroom 16 17 18 Teenager’s Room Guest Room Balcony 15

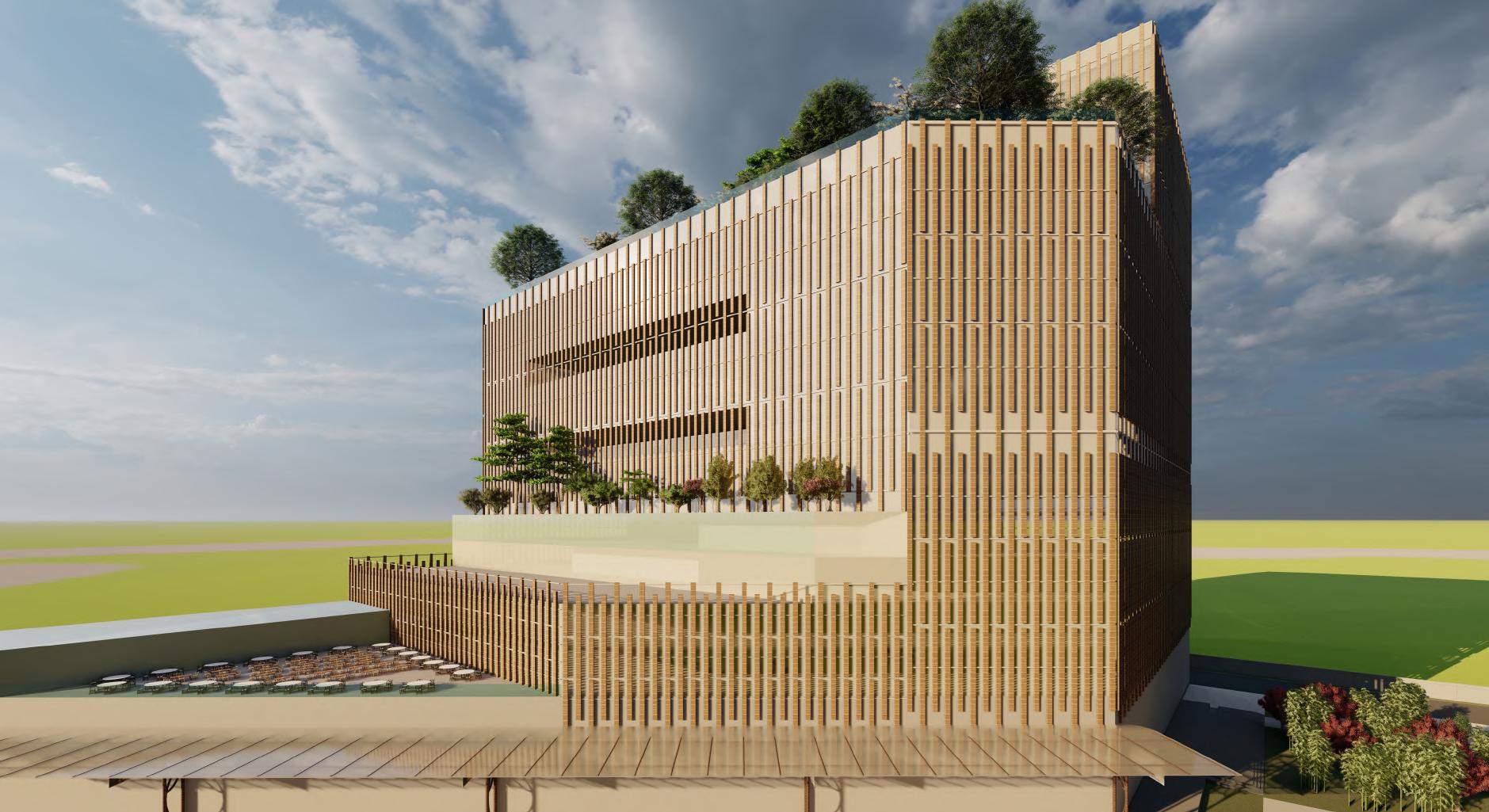

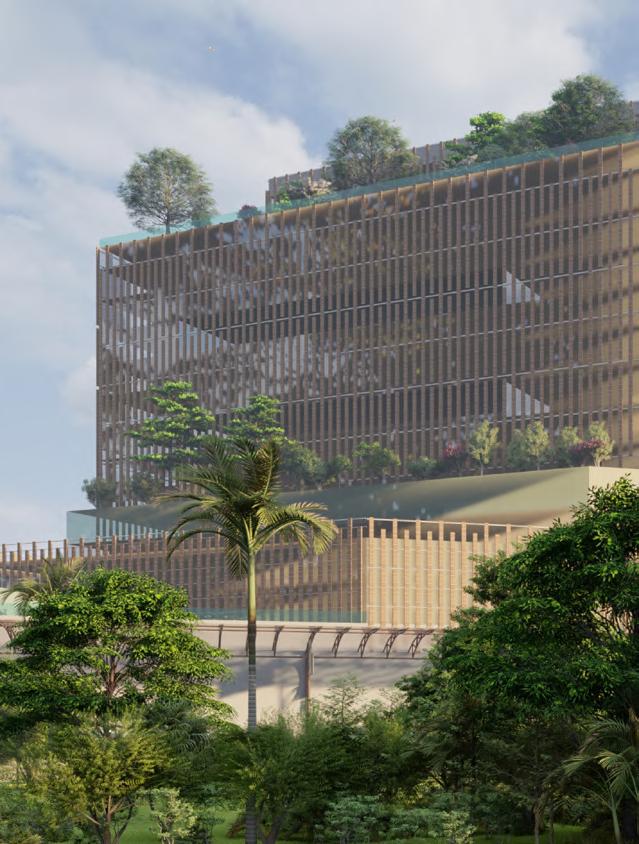

namma nildaana

Public | Transportation | Mixed Use

Project : Bus Terminus + Mixed use (VII Sem Studio)

Location : Hebbal, Bangalore

Site Area : 8.25 acres = 33386 sqm

Softwares Used : AutoCAD, Sketchup, Lumion, PS

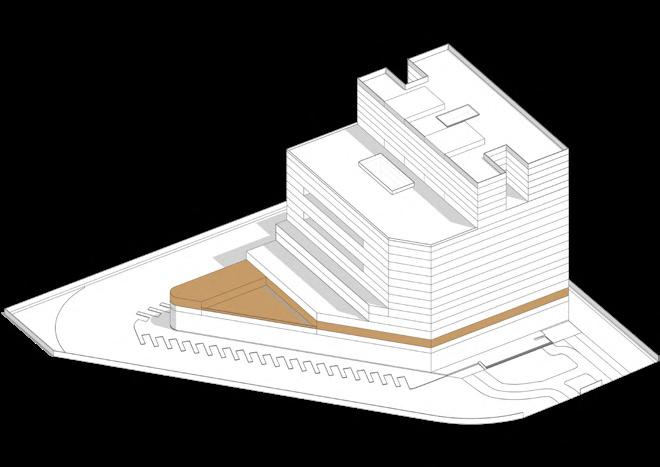

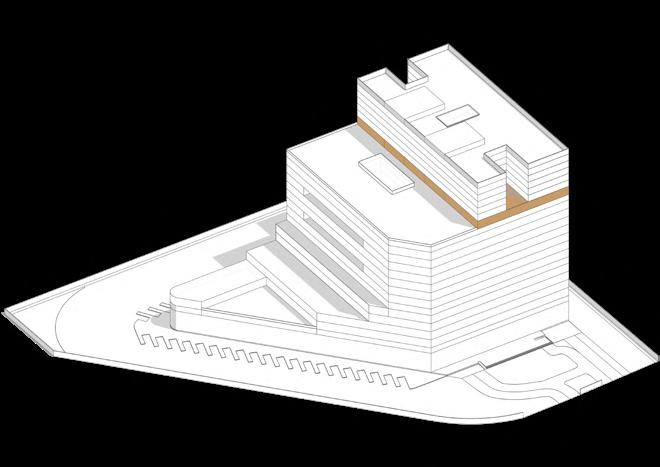

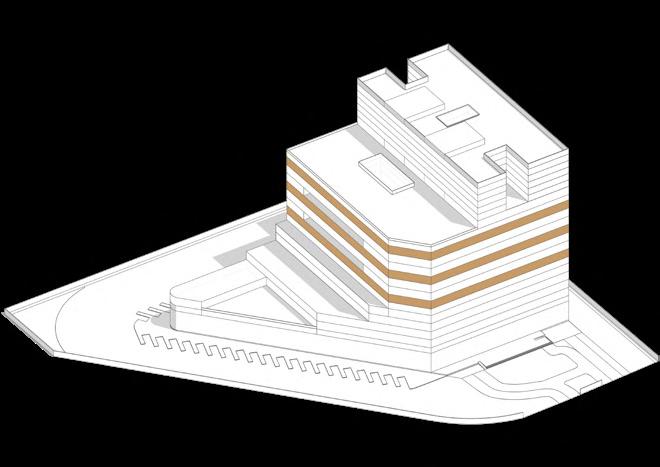

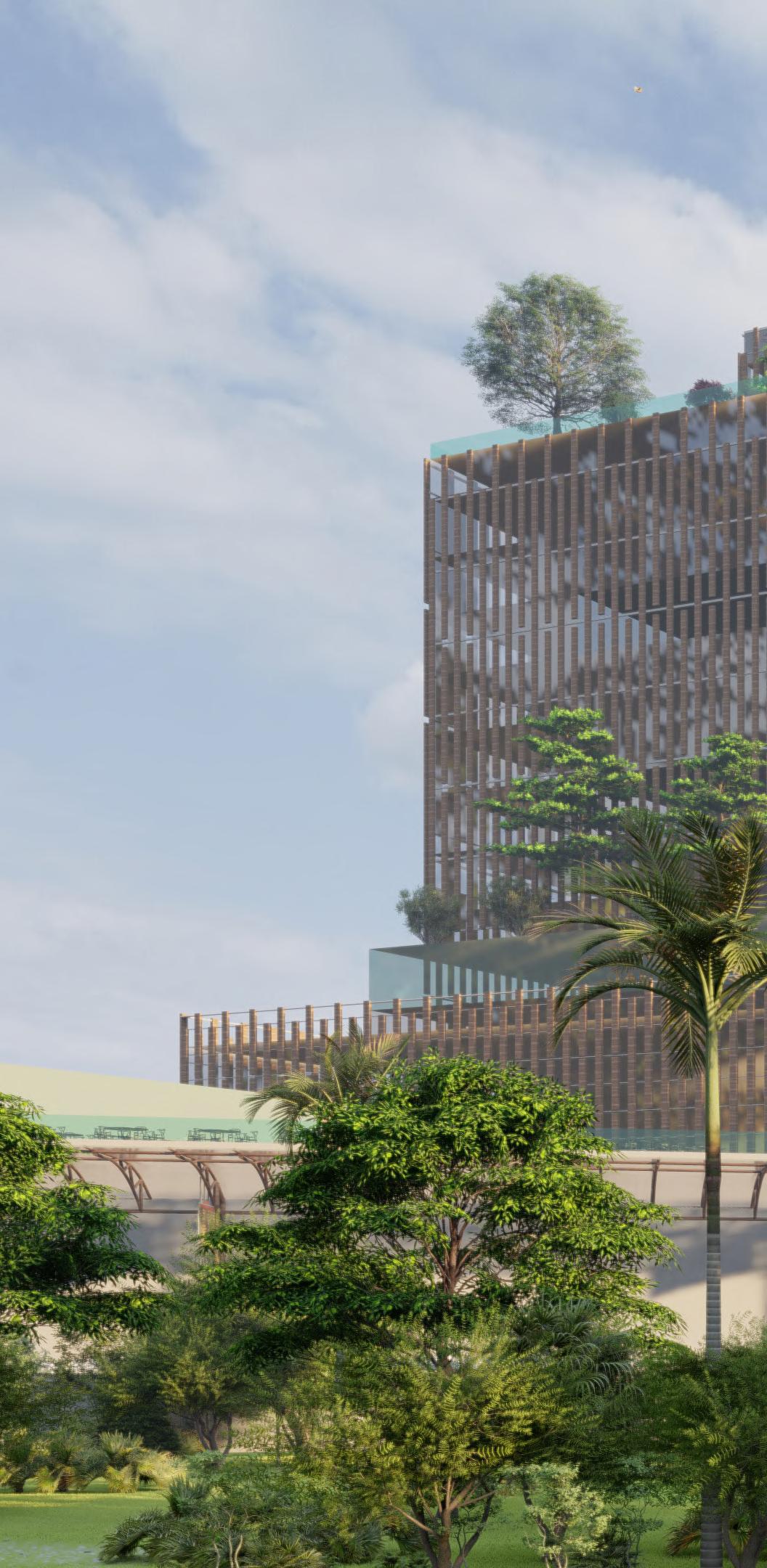

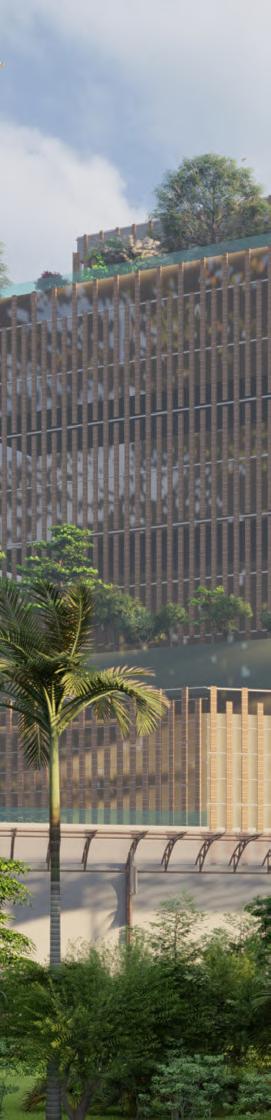

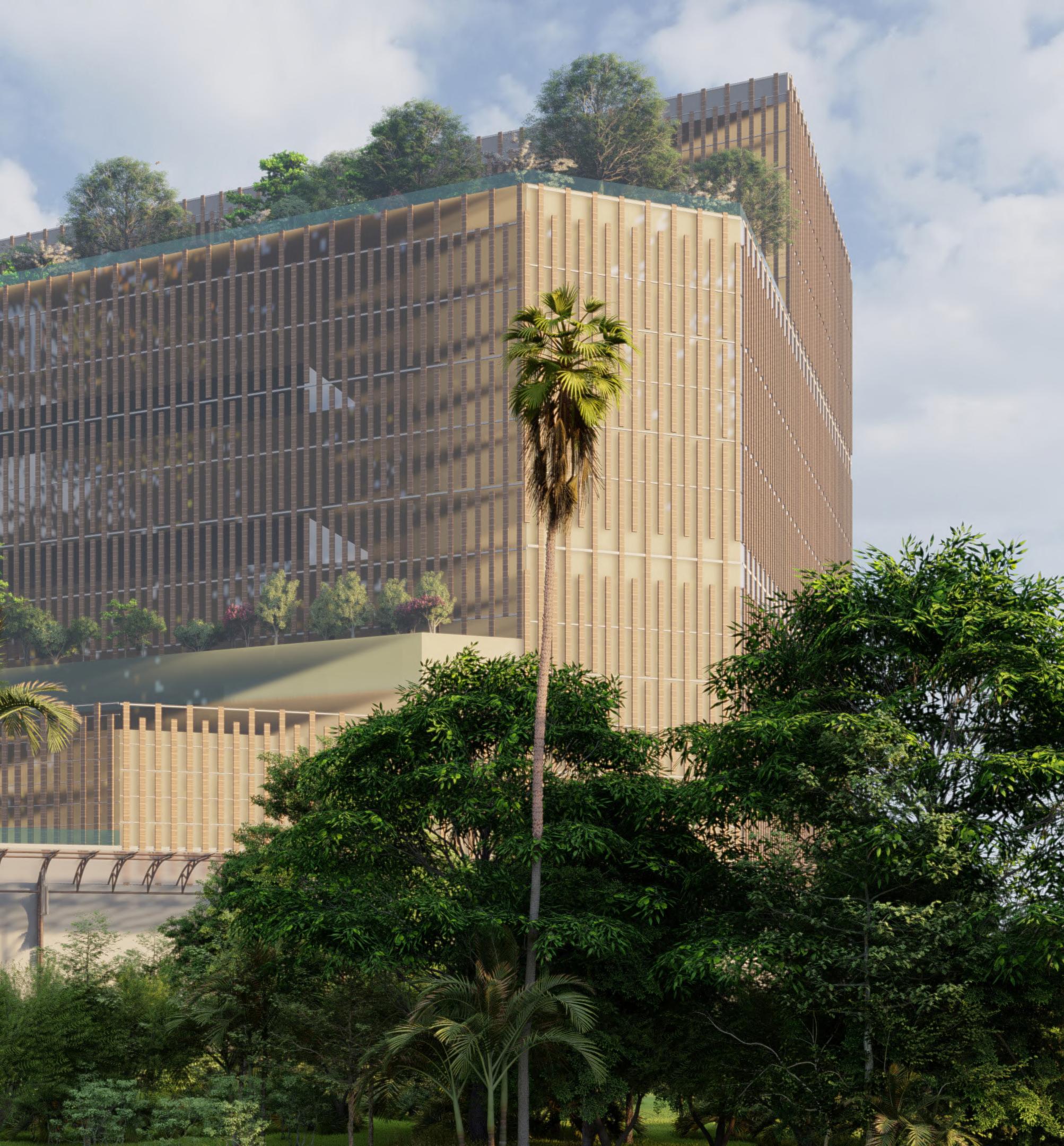

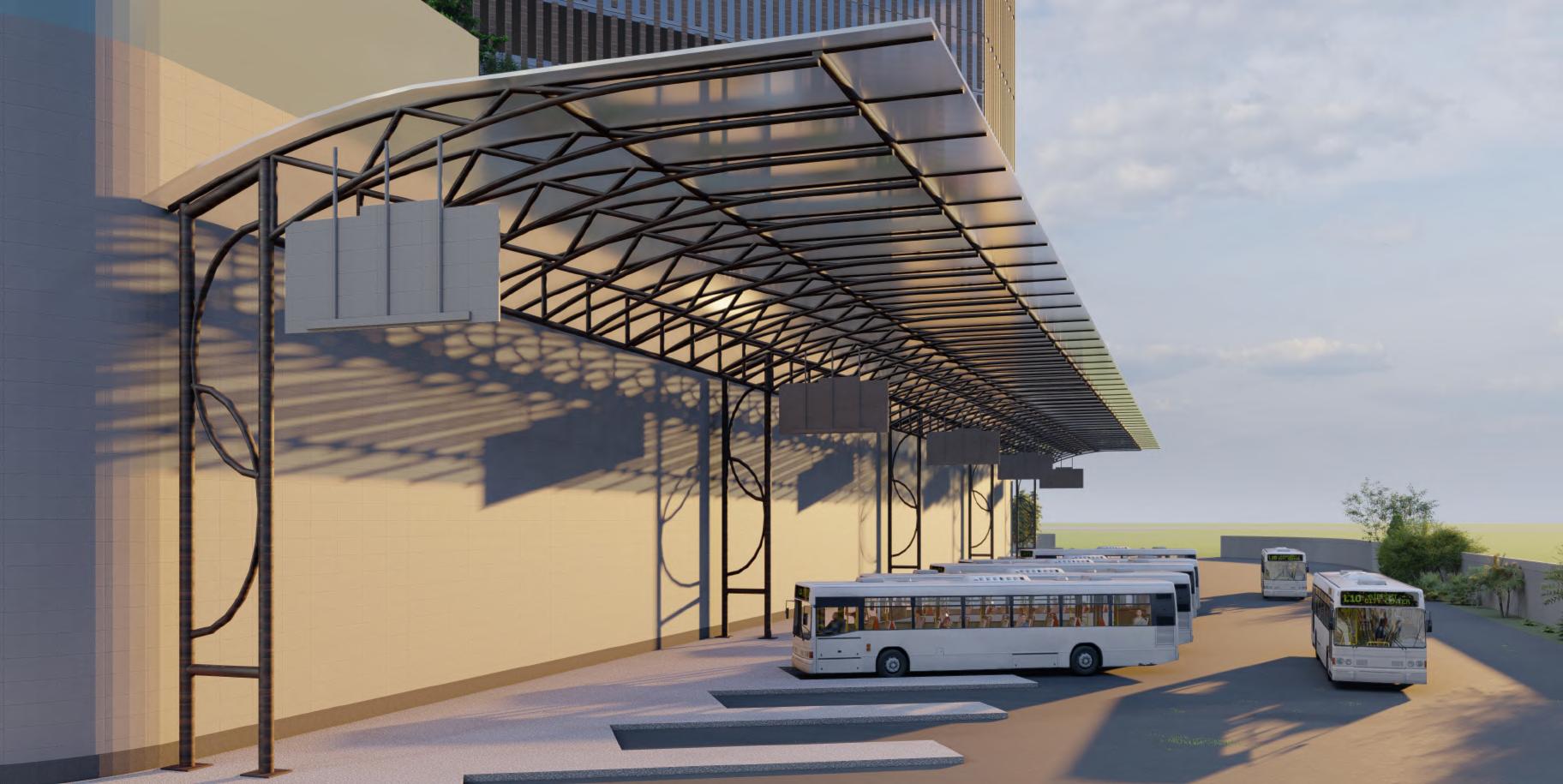

Namma Nildhana is a Multi Modal Bus Termial designed at Hebbal. A site responsive triangular form has been designed, integrating an abundance of green space in the project at various levels.

The project has been developed as a mixed used complex integrating transportation, retail, office, and hospitality spaces. Each of these functions are interconnected yet private, and is designed with multiple types of users in mind. The core principle of this building lies in the user experience of any user, and ensuring the ease of access and enjoyment for all of them.

Preethika Shetty | Portfolio 16

Namma Nildaana 17

HYDERABAD/KIAL/

BENGALURUHOASKOTE FLYOVER(AH43)

HOASKOTEROAD

TUMKUR-HOSAKOTE/KIAL/HYDROAD HOSAKOTE/BENGALURUFLYOVER

TUMKUR-HOSAKOTE/KIAL/HYDROAD

MASTER PLAN

SERVICE ROAD SERVICE ROAD TUMKUR - HOSAKOTE/ KIAL/ HYD ROAD

METRO PROPERTY SERVICEROAD SERVICEROAD

TUMKUR - HOSAKOTE/ KIAL/ HYD ROAD LEGEND A B C D E F G H I J K L M N 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Bus Entry Vehicular Entry to Basement Vehicular Entry to Drop Vehicular Exit from Basement Vehicular Exit from Drop Pedestrian Entry/ Exit Bus Exit Drop Off/ Pick Up Point BMTC Bus Platfrom KSRTC Bus Platform Kiosks Maintenance Shed Service Entry/ Exit Services Entry/ Exit Security Check Reception/ Info Metro Tickets KSRTC Tickets BMTC Tickets Lost & Found General Waiting Area VIP Waiting Lounge Cafeteria Kitchen Male Toilet Female Toilet Health Centre Nursing Room AC Waiting Lounge Baggage Room Security Office Tourist Office Police Outpost Electrical Room AHU House Keeping Atrium

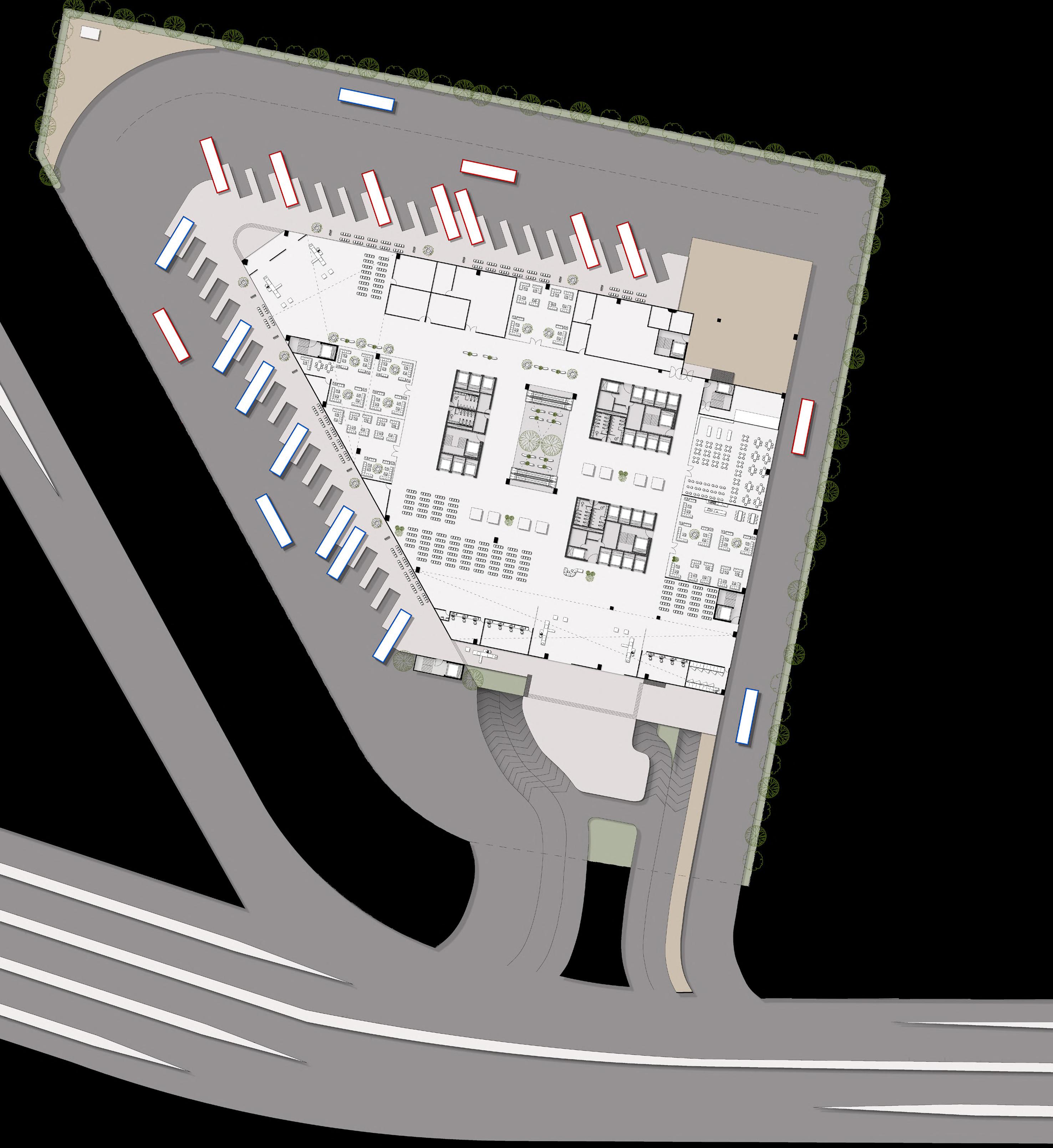

A B C D E F G H I J N L 1 2 3 5 2 2 1 4 7 6 8 8 9 10 11 M 12 13 14 15 16 17 18 19 20 K K K K K K 9 16 8 21 22 21 22 23 24 21 22 23 Preethika Shetty | Portfolio 18

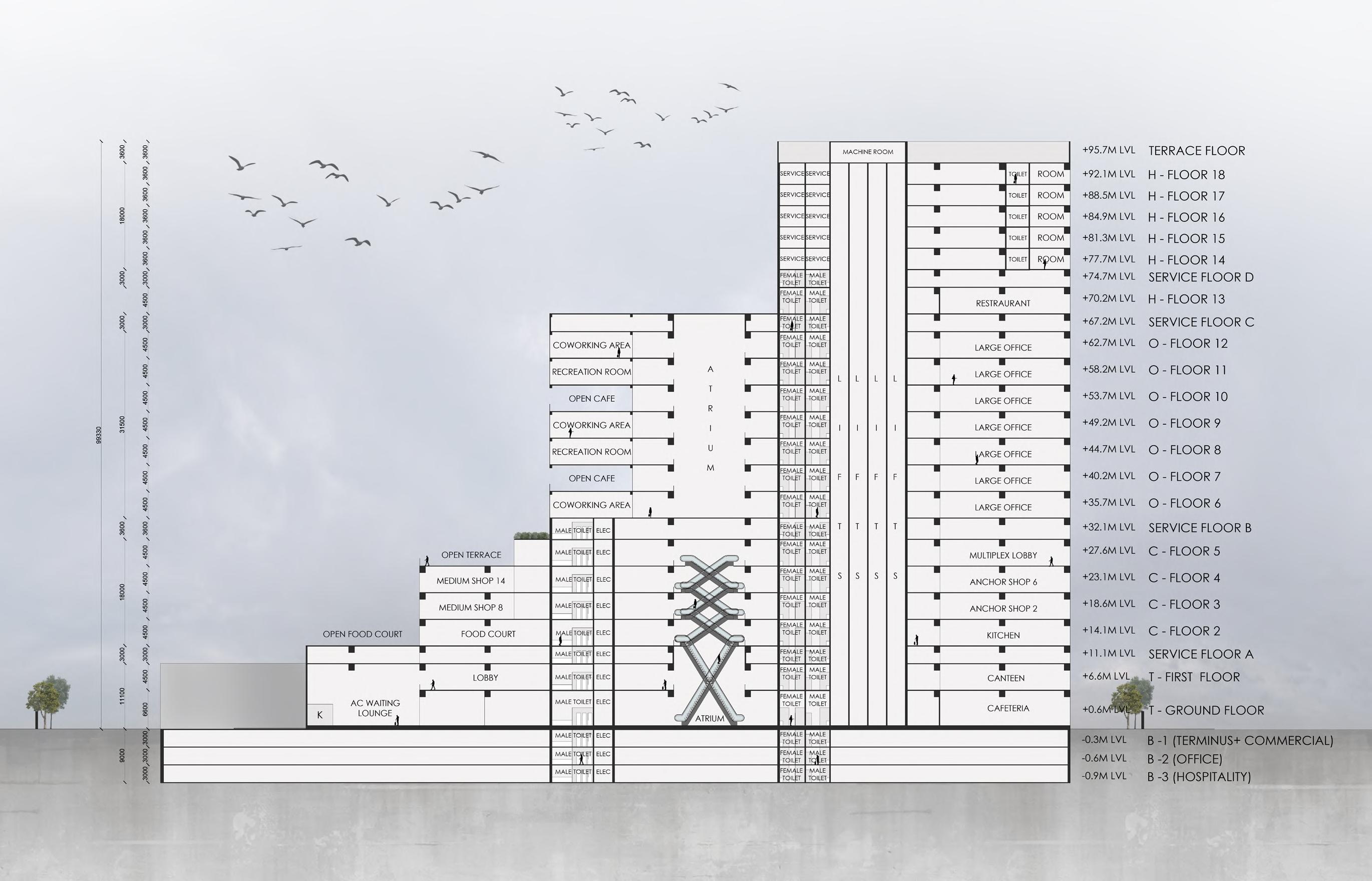

Namma Nildaana GL Basement Drop Off Basement Drop Off Point PLAN SECTION 19

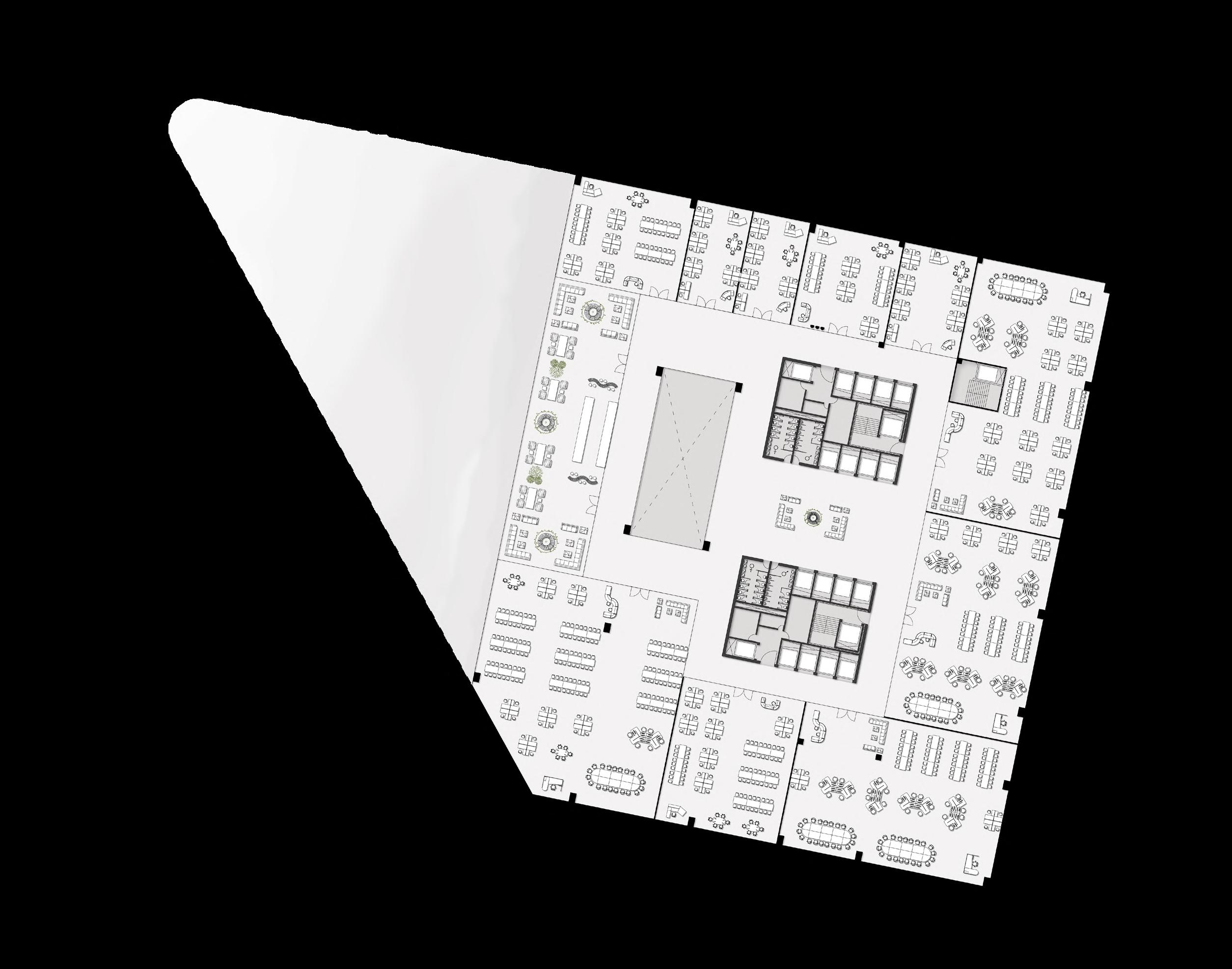

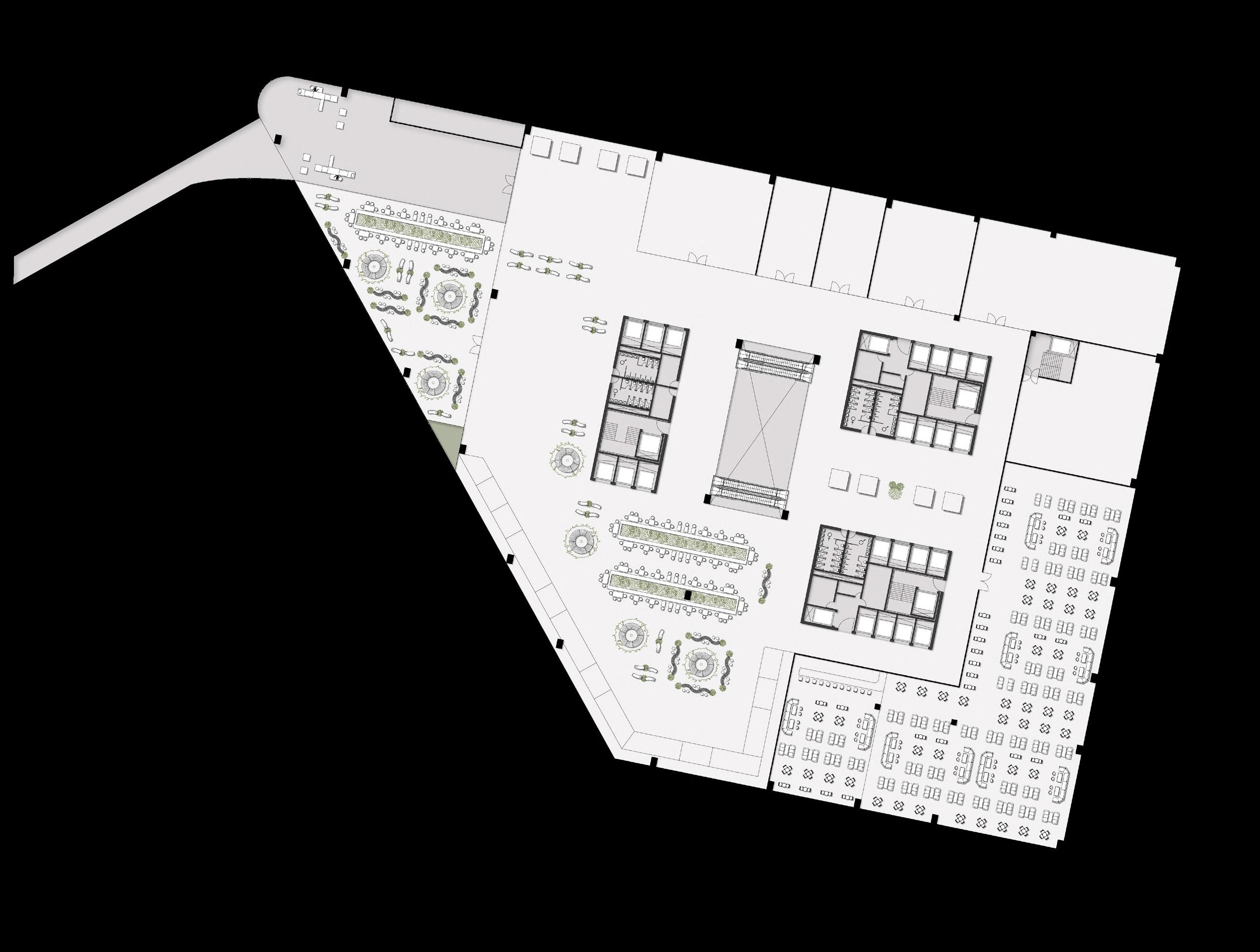

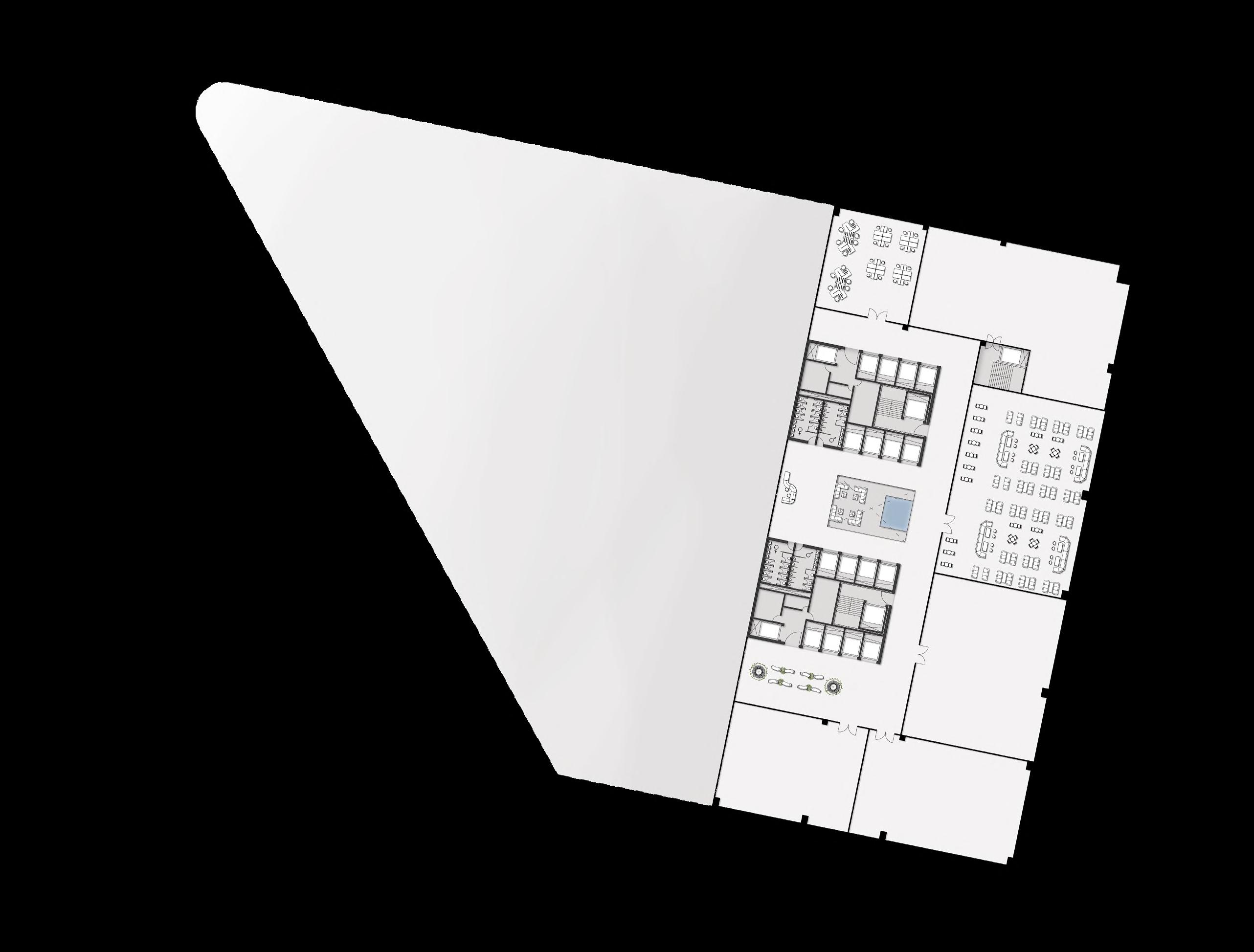

FLOOR 2 PLAN - COMMERCIAL

14 1 2 3 4 5 6 7 7 6 8 9 10 11 12 13 5 1 1 1 3 3 3 3 4 5 6 2 2 2

LEGEND 1 2 3 4 5 6 7 Entry from Metro Waiting Lounge Lobby Metro Tickets Kiosks Medium Shops Small Shops 8 9 10 11 12 13 14 Anchor Shop Kitchen Restaurant Bar Food Court Open Food Court Atrium LEGEND 1 2 3 4 5 6 Medium Office Small Office Large Office Co Working Space Atrium Lobby FLOOR 6, 9, 12 PLAN - OFFICE Preethika Shetty | Portfolio 20

Namma Nildaana 2 1 3 4 5 6 7 8 LEGEND 1 2 3 4 5 6 7 8 Reception Waiting Lounge Office Kitchen Restaurant Game Room Spa & Wellness Gym FLOOR 13 PLAN - HOSPITALITY 21

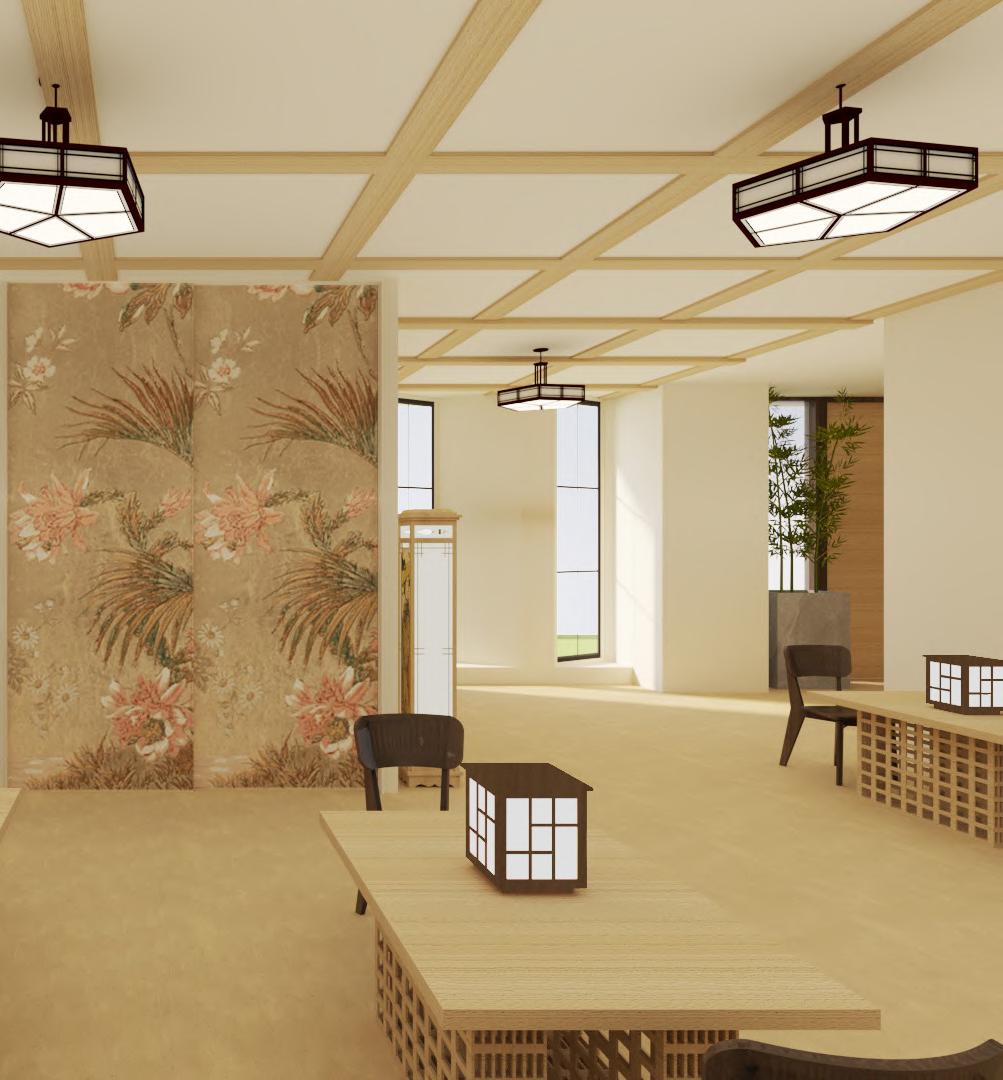

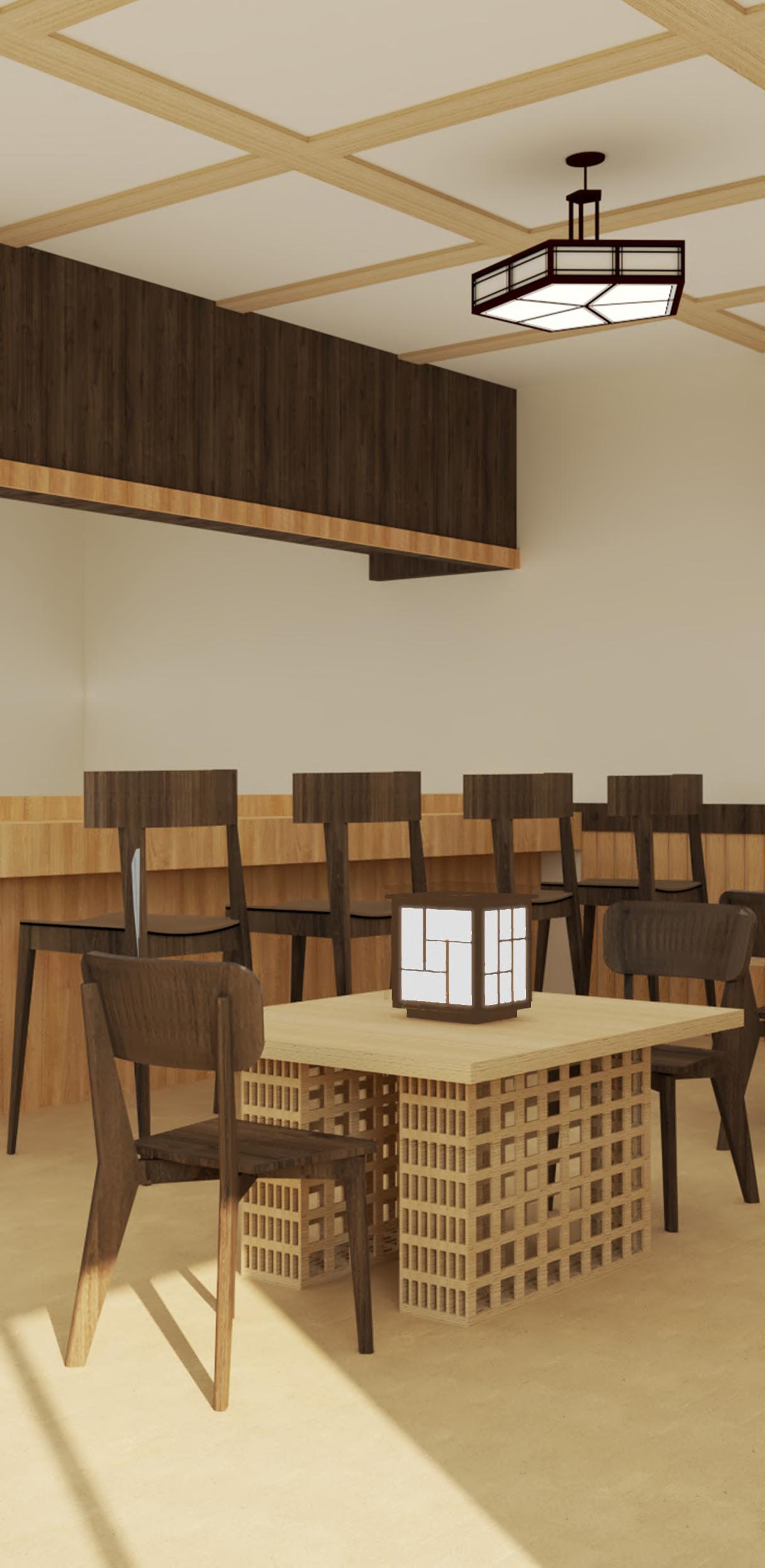

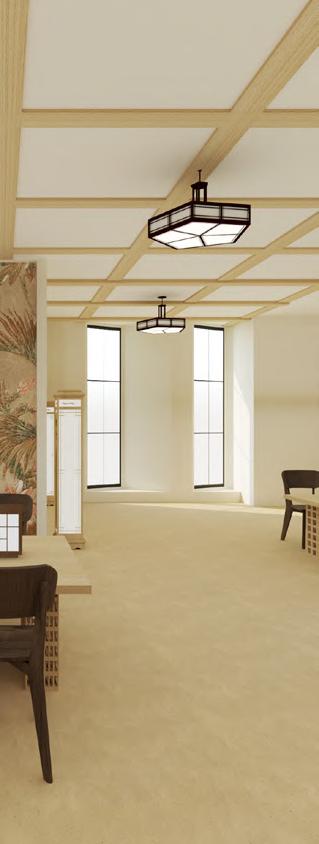

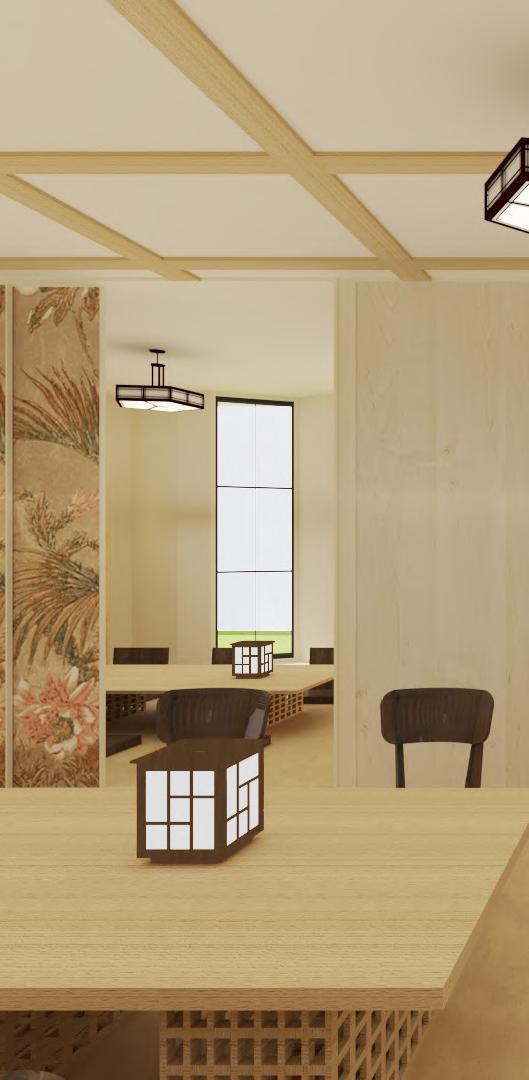

kaiteki

Japanese Restaurant | Zen | Interiors

Project : Restaurant Interior Design (V Sem Studio)

Location : RMV II Stage, Bangalore

Site Area : 1170 sqm

Softwares Used : AutoCAD, Sketchup, VRay , PS

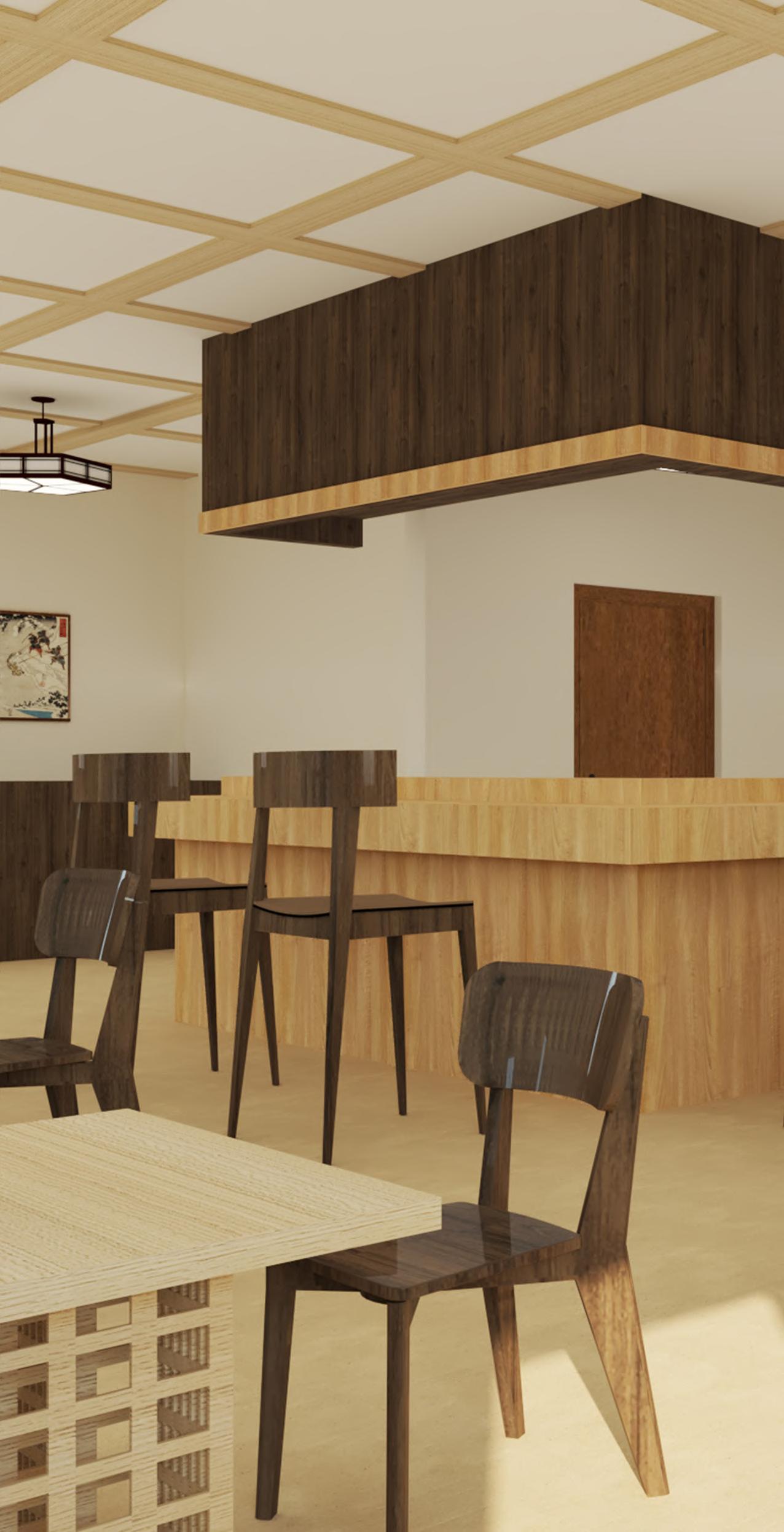

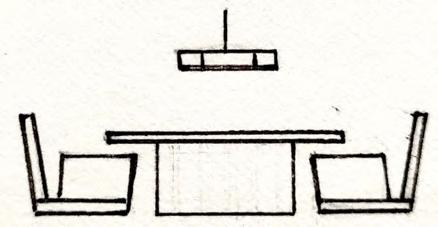

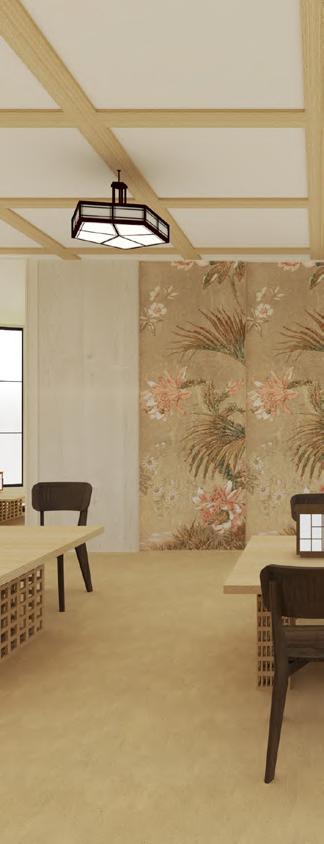

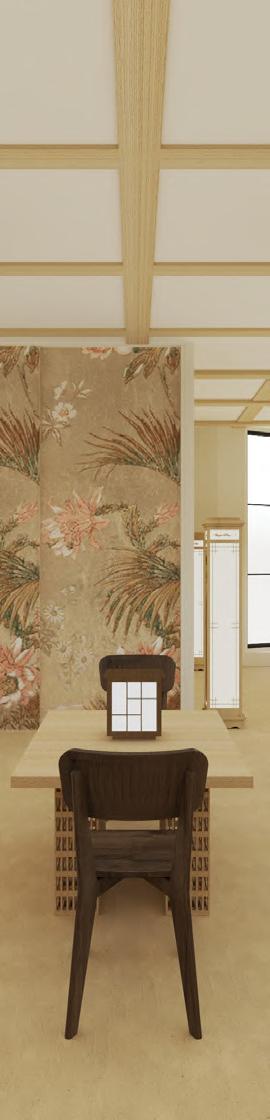

Designed with Japanese principles in mind, Kaiteki aims to transport people to another world for the time. The design takes a minimalistic approach, akin to that of modern Japanese architecture with a muted colour palette which includes whites, beiges and accents of wood. These elements are tied together with the warm lighting of the spaces. Squares are another common theme followed throughout the space, with respect to furniture, lighting, ceiling etc.

With design elements from traditional and modern Japanese architecture and local materials and execution, the restaurant presents itself in a way unique to many other buildings.

Preethika Shetty | Portfolio 22

Kaiteki 23

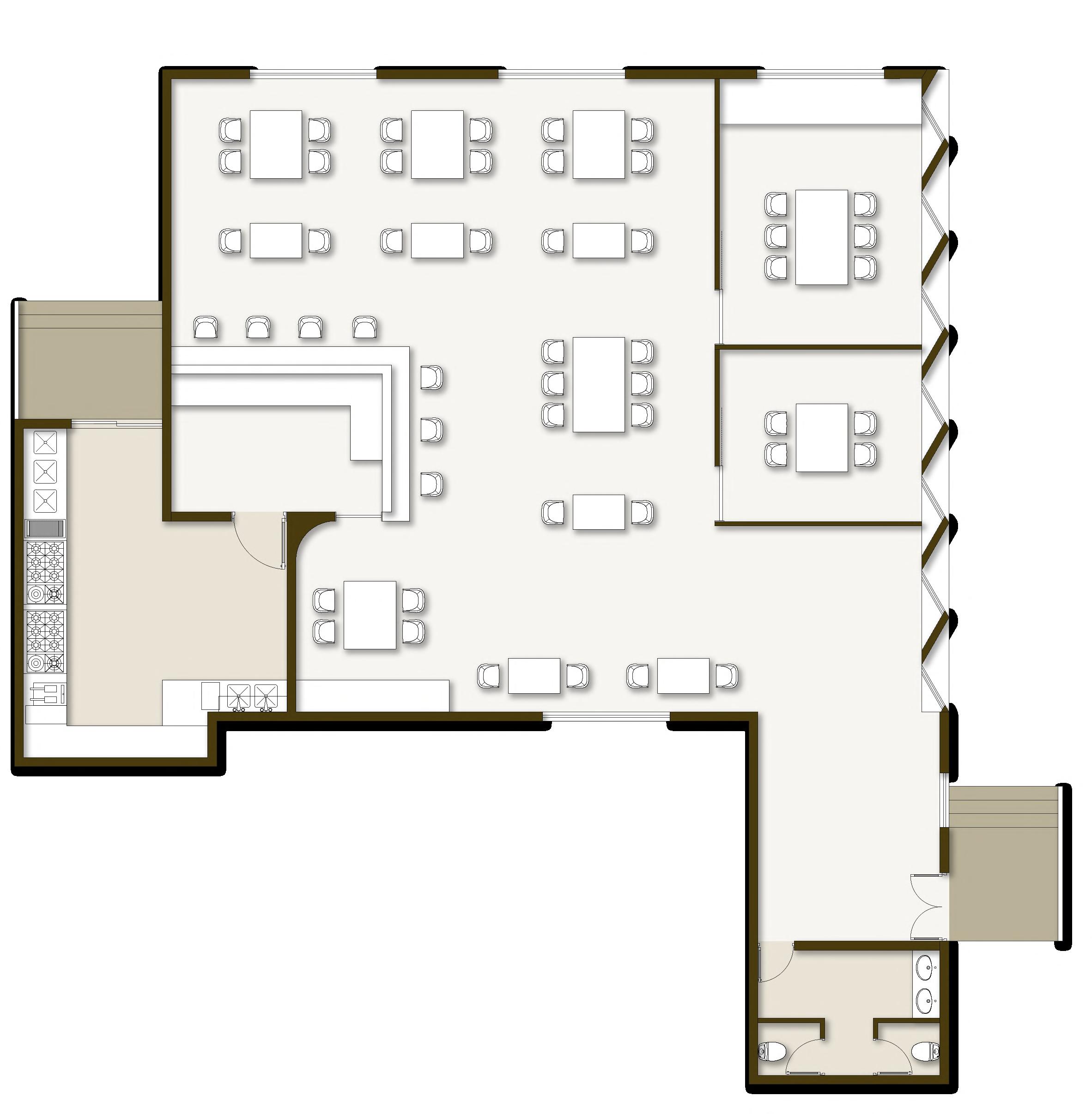

PLAN LEGEND 1 2 3 Foyer Toilet Kitchen 4 5 6 Open Dining Private Dining Teppanyaki Bar 4 5 5 6 3 2 1 MOODBOARD Preethika Shetty | Portfolio 24

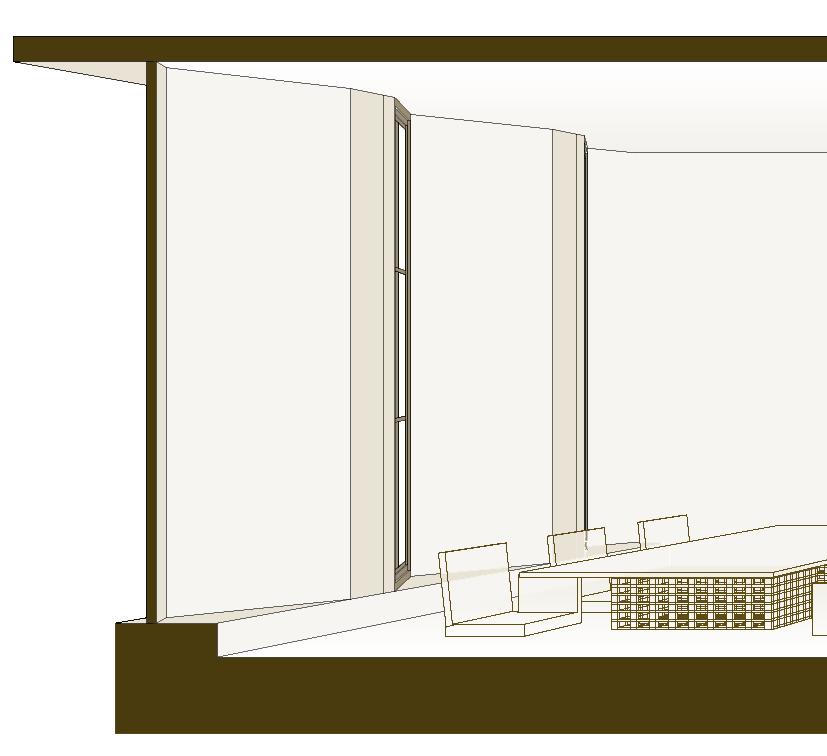

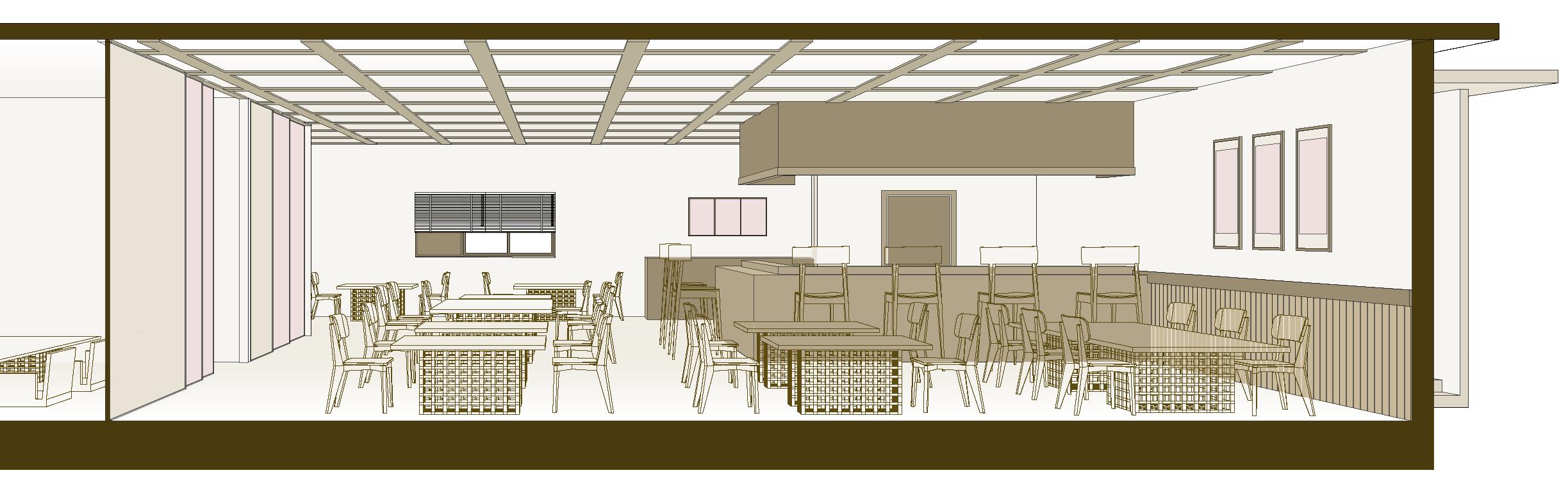

Kaiteki SECTIONAL PERSPECTIVE 25

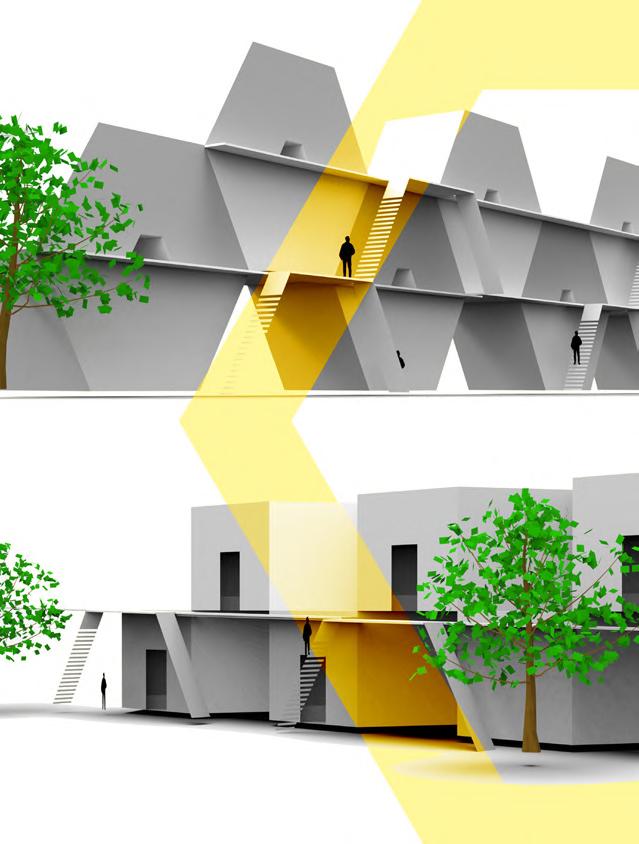

beehaus

Reversible | Cost Effective | Sustainable

Project : Temporary Housing for Labourers (ANDC)

Location : Suitable for all terrains/ climates

Site Area : Varies based on Spatial Arrangement

Softwares Used : AutoCAD, Sketchup, Keyshot, PS

Shortlisted in the Top 100 projects: ANDC 2020.

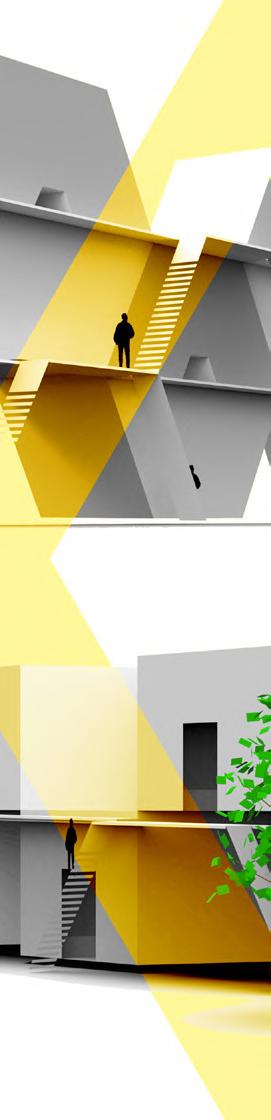

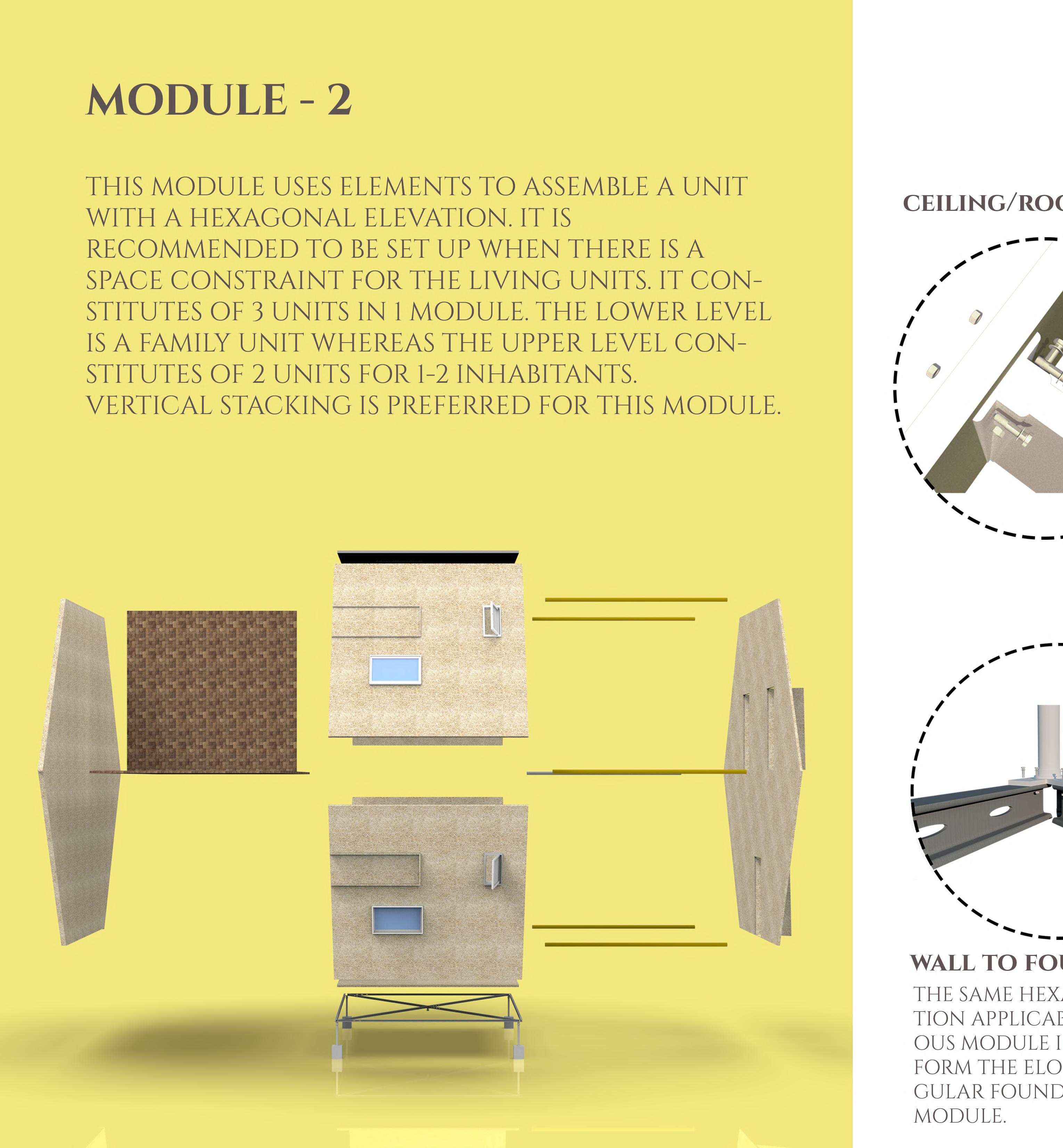

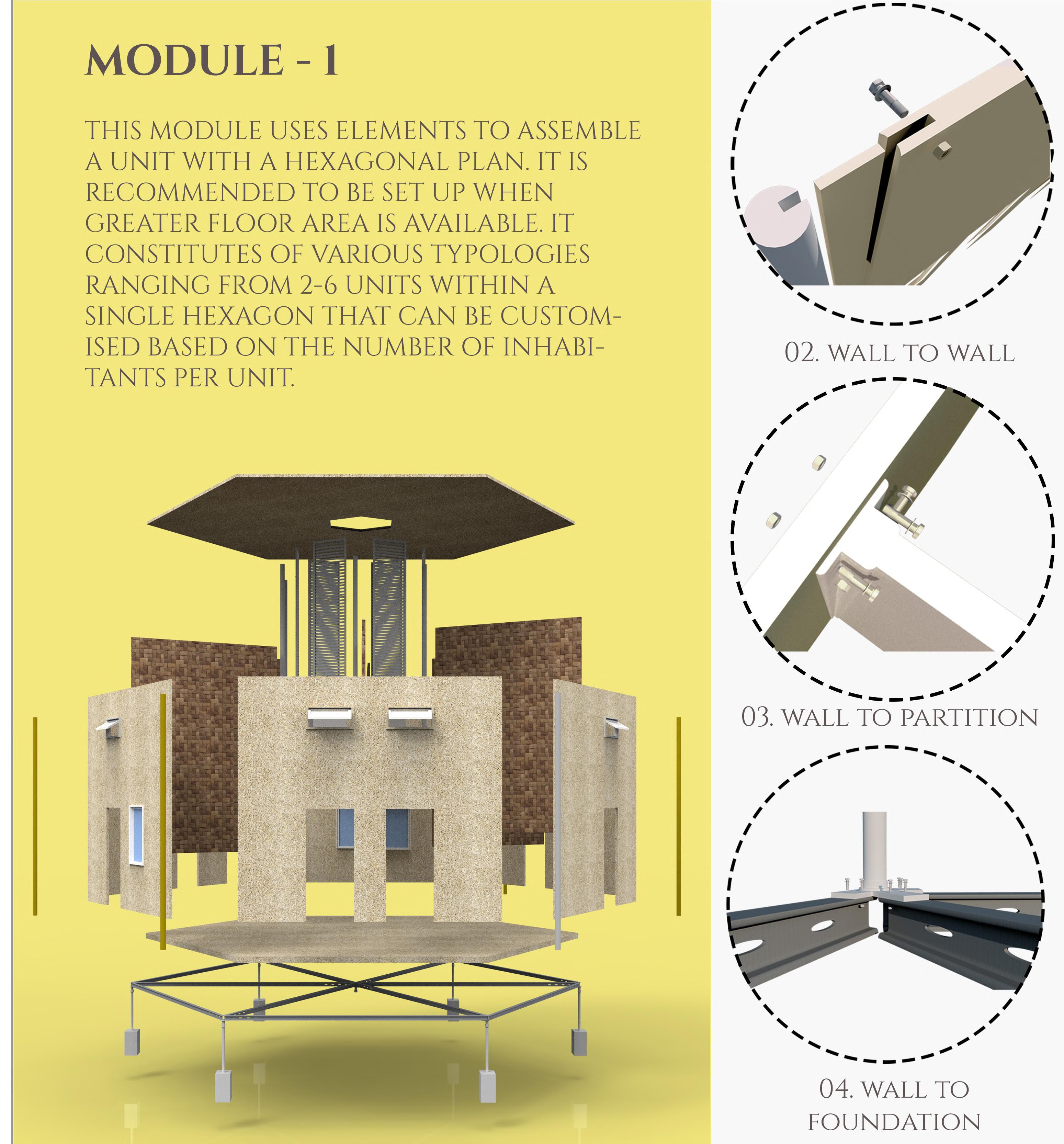

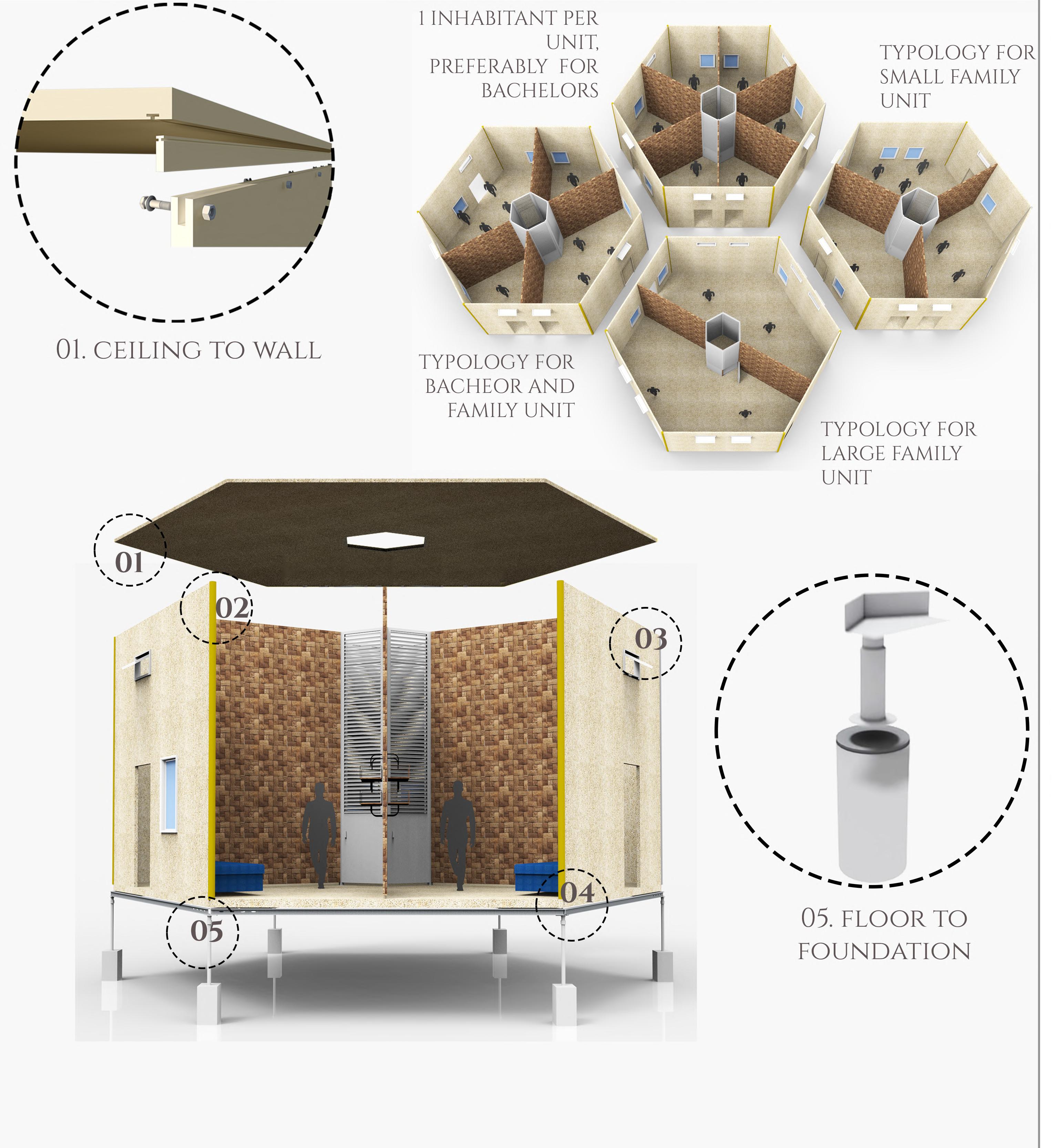

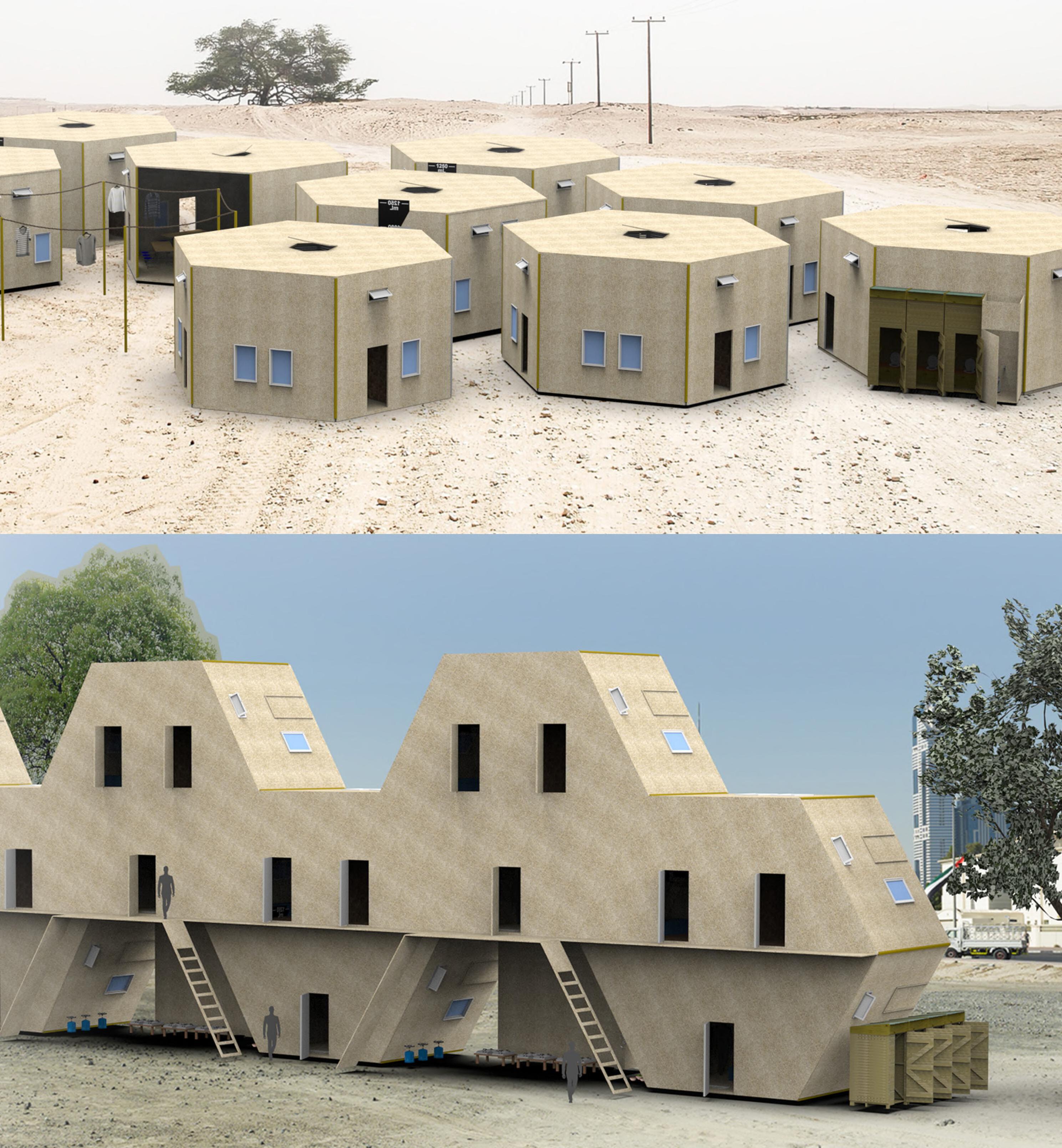

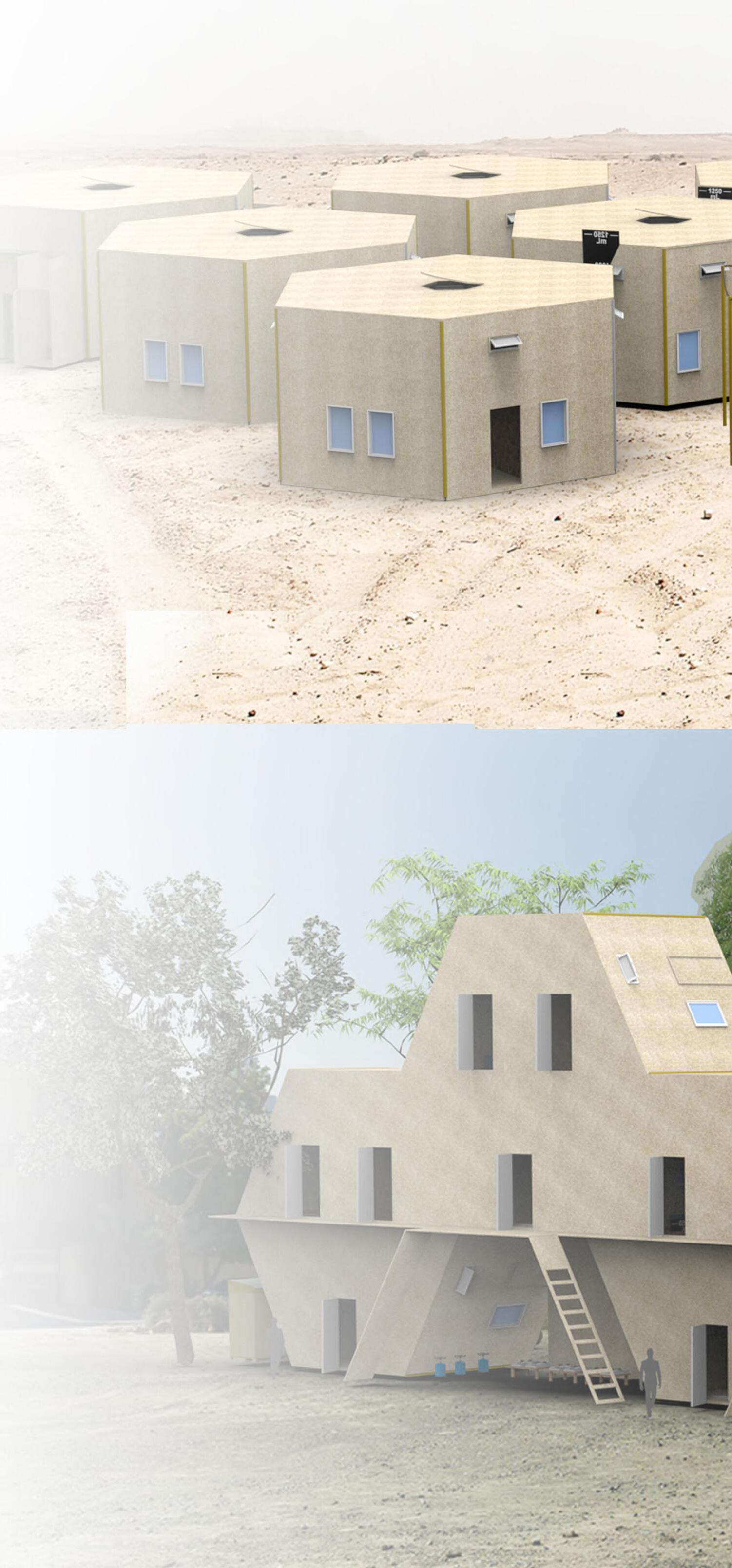

This modular project is designed as a labour housing project for construction workers. The flexible module allows for various configurations and can be catered to different categories of people - individual, groups or family housing.

This model has been designed with sustainable & affordable materials and can be collapsed and transferred, allowing it to be more accessible.

The project incooperates a human aspect to a modular form by allowing the users to themselves decide what will be best for their needs.

Preethika Shetty | Portfolio 26

Beehaus 27

Preethika Shetty | Portfolio 28

Beehaus 29

Preethika Shetty | Portfolio 30

Beehaus 31

GROUND FLOOR MARKING DRAWING

LIVING KITCHEN DINING C TOILET A TOILET BEDROOM BEDROOM CAR PARK COURTYARD (SKYLIGHT ABOVE) WATERBODY + 450 mm LVL DOWN +600 mm LVL +150 mm LVL UTILITY 1950 X 1500 3300 X 4300 5200 X 4300 1000 X 3600 3200 X 3500 3100 X 3500 1800 X 1800 2100 X 1750 2100 X 1650 5400 X 4700 UP STORE 1150 X 1500 (DOUBLE HEIGHT) UP +150 mm LVL 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 4900 X 3600 1 2 3 4 5 A B C 1400 2050 600 1900 2100 1200 1200 1450 1200 200 2550 2150 1400 200 1750 100 1650 100 3600 4300 200 2550 2150 1500 3600 3800 4300 1600 3200 14450 2150 1400 18000 1 2 3 4 5 1500 3600 3800 4300 1600 3200 18000 13500 3100 1400 1400 200 3500 3600 4300 100 100 1500 200 3100 3100 1800 900 2050 900 1200 2100 4550 1400 1500 200 3200 200 3100 2100 200 1500 1500 200 900 1400 900 100 900 1200 900 850 600 750 1500 1500 200 1950 200 100 1150 5200 1500 1500 450 1200 850 500 1200 450 900 850 1200 200 1500 1600 3400 5400 1600 1500 9000 1500 12000 A B C 1600 5400 3400 1600 1500 9000 1500 12000 100 200 200 1200 MD SD D1 D1 D1 D2 D2 V V SW3 SW3 FW FW SW3 SW3 SW4 SW4 SW4 SW1 SW1 SW1 SW1 SW2 SCHEDULE OF JOINERY - GROUND FLOOR SL. NO. SILL HT. TOTAL NO. HEIGHT WIDTH TYPE I. DOORS 1 MD 1200 2100 0 1 2 D1 900 2100 0 3 3 D2 750 2100 0 2 II. WINDOWS 1 SW1 1200 1200 900 4 2 SW2 3 SW3 4 FW 5 V 2100 600 1 2 2 900 1200 900 1200 600 1500 6 SW4 900 4 1200 900 900 3 900 1200 1200 SIZE (MM) 4 SD 600 2100 0 1 12000 3577.71 10881.18 63° 17°

C 1600 5400 3400 1600 1500 9000 1500 12000 100 200 200 1200 MD SD D1 D1 D1 D2 D2 V V SW3 SW3 FW FW SW3 SW3 SW4 SW4 SW4 SW1 SW1 SW1 SW1 SW2 SCHEDULE OF JOINERY - GROUND FLOOR SL. NO. SILL HT. TOTAL NO. HEIGHT WIDTH TYPE I. DOORS 1 MD 1200 2100 0 1 2 D1 900 2100 0 3 3 D2 750 2100 0 2 II. WINDOWS 1 SW1 1200 1200 900 4 2 SW2 3 SW3 4 FW 5 V 2100 600 1 2 2 900 1200 900 1200 600 1500 6 SW4 900 4 1200 900 900 3 900 1200 1200 SIZE (MM) 4 SD 600 2100 0 1 12000 3577.71 10881.18 63° 17°

Preethika Shetty | Portfolio 32

GROUND FLOOR MARKING DRAWING

MARKING DRAWING/ SETTING OUT PLAN working drawing

A B C

SOUTH ELEVATION

Second Floor Lintel LVL

GL + 0.6m LVL Ground Floor LVL + 3.75m LVL First Floor LVL + 6.9m LVL Second Floor LVL + 2.7m LVL Ground Floor Lintel LVL + 5.85m LVL First Floor Lintel LVL 150 600 3000 3000 900 2100 150 150 150 900 2100 1 2 3 4 5 150 600 3000 3000 900 2100 150 150 900 2100 50 GL + 0.6m LVL Ground Floor LVL + 3.75m LVL First Floor LVL + 6.9m LVL Second Floor LVL + 2.7m LVL Ground Floor Lintel LVL + 5.85m LVL First Floor Lintel LVL 450 BEDROOM STUDY DINING FAMILY KITCHEN BEDROOM TOILET UTILITY MS Members - 50 x 100 - 18 Nos. welded above main Pergola frame MS Members - 50 x 1007 Nos. (Box Type) 300 2550 + 9.3m LVL + 7.8m LVL Parapet LVL LIVING KITCHEN DINING TOILET 2 TOILET 1 BEDROOM BEDROOM CAR PARK UTILITY 1950 X 1500 3300 X 4300 5200 4300 3200 3500 3100 X 3500 2100 1650 STORE 1150 X 1500 TOILET 4 FAMILY BALCONY (COURTYARD BELOW) BEDROOM WALK IN WARDROBE WALK IN 3300 X 4200 1950 1500 5300 2450 BEDROOM STUDY 3100 X 3500 TOILET 3 2100 1650 4900 X 3600 A A A A GROUND FLOOR FIRST FLOOR

Second Floor Lintel LVL

GL + 0.6m LVL Ground Floor LVL + 3.75m LVL First Floor LVL + 6.9m LVL Second Floor LVL + 2.7m LVL Ground Floor Lintel LVL + 5.85m LVL First Floor Lintel LVL 150 600 3000 3000 900 2100 150 150 150 900 2100 1 2 3 4 5 150 600 3000 3000 900 2100 150 150 900 2100 50 GL + 0.6m LVL Ground Floor LVL + 3.75m LVL First Floor LVL + 6.9m LVL Second Floor LVL + 2.7m LVL Ground Floor Lintel LVL + 5.85m LVL First Floor Lintel LVL 450 BEDROOM STUDY DINING FAMILY KITCHEN BEDROOM TOILET UTILITY MS Members - 50 x 100 - 18 Nos. welded above main Pergola frame MS Members - 50 x 1007 Nos. (Box Type) 300 2550 + 9.3m LVL + 7.8m LVL Parapet LVL LIVING KITCHEN DINING TOILET 2 TOILET 1 BEDROOM BEDROOM CAR PARK (SKYLIGHT ABOVE) UTILITY 5200 X 4300 3200 3500 3100 X 3500 2100 X 1650 5400 X 4700 STORE 4900 X 3600 TOILET 4 FAMILY BALCONY (WATERBODY BEDROOM WARDROBE 3300 4200 1950 X 1500 5300 X 2450 BEDROOM STUDY TOILET 3 2100 X 1750 4900 X 3600 A A A A GROUND FLOOR FIRST FLOOR

A B C

KEY PLAN SECTION AA Working Drawing

1 SECTIONAL ELEVATION PP

B A B A X X Y Z Y Z 50 450 1025 875 1790 600 2350 820 30 600 900 50 420 400 25 150 300 450 600 450 450 450 450 150 900 600 450 600 400 400 250 700 1950 600 800 950 100 100 4400

CLOSED OVERHEAD CABINET OF SIZE 950 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD FLAP OF SIZE 800 X 400 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 12MM THK MARBLE TEXTURED CERAMIC TILES BACKSPLASH AND DADOING FROM 900MM TO 1200MM 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING BOTTOM BOTTLE PULL OUT OF SIZE 250 X 820 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM PULL OUT OF SIZE 700 X 420 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM PULL OUT OF SIZE 700 X 400 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE CLOSED OVERHEAD CABINET OF SIZE 900 X 600 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE CLOSED CABINET OF SIZE 600 X 875 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE LARDER UNIT OF SIZE 450 X 2350 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD CABINET OF SIZE 600 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE BOTTOM CABINET OF SIZE 600 X 820 X 600 MADE OF 19MM THK PLYWOOD FINISHED WITH CHARCOAL GREY LAMINATE BOTTOM CABINET OF SIZE 400 X 820 X 600 MADE OF 19MM THK PLYWOOD FINISHED WITH CHARCOAL GREY LAMINATE CLOSED CABINET OF SIZE 600 X 420 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE FFL SECTIONAL 600 1200 50 600 900 450 300 300 220 30 845 25 750 300 100 350 450 2400 450 150 CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE OPEN SHELF OF SIZE 1500 X 350 X 300MM MADE OF 25MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM CABINETS OF SIZE 1200 X 820 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 12MM THK MARBLE TEXTURED CERAMIC TILES BACKSPLASH AND DADOING FROM 900MM TO 1200MM 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING 2 BOTTOM DRAWERS OF SIZE 900 X 300 X 600 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE DRAWER OF SIZE 900 X 220 X 600 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE FFL P P Q Q 900 600 450 600 800 950 400 1200 1500 1200 100 100 600 600 1500 650 300 900 100 750 1200 4300 900 1200 400 PLAN YY 4300 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING AT 900MM HEIGHT 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING AT 1100MM HEIGHT LARDER UNIT OF SIZE 450 X 2350 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 900 600 450 600 800 250 700 600 400 200 600 600 900 600 600 600 100 30 600 1500 PLAN

BOTTOM DRAWER OF SIZE 900 MADE OF 12MM & 19MM THK FINISHED WITH MATTE CHARCOAL LAMINATE 19 MM THK PLYWOOD OF SIZE 1500 X 1100 MM FINISHED WITH BURMA TEAK FINISH LAMINATE BOTTOM CABINET OF SIZE 600 600 MADE OF 19MM THK PLYWOOD FINISHED WITH CHARCOAL GREY LAMINATE BOTTOM BOTTLE PULL OUT OF 820 X 600MM MADE OF 19MM PLYWOOD FINISHED WITH BURMA WOOD FINISH LAMINATE BOTTOM CABINETS OF SIZE 1200 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD LAMINATE BOTTOM PULL OUT OF SIZE 700 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE LARDER UNIT OF SIZE 450 X 2350 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE BOTTOM OPEN PULL OUT BASKET OF SIZE 600 X 410 X 600MM MADE 19MM THK PLYWOOD FINISHED BURMA TEAK WOOD FINISH LAMINATE B B 600 X Y Z 50 600 900 450 300 300 220 30 845 25 750 300 100 350 450 2400 450 150 CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE OPEN SHELF OF SIZE 1500 X 350 X 300MM MADE OF 25MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM CABINETS OF SIZE 1200 X 820 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 12MM THK MARBLE TEXTURED CERAMIC TILES BACKSPLASH AND DADOING FROM 900MM TO 1200MM 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING 2 BOTTOM DRAWERS OF SIZE 900 X 300 X 600 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE DRAWER OF SIZE 900 X 220 X 600 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE FFL

ELEVATION

50 450 1025 875 1790 600 2350 820 30 600 900 50 395 375 25 25 150 300 450 600 450 450 450 450 150 900 600 450 600 400 400 250 700 1950 600 800 950 100 100 4400 CLOSED OVERHEAD CABINET OF SIZE 950 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD FLAP OF SIZE 800 X 400 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 12MM THK MARBLE TEXTURED CERAMIC TILES BACKSPLASH AND DADOING FROM 900MM TO 1200MM 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING BOTTOM BOTTLE PULL OUT OF SIZE 250 X 820 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM PULL OUT OF SIZE 700 X 420 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM PULL OUT OF SIZE 700 X 400 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE CLOSED OVERHEAD CABINET OF SIZE 900 X 600 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE CLOSED CABINET OF SIZE 600 X 875 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE LARDER UNIT OF SIZE 450 X 2350 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD CABINET OF SIZE 600 X 900 X 300MM MADE OF 19MM THK PLY FINISHED WITH MATTE CHARCOAL GREY LAMINATE BOTTOM CABINET OF SIZE 600 X 820 X 600 MADE OF 19MM THK PLYWOOD FINISHED WITH CHARCOAL GREY LAMINATE BOTTOM CABINET OF SIZE 400 X 820 X 600 MADE OF 19MM THK PLY FINISHED WITH CHARCOAL GREY LAMINATE CLOSED CABINET OF SIZE 600 X 420 X 600MM MADE OF 19MM THK PLY FINISHED WITH MATTE CHARCOAL GREY LAMINATE FFL Preethika Shetty | Portfolio 34

ELEVATION 2

ELEVATION 3

PLAN XX

SECTIONAL ELEVATION QQ 600 600 900 600 600 400 1500 1200 400 4300 50 410 410 30 630 25 875 1130 520 300 300 150 300 150 CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE OPEN SHELVES OF SIZE 200 X 400MM MADE OF 19MM THL PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE DUMMY BOX OF SIZE 400 X 150 X 1500MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING BOTTOM OPEN PULL OUT BASKET SHELVES OF SIZE 600 X 410 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM CABINET OF SIZE 600 X 820 X 600 MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 19 MM THK PLYWOOD OF SIZE 1120 X 400 MM FINISHED WITH BURMA TEAK FINISH LAMINATE 1790 600 450 1100 30 520 300 300 150 450 150 200 300 100 650 1150 1500 200

3300 DUMMY BOX OF SIZE 400 X 150 X 1500MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE OPEN SHELVES OF SIZE 200 X 400MM MADE OF 19MM THL PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 19 MM THK PLYWOOD OF SIZE 1500 X 1100 MM FINISHED WITH BURMA TEAK FINISH LAMINATE 19 MM THK PLYWOOD OF SIZE 1120 X 400 MM FINISHED WITH BURMA TEAK FINISH LAMINATE 30MM THK WHITE MARBLE COUNTERTOP WITH 30MM NOSING FFL PENDANT LIGHT X 300 X 600 PLYWOOD CHARCOAL GREY WITH X 820 X PLYWOOD GREY SIZE 250 X THK BURMA TEAK 1200 X 820 X PLYWOOD WOOD FINISH X 400 X PLYWOOD WOOD 2350 X MATTE BASKET SHELVES MADE OF FINISHED WITH LAMINATE 50 429 391 30 600 475 425 150 300 900 600 900 100 2100 600 100 500 200 50 820 30 600 900 150 450 900 600 900 450 150 450 150 300 CLOSED OVERHEAD CABINET OF SIZE 950 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 30MM THK WHITE MARBLE COUNTERTOP WITH 30MM NOSING 19MM THK PLYWOOD BACKING BOTTOM PULL OUT SHELVES OF SIZE 600 X 410 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 12MM THK MARBLE TEXTURED CERAMIC TILES BACKSPLASH AND DADOING FROM 900MM TO 1200MM 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM CABINETS OF SIZE 1200 X 820 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM PULL OUT OF SIZE 700 X 400 X 600MM MADE OF 19MM THK PLY FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE FFL 900 600 450 600 800 475 475 400 1200 1500 1200 100 600 1500

30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING AT 900MM HEIGHT 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING AT 1100MM HEIGHT LARDER UNIT OF SIZE 450 X 2350 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD CABINET OF SIZE 900 X 600 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE CLOSED OVERHEAD CABINET OF SIZE 950 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE CLOSED OVERHEAD FLAP OF SIZE 800 X 400 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE A A X Y Z 600 600 600 900 600 600 400 1200 1500 1200 400 4300 50 410 410 30 630 25 875 1130 520 300 300 150 300 150

CLOSED OVERHEAD CABINET OF SIZE 1200 X 900 X 300MM MADE OF 19MM THK PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE OPEN SHELVES OF SIZE 200 X 400MM MADE OF 19MM THL PLYWOOD FINISHED WITH MATTE CHARCOAL GREY LAMINATE 19 MM THK PLYWOOD OF SIZE 1120 X 400 MM FINISHED WITH BURMA TEAK FINISH LAMINATE DUMMY BOX OF SIZE 400 X 150 X 1500MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 30MM THK WHITE MARBLE COUNTERTOP 30MM NOSING BOTTOM OPEN PULL OUT BASKET SHELVES OF SIZE 600 X 410 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE BOTTOM CABINET OF SIZE 600 X 820 X 600 MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50 429 391 30 600 475 425 150 300 900 600 900 100 2100 600 100 500 200 50 820 30 600 900 150 450 900 600 900 450 150 450 150 300 SECTION AA LARDER UNIT OF SIZE 450 X 2350 X 600MM MADE OF 19MM THK PLYFINISHED WITH MATTE CHARCOAL GREY LAMINATE OPEN SHELF OF SIZE 1500 X 350 X 300MM MADE OF 25MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 30MM THK WHITE MARBLE COUNTERTOP WITH 30MM NOSING 19MM THK PLYWOOD BACKING BOTTOM PULL OUT SHELVES OF SIZE 600 X 410 X 600MM MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE 50MM SKIRTING MADE OF 19MM THK PLYWOOD FINISHED WITH BURMA TEAK WOOD FINISH LAMINATE FFL ELEVATION 3 ELEVATION 1 ELEVATION 2

SECTION BB KITCHEN DESIGN Working Drawing

COMPOUND WALL ELEVATION

TOILET DETAILS

676 GL

300 450 3300 750 300 1500 300 4800 300 MS Members (Box type) 50 x 100mm Letterbox - 350 x 450 20 mm Recess with LED light LED Name Plate - 550 X 250mm Embossed Number Plate Letterbox Opening 250 x 50mm 1500 75 900 75 600 800 500 300 x 300 Column 22 dia Hinge - 90L 35 x 300 Handle 180 x 75mm Latch 1500mm Pedestrian Gate 4800 mm Folding Garage Gate 100 100 20 40 24 dia Hinge - 150L

A B C

MIRROR 900 2100 F12 F11 F08 F07 F09 F05 F03 F02 F01 F06 F04 F10 A A FIXTURE LAYOUT DETAIL CODE SPECIFICATION QUANTITY TYPE : TOWEL RING CODE: K-14441-CP SUPPLIER: KOHLER F01 01 TYPE : TABLE TOP WASH BASIN CODE: K-99183-0 SUPPLIER: KOHLER F02 01 F03 01 F04 01 F05 01 F06 01 F07 01 F08 01 F09 01 F10 01 TYPE : WALL HUNG TOILET CODE: K-6299-0 SUPPLIER: KOHLER TYPE : CONTROL PLATE CODE: K-75891-CP SUPPLIER: KOHLER TYPE : VALVE TRIM WITH LEVER CODE: K-TS97018-4-CP SUPPLIER: KOHLER TYPE : HAND SHOWER CODE: K-98362-G-CP SUPPLIER: KOHLER TYPE : BATH SPOUT CODE: K-389-S-CP SUPPLIER: KOHLER TYPE : SHOWER DRAIN CODE: K-9136-CP SUPPLIER: KOHLER TYPE : HEALTH FAUCET CODE: K-98439-G-CP SUPPLIER: KOHLER TYPE : WALL MOUNTED BASIN MIXER CODE: K-T23889-CP SUPPLIER: KOHLER F11 01 TYPE : SHOWER ARM CODE: K-10124-CP SUPPLIER: KOHLER F12 01 TYPE : OVERHEAD SHOWER CODE: K-26149-CP SUPPLIER: KOHLER WALL FINISHES LEGEND CODE SPECIFICATION KAJARIA - VT1 ELENTA GRIS (300 X 600 - 12 THK) KAJARIA - VT2 ELENTO GREY (300 X 600 - 12 THK) F01 F02 F03 F04 F05 VT1&2 VT1&2 VT1 VT2 VT1&2 VT1&2 F06 F07 F08 F10 F11 F12 F09 MASONRY LEGEND CODE SPECIFICATION MASONRY WALL MASONRY WALL FOR LEDGE WALL OF 1000 HT FROM FFL WITH 10 MM POLISHED VT1 (KAJARIA: ELENTA GRIS) COPING WALL FINISHES LEGEND CODE SPECIFICATION WALL CLADDED WITH VT1 (KAJARIA: ELENTA GRIS) UPTO 900MM FROM FFL & VT2 (KAJARIA: ELENTO GREY) FROM 900MM TO 2100MM WALL CLADDED WITH VT1 (KAJARIA: ELENTA GRIS) ON LEDGE UPTO 900MM HT FROM FFL VT1 & VT2 VT1 COLUMN WALL CLADDED WITH VT2 (KAJARIA: ELENTO GREY) ABOVE LEDGE WALL TO 2100MM VT2 CALCIUM SILICATE BOARD FALSE CEILING AT 2700 FROM FFL 200 1000 750 700 600 900 200 900 600 100 450 D2 V TOILET 2 2100 X 1750

FIXTURES LAYOUT WALL FINISHES LAYOUT KEY PLAN

SECTION AA

MIRROR 900 2100 F12 F11 F08 F07 F09 F05 F03 F02 F01 F06 F04 F10 A A FIXTURE LAYOUT DETAIL CODE SPECIFICATION QUANTITY TYPE : TOWEL RING CODE: K-14441-CP SUPPLIER: KOHLER F01 01 TYPE : TABLE TOP WASH BASIN CODE: K-99183-0 SUPPLIER: KOHLER F02 01 F03 01 F04 01 F05 01 F06 01 F07 01 F08 01 F09 01 F10 01 TYPE : WALL HUNG TOILET CODE: K-6299-0 SUPPLIER: KOHLER TYPE : CONTROL PLATE CODE: K-75891-CP SUPPLIER: KOHLER TYPE : VALVE TRIM WITH LEVER CODE: K-TS97018-4-CP SUPPLIER: KOHLER TYPE : HAND SHOWER CODE: K-98362-G-CP SUPPLIER: KOHLER TYPE : BATH SPOUT CODE: K-389-S-CP SUPPLIER: KOHLER TYPE : SHOWER DRAIN CODE: K-9136-CP SUPPLIER: KOHLER TYPE : HEALTH FAUCET CODE: K-98439-G-CP SUPPLIER: KOHLER TYPE : WALL MOUNTED BASIN MIXER CODE: K-T23889-CP SUPPLIER: KOHLER F11 01 TYPE : SHOWER ARM CODE: K-10124-CP SUPPLIER: KOHLER F12 01 TYPE : OVERHEAD SHOWER CODE: K-26149-CP SUPPLIER: KOHLER WALL FINISHES LEGEND CODE SPECIFICATION KAJARIA - VT1 - ELENTA GRIS (300 X 600 - 12 THK) KAJARIA - VT2 - ELENTO GREY (300 X 600 - 12 THK) F01 F02 F03 F04 F05 VT1&2 VT1&2 VT1 VT2 VT1&2 VT1&2 F06 F07 F08 F10 F11 F12 F09 MASONRY LEGEND CODE SPECIFICATION MASONRY WALL MASONRY WALL FOR LEDGE WALL OF 1000 HT FROM FFL WITH 10 MM POLISHED VT1 (KAJARIA: ELENTA GRIS) COPING WALL FINISHES LEGEND CODE SPECIFICATION WALL CLADDED WITH VT1 (KAJARIA: ELENTA GRIS) UPTO 900MM FROM FFL & VT2 (KAJARIA: ELENTO GREY) FROM 900MM TO 2100MM WALL CLADDED WITH VT1 (KAJARIA: ELENTA GRIS) ON LEDGE UPTO 900MM HT FROM FFL VT1 & VT2 VT1 COLUMN WALL CLADDED WITH VT2 (KAJARIA: ELENTO GREY) ABOVE LEDGE WALL TO 2100MM VT2 CALCIUM SILICATE BOARD FALSE CEILING AT 2700 FROM FFL 200 1000 750 700 600 900 200 900 600 100 450 D2 V TOILET 2 2100 X 1750 Preethika Shetty | Portfolio 36

X B A A

X X B B A A

ELEVATION

REFLECTED CEILING PLAN

PLAN XX

ELEVATION REFLECTED CEILING PLAN PLAN XX

SECTION AA

SECTION BB

850 450 850 850 450 225 640 1730 640 225 3450 450 1275 1275 450 225 640 1730 640 225 80 240 180 100 1100 1050 2850 755 885 3290 550 550 550 12MM GYPSUM BOARD 70MM DIA SPOTLIGHT 12 X 35MM THK TEAK WOOD REAPERS WITH ROUNDED EDGES ON A 12MM THK PLY BACKING. FINISHED WITH WOOD POLISH 12MM THK GYPSUM BOARD HANGER RODS ANCHORED TO SLAB USING ANCHOR BOLTS 12 X 35MM THK TEAK WOOD REAPER WITH ROUNDED EDGES 12MM THK PLY BACKING STRIP LIGHT 35 MM DIA SPOTLIGHT ALUMINIUM CHANNELS 80MM SKIRTING MADE OF 8MM THK GREY FLOORING TILE DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER GREY WALLPAPER ON WALL TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER 148 100 100 450 830 890 830 450 250 150 3450 200 220 400 200 200 80 240 180 100 1100 1050 2850 805 1305 2405 55 20 BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE GL DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER STRIP LIGHT LIVE

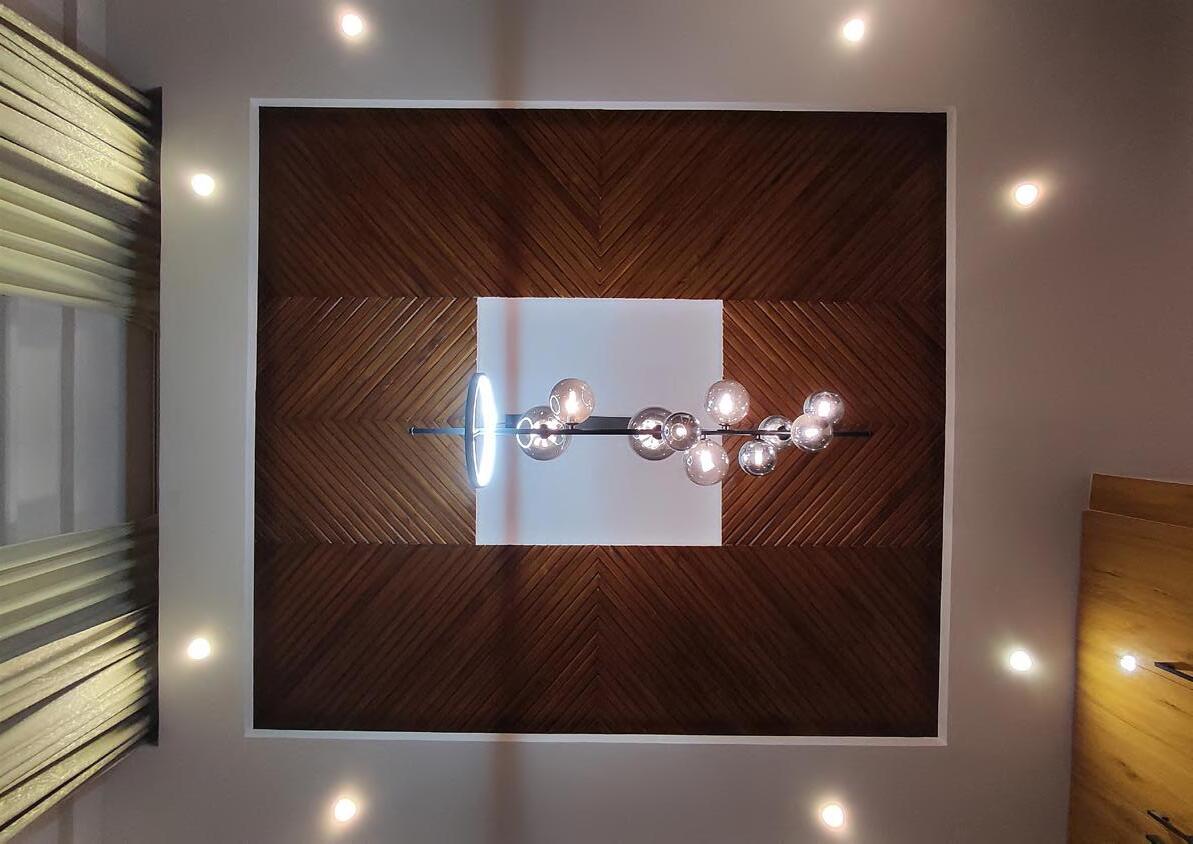

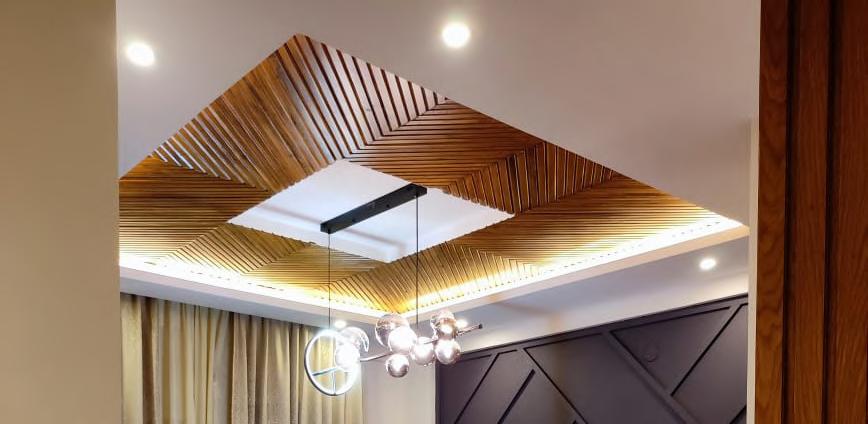

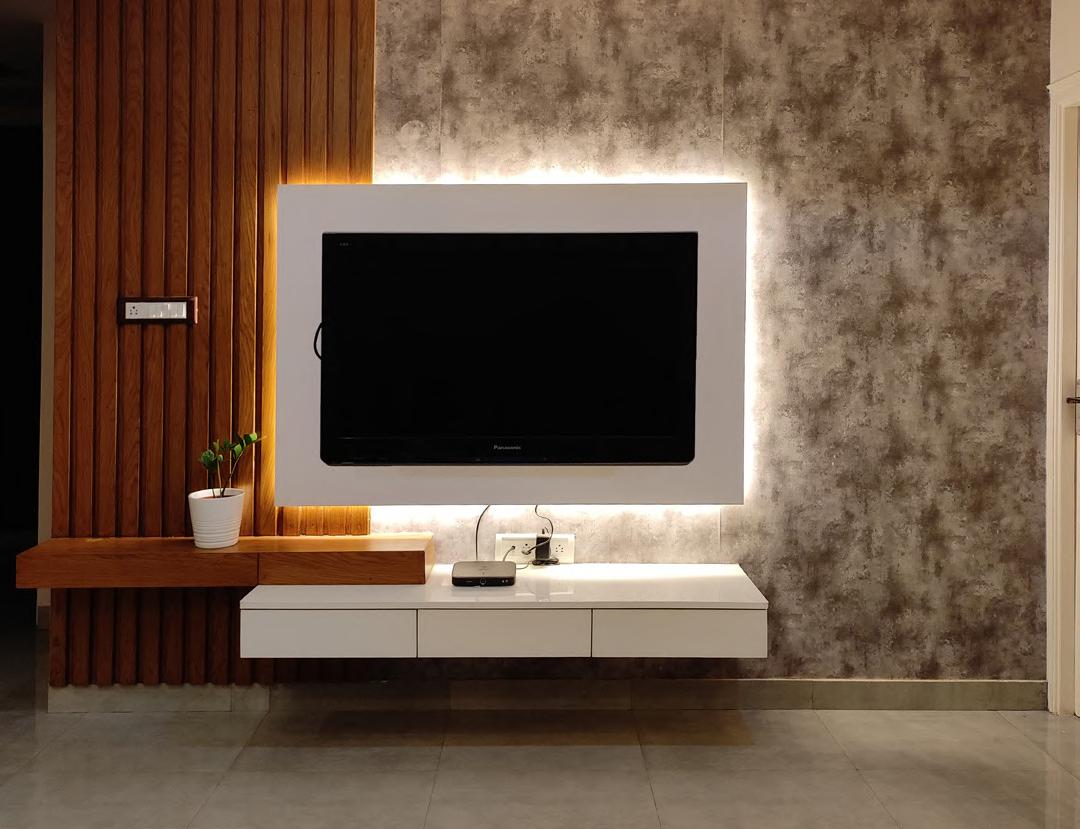

TV Unit & Dining room false ceiling designed for a residential renovation project.

Working Drawing

SECTION BB X B

BB X X B B A A SECTION AA 850 450 850 850 450 225 640 1730 640 225 3450 450 1275 1275 450 225 640 1730 640 225 80 240 180 100 1100 1050 2850 755 885 3290 550 550 550 12MM GYPSUM BOARD 70MM DIA SPOTLIGHT 12 X 35MM THK TEAK WOOD REAPERS WITH ROUNDED EDGES ON A 12MM THK PLY BACKING. FINISHED WITH WOOD POLISH 12MM THK GYPSUM BOARD HANGER RODS ANCHORED TO SLAB USING ANCHOR BOLTS 12 X 35MM THK TEAK WOOD REAPER WITH ROUNDED EDGES 12MM THK PLY BACKING STRIP LIGHT 35 MM DIA SPOTLIGHT ALUMINIUM CHANNELS 80MM SKIRTING MADE OF 8MM THK GREY FLOORING TILE DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER GREY WALLPAPER ON WALL TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER 148 100 100 450 830 890 830 450 250 150 3450 200 220 400 200 200 80 240 180 100 1100 1050 2850 805 1305 2405 55 20 BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE GL DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER STRIP LIGHT

SECTION AA

PROJECT

SECTION

REFLECTED CEILING PLAN

850 450 850 850 450 225 640 1730 640 225 3450 450 1275 1275 450 225 640 1730 640 225 80 240 180 100 1100 1050 2850 755 885 3290 550 550 550 12MM GYPSUM BOARD 70MM DIA SPOTLIGHT 12 X 35MM THK TEAK WOOD REAPERS WITH ROUNDED EDGES ON A 12MM THK PLY BACKING. FINISHED WITH WOOD POLISH 12MM THK GYPSUM BOARD HANGER RODS ANCHORED TO SLAB USING ANCHOR BOLTS 12 X 35MM THK TEAK WOOD REAPER WITH ROUNDED EDGES 12MM THK PLY BACKING STRIP LIGHT 35 MM DIA SPOTLIGHT ALUMINIUM CHANNELS 80MM SKIRTING MADE OF 8MM THK GREY FLOORING TILE DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER GREY WALLPAPER ON WALL TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER 148 100 100 450 830 890 830 450 250 150 3450 200 400 200 200 80 240 180 100 1100 1050 2850 805 1305 2405 55 20 BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE GL DRAWER OF SIZE 550 X 160 X 400 MADE OF 12MM & 19MM THK PLYWOOD FINISHED WITH WHITE HIGH GLOSS LAMINATE DUMMY BOX OF SIZE 1305 X 100 X 200 MADE OF 12MM THK PLYWOOD FINISHED WITH POLISHED BURMA TEAK VENEER TV UNIT OF SIZE 1650 X 1100 X 60 MADE OF 19MM THK PLYWOOD FINISHED WITH WHITE LAMINATE SLATS OF SIZE 55 X 2770 MADE OF 9MM THK PLYWOOD FINISHED WITH POLISHED TEAK WOOD VENEER BACKING OF SIZE 805 X 2270 MADE OF 9MM THK PLYWOOD. GROOVES FINISHED WITH POLISHED TEAK WOOD VENNER STRIP LIGHT 640 VENEER 37

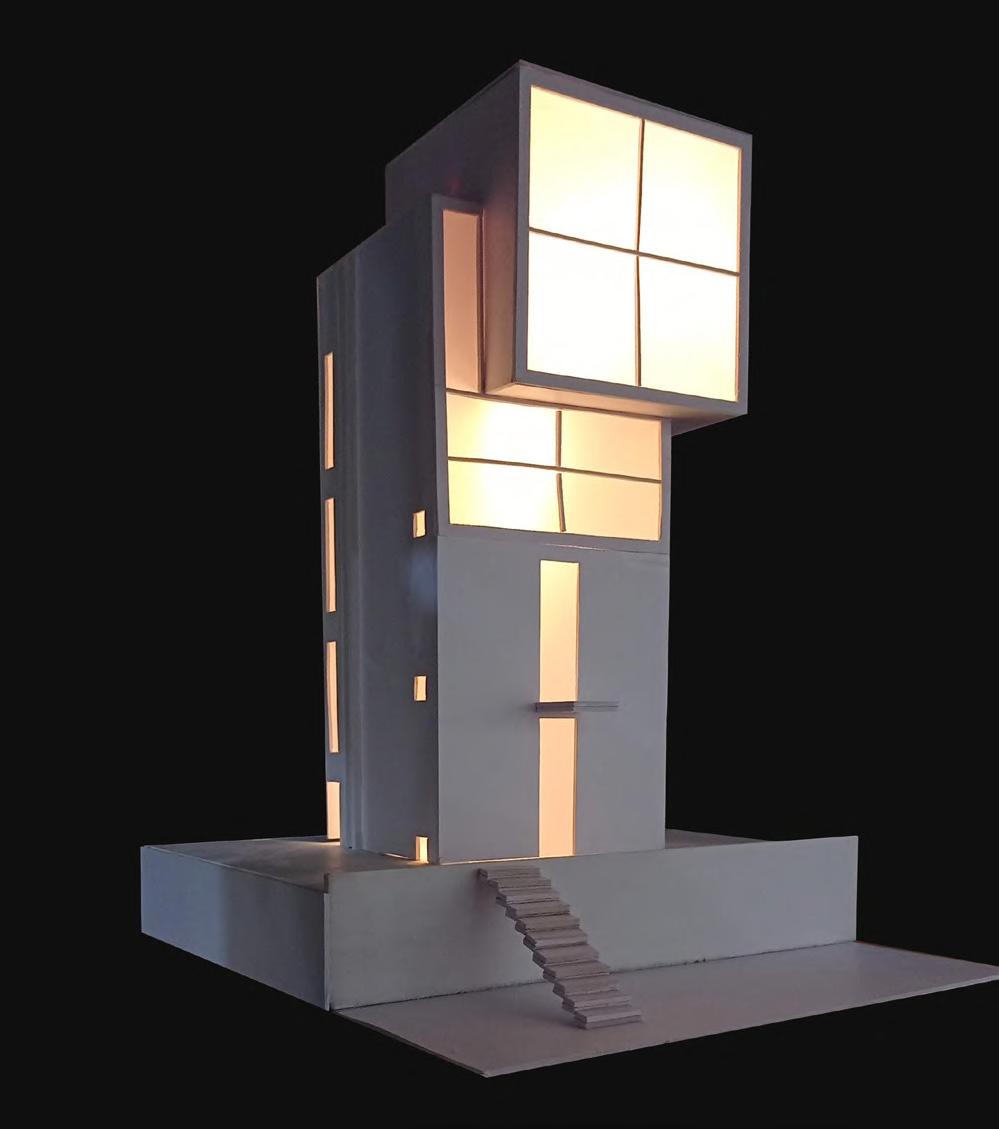

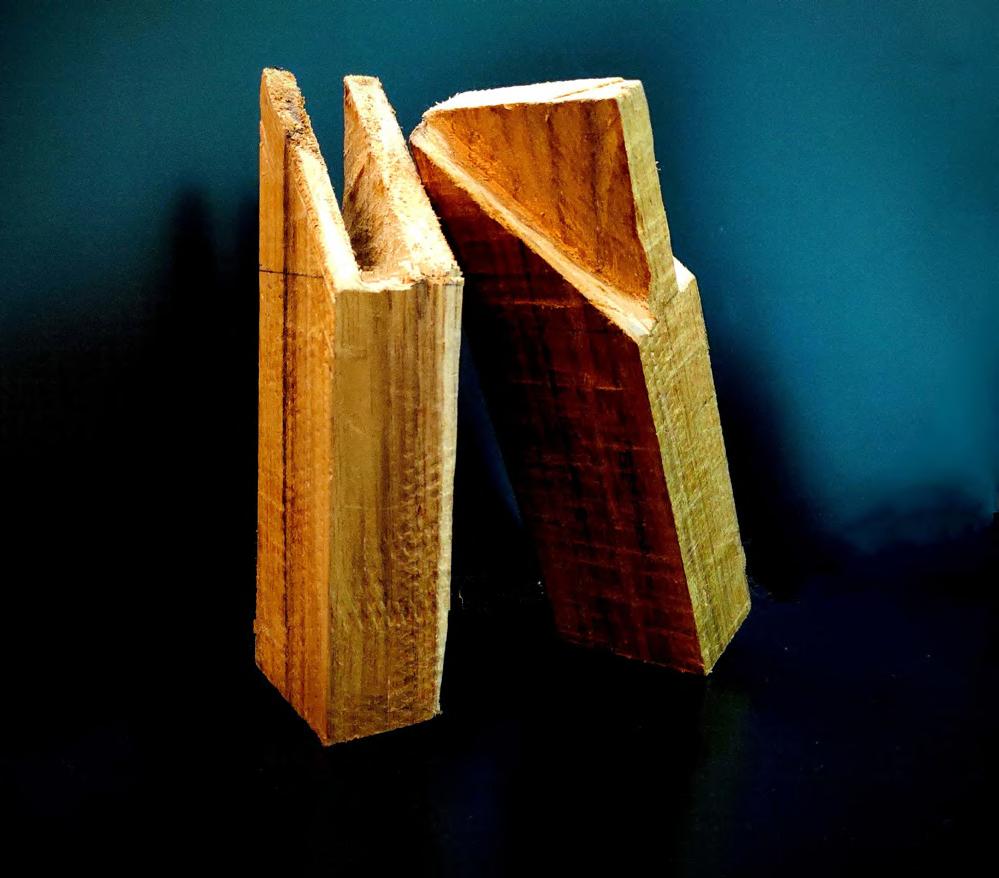

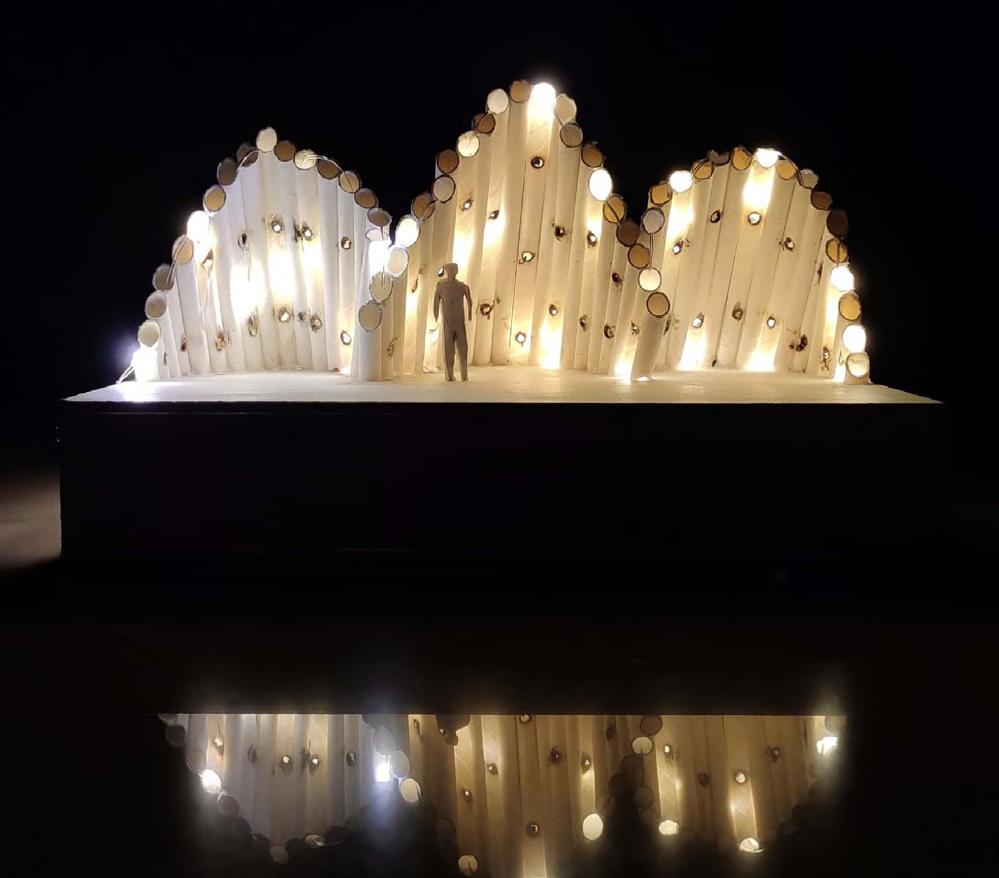

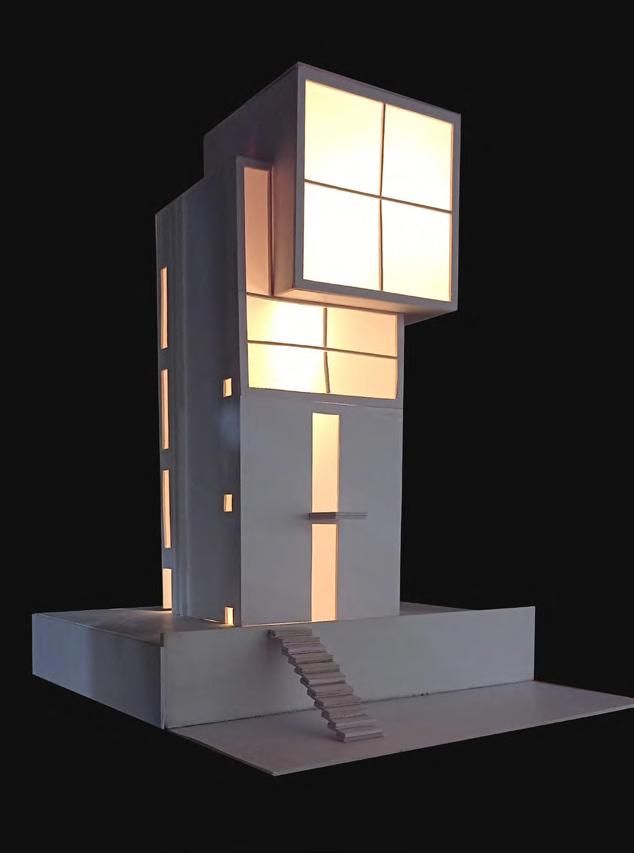

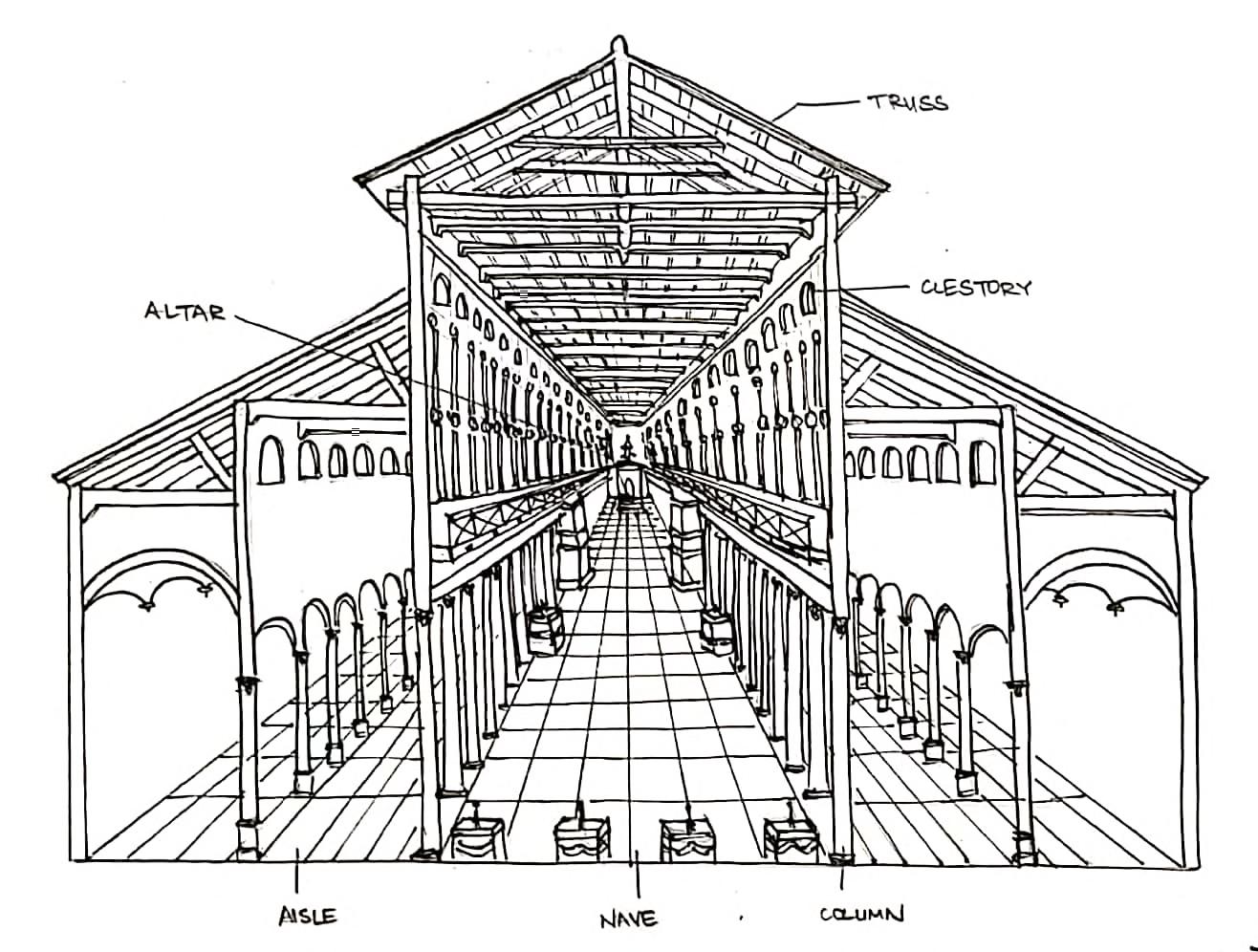

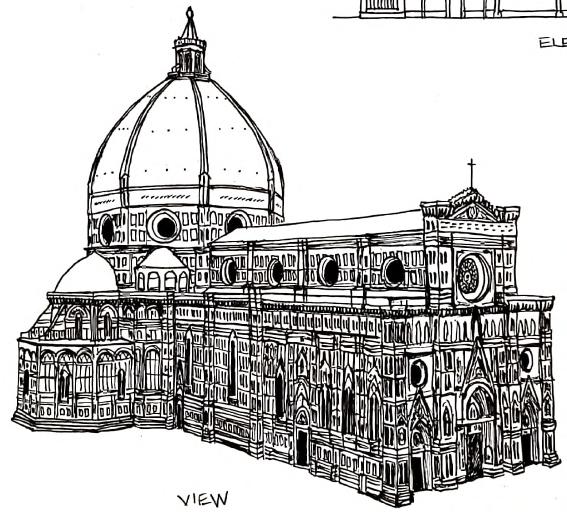

models photography art from an exhibit
