1 NEW INDIAN PARLIAMENT BUILDING PROPOSED 3D WORK OF COMMERCIAL BUILDING PROPOSED 3D WORK OF FIVE STAR HOTEL 2 PROPOSED 3D WORK OF COMMERCIAL BUILDING 3 5 SKYLIGHT TOWER COMMERCIAL BUILDING 4 CONTENTS

COMMERCIAL BUILDING

@pravinsyadavpsy99@gmail.com
SKYLIGHT TOWER
1

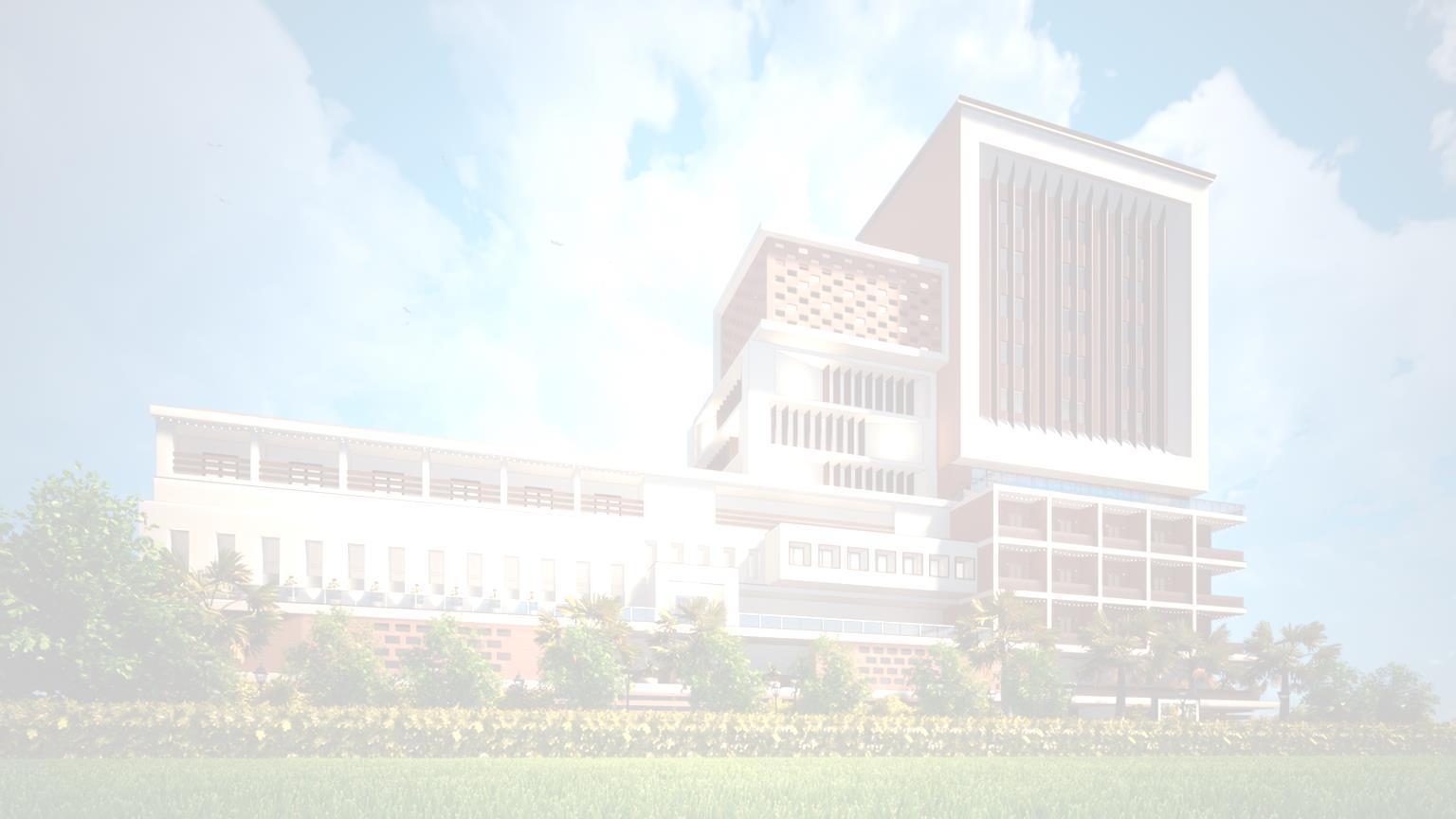

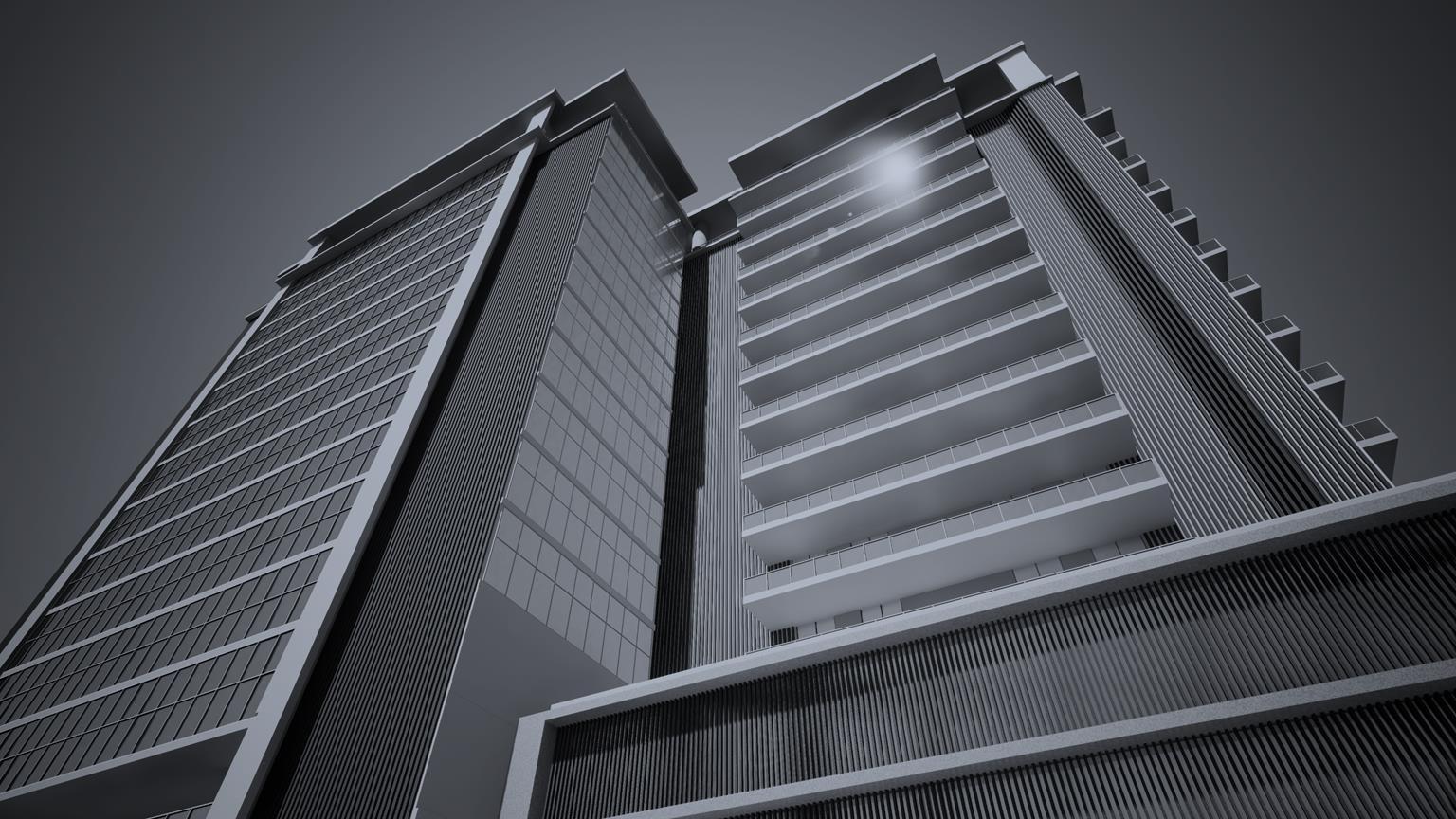

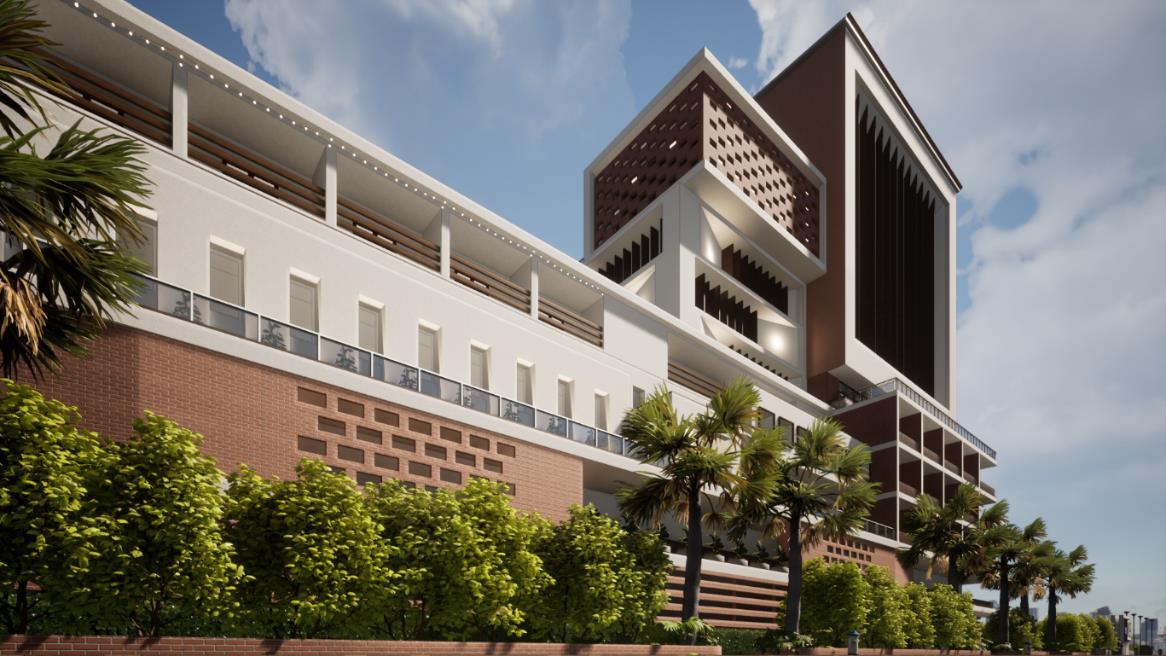

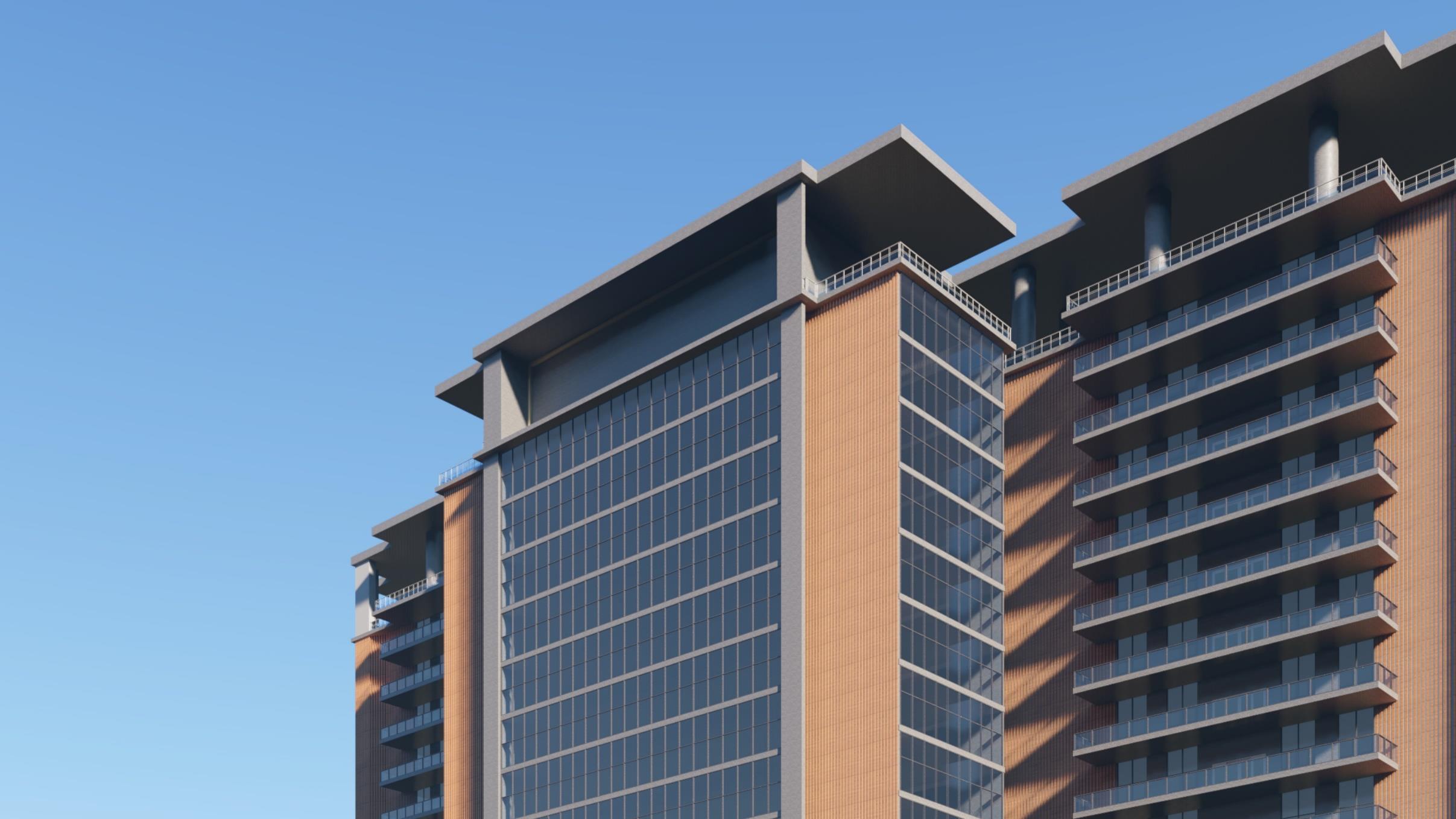

LUMION PHOTOSHOP TWIN MOTION MS OFFICE REVIT SOFTWARE USED WORK FLOW 3D Modelling Render Render Final Render RENDERING IMAGE SKYLIGHT TOWER COMMERCIAL BUILDING 1
RENDERING IMAGE
TOWER COMMERCIAL BUILDING 2
SKYLIGHT

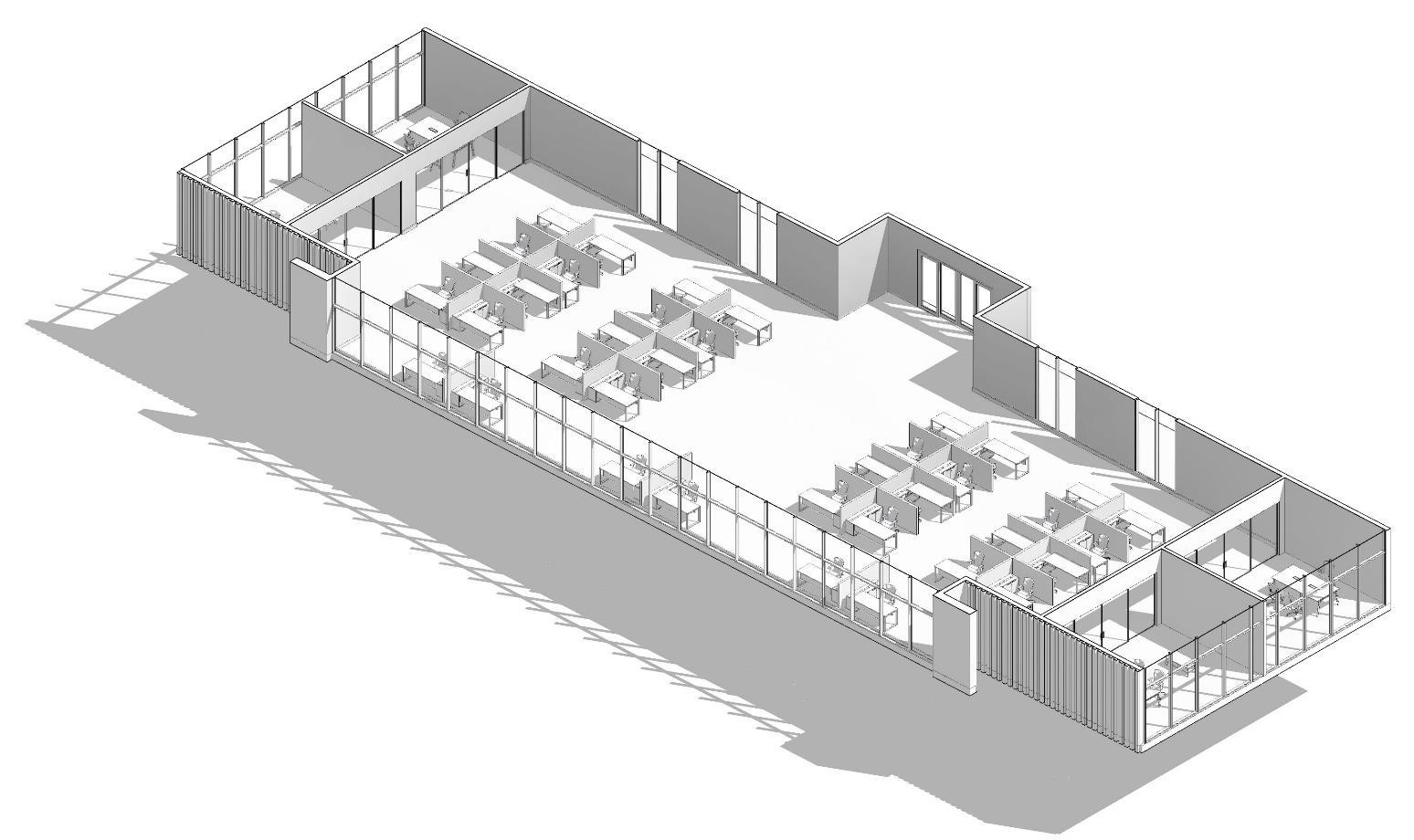

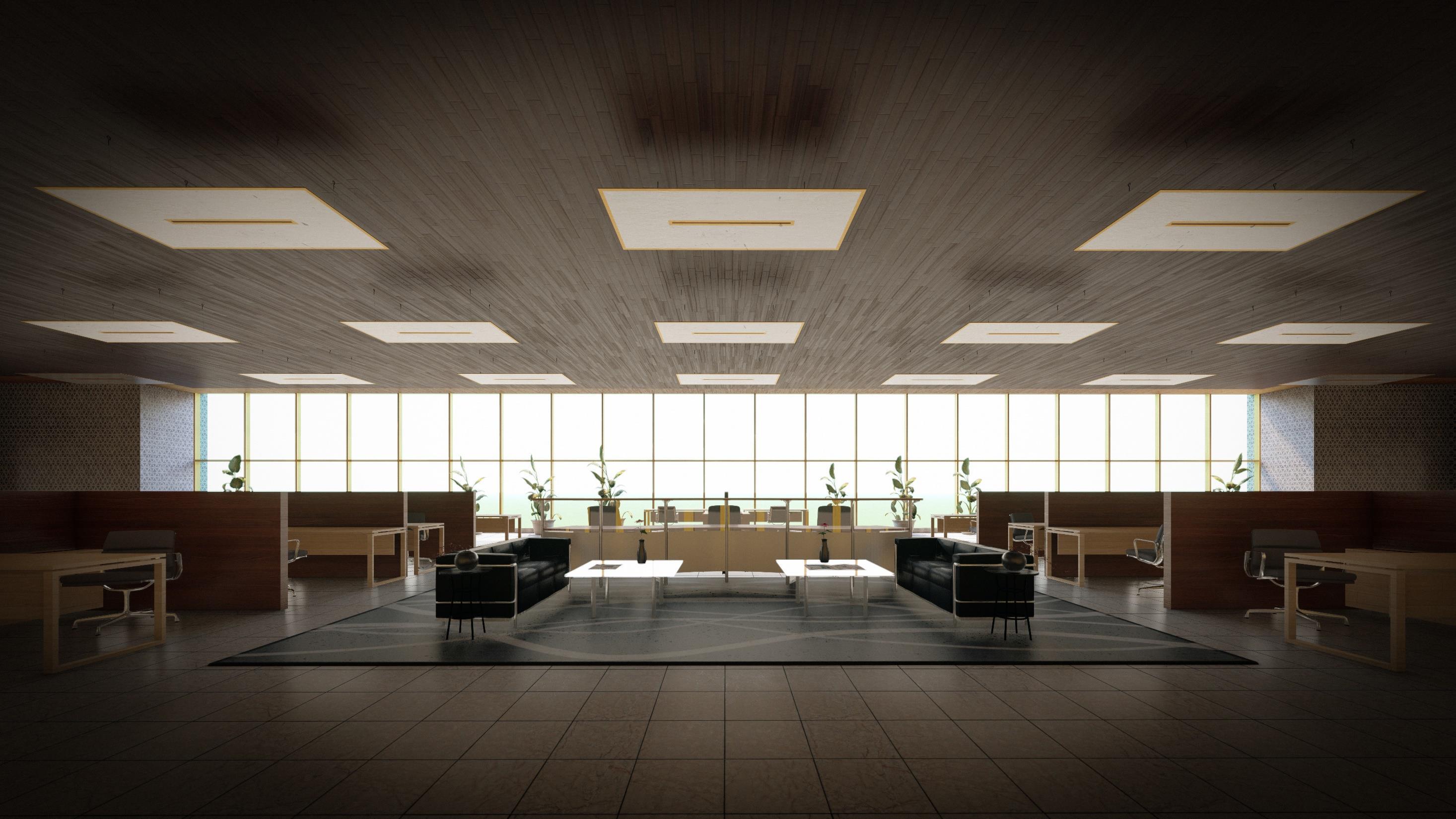

SKYLIGHT TOWER OFFICE INTERIOR SKYLIGHT TOWER COMMERCIAL BUILDING 3
RENDERING IMAGE
TOWER COMMERCIAL BUILDING 4
SKYLIGHT
RENDERING IMAGE SKYLIGHT TOWER COMMERCIAL BUILDING 5

• This project is to be designed for the commercial mall

• This is four storey building including large open spaces consisting good landscape inside and outside of the structure

• The structure have separate drop off point

• The entrance have four storey opening passage having glass which gives enough sunlight at entrance.

Site area – 90000 sq.f.

Site topography – Flat land

Amenities

-

•

•

❖ SKYLIGHT TOWER
Large Parking Spaces
RENDERING IMAGE SKYLIGHT TOWER COMMERCIAL BUILDING 6
Well Furnished Workspaces

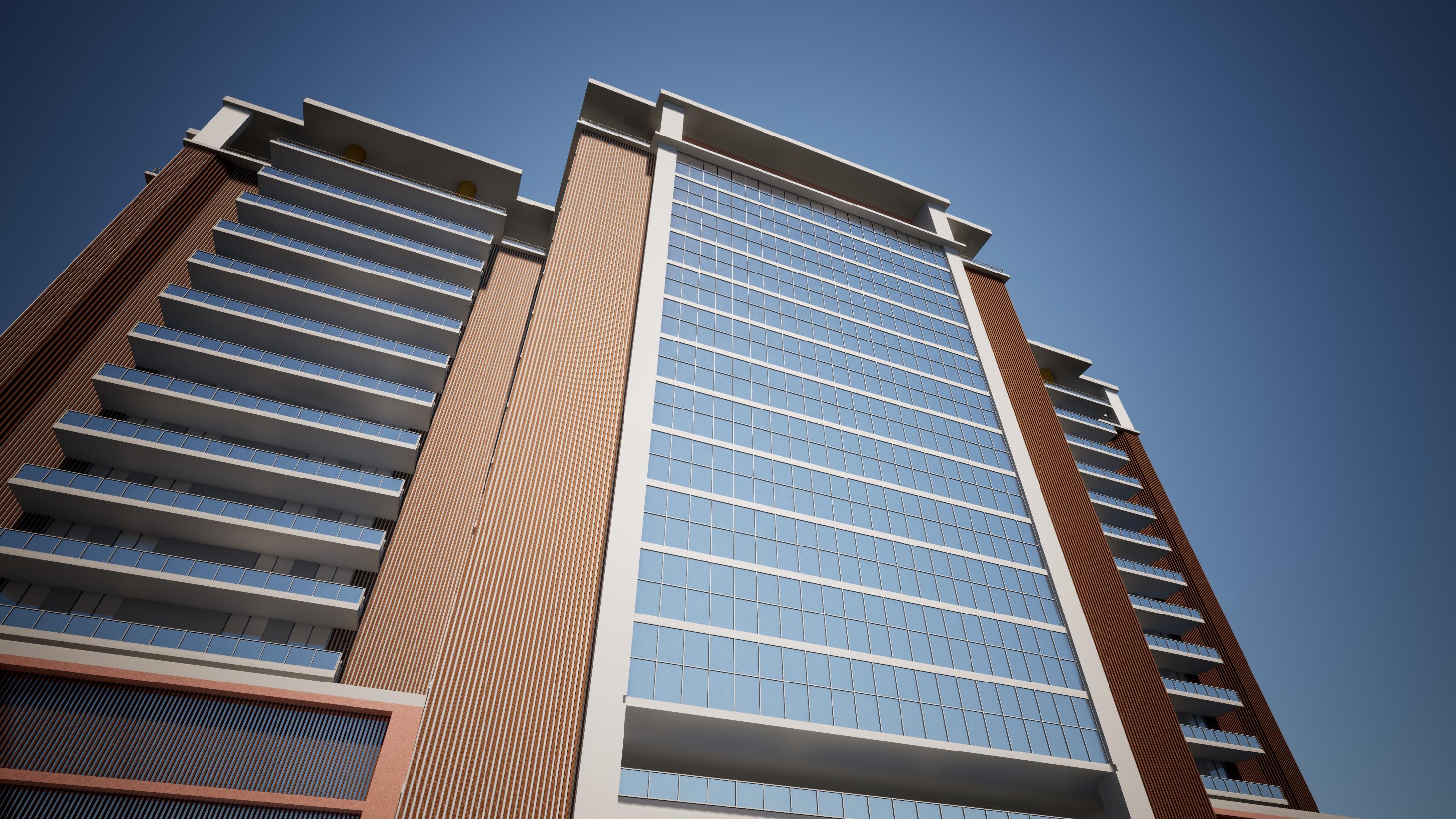

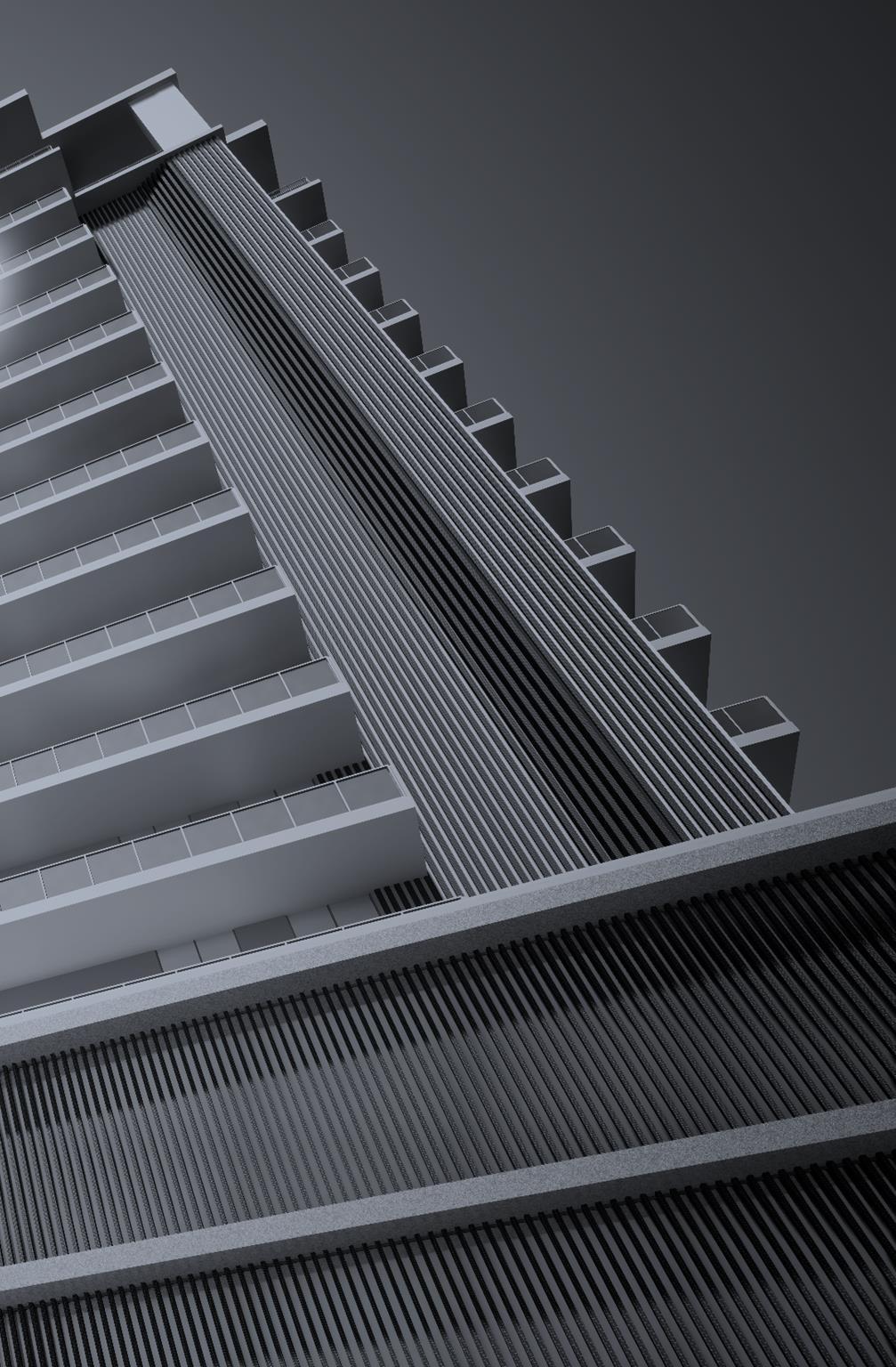

ALUMINIUM PANEL FOR FACADE

PARKING IN GATE
RENDERING IMAGE SKYLIGHT TOWER COMMERCIAL BUILDING 8

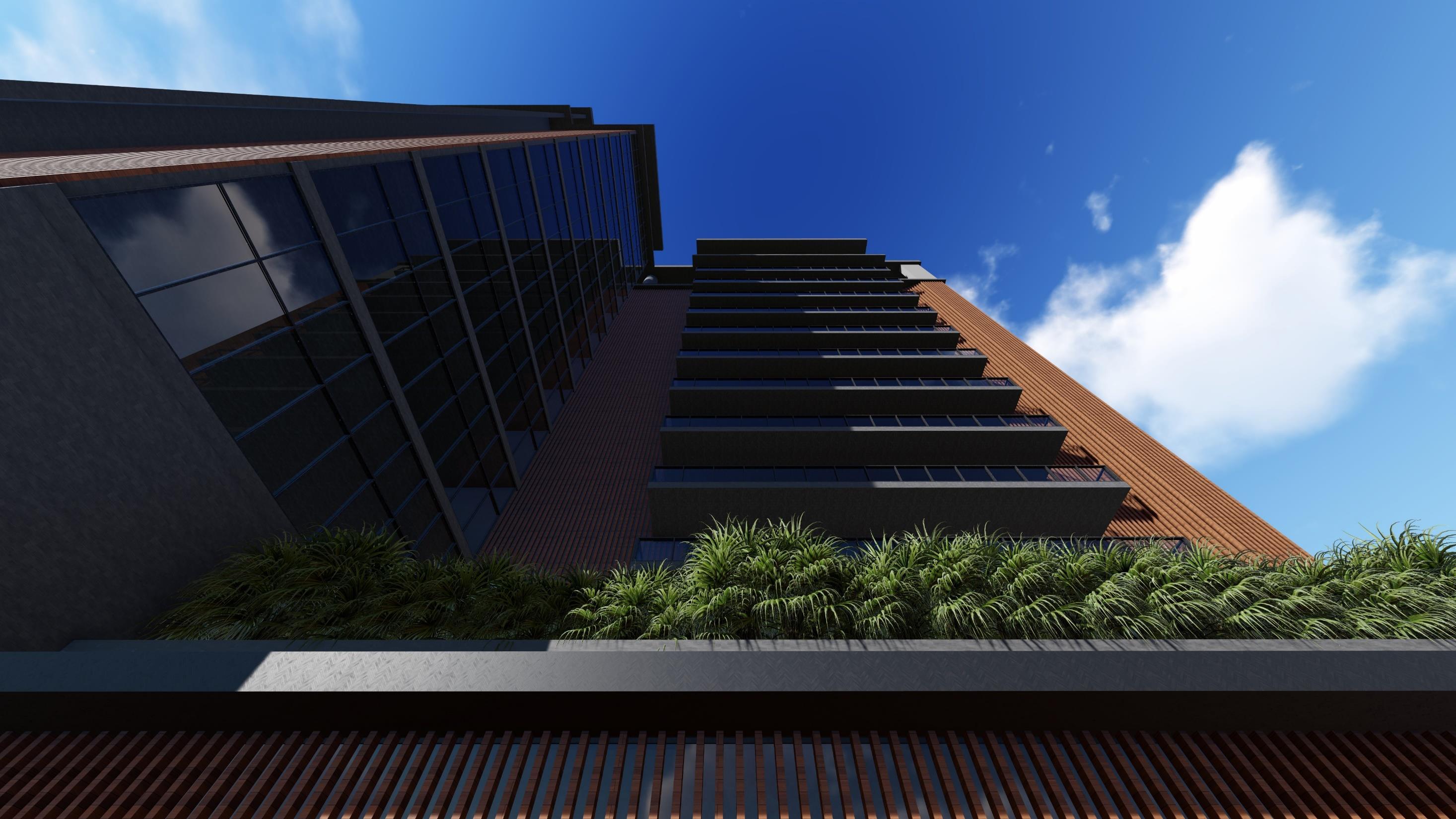

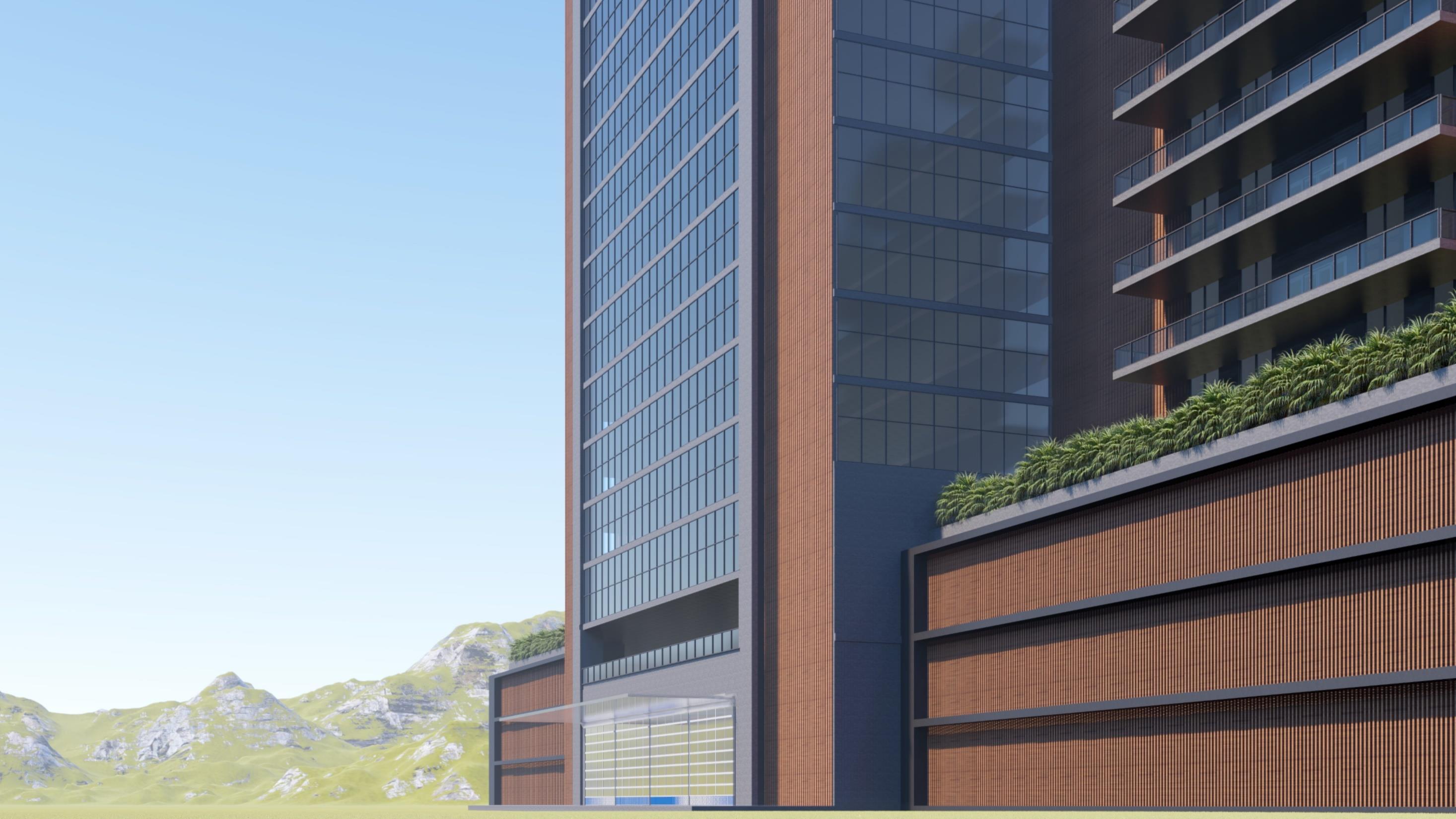

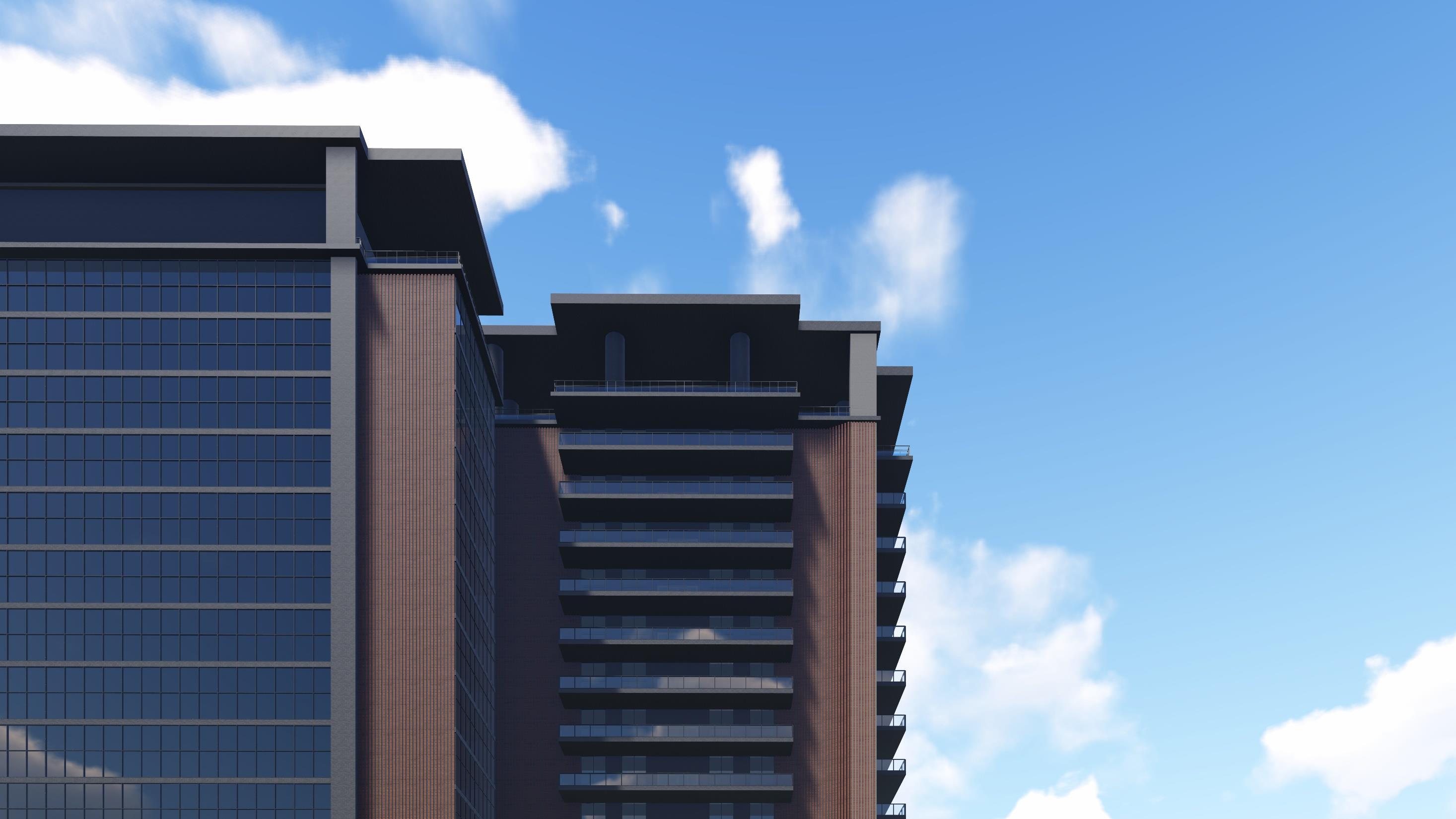

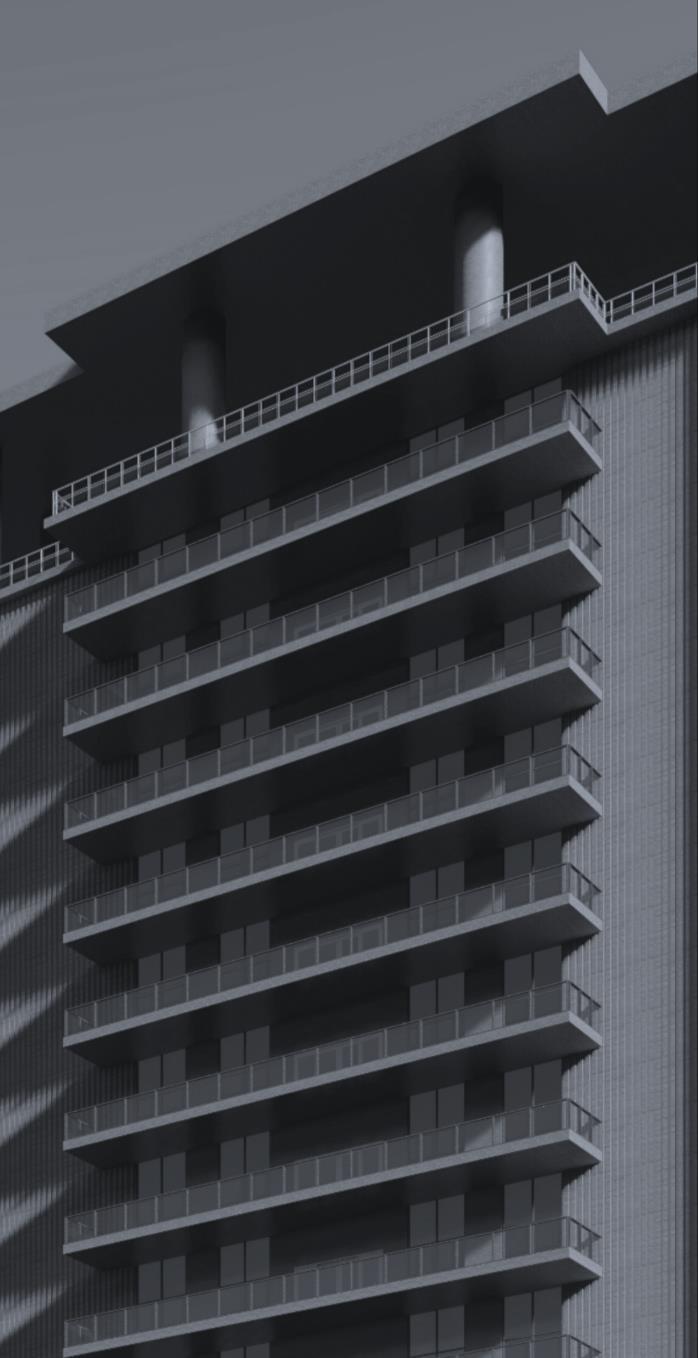

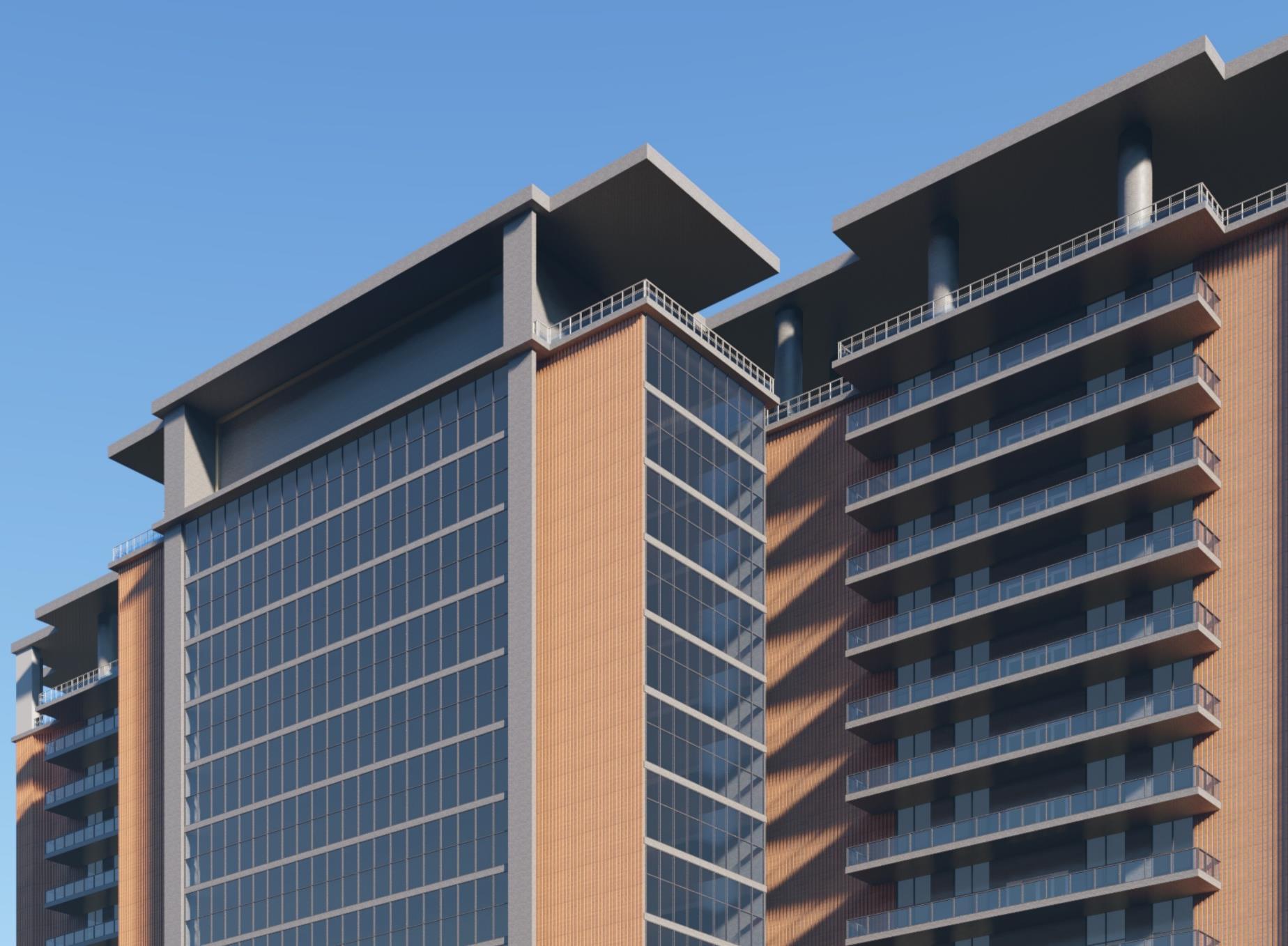

BUILDING FACADE RENDERING
SKYLIGHT TOWER COMMERCIAL BUILDING 7

TYPICAL FLOOR PLAN

SKYLIGHT TOWER COMMERCIAL BUILDING 9

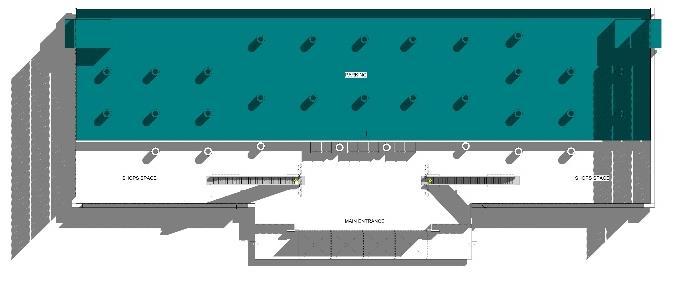

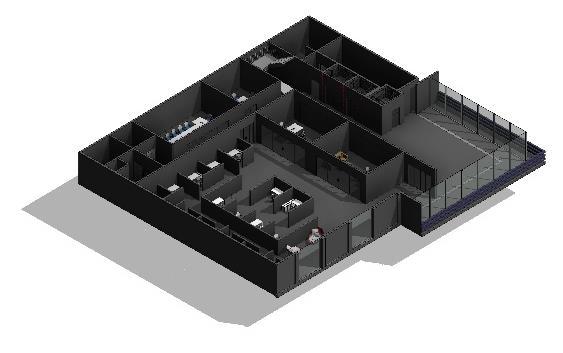

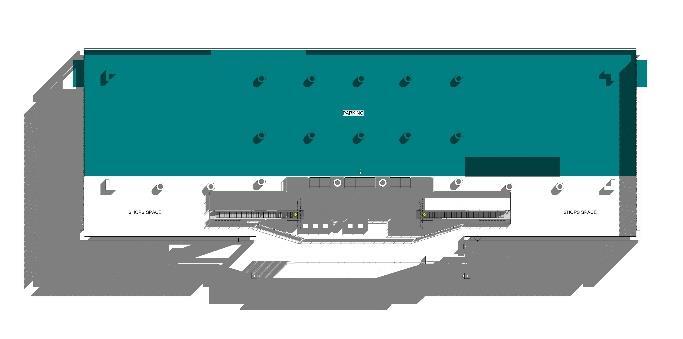

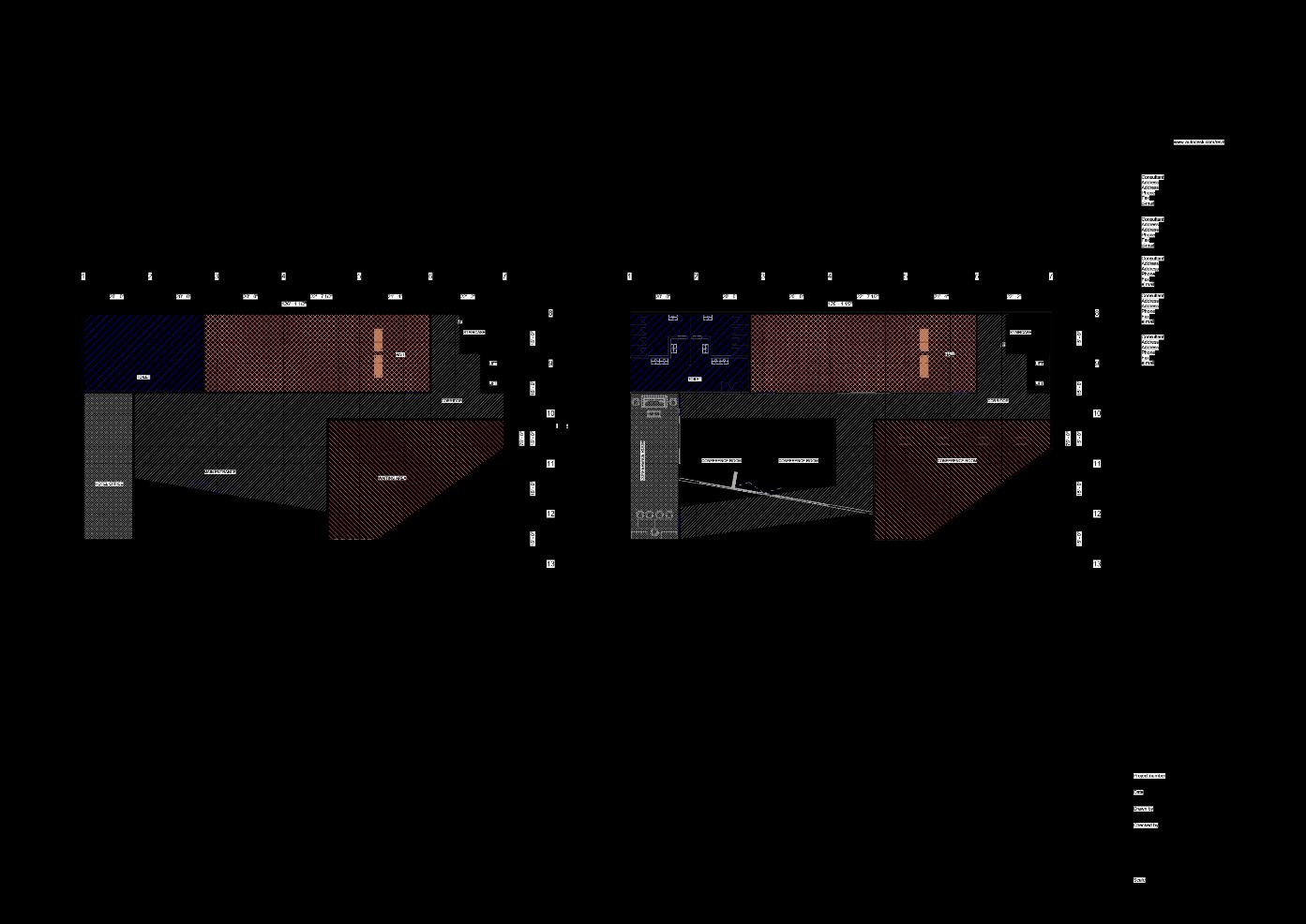

FIRST FLOOR PLAN

SECOND FLOOR PLAN

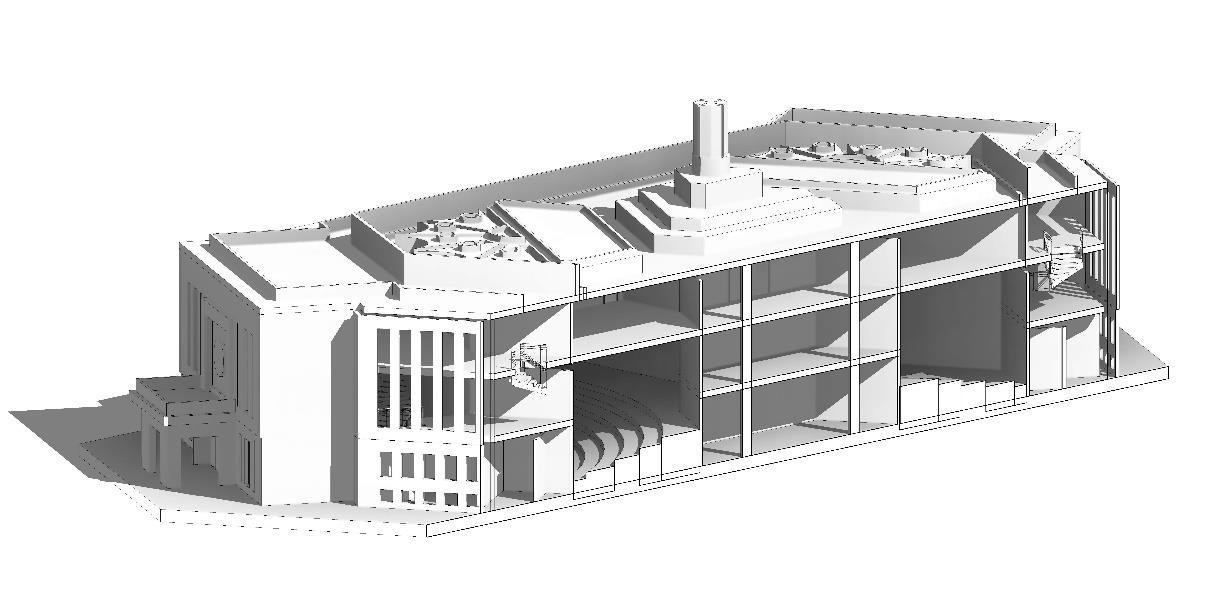

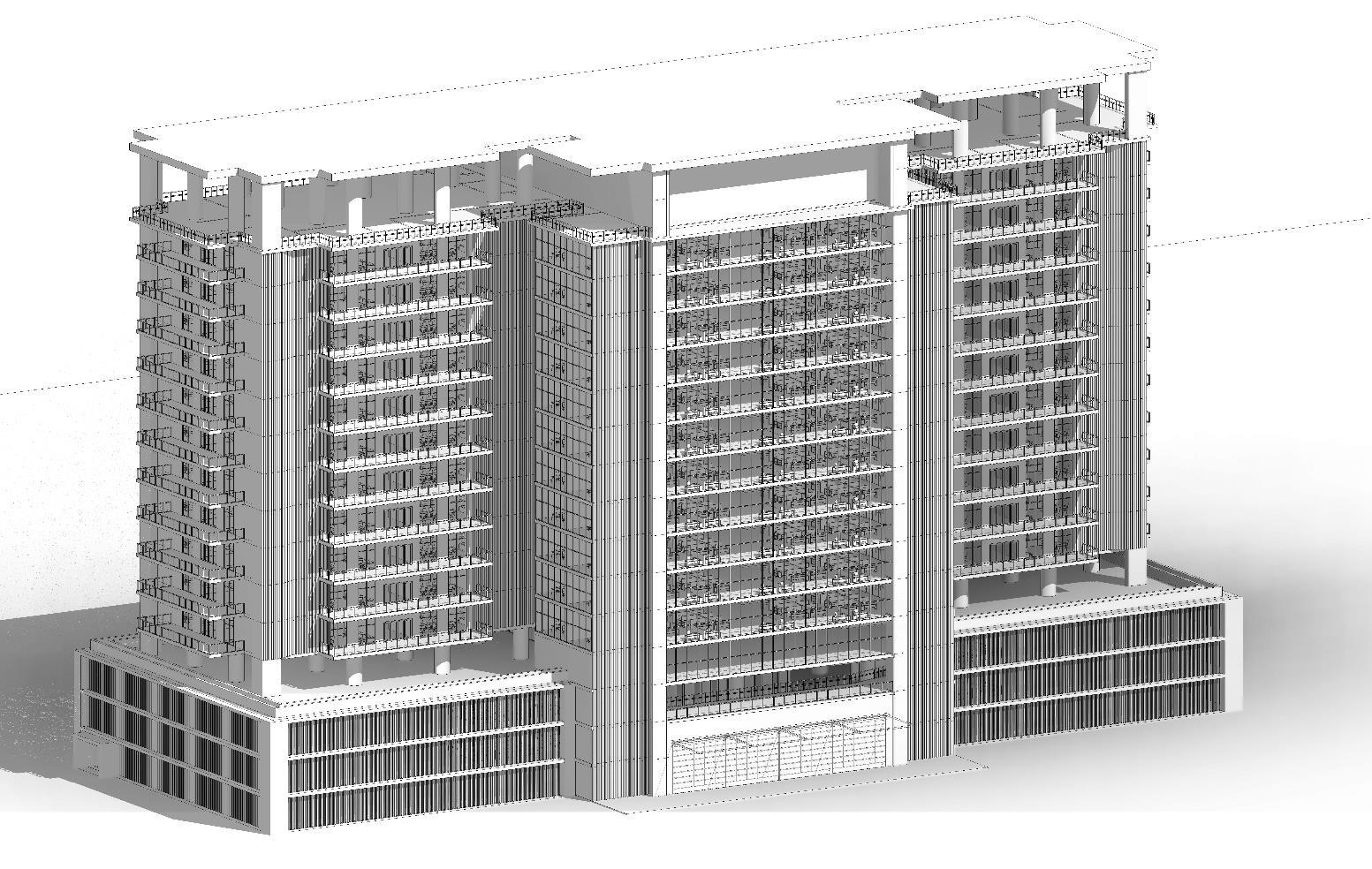

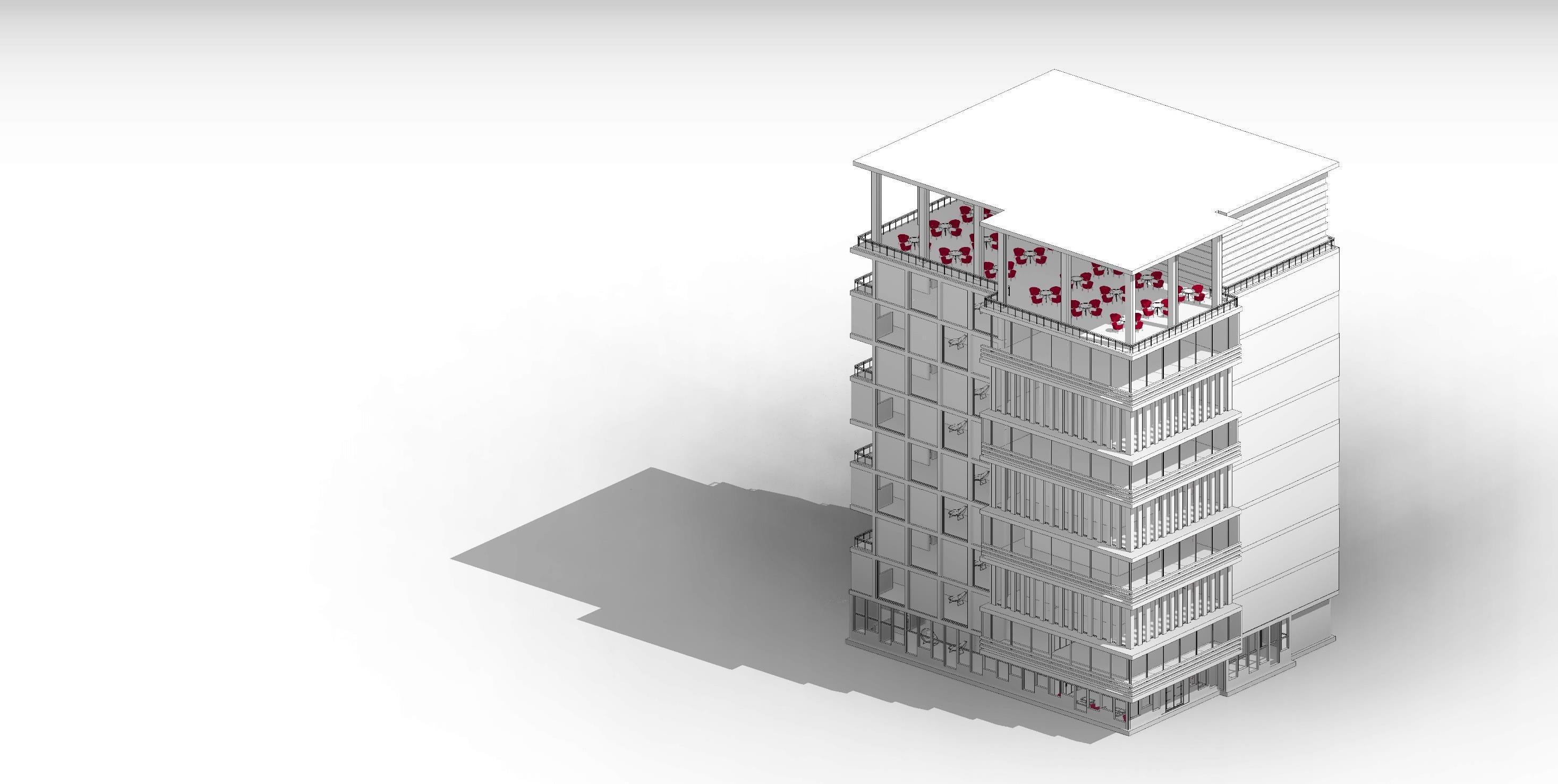

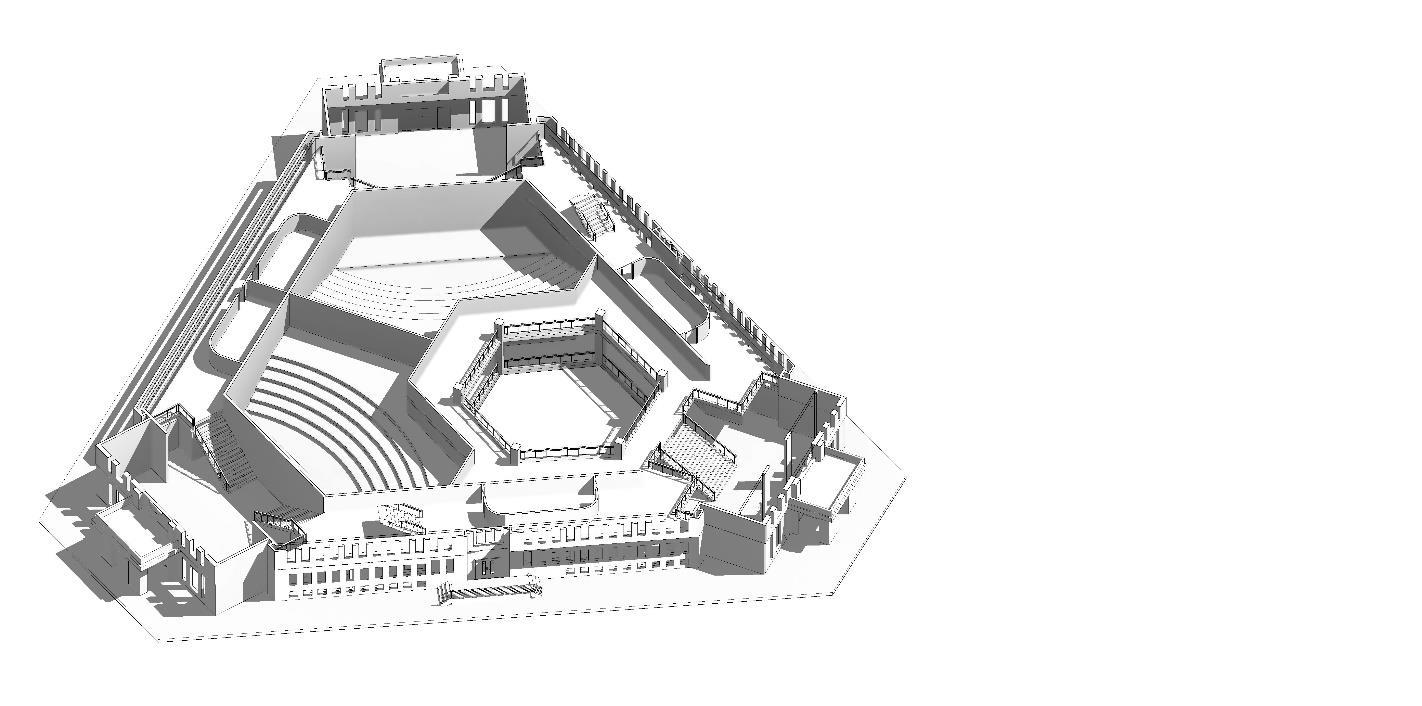

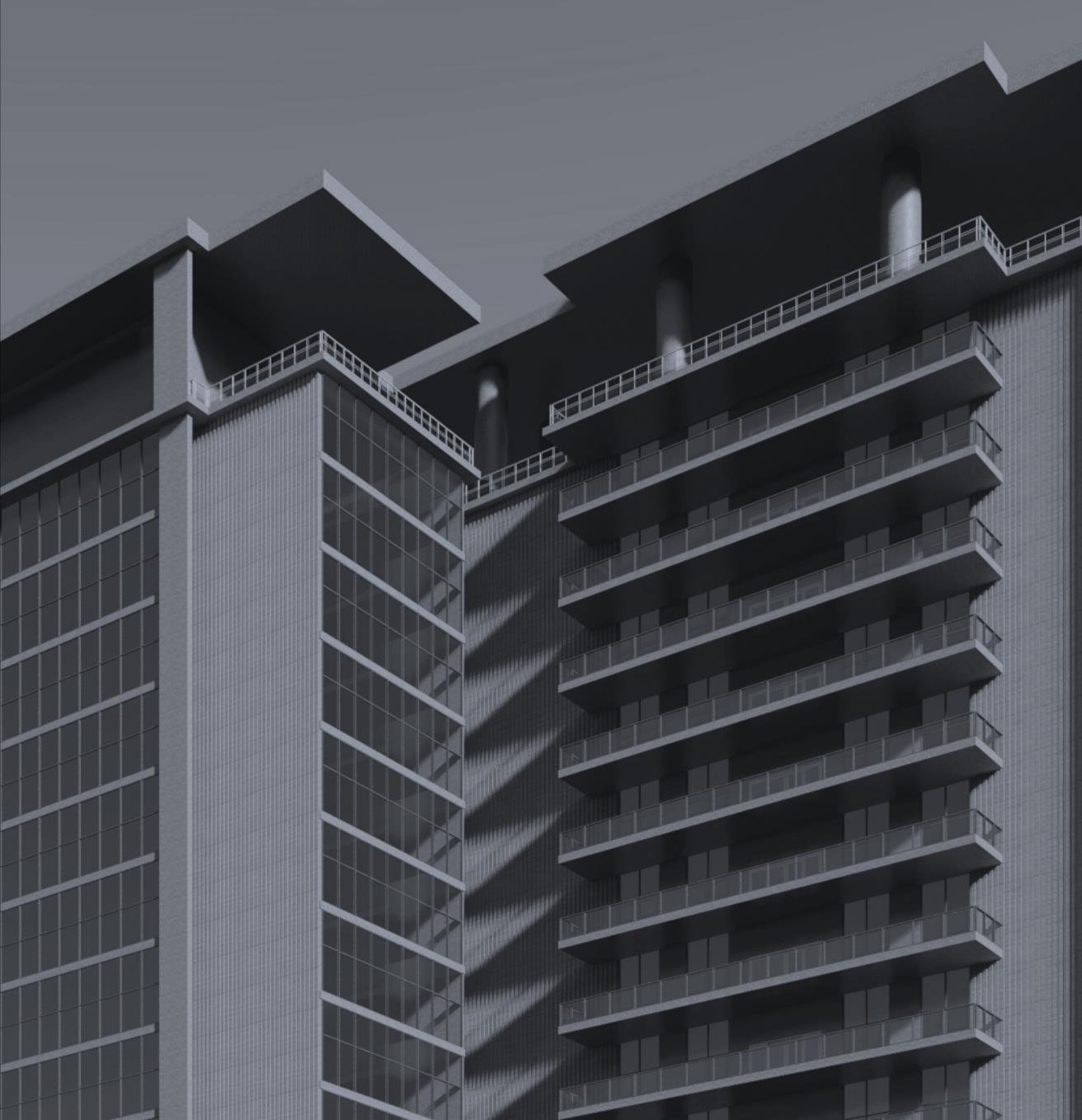

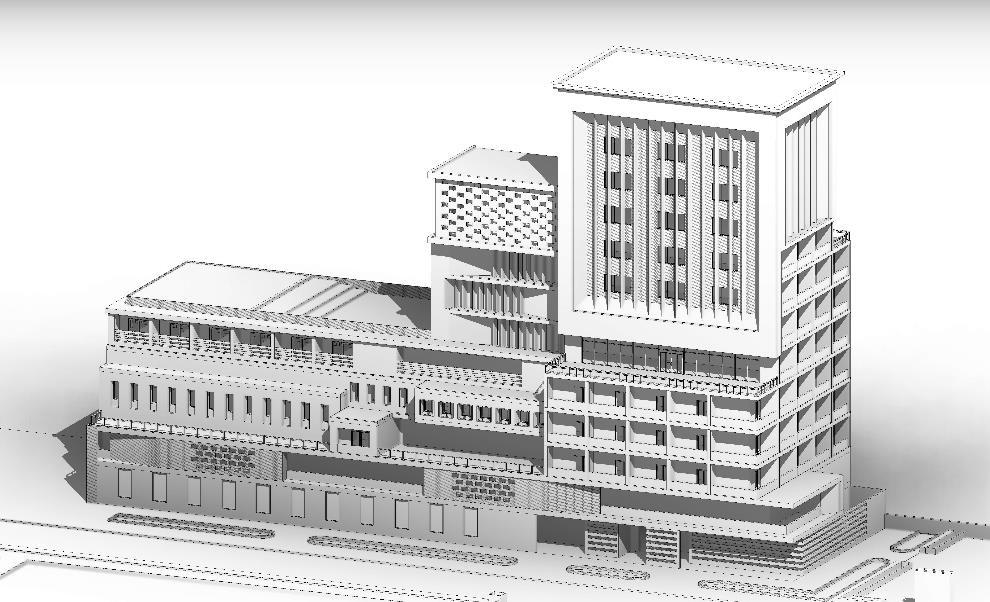

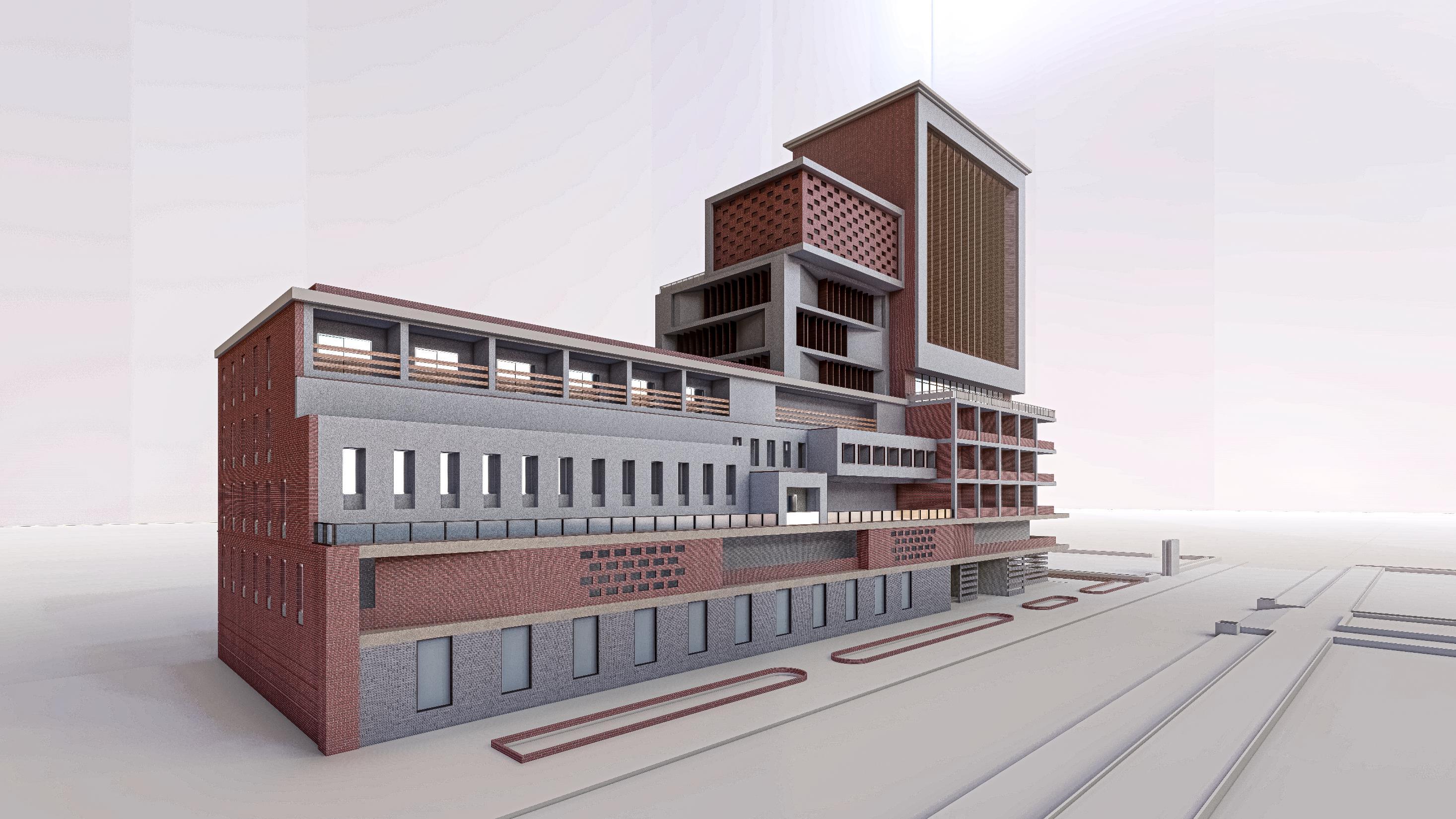

3D MODEL OF BUILDING

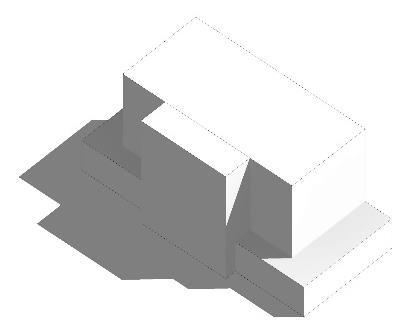

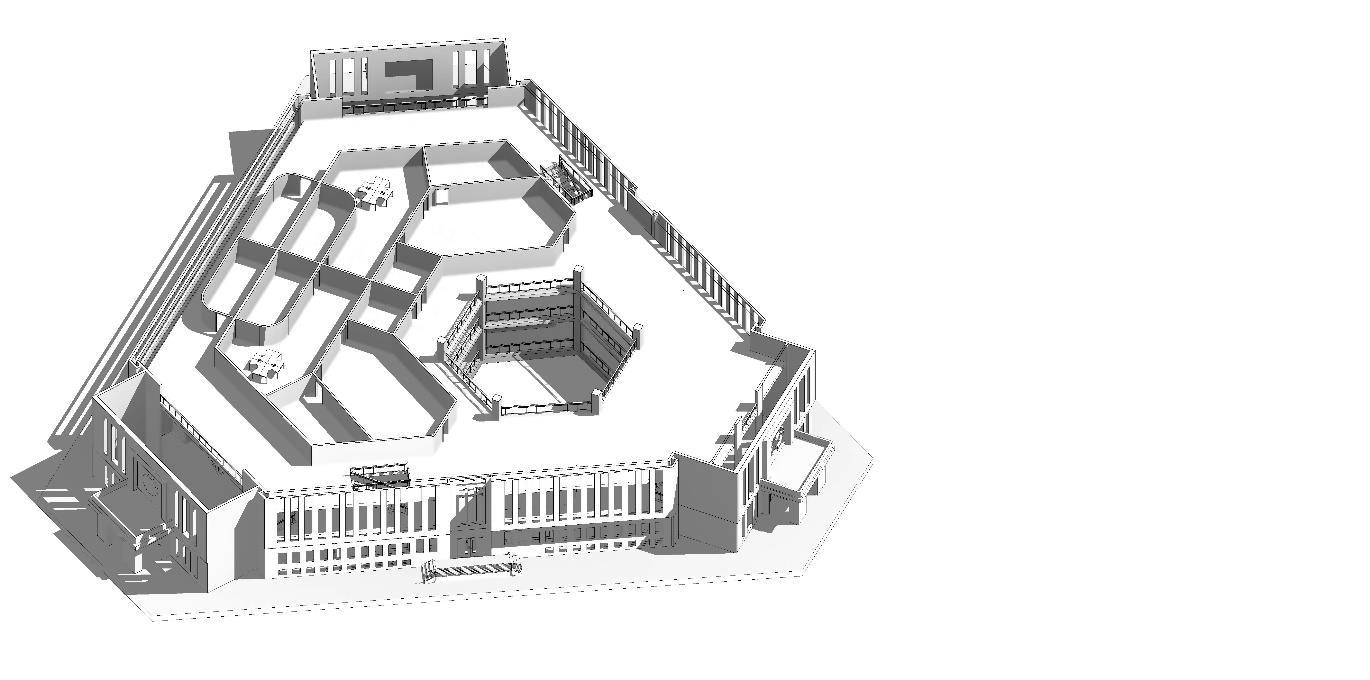

CONCEPT MODEL

THIRD FLOOR PLAN

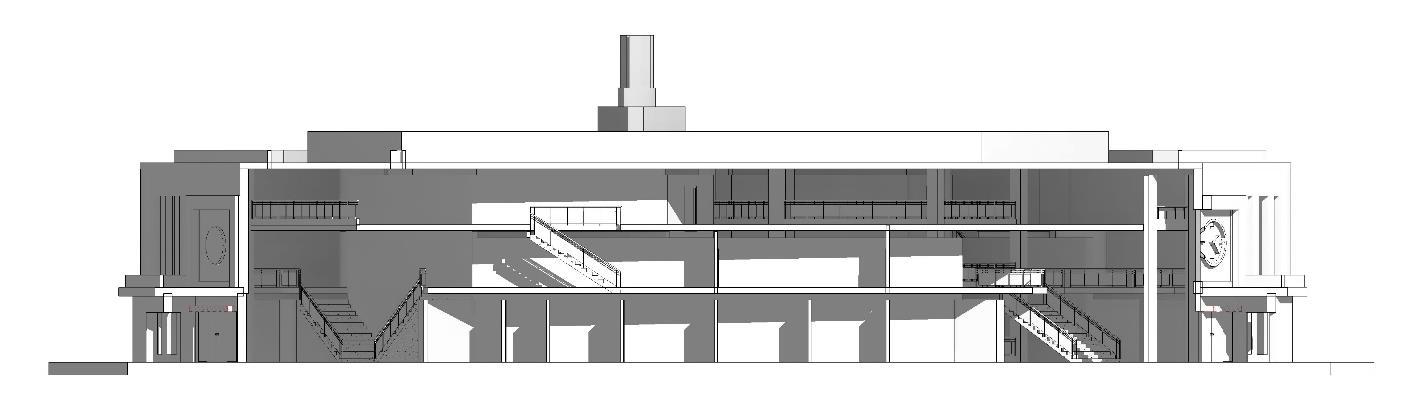

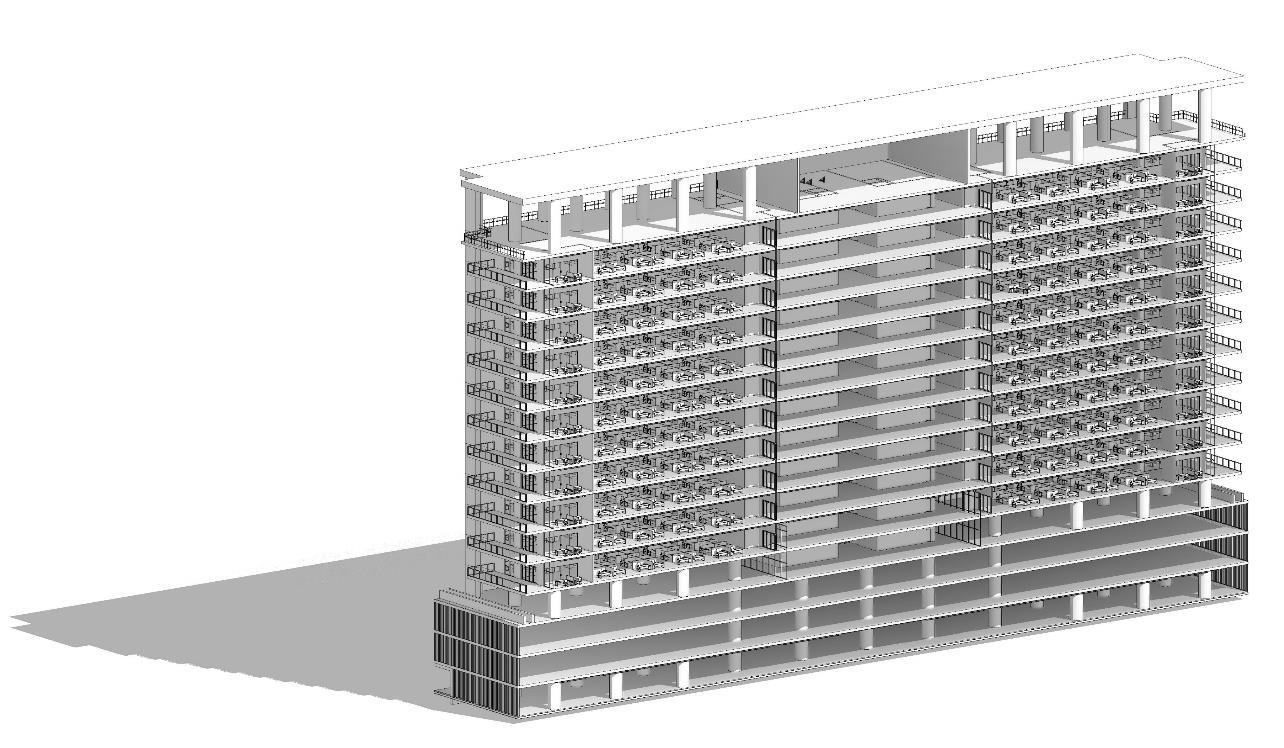

BUILDING SECTION
SKYLIGHT TOWER COMMERCIAL BUILDING 10

•

• No. of floors – 16 Floor

• Each floor consisting of two well furnished spaces.

• 1st To 3rd Floor- Parking + Shops Space

• 4th Floor -Restaurant

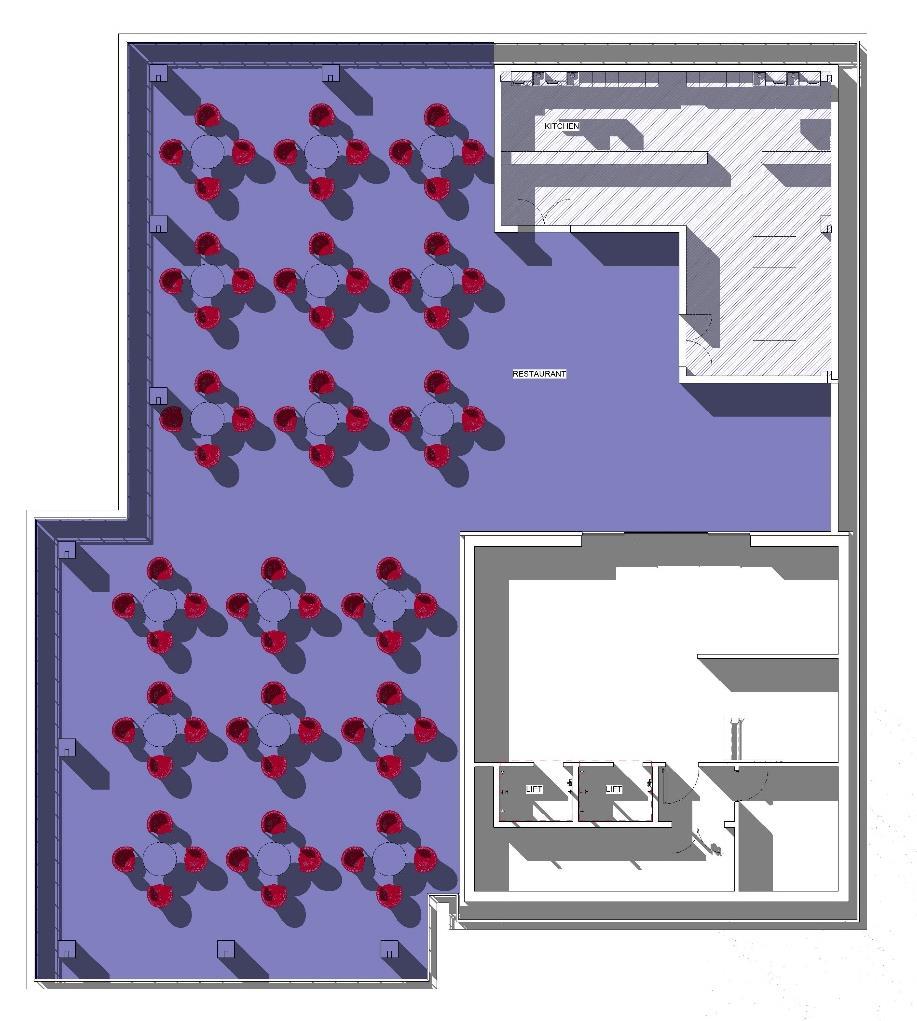

• Terrace Floor – Restaurant

• Each Premium Office Area- 15000 sq.f

SKYLIGHT TOWER COMMERCIAL BUILDING 11

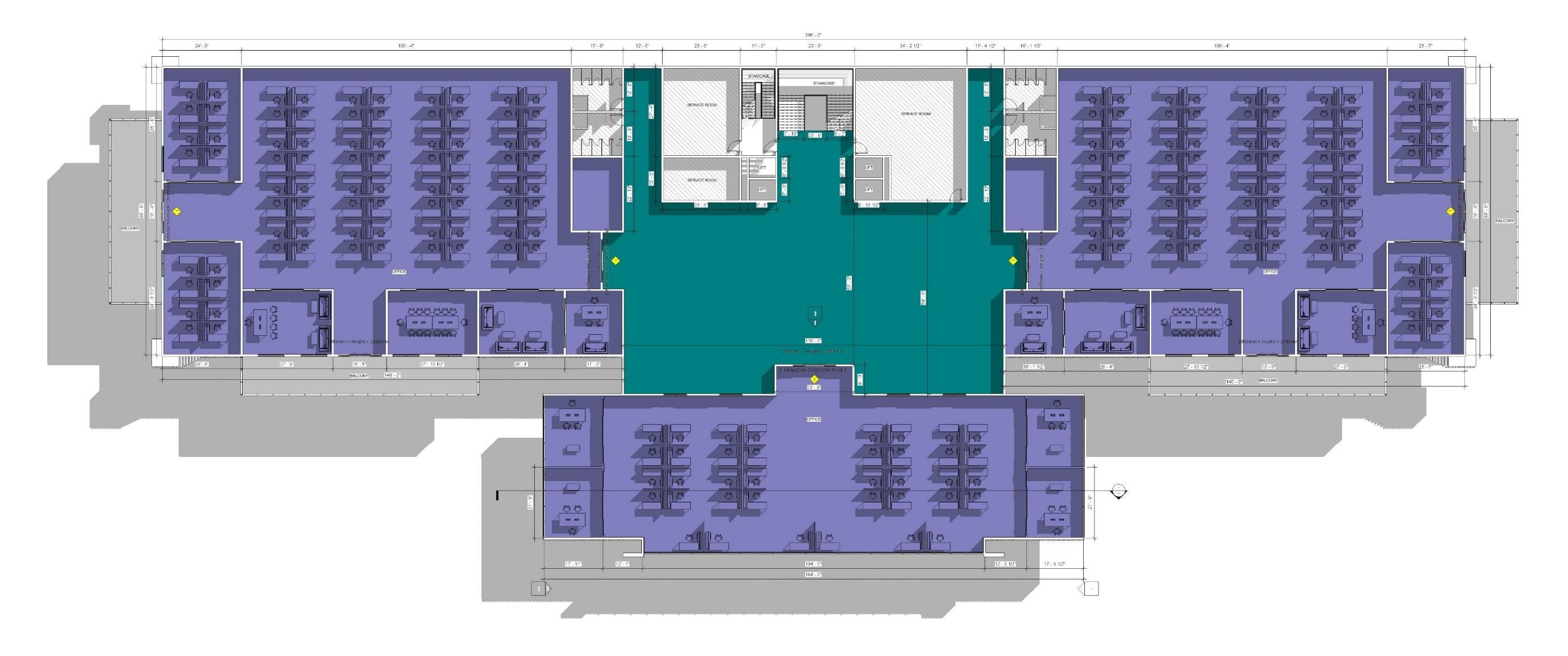

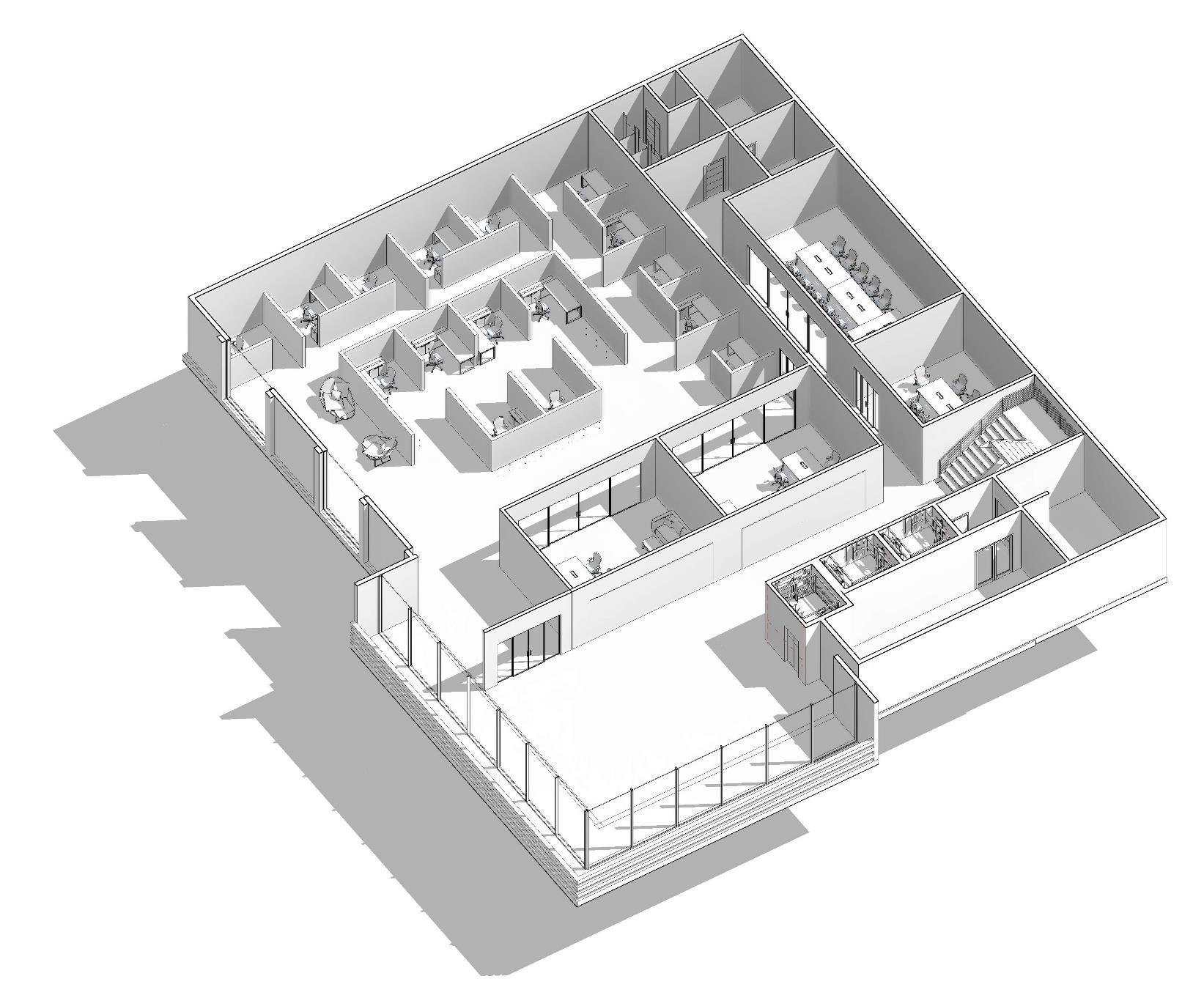

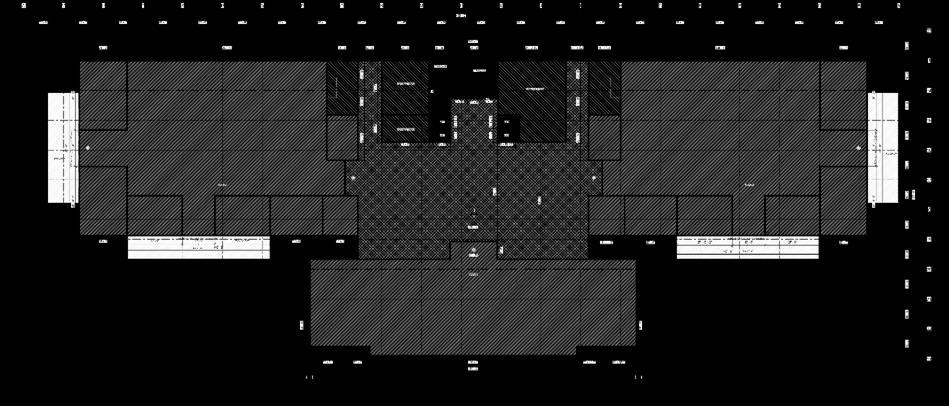

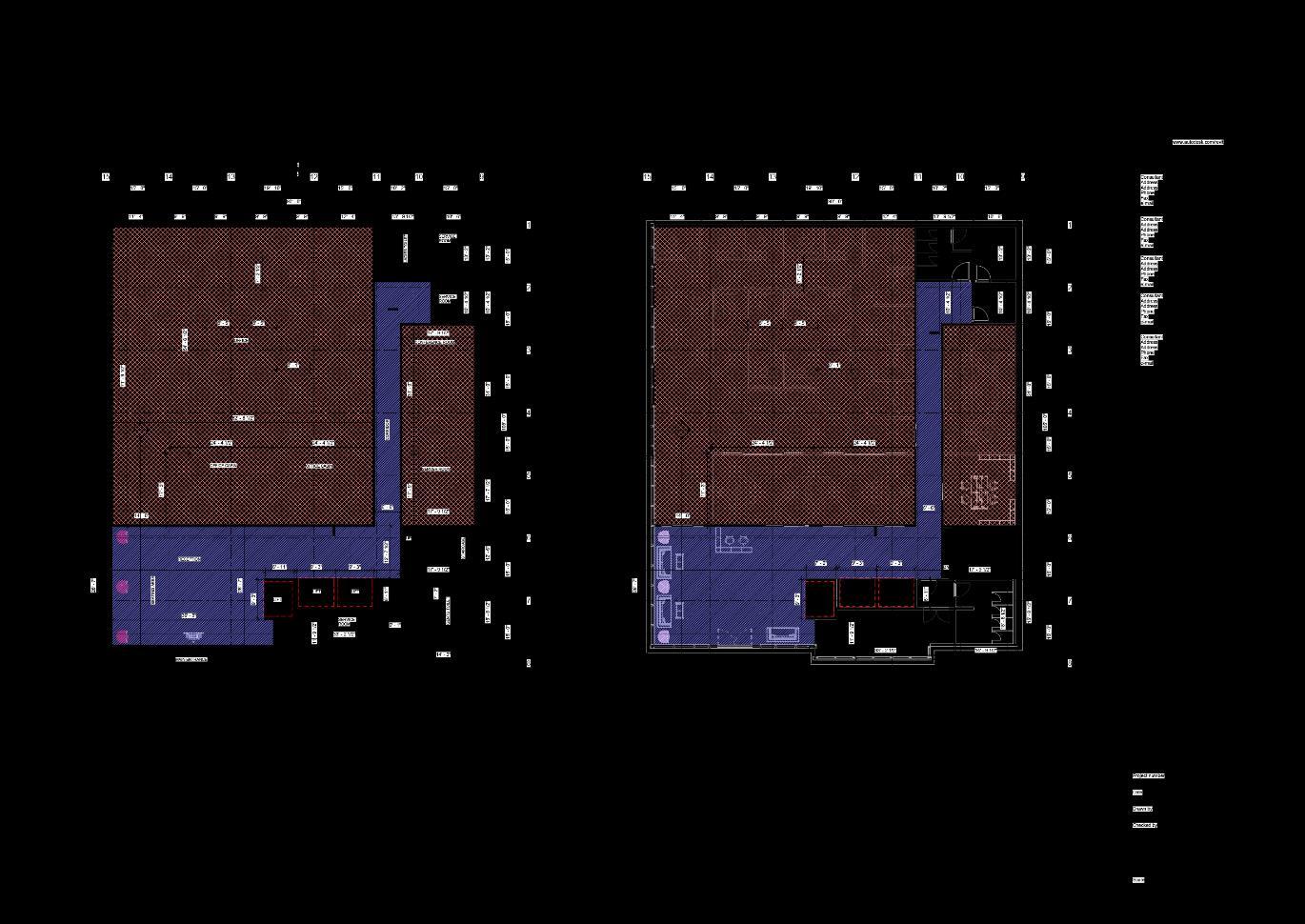

TYPICAL FLOOR PLAN
5th To 15th Floor – Office Spaces

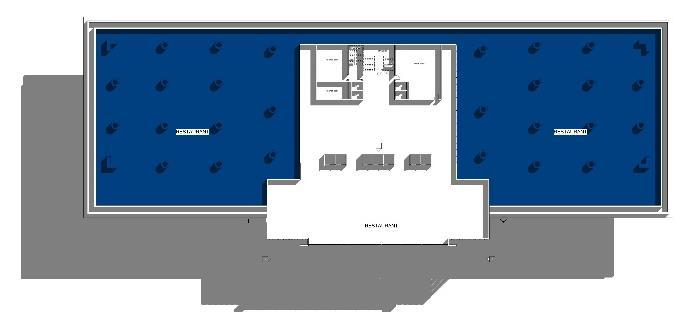

OFFICE SPACE OFFICE SPACE SKYLIGHT TOWER COMMERCIAL BUILDING 12
Premium Office
15000 sq.f
Office
9000 sq.f
PREMIUM
Each
Area-
Each
Area-

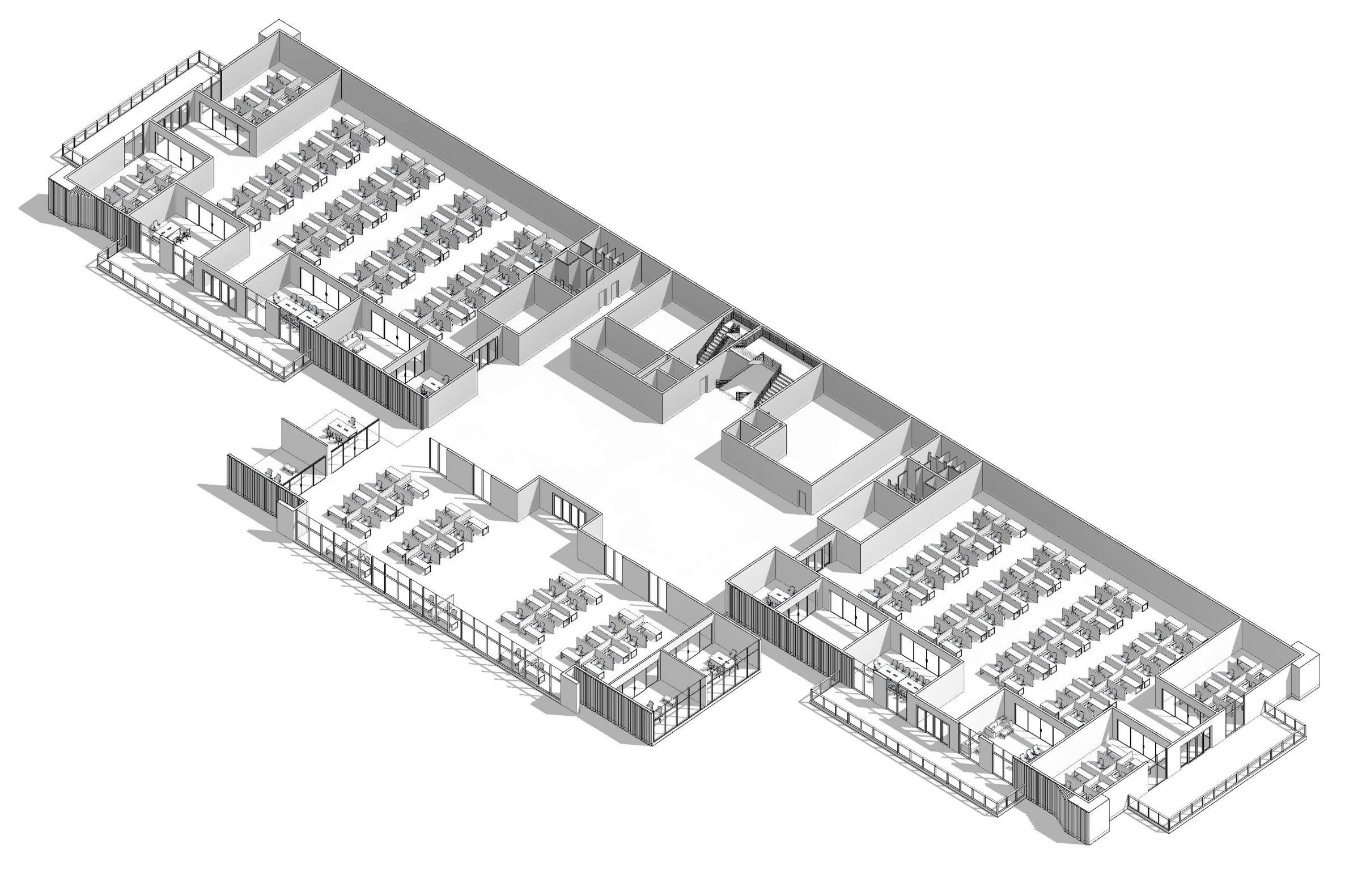

FLOOR PLAN

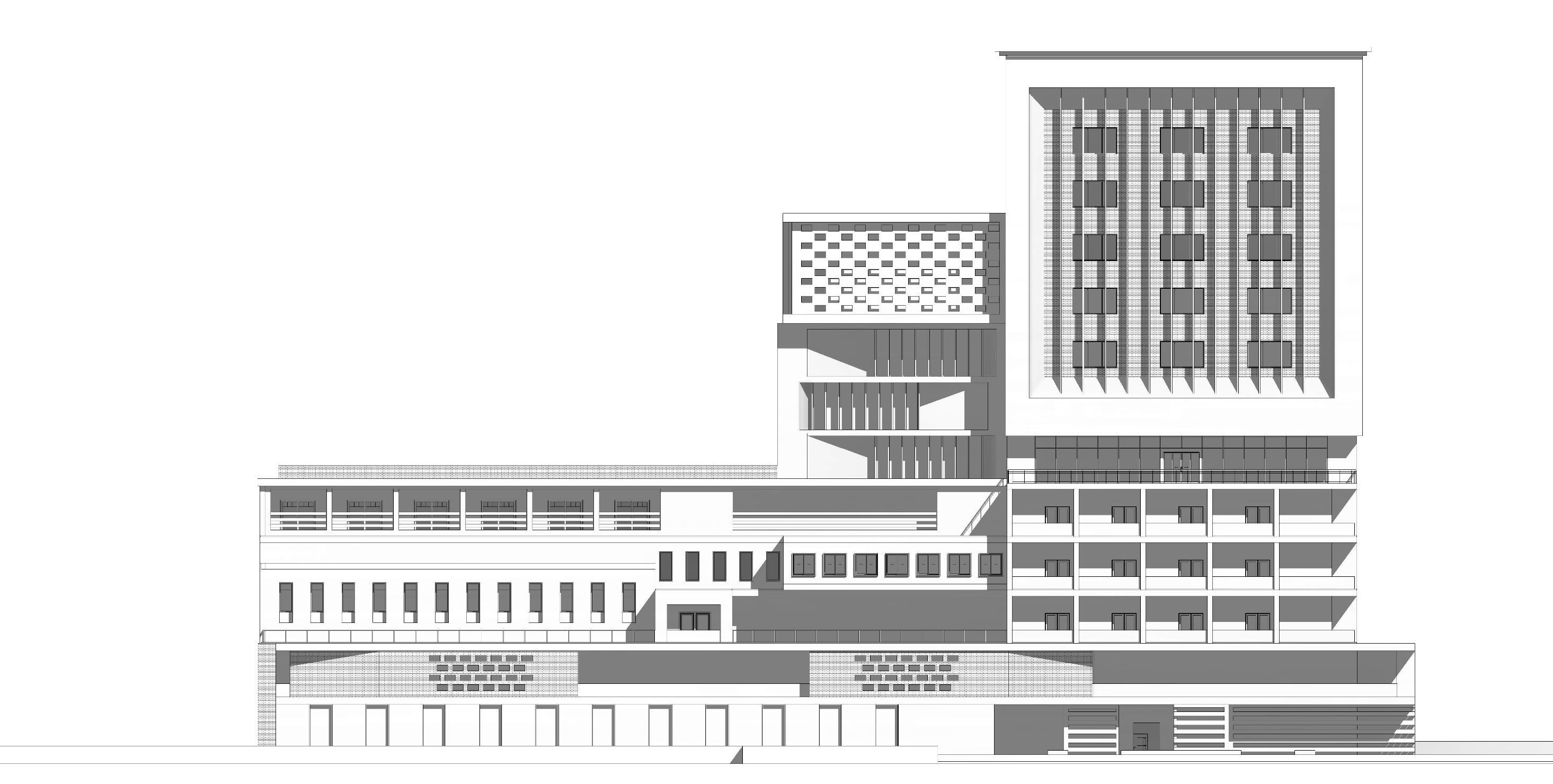

FLOOR PLAN FOURTH FLOOR PLAN SECTIONS FRONT ELEVATION NORTH ELV SECTIONS SECTIONS SKYLIGHT TOWER COMMERCIAL BUILDING 13
TYPICAL
FIRST
RENDERING IMAGE @pravinsyadavpsy99@gmail.com

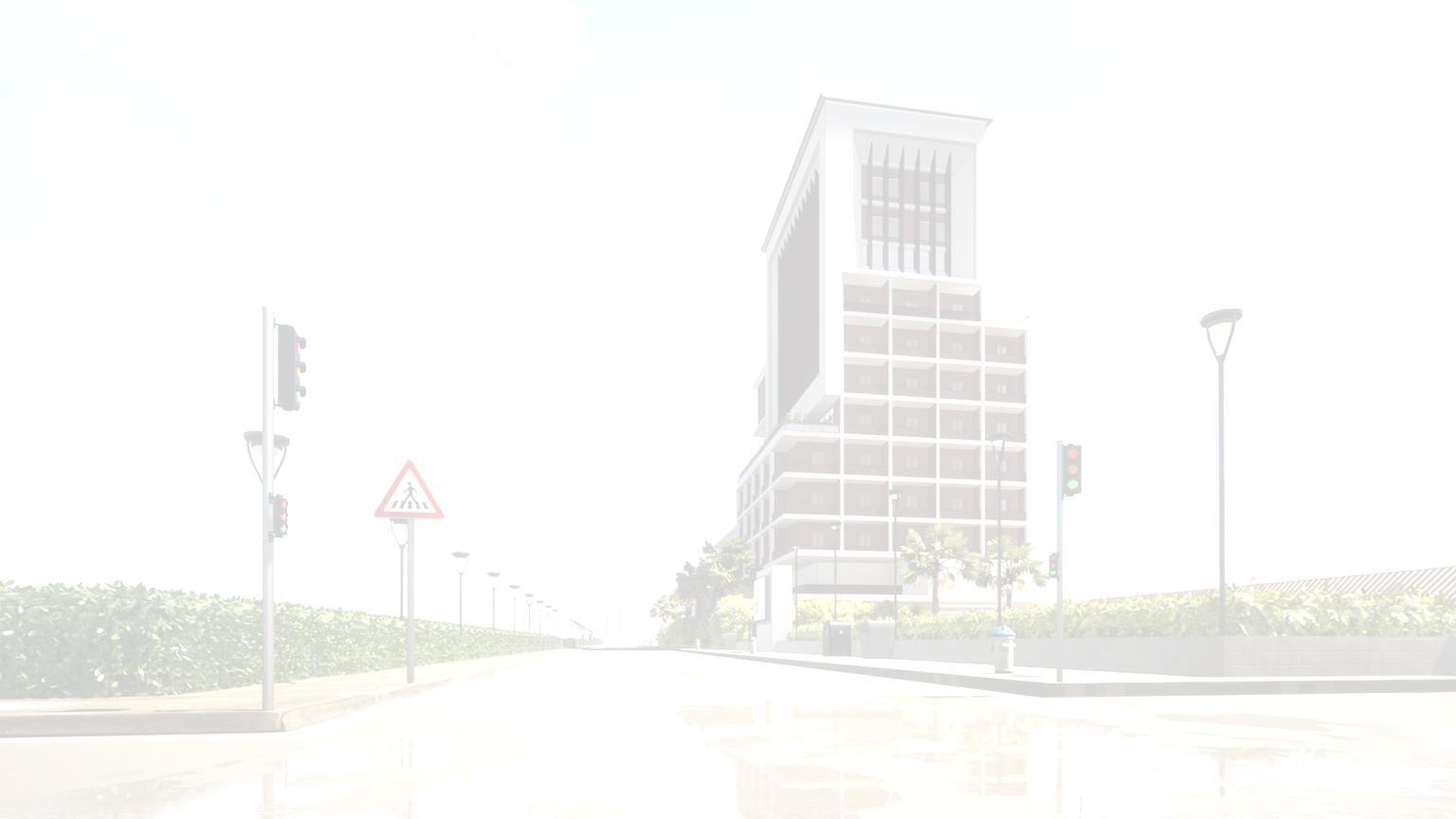

VIEW OF BUILDING

NEW INDIAN PARLIAMENT BUILDING 2

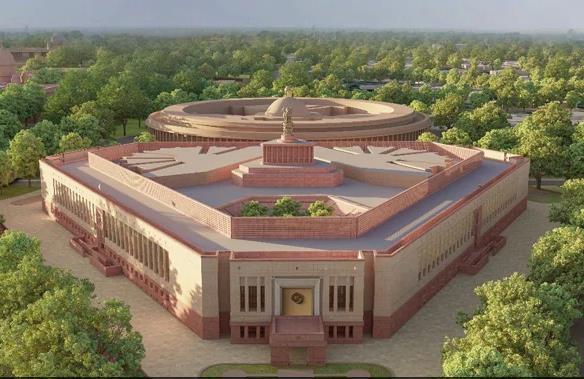

As part of India's Central Vista Redevelopment Project, a new parliament building is currently under construction in New Delhi. Once completed, it will be the seat of the Parliament of India, which currently occupies Parliament House, located directly opposite the new building's site.

1 NEW
BUILDING
INDIAN PARLIAMENT
Ahmedabad based HCP Design Planning and Management Pvt Ltd, won the architectural consultancy work. Architect: Bimal Patel Reference internet image Elevation of New Parliament Building Elevation of New Parliament Building

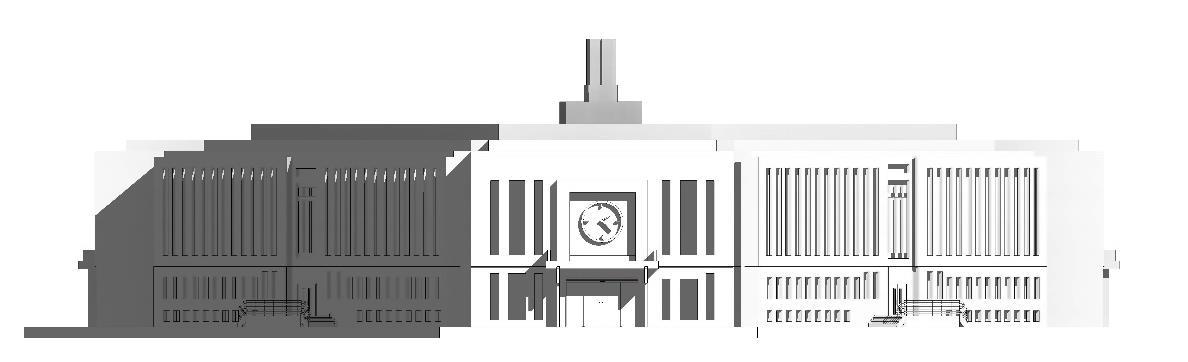

Elevation of New Parliament Building

2
BUILDING
NEW INDIAN PARLIAMENT

Elevation of New Parliament Building

3
BUILDING
NEW INDIAN PARLIAMENT

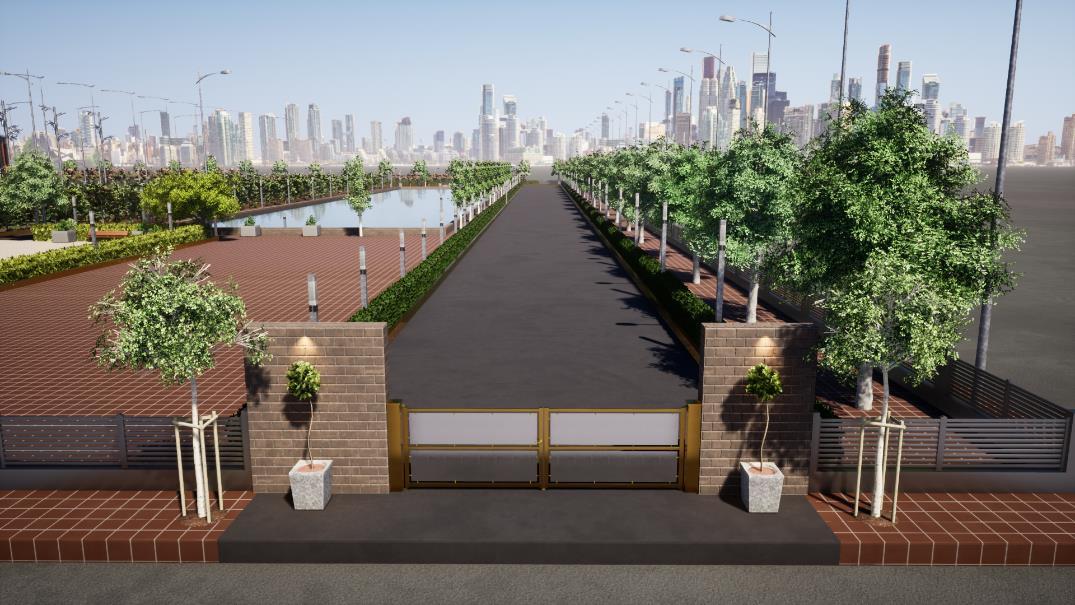

Entrance Of Building

4
BUILDING
NEW INDIAN PARLIAMENT
5 NEW INDIAN PARLIAMENT BUILDING

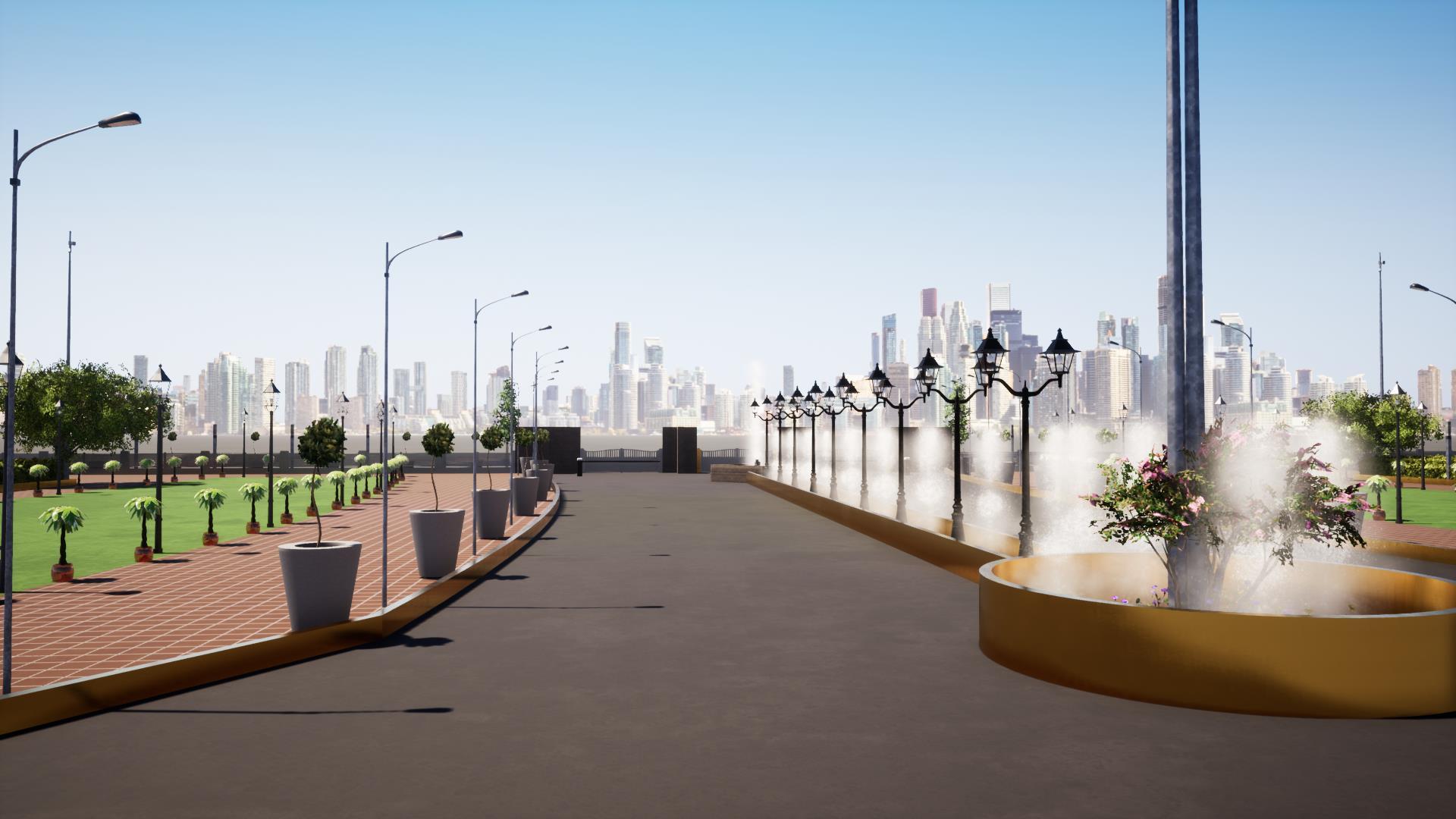

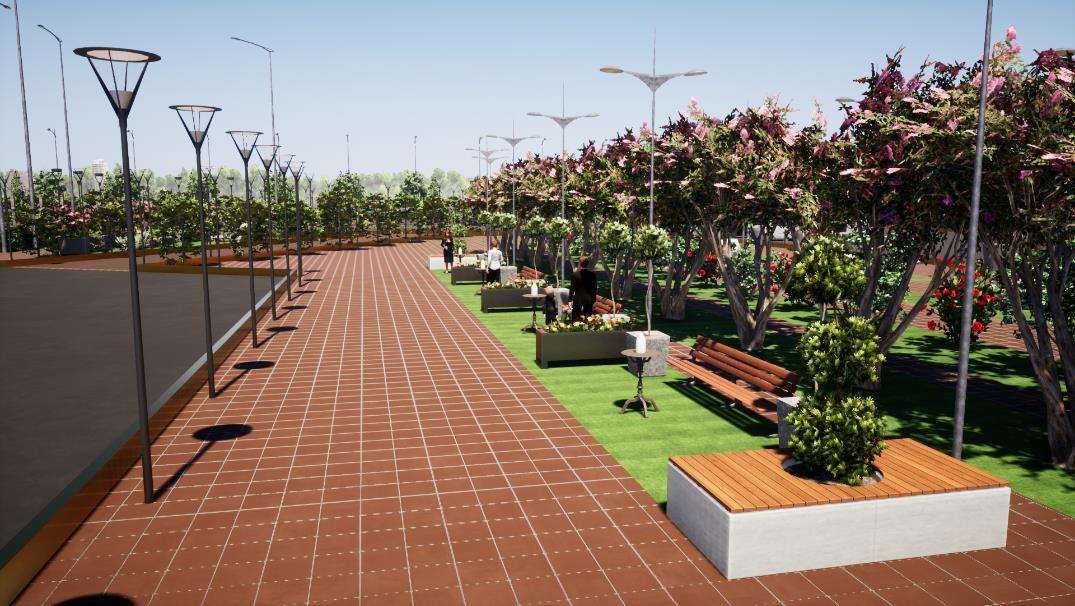

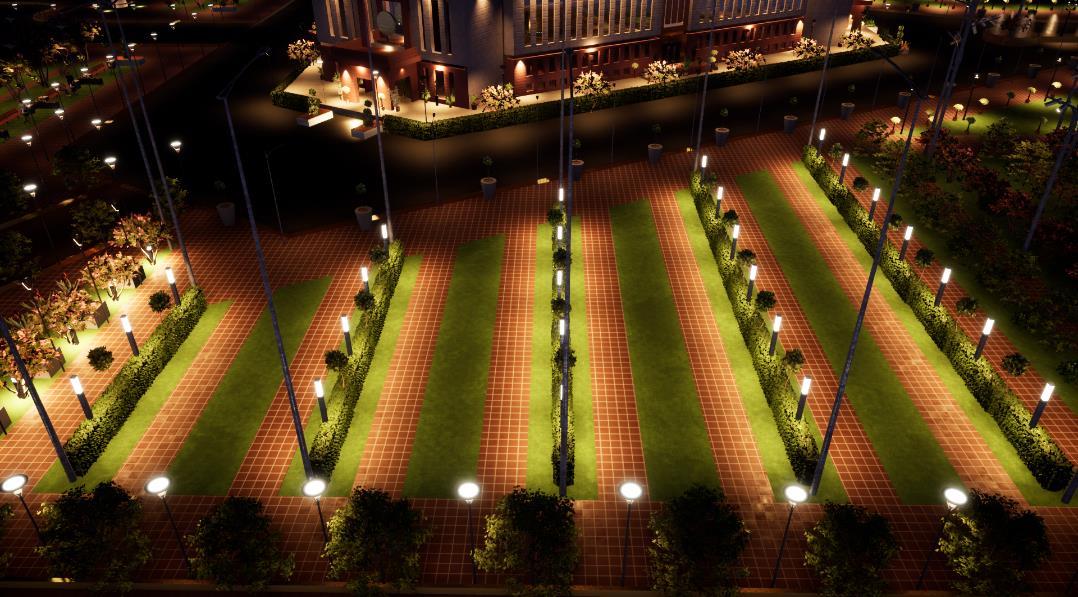

Garden Area And Road

Garden Area And Road

6
BUILDING
NEW INDIAN PARLIAMENT

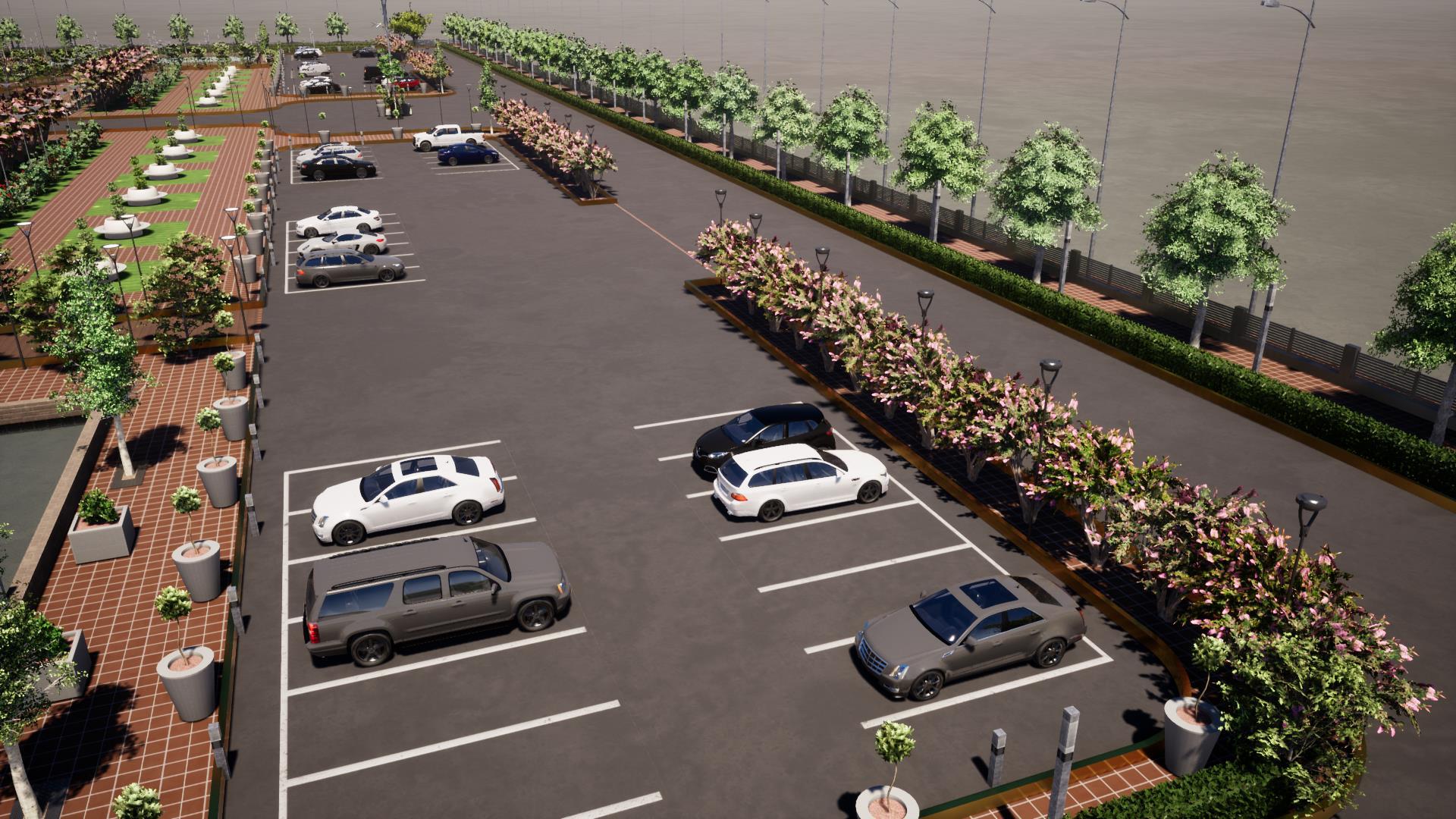

Parking of New Parliament Building

7
BUILDING
NEW INDIAN PARLIAMENT

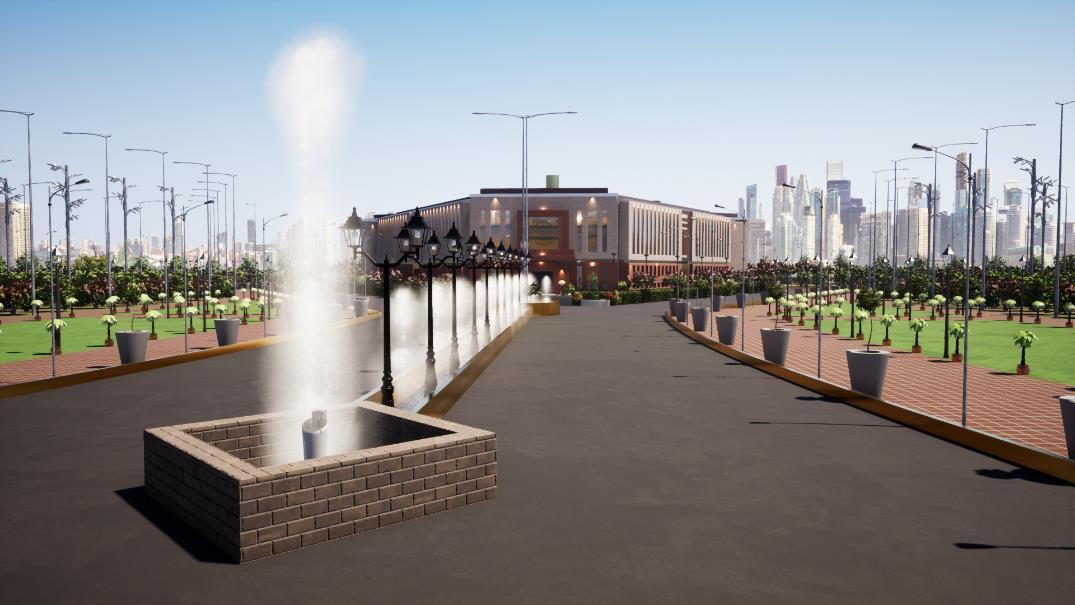

Road of New Parliament Building

8
BUILDING
NEW INDIAN PARLIAMENT

Entrance Of Building

9 NEW INDIAN PARLIAMENT BUILDING

Elevation of New Parliament Building

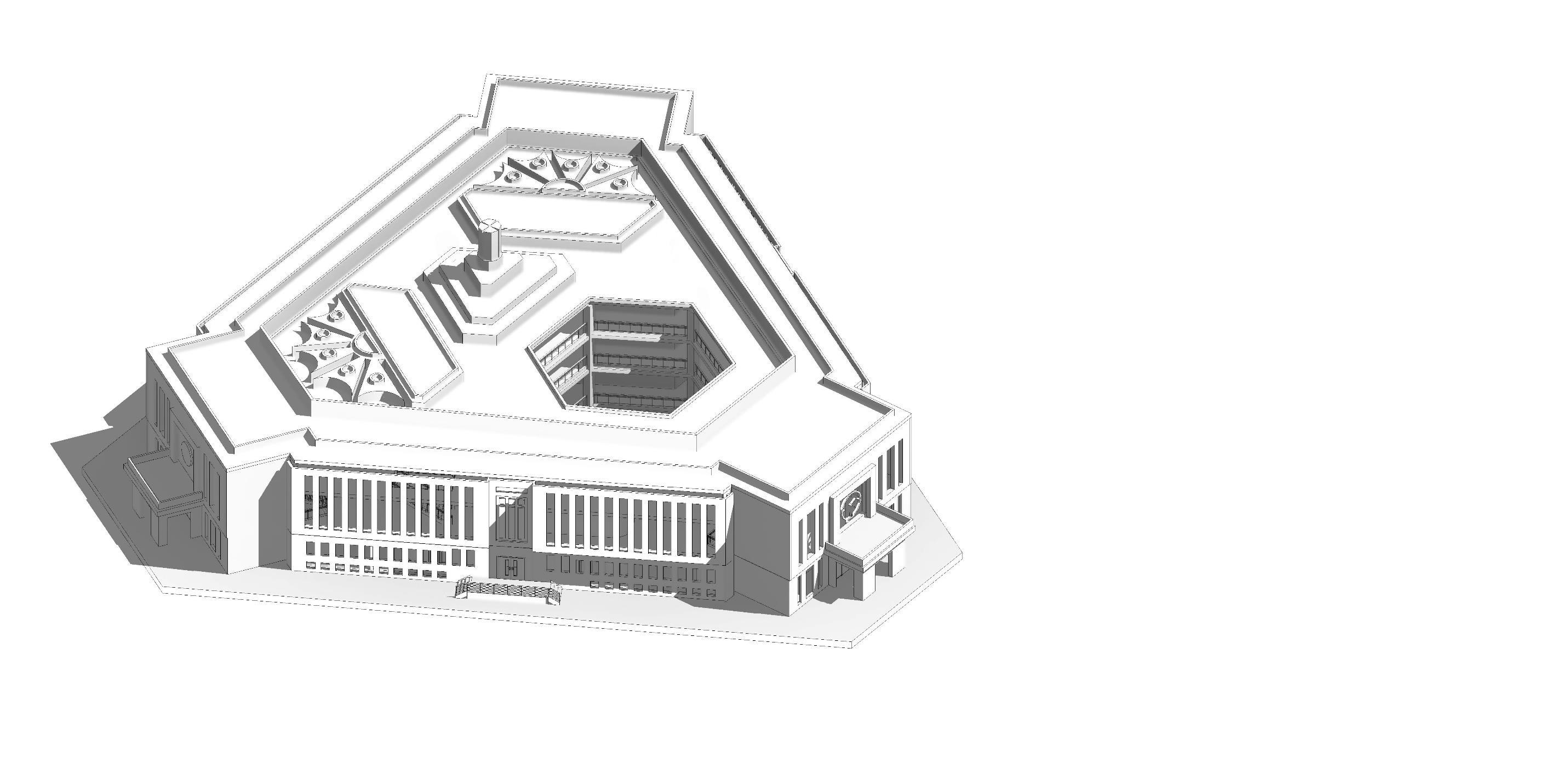

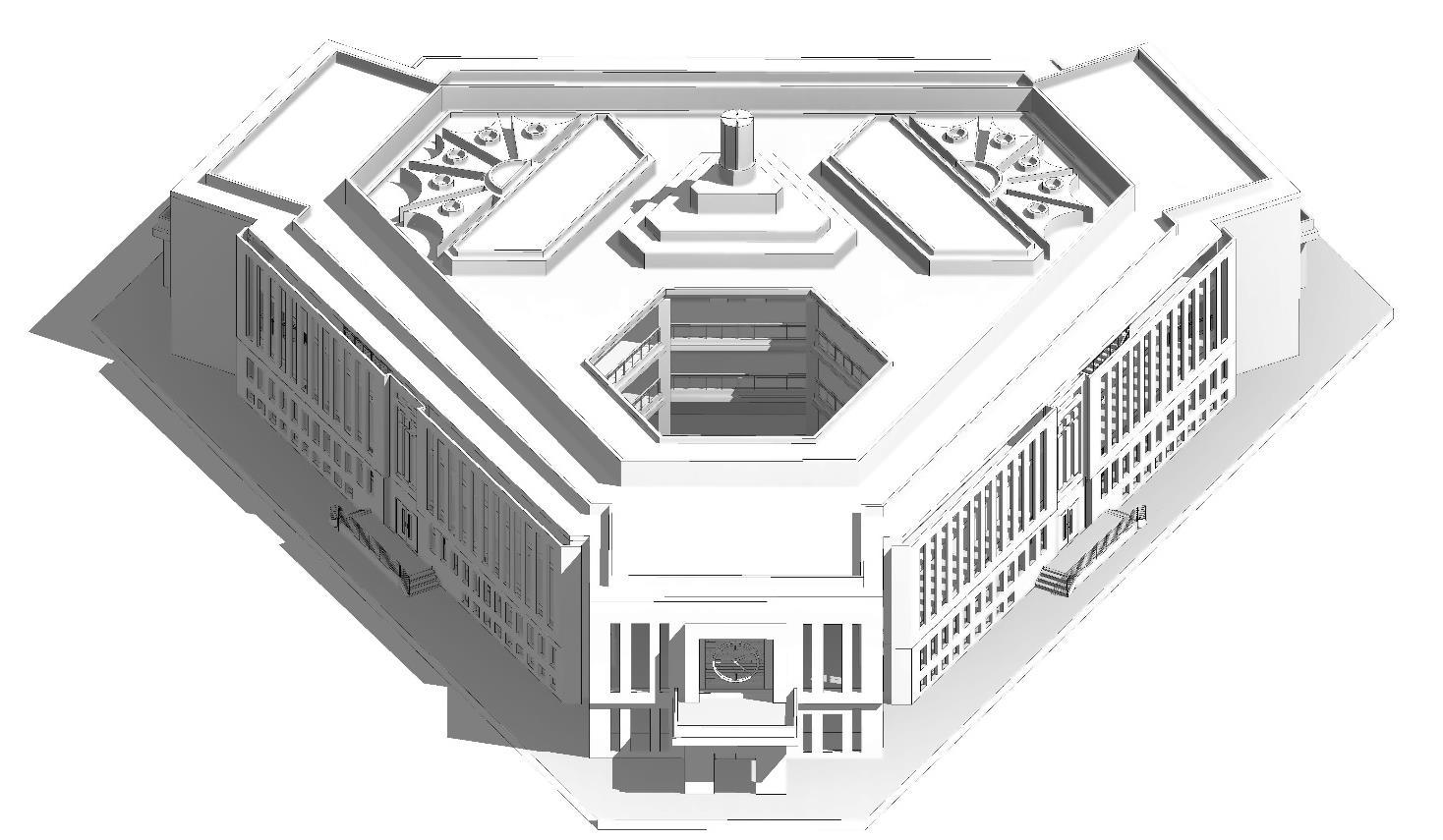

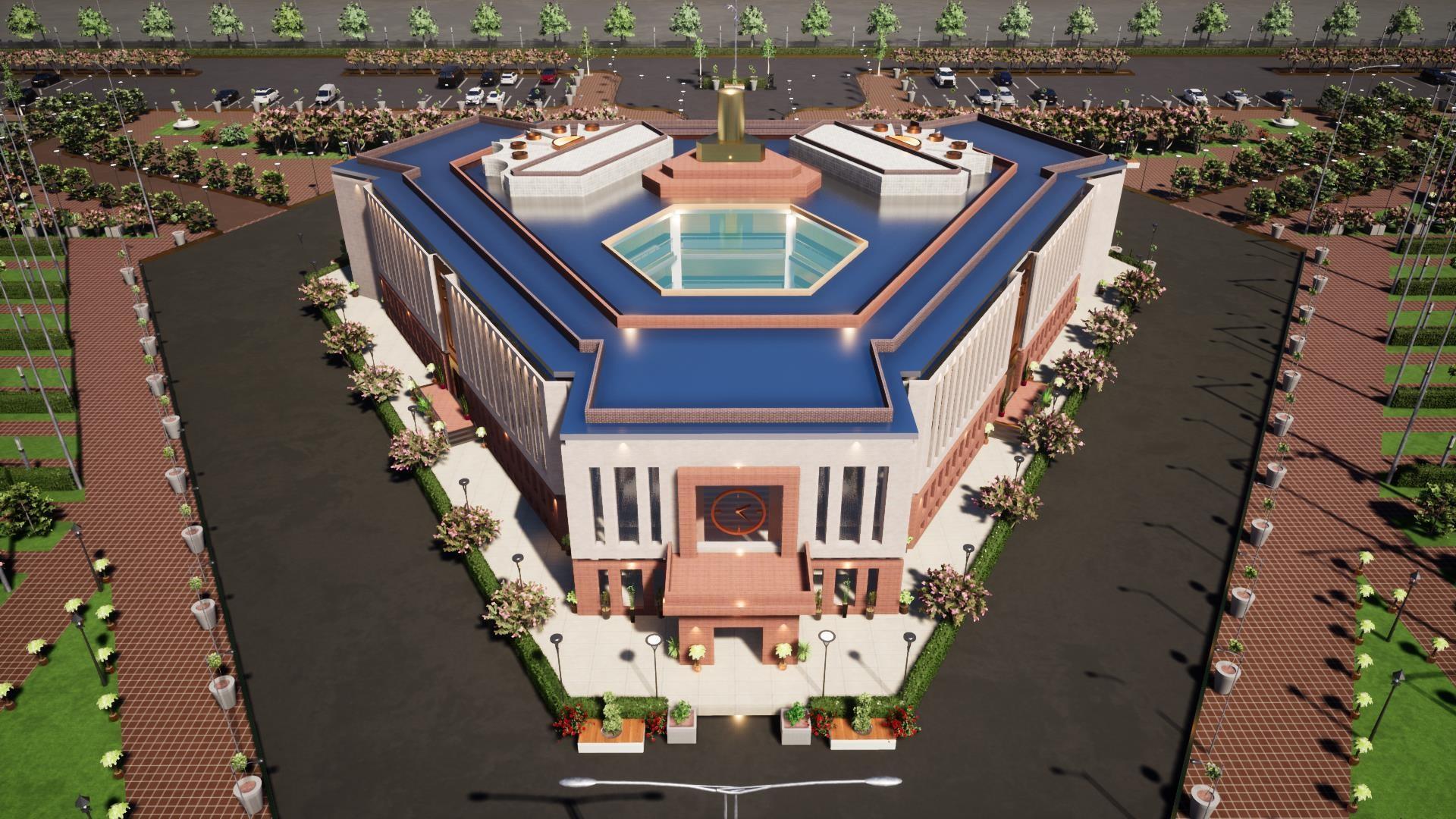

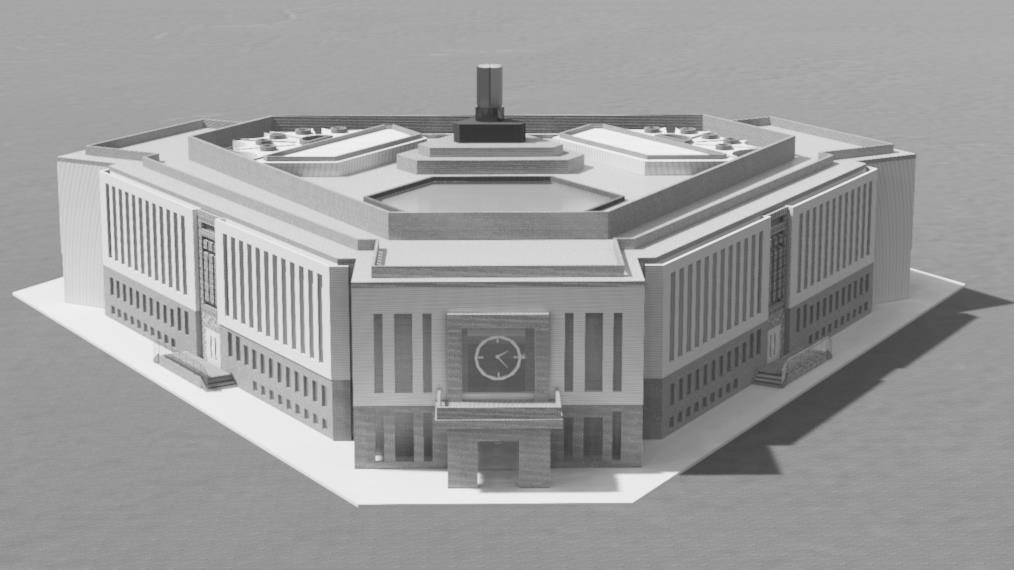

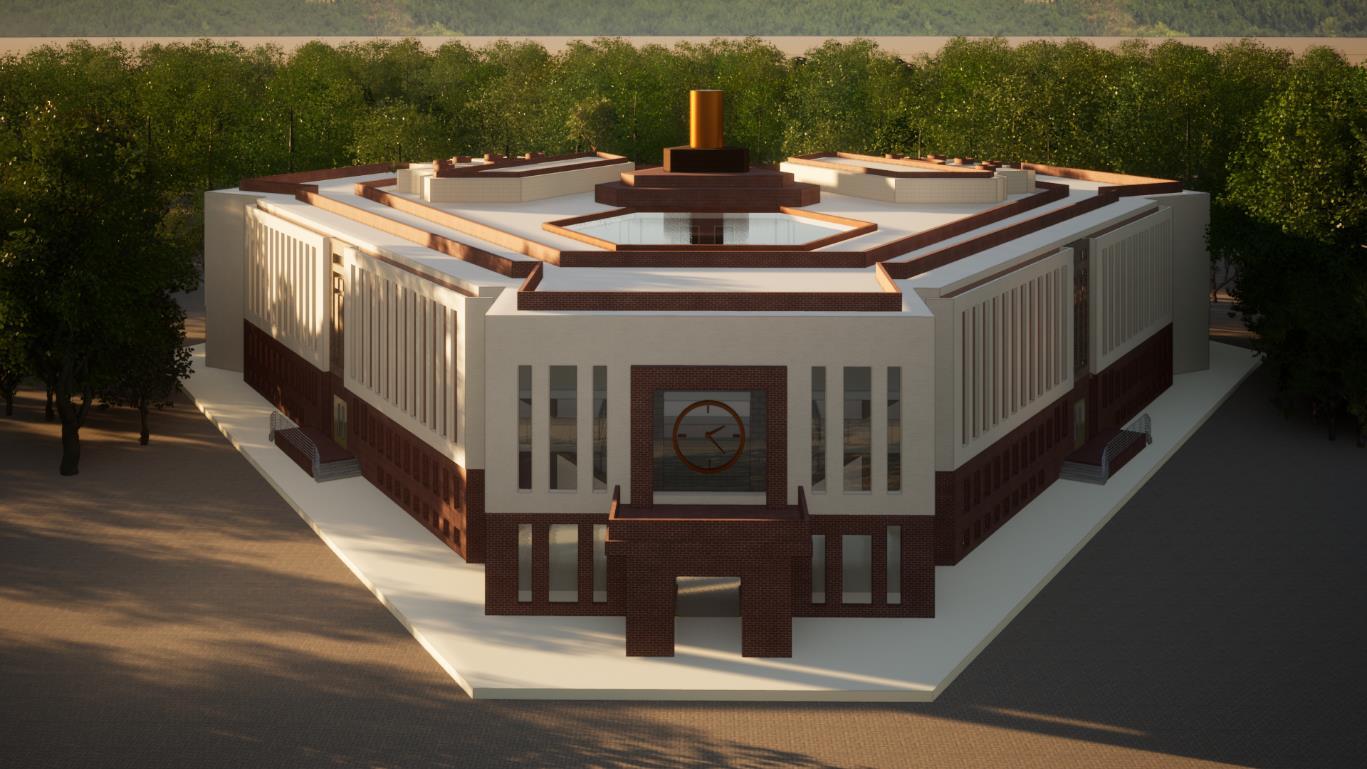

3D Model of New Parliament Building

10 NEW INDIAN PARLIAMENT BUILDING
11 NEW INDIAN PARLIAMENT BUILDING

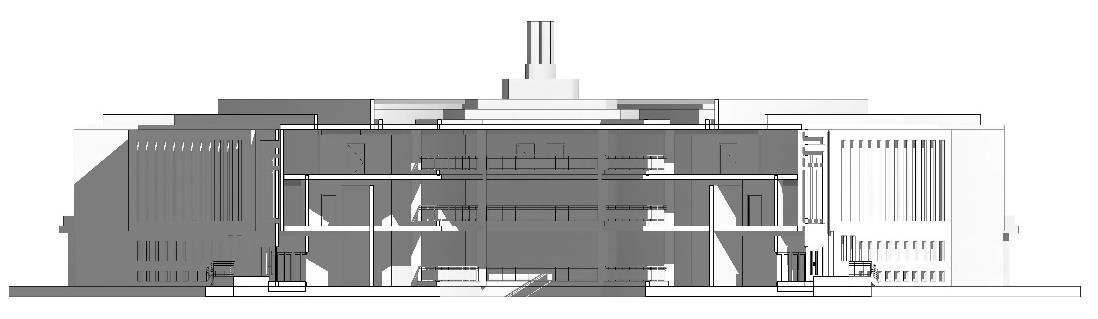

3D Floor Plans of New Parliament Building 3D Section of New Parliament Building
Elevation of New Parliament Building
12 NEW INDIAN PARLIAMENT BUILDING

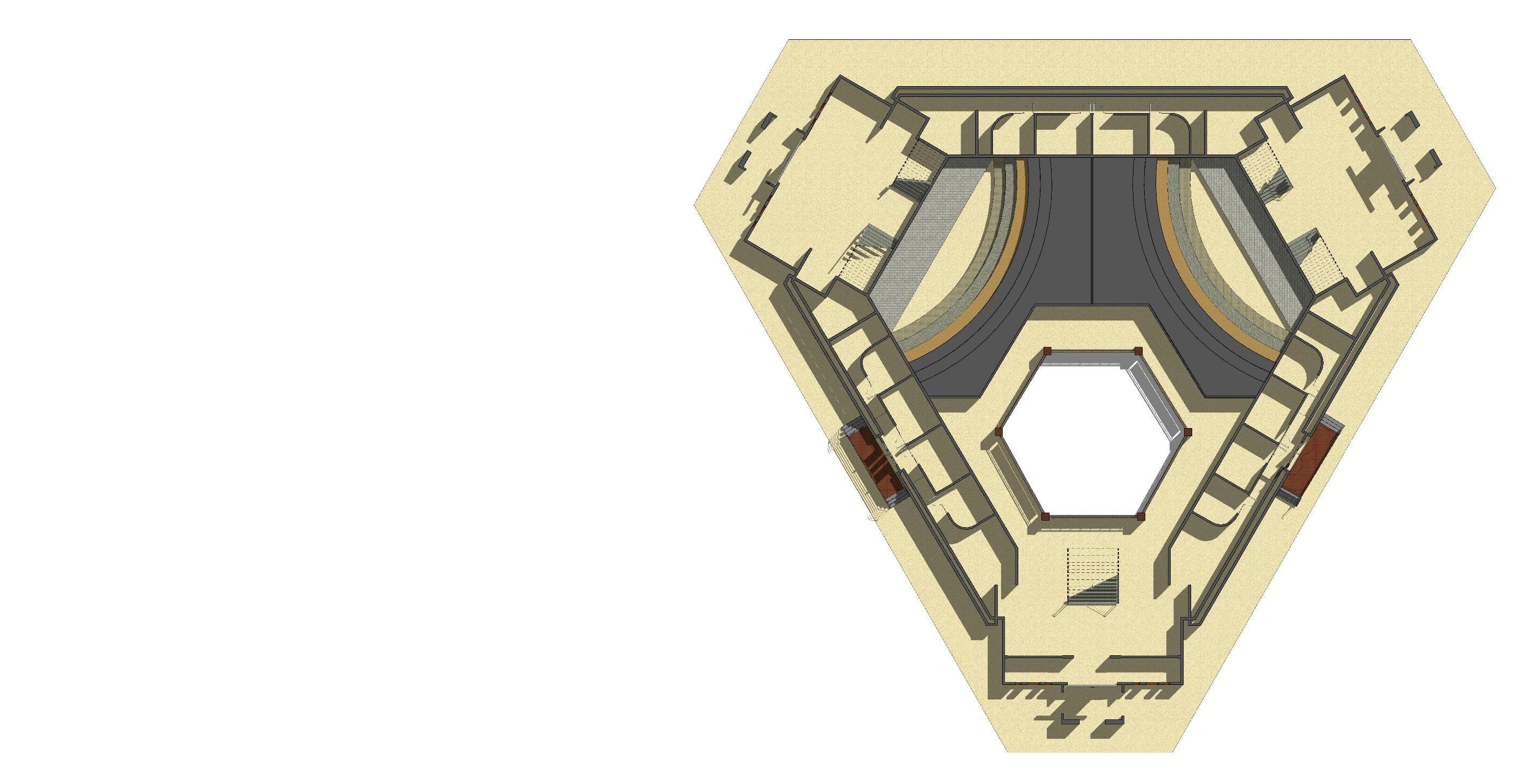

Floor Plans of New Parliament Building
3D Model of New Parliament Building
13 NEW INDIAN PARLIAMENT BUILDING
Floor
Floor Plan
Floor Plan
Floor Plans of New Parliament Building Ground
Second
First

PROPOSED 3D WORK OF COMMERCIAL BUILDING

)

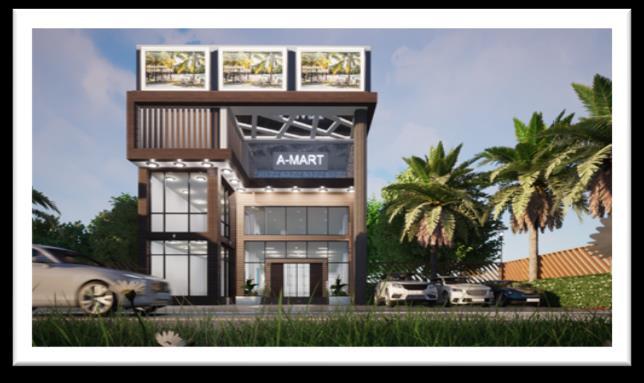

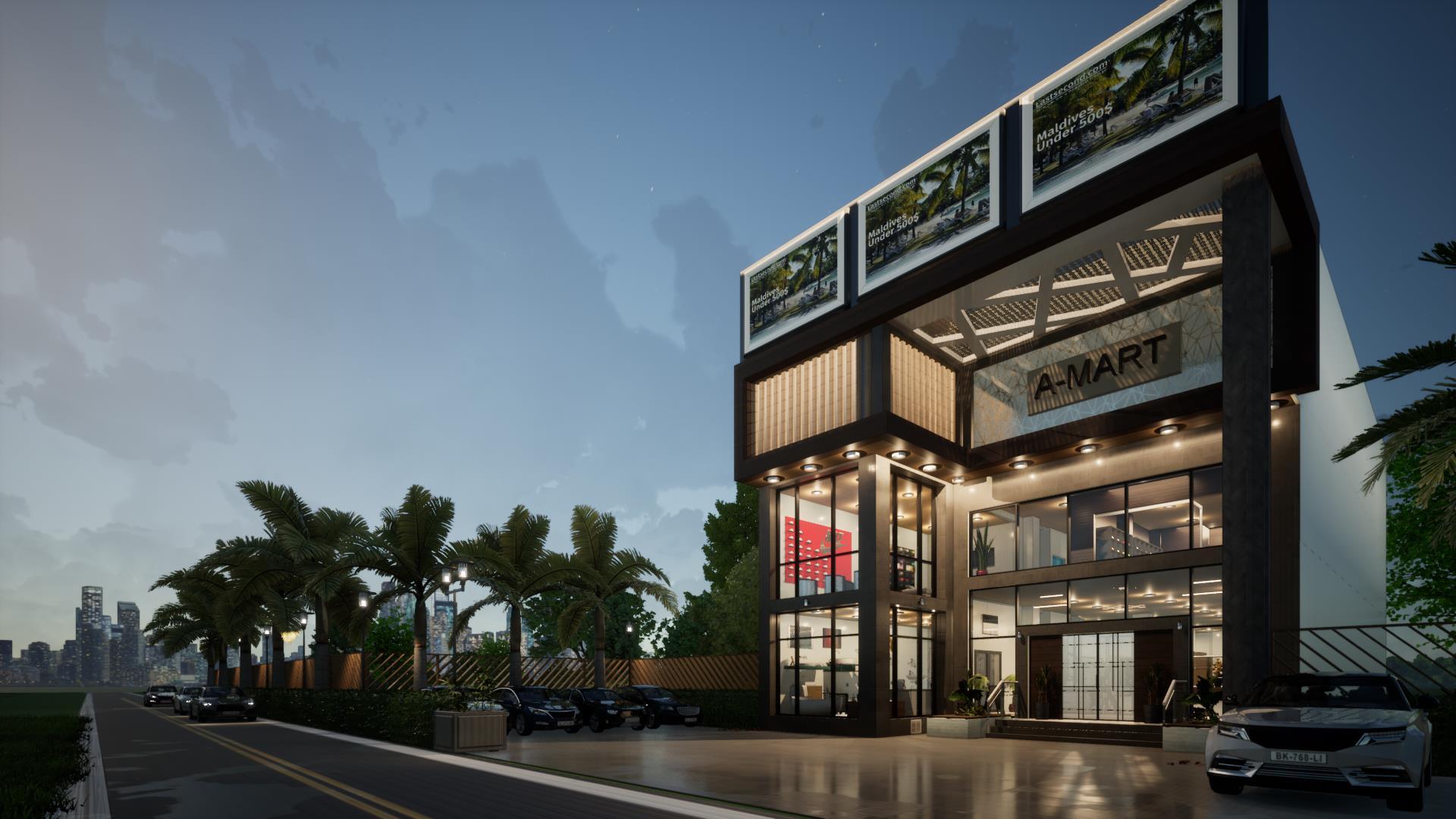

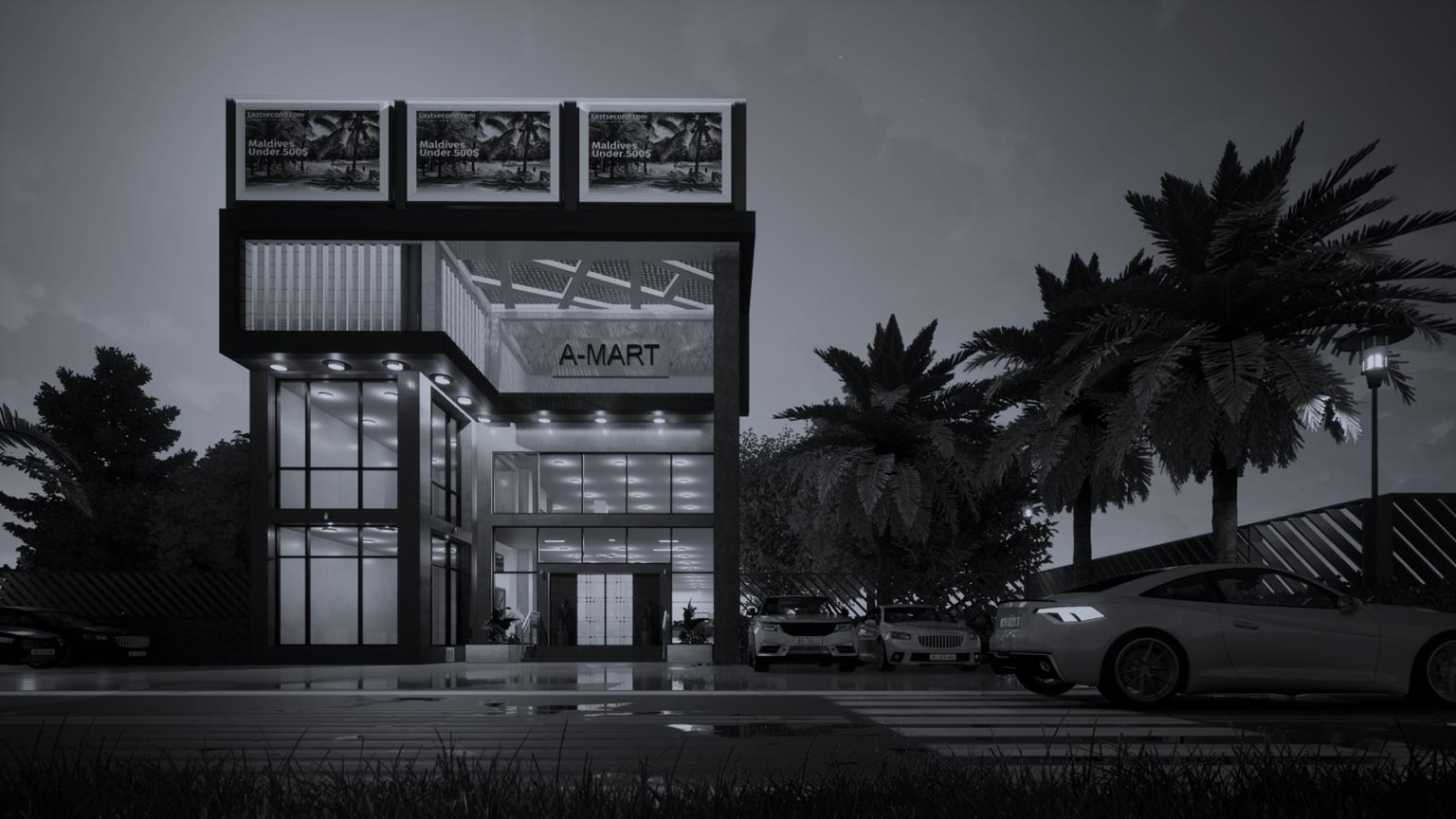

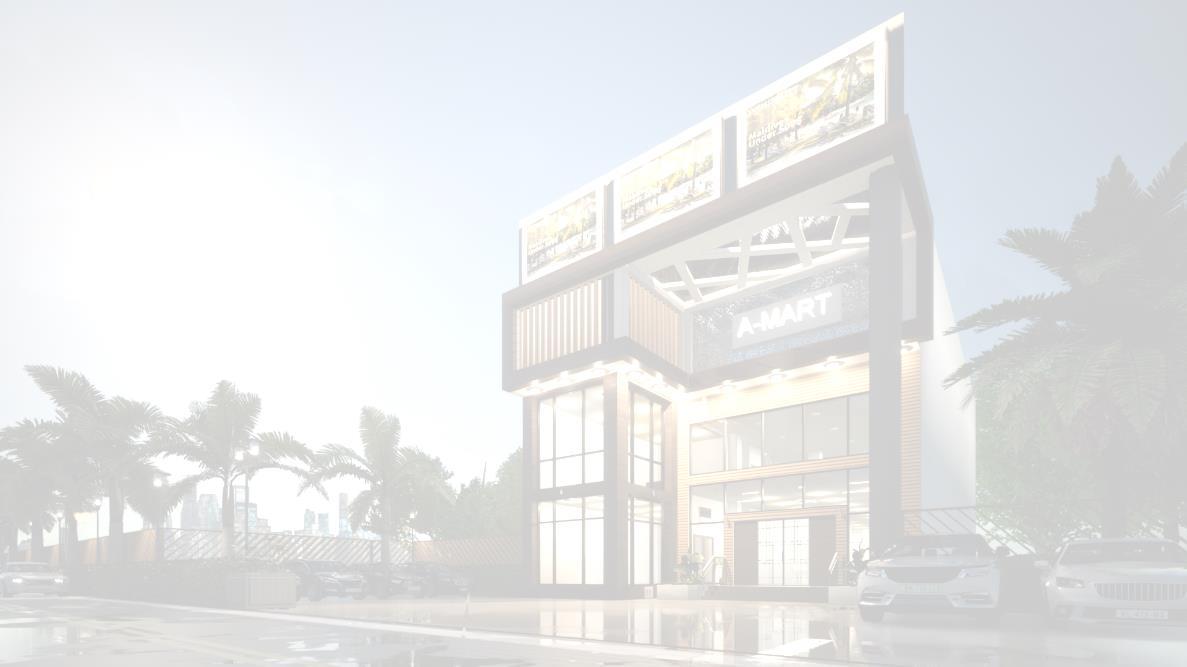

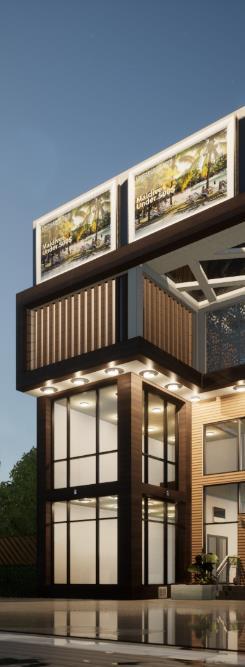

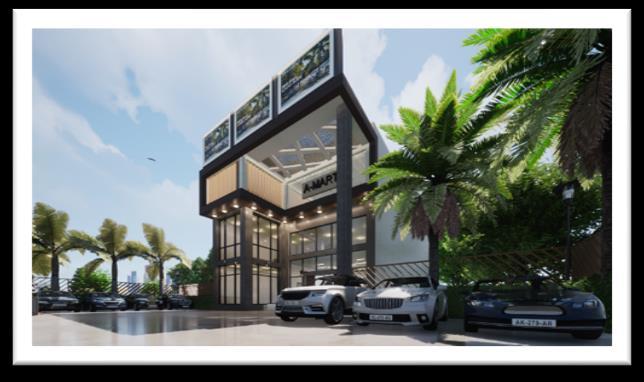

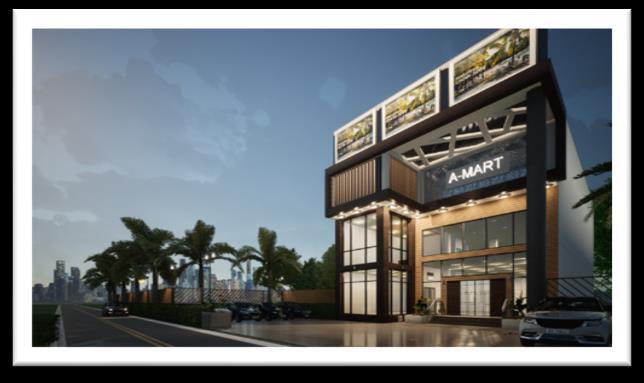

COMMERCIAL BUILDING ( A-MART
3

PROPOSED 3D WORK OF COMMERCIAL BUILDING

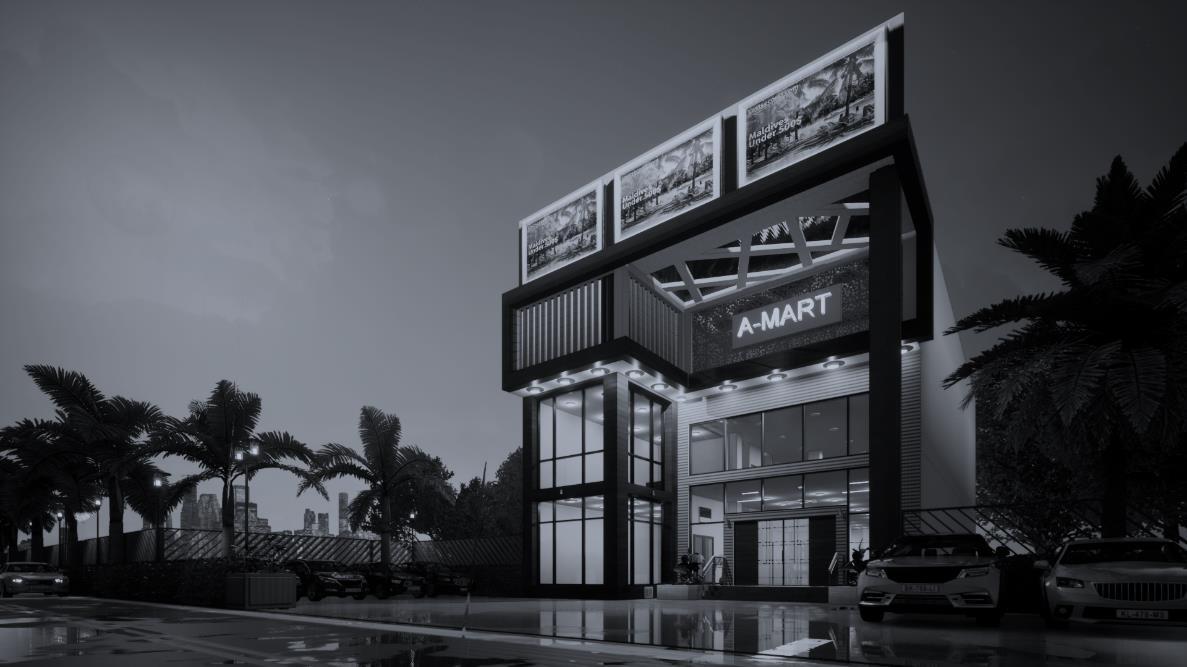

VIEW OF BUILDING

Rendering Image

1
Rendering Image 7
PROPOSED 3D WORK OF COMMERCIAL BUILDING

•

• This project is to be designed for the commercial mall

• This is four storey building including large open spaces consisting good landscape inside and outside of the structure

• The structure have separate drop off point

• The entrance have four storey opening passage having glass which gives enough sunlight at entrance.

Site area – 3500 sq.f. Site topography – Flat land Site location - Pandharpur ( Maharashtra )

•

•

•

•

•

❖ COMMERCIAL BUILDING ( A- MART )
3 Floor+ 1 Basement
No. of floors –
Floor Area – 3500 sq.f.
Each floor consisting of two well furnished spaces.
& Ground Floor
Groceries Space
Basement
–
First Floor – Men’s Clothing Space
Second Floor – Men’s wear & Men’s Accessories 2 PROPOSED 3D WORK OF COMMERCIAL BUILDING

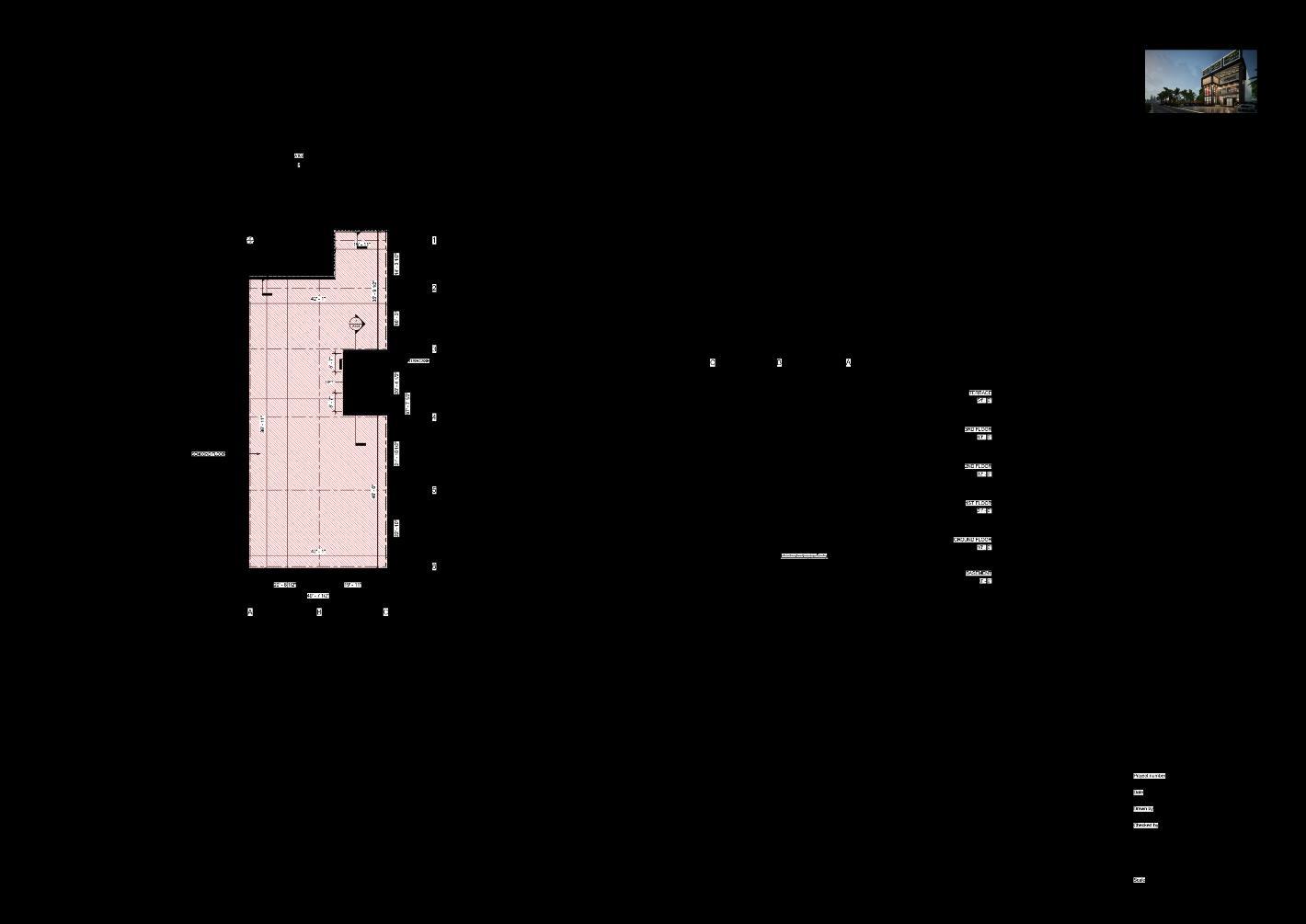

• Basement Floor Plan • Ground Floor Plan • First Floor Plan • Second Floor Plan • North Side Building Elevation ✓ SHEETS 3 PROPOSED 3D WORK OF COMMERCIAL BUILDING
• Building Section 1 • Building Section 2 • Building Section 3 • Building 3D view • Curtain Wall Section 7 ( Detailing ) • Curtain Wall Section 8 ( Detailing ) • Staircase Section 4 ( Detailing ) • Staircase Section 5 ( Detailing ) • Staircase Section 6 ( Detailing ) ✓ SHEETS 4 PROPOSED 3D WORK OF COMMERCIAL BUILDING

PROPOSED 3D WORK OF COMMERCIAL BUILDING

Rendering Image 5

PROPOSED 3D WORK OF COMMERCIAL BUILDING

Rendering Image

COMMERCIAL BUILDING ( TOWER

)
4

•

•

Site area – 10000 sq.f. Site topography – Flat land
• This project is to be designed for the commercial mall
This is four storey building including large open spaces consisting good landscape inside and outside of the structure
The structure have separate drop off point
Large Parking Spaces
Well Furnished Workspaces Rendering Image 1 PROPOSED 3D WORK OF COMMERCIAL BUILDING
• The entrance have four storey opening passage having glass which gives enough sunlight at entrance. ❖ COMMERCIAL BUILDING ( TOWER ) Amenities•
•

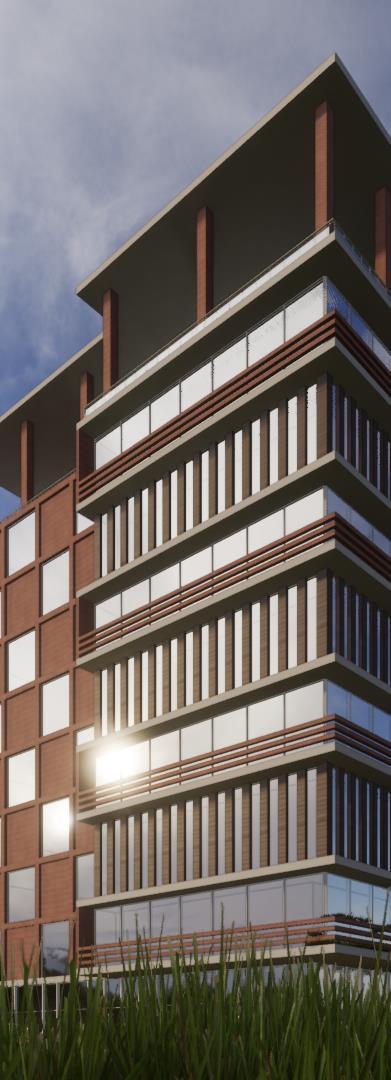

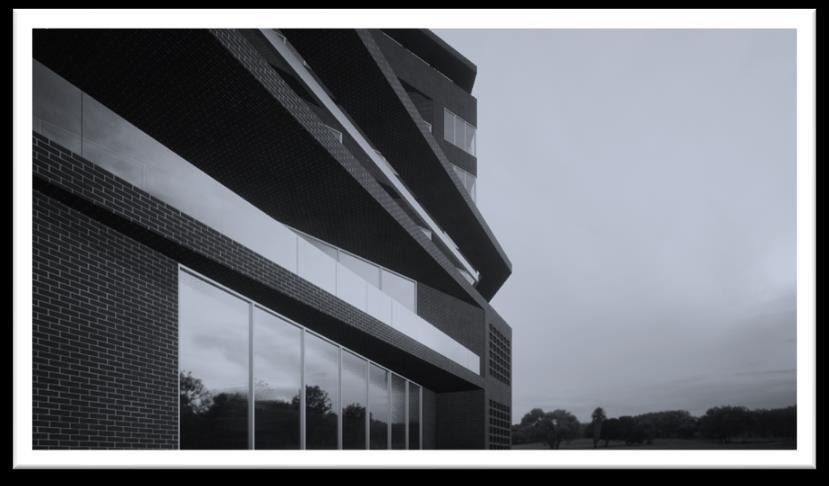

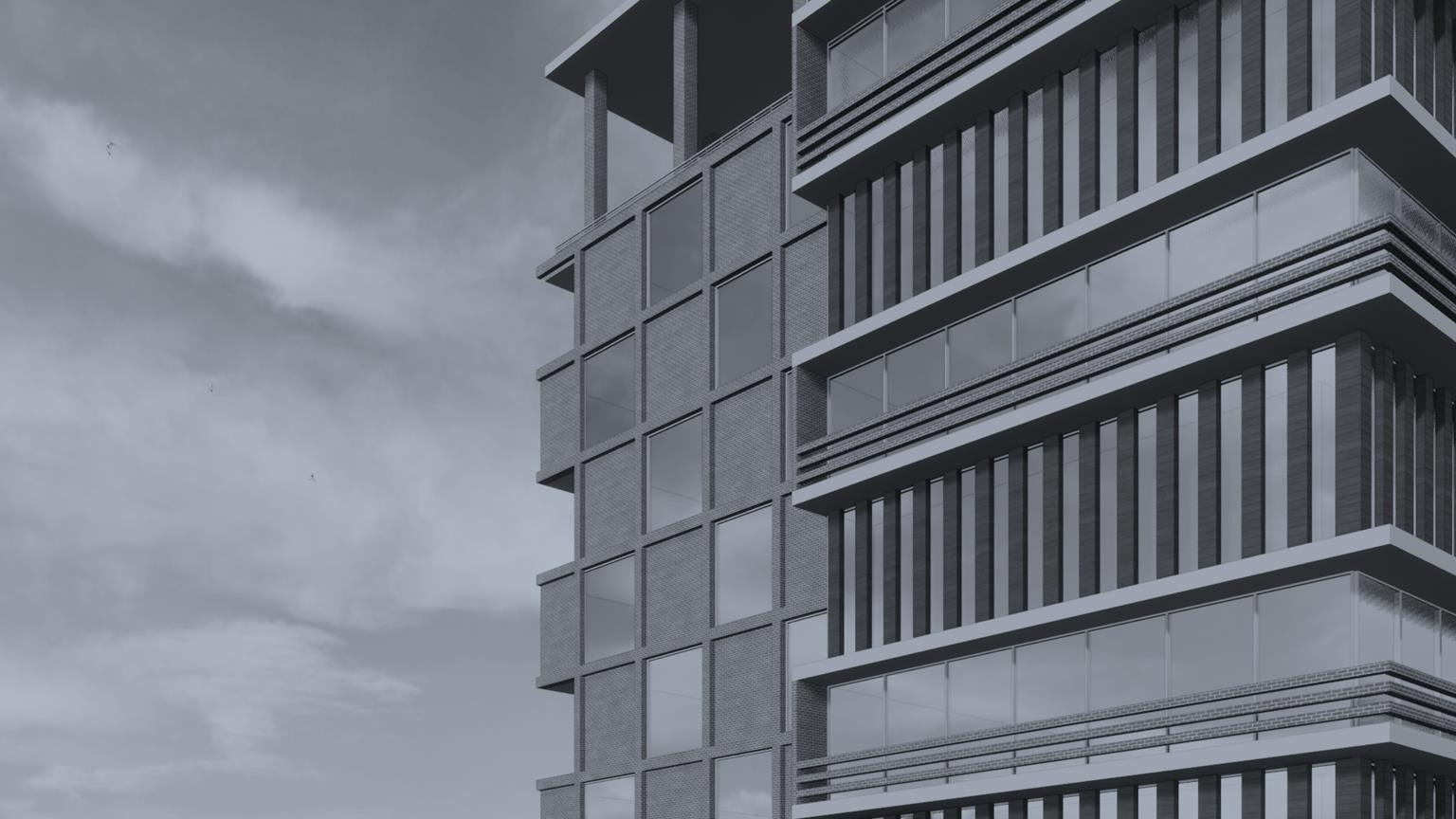

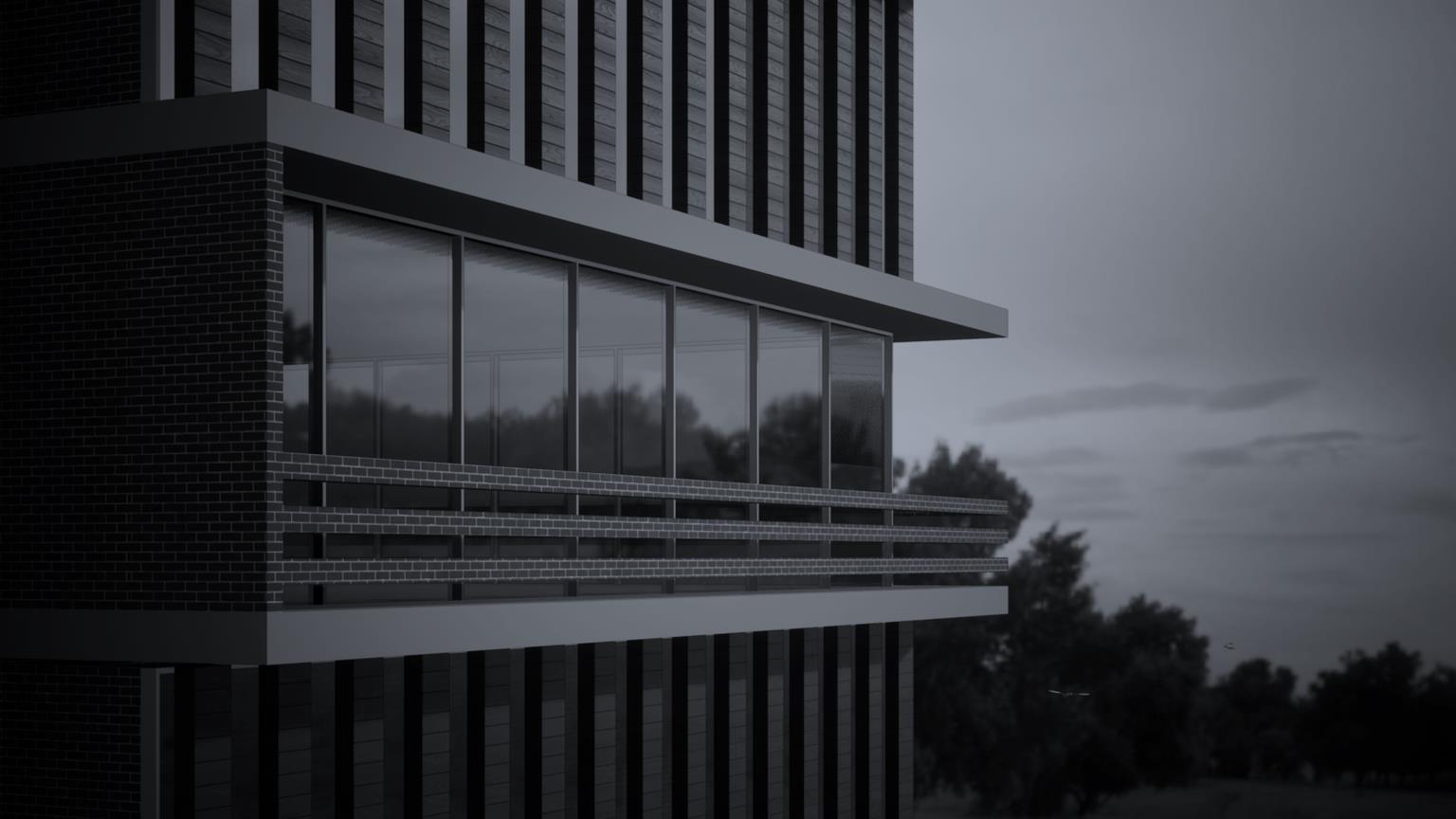

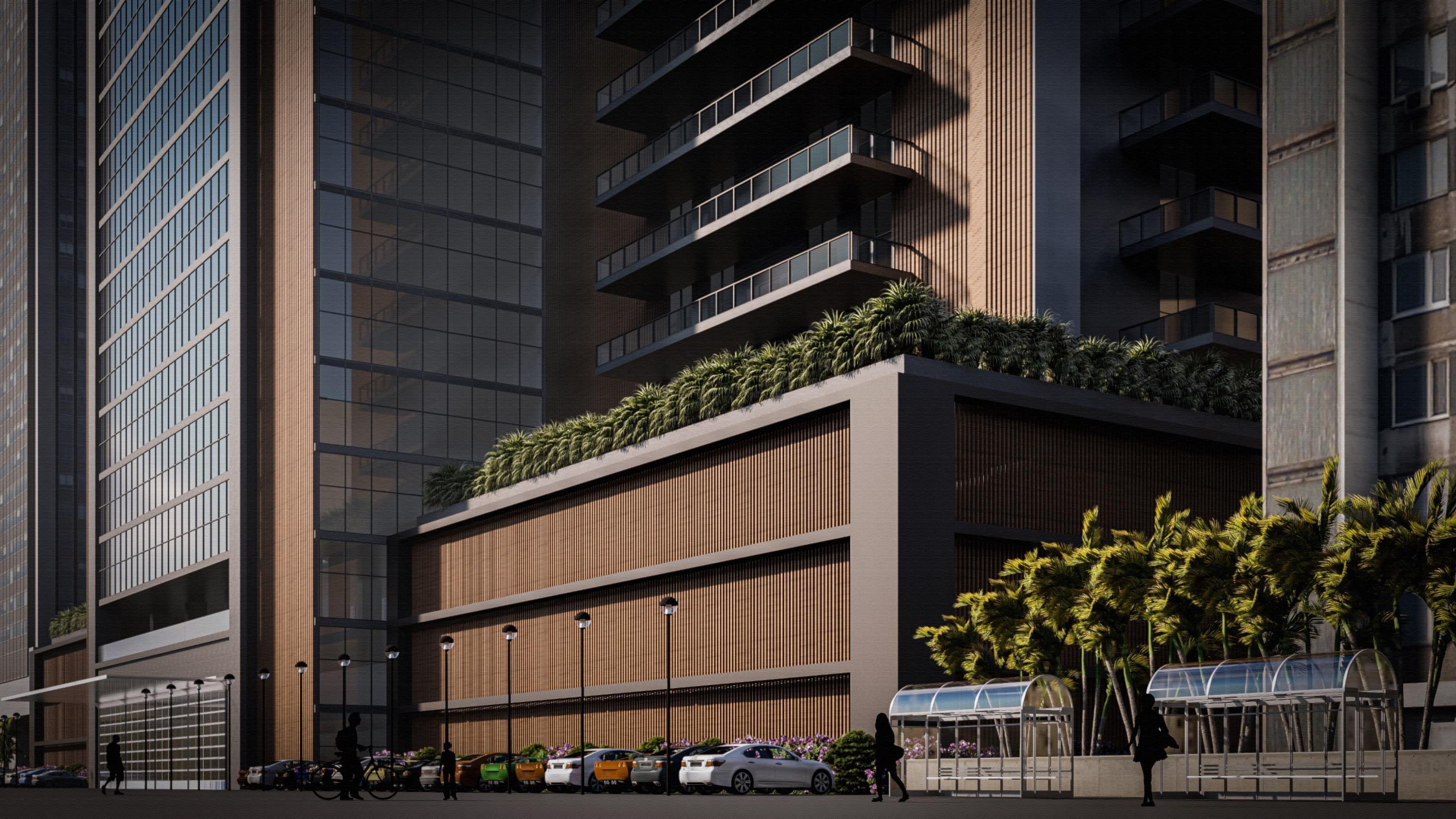

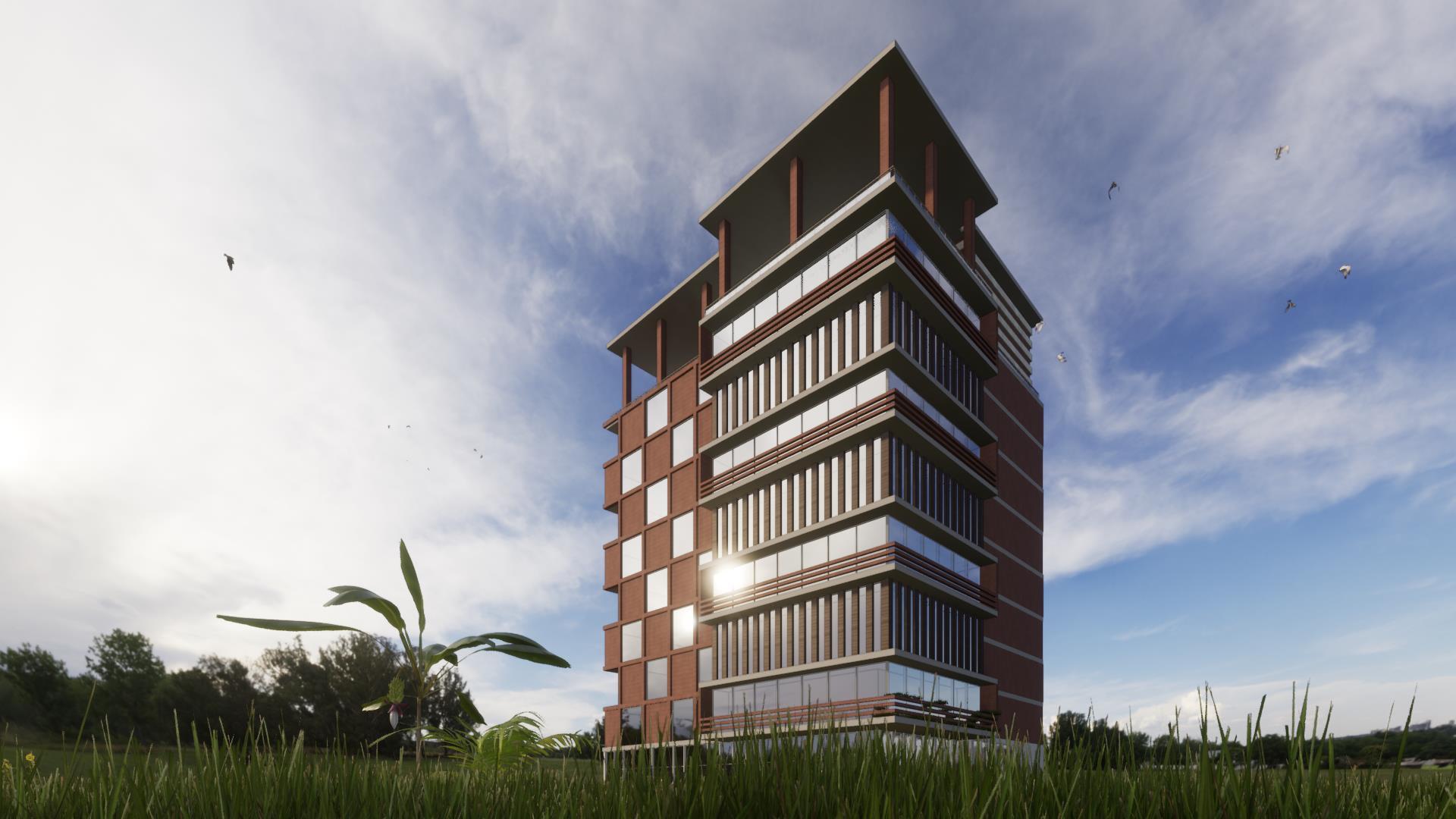

Commercial Building Facade

Rendering Image 2
PROPOSED 3D WORK OF COMMERCIAL BUILDING

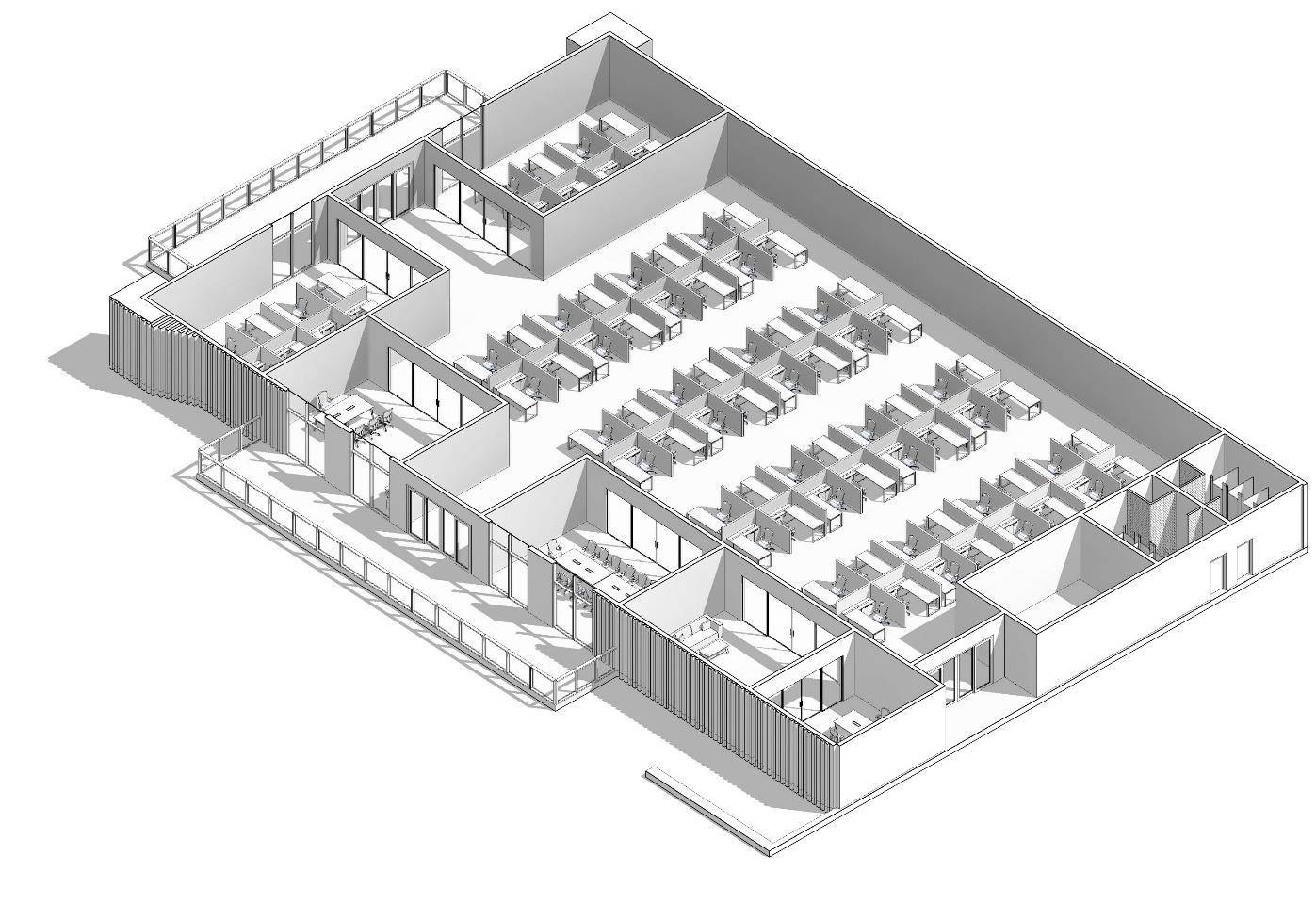

Floor Plans of Commercial Building

3
3D
COMMERCIAL
PROPOSED
WORK OF
BUILDING
Floor Plans & Elevations
4
3D WORK OF COMMERCIAL BUILDING
Commercial Building
PROPOSED

Sections Commercial Building

5
3D WORK OF COMMERCIAL BUILDING
PROPOSED

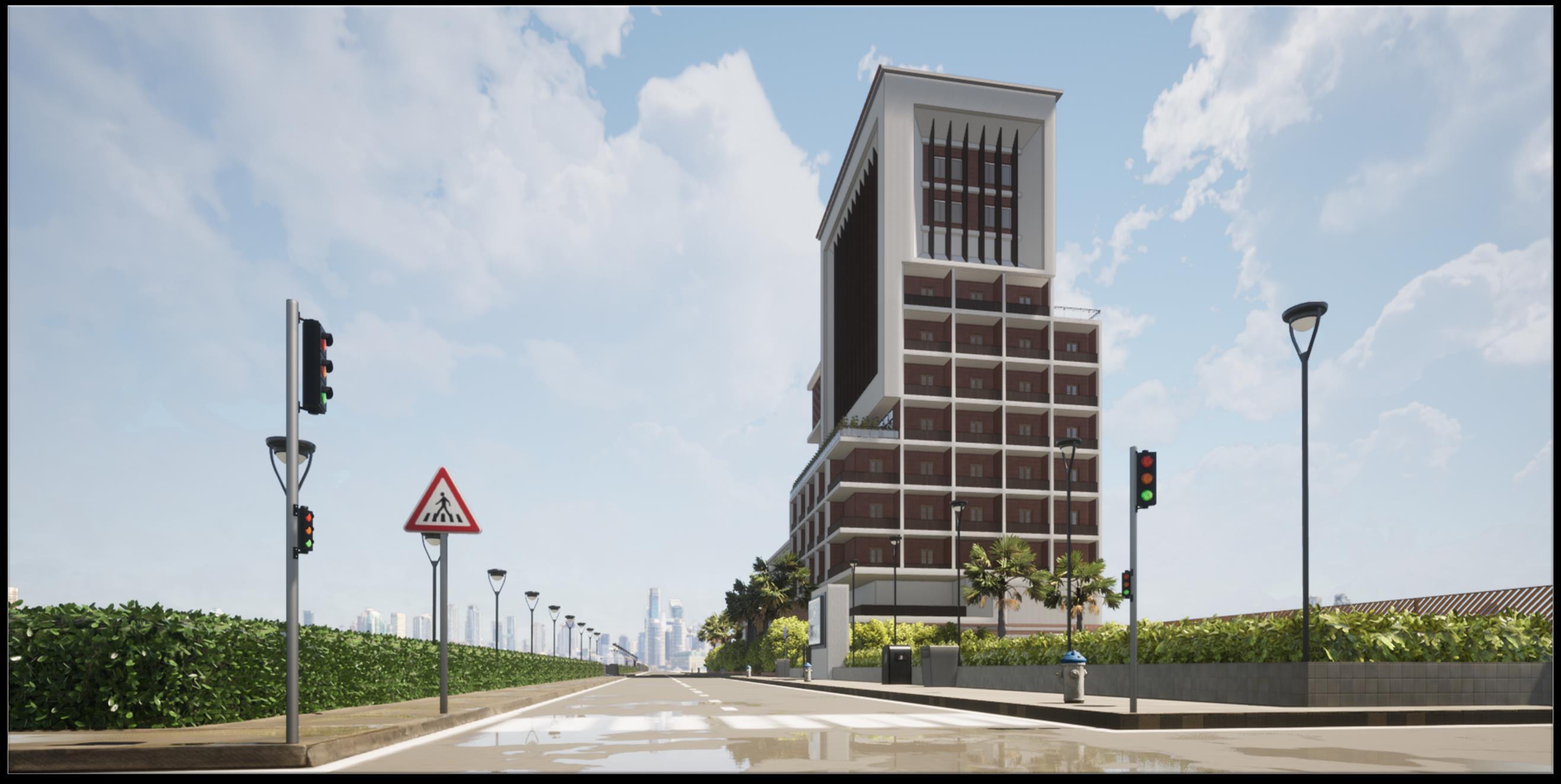

Rendering Image

Exterior
Commercial Building
6
PROPOSED 3D WORK OF COMMERCIAL BUILDING

• No. of floors – 10 Floor + Terrace Level Restaurant

• Each floor consisting of two well furnished spaces.

• Ground Floor & First Floor – Premium Office Space

• 2nd To 10th Floor – Office

• Terrace Floor – Restaurant

• Premium Office Area- 700 sq.f

• Each Office area – 500 sq.f

Premium Office

7
3D WORK OF COMMERCIAL BUILDING
PROPOSED

Premium Office

8 PROPOSED 3D WORK OF COMMERCIAL BUILDING
Commercial Building Facade 9
PROPOSED 3D WORK OF COMMERCIAL BUILDING

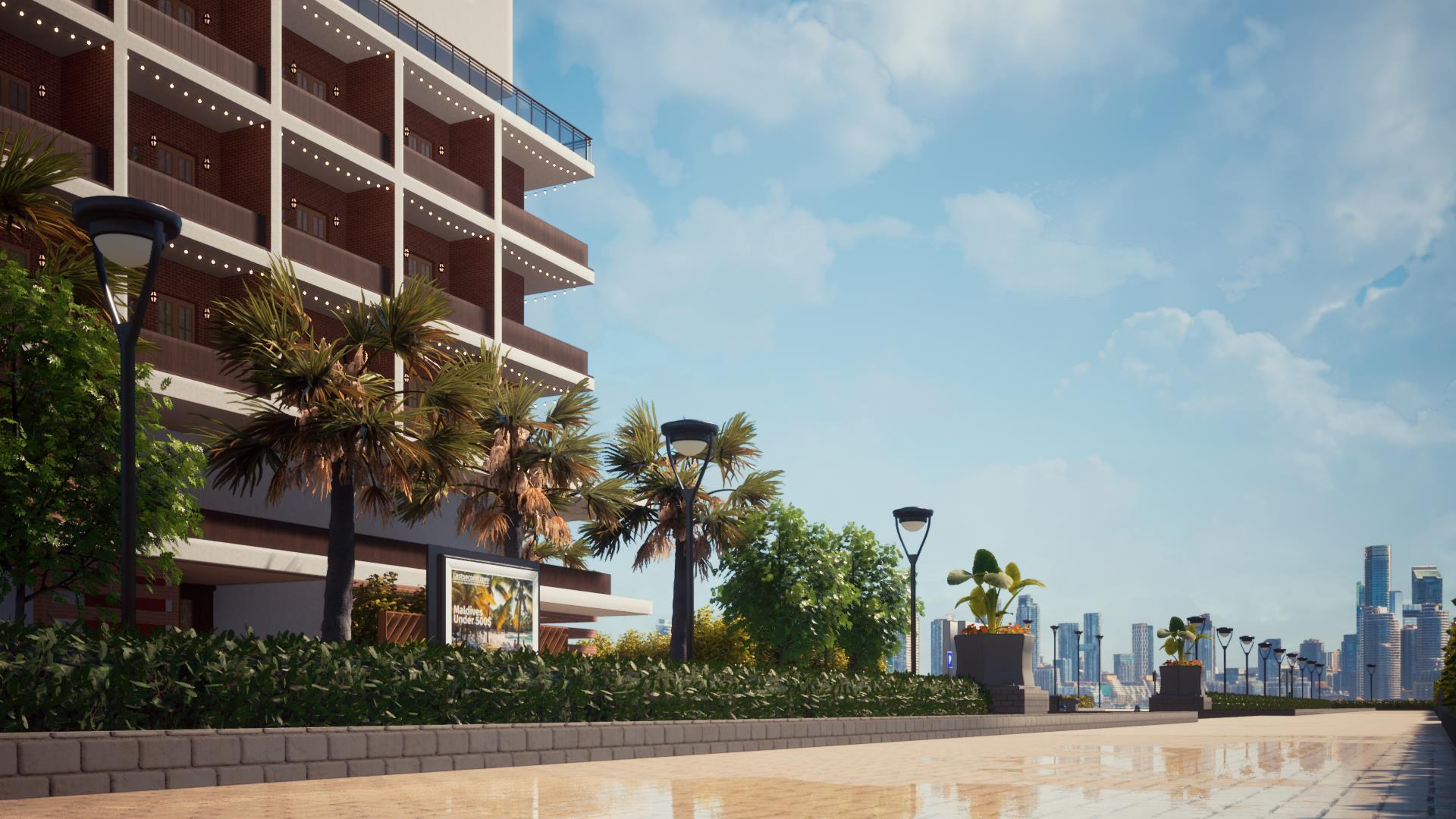

PROPOSED 3D WORK OF FIVE STAR HOTEL

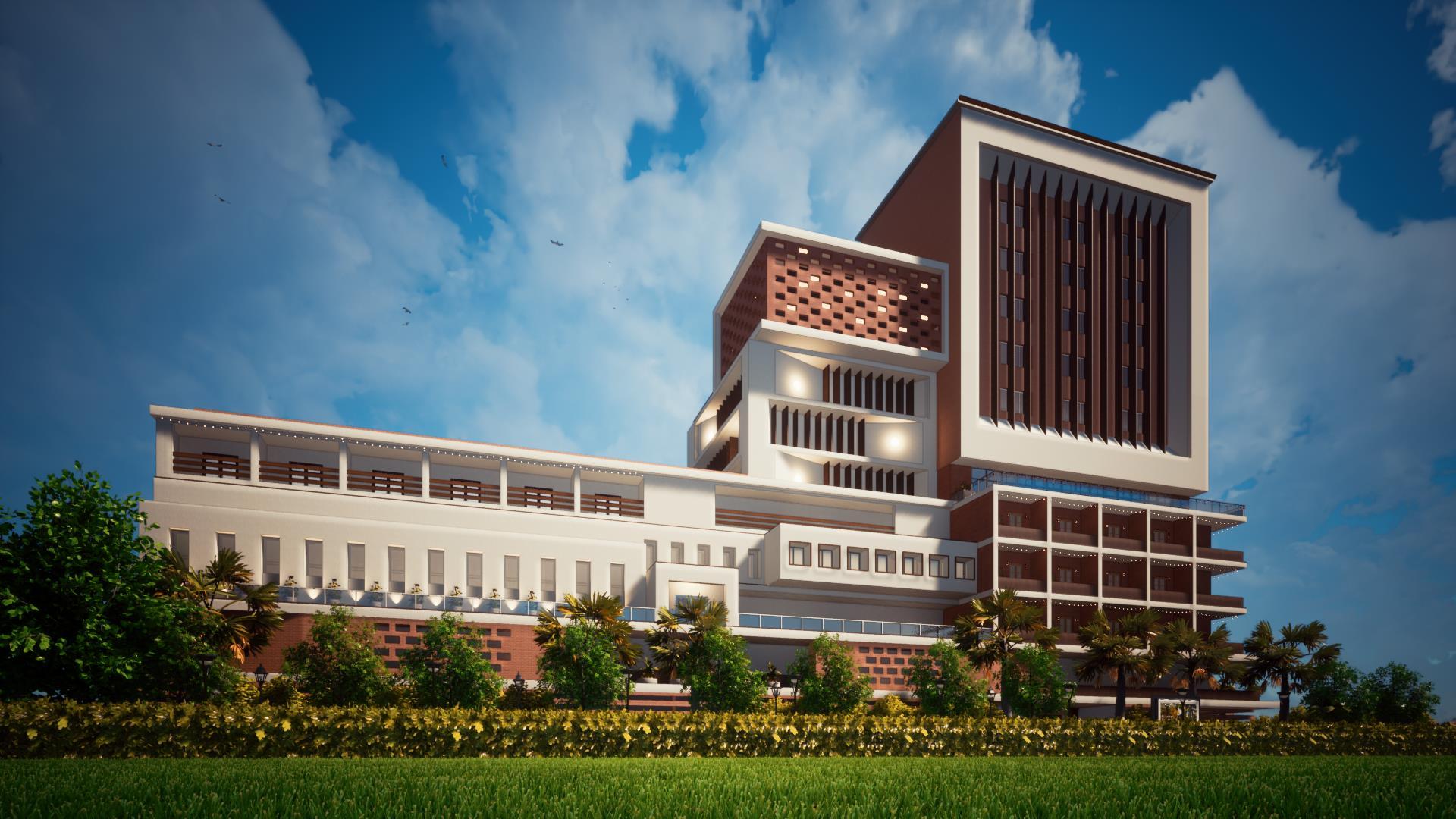

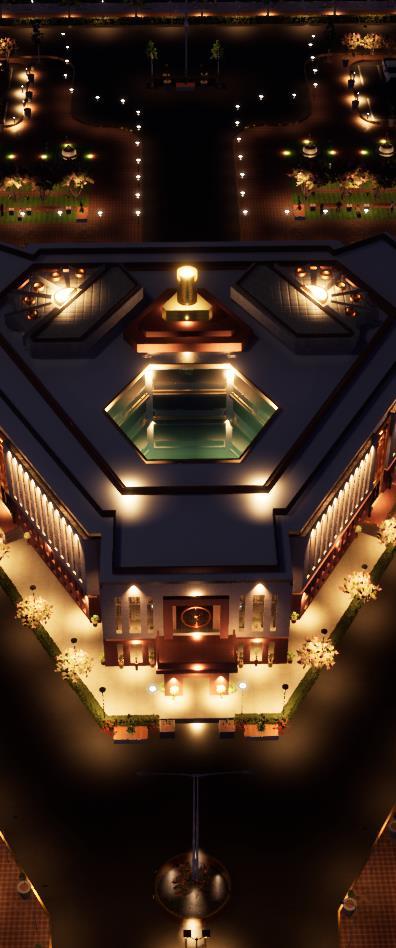

Dark Star Hotel
5
Rendering Image

PROPOSED 3D WORK OF

STAR HOTEL

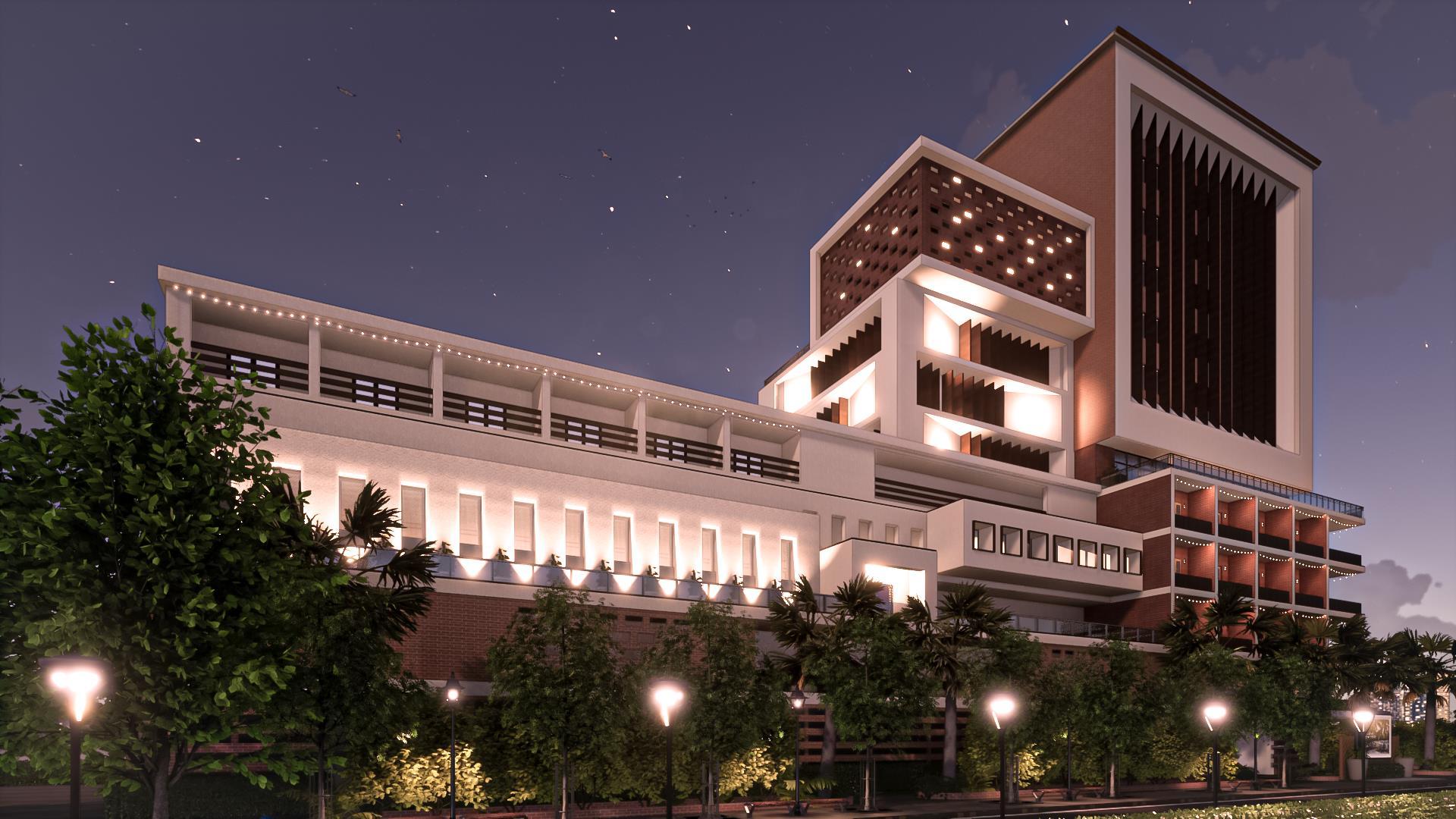

NIGHT RENDER IMAGE 1
FIVE

Dark Star Hotel

• This project is to be designed for the Five Star Hotel

• This is four storey building including large open spaces consisting good landscape inside and outside of the structure

• The structure have separate drop off point

• The entrance have four storey opening passage having glass which gives enough sunlight at entrance.

Site area – 55000 sq.f. Site topography – Flat land

• No. of floors – 14 Floor

• Each floor consisting of well furnished spaces.

• Ground Floor & First Floor – Reception + Party Hall Space

• 2nd Floor & 3rd Floor – Restaurant

• 4th to 7th Floor – Rooms+ Hall

• 8th to 14 Floor - Rooms

• Total Rooms - 70 rooms

• Two Restaurant , Swimming Pool, Multipurpose Hall

❖
2 PROPOSED 3D WORK OF COMMERCIAL BUILDING
2 PROPOSED 3D WORK OF COMMERCIAL BUILDING

FLOOR PLAN

SECTION

RENDER IMAGE

3
3D
PROPOSED
WORK OF COMMERCIAL BUILDING
SECTION 4
3D WORK OF COMMERCIAL BUILDING
PROPOSED

ELEVATION

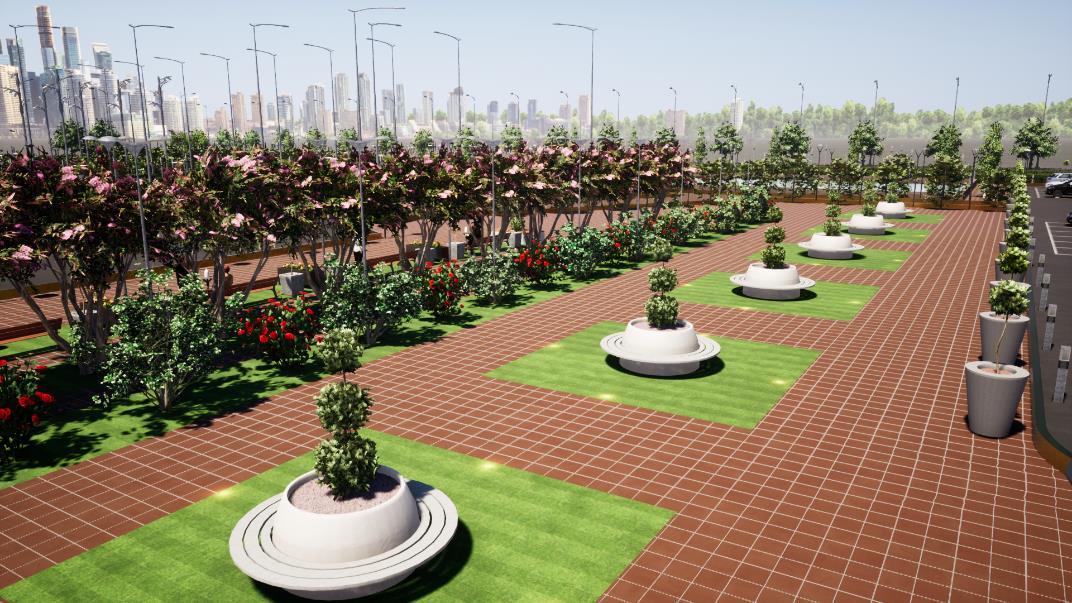

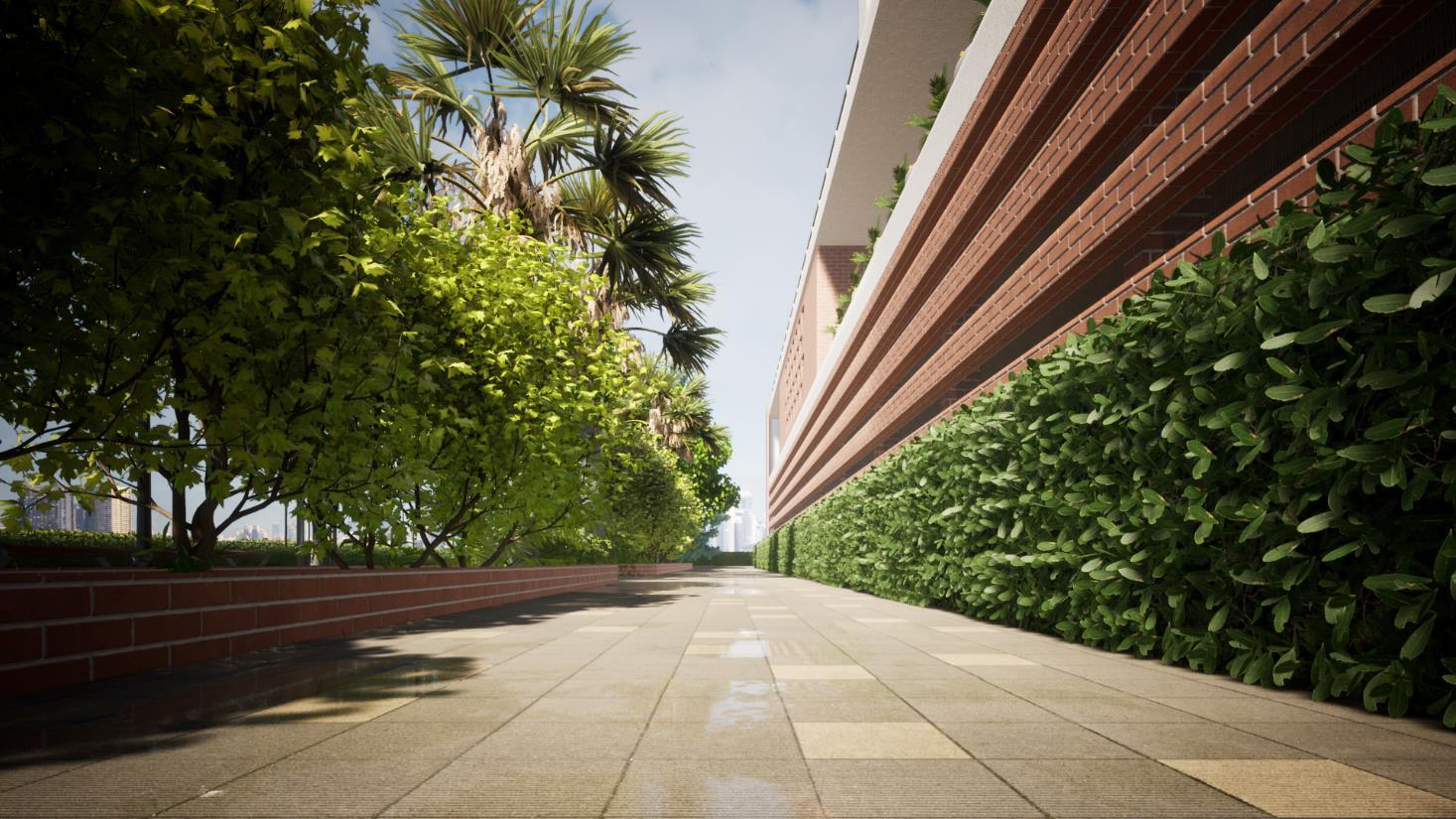

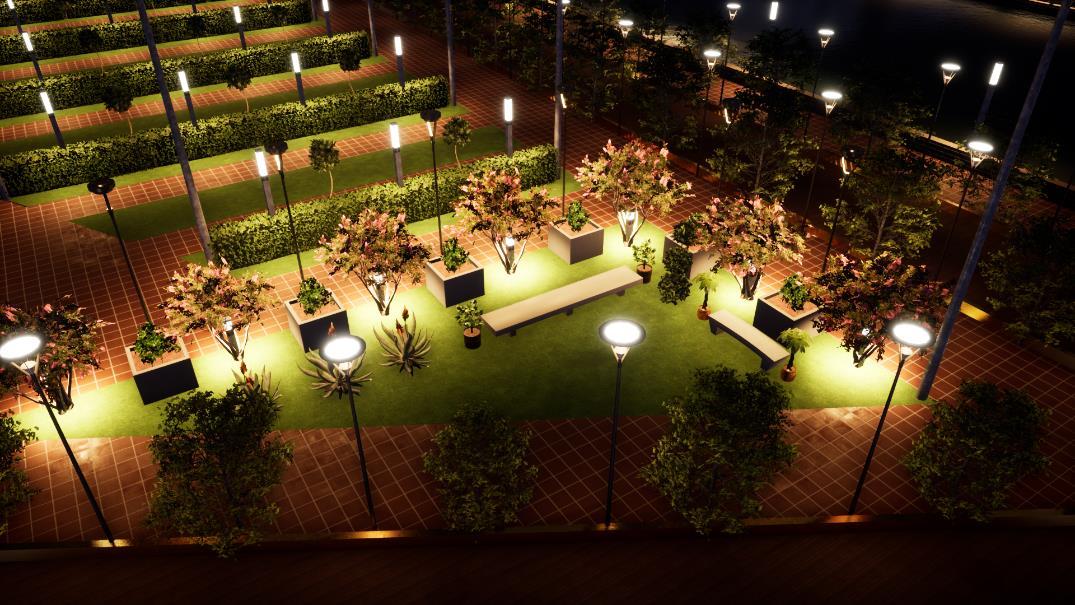

GREEN AREA
5
3D WORK OF COMMERCIAL BUILDING
PROPOSED

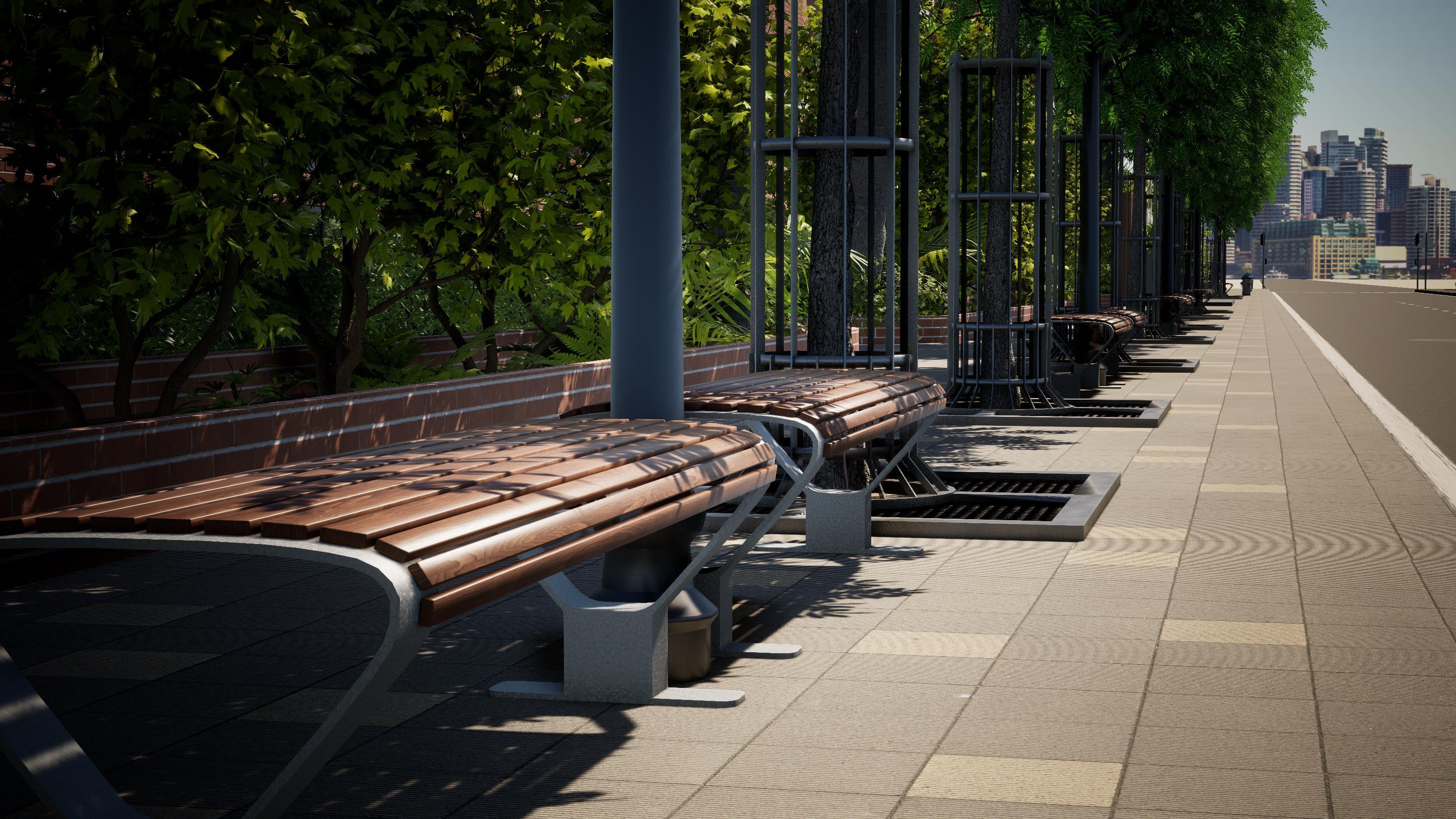

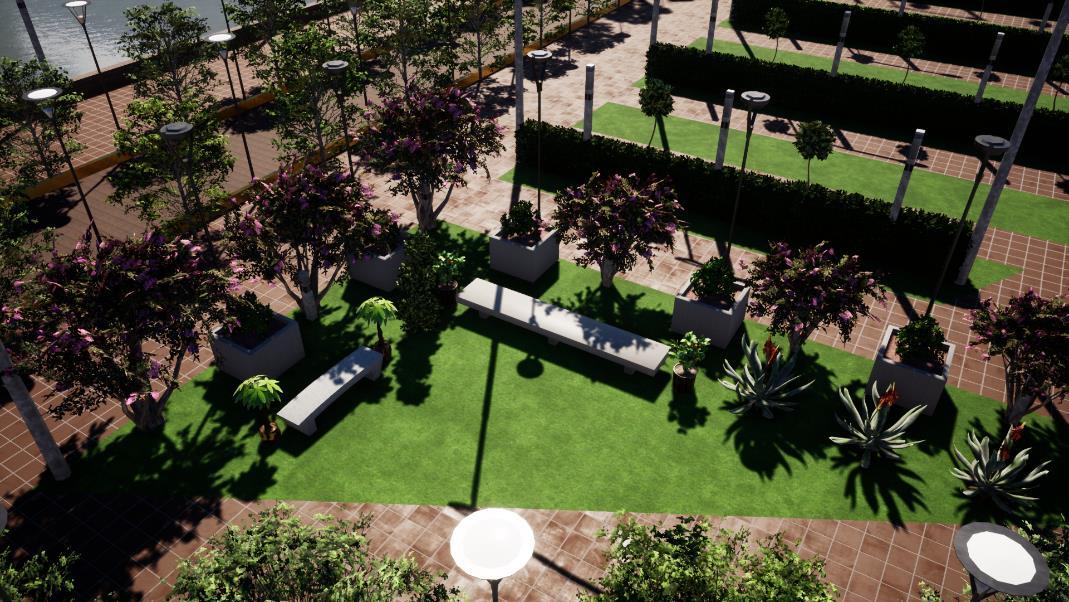

SEATING AREA 6
PROPOSED 3D WORK OF COMMERCIAL BUILDING

GREEN

PARKING AREA

ROAD MAIN ENTRANCE

AREA
7
PROPOSED 3D WORK OF COMMERCIAL BUILDING

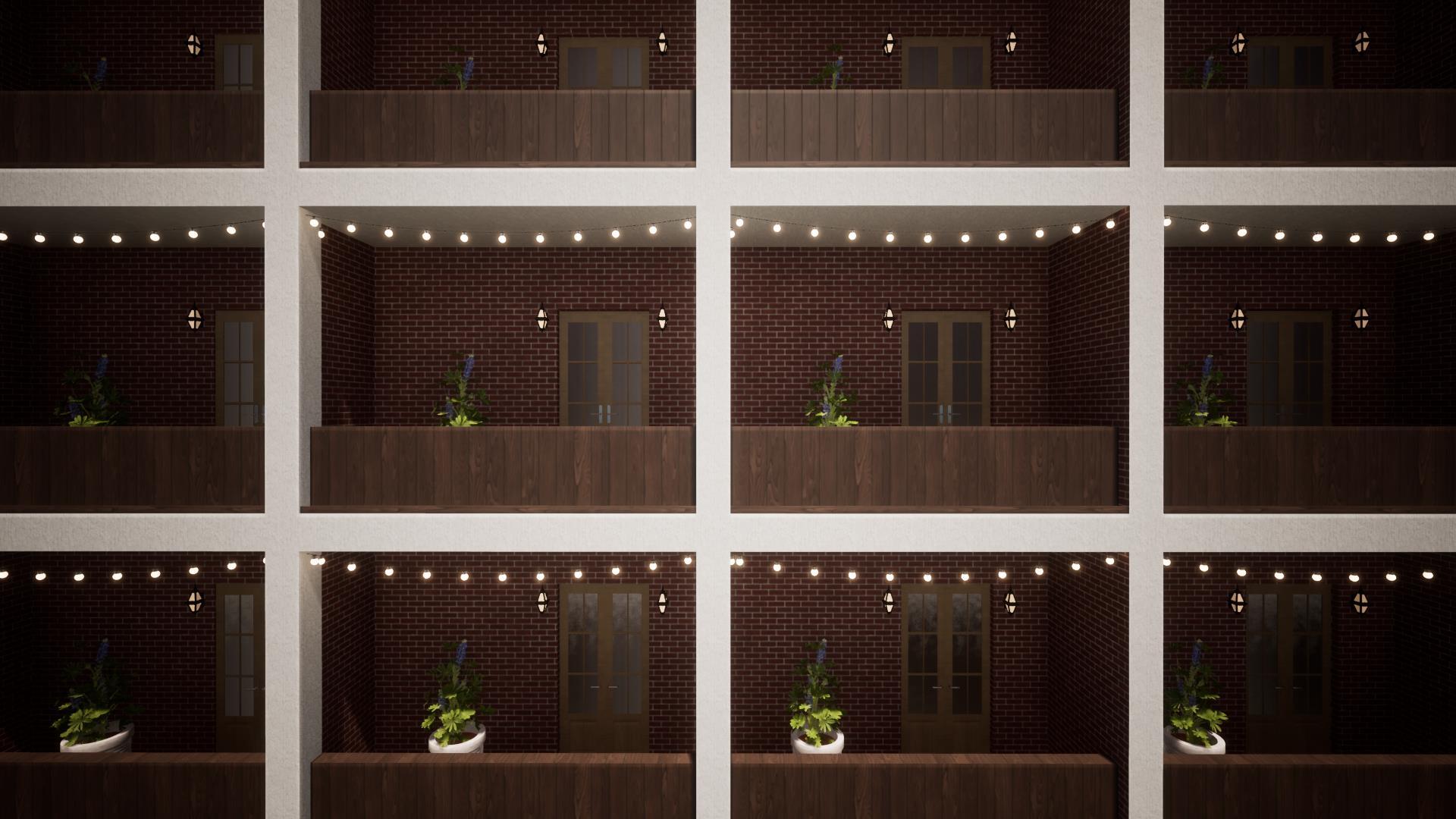

ROOMS

8
PROPOSED 3D WORK OF COMMERCIAL BUILDING

THREE STAR HOTEL

6

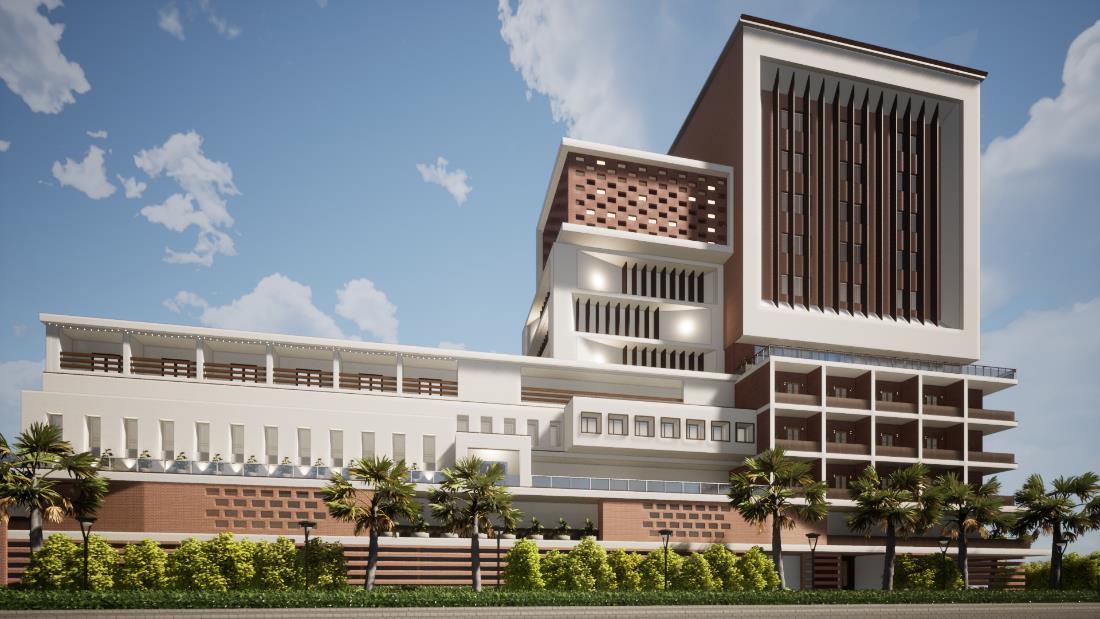

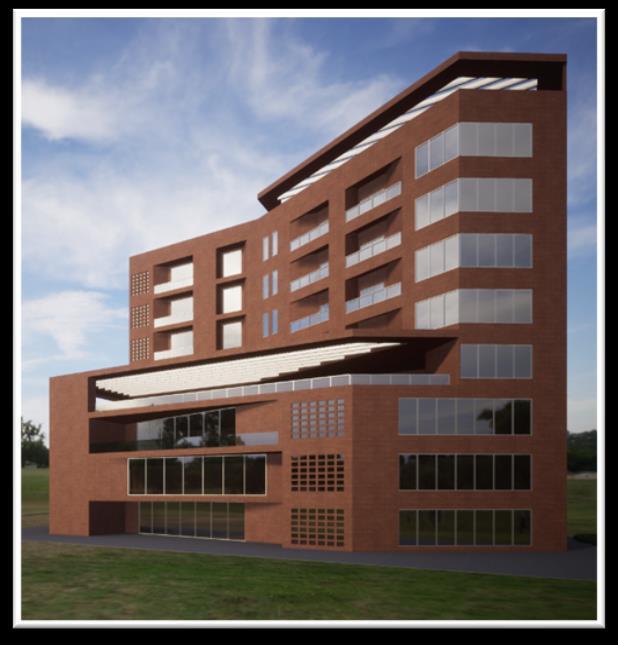

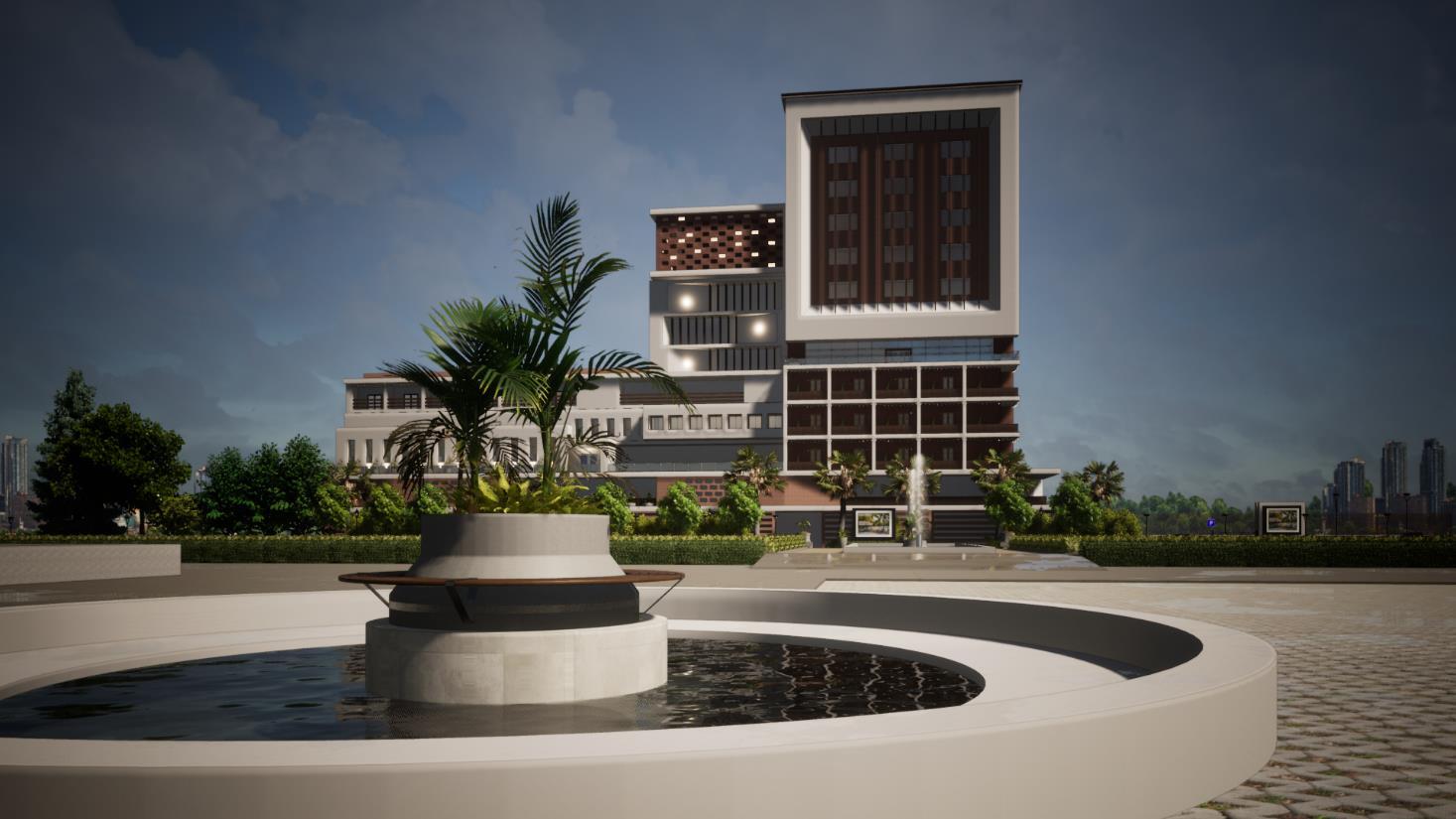

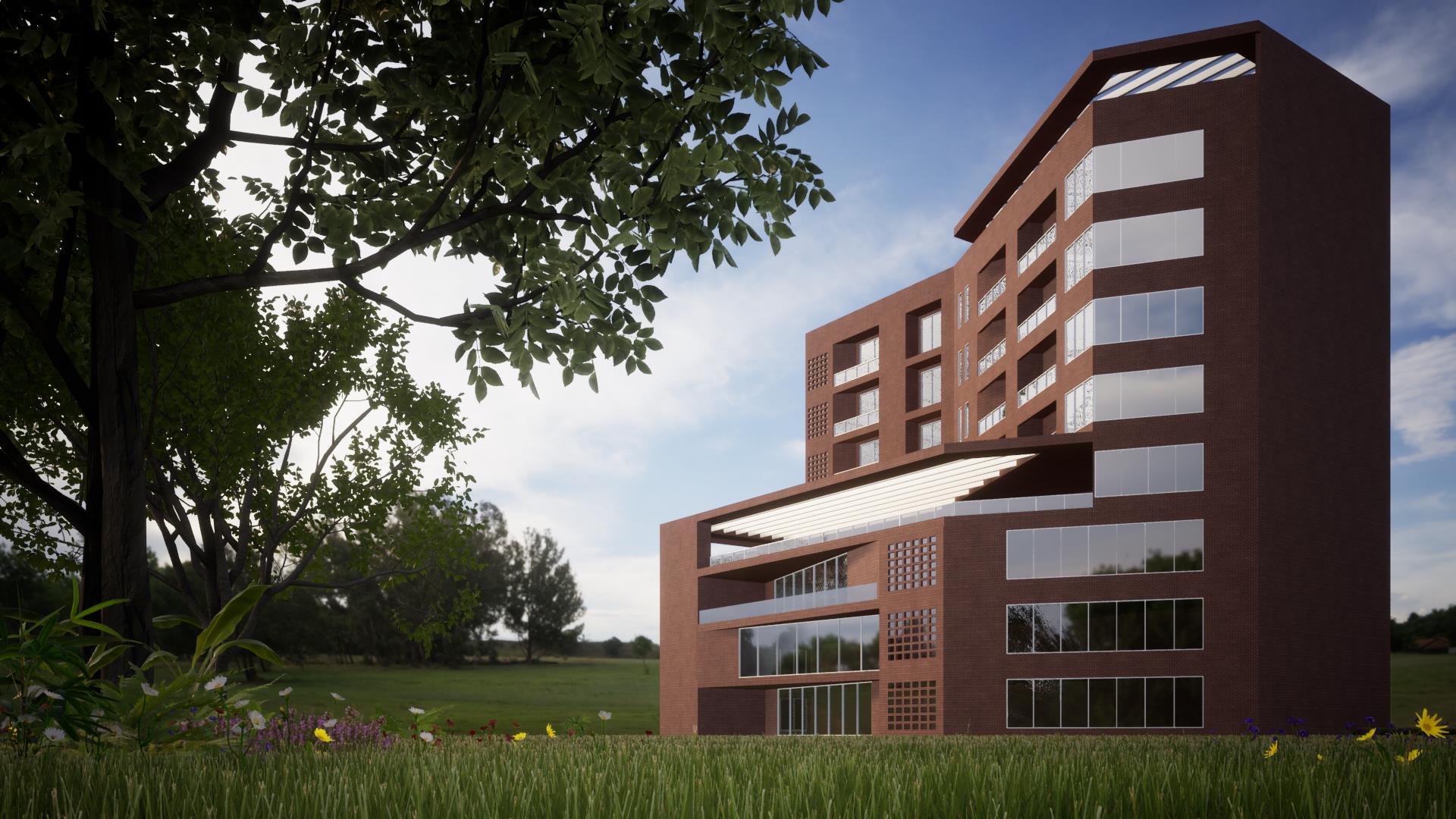

Eagle Hotel Rendering Image

PROPOSED 3D WORK OF THREE STAR HOTEL

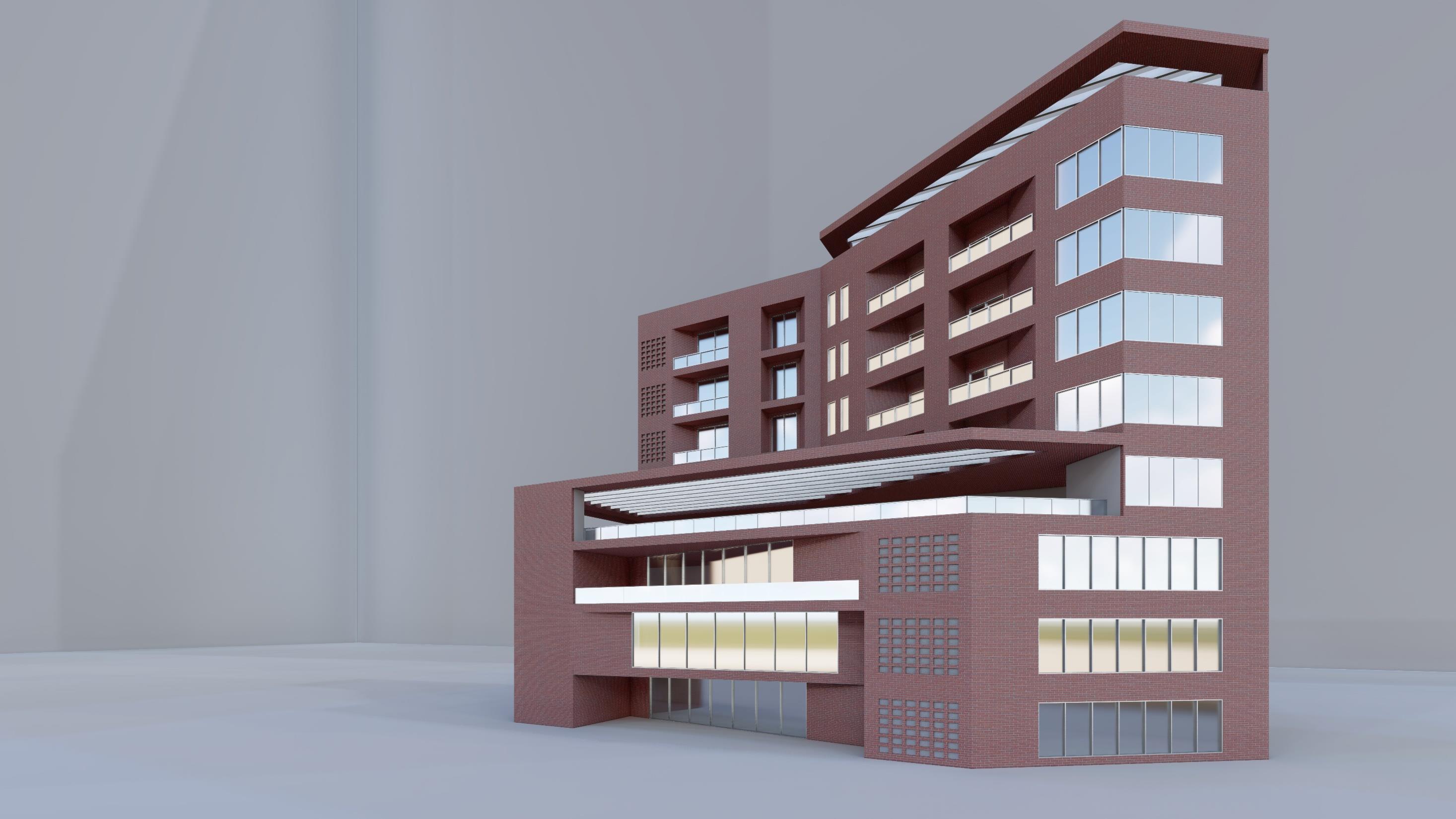

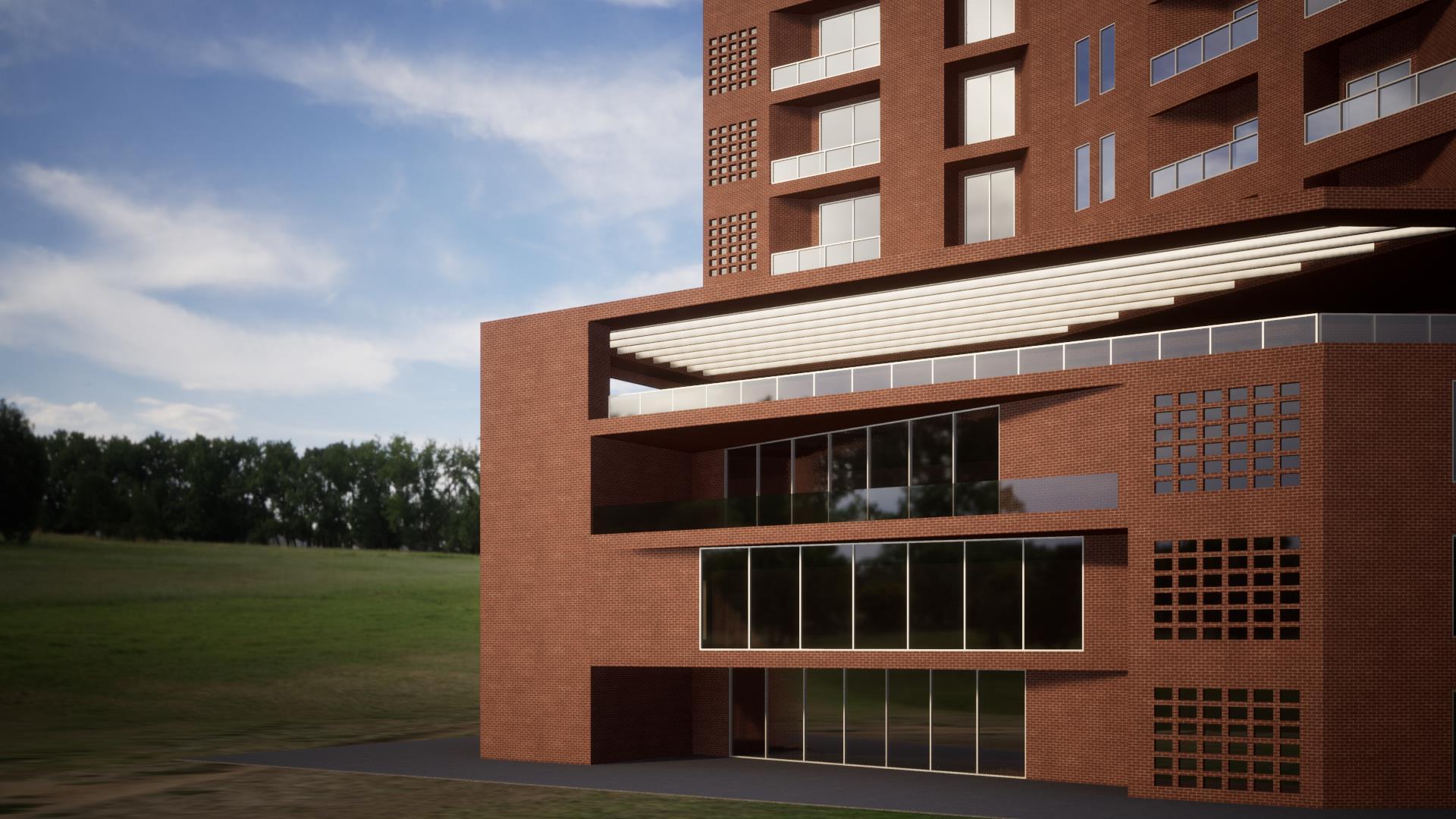

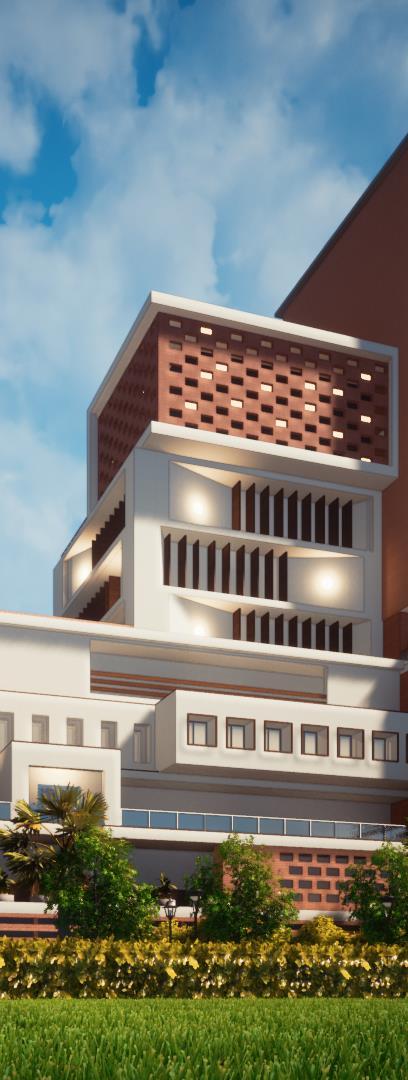

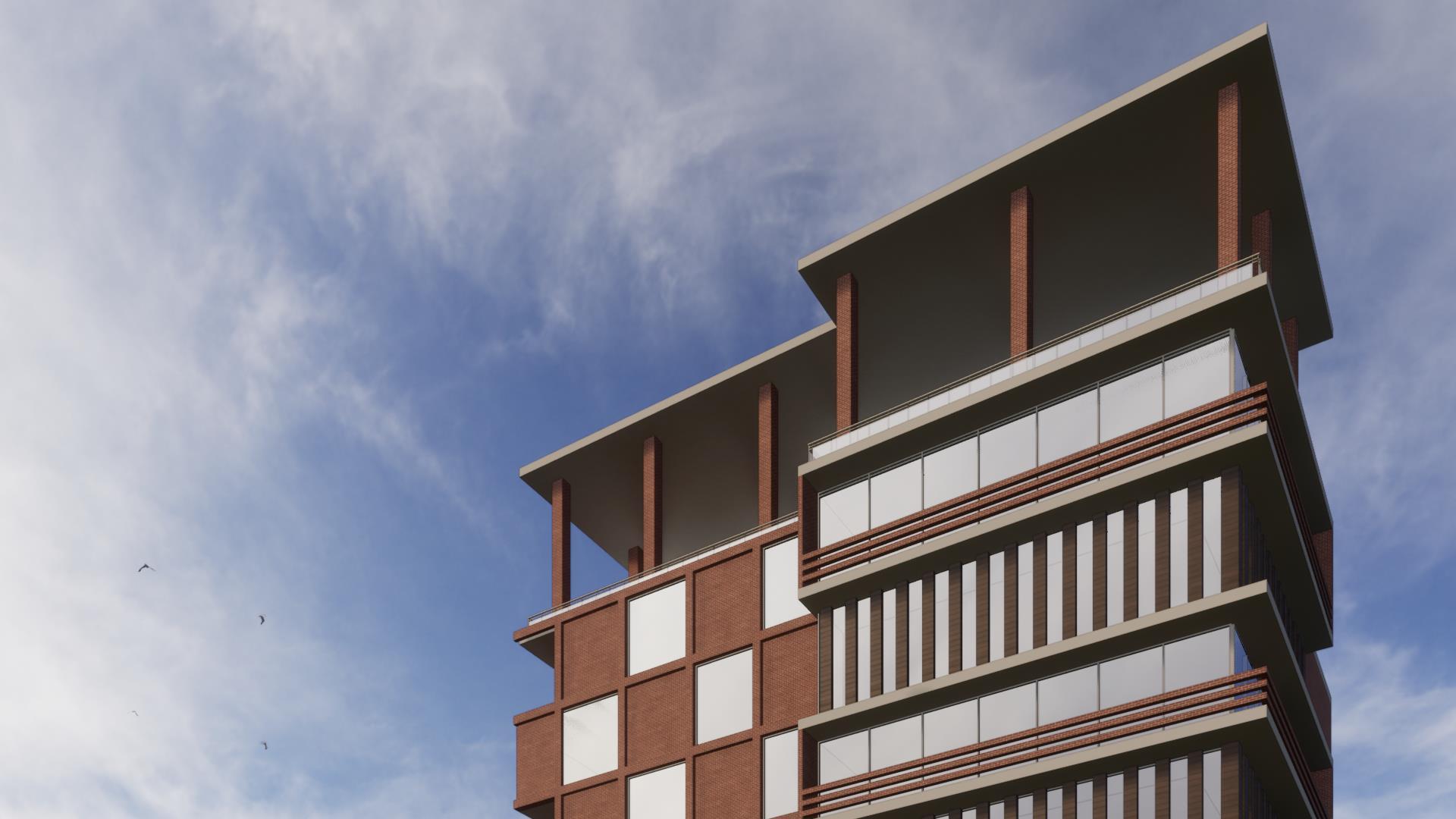

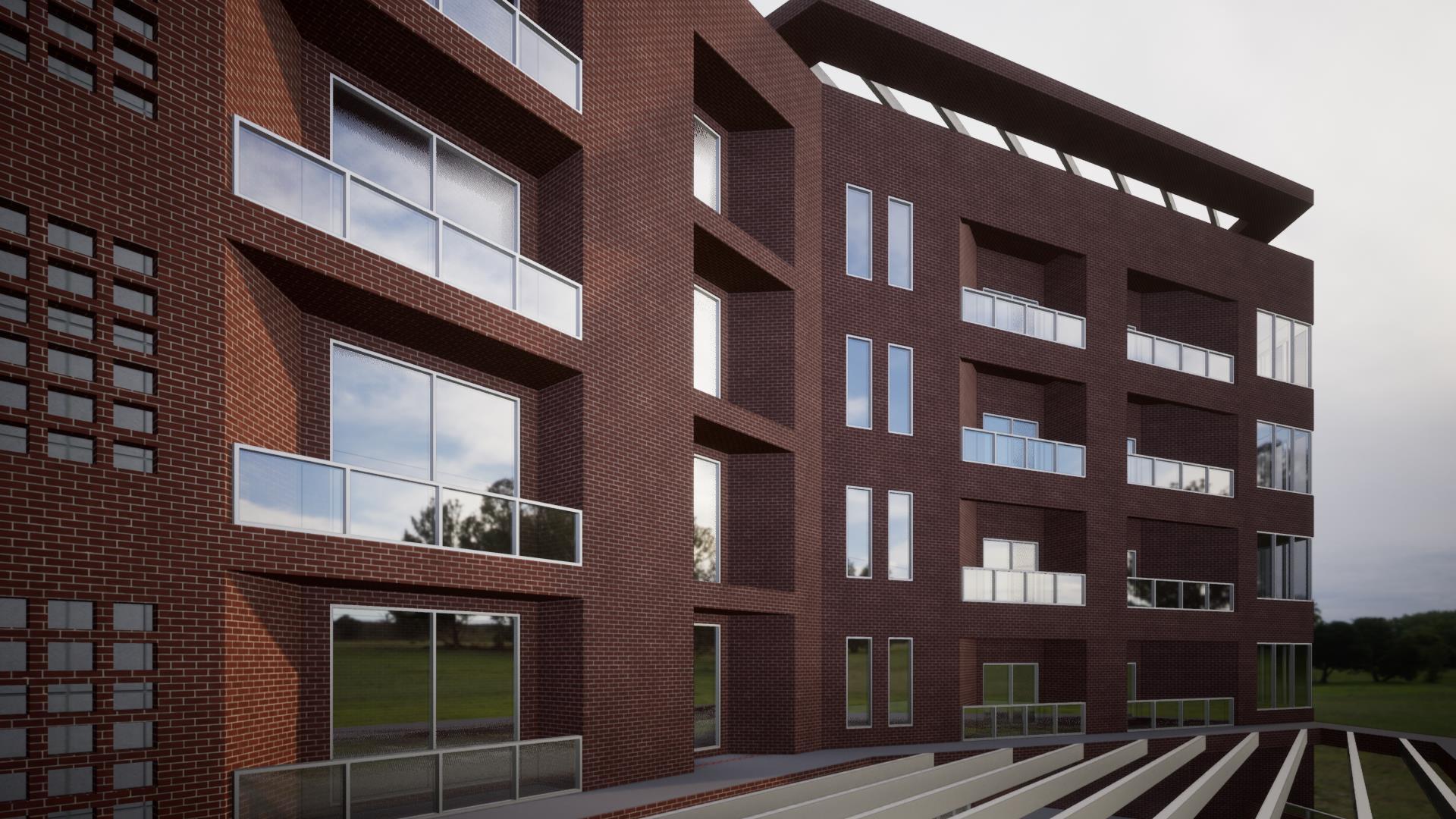

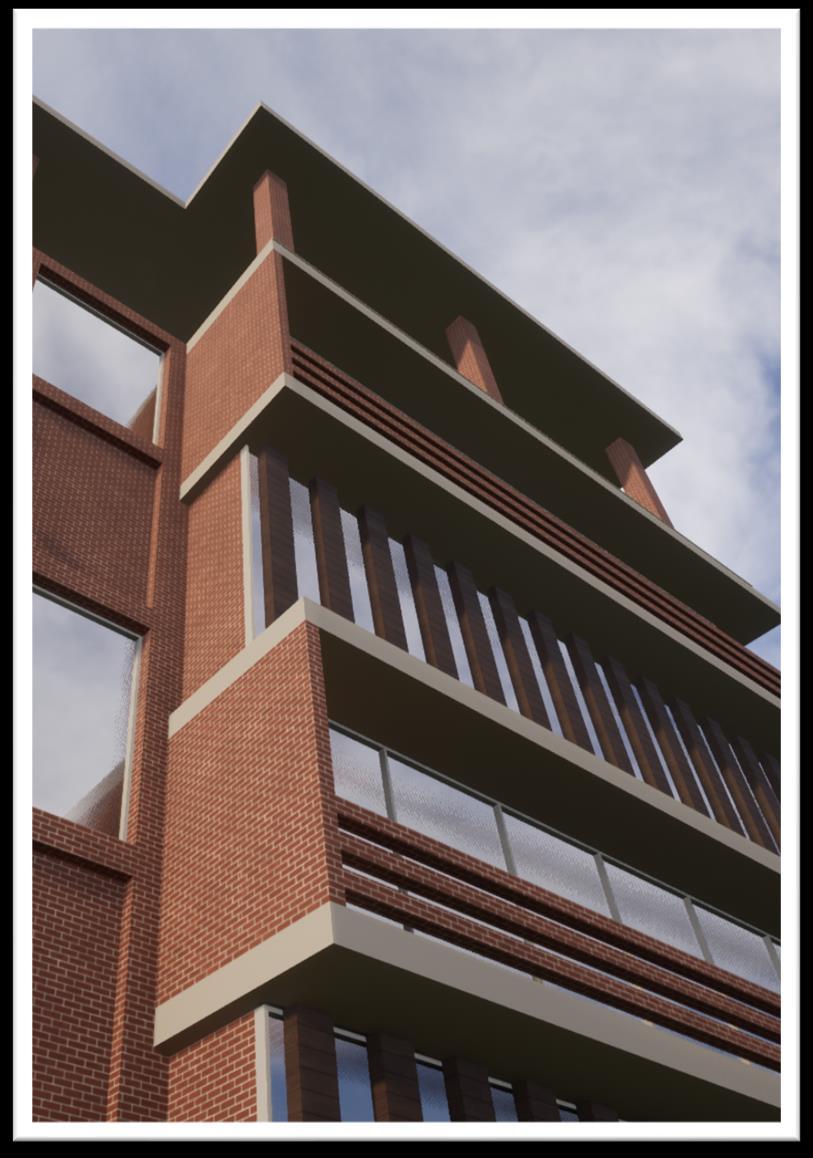

Building Facade 1

PROPOSED 3D WORK OF THREE STAR HOTEL

Building Facade 2

Floor Plans of Hotel

3
3D
THREE STAR
PROPOSED
WORK OF
HOTEL
4
THREE
Floor Plans & Elevations of Hotel
PROPOSED 3D WORK OF
STAR HOTEL

Sections of Hotel

5
THREE
PROPOSED 3D WORK OF
STAR HOTEL

•

•

•

•

•

•

•

Site area – 10000 sq.f. Site topography – Flat land
This project is to be designed for the Three Star Hotel
This is four storey building including large open spaces consisting good landscape inside and outside of the structure
The structure have separate drop off point
The entrance have four storey opening passage having glass which gives enough sunlight at entrance. ❖ Eagle
Amenities -
Hotel
Large Parking Spaces
Well Furnished Workspaces
No. of floors – 7 Floor + Terrace Level Restaurant
•
Each floor consisting of two well furnished spaces.
Ground Floor & First Floor – Party Hall Space
2nd Floor & 3rd Floor – Restaurant
4th to 7th Floor - Rooms
Terrace Floor – Restaurant 6 PROPOSED 3D WORK OF THREE STAR HOTEL
•
•
•
•

Building Facade

PROPOSED 3D WORK OF THREE STAR HOTEL

7

- Unknown

Rendering Image pravinsyadavpsy99@gmail.com
“Don't underestimate the power of consistency and desire. You have what it takes to become the best that you can be. Don't ever doubt yourself. Harness your power. Exceed your expectations.”
Thank You !!! 6 PROPOSED 3D WORK OF THREE STAR HOTEL
