ARCHITECTURE PORTFOLIO by PratikshaRoy

EDUCATION

PURSUING BACHELOR DEGREE OF ARCHITECTURE

CODE, Vivekananda Global University , Jaipur 2019-PRESENT

HIGH SCHOOL

Pragjyotish S.Secondary School, Guwahati CBSE 2017-2019 LANGUAGES

English Hindi

Bengali

Assamese

HOBBIES

PRATIKSHA ROY

Currently pursuing a B.Arch (2019-2024). Adept at creative problem-solving and employing a thoughtful design process to find innovative solutions. Proficient in combining creative flair with logical explanations to deliver high-quality designs. Possessing self-confidence and a commitment to providing designs that meet industry standards for every project. Demonstrated punctuality and a dedicaton to delivering work of the highest quality.

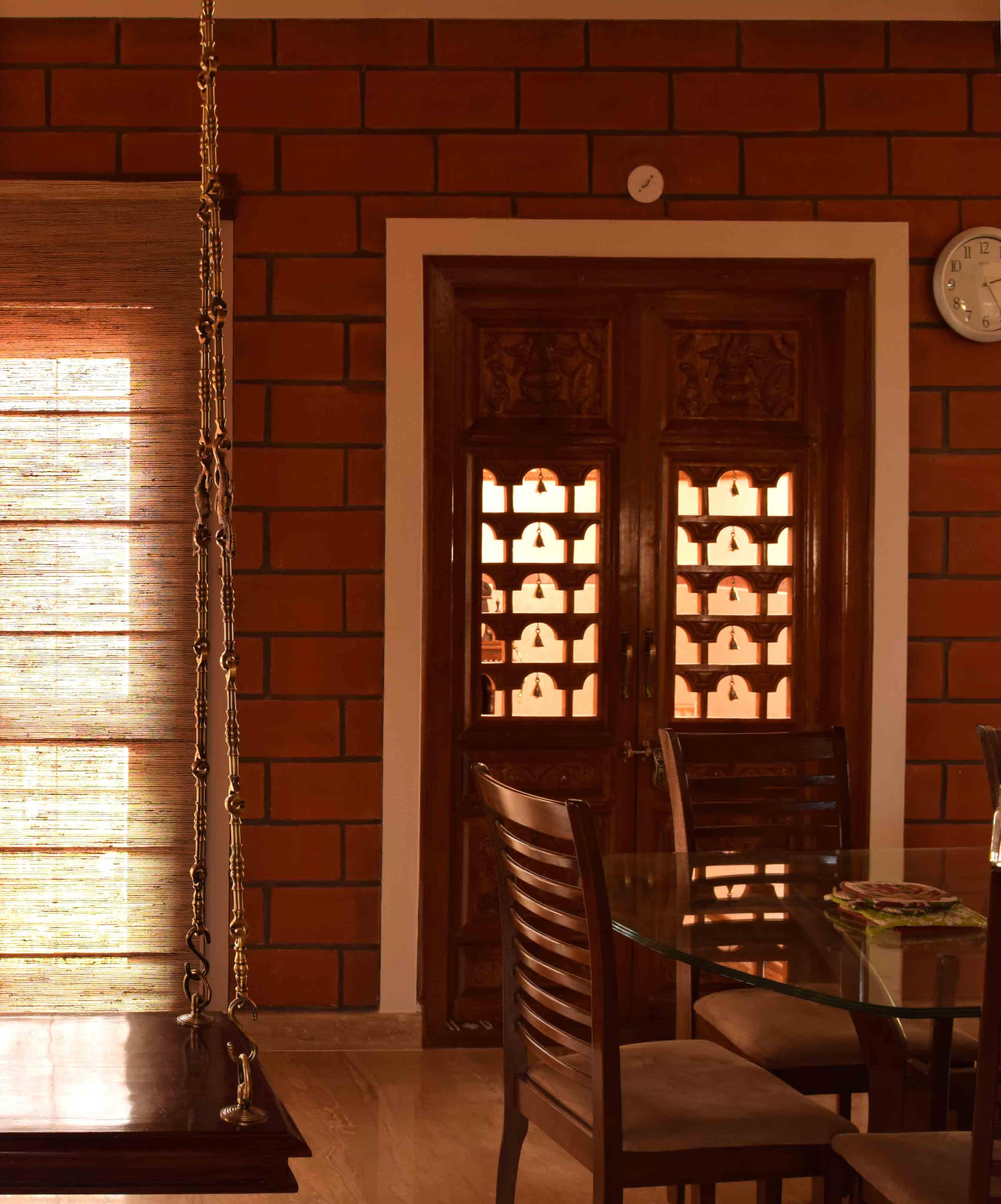

• 5 months internship at Sathya Consultants, Banashankari, Bangalore, under Ar.Sathya Prakash Varanashi.

• 1 week Internship at Skyline Planners & Design Developers, Vaishali Nagar, Jaipur, under Ar. Ankur Singh Tanwar.

• 1 Month internship at Vivekananda Global University

• Cover artist, in the International book, ‘Together: An Anthology’ by Dev Aditya.

• 2nd Position in Graffiti Competition at DST, Jaipur, on the occasion of Vigyan Utsav.

• Decoration and Painting work at Diggi Palace, on the occasion of Jaipur Literature Festival.

• Renovated Jawahar Kala Kendra Reading Room with team.

• Part of the Vivek Newsletter team for NAAC

parchfect_hunt / pratiksha.roy.1069

SOFT SKILLS Competitiveness Artistic Sense Creative Thinking Teamwork Time Management Punctuality EXPERTISE Design Development Hand Graphics Renderings WORKS & ACHIEVEMENTS INTERNSHIPS CONTACTS Maligaon,

Assam +91 9954631237 pratiksharoy1201@gmail.com SOCIAL LINKS

SOFTWARE SKILLS

Guwahati,

AUTOCAD SKETCH-UP PHOTOSHOP LUMION ENSCAPE REVIT MICROSOFT GOOD MODERATE

https://www.facebook.com/pratiksha.roy.1069

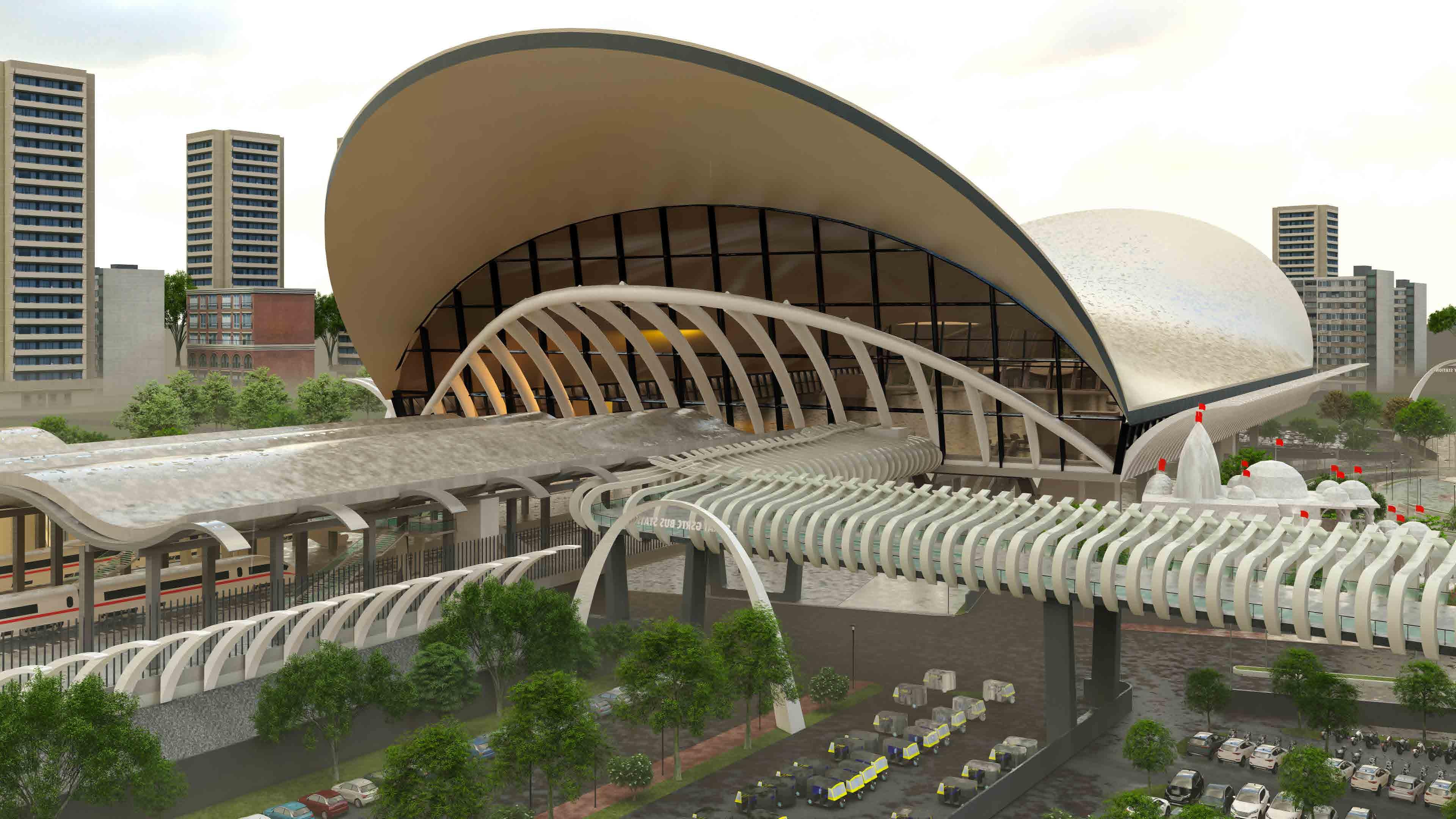

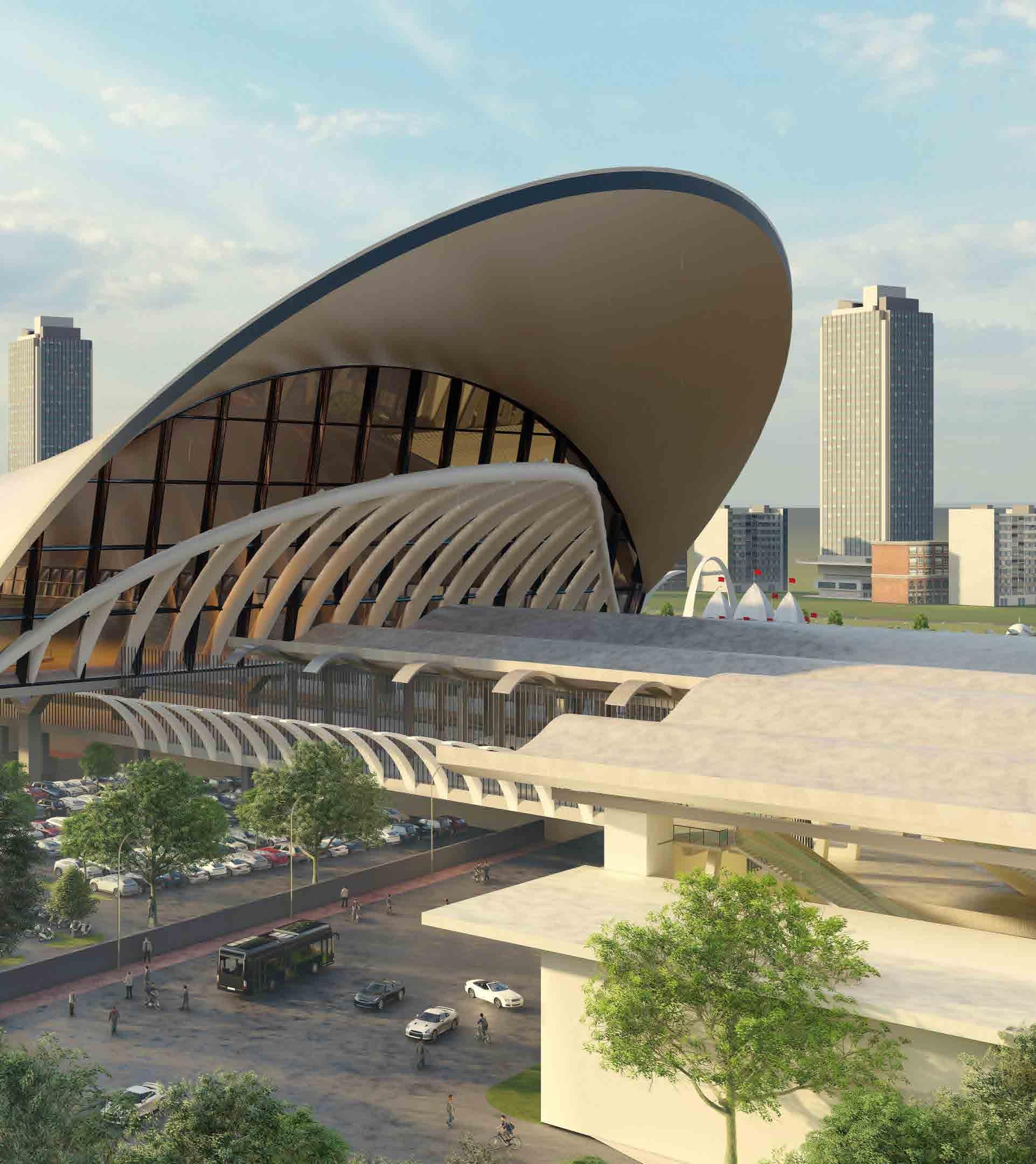

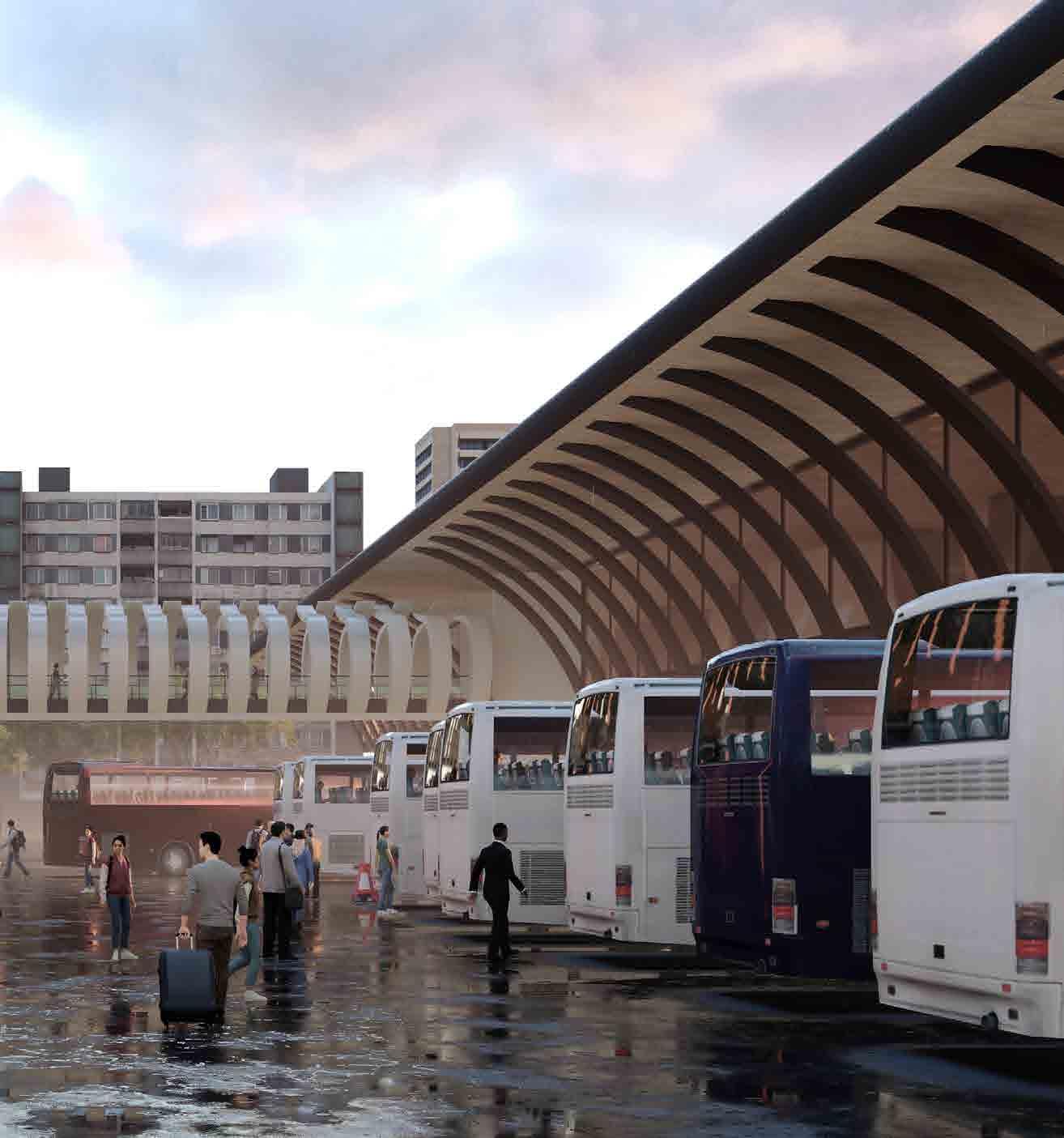

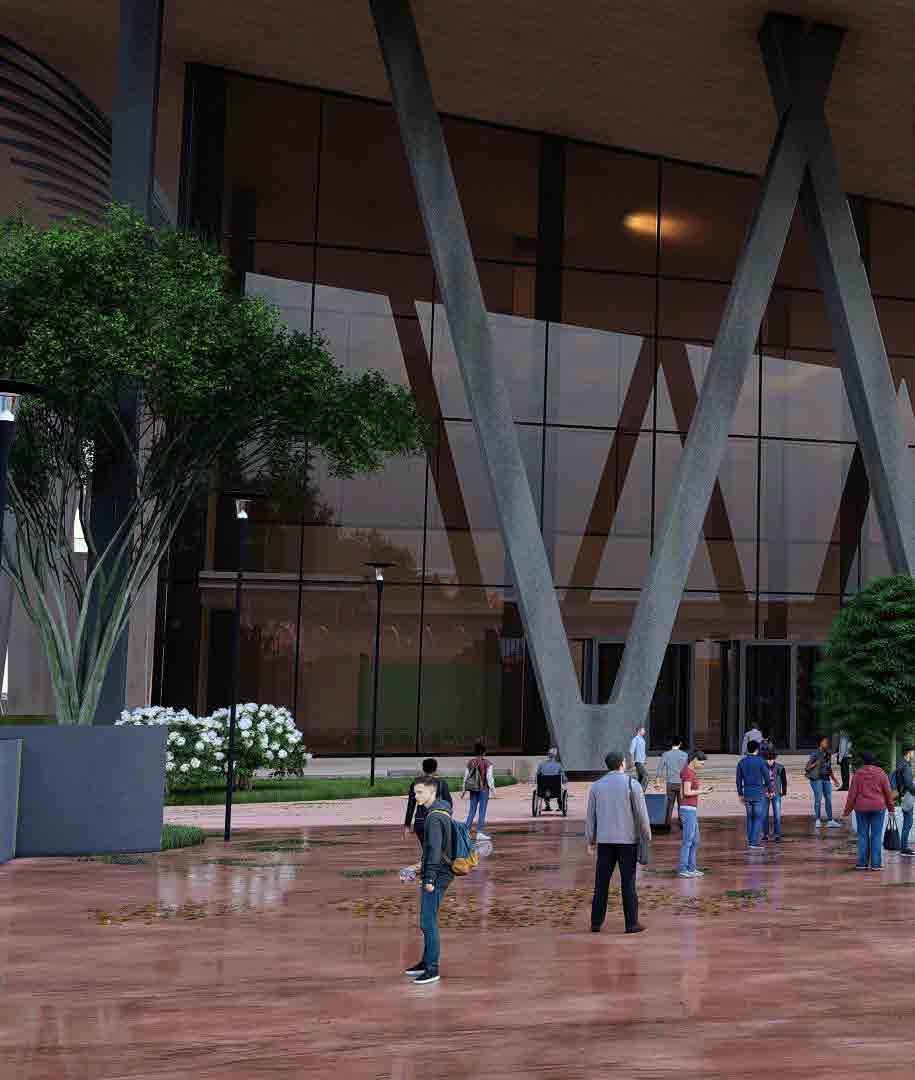

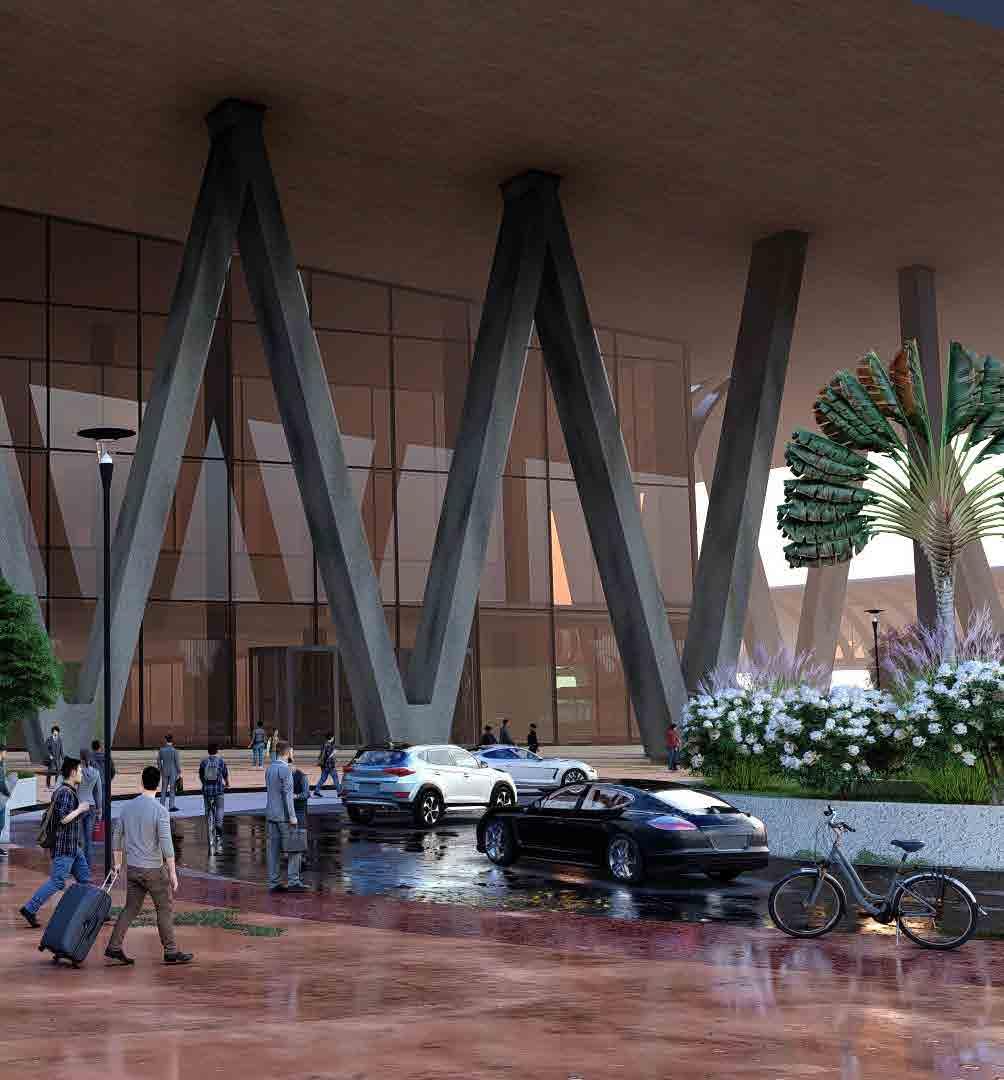

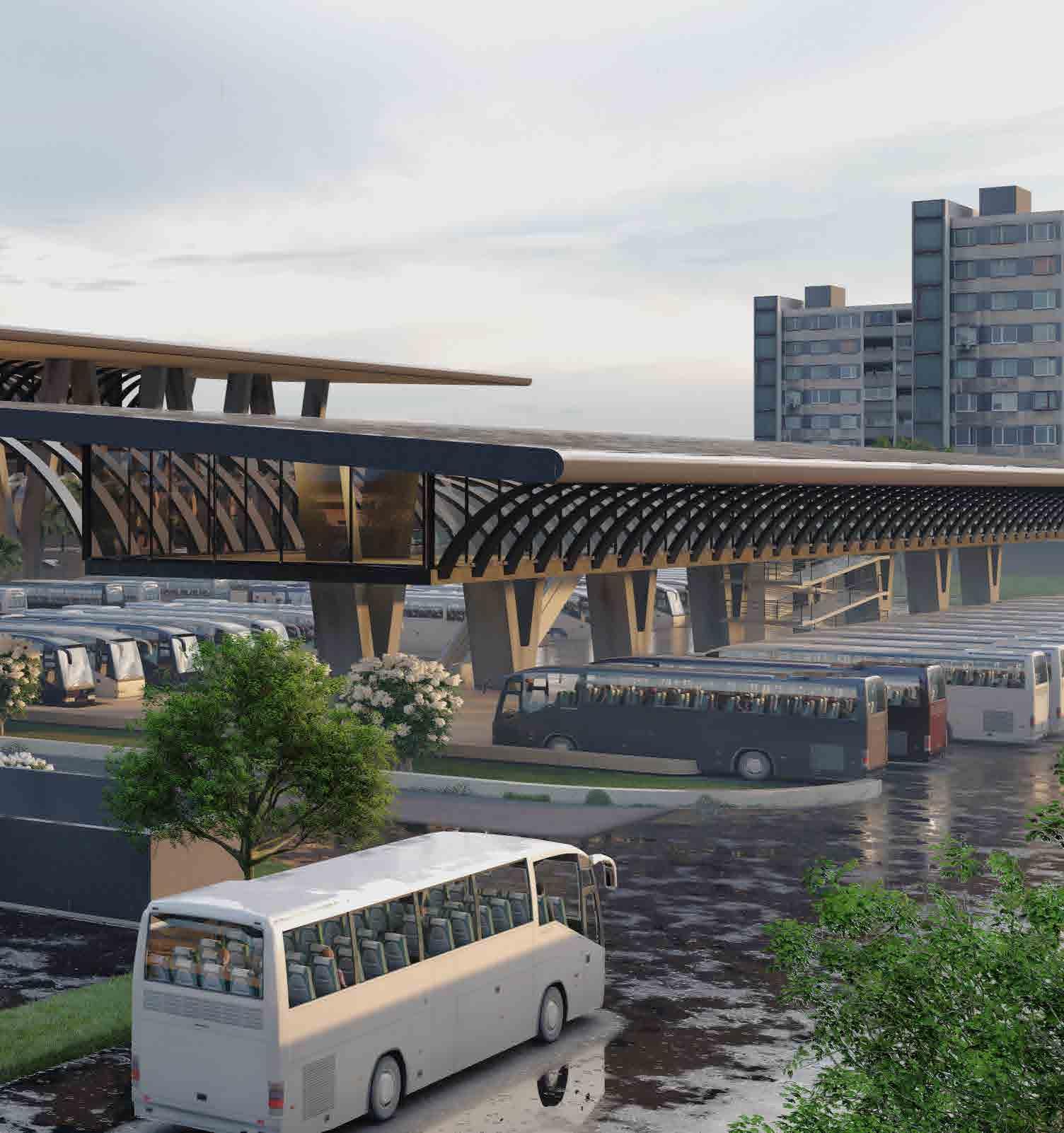

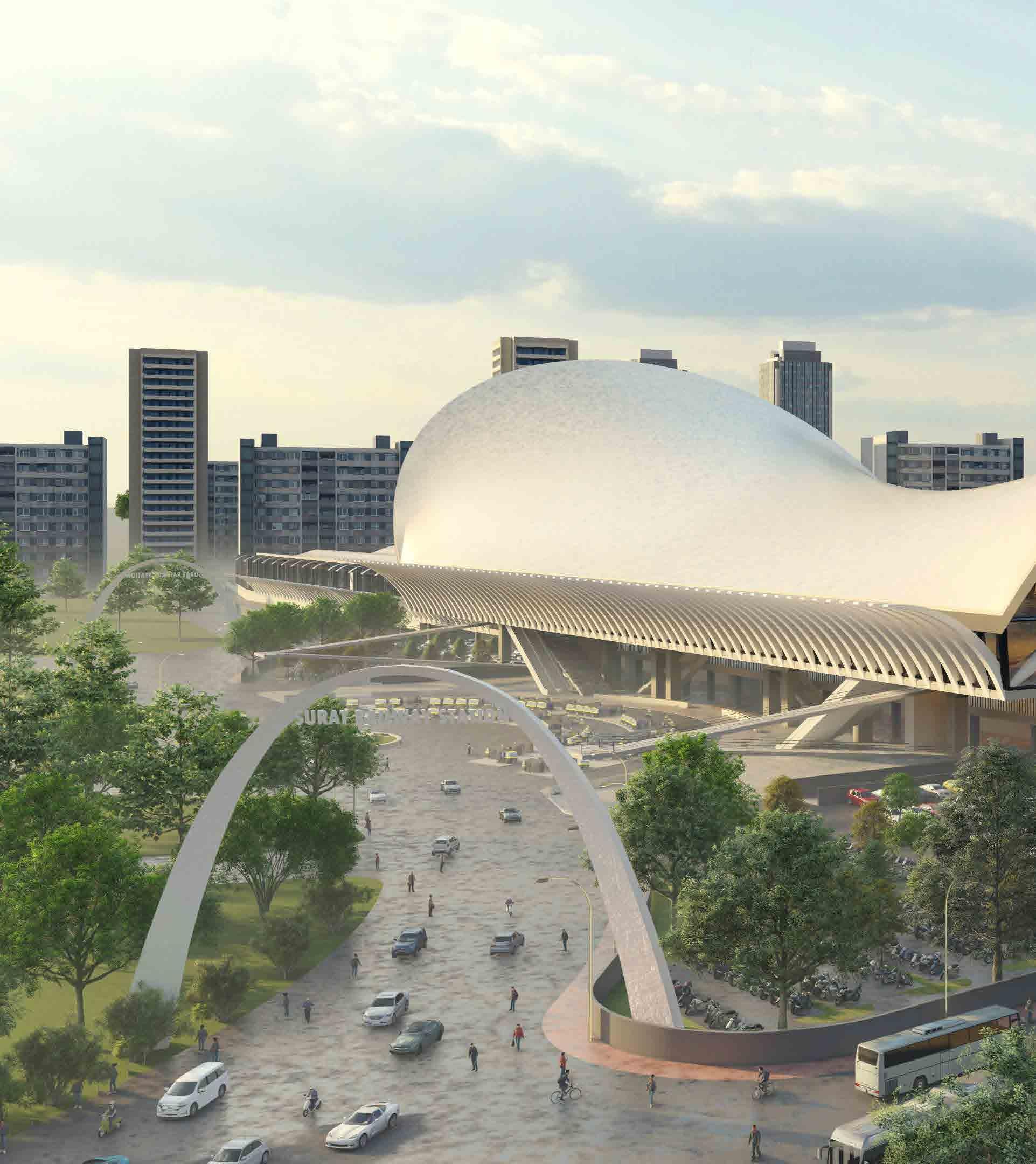

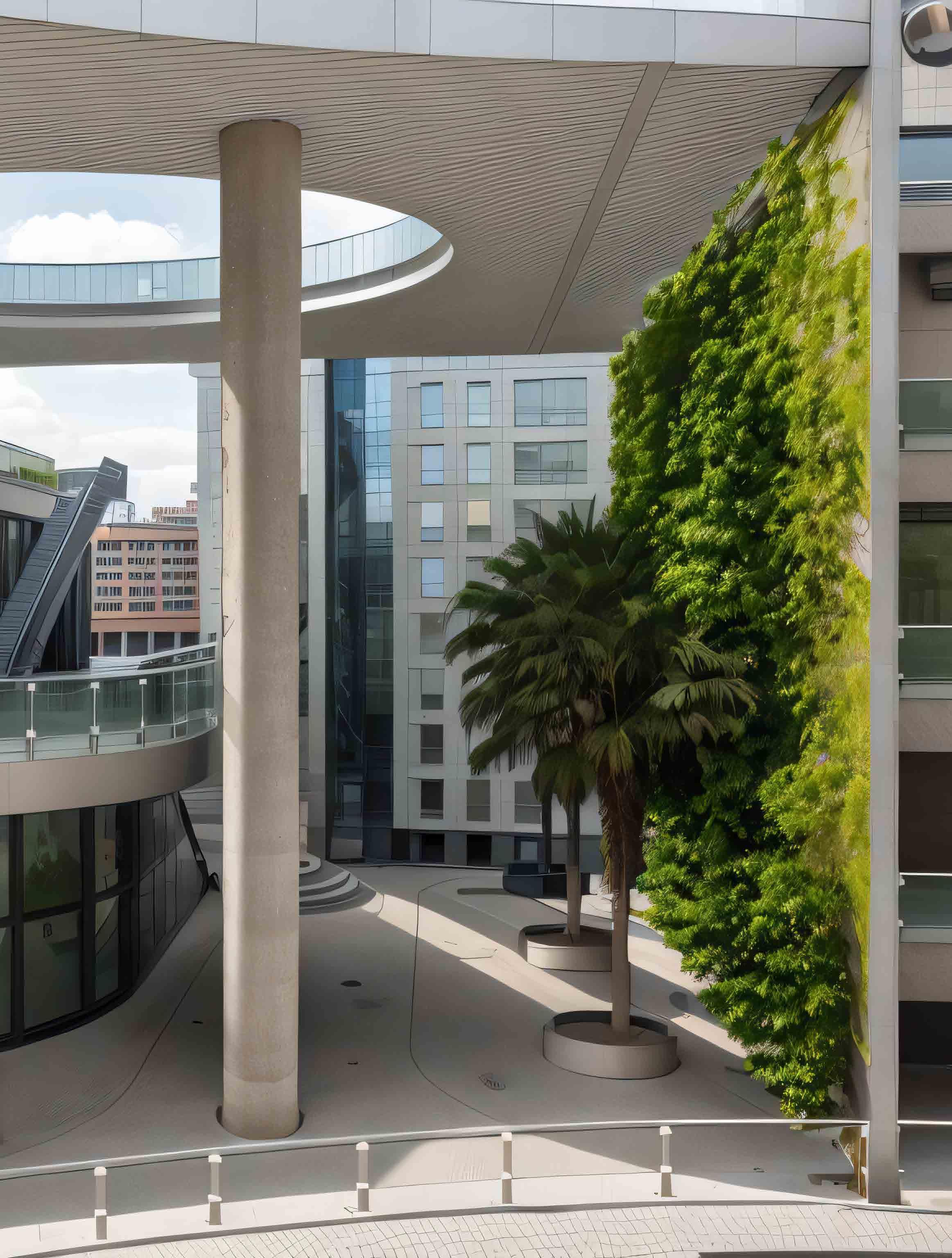

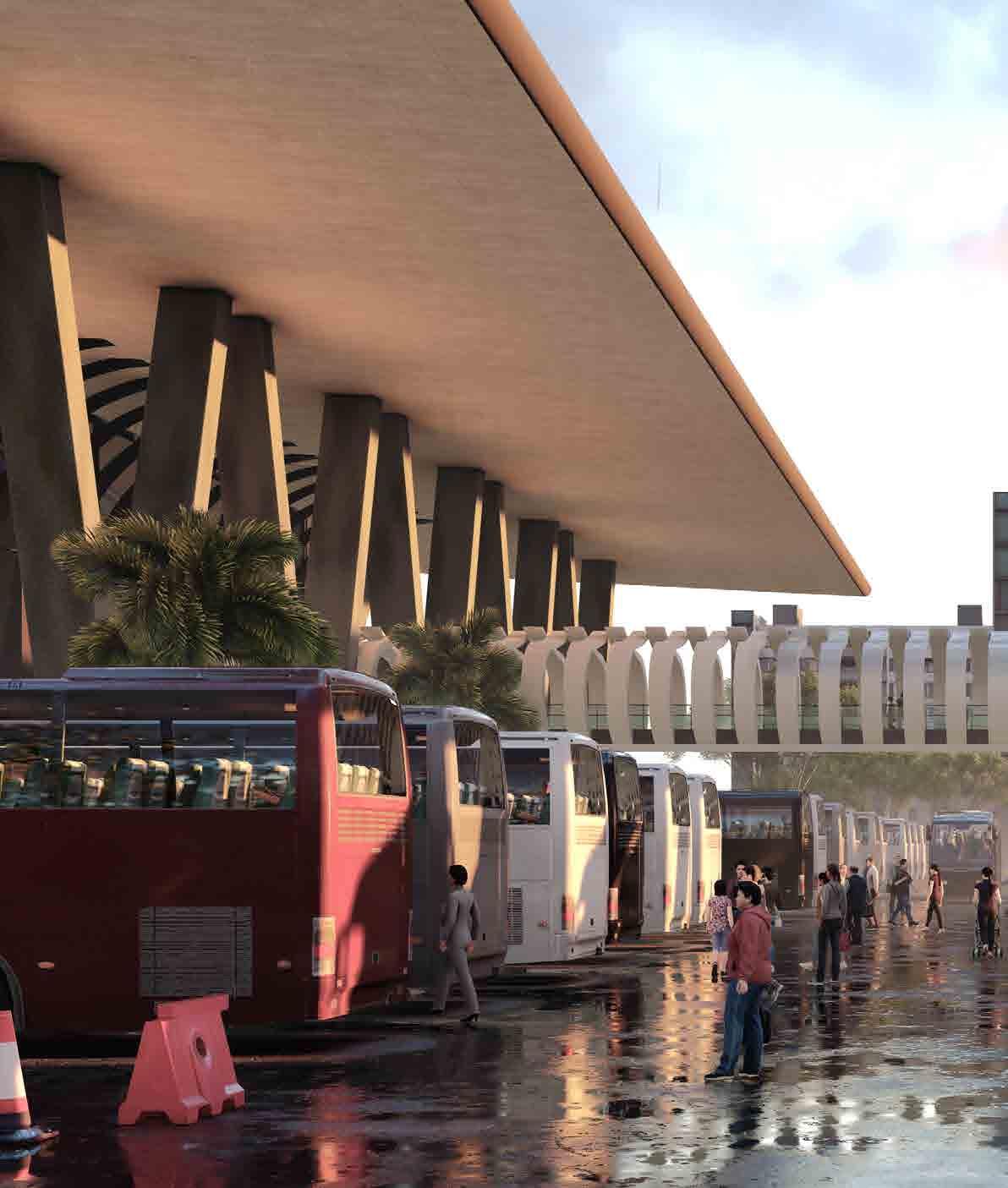

MULTI MODAL TRANSIT HUB

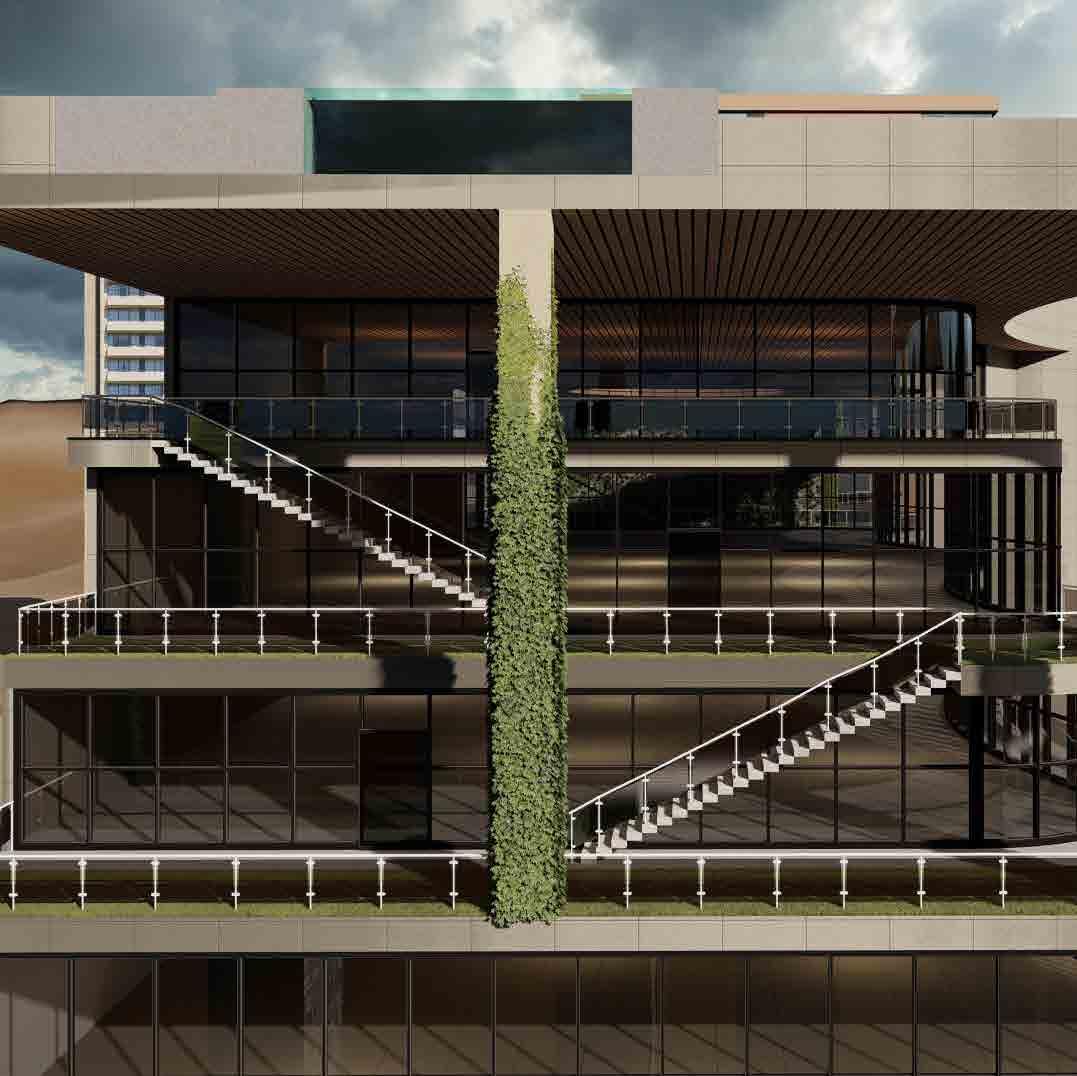

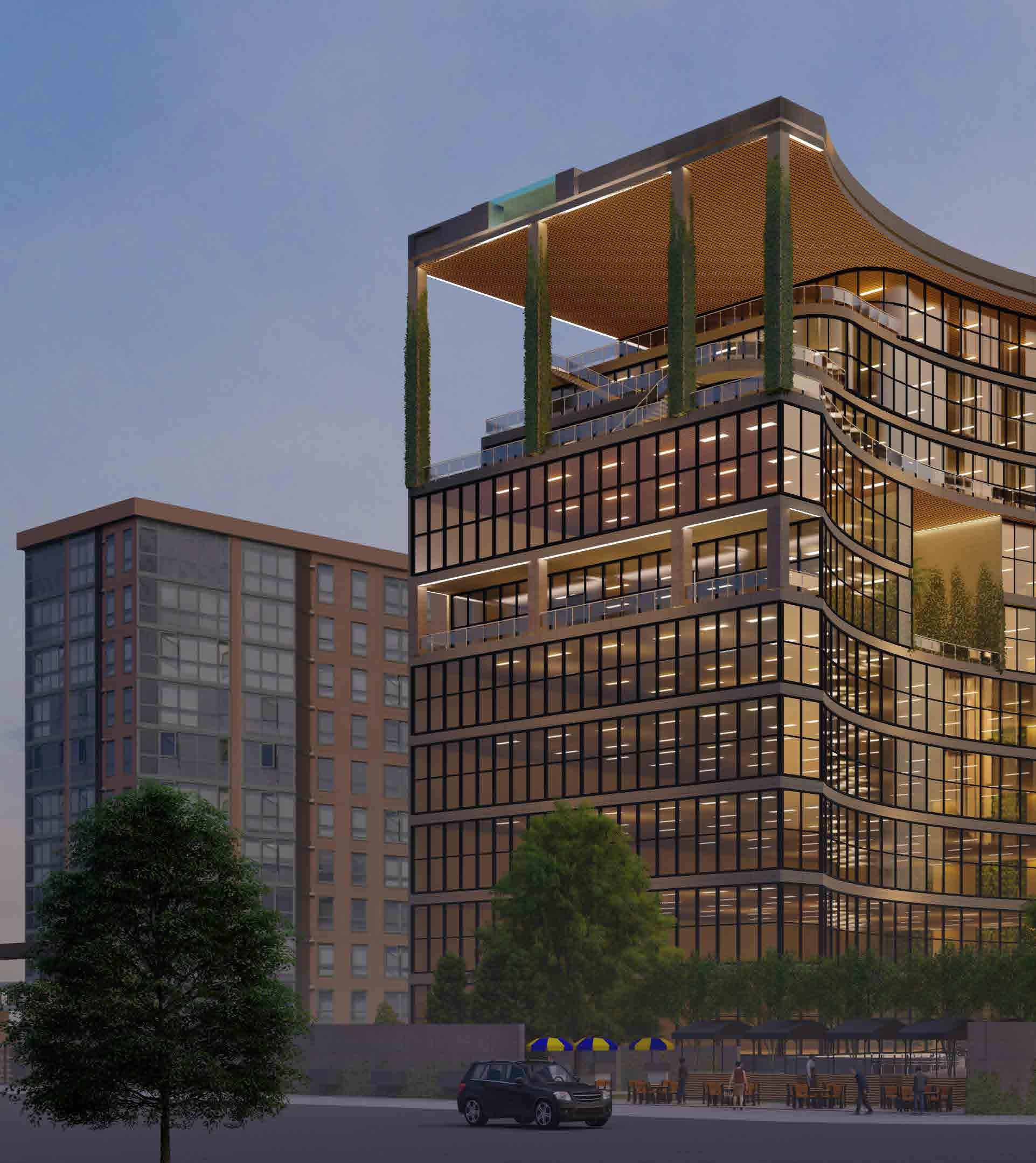

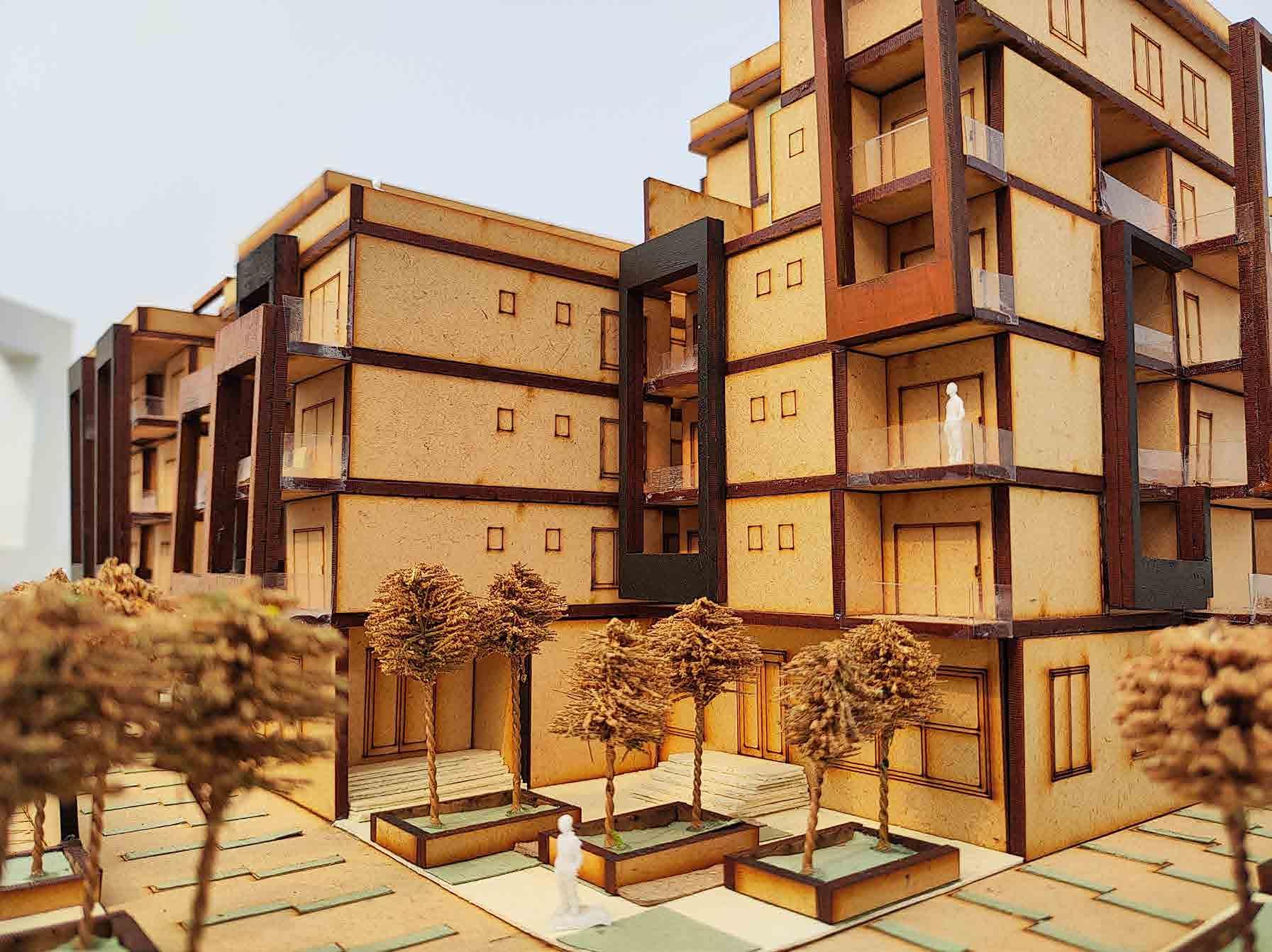

MIXED-USE BUILDING

RESTAURANT & BANQUET HALL

HOSPITAL

DESIGN PROJECT

CAMPUS

DESIGN PROJECT

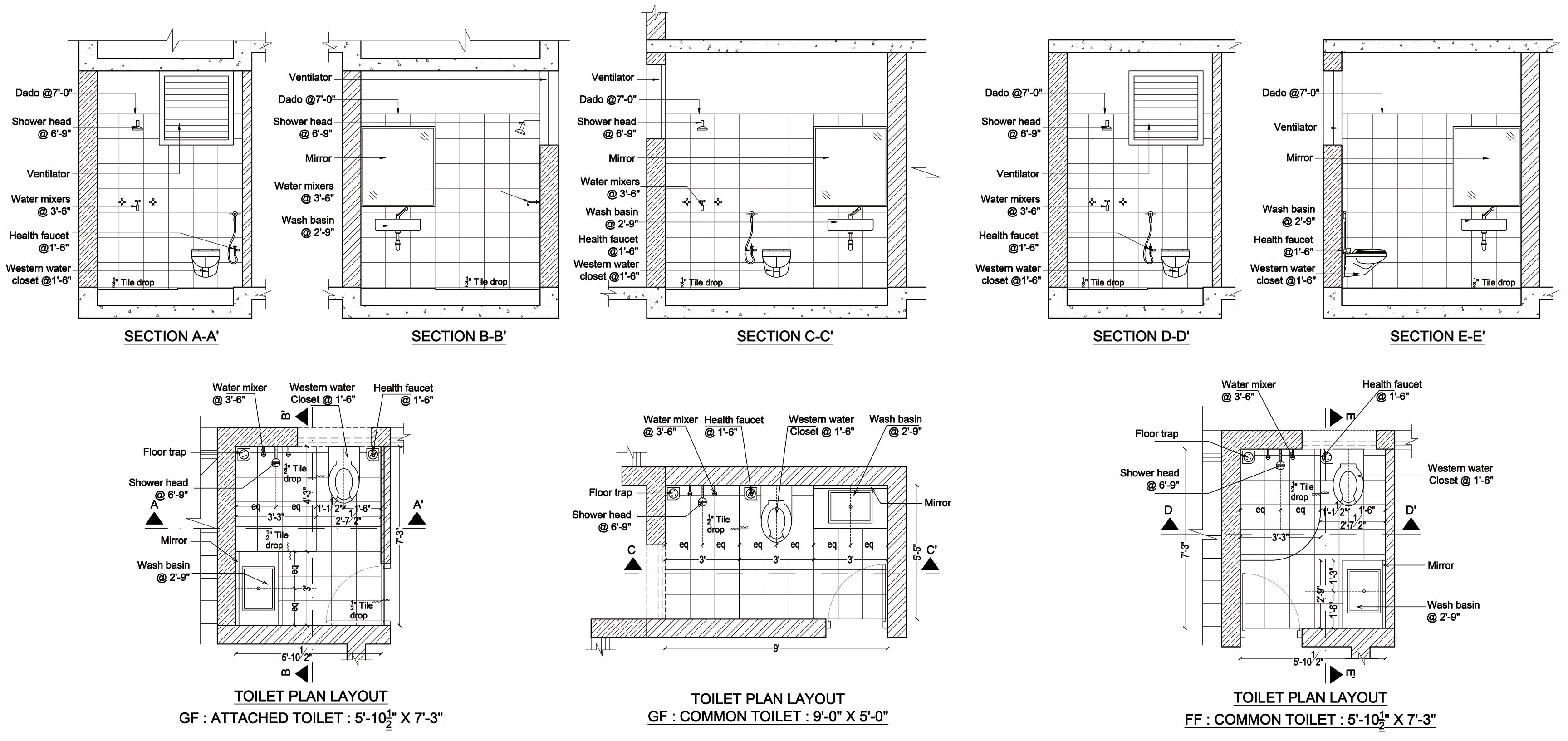

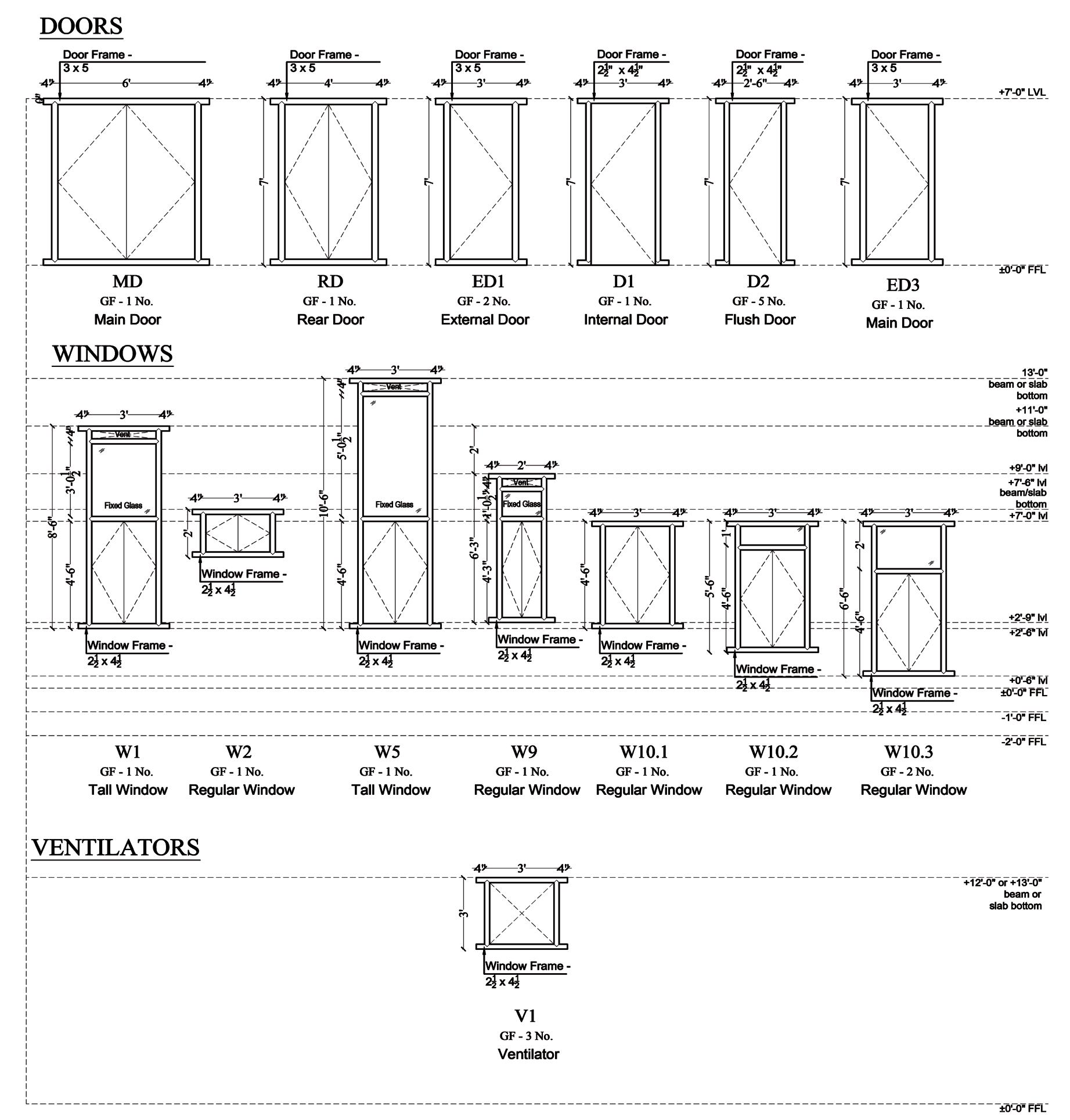

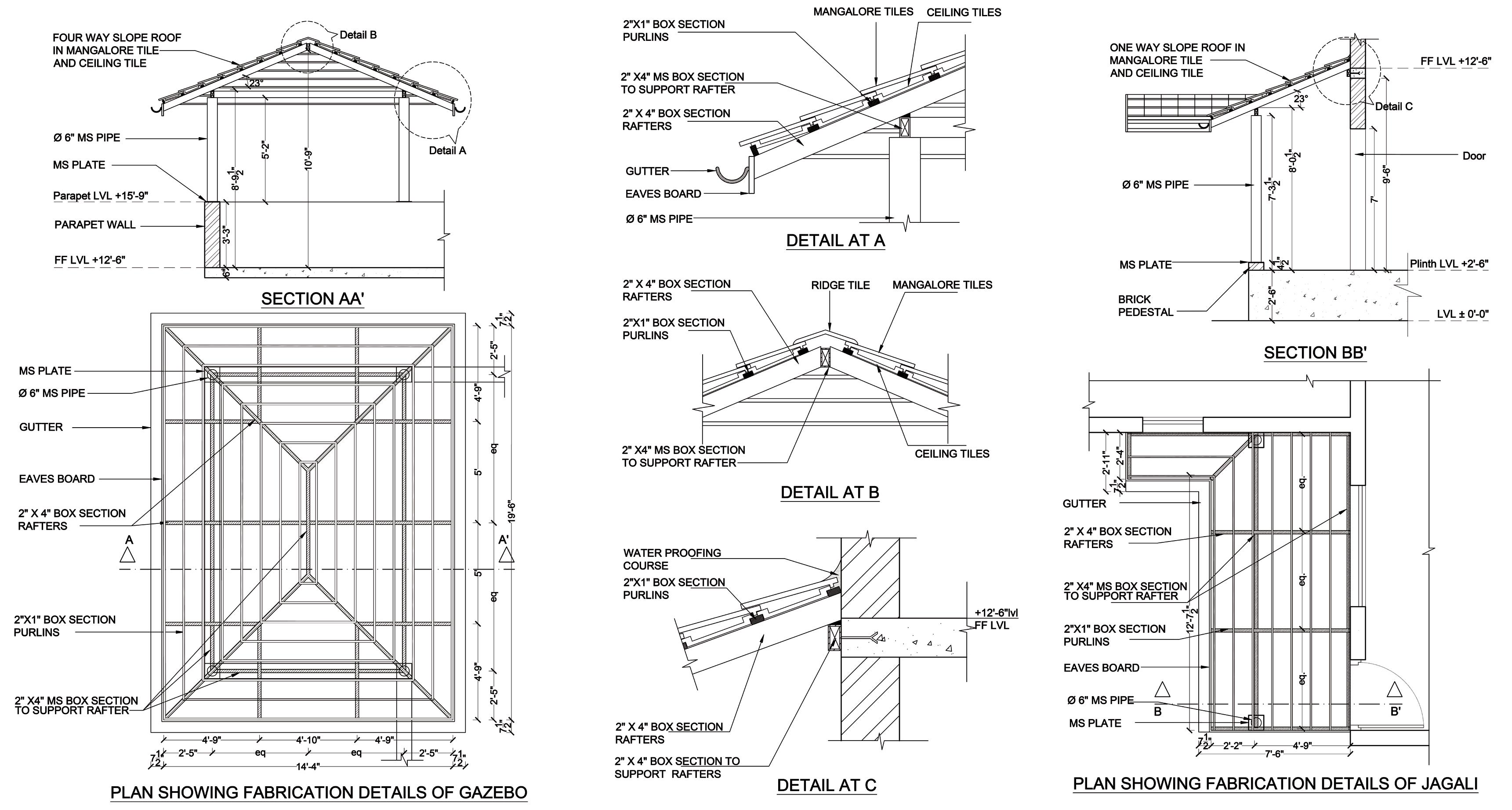

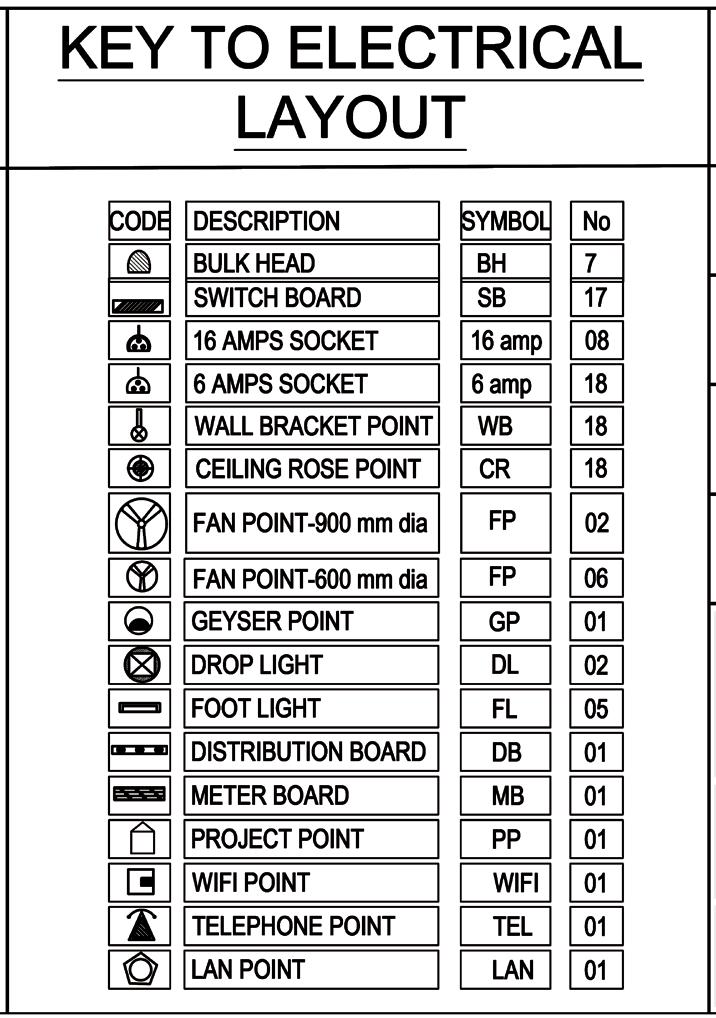

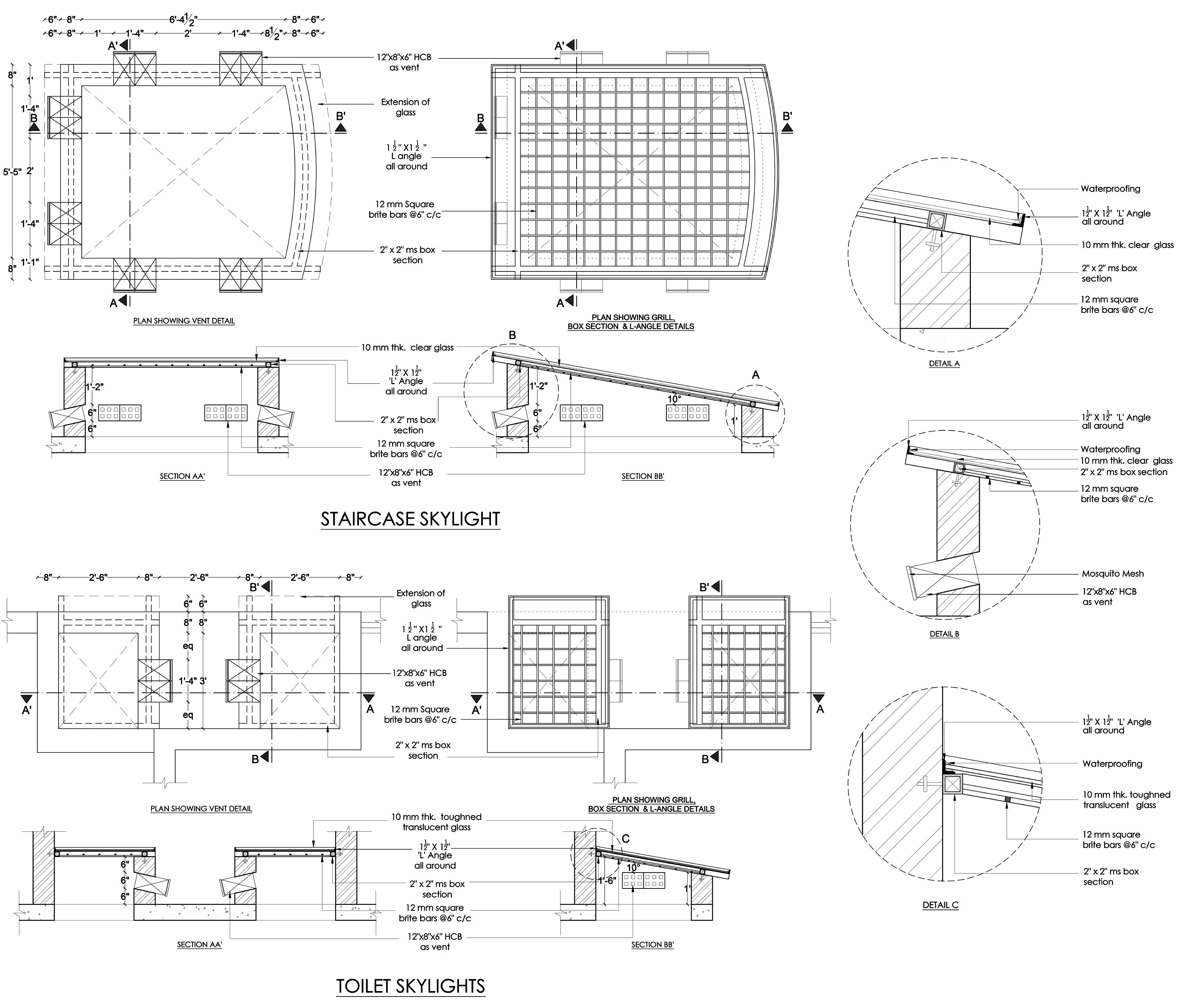

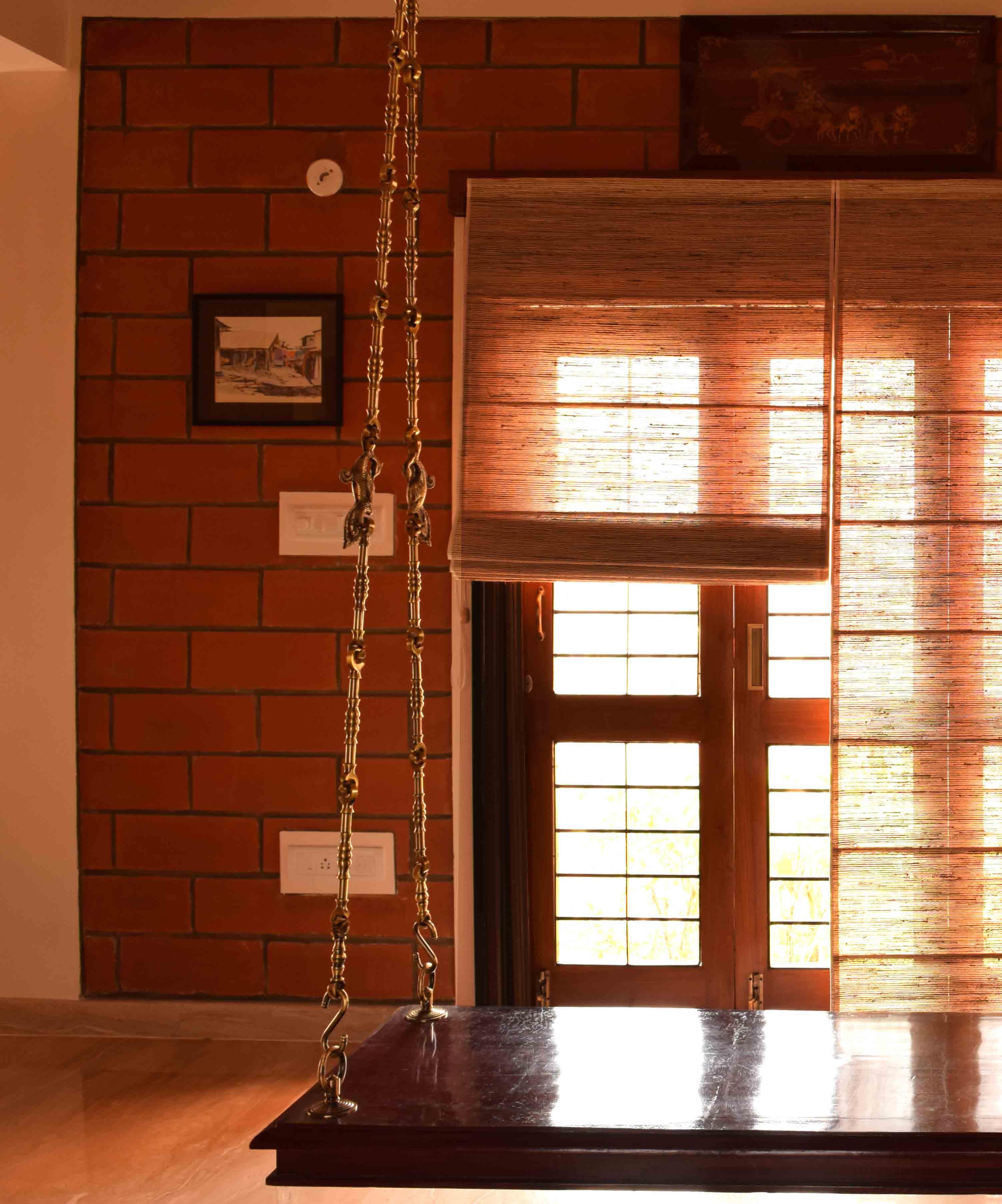

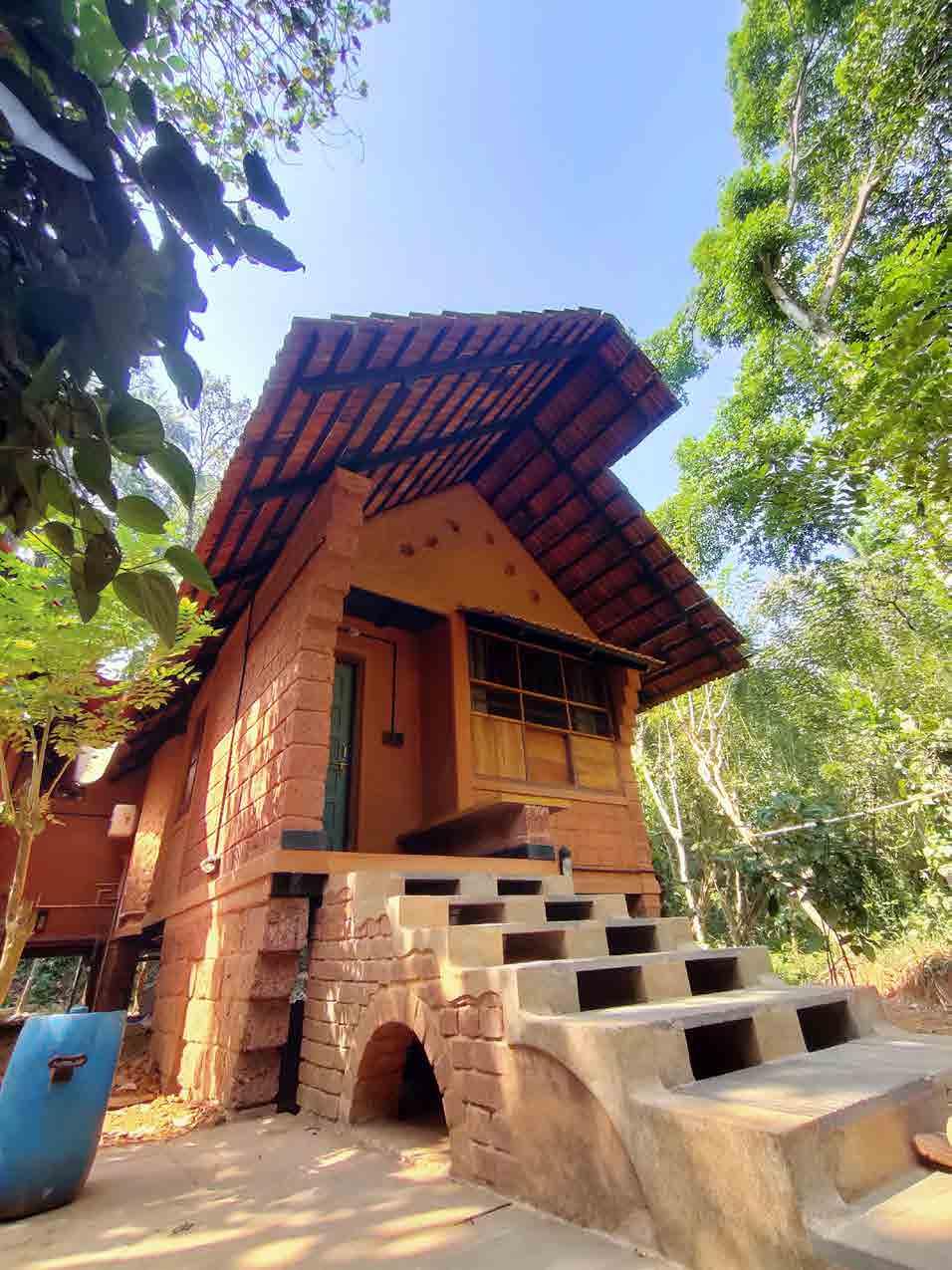

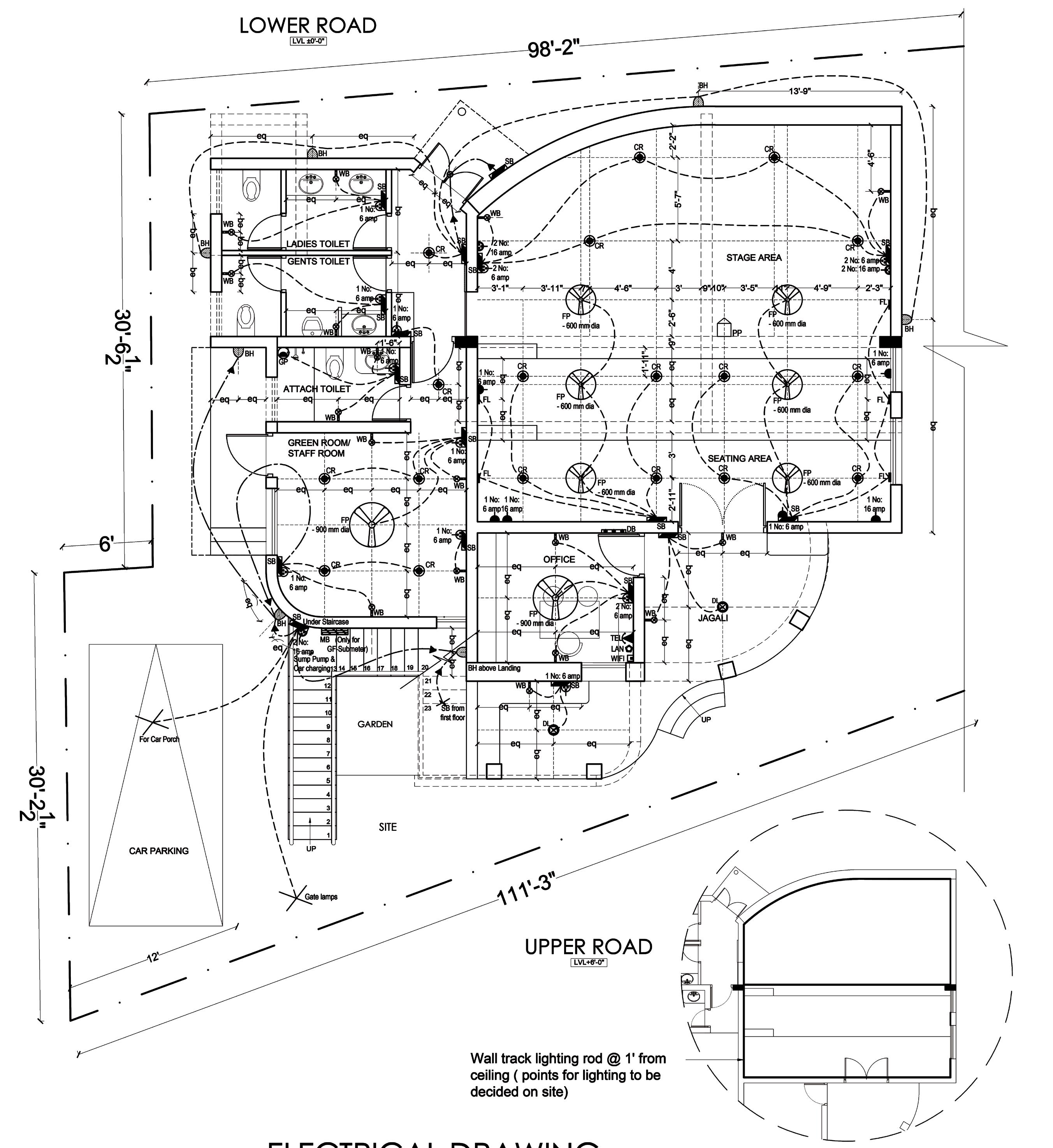

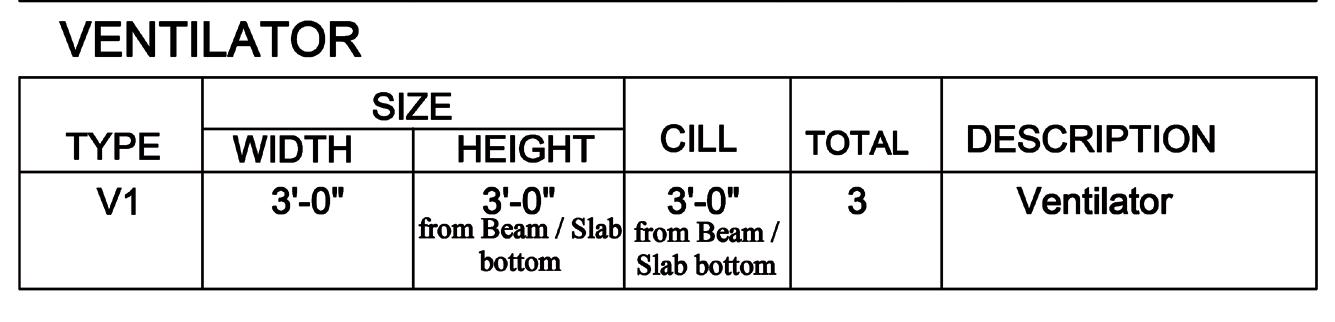

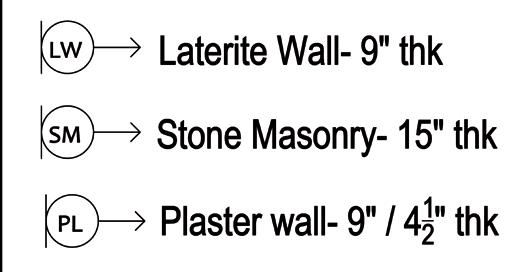

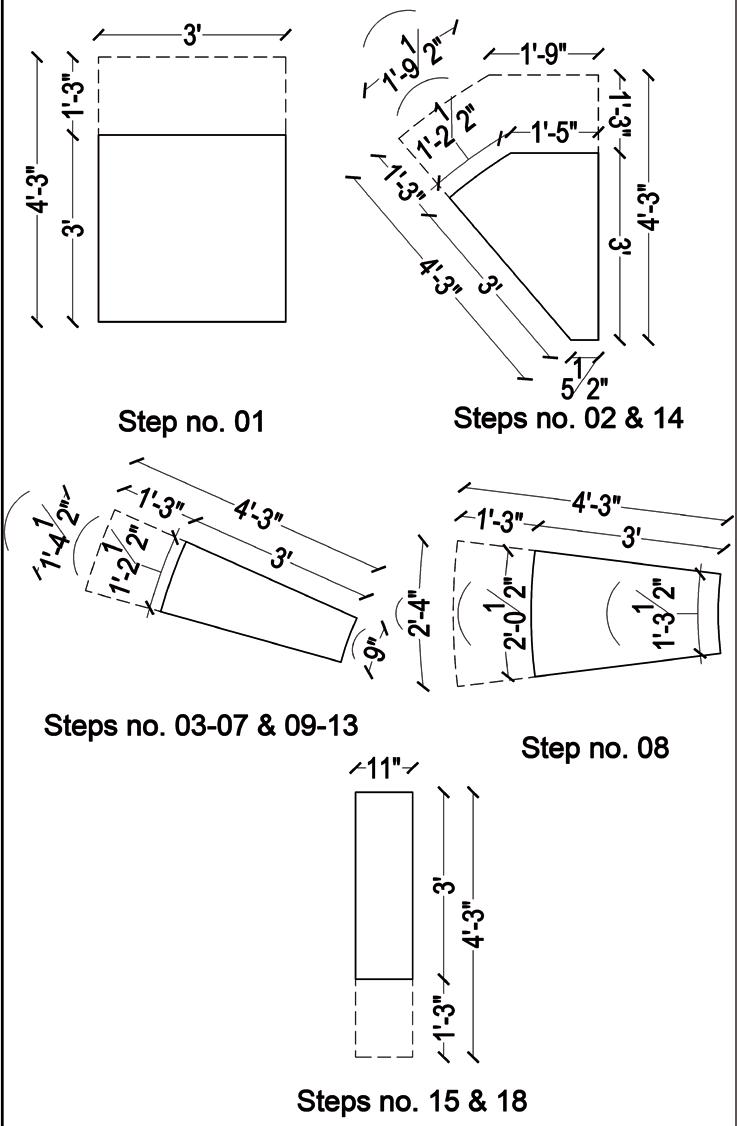

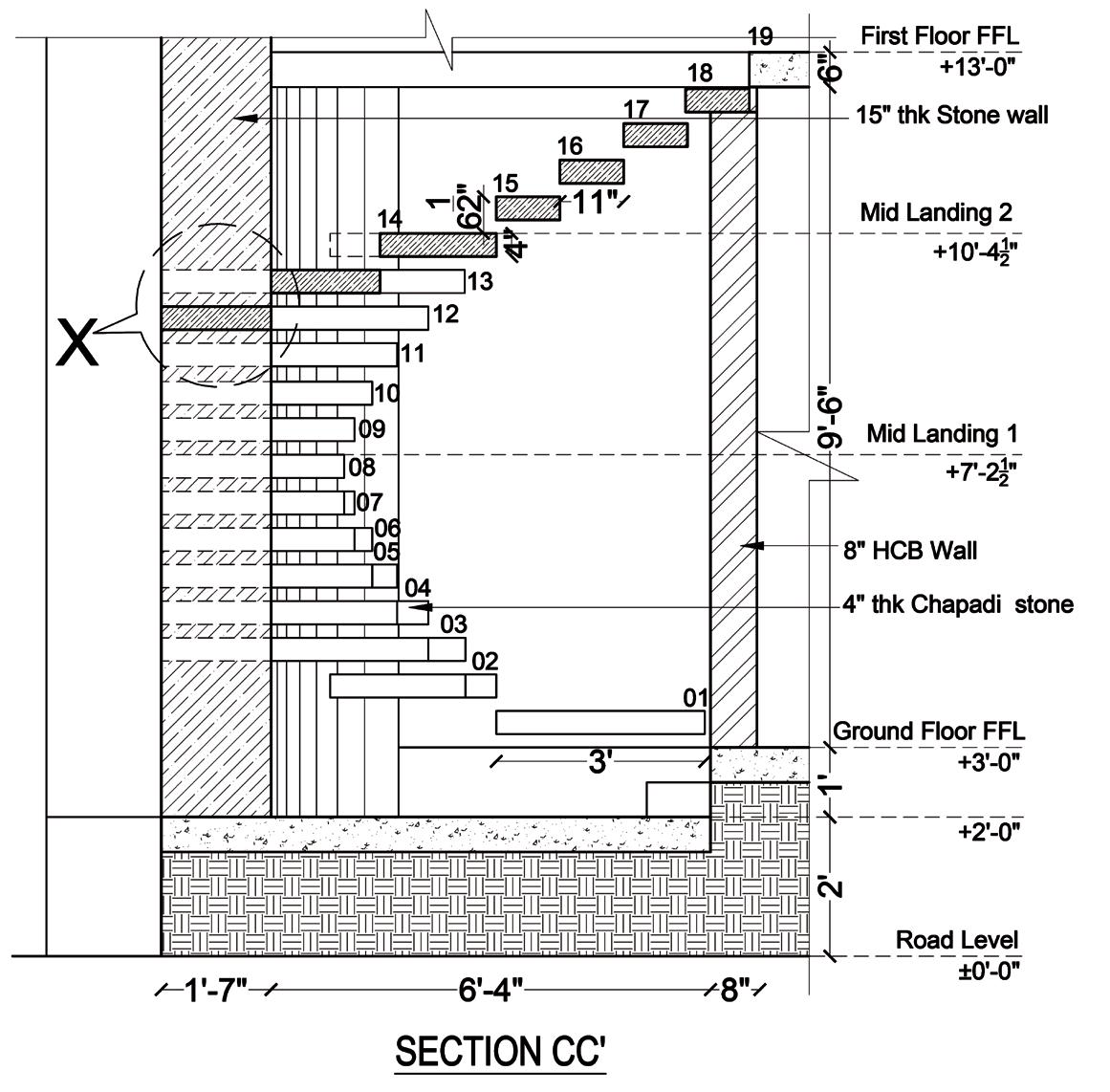

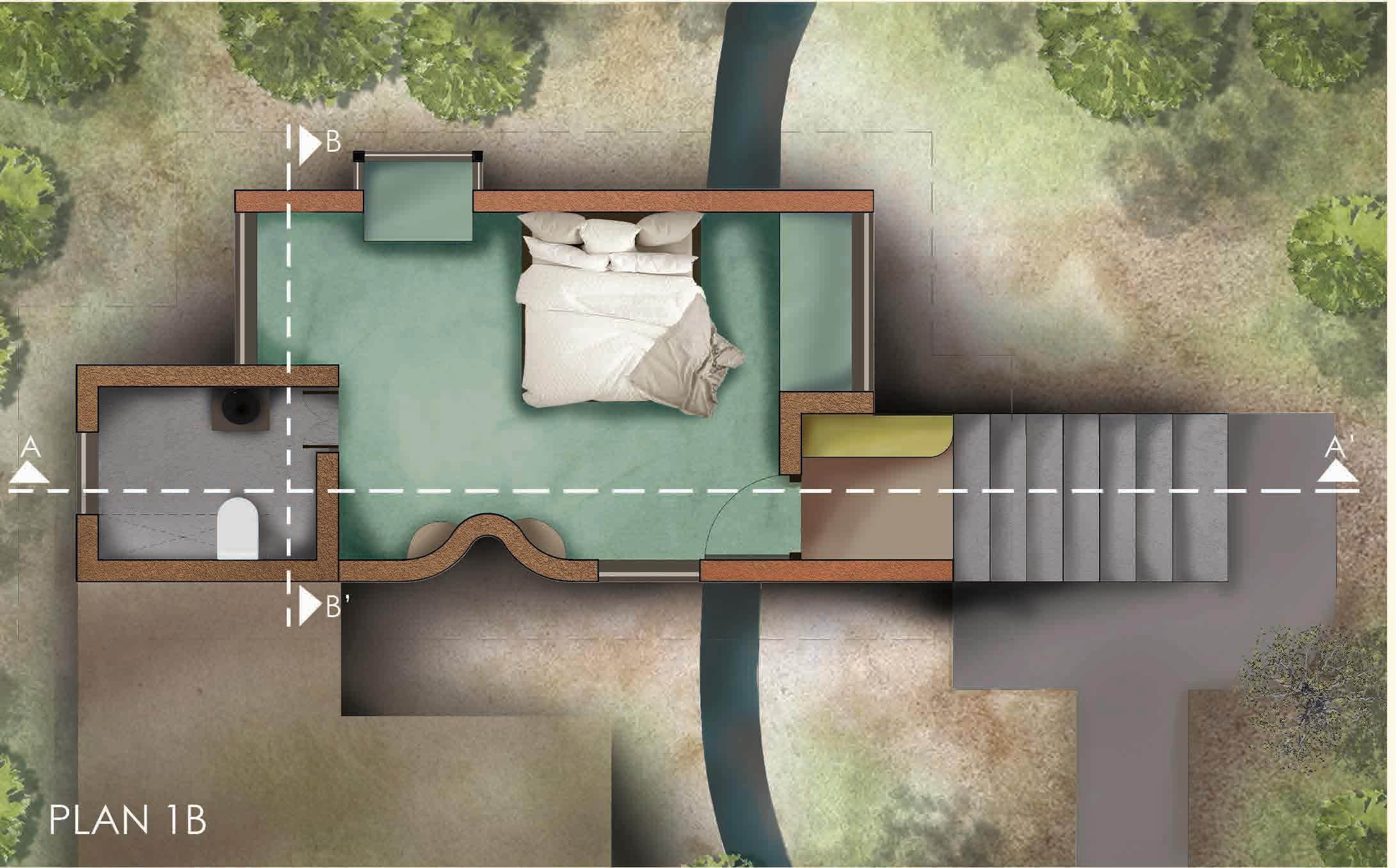

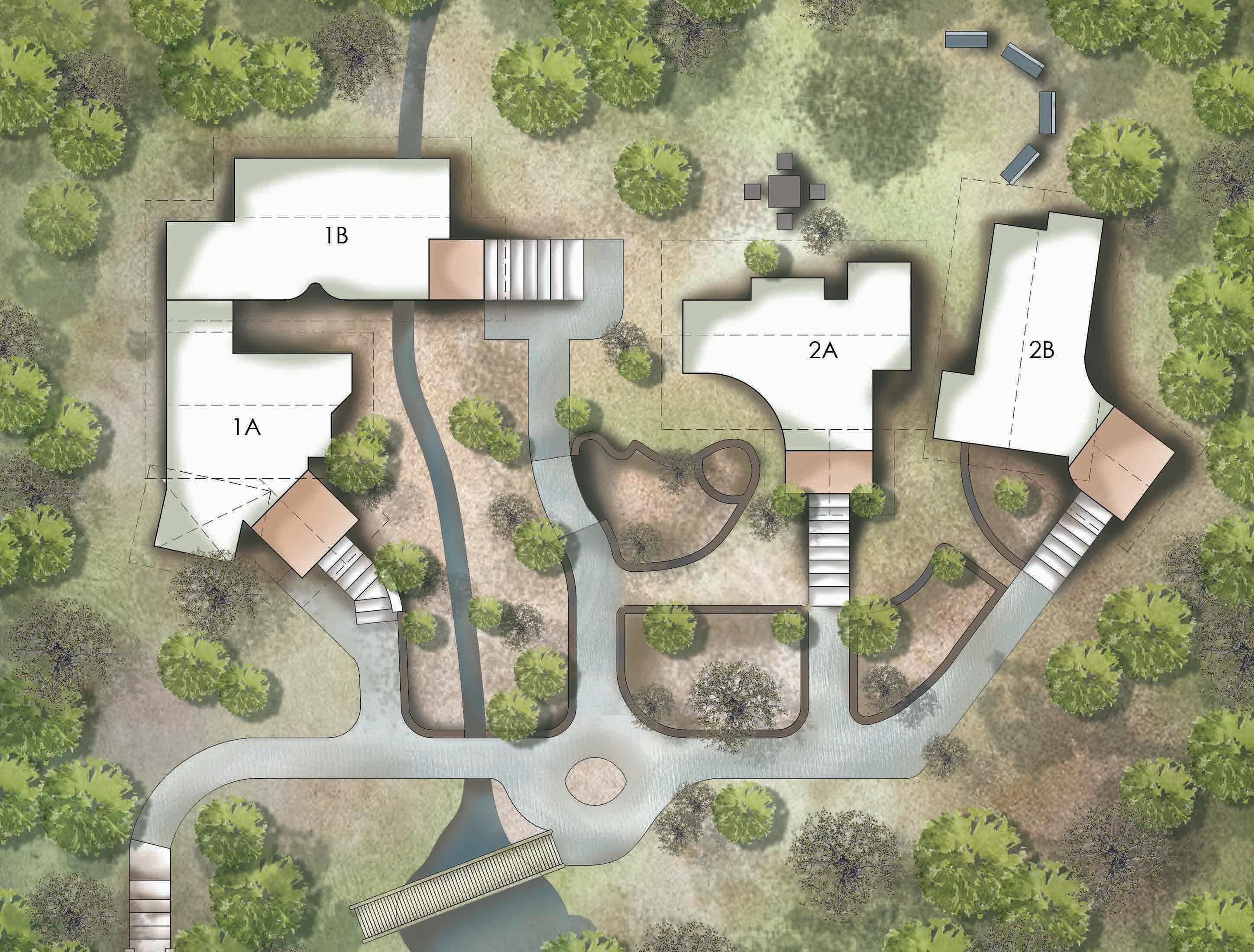

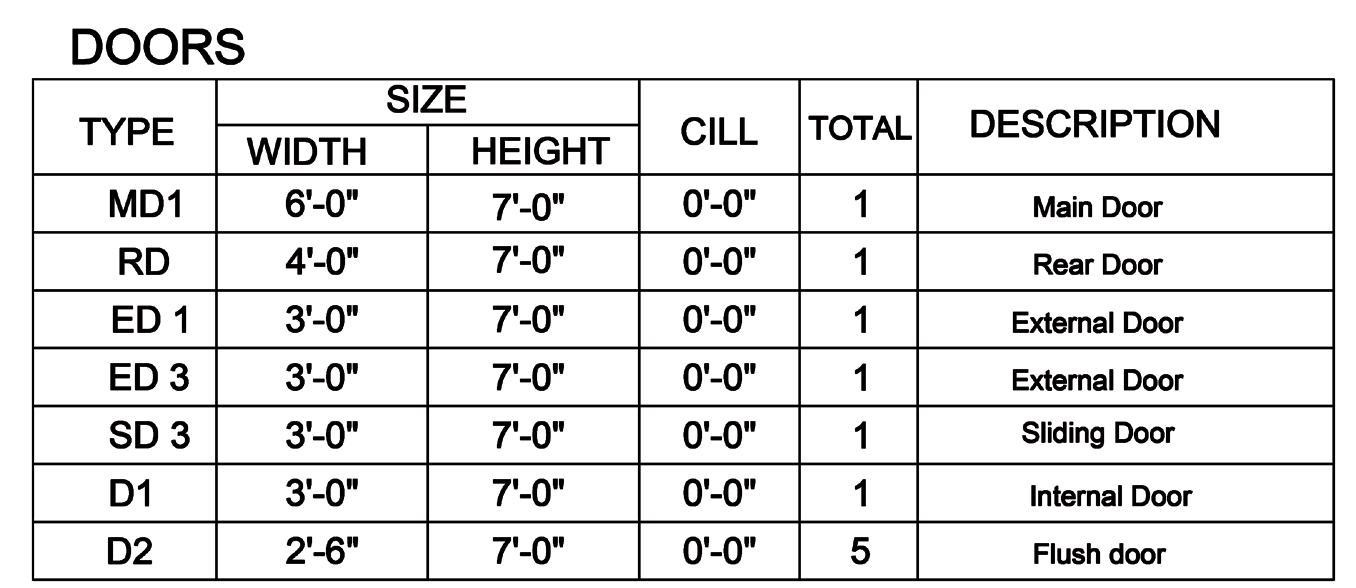

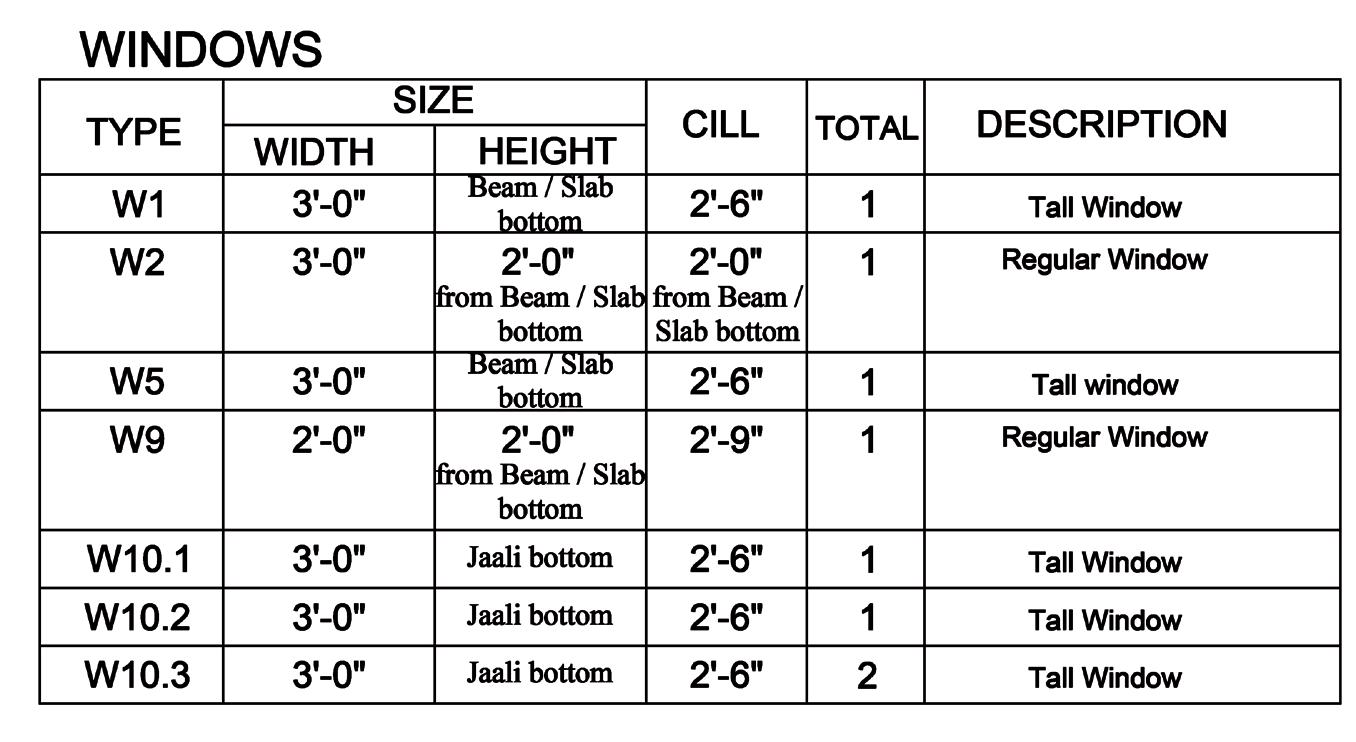

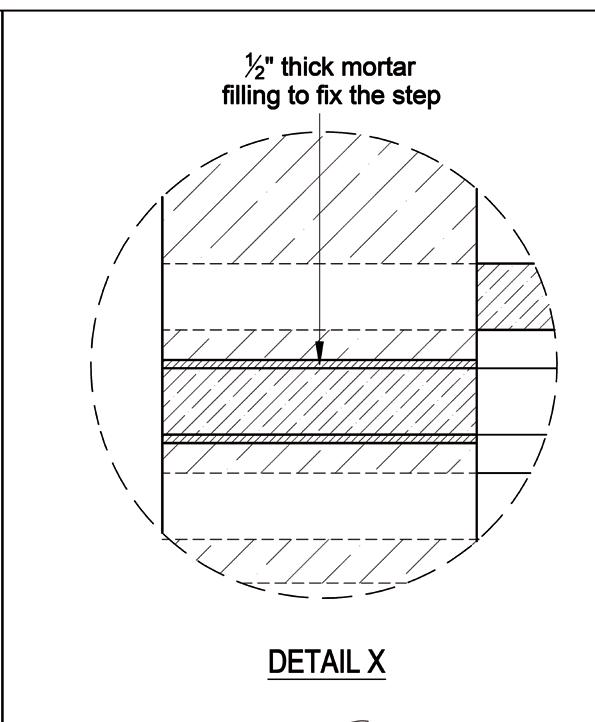

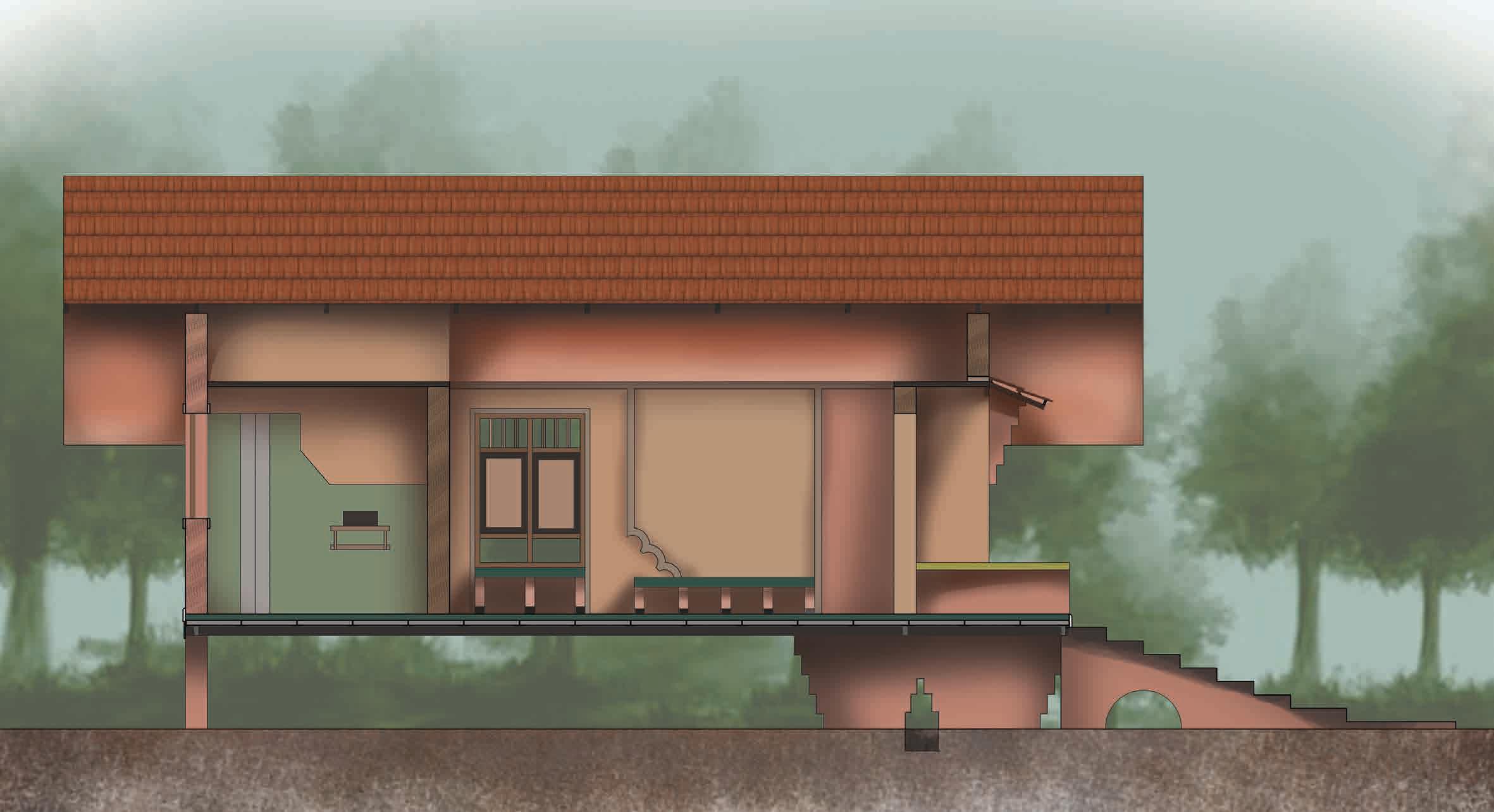

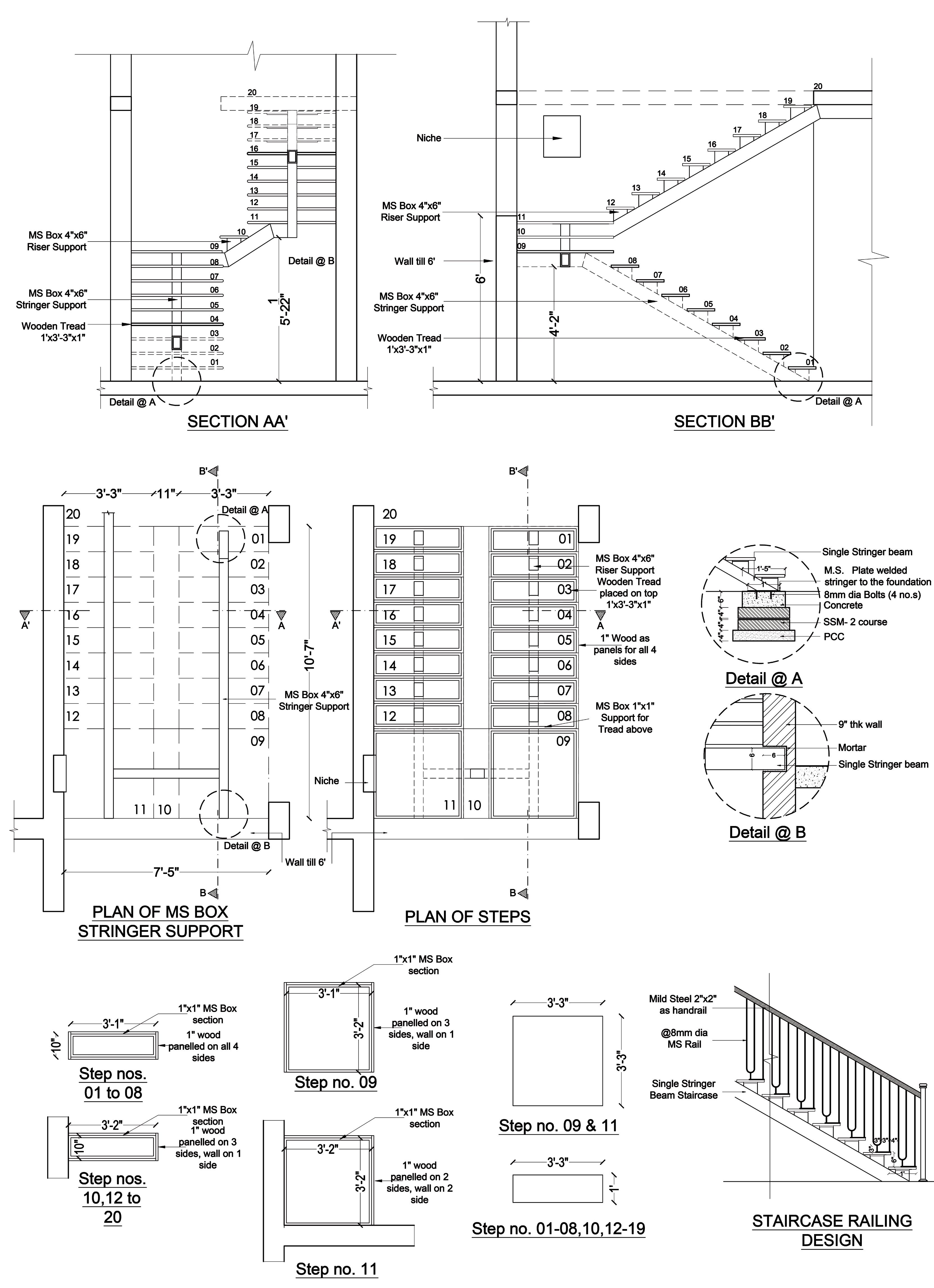

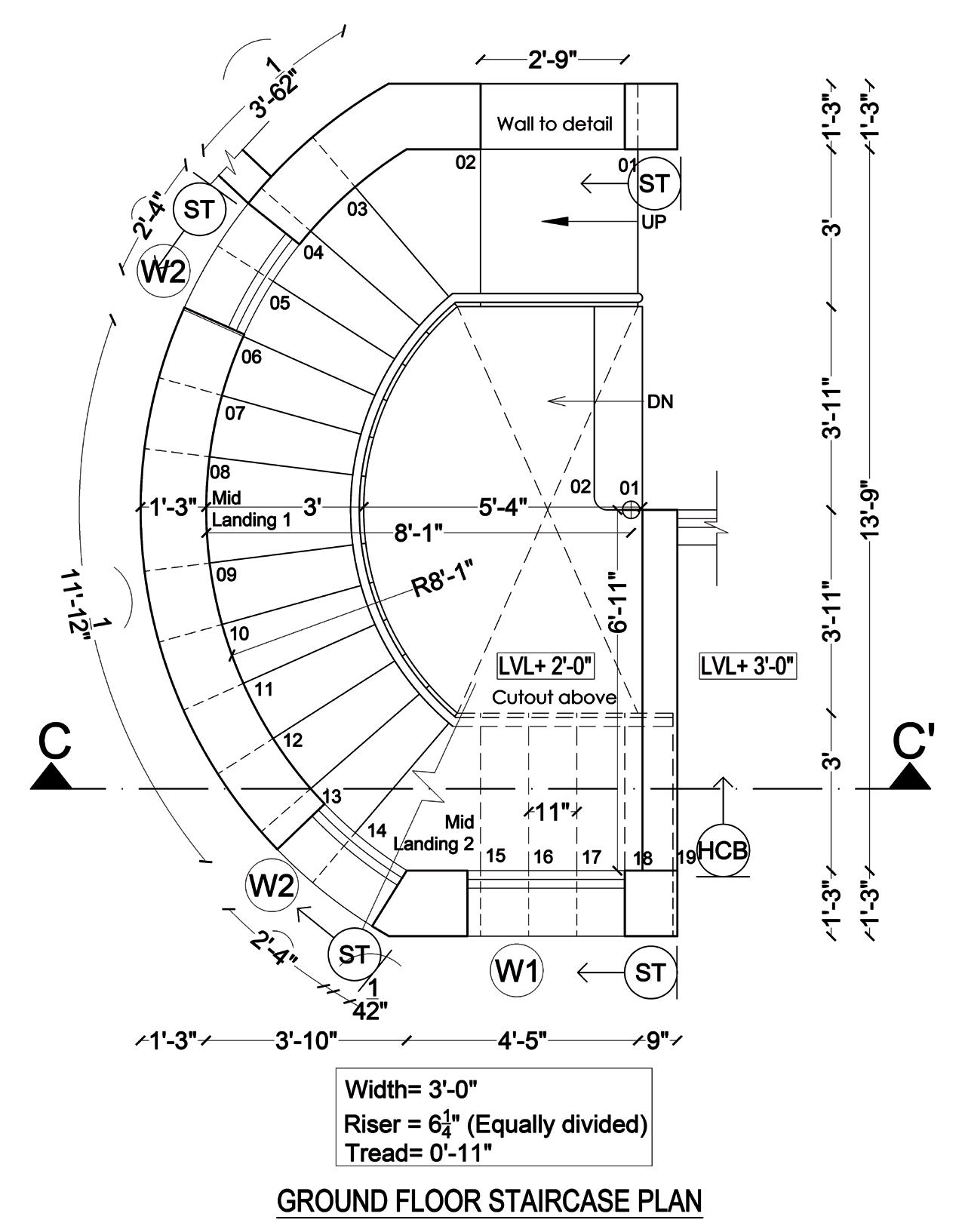

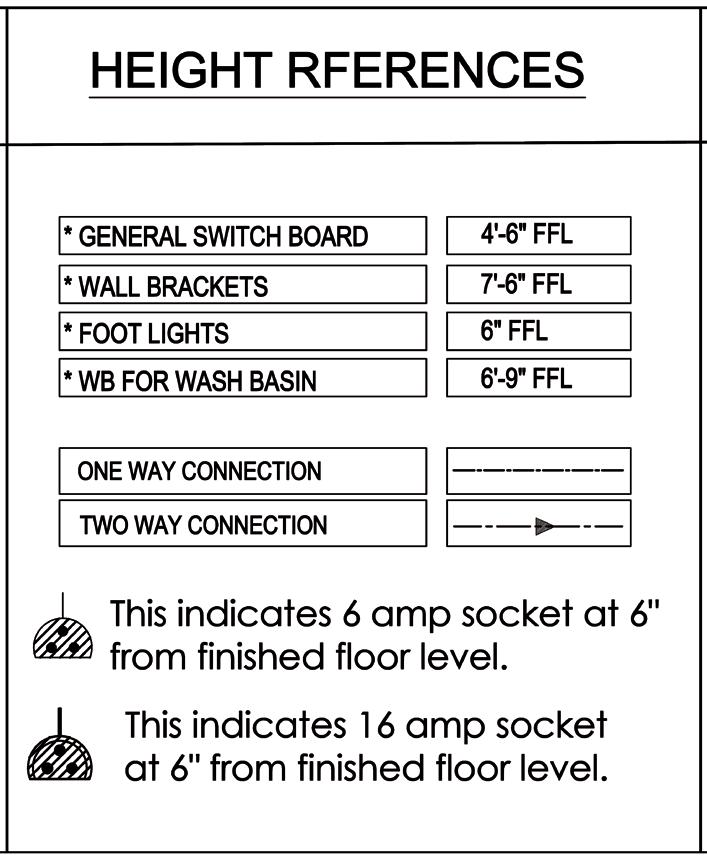

INTERNSHIP WORKS

SELECTED WORKS

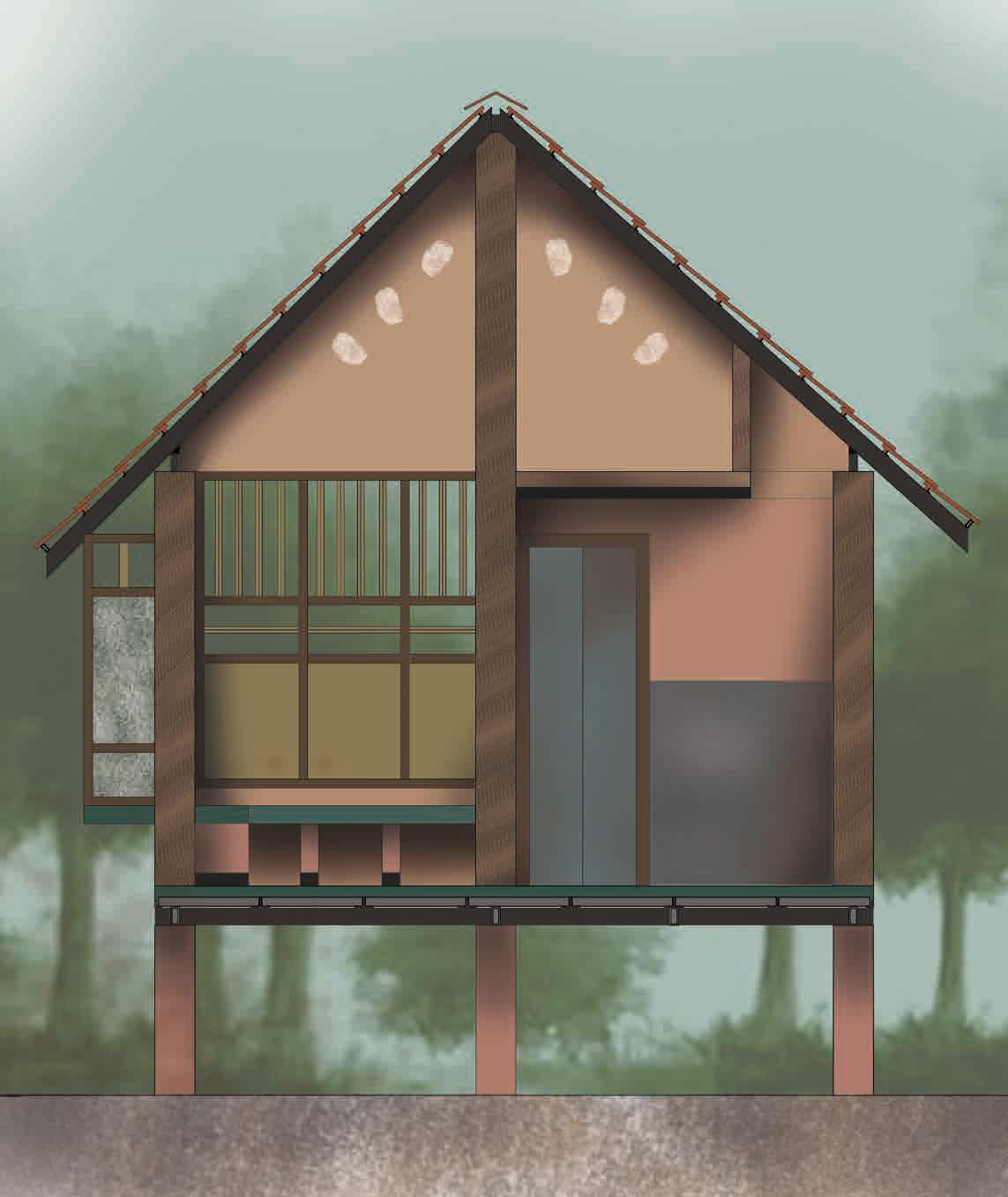

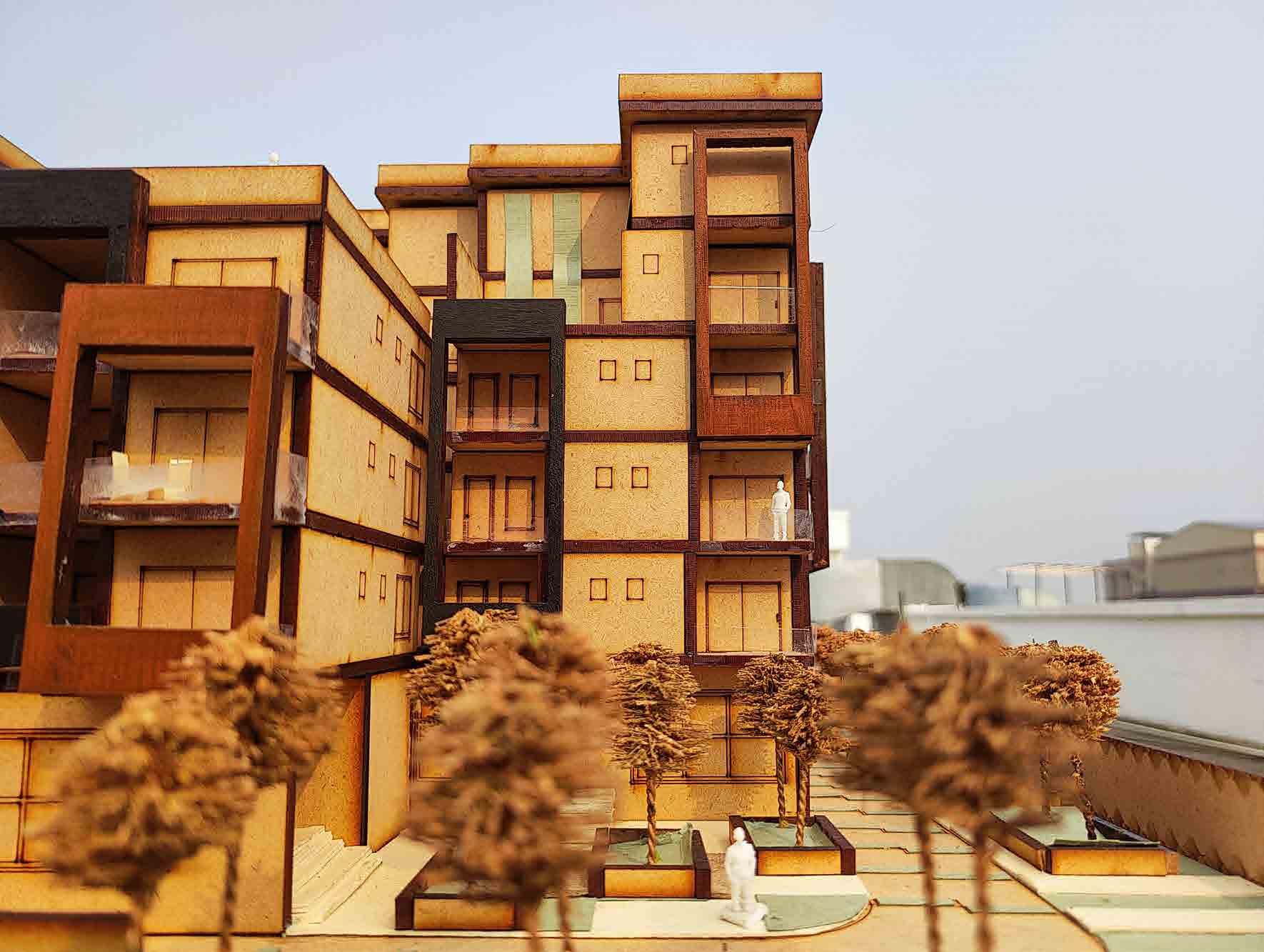

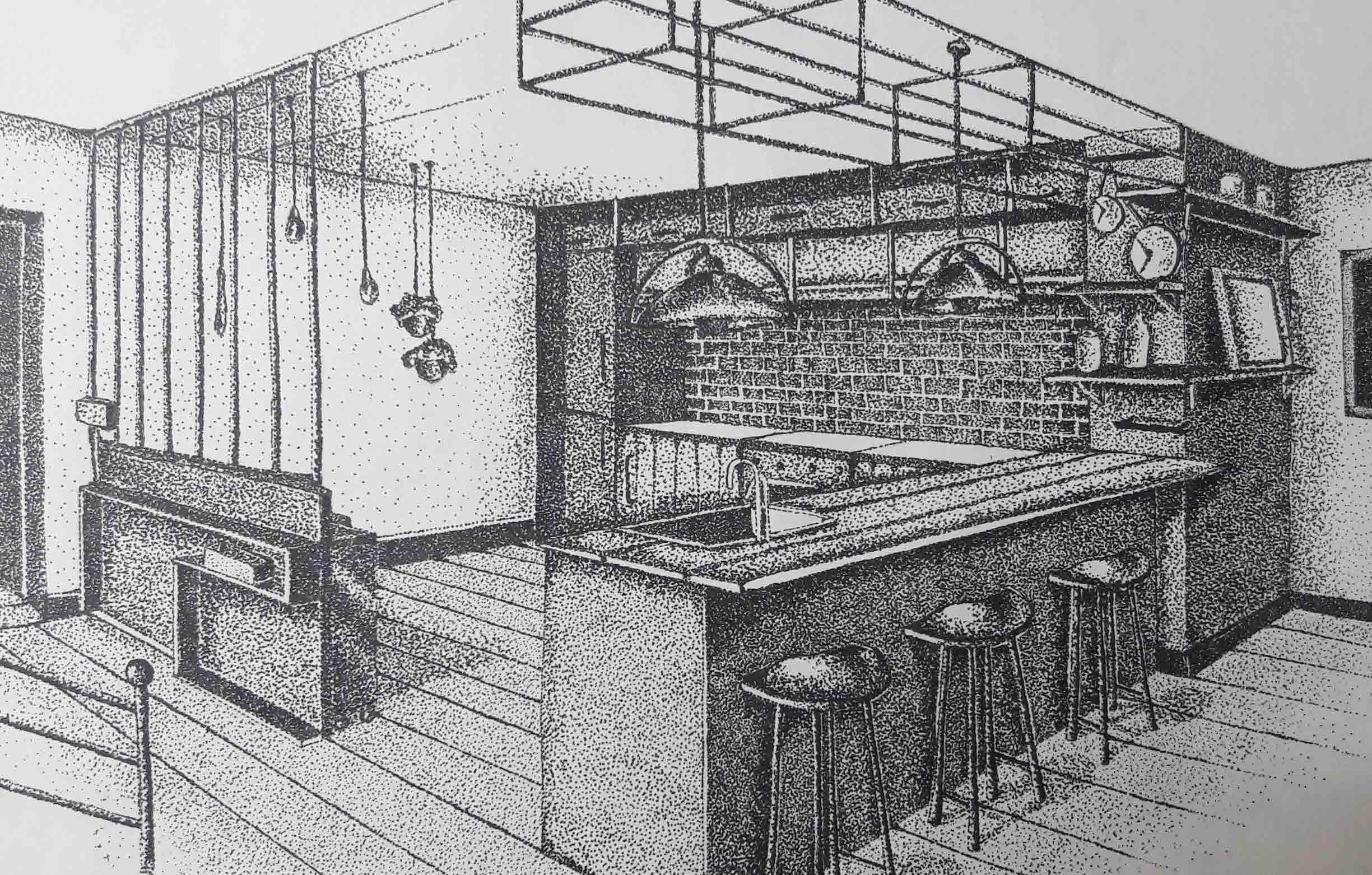

MISCELLANEOUS 07

MEDICAL

01 02 03 04 05 06 DESIGN PROJECT THESIS PROJECT

INTERIOR DESIGN PROJECT

DESIGN INSPIRATION

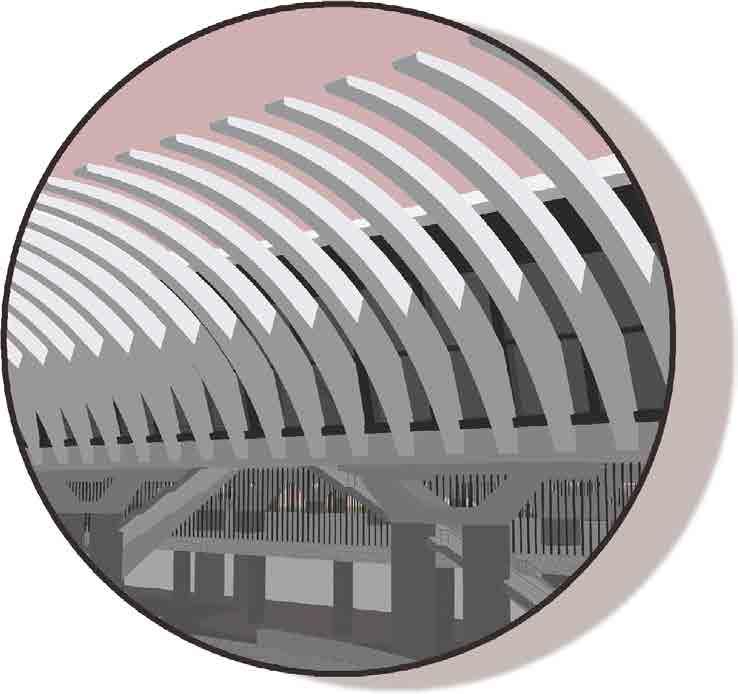

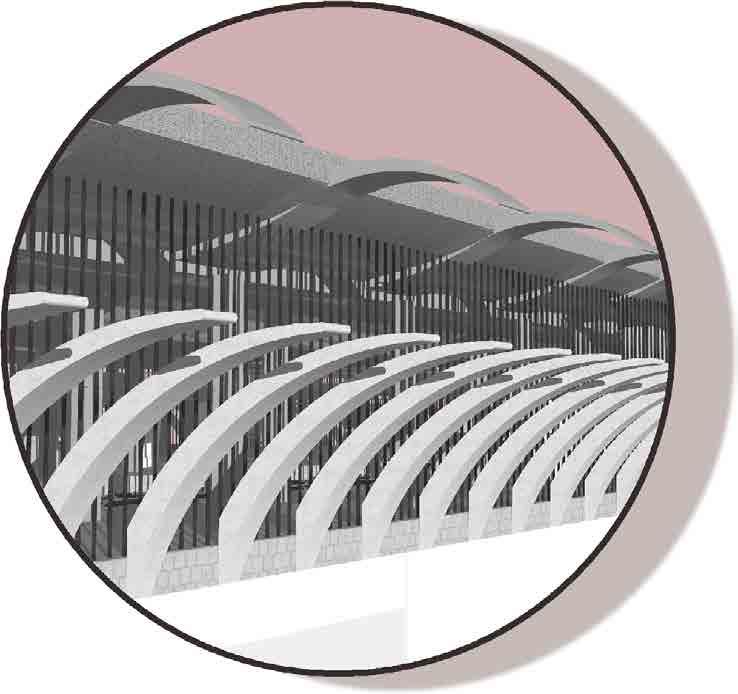

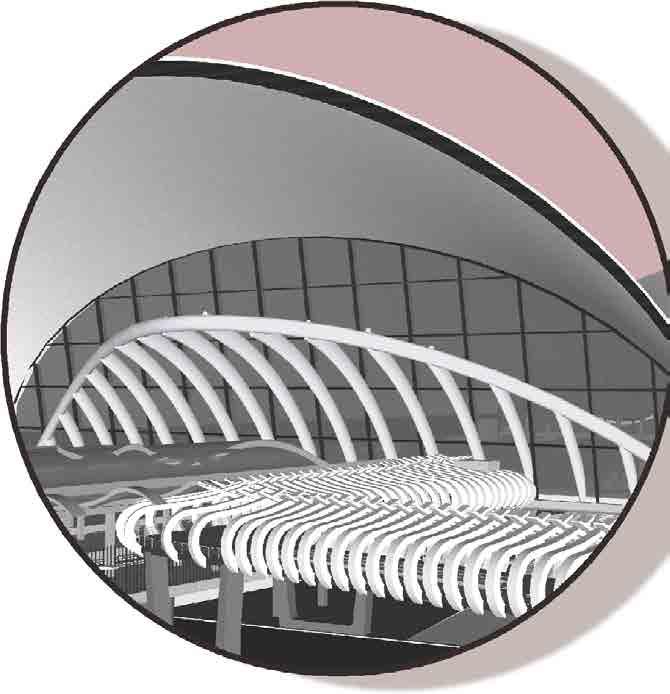

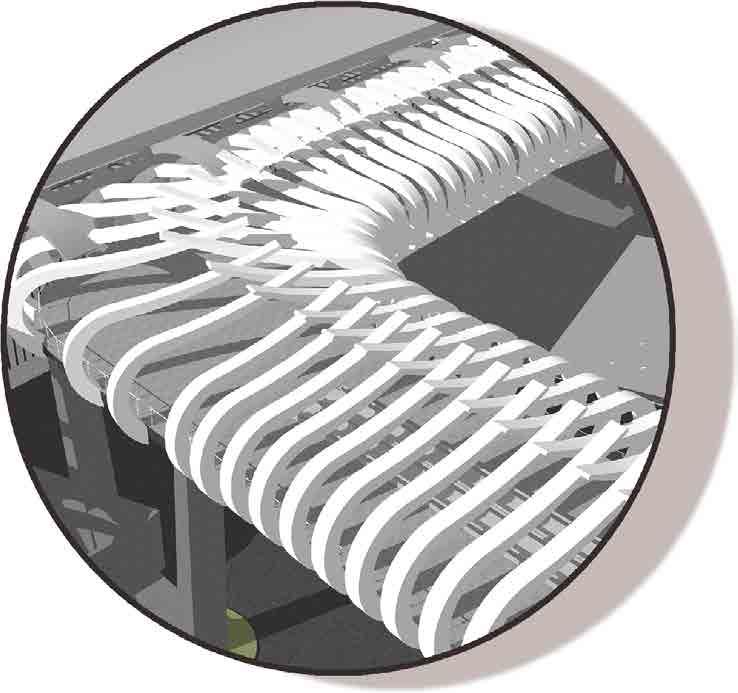

The design elements of the thesis trava. Known for his neo-futuristic frameworks instead of conventional, reinforced concrete shells, resulting

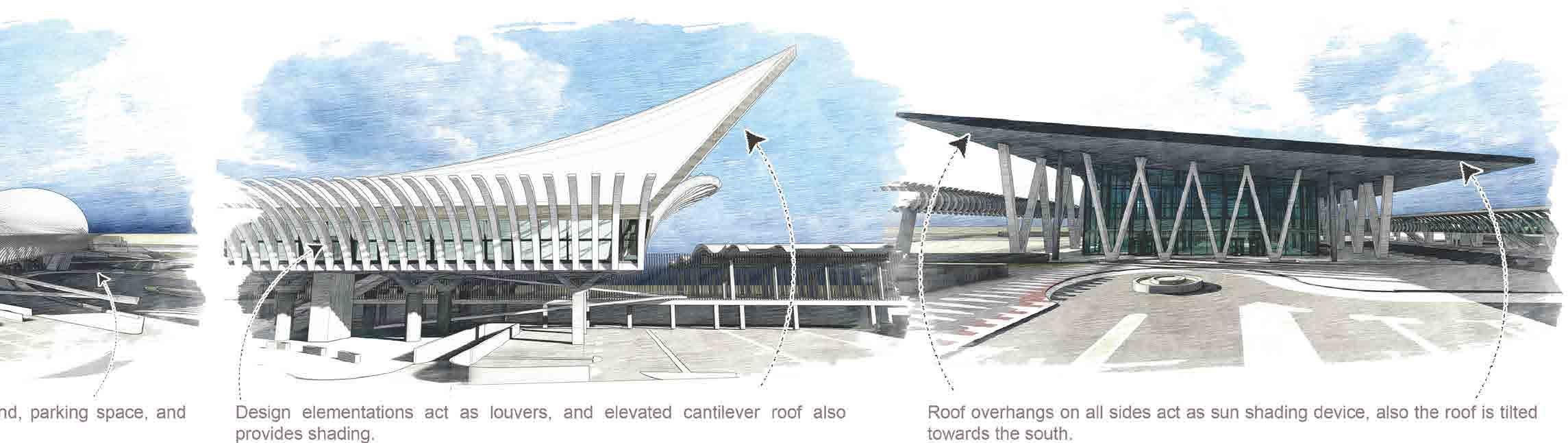

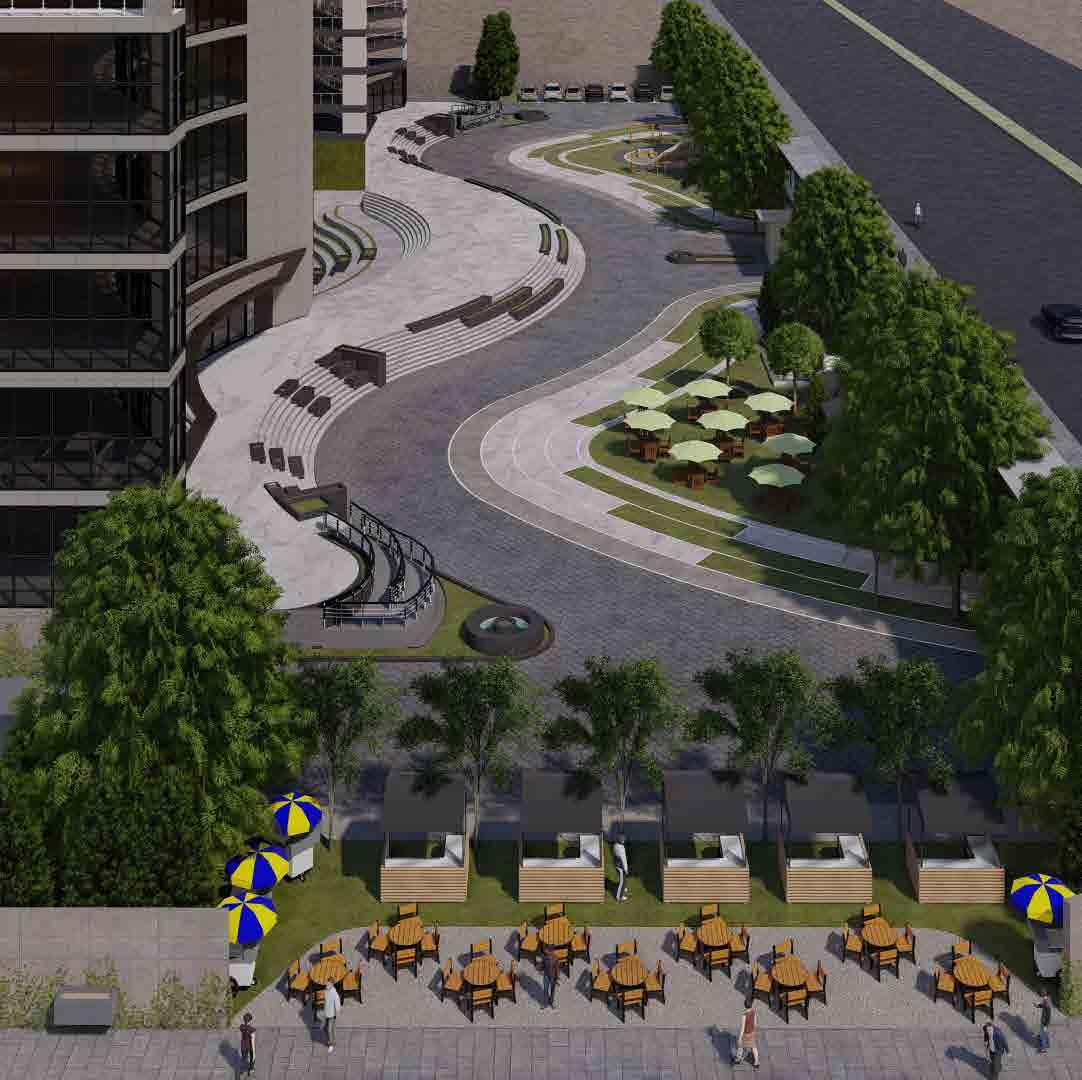

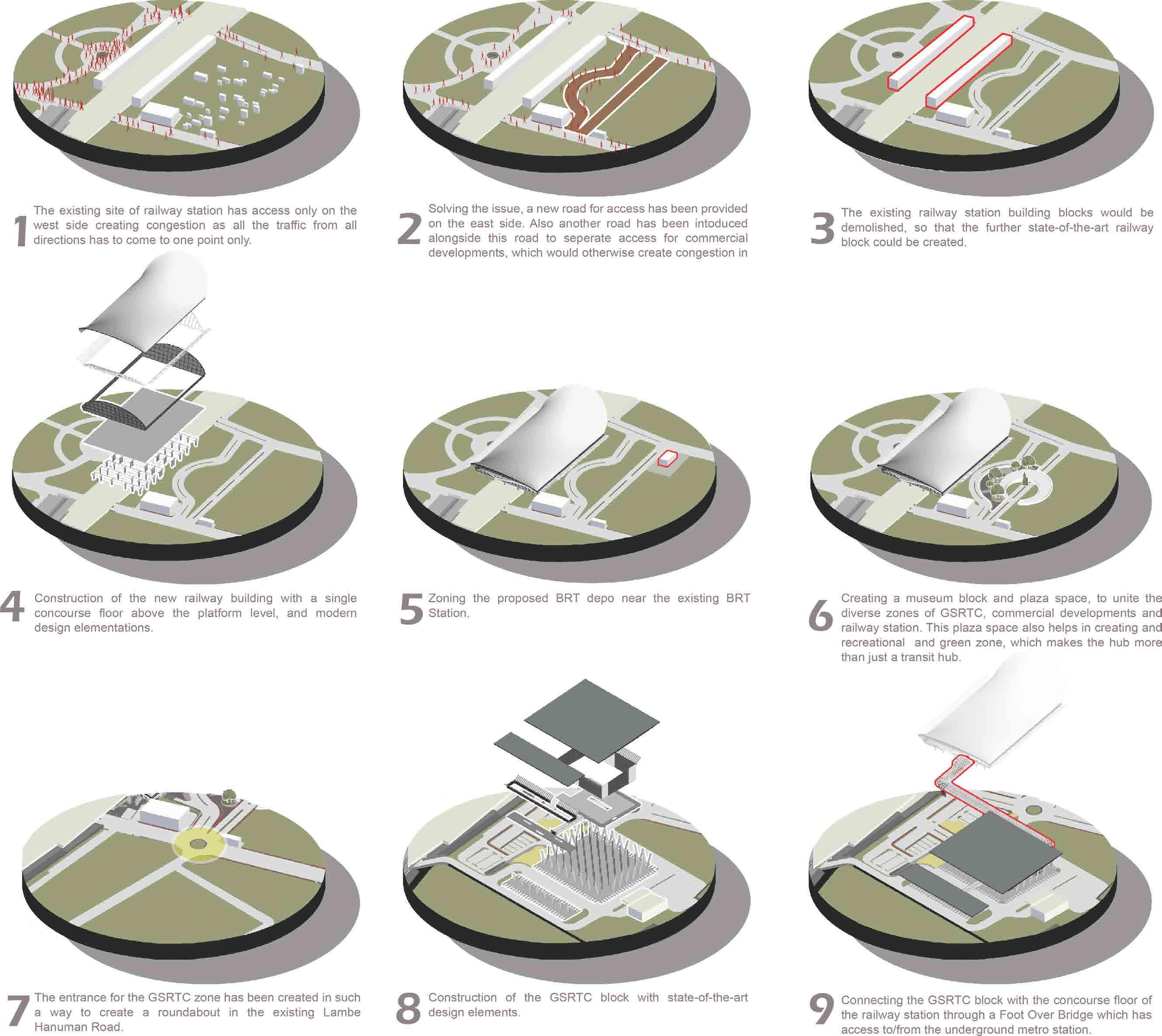

SITE DEVELOPMENT SUN SHADING

STRATEGIES

INSPIRATION

thesis project draw inspiration from the architectural style of Spanish architect Santiago Calaneo-futuristic approach, Calatrava's work often evokes the appearance of living organisms or skeletal conventional, grounded structures. His designs frequently incorporate interlocking steel ribs and resulting in visually light yet structurally intricate and soaring forms.

PROJECT BRIEF

Location : Surat, in Surat Railway Station and vicinity.

Surat Railway Station is poised for a substantial overhaul, aiming to elevate it into a worldclass multi-modal transport hub through a collaborative effort involving the Indian Railways, Gujarat’s state government, and municipal authorities. The initiative seeks to enhance the transit experience by seamlessly integrating railway, long-distance bus, city bus, BRTS, auto, taxi, non-motorized vehicles, and the proposed urban metro railway, while prioritizing pedestrian convenience.

PROJECT DETAILS

Plot Areas :

Permissible FAR: 4

GSRTC BUS BAYS: 117

TOTAL GSRTC IDLE BAYS: 37

TOTAL BRT BUS BAYS: 29

RAILWAY AUTO PARKING: 316

GSRTC AUTO PARKING: 175

GSRTC CYCLE PARKING: 60

GSRTC TAXI PARKING: 50

TOTAL RAILWAY PARKING: 4 Wheelers: 2086 2 Wheelers: 4169

TOTAL GSRTC PARKING: 4 Wheelers: 707 2 Wheelers: 1436

BRT PARKING: 4 Wheelers: 7 2 Wheelers: 16

TOTAL MULTI MODAL HUB PARKING: 4 Wheelers: 2800 2 Wheelers: 5621

Railway Station Yard: 70, 681 sq.m. Railway Station Building: 23, 175 sq.m SMC Land and Private Land: 10,343 sq.m Railway Quarters: 61,776 sq.m GSRTC Bus Depot area: 88, 340 sq.m Total

sq.m (62.8 acres)

Site Area: 2,24,315

Permissible Biult-up area: 10,170260 sq.m. Achieved Built up areas: Railway Station Block: 81,900 sq.m GSRTC Block: 17,610 sq.m Museum : 3255 sq.m Achieved heights: Railway Block: 33.6m GSRTC Block: 26.8m

TOTAL

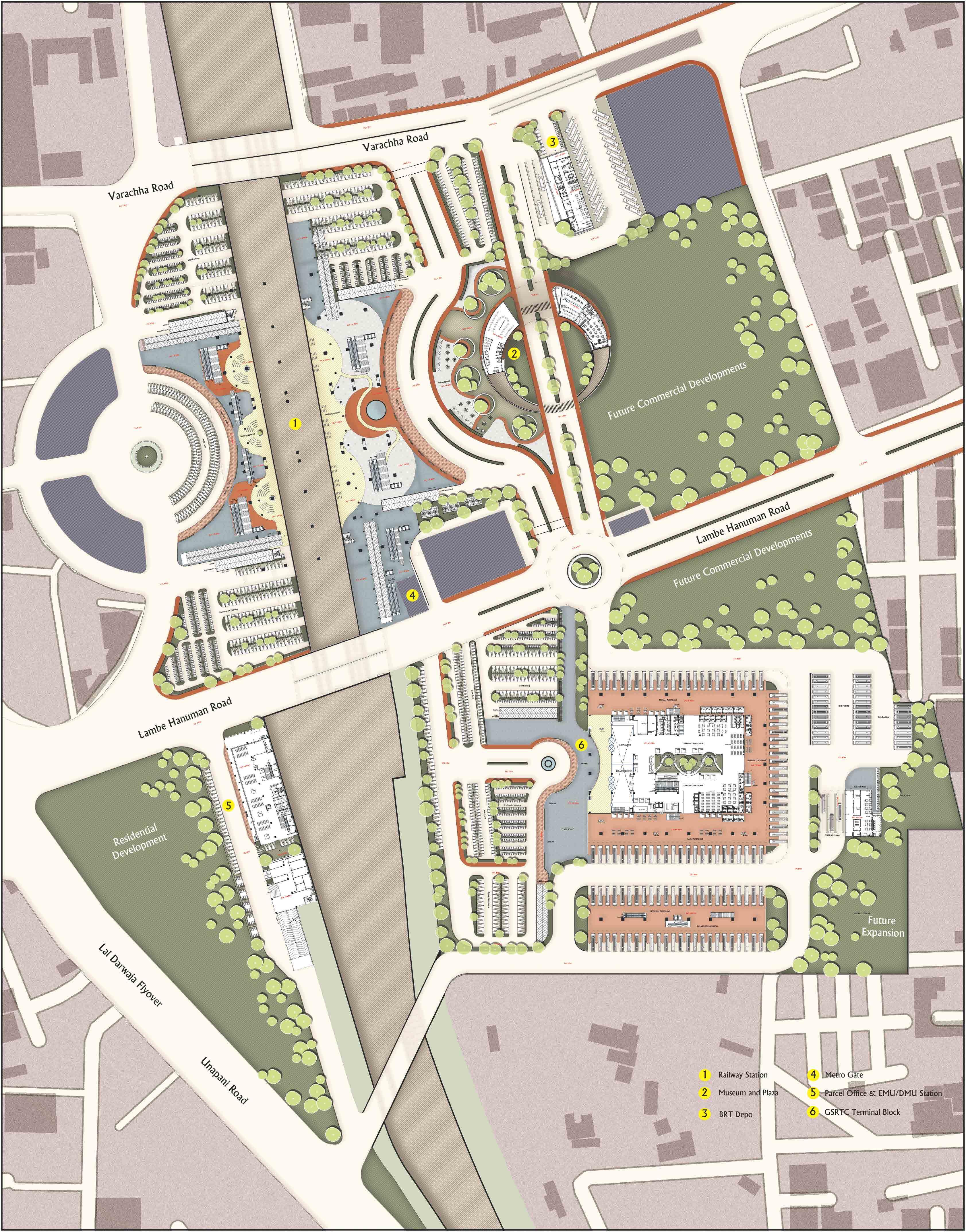

SITE PLAN

STRUCTURAL DETAILS

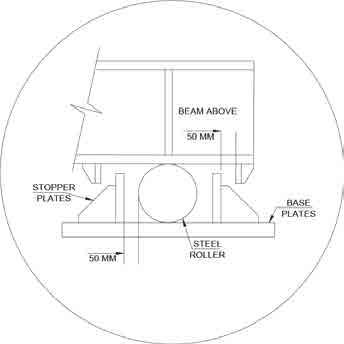

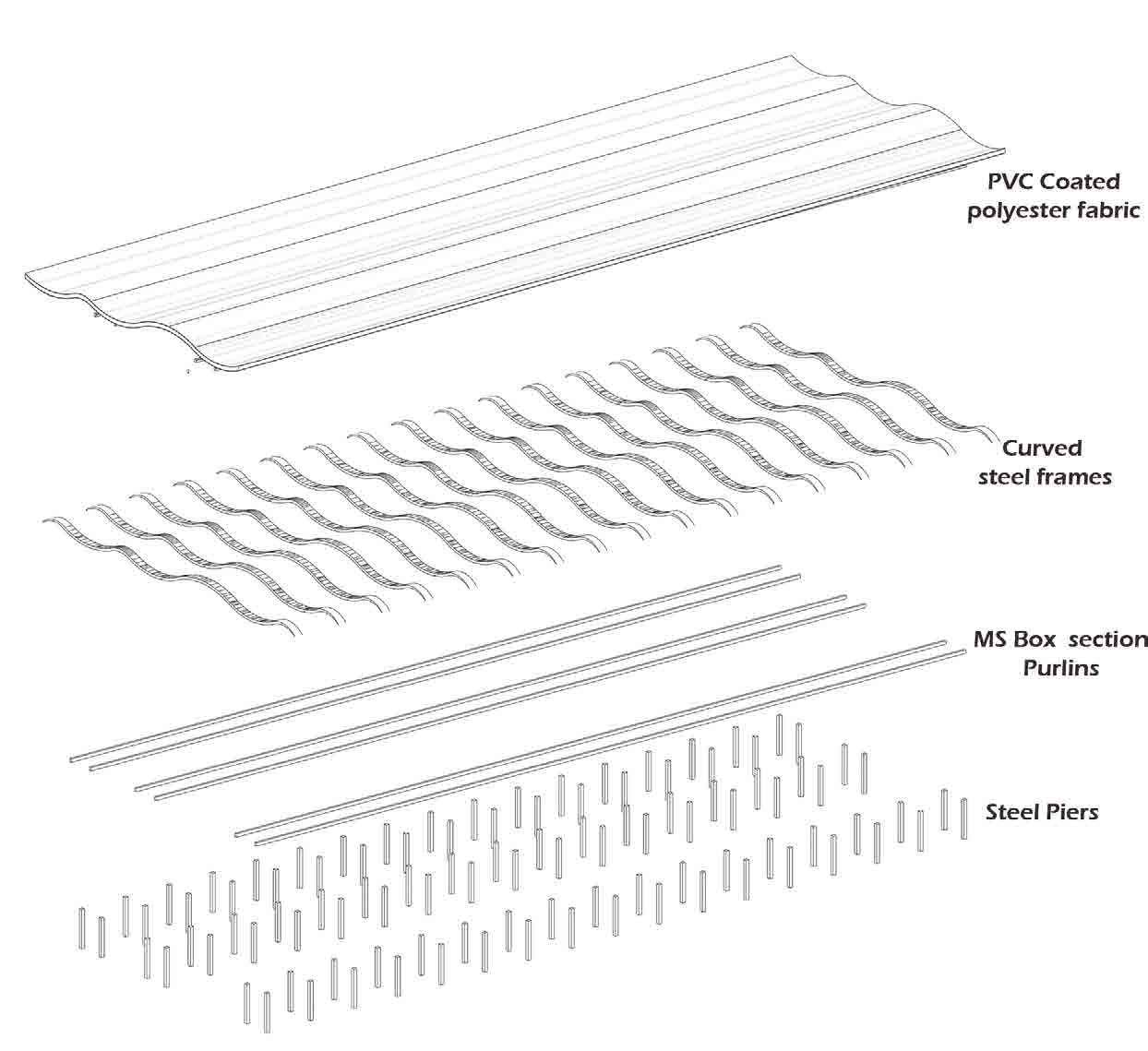

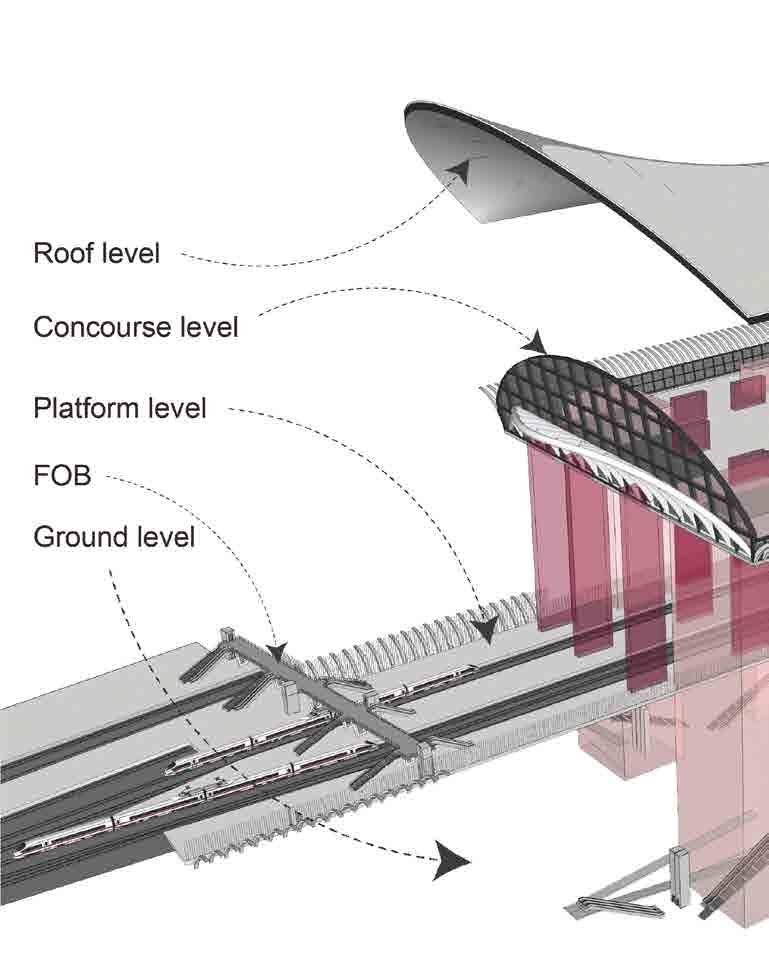

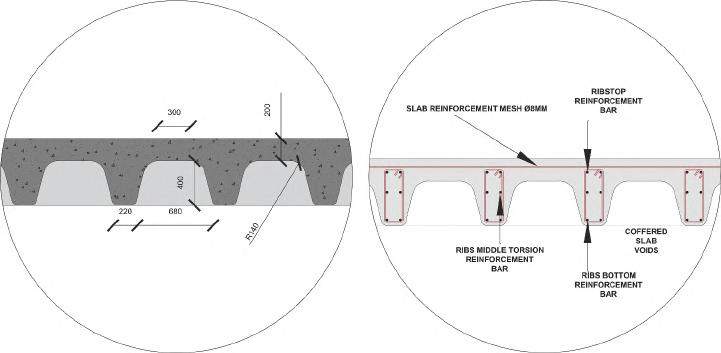

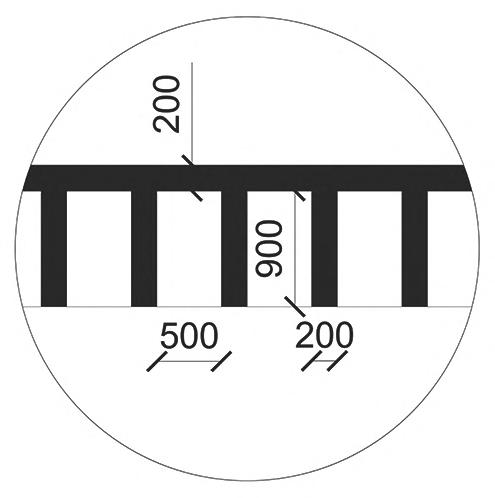

H Column Y Column Double T Planks Detail Coffered slab details Roller Support Exploded view of Platform Canopy

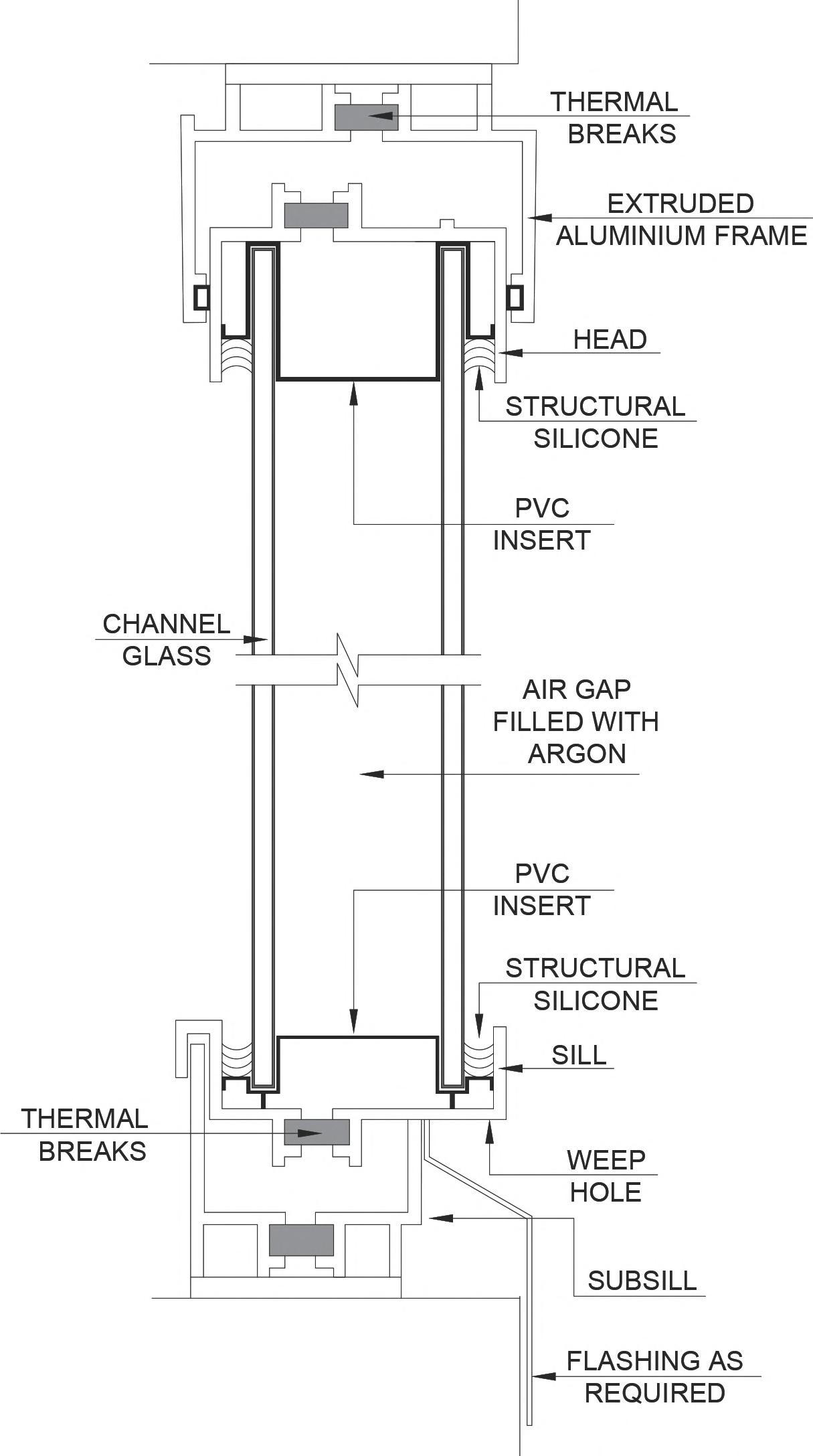

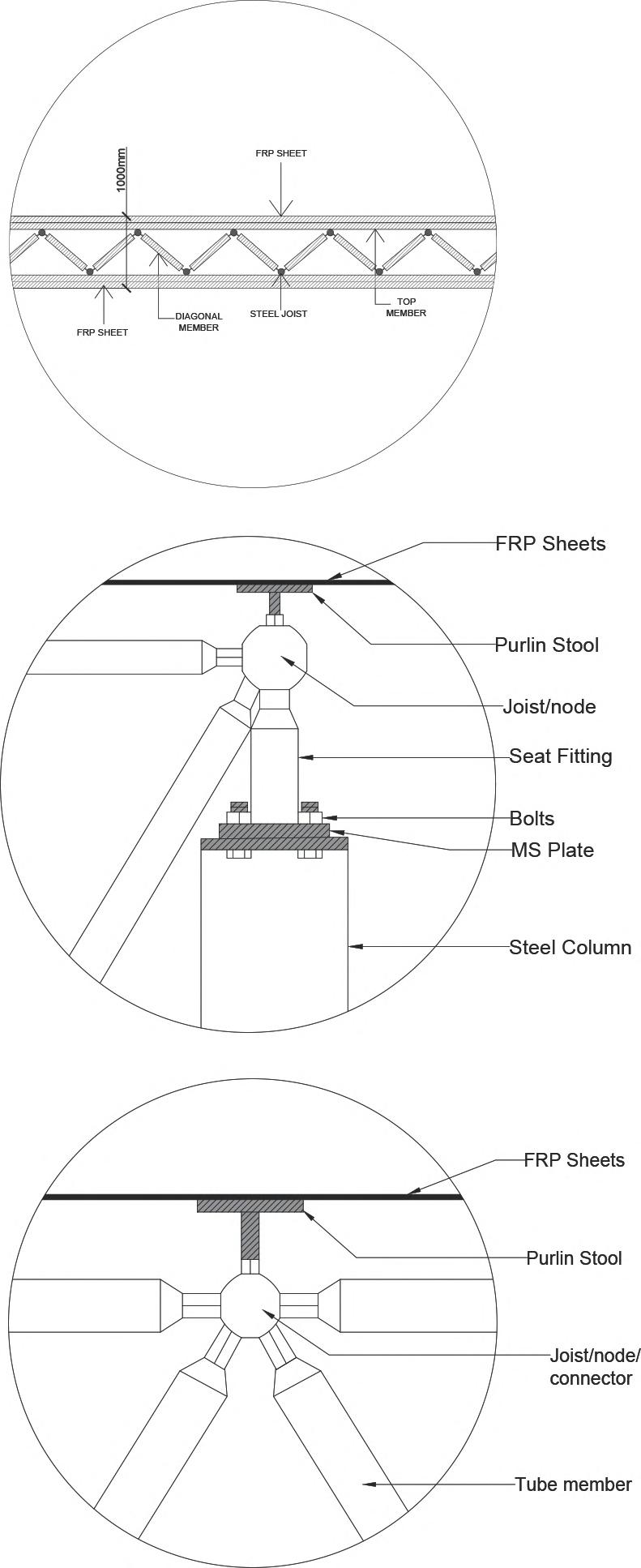

Double Glazing Curtain Wall Space frame details

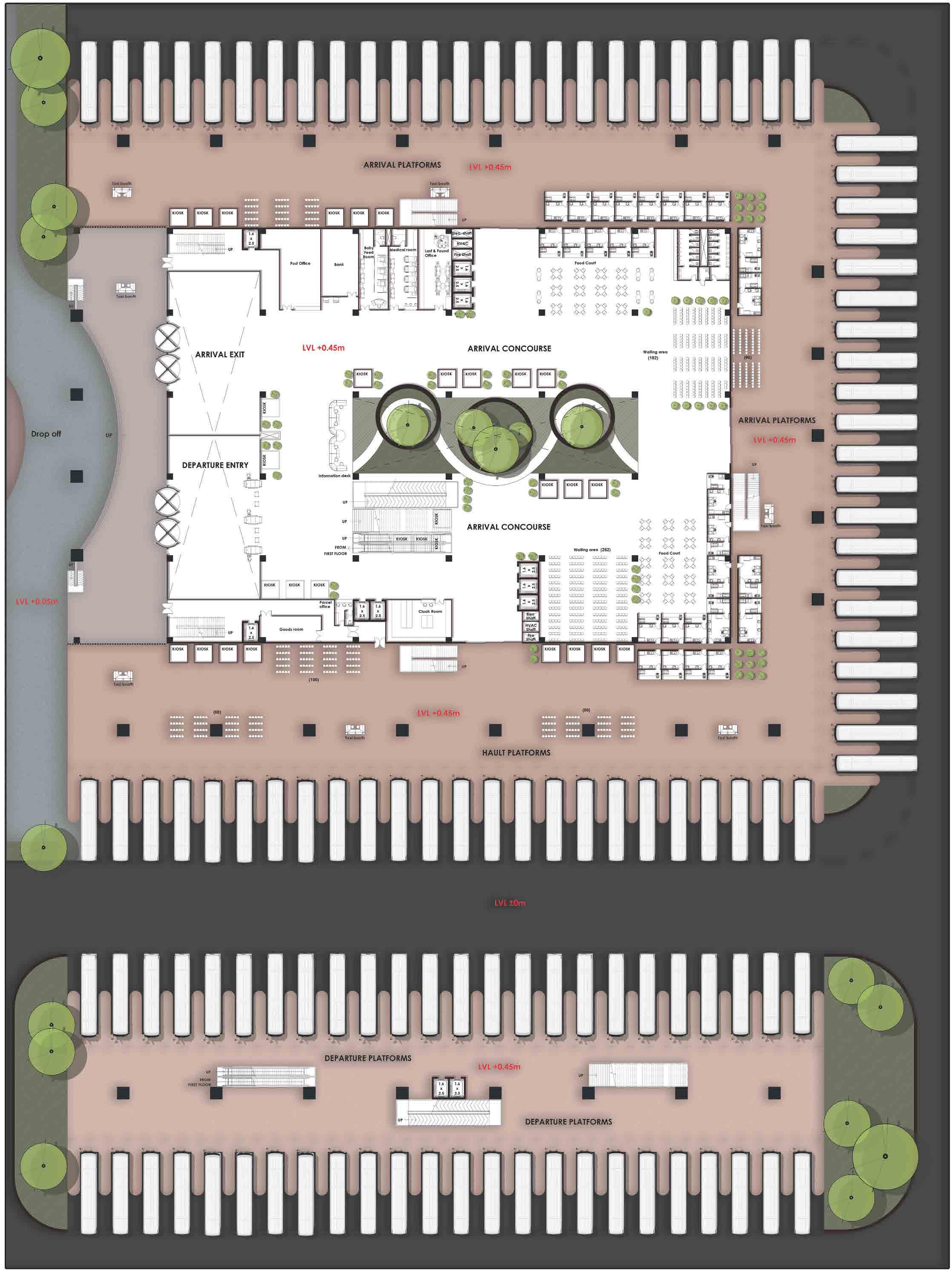

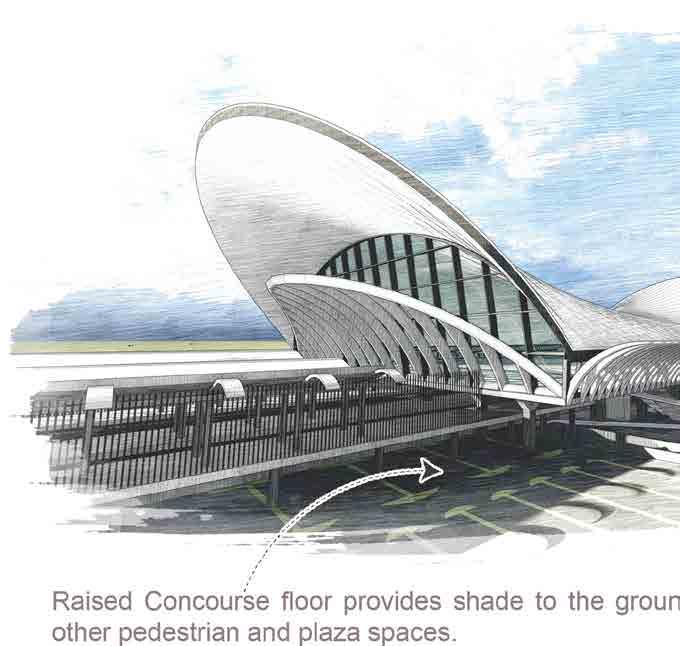

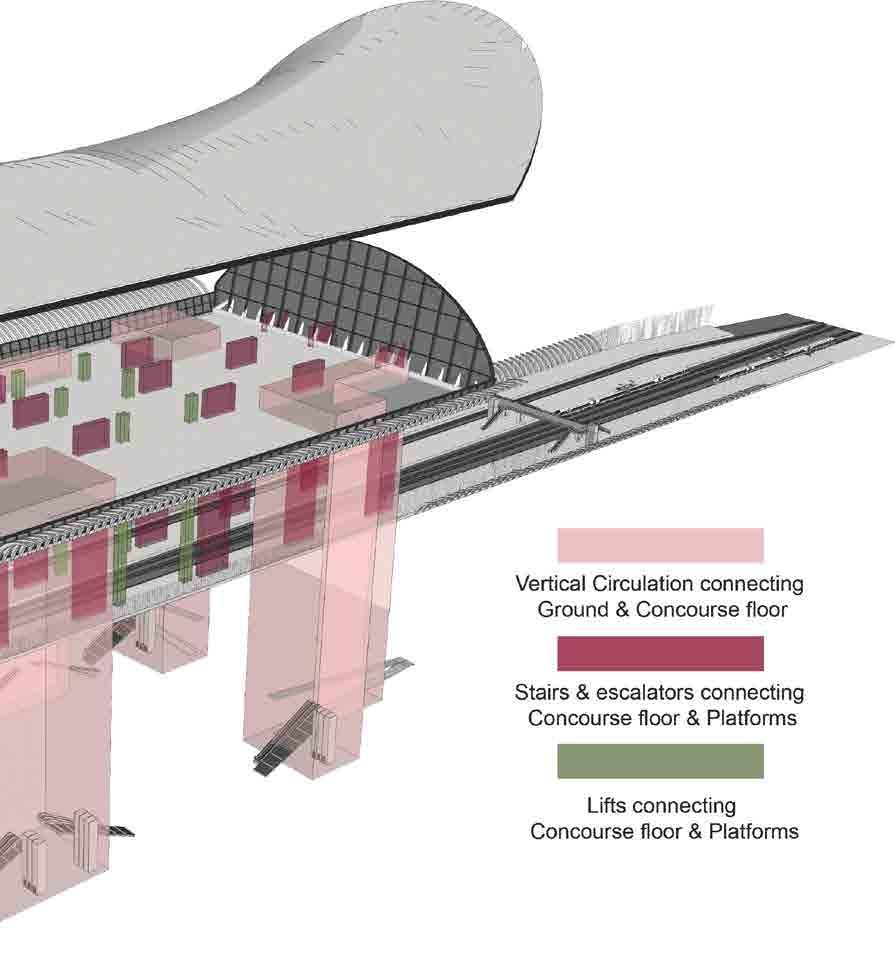

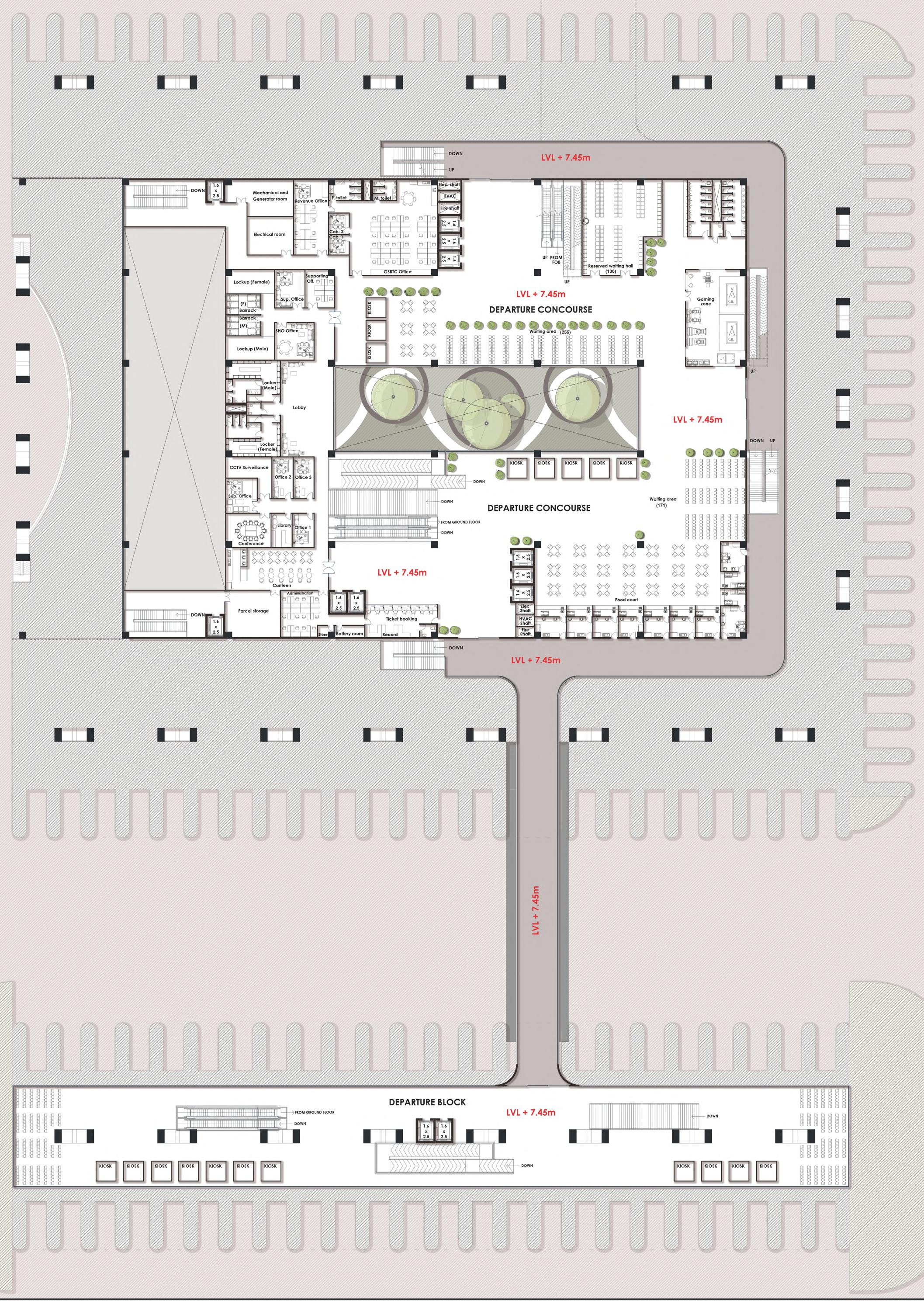

CONCOURSE FLOOR

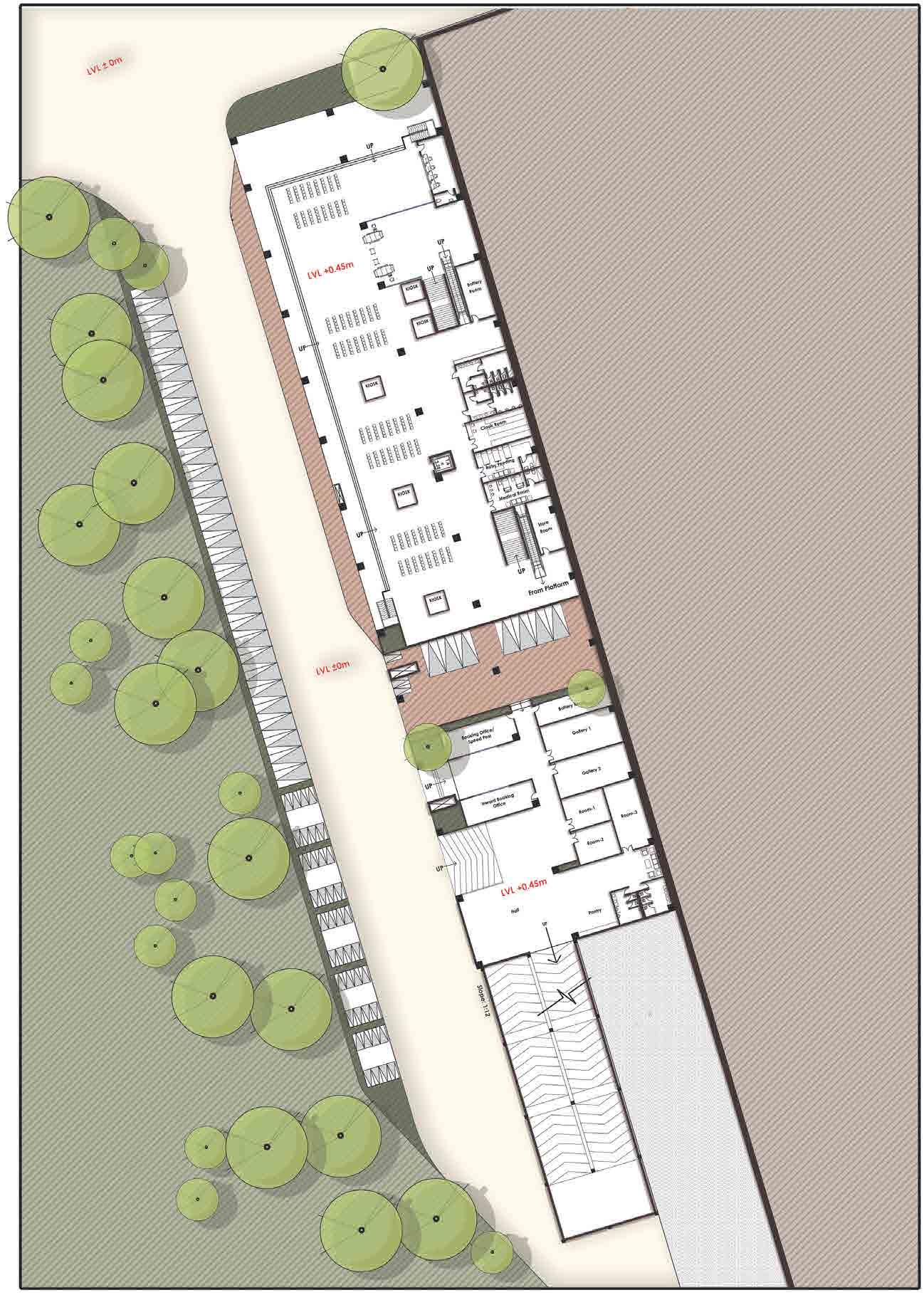

PARCEL OFFICE & EMU/DMU STATION

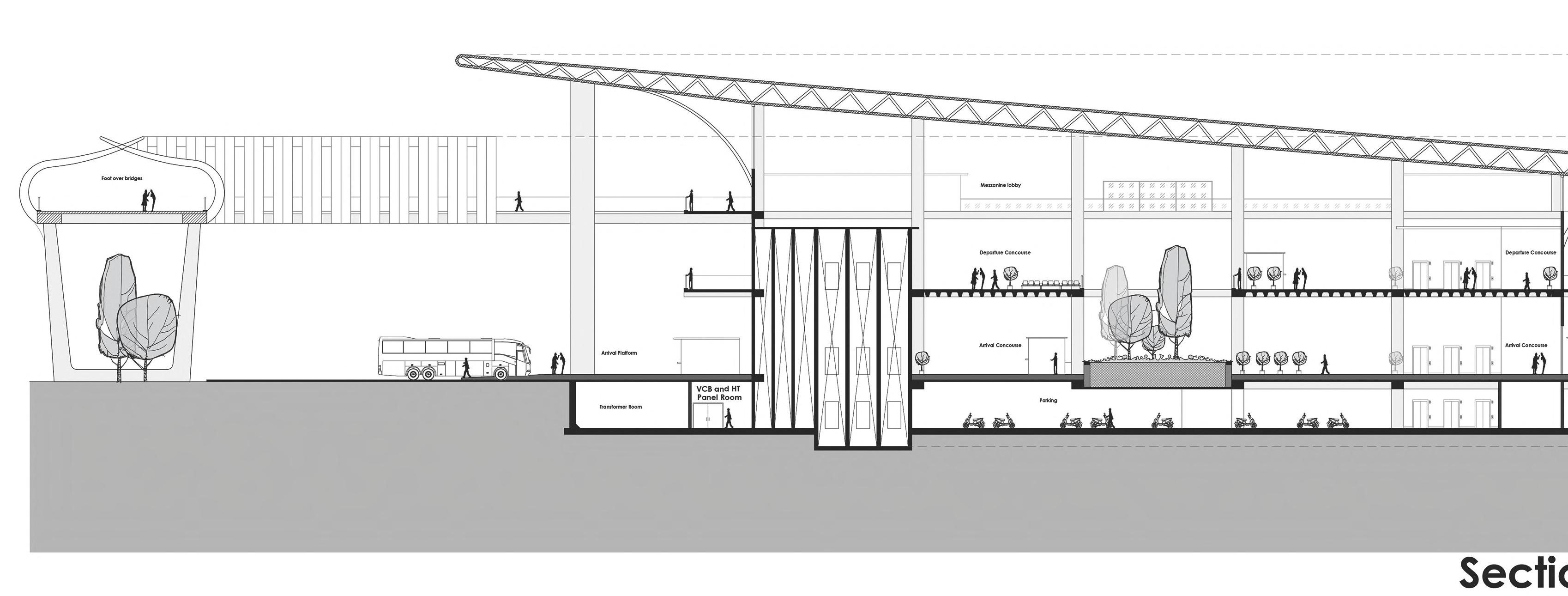

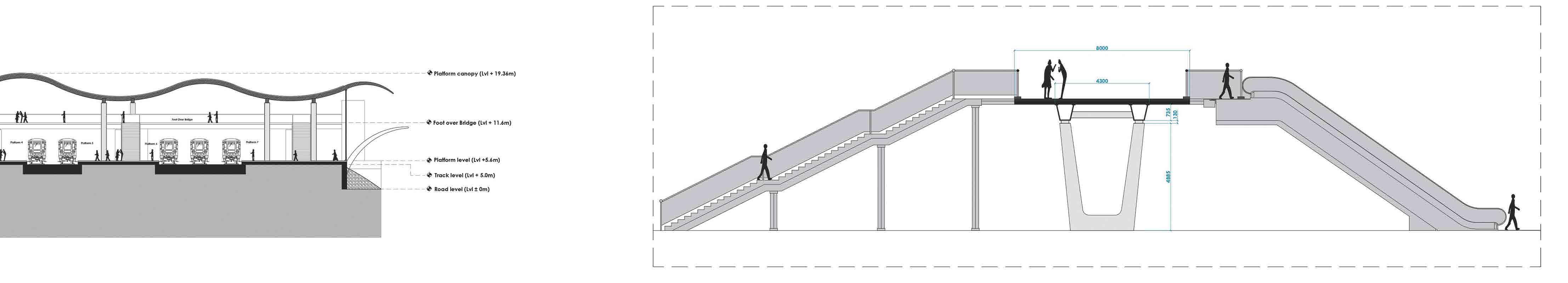

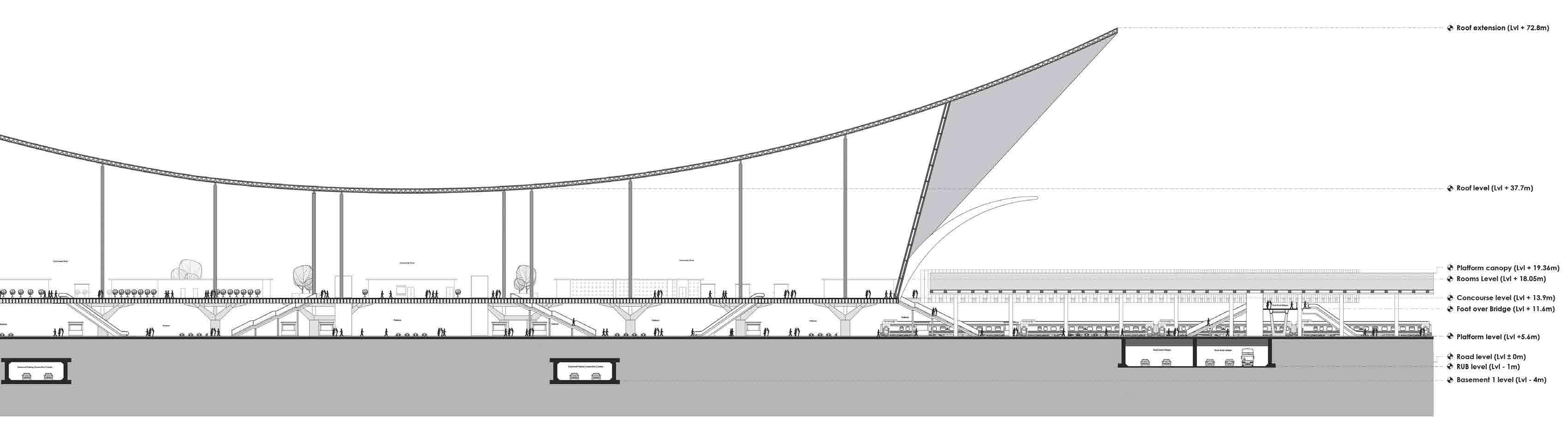

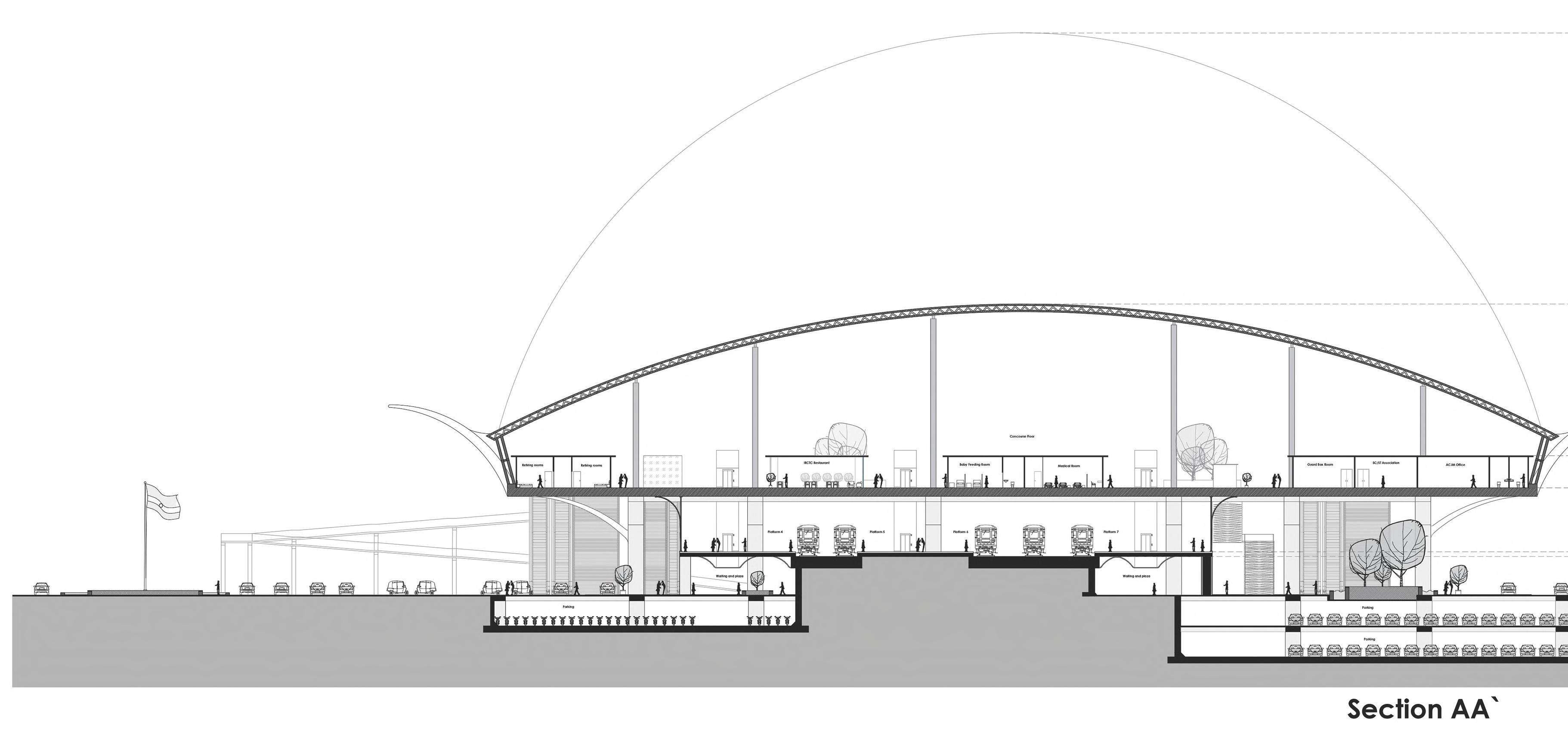

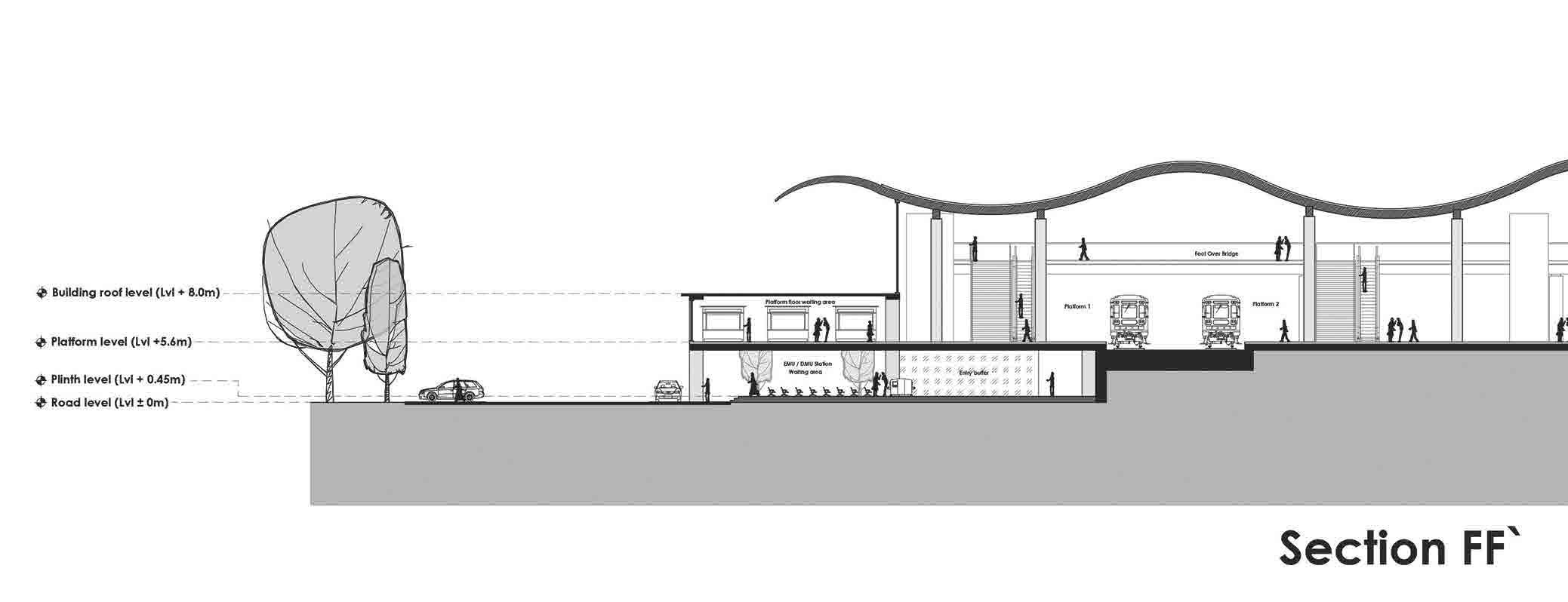

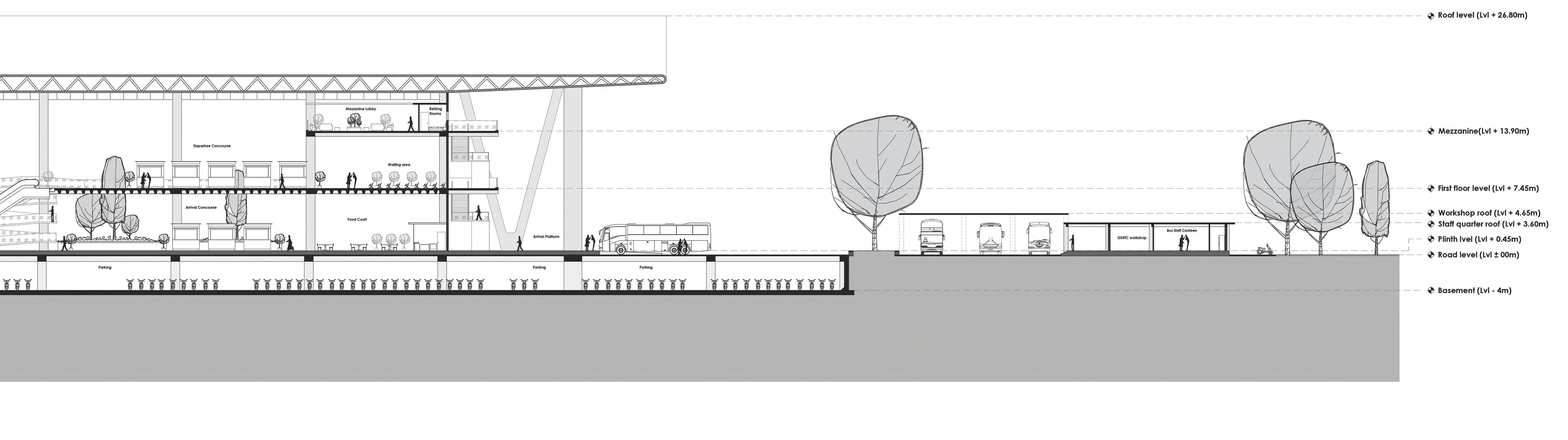

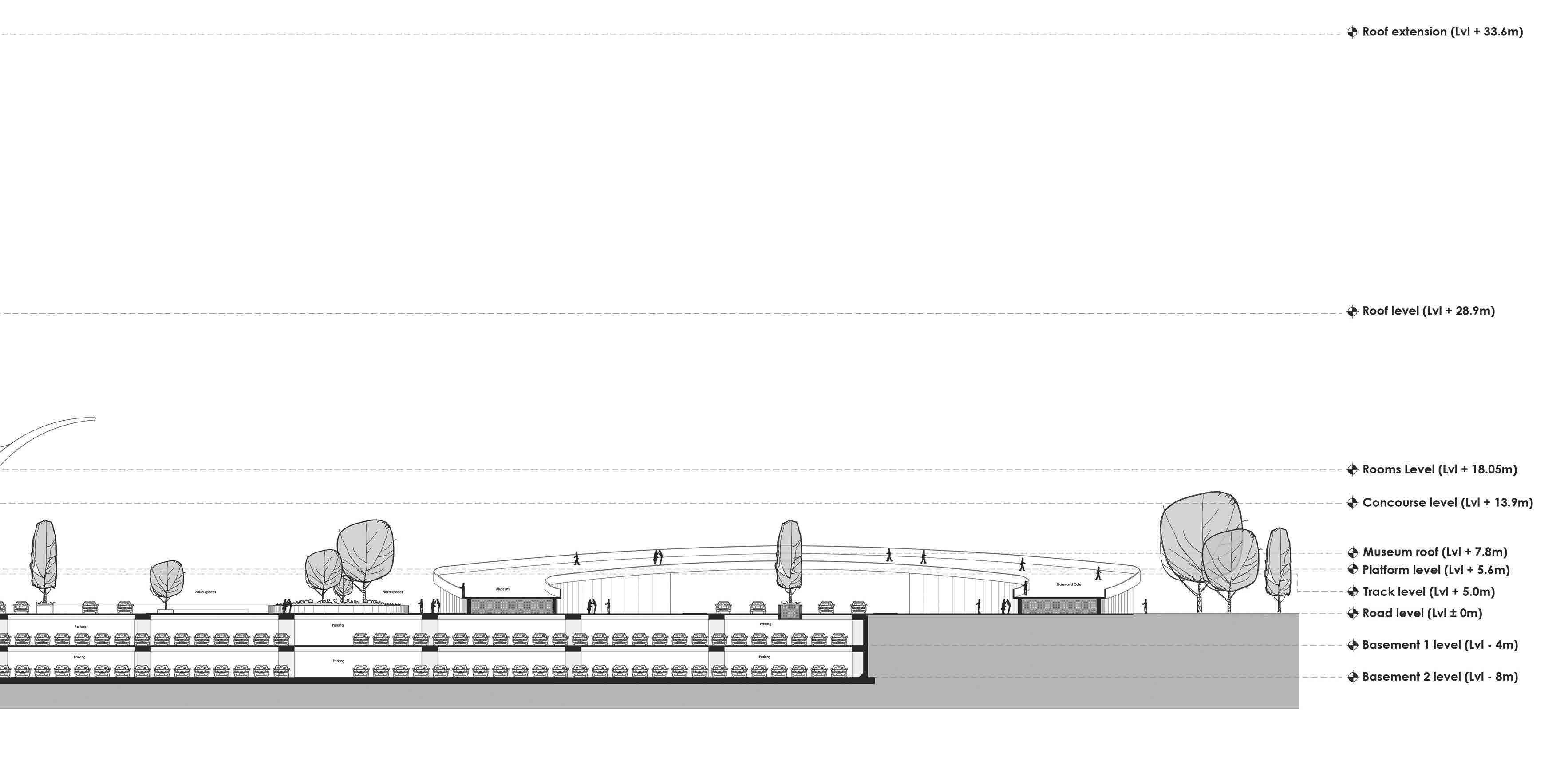

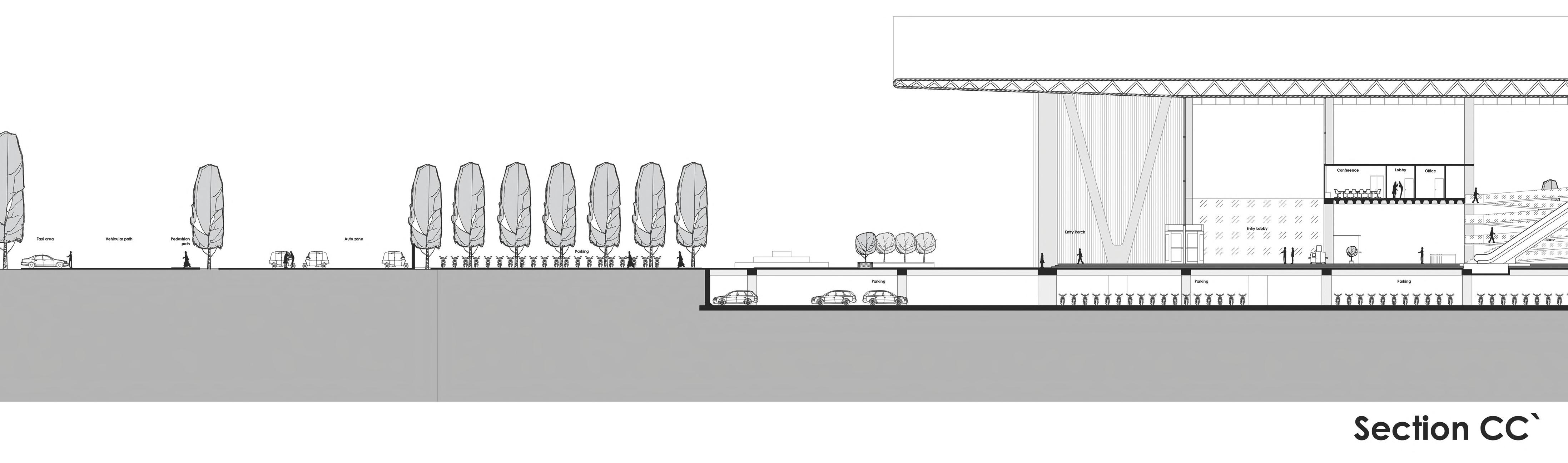

SECTION DD’

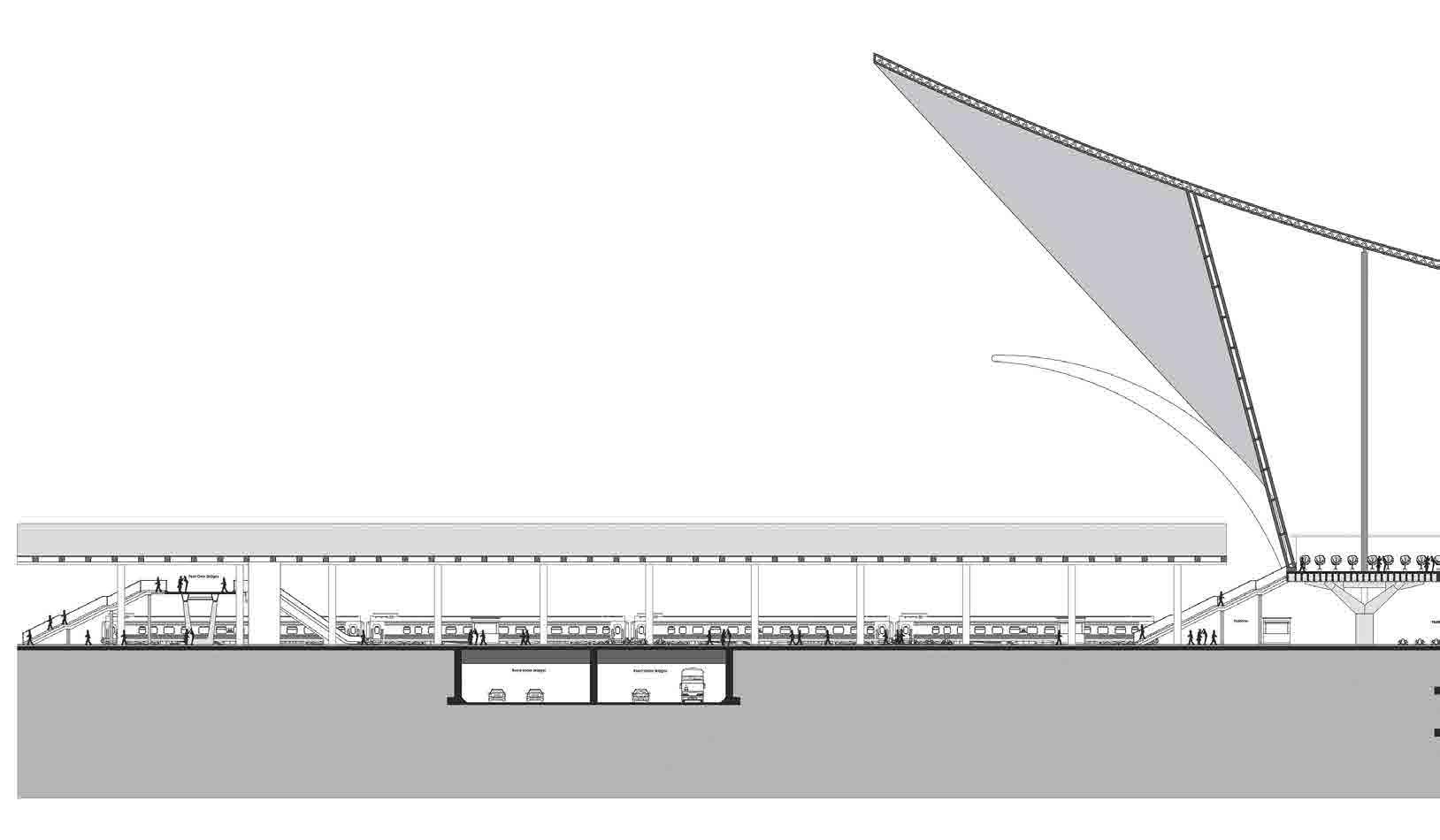

FOB Section

FLOOR ENTRY

GROUND

CONNECTING

CONNECTING BRIDGE

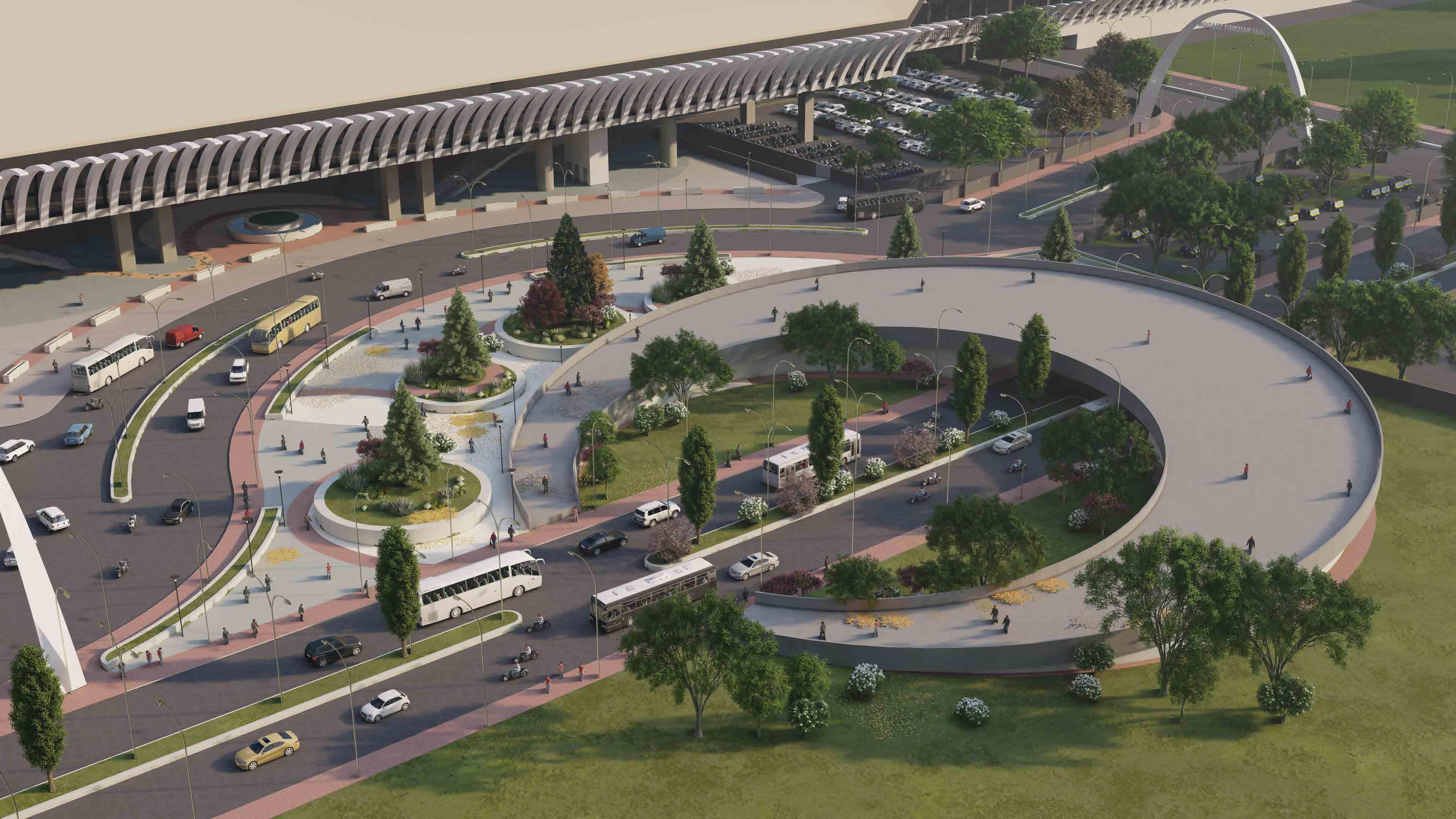

ENTRY PLAZA

FIRST FLOOR

BUILDING

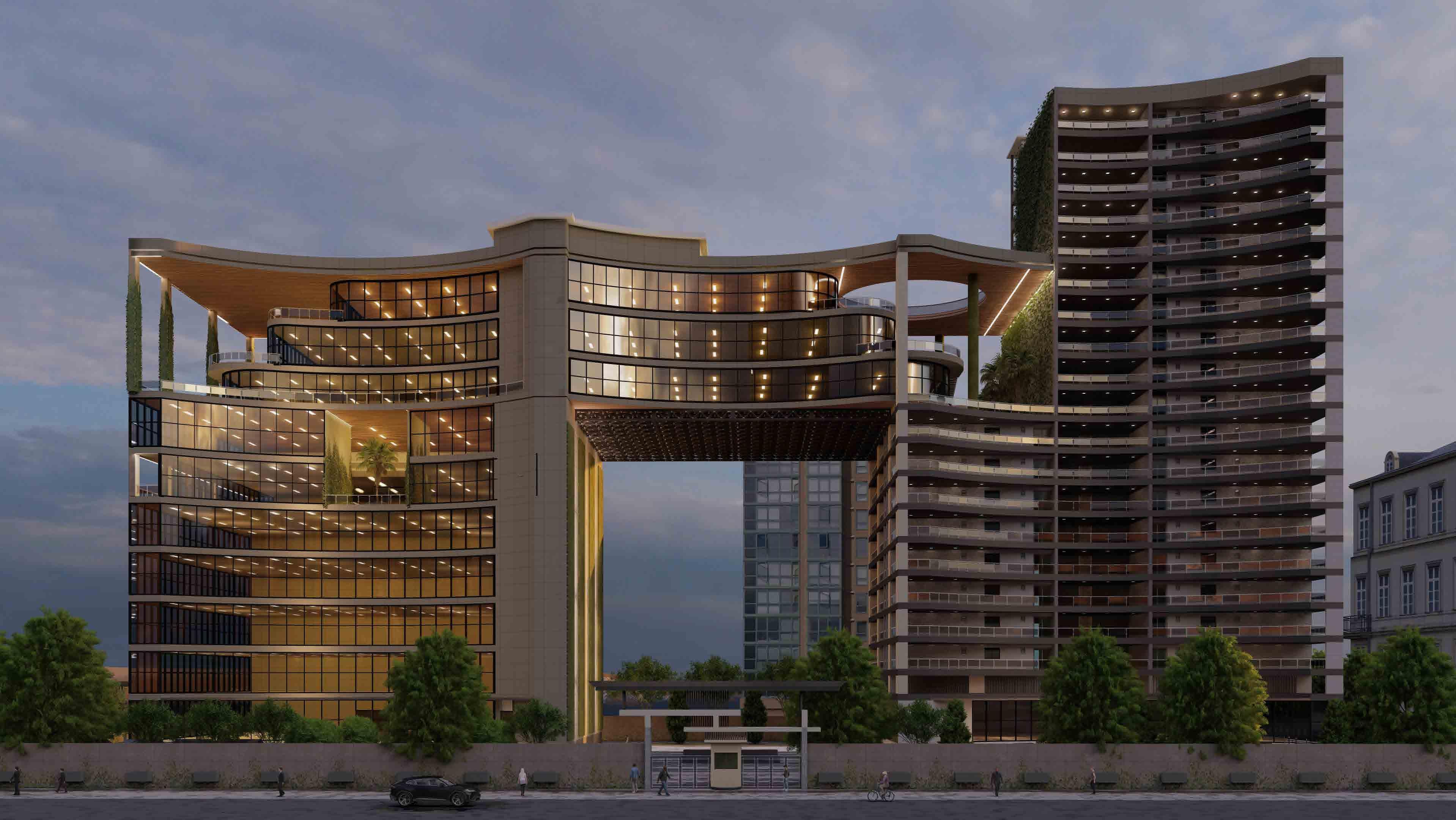

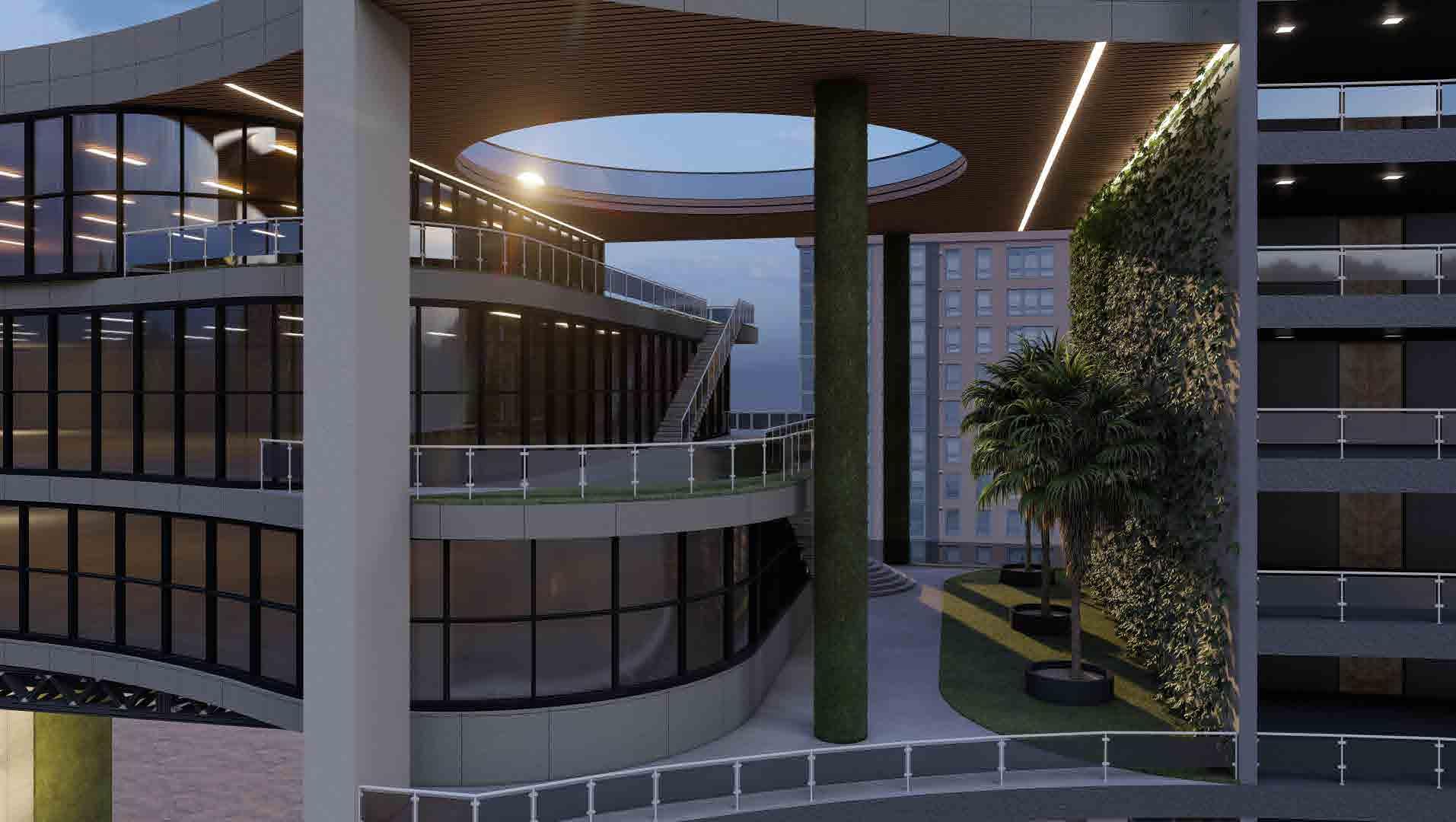

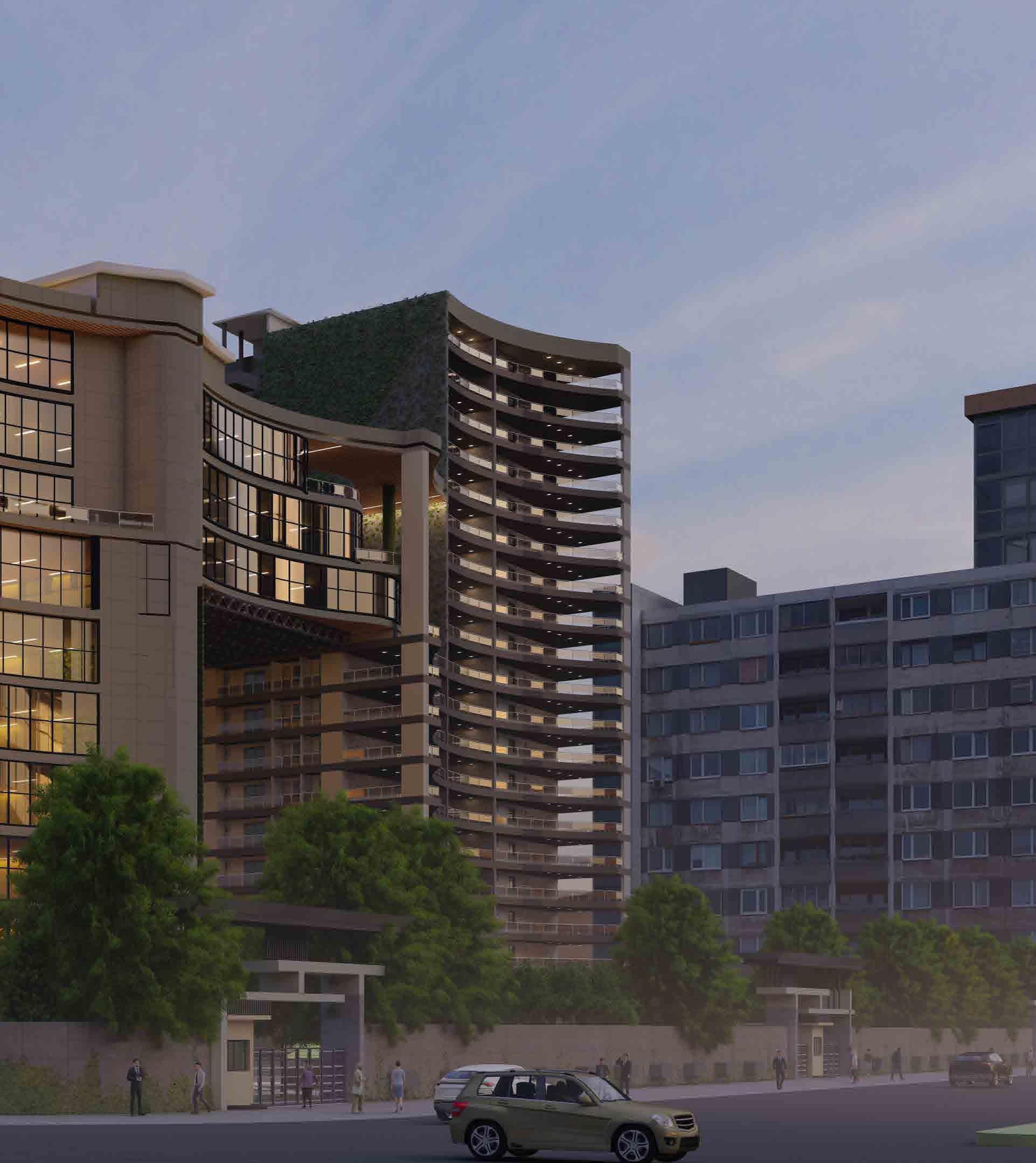

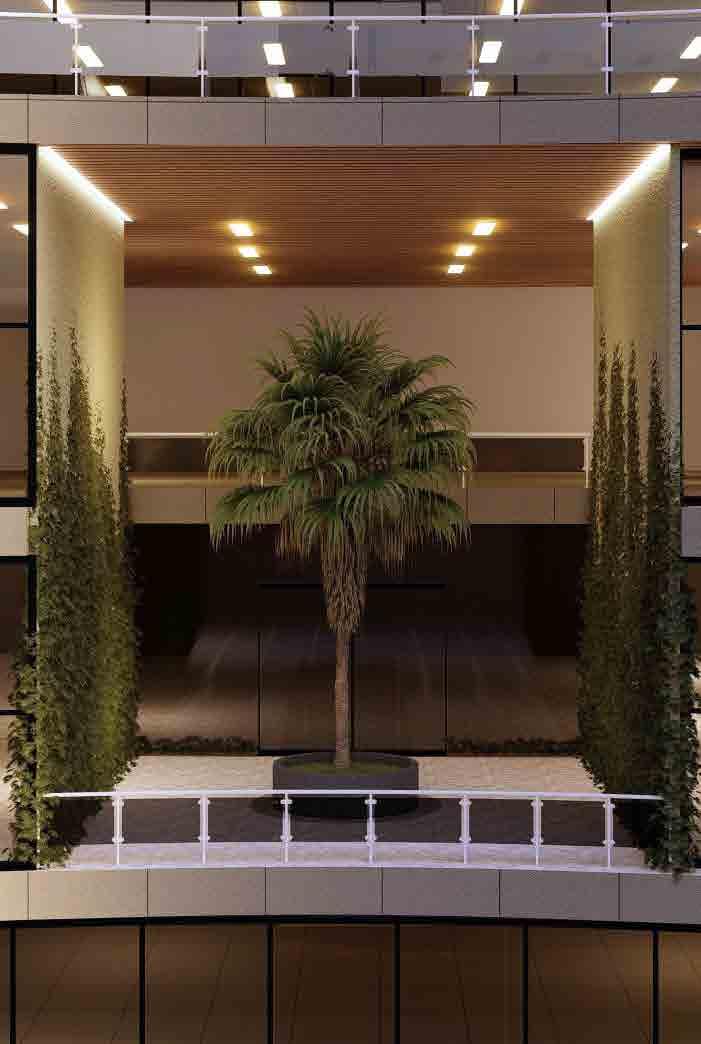

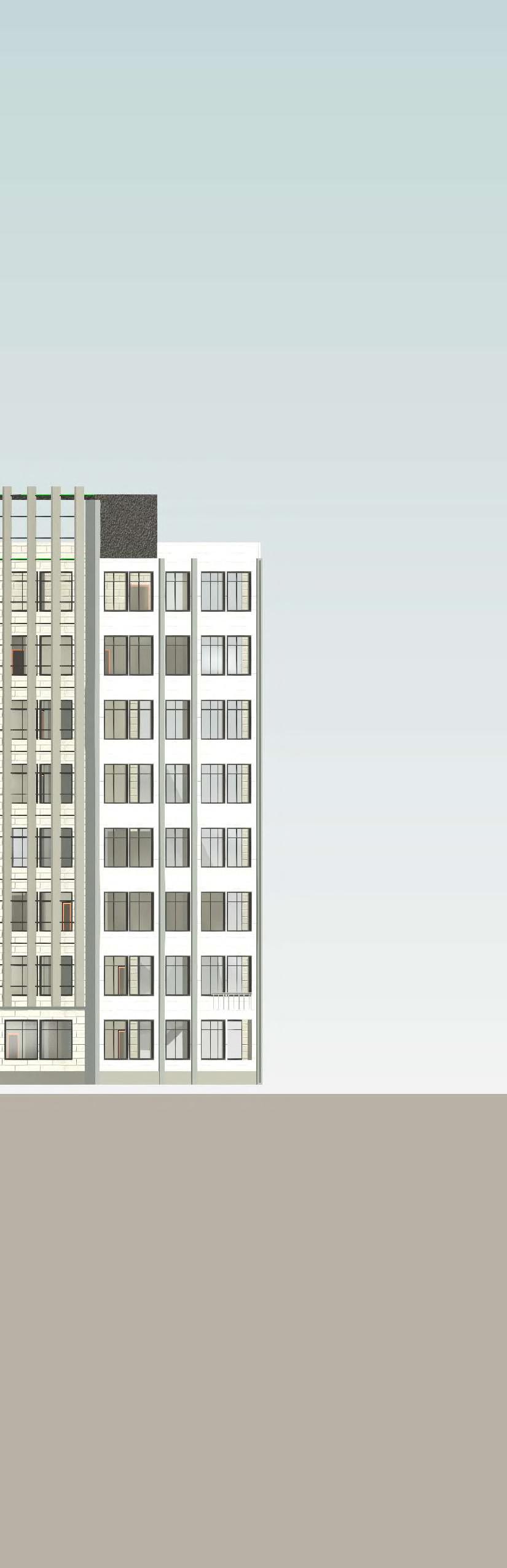

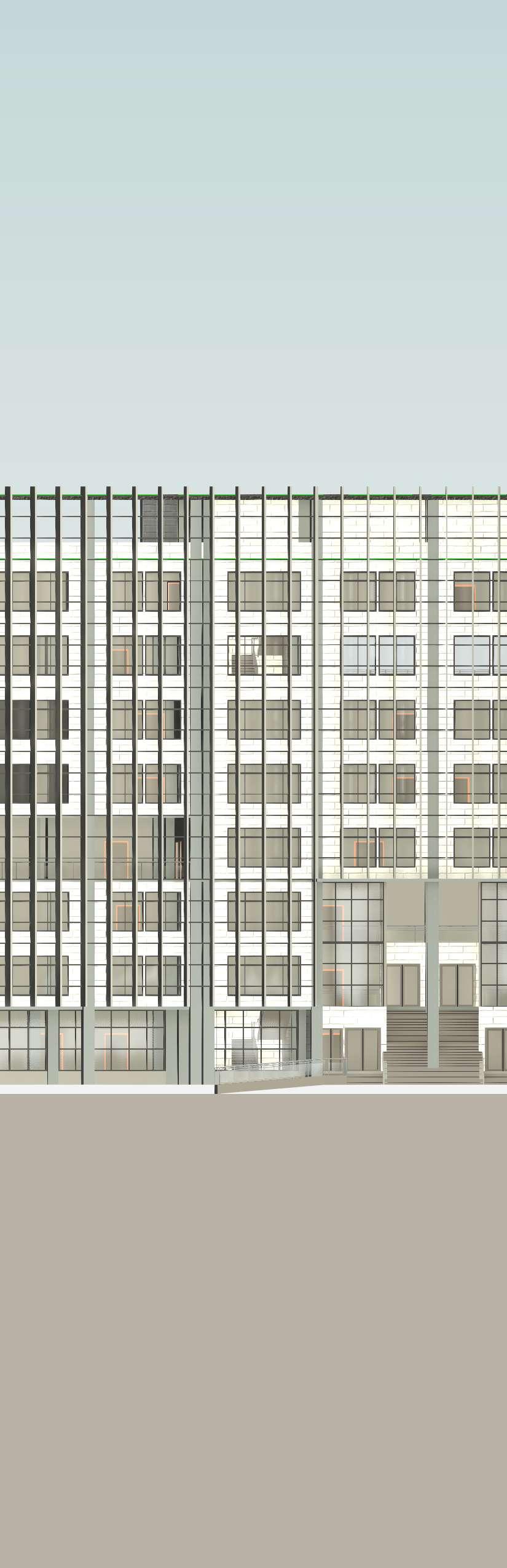

MIXED-USE

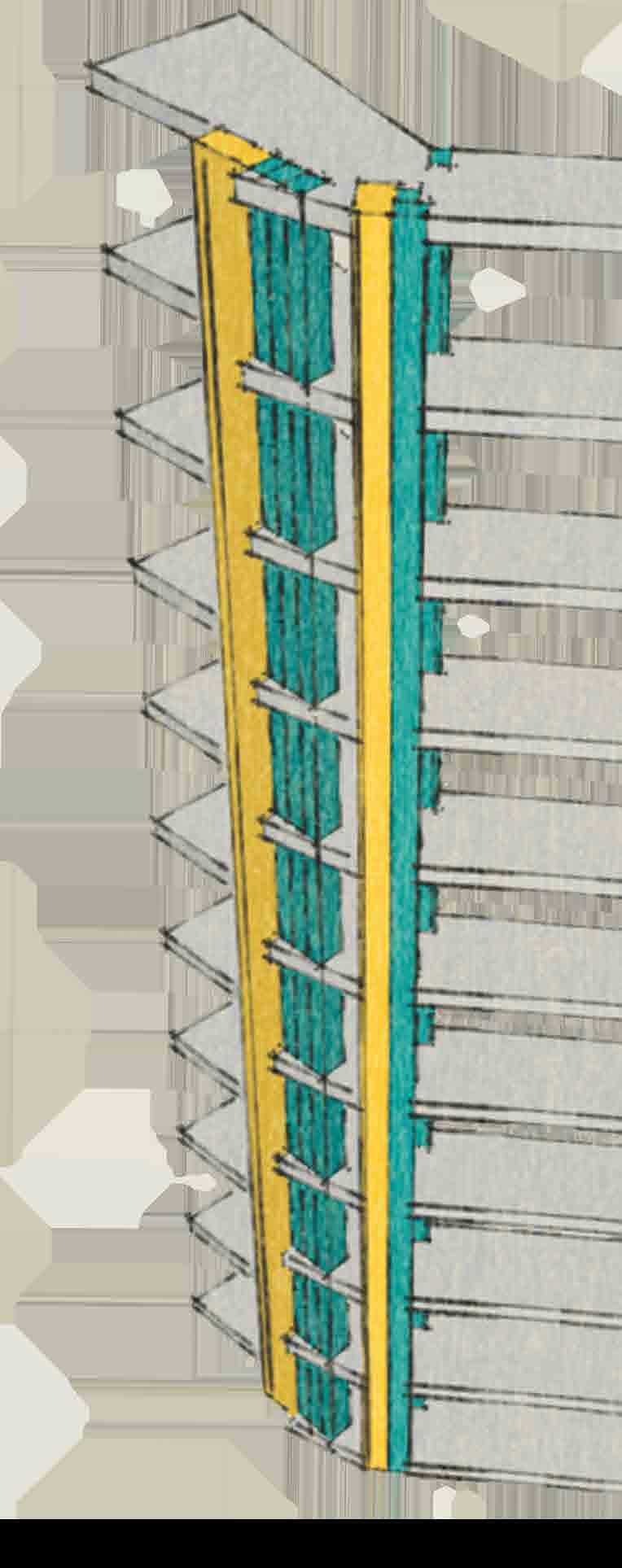

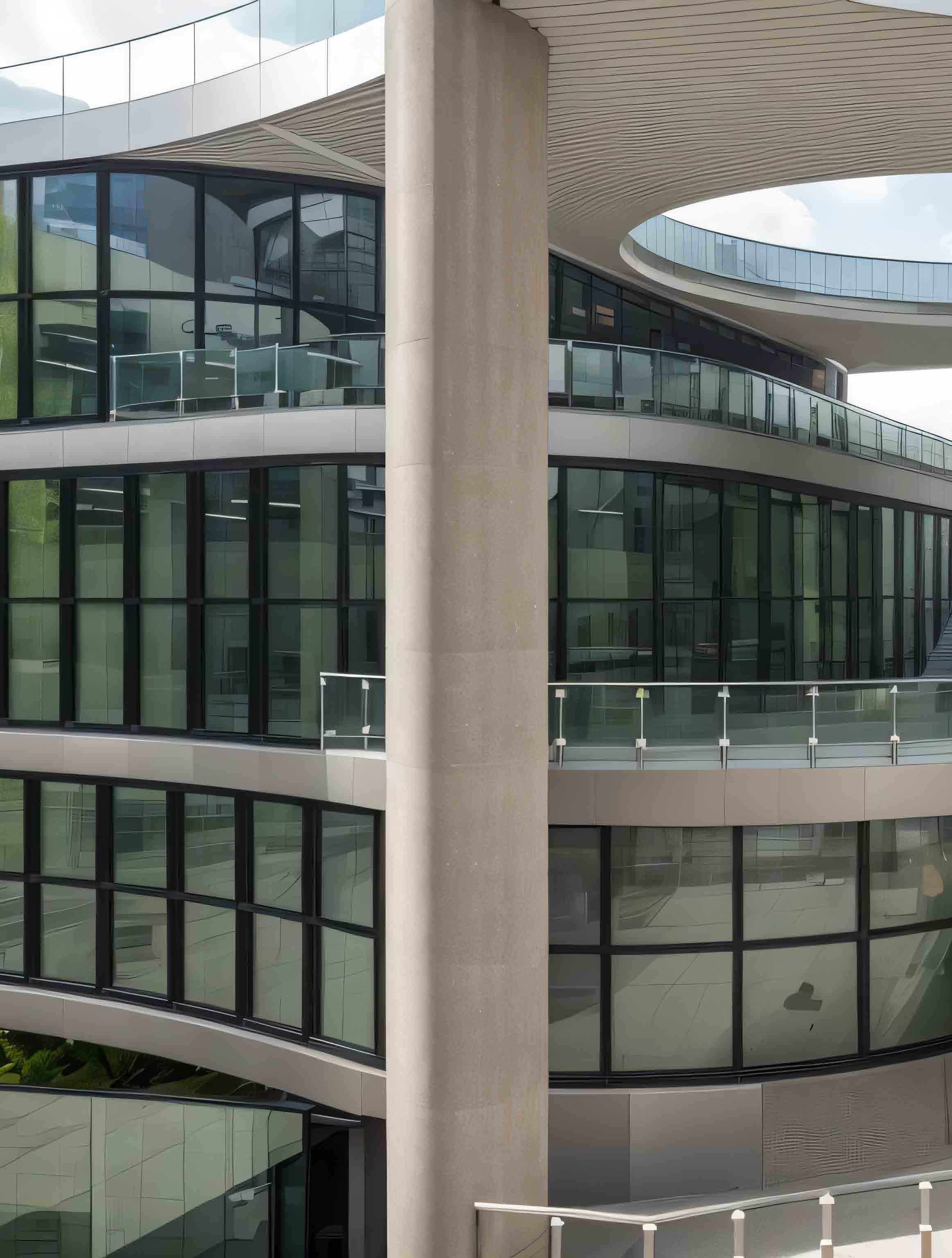

PHOTOVOLTAIC CURTAIN WALLS

These are special type of curtain walls, which has 3 purposes- Aesthetics, capturing solar power, and inslulation.

Solar glass facade panels are made of 2 layers of hardened and laminated glass. The silicon solar cells are positioned between both glass layers. To the front glass layer we apply a ceramic color tint. Ceramic color tint helps in preventing UV Rays, and also in heat gain reduction.This printing covers any sight on the integrated PV cells, but still allows enough solar radiation to pass through. The cavity is filled with argon , to act as a double-glazing with insulation.

These factors help in reduction of energy consumption, thus promoting sustainability.

Power capacity of each PV Module- 1kWh

No. of modules in east facade - 535

Total no. of moules in south facade - 382

Total no. of PV curatin wall modules in the building - 917

Thus power capacity of the PV Curtain wall - 917 kWh

However, most effeicient power capacity- 382 kWh (due to suth facing)

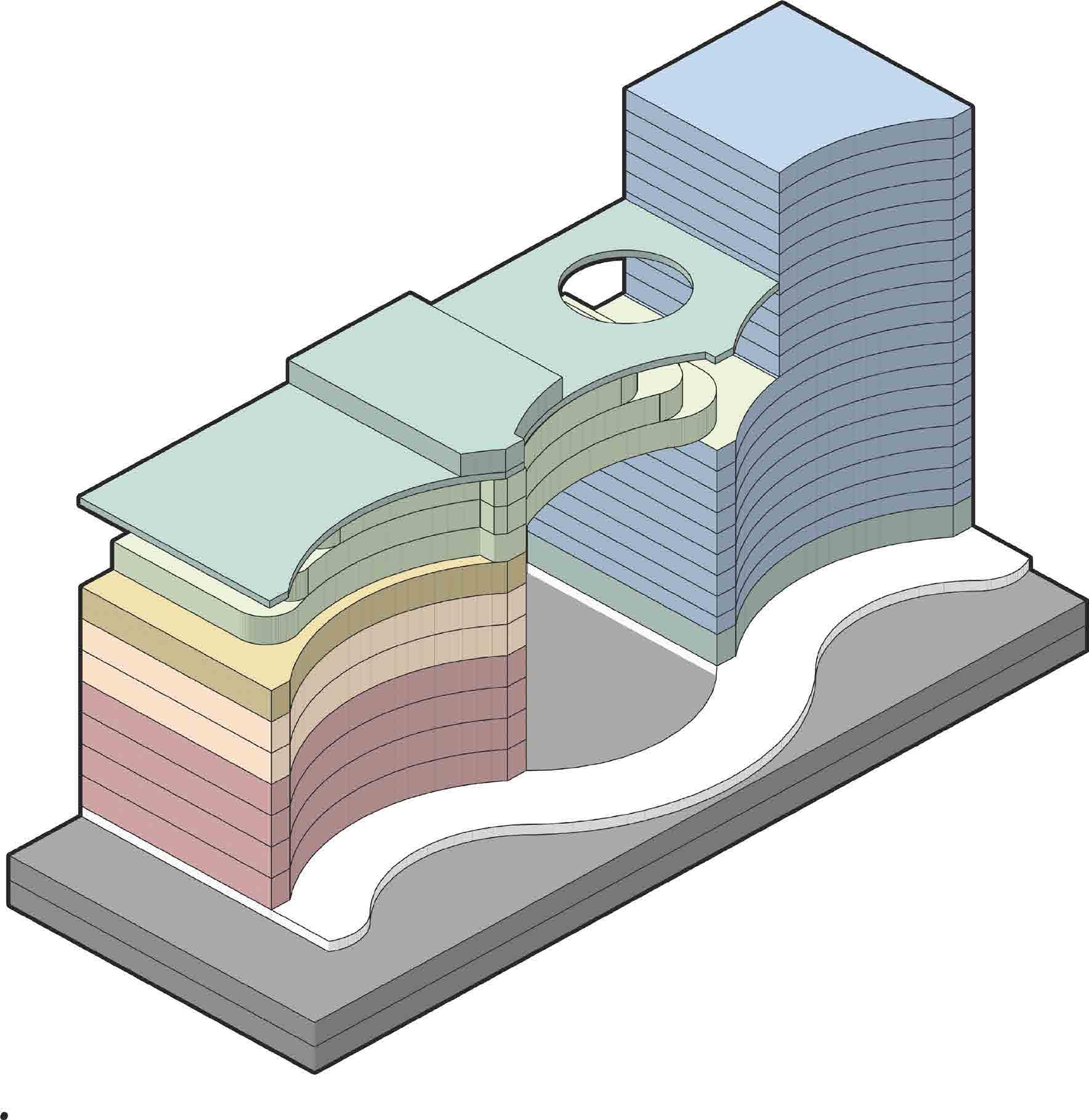

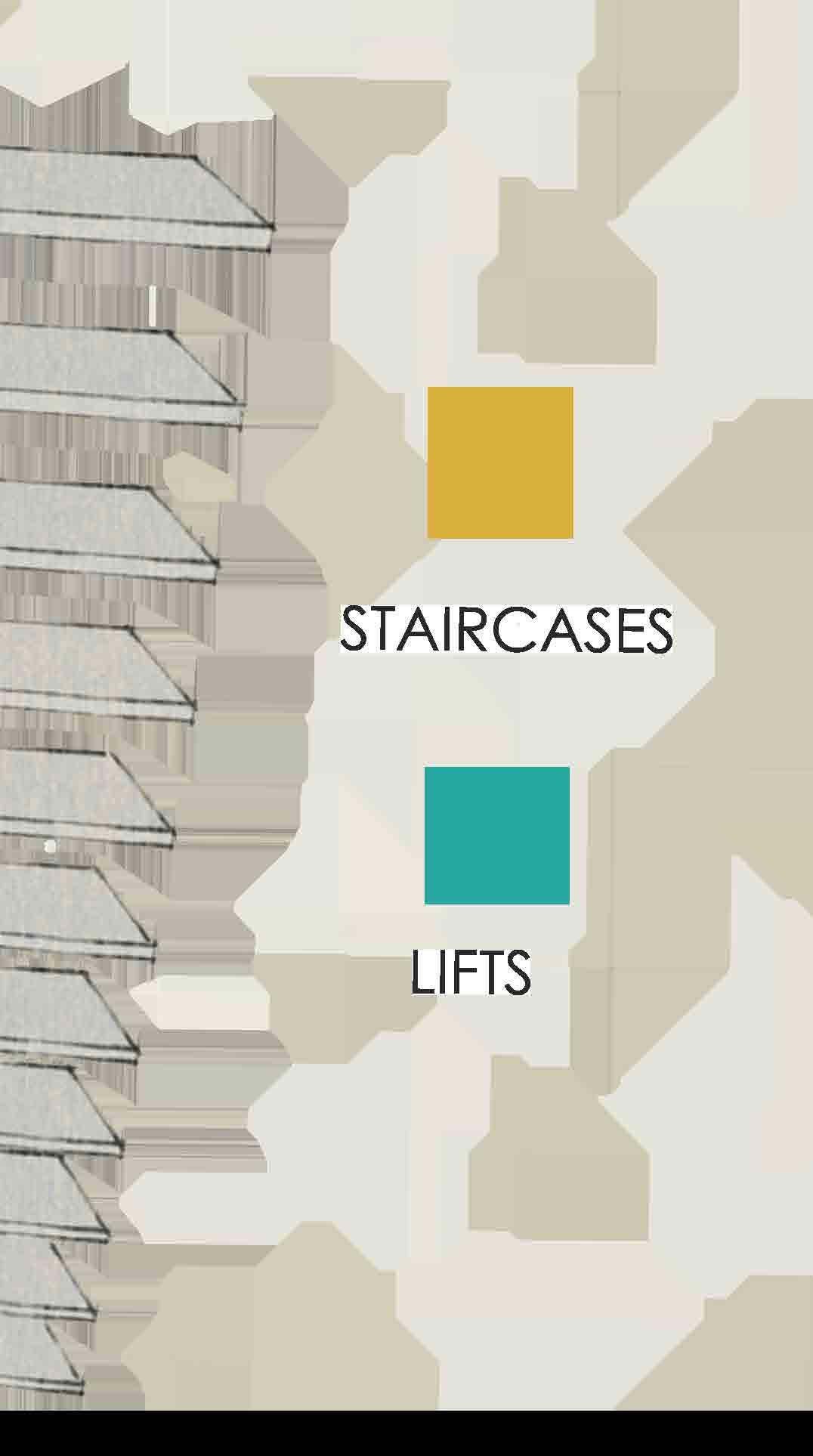

VERTICAL ZONING

PROJECT BRIEF

Location : Vaishali Nagar, Jaipur.

The project is a corner plot , adjacent to the Mall of Jaipur, Vaishali Nagar. It is surrounded by Residential buildings, and commercial plots.

The project is a mixed-use building, comprising of commercials, and residences.

Total Site Area: 10407.33 sq.m.

Setbacks : 9m on north & west sides, 15m on south & east sides.

Permissible Built-up area ratio : 2.75

Permissible Ground Coverage : 40% .

Permissible Building Height: 60m.

PROJECT DETAILS

Built-up area achieved : 26173.6 sq.m

Built-up area ratio : 2.51.

Ground Coverage area : 2085 sq.m.

Ground Coverage : 20%

Building Height Achieved: 65100m. ECU Achieved : 320. 4 Wheeler :75% 2 Wheeler :25%

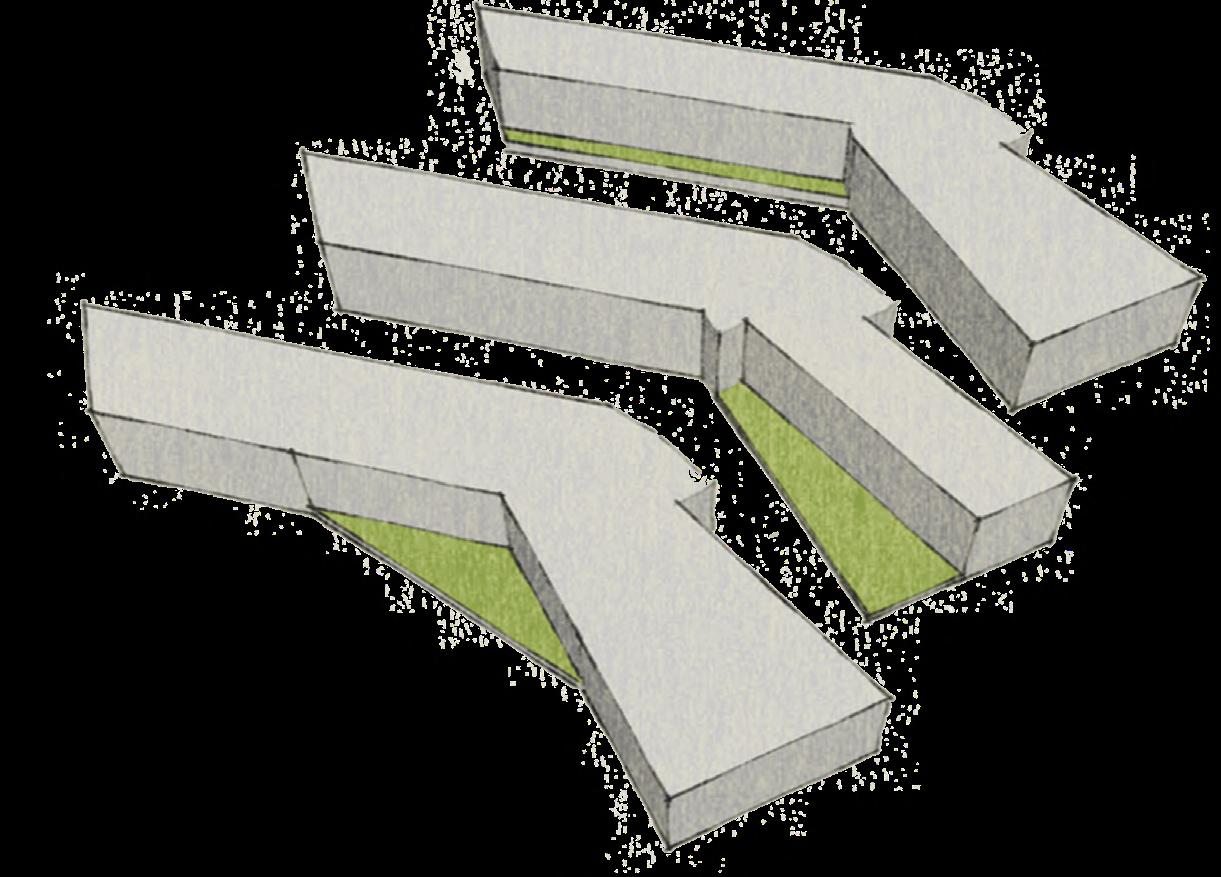

CONCEPT

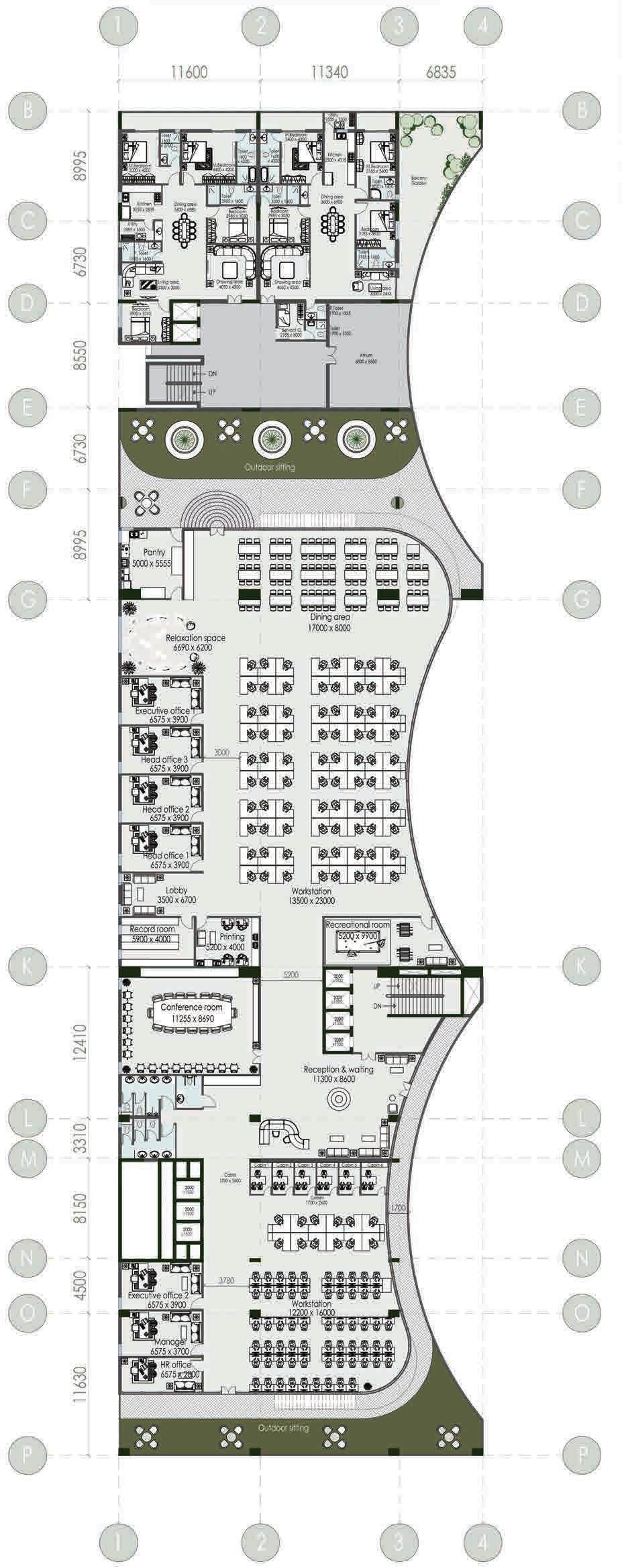

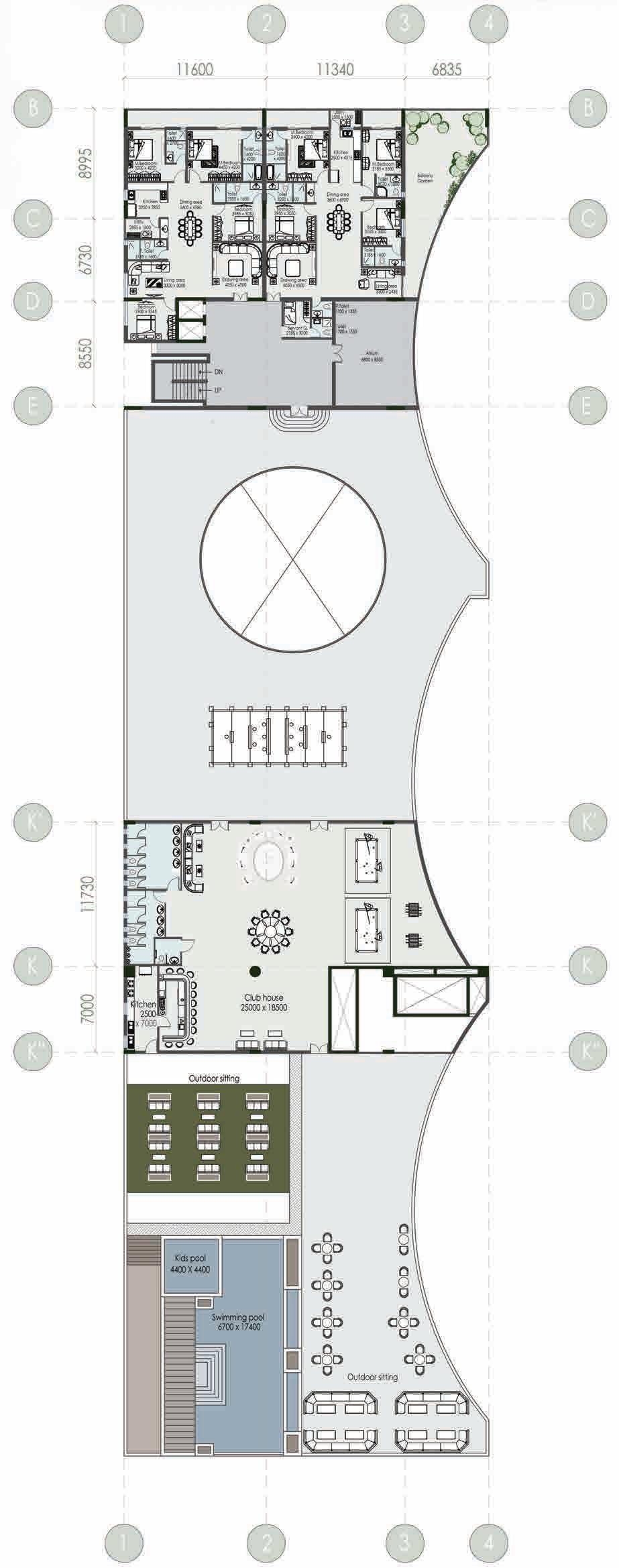

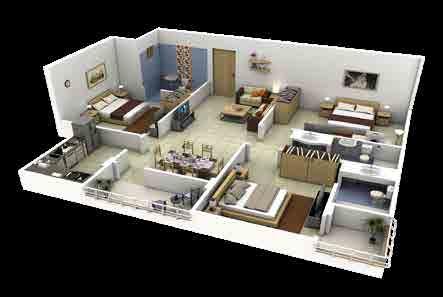

PLANS

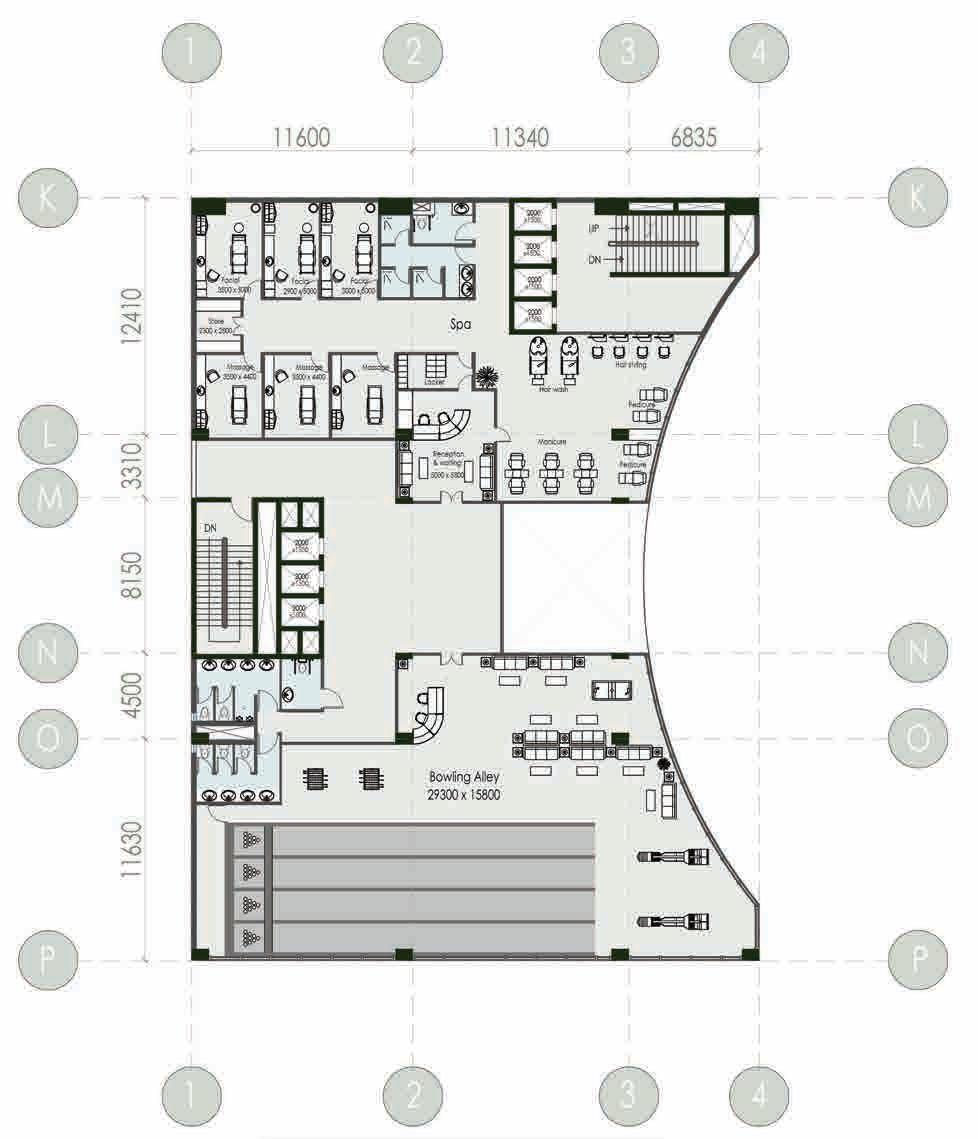

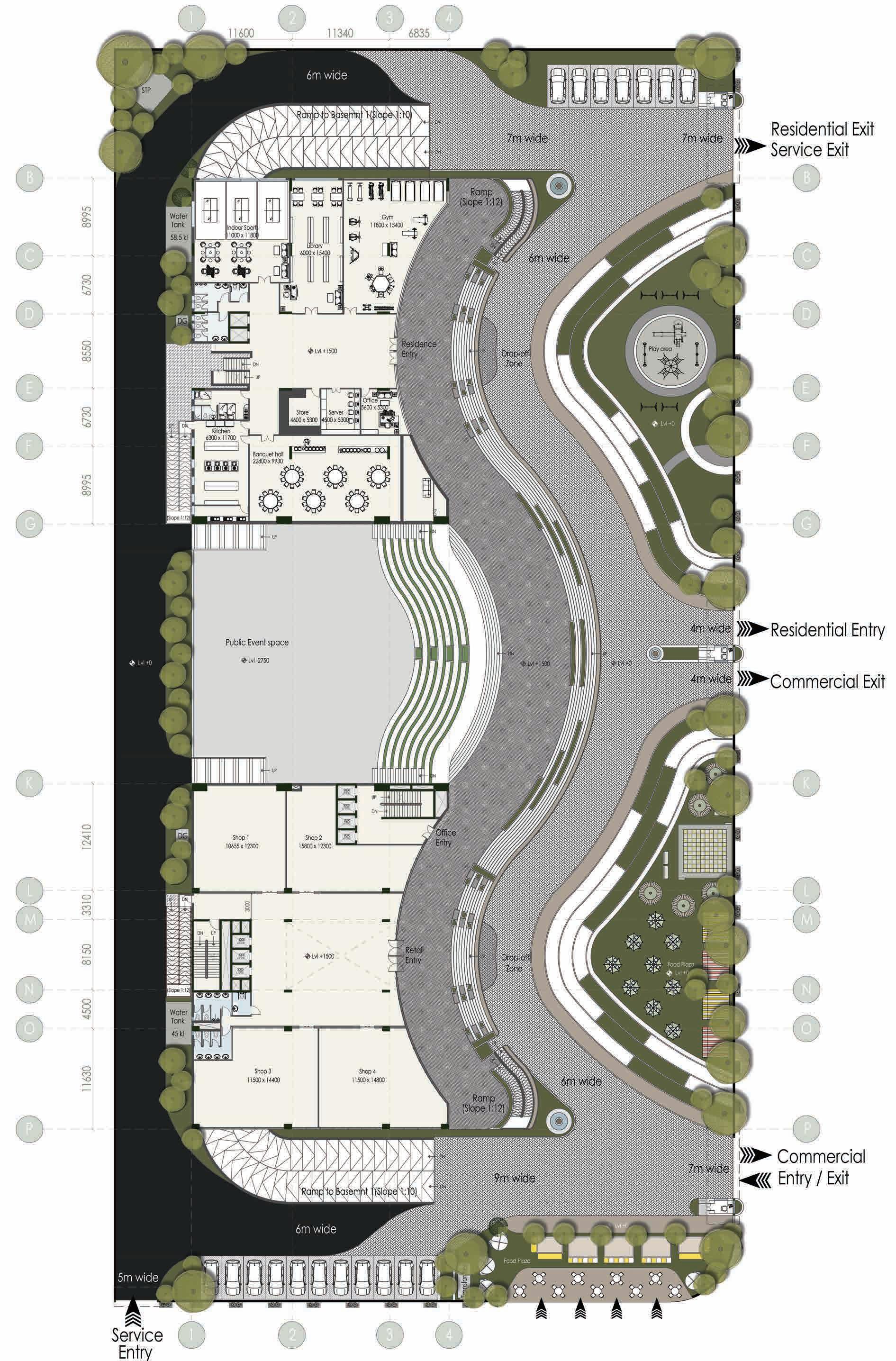

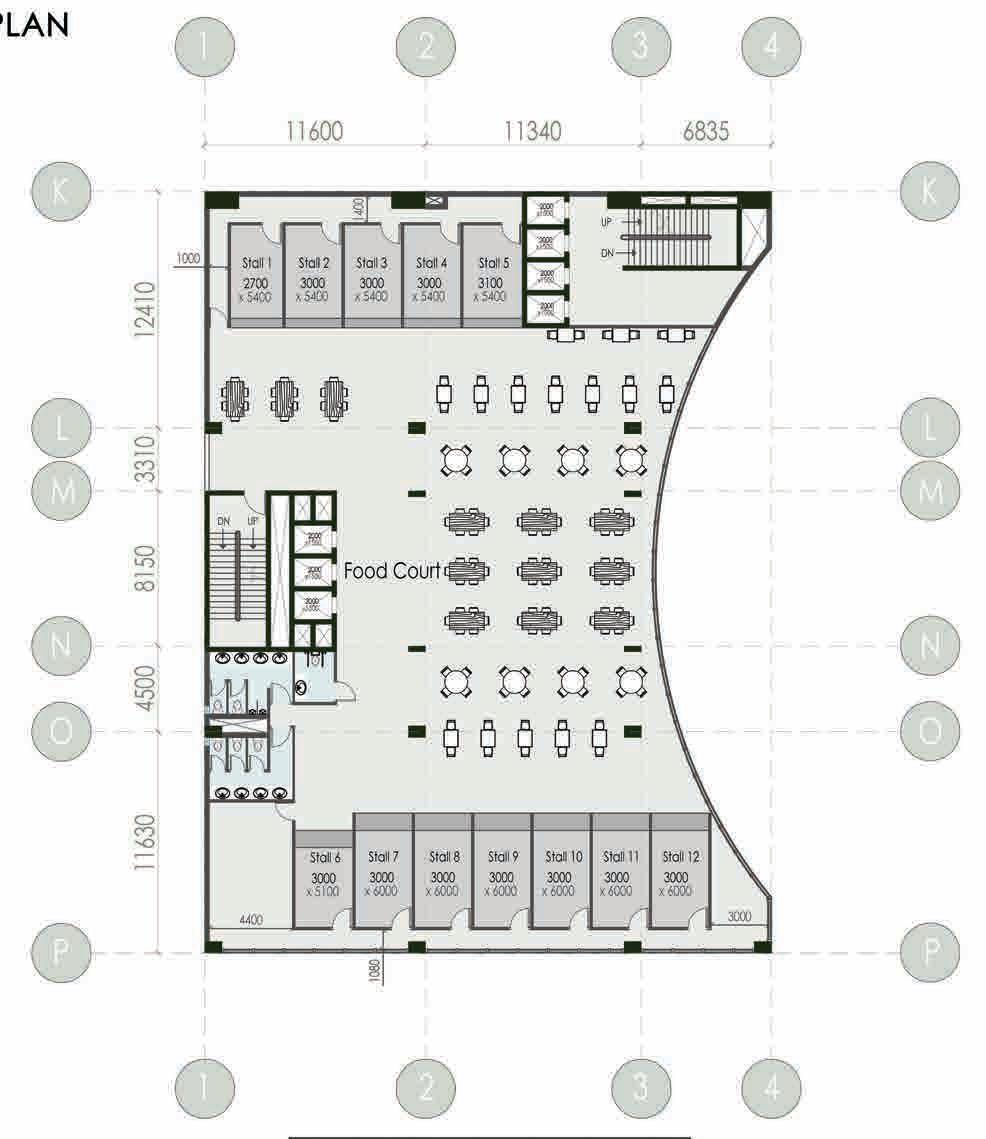

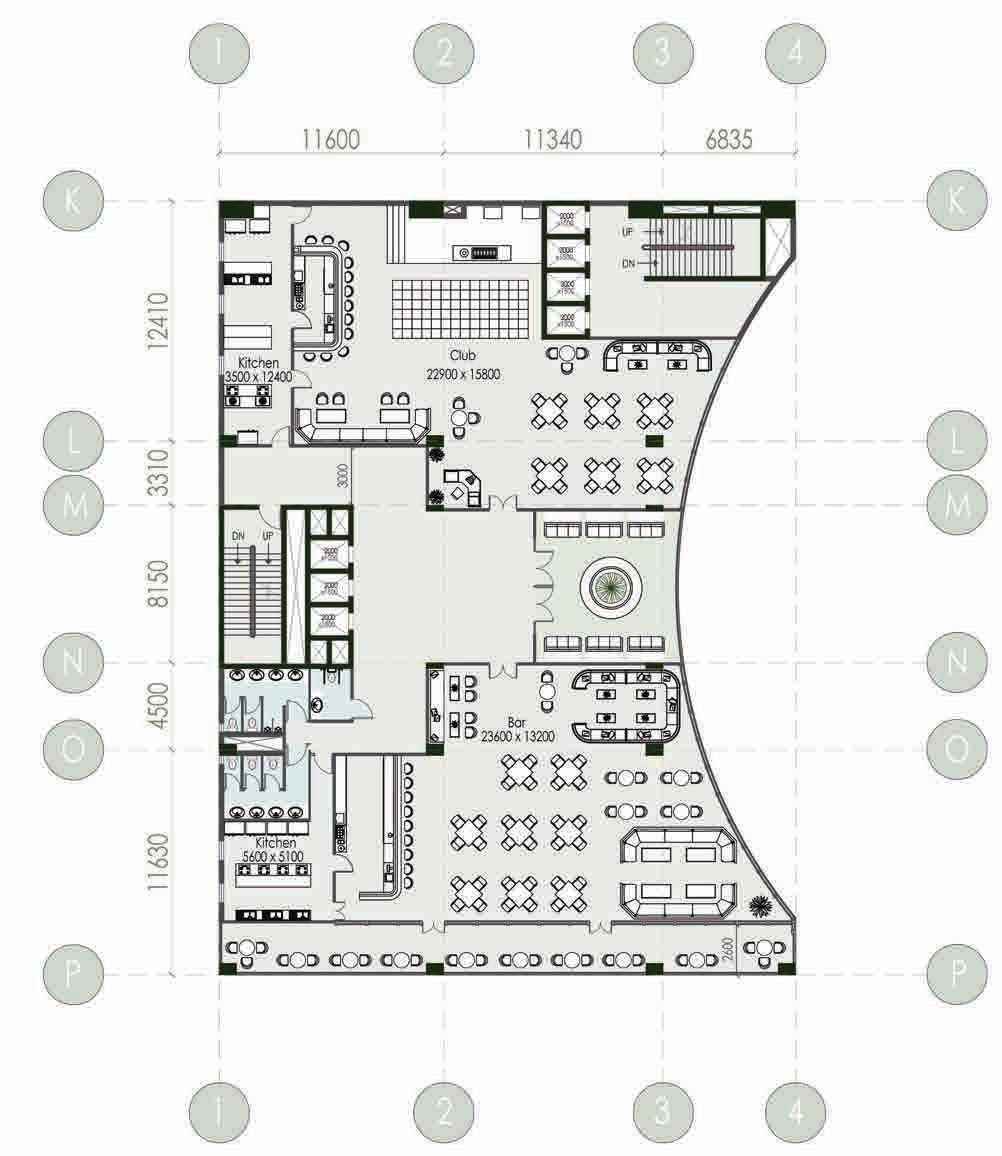

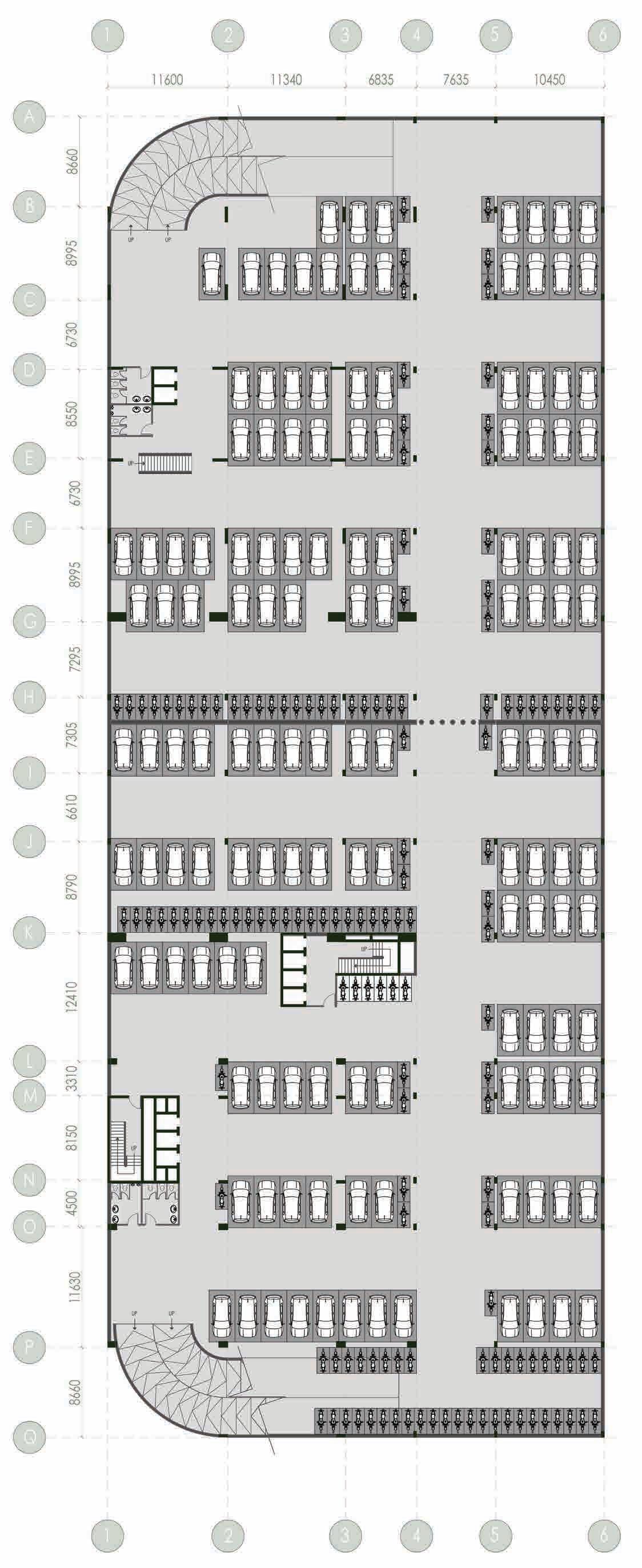

GROUND FLOOR PLAN BASEMENT 2 PLAN COMMERCIAL 4TH FLOOR PLAN COMMERCIAL 5TH FLOOR PLAN COMMERCIAL 6TH FLOOR PLAN

COMMERCIAL 7TH FLOOR PLAN RESIDENTIAL 14TH FLOOR PLAN

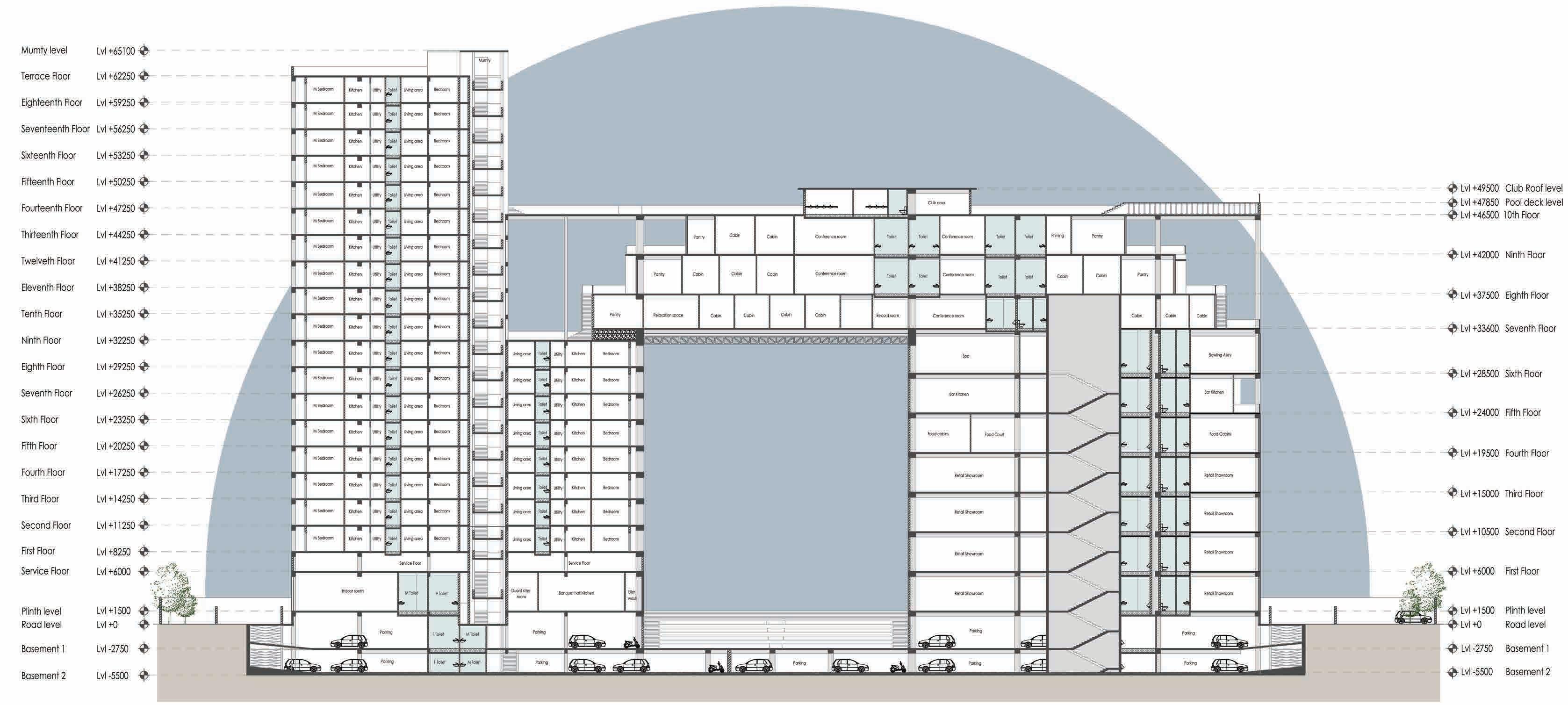

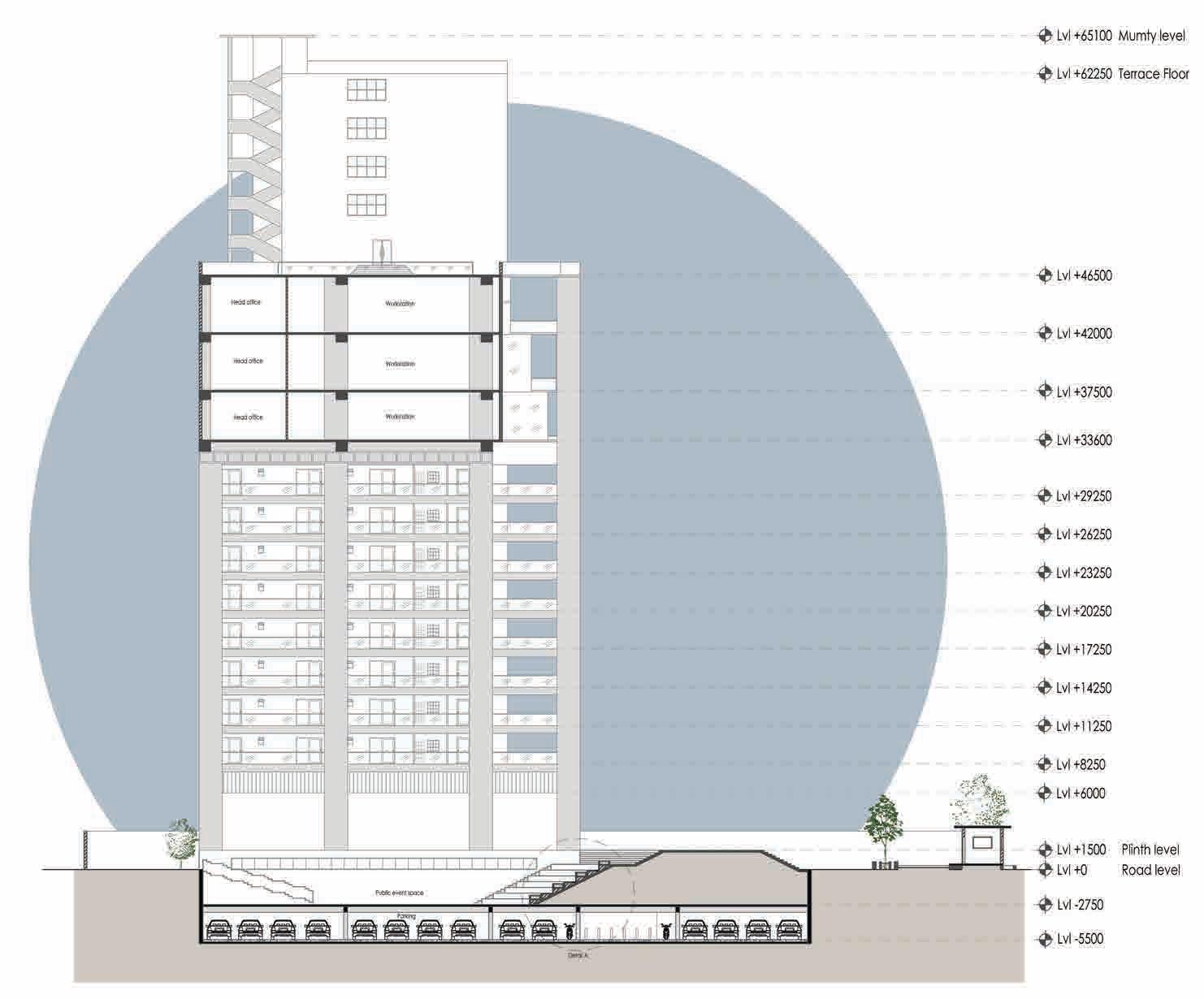

SECTION AA’

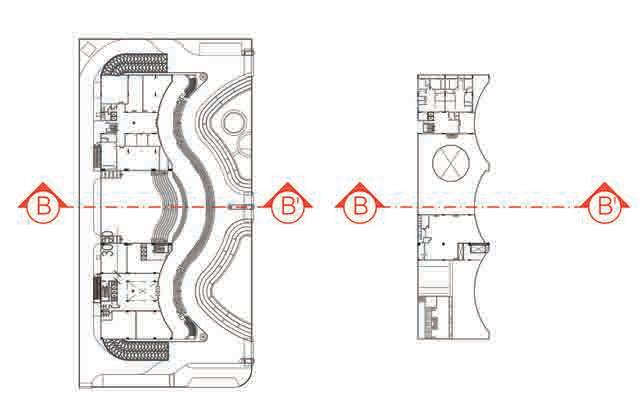

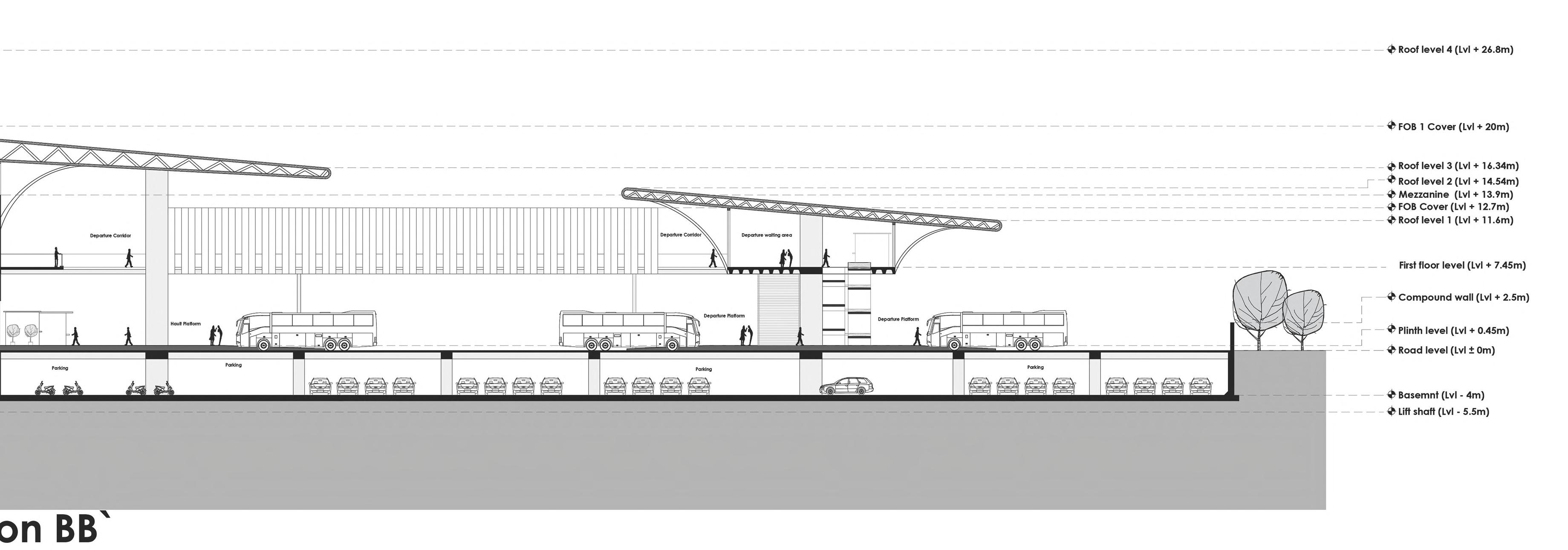

SECTION BB’

RESTAURANT & BANQUET HALL

PROJECT BRIEF

Location : Sirsi Road, Panchyawala, Jaipur.

The interior spaces of Restaurant, Banquet hall, Lobby and washrooms have been developed.

THEME INSPIRATION

Buddhism envisions peace with mental tranquility. Buddha became a source of inspiration to all humanity across the globe.

Buddhism began of-course as a religion of the subcontinent of India, but spread gradually world wide. Its practices and teachings were adopted world wide.

THEME ELEMENTS

MEDITATIVE MOOD (WARMA AND DARK)

As done by the ‘Samanas’ who gave up everything to live a life of meditation, yoga, and self knowlege.

PRESENCE OF ELEMENTS OF NATURE (PLANTS , WOOD, WATER)

As Buddha and the other Samanas lived a life with nature, in caves, forests, etc.

BODHI TREE

Gotama Buddha sat beneath a huge tree and vowed not to leave it until he achieved the liberating knowledge he sought.

TOUCH OF SPIRITUALITY AND MONASTRY VIBE

The ambiances of the spaces would have a pinch of monastry vibe with the presnce of elements like bells and candles.

THE WHEEL OF THE EIGHTFOLD PATH

Eight elements of ‘right’ symbolised by a wheel by Buddha.

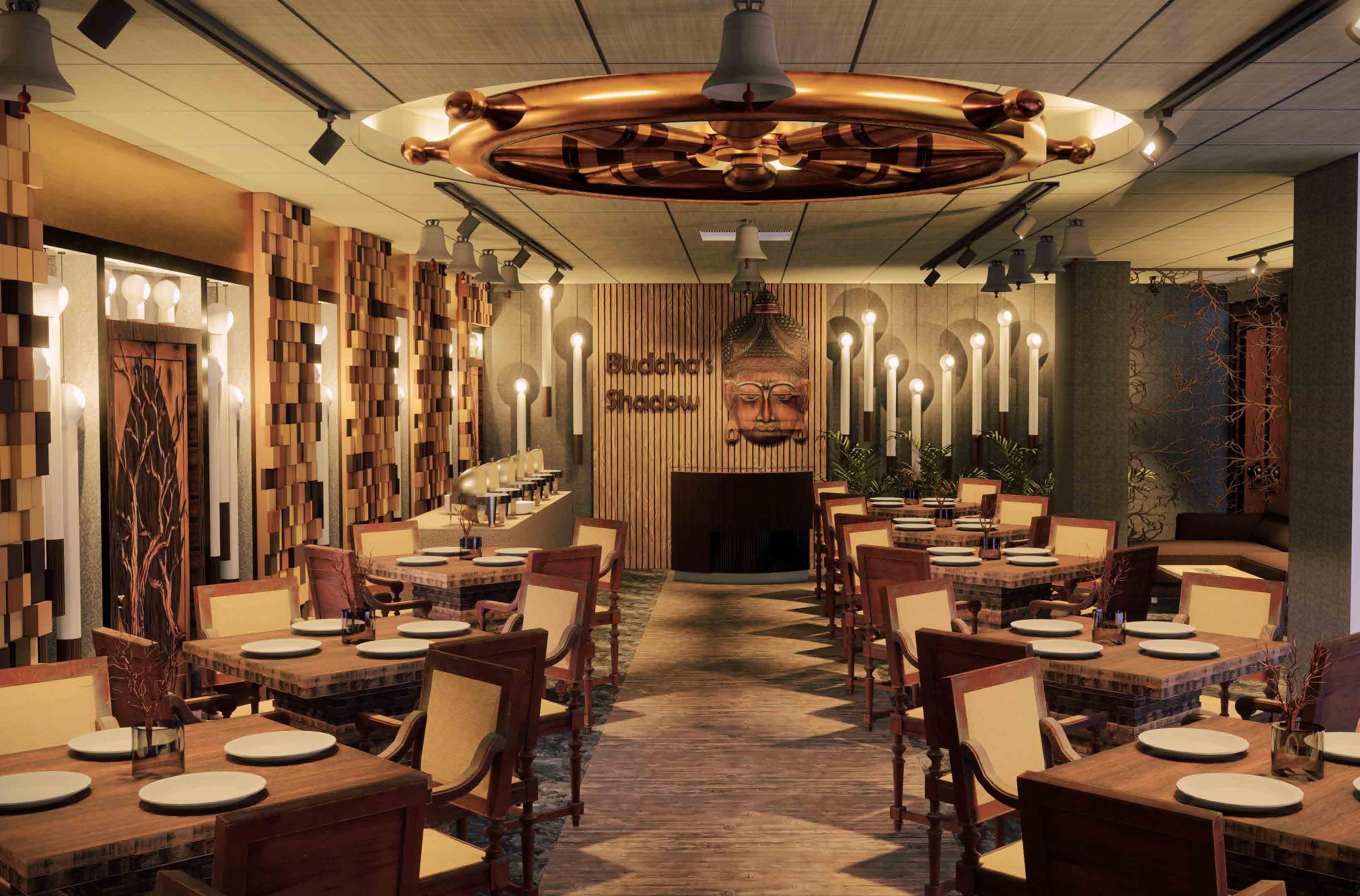

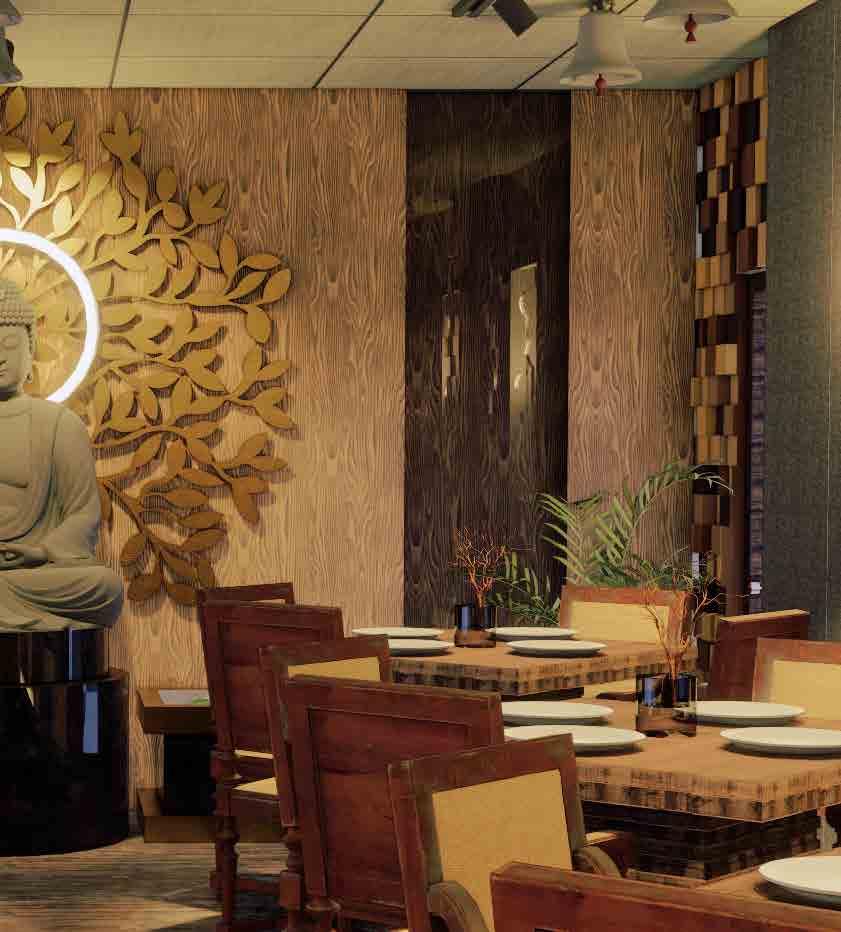

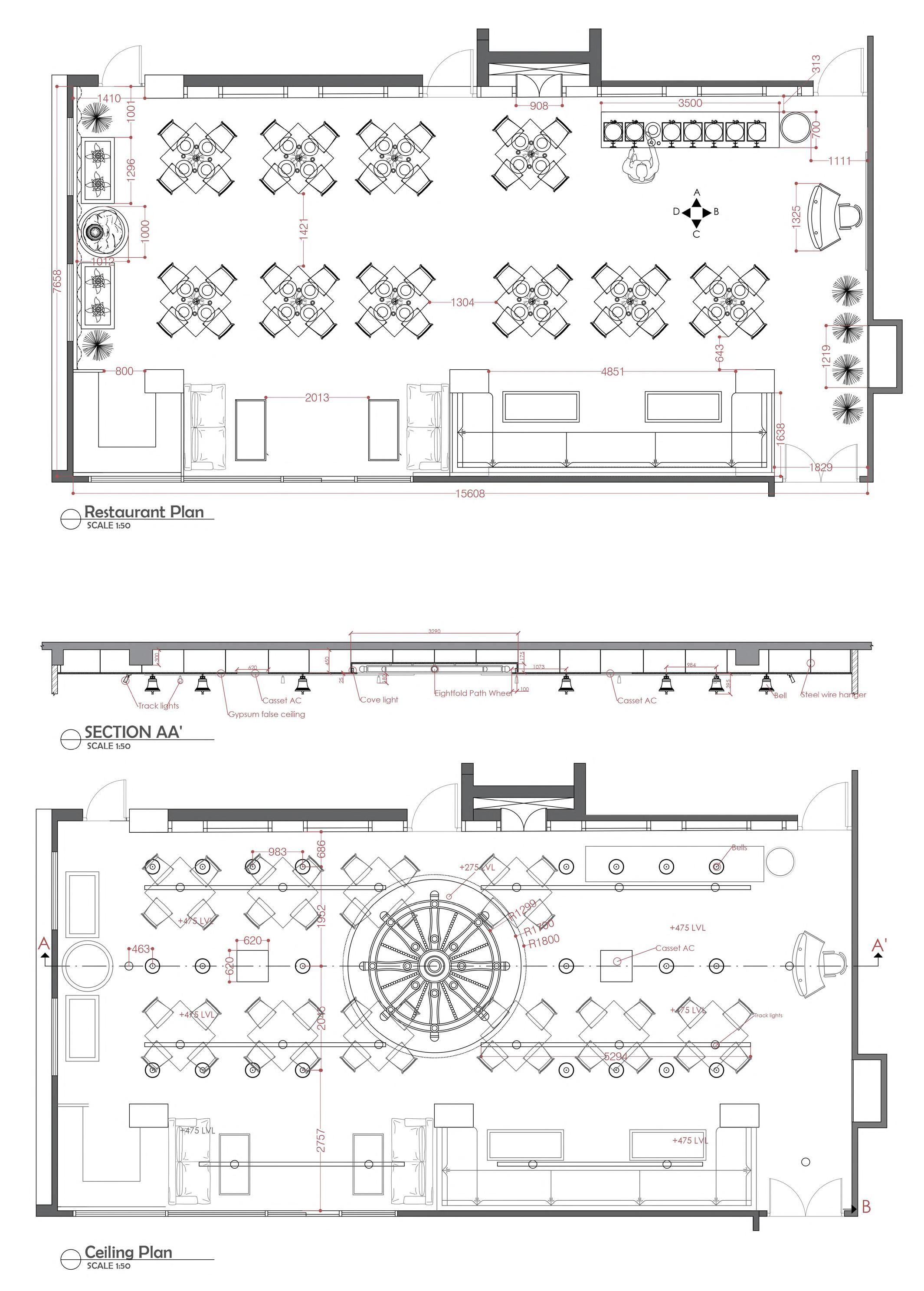

RESTAURANT

•Buddha statue on a central position with backdrop of Bodhi tree along with water texture backdrops.

•Wooden rough texture on walls denoting the age old wods.

•Wooden furnitures and planters.

•Niches on the walls with candle elements.

•Warm lighting and dark ambiance.

•Centre of ceiling embraced with the wheel of the eightfold path.

•Suspended bells from ceilings as ornamentation.

•Spotlights on tables and a very little ambiance lighting.

10 3353 300 150 900 2570 2647 25 2878 450 300 2775 300 3353 1343 845 15180 700 463 530 2878 2800 25 150 450 300 75 50 25 3353 2878 100 955 1514 790 628 1829 955 533 955 1315 955 762 762 1410 530 2415 2663 2800 100 2878 638 2647 530 2100 5o mm Fabric Acoustic Panels @Lvl 195mm 5o mm Charcoal Sheet Panels @Lvl 50mm Column @Lvl 230mm Wall @Lvl 0mm Door @Lvl -50mm 700 2800 Column @Lvl 230mm Skirting @Lvl 10mm Door @Lvl -40mm5o mm Fabric Acoustic Panels @Lvl 195mm Window @Lvl -40mm 5o mm Charcoal Sheet Panels @Lvl 50mm Skirting @Lvl 10mm MDF Panel @Lvl 75mm Charcoal Sheet Panel @Lvl 105mm Sofa @Lvl 330mm Wall @Lvl 0mm 5o mm Fabric Acoustic Panels @Lvl 195mm 5o mm Charcoal Sheet Panels @Lvl 50mm Column @Lvl 533mm Wall light Wall @Lvl 0mm Light shade Marble flooring Dark shade Marble flooring 1200 2400 3905 5544 16388 11849 Flooring Plan SCALE 1:60 Elevation A SCALE 1:60 Elevation C SCALE 1:60 Elevation B SCALE 1:60 Elevation D SCALE 1:60

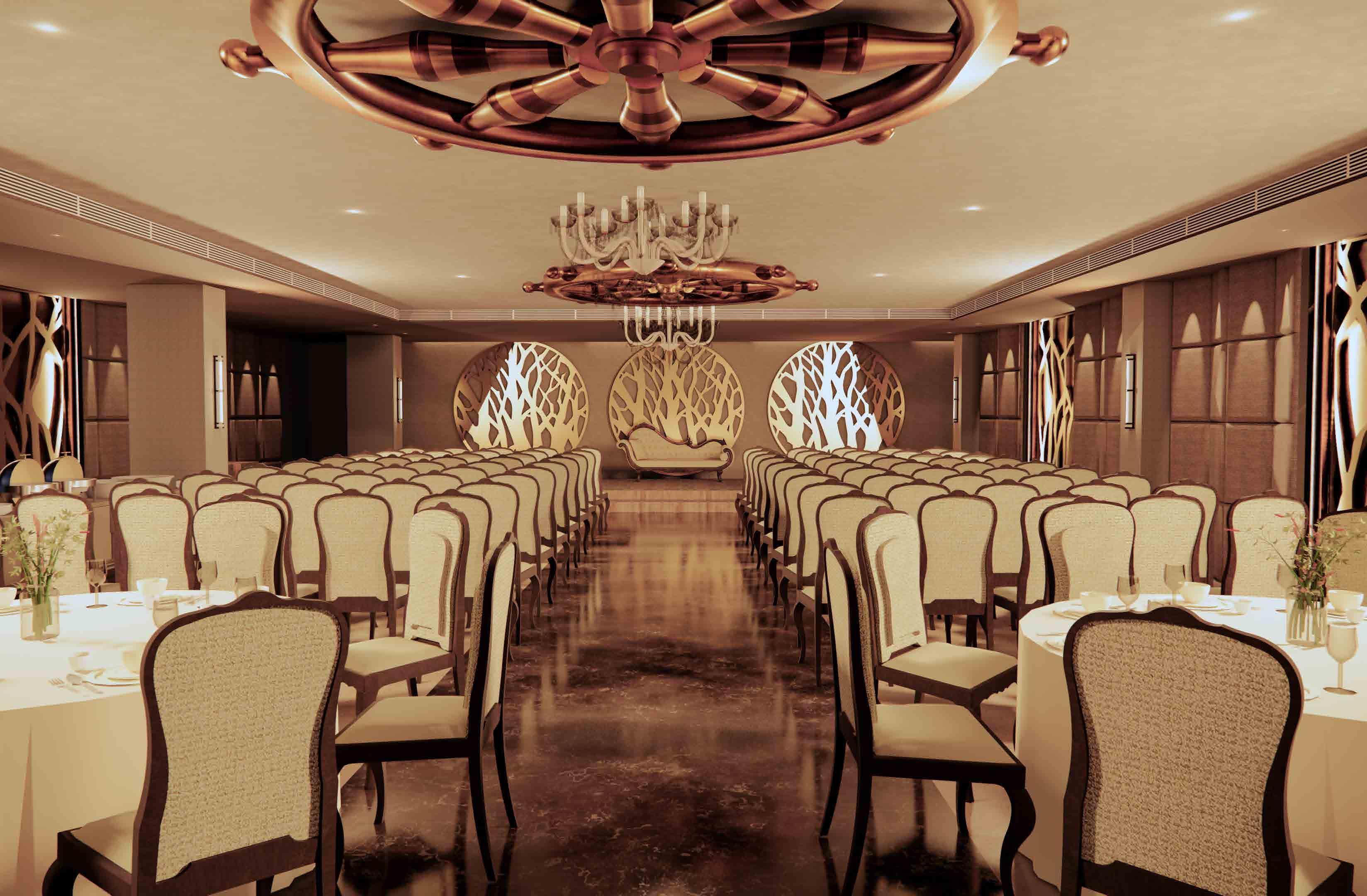

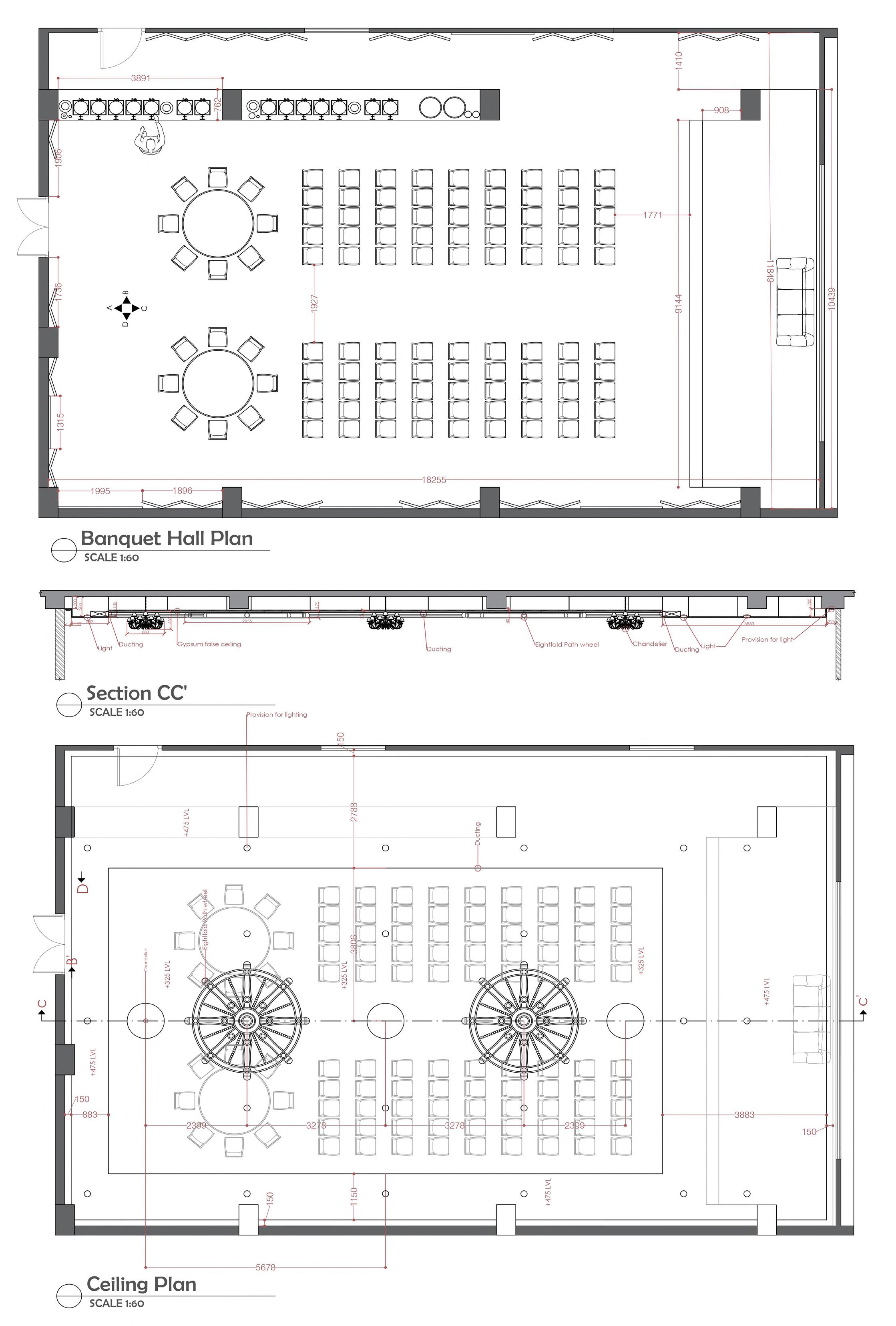

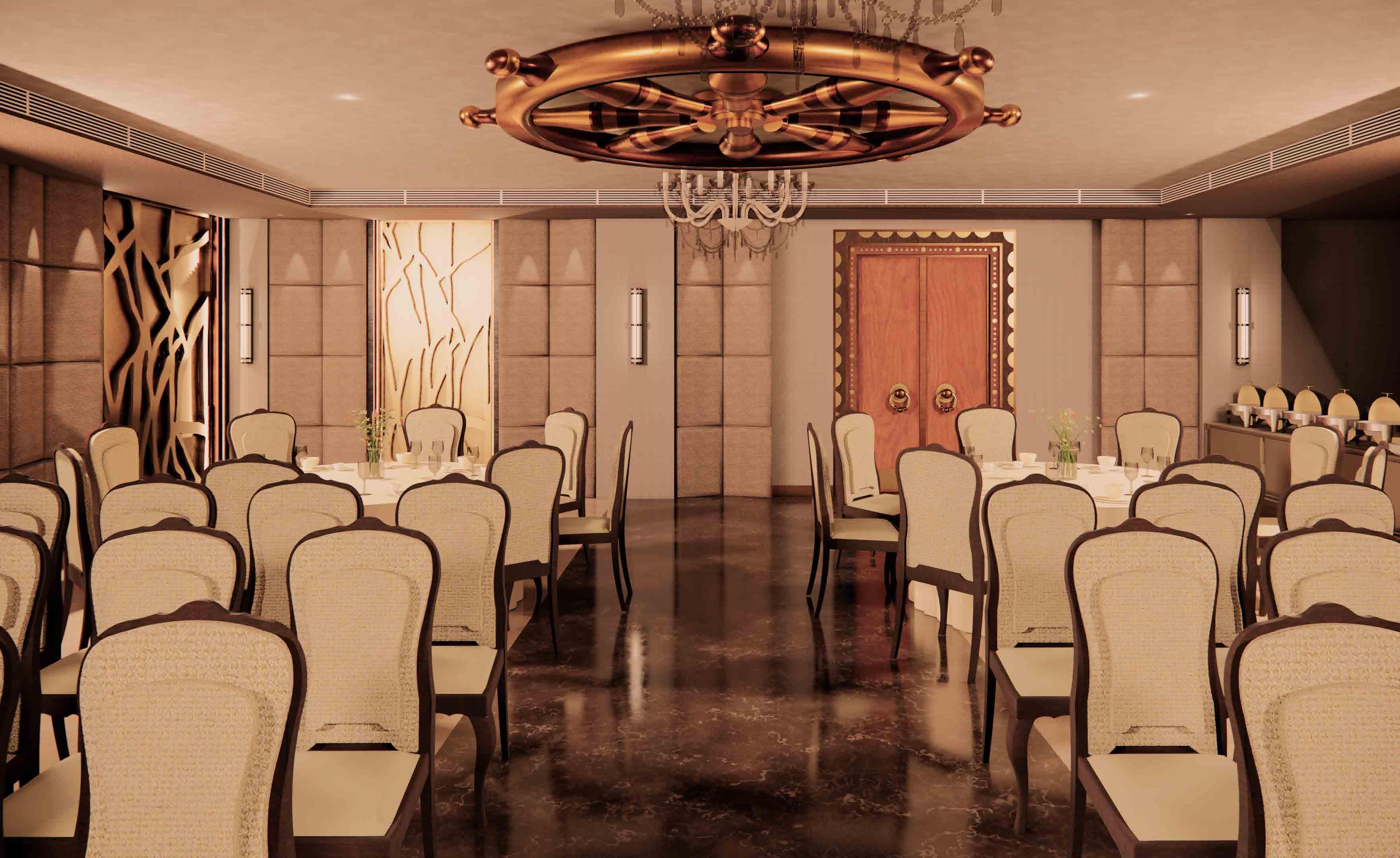

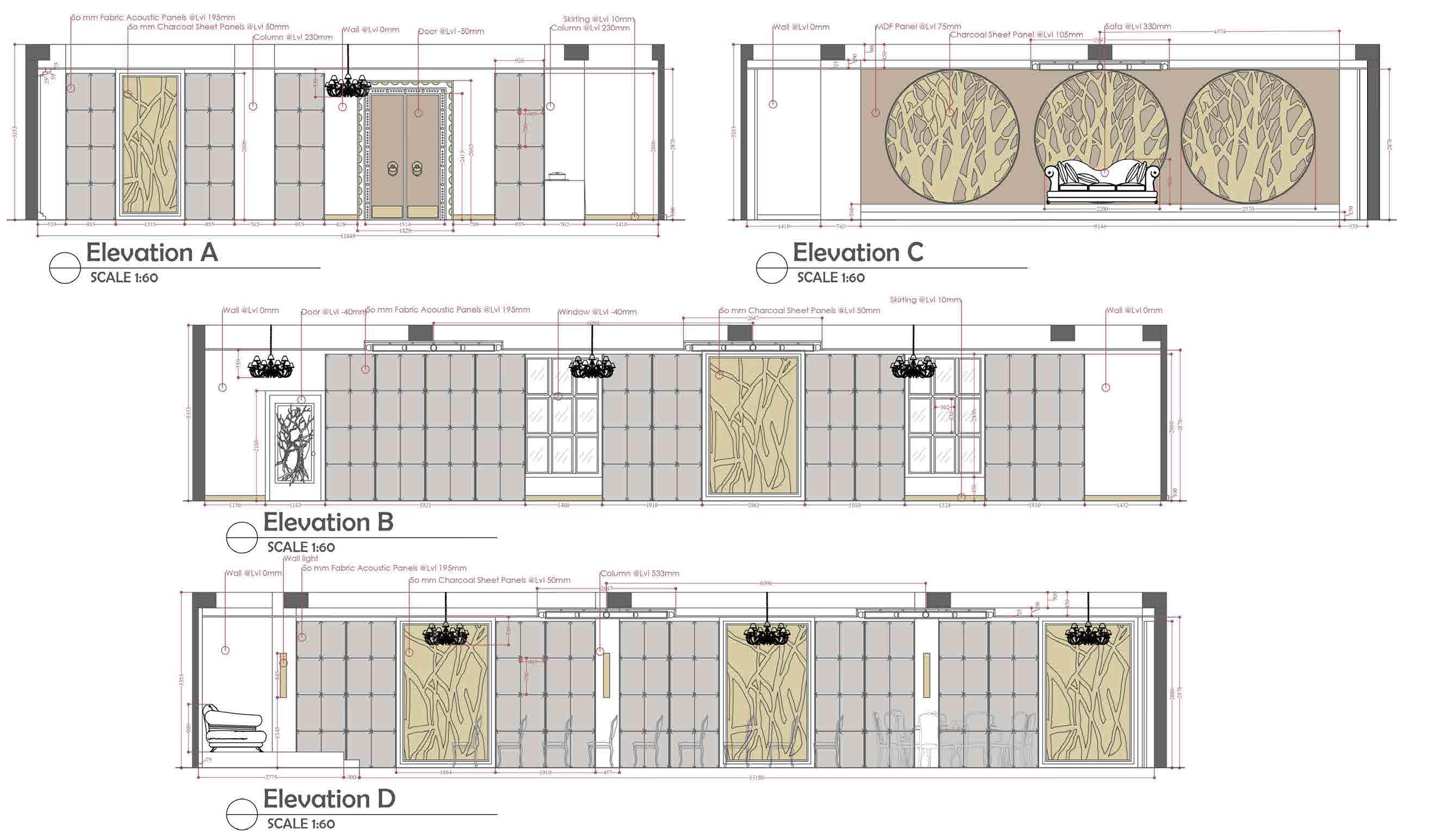

BANQUET HALL

•Bodhi tree branches mural on Stage’s Backdrop.

•Warm lighting and ambiance.

•Traditional chandeliors.

•Bodhi tree branches panels.

•Wooden cusioned upholstered chairs .

•Marble flooring.

•The wheels on ceiling .

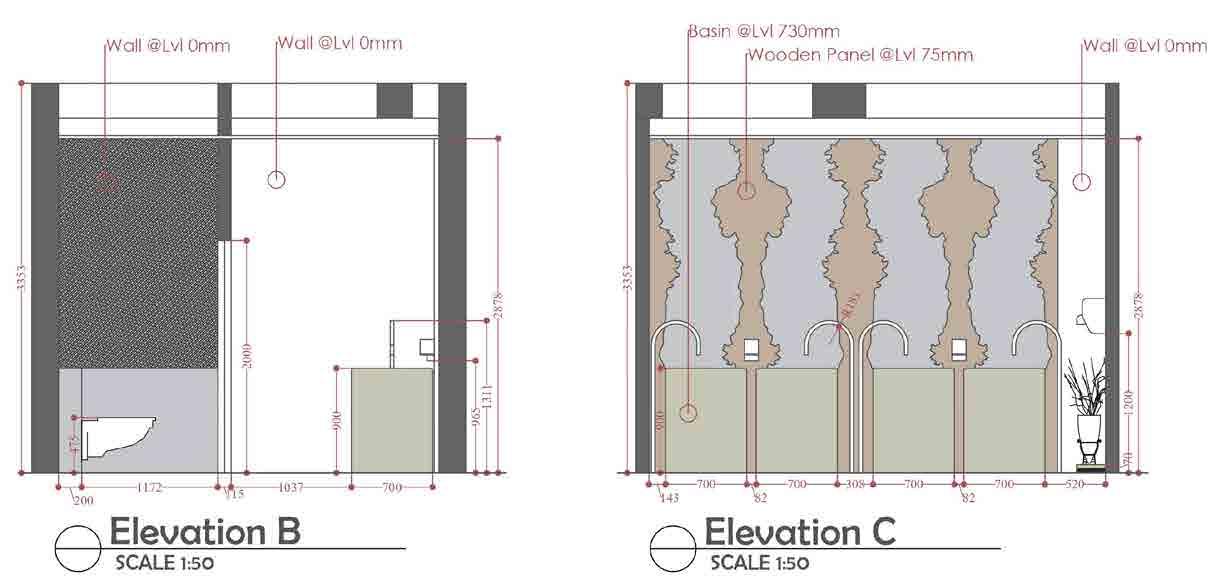

WASHROOMS

•Old wooden textured walls and stone flooring.

•Inside the cubicles, rough rock textured walls.

•Warm lights used and very minimal lights for ambiance.

•Planters.

•Stone WC and basins.

•Unique mirror;s shape form.

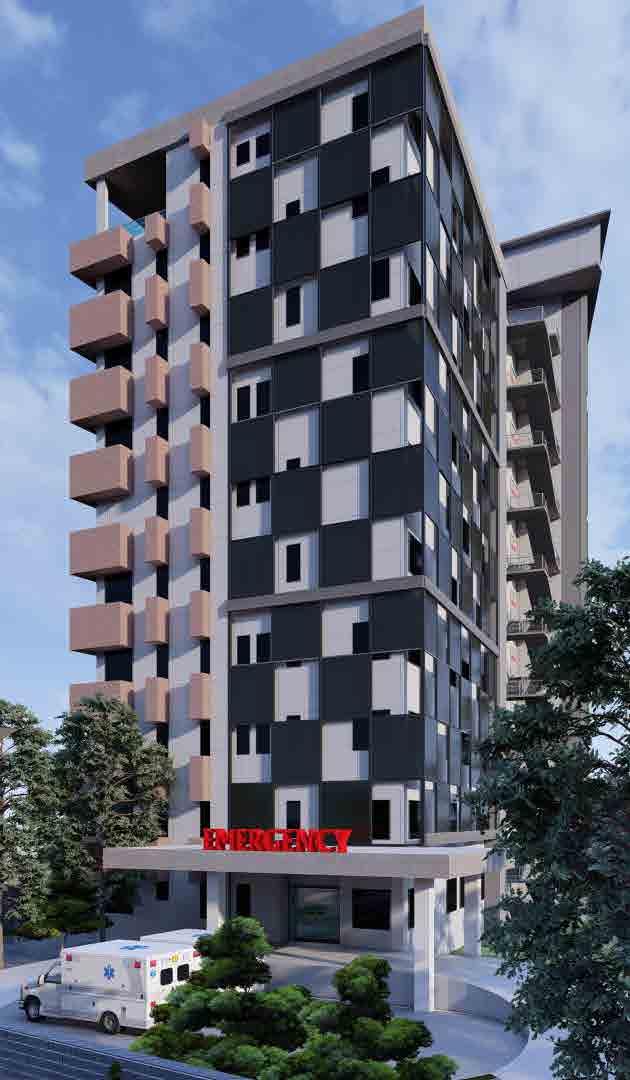

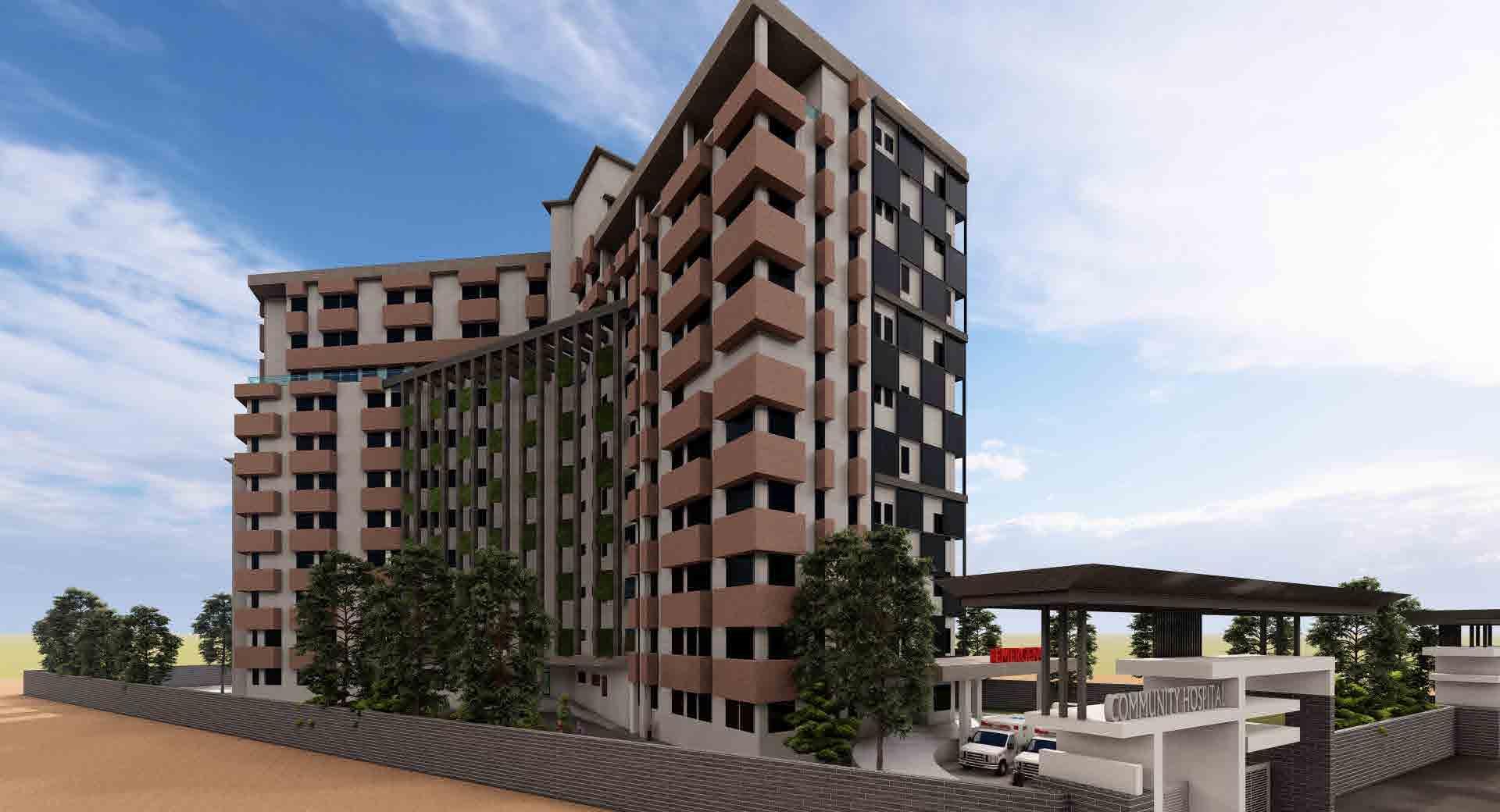

HOSPITAL

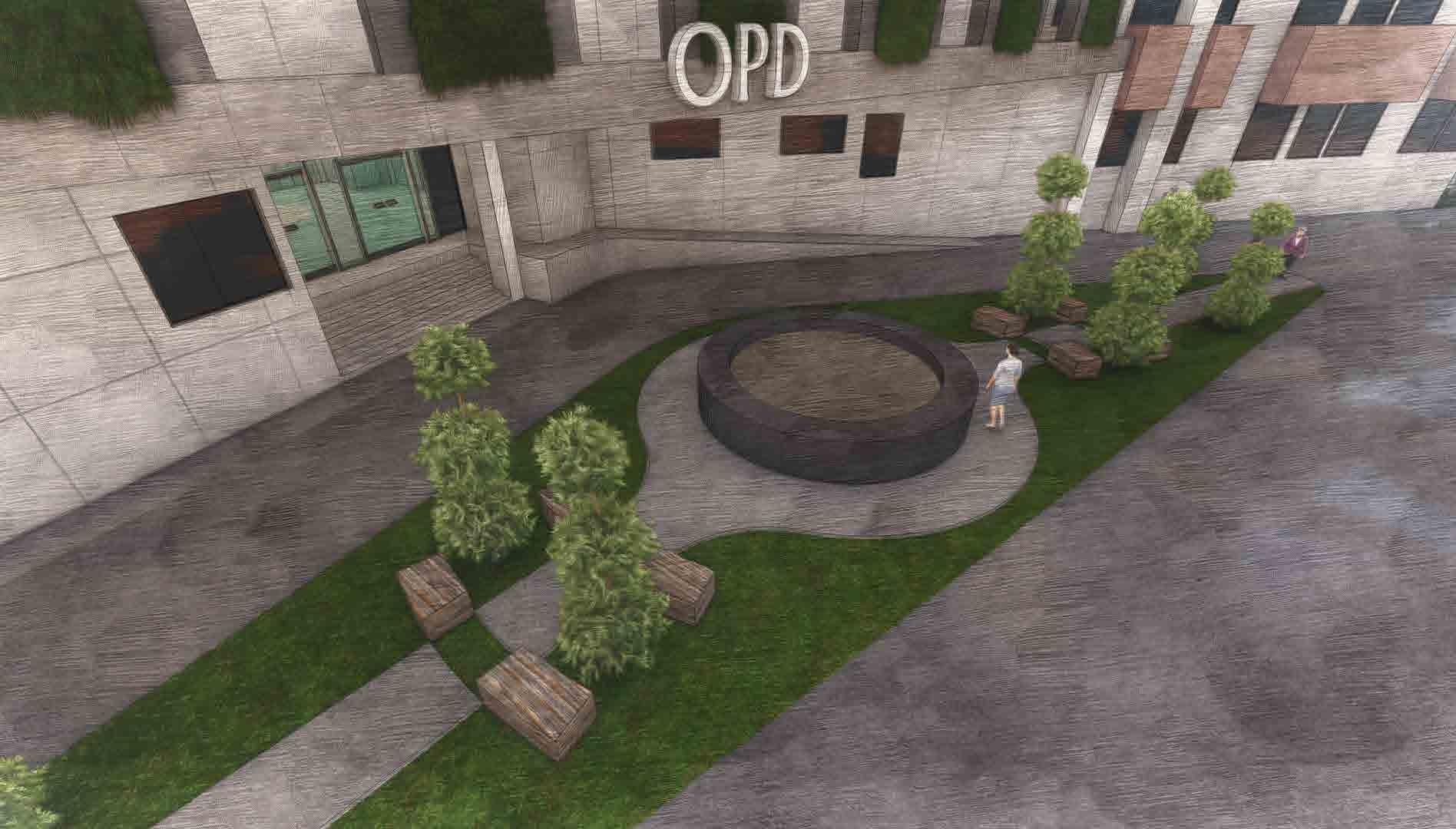

WATER BODY

Water body, adds to the aesthet ics, as well as providing healing environment for the incoming pa tients and visitors. It partly also helps in cooling its surrounding.

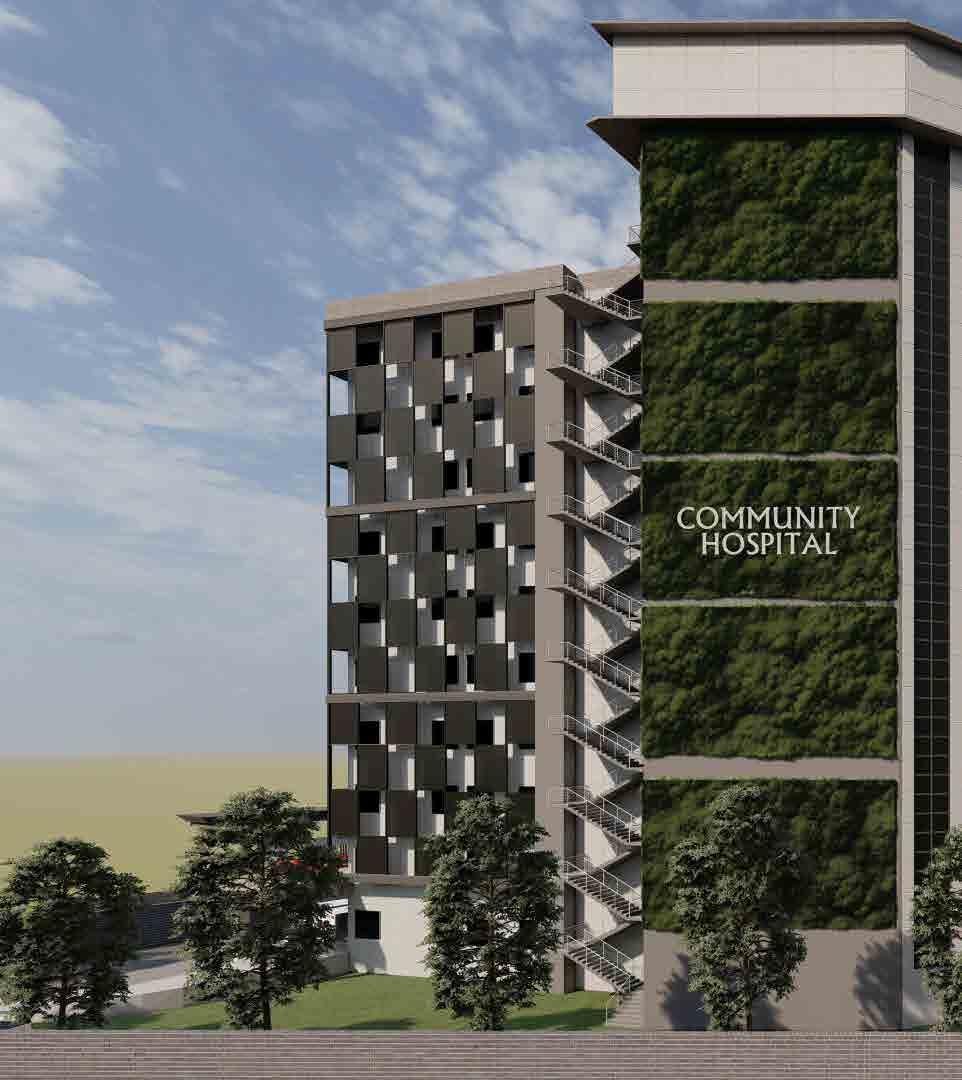

SOUTH FACADE TREATMENT

Solar Glass will be used in the south

Also, providing this glass, which adding to the aesthetics of the

The glasses will be placed in a mosaic

Vertical garden has also been

VERTICAL ZONING

SINGLE COMB CORRIDOR

Daylighting in both the rooms and the corridors. Thus, it is more energy efficient. Also, a thermal barrier is being created, thus providing passive cooling to the adjacent rooms.

south facade. The solar glass helps in saving approximately 28% of the energy consumption.

which is a double glazed glass, having argon within, helps in reducing the heat gain along with facade.

mosaic pattern, thus being partially enclosed, and adding to the view of the people inside.

provided, which adds to the healing environment for the people sitting in the leisure areas.

TERRACE GARDENS

Terrace gardens for the Private wards and suite rooms, for providing healing environment to them.

PROJECT BRIEF

Location : Urban Village Galaxy, Kalwara, Jaipur.

The project is based on a gated township project, The Urban Vilage,by the Galaxy Group, in Kalwar.

Total Site Area: 5644 sq.m.

Setbacks : 9m on all sides.

Permissible Built-up area ratio : 2 .

Permissible Ground Coverage : 40% .

Permissible Building Height: 54m. Minimum Landscape area : 10% .

PROJECT DETAILS

Bed Count : 107

:25%

BED COUNT

Sicu : 6 Micu : 6

Iccu : 11 Nicu :6

Isolation wards : 3 Neo natal ward : 6

Pre natal ward : 4

Post natal ward :5

Pediatric ward : 6

Suite rooms : 3

General wards : 19

Surgical wards : 7

Private wards : 6

Semi private wards : 20

ZONING aesthethealing paalso

Built-up area achieved

10475 sq.m Built-up area ratio : 92.8%. Ground Coverage area

1131.5 sq.m. Ground Coverage

20% Building Height Achieved: 46.2m. Landscape area

Landscape %

21.68%. ECU minimum

70.

: 1224 sq.m.

: 1224 sq.m. i.e.,

:60, Achieved :

4 Wheeler :75% 2 Wheeler

PROJECT BRIEF

GROUND FLOOR PLAN

SECOND FLOOR PLAN

MAIN ENTRANCE RECEPTION CAFE REG. & BILLING 52 132.4 46.2 114.3 SAMPLE EXMNATN.1 DENTAL ENT SKIN PSYCHIATRY PEDIATRIC GEN. CONS OPTHALMIC 1 DOCTORS HOUSE KEEPING STORE BROUGHT OBSERVATIO ROOM TRIAGEAREA WAITING RECEPTION POLCEPOST EMERGENCYWARD GASMANIFOLD LABS&DIAGN. DIRTY DOC.CH. STORE NURSE PLASTER FIRESTAIRCASE AMBULANCE BASEMENT RAMP SLOPE 1:8 SERVICEENTRY EXIT HVACSHAFT PHARMACY BEDLIFT BEDLIFT LIFT DOCTOR SERVICE RAMPSLOPE1:12 EMERGENCY RAMP SLOPE 1:15 FIRE STPANDETPPLANTS MGP DRINKING JANITORS CHILLERS DGSET&TRANSFORMERS ELEC. ROOM ELEC. SHAFT A' A B' B EMERGENCYENTRY MAIN ENTRY C C' PARKING EMERGENCY ENTRANCE 3.7 2.4 3.6x 1.8DUTYON 2.6 1.6x3.8 1.9 2.5 1.6 1.5 RAPE EXAMNT.2.9x3.4 DEAD 3.6x3 NURSE STATION 3.6x2.8 6 10.6 4.8MINOROT 5.2 UTILITY CHNG. ROOM 3.2 3.2 2.8x6.4 x2.6 TOILET M.TOILET 2.9 6 2.7x5.5 SHAFT PLUM.SHAFT WATER 1.5 2x3 1.5 2 WAITING SHAFT SHAFT 7.6 2.6 4.9 x 2.9 3.9 x 2.9 4 x 2.9 4 x 2.9 x 2.9 x 2.6 x 2.6 2.8 3 4.2 x 4.5 2.8 4.3 COLL. 2 DOCTOR TOILET MALE TOILET 2x3 2x3 2 x 2.9 5.3 3.3 4.5 5.2 1 1 3.6 6 6 6 6 5 5 5 6 4.4 RAMPSLOPE1:12 FLOWERSHOP 2.8 2.8 STATIONARY x SHOP 6.8X5.8 6.8X5.8 6.8X2.9 SET SETDOWN UP DOWN SERVICE LIFT 2x2.5 3 3 14 35.6 32.6 18.3 47.5 13.8 15 D' D 10 E' E LVL +1275mm LVL +75mm LVL +00mm RECEPTION FIRESTAIRCASE SPECIMEN OFFICE TECH.OFFICE LAB MICROBIOLOGY MEDIAROOM WASHAND PATHOLOGY DISPOSAL& STORE COMP.STORE COMPONENTLAB DONATION LOUNGE REFRESHMENT WASHANDSTERILE A.H.U BODY STORE BODY WASH OFFICE /RECORD AUTOPSY ISSUE ROOM SURGICAL LINEN STATIONERY SANITATION FURNITURE CHEMICAL HOUSE KEEPING STORE HVACSHAFT FIRESHAFT FIRE SHAFT JANITORS A 6 8.1 8.8 8 8 7.2 9 9 B C D F E G H I J K L 4 5 6 1 2 3 M A B C D E E' E' 8 8 8 F G H I J K L 6 8 3.4 3.4 A' A B' B C C' EMERGENCY RAMP SLOPE 1:15 UP DOWN UP DOWN UP DOWN BEDLIFT2 BEDLIFT1 V.LIFT1 DOCTOR V. LIFT 2 SERVICE LIFT DRINKING ELEC. ROOM ELEC. SHAFT SHAFT PLUM. WATER LIFT 1.5 2.5 2x3 1.5 x 2 2.5 x 2 2x3 2x3 MGP SHAFT 2x2.6 F.TOILET M.TOILET 2.9x6 2.7x5.5 2 x 2.9 DOCTOR TOILET MALE TOILET FEMALE TOILET 2 x 2.9 2 x 2.9 SERVICE LIFT 2x2.5 3 EXAM.ROOM ROOM BIOCHEMISTRY LAB STERILE LAB SLUICE AND RECORD COLL/DIST. 4.7x4.6 3.6x4 2.6x2.8 2.6x5.7 3.6x2.4 3.6x2.7 3.7x7.5 3.7x7.1 2.2x4.7 2.2x1.8 2.2x2.52.2x2.2 2.5x2.8 3.9x3.4 3.9x3 2.3x2.8 RECEPTION AND WAITING RECEPTION AND WAITING 6.2 x 2.6 & DRESS. & LIVERY OFFICE & GLASSWARE 3 x 5.7 2.4 x 4.2 2.6 x 4.2 2.5 x 4.2 7.8 x 4.4 3 x 3 3.7 x 5.7 3.7 x 3 3.7 x 5.7 10 x 4.5 3.7 x 3 3 x 4.1 3 14 35.6 32.6 18.3 47.5 13.8 15 E' E A.H.U FIRESTAIRCASE M.CHNG F.CHNG. LOCKERS OFFICE DIRTY WASH/DISINFECTION CONTROL&PACKAGING TROLLYWASH LINEN STERILESTORAGE STERILEISSUE M.CHNG F.CHNG LOCKERS TROLLY ISSUE WASHING TUMBLEDRYING IRONING CLEAN OFFICE PROTEC. BIO MEDICAL WASTE SLEEP HOUSE KEEPING STORE HVACSHAFT JANITORS FIRESHAFT FIRE SHAFT AIRROOM A 6 8.1 8.8 8 8 7.2 9 9 B C D F E G H I J K L 4 5 6 1 2 3 M A B C D E E' E' 8 8 8 F G H I J K L 6 8 3.4 3.4 A' A B' B C C' EMERGENCY RAMP SLOPE 1:15 UP DOWN UP DOWN UP DOWN BEDLIFT2 BEDLIFT1 V.LIFT1 DOCTOR V. LIFT 2 SERVICE LIFT DRINKING ELEC. ROOM ELEC. SHAFT SHAFT PLUM. WATER 1.5 2.5 2x3 1.5 x 2 2.5 x 2 2x3 2x3 MGP SHAFT 2x2.6 F.TOILET M.TOILET 2.9x6 2.7x5.5 2 x 2.9 STAFF TOILET MALE TOILET FEMALE TOILET 2 x 2.9 2 x 2.9 SERVICE LIFT 2x2.5 FOLDING RECEIPT STORE WASH 9.6x8.5 2.1x4.7 5x4.7 2.5x4.4 5.3x7.8 2.1x3.8 2.1x4.6 3.1x4.3 5.7x3.5 4.4x2.8 5.6x3.1 2.1x3.6 1.7x3.4 1.9x3.1 2.9x2.1 2x1.7 2.1x3.9 DIRTY 1.7xRECEIPT 2.7 9 x 2.6 RECEPTION PLAY AREA PANTRY MANAGEMENT UNIT EQUIP. 10.6 x 8.7 2.7 x 4.1 7.8 x 3.3 7.8 x 5.3 7.8 x 8.7 DIRTY DUMBWAITER 1.37 x 1.23 1.37 x 1.23 DWCLEAN 3 3 14 35.6 32.6 18.3 47.5 13.8 15 E' E

PLANS

FOURTH FLOOR PLAN

FIFTH FLOOR PLAN

RECEPTION FIRESTAIRCASE OT1 NURSESTATION DOCTOR'SCHANGE STAFFCHANGE STERILESTORE ANESTHETIST PACROOM PREOT ADMIN OFF. IN DOC. WORK SICU MICU HOUSE KEEPING STORE HVACSHAFT JANITORS FIRESHAFT FIRE SHAFT RELATIVES DOCTOR'S DRUG PUJA A 6 8.1 8.8 8 8 7.2 9 9 B C D F E G H I J K L 4 5 6 1 2 3 M A B C D E E' E' 8 8 8 F G H I J K L 6 8 3.4 3.4 A' A B' B C C' EMERGENCY RAMP SLOPE 1:15 UP DOWN DOWN UP DOWN BEDLIFT2 BEDLIFT1 V.LIFT1 DOCTOR V. LIFT 2 SERVICE LIFT DRINKING ELEC. ROOM ELEC. SHAFT SHAFT PLUM. WATER LIFT 1.5 x 2.5 2x3 1.5 x 2 2.5 x 2 2x3 2x3 MGP SHAFT 2x2.6 F.TOILET M.TOILET 2.9x6 2.7x5.5 2 x 2.9 DOCTOR TOILET MALE TOILET FEMALE TOILET 2 x 2.9 2 x 2.9 1.37 x 1.23 1.37 x 1.23 DWDIRTY DWCLEAN CORR.DIRTY UTILITYDIRTY 1.35 7x5.9 OT27x5.7 OT37x5.5 2.3 AREASCRUB 5.3x2 ROOM 5.3x3.8 4.4x3.2 2.7x4 2.5x3.9 4.3x7.4 3.6POSTOT x9.7 LOBBYAIRLOCK 3 3 STORE WAITING LOUNGE CONFERENCE / LIB OFFICE CHARGE ROOM CHANGE ROOMS 4.5 x 5.7 3.2 x 5.7 3 x 3 2.7 x 3 7.7 x 8.8 10.3 x 8.8 3.2 x 5.7 3.1 x 2.6 2.9 x 2.6 1.6 NURSE STATION 14 35.6 32.6 18.3 47.5 13.8 15 E' E LVL 00 LVL +1275 LVL +5275 LVL +9275 LVL +13275 LVL +17275 LVL +21275 LVL +25275 LVL +29275 LVL +33275 LVL +37275 LVL +41275 LVL +45200 LVL +46200 LVL +48275 LVL -2400 LVL -6000 LVL -7500 1.5 4 4 4 4 4 4 4 4 4 4 4 3 3.6 3.6 LVL +00 LVL +1275 LVL +5275 LVL +9275 LVL +13275 LVL +17275 LVL +21275 LVL +25275 LVL +29275 LVL +33275 LVL +37275 LVL +41200 LVL -2400 LVL -6000 LVL +42200 3.6 3.6 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4 1 SECTION AA' SECTION CC'

EXPANSION JOINT DETAIL

SECTION

WALL SECTION

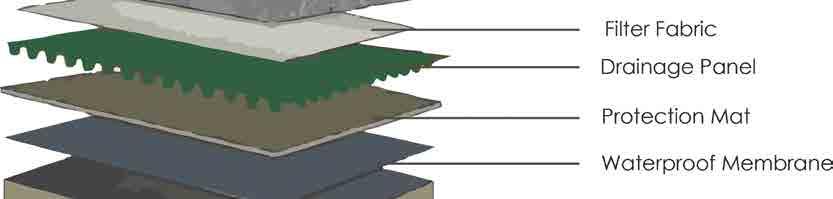

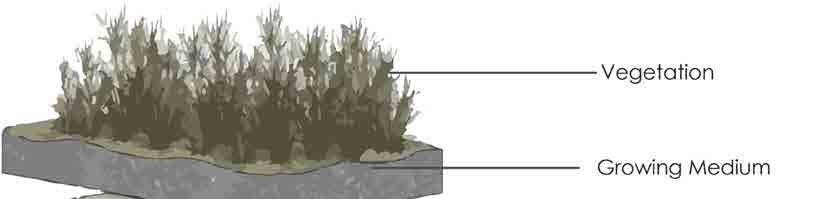

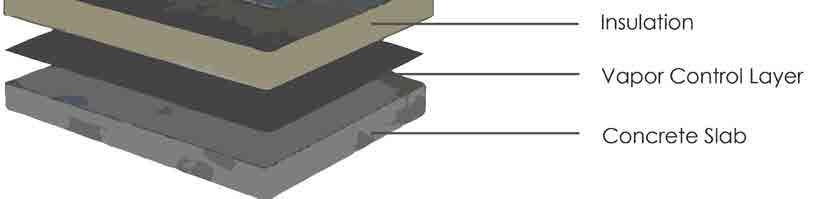

GREEN ROOF

GREEN

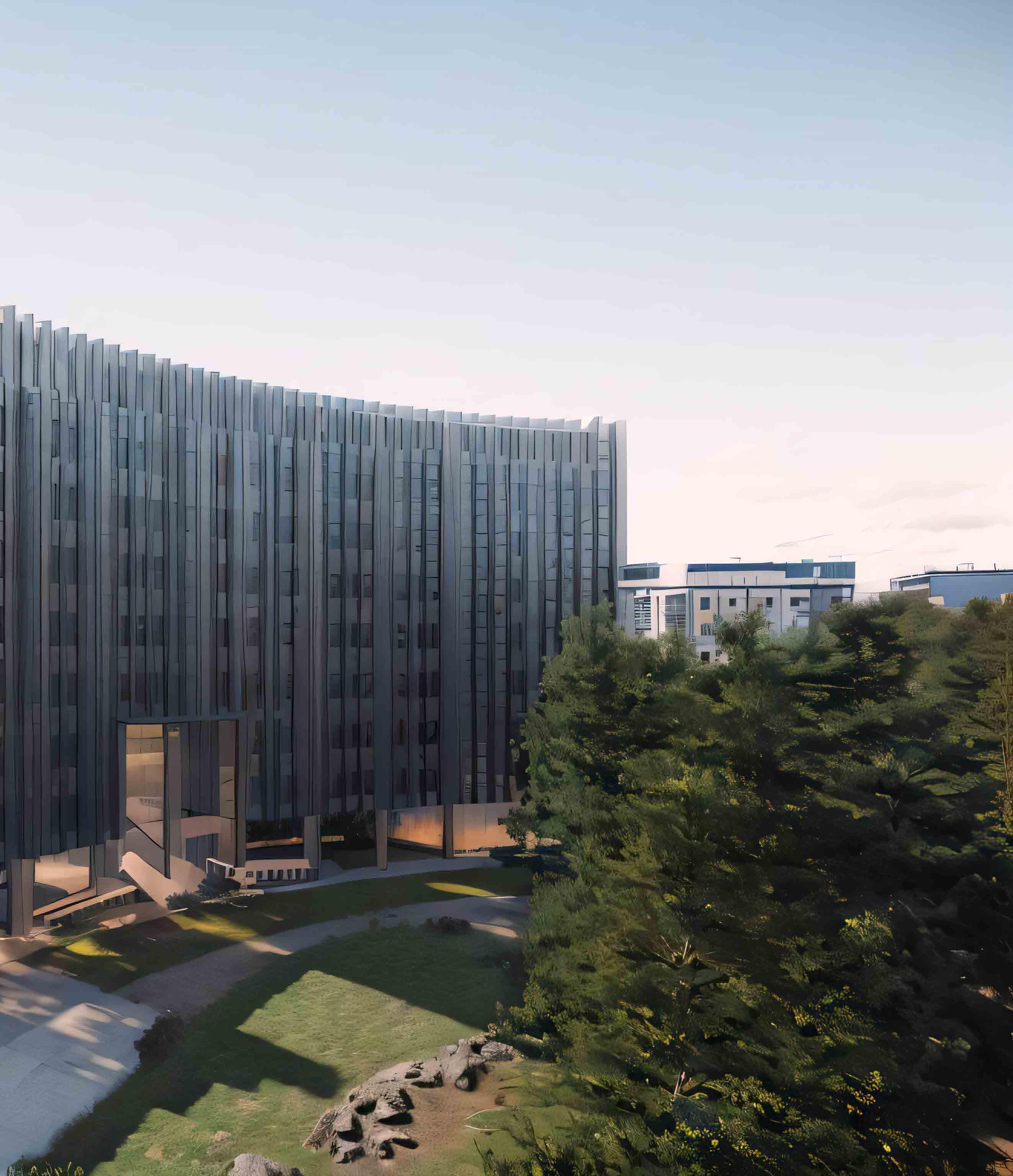

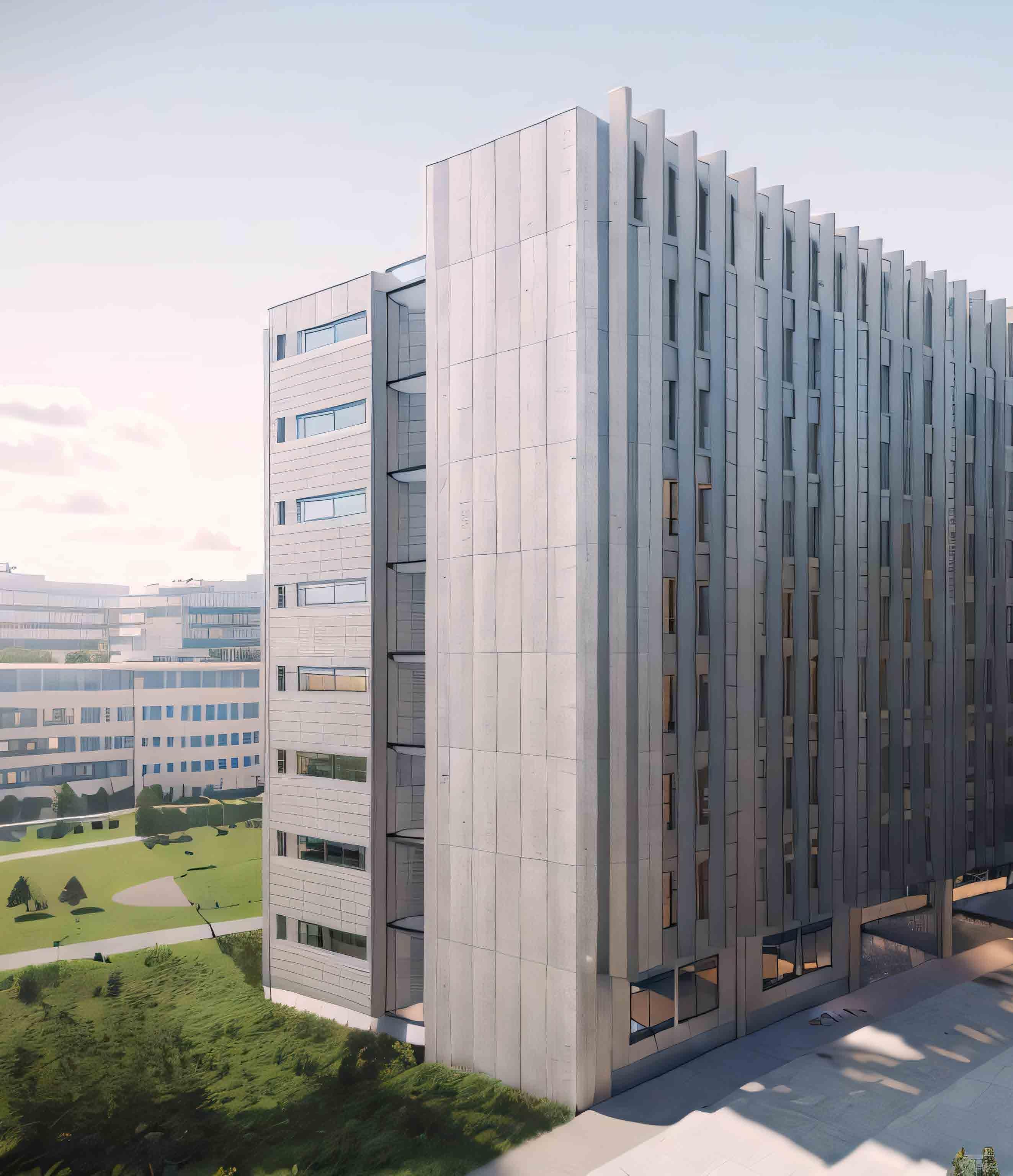

CAMPUS

05 MEDICAL

PROJECT DETAILS

Location : Jagatpura, Jaipur

Plot Area: 28.7 Acres / 116023 sq.m

Total BUA: 232290 sq.m

Max. height : 60m

Max. ground coverage: 40%

Front Setback: 15m

Other Setbacks: 9m

Site Access: Ashok Marg , 60m

Academic Block:

Ground Coverage: 1840 sq.m Built-up Area: 14720 sq.m

Dining Block:

Ground Coverage: 600 sq.m Built-up Area: 1200 sq.m

Hostel:

Ground Coverage: 565 sq.m

Built-up Area: 3800 sq.m

Admin Block:

Ground Coverage: 430 sq.m Built-up Area: 860 sq.m

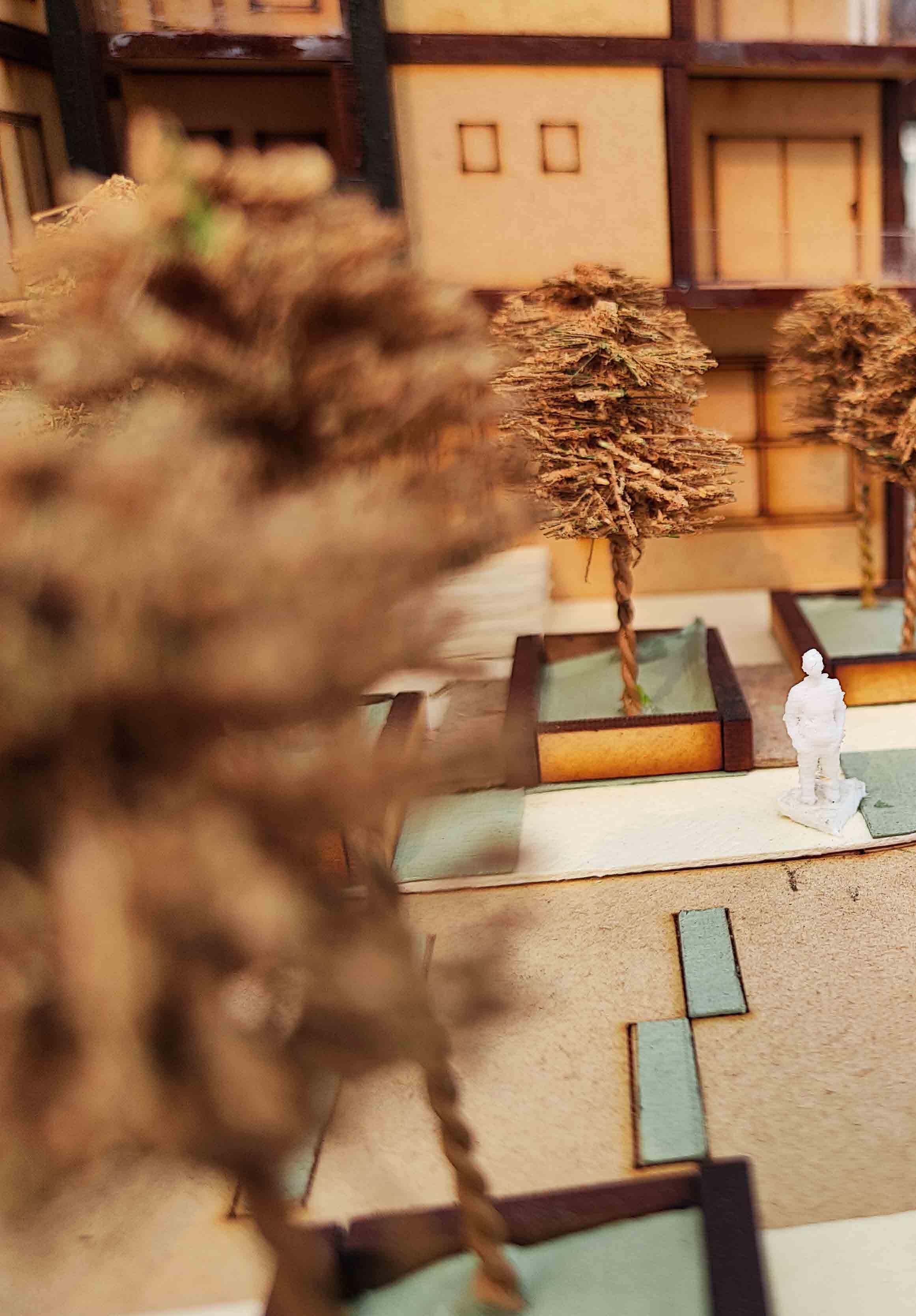

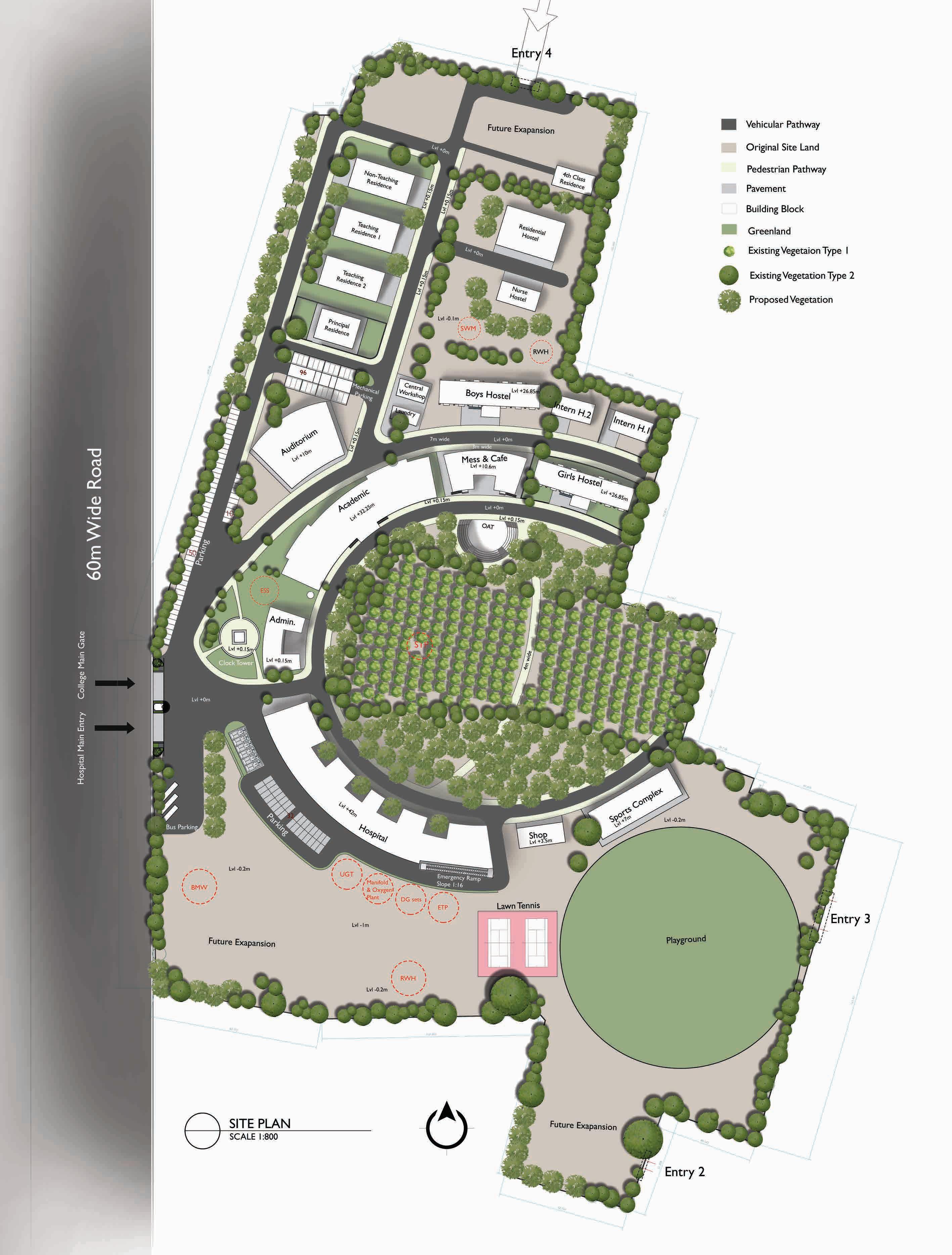

CONCEPT

The main concept was to preserve the existing bunch of trees as much as possible.

The planning has been done around the central core, making it as a central courtyard like space, which thus also helps in maintaining the microclimate.

Level 1 0 First Floor. 4250 Second Floor. 7750 Third Floor. 11250 Fourth floor. 14750 Fifth Floor. 18250 Sixth Floor. 21750 Seventh Floor. 25250 Terrace. 28750 Plinth. 750 Mumty. 32250 665

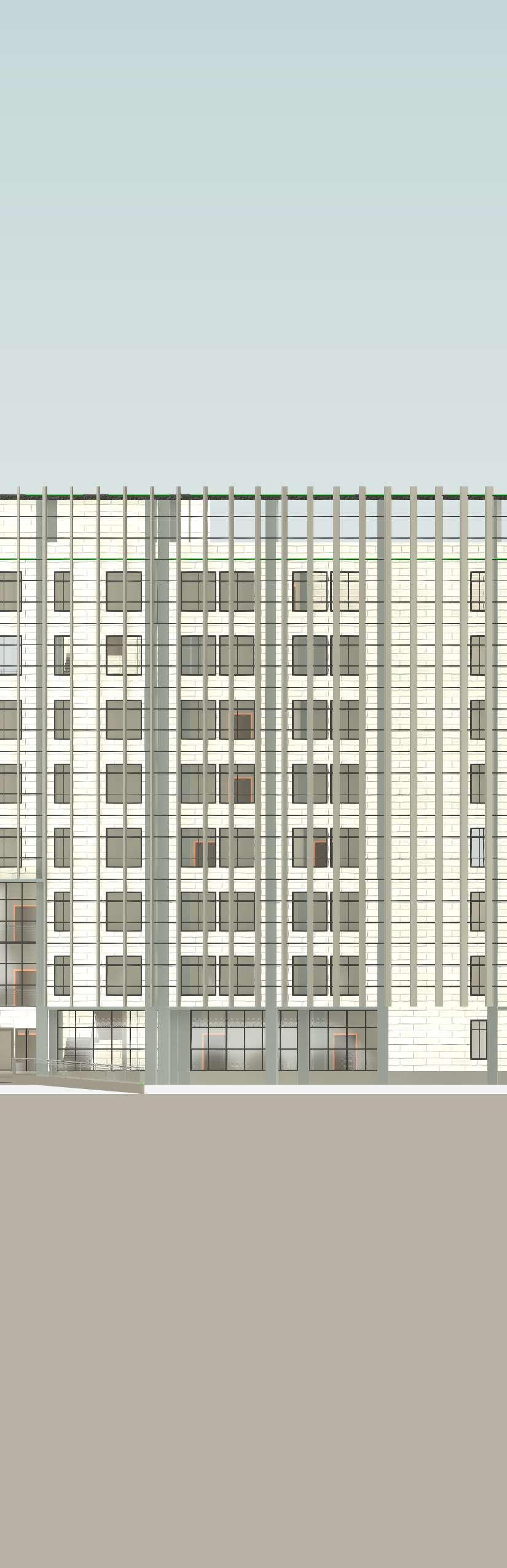

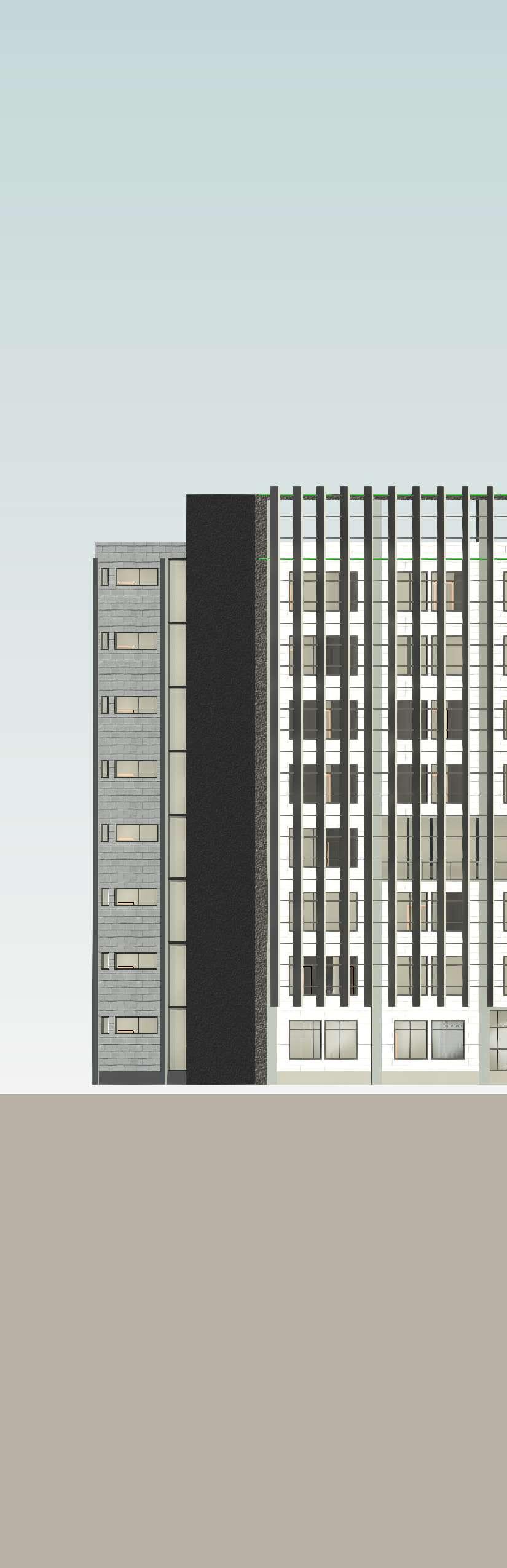

FRONT ELEVATION

PLANS

Second Floor (Dept. of Pathology) Third

A B C D E F G H J K L M A B C D E F G H I J K L M 1 2 3 4 1 2 3 4 8 8 8 8 8 8 8 8 8 8 8 8 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 8 4 8 8 4 8 A B C D E F G H I J K L M A B C D E F G H J K L M 1 2 3 4 1 2 3 4 8 8 8 8 8 8 8 8 8 8 8 8 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 8 4 8 8 4 8 Histopathologylab

Autopsy Forensiclab Blood bank Researchlab Interactivespaces Museum Child care unit Common Room CommonRoom Staffroom Research lab Demoroom Toilets Dept.lib Preparation Staffroom Demoroom1 Dept.lib Component Lab Lab Wash /Sterile Refreshment Donor Examination Registration and waiting Office Ante Cold Store Toilets forBoys forGirls cumWaiting Toilets Lecture Theatre Slope1:12 UP DOWN DOW UP UP DOWN DOWN UP CENTRE FOR DESIGN EXCELLENCE, VIVEKANANDA GLOBAL UNIVERSITY PRATIKSHA ROY B.ARCH VII 19FAP2AR024 A A' B B' C' C A A' B B' C' C Scale: 1:200 A B C D E F G H J K L M A B C D E F G H I J K L M 1 2 3 4 1 2 3 4 8 8 8 8 8 8 8 8 8 8 8 8 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 8 4 8 8 4 8 A B C D E F G H J K L M A B C D E F G H J K L M 1 2 3 4 1 2 3 4 8 8 8 8 8 8 8 8 8 8 8 8 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 8 4 8 8 4 8 Toilets Museum Lecture Theatre Staffroom Dissectionhall Histology Research lab Demoroom1 Demo room 2 Toilets First Floor (Dept. of Anatomy) Mammalianlab Ground Floor (Dept. of Physiology) Haemetology lab Clinical Phisiology Ante Cold storage Embalming Dept.lib Preparation Preparation Preparation Amphibianlab Staffroom Staffroom Demoroom1 Dept.lib Prep. Prep. Prep. Ante Research lab Toilets Toilets UP UP UP DOWN OWN UP A A' CENTRE FOR DESIGN EXCELLENCE, VIVEKANANDA GLOBAL UNIVERSITY PRATIKSHA ROY B.ARCH VII 19FAP2AR024 B B' C' C A A' B B' C' C Scale: 1:200 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H I J K L M N O A B C D E F G H I J K L M N O 1 2 3 4 1 2 3 4 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H J K L M N O A B C D E F G H J K L M N O 1 2 3 4 1 2 3 4 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H I J K L M N O A B C D E F G H I J K L M N O 1 2 3 4 1 2 3 4 Boys Hostel / Ground Floor Girls Hostel / Ground Floor Girls Hostel / Typical Floors Warden Room Warden Office Wahrooms Wahrooms Slope 1:12 Warden Room Warden Office Wahrooms Wahrooms Slope 1:12 Wahrooms Wahrooms D D' E' E D D' E' E 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H I J K L M N O A B C D E F G H I J K L M N O 1 2 3 4 1 2 3 4 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H J K L M N A B C D E F G H J K L M N O 1 2 3 4 1 2 3 4 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H I J K L M N O A B C D E F G H I J K L M N O 1 2 3 4 1 2 3 4 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 4.3 2.2 4.3 A B C D E F G H I J K L M N O A B C D E F G H I J K L M N O 1 2 3 4 1 2 3 4

Floor (Dept. of Forensic Medicine)

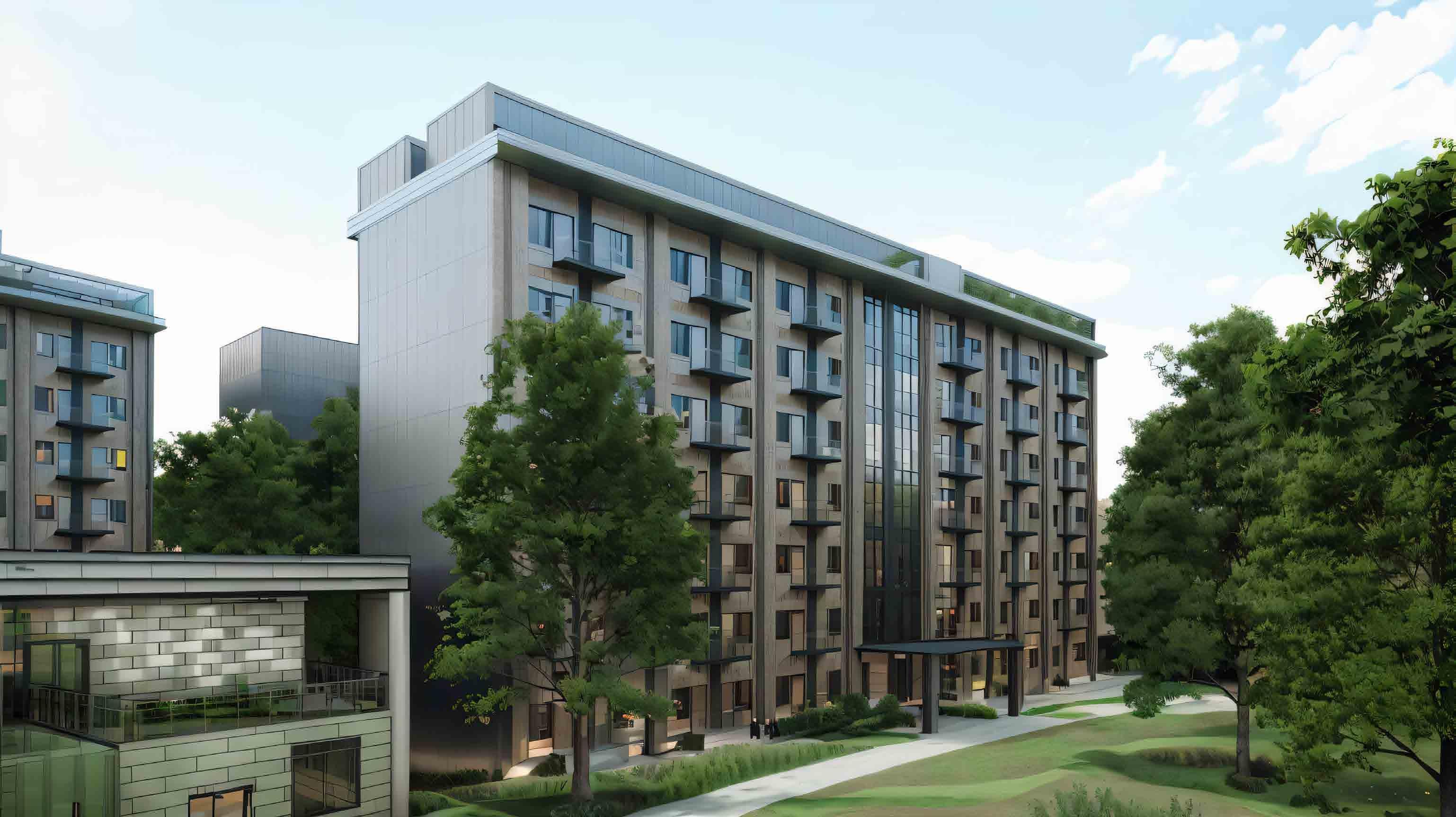

Boys Hostel / Ground Floor Girls Hostel / Ground Floor Boys Hostel / Typical Floors

Warden Room Warden Office Wahrooms Wahrooms Slope 1:12 Warden Room Warden Office Wahrooms Wahrooms Slope 1:12 Wahrooms Wahrooms Wahrooms Wahrooms CENTRE FOR DESIGN EXCELLENCE, VIVEKANANDA GLOBAL UNIVERSITY D D' E' E D D' E Scale: 1:200

Girls Hostel / Typical Floors
