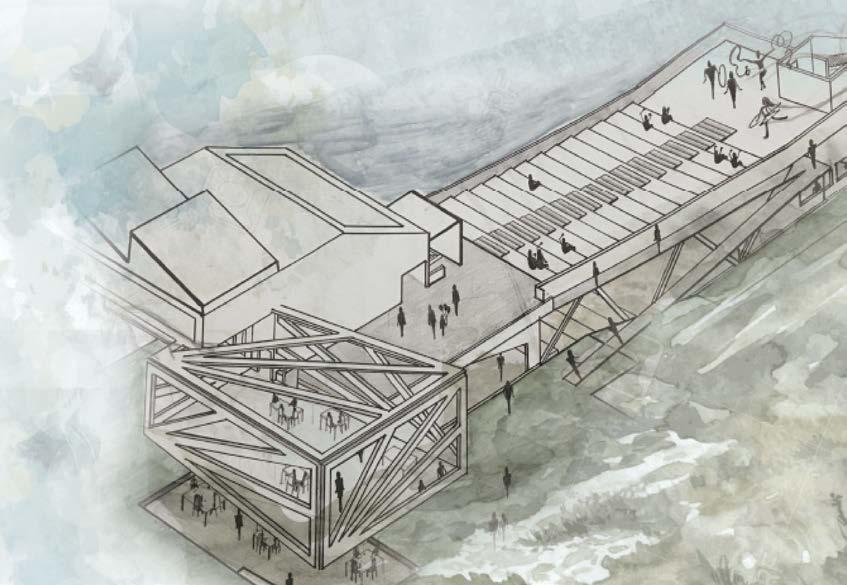

HAND DRAWN AXNOMETRIC SKETCHRECREATIONAL PLACE Bengaluru, India UNDERGRAD PROJECT- SEMESTER 3

PRASHASTI VERMA ARCHITECTURE PORTFOLIO

Masters in Architecture

LEED Green associate

GLIMPSES OF ARCHITECTURAL JOURNEY...

PROFESSIONAL WORK LOCATIONS

ACADEMIC WORK LOCATIONS

`HARRY SEIDLER INTERNTIONAL STUDIO, VENICE. SELECTED IN MERIT FOR TRAVEL GRANT

M3M HOUSING,GURUGRAM

PROFESSIONAL WORK

ARCOP ASSOCIATES, INDIAO

AFFORDABLE HOLIDAY HOUSING, GORUMARA FOREST RESERVE, INDIA PROFESSIONAL WORK.

PHNOM PENH

RESIDENTIAL+COMMERCIAL TOWER, SYDNEY PROFESSIONAL WORK. FENDER KATSALIDIS 05

INTERNATIONAL PLACEMENT PROGRAM, PHNOM PENH

HELLENIC CLUB PRECINCT, CANBERRA PROFESSIONAL WORK. FENDER KATSALIDIS 03

ABIN DESIGN STUDIO 07

SYDNEY

FREELANCE ILLUSTRATOR AND ART TEACHER, SYDNEY 11

AFFORDABLE STUDENT HOUSING, SYDNEY COMBINING EDUCATION, INDUSTRY AND START-UPS.

ART HEART, SYDNEY REUSING THE PARKING STRUCTURE.

MUSEUM OF ARTS AND SCIENCES, SYDNEYRELOCATION. PRESERVING THE HERITAGE

M3M GOLF COURSE HOUSING, GURUGRAM

PROFESSIONAL WORK

GRADUATE ARCHITECT, ARCOP ASSOCIATES

PROJECT:

The project is spread across 31,9440 square yards with 110% of the total land left for greens & concrete development only on 15% of the land. Its a concept of having residences over a 9 hole golf course comprising spacious 3 & 4 bedroom apartments, imperial duplex and triplex penthouses.

TEAM WORK

Worked as Graduate architect under Team Lead.

ROLE IN THE PROJECT:

Details,CC and DA drawings., Training intern architects.

DESIGN CONCEPTS: for Master Plan

THE PUBLIC SPACES

THE GOLF COURSE AND ITS FRINGE

A continous hardscape common space connects site amenities and provides for social interaction and site exploration

The boundary between Golf and landscape is Blurred by a lush garden Space spanning the golf Perimeter

PROGRAMMATIC LANDSCAPE FEATURES

These areas provide both active & passive liesure activities within the publicharscape surface.

VERTICAL CONNECTORS Building lobbies are linked with earthworks and various 3d landscape features. these special spaces reveal the fusion of building and landscape, In dialogue with programs that are expressed

BUILDINGS ABOVE LANDSCAPE

Architectural Bars Hover Above Public Spaces And Landscape Features, Liberating The Ground And Providing Much APPRECIATED

PUBLIC BUILDING COMPONENTS INTERACT WITH PLAZAS Plazas dialogue with public program within buildings, creating dynamic spaces indoors and ou

RESIDENTIAL+COMMERCIAL TOWER, SYDNEY

PROFESSIONAL WORK

GRADUATE ARCHITECT, FENDER KATSALIDIS

HELLENIC CLUB -COMMERCIAL COMPLEX, CANBERRA

PROFESSIONAL WORK

GRADUATE ARCHITECT, FENDER KATSALIDIS

INSPIRATIONS FROM GREECE

The clients wished for an amalgamation of ancient greek architecture -some abstract and some literal, along with a contemporary office building as a contrast.

LMESTONE GEOGRAPHY

TEXTURED WALL/ COURTYARDS/ FOOD LANES

connecting F&B lanes

CONTEMPORARY ARCHITECTURE

Hotel Facade

Agora

Office Building

COLONNADE

Agora and Tholos

BUILDING DIAGRAM

HOTEL

AGORA AND THOLOS THOLOS OF DELPHI

AGORA- CENTRAL PLAZA

THOLOS- ESCLATOR AND LIFTS

EAT STREET CONNECTIONS TO AGORA

ECO- HOUSING, GORUMARA FOREST RESERVE, LATAGURI

PROFESSIONAL WORK

SENIOR ARCHITECT, ABIN DESIGN STUDIO

DESIGN VISION

We base a lot of emphasis to context based design philosophies, this project is tailored to perfect fit in terms of design and planning for the site and its spectacular backdrop of forestland. The design concept is the outcome of prioritizing the connection between nature and our residents. Spread over 96,800 square yards of land around an hour and half driving distance from Siliguri (prominent tourist destination), this development is envisaged as a second home concept at very affordable prices.

Intrigued by the panoramic view of Gorumara Forest Reserve and existing tea plantation within the site, we designed with the intention of maximizing views from our apartments and villas towards it.

The masterplan is designed in conjunction with nature where the entry experience begins with a nature interpretation center to showcase the importance of the local biodiversity and an entrance avenue overlooking the tea plantation which is retained untouched.

TEAM WORK

Worked as Project Lead under guidance of Head Architect and team of junior architects . ROLE IN THE PROJECT:

Initial Concept and Masterplan, Client Meetings and Presentations, Design Development to Construction Drawings.

DESIGN CONCEPTS: for Master Plan

ORIENTATION

Orienting the mass in a way to provide uniform views all units

STEPPED TERRACES

Stepping down the mass towards views to:

-Maximize Terrace Views

-Provide open Communal Spaces

BALCONIES

-Oriented towards views

-Providing uniform views to all apartments.

APARTMENTS CLUSTER

-Radially organised to maximize the views towards the Forest Reserve.

SERVICE APARTMENT BLOCKAXO VIEW

SEMI-DETACHED VILLA DETAILS -Phase-1

SERVICE APARTMENT BLOCK- Typical Floor Plan

Villa- Ground Floor Plan

Villa- First Floor Plan

Villa- Front Elevation

Villa- Section AA’

Villa- Section BB’

The strategic radial planning ensures views from all balconies and common terraces without compromising on privacy by providing lavish courtyards between the buildings.

These courtyards are further connected to pedestrian trails that lead to various destination points like forest look- outs, tea garden decks and club house.

The road network is planned to segregate the pedestrian and vehicular, ensuring enjoyable walks around the campus.

VIEW - Pedestrian Courtyard between Service Apt. Blocks overlooking

INTERNATIONAL PLACEMENT PROGRAM, PHNOM PENH

Selected for Internship program by UNSW, funded by Design Tribe Projects. Internship at SA SA Art Projects in collaboration with Vann Molyvann Projects. Working with Artists and directors, along with Cambodian Students.

Studying an urban poor block in Phnom Penh to understand the community living and aftermath of Khmer rouge. and provide possible solutions to make life better in such neglected blocks. The plans on the right shows the living conditions of family in a small houses.

Pictures from experiences in Cambodia: Exploring the Chan Dom Dek Block, Interviewing locals, Curating Exhibition, Presenting to UNESCO, Cambodia.

Understanding Children’s Perspective in space design

This Board Game was designed by me as a mapping exercise for the community children to understand and explore their neighborhood. It was based on the interviews and research about spaces in the block that are used by children and how can we design safer places for children.

2.5 x 3 m

3 x 3.5 m

3.5 x 3.5 m

AFFORDABLE ECOSYSTEM, SYDNEY

STUDENT HOUSING

ACADEMIC PROJECT

Masters- Major Design and Research Studio

RESEARCH

START-UP

INDUSTRY

How can education, industry, and start-up companies all combine to provide an Affordable student housing

EDUCATION

HOUSING AS A START-UP

WIN WIN FOR ALL:

• Providing subsidised rents and job opportunities for students.

• Creating an asset for university to attract more students.

• Minimal market risks and assured returns to the start-up developer.

In this project we provide a start-up real estate developer (with an opportunity to collaborate with university and other start-up unions to create this affordable housing which would:

• Accommodation and co-working spaces to students and start-up owners.

• These start-up & industry spaces in the building would provide employment to the students.

Cuboid module is eroded in a way that it reacts to different levels of sunlight creating a site responsive form.

The gridded cuboid module creates an adaptive, repeatable building system that provides spatial flexibility and could be customised according to different site location and requirements.

RESPONDING TO CONTEXT

Relation to context

-Light/view

-Orientation

-Public /private interface

Relation to context

-Light/view

-Orientation

-Public /private interface

Containment + Release

-Layering of spaces

-Enclosed vs open

-Privacy

Visual connectivity

-Open spaces

-Verticle circulation

-Volumetric expansion

CUBIOD MODULE

Central open courtyard

-Interaction point for students, art industry and start-ups.

- Art displays attracting people to the building.

SITE LOCATION PLAN

1. Entrance

2. Courtyard /Display

3. Student Workshop +Retail

4. Lift & Staircase Lobby

5. Tourism Offices

6. Co-working/Office

7. Offices-Art Industry

8. Co-working-Art Industry

9. Exhibition/Retail-Art Industry

1O. Storage/Service

11. Toilets

12. Cafe

GRID

Efficient Grid of 6.5x6.5m provides structural simplicity and flexibility in arrangement of spaces by combining vertically and horizontally, whist creating variability in design.

MODULAR

+ PRECAST

The grid becomes the formal identity of the building and renders it recognizable in its urban context.

The precast elements that fit in one frame to form a set of units.

KIT OF PARTS

The kit of parts that fits in this grid frame defines the function and quality of the space i.e, closed, flexible, balconies etc. .

FIXED GLASS

-Exhibition/ Café / Retail Exteriors

APARTMENTS -Back Windows

RAILINGS + PLANTER -Terraces -Corridors

FOLDING SLIDING GLASS WALL -Exhibition spaces -Workshops -Co-working

Single Room to Twin Room (6340

Expanding horizontally on grid

Studio to 1 Bedroom Apartment (6340 x4280) (6340 x4280x 2 levels)

Expanding Vertically on grid

x4280) (6340 x4280)

1. Lift & Staircase Lobby

2. Common S[aces

3. Single/ Twin rooms

4. Studio/ 1 Bedroom apartments

FLOOR PLAN

SECTIONAL MODEL

PRECAST COLUMNS, BEAMS AND SLAB FOR JOINERY DETAILS

Detail A

SELF MADE MODEL SHOWING THE CONSTRUCTION JOINERY SYSTEM EXPLORED- PRECAST ELEMENTS WITH CONVENTIONAL JOINERY METHOD, MAKING THE STRUCTURE MONOLITHIC FOR LONGETIVITY AND MORE AFFORDABLE.

PRECAST ELEMENTS- ASSEMBLY (Sequence and Joinery process)

Detail

ART HEART , SYDNEY

RE-USED THE PARKING STRUCTURE ON SITE

ACADEMIC PROJECT

Masters semester-1

DESIGN CONCEPTS:

REUSING THE PARKING STRUCTURE: with the option of completely demoslishing the parking structure at the site and using a clean site, I choose to sculpt the exising structure in a way that the construction becomes sustainable. the ramps are retained for access to split levels, columns used as display, part of slab and walls retained.

STREET: Creating an Art’s Arcade at street level, which acts as a thoroughfare connecting two roads adjacent to site. This allows more people to come in the building and use the public, commercial exhibition spaces.

EYE LEVEL- from where people see the space.

�� Accessible from street to attract people and providing more activities at street level.

�� Arcade concept- Walkways, pedestrians, art displays, food and retail, workshops etc. all at street level.

�� Extension of future pedestrian civic link.
