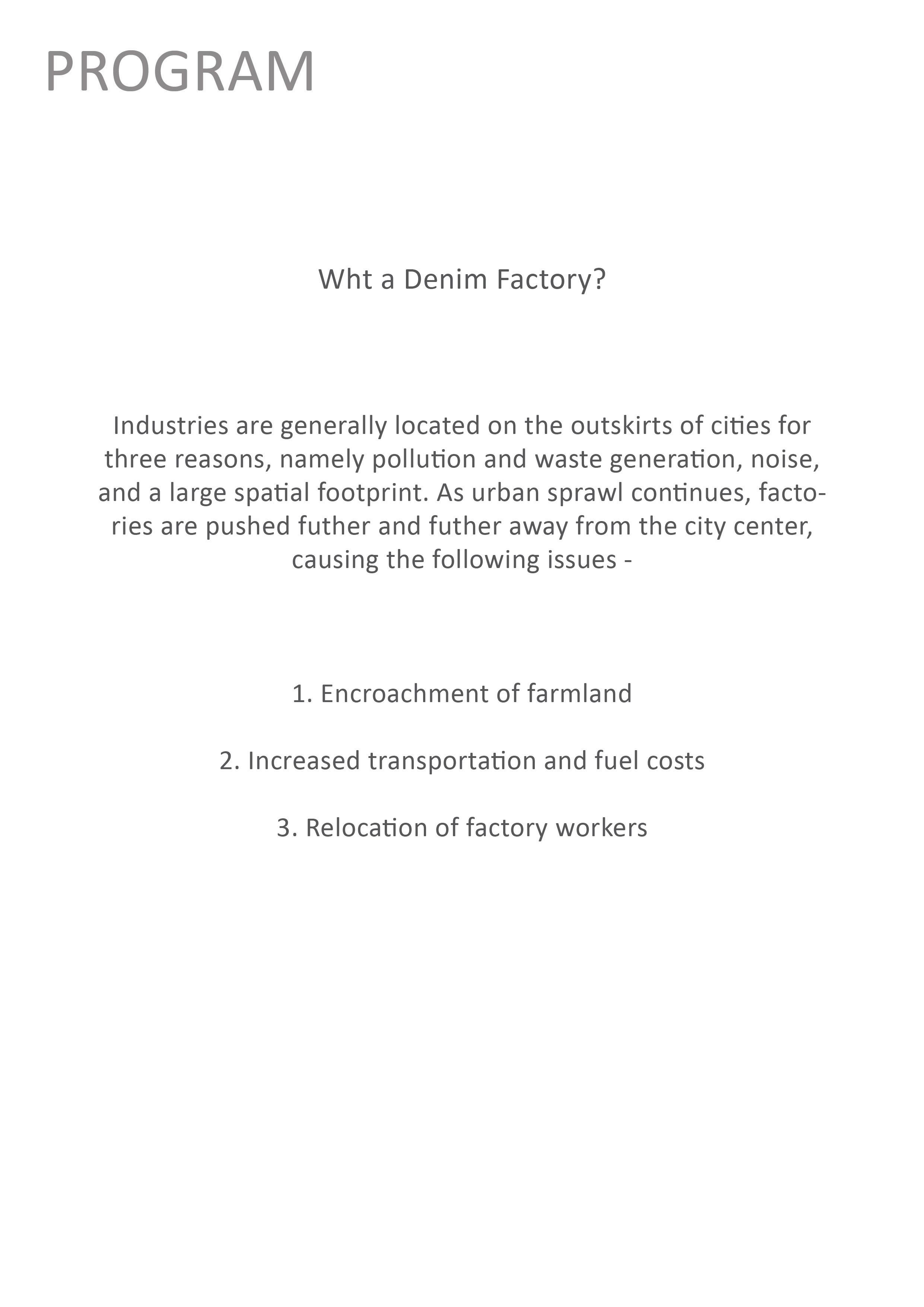

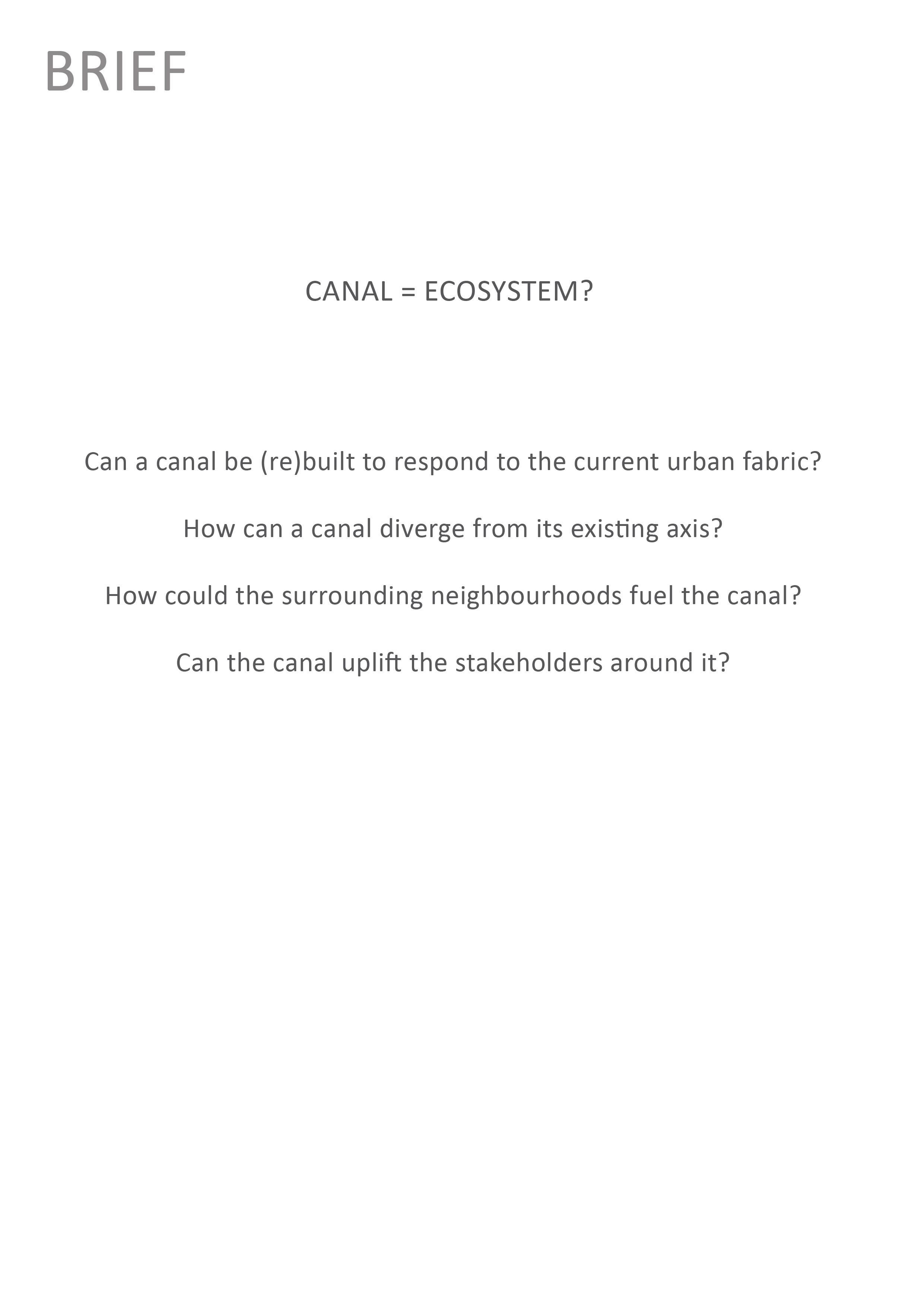

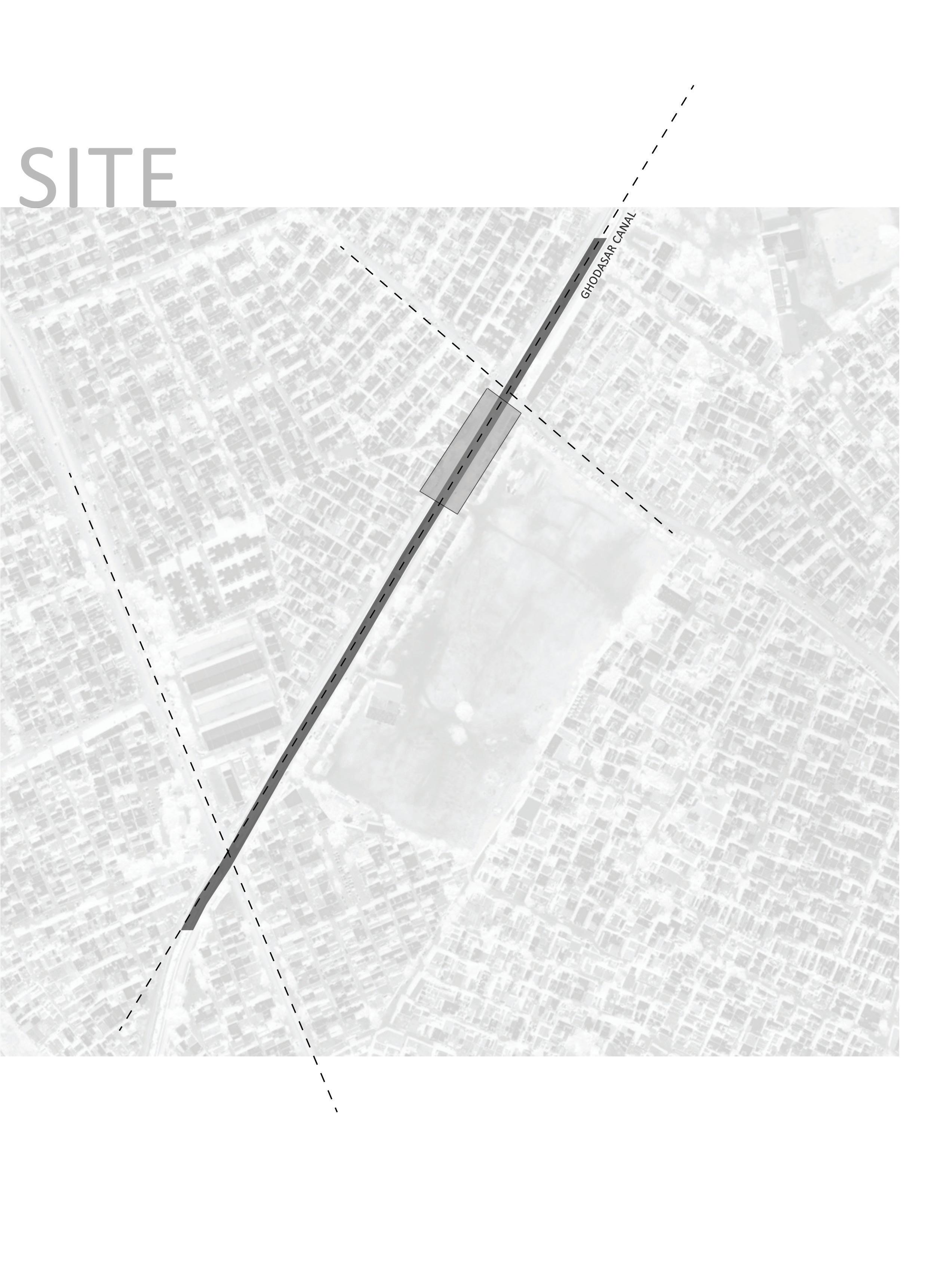

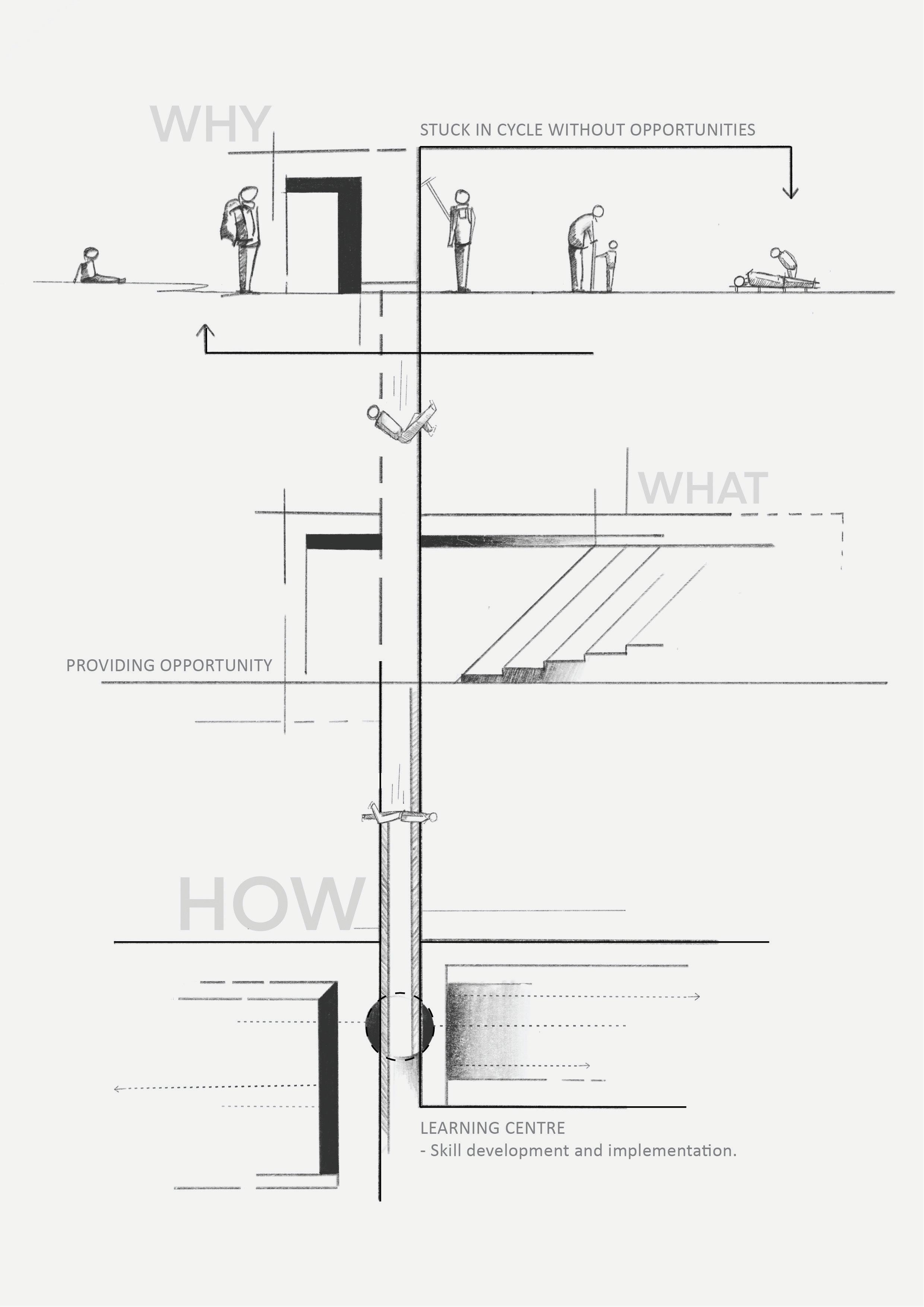

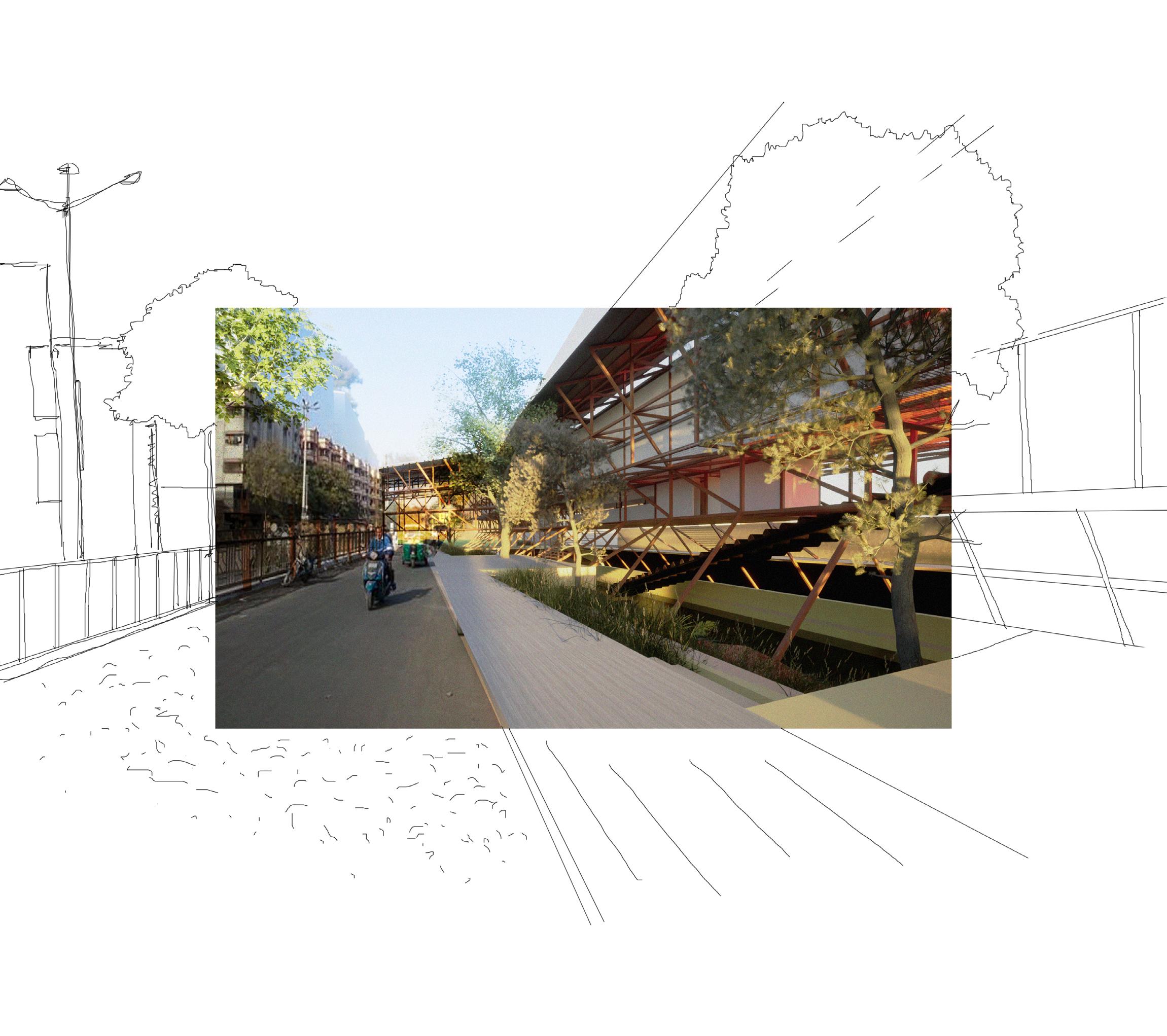

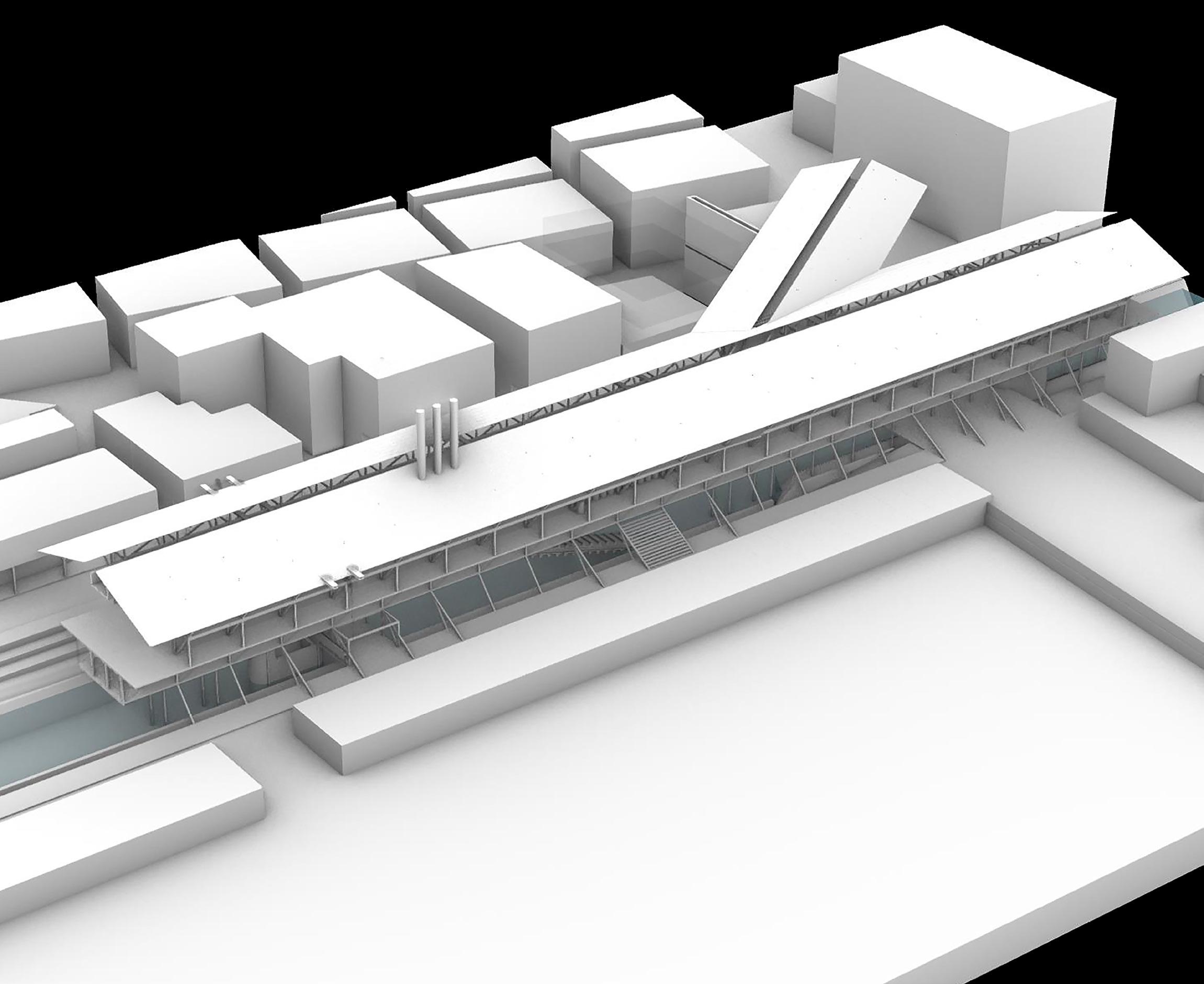

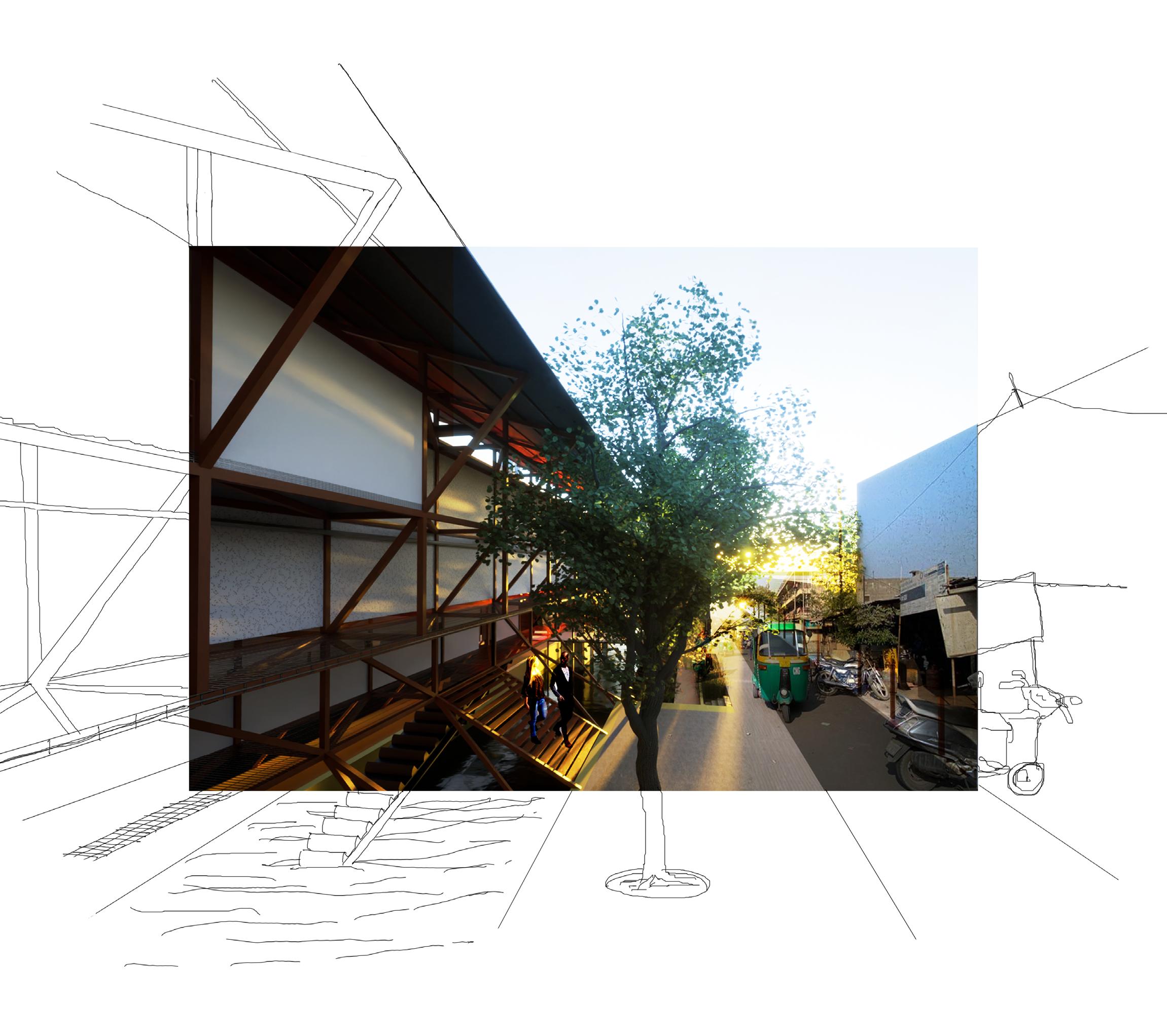

Movement
For the locals
The third floor has the built mass within its center, amd with multiple points of access, the circulation around the floor becomes a part of the larger street.

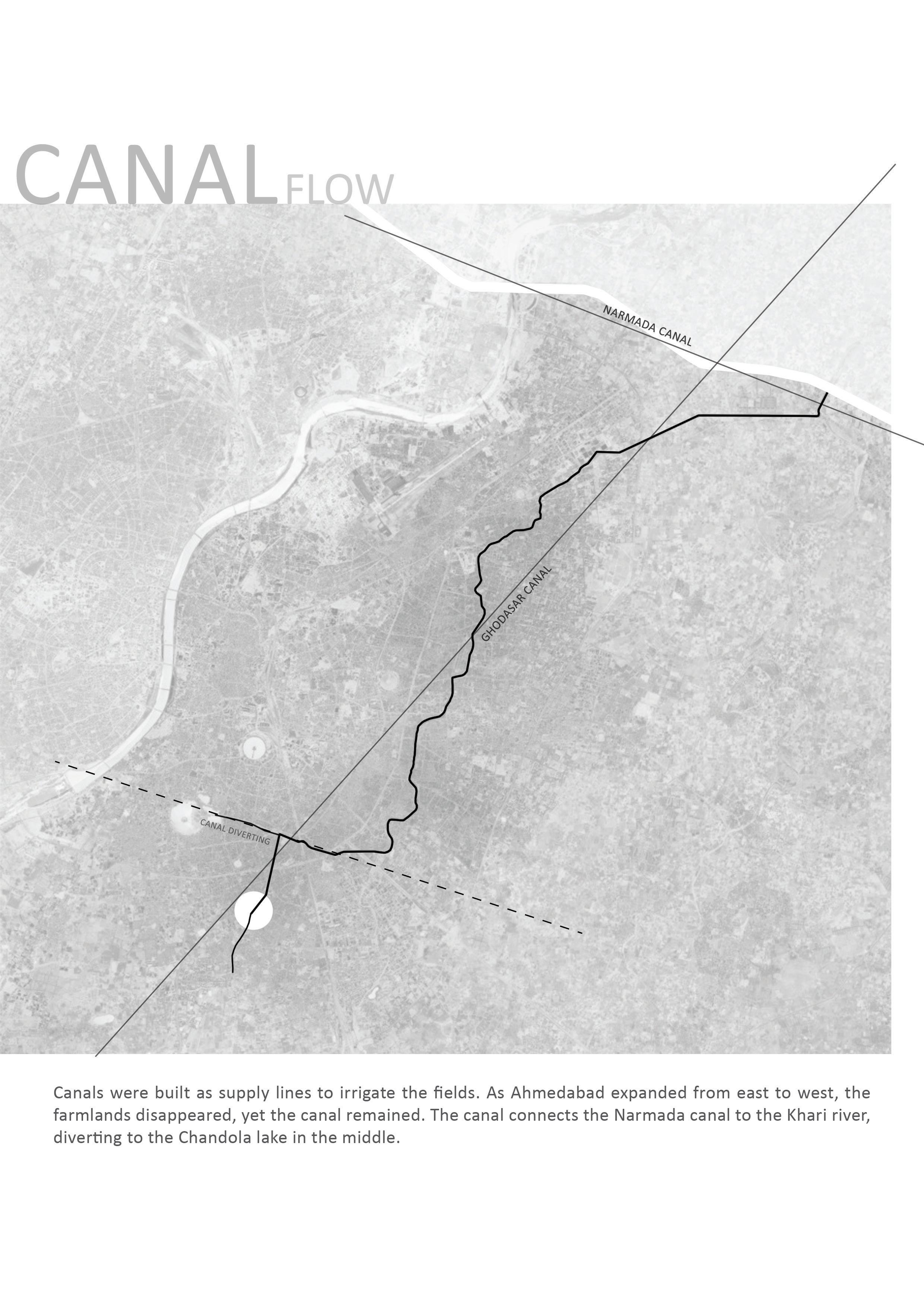

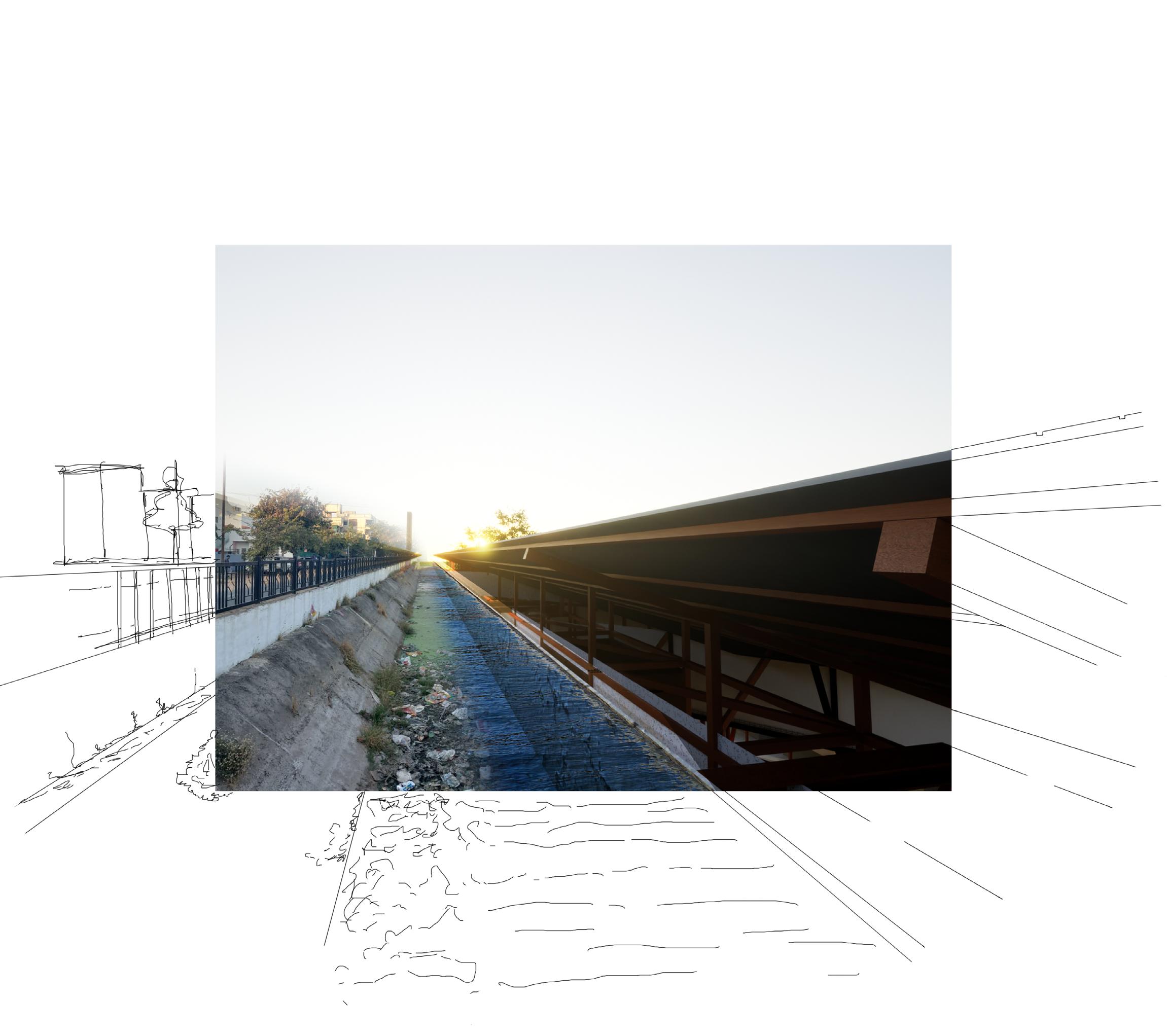

Water Treatment

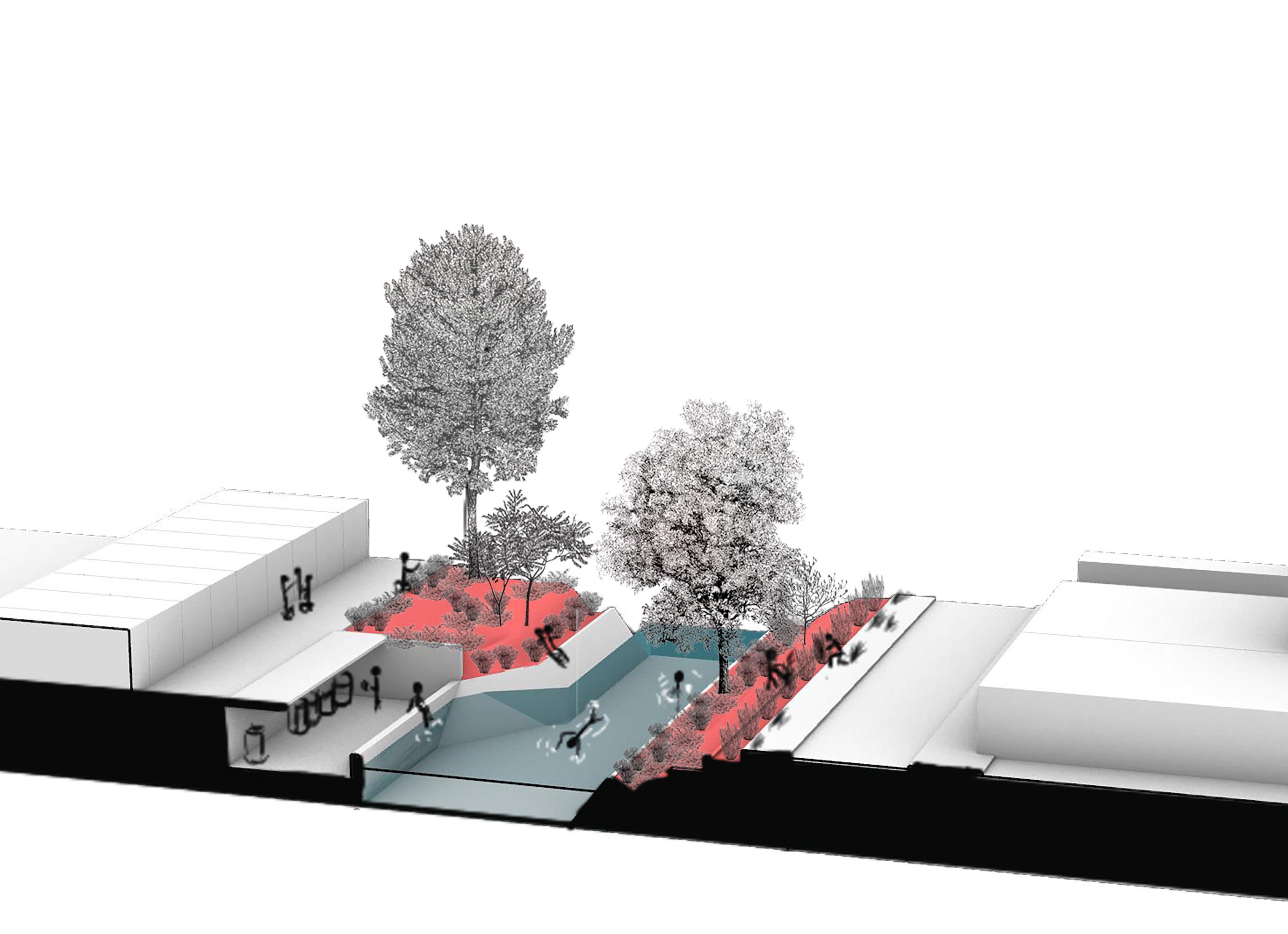

For wildlife development

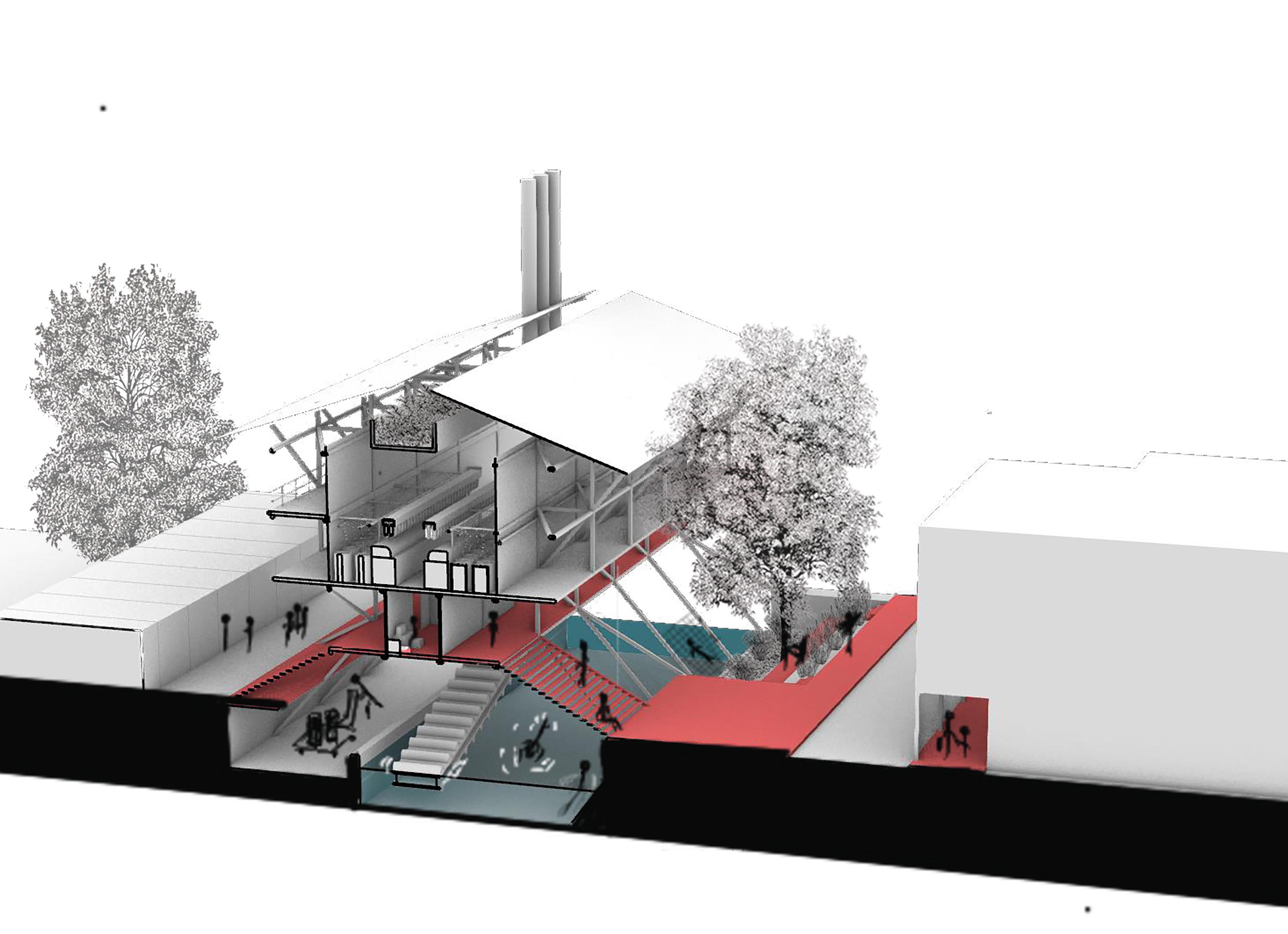

2 STP’s are responsible for filtering the water before and after. The first one, located above the canal, is responsible for filtering while the second, housed in the repurposed building, is responsible for treating waste water from the dying process.
Noise
Minimise disturbance
Double- paned gypsum board as well as a natural tree barrier help minimise noise related disturbances.

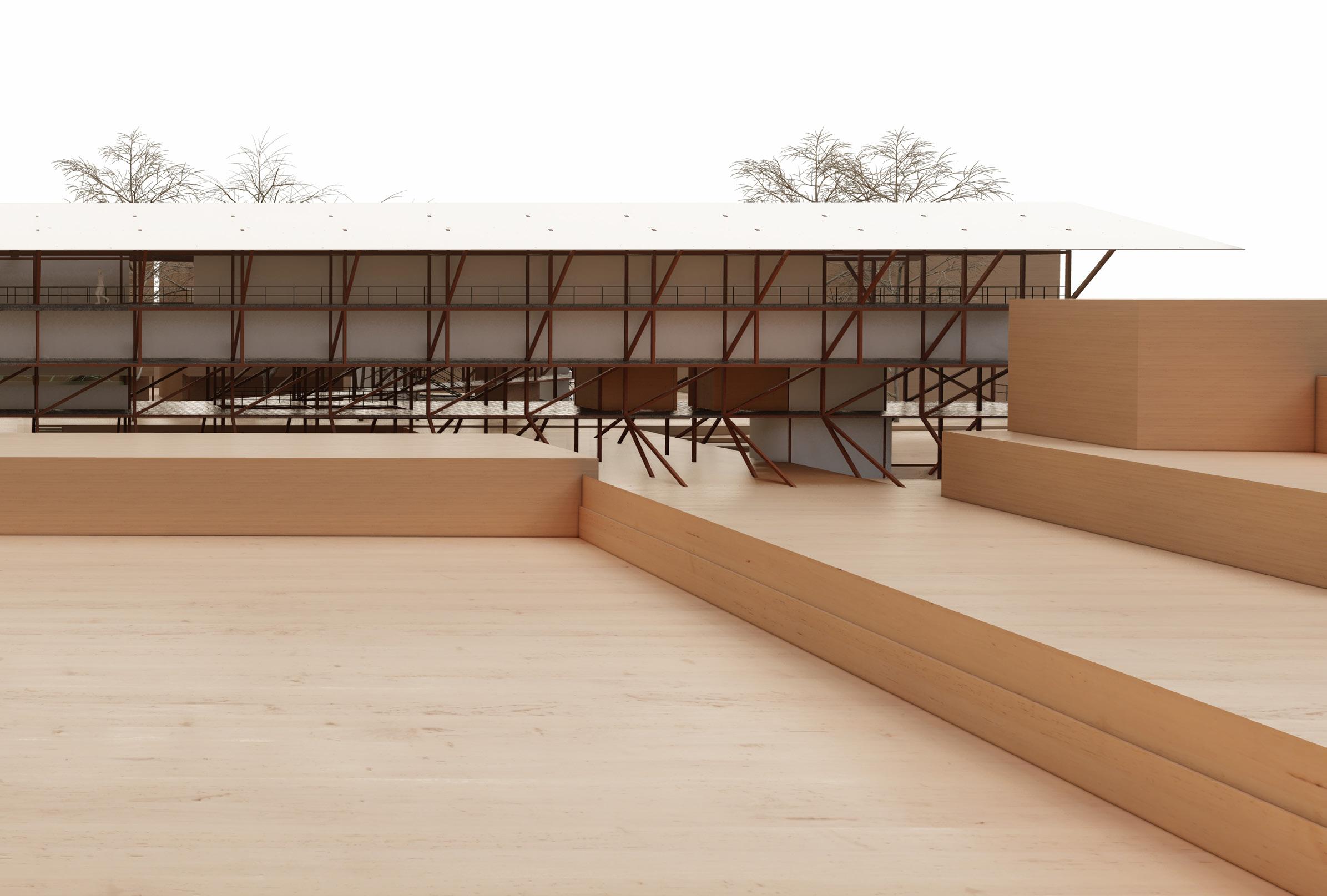

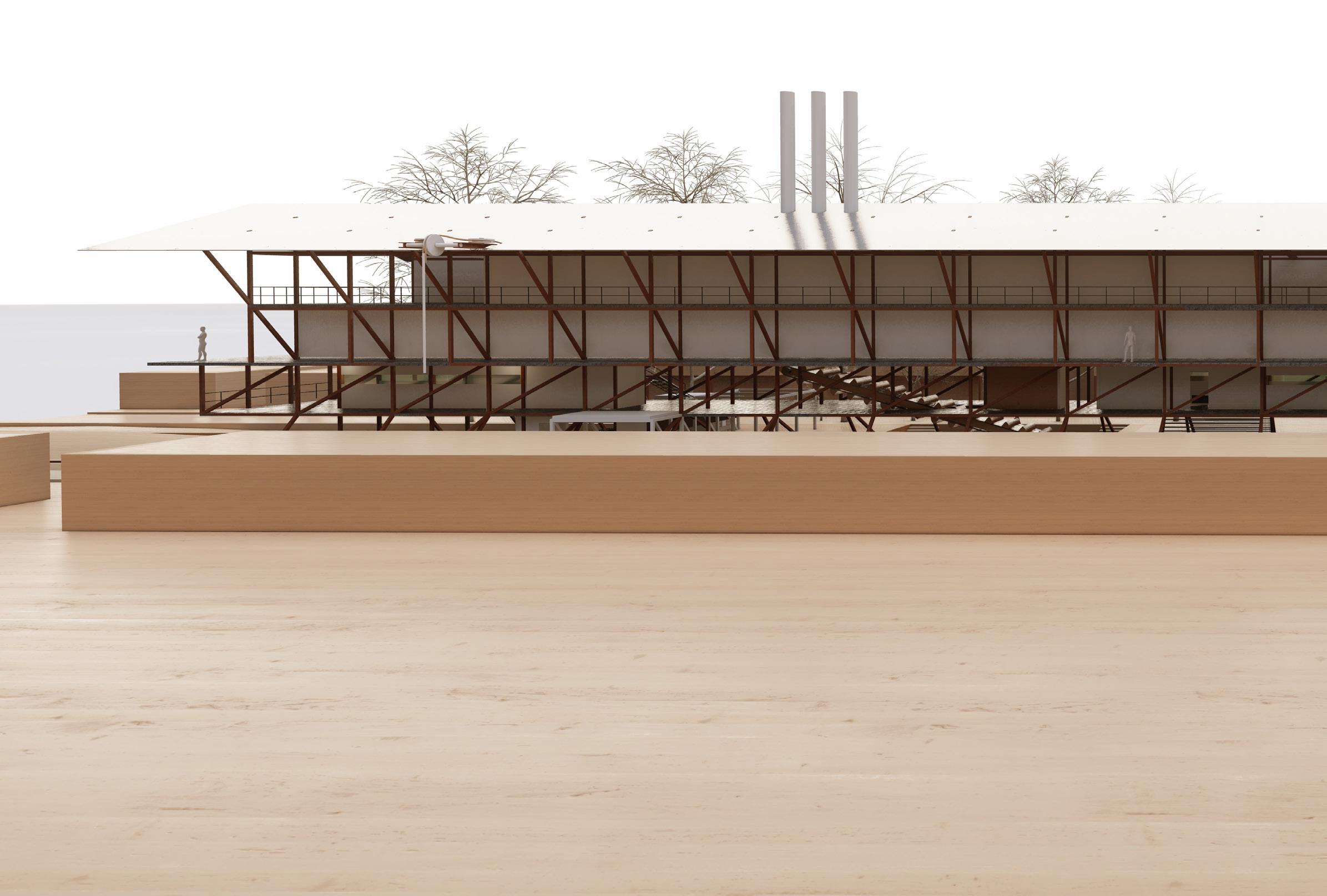

Vibration
Prevent surrounding damage

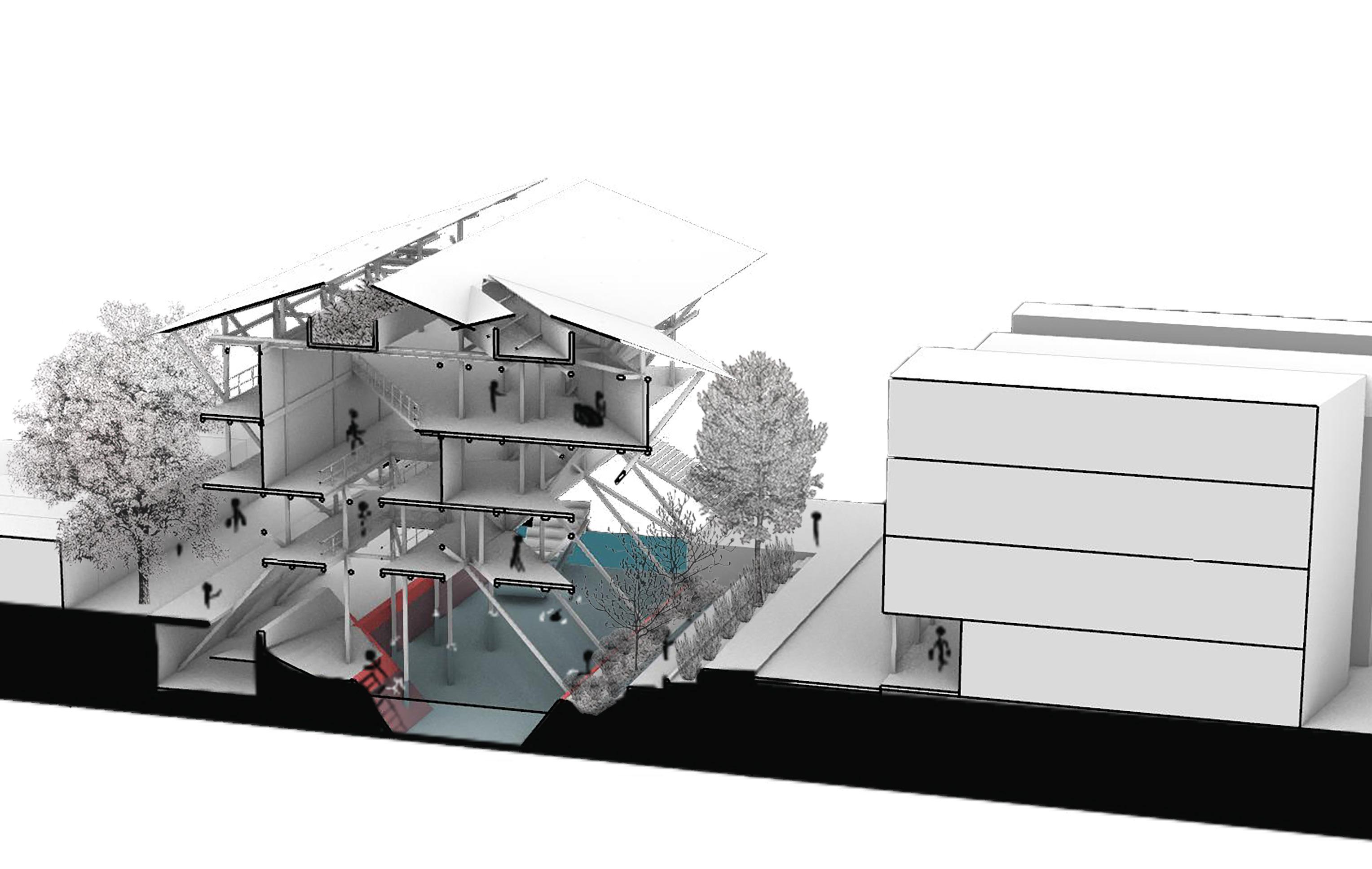

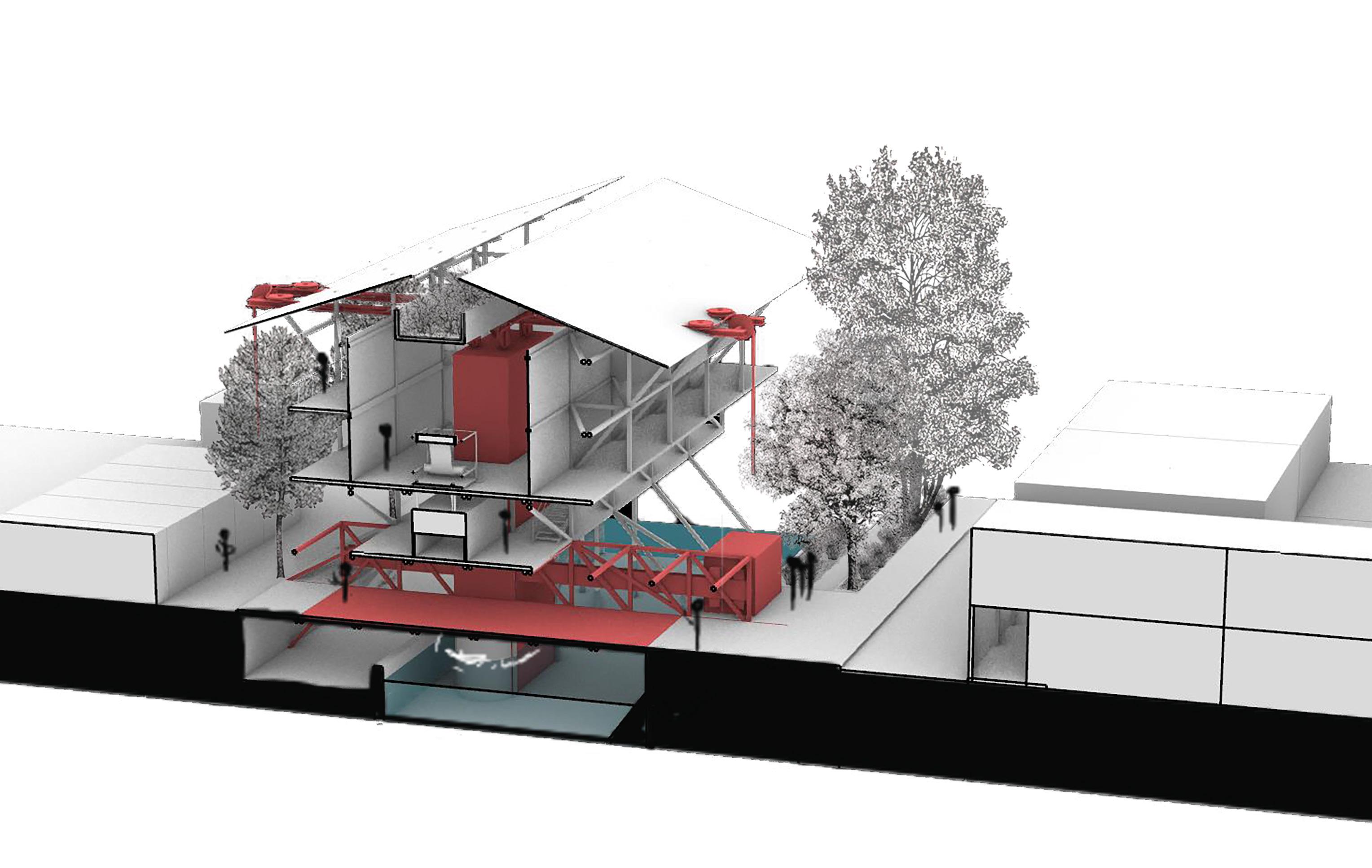

Three cores suspend the frame, while multiple struts in constant tenstion transfer the vibrations into the ground

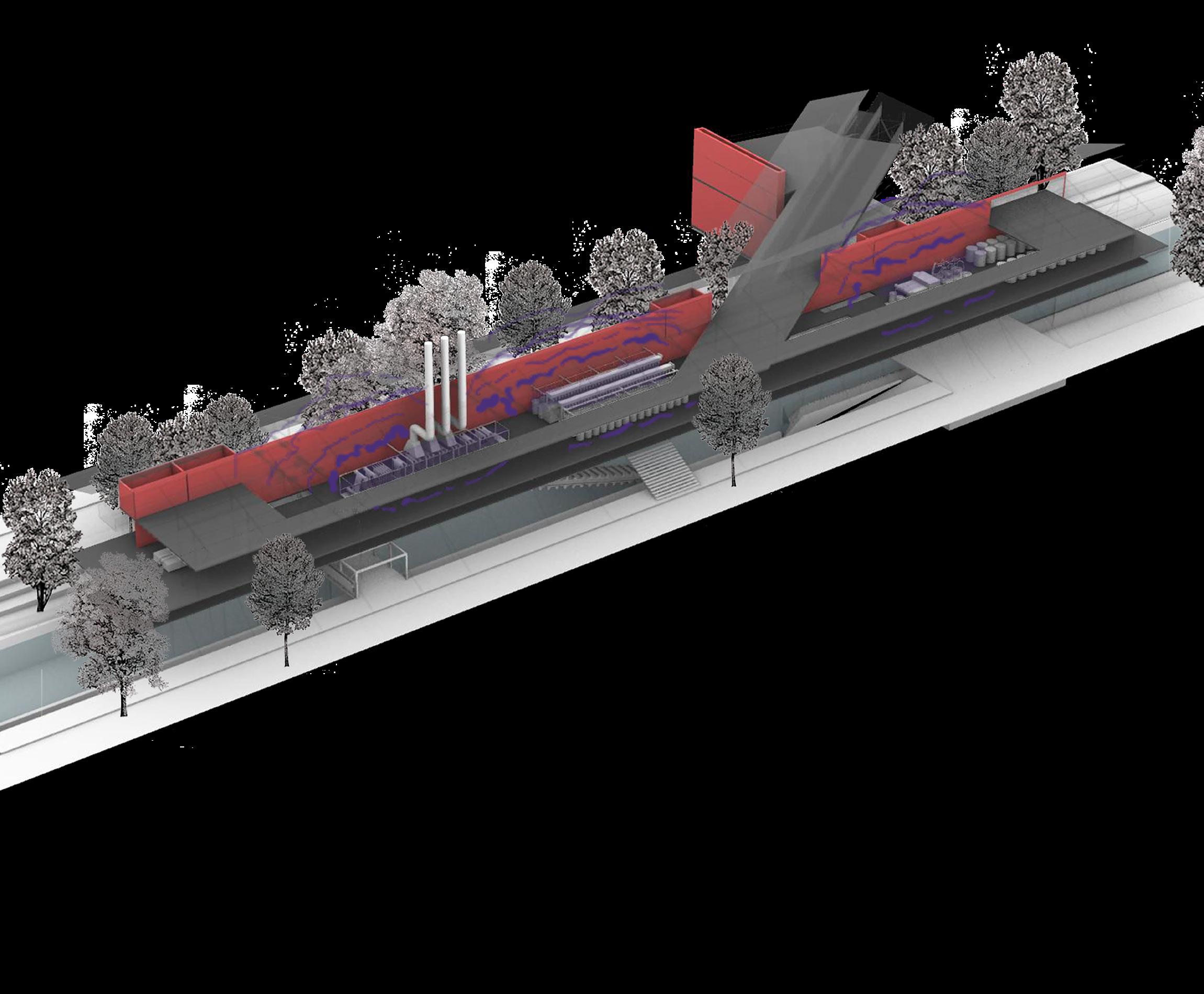

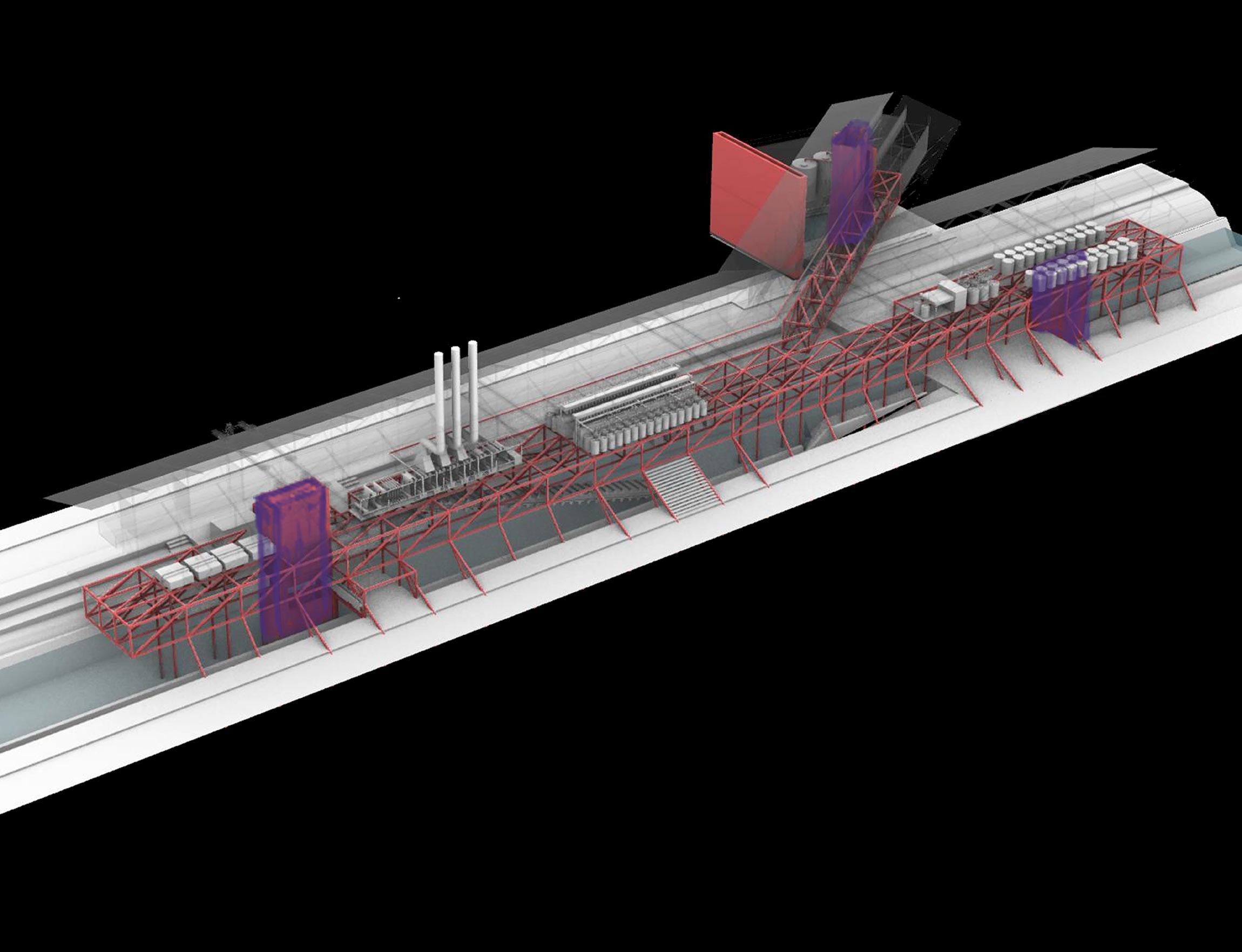

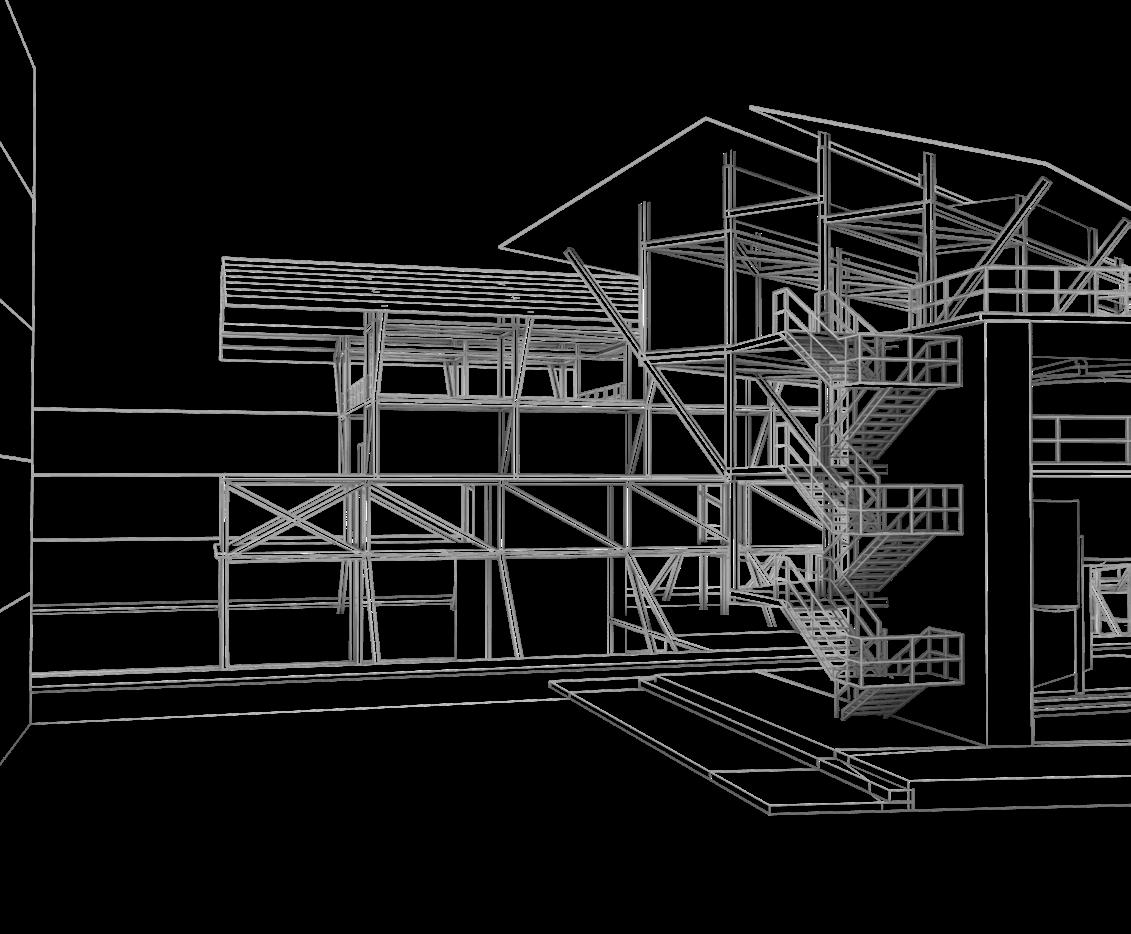

Frame
Porous & easily dismantable

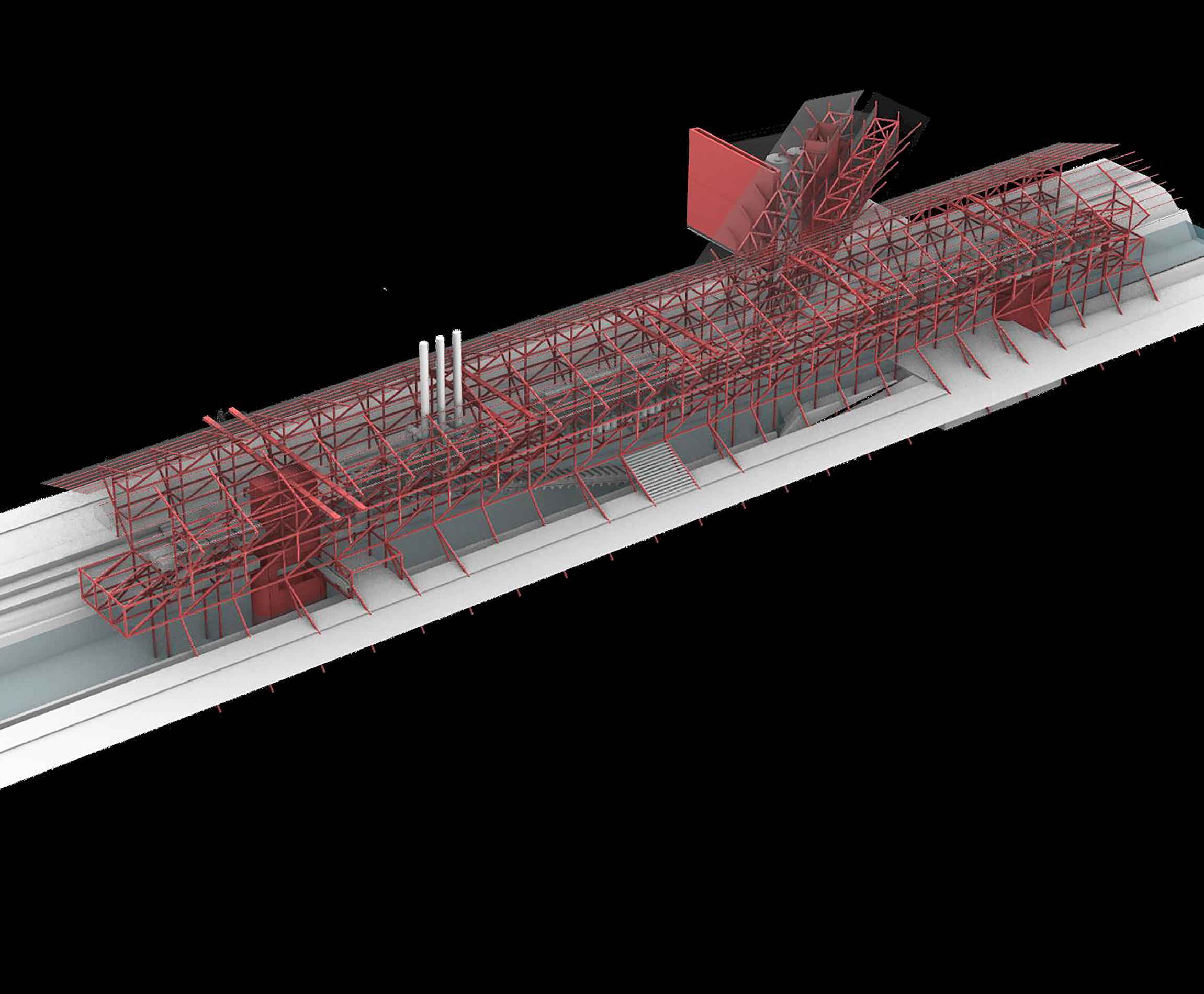

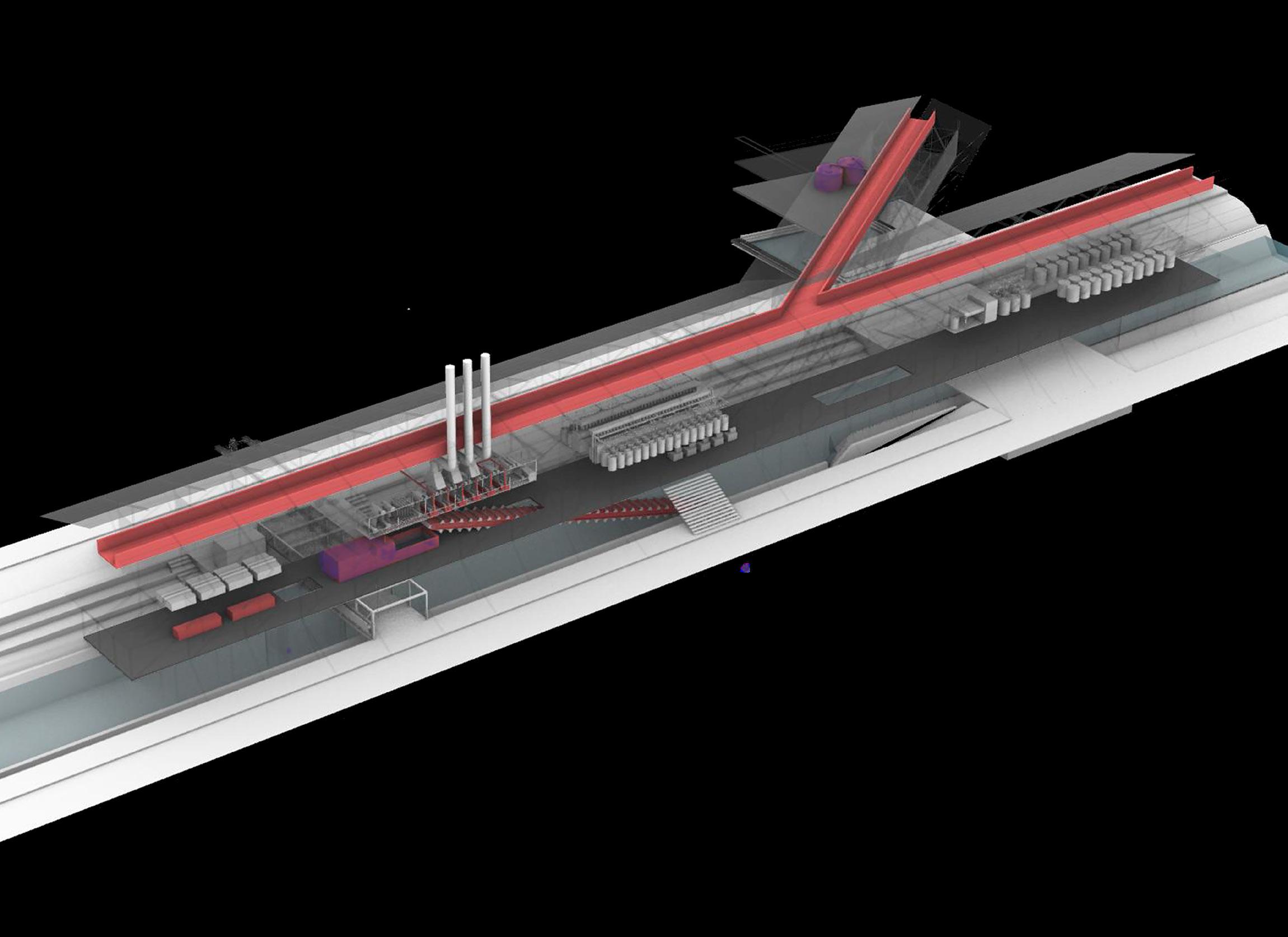

Heavy machinery and water related funtions are close to the core, while the upper frame strcutre act like a skin.
CANTEEN 1.6LIFT 1.5M 1.6LIFT 1.5M ADMIN7.3x18MT.F.+9000LVL 12.5 M CARGO HOLD 10 10.5 M SPOOLROOM DYING 7.3 23M LIFT 10 10.5M CARGO LIFT DN DN DN 2.3 4.8 M 5RECEPTION T.F.x14M+9000LVL TOILET 2.3 x 4.8 M ANANT NATIONAL THIRD FLOOR PLAN
1.6 x 4.1M 7.3 26 M S.F. +6000 LVL S.F. +6000 LVL 1.6LIFT x1.5M 1.6LIFT x1.5M 7.3 x 20 M 7.3 23M WEAVING UP UP UP UP UP QC 7.3 7.8 M STP1 & RESAVOIR 2.4 13 M TOILET DN CARGO LIFT F.F. +3000 LVL 2.3 4.8 M ANANT NATIONAL SECOND FLOOR PLAN STP 2 OFFICE 1.6LIFT x1.5M 1.6LIFT x1.5M CARGO LIFT S.F. +6000 LVL WEAVING 7.3 10.3M TOILET PANTRY DN UP UP UP LIFT UP UP 7.3 7.8 M 2.4 13 M SHRINK TEST 2.3 4.8 M DN CARGO LIFT 7.3 7.8 M STICHING CARGO LIFT ANANT FIRST FLOOR PLAN
WALL SECTION
SUPERSTRUCTURE 20MM SS LIGHT ROOF PANELS LVL +0 FOOTHPATH LVL +3010 G.F. FFL LVL +2700 G.F. FRAME BOTTOM LVL +6170 F.F. FFL LVL +5860 F.F. FRAME BOTTOM LVL +12030 ROOF BOTTOM LVL +15640 ROOF TOP LVL -4000 CANAL BOTTOM LVL -1650 RIPARIAN EDGE LVL +9330 S.F. FFL 2350 1650 2700 310 2850 310 3160 2700 3300 4000 3010 3160 3470 6000 15640 4000 150MM THK CONCRETE CHANNEL 320MM DEPTH I-SECTION 25X25MM BALUSTER SERVICE PIPES DOUBLE LAYERED GYPSUM BOARD 60MM DEPTH STEEL GRATE FLOORING 150MM MS BOX SECTION 5MM THK STEEL CHANNELS 50MM SYNTHETIC WOOL INSULATION SUB STRUCTURE
PRANAV MAHESHWARI
