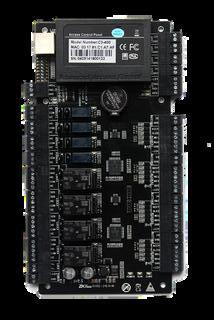

DOOR CONTROLLER (C3-400)
C3-Series is an IP Based Door Access Cont supports full range of RFID readers that sup output readers and works well with high spee This controller can be installed easily on netw both TCP/IP and RS-485 communication.
Logistics Warehouse Management Apparel Toll Management
GENERAL SPECIFICATIONS :
Readers Supported
Types of Readers Supported
4
4 Door .
26-bit Wiegand, others upon request
.............................................................................................................................................................................
Number of Inputs
12 (4 Exit Device, 4 Door Status, 4 AUX)
.............................................................................................................................................................................
Number of Outputs
CHARACTERISTICS :
Card Holders Capacity
Log Events Capacity
8(4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
30,000
100,000
Weight 7.8lbs (3.55kg)
Communication TCP/IP, RS-485
Enclosure
Powder Coated Aluminium
Wall Mount
Recommended Power Supply
Mounting 12V DC, 1.5A
Dimensions ( Board Only)
8.58in.×4.17in. (218mm×106mm)
Dimensions (Bundle Only) 15in.×3.15in.×11in.
