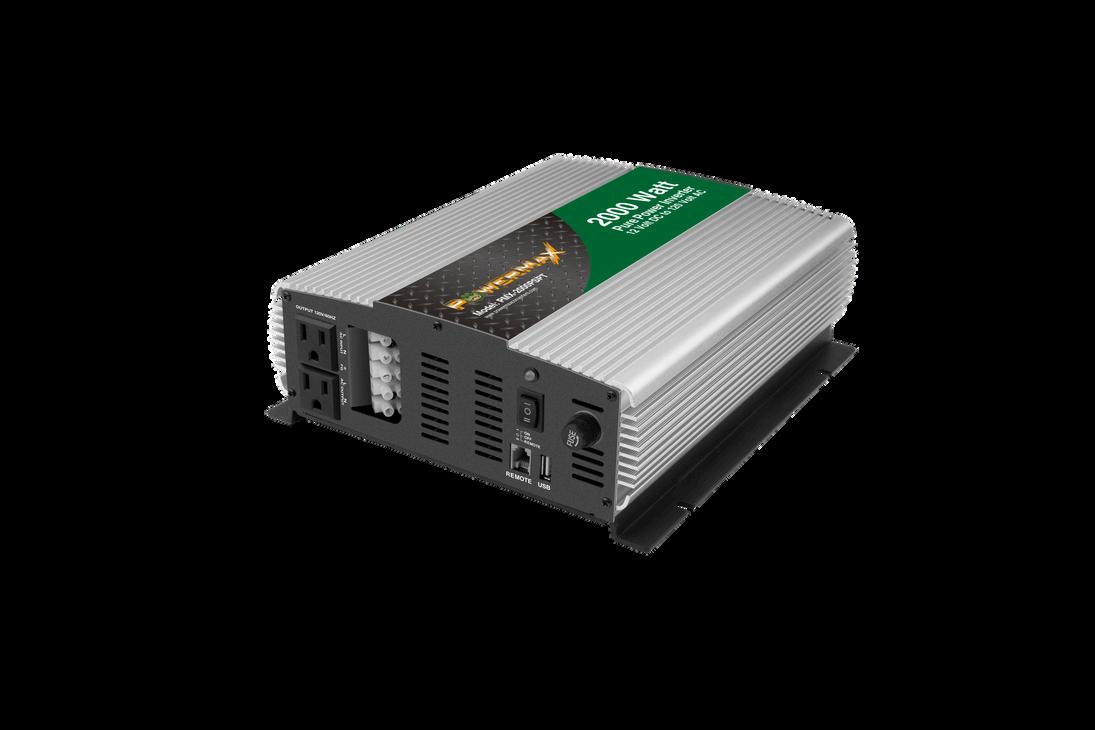

Easy, Auto-Installed PMX Series Pure Sine Wave Inverters
1000 Watt | 2000 Watt | 3000 Watt Pure Sine Wave Output
GFCI and USB Outlets
LED status indicator lights On/Off Remote AC Pass Through Built-in Transfer Switch PMDP-30/50 RV Distribution Panel
30/50 Amp AC and 12 Volt DC Distribution Panel
Pre-wired DC output for an easier install Blown fuses DC indicator LED Replacement for WFCO 8930/50
Hybrid Solar Inverter Charger
3000W Pure Sine Wave Output
Easy-to-use design with LED lights
Built-in 150A solar charger
(30–300V input)
Smart charging for better battery life
Auto-restarts with solar power
Built-in protections and cold restart
Remote Monitoring with RS485 (optional)
PMX
3
PM3-SME Series
PM3-15/35/45/55/60/65/75/100/120-SME

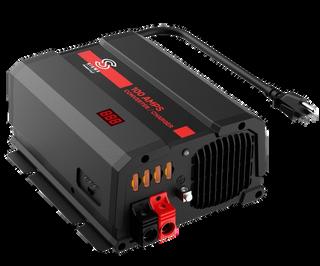

PowerMax PM3-SME Series Smart Battery Chargers & Converters
Reliable, Adjustable Power for RV, Marine, and Industrial Use The PowerMax PM3-SME Series provides clean 12V DC power from a standard 120V AC source while charging your batteries safely and efficiently. With adjustable voltage (13V–16V) and your choice of Fixed, 2-stage, or 3-stage smart charging, you get the right power for any application.
A quiet, temperature-controlled fan, easy-to-read LCD display, and maintenance-free design make this converter both dependable and user-friendly. Perfect for RVs, boats, and industrial systems, the PM3-SME delivers safe, long-lasting performance you can count on.
Key Features include:
Adjustable Output Voltage – Fine-tune voltage from 13V to 16V to suit different battery types and applications.
Multiple Charging Modes
Fixed Mode: Constant voltage for equipment or battery maintenance
2-Stage Charging: Boost (14 4V) + Float (13 6V) for fast charging and maintenance

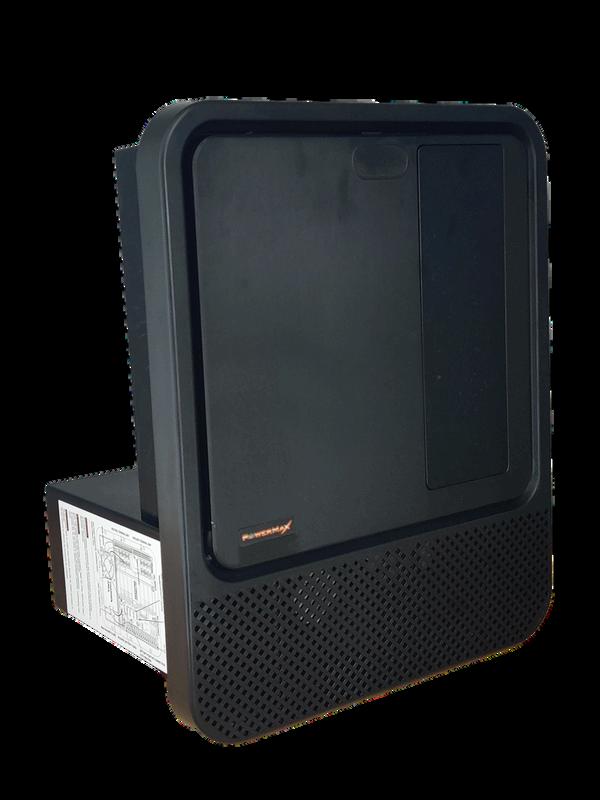

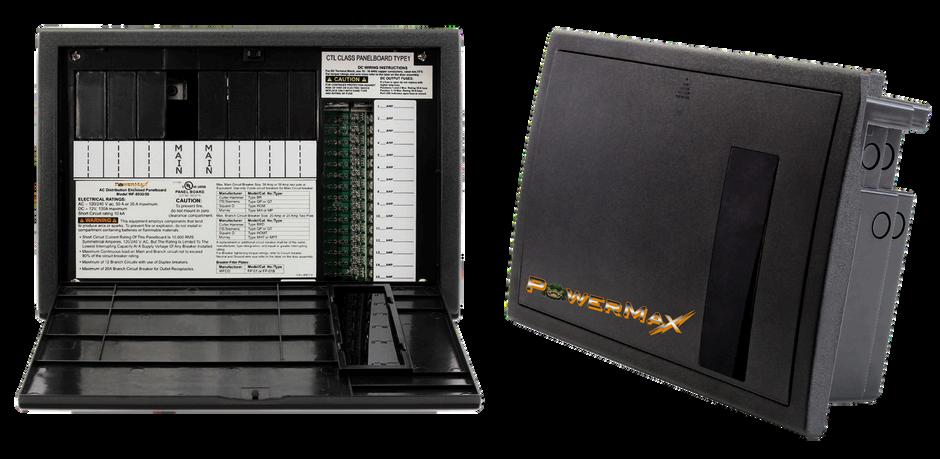

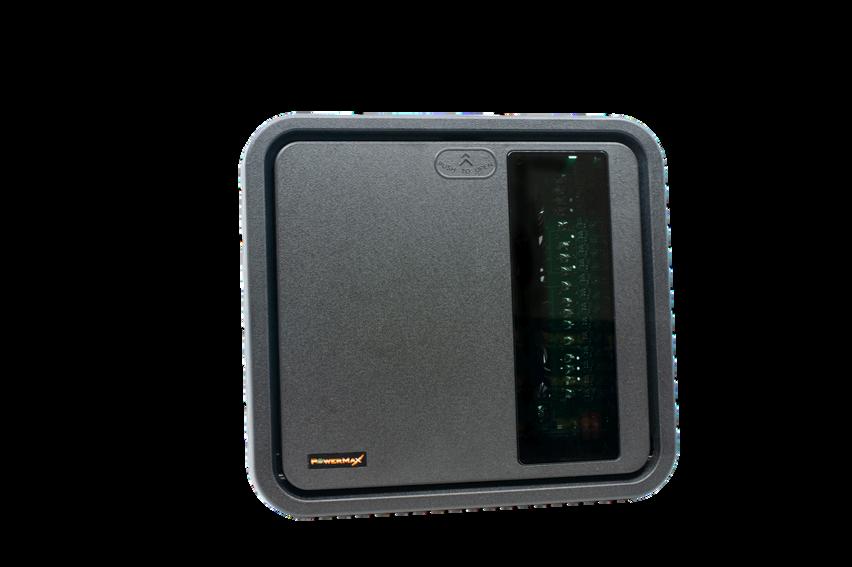

The PowerMax PMDP-30/50 AC/DC Distribution Panel combines 120 VAC breaker protection and 12 VDC fused distribution in a single compact RV power center. Supports 30A or 50A input, offers removable converter serviceability, and delivers clean, centralized wiring for RVs, campers, and mobile builds. PMDP can be used with any of the 55A, 60A, 65A, or 75A PM3 Deck Mount Converter / Chargers. The PMDP is an ideal replacement for WFCO, PD, or IOTA Distribution Panels.
Key Features Include:
Integrated AC/DC power distribution panel
Supports 30A or 50A 120 VAC input
Stab-type AC circuit breakers
Individually fused DC branch circuits
Removable converter/charger module
Reverse battery protection fuses
Dedicated ground and neutral terminal bars
Clearly labeled input/output terminals
Durable plastic enclosure
Interior mounting with ventilation clearance
PMDP-30/50-BT
Wireless Technology Built-In

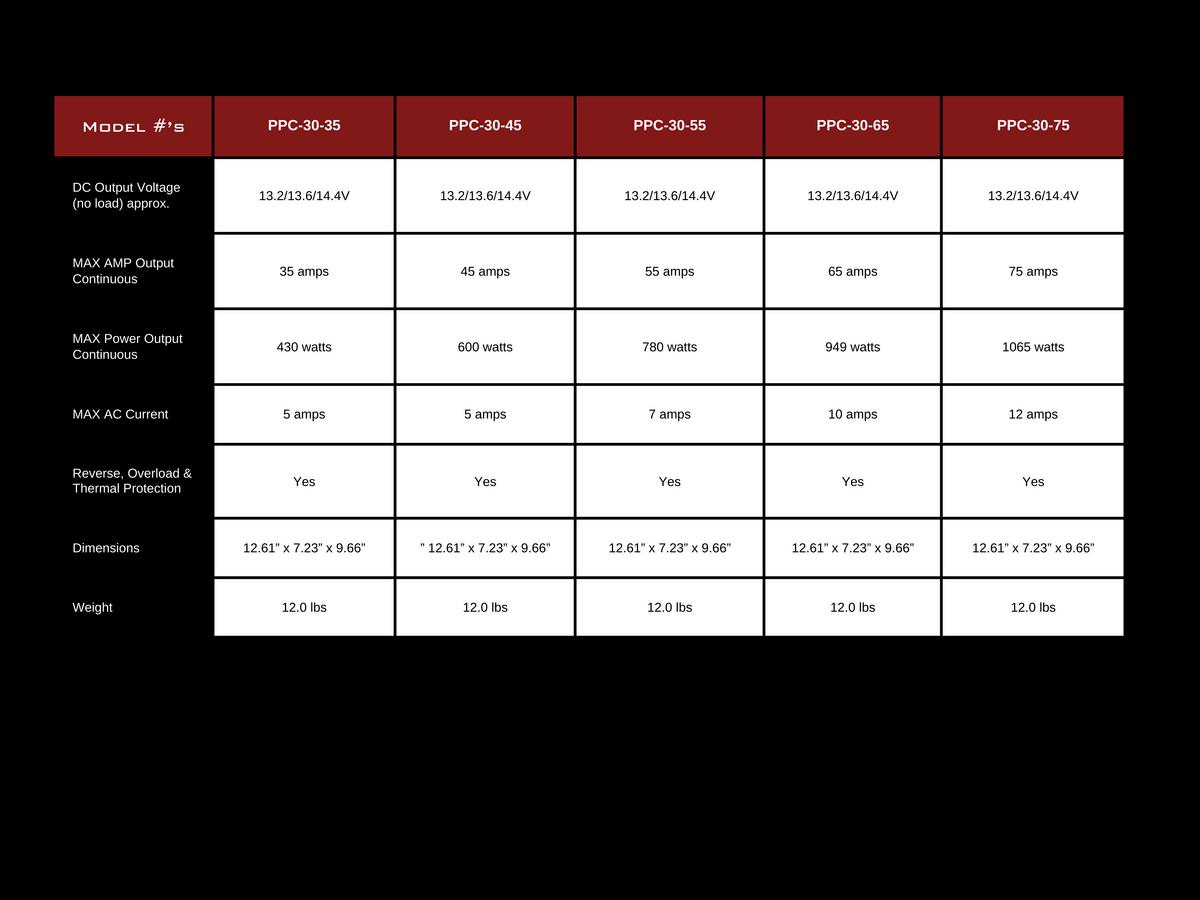

PPC- 30A PPC Series
Key Features include:
ALL-IN-ONE POWER CENTER: Combines a 120VAC to 12VDC converter, battery charger, AC breaker panel, and DC fuse block in one integrated unit
SMART 3-STAGE CHARGING: Optional Boost, Normal, and Storage charging modes automatically optimize battery health and lifespan
ADJUSTABLE VOLTAGE OUTPUT: Selectable fixed output from 13V to 16 5V for custom power supply applications
EASY INSTALLATION: Installer-friendly layout with clearly labeled terminals, stab-style breakers, and removable converter module
SAFE & RELIABLE: Switch-mode current-limiting design with built-in protection for long-term, maintenance-free operation
IDEAL FOR RV & MOBILE USE: Perfect replacement or upgrade for trailers, campers, food trucks, and 12V electrical systems

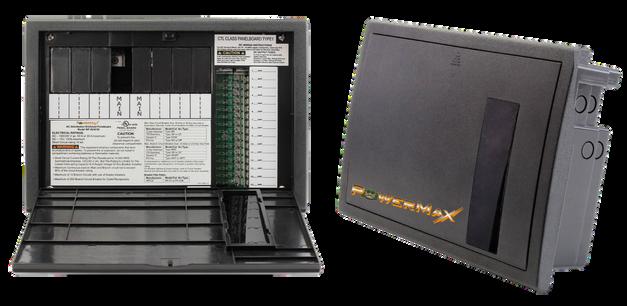

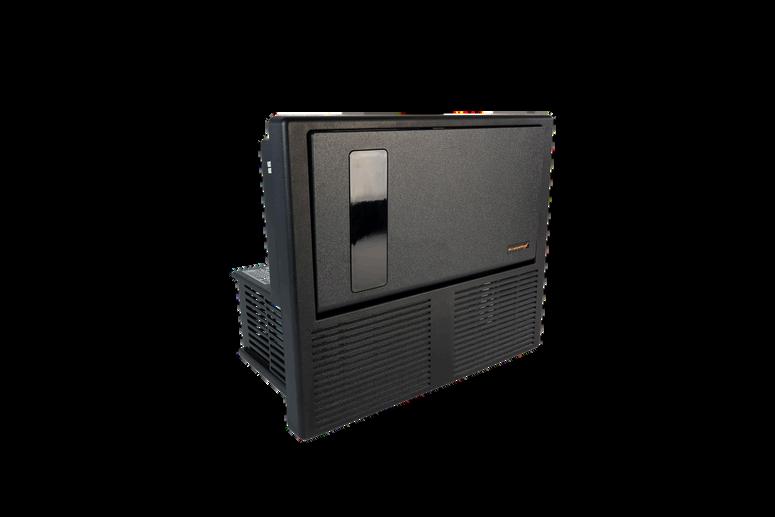

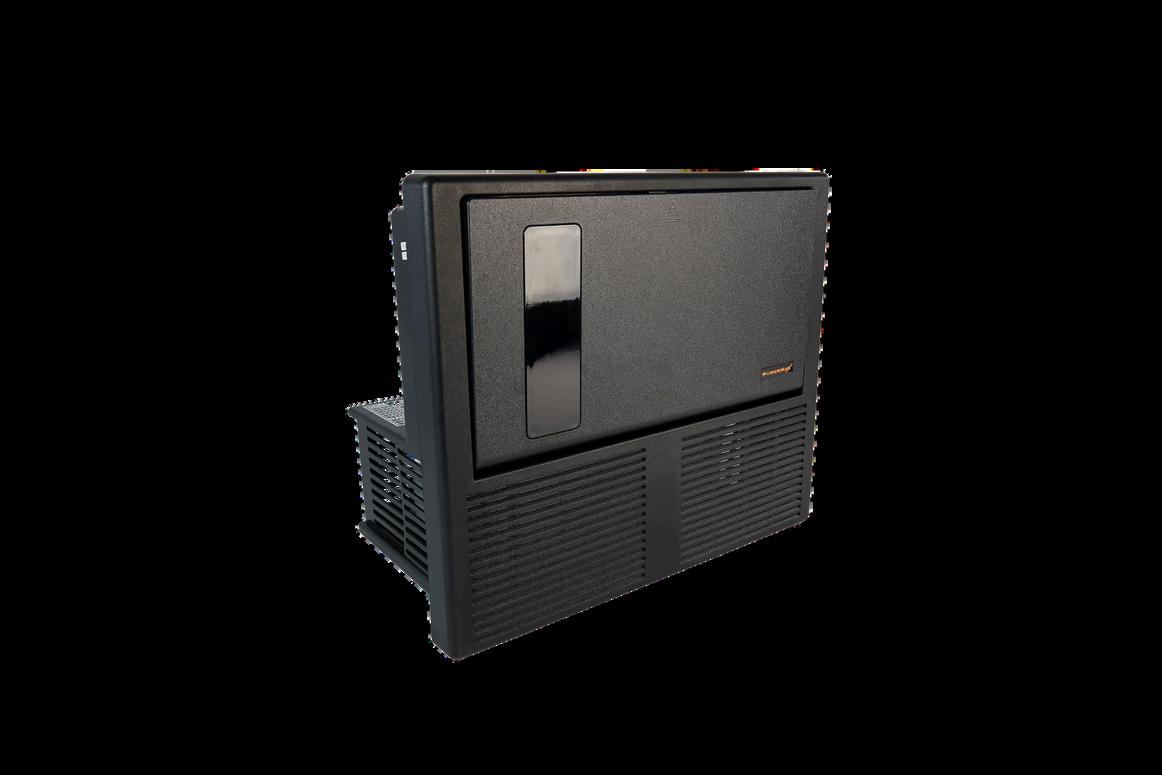

PowerMax PPC Series – All-In-One RV Power Center
The PowerMax PPC Series Power Center is a complete AC/DC power management system designed for RVs, campers, trailers, and specialty vehicles. This integrated unit combines a high-performance 120VAC-to-12VDC converter/charger with a full AC and DC distribution panel—delivering reliable power, safe battery charging, and simplified electrical organization, all in one rugged enclosure.
Whether you’re upgrading an existing system or installing a new one, the PPC Series provides dependable, maintenance-free performance with advanced charging technology and easy installation.
Technical Specs:
General
Available in 35A, 45A, and 55A models
Integrated 30 Amp AC input with built-in 12 VDC distribution panel
Direct replacement for WF-8900 Series Power Centers
AC Distribution
Space for 1 Main breaker
Space for 5 Branch circuit breakers
DC Distribution
Supports 11 fused 12V DC circuits
Blown-fuse indicator LEDs for quick troubleshooting
Installation Details
Designed to fit the same footprint as WF-8900 PEC units
Cutout Dimensions: 12 1/8" (W) x 11" (H)
Model Compatibility: PCW 30-35A / 45A / 55A
2

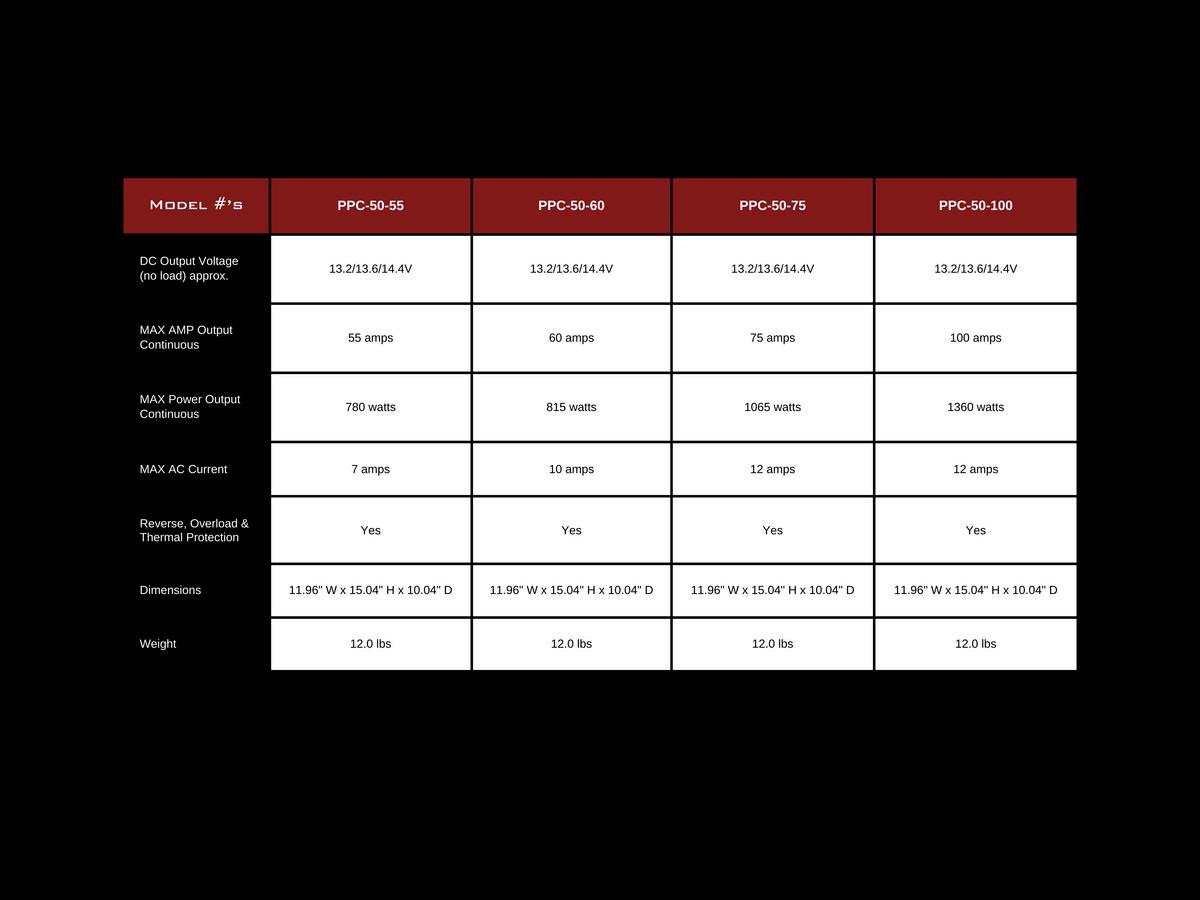

PPC- 50A PPC Series
Key Features include:
PowerMax PPC Series – All-In-One RV Power Center
The PowerMax PPC Series Power Center is a complete AC/DC power management system designed for RVs, campers, trailers, and specialty vehicles. This integrated unit combines a high-performance 120VAC-to-12VDC converter/charger with a full AC and DC distribution panel— delivering reliable power, safe battery charging, and simplified electrical organization, all in one rugged enclosure.
Whether you’re upgrading an existing system or installing a new one, the PPC Series provides dependable, maintenancefree performance with advanced charging technology and easy installation.
Technical Specs:
ALL-IN-ONE POWER CENTER: Combines a 120VAC to 12VDC converter, battery charger, AC breaker panel, and DC fuse block in one integrated unit
SMART 3-STAGE CHARGING: Optional Boost, Normal, and Storage charging modes automatically optimize battery health and lifespan
ADJUSTABLE VOLTAGE OUTPUT: Selectable fixed output from 13V to 16.5V for custom power supply applications
EASY INSTALLATION: Installer-friendly layout with clearly labeled terminals, stab-style breakers, and removable converter module
SAFE & RELIABLE: Switch-mode current-limiting design with built-in protection for long-term, maintenance-free operation
IDEAL FOR RV & MOBILE USE: Perfect replacement or upgrade for trailers, campers, food trucks, and 12V electrical systems
AC Input Service: 50 Amp RV Service (120/240V SplitPhase)
AC Input Voltage: 120/240 VAC, 60 Hz
DC Converter Output: 60 Amp Continuous Output
DC System Voltage: 12 VDC Nominal
Charging Modes: 3-Stage Smart Charging (Boost / Normal / Storage)
The PowerMax PCW Series is the Bluetooth-enabled version of the PowerMax PPC Power Center. It combines AC breakers, DC fuse distribution, and a smart 3-stage converter/charger into one integrated unit—now with built-in wireless control.
Monitor and manage your RV power system from your phone with no extra accessories required. Lithium compatible, fully protected, and designed for simple installation, the PCW Series delivers smarter, safer, more convenient RV power.
Built-In Bluetooth App Control – Designed for seamless use with iOS and Android devices; no additional hardware required
Polarity-Reversible Output – Ideal for RV slide-out motors, awnings, and electric jacks where directional polarity switching is required
All-In-One Power Center Design – Integrates AC breaker panel, DC fuse distribution, and smart converter/charger into one compact unit
No Breaker Panel Access Required – Normal operation does not require handling breakers
35A / 55A Converter Options – High-performance converter/charger models available
120VAC to 12VDC Conversion – Provides clean, stable 12-volt DC power from standard 120-volt AC input
Advanced 3-Stage Smart Charging – Automatic Boost, Normal, and Storage modes for optimal battery life
Lithium Battery Compatible – Supports lithium, AGM, and leadacid batteries
QR Code App Download – Fast setup with included QR code for app installation
2
PPC & PCW Series
PMTS - 30 & 50 PMTS SERIES
Key Features include:
Maximum operating volt
Compatible power sourc
Generator
AC system compatibility
Wire temperature rating:
Installation orientation: A Designed for profession
Technical Specs:

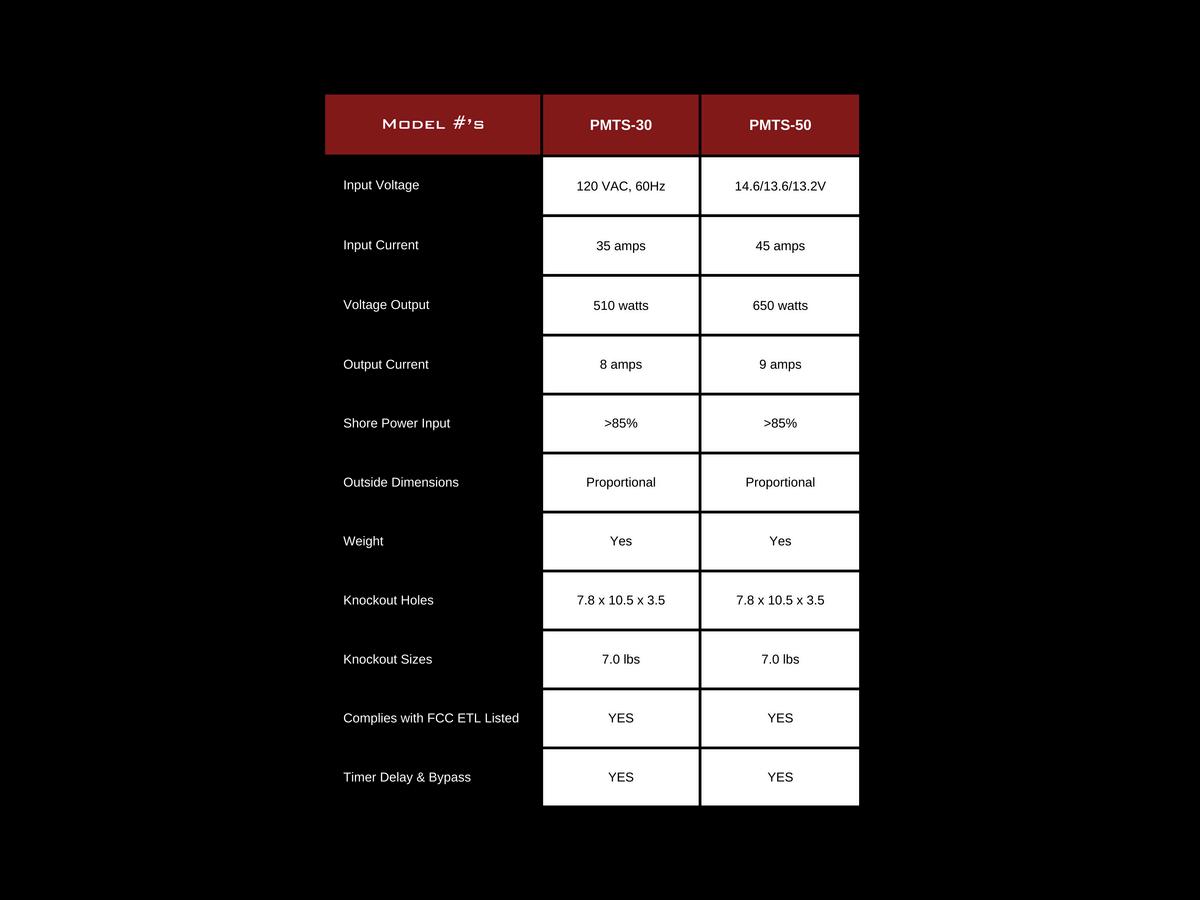

PMTS-30 Specifications
Service rating: 30 Amps
Short circuit rating: 3000 R
Terminal torque (6–14 AW
Ground terminal torque: 3
PMTS-50 Specifications
Service rating: 50 Amps
Short circuit rating: 5000 R
Terminal torque (6–14 AW
Ground terminal torque: 3
When L1 and L2 are in ph
capability is up to 70 Amp

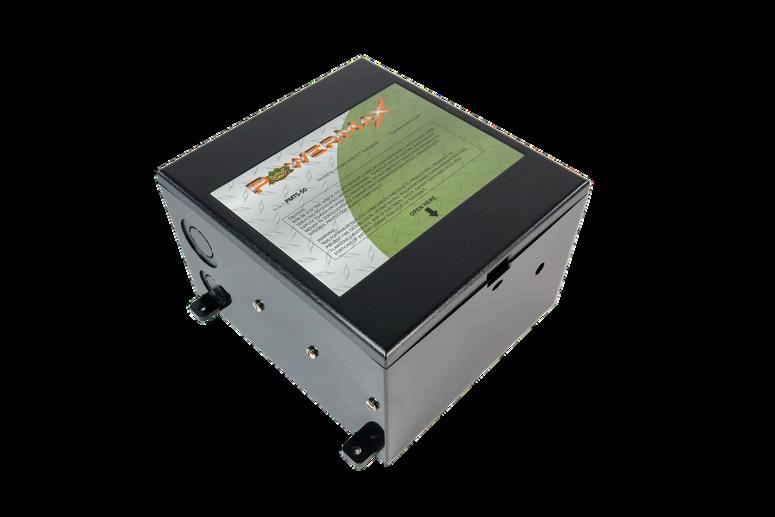

PowerMax PMTS Series – Automatic Power Transfer Switch
The PowerMax PMTS Series Automatic Transfer Switch provides safe, automatic power management for RVs, motorhomes, trailers, and mobile applications. Designed to instantly switch your electrical system between shore power and the onboard generator, the PMTS ensures reliable operation without manual intervention.
Available in 30-amp (PMTS-30) and 50-amp (PMTS-50) models, this rugged transfer switch delivers dependable
