CHRISTOPHER NOROÑA

clnorona@cpp.edu | 669.258.7219 | @chris_no22

WORK EXPERIENCE

2024-PRESENT

2024-2024

2023-2024

EDUCATION

2022-PRESENT

2018-2022

ORGANIZATIONS

2023-PRESENT

CAL POLY POMONA BOOKSTORE | TECH CASHIER

COKIS CONSTRUCTION INCORPORATED | INTERN

CAL POLY POMONA COMMUNITY SERVICE OFFICER | CSO

CAL POLY POMONA | B. Arch

WILLOW GLEN HIGH SCHOOL | HIGH SCHOOL DIPLOMA

CPP NOMAS BOARD MEMBER | SCHEDULER 24’ | TREASURER 25’

2024-PRESENT Tau Sigma Delta Honor Society | MEMBER

2025-PRESENT Timber-Strong Design Build | SENIOR ARCHITECT LEAD

ACHIEVEMENTS

2022-PRESENT LANGUAGES

Dean’s List | 6x

2023-PRESENT President’s List | 3x

ENGLISH SPANISH

ADDITIONAL SKILLS

PROFICIENT

INTERMEDIATE

NATIVE PROFICIENCY

RHINO 7/8 | VRAY | MODEL MAKING

ADOBE SUITE | REVIT 2025| POWERPOINT | TWINMOTION

SOCIAL COLLABORATIVE | LEADERSHIP | COMMUNICATION | LEVEL-HEADED | PUNCTUAL

ANA MIX-USE HOUSING

MT. WILSON SCIENTIST RETREAT

LEIMERT PARK

LAS VEGAS MENTAL HEALTH CENTER

THE STRATA

CPP Architecture

Fall 2023

ARCH 2011A

Instructor: Noam Saragosti

Softwares: Adobe CC, Rhino 7, Vray

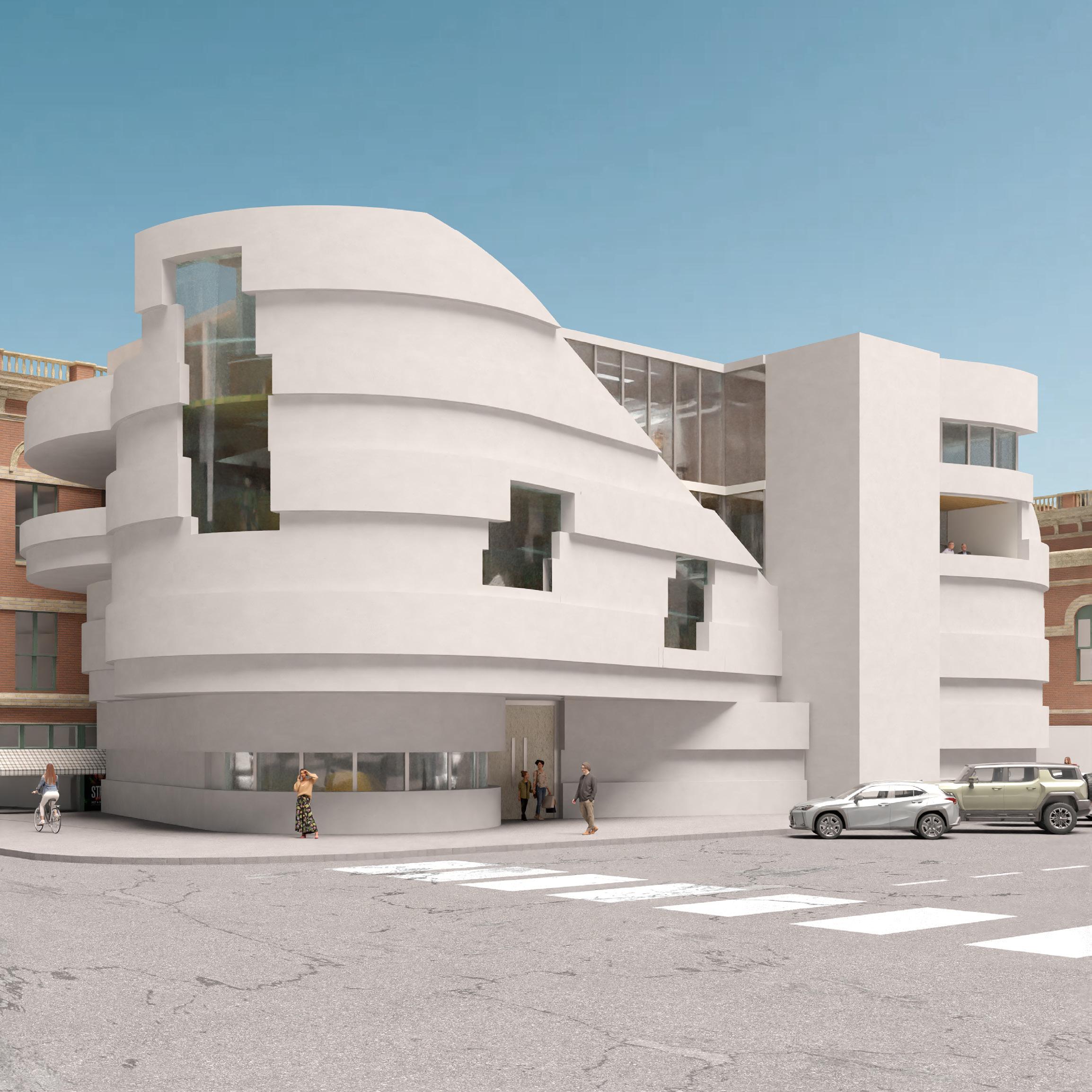

Positioned at a pivotal point in its cultural rediscovery, Leimert Park seeks to reaffirm its identity through the creation of a space that is more than functional. The Strata emerges as a response to this collective need, located adjacent to the expanding farmers market. It acts as a civic anchor that honors the community’s layered history and invites connection through public gathering, education, and the arts. Designed with a sculptural, striated façade, the building reflects the enduring strength of the neighborhood, shaped like geological strata formed through time, pressure, and resilience.

Inside, The Strata offers a fusion of museum and community center programming, with galleries, classrooms, and flexible spaces that support local artists, businesses, and cultural organizations. Workshops, performances, and festivals animate the building, mirroring the vibrancy of the community outside. As a physical and cultural landmark, The Strata reimagines the farmers market district as a hub of creativity, memory, and shared pride. It transforms the heart of Leimert Park into a living expression of its collective identity.

CIRCULATION AREA | NORTH-FACING VIEW – RIGHT

MOMENT CAPTURED: JUNE 21ST, 2023, AT 2:00 PM

LOCATION: LEIMERT PARK, LOS ANGELES

MAIN ATRIUM AND GALLERY | SOUTH-FACING VIEW - BOTTOM

MOMENT CAPTURED: JUNE 21ST, 2025, AT 1:00 PM

LOCATION: LEIMERT PARK, LOS ANGELES

SECTION B-B

GALLERIES

LOBBY

PUBLIC RESTROOMS

AUDITORIUM

SCULPTURE SPACE

GALLERIES

PUBLIC BALCONY

CAFE

CLASSROOM

GIFT SHOP

AUDITORIUM LOBBY

CONTROL ROOM

STAFF STORAGE

STAFF BALCONY

OFFICE SPACE

CONFRENCE ROOM

STAFF LOUNGE

STAFF RESTROOM

LOADING DOCK

MECHANCAL ROOM

ART STORAGE

SECTION A-A

SYNAPSYE

CPP Architecture

Spring 2025

ARCH 3021A

Instructor: Javeria Sequiera

Softwares: Adobe CC, Rhino 7, Vray, Revit 2025

This project explores how two different massings can connect at multiple scales, which led to the design of the Synapse Santa Ana Housing project.

The site sits between an industrial zone and a transit hub. To bridge this divide, the concept of the “Synapse” was introduced, referring to the connection between two forms. Diagonal paths were placed within the master plan to guide circulation between the industrial side along Poinsettia Street and the public transit area on N Santiago Street.

Connections are also made through shared courtyards and bridges. The courtyards act as extensions of the residents’ homes, while double-height bridges create vertical connections between floors, enhancing movement and interaction.

The massing was shaped to respond to the site’s challenges, especially its landlocked condition and lack of green space. To bring in natural light, the building was oriented to face true north, then rotated to open up views and create a more welcoming entry. This allowed balconies to offer semi-private spaces and connect residents to the surrounding neighborhood.

To address the greenery issue, the project includes 35% open green space, exceeding the required 33%. This greenery is visible from every unit, making the environment more livable and active.

Material choices further support the design goals. Alucobond matte panels reflect light to brighten shared spaces, and wood slats on balcony ceilings reduce transit noise, making outdoor areas more usable.

Overall, this project is about more than just housing. It creates meaningful connections through light, structure, and community-focused design.

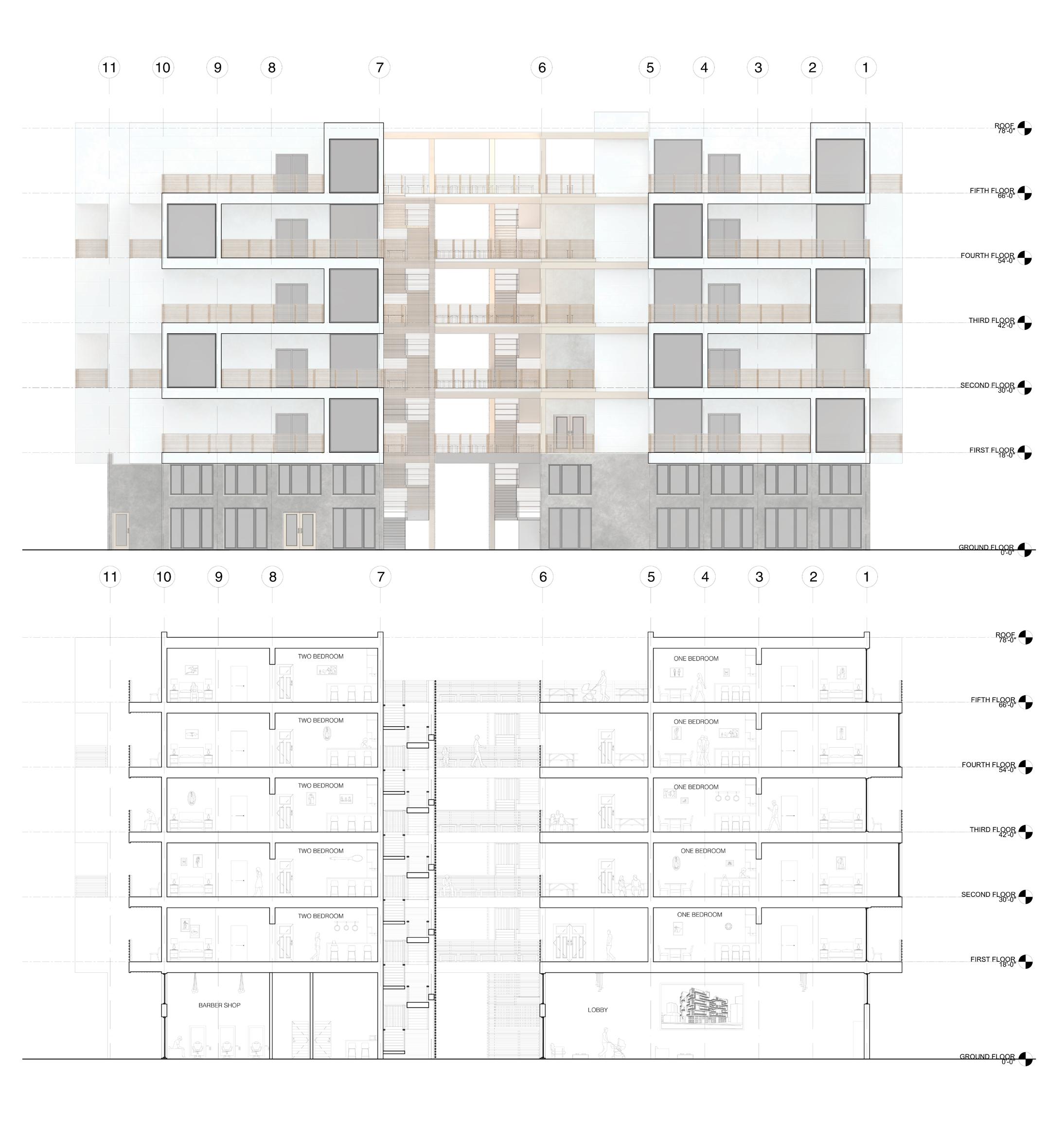

L I V I N G S P A C E S L I V I N G S P A C E S

C O M M O M A R E A C I R C U L A T I O N C I R C U L A T I O N

PICNIC AREA | NORTH-FACING VIEW – RIGHT

MOMENT CAPTURED: JUNE 21ST, 2025, AT 2:00 PM

LOCATION: DOWNTOWN SANTA ANA, ORANGE COUNTY

COMMUNAL BRIDGES | EAST-FACING VIEW – BOTTOM

MOMENT CAPTURED: JUNE 21ST, 2025, AT 12:00 PM

LOCATION: DOWNTOWN SANTA ANA, CALIFORNIA

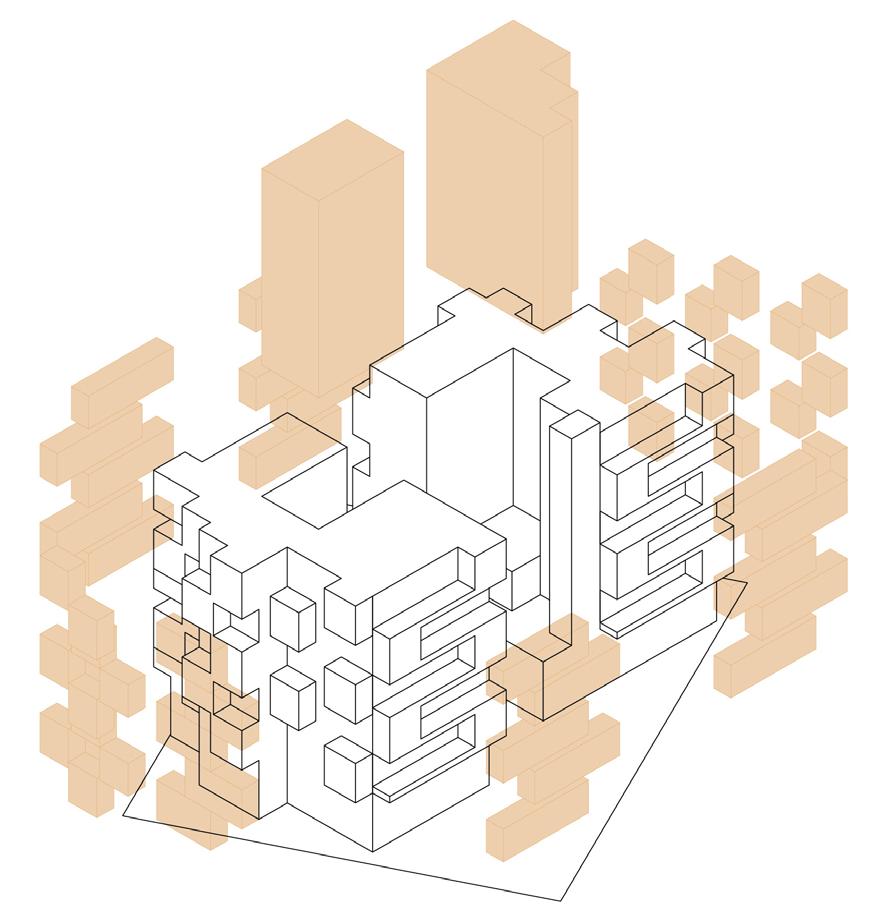

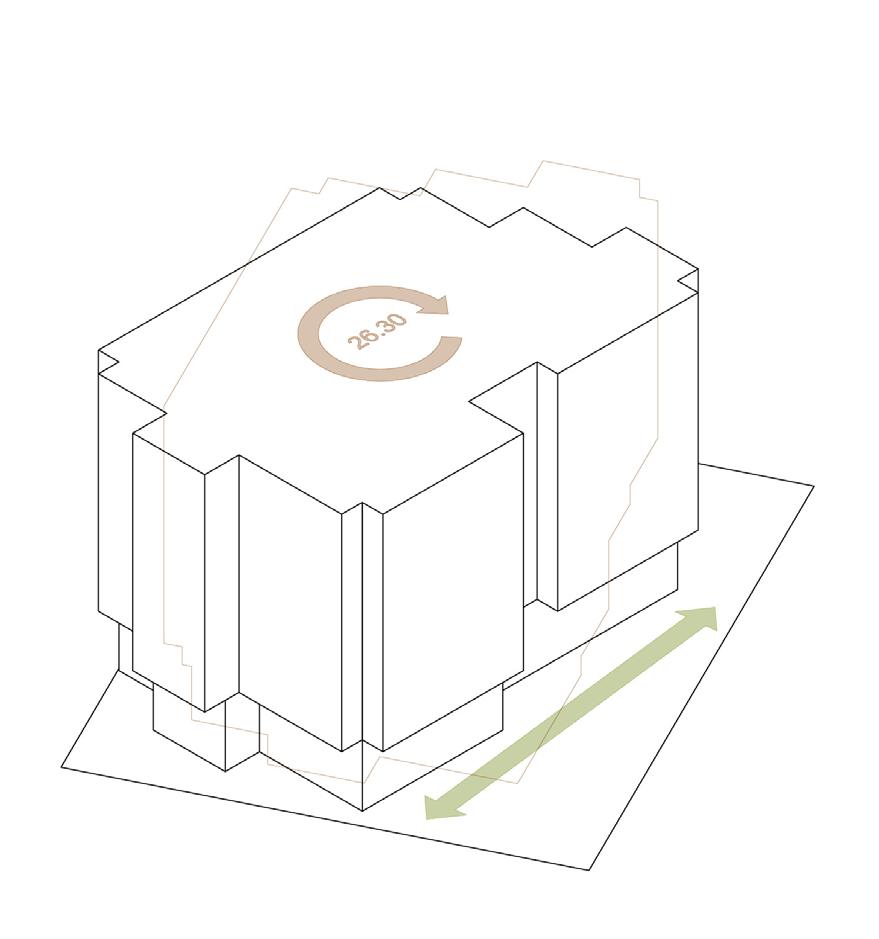

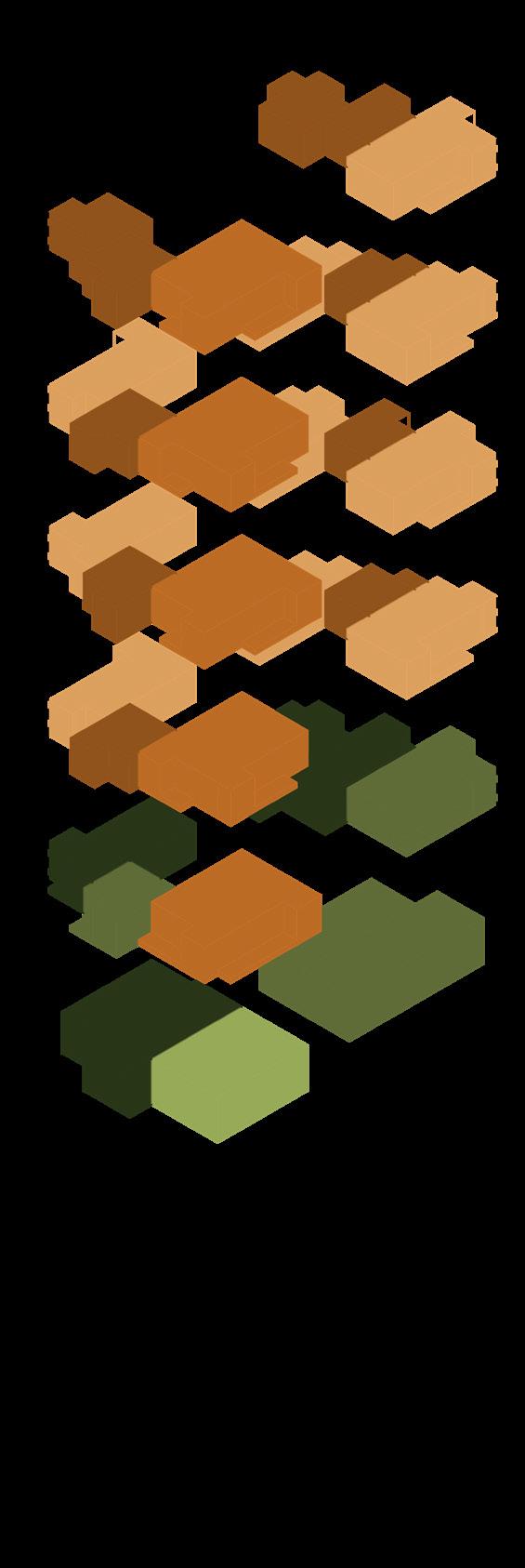

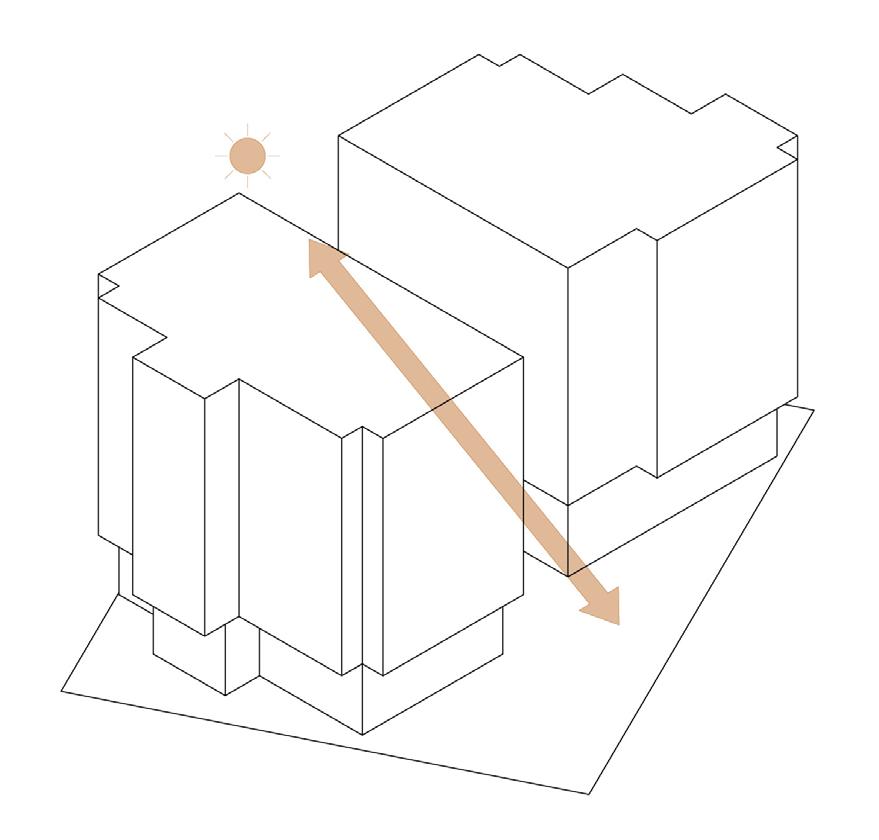

ROTATION SPLIT

SUBTRACTION

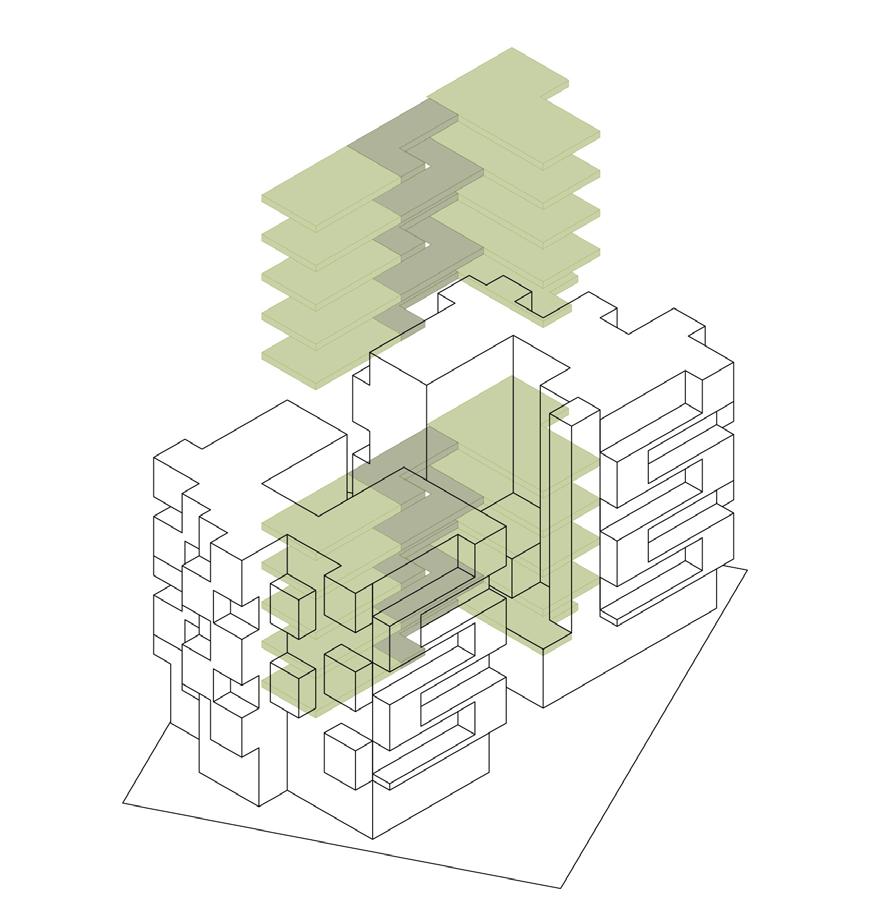

COMMON SPACE/BRIDGING

RESIDENTIAL STUDIO

1-BEDROOM

2-BEDROOM

LIVE/WORK

AMENITIES

RETAIL

COMMUNITY ROOM/AREA

ADJUSTABLE DECK PEDESTAL

TYVEK WEATHER PROOFING BARRIER

2% SLOPE GYPCRETE

6" R-29 BATT INSULATION

12-GAUGE CEILING HANGER WIRES @ 16" O.C.

ACOUSTIC WOOD SLATS @ 1" SPACING EXTERIOR TREATED

ALUMINUM HAT CHANNEL @ 16" O.C.

24" X 24" PORCELAIN TILES

5/8" GYPSUM BOARD

5/8" PLYWOOD SHEATHING

2" X 4" STUD @ 16" O.C.

3" R-29 BATT INSUALTION

5/8" PLYWOOD SHEATHING

VERTICAL ALUMINUM HAT CHANNEL @ 16" O.C.

ALUMINUM Z-CLIP @ 2' O.C.

ALUCOBOND WHITE MATTE PANELS

ALUMINUM Z-GRIT @ 2' O.C.

3" R-26 RIGID INSULATION

TYVEK WEATHER PROOFING BARRIER

OUTSIDE CORNER FLASHING

1/4" WOOD PLANK FLOORING

1/2" RIGID INSULATION

5/8" PLYWOOD SHEATHING

5-PLY CLT FLOOR DECK PANEL

SCIENTIST RETREAT

CPP Architecture

Fall 2024 ARCH 3011A

Instructor: Roberto Sheinburg

Softwares: Adobe CC, Rhino 7, Vray

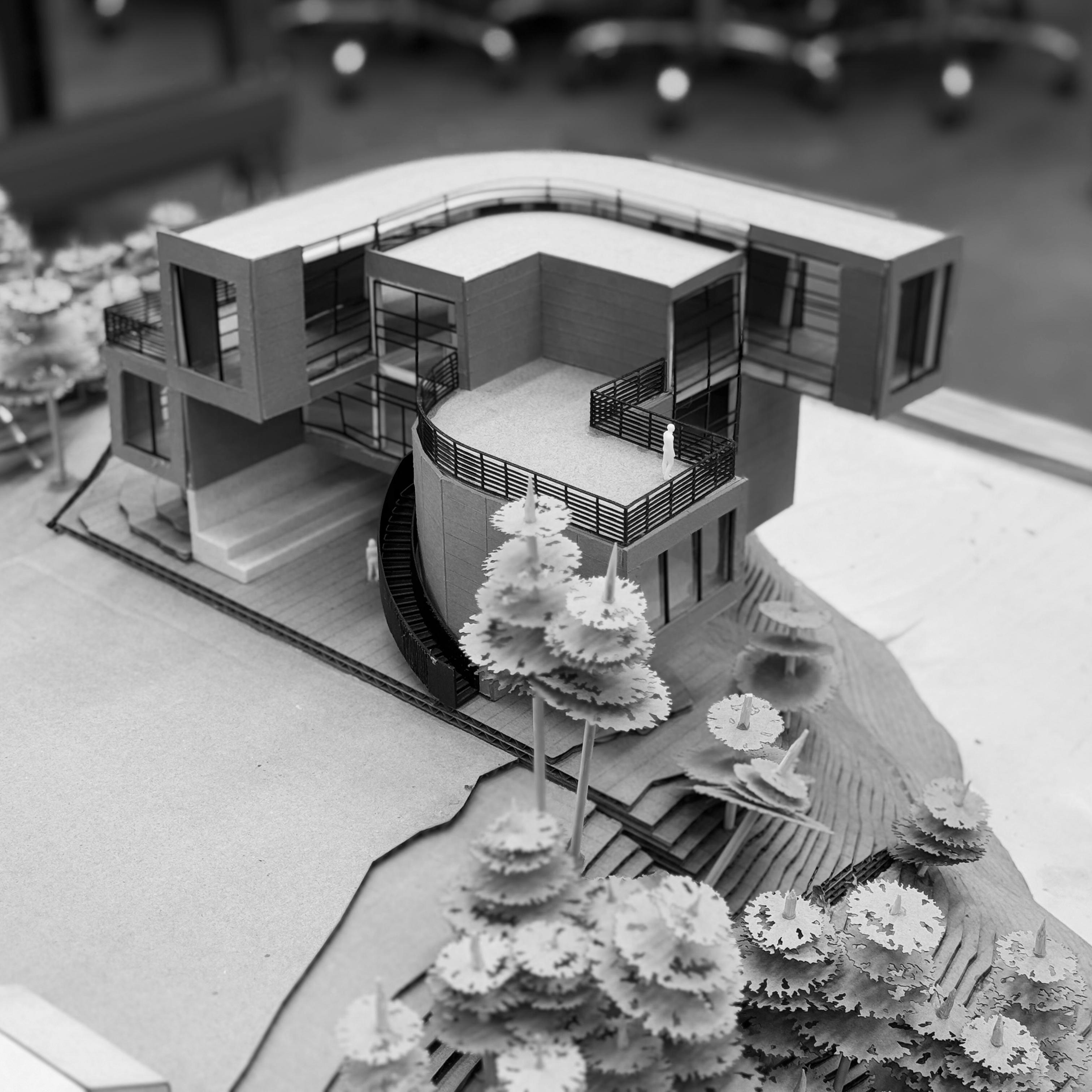

This project explores the challenges of living and working at an observatory and how architecture can express views while responding to the site through material choices and structure. The building is placed on the east side of Mt. Wilson, next to the largest telescope on the mountain and the CHARA Array, which are both important facilities that scientists need to be near.

One of the main concerns in this project was making sure the building is fire resistant and able to survive the wildfires that often happen in the area. Aside from that, the structure is designed as a retreat for scientists who may need to stay overnight. During their stay, they will have access to a lab and office space so they can keep working comfortably.

There are observation decks on both the north and south sides of the building that allow scientists to experience different views of the sky and landscape. Inside, the building includes bedrooms, a kitchen, and bathrooms to support longer visits. This is important because the space can also welcome visitors. Scientists will be able to give presentations and share their work either inside or out on the deck.

The landscape in front of the building is shaped in a way that gives privacy from the road and helps hide cars from view. There are also outdoor areas where scientists can eat, relax, and enjoy the scenery. The goal was to create a space that supports both the work and comfort of people living in a remote and sensitive site.

OFFICE

LIVING

UCRIC L ATION

SERVICES

PARTI DIAGRAM

PROGRAM DIAGRAM

WORK-SPACE

RESIDENTIAL

MULTI-RESIDENTIAL MAINTENCE

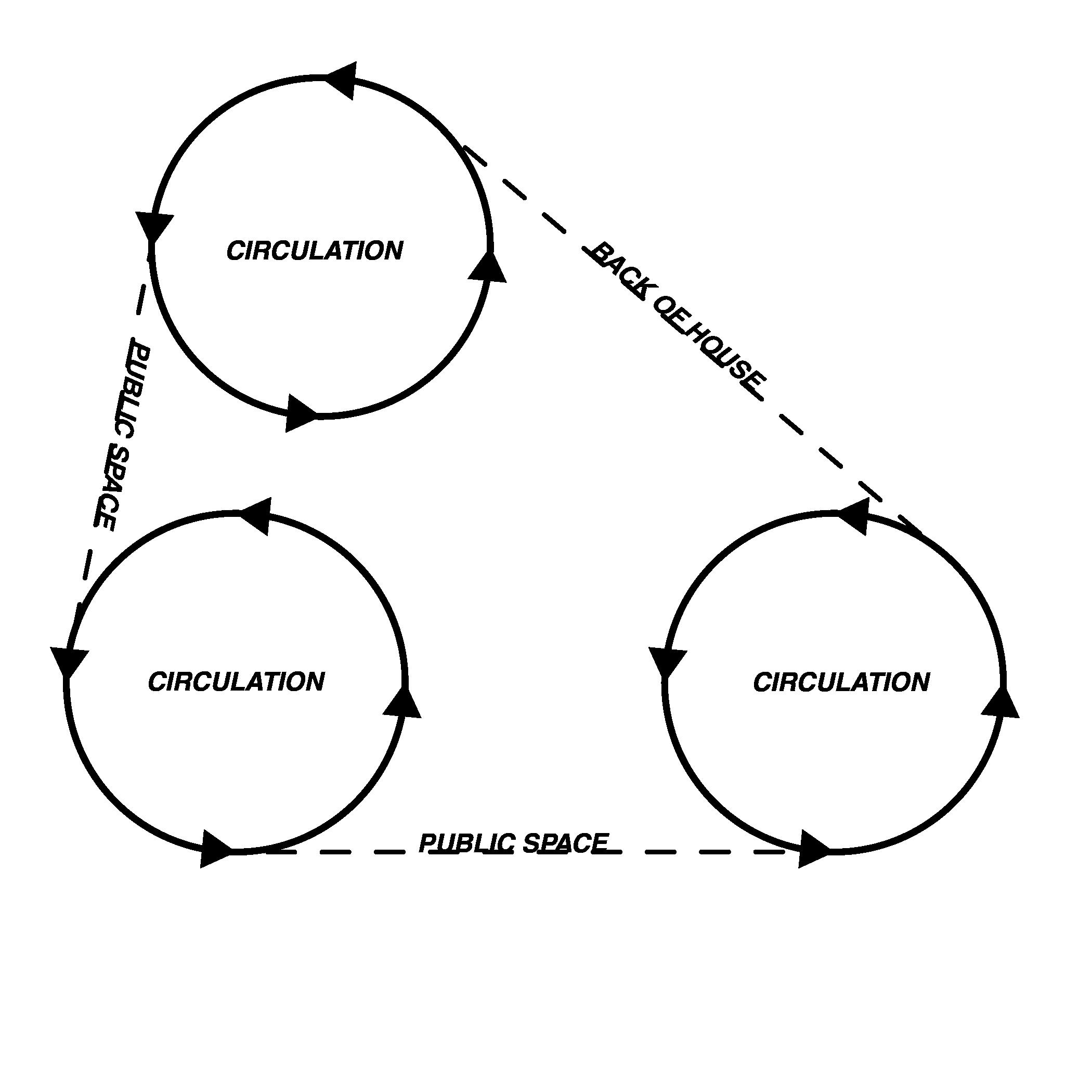

CIRCULATION DIAGRAM

CIRCULATION

WORK AREA | WEST-FACING VIEW – RIGHT

MOMENT CAPTURED: JUNE 21ST, 2023, AT 8:00 PM

LOCATION: MT WILSON, LOS ANGELES

LIVING ROOM | WEST-FACING VIEW - BOTTOM

MOMENT CAPTURED: JUNE 21ST, 2025, AT 8:00 PM

LOCATION: MT. WILSON, LOS ANGELES

AMPHITHEATER

SMALL BEDROOM

39'-0" HIGH ROOF

35'-0" LOW ROOF

RESEARCH LAB SPECIMENS

12'-0" SECOND FLOOR

0'-0" GROUND FLOOR

24'-0" THIRD FLOOR

MACHINE ROOM

6"x12" ALUCBOND PANELS

PEDESTAL DECK

SINGLE PLY MEMBRANE

WEATHERPROOFING

CONCELED GUTTER

4"X8" STEEL TUBE

BATT INSULATION

2"x6" STEEL JOIST

HOLDING CABEL HAT CHANNEL

12"x12" STEEL WIDE FLANGE

FASTNERS

HAT CHANNEL

Z-GRIT

RIGID INSULATION

WEATHER BARRIER

OSB PLYWOOD

2X6" C-STUD

BATT INSULATION

PLYWOOD SHEATING

5/8" GYPSUM BOARD

8X10" STEEL TRUSS

3" RIGID INSULATION

12" BATT INSULATION

DOUBLE 6" C-SPAN STUD

1/2" PLYWOOD

5/8" GYPSUM BOARD

WOOD FLOORING

1/4" UNDERLAYMENT

3" CONCRETE FILL

METAL DECKING

1/2" OSB PLYWOOD BASEBOARD WEATHERPROOFING

2"X6" STEEL C- SPAN JOIST

1/2" OSB PLYWOOD

3" RIGID INSULATION

12"x12" STEEL WIDE FLANGE Z-GRIT

HAT CHANNEL

FASTNERS

ALUMINIUM PANELS

ASSEMBLY

DETAILS

RIVERSTONE HEALING CENTER

CPP Architecture

Fall 2025

ARCH 4011A

Instructor: Jimmy Macias

Group: Christopher Norona, Jason Rinaldi, Dominic Jarquin, Jesus Jaquez, Cheih Chi

Softwares: Adobe CC, Rhino 8, Vray, Enscape, PowerPoint

This project focuses on designing a mental health hospital in Las Vegas that supports healing, comfort, and community. The concept comes from the qualities of trees and rivers. Trees represent grounding and stability, which guides the program layout with a central lobby acting as the trunk and the main spaces branching outward. Rivers represent renewal and flow, and they shape the landscape paths, the soft curves of the massing, and the folding shading element that protects the building from the strong desert sun.

A major concern in this project was creating a calm and safe environment that still feels open. The design gives almost eighty percent of the site back to people through gardens, walking paths, and outdoor rooms that help patients decompress. Inside, soft lighting and gentle forms create a quiet atmosphere that reduces stress. The building is also planned for future changes in healthcare through flexible program zones that can shift as patient needs and medical standards evolve.

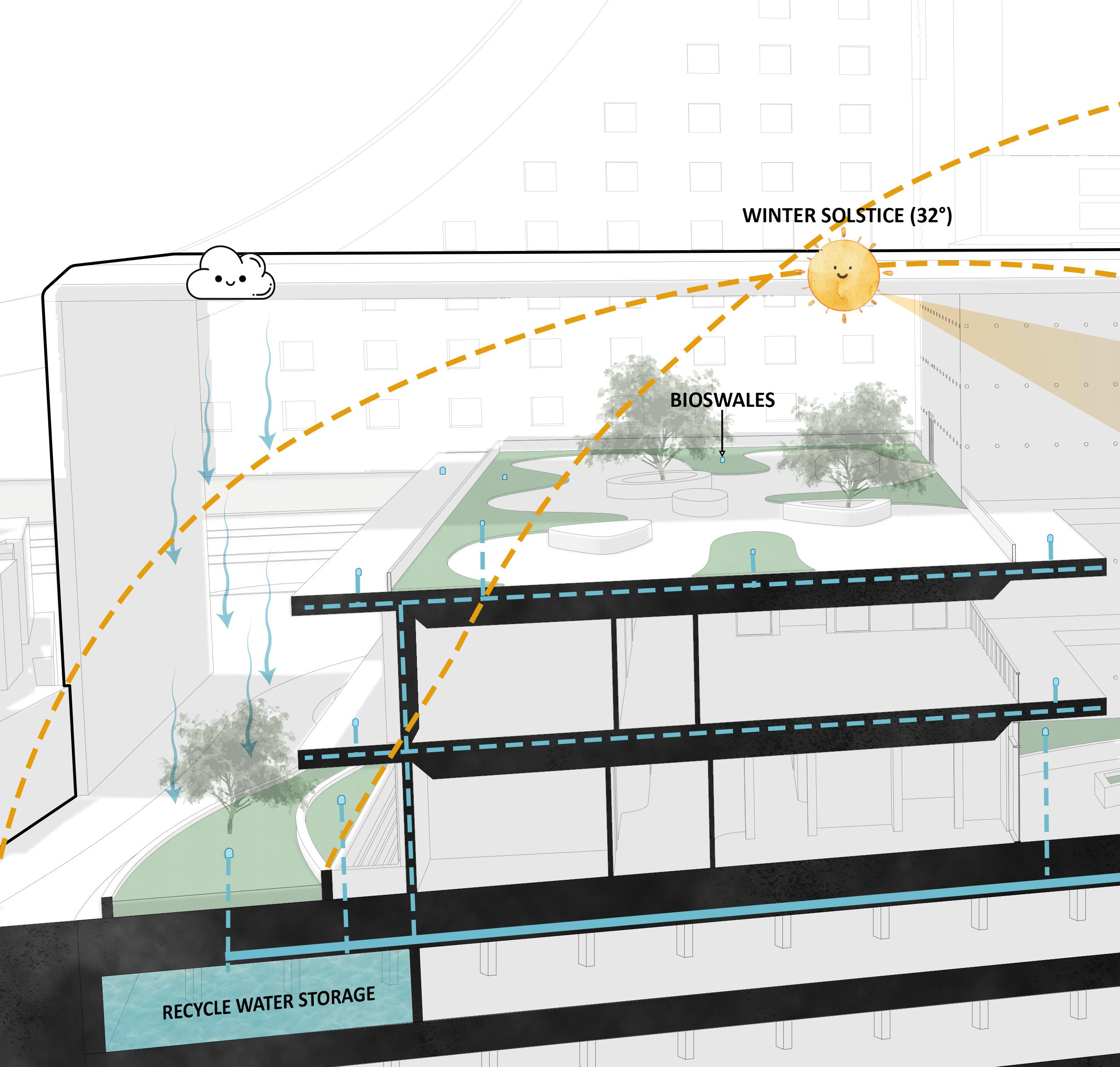

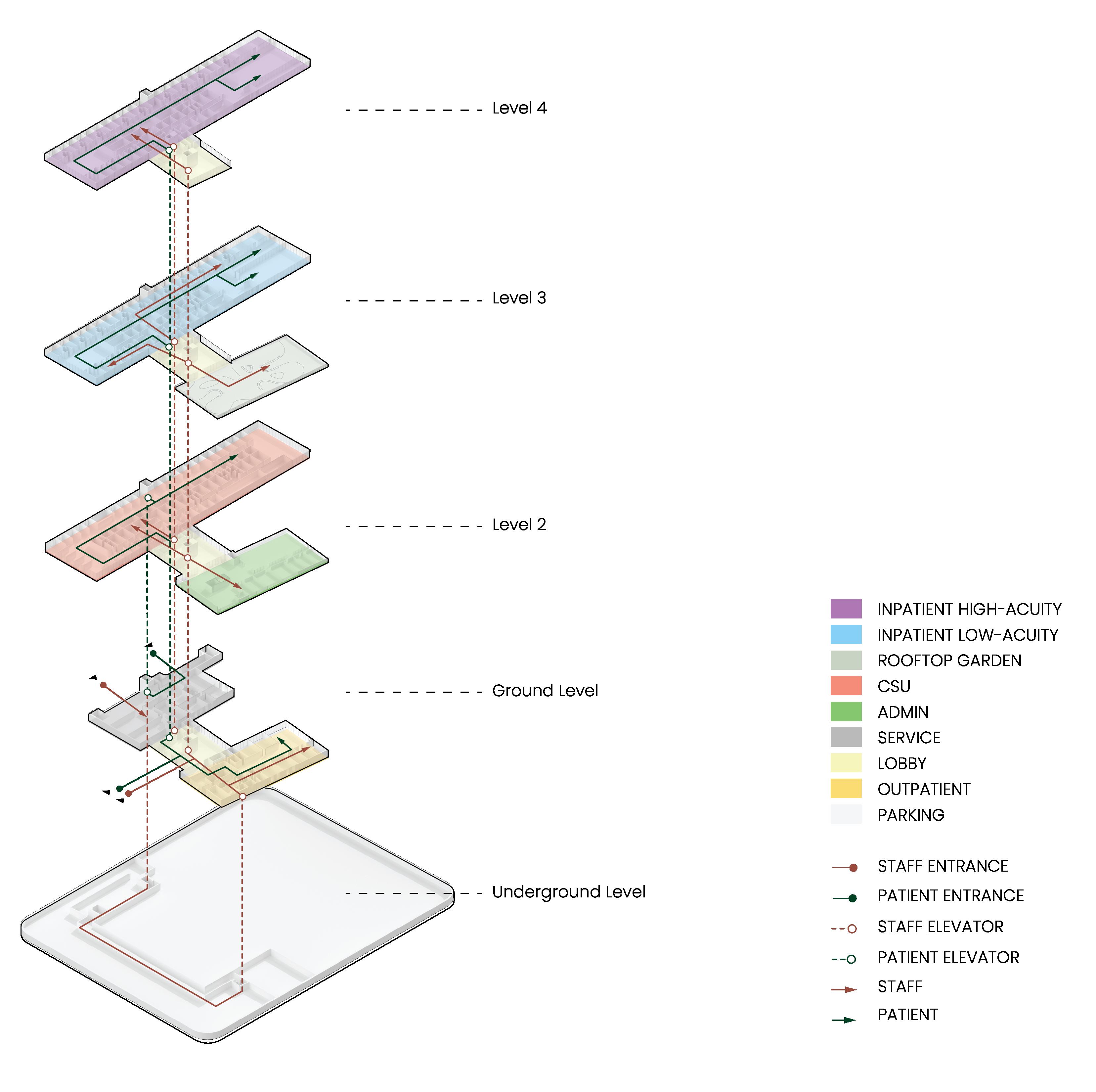

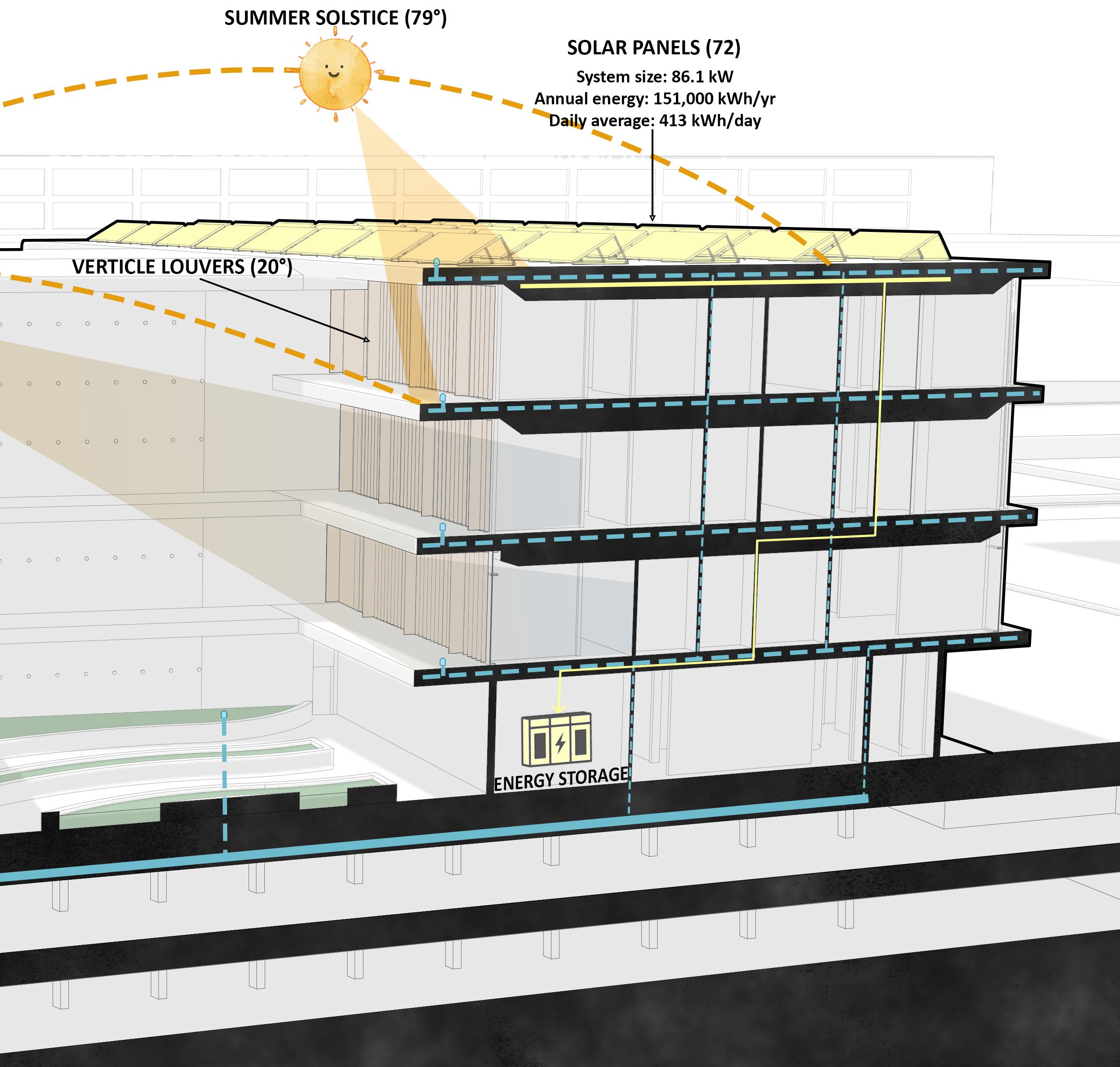

Climate studies played a big role in shaping the building. Solar and wind analysis helped position yards, windows, and shading in the most comfortable locations throughout the year. Clear circulation paths separate patient, staff, and public movement to support safety and easy navigation. Overall, the goal of the project was to create a space that focuses on healing, connection, and long term adaptability within a challenging desert environment.
