PORTFOLIO

AMANDA FABILLI

PROFILE

Hard-working and detail-oriented architecture student proficient in designing commercial and residential projects. Offers extensive knowledge of multiple architecture software programs, great teamwork abilities, and problem solving skills. Eager to apply these skills to help design sustainable architectural solutions and broaden creative and technical knowledge.

SKILLS

Rhinoceros 8

AutoCAD

SketchUp

Adobe Illustrator

Adobe Photoshop

Adobe Indesign

Adobe Premiere Rush

SAP 2000

Hand Drafting & Model Making

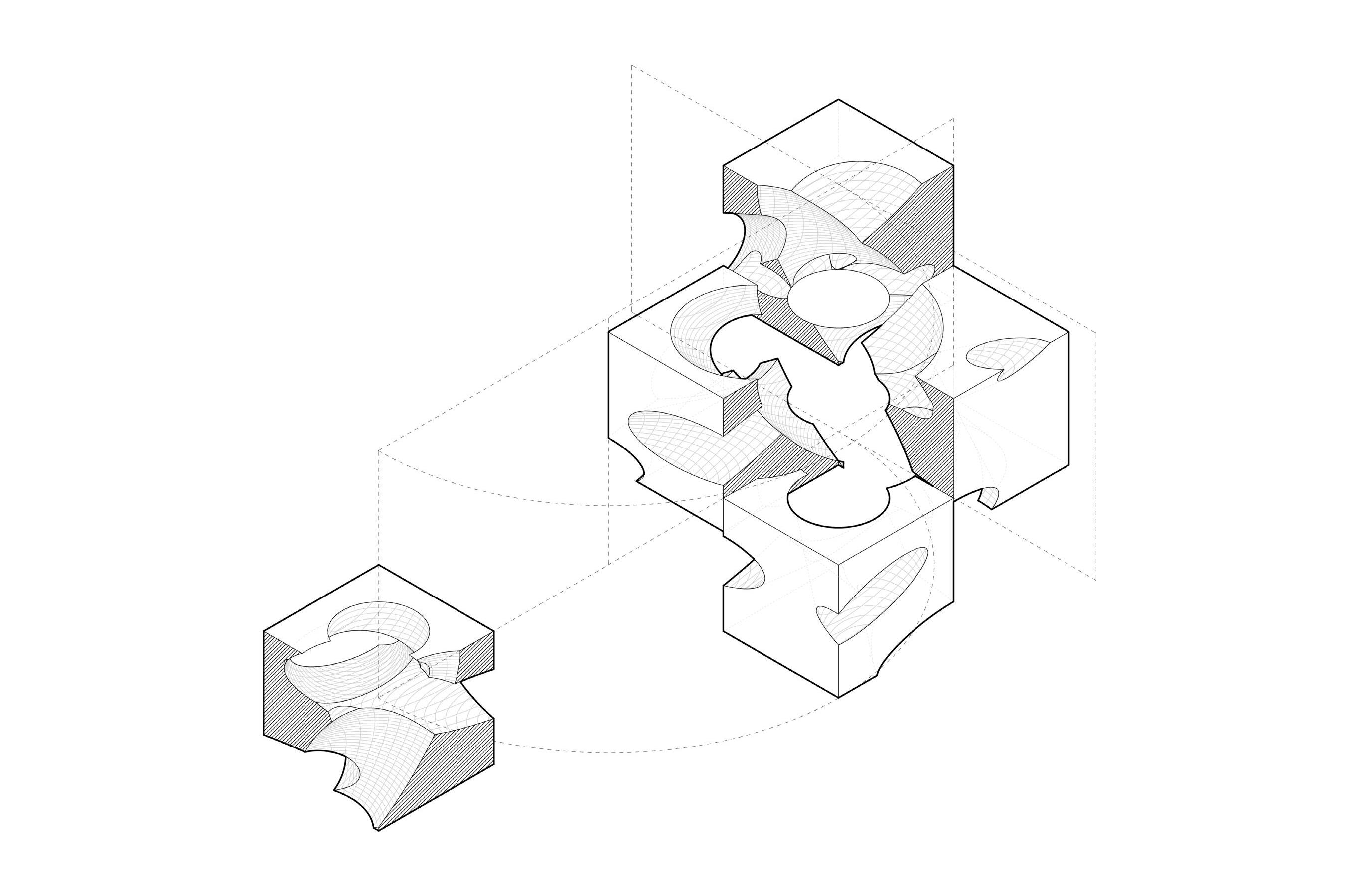

REDEFINING THE WALL

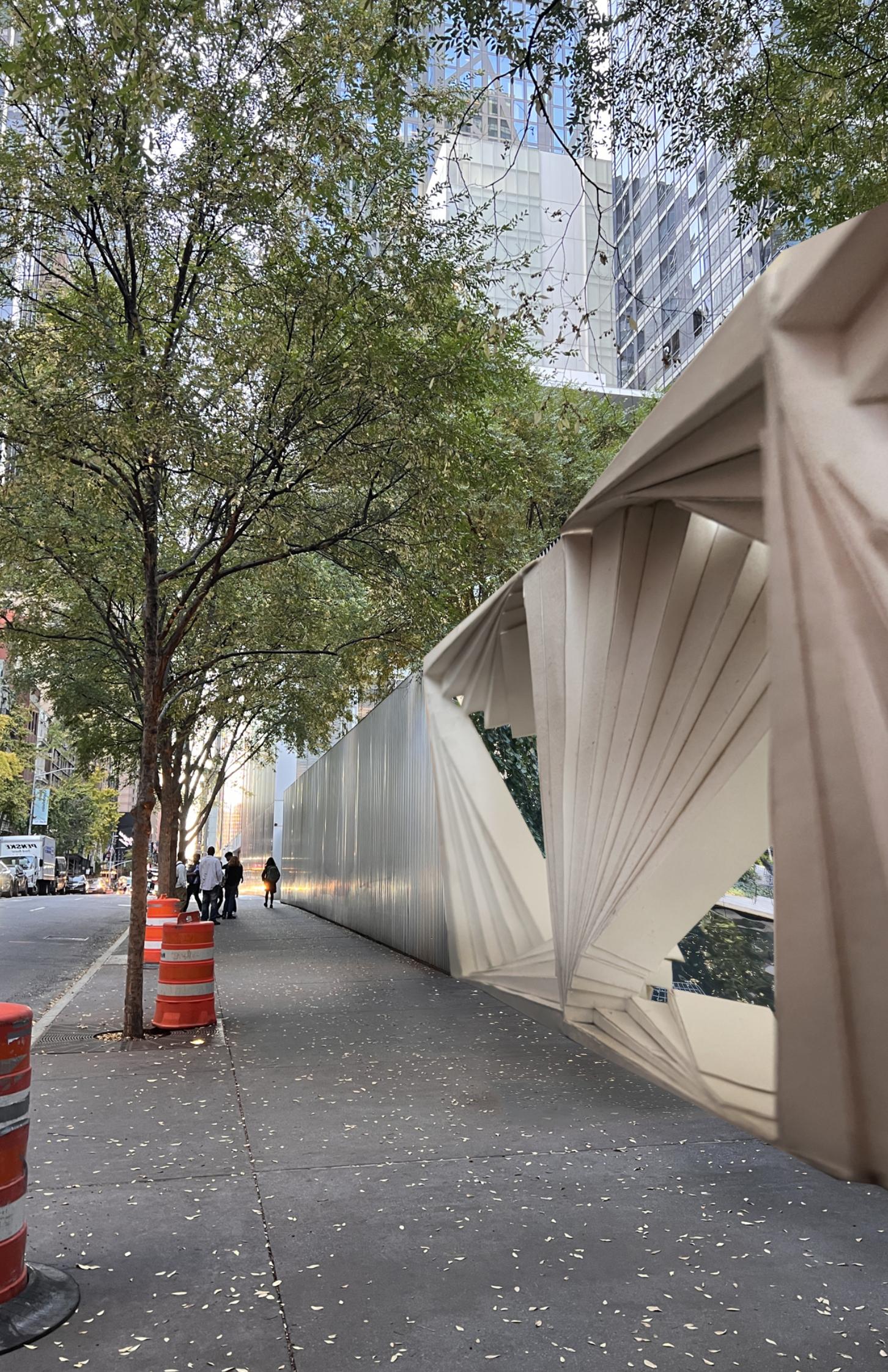

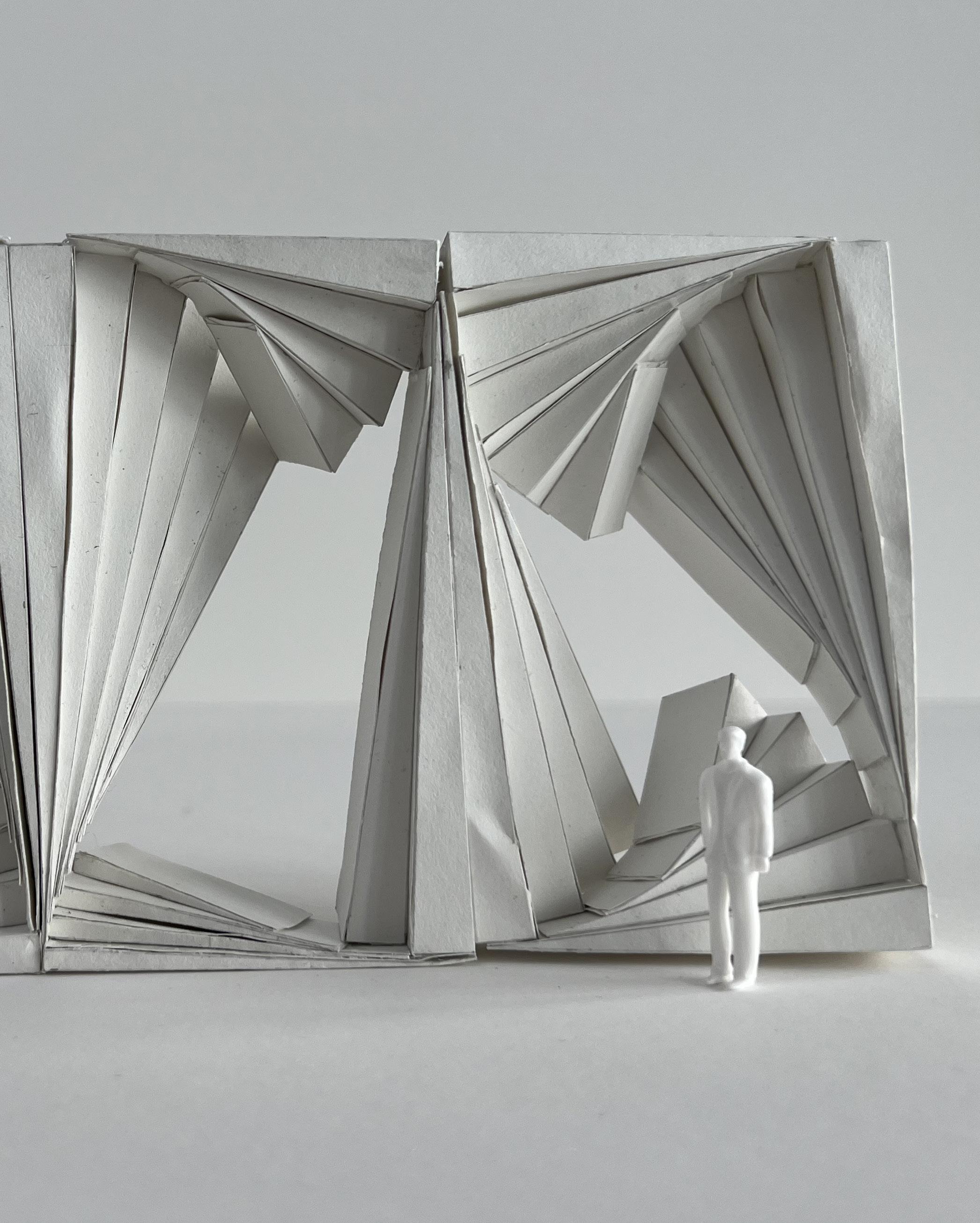

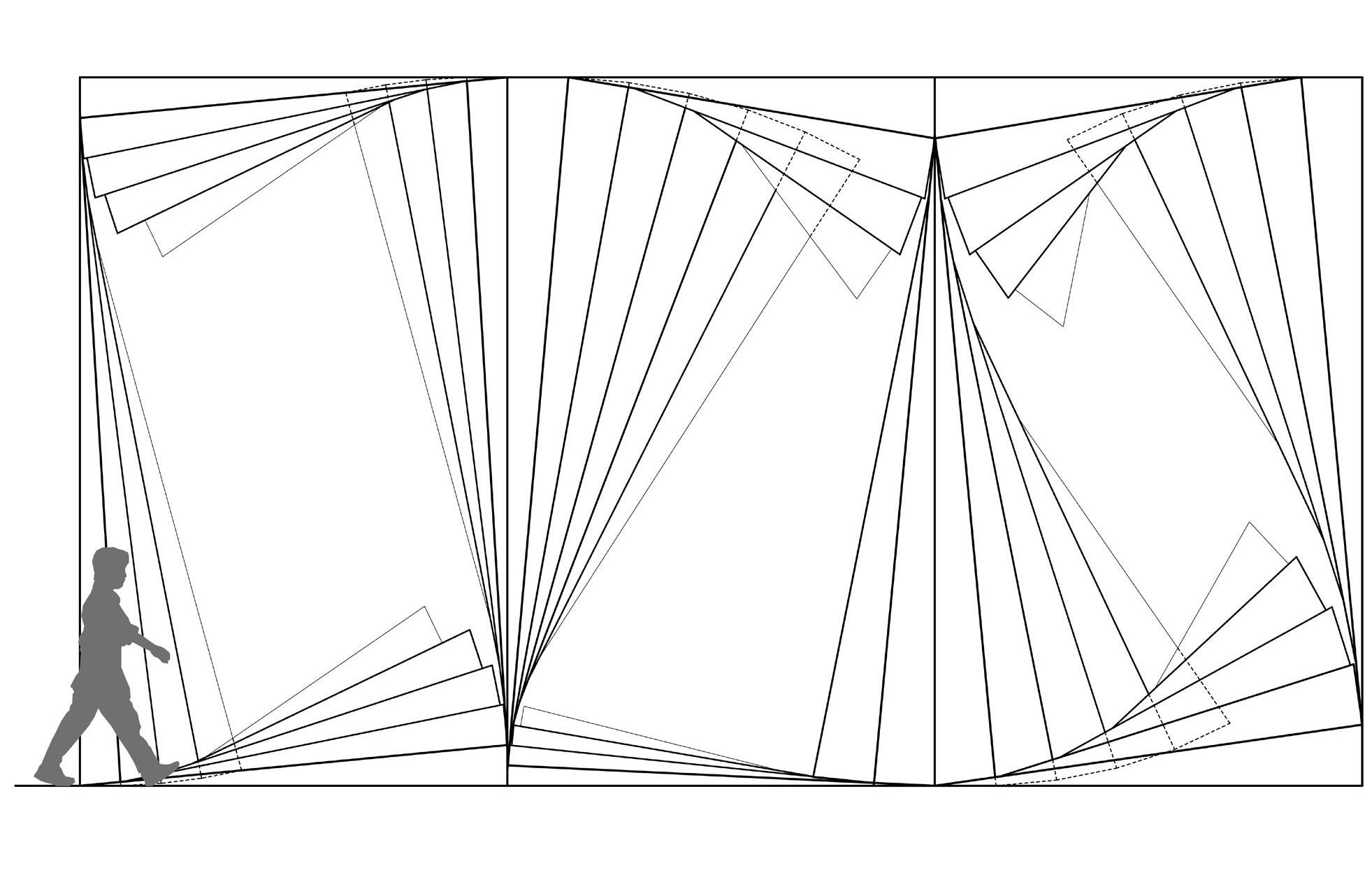

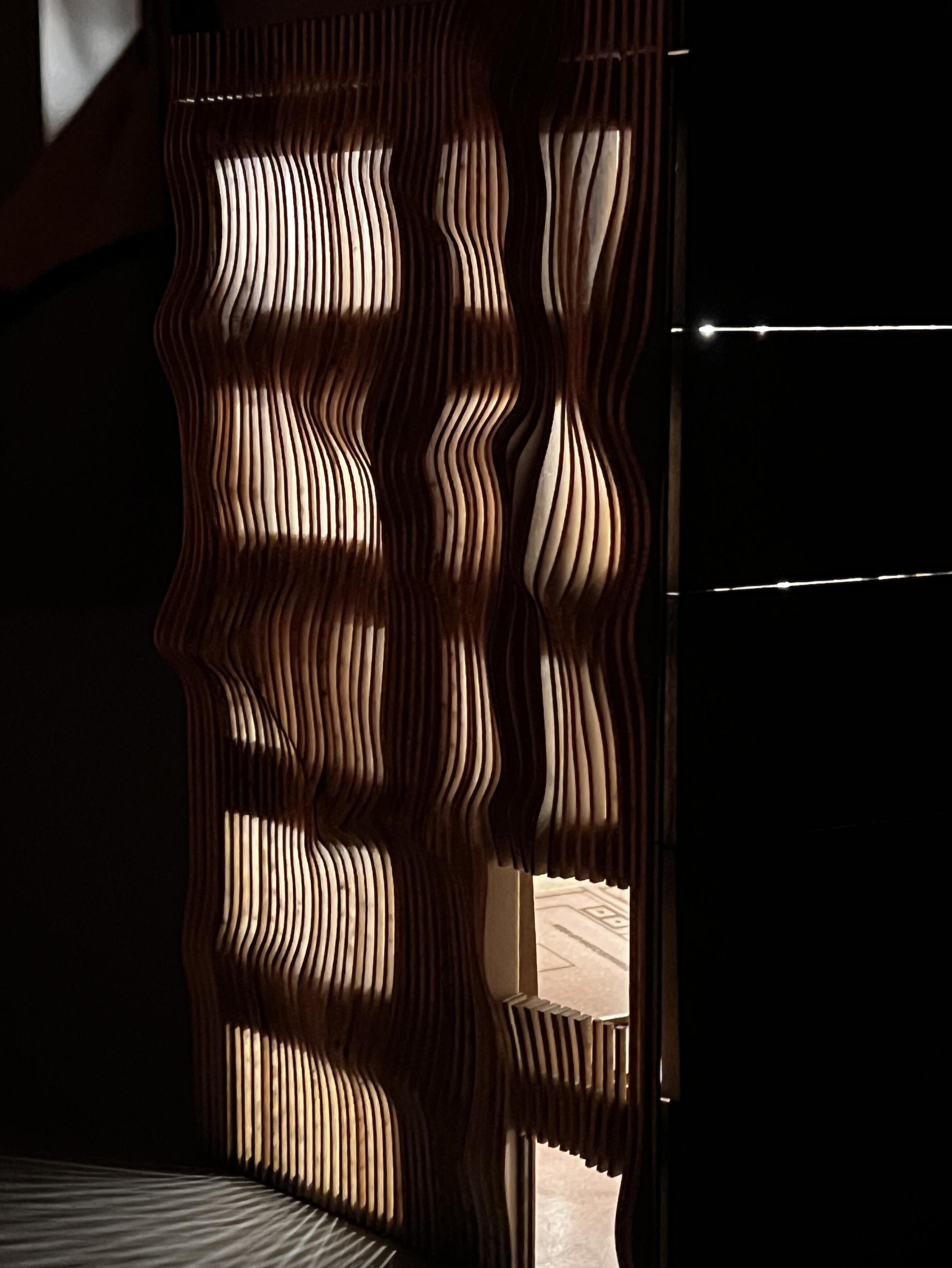

This project is a re-interpretation of the wall that separates West 53rd Street and the Abby Aldrich Rockefeller Sculpture Garden located at the Museum of Modern Art. Although the garden is open to the public, it is closed off to the people on the street, creating exclusion from the outside world. This project takes the idea of this wall existing as a barrier, and transforms it to be more inclusive to those on the street side, and the general public.

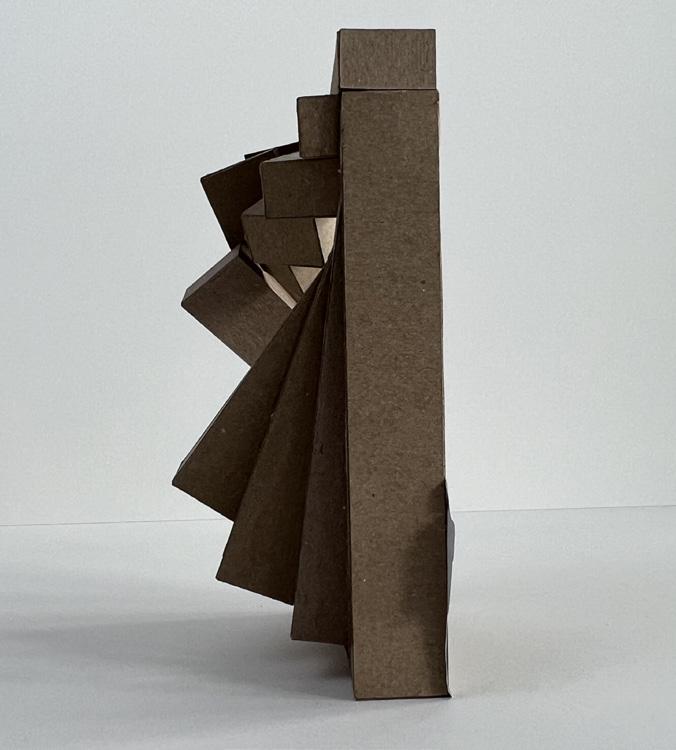

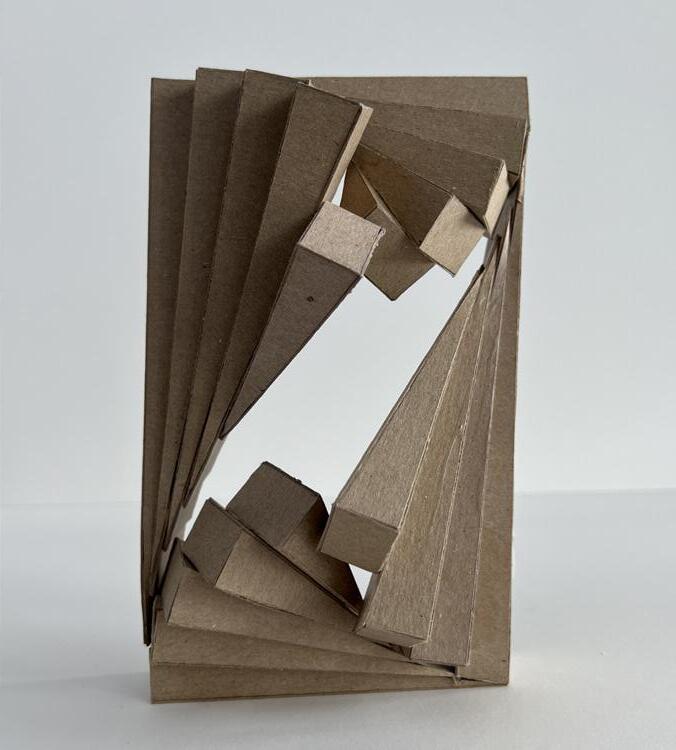

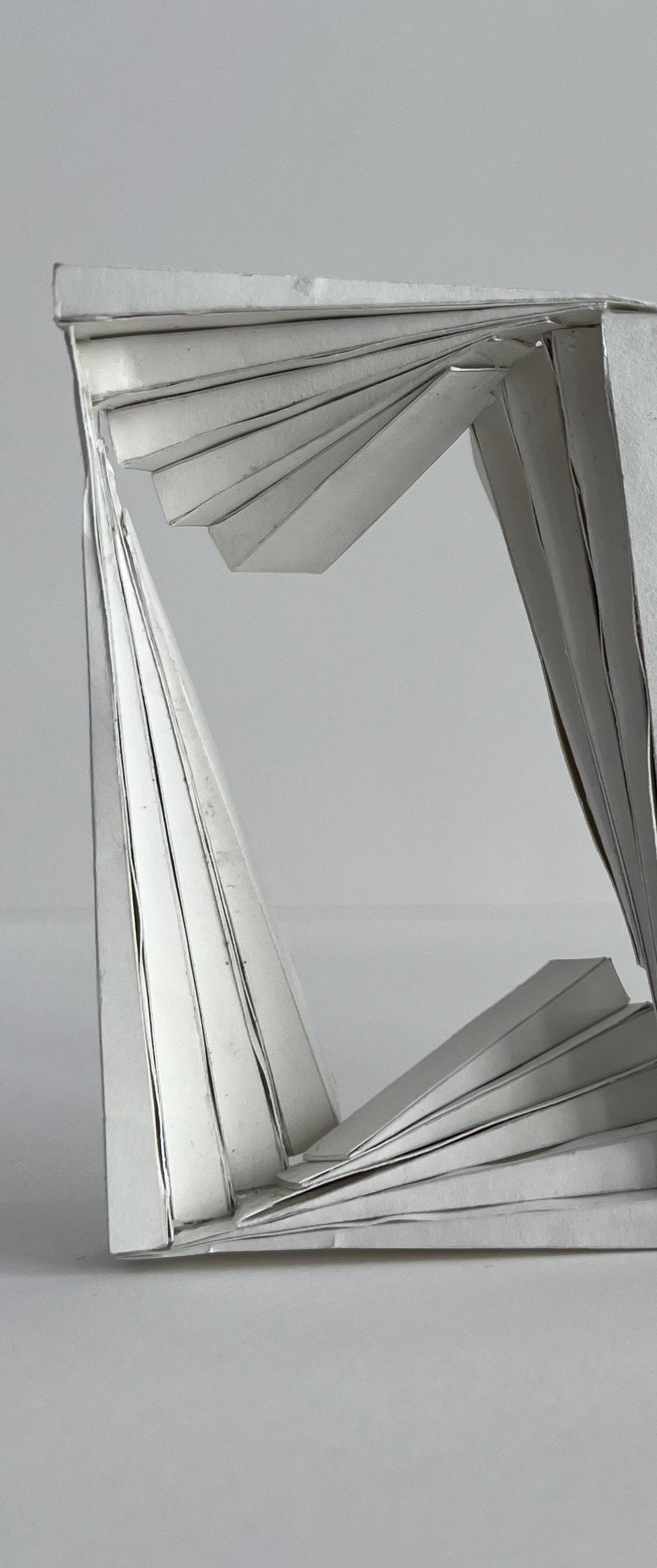

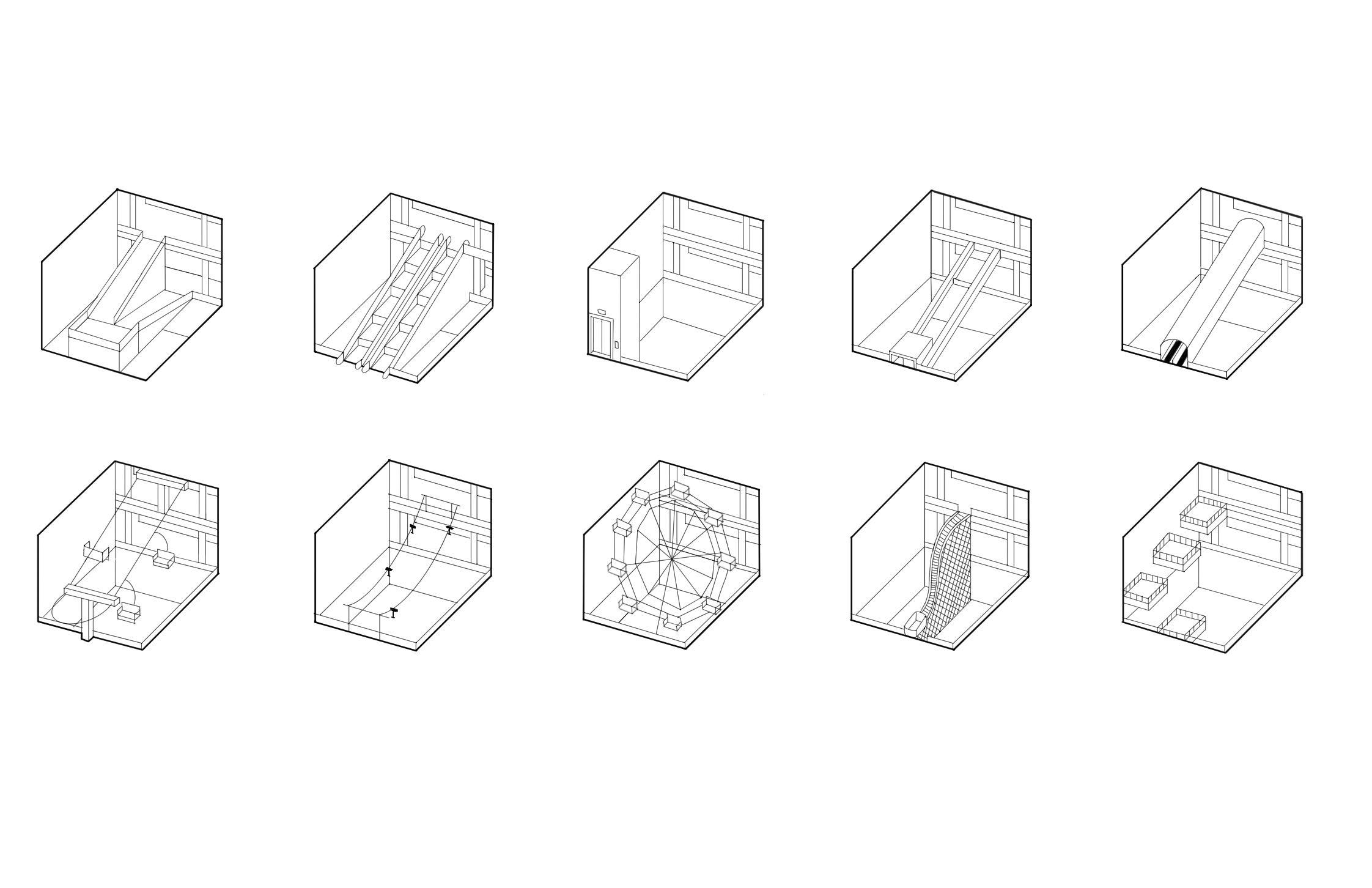

10 Ways to Subvert A...

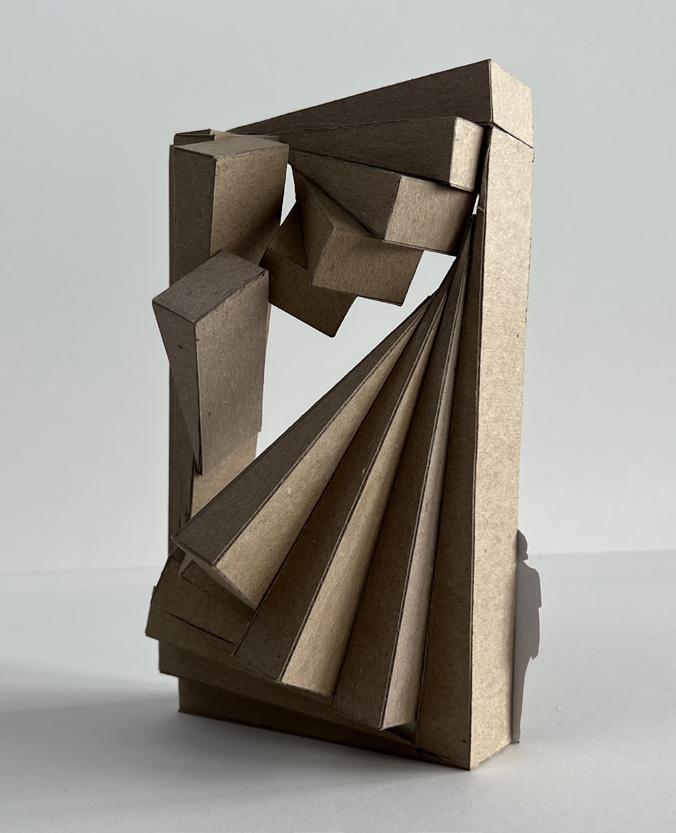

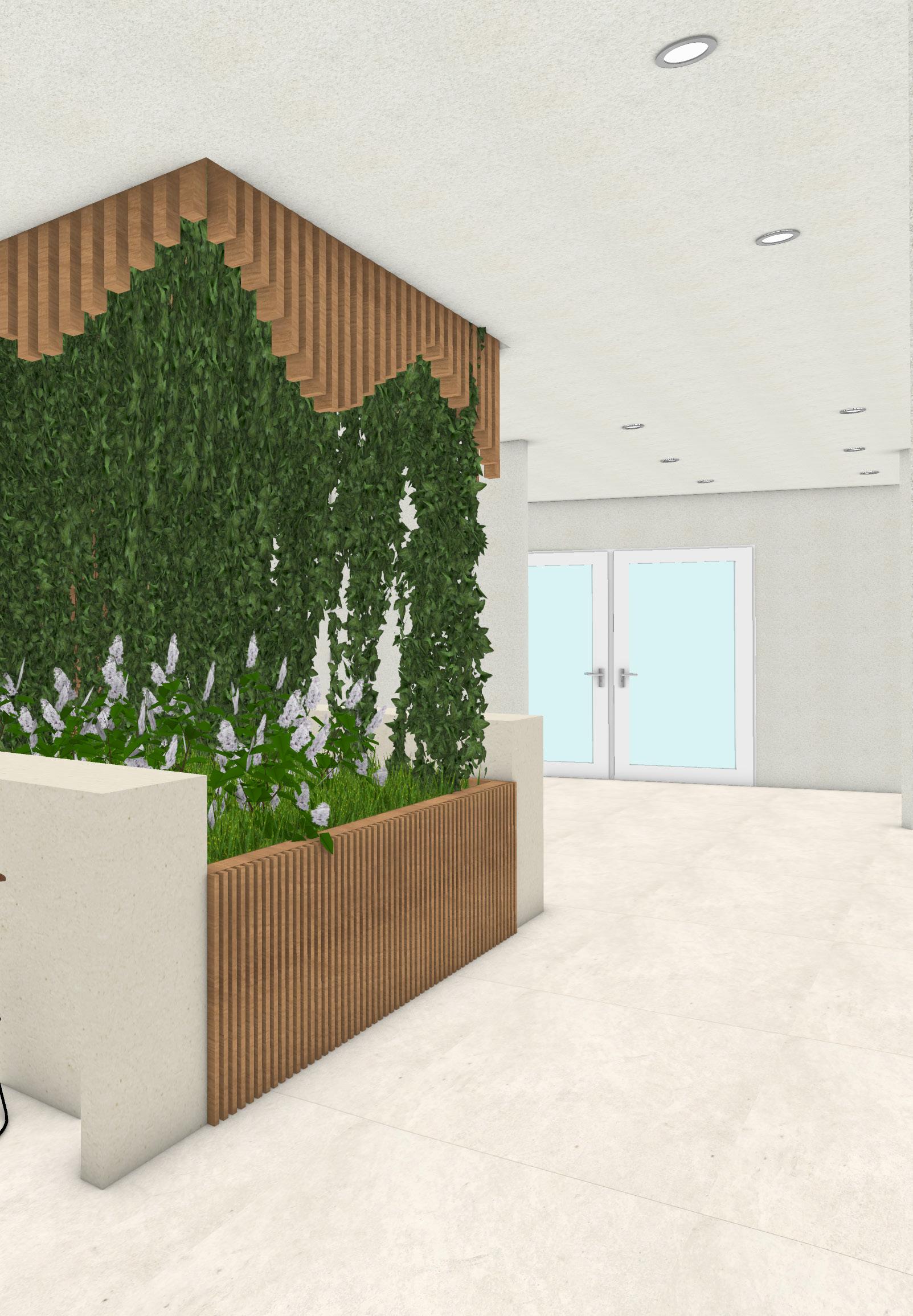

The preliminary design assignment to the overall project, challenging the ways in which we can subvert our school’s atrium to make it more accessible.

02

HARLEM FIRE STATION

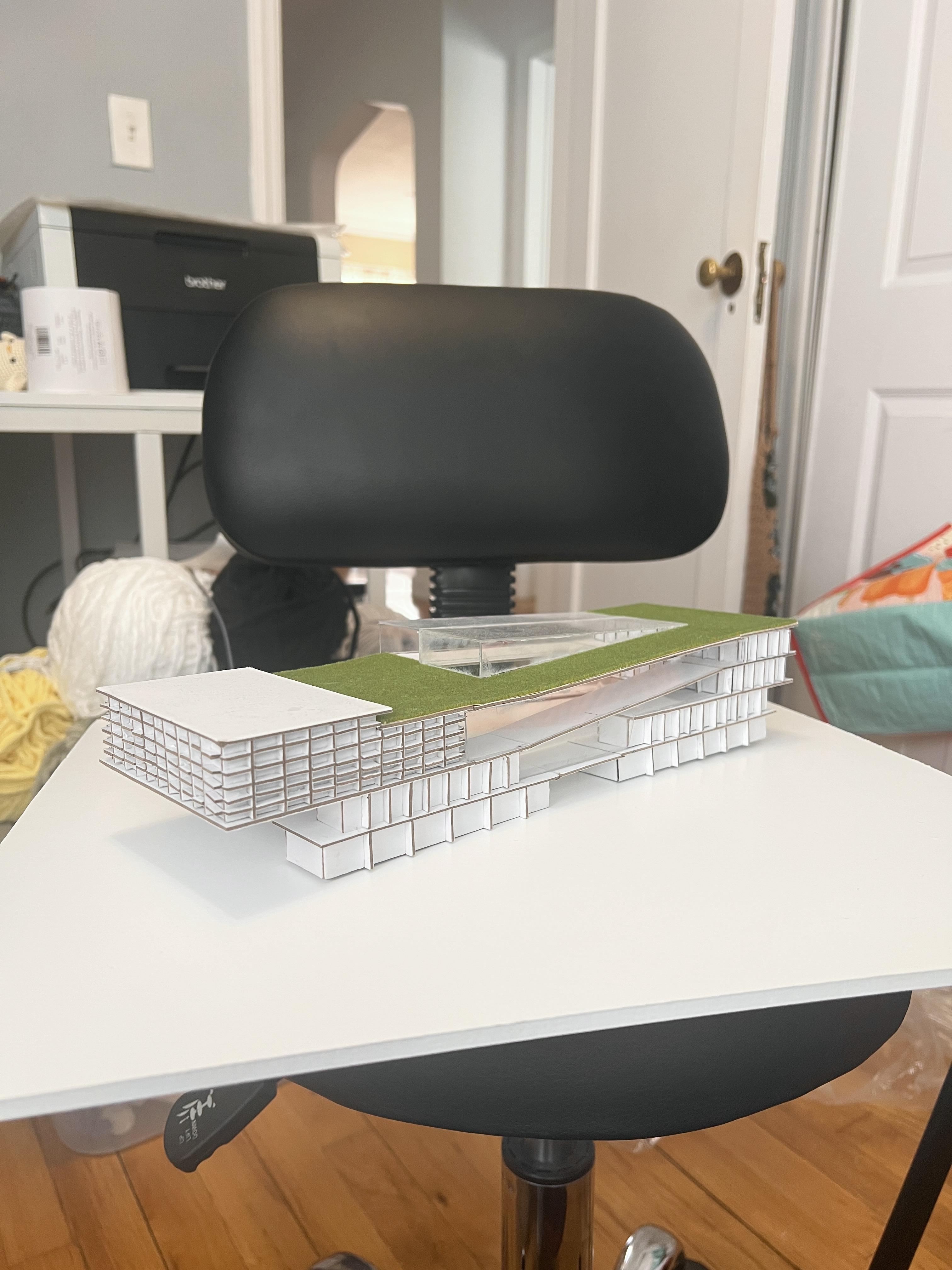

This project is a proposed fire station in East Harlem, New York that reflects the needs of the neighborhood. It serves the community as an accessible public space while intertwining private use for firefighters as a vital component of the urban environment. Visitors will walk up ramps to a roof garden while observing the operations of a fire station.

In collaboration with Ariadna Vazquez and Alex Pichol.

ROOF COMMUNITY GARDEN

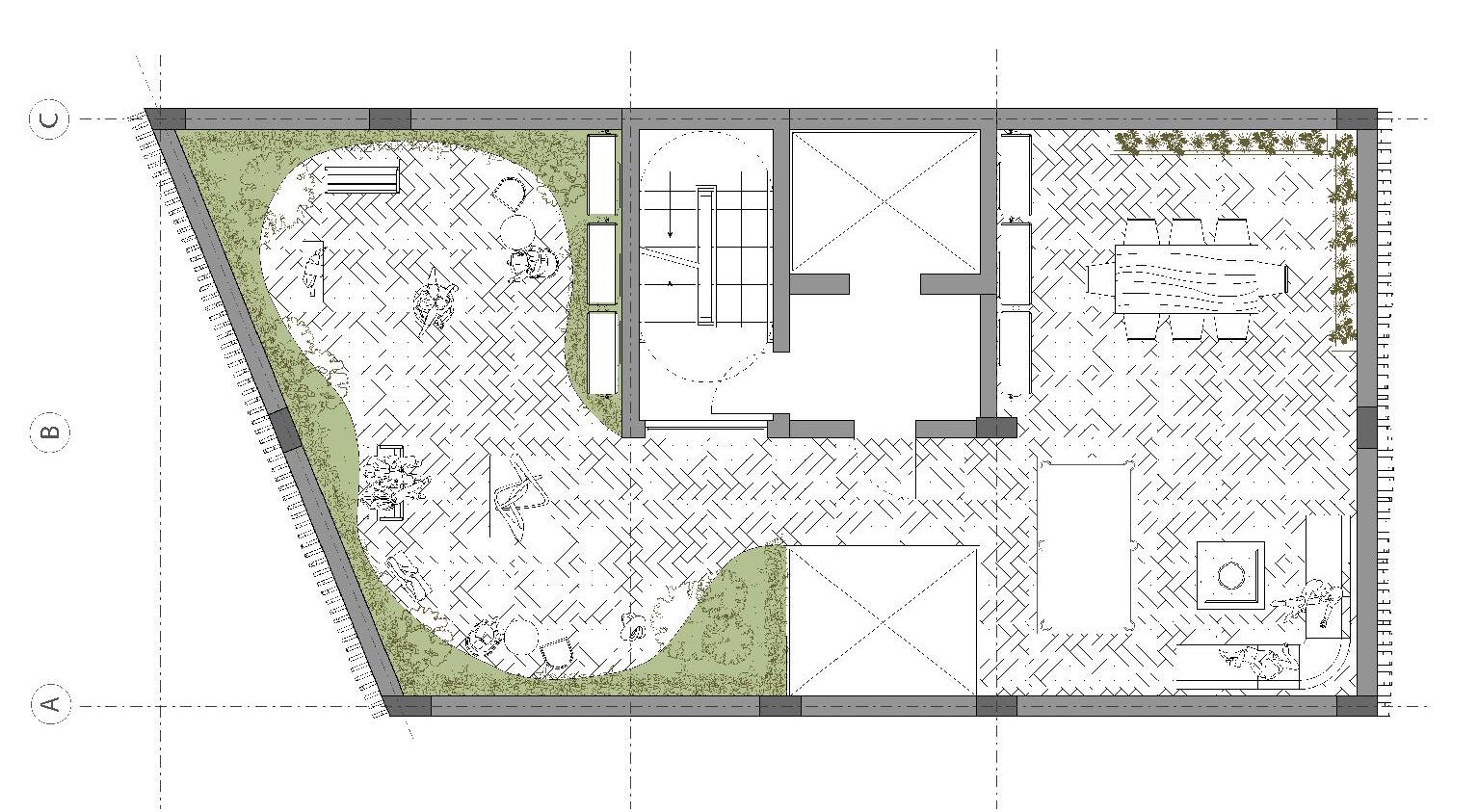

FLOOR PLANS

APPARATUS BAY

DECON AREA/STORAGE

MEDICAL ROOM

DISPATCH CENTER

ADMINISTRATIVE OFFICE

FITNESS/WELLNESS AREA

LIVING QUARTERS

TRAINING ROOM

THEATER

COMMUNITY SERVIVE ROOM

FIRST FLOOR
FOURTH FLOOR
WEST ELEVATION
WEST SECTION LOOKING EAST

HOUSE ON LAKE STARNBERG

From Fink + Jocher Architecture Firm, the House on Lake Starnberg was built for a five-person family on the edge of Lake Starnberg in Munich, Germany. On the ground floor is a self-contained flat with two studies and living spaces on the upper floor, providing privacy and a breathtaking view of the lake. The structure’s timber framing creates a compact design with large solid larch frame members. As seen from the exterior, the house contains a flat roof with a key structural element, the cantilever, as the second floor overhangs the first floor.

In collaboration with Ariadna Vazquez and Khadija

Ali.

EAST ELEVATION

SECOND FLOOR PLAN

EAST ELEVATION

WEST ELEVATION

WEST ELEVATION

DRAINAGE AND FILTER MAT

BITUMINOUS SHEATHING

RIGID INSULATION

ORIENTED-STRAND BOARD

1 Drainage and Filter Mat

CELLULOSE-FIBRE INSULATION

Bituminous Sheeting

VAPOR RETARDER

Rigid Insulation

PLASTERBOARD

Oriented-Strand Board

Cellulose-Fibre Insulation

Vapor Retarder

LARCH LAMINATED SHEETING

Plasterboard

VARNISHED BATTENS

WINDPROOF LAYER

2 Larch Laminated Sheeting

FIBREBOARD

Varnished Ba ens

Windproof Layer

CELLULOSE-FIBRE INSULATION

Fibreboard

PLYWOOD SHEATHING

VAPOR RETARDER

Cellulose-Fibre Insulation

PLASTERBOARD

Plywood

Vapor Retarder

Plasterboard

OAK PARQUET FLOORING

3 Oak Block Parquet Flooring

SCREED AROUND UNDERFLOOR HEATING

Screed around Under oor Heating

MOISTURE DIFFUSING SHEETING

Moisture Di using Sheeting

IMPACT-SOUND INSULATION

Impact-Sound Insulation

VAPOR RETARDER

Vapor Retarder

ORIENTED-STRAND BOARD

Oriented-Strand Board

CELLULOSE-FIBRE INSULATION

Cellulose-Fibre Insulation

VAPOR RETARDER

Vapor Retarder

PLASTERBOARD

Plasterboard

4 Concrete Slab

CONCRETE SLAB

Vapor Retarder

VAPOR RETARDER

RIGID INSULATION

Rigid Insulation

04

THE LIVING SCULPTURE

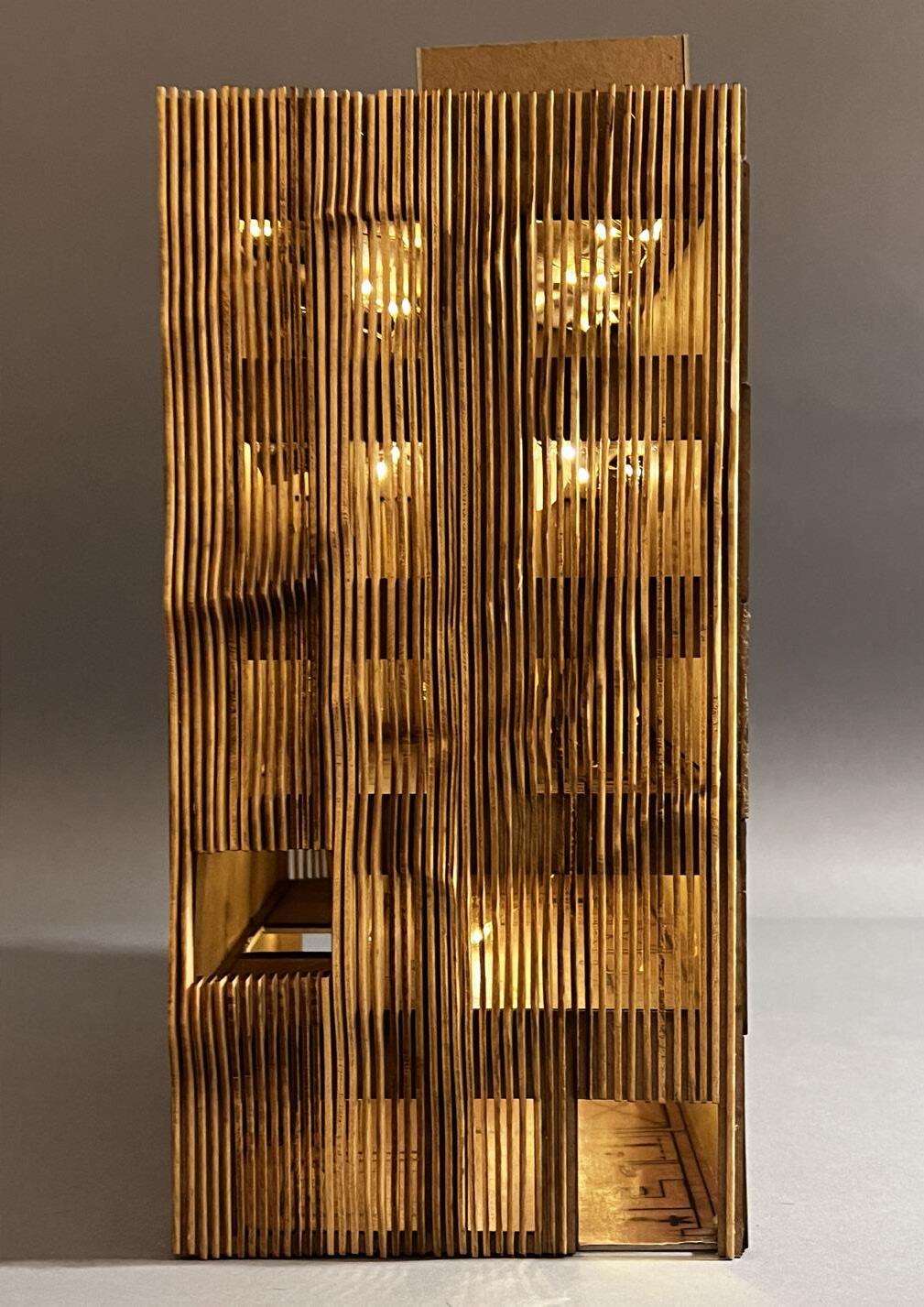

The Living Sculpture is a live/work apartment building intended for the local artists of Harlem. We have designed a building that gives housing to artists while simultaneously providing and serving their certain needs such as storage and plenty of space to work on projects of any medium. With six housing units, we also provided a public art gallery, a communal workspace, as well as a rooftop sculpture garden. These spaces provide the artists opportunities to work on and display their artwork within the building. On the facade, we wanted to echo the ever-changing movement of artistic expression. It is a reminder that art is not confined to a studio but can be expresed in any form.

In collaboration with Jake Marasigan.

CONCEPT DIAGRAM

LEGEND

COMMUNAL ROOFTOP

RESIDENTIAL UNITS

COMMUNAL WORKSPACE

LOBBY/LOUNGE

GALLERY

LAUNDRY/UTILITIES

CONCEPT DIAGRAM

CONCEPT DIAGRAM

LAUNDRY/UTILITIES LEGEND

COMMUNAL ROOFTOP

RESIDENTIAL UNITS

COMMUNAL WORKSPACE

LOBBY/LOUNGE

GALLERY

FIFTH FLOOR

- 7”

FOURTH FLOOR

- 6”

THIRD FLOOR

- 3”

SECOND FLOOR

- 0”

FIRST FLOOR

METAL PANEL

STEEL ANGLES WINDOWS

TRACK

FACADE EXPLODED AXONOMETRIC SLIDING WINDOW SHUTTERS

OPERABLE WINDOW EXPLODED AXONOMETRIC

WOODEN SLATS
TROLLEY HANGER

DROP CEILING

FINISH FLOOR SUBFLOORING

8” CONCRETE SLAB

FRUIT OF THE LONDON PLANE

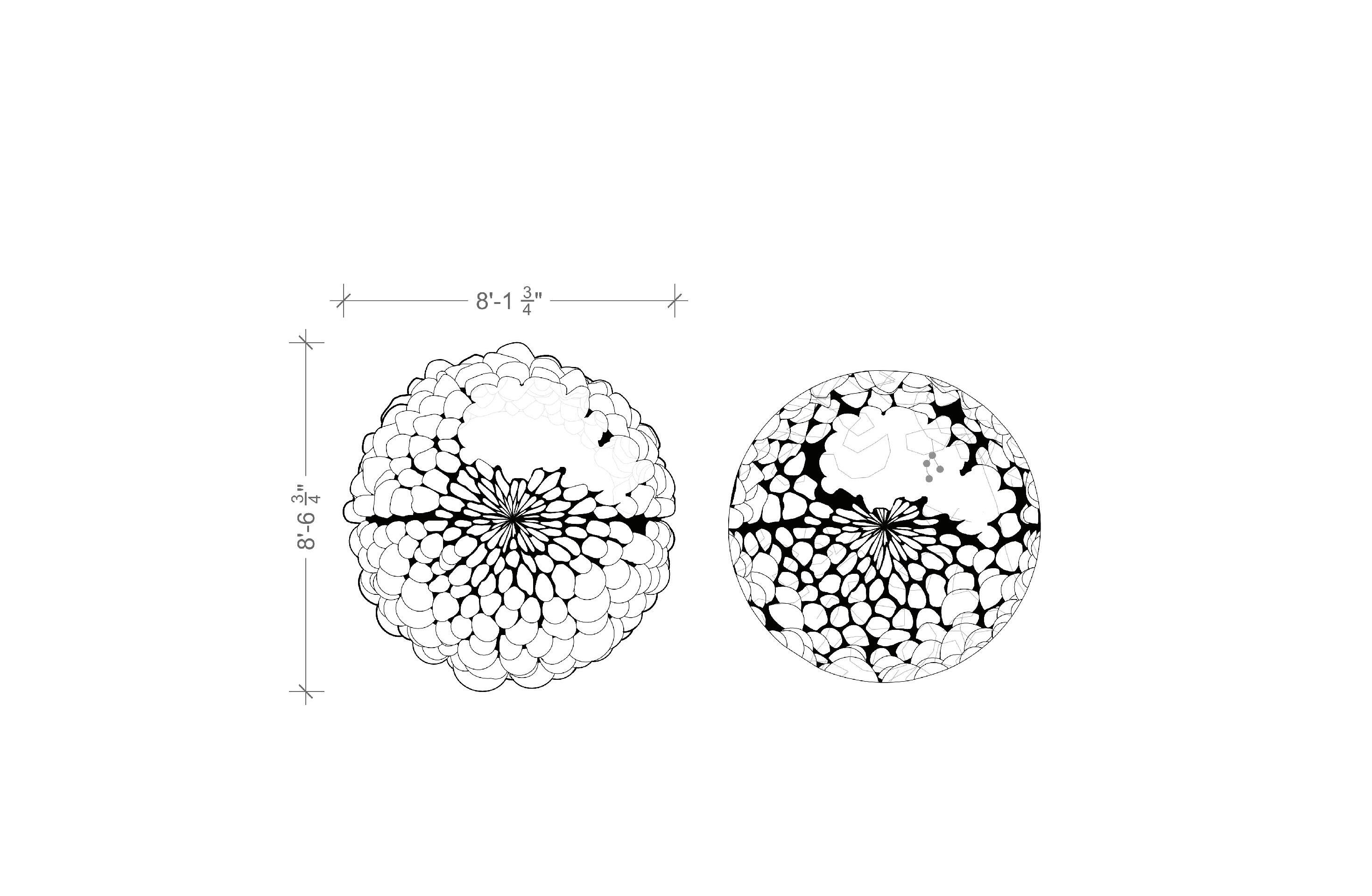

We have designed an ecospace inspired by the seed pods that grow on the London Plane Trees in Bryant Park, NY. The intention of this project was to create an ecosystem designed to be an escape from the city and a connection to nature, merging biotic and abiotic functions.

In collaboration with Etty Jajati.

PLAN SCALE: 1/4” = 1’-0”

BACK ELEVATION SCALE: 1/4” = 1’-0”

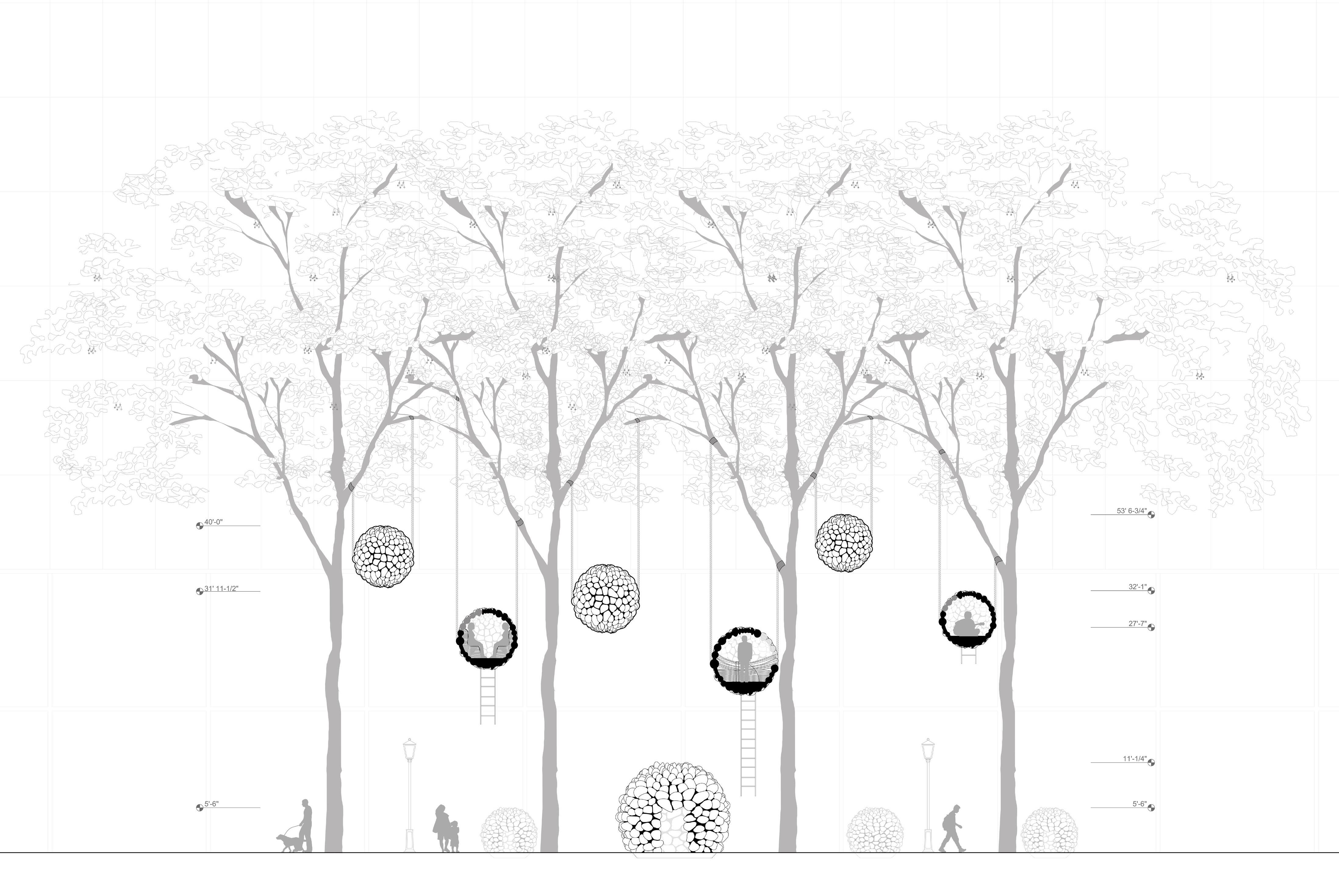

SECTION B-B WITH SUN PATHS JUNE 21

PLAN WITH AZIMUTH ANGLES

OPERATIONAL WINDOW

INTERACTIVE BIRD FEEDER

STORAGE POD

This diagram demonstrates the multiple functions of our ecospace that interacts with nature. Once the seed pods of the London Plane trees fall to the ground at a certain point in their life cycle, visitors can collect them to put inside of our individual pods to feed the birds.

INVISIBLE HOUSE

The Invisible House, located on the outskirts of Treviso, Italy was designed by architect, Tadao Ando, who envisioned a structure that seamlessly integrates with the natural landscape. He and landscape designer Domenico Luciani sculpted the surroundings, creating a series of rolling hills that embrace the house, nearly disappearing into the earth, with much of it semi-buried underground. The house is a striking combination of concrete and glass, extending over 17,000 square feet on the property.

In collaboration with Ariadna Vazquez, Babisha Manandhar, and Fatiha Tazrin

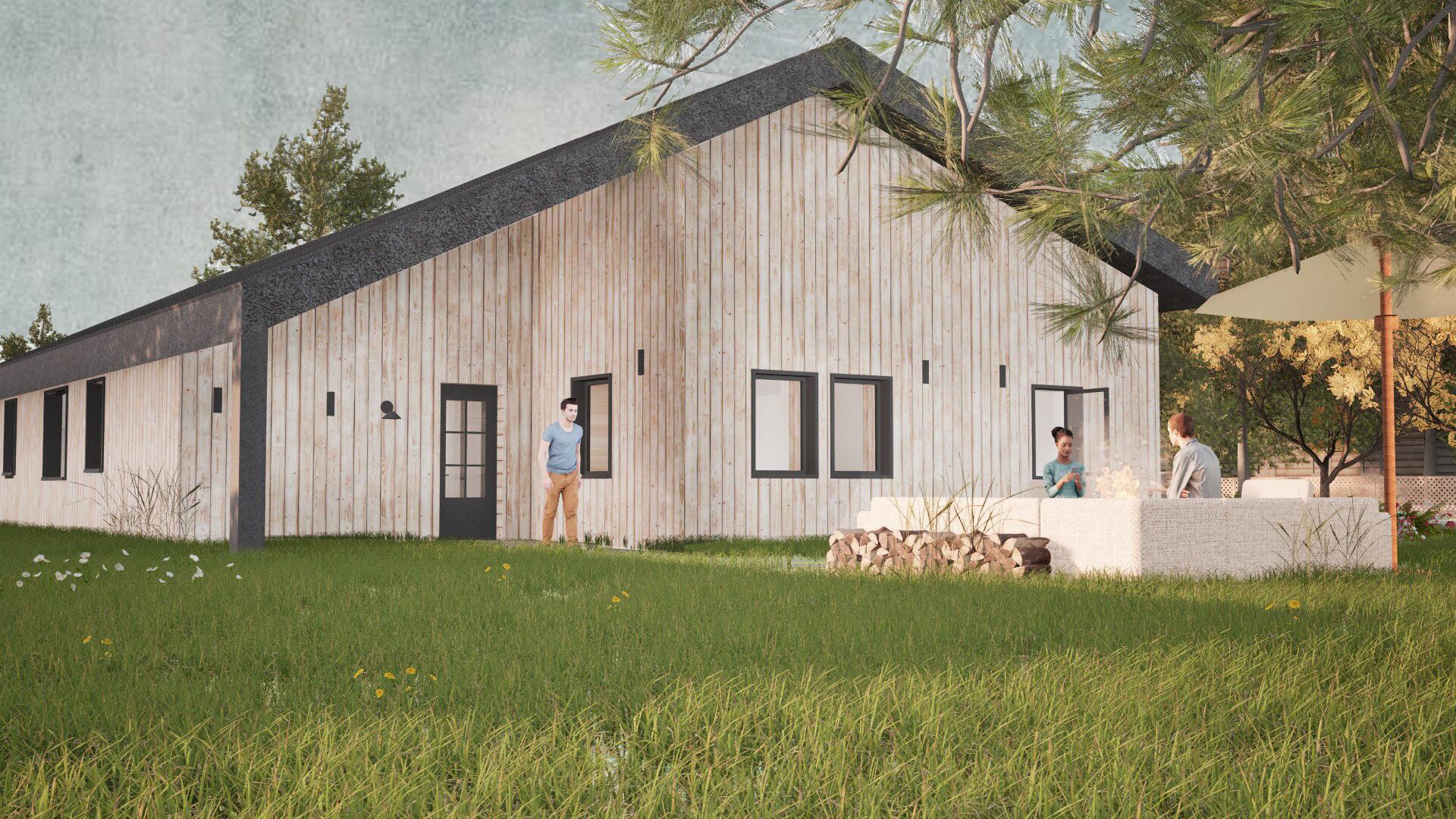

THE SALTBOX

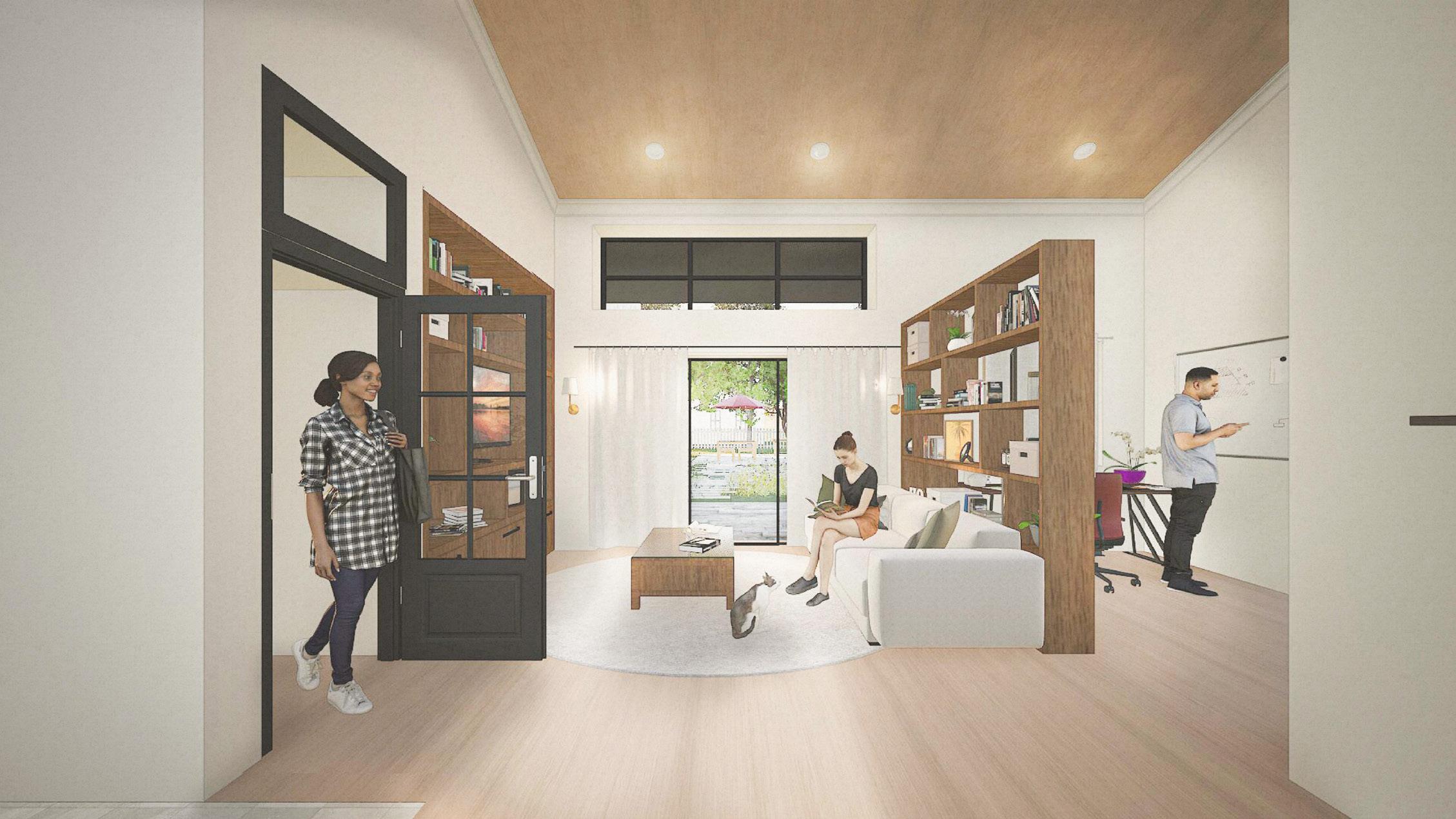

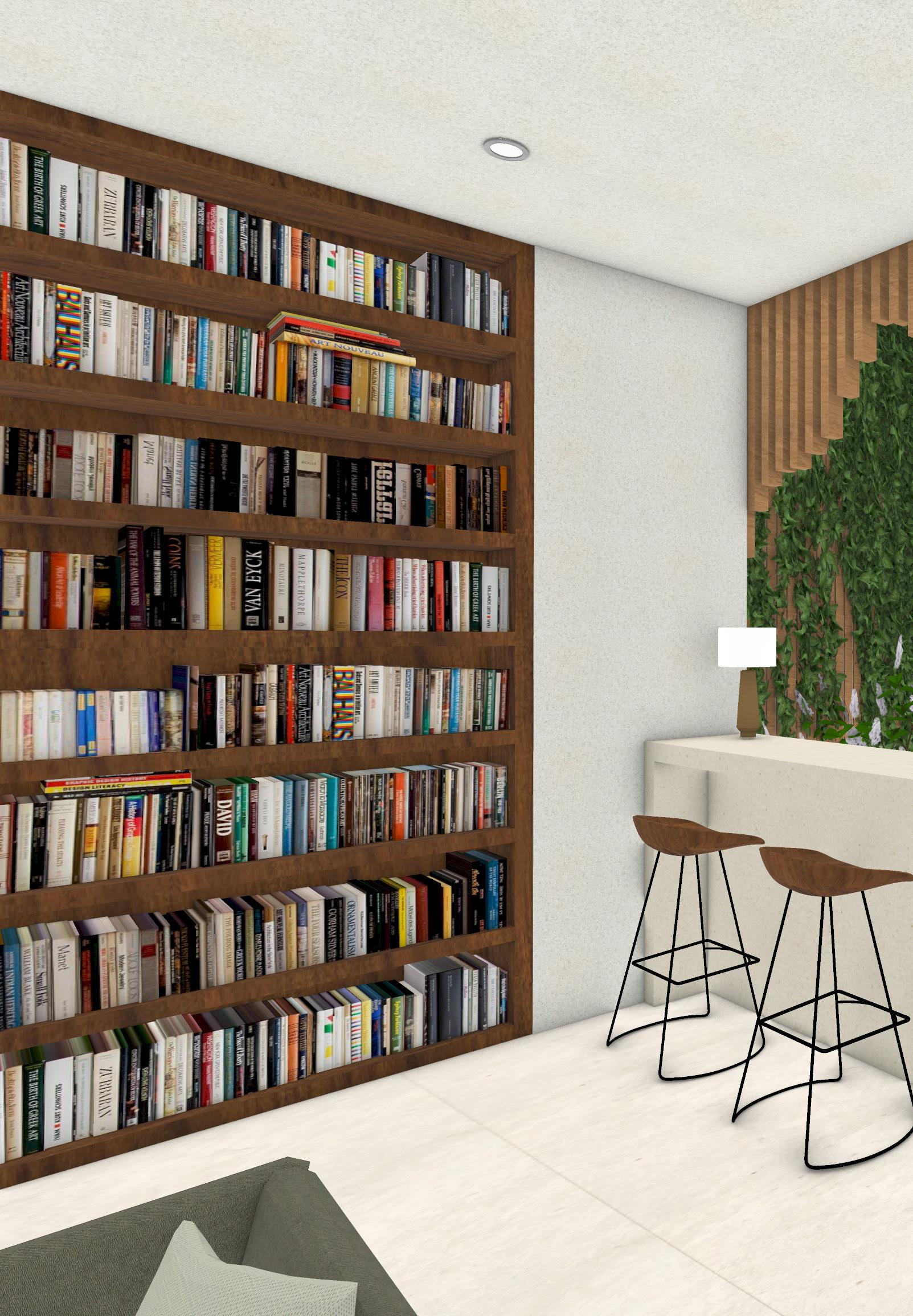

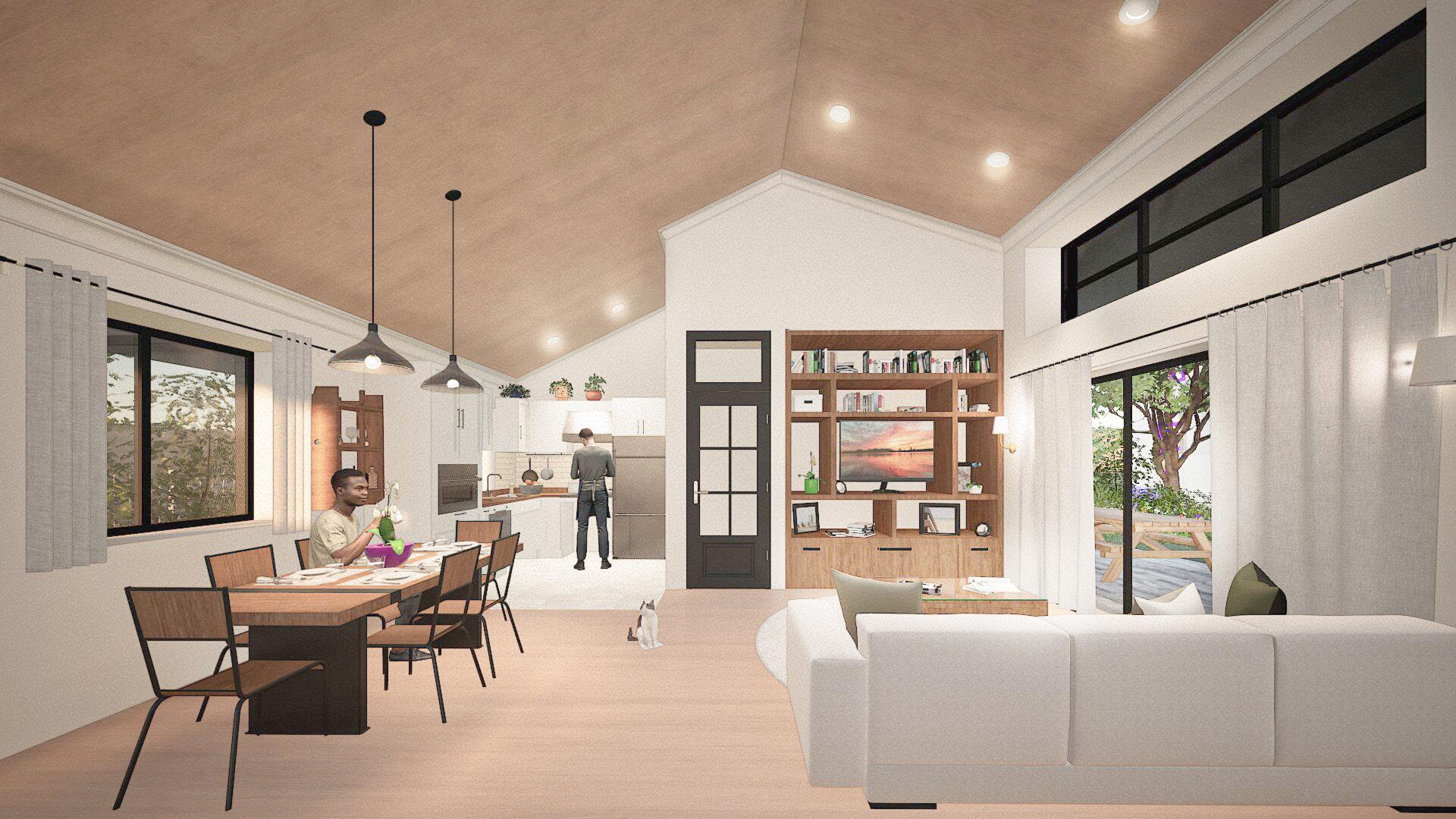

The design for this accessory dwelling unit in Portland, Maine is driven towards invlusivity, accessibility, and a thoughtful response to its context. Through our approach, we aimed to create a dwelling that not only meets functional needs but also fosters intergenerational living and enhances the quality of life for its occupants.

In collaboration with Jake Marasigan.

45 WILLIAM STREET

SECTION PERSPECTIVE

- Drawing By Jake Marasigan

ACCESSIBILITY DIAGRAM

CEILING MOUNTED CASSETTE DUCTLESS MINI SPLIT

CEILING MOUNTED CASSETTE DUCTLESS MINI SPLIT

REFRIGERANT LINE

REFRIGERANT LINE

R RECESSED LIGHTING PENDANT LIGHTING

SUPPLY AND RETURN VENTS

SUPPLY AND RETURN VENTS

SUPPLY AND RETURN DUCTS

SURFACE MOUNTED WALL LIGHT

SUPPLY AND RETURN DUCTS

LIGHTING DIAGRAM

8’ RADIUS SPRINKLER

8’ RADIUS SPRINKLER

COMBINATION SMOKE AND CARBON MONOXIDE

COMBINATION SMOKE AND CARBON MONOXIDE

DETECTOR WITH STROBE LIGHTS

DETECTOR WITH STROBE LIGHTS

FIRE SAFETY DIAGRAM

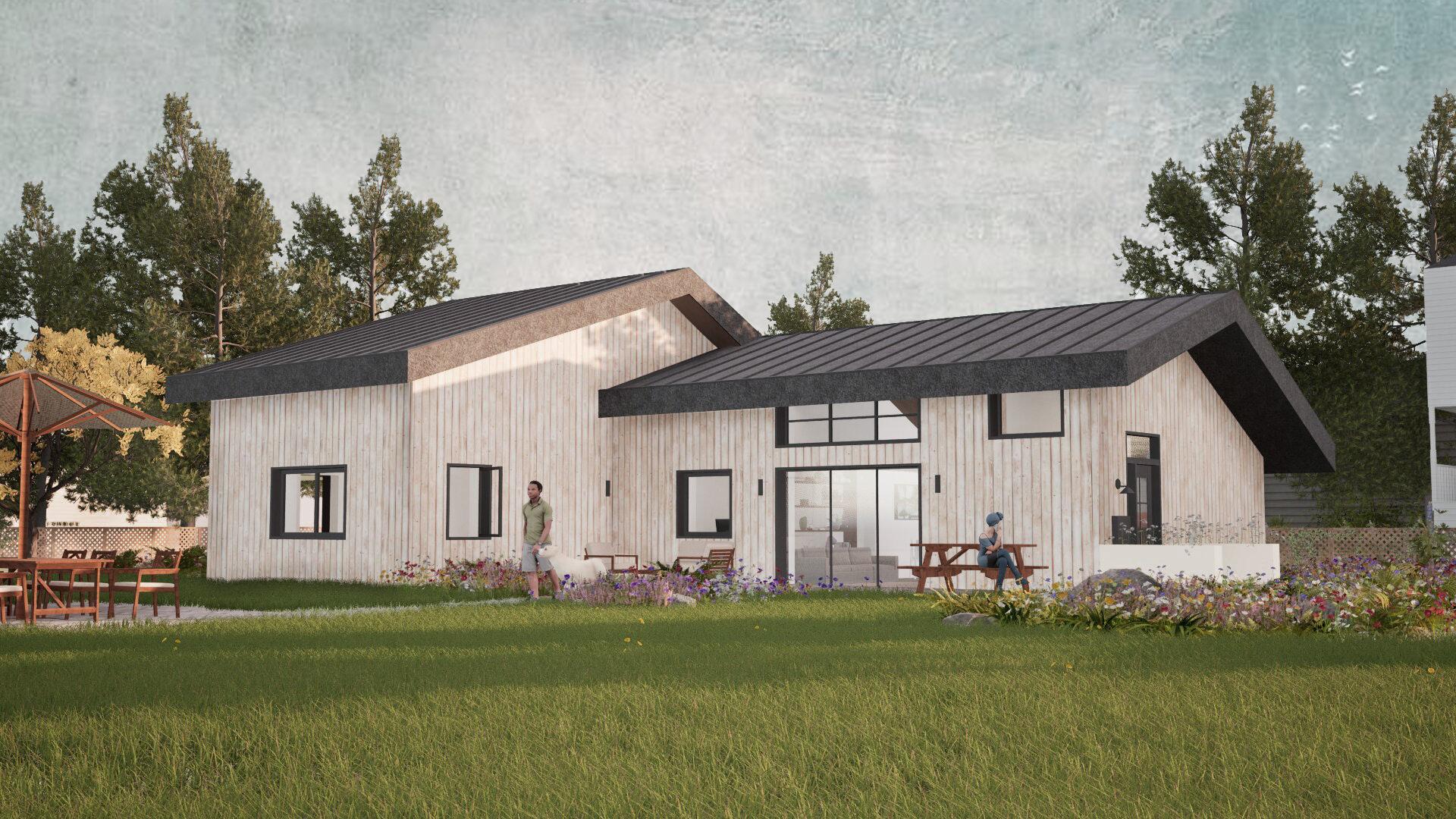

ELEVATION (OUTSIDE GARDEN)
