FAST FOOD RESTAURANT - Strategy of increasing traffic to establishment by Design.
Burger restaurant created to stand out and also to inspire business via design.

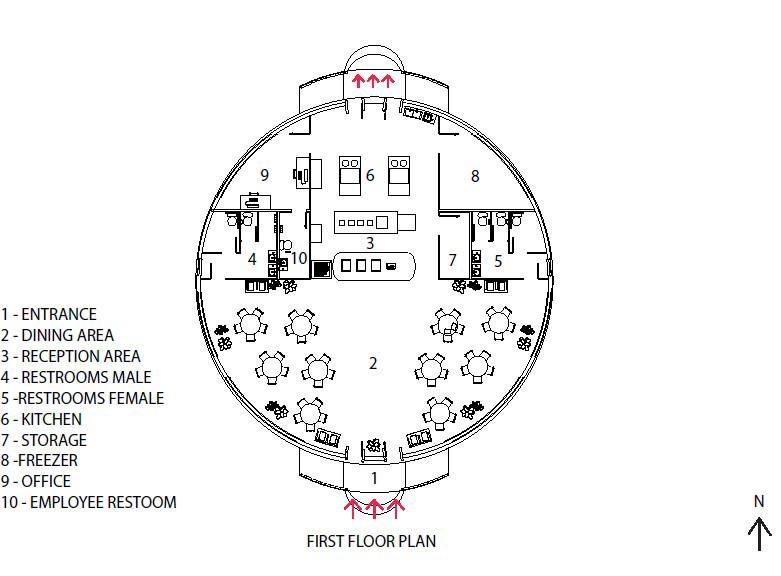

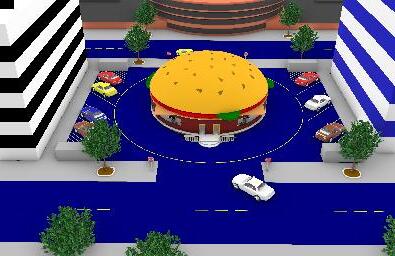

FAST FOOD RESTAURANT

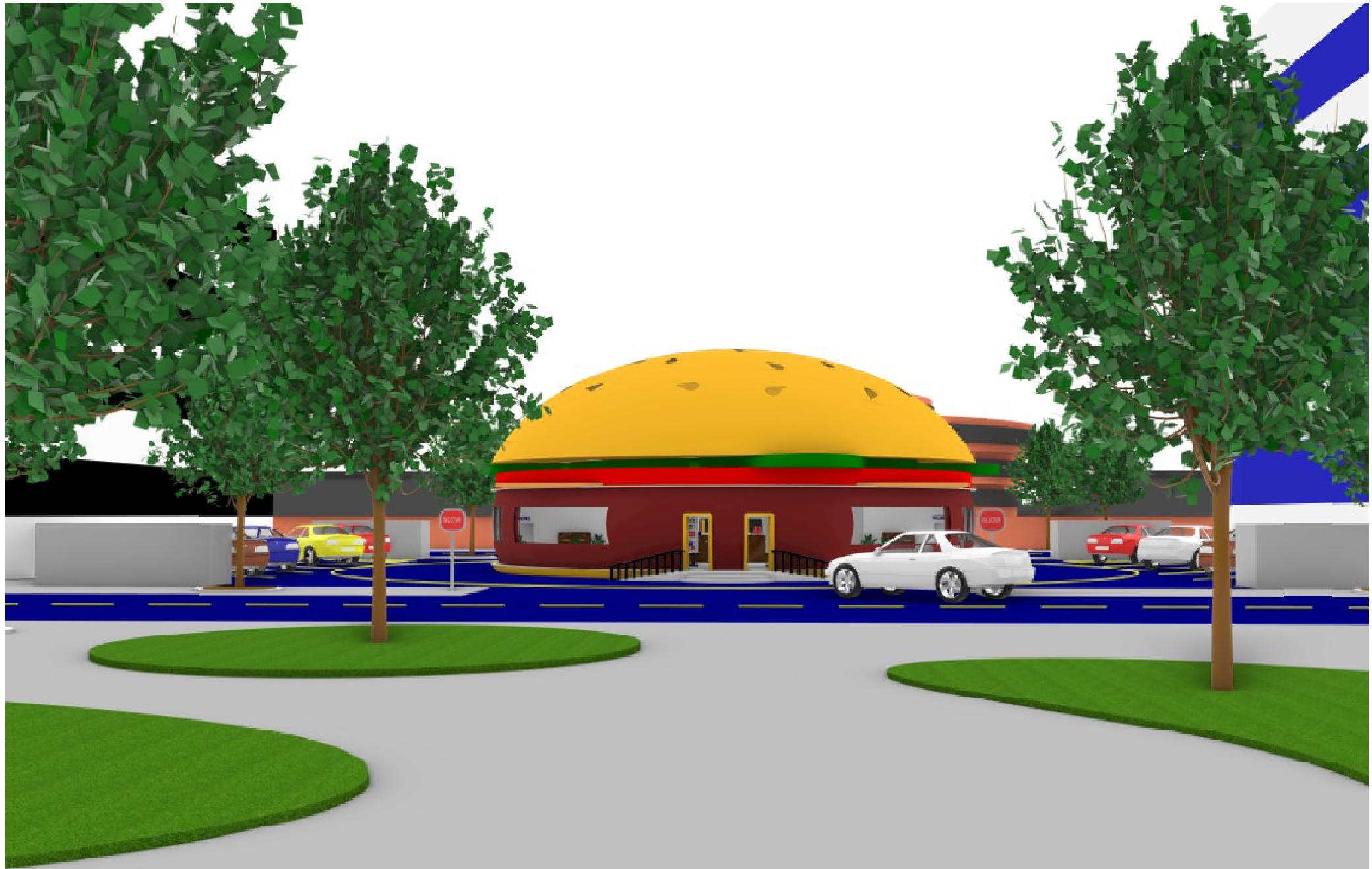

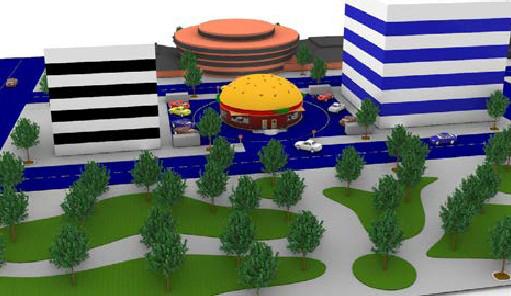

EYE VIEW
INNER VIEW
RED HOOK COMMUNTY CENTER
Community Center located in Red Hook Brooklyn, NY - Establishment for allowance of over 100 protestors and also a community center to serve the needs of the Red Hook neighborhood. Had a roof overlook and a circulating waterfall as well as seating area for up to 100 people and a section for ADA space.
RED HOOK COMMUNTY CENTER

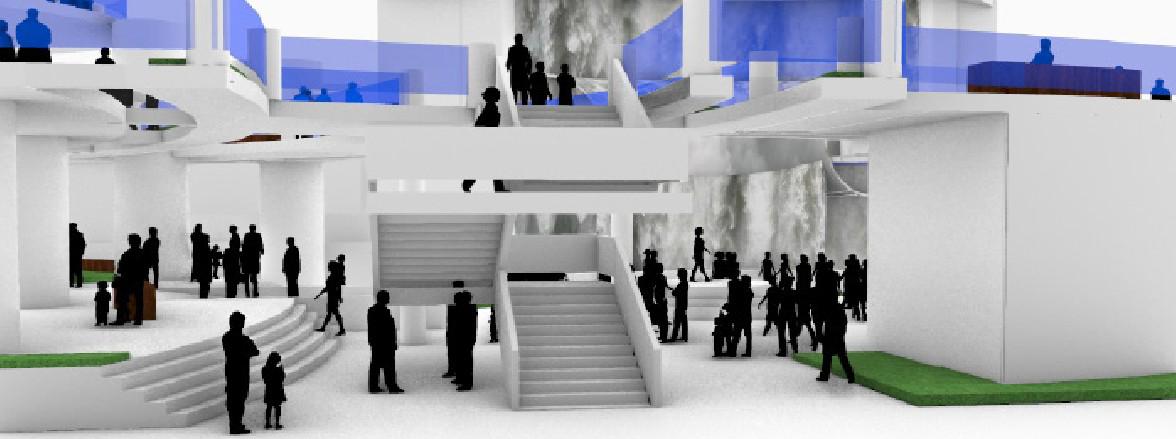

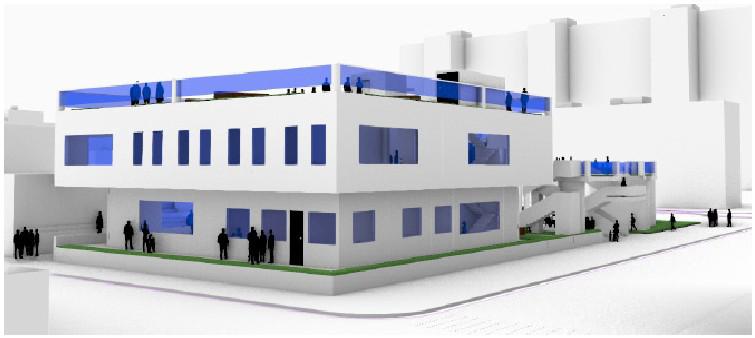

EYE VIEW

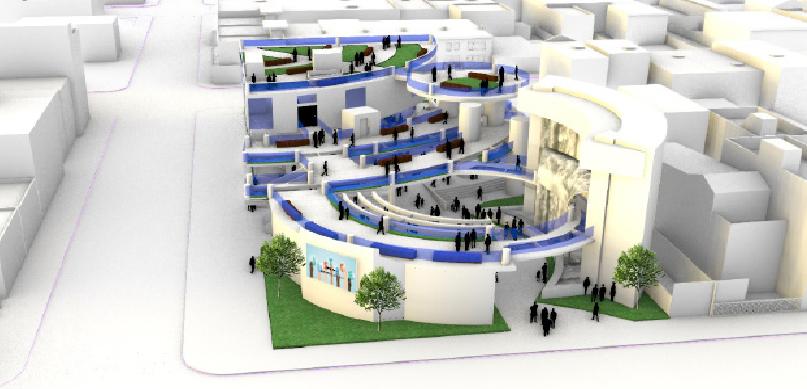

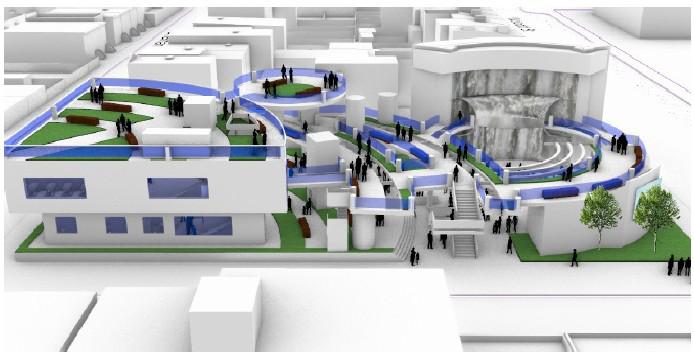

AERIAL VIEW
CULTURAL MUSEUM
Cultural Museum located in Dumbo, Brooklyn NY. ommunity
Center located in Red Hook Brooklyn, NY - Establishment for allowance of over 100 protestors and also a community center to serve the needs of the Red Hook neighborhood.

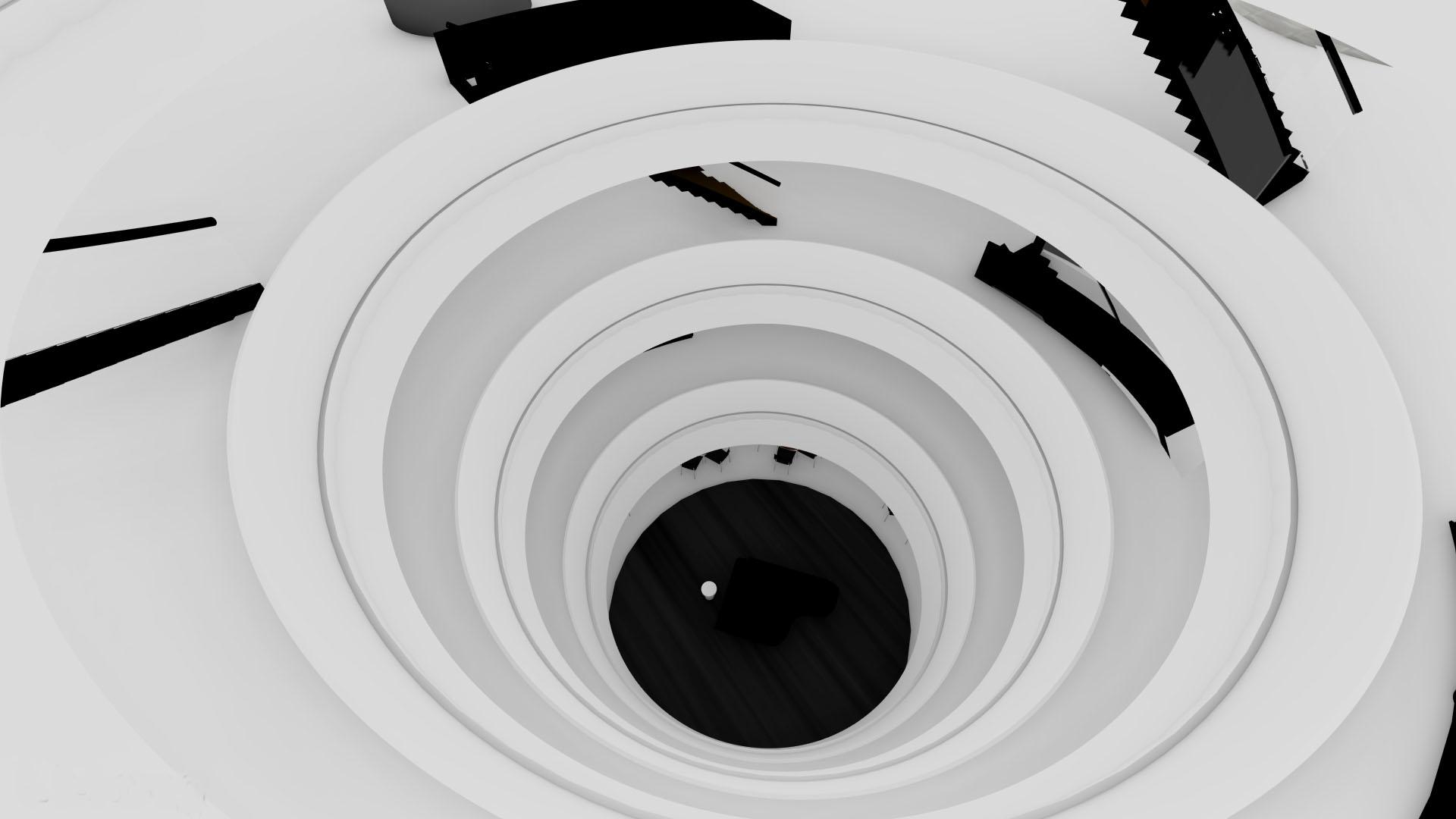

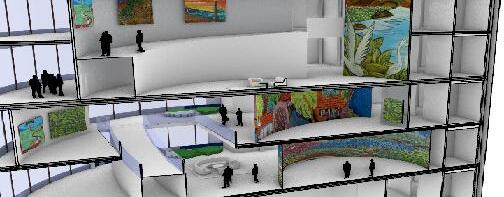

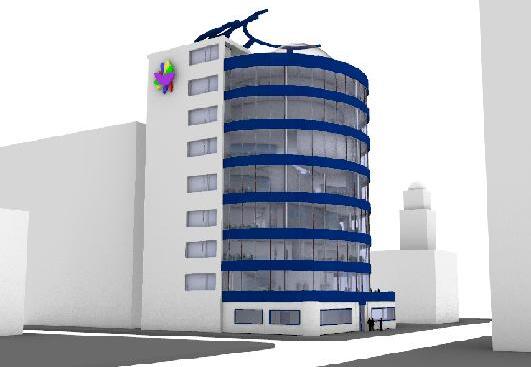

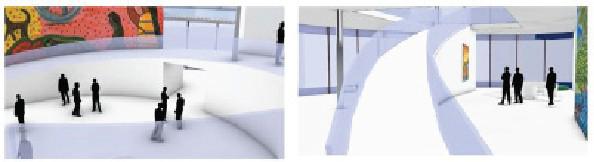

CULTURAL MUSEUM

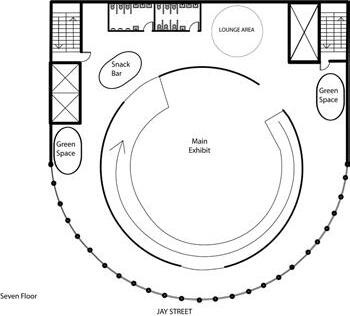

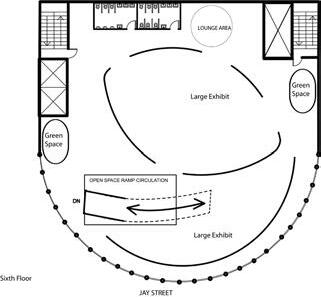

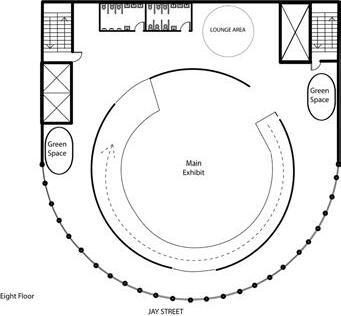

Cultural Museum - Floor Plans designed to allow for better circulation withing the museum fo ease passage of visitors to the museum. Design was made to allow for circular movement from floor to floor.

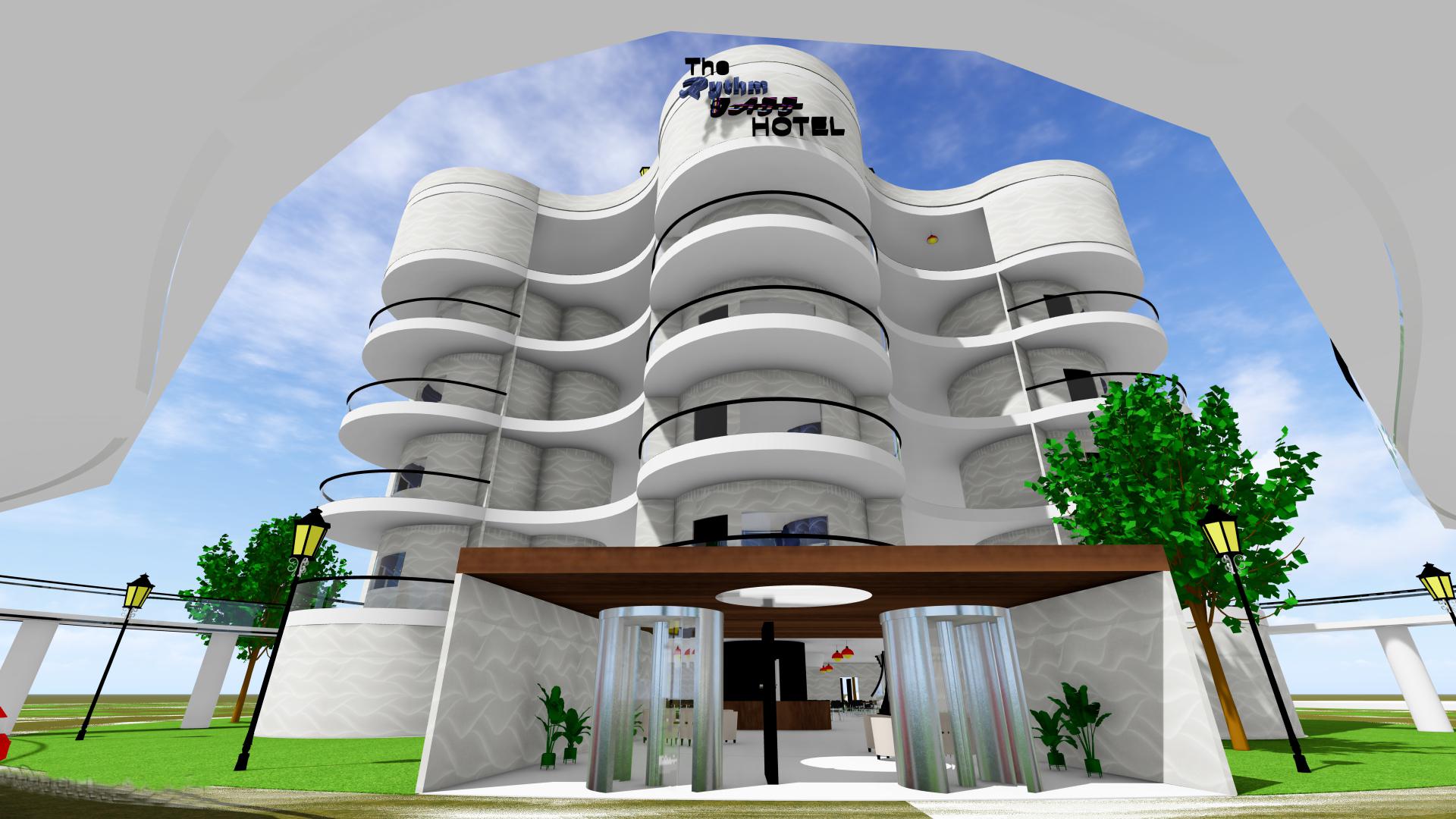

JAZZ BOUTIQUE HOTEL

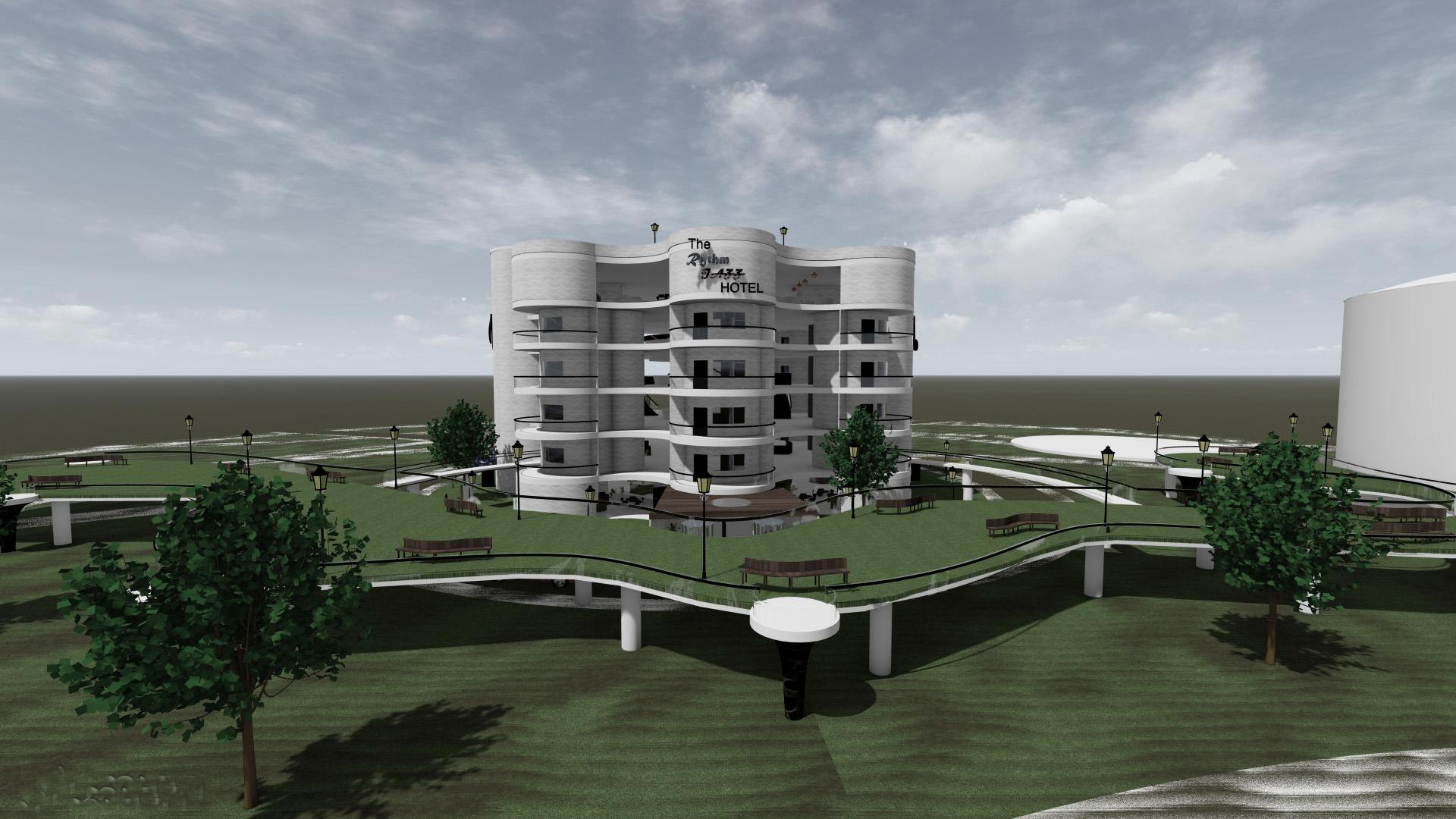

Jazz Boutique Hotel - A Jazz themed hotel located in Corona Park, Queens NY. The hotel has a nightclub, restaurant, lobby indoor stage and anemities for guests of this hotel.

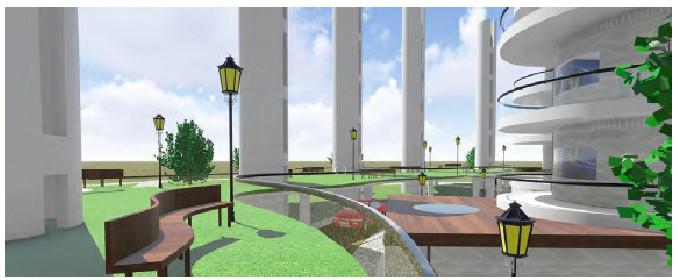

JAZZ BOUTIQUE HOTEL

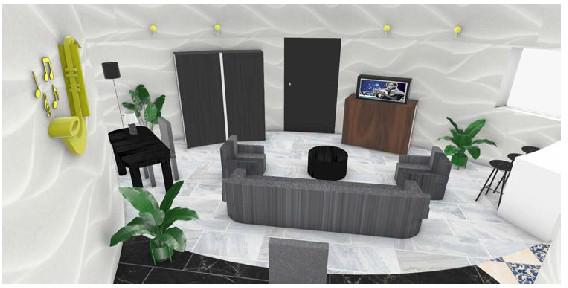

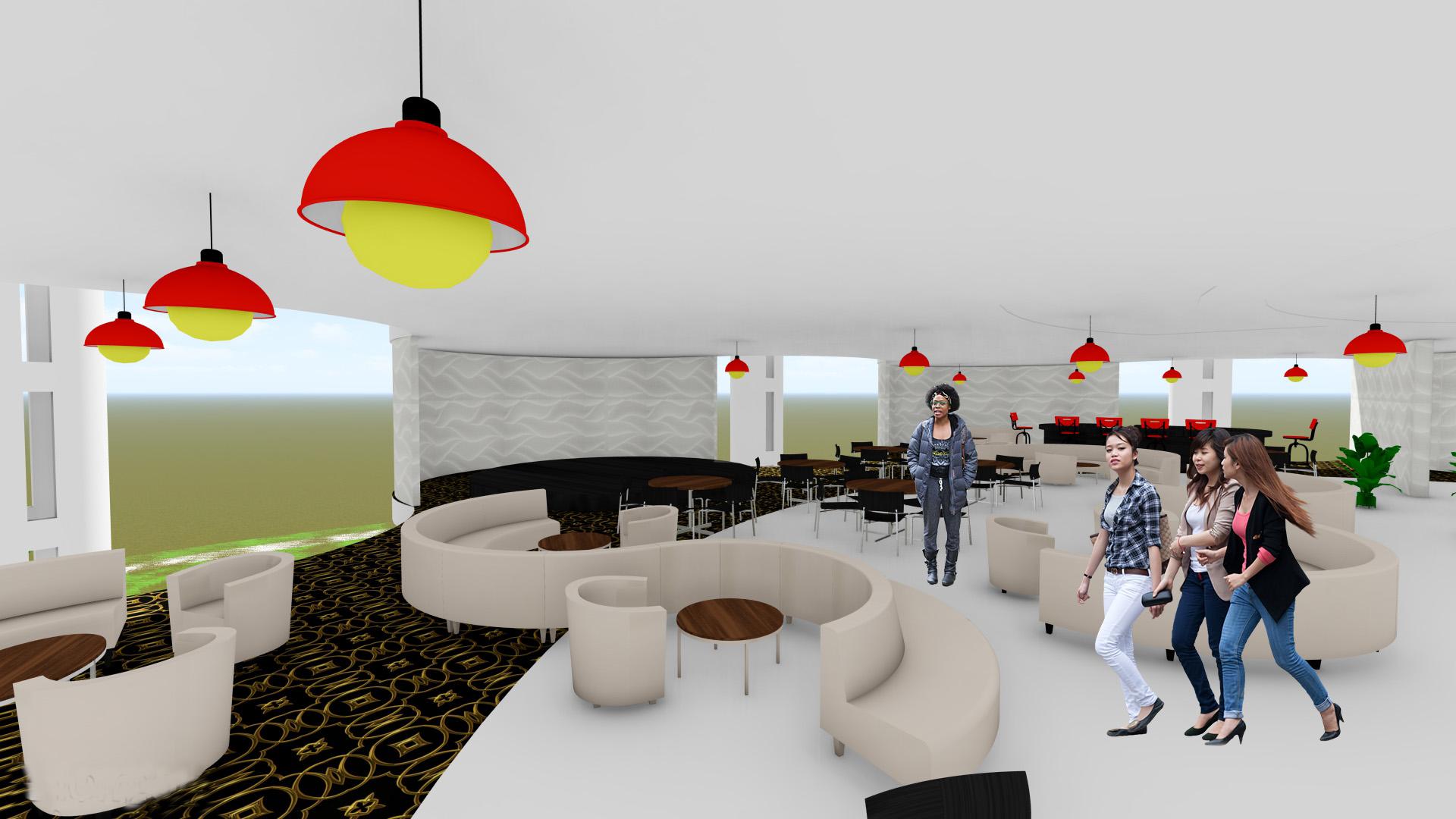

INNER VIEWS
BUILDING TECHNOLOGY 1
FIRST FLOOR PLANS
SECOND FLOOR PLANS
The Townhouse 17-35 Clermont Avenue and 14-38 Vanderbilt Avenue Brooklyn, NY 11205

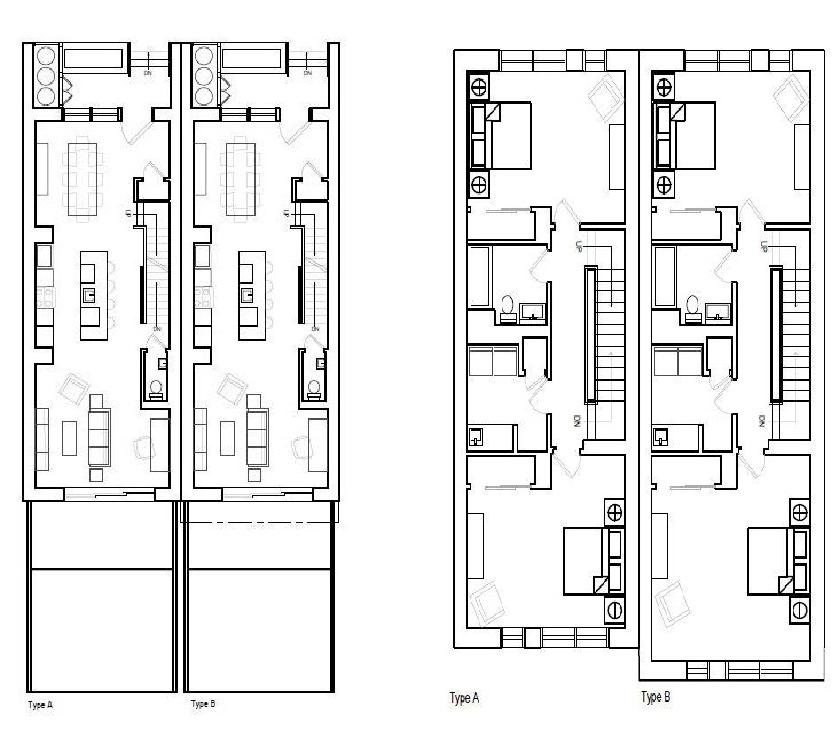

Students drew floor plans based on a TownHouse located in Brooklyn, NY at the above address. Emphasis was placed on lineweights, measurements and details of the rooms. Autocad software was used to design these floor plans. The First and Second floor plans are displayed here.
BUILDING TECHNOLOGY 3

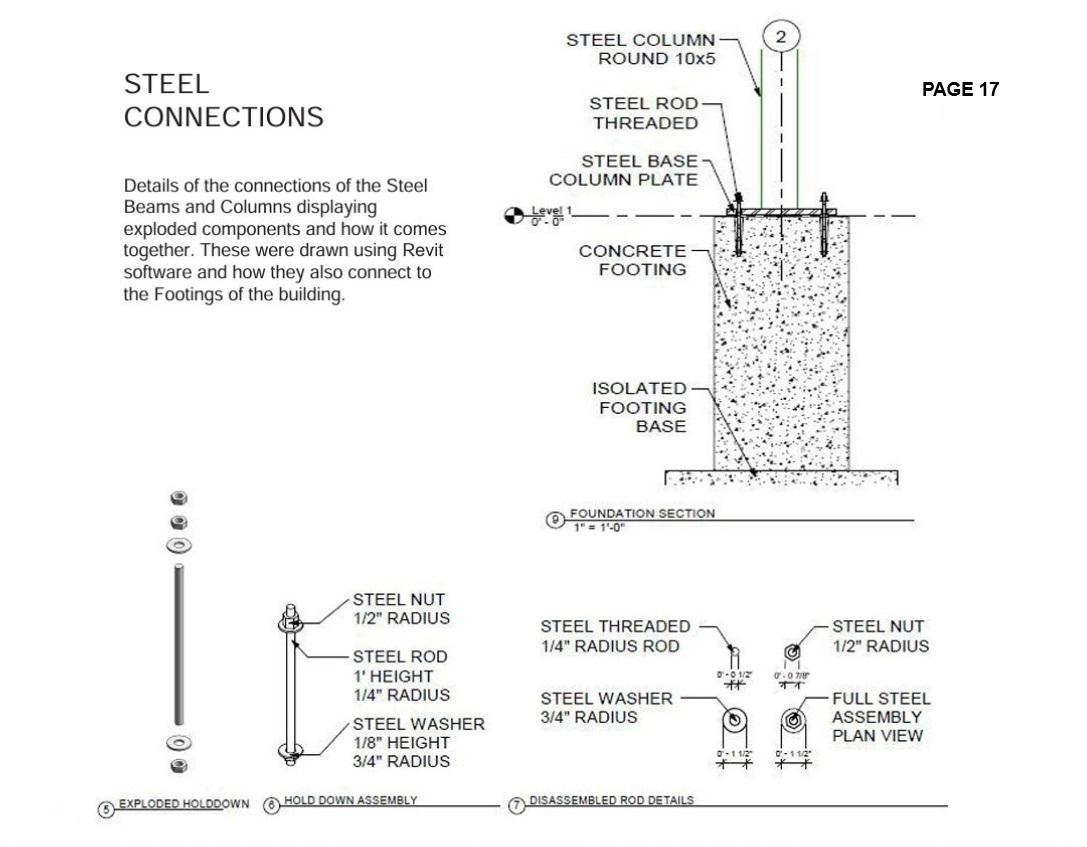

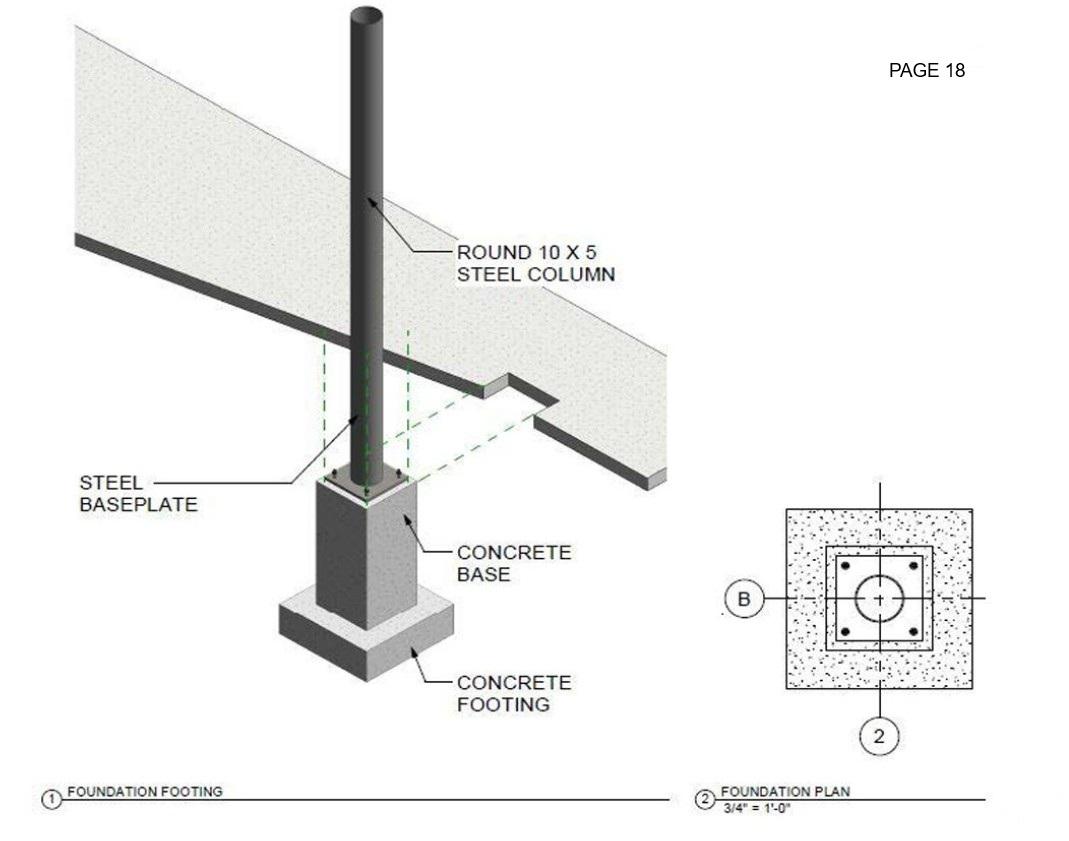

Technical Drawings on building technology focusing on Steel Beam connections and the detailed components that hold the steel beams together.
Software used was REVIT for visual display purposes.
BUILDING TECHNOLOGY 3

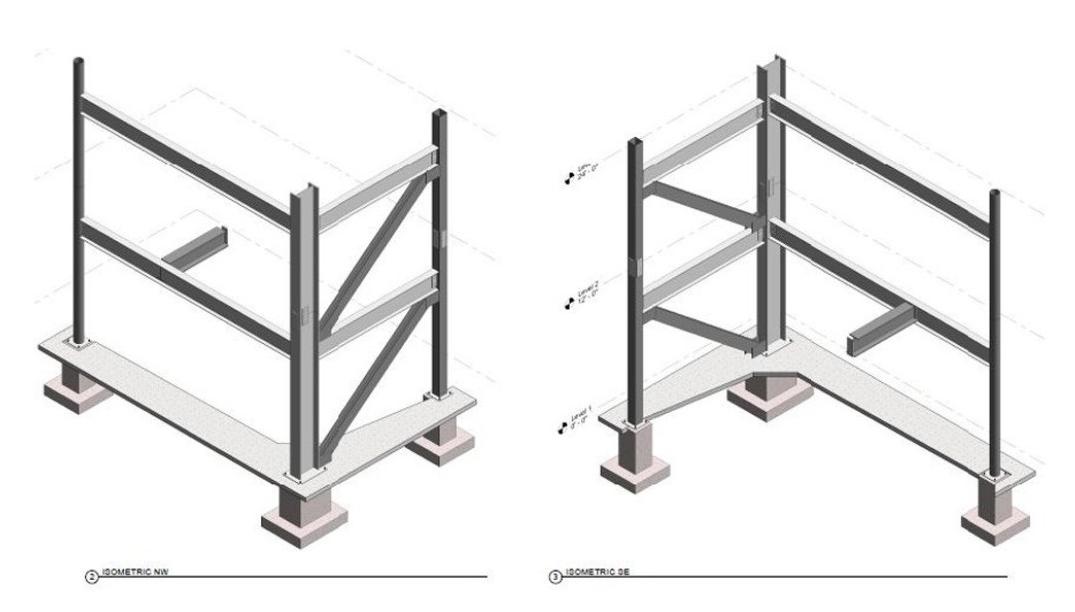

Technical Drawings using REVIT on focusing on the Steel Beams and the connections that hold the steel beams together.
TERRA COTTA RAINSCREEN

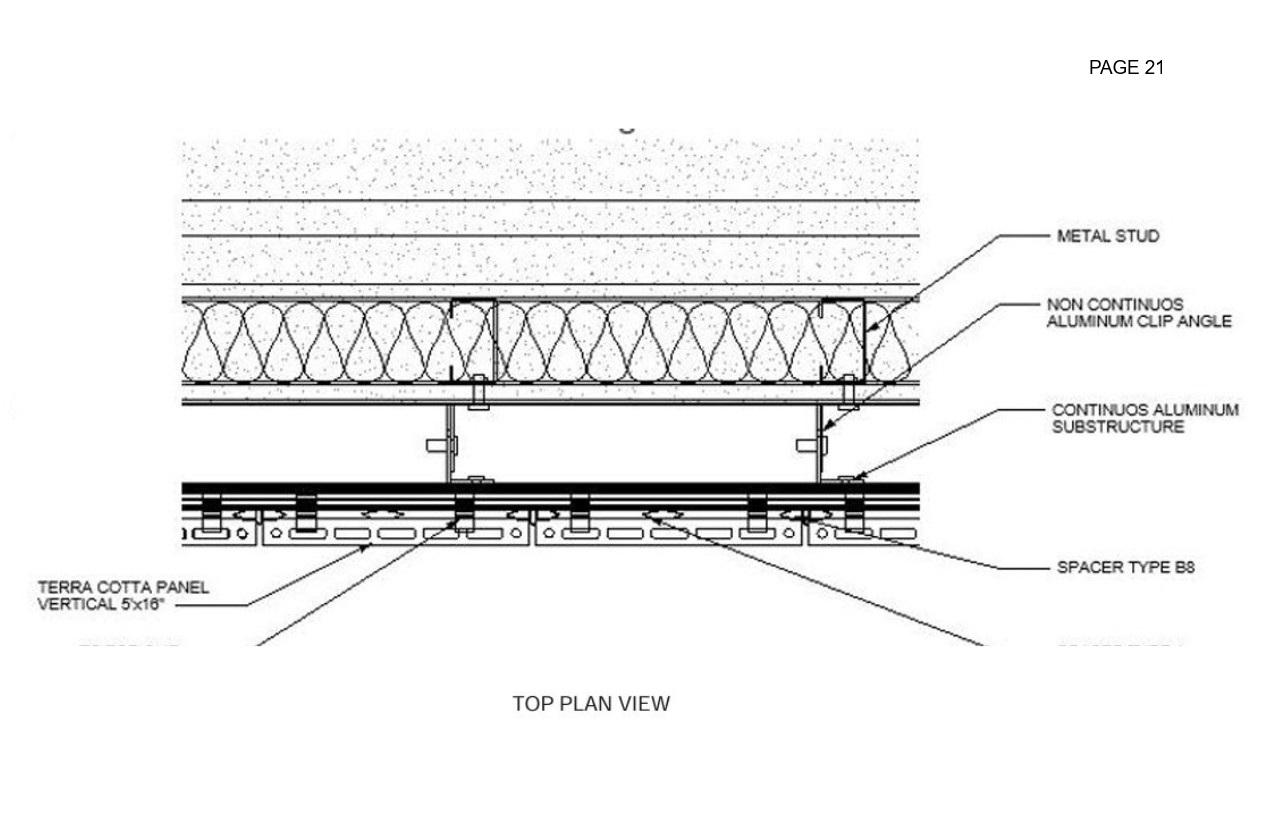

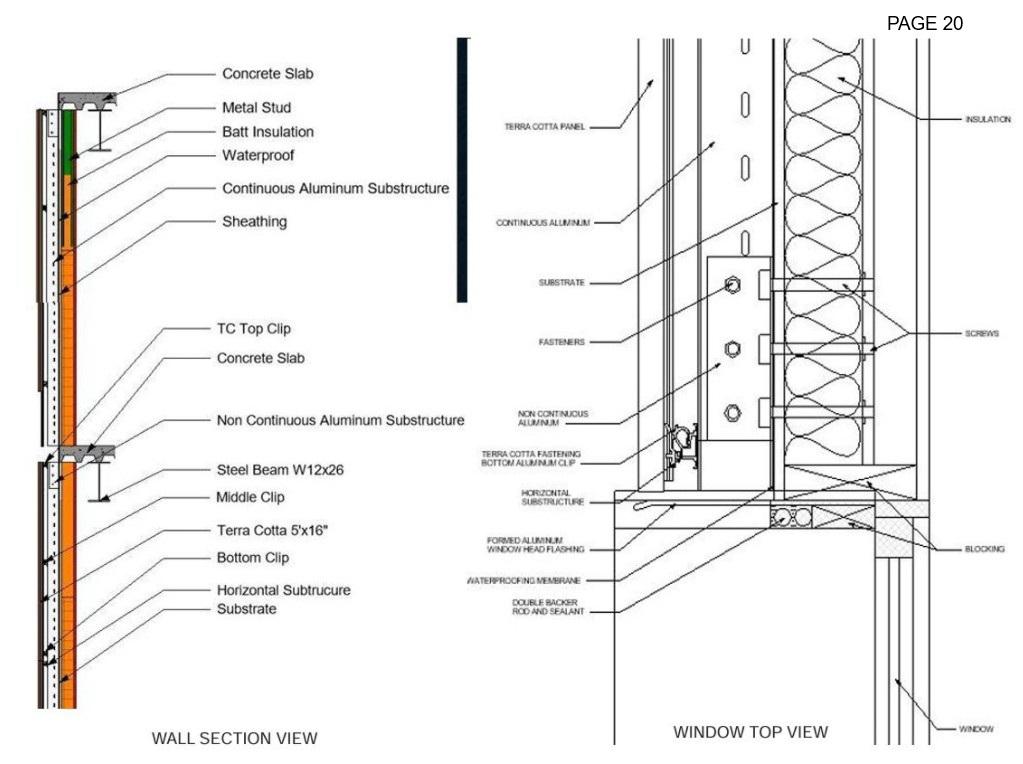

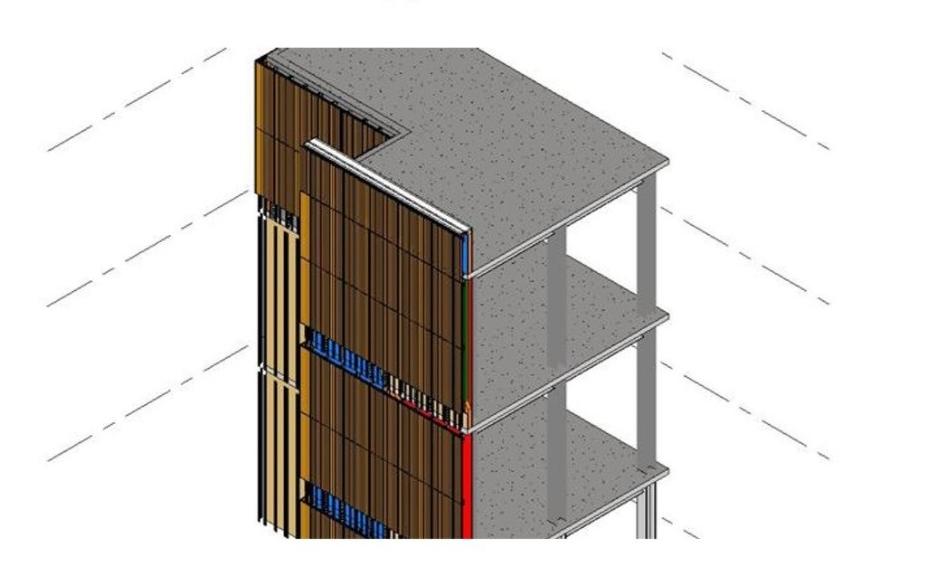

This assignment research was accomplished focusing on Shildan’s Rain Screen. The assignment consisted of how a Terra Cotta rainscreen comes together on the side of the model building. Using Revit software, drawings were made to show how the assembly and connection of the rain screen. Details on bolts and substructure is also included in this project.
14
TERRA COTTA RAINSCREEN

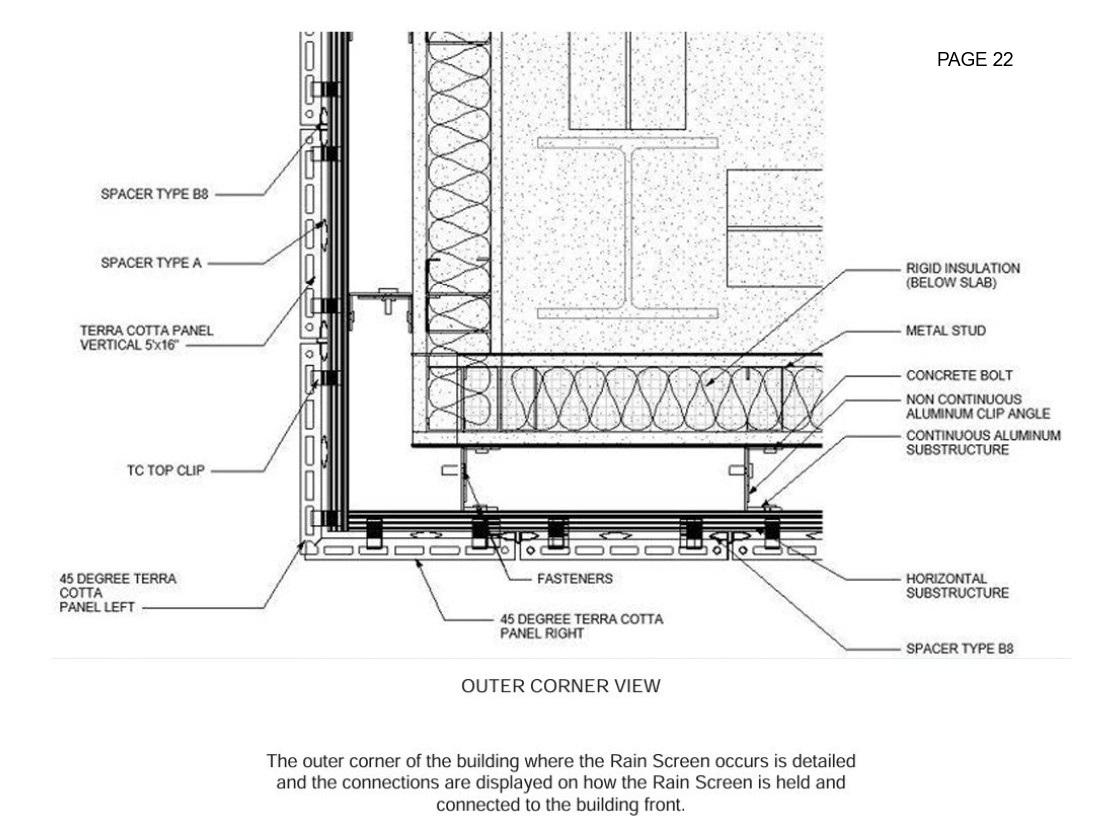

This assignment research was accomplished focusing on Shildan’s Rain Screen. The assignment consisted of how a Terra Cotta rainscreen comes together on the side of the model building. Using Revit software, drawings were made to show how the assembly and connection of the rain screen. Details on bolts and substructure is also included in this project.
15
TERRA COTTA RAINSCREEN
This assignment research was accomplished focusing on Shildan’s Rain Screen. The assignment consisted of how a Terra Cotta rainscreen comes together on the side of the model building. Using Revit software, drawings were made to show how the assembly and connection of the rain screen. Details on bolts and substructure is also included in this project.
TERRA COTTA RAINSCREEN
This assignment research was accomplished focusing on Shildan’s Rain Screen. The assignment consisted of how a Terra Cotta rainscreen comes together on the side of the model building. Using Revit software, drawings were made to show how the assembly and connection of the rain screen. Details on bolts and substructure is also included in this project.
17
RESEARCH and EXTRA CURRICULAR
COUNTRY TECH - DAIRY FARM - BEFORE and AFTER
This assignment research was undertaken by myself, a professor and two other students. The project consisted of re evaluating a downed dairy barn and converting it into a livable compund that consists of raised farming beds, solar and wind power and programs and activities that will improve the experience and quality of life for the clients and visitors on this property.

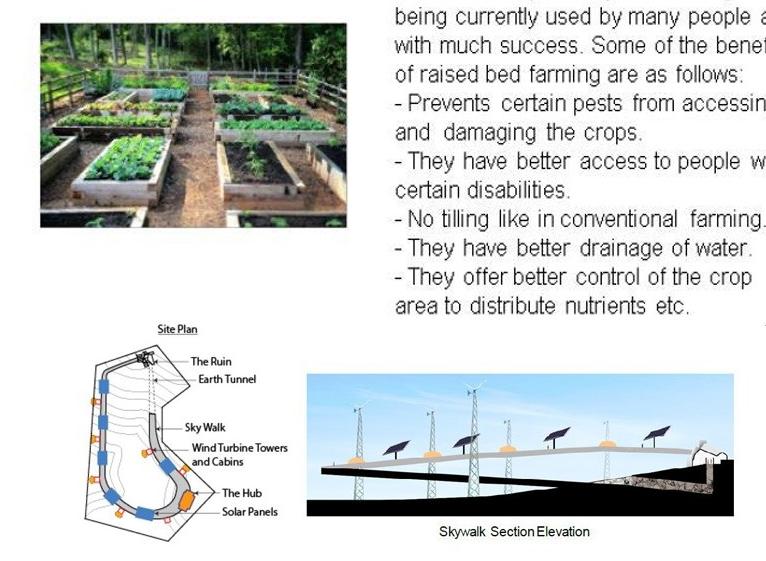

RAISED FARM BEDS
SITE MAP
RESEARCH and EXTRA CURRICULAR
This project was self created and independent. Project was of various buildings, bridges, city layout made of cardboard material to recreate a living city. The Design aspect was city planning and explored to expand building and city design layouts. Majority of the buildings were “created” and some were similar copy cats from real buildings.

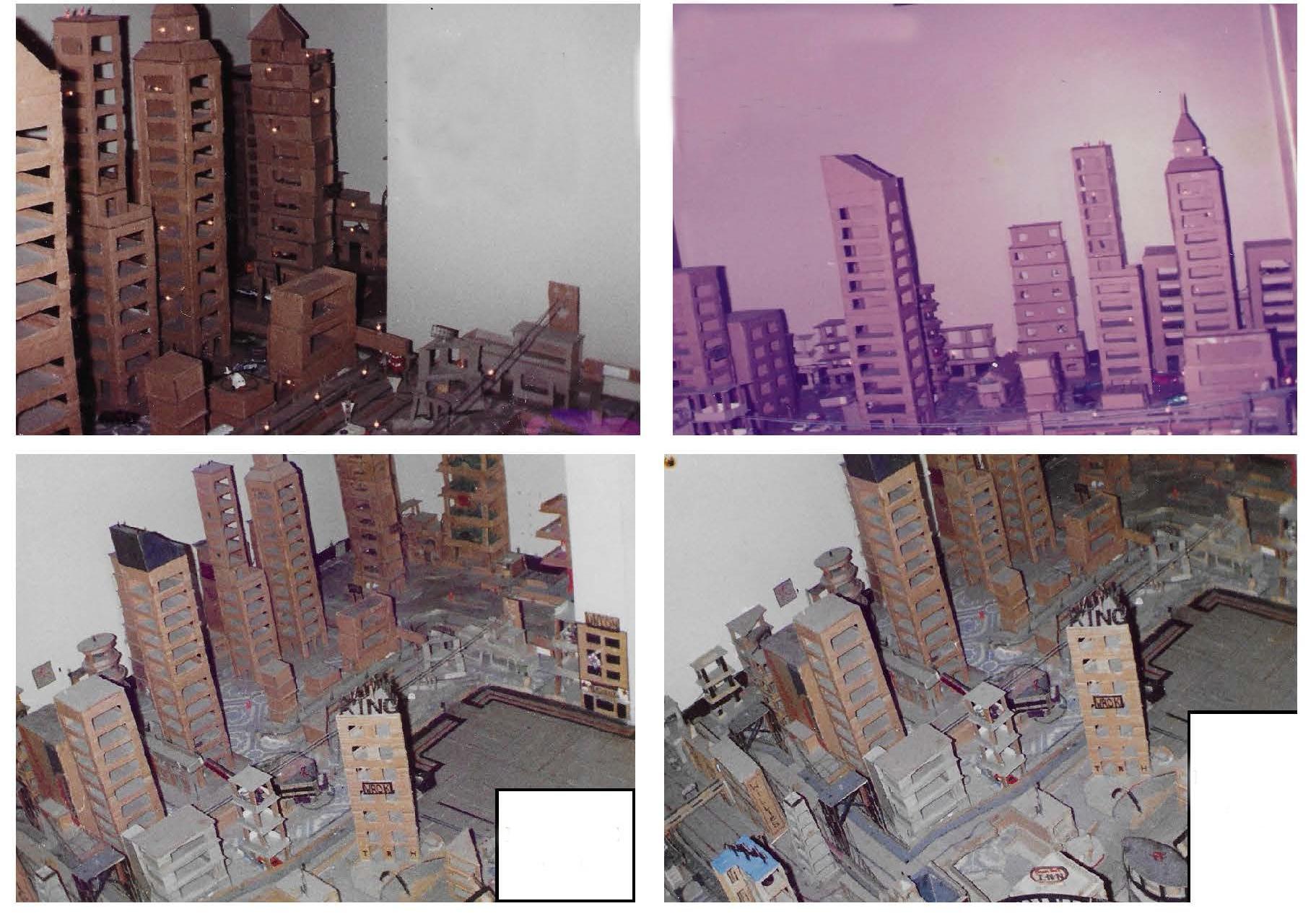

1 - Skyview with incorporated electric working lights.
2 - Skyview with side angle.
3 - Birds eye view of cities.
4 - View of Bridge and highway at angle.
GRAPHICS - CUBE INHABITED
This assignment project entitled “Cube Inhabited” explores the creation of a spatial volume made of a cube and how other spatial areas come together and interact with each other. Circulation was explored and accomplished as well as the allowance of light into the inner cube itself.
GRAPHICS - CUBE INHABITED

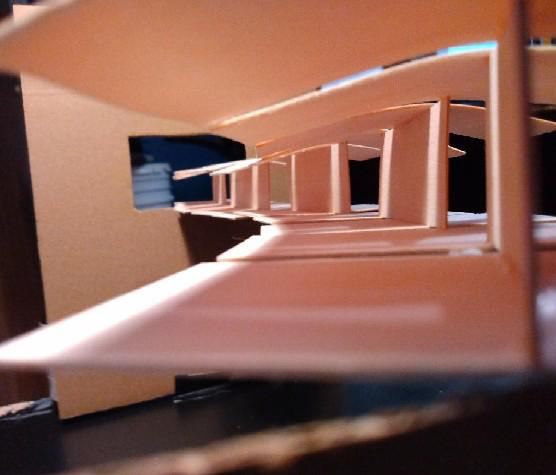

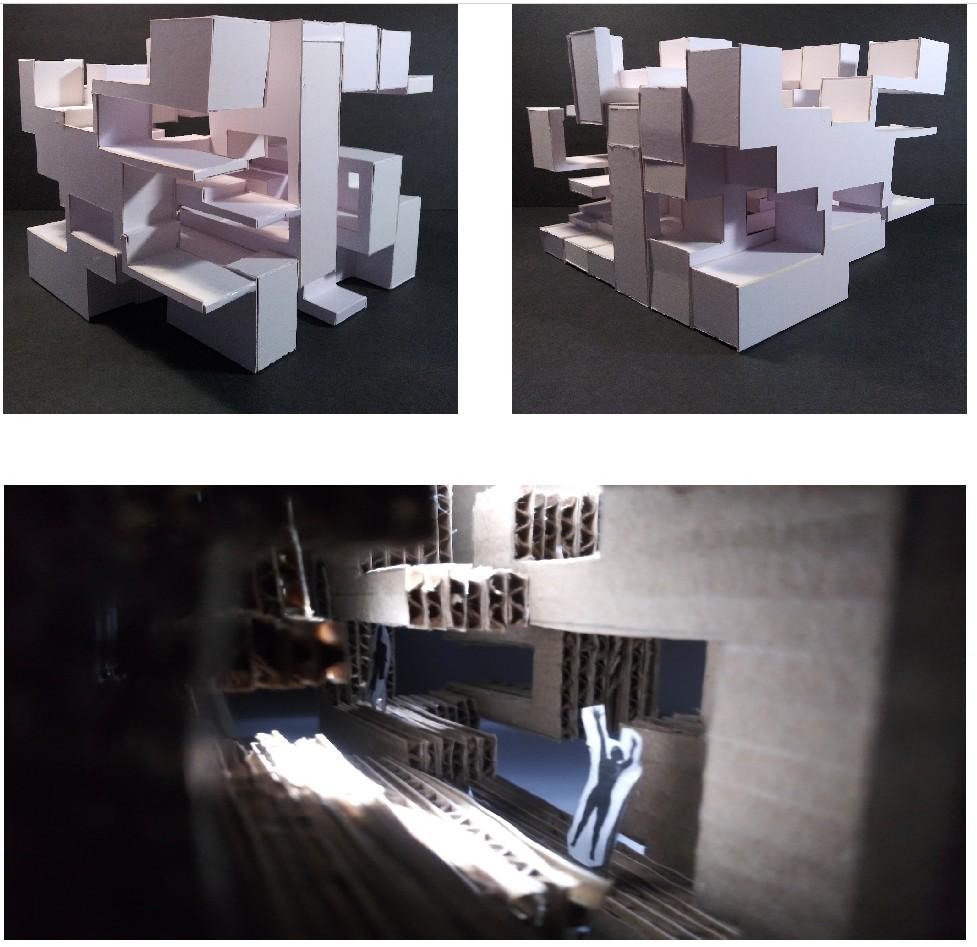

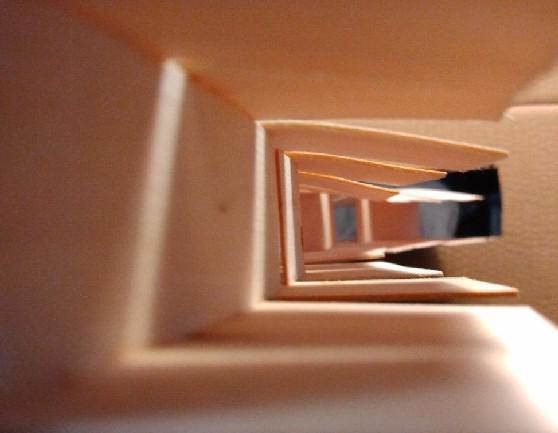

This assignment project entitled “Cube Inhabited” explores the creation of a spatial volume made of a cube and how other spatial areas come together and interact with each other. Here, a study model was made to explore circulationas well as the allowance of light into the inner cube itself.
GRAPHICS - CUBE INHABITED

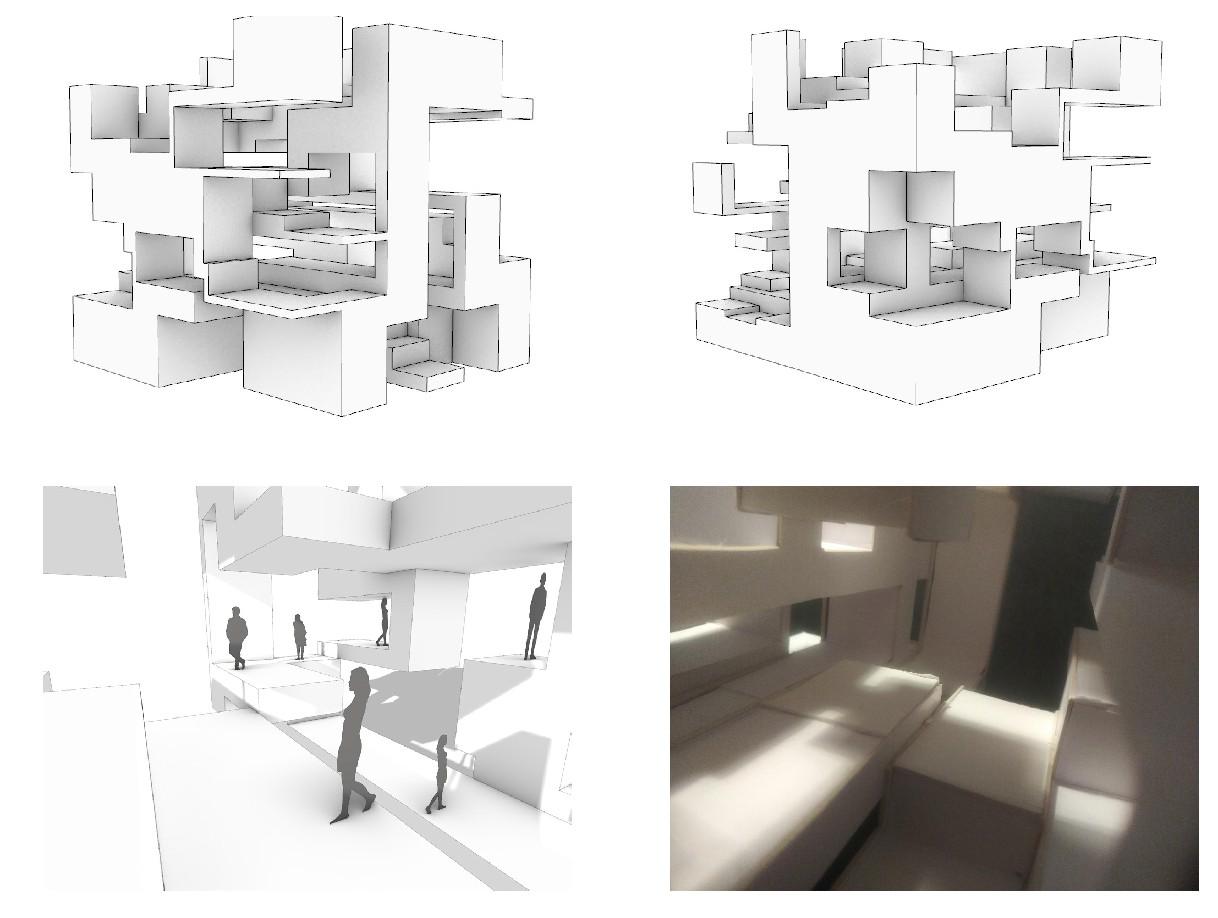

This assignment project entitled “Cube Inhabited” was also recreated in Rhino software to highlight the traverse aspects within the model and how other spatial areas come together and interact with each other.
GRAPHICS - CUBE INHABITED

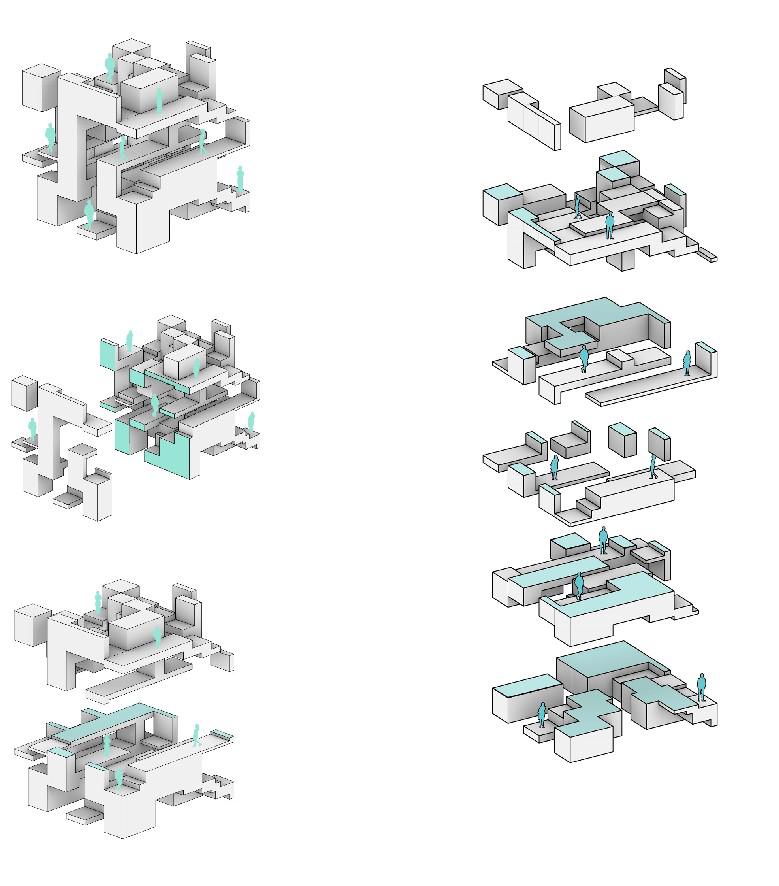

This assignment project entitled “Cube Inhabited” was also recreated in Rhino software. Here an Exploded Axon was created to show how the cube is composed and connected. PAGE 24
GRAPHICS - CUBE INHABITED

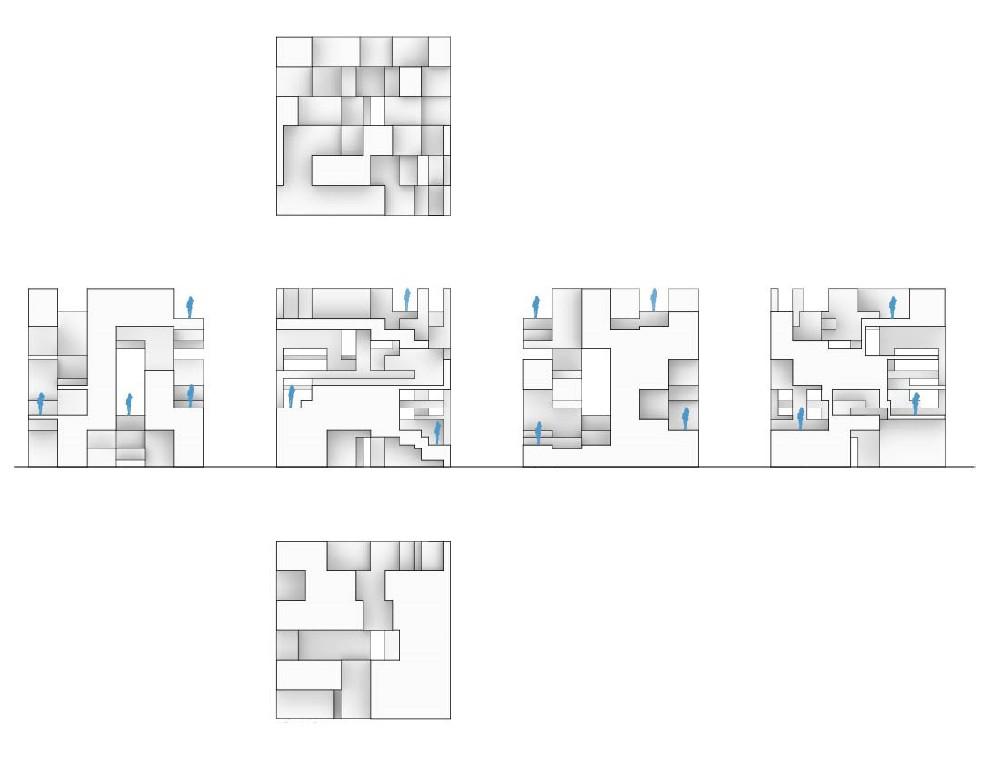

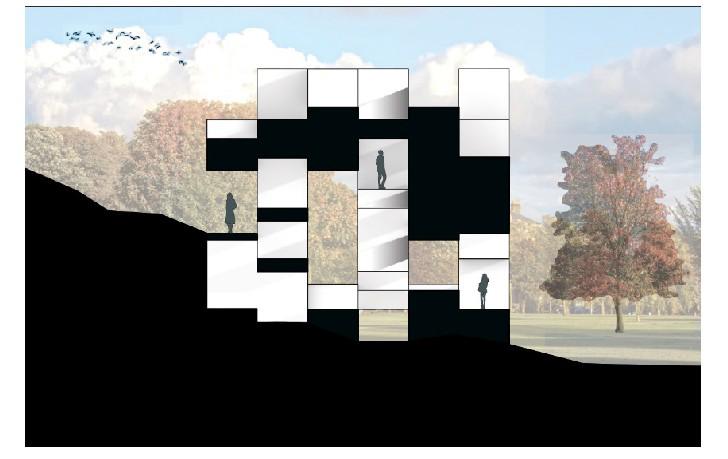

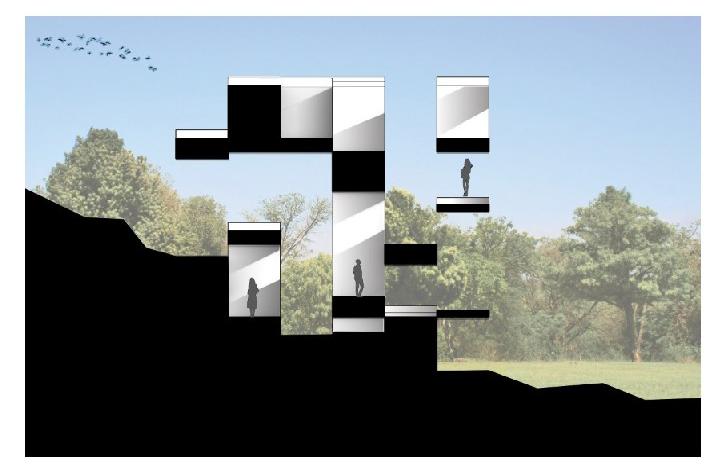

This assignment project entitled “Cube Inhabited” was recreated in Rhino software. Here a section with background has been created to reveal inner spaces as well as circulation within the cube.
PAGE 25
VRAY / 3DS MAX -
HOUSE IN BARCELONA, SPAIN
This assignment project consists of rendering the structure “Barcelona Pavillion” in Spain. Applying and using different listings, materials and single shots with the goal of creating a compelling message and image. The softwares 3DS Max and VRAY were used to create these images.
VRAY / 3DS MAX -
HOUSE IN BARCELONA, SPAIN

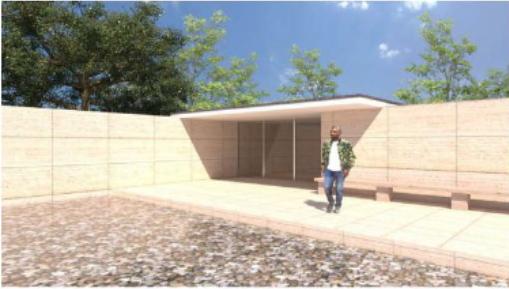

DAYTIME VIEW

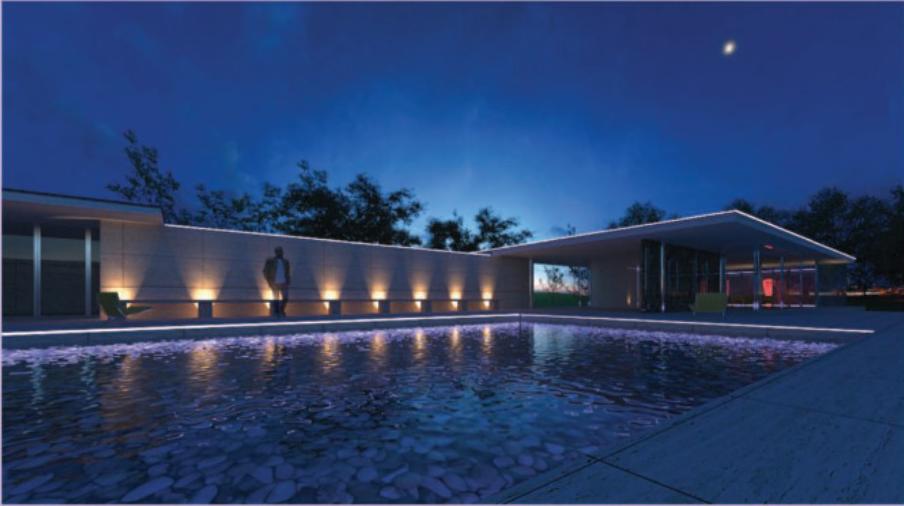

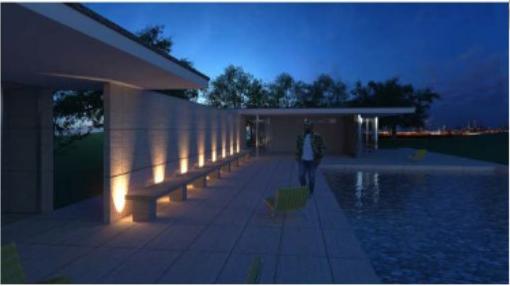

NIGHT VIEW

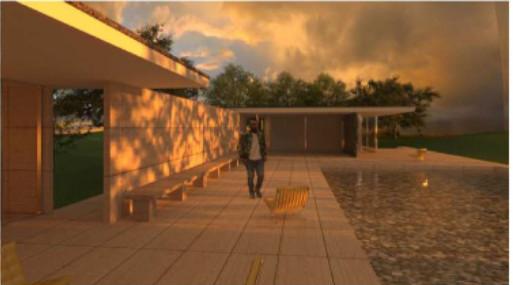

EVENING VIEW
Different views were experimented and used for this project. Night views, Daytime views and Evening views are revealed here to show the different “themes” the software can produce.
GRAPHICS / MODELING - RECTILINEAR FORMS

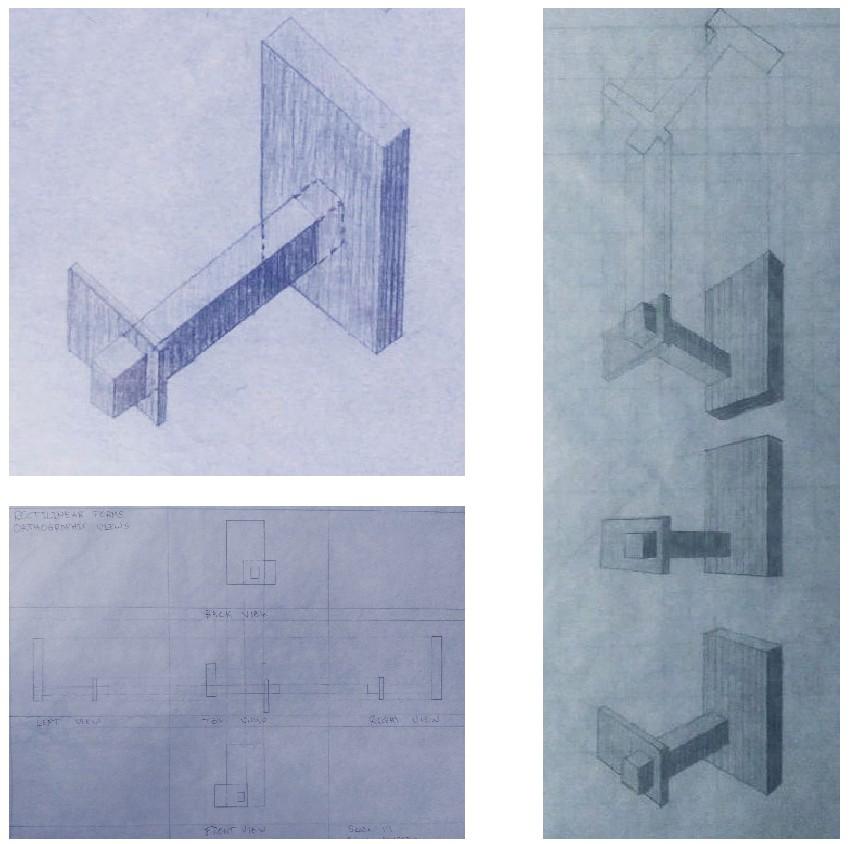

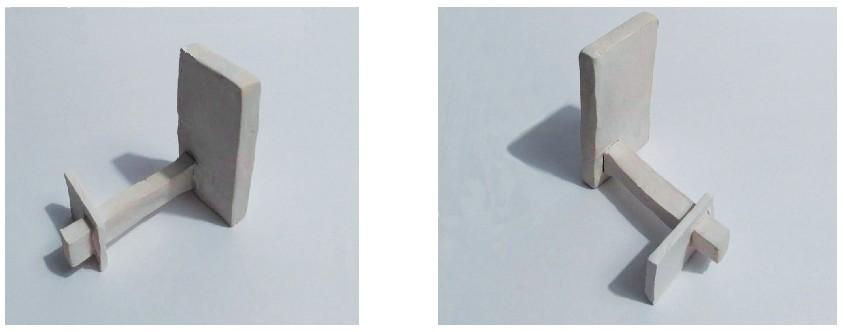

MODELING rectilinear forms, to differentiate and distinguish between the dominant, subdominant and subordinate volumes. the thickness in the dominant volume over powers the subdominant and subordinant compositions. Modeling was in physical, draeing and digital.

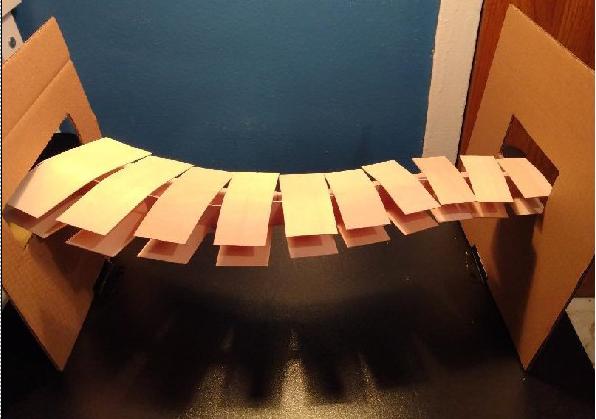

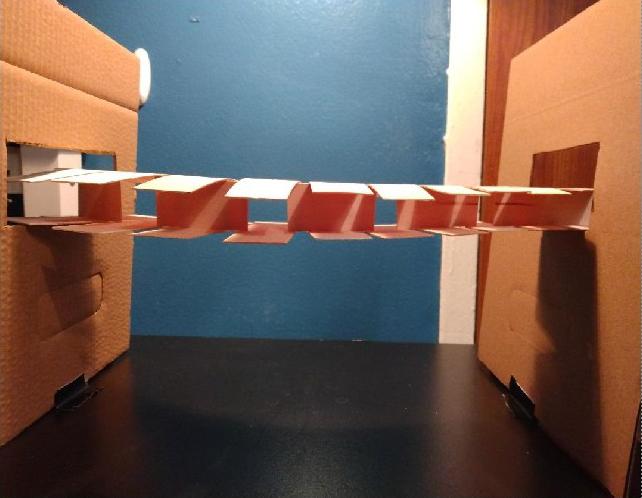

GRAPHICS / MODELING - PEDESTRIAN BRIDGE

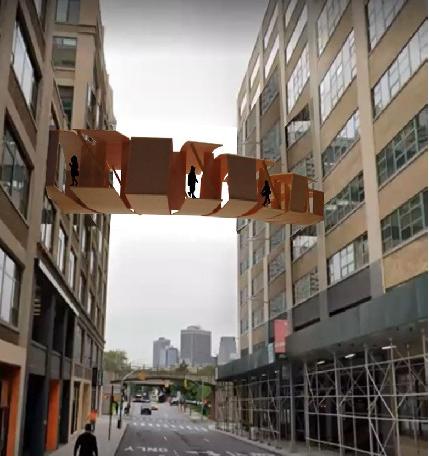

Individual project where a bridge was designed and created to connect two buildings. The bridge I designed and contained the elements of hierarchy, movement and fluidity in the design. I wanted to create a bridge where easy flow was present in the concept design. Models were made from thin wood material was created and also a digital visual image was made to portray my bridge in 3D.
