I am currently in my 4th year B.Arch program at Symbiosis Skills and Professional university, India. This portfolio is a collection of my selected works from the past three years.
I think excellent design is the outcome of interdisciplinary work along with passionate, creative, and sensual values that change a space into a special response to human needs. I am passionate, self driven, hardworking and willing to go above and beyond to design spaces that best fits to our upcoming lifestyle.
Education
Symbiosis Skills and professional University
Kiwale,Pune
Bachelor of Architecture
(Ongoing 2019 - )
Horizon Academy
Gangapur road,Nashik
SSC Board 1st - 7th
Wisdom High International School
Ramsehwar Nagar,Nashik
ICSE Board 8th - 10th
Wisdom High international junior college
Govardhan, Nashik
HSC Board 11th - 12th
Softwares
AutoCad 2D
Revit
Photoshop
InDesign
Google Workspace
Languages
English
Hindi
Marathi
Workshops & Electives
Art InterventionsWOW Designers. by Ar. Viraj Paredesi.
Architecture - A way of life. by Ar. Habeeb Khan.
Creative pursuits by Ar.James Law, Ar.Hafeez contractor, Ar.Deepali Despande, Ar.Dean D’Cruz, Dr.Harimohan Pillai.
NAVRANG - Nine colours of Architecture. by Ar. Girish Doshi.
Sustainable Architecture. by Archilecture India - Roshni Nashit.
Photoshop and Illustration by Shweta Hingane - the.archart, blessedarch.
Extra Curricular Activities
Volunteer at Nashik intercity cyclist club, Nashik (Ongoing September 2019- ).Non-profit organisation made to promote health.
Event Coordinator and managment head at college events - Saksham, Archathon.
Internship
Ankita Designers (June 2020-July 2020)
RV Architects.(June 2021-July 2021)
Sacred Groves, Auroville (June 2022-July 2022)
Documentation / Visits
Yeralwadi,Raigad
First year village settlement study tour
Dubai,UAE
Fourth year study tour
Varanasi,Uttar Pradesh
Fourth year study tour and Urban intervention
Interests
Travelling Music
Dance Cycling
Painting
Social Media
Instagram LinkedIn Gmail
CONTENT
ARCHITECTURAL DESIGN
A - MASS HOUSING
B- PRIMARY HEALTH CARE CENTRE
C - URBAN INTERVENTION - VARANASI
WORKING DRAWING
A - CONVENTION CENTRE
INTERNSHIP
A - RV ARCHITECTS
B - SACRED GROVES, AUROVILLE
PERSONAL WORK
A - ARCYLIC/ POSTER COLOUR PAINTING
B - CHAROAL PAINITNG
C - PENCIL SKETCHING
01
02
03 04
Focal point view 1
2
01
A - MASS HOUSING
Semester - VII
Guide - Ar. Dinesh Hiparkar
Site - Kolhapur
Software used - AutoCAD, Sketchup, Photoshop.
Research and successful models of urbanism have shown that mixed-use developments yield economic and social benefits while increasing the quality of life for its residents. By ensuring that everyday needs for retail, recreation, education, and healthcare are close enough to residential neighborhoods, mixed-use development promotes shared community spaces, safety, inclusivity, and wellbeing for different spectrums of users like age, gender, economic classes, etc.
3
Basic massing
Zoning and functioning
Grading
Final massing
4

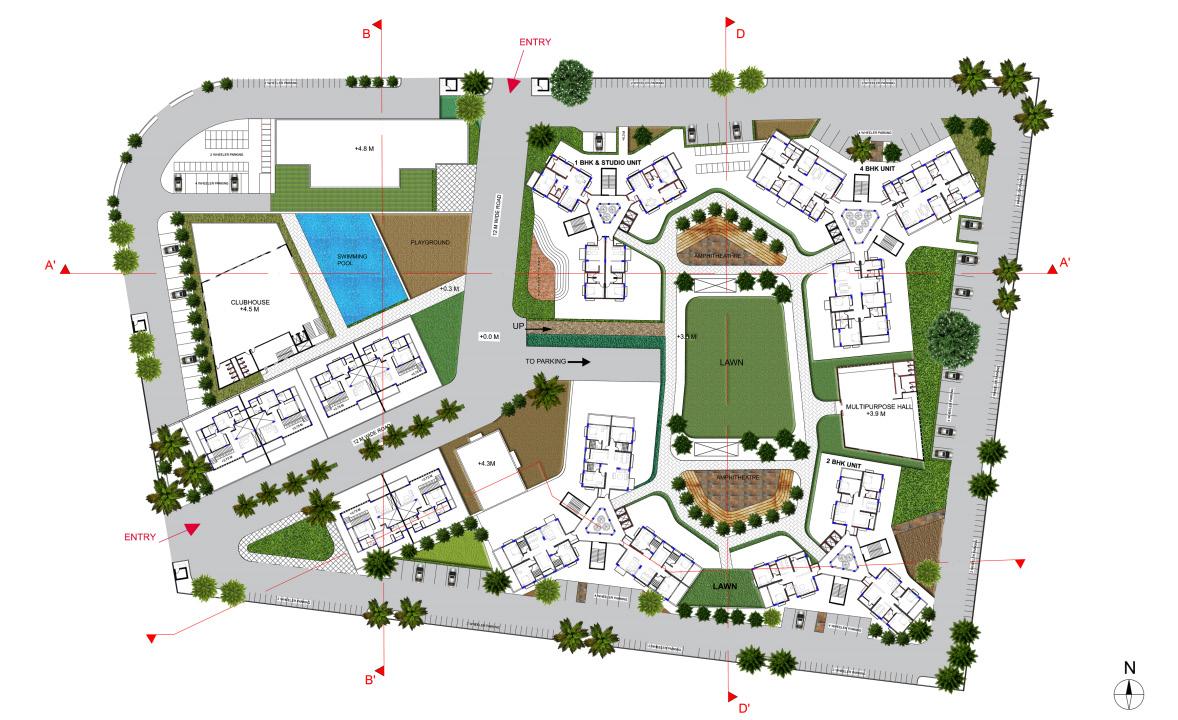

1 1 2 3 6 7 8 Site Plan 5
Legends
4 9 10
1. Two BHK
2. Rowhouses
3. Three BHK
4. Studio
5. One BHK
6. Commercial
7. Clubhouse
8. Kids play area
9. Amphitheatre
5 5
10. Swimming pool
6 0 10 20 30 40 50
3 Bhk plan
3 Bhk section
7 0 10 20 30 40 50
3 Bhk elevation
Studio plan
Studio elevation 8 0 10 20 30 40 50
Studio section
Kids play area
Seating area
9
Commercial area

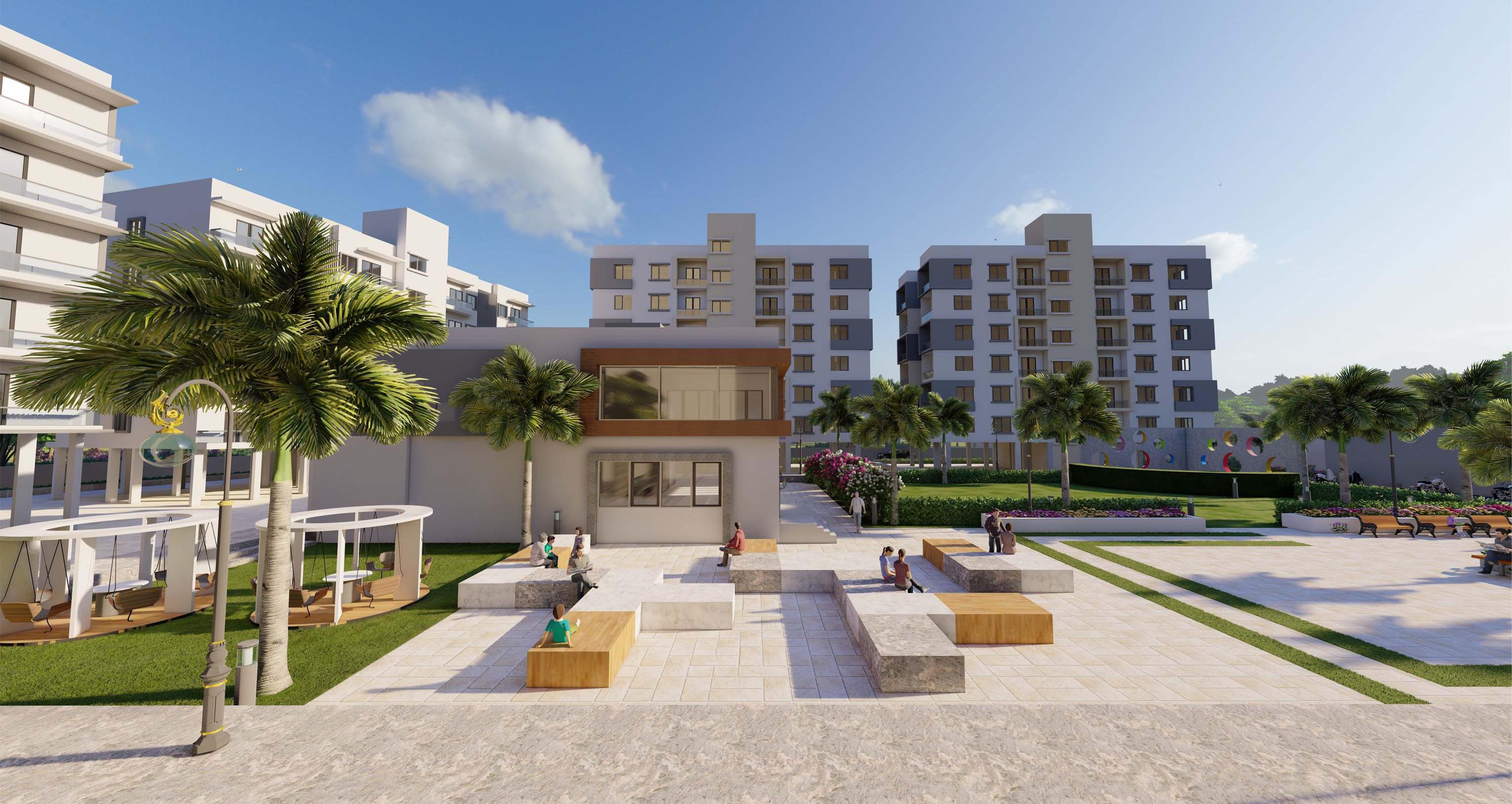

Clubhouse area
10
B - PRIMARY HEALTH CARE CENTER
Semester - IV
Guide - Ar. Minal Palve
Site - Yeral, Raigadh
Site area - 9653.49 sq.m
Software used - AutoCAD, Revit,Photoshop.
Community healthcare clinics are solution to easy accessible healthcare services for both urban and rural population. They can serve the issues of urgent health services in case of emergency situations. With outbreaks of epidemics, the urge of medical facilities increases, these clinics will serve as a mini hospital at such condition also which eliminates the number of infected victims suffering due to unavailability of healthcare facility.
The design process started with understanding the site context and analysis, locally available resources. Bricks for walls and local wood used as battens in the design and wooden pivoted windows for the wards are used.
01
11
Basic massing
Duplicate
Merge
Final massing
12
10 11 12 13 14 15 20 21 22 24 25 28 1 32 31 30 33 34 34 35 36 Site Plan 13
store 3.Medical 13.Dispensary 14.Cold chain 15.Diagnosis room 16.Laboratotary room 17.Labour room 18.Gents ward 19.Female ward 20. Outdoor cafe 21.Two wheeler parking 22.Four wheeler parking 23.Mandir 24.Outdoor seating 25Kids play area 26.Emergency entry 27.Public entry 28.Public exit 29.Ambulance parking 30.Transformer area 31.Rain water harvesting tank 32.Sewage treatment plant 33.Electrical room 34.Underground water tank 35.Pump room 6.OPD 7.Counselling room 8.Minor OT 9.Public washroom 10.Office and Records 11.Storage 12.Nurse room 5.Waiting area
1 2 3 4 6 5 9 6 7 8 9 16 17 18 19 23 26 27 1 29 36.Overhead water tank 14 0 10 20 30 40 50
Legends 1.Security 2.General
4.Registration

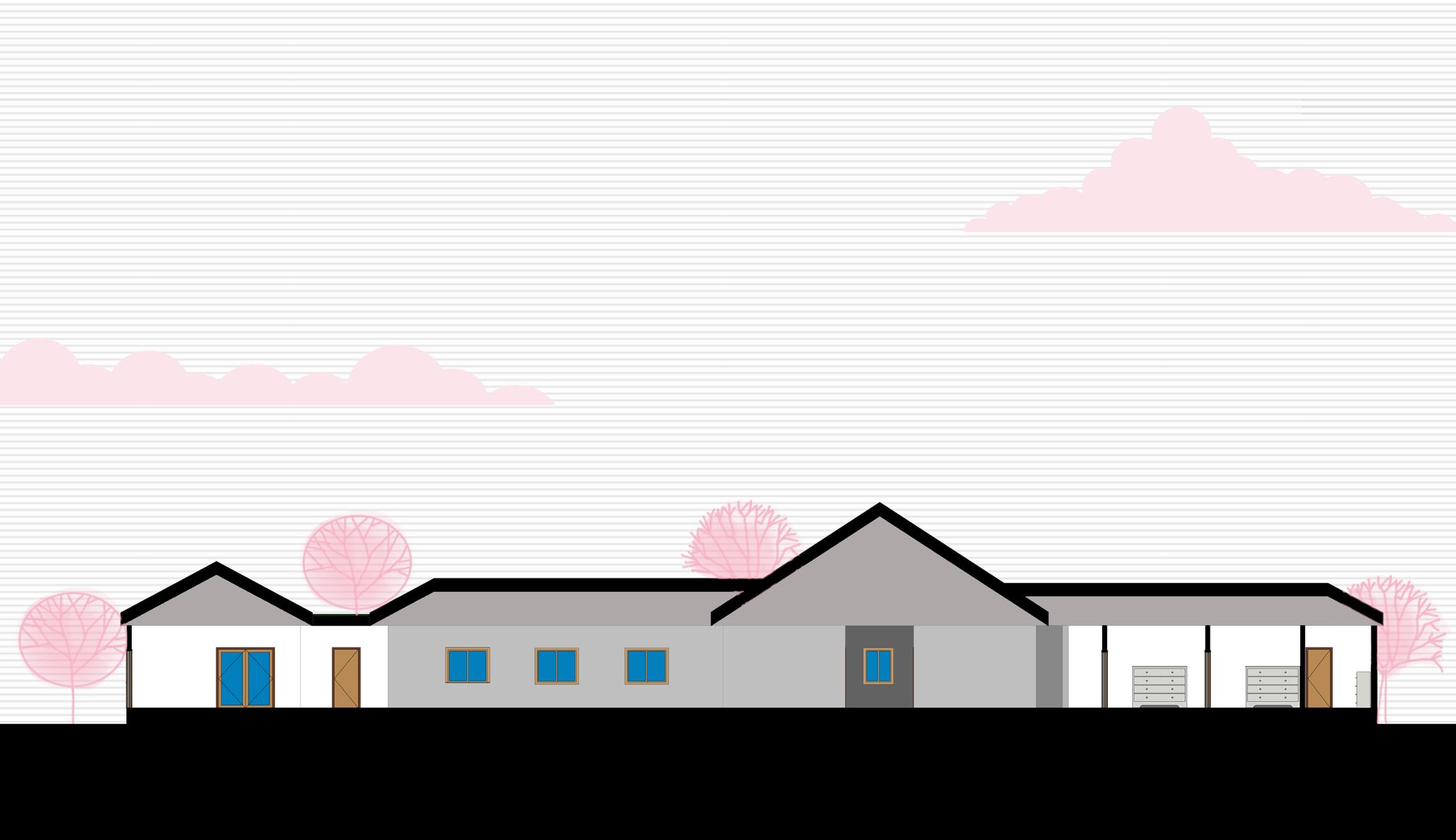

Section AA’
+- 0 Ground level +450 Plinth level +3450 First floor level +3450 First floor level +450 Plinth level +- 0 Ground level 15
Section BB’
Exploded view
16
C - URBAN INTERVENTIONVARANASI
Semester - VIII
Guide - Ar. Dinesh Hiparkar
Site - Varanasi
Software used - AutoCAD, Revit,Photoshop.
Varanasi, also known to as Kashi or Benaras, is a town situated in the Uttar Pradesh state of northern India. One of the oldest continually inhabited towns in the world, it is renowned for its rich cultural heritage and for its distinctive fusion of historic and contemporary buildings.
Our study tour to Varanasi focused on exploring the city’s architectural landmarks, such as its temples, ghats (riverfront steps leading to the river Ganges), and palaces. The survey was conducted near the ghat at Manikarnika ghat and the varanasi gallis.
Manikarnika ghat is one of Varanasi’s most significant and crowded ghats and is renowned for both its religious and cultural significance.It features a number of ghats that are utilised for religious ceremonies and bathing. The cremation area is one of Manikarnika Ghat’s distinctive features.Manikarnika Ghat is home to a number of temples honouring various gods.
01
17
Lalita Ghat is the name of Manikarnika Ghat’s principal entrance. The ghat is constructed with a flight of stairs that descend to the river. These ghats are made of stone and have elaborate carvings and sculptures on them. The dead are cremated here and last rites are performed there. It is regarded as a holy location and is thought to offer moksha (salvation) to the departed soul. The Manikarnika Kund Temple, which honours Lord Shiva, is the most well-known of these temples. Hindu and Islamic architectural traditions are combined to create the Manikarnika Ghat. The main entrance and several of the temples are constructed in an Islamic style with domes and arches, while the ghat is constructed in a traditional Hindu style with beautiful carvings and sculptures.Ultimately, the Manikarnika Ghat’s architectural characteristics are a fusion of various styles and reflect Varanasi’s rich religious and cultural past.
18
Conceptual cross section of Manikarnika ghat
19
20
A - CONVENTION CENTRE
Semester - VI
Guide - Ar. Mihir Vakharia.
Site - Hinjewadi Phase II, Pune.
Software used - AutoCAD
The design project was a hotel in Hinjewadi, Pune. The convention center was part of the project which was selected to prepare the necessary working drawings.The site was spread out to an area of 20015.18 sq.m.
02
21
C13,C22,C30,C38,C47 55240
C12,C21,C29,C37,C46 50280
C11,C20,C28,C36,C45 43355
C10,C19,C44 35885
C9,C18,C27,C35,C43 28415
C4,C8,C17,C26,C34,C42 23420
C3,C7,C16,C25,C33,C41 16730
C2,C6,C15,C24,C32,C40 10100
C1,C5,C14,C23,C31,C39 5000
Center line plan
LIFT LIFT C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C19 C44 C20 C21 C22 C18 C17 C16 C15 C14 C24 C23 C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C37 C38 C45 C46 C47 C43 C42 C41 C40 C39 LIFT D1 W1 W1 W1 W1 D2 D1 D1 D1 W1 W1 W1 W1 W1 W1 BANQUET HALL 26.7 X 24.8 +450 FUNCTIONAL 11.5 X 16.7 +450 PRE FUNCTIONAL 18.2 X 9 +450 KITCHEN 11.5 X 6.4 +450 B B' A A' C1,C2,C3,C4 C5,C6,C7,C8,C9,C10,C11,C12 5000 9000 9260 C13 14575 C14,C15,C16,C17,C18,C19,C20,C21,C22 23185 31395 39230 C39,C40,C47 39405 C41,C42,C43,C44,C45,C46 C23,C24,C25,C26,C27,C28,C29,C30 C31,C32,C33,C34,C35,C36,C37,C38
P(0,0) PEGLINE PEGLINE
22
Typical floor plan 4th floor plan
FIRST FLOOR PLAN
LIFT LIFT C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C19 C44 C20 C21 C22 C18 C17 C16 C15 C14 C24 C23 C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C37 C38 C45 C46 C47 C43 C42 C41 C40 C39 LIFT D1 W1 W1 W1 W1 D1 D1 D1 W1 W1 W1 W1 W1 W1 BANQUET HALL 26.7 X 24.8 +450 FUNCTIONAL 11.5 X 16.7 +450 PRE FUNCTIONAL 18.2 X 9 +450 KITCHEN 11.5 X 6.4 +450 B B' A A'
PRE-STAGE DRESSING ROOM DRESSING ROOM 2.6 X 5.1 M 2.6 X 5.1 M C33 LIFT LIFT LIFT C7 C8 C9 C10 C11 C12 C13 C19 C44 C20 C21 C22 C18 C17 C16 C25 C26 C27 C28 C29 C30 C32 C33 C34 C35 C36 C37 C38 C45 C46 C47 C43 C42 C41 C40 W1 W1 W1 KITCHEN/PANTRY 6.4 X 7.8 D2 D2 GUEST WAITING LOBBY 11.5 X 4.7 M +10050 DRESSING ROOM 7.9 X 6.7 M +10050 +10050 RESTROOM 5.1 X 6.5 M +10050 RESTROOM 8.4 X 6.5 M +10050 D2 B B' A A' W1 W1 W1
23
18 M WIDE ROAD
Setting out plan
FUNCTIONAL ROOM PRE FUNCTIONAL ROOM MEETING ROOM MEETING ROOM RESTROOM RESTROOM LOBBY ADJOINING EXHIBIT HALL W W W W W W W W W D + 450 PLINTH LVL + 3650 FIRST FLOOR LVL + 6850 SECOND FLOOR LVL +10050 THIRD FLOOR LVL + 14125 FORTH FLOOR LVL +15325 PARAPET LVL +- 0 GROUND LVL 3200 3200 3200 4075 1200 1200 2100 2100 450 15325 D D D D D D D D D D D D D D D D D + 450 PLINTH LVL + 3650 FIRST FLOOR LVL + 6850 SECOND FLOOR LVL +10050 THIRD FLOOR LVL + 14125 FORTH FLOOR LVL +15325 PARAPET LVL 450 +- 0 GROUND LVL 3200 3200 3200 1200 25 27 29 30 31 32 11 13 14 16 9 41 43 44 46 48 57 59 60 62 64 20 22 23 18 36 38 39 40 33 34 52 54 55 50 3 4 6 2 4075 D BANQUET HALL EXHIBIT HALL CONFERENCE ROOM GUEST WAITING LOBBY LOBBY LOBBY LOBBY RECEPTION D W W W Section AA’ Section BB’ 34000 18250 4000 31750 30000 50000 47735 7085 122590 47735 48260 112915 79505 108915 109050 25625 156070 164705 7085 P (0,0) 136430 147875 20260 SITE ENTRY AND EXIT TREE CORRIDOR 24 M WIDE ROAD TO PHASE 3 TREE CORRIDOR TO WAKAD SITE ENTRANCE AND EXIT
PEG POINTS OHT
24
03 INTERNSHIP
SEMESTER - 4

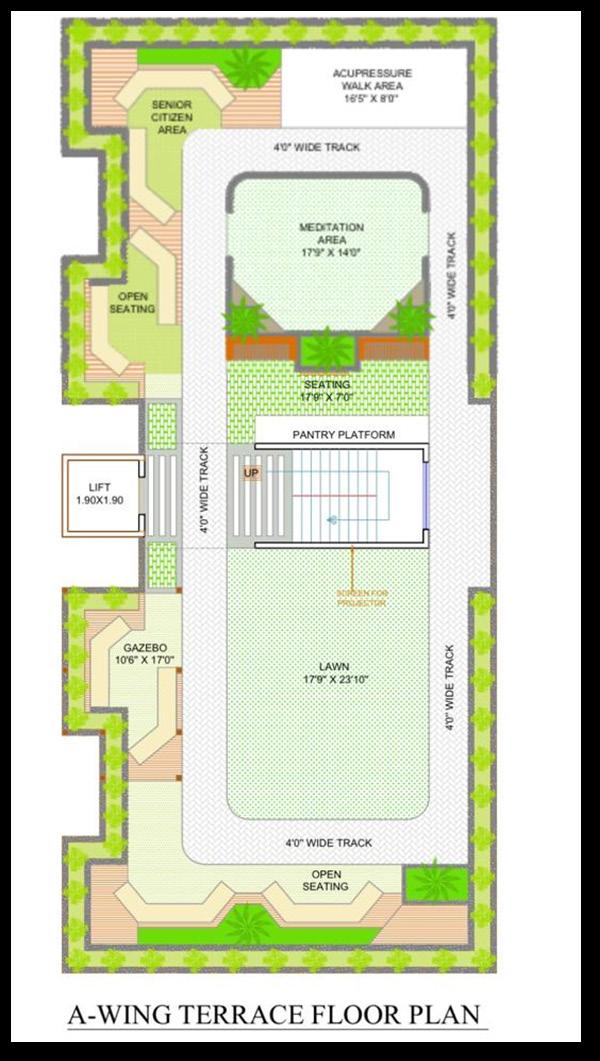

RV ARCHITECTS ( JUNE 2021- JULY 2022 )
ONLINE INTERNSHIP
SEMESTER - 6
SACRED GROVES, AUROVILLE ( JUNE 2022 - JULY 2022 )
OFFLINE INTERNSHIP
25
26
Plumbing layout 27
Typical floor plan
Sacred Groves is no ordinary construction site, it is a self-build project which attempts to attain ecological living, on a budget. No previous construction experience is required to work here. They a vibrant and international group of Architects, volunteers, Architecture interns and laborers, all working together as a team and and learning from each other in the process. They consider their own personal growth as an important element of the project.
On site, I learnt -
1. Construction skills on-the-job.
2. Learn about sustainable construction and Eco technologies.
3. Be encouraged to take initiative and responsibility.
4.Have the freedom and flexibility to express your skills, ideas and creativity through our programme of ‘micro projects’.
5. Had fun meeting and working with people from all around the world
The sacred hamman - dry composting toilets and shower area block
28
Head office block
Sacred Groves is an experimental project in sustainable construction. They give students and volunteers the opportunity to work and learn about natural building practices.
1. Adobe
2. Cob
3. Wattle and Daub
4. Rammed Earth
5. Earth Crete
6. Lime Preparation
7. Lime Plastering
8. Mud Plastering
9. Bamboo
10. Random Rubble
11. Rubble Trench Foundations
12. Reclaimed and Recycled Products/ Upcycling
Making clay for plastering using crushed sand, Sand sand and water.
29
Making lime plaster in lime chakki
Leveling the wooden blocks by grinder and polishing for the frame of the roof.
Plastering the wall with paste made up of crushed sand, M sand, stalks and water.
30
Making truss for roof using bamboo and sutli rope (water soaked)
04
PERSONAL WORK -
A - ACRYLIC / POSTER COLOUR PAINTING
B - CHARCOAL PAINTING
C - PENCIL SKETCHING
31
32
33
34
