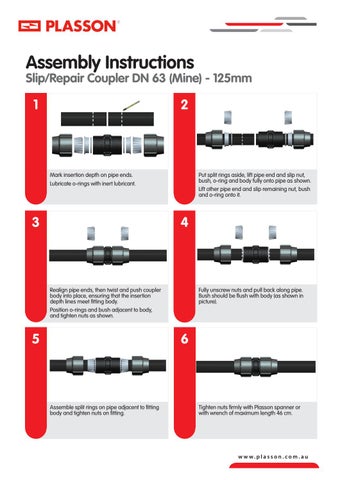

Assembly Instructions
Slip/Repair Coupler DN 63 (Mine) - 125mm
1
2
Mark insertion depth on pipe ends. Lubricate o-rings with inert lubricant.
3
Put split rings aside, lift pipe end and slip nut, bush, o-ring and body fully onto pipe as shown. Lift other pipe end and slip remaining nut, bush and o-ring onto it.
4
Realign pipe ends, then twist and push coupler body into place, ensuring that the insertion depth lines meet fitting body. Position o-rings and bush adjacent to body, and tighten nuts as shown.
5
Fully unscrew nuts and pull back along pipe. Bush should be flush with body (as shown in picture).
6
Assemble split rings on pipe adjacent to fitting body and tighten nuts on fitting.
Tighten nuts firmly with Plasson spanner or with wrench of maximum length 46 cm.
