Harrod Sport Professional Football Brochure 2022

Page 35

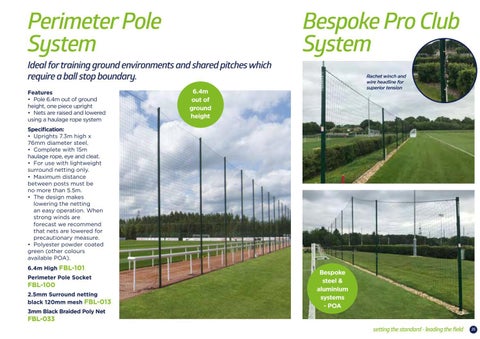

Perimeter Pole System

Bespoke Pro Club System

Ideal for training ground environments and shared pitches which require a ball stop boundary. Features • Pole 6.4m out of ground height, one piece upright • Nets are raised and lowered using a haulage rope system

Rachet winch and wire headline for superior tension

6.4m out of ground height

Specification: • Uprights 7.3m high x 76mm diameter steel. • Complete with 15m haulage rope, eye and cleat. • For use with lightweight surround netting only. • Maximum distance between posts must be no more than 5.5m. • The design makes lowering the netting an easy operation. When strong winds are forecast we recommend that nets are lowered for precautionary measure. • Polyester powder coated green (other colours available POA). 6.4m High FBL-101 Perimeter Pole Socket

FBL-100

2.5mm Surround netting black 120mm mesh FBL-013 3mm Black Braided Poly Net

Bespoke steel & aluminium systems - POA

FBL-033

setting the standard - leading the field

35
