Most of the Thailand has tropical wet and dry weather. Thai people believe in the richness of their cultural heritages and traditions.

Bangkok is the capital city of Thailand consisting large amount of population from all over the country and became the major place for people income. The central part of Thailand has high humidity and hot temperatures but also tropical humid.

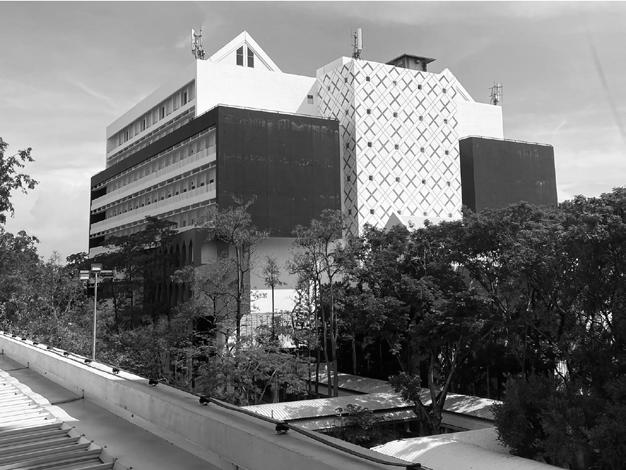

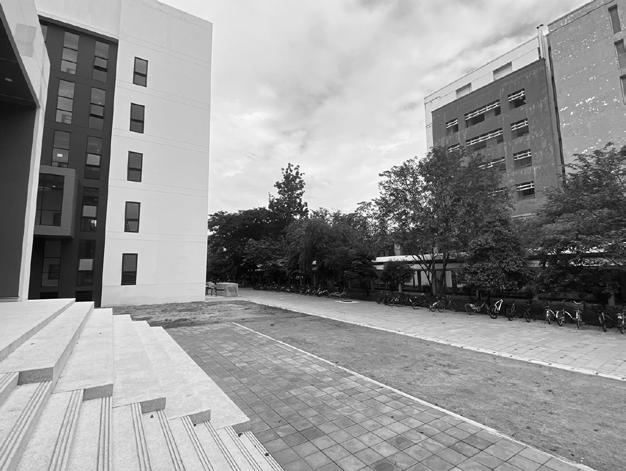

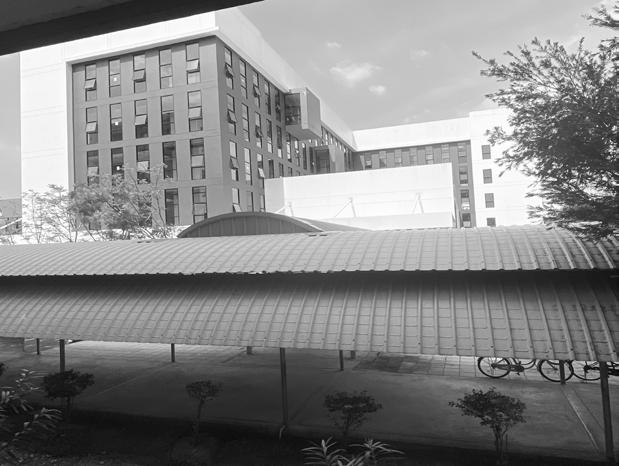

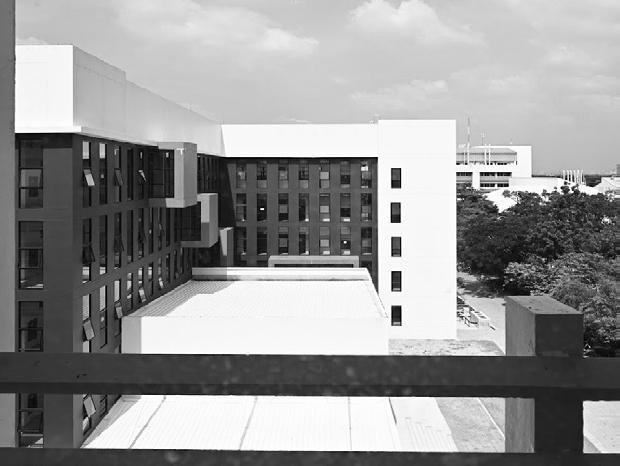

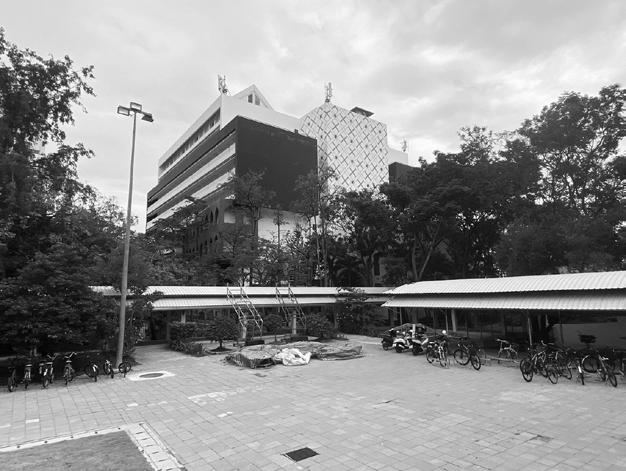

Site located at Bangkhuntien, Bangkok in King Mongkut university of Technology Thonburi (KMUTT). Surrounded by SOA+D, Canteen, Sport complex and Domitory. Shape of area is a L-shape facing existing pond on the North side.

WIND

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

Final
BANGKOK BANGKHUNTIEN 1 Kosen building 2 SOA+D 3 Media art 4 Environment 5 Canteen 1 3 6 6 7 5 8 6 Sport complex 7 Dormitory 8 Pond THAILAND LOCATION TEMPERATURE BANGKOK KOSEN BUILDING
Janisa Densirimongkol 63120500005 KOSEN PROJECT
submission
S SE SSE SSW SW N KOSEN Building

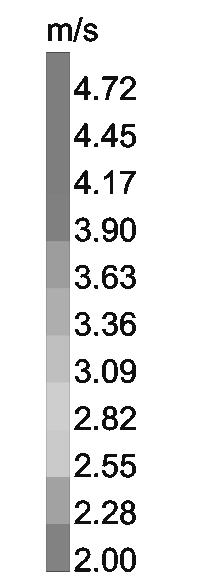

N W S E NNW NW WNW WSW SW SSW SSE SE ESE ENE NE NNE N JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 100MM 200MM 400MM 0MM 300MM

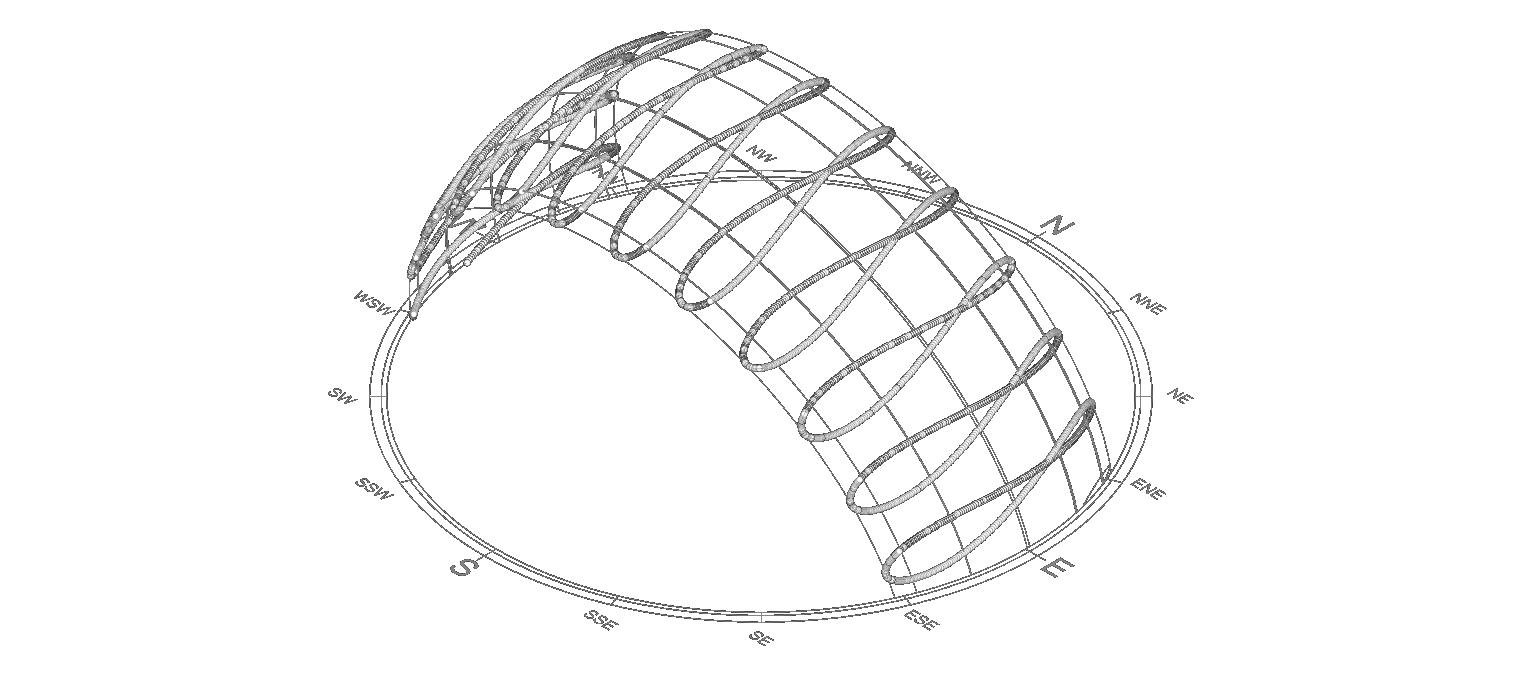

DIRECTION SUN PATH
SUMMER SEASON RAINY SEASON WINTER SEASON

STRENGTHS

- Good ventilation from the Southwestern and Northeastern.

- Near access from the car access and pedestrian access.

- Good environment cause there are many trees around the area.

OPPORTUNITIES

- Can be used to enhance the design and usability of the building that will be constructed on the site.

- The atmosphere is peaceful and suitable for studying and expermenting.

- Providing more shading area in the land.

WEEKNESSES

- Waste water pollution at the large gutter.

- The limited site area results in less usable space.

- The condition of the area is dry soil causing the area to subside. Using the transferring structure may require more frequent matenance.

- The area near the pond causes a lot of insects and mosquitoes.

THREATS

- In the future when a high-rise building will be constructed, it will cause a blocking of sunlight and wind on our site.

- Soil subsidence may cause the concrete floor need to repair.

- Provides the enclosed space to prevent rodent, insects and birds.

KOSEN
Final submission N ACCESSIBILITY Car access Pedestrian TARGET USERS USER ANALYSIS Design students Activities Activities Activities Most of the design students come from SOA+D and Media Art in the ages of 18-23 years old. Targeted toward professors who work in Kosenbuilding in the ages between 30-60 years old. Both part time and full time instructors. Most of researchers who work in existing research campus. Most of drummer are the student of SOA+D who use space on the ground area around the site. Professors Researchers Activities Targeted toward Pre engineer students who study in Darunsikkhalai school for innovative learning (DSIL) in ages of 15-17 years old. To provides the learning resources and improve skills. Pre Engineer Activities People who work as a security check in KMUTT provides the appropriate space for the job and well being. Security Activities Activities People who work as a house keeper in KMUTT who check the orderliness and readiness for the use of space inside. To provides the appropriate space for the job and well being. Staff Drummer S.W.O.T ANALYSIS
PROJECT Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029 Janisa Densirimongkol 63120500005
S W O T

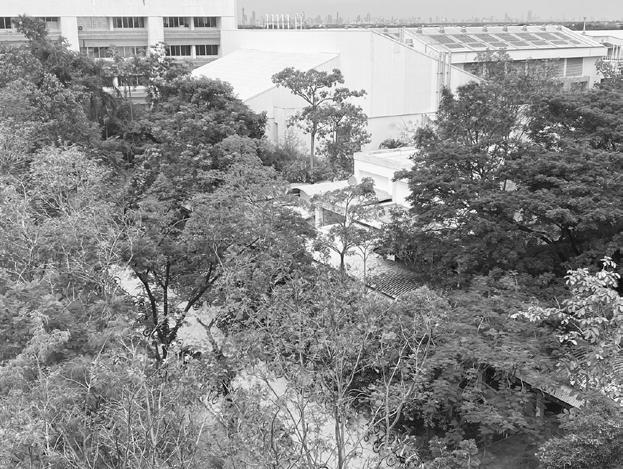

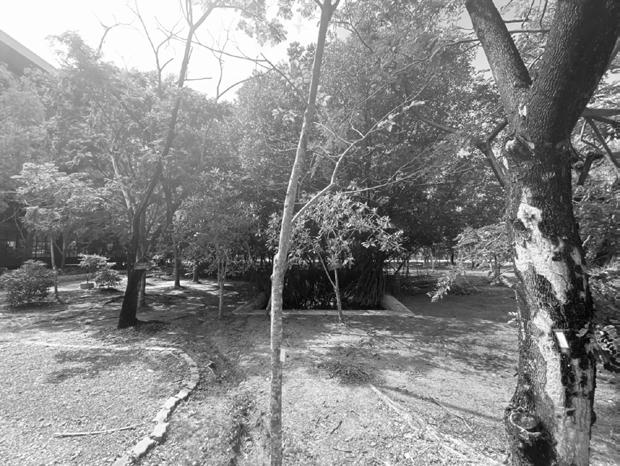

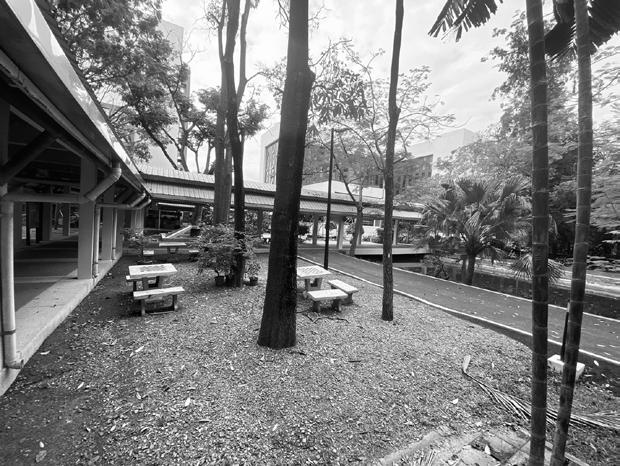

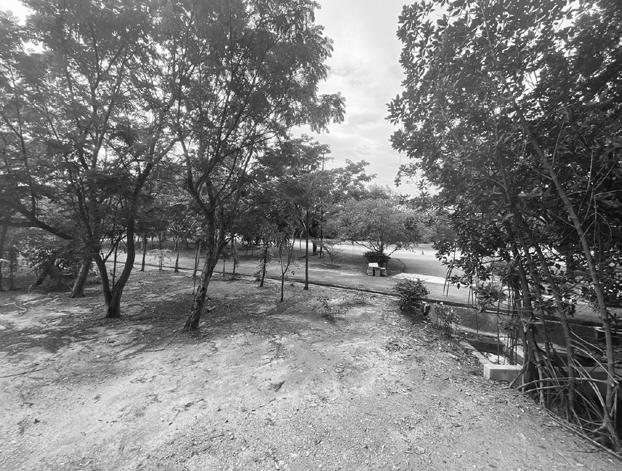

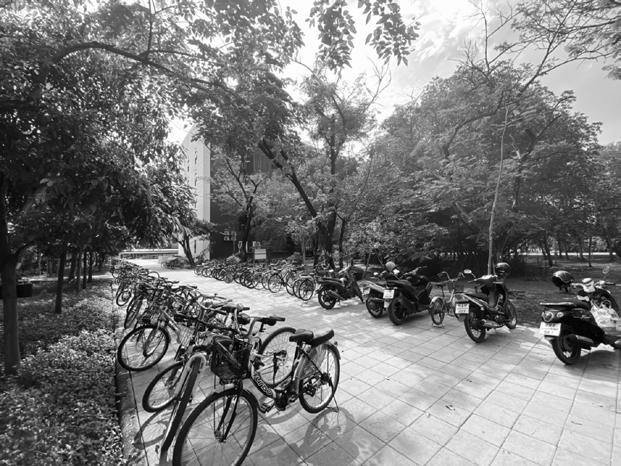

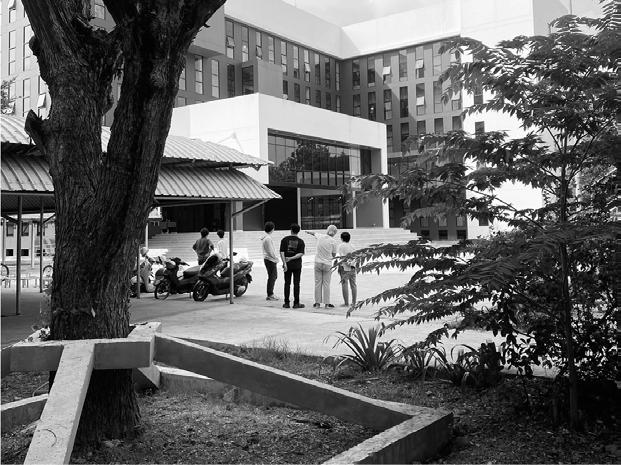

KOSEN PROJECT Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029 Janisa Densirimongkol 63120500005 Final submission SITE VIEW

Staff office 30 sqm.

Academic staff 150 sqm.

Chemical storage room 15 sqm.

Chemical garbage room 5 sqm.

Pantry 40 sqm.

Restroom 250 sqm.

Welcoming area 200 sqm.

Open plan study area 360 sqm.

Gallery 150 sqm.

Outdoor Lab 200 sqm.

Active learning space 100 sqm.

Co-working space 220 sqm.

PROGRAM

ZONING DIAGRAM

KOSEN PROJECT

Lecture room 300 sqm.

Enclosed study 105 sqm.

Industrial collaboration office 70 sqm.

Gas room 5 sqm.

Changing room 15 sqm.

Brief room 35 sqm.

Workshop monitor office 25 sqm.

Dry lab 180 sqm.

Wet lab 180 sqm.

Electronic lab 180 sqm.

PCL 40 sqm.

Machine zone 300 sqm.

Maker space 200 sqm.

Terrace 80 sqm.

Green roof 105 sqm.

MDB room 4 sqm.

Generator room 40 sqm.

Transformer room 70 sqm.

Garbage room 20 sqm.

Central control 20 sqm.

Fire pump/Water tank 40 sqm. Storage 10 sqm.

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

Final submission

PROGRAM DIAGRAM
PRIVATE PUBLIC OPEN SPACE SEMI OUTDOOR PUBLIC OUTDOOR
PUBLIC OPEN SPACE PRIVATE SEMI OUTDOOR SERVICE LEARNING SPACE CENTER CORE PUBLIC OUTDOOR SERVICE SERVICE
Learning
Service Service Center core Center core Entrance Entrance
space Learning space

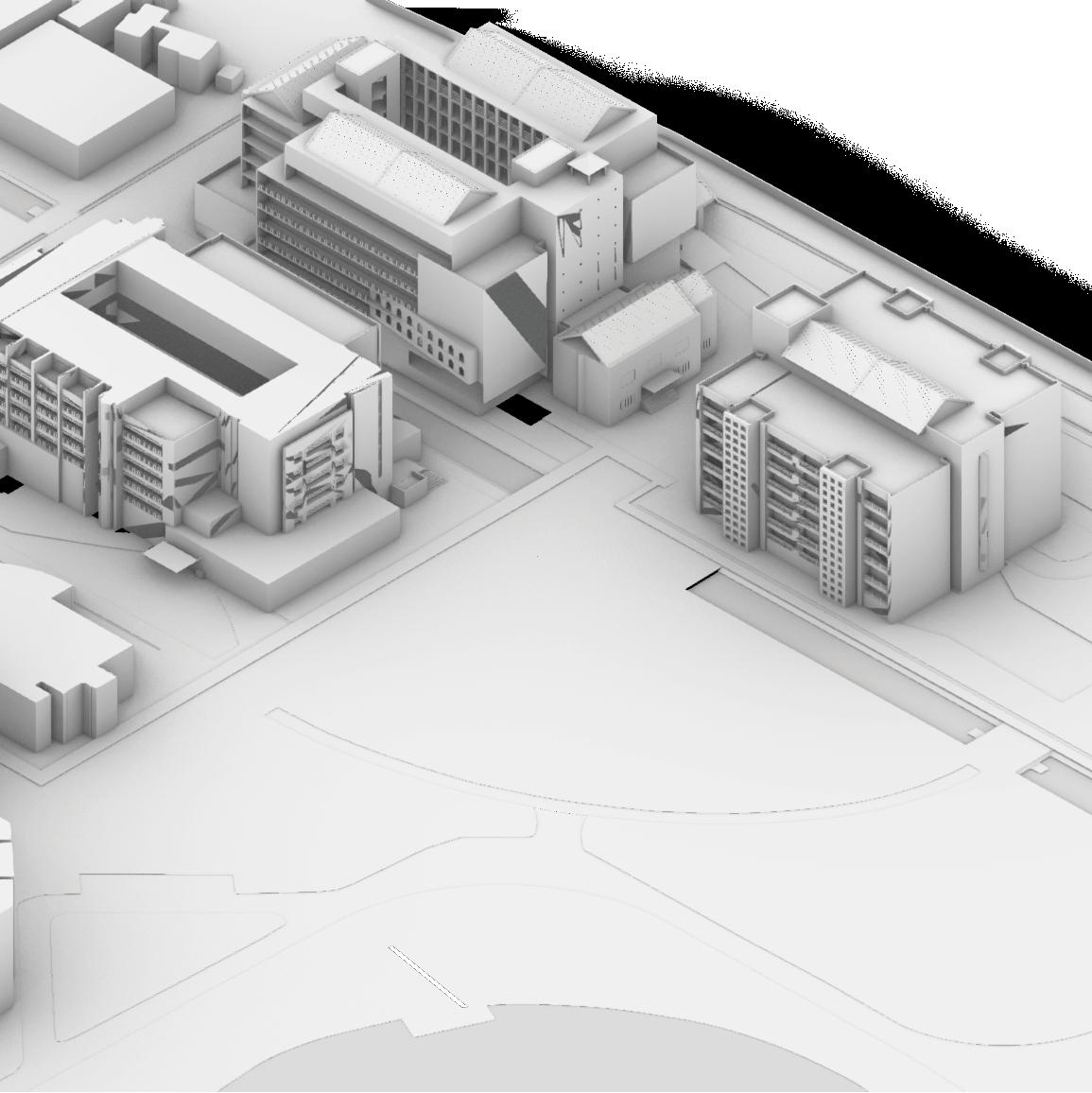

According to its location, the site is located in between of 3 main building, in KMUTT campus, which are SOA+D and media art faculties, as well as environment building. These 3 buildings are where most of people circulate and spend there time in, so the site has a great potential of being a central hub that foster the movement of people to gravitate toward it.

The main concept is brought up by considering about the accessibility from any direction around the site and projecting them, to allow people to walk to our building in every direction no matter which way they are coming from. The curve form and height different are designed considering about visual perception and ventilation, as this form of building allow users to have better visual perception toward the scenery of the site and allowing the wind to flow to the building more efficiently, as curve form to increase the wind speed that flow toward the building.

Possible access from different direction. Creating building footprint cosidering about accessibility from various direction.

Creating mass of the building. Adjusting the form of building according to the view and wind direction as curve building allow wind to flow more efficiently.

Janisa Densirimongkol 63120500005

KOSEN PROJECT

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

Final submission

Keyword: Foster, Integrate, Innovation
DESIGN CONCEPT
SITE

Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

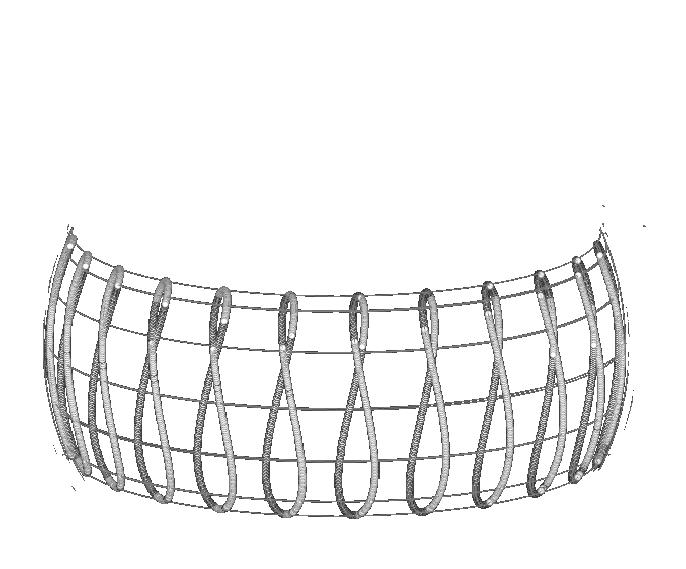

CURTAINWALL(SKYLIGHT)

CONCRETE SLAB(ROOF)

CONCRETE WITH BROWN PLASTER FINISHING(FACADE)

CONCRETE(WALL)

CURTAINWALL(WINDOW) ALUMINUM(RAILING)

CONCRETE 2MM(FLOOR+BEAM 8MM)

RECTANGULAR 400X400MM(COLUMN)

CIRCULAR 600X600MM(COLUMN)

CONCRETE(WALL)

ZONING PROGRAM DIAGRAM STRUCTURAL DIAGRAM
FOURTH FLOOR THIRD FLOOR SECOND FLOOR FIRST FLOOR UNDERGROUND FLOOR Restroom Active learning/Outdoor lab Dry lab/Wet lab/Electric lab Green roof/Terrace Vertical circulation Staff office/Storage Service Restroom Active learning/Open study/Library Lecture room Green roof/Terrace Vertical circulation Staff office/Storage/Pantry Service Restroom Active learning/Open study/Library Industrial collaboration/Lecture Green roof/Terrace Vertical circulation Staff office/Storage/Pantry Service Restroom Atrium/Hallway Brief room/FAB lab/PCL Vertical circulation Staff office/Storage/Loading area Service Vertical circulation Parking lots PUBLIC OPEN PRIVATE SEMI OUTDOOR PUBLIC OUTDOOR SERVICE

KOSEN PROJECT

CLEAN WATER

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

Final submission

BUILDING SYSTEM DIAGRAM
TO SEPTIC TANK
FROM TANK FROM TANK TO CANAL
ELECTRICAL PATH LABATORY ZONE WASTED WATER

KOSEN PROJECT

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

Final submission

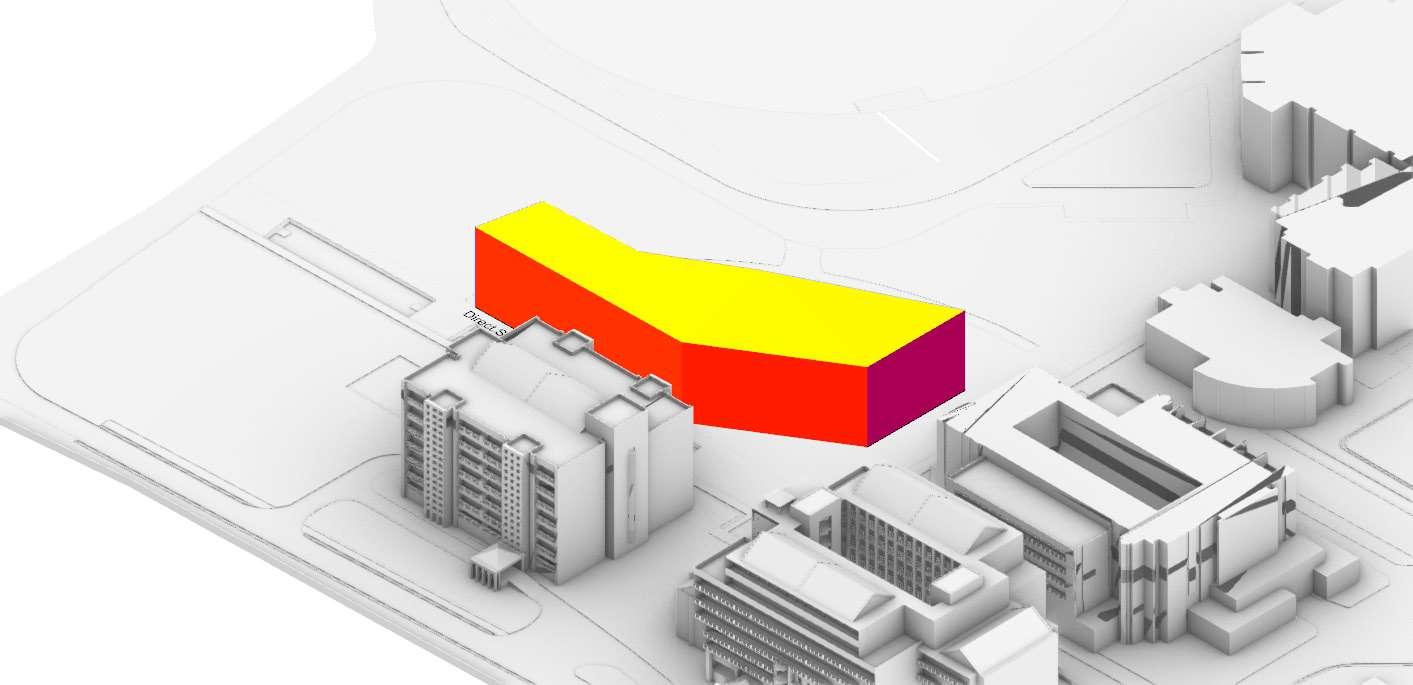

CLIMATIC RESPONSE DIAGRAM

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

SITE PLAN
1:500 N
SCALE
KOSEN PROJECT Final submission

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029 Final submission

UNDERGROUND FLOOR PLAN SCALE 1:250 N A B C D D E F 01 02 03 04 05 06 07 08 09 10 11 12 13 14 8000 5000 8000 21200 8000 8000 8000 8000 8000 8000 8000 8000 64000 8000 8000 8000 32000 8000 8000 16000 8000
KOSEN PROJECT

Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

FIRST FLOOR PLAN SCALE 1:250 N WC Information Desk Beverage and Snack Bar Service Maker Space FAB Lab Storage Machine Zone Workshop Monitor Office Storage Brief Room Entrance PCL WC WC Loading Area Janitor Room Janitor Room Entrance Entrance Hallway Atrium Hallway Atrium D E F A B C D 01 02 03 04 05 06 07 08 09 10 11 12 13 14 8000 5000 8000 21200 8000 8000 8000 8000 8000 8000 8000 8000 64000 8000 8000 8000 32000 8000 8000 16000 8000

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

SECOND FLOOR PLAN SCALE 1:250 N WC Industrial Collaboration Office Academic Staff Office Administrative Office Storage Pantry Gallery Co-working Space Enclosed study Enclosed study Enclosed study Industrial Collaboration Office Lecture Room WC WC Janitor Room Janitor Room Terrace Atrium Hallway Hallway Atrium Service Green Roof D E F 06 07 08 09 10 11 12 13 14 A B C D 01 02 03 04 05 8000 8000 8000 8000 8000 8000 8000 8000 64000 8000 5000 8000 21200 8000 8000 8000 32000 8000 8000 16000 8000
Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission

Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

THIRD FLOOR PLAN SCALE
N WC Storage Active Learning Space Staff Office Open Plan Study Area +
Lecture Room Lecture Room Pantry WC WC Janitor Room Terrace Janitor Room Terrace Atrium Hallway Hallway Atrium Service Green Roof D E F 01 02 03 04 05 A B C D 06 07 08 09 10 11 12 13 14 8000 5000 8000 21200 8000 8000 8000 8000 8000 8000 8000 8000 64000 8000 8000 8000 32000 8000 8000 16000 8000
1:250
Library

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

KOSEN PROJECT Final submission

FOURTH FLOOR PLAN
N Electronic Lab WC Storage Dry Lab Wet Lab Outdoor Lab Changing Room Gas Room Storage Chemical Garbage Room Staff Office WC WC Active Learning Space Janitor Room Terrace Janitor Room Terrace Atrium Hallway Atrium Service Green Roof D E F A B C D 01 02 03 04 05 06 07 08 09 10 11 12 13 14 8000 5000 8000 21200 8000 8000 8000 8000 8000 8000 8000 8000 64000 8000 8000 8000 32000 8000 8000 16000 8000
SCALE 1:250

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

B
KOSEN PROJECT Final submission - 4000 +4000 +4000 +4000 +4000 +4000 SECTION A SCALE 1:250 B
A A

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

KOSEN PROJECT Final submission - 4000 +4000 +4000 +4000 +4000 +4000 SECTION B SCALE 1:250 B B A A

PROJECT

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

KOSEN

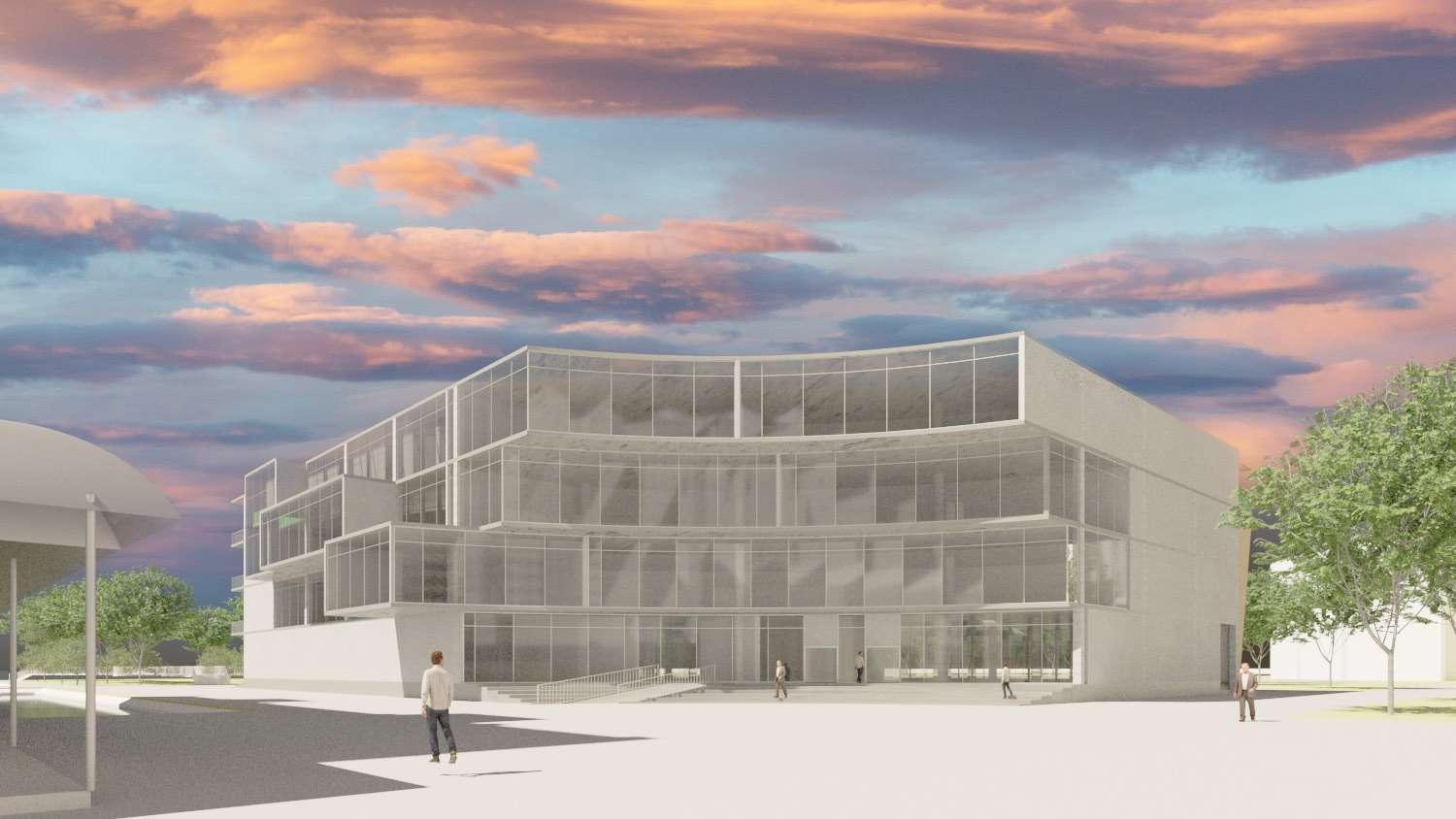

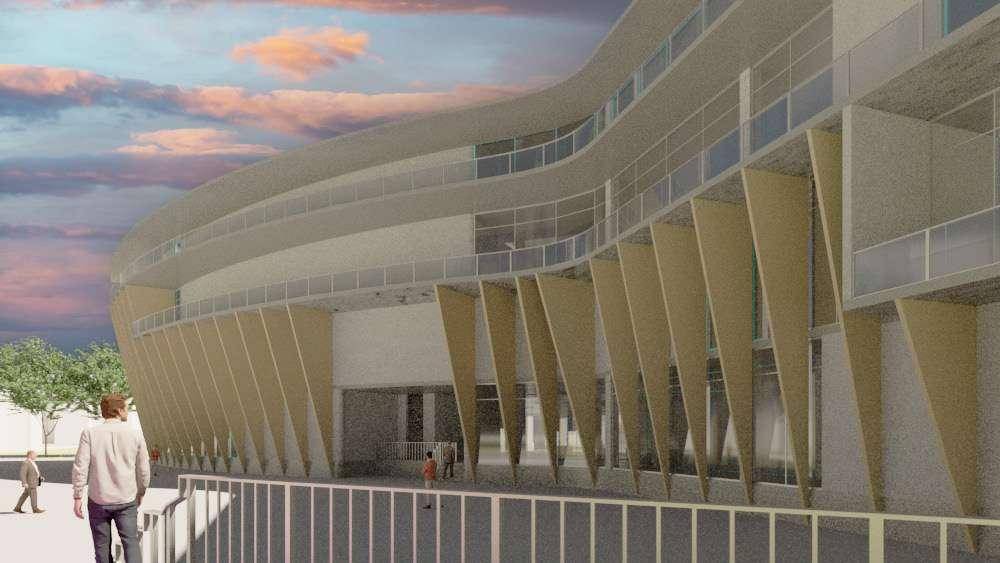

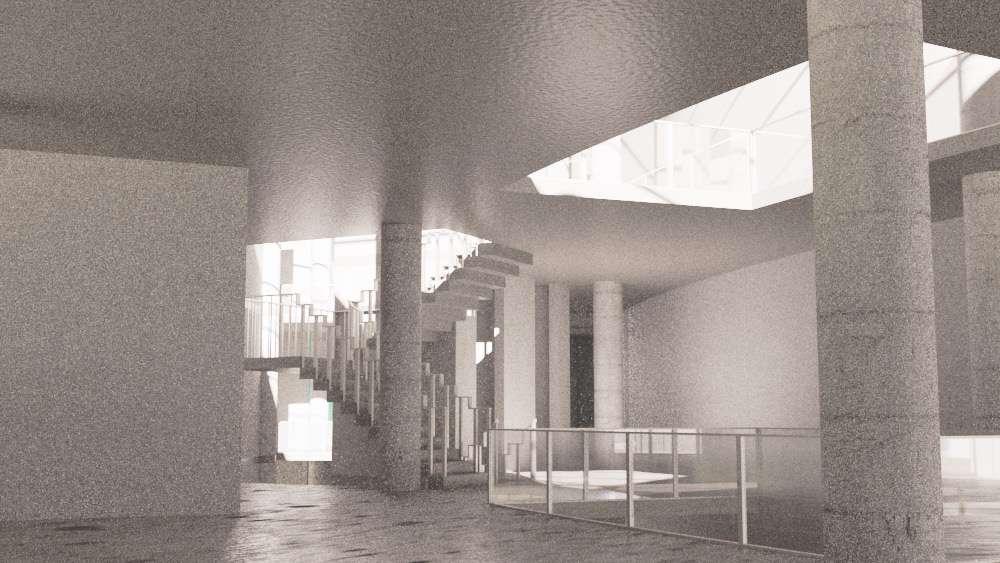

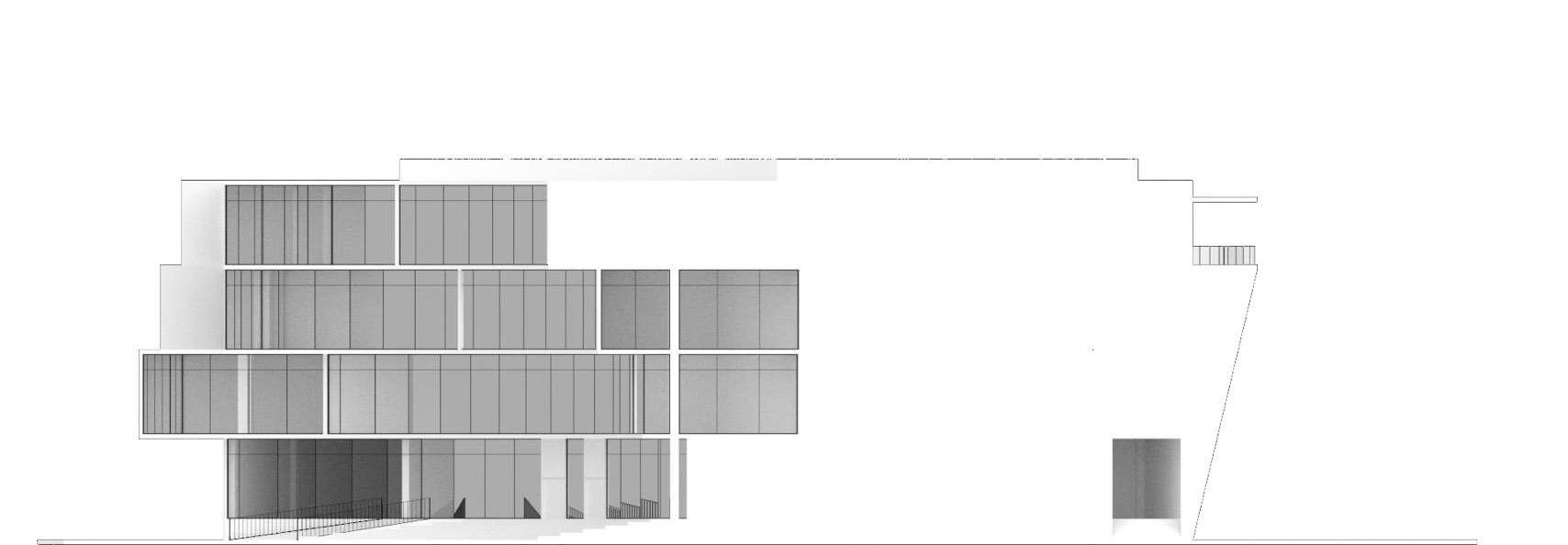

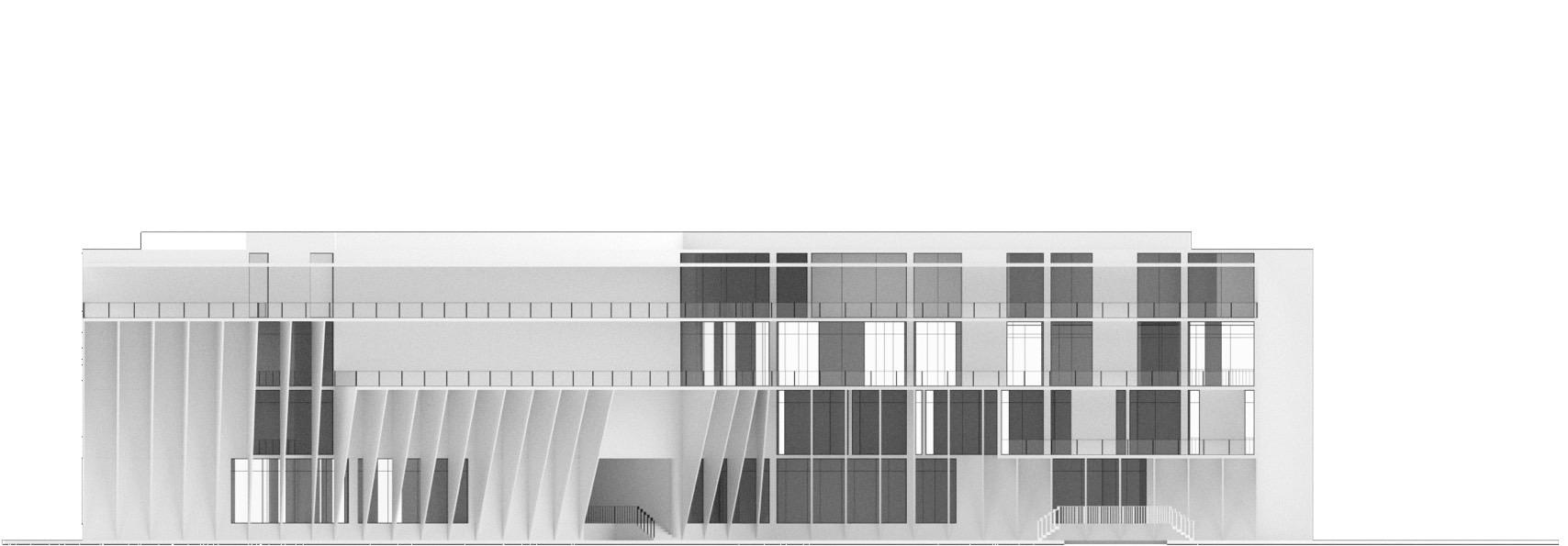

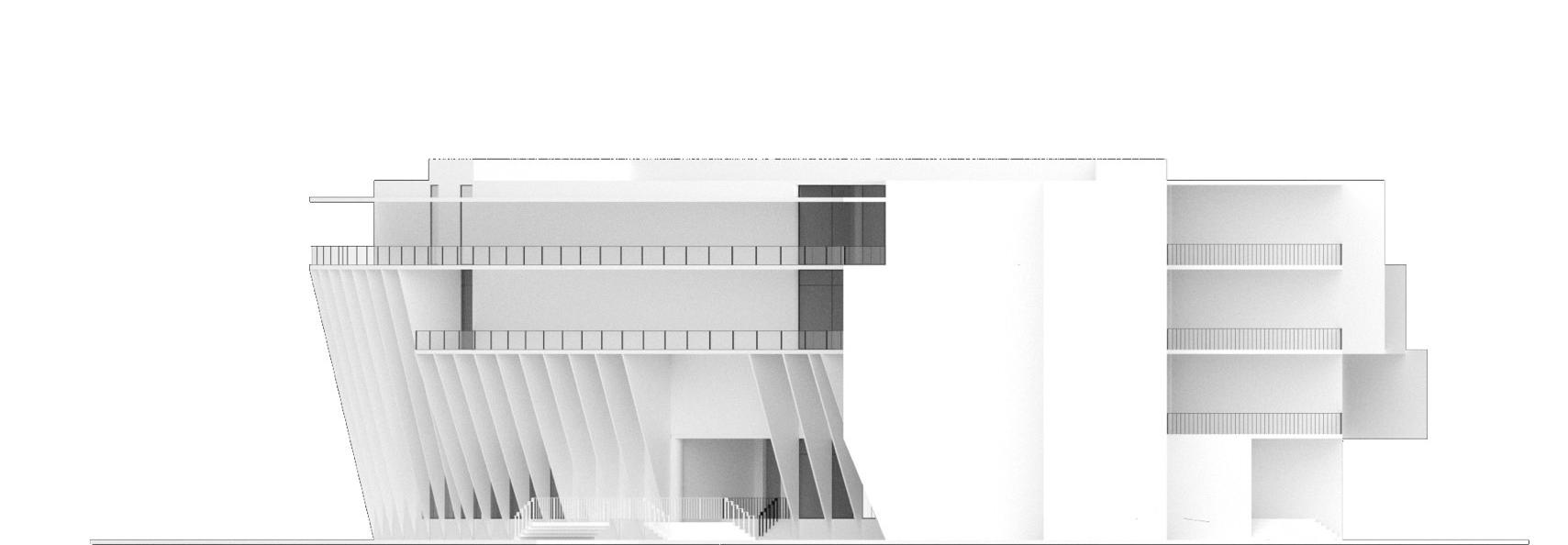

Final submission + 4000 +4000 +4000 +4000 +4000 ELEVATION A SCALE 1:250

PROJECT

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

KOSEN
Final submission + 4000 +4000 +4000 +4000 +4000 ELEVATION B SCALE 1:250

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

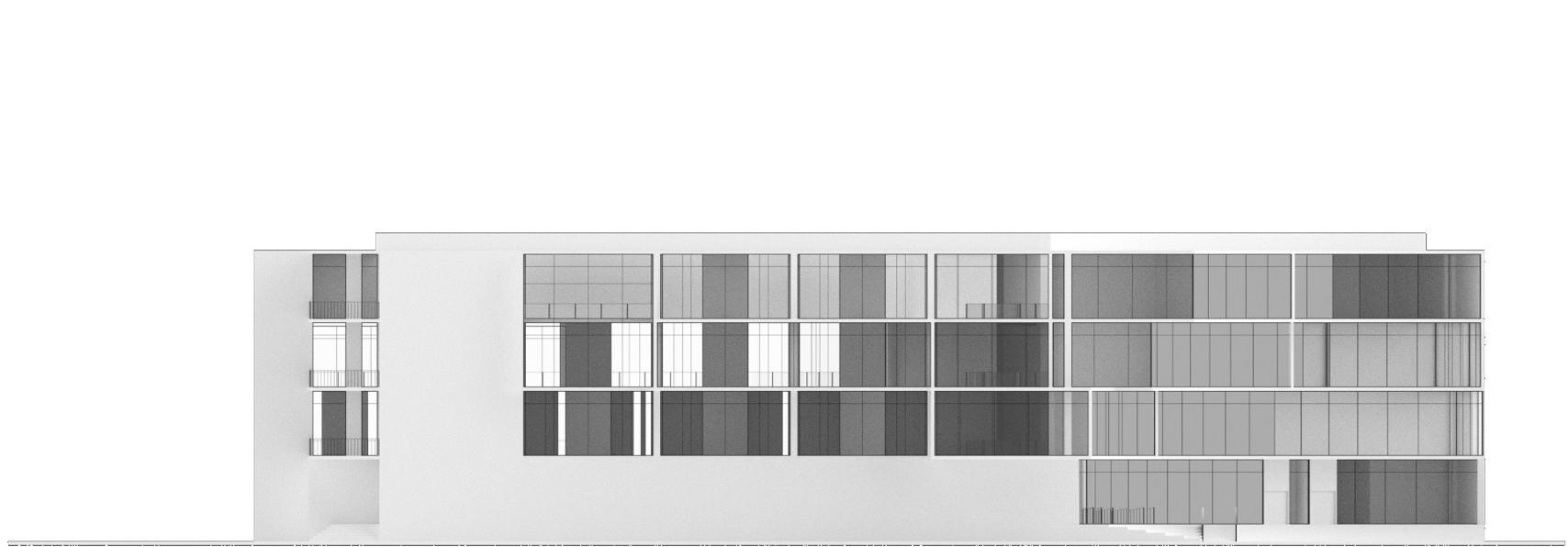

KOSEN PROJECT Final submission + 4000 +4000 +4000 +4000 +4000 ELEVATION C SCALE 1:250

PROJECT

Janisa Densirimongkol 63120500005

Nopaket Limcharoen 63120500017 Piraphan Sakulsantithum 63120500029

KOSEN
Final submission + 4000 +4000 +4000 +4000 +4000 ELEVATION D SCALE 1:250

Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission

Nopaket Limcharoen 63120500017

Piraphan Sakulsantithum 63120500029

63120500017
63120500029
Nopaket Limcharoen
Piraphan Sakulsantithum
Janisa Densirimongkol 63120500005 KOSEN PROJECT Final submission
