Weft Feeder

Weft Feeders Manufacturer in India

Piotex in association with Lgl Electronics brings you Weft feeders that is feeding devices, also known as weft storage feeders or weft accumulators, play a crucial in the weaving machinery where the weft is unwound overhead from the cone and is subjected to abrupt accelerations because to the drawing-off tension exerted by the insertion element. The balloon which is formed at each insertion can cause coil sliding and snarls, owing to the difficulty of braking adequately the yarn and to the high unwinding speed of the yarn from the cone.

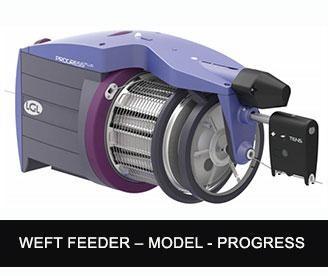

WEFT FEEDER - MODEL

TheWeftfeedersbyLglElectronicsaretiedtogetherwith variousoutfitsandadjustmentpossibilities,whichvaryaccordingtotheyarntype andcountandtotheinsertionsystemused.Eachofthemisequippedwithan independentmotor,whichspeedcanbemodifiedwithinawiderangeofvalues.

Thefeederscanalsobeconnectedwiththedrivingunitoftheweavingmachine andinteractwithit.Theirgeneralstructureispresentedintheschemeasper figurethethreadistakenofffromtheconebyathreadguide1composedofan eyeletobtainedonaringwhichisputinrotationbyanelectricmotorM.Piotex Venturesdealswithvariousmodelsofweftfeederssuchas,Weftfeedermodel technico,Modelevolution,modelspin,eco-smart,modelprogress.

Weft Feeder Specifications:

1: Spool body with diameter 140 mm

2: Winding separation: from 0 mm to 5 mm with easy change from ‘S’ to ‘Z’ and vice-versa

3: Very strong holding magnets for the complete stability of the spool body.

Input piezoelectric sensor to detect yarn breaking, eyelet with bigger diameter to enable the passage also of coarse yarns

4: Vectorial motor to ensure maximum torque at any speed

Minimum energy consumption.

5: Suitable for weaving machines with or without CAN-BUS Possibility to add peripheraldevicesliketheautomaticknotdetector.

Contact Us :

PIOTEX VENTURES PVT. LTD.

Pune Office:- (Head Office)

F-II Block, Plot No. 16/2,

MIDC Pimpri, Pune

GSTIN/UIN : 27AALCP4312L1Z6

State Name : Maharashtra, Code : 27

CIN : U17299PN2020PTC194145

Pimpri, Pune- 411018, Maharashtra, India

+918421584775

sales@piotex.in

https://piotex.in/weft-feeder/

THANK YOU
