PINKU / UNDERGRADUATE ARCHITECTURE PORTFOLIO / 2024

A R C H I T E C T U R A L

P O R T F O L I O

P I N K U

Selected work (2021-2024)

Hello, I am Pinku, a third year architecture student studying at GNDEC School Of Architecture, Ludhiana. As a passionate architecture student, I have dedicated myself to the art of architecture design. My keen eye for observation and innovation derives me to constantly explore innovative ideas and solutions.

This portfolio serves as a testament to my dedication and enthusiasm for architecture and I am eager to apply my knowledge and architectural skills during my training.

PERSONAL INFORMATION

Date of birth - July 12th,2003

Phone no. -8427566383

E-mail -pinku842756@gmail.com address -Ludhiana Punjab.

COMPETITIONS & ACHIVEMENTS

• Participated in “IGBC Green design Competition” 2022

• 1:1 Model ANDC Trophy

• 2nd prize in Cartooning competition at ANAND UTSAV, GNDEC-2023

• 3rd prize in poster making competition ANAND USTAV, GNDEC-2023

• Attended 66th ZNC at POORNIMA UNIVERSITY

• 1st prize in Cartooning competition at ANAND UTSAV, GNDEC-2024

• 2nd prize in Clay modelling at GNDEC-2024

• 2ND prize in “get up & dress up” at INT-EXT EXPO PAU Ludhiana.

EXHIBITIONS

• INT-EXT EXPO (PAU, LUDIANA, PUNJAB.(2022)

• INT-EXT EXPO (SANHEWAL, PUNJAB.(2023)

• INT-EXT EXPO (SANHEWAL, PUNJAB.(2024)

WORKSHOPS

• Carpentry workshop (gndec)

• Clay modelling workshop (ZNC Poornima university)

STRENGHTS & SKILLS

• Quick Learner

• Creativity

• Hardworking

• Problem solving

• Highly organised

ACADEMIC PROJECTS

SEM 2 – CAFE ARCHITECT’S OFFICE

SEM 3 – PRIMARY SCHOOL DISPENSARY

SEM 4 – VILLAGE DOCUMENTATION SUPERMARKET

SEM 5 – 3 STAR HOTEL COLLEGE

SEM 6 – GROUP HOUSING AUDITORIUM

HOBBIES

• Photography

• Sketching

• Clay modelling

• Model making

• Gaming.

LANGUAGES

• Hindi

• English

• Punjabi

TECHNICAL SKILLS

1. GROUP HOUSING 3. SCHOOL 2. SUPERMARKET

CONTENTS

5

6.

4. AUDITORIUM

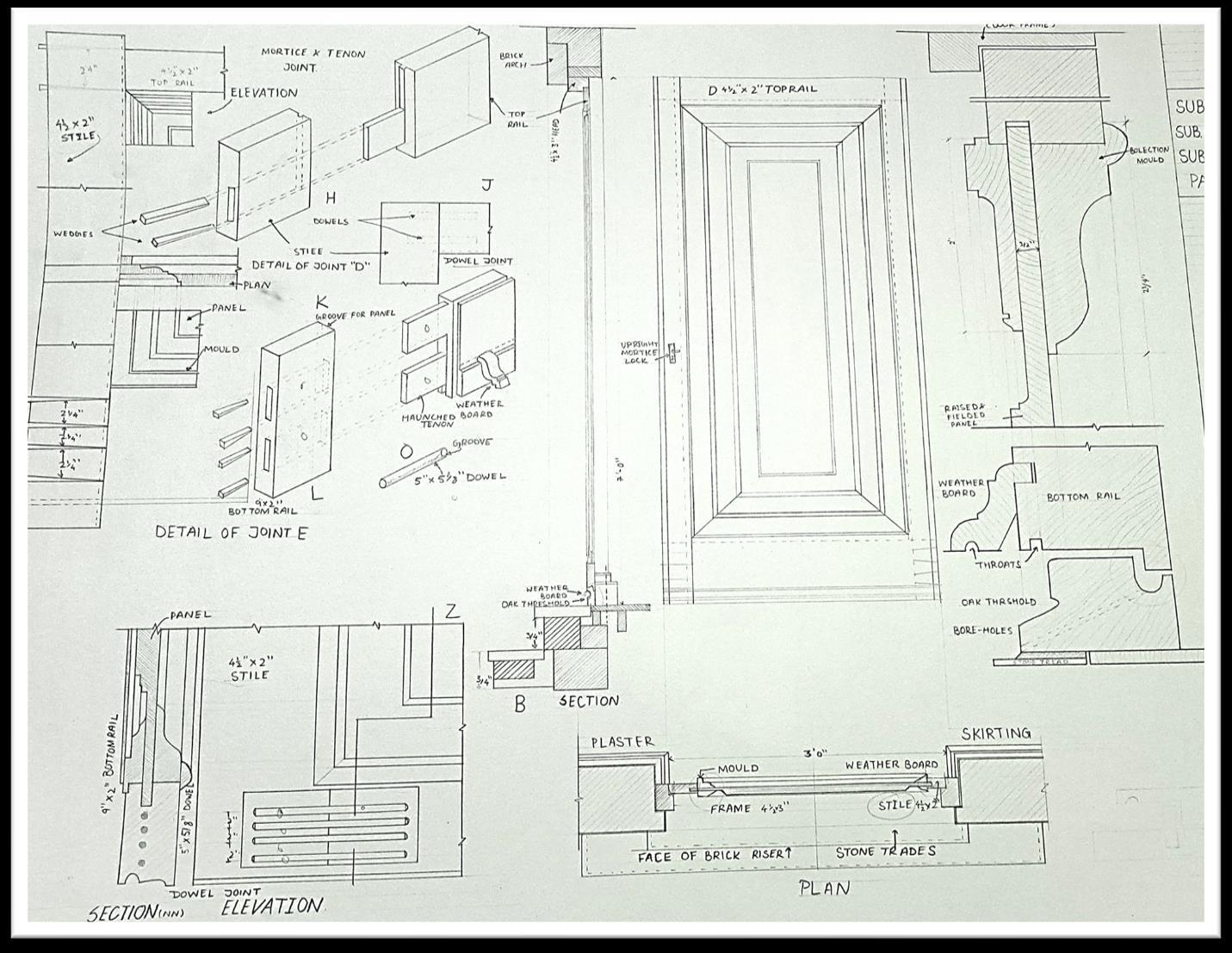

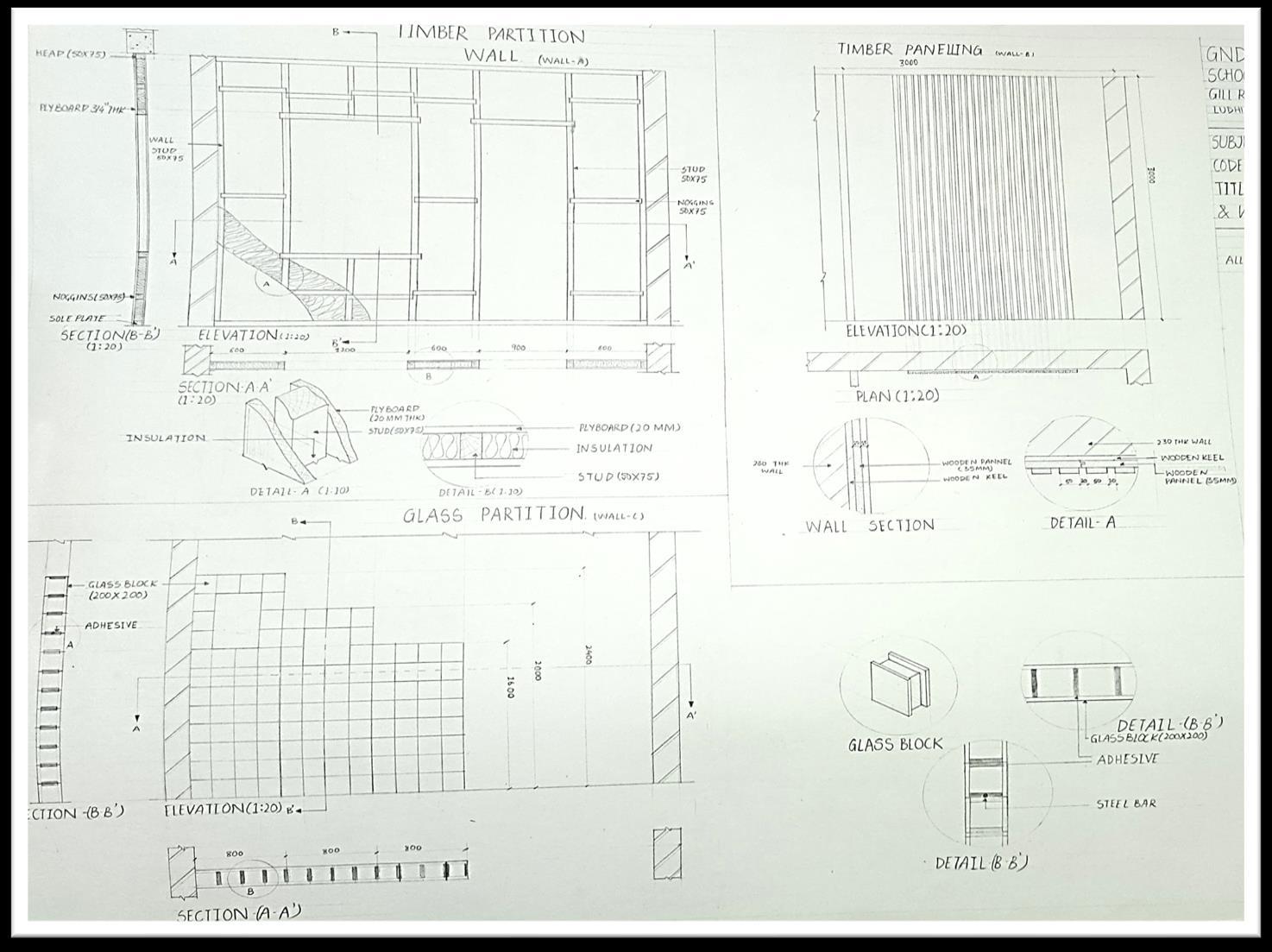

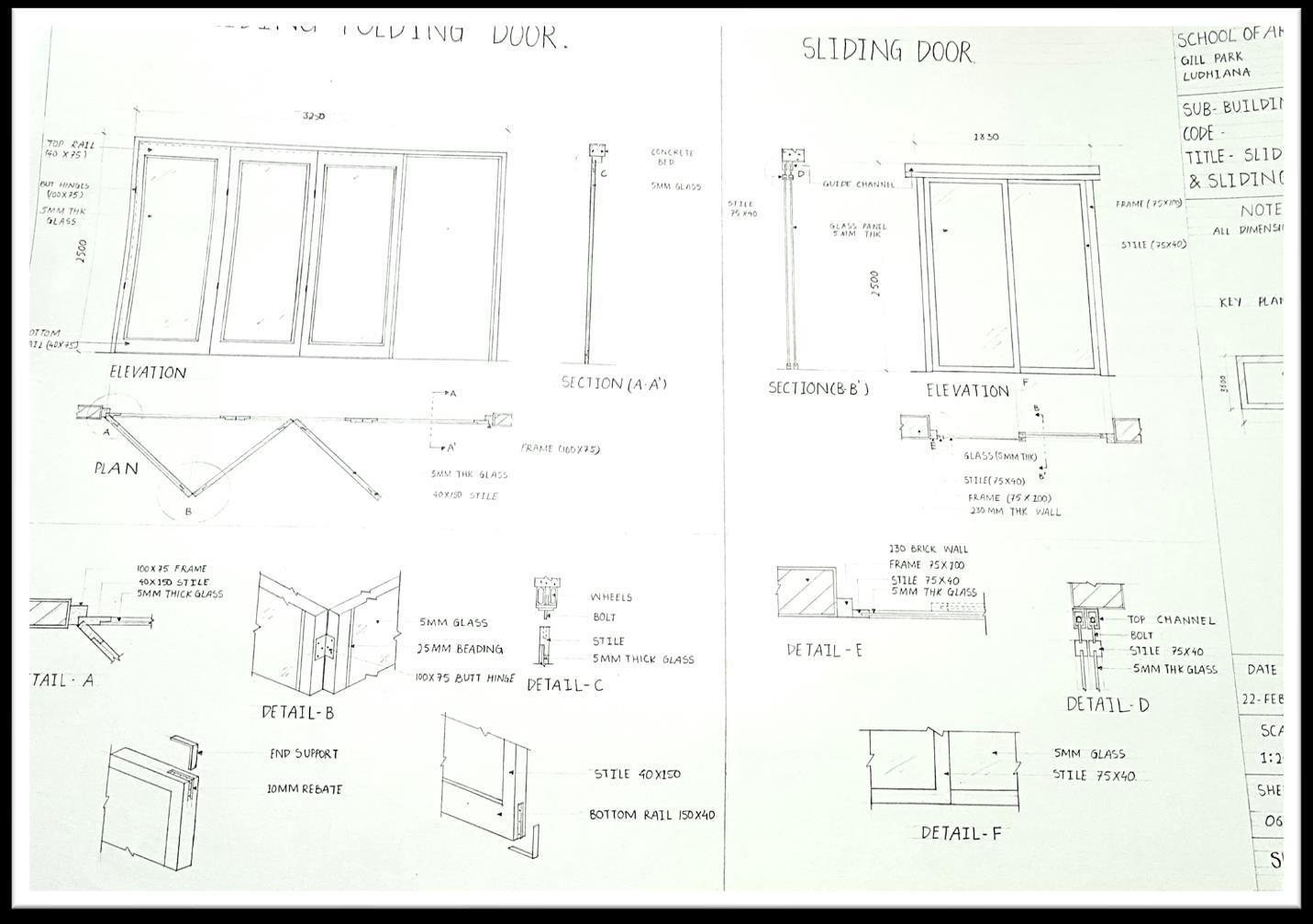

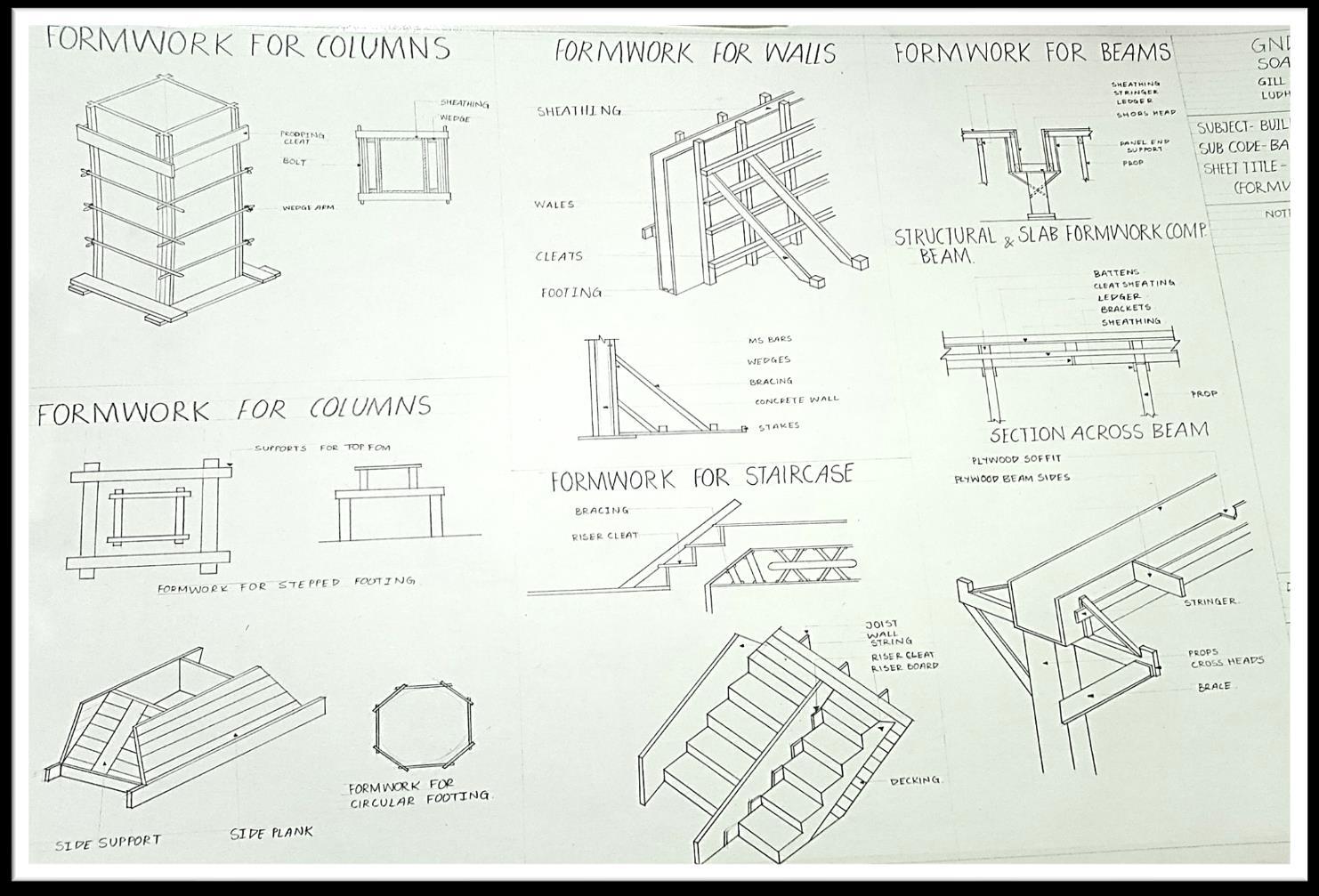

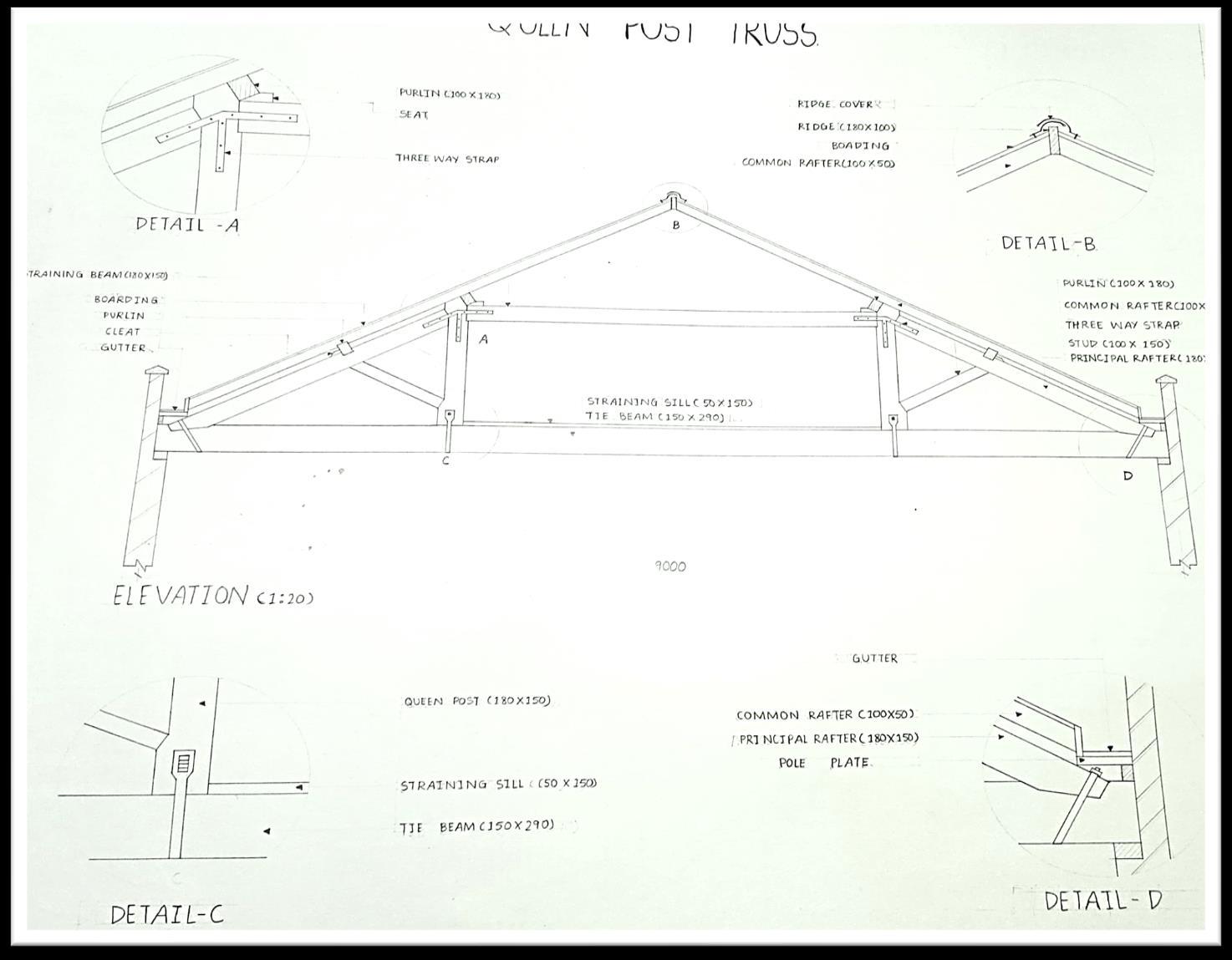

. WORKING DRAWINGS

MISCELLANEOUS

GROUP

HOUSING

AREA -12.5 ACRES

LOCATION - LUDHIANA, PUNJAB

CONCEPT-

The building is designed with sustainability and community in mind. It features passive climate-responsive design elements such as orientation to maximize natural light and ventilation The concept prioritizes environment responsibility, health, and well-being, creating a vibrant and sustainable living environment for residents of all ages.

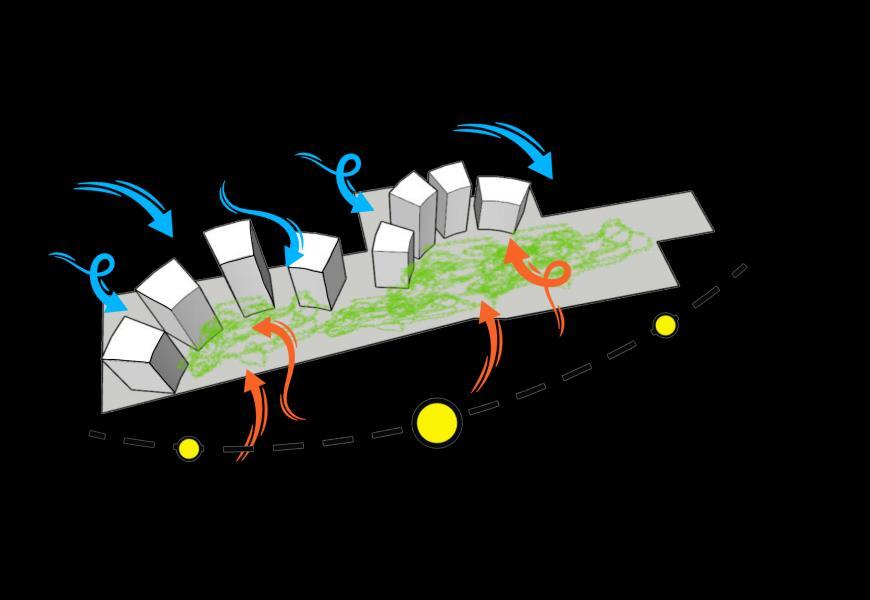

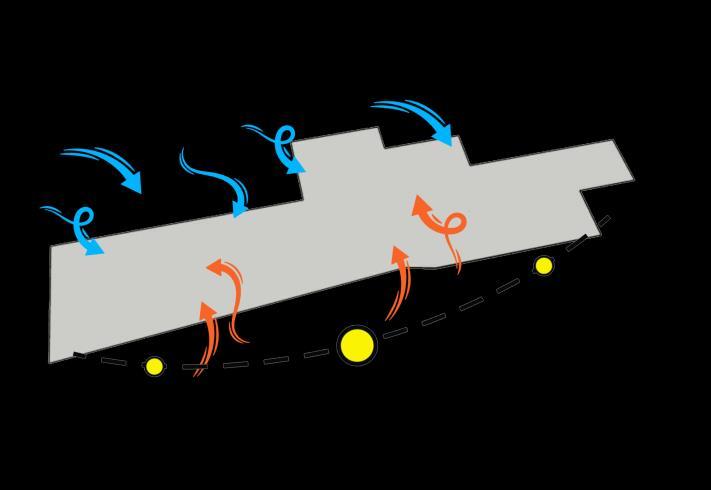

WIND DIRECTIONS AND SUN PATH AROUND THE SITE.

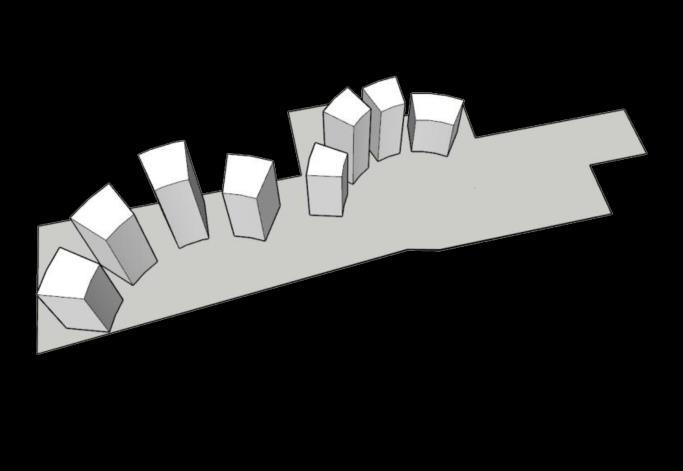

PLACEMENT OF TOWERS

Towers are placed side by side at a safe distance between each towers and towers are placed in such a way that the view of one tower is not blocked by the other tower.

CREATING GREEN AREAS AROUND THE TOWERS.

Green areas and walking areas are designed around all the towers to maintain a friendly environment for everyone. Different areas have been created for all age group

WIND AND SUN

Blocking summer wind around the building and providing sunlight to every room of the apartments

2BHK TOWERS(EWS)

The tower is south facing so that all units can get cool air during summers and sun during winters

-TWO TOWERS WITH 25 FLOORS EACH -200 DWELLING UNITS

SITE ROAD

6Metre wide

1BHK TOWERS(EWS)

The tower is south-east facing so that all units can get cool air during summers and sun during winters

-13 FLOORS

-52 DWELLING UNITS

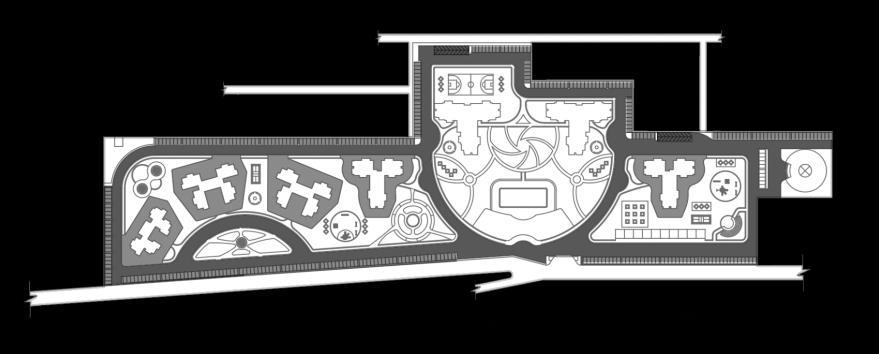

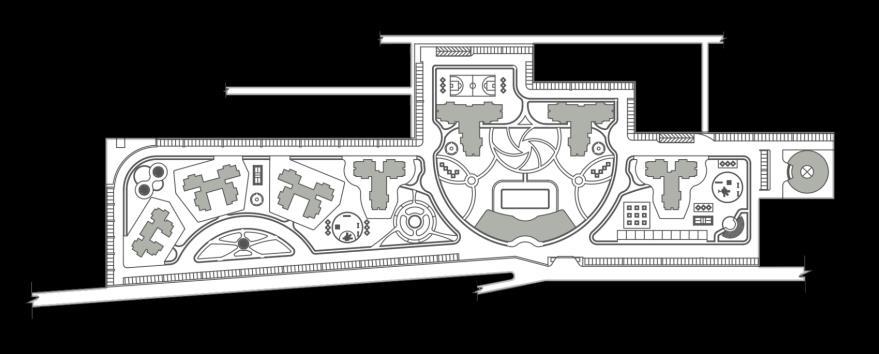

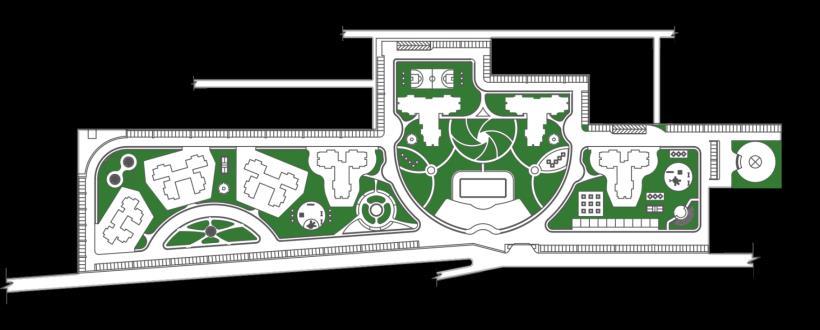

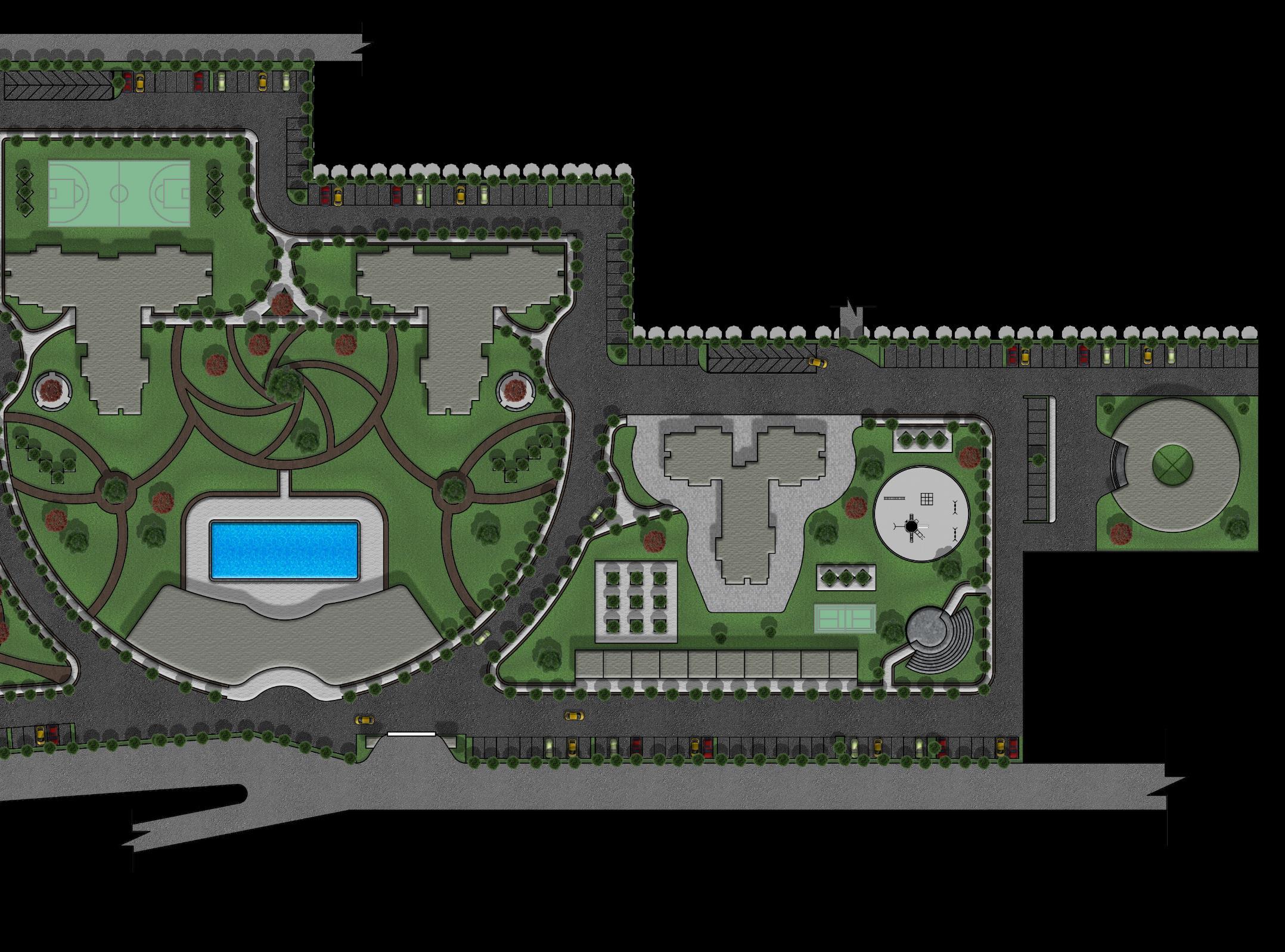

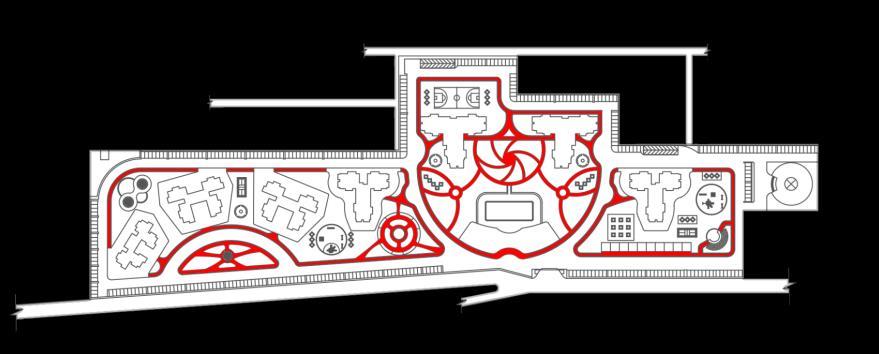

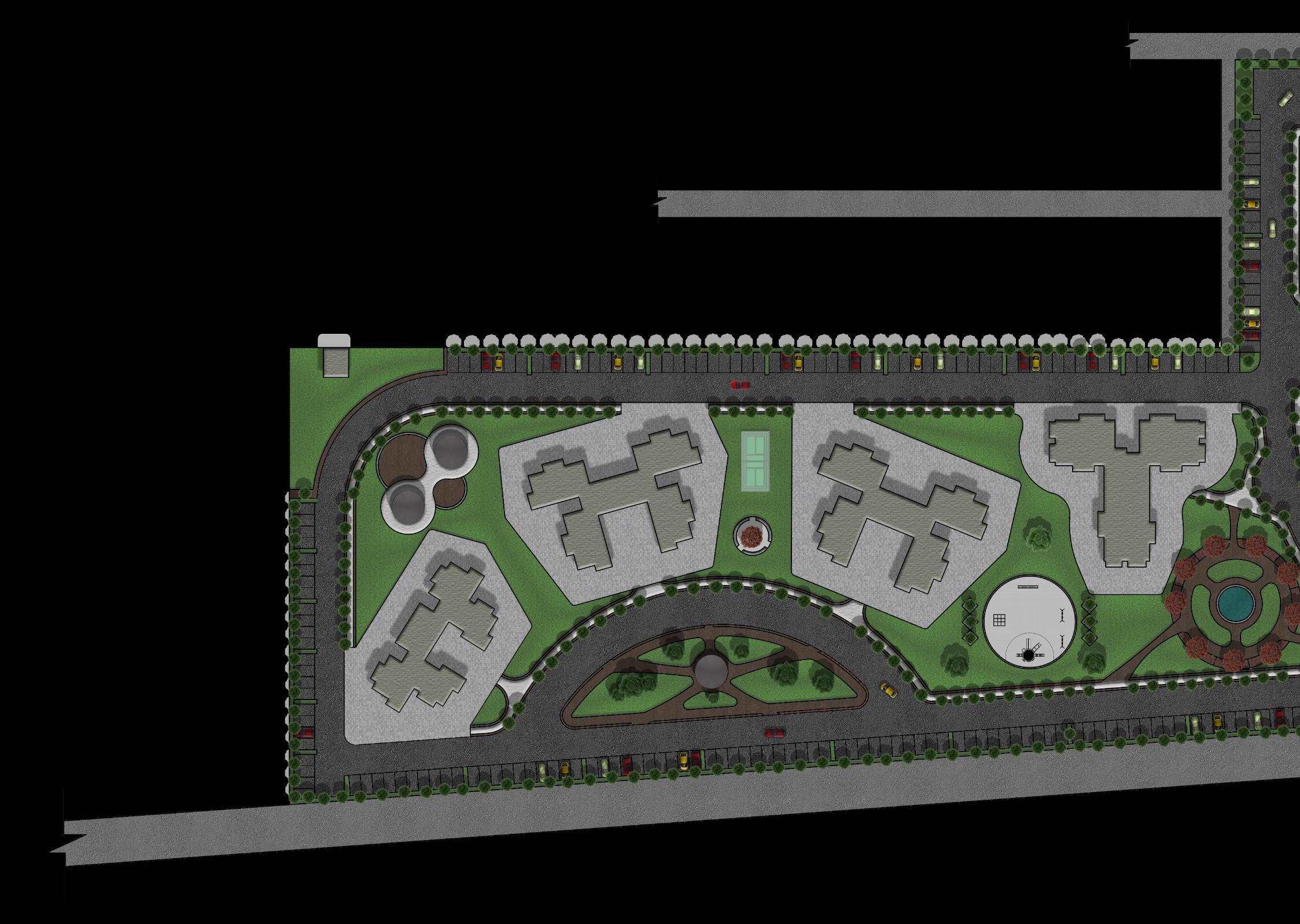

SITE PLAN N

FLOWER PARK

BASKETBALL COURT

4BHK TOWERS(HIG)

Towers are south facing so that all units can get cool air during summers and sun during winters

-TWO TOWERS WITH 30 FLOORS EACH -180 DWELLING UNITS

KINDERGARTEN

MAIN ENTRANCE

CLUB HOUSE

Placed in center of the site for easy access from all sides

3BHK TOWERS(HIG)

Towers are south facing so that all units can get cool air during summers and sun during winters

-TWO TOWERS WITH 17 FLOORS EACH -102 DWELLING UNITS

2BHK CLUSTER

1BHK CLUSTER

4BHK CLUSTER

3BHK CLUSTER

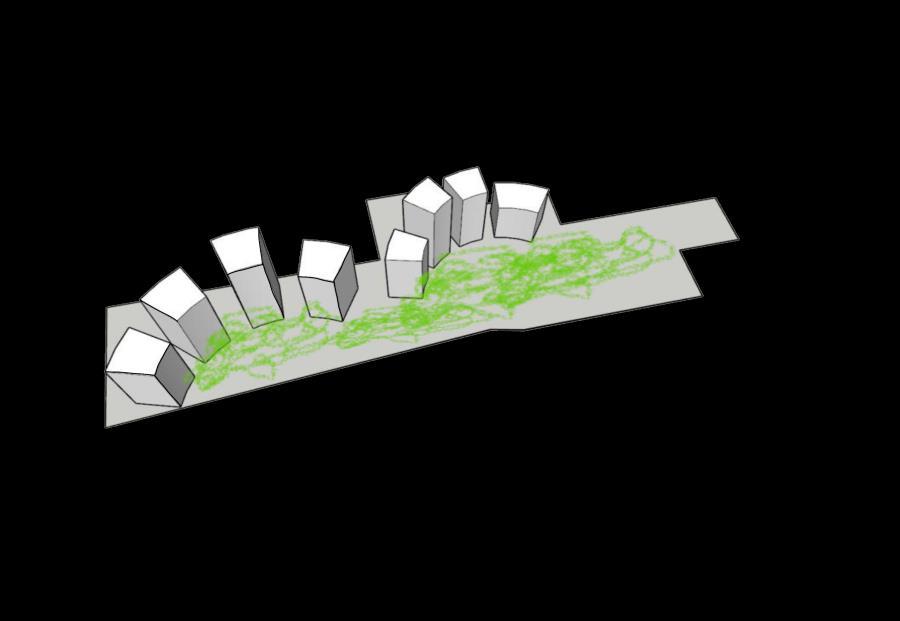

BUILDING BLOCKS

12% area is used for building blocks. The minimum distance between 2 towers is 1/3 of the highest tower.

GREEN SPACES

Maximum green areas provided around all the building blocks for a better environment and recreational areas are provided in between

PADESTRIAN CIRCULATION

2m wide pedestrian area is provided all the roads of the site.

VEHICULAR CIRCULATION

All roads in the site are 6m-8m wide for easy vehicular circulation

RECREATIONAL SPACES

FLOWER GARDEN

ELDER’s SPACE

PLAYGROUND-I

GARDEN

AMPHITHEATRE

PLAYGROUND-II

SUPER MARKET

2000SQMT

LOCATION

VILLAGE DULAY, LUDHIANA, PUNJAB

AREA –

.

–

CONCEPT-

“Embrace the heartbeat of modernity in the heart of our quaint village- a supermarket designed not just to fulfil needs, but to ignite a spark of progress, weaving the fabric of our community's future.

FORM EVOLUTION-

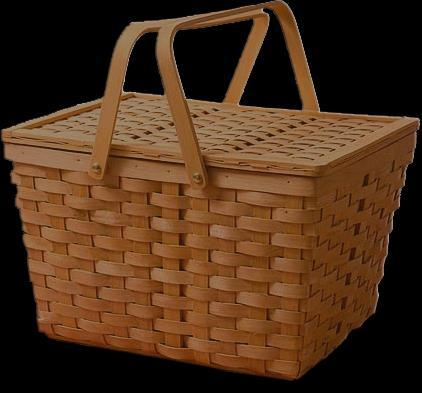

Form of the building is inspired from the basket weaves texture.As a supermarket has all the essential things required, we need in daily life. Similarly, a super basket can hold all the essential things we need.

SUPERBASKET

BASKET WEAVE TEXTURE using weave texture for the front facade of the building

ROOF

3D

BUILDING BLOCK

VIEW

SITE PLAN

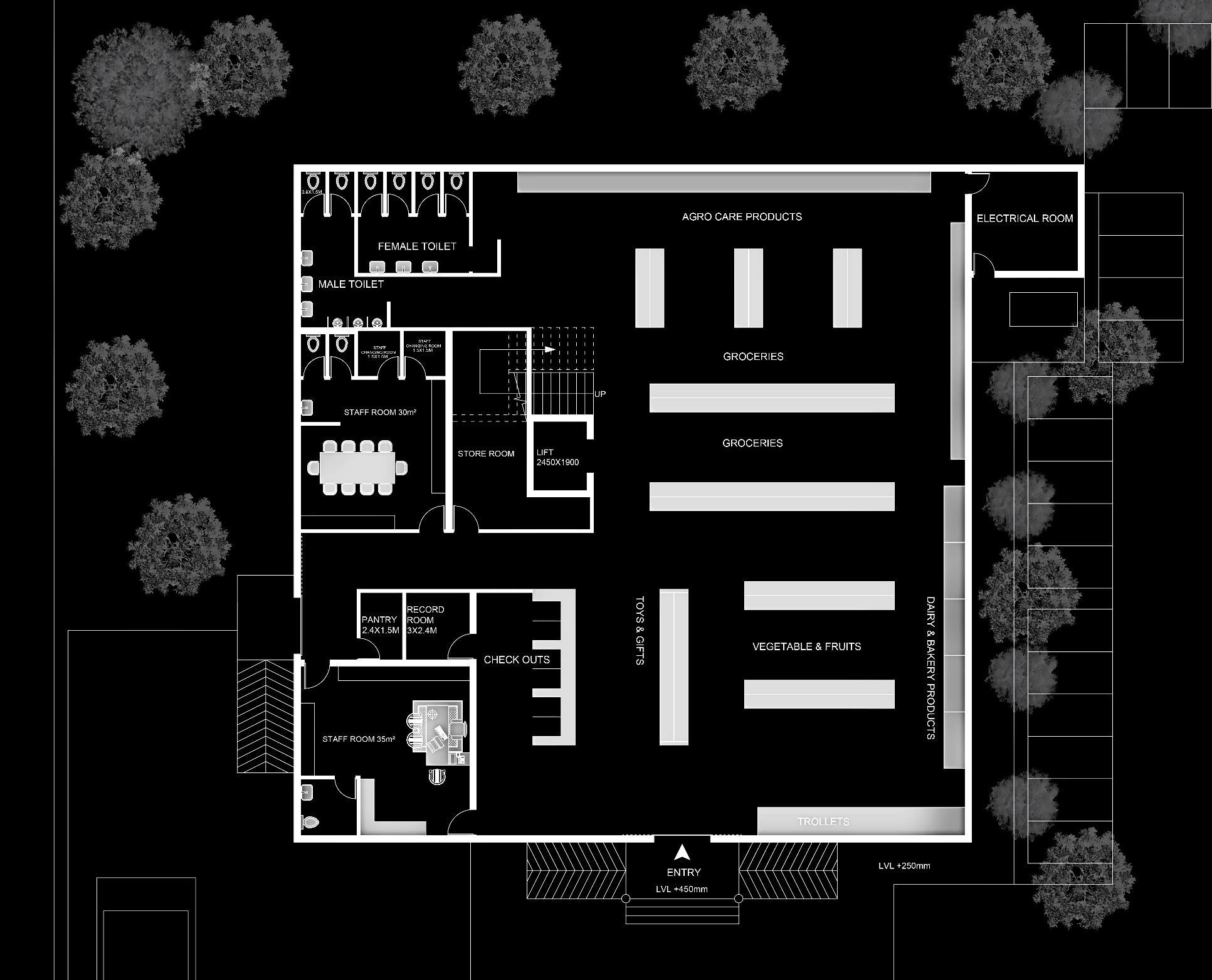

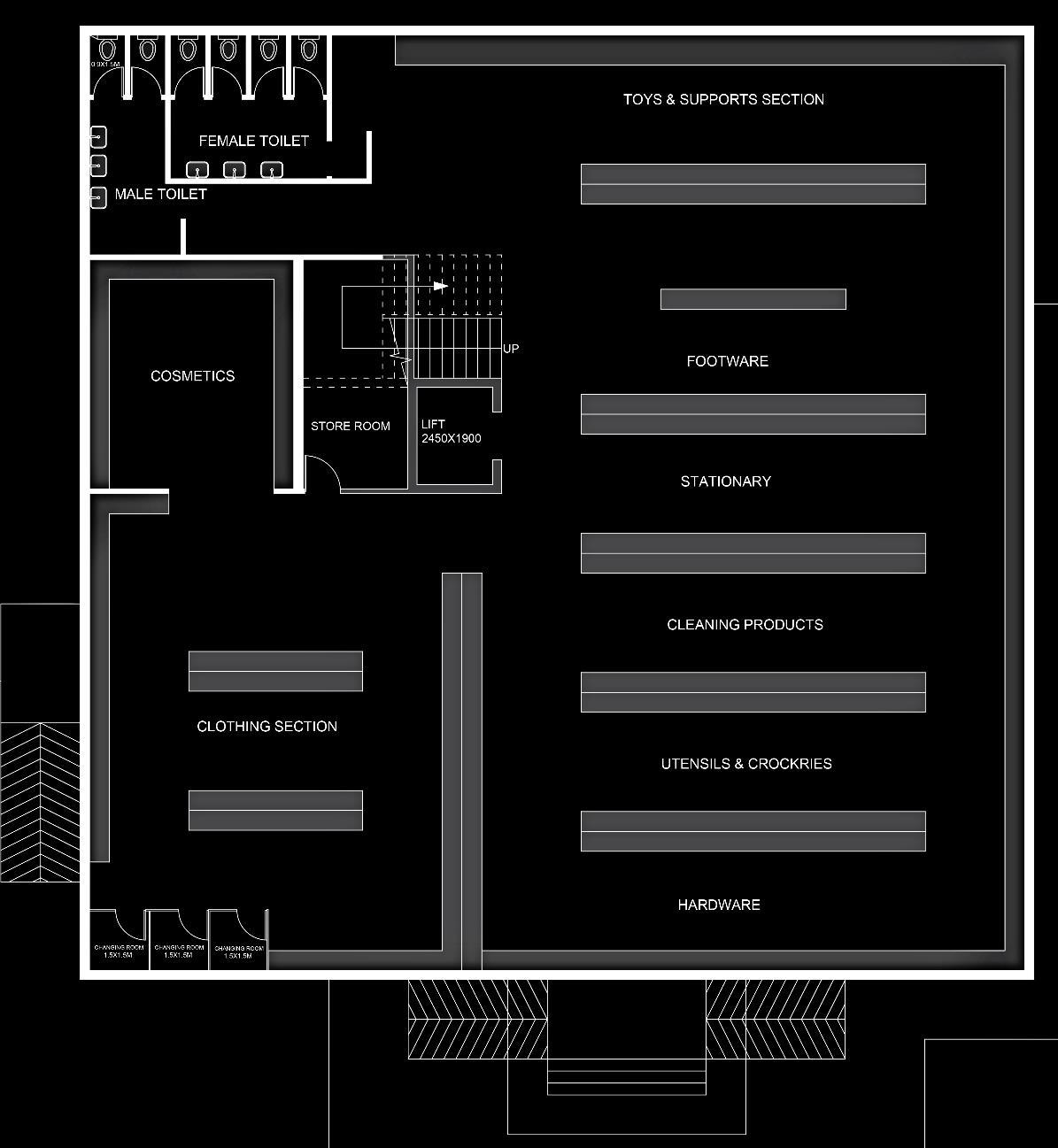

GROUND FLOOR PLAN

FIRST FLOOR PLAN

PRIMARY SCHOOL

AREA – 4685SQMT.

LOCATION – VILLAGE PADDI, LUDHIANA, PUNJAB

CONCEPT-

“At school, education is more than just a lesson-it’s a collaborative journey, where children work together like bees in a hive, building knowledge and community” creating building block inspiring from honey comb, where children are the bees and the school is the honey comb.

Form of the building is inspired from the hexagonal patterns of a honey comb.

TRIANGULAR SITE

BUILDING BLOCK

SETBACK 6M FROM EACH SIDE

PLACING HEXAGONS

CONNECTING HEXAGONGS

FINAL FORM

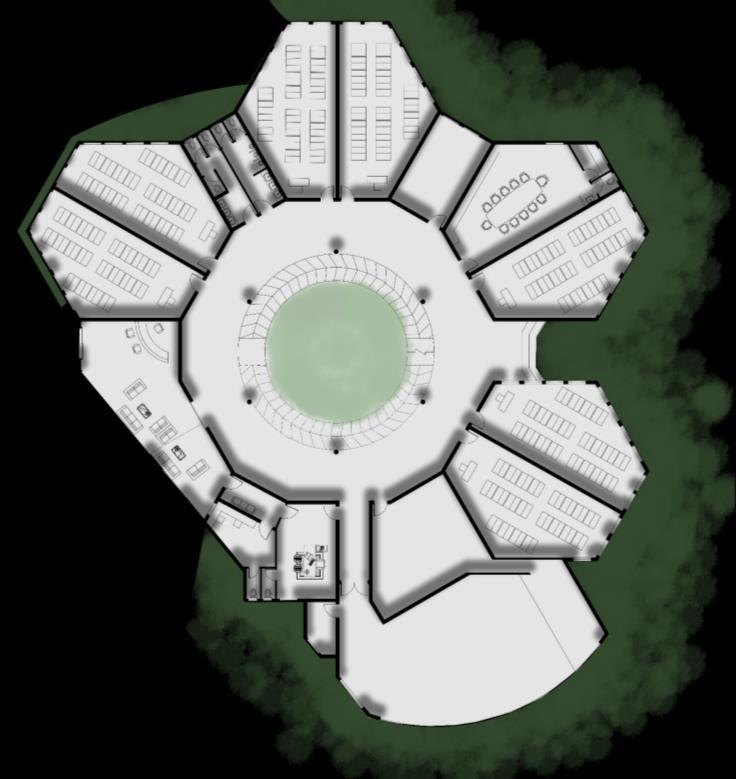

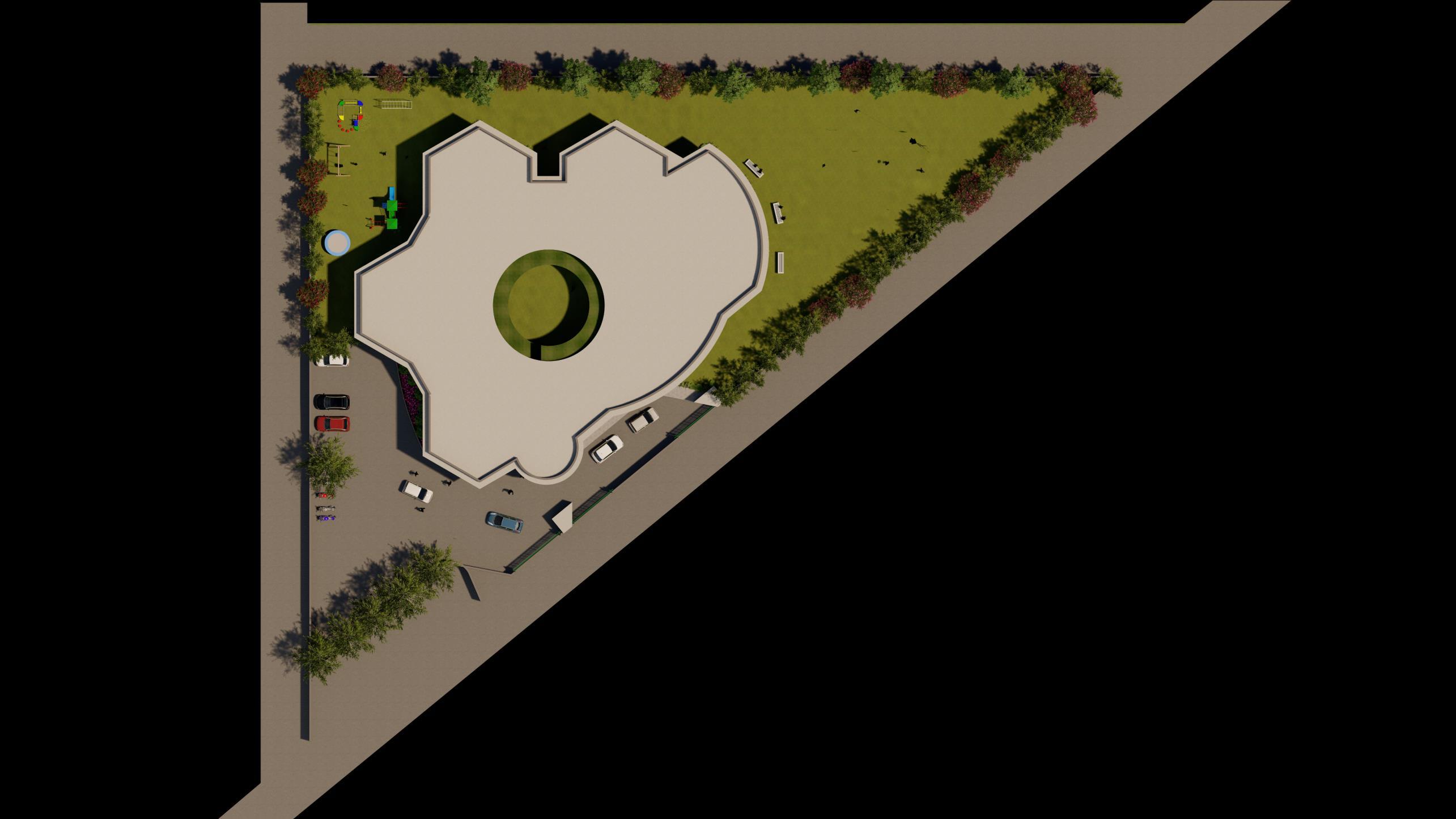

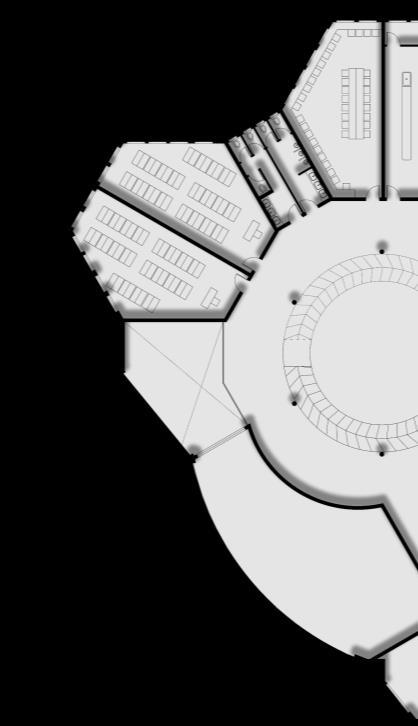

SITE PLAN 1 2 3 4 5 5 5 5 5 5 5 6 7 8 9 5 5 9 10 12 PLAYGROUND BUILDING BLOCK ENTRANCE GROUND FLOOR PLAN FIRST

PRINCIPLE OFFICE

MULTIPURPOSE HALL CLASSROOM

MUSIC & DANCE ROOM STAFF ROOM

MEDICAL ROOM

TOILETS

10 COMPUTER LAB

11 SCIENCE LAB

12 ART AND CRAFT ROOM

7 8 5 5 11 RECEPTION

WAITING ADMIN

&

AREA

AUDITORIUM

AREA – 1.9ACRES

LOCATION – MOHALI, PUNJAB

CONCEPT-

Roof of the auditorium is act as a shell it strengthen the performance as it performs a major role in acoustics. Inspired by the timeless elegance and resilience of the tortoise shell, the auditorium design embodies the harmony between nature and architecture.
