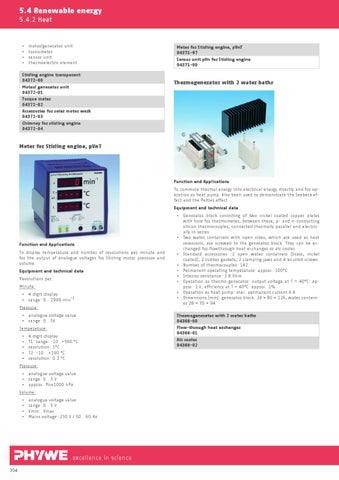

5.4 Renewable energy 5.4.2 Heat
▪ ▪ ▪ ▪
motor/generator unit torsiometer sensor unit thermoelectric element
Stirling engine transparent 04372-00 Motor/ generator unit 04372-01 Torque meter 04372-02 Accessories for solar motor work 04372-03 Chimney for stirling engine 04372-04
Meter for Stirling engine, pVnT 04371-97 Sensor unit pVn for Stirling engine 04371-00
Thermogenerator with 2 water baths
Meter for Stirling engine, pVnT
Function and Applications To commute thermal energy into electrical energy directly and for operation as heat pump. Also been used to demonstrate the Seebeck effect and the Peltier effect. Equipment and technical data ▪
▪ Function and Applications To display temperature and number of revolutions per minute and for the output of analogue voltages for Stirling motor pressure and volume. Equipment and technical data Revolutions per:
▪ ▪ ▪ ▪ ▪
Minute: ▪ ▪
4 digit display range: 0...1999 min-1
Pressure: ▪ ▪
analogue voltage value range: 0...5V
Temperature: ▪ ▪ ▪ ▪ ▪
4 digit display T1: range: -10..+500 °C resolution: 1°C T2: -10...+190 °C resolution: 0.2 °C
Pressure: ▪ ▪ ▪
analogue voltage value range: 0...5 V approx. Po±1000 hPa
Volume: ▪ ▪ ▪ ▪
analogue voltage value range: 0...5 V Vmin...Vmax Mains voltage: 230 V / 50...60 Hz
excellence in science 704
▪ ▪
Generator block consisting of two nickel coated copper plates with hole for thermometer, between these, p- and n-conducting silicon thermocouples, connected thermally parallel and electrically in series. Two water containers with open sides, which are used as heat reservoirs, are screwed to the generator block. They can be exchanged for flowthrough heat exchanger or air cooler. Standard accessories: 2 open water containers (brass, nickel coated); 2 rubber gaskets; 2 clamping jaws and 4 knurled screws. Number of thermocouples: 142. Permanent operating temperature: approx. 100°C. Interior resistance: 2.8 Ohm. Operation as thermo generator: output voltage at T = 40°C: approx. 2 V; efficiency at T = 40°C: approx. 1%. Operation as heat pump: max. permanent current 6 A. Dimensions (mm): generator block: 24 × 80 × 126, water container 28 × 70 × 94.
Thermogenerator with 2 water baths 04366-00 Flow-through heat exchanger 04366-01 Air cooler 04366-02
