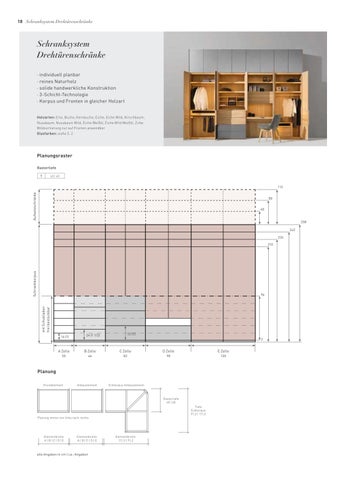

18 Schranksystem Drehtürenschränke

Schranksystem Drehtürenschränke · individuell planbar · reines Naturholz · solide handwerkliche Konstruktion · 3-Schicht-Technologie · Korpus und Fronten in gleicher Holzart Holzarten: Erle, Buche, Kernbuche, Eiche, Eiche Wild, Kirschbaum, Nussbaum, Nussbaum Wild, Eiche Weißöl, Eiche Wild Weißöl, Zirbe Wildsortierung nur auf Fronten anwendbar Glasfarben: siehe S. 2

Planungsraster Rastertiefe T

40 | 60

Aufsatzschränke

112 80 48

258 242 226

Schrankkorpus

210

mit Schubladen frei bestückbar

96

16 (1)

32 (2)

24 (1 1/2)

2

A Zelle

B Zelle

C Zelle

D Zelle

E Zelle

50

66

82

98

130

Planung Grundelement

Anbauelement

Eckkorpus Anbauelement

Rastertiefe 40 | 60 Tiefe Eckkorpus 91,2 | 111,2 Planung immer von links nach rechts

Elementbreite: A|B|C|D|E

Elementbreite: A|B|C|D|E

alle Angaben in cm | ca.-Angaben

Elementbreite: 111,2 | 91,2
